| Product type | Rugged smartphone |
| Brand | Konrow |
| Model | Stone Plus |
| Protection standard | IP68 (waterproof up to 1.5 m for 30 min, dust resistant) |
| Drop resistance | Up to 1 meter |
| Number of SIM cards | Dual SIM (2 slots) |
| Memory expansion | MicroSD card up to 32 GB |
| Battery type | Rechargeable lithium-ion |
| Included charger | Mains adapter HA-01D050050VU (5V, 500mA) with USB cable |
| First charge | 5 to 8 hours |
| Box contents | Phone, manual, screwdriver, charger, headset |
| LED flashlight | Yes, activated by long press on key 0 |
| FM radio | Yes, without need for earphones as antenna |
| Bluetooth | Yes, data transfer |
| Camera | Rear camera |
| Video recording | Yes, requires SD card |
| Audio formats | AMR, MP3, AAC, WAV |
| Pre-installed games | Yes |
| Maintenance | Clean with a soft dry or slightly damp cloth |
| Security | PIN code, keypad lock, default password 1234 |
| Recycling | Do not dispose of with household waste; follow local regulations |
| Compliance | RED 2014/53/EU, SAR below 2 W/kg |
| Warranty | Valid in mainland France, excluding abnormal use |
Frequently Asked Questions - Stone Plus Konrow
User questions about Stone Plus Konrow
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Smartphone in PDF format for free! Find your manual Stone Plus - Konrow and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Stone Plus by Konrow.
USER MANUAL Stone Plus Konrow
Simplified declaration of conformity 39
This mobile is resistant to the falls of 1 meter, tight to the dust, rain and at underwater in depth until 1.50m during 30 min. To ensure the mobile is totally waterproof, you must imperatively check that the hood of the drums is well screwed and that the socket USB & Jack cover is well closed.
Shortcuts : The Key touch allows you to switch the profile (normal, quiet, meeting, inside and outside).
When taping a message, the # key changes the language.
Konrow would like to thank you
for choosing the STONE PLUS mobile phone. In this guide you will find all the information on using this mobile phone.
WARNING: All packaging materials, such as Scotch tape, plastic sheets, strings and labels are not part of this product.
GIFTBOX CONTENT:
- 1 Mobile phone - 1 User Manual
Screwdriver
- 1 Charger with a USB cable - 1 Hands-free kit

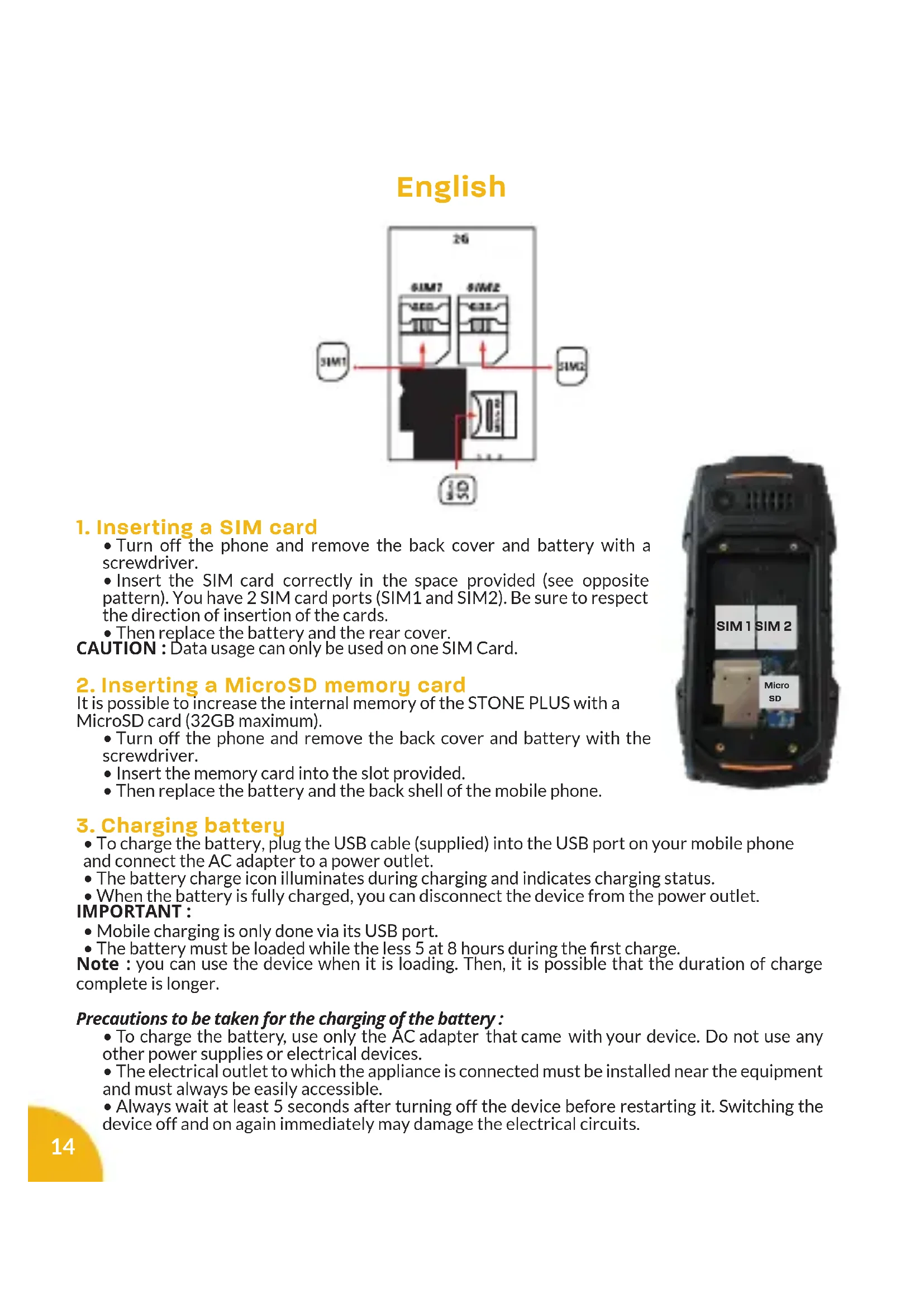

1. Inserting a SIM card
-
Turn off the phone and remove the back cover and battery with a screwdriver.
-

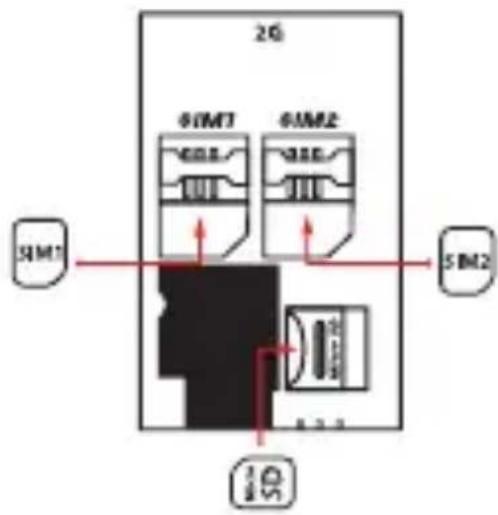

Insert the SIM card correctly in the space provided (see opposite pattern). You have 2 SIM card ports (SIM1 and SIM2). Be sure to respect the direction of insertion of the cards.
-
Then replace the battery and the rear cover.
CAUTION : Data usage can only be used on one SIM Card.

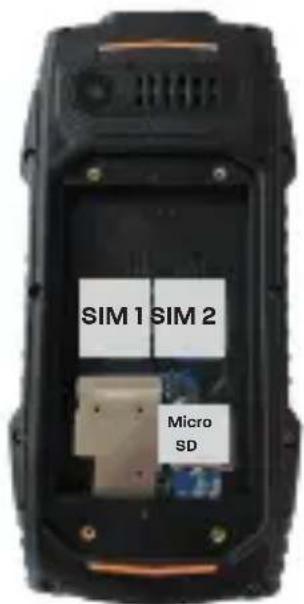

2. Inserting a MicroSD memory card
It is possible to increase the internal memory of the STONE PLUS with a MicroSD card (32GB maximum).
- Turn off the phone and remove the back cover and battery with the screwdriver.
- Insert the memory card into the slot provided.
- Then replace the battery and the back shell of the mobile phone.
3. Charging battery
- To charge the battery, plug the USB cable (supplied) into the USB port on your mobile phone and connect the AC adapter to a power outlet.
- The battery charge icon illuminates during charging and indicates charging status.
- When the battery is fully charged, you can disconnect the device from the power outlet.
IMPORTANT:
- Mobile charging is only done via its USB port.
The battery must be loaded while the less 5 at 8 hours during the first charge.
Note : you can use the device when it is loading. Then, it is possible that the duration of charge complete is longer.
Precautions to be taken for the charging of the battery:
- To charge the battery, use only the AC adapter that came with your device. Do not use any other power supplies or electrical devices.
- The electrical outlet to which the appliance is connected must be installed near the equipment and must always be easily accessible.
-
Always wait at least 5 seconds after turning off the device before restarting it. Switching the device off and on again immediately may damage the electrical circuits.
-
Do not disassemble the battery. Do not throw the battery into fire or water. Do not charge the battery if the ambient temperature exceeds 45^ .
-
For repair or replacement of the battery, contact a qualified technician.
-
Battery life depends largely on how you use it. Do not expose the battery to temperatures below 0^ or above 50^ . Its operation could be altered.
-
Significant electromagnetic interference or electrostatic discharge can cause malfunction or loss of data. If the unit does not work properly, reset the phone or unplug the AC adapter from the electrical outlet, and then reconnect it.
4. Turn on/off your phoneTurn on/off your phone
- To switch on the phone, press and hold the On/Off button on the mobile keypad for 3 seconds.
- If the phone is on, briefly press the Power button to put it into standby mode.
- To turn off the phone, press and hold the On/Off button for 3 seconds.
5.Lock/Unlock SIM cards
Your STONE PLUS is a dual SIM mobile, it allows you to call with two subscriptions on the same device. There are two slots for two SIM cards. When you start your mobile, it will prompt you to enter the PIN code of your two SIM cards successively. (SIM1 then SIM 2).

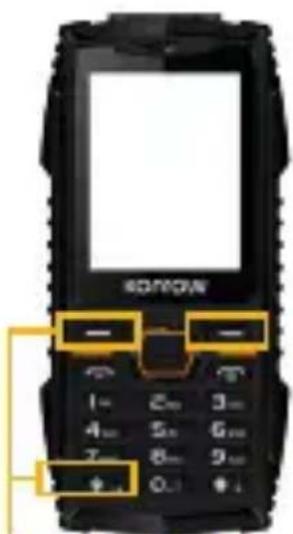

6.Lock/Unlock Keyboard
To unlock the keyboard :
- Press the Unlock button at the top left and press the * touch (star).
To lock your keyboard :
- Press the * touch (star) then on the Lock button at the top right.
CAUTION : Forgotten or lost password or PIN code permanently blocks your mobile phone. In case of forgetting or loss, the product warranty will not take effect for such negligence. Indeed, even a reset cannot solve this problem. As a precaution, write down your password.
Password :

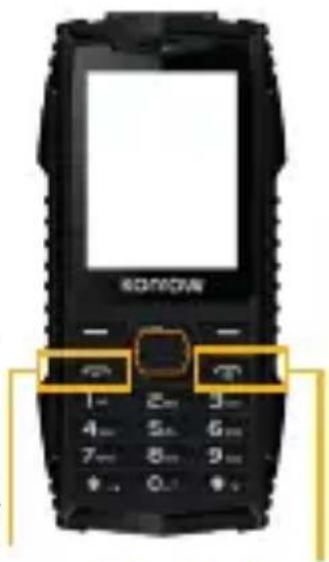

7.Make and receive calls
CAUTION : It is impossible to send or receive a call on both SIM cards at the same time. Example: if you are communicating on the SIM1 line, correspondents trying to reach you on the SIM2 card will automatically be sent to the answering machine.
Make calls:
- Dial the number of your choice then press the key.
- Choose SIM card 1 or 2 the press ok to call.
- When the call is launched, press the arrows to adjust the volume of the call.
- When you want to end up the call, press the key.
Receive a call:
- When receiving a call, press the key.
- When you want to end up a call, press the key.
Lock/Unlock Buttons
General Settings
Contacts
You can add or modify contacts here.
Multimedia
1. DV
This function allows you to record dynamic images. In the capture interface, press the main button to capture the video clip. An SD card is required for storing your videos.
2. Audio
You can use this function to play audio files. By pressing the direction button, you can control the playback process of the audio player: play/ pause (Menu button), previous/next song (left and right buttons),
fast forward (press and hold the right button) and rewind (press andReceive a call On Hook key hold the left button).
3. Video
You can use this function to play video files. By pressing the arrow keys, you can control the playback process of the audio player: play/pause (menu key), previous/next video (direction key up or down).
4. Image
You can see all the photos stored in the memory card. Press the arrow keys to choose them and use the left key to edit the images. Press the right key to return to the previous interface.
5. FM Radio
You can use the app as a traditional FM radio with the recorded auto search channels. You don't have to use your headphones as an antenna. In the FM radio interface, use the left or right arrow key to search channels manually, press 5 to play/pause the playback process of the current channel.
6. Recorder
The phone supports AMR, MP3, AAC and WAV formats.
Call logs
Access to your call history.
Settings 1. Call Settings
You can to reject and block a phone number, once it has been seized in the black listing of the blocked numbers. You can also activate or deactivate the recall automatic.
2. Phone Settings
- Date and Hour : Set the time, set the date, set the date format, the time format, and update the time settings.
- Language settings: Select the display language for the mobile phone.
- Shortcut settings: Select your preferred function as a shortcut on the arrow key, depending on your needs.
- Auto On/Off: Set the "on" time and/or auto "off" of the phone.
Supply management : Allows display the level of your drums. - Factory reset settings: You can cancel the settings you have set. The original code is 1234.
Receive a call On Hook key
3. Display
Allows you to change the wallpaper, screensaver, contrast, backlight and its duration.
4. Security
This function allows you to change the mobile lock settings.
5. Connections
Permits de configurer les APN.
Message
You can create a text or media message, access to the inbox, send drafts, sent messages, secure inbox and you can also create predefined messages in this interface. Access to the voicemail server is also done here. An SD card is required for receiving MMS (photos / videos). You can also change the input method by pressing the # key when entering an SMS.
Profiles
This function allows you to switch your mobile into different modes: normal, silent, meeting, inside, outside or headphones.
Games
This menu allows you to access to pre-installed games.
Camera
The phone has a camera that supports photography functions. In the capture interface, frame the phone to aim with the camera and press the main button to take pictures. The photos will be saved in the phone's file system or in the memory card. However, an SD card is required for storing your photos.
Tools
1. Calendar
Once you access to this menu, there is a monthly calendar that will allow you to keep track of important appointments, and so on. Days with an event will be marked.
2.Alarm
You can set three alarms with this function.
3.World Clock
You can set your time zone.
4. Calculator
The calculator can add, subtract, multiply and divide.
5. Torch Light
The phone includes a torch LED which can be activated by pressing (about 3 seconds) the O touch. Press once to turn it on, a second time to make flash and a third time to stop it.
6. Internet
You can access to Internet and to your browsing history.
7. My Files
The phone supports a memory card, the capacity of this card should be a maximum size of 32GB. You can use the file manager to manage the different directories and files on the memory card. Select this option to enter the root directory of the memory.
The root directory can list the default folders, new folders, and user files. When the phone is turned on for the first time or when you have not changed the directory, the root directory contains the default folders only
8. Bluetooth
You can activate or deactivate the Bluetooth, When the Bluetooth is activated, the × icon appears on your screen.
You can transfer data, such as musics, at all other peripheral thanks to Bluetooth. Search the device and receive/send data. The data received are automatically recorded in the folders.
Note : In order to limit your exposure to electromagnetic fields, we recommend you to deactivate the Bluetooth when you are not using it.
Spanish
Safety and care information
Read these instructions carefully.
Charging the battery
Always wait at least 5 seconds after switching off the device before restarting it. Switching the device off and then back on again immediately may damage the electrical circuits.
Do not disassemble the battery. Do not dispose of batteries in fire or water. Do not charge the battery if the room temperature is below 0^ or exceeds 45^ . For all repairs or to replace the battery, consult a qualified technician. The lifetime of the battery depends largely on how you use it. To recharge the battery, only use the mains adaptor supplied with your device. Do not use any other power supply or electrical device.
The power socket to which the device is connected must be near the equipment and must always be easily accessible. The power cord must be placed so that it will not be stepped on or crushed particularly at the outlet, where it is plugged in or where it is connected to the device.
Do not overload the power socket. Use the power supply only as indicated. Disconnect this device during electrical storms or when not in use for an extended period. Do not touch the power cord with wet hands and do not pull on the charger to disconnect it.
This charger is for indoor use only.
Only use adapter as per below:
Manufacturer name: Konrow
Manufacturer address : 150 Avenue des Chartreux, 13004 Marseille FRANCE
Model Name: HA-01D050050VU
Rated Input: AC 100-240V~50/60Hz
Rated Output: 5V = 500mA
Hearing
Prolonged use of this music player at full power may damage the user's hearing. In order to prevent these risks it is recommended not to listen at high volume levels for long periods.
While driving
In France, in accordance with Article R412-5-1 of the French Highway Code, drivers are not permitted to use hand-held phones nor the use of a device or a hands-free kit capable of distracting the attention whilst the vehicle is moving. The penalty for non-compliance with this article is a fine and point penalty on your driving licence.
NOTE: this legislation applies only in France. During trips abroad, please refer to the legislation in place in the country you are/go.
According to each environment
Do not use your device in certain locations such as aircraft, hospitals, service stations and professional garages or while driving a vehicle. The electromagnetic waves from the device can disrupt the performance of electronic devices used in these locations.
We recommend that you switch off your device or switch it to flight mode in these locations to avoid interference.
If you use an electronic implant (pacemakers, insulin pumps, neurostimulators, etc), please keep a distance of 15cm between the device and your electronic implant.
Do not expose the device to direct sunlight or other source of extreme heat or cold. Operating temperature: -10°C and 40°C.
Risk of fire or electric shock
Do not expose this device to rain or moisture. Do not expose the product to water droplets or to splashes and do not place any object filled with liquid, such as a vase, on the device. Do not use the product near flammable or explosive materials.
Device to handle with care
Do not exert excessive pressure on the screen and do not put objects on it. This could damage the screen. Do not drop the device. Do not expose the device to shocks, friction or impact.
Operating guidelines
Maintaining the device
Keep the device away from all metal objects (coins, keys, etc). Clean only with a soft cloth (dry or slightly damp).
Do not attempt to disassemble the device; it would no longer be covered by the warranty. Use only the spare parts/accessories specified by the manufacturer. Refer to a qualified person for any repairs. After any service or repair carried out on this product, ask the technician to perform a safety check.
Prevent data loss
Significant electromagnetic interference or electrostatic discharge may cause malfunction or loss of data. If the device is not working properly, restart the device or unplug the mains adaptor from the power socket then plug it in again. In order to prevent data loss, remember to make a (computer or paper) back-up of information saved on the device.
Recycling
The symbol shown here and on the product means that the product is classed as Electrical or Electronic Equipment and should not be disposed with other household or commercial waste at the end of its working life.
The Waste Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill.
Product disposal instructions for residential users:
If you no longer use the device, remove and dispose of the battery, as well as the device, in compliance with the local recycling procedures. For more information please contact your local authority or the retailer where the product was purchased.
Product disposal instructions for business users:
Business users should contact their suppliers and check the terms and conditions of the purchase contract and ensure that this product is not mixed with other commercial waste for disposal.
Specific Absorption Rate "SAR" - Exposure to radio frequency
Your device is designed and produced to comply with European authorities for exposure to radiofrequencies.
The SAR (Specific Absorption Rate) of devices quantifies the maximum level of exposure of the user to electromagnetic waves for normal use at the ear and use close to the body. European legislation stipulates that the SAR must not exceed 2W/kg averaged over 10g of tissue.
The value of the SAR is determined on the basis of the highest level of radio frequencies emitted during laboratory tests.
The actual value of the SAR during use of the device is lower than this level.
The value of the SAR of the device can vary according to the following factors: how far/close the device is to a relay antenna, use of accessories and others.
NOTE: The SAR value may vary, depending on national reporting and testing requirements and the network band.
Advice to reduce the level of exposure to radiation:
Please use your device where reception is good to reduce the quantity of radiation received (avoid using in an underground car park or when travelling (train or car)).
A reception icon indicates the quality of reception on your device. A 4-bar display means that reception is good.
Use of a hands-free kit also allows the level of exposure to be reduced.
When using a hands-free kit, pregnant women should keep the device away from their abdomen and teenagers should keep the device away from their lower abdomen.
If you have any problem :
Please contact the after-sales service on the contact page of our website: www.konrow.com
Made in China
2019 Konrow.
If unresolved problem, contact your retailer.
The Konrow supplier warranty is valid for normal use of the device as defined in the instructions. This warranty excludes damage caused by external circumstances.
Specifically, the warranty does not apply if the device is damaged as a result of a bump or drop, an operating error, a connection that does not comply with these instructions, lightning, a surge, or inadequate protection against heat, humidity or freezing temperatures.
The warranty is applicable only in metropolitan France.
The warranty does not cover:
- User manuals or applications, settings, content or data of any kind.
- Normal usury of the product (screens, batteries and camera).
- Damage to the product due to misuse, including in particular those caused by objects, a pressure drop.
- Any use of the label with the precautions outlined in the manual.
- Defects caused to the product with another product connected or used with an accessory or software not provided by Konrow.
- Any damage to the battery.
The product or its accessories if it has been disassembled or modified in any way. - Any unidentifiable product by serial number or IMEI number(s). If its elements have been removed, altered or defaced, the warranty does not apply.
- Damage done to the product caused by exposure to moisture, conditions that extreme heat or cold, corrosion, oxidation, with any liquid whatsoever
- Any damage to SIM player(s) or SIM MicroSD reader.
- The legal warranty for hidden defects applies in compliance with Articles 1541 et seq. of the French Civil Code.
kongrow
10, D-32825 Blomberg, Germany.
Telephone: +49(0)5235-9500-24
Fax: +49(0)5235-9500-28
CE
01/07/2019 Maurice Haddad / CEO
Simplified declaration of conformity
We, Konrow - 150 Avenue des Chartreux - 13004 Marseille - FRANCE,
hereby declare that the Smartphone STONE PLUS complies with the essential requirements of the RED Directive 2014/53/UE :
The Full declaration of conformity is available in the following link :
http://www.konrow.com/download/Declaration_de_conformite/Stone-plus/Declaration_of_conformity_full.pdf
The complete informations about the device can be found in the different sections below:
| Battery and manufacturer informations | On the back of the device (integrated battery location) |
| Device serial number | On the back of the device (integrated battery location) |
| IMEI | On the back of the device (integrated battery location) |
The procedure of Declaration of conformity RED was conducted under the supervision of the following organisation:
PHOENIX TESTLAB Konigswinkel
10, D-32825 Blomberg, Germany.
Telephone: +49(0)5235-9500-24
Fax: +49(0)5235-9500-28
01/07/2019 Maurice Haddad / CEO
Date (Name and signature of the duly authorised person)
French regulation require that the SAR does not exceed the maximum value of 2W / kg on 10g of tissue. The device complies with radio frequency regulations when the device is used at the ear and at a distance of 5mm from the body.
14/05/2019
