| Product type | Smartphone |
| Brand | Konrow |
| Model | Big Cool |
| Dual SIM | Yes (1 MicroSIM slot, 1 standard SIM slot) |
| Memory card slot | MicroSD up to 32 GB |
| Front camera | Yes |
| Rear camera with flash | Yes |
| Bluetooth connectivity | Yes |
| Wi-Fi connectivity | Yes |
| 3.5 mm jack | Yes |
| Charging port | Micro USB |
| Power supply | Mains adapter included, charges via USB |
| Battery | Rechargeable lithium-ion |
| First charge | 5 to 8 hours |
| Operating system | Android (version not specified) |
| Screen lock | Password, PIN code or pattern |
| Emergency call function | Available without PIN code |
| Factory reset | Yes (erases all data) |
| SAR (head) | 0.369 W/kg |
| Box contents | Smartphone, mains adapter, USB cable, user manual |
| Maintenance | Soft slightly damp cloth, no chemicals |
| Operating conditions | 0°C to 40°C |
| Warranty | Mainland France, normal wear not covered |
Frequently Asked Questions - Big Cool Konrow
User questions about Big Cool Konrow
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Smartphone in PDF format for free! Find your manual Big Cool - Konrow and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Big Cool by Konrow.
USER MANUAL Big Cool Konrow
KONROW
Kanungstörung Wörks
Guide d'utilisation
DAS (Corps) = 0.356 W/Kg
User guide
Konrow thanks you
for purchasing BIGCOOL Smartphone. You will find all the informations regarding the use of this cellphone in this guide.
Giftbox content:
• 1 Smartphone
• T mains adaptor
- USB cable
- 1 uses guide
- 1 hands free kit
NOTE: The packaging materials, such as the adhesive tape, plastic film, string and labels, are not part of this product.
WARNING: For your safety, please do not remove the screen's protective film, located under the antistatic film (with tab). It protects your screen against slight scratches and provides optimum protection if the phone is dropped.
Konrow accepts no responsibility for personal injury sustained following removal of the protective film by the consumer. Note that this protective film does not increase the robustness of the product. For replacement of the protective film, please consult a specialist Smartphone dealer.
1. Description of the Smartphone.
1 - Front camera
2 - Rear camera & flash
3 - Volume
4-ON/OFF button
5 - lack
6 - Micro USB port
7 - Speakers
The BIGCOOL Smartphone is a mobile phone with dual SIM card, which enables you to use two lines on the same Smartphone. Your BIGCOOL has two SIM ports for standard SIM (SIM1 and SIM2). To insert the SIM card(s):
- Switch off the phone and remove the rear cover.
- Insert the SIM card correctly into the relevant card slot (
• Then replace the battery and cover.
CAUTION: The 3G function can only be used on one SIM card.
3. Inserting a MicroSD
It is possible to increase the internal memory of the BIGCOOL
device with a MicroSD card. [Maximum 32GB MicroSD card]. Switch off the phone and remove the rear cover.
- Insert the memory card into the relevant slot.
- Then attach the rear cover.
CAUTION: Inserting or removing a SIM card or a MicroSD card
requires the Smartphone to be completely switched off.
4. Charging the battery
Charging the battery:
• To charge the battery, connect the USB cable (supplied) to the USB port of your Smartphone and the other end to the mains adaptor (supplied). Then connect the mains adaptor to a power outlet.
• The battery charge icon illuminates during charging and indicates the charge status.
- When the battery is fully charged, you can disconnect the USB cable from the device then from the power outlet.
IMPORTANT:
- The Smartphone is only recharged via its USB port. - Ensure your Smartphone is fully discharged before charging it for the first time. - The battery must be charged for at least 5 to 8 hours when first charged.
Note: You can use the device when it is being charged. In this case, the battery may take longer to charge fully
Safety information for charging the battery:
• To recharge the battery, only use the mains adaptor supplied with your device. Do not use any other power supply or electrical device. The power outlets to which the device is connected must be near the equipment and must always be easily accessible.
- Always wait at least 5 seconds after switching off the device before restarting it. Switching the device off and then back on again immediately may dispare the electrical circuit.
- Do not disassemble the battery. Do not dispose of batteries in fire or water. Do not charge the battery if the room temperature exceeds 45°C.
- For all repairs or to replace the battery, consult a qualified technician.
- The lifetime of the battery depends largely on how you use it. Do not expose the battery to temperatures less than 0°C or greater than 60°C, its performance may be altered.
- Significant electromagnetic interference or electrostatic discharge may cause malfunction or loss of data. If the device is not working properly, restart the Smartphone or unplug the mains adaptor from the power outlet then plug it in again.
5. Switching the Smartphone on and off
To switch the Smartphone on, press the On/Off button located on the side of the Smartphone for 3 seconds.
If the Smartphone is switched on, press for less than a second on the button to put the device into standby mode. Press it again to leave standby mode.
To switch off the Smartphone, press the On/Off button for 3 seconds until a menu appears, then touch the Off button and confirm.
6. Locking/unlocking SIM cards
Your BIGCOOL is a dual SIM Smartphone. It enables you to phone using two lines from the same device. There are two SIM card slots.
- When you start up your phone, the latter invites you to enter the PIN codes of your two SIM cards in succession. (SIM1 then SIM 2)
• The «emergency calls» function enables you to call an emergency number without entering the PIN code.
7. Locking/unlocking the screen
To unlock the screen:
- Press the power key on your phone.
- Hold and drag the unlock icon to the top to unlock the device.
You can configure the screen lock by adding a password or pattern to be replicated when unlocking your Smartphone.
CAUTION: Forgetting your screen lock password, PIN code or pattern permanently blocks your Smartphone
If this is forgotten or lost, the product warranty will not cover such an oversight. Even a "reset" cannot solve the problem. As a precaution, take a note of your password or pattern. PASSWORD:
8. Making a call
NOTE: It is impossible to make or receive a call on the two SIM
cards at the same time. For example, if you are on a call on the SIM 1 line, those trying to contact you on SIM 2 will automatically be diverted to voicemail.
- Theorem 4.10. (implied by
10. Activate/Deactivate the Bluetooth connection
Note: To limit your exposure to EMF we recommend you to deactivate Bluetooth when it is not any more used.
You can activate Bluetooth by the shortcuts of basic regulation of the notification bar or in the parameters of the Smartphone.
- Click on the activation button and scroll to the right. - When the Bluetooth is activated you will see the icon on the notification bar.
Bluetooth deactivated
Bluetooth activated
11. Activate/Deactivate the Wi-Fi connection
Note: To limit your exposure to EMF we recommend you to deactivate Wi-Fi when it is not any more used.
You can activate WI Hi by the shortcuts of basic regulation of the notification bar or in the parameters of the Smartphone.
- Click on the activation button and scroll to the right. - When the Wi-Fi is activated you will see the icon on the notification bar.
Wi-Fi deactivated
Wi-Fi activated
NOTE: Most Wi-Fi networks are locked with a password (WEP or WPA2 PSK key). To connect to a locked Wi-Fi network, click on it and enter the password for your network in the dialogue box which is displayed on the screen.
The WEP or WPA2 PSK key for a Wi-Fi network is generally noted on a label located on the back of your internet modem.
Note: Restart your Smartphone if necessary.
12. Download an application 13. Reset
Your BIGCOOL Smartphone is supplied with the Google™ on-line store enabling you to download applications such as utilities and games.
To access these to the store, go to the application page using the button located on the home page and tap the Play Store icon.
Note: The availability of access to Google Play™ Store depends on your phone operator and the country in which you are located. Access to the on-line store requires an account to be created.
NOTE: Konrow shall under no conditions be responsible for the content on the on-line store. The product warranty will not cover any malfunction due to an application from on-line stores.
If you want to reset your smartphone, you can do a reset of data from the operating system Android ^™ .
CAUTION: A reset data erase all your personal data, all contacts in your phone and the applications you have installed. That is why we recommend that you make a backup of your data before starting the procedure. However the information stored on the external memory card will not be erased.

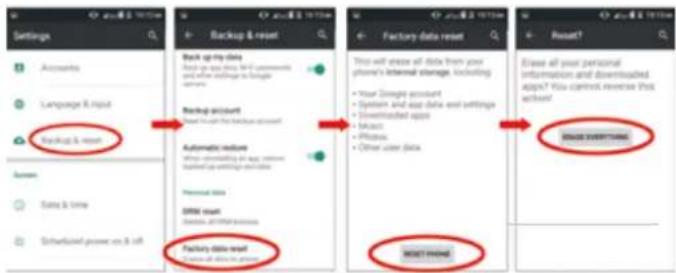

To do a reset of the data:
- In Settings, click "Factory data reset" and "Factory data reset".
- Click "Reset phone" and confirm "Erase everything".
The smartphone will turn off and on rebooting the system will reset.
NOTE: If you have any problem with your device, please try to reset the system before sending it back.
- Before using the pedestrian kit, check that the volume is not set to maximum to prevent hearing loss.
- The high volume settings are intended for individuals with reduced hearing capacity and not for those with normal hearing.
- Do not use the pedestrian kit while driving.
- Adjust the volume so that you can hear the sounds around you.
• To prevent possible hearing damage, do not listen at high volume levels for long periods.
- Listening to a portable audio player at high volumes can damage your hearing and
- lead to hearing impairment (deafness, ringing ears, tinnitus and hyperacusis).
- In order to prevent these risks it is recommended not to use the device at full volume; use must not exceed one hour per day.
- Do not use pre-amplified or amplified models of headphones or pedestrian kit (i.e. with Individual volume control and/or self-powered by batteries), as they do not ensure adherence to the maximum volume.
This product complies with the EN 60950-1:2006/A12:2011 standard «Information technology equipment - Safety - Part 1: General requirements» In accordance with the order of 25 July 2013 Implementing Article L. 5232-1 of the French public health code concerning portable audio players.
Electromagnetic waves safety information (SAR)
Your BIGCOOL Smartphone is designed to not exceed the radio wave limits recommended by the European authorities. These limits include safety margins to ensure the protection of all persons regardless of their age or health.
The SAR (specific absorption rate) of mobile phones quantifies the maximum level of exposure of the user to electromagnetic
waves, for aural use. French legislation stipulates that the 5AR must not exceed 2 W/kg averaged over 10g of tissue.
The value of the SAR is determined on the basis of the highest level of radio frequencies emitted during laboratory tests. The actual value of the SAR during use of the phone is lower than this level.
The value of the SAR of the phone can vary according to the following factors: how far/close the phone is to a relay antenna, use of accessories and others.
The maximum SAR level of your BIGCOOL Smartphone is given in the following table:
| Position Connectivity SAR value | ||
| Head E20M/30N/10C/180D | NCIDMA2100 | 0.295 A2/kg |
| Parity TGF/M/30N/10C/180D | NCIDMA2100 | 0.795 A2/kg |
NOTE: The SAR value may vary, depending on national reporting and testing requirements and the network band.
NOTE
- Do not use your Smartphone in certain locations such as aircraft, hospitals, service stations and professional garages or while driving a vehicle. The electromagnetic waves from the Smartphone can disrupt the performance of electronic devices used in these locations.
• We recommend that you switch off your phone or switch it to flight mode in these locations to avoid interference.
- If you use an electronic Implant (pacemakers, Insulin pumps, neurostimulators, etc.), please keep a distance of 15cm between the Smartphone and your electronic Implant.
- When using a hands-free kit, pregnant women should keep the phone away from their abdomen and teenagers should keep the phone away from their lower abdomen.
Advice to reduce the level of exposure to radiation:
- Please use your Smartphone where reception is good to reduce the quantity of radiation received (avoid using in an underground car park or when travelling (train or car)). - A reception icon indicates the quality of reception on your phone. A 4-bar display means that reception is good.
- Use of a hands-free kit also allows the level of exposure to be reduced.
Safety and care information
- Read these instructions carefully.
- Keep these instructions.
• Follow all these instructions.
- Heed the warnings.
- Clean only with a soft cloth (dry or slightly flatup).
• Do not attempt to disassemble the devices: It would no longer be
covered by the warranty
- Do not bring sharp objects directly into contact with the surface
and do not spray any cleaning product directly onto the screen.
- Do not exert excessive pressure on the screen and do not put
objects on it. This could damage the screen.
- Use the spare parts specified by the manufacturer
• After any service or repair carried out on this product, ask the
technician to perform a safety check.
- Use only the spare parts/accessories specified by the manufacturer.
• Refer to a qualified person for any repairs. Repair is required if the
device is damaged in some manner or other, if the power cord or
plug is damaged, if liquid has been spilled or objects have fallen on
the device, or if the device has been exposed to rain or moisture,
or has been dropped.
- Do not expose the device to direct sunlight or other source of
extreme heel or cold
- Respect the privacy of others when using your Smartphone.
- Keep the device away from all metal objects (coins, keys, etc.
- Do not leave near a magnetic field as this could cause data to be
lost or could damage the device.
- Do not drop the device.
- Do not expose the device to shocks, friction or impact.
• In order to prevent data loss, remember to make a (computer or
paper] back-up of information saved on the device
• To prevent interference, do not use the device near other
electronic devices, a pacemaker or medical equipment.
- Operating temperature: 0°C and 40°C
NOTE: In order to reduce any risk of fire or electric shock :
- Do not expose this device to rain or moisture.
- Do not expose the product to water droplets or to splashes and do
not place any object filled with liquid, such as a vase, on the device.
- Do not use the product near flammable or explosive materials.
• The power plug is used to disconnect the device and must always
be easily accessible.
- In order to completely disconnect the device from the electricity
supply, the power plug must be disconnected from the power outlet.
- Do not attempt to override the salary features of the polarised
plug or the earth connection. A polarised plug has two pins, one of
which is wider than the other. A plug with an earth connection has
two flar pins and a third round pin for the earth connection. Th
widest pin and the third pin constitute the important safety features
designed to protect you. If you cannot manage to fully insert the plug
into the wall outlet, contact your electrician to replace the obsolete
wall socket.
- Disconnect this device during electrical storms or when not in use
for an extended period.
- Switch off the device in places presenting risk of explosion and
when travelling by plane.
- Do not touch the power cord with wet hands and do not pull on the
charger to disconnect it.
- The power cord must be placed so that it will not be stepped on or
crushed particularly at the outlet, where it is plugged in or where it
is connected to the device.
- Do not overload the power outlet. Use the power supply only
as indicated. Do not install this device near heat sources such as
electric hobs, cookers or others (including amplifiers).
Warning on using the phone while driving
In France, in accordance with Article R412-6-1 of the French highway code, drivers are not permitted to use hand-held phones whilst the vehicle is moving.
The penalty for non-compliance with this article is a fine and point penalty on your driving licence.
The use of a hands-free kit is permitted. However, Article R412-6 of the French highway code provides for a fine without licence penalty points if the driver is not in a position to carry out required manoeuvres comfortably and without delay when using his hands-free kit whilst driving.
NOTE: this legislation applies only in France. During trips abroad, please refer to the legislation in place in your country of origin before travelling.
Epilepsy warning
Please read before using a video game or allowing your children to use one.
Some people are susceptible to epileptic seizures or loss of consciousness when exposed to certain flashing lights or light patterns in everyday life. Such people may have a seizure while
watching television Images or playing certain video games. This may happen even if the person has no medical history of epilepsy or has never had any epileptic seizures. If you or anyone in your family has ever had symptoms related to epilepsy (seizures or loss of consciousness) when exposed to flashing lights, consult your doctor prior to playing. We advise that parents should monitor the use of video games by their children. If you or your child has the following symptoms while playing a video game, discontinue use IMMEDIATELY and consult your doctor; dizziness, blurred vision, eye or muscle twitches, loss of consciousness, disorientation, any involuntary movement or convulsion.
Precautions to take during use of any video game:
- Do not sit too close to the screen. Sit a good distance away from the television screen, as far away as the length of the cable allows.
- Preferably play the game on a small television screen. Avoid playing if you are tired or have not had much sleep.
• Make sure that the room in which you are playing is well lit.
- Rest for ten to fifteen minutes per hour while playing a video game.
Android, Google, Google Play and other marks are trademarks of Google Inc.
Adobe Flash Player Copyright(C) 1996-2011 Adobe Systems Incorporated. All rights reserved. Adobe and Flash are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (*AVC VIDEO*) AND/OR
(ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE http://mpegla.com.
Facebook, the Facebook logo, and the F logo are trademarks or registered trademarks of Facebook, Inc.
Foursquare is the registered trademark of Foursquare Labs, Inc. This software is partially based on the work of the independent JPEG Group.
The MPEG Layer-3 audio encoding technology and patents are licensed by Fraunhofer IIS and Thomson.
THIS PRODUCT IS LICENSED UNDER THE MPEG4 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO
(i) ENCODE VIDEO IN COMPLIANCE WITH THE MPEG4 STANDARD ("MPEG4 VIDEO") AND/O R
(II) DECODE MPEG4 VIDEOS THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE MPEG4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER
USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE http://mpegla.com.
SD, SDHC, microSD and the microSDHC logos are trademarks of SD-3C, LLC.
The Twitter name, logo, Twitter T, Tweet, and Twitter bird are trademarks of Twitter, Inc. in the United States and other countries.
THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO
(I) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD ("VC-1 VIDEO") AND/OR
(II) DECODE VC-1 VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1 VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.
WI-FI, the WI-FI CERTIFIED logo, WPA, WPA2 and WI-FI Protected Setup are trademarks or registered trademarks of WI-FI Alliance.
Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
All other names of systems, products and services are trademarks or registered trademarks of their respective owners. The symbols (ITM) or (R) are not used in this guide.
Recycling
The symbol shown here and on the product means that the product is classed as Electrical or Electronic Equipment and should not be disposed with other household or commercial waste at the end of its working life.
The Waste Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been out
in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill.
Product disposal instructions for residential users:
If you no longer use the device, remove and dispose of the battery, as well as the device, in compliance with the local recycling procedures. For more information please contact your local authority or the retailer where the product was purchased.
Product disposal instructions for business users:
Business users should contact their suppliers and check the terms and conditions of the purchase contract and ensure that this product is not mixed with other commercial waste for disposal.
If you encounter any problems:
Please contact the after sales service on the contact page of our website: www.konrow.com
Made in PRC
2015 Konrow
If unresolved problem, contact your retailer.
The Konrow supplier warranty is valid for normal use of the device as defined in the instructions. This warranty excludes damage caused by external circumstances.
Specifically, the warranty does not apply if the device is damaged as a result of a bump or drop, an operating error, a connection that does not comply with these instructions, lightning, a surge, or inadequate protection against heat, humidity, or freezing temperatures.
The warranty is applicable only in metropolitan France.
- The warranty does not cover user manuals or applications, settings, content or data of any kind.
- The warranty does not cover normal usage of the product. (Screens, batteries and camera)
- The warranty does not cover damage to the product due to misuse, including in particular those caused by objects, a pressure drop.
- The warranty does not cover any use of the label with the precautions outlined in the manual.
- The warranty does not cover defects caused to the product with another product connected or used with an accessory or software not provided by Konrow.
- The warranty does not cover any damage to the battery. - The warranty does not cover the product or its
accessories If it has been disassembled or modified in ARN WAY.
- The warranty does not cover any unidentifiable product by serial number or (s) number (s) IMEL. If its elements have been removed, altered or defaced, the warranty does not apply.
• The warranty does not cover damage done to the product caused by exposure to moisture, conditions that extreme heat or cold, corrosion, oxidation, with any liquid whatsoever
- The warranty does not cover any damage to (s) player (s) or SIM MicroSD reader.
• The legal warranty for hidden defects applies in compliance with Articles 1641 et seq. of the French Civil Code.
Declaration of conformity
KONROW
Konnewestel World
We, Konrow - 27 boulevard d'Arras - 13004 Marseille - FRANCE.
declare that the Konrow BIGCOOL Smartphone complies with the essential requirements of the Directive R&TTE 1999/05/EC applicable to the following European standards:
EN 60950-1:2006 + A11:2009 - A1:2009 + A12:2011 + A2:2013
EN50332-1:2013 EN50332-2: 2013 EN 301 489-1 V1.9.2 EN 301 489-3 V1.4.1 EN 301 489-7 V1.3.1 EN 301 489-17 V2.2.1
EN 301 489-24 V1.5.1 EN 50360:2001-A1:2012 EN 62209-1:2006 EN 62209-2:2010 EN 50566:2013 EN 62479:2010 EN 301 511 V9.0.2 EN 300 328 V1.8.1 EN 301 908-1 V6.2.1 EN 301 908-2 V6.1.1 EN 300 440-1 V1.6.1 EN 300 440-2 V1.4.1 RoHS 2011/65/UEDrP 2009/125/EC
The manufacturer shall not be held responsible for modifications made by the user or any resultant consequences which could affect the conformity of the consequences which could affect the conformity of the product with the CE marking. Any unauthorised modification of the product voids this declaration of conformity.
Specific Absorption Rate:
SAR (Head) = 0.369 W/Kg
SAR (Body) = 0.356 W/Kg
LA COLLECTION KONROW LA COLLECTION KONROW

