USER MANUAL Cool 55 Konrow

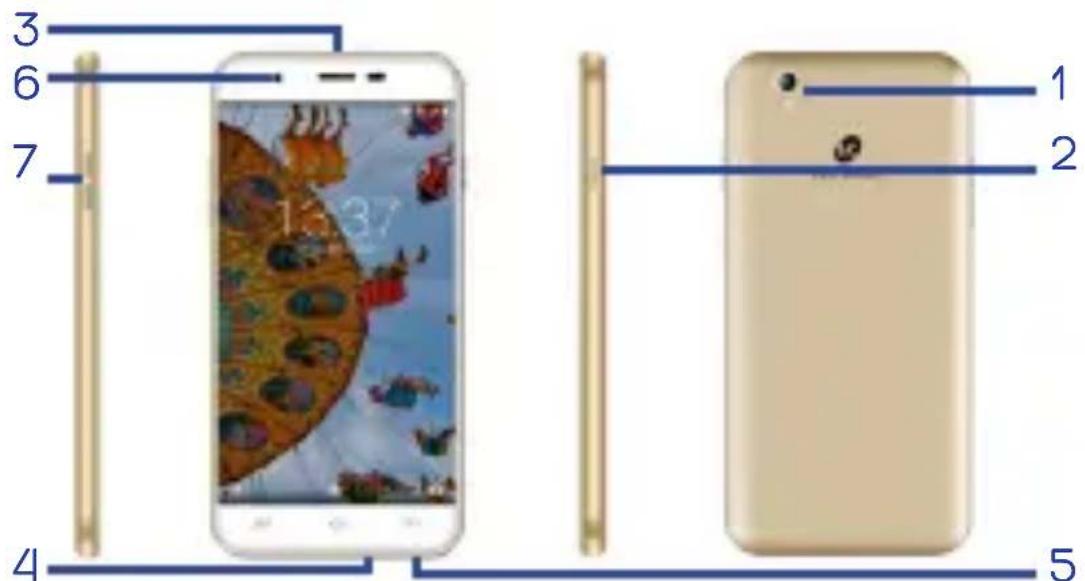

1. Rear camera & ash

WARNING: For your safety, please do not remove the screen’s protective

• Switch o the phone and remove the rear cover.

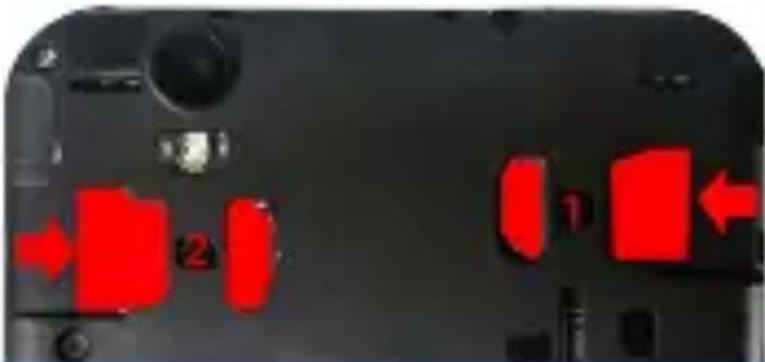

• Insert the SIM card correctly into the relevant card slot ( see gure below ).

• Then replace the battery and cover. CAUTION: The 3G functions can only be used on one SIM card.

• Switch o the phone and remove the rear cover.

• Insert the memory card into the relevant slot.

• Then attach the rear cover. CAUTION: Inserting or removing a SIM card or a MicroSD card requires the Smartphone to be completely switched o. Français Charge de la batterie :

• To charge the battery, connect the USB cable (supplied) to the USB port of your Smartphone and the other end to the mains adaptor (supplied). Then connect the mains adaptor to a power outlet.

• The battery charge icon illuminates during charging and indicates the charge status.

• When the battery is fully charged, you can disconnect the USB cable from the device then from the power outlet. IMPORTANT:

• The Smartphone is only recharged via its USB port.

• Ensure your Smartphone is fully discharged before charging it for the rst time.

• The battery must be charged for at least 5 to 8 hours when rst charged. Note: You can use the device when it is being charged. In this case, the battery may take longer to charge fully IMPORTANT :

• To recharge the battery, only use the mains adaptor supplied with your device. Do not use any other power supply or electrical device. The power outlet to which the device is connected must be near the equipment and must always be easily accessible.

• Always wait at least 5 seconds after switching o the device before restarting it. Switching the device o and then back on again immediately may damage the electrical circuits.

• Do not disassemble the battery. Do not dispose of batteries in re or water. Do not charge the battery if the room temperature exceeds 45°C

• For all repairs or to replace the battery, consult a qualied technician.

• The lifetime of the battery depends largely on how you use it. Do not expose the battery to temperatures less than 0°C or greater than 60°C. Its performance may be altered.

• Signicant electromagnetic interference or electrostatic discharge may cause malfunction or loss of data. If the device is not working properly, restart the Smartphone or unplug the mains adaptor from the power outlet then plug it in again.. Switching the mobile on and o

To switch the Smartphone on, press the On/O button located on the side of the Smartphone for 3 seconds. If the Smartphone is switched on, press for less than a second on the button to put the device into standby mode. Press it again to leave standby mode. To switch o the Smartphone, press the On/O button for 3 seconds until a menu appears, then touch the O button and conrm. Making/receiving calls

• Tap the icon on the main menu or the home screen to dial the number of your choice.

• Tap the operators icon to call with SIM 1 or SIM 2.

• Press the +/- buttons to adjust the call volume.

• When you want to end a call, press the icon .

• When a call is received, slide your nger over the icon .

• When you want to end a call, press the icon . Bluethooth / WIFI activation

Note: To limit your exposure to EMF we recommend you to deactivate Bluetooth when it is not any more used. You can activate Bluetooth by the shortcuts of basic regulation of the notication bar or in the parameters of the Smartphone.

• Click on the activation button and scroll to the right.

• When the Bluetooth is activated you will see the icon on the notication bar. Note: To limit your exposure to EMF we recommend you to deactivate Wi Fi when it is not any more used. You can activate Wi Fi by the shortcuts of basic regulation of the notication bar or in the parameters of the Smartphone.

• Click on the activation button and scroll to the right.

• In Settings, click “Factory data reset” and “Factory data reset”.

• Click “Reset phone” and conrm “Erase everything”. The smartphone will turn o and on rebooting the system will reset. NOTE : If you have any problem with your device, please try to reset the system before sending it back. Sécurité liée à l'écoute

• Before using the pedestrian kit, check that the volume is not set to maximum to prevent hearing loss.

• The high volume settings are intended for individuals with reduced hearing capacity and not for those with normal hearing.

• Do not use the pedestrian kit while driving.

• Adjust the volume so that you can hear the sounds around you.

• To prevent possible hearing damage, do not listen at high volume levels for long periods.

• Listening to a portable audio player at high volumes can damage your hearing and

• lead to hearing impairment (deafness, ringing ears, tinnitus and hyperacusis).

• In order to prevent these risks it is recommended not to use the device at full volume; use must not exceed one hour per day.

• Do not use pre-amplied or amplied models of headphones or pedestrian kit (i.e. with individual volume control and/or self-powered by batteries), as they do not ensure adherence to the maximum volume. This product complies with the EN 60950-1:2006/A12:2011 standard ‘‘Information technology equipment - Safety - Part 1: General requirements’’ in accordance with Listening safetyYour Cool55 mobile is designed to not exceed the radio wave limits recommended by the European authorities. These limits include safety margins to ensure the protection of all persons regardless of their age or health. The SAR (specic absorption rate) of mobile phones quanties the maximum level of exposure of the user to electromagnetic waves for aural use. French legislation stipulates that the SAR must not exceed 2 W/kg averaged over 10g of tissue. The value of the SAR is determined on the basis of the highest level of radio frequencies emitted during laboratory tests. The actual value of the SAR during use of the phone is lower than this level. The value of the SAR of the phone can vary according to the following factors: how far/close the phone is to a relay antenna, use of accessories and others. Electromagnetic waves safety information (SAR) the order of 25 July 2013 implementing Article L. 5232-1 of the French Public Health Code concerning portable audio players. NOTE: The SAR value may vary, depending on national reporting and testing requirements and the network band. NOTE:

• Do not use your mobile in certain locations such as aircraft, hospitals, service stations and professional garages or while driving a vehicle. The electromagnetic waves from the mobile can disrupt the performance of electronic devices used in these locations.

• We recommend that you switch o your phone or switch it to ight mode in these locations to avoid interference.

• If you use an electronic implant (pacemakers, insulin pumps, neurostimulators, etc), please keep a distance of 15cm between the mobile and your electronic implant.

• When using a hands-free kit, pregnant women should keep the phone away from their abdomen and teenagers should keep the phone away from their lower abdomen. Advice to reduce the level of exposure to radiation:

• Please use your mobile where reception is good to reduce the quantity of radiation received (avoid using in an underground car park or when travelling

• Read these instructions carefully.

• Keep these instructions.

• Follow all these instructions.

• Clean only with a soft cloth (dry or slightly damp).

• Do not attempt to disassemble the device; it would no longer be covered by the warranty.

• Do not exert excessive pressure on the screen and do not put objects on it. This could Safety and care information (train or car)).

• A reception icon indicates the quality of reception on your phone. A 4-bar display means that reception is good.

• Use of a hands-free kit also allows the level of exposure to be reduced.damage the screen.

• Use the spare parts specied by the manufacturer.

• After any service or repair carried out on this product, ask the technician to perform a safety check.

• Use only the spare parts/accessories specied by the manufacturer.

• Refer to a qualied person for any repairs. Repair is required if the device is damaged in some manner or other, if the power cord or plug is damaged, if liquid has been spilled or objects have fallen on the device or if the device has been exposed to rain or moisture or has been dropped.

• Do not expose the device to direct sunlight or other source of extreme heat or cold.

• Respect the privacy of others when using your mobile.

• Keep the device away from all metal objects (coins, keys, etc).

• Do not leave near a magnetic eld as this could cause data to be lost or could damage the device.

• Do not drop the device.

• Do not expose the device to shocks, friction or impact.

• In order to prevent data loss, remember to make a (computer or paper) back-up of information saved on the device.

• To prevent interference, do not use the device near other electronic devices, a pacemaker or medical equipment.

• Operating temperature: 0°C and 40°C. NOTE: In order to reduce any risk of re or electric shock:

• Do not expose this device to rain or moisture.

• Do not expose the product to water droplets or to splashes and do not place any object lled with liquid, such as a vase, on the device.

• Do not use the product near ammable or explosive materials.

• The power plug is used to disconnect the device and must always be easily accessible.

• In order to completely disconnect the device from the electricity supply, the power plug must be disconnected from the power outlet.

• Do not attempt to override the safety features of the polarised plug or the earth connection. A polarised plug has two pins, one of which is wider than the other. A plug with an earth connection has two at pins and a third round pin for the earth connection. The widest pin and the third pin constitute the important safety features designed to protect you. If you cannot manage to fully insert the plug into the wall outlet, contact your electrician to replace the obsolete wall socket.

• Disconnect this device during electrical storms or when not in use for an extended period.

• Switch o the device in places presenting risk of explosion and when travelling by plane.

• Do not touch the power cord with wet hands and do not pull on the charger to disconnect it.

• The power cord must be placed so that it will not be stepped on or crushed particularly at the outlet, where it is plugged in or where it is connected to the device.

• Do not overload the power outlet. Use the power supply only as indicated. Do not install this device near heat sources such as electric hobs, cookers or others (including ampliers). Warning on using the phone while driving In France, in accordance with Article R412-6-1 of the French Highway Code, drivers are not permitted to use hand-held phones whilst the vehicle is moving. The penalty for non-compliance with this article is a ne and point penalty on your driving licence. The use of a hands-free kit is permitted. However, Article R412-6 of the French Highway Code provides for a ne without licence penalty points if the driver is not in a position to carry out required manœuvres comfortably and without delay when using his hands-free kit whilst driving. NOTE: this legislation applies only in France. During trips abroad, please refer to the legislation in place in the country you are/go.Epilepsy warning Please read before using a video game or allowing your children to use one. Some people are susceptible to epileptic seizures or loss of consciousness when exposed to certain ashing lights or light patterns in everyday life. Such people may have a seizure while watching television images or playing certain video games. This may happen even if the person has no medical history of epilepsy or has never had any epileptic seizures. If you or anyone in your family has ever had symptoms related to epilepsy (seizures or loss of consciousness) when exposed to ashing lights, consult your doctor prior to playing. We advise that parents should monitor the use of video games by their children. If you or your child has the following symptoms while playing a video game, discontinue use IMMEDIATELY and consult your doctor: dizziness, blurred vision, eye or muscle twitches, loss of consciousness, disorientation, any involuntary movement or convulsion. Precautions to take during use of any video game:

• Do not sit too close to the screen. Sit a good distance away from the television screen, as far away as the length of the cable allows.

• Preferably play the game on a small television screen. Avoid playing if you are tired or have not had much sleep.

• Make sure that the room in which you are playing is well lit.

• Rest for ten to fteen minutes per hour while playing a video game. This software is partially based on the work of the Independent JPEG Group. Bluetooth is a trademark of Bluetooth SIG, Inc. The MPEG Layer-3 audio encoding technology and patents are licensed by Fraunhofer IIS and Thomson. THIS PRODUCT IS LICENSED UNDER THE MPEG4 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE MPEG4 STANDARD (“MPEG4 VIDEO”) AND/OR (ii) DECODE MPEG4 VIDEOS THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE MPEG4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE http://mpegla.com. All other names of systems, products and services are trademarks or registered trademarks of their respective owners. The symbols ((TM)) or (R) are not used in this guide. Recycling The symbol shown here and on the product means that the product is classed as Electrical or Electronic Equipment and should not be disposed with other household or commercial waste at the end of its working life. The Waste Electrical and Electronic Equipment (WEEE) Directive (2012/19/ EU) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landll. Product disposal instructions for residential users:If you no longer use the device, remove and dispose of the battery, as well as the device, in compliance with the local recycling procedures. For more information please contact your local authority or the retailer where the product was purchased. Product disposal instructions for business users: Business users should contact their suppliers and check the terms and conditions of the purchase contract and ensure that this product is not mixed with other commercial waste for disposal. If you have any problem: Please contact the after-sales service on the contact page of our website: www. konrow.com Made in PRC 2015 Konrow. If unresolved problem, contact your retailer. The Konrow supplier warranty is valid for normal use of the device as dened in the instructions. This warranty excludes damage caused by external circumstances. Specically, the warranty does not apply if the device is damaged as a result of a bump or drop, an operating error, a connection that does not comply with these instructions, lightning, a surge, or inadequate protection against heat, humidity or freezing temperatures. The warranty is applicable only in metropolitan France.

• The warranty does not cover user manuals or applications, settings, content or data of any kind.

• The warranty does not cover normal usury of the product (screens, batteries and camera).

• The warranty does not cover damage to the product due to misuse, including in particular those caused by objects, a pressure drop.

• The warranty does not cover any use of the label with the precautions outlined in the manual.

• The warranty does not cover defects caused to the product with another product connected or used with an accessory or software not provided by Konrow.

• The warranty does not cover any damage to the battery.

• The warranty does not cover the product or its accessories if it has been disassembled or modied in any way.

• The warranty does not cover any unidentiable product by serial number or IMEI number(s). If its elements have been removed, altered or defaced, the warranty does not apply.

• The warranty does not cover damage done to the product caused by exposure to moisture, conditions that extreme heat or cold, corrosion, oxidation, with any liquid whatsoever

• The warranty does not cover any damage to SIM player(s) or SIM MicroSD reader.
