USER MANUAL IAN 75797 Livarno Lux

Vis (boîtier de raccordement)

Screws (connection housing)

Screws (mounting bracket)

Mains connection (external)

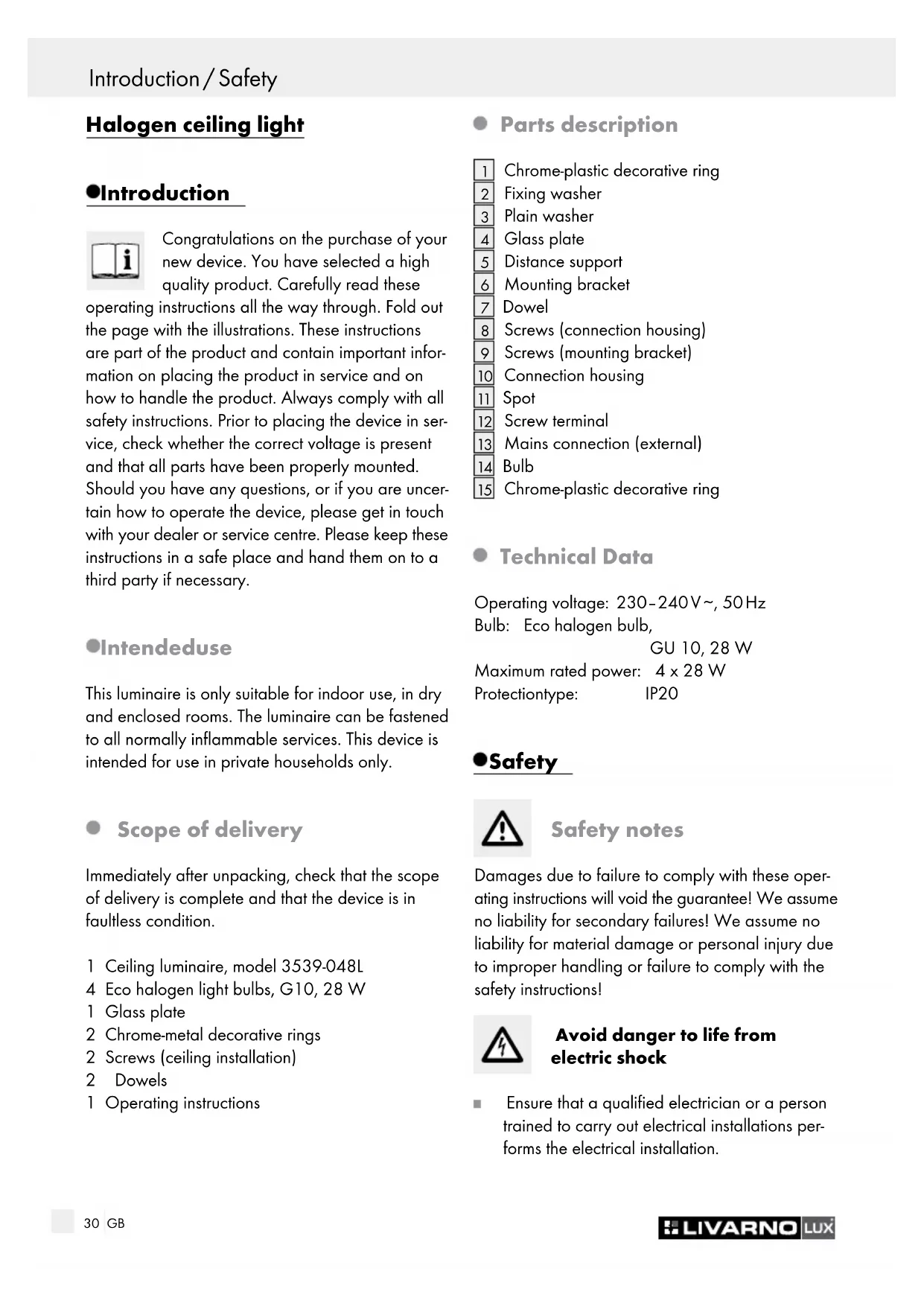

Chrome-plastic decorative ring Technical Data Operating voltage: 230–240 V ∼, 50 Hz Bulb: Eco halogen bulb, GU 10, 28 W Maximum rated power: 4 x 28 W Protection type: IP20 Safety Safety notes Damages due to failure to comply with these oper- ating instructions will void the guarantee! We assume no liability for secondary failures! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions! Avoid danger to life from electric shock Ensure that a qualified electrician or a person trained to carry out electrical installations per- forms the electrical installation.31 GB Always check the luminaire, the power supply, and the mains cable for damage before plug- ging it in. Never use the luminaire if it shows any signs of damage. CAUTION! A damaged mains cable means life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the luminaire, contact the service centre or a qualified electrician. Before installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box. Before mounting, ensure that the available mains voltage corresponds to the operating voltage required for the luminaire (230–240 V ∼). Strictly avoid the luminaire from coming into contact with water or other liquids. Never open a component of the electrical equipment or insert anything into a component of the electrical equipment. Such interventions pose life-threatening danger due to electric shock. Do not install the luminaire on a wet or conduc- tive substrate! Avoid fire hazards and injury hazards RISK OF INJURY! Check every bulb and lamp lens for damage immediately upon unpacking. Do not mount the luminaire with defective bulbs and / or lamp lenses. In this case contact the service centre for replacement. RISK OF INJURY FROM BURNS! Ensure that the luminaire has been switched off and has cooled before touching it, to avoid burn injuries. Bulbs develop a lot of heat in the area of the lamp holder. Allow the luminaire to cool completely. Replace faulty bulbs with new bulbs immediately. Before replacing the bulb, always remove the fuse or switch off the circuit breaker, first. 0,5 m FIRE HAZARD! Mount the lumi- naire so that it is at least 0.5 m away from the materials to be illuminated. Excessive heat can result in a fire. Do not leave the luminaire or packaging mate- rial unattended. Plastic film or bags, plastic parts etc. can become dangerous playthings for children. Working safely Only use 220–240 V ∼ eco halogen light bulbs with a G10 base and a maximum output of 28 Watts. Mount the luminaire so that it is protected from moisture and dirt. Make careful preparations for mounting and take sufficient time. Clearly lay out all compo- nents and any additional tools or materials that may be required so that they are readily to hand. Remain alert at all times and always watch what you are doing! Always pay attention to what you are doing and act with common sense. Do not, under any circumstances, install the lumi- naire if you are having difficulty concentrating or do not feel well. Preparation Required tools and material The tools and materials cited are not included in the scope of delivery. This information and these values are non-binding and are provided for pur- poses of orientation. The condition of the material is determined by the individual local conditions. - Pencil / marking tool - Voltage tester - Screwdriver - Electric drill - Drill (ø 6 mm) - Side cutting pliers - Ladder Prior to installation Important: The electrical connection must be carried out by a qualified electrician or someone trained to perform electrical installations. This Safety / Preparation / Prior to installation32 GB Prior to installation / Mounting / Adjusting the lamp / Changing the bulb person must be familiar with the characteristics of the luminaire and connection regulations. Familiarise yourself with all instructions and diagrams in this manual, as well as with the luminaire before installation. Before installation, ensure that the cable that the luminaire will be attached to is de-energised. To do this, remove the fuse or switch off the circuit breaker in the fuse box (0 position). Use the voltage tester to verify de-energised status. Mounting Fix the chrome-plastic decorative rings

the smooth side of the glass plate

by press- ing them into the intended opening in the glass plate

Remove the fixing screw

from the luminaire body. Position the glass plate

on the holder and washers provided and mount with the aid of washer

on the side of the connection housing

on the rear (see fig.). Use the slotted holes intended for the mounting bracket

to mark the bores. Drill the fastening bores (∅ approx. 6 mm, depth approx. 40 mm). Ensure that you do not damage the supply line. Introduce the dowels

into the bores. Fasten the mounting bracket

with the provided screws

Now connect the connection cable of the light to the mains connection cable (external)

means of the terminal block

provided. Note: Ensure that each wire of the mains con- nection cable (external) is properly connected in the correct place: live wire, black or brown = symbol L, neutral wire, blue = symbol N, pro- tective earth wire, green-yellow = symbol

to fasten the luminaire to the mounting bracket

Use a clean, lint-free cloth to insert a bulb

into the socket carefully and tighten it with a ¼ turn. Check for correct fitting. Attach the chrome-plastic decorative ring

carefully to the bulb

of the movable spot- light

Your luminaire is now ready for operation. Adjusting the lamp Note: Only change the alignment of the light when it is switched off. Allow the luminaire to cool completely. Turn the individual spotlights

in the desired direction. Tilt the individual spotlights

to the desired angle. Afterwards, check that the spotlights

are firmly in place. Changing the bulb

CAUTION! DANGER OF ELECTRIC

SHOCK! To replace the bulb, first disconnect the luminaire from the mains circuit. To do this, remove the fuse or switch off the circuit breaker in the fuse box (0 position). CAUTION! DANGER OF BURN INJURIES! Allow the luminaire to cool completely. Replace the bulb

only after it has fully cooled. Remove the chrome-plastic decorative ring

Use a clean, lint-free cloth to replace a bulb. Remove the defective bulb

carefully out of the socket. Only use 220–240 V ∼ eco halogen light bulbs with a GU 10 base and a maximum of 28 Watts. Insert the new bulb

into the socket. Check that it sits correctly.33 GB … / Maintenance … / Guarantee … / Disposal / Declaration of … / Manufacturer Then attach the chrome-plastic decorative ring

carefully to the bulb

of the movable spot- light

Maintenance and Cleaning CAUTION! DANGER OF ELECTRIC SHOCK! To clean the luminaire, first disconnect it from the mains circuit. To do this, remove the fuse or switch off the circuit breaker in the fuse box (0 position). CAUTION! DANGER OF ELECTRIC SHOCK! For electrical safety reasons, never clean the lumi- naire with water or other fluids nor immerse it in water. CAUTION! DANGER OF BURN INJURIES! Allow the luminaire to cool completely. Do not use solvents, benzene or similar sub- stances. They could damage the luminaire. Only use a dry, lint-free cloth for cleaning. Guarantee and Service Warranty Declaration This product has a 3 year guarantee from the date of purchase extended only to the original buyer, not transferable. Please keep your receipt as proof of purchase. The guarantee applies to material or manufacturing defects only. It does not cover wear items or damage caused by improper use. Any modifications will void the guarantee. This warranty does not limit your legal rights. Contact the service centre by telephone if there is a guarantee case. This is the only way to return your device free of charge. Service address Briloner Leuchten GmbH Im Kissen 2, 59929 Brilon, Germany Phone: +49 (0) 29 61 / 97 12–0 Fax: +49 (0) 29 61 / 97 12–199 Email: Info@briloner.de IAN 75797 When inquiring about your product, please have your receipt and product number (e.g. IAN 12345) ready as your proof of purchase. Disposal The package and packaging materials consist entirely of environmentally friendly materials. They can be disposed of at your local recycling facility. The symbol of the wheelie bin with the line through it means that in the Euro- pean Union the product must be dis- posed of in a separate refuse collection. This applies to the product and to all components bear- ing this symbol. Products marked in this manner must not be disposed of along with normal household waste, but rather must be taken to a recycling collec- tion point for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment. Declaration of conformity This product conforms to the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004 / 108 / EC, Low Voltage Directive 2006 / 95 / EC). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer. Manufacturer Briloner Leuchten GmbH Im Kissen 2 59929 Brilon Germany343536IAN 75797
