USER MANUAL TS 60 LED Theater Spot Cameo

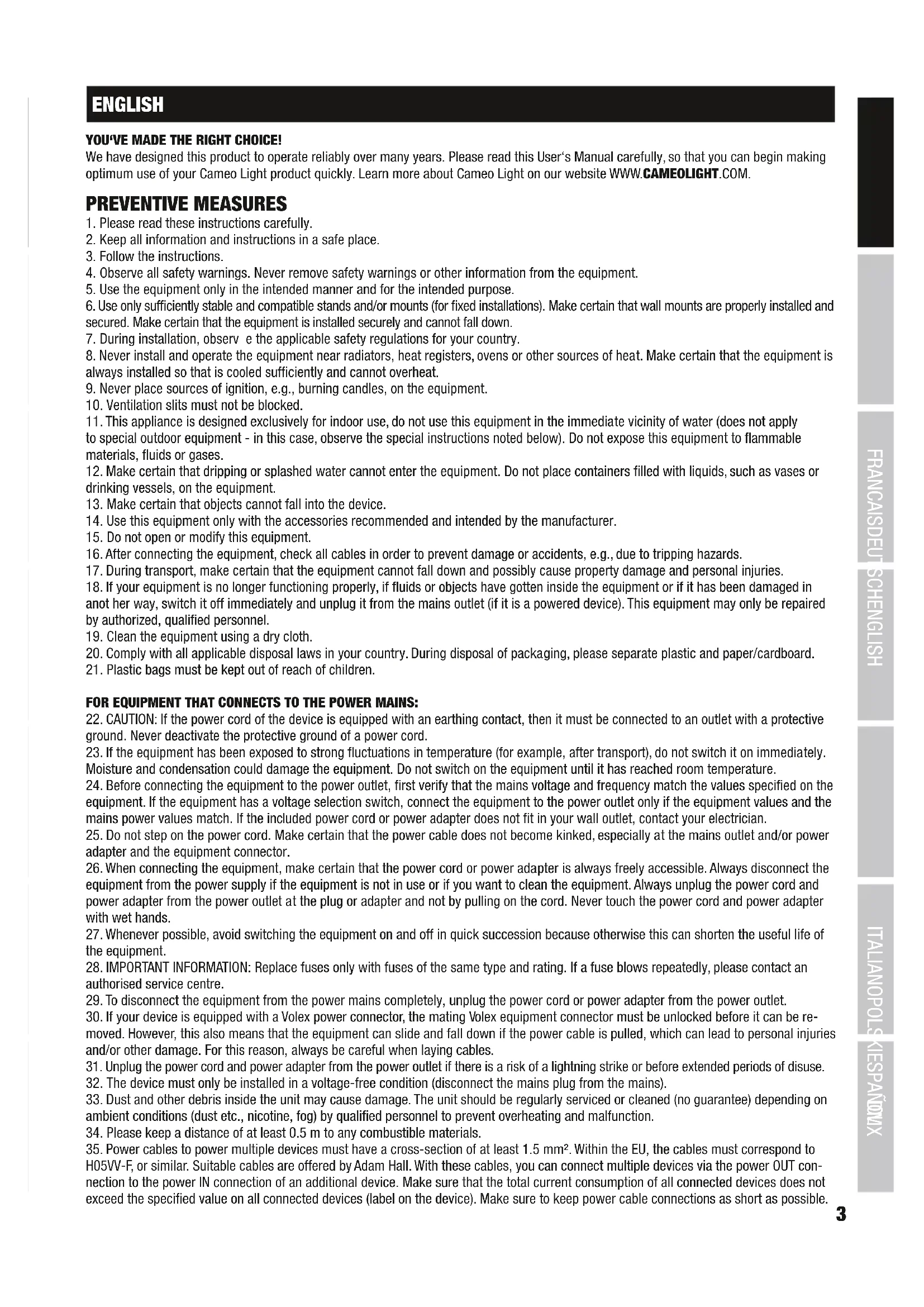

We have designed this product to operate reliably over many years. Please read this User's Manual carefully, so that you can begin making optimum use of your Cameo Light product quickly. Learn more about Cameo Light on our website www.CAMEOLIGHT.COM.

PREVENTIVE MEASURES

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observe the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked
11. This appliance is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this equipment to flammable materials, fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Do not open or modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.

FOR EQUIPMENT THAT Connects TO THE POWER MAINS:

1. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.
2. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
3. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.
4. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.
5. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
6. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.
7. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre.
8. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
9. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.
10. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
11. The device must only be installed in a voltage-free condition (disconnect the mains plug from the mains).
12. Dust and other debris inside the unit may cause damage. The unit should be regularly serviced or cleaned (no guarantee) depending on ambient conditions (dust etc., nicotine, fog) by qualified personnel to prevent overheating and malfunction.
13. Please keep a distance of at least 0.5m to any combustible materials.
14. Power cables to power multiple devices must have a cross-section of at least 1.5mm^2 . Within the EU, the cables must correspond to H05VW-F, or similar. Suitable cables are offered by Adam Hall. With these cables, you can connect multiple devices via the power OUT connection to the power IN connection of an additional device. Make sure that the total current consumption of all connected devices does not exceed the specified value on all connected devices (label on the device). Make sure to keep power cable connections as short as possible.

CAUTION:

To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel.

The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock.

The warning triangle with exclamation mark indicates important operating and maintenance instructions.

Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during operation. After use, wait for a cool-down period of at least 10 minutes before handling or transporting the device.

CAUTIONI IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS!

1. The product has been developed for professional use in the field of event technology and is not suitable as household lighting.
2. Do not stare, even temporarily, directly into the light beam.
3. Do not look at the beam directly with optical instruments such as magnifiers.
4. Stroboscope effects may cause epileptic seizures in sensitive people! People with epilepsy should definitely avoid places where strobes are used.

INTRODUCTION

CONTROL FUNCTIONS:

1-channel, 3-channel, 5-channel DMX control (CLTS40WW)

3-channel, 4-channel, 5-channel, 7-channel and 13-channel DMX control (CLTS60RGBW)

Master / Slave mode

Standalone Functions

FEATURES CLTS40WW:

1 x high-power 40 W warm white COB LED, 15^ - 38^ beam angle, 1,200 Hz refresh rate, DMX-512 control, RDM enabled, manual control, manual zoom, 16 bit dimming, master / slave operation, operating voltage 100 V - 240 V AC / 50 - 60 Hz, power consumption 40 W, mounting bracket and winged barndoor included.

FEATURES CLTS60RGBW:

1 x high-power 60 W RGBW COB LED, RGBW colour mixing, 10^ - 41^ beam angle, 3,600 Hz refresh rate, DMX-512 control, RDM enabled, manual control, manual zoom, 16 bit dimming, master / slave operation, operating voltage 100 V - 240 V AC / 50 - 60 Hz, power consumption 65 W, mounting bracket and winged bardoor included.

The spotlight is compliant with the RDM standard (Remote Device Management). This remote management system allows the status query and configuration of RDM devices via an RDM enabled controller.

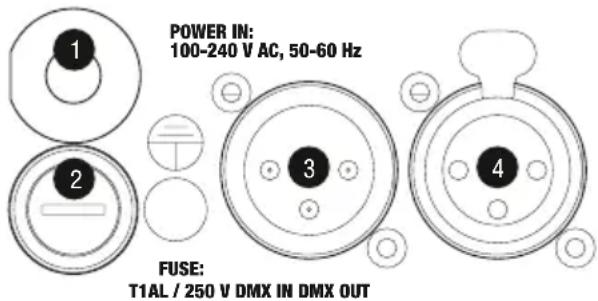

CONNECTIONS, CONTROLS AND INDICATORS

1 POWER IN

Firmly connected 1 meter power cable with plug (CEE 7/7). Operating voltage 100 - 240 V AC / 50 - 60 Hz.

2 FUSE

Fuse holder for 5 × 20 ~mm fine-wire fuses IMPORTANT INFORMATION: Replace the fuse only with a fuse of the same type and rating. If the fuse blows repeatedly, please contact an authorised service centre.

3 DMX IN

3-pin male XLR socket for connection of a DMX controller (e.g. DMX console).

4 DMX OUT

3-pin female XLR socket for looping through the DMX control signal.

5 BACKLIT LC DISPLAY

Displays the operating mode and other system settings.

6 CONTROL BUTTONS

MENU

Pressing MENU will take you to the selection menu for system settings. Repeatedly pressing MODE takes you back to the main display.

ENTER

Makes it possible to change a value and confirm changes.

UP and DOWN buttons

Press the UP and DOWN buttons for example, to adjust the DMX address or the system settings.

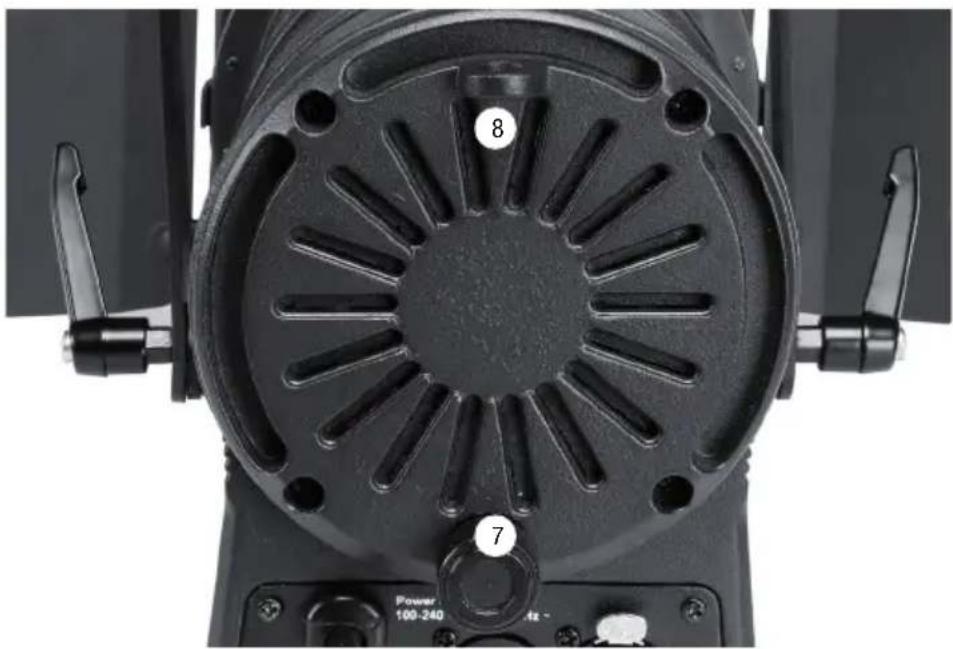

ZOOM

Knurled knob for adjusting the beam size (right stop = maximum beam size, left stop = minimum beam size).

SAFETY EYELET

Overhead installation should only be carried out by trained personnel. The spotlight must be secured with appropriate safety ropes to prevent falling.

OPERATION CLTS40WW

NOTE:

When the spotlight is properly connected to the mains, the following information appears successively on the display during the startup process: "Update Wait ..." (only for service purposes), "Welcome to Cameo", "Fresnel" and the software version. After this step, the spot is ready for operation and the operating mode that was previously selected is activated.

MAIN DISPLAY DMX MODE

In the upper line of the display, "DMX Addr" is displayed and in the lower line the currently set DMX start address. As soon as the DMX signal is interrupted, the display starts flashing; if the DMX signal is present again, the display stops flashing. The main display is automatically activated if no input is made within about 30 seconds.

IMX Addr 001

MAIN DISPLAY STANDALONE MODE

In the lower line of the display, the currently set operating Standalone mode is displayed (e.g. Slave, Static). The main display is automatically activated if no input is made within about 30 seconds.

Slave

Static

SETTING THE DMX MODE

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Mode" (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the "DMX" sub-menu item and confirm by pressing ENTER. Using UP and DOWN, select the desired DMX mode (1CH, 3CH, 5CH) and confirm with ENTER. Press MENU twice to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. You will find tables with the channels of the different DMX modes in this manual under DMX CONTROL.

Menu Mode

Mode DMX

DMX Mode 5CH

SELECTING THE DMX START ADDRESS

Pressing MUs will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "DMX Addr" and confirm with ENTER. Now you can select the DMX start address as desired by using the UP and DOWN buttons. Confirm with ENTER and press MENU once to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Menu DMX Addr

DMX Addr 001

STATIC MODE

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Static" and confirm by pressing ENTER twice. Now you can select the brightness of the spotlight as desired with values ranging from 000 (Blackout) to 255 (maximum brightness) by using the UP and DOWN buttons. Confirm with ENTER and press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Mode Static

Static Dimmer

Dimmer 255

SLAVE MODE

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Mode" (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the "Slave" sub-menu item and confirm by pressing ENTER. Connect the slave and the master unit (same model) with a DMX cable and activate the Static standalone mode on the master unit. Now the slave unit follows the master unit. Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Menu Mode

Mode Slave

DEVICE SETTINGS

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Settings" and confirm with ENTER. You will then be taken to the sub-menu to set the sub-menu items (see table). Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Menu Stettins

Settings Display

Settings DMX Fail

Settings DimCurve

Settings DimResp.

Settings
Display = Display lighting Backlight ON permanently on
		Backlight Off	deactivation after approx. 30 seconds of inactivity
DMX Fail	= Operation status with DMX signal interruption	Hold	last DMX command is held
		Blackout	activates Blackout
DimCurve	= Dimmer Curve	Linear	The light intensity increases linearly with the DMX value.
		Exp	Adjustment of the light intensity is finer in the lower DMX value range and coarser in the upper DMX value range.
		Log	The light intensity can be adjusted coarsely in the lower DMX value range, and finely in the upper DMX value range.
		S Curve	The adjustment of the light intensity is finer in the lower and upper DMX value ranges and coarser in the middle DMX value range.
DimResp.	= Dimmer response	LED	The spotlight responds abruptly to changes in the DMX value.
		Halogen	The spotlight behaves in a manner similar to that of a halogen lamp with gentle changes in brightness.

DEVICE INFORMATION

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Sys Info" and confirm with ENTER. You will then be taken to the sub-menu to display the device information. Use the UP and DOWN panels again to select the desired sub-menu item and then press ENTER to retrieve the information (see table). Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Menu Sys Info

Sys Info Temp

Sys Info OP.Hours

Sys Info Firmware

Sys Info
Temp = Temp	peratu	are display of the LED unit Temp LED xxC /	xxF
			Temp C°/F° °C	(= display in degrees Celsius)
				°F (= display in degrees Fahrenheit)
Op.Hours	=	Operating time display	Hour Total	Displays the total operating time in hours
Firmware = Displays the device software version Vx. xx

OPERATION CLTS60RGBW

NOTE:

When the spotlight is properly connected to the mains, the following information appears successively on the display during the startup process: "Update Wait ..." (only for service purposes), "Welcome to Cameo", "Fresnel" and the software version. After this step, the spot is ready for operation and the operating mode that was previously selected is activated.

MAIN DISPLAY DMX MODE

In the upper line of the display, "DMX Addr" is displayed and in the lower line the currently set DMX start address. As soon as the DMX signal is interrupted, the display starts flashing; if the DMX signal is present again, the display stops flashing. The main display is automatically activated if no input is made within about 30 seconds.

DMX Addr 001

MAIN DISPLAY STANDALONE MODE

In the lower line of the display, the currently set operating Standalone mode is displayed (Sound, Slave, Auto, Static, Macro). The main display is automatically activated if no input is made within about 30 seconds.

Sound

Slave

Auto

Static

Macro

SETTING THE DMX MODE

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Mode" (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the "DMX" sub-menu item and confirm by pressing ENTER. Using UP and DOWN, select the desired DMX mode (3CH, 4CH, 5CH, 7CH, 13CH) and confirm with ENTER. Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. You will find tables with the channels of the different DMX modes in this manual under DMX CONTROL.

Menu

Mode

Mode

DMX

DMX Mode

13CH

SELECTING THE DMX START ADDRESS

Pressing MUs will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "DMX Addr" and confirm with ENTER. Now you can select the DMX start address as desired by using the UP and DOWN buttons. Confirm with ENTER and press MENU once to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Menu

DMX Addr

DMX Addr

001

MUSIC CONTROL MODE

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Mode" (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the "Sound" sub-menu item and confirm by pressing ENTER. The Music Control mode is now activated and you can set the sensitivity to which the spotlight reacts to noise (bass pulses) as desired using the UP and DOWN buttons (Mic Sens 00 - 99). Confirm with ENTER and press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Menu

Mode

Mode

Sound

Mic Sens

99

SLAVE MODE

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Mode" (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the "Slave" sub-menu item and confirm by pressing ENTER.

Connect the slave and the master unit (same model) with a DMX cable and activate one of the standalone modes (Sound, Auto, Static, Macro) on the master unit. Now the slave unit follows the master unit. Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Menu Mode

Mode Slave

AUTO MODE

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Mode" (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the "Auto" sub-menu item, confirm by pressing ENTER twice to adjust the program speed using UP and DOWN (Program Speed: 00 - 99). Confirm with ENTER and press MENU three times to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Menu Mode

Mode Auto

Auto Proaam

Program Speed:99

STATIC MODE

In the same way as with a DMX control unit, the static mode allows you to adjust all functions such as Dimmer, Strobe and Colour Macros directly on the device with values from 000 to 255. Thus, an individual scene can be created without an additional DMX controller. Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Mode" (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the "Static" menu item and confirm by pressing ENTER. Using the UP and DOWN buttons, select the desired function and confirm with ENTER. The value (Dimmer, Strobe etc., see table) of the corresponding function can now be set from 000 to 255 and press ENTER to confirm the input. Once all of the parameters have been set as desired, press MODE three times to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Mode Static

Static
Function Values
Dimmer 000 - 255 0%	to 100%
Dim fine 000 - 255 0%	to 100%
Strobe	000 - 0.05 Strobe open
	006 - 255 Strobe slow > fast <1 Hz - 20 Hz
Red 000 - 255 0%	to 100%
Green 000 - 255 0%	to 100%
Blue 000 - 255 0%	to 100%
White 000 - 255 0%	to 100%

Macro	000 - 005 Colour off
	006 - 013 Red
	014 - 021 Amber
	022 - 029 Yellow warm
	030 - 037 Yellow
	038 - 045 Green
	046 - 053 Turquoise
	054 - 061 Cyan
	062 - 069 Blue
	070 - 077 Lavender
	078 - 085 Mauve
	086 - 093 Magenta
	094 - 101 Pink
	102 - 109 Warm White
	110 - 117 White
	118 - 125 Cold White
	126 - 127 Colour Jumping Stop
	128 - 191 Colour Jumping Speed slow -> fast / Colour 1 -> 12
	192 - 255 Colour Fading Speed slow -> fast / Colour 1 -> 12
CTC(affects RGB and Colour Macros)	000 - 005 Off
	006 - 255 7200 K - 3200 K @ Full on affects colours too
Speed	000 Off
	001 - 255 Auto Program Speed slow -> fast
Sound(if on, override everything)	000 - 005 Sound Control OFF (Mic Sensitivity)
	006 - 255 Sound Control ON Low -> High (Mic Sensitivity)
DimCurve	000 - 005 No function
	006 - 063 Linear Dimmer Curve
	064 - 127 Exponential Dimmer Curve
	128 - 191 Logarithmic Dimmer Curve
	192 - 255 S-Curve Dimmer Curve
Settings	000 - 005 No function
	006 - 063 Dimmer Response LED (Hold 3s)
	064 - 127 Dimmer Response Halogen (Hold 3s)
	128 - 191 Silent Fan on (Hold 3s)
	192 - 255 Silent Fan off (Hold 5s)

COLOUR MACROS

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Mode" (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the "Macro" menu item and confirm by pressing ENTER. Using the UP and DOWN buttons, one of the 15 different Colour Macros can now be selected (see table). Confirm the input with ENTER.

1 Red	6 Turquoise 11	Magenta
2 Amber	7 Cyan 12 Pink
3 Yellow	warm 8 Blue		13 Warm White
4 Yellow		9 Lavender	14 White
5 Green	10 Mauve 15	Cold White

DEVICE SETTINGS

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Settings" and confirm with ENTER. You will then be taken to the sub-menu to set the sub-menu items (Select and adjust by pressing ENTER and UP and DOWN, for submenu items, see table). Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Menu Settings

Settings Display

Settings DMX Fail

Settings DimCurve

Settings DimResp

Settings Calibrat

Settings
Display = Display lighting Backlight ON permanently on
			Backlight Off deactivation after approx. 30 seconds of inactivity
DMX Fail = Operation status with DMX signal interruption Hold last DMX command is held
					Blackout activates	Blackout
DimCurve = Dimmer Curve Linear				The light intensity increases linearly with the DMX value.
			Exp Adjustment of the light intensity is finer in the lower DMX value range and coarser in the upper DMX value range.
			Log The light intensity can be adjusted coarsely in the lower DMX value range, and finely in the upper DMX value range.
			S Curve The adjustment of the light intensity is finer in the lower and upper DMX value ranges and coarser in the middle DMX value range.
DimResp = Dimmer response			LED	The spotlight responds abruptly to changes in the DMX value.
			Halogen	The spotlight behaves in a manner similar to that of a halogen lamp with gentle changes in brightness.
Calibrat = Cross-mode calibration of the colour reproduc- tion in mixed colours.			Red	Adjusting the intensity with values ranging from 000 to 255
			Green	Adjusting the intensity with values ranging from 000 to 255
			Blue	Adjusting the intensity with values ranging from 000 to 255
			White	Adjusting the intensity with values ranging from 000 to 255

DEVICE INFORMATION

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Sys Info" and confirm with ENTER. You will then be taken to the sub-menu to display the device information. Use the UP and DOWN panels again to select the desired sub-menu item and then press ENTER to retrieve the information (see table). Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Menu Sys Info

Sys Info Temp

Sys Info OP. Hours

Sys Info Firmware

Sys Info
Temp = Temp eratu re display of the LED unit Temp LED xxC / xxF
				Temp C°/F° °C (= display in degrees Celsius)
				°F (= display in degrees Fahrenheit)
Op.Hours =	Operating time display	Hour Total	Displays the total operating time in hours
Firmware = Display the device software version Vx. xx

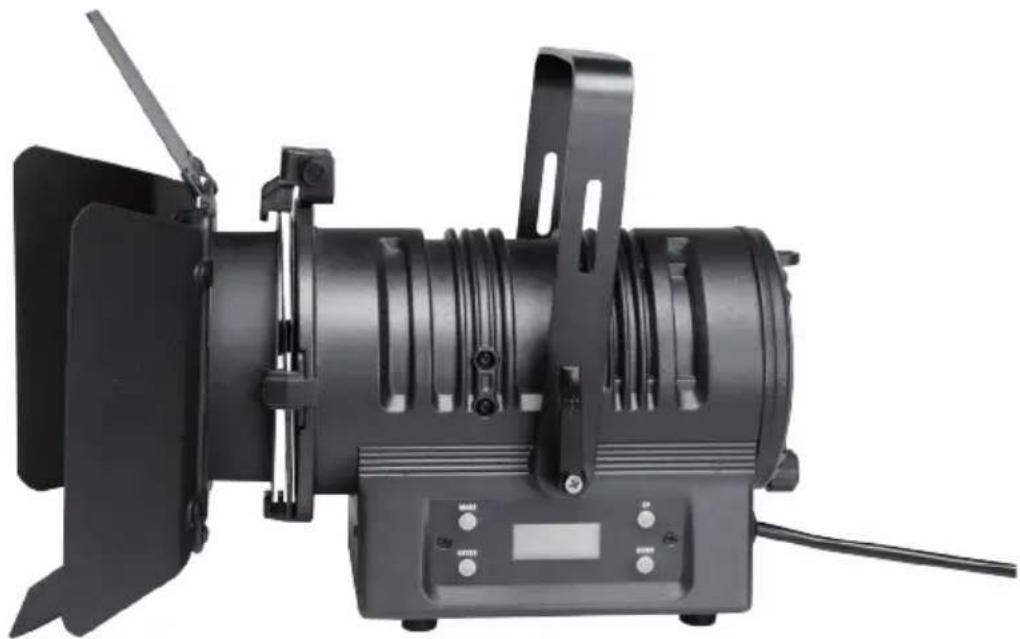

SETTING UP AND MOUNTING

Thanks to the integrated rubber feet, the spotlight can be placed in a suitable location on a flat surface. Mounting on a truss is performed with the help of a suitable truss clamp (not included). Make sure that the connection to the mounting bracket is solid, and secure the device with a suitable safety rope to the safety eyelet provided. Important Notice: Overhead installation should only be carried out by trained personnel.

WINGED BARNDOOR AND FILTER FRAME MOUNTING / REMOVAL

To install or remove the winged barndoor and the filter frame, please press on the spring-loaded button of the locking mechanism and fold it upwards. Place the locking mechanism in the same way in the original position.

DMX TECHNOLOGY

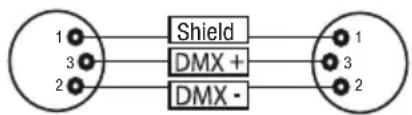

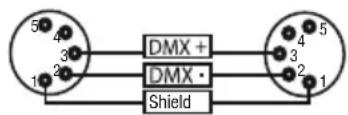

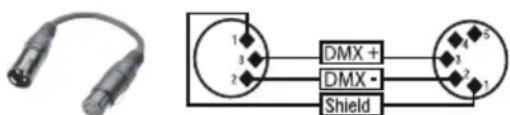

DMX-512

DMX (Digital Multiplex) is the designation for a universal transmission protocol for communications between corresponding devices and controllers. A DMX controller sends DMX data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream that is forwarded from one connected device to the next via the "DMX IN" and "DMX OUT" connectors (XLR plug-type connectors) that are found on every DMX-capable device, provided the maximum number of devices does not exceed 32 units. The last device in the chain needs to be equipped with a terminator (terminating resistor).

DMX CONNECTION

DMX is the common "language" via which a very wide range of types and models of equipment from various manufacturers can be connected with one another and controlled via a central controller, provided that all of the devices and the controller are DMX compatible. For optimum data transmission, it is necessary to keep the connecting cables between the individual devices as short as possible. The order in which the devices are integrated in the DMX network has no influence on the addresses. Thus the device with the DMX address 1 can be located at any position in the (serial) DMX chain: at the beginning, at the end or somewhere in the middle. If the DMX address 1 is assigned to a device, the controller "knows" that it should send all data allocated to address 1 to this device regardless of its position in the DMX network.

SERIAL CONNECTION OF MULTIPLE LIGHTS

1. Connect the male XLR connector (3-pin or 5-pin) of the DMX cable to the DMX output (female XLR socket) of the first DMX device (e.g. DMX-Controller).
2. Connect the female 3-pin XLR connector of the DMX cable connected to the first projector to the DMX input (male 3-pin socket) of the next DMX device. In the same way, connect the DMX output of this device to the DMX input of the next device and repeat until all devices have been connected. Please note that as a rule, DMX devices are connected in series and connections cannot be shared without active splitters. The maximum number of DMX devices in a DMX chain should not exceed 32 units.

The Adam Hall 3 STAR, 4 STAR, and 5 STAR product ranges include an extensive selection of suitable cables.

DMX CABLES

When fabricating your own cables, always observe the illustrations on this page. Never connect the shielding of the cable to the ground contact of the plug, and always make certain that the shielding does not come into contact with the housing of the XLR plug. If the shielding is connected to the ground, this can lead to short-circuiting and system malfunctions.

Pin Assignment

DMX cable with 3-pin XLR connectors: DMX cable with 5-pin XLR connectors (pin 4 and 5 are not used):

DMX TERMINATORS (TERMINATING RESISTORS)

To prevent system errors, the last device in a DMX chain needs to be equipped with a terminating resistor (120 ohm, 1/4 Watt).

3-pin XLR connector with a terminating resistor: K3DMXT3

5-pin XLR connector with a terminating resistor: K3DMXT5

Pin Assignment

3-pin XLR connector: 5-pin XLR connector:

5-pin XLR connector:

DMX ADAPTER

The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin connectors in a DMX chain is possible with suitable adapters.

Pin Assignment

DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020

Pins 4 and 5 are not used.

Pin Assignment

DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020

Pins 4 and 5 are not used.

TECHNICAL SPECIFICATIONS

Model Name: CLTS40WW CLTS60RGBW

Product Type: LED spot LED spot
Type: Theatre Spot with Zoom Function Theatre Spot with Zoom Function
Colour Spectrum: warm white RGBW
Number of LEDs: 1 1
LED Type: 40 W COB	60 W COB
Refresh Rate: 1200 Hz	3600 Hz
Beam Angle:	15° - 38°	10° - 41°
DMX Input:	3-pin XLR male	3-pin XLR male
DMX Output:	3-pin XLR female	3-pin XLR female
DMX Mode:	1-channel, 3-channel, 5-channel	3-channel, 4-channel, 5-channel, 7-channel, 13-channel
DMX Functions:	Dimmer, Dimmer Fine, Stroboscope, Dimmer Curve, Dimmer Response	Dimmer, Dimmer fine, Stroboscope, Dimmer Curve, RGBW, Colour Macros, Colour Jump, Colour Fade, Colour Temperature, Music Control, Dimmer Response, Fan Control
Control:	DMX512, RDM enabled	DMX512, RDM enabled
Standalone Functions:	Dimmer, Master/Slave	Dimmer, Dimmer fine, Stroboscope, RGBW, Colour Macros, Colour Jump, Colour Fade, Music Control, Auto Program
Controls:	Mode, Enter, Up, Down, Zoom	Mode, Enter, Up, Down, Zoom
Display Elements:	backlit 2-line LC display	backlit 2-line LC display
Operating Voltage:	100 - 240 V AC / 50 - 60 Hz	100 - 240 V AC / 50 - 60 Hz
Power Consumption:	40 W	65 W
Illuminance (@ 1 m):	18,000 lx	19,800 lx
Light Output:	1567 lm	907 lm
Power Connector:	permanently attached 1m power cord with CEE7/7 plug	permanently attached 1m power cord with CEE7/7 plug
Fuse:	T1AL / 250 V (5 x 20 mm)	T1AL / 250 V (5 x 20 mm)
Temperature (during operation):	5°C to 40°C	5°C to 40°C
Relative Humidity:	< 80% non-condensing	< 80% non-condensing
Housing Material:	metal	metal
Housing Colour:	black black
Housing Cooling: convection	fan
Dimensions (W x H x D, excluding bracket):	145 x 205 x 240 mm	145 x 205 x 240 mm
Weight:	3.8 kg	3.8 kg
Other Features:	filter frame, winged barndoor and mounting bracket included, manual zoom	filter frame, winged barndoor and mounting bracket included, manual zoom

MANUFACTURER'S DECLARATIONS

MANUFACTURER'S WARRANTY & LIMITATIONS OF LIABILITY

You can find our current warranty conditions and limitations of liability at: http://www.adamhall.com/media/shop/downloads/documents/manufacturersdeclarations.pdf. To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu Anspach / Email: [e-mail] / +49 (0)6081 / 9419-0.

CORRECT DISPOSAL OF THIS PRODUCT

(valid in the European Union and other European countries with a differentiated waste collection system)

This symbol on the product, or on its documents indicates that the device may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal.

DEUTSCH

DMX-Adapter 5-Pol XLR male auf 3-Pol XLR female: K3DGF0020

ECRAN PRINCIPAL (Mode DMX)

INFORMATIONS APPAREL

INFORMATIONS APPAREIL

ÉCRAN PRINCIPAL (Mode DMX)

INFORMATIONS APPAREIL

(Valid in the European Union and other European countries with waste separation)

WIDOK GLOWNY TRYBU PRACY DMX

WIDOK GLOWNY TRYBU PRACY STANDALONE

WIDOK GLOWNY TRYBU PRACY DMX

WIDOK GLOWNY TRYBU PRACY STANDALONE

5 DISPLAY LCD ILLUMINATO
