USER MANUAL VistaPix 72212 CELESTRON

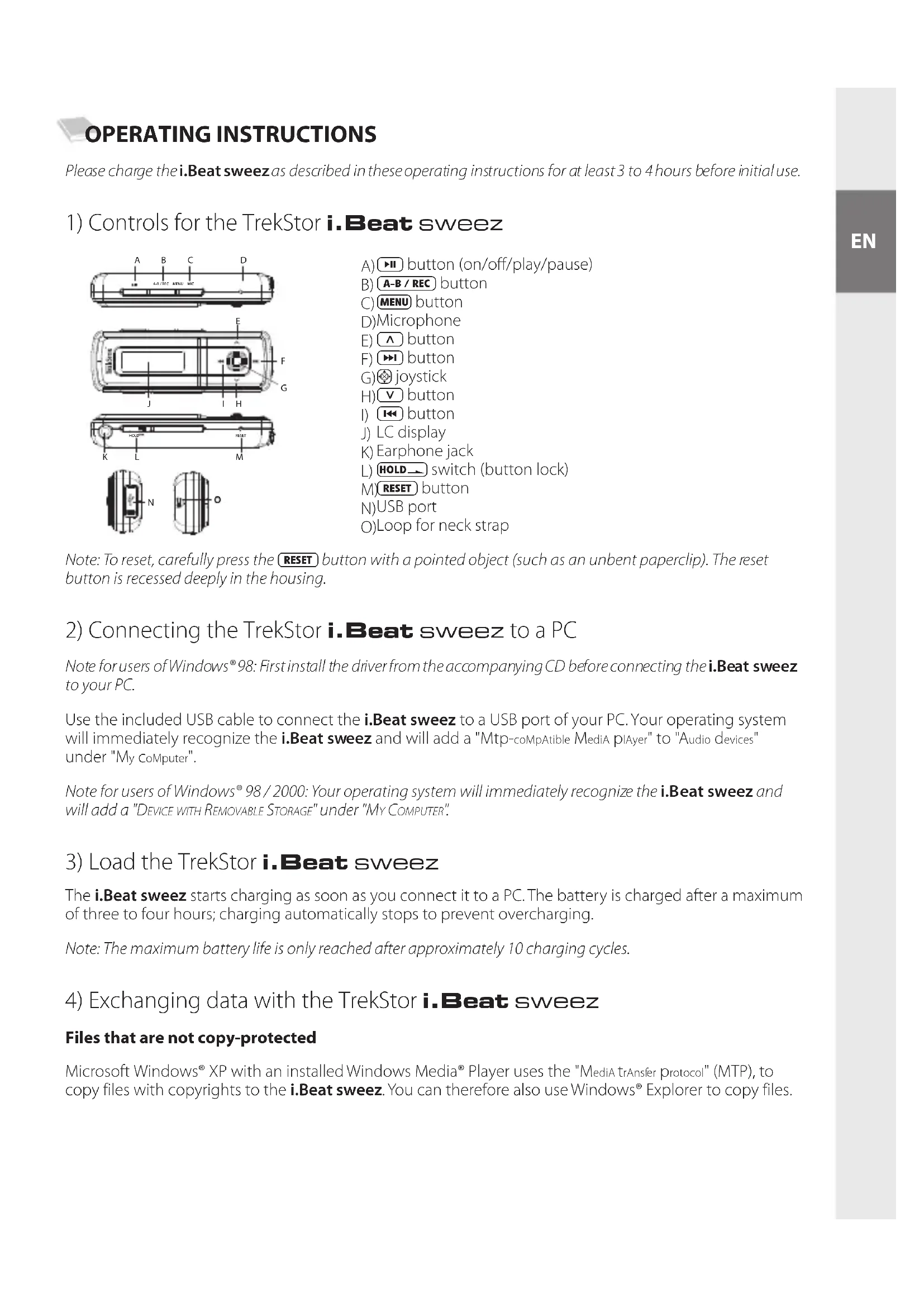

OPERATING INSTRUCTIONS Please charge the i.Beat sweez as described in these operating instructions for at least 3 to 4 hours before initial use.

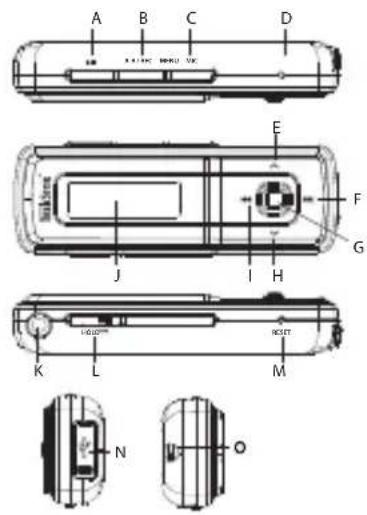

• joystick R button E button LC display Earphone jack s switch (button lock) y button USB port Loop for neck strap Note: To reset, carefully press the y button with a pointed object (such as an unbent paperclip). The reset button is recessed deeply in the housing.

2) Connecting the TrekStor i.Beat sweez to a PC

Note for users of Windows® 98: First install the driver from the accompanying CD before connecting the i.Beat sweez to your PC. Use the included USB cable to connect the i.Beat sweez to a USB port of your PC. Your operating system will immediately recognize the i.Beat sweez and will add a "Mtp-coMpAtible MediA plAyer" to "Audio devices" under "My coMputer". Note for users of Windows® 98 / 2000: Your operating system will immediately recognize the i.Beat sweez and will add a "deVice With reMoVAble storAge" under "My coMputer".

3) Load the TrekStor i.Beat sweez

The i.Beat sweez starts charging as soon as you connect it to a PC. The battery is charged after a maximum of three to four hours; charging automatically stops to prevent overcharging. Note: The maximum battery life is only reached after approximately 10 charging cycles.

4) Exchanging data with the TrekStor i.Beat sweez

Files that are not copy-protected Microsoft Windows® XP with an installed Windows Media® Player uses the "MediA trAnsfer protocol" (MTP), to copy files with copyrights to the i.Beat sweez. You can therefore also use Windows® Explorer to copy files.

– 11 – To do so, proceed as follows: a) Connect the i.Beat sweez to an available USB port of your PC using the mini USB port with the included USB cable. b) The "Mtp M ediA plAyer" window is displayed. c) Select "d o not perforM Any Actions" and click "oK". d) Open My Computer. e) Select the desired files on the hard disk with your mouse. f) Click it with your right mouse button, and select "p Aste" to start copying. g) In My Computer, select the " sweez" under "Audio devices" and change to the directory "MediA". WMA DRM9 and DRM10-protected files To copy DRM9 or DRM10-protected files, you need to use the Windows Media® Player 10 or newer. a) Connect the i.Beat sweez to an available USB port of your PC using the mini USB port with the included USB cable. b) Start the Windows Media® Player 10. c) In the task bar of the Media® Player, click "s ynchronize". Note: If the task bar is hidden, go to "VieW" + "Menu bAr options" + "hide tAsk bAr" and remove the check by clicking on it. As an alternative you can activate the required dialog window as follows: "File" + "cds And deVices" + "synchronize...". d) Drag the desired files using Drag&Drop to the list "s elect files to be synchronized..." on the left. e) In the pulldown menu at the top right, select the i.Beat sweez under “supported portAble devices And drivers...”. f) Then click the “s tArt synchronizAtion” button at the top left. g) The selected files will then be automatically copied to the i.Beat sweez. h) Please wait until synchronization has been completed. Note: Do not under any circumstances disconnect the USB connection during data transfer! Exchanging data under Windows® 98 / 2000 / ME a) Select the desired files (such as MP3) with the mouse. Copy these files by clicking them with your right mouse button ("copy"). b) Under "M y coMputer", select the device with removable storage, "treKstor i.beAt sweez". c) Click it with your right mouse button, and select "p Aste" to start copying. After copying is over, the data will be available on the i.Beat sweez.– 10 – – 11 –

5) Logging off and disconnecting the TrekStor i.Beat sweez from the PC

Windows® 98 (SE) / 2000 / ME: Click in the lower right of the task bar, on the symbol "sAfely reMove hArdwAre". In the "sAfely reMove hArdwAre" window, select the i.Beat sweez and click on the "yes" button. You can now disconnect the i.Beat sweez from the PC. Windows® XP: The i.Beat sweez can be disconnected from a PC without logging off. Note: Please follow the recommended logoff procedure to prevent damage to the device or data loss.

6) Firmware update for the TrekStor i.Beat sweez

Warning: Please read all the instructions, and follow the update procedures exactly to keep from damaging the

i.Beat sweez. a) Connect the i.Beat sweez to a USB port of your PC. b) Back up all the important files on your i.Beat sweez onto your PC. c) You can update the i.Beat sweez with the most current firmware from the internet (on the TrekStor homepage at http://www.trekstor.de). d) Insert the provided CD into your CD / DVD drive. If the startup function of your system is activated, a menu showing all the contents of the CD will open. Note: If the startup function of your system is deactivated, you can access the CD / DVD drive via "My coMputer" and start the program "Menu.exe" in the main directory of the CD. e) Select "f irMwAre" and follow the instructions. Your internet browser opens, and the TrekStor homepage is loaded. f) Download the firmware (*.zip-file), and unzip it to a folder of your choice. g) Start the " setup.exe" file to install the software for the firmware update on your PC. Follow the installation instructions. h) Select "s tArt" + "progrAMs" + "treKstor i.beAt sweez" to run the "firMwAre updAte". Follow the instructions of the update program.

i) Please wait until the update procedure is completely finished.

j) Next disconnect the i.Beat sweez from the USB port of your PC.

7) Using the TrekStor i.Beat sweez

Turning the device on and off Turn the i.Beat sweez on by pressing the A button for approximately 1 second. To turn the i.Beat sweez off, hold the A button for approximately 3 seconds. Note: Make sure that the s switch has been moved to the left position, i.e., that the button lock is turned off. If the button lock is activated, the button lock symbol or a corresponding message will appear. Different modes The i.Beat sweez has different modes. To go to a mode, hold the * joystick button for approximately 1 second. Push the joystick to the left E or right F to select the desired mode, and confirm by press- ing the * joystick. Leave the menu by pushing the joystick up Q or pulling it down R.– 12 –

– 13 – Mode: Music Switch to the "Music" mode. Playback Briefly press the A button to play an audio file. Pause Briefly press the A button to stop playback. Repress the A button to continue playback. Change track Push the joystick briefly to the right F to select the next track. Press the joystick briefly to the left E to switch to the previous track. Rewind / fast-forward within a track You can rewind or fast-forward within a track by continuously pressing the joystick to the right F or left E. Note: The longer you hold the joystick in one direction, the faster the device will go forward or rewind. Increase / lower volume Briefly press the joystick up Q or down R to increase or decrease the volume. Displaying the time The current time is displayed when you continuously press the joystick up Q. Play speed Pull the joystick down R continuously to display the play speed of audio files. You can change the play speed by pushing the joystick to the right F or left E. Confirm the setting by pressing the * joystick. Note: The setting "1.00" corresponds to the normal play speed. Folder navigation You get to folder navigation in "Music" mode by briefly pressing the * joystick. Select the next or previous file by pushing the joystick to the right F or left E. To play the selected file, briefly press the * joystick. To change to a subfolder, press the * joystick briefly if the folder is marked. To return to the main directory, push the joystick up Q. To leave folder navigation when you are in the main directory, push the joystick up Q. Deleting a file Select the file you want to delete using folder navigation, and briefly press the 5 button. To confirm the deletion of the file, push the joystick to the left E or right F to switch to "yes", and then press the

• joystick. Mode: Recording Switch to the "recordings" mode. In this mode, you can play voice recordings and optionally FM radio recordings. The operation and functions are like the "Music" mode. Mode: FM radio (optional) Switch to the "fM rAdio" mode. Note: Always connect your earphone or headphone to the headphone jack of the i.Beat sweez FM since the earphone / headphone cable serves as an antenna for the internal radio.

Switching between manual station selection and memory mode Briefly press the * joystick to switch between manual station selection "scAn" and memory mode "stAtion". Automatic memory assignment / automatic station search To start the automatic station search, switch to the "stAtion" mode and briefly press the 5 button. The i.Beat sweez FM now automatically searches for the radio stations with the strongest reception and saves them in 15 memory locations. Switching between saved stations In memory mode "stAtion", you can switch between available presets by briefly pressing the joystick to the left E or to the right F. Manually change frequency / manual search In manual station selection mode "scAn", you can change the reception frequency by 0.1 MHz by briefly pushing the joystick to the left E or to the right F. If you hold the joystick to the left E or right F long enough, the i.Beat sweez FM automatically scans the upper and lower frequencies for stations. Saving individual stations In memory mode "stAtion", select a memory that you want to assign a frequency to. Change to manual station selection "scAn". Select the desired frequency, and briefly press the 5 button. The frequency is now assigned to the selected memory. Recording FM radio Hold the 5 button for approximately 2 seconds to start recording the radio. To pause the current recording, briefly press the A button. To restart the current recording, briefly press the A button again. Briefly press the 5 button to stop recording. Note: All radio recordings are saved in the "FM" folder of the i.Beat sweez FM. Mode: Recording using the microphone (or FM radio). The i.Beat sweez only has one recording mode: Voice recorder. The i.Beat sweez FM has two recording modes: FM radio schedule, voice recorder. Switch to "Mic-record" mode or "fM+Mic-record". Push the joystick to the left E or right F to select the desired recording mode, and confirm by briefly pressing the * joystick. Voice recording Select menu item "voice recorder" to start recording voice with the integrated microphone. To pause the current recording, briefly press the A button. To restart the current recording, briefly press the A button again. Briefly press the 5 button to stop recording. To start another voice recording, press the 5 button for approximately 1 second. Note: All voice recordings are saved in the "Voice" folder of the i.Beat sweez (FM). FM radio schedule (optional) Select the menu item "fM schedule" to program timed radio recording. Select the desired recording start time, the length of recording, the desired radio frequency and the recording cycle. Note: Timed radio recording only starts when the i.Beat sweez FM is turned off. All radio recordings are saved in the "FM" folder of the i.Beat sweez FM.

– 15 – Mode: Time setting Switch to the "tiMe settings" mode. In this mode, you can set the time and alarm of the i.Beat sweez. Settings First switch to the "Music" mode or "recordings". Briefly press the i button to retrieve the settings menu. Here you can configure the equalizer under "equAlizer", the display settings under "displAy", recording set- tings under "record settings", play settings under "plAy Mode" and performance settings under "power settings", and set the menu language of the i.Beat sweez under "lAnguAge". Push the joystick to the left E or right F to select the desired setting, and confirm by pressing the

• joystick. Leave the menu by pushing the joystick up Q or pulling it down R. Equalizer You can select from 6 preset equalizers under the menu item "equAlizer". Display LCD backlight: You adjust the display background lighting in various ways under the menu item "lcd bAcKlight". Backlight action: Under the menu item "bAcKlight Action", you can set if the backlighting is to be activated only when you press a button, or when a new track starts and you press a button. Scroll speed: Under the menu item "text scroll speed", you can adjust how fast you scroll through the text. Visual setup: Under the menu item "visuAl setup", you can determine which information is shown on the display. Contrast: Under the "contrAst" menu item, you can adjust the contrast of the LC display. Recording settings Voice recording: You can set the recording quality for the integrated microphone under the menu item "Mic quAlity". FM radio recording (optional): You can set the recording quality for the integrated radio under the menu item "fM record quAlity". Playback mode You can select from 6 preset play modes under the menu item "plAy Mode". Performance management Energy-saving mode: Under the menu item "power sAve", you can set how long the player should wait when it is not used before it automatically shuts off. Sleep Timer: Under the menu item "sleep tiMer", you can set how long the player should wait before it automatically shuts off. Language Under the menu item "lAnguAge", you can select the menu language of the i.Beat sweez.

Notes: This MP3 player is optimized for the provided headphones (32 Ohm impedance). Using other earphones with a lower impedance can damage the MP3 player or earphone, especially MP3 players with 2 earphone jacks. Exposing the unit to an electrostatic discharge, may interrupt the data transfer between the unit and the computer. If this occurs, the unit should be unplugged from the USB port and then plugged in again. Note: This device can produce high volumes. To prevent hearing loss, do not listen to high volumes for long periods. If you notice a ringing noise in your ears, lower the volume immediately or stop using the MP3 player. Please keep in mind that using earphones or headphones at loud volumes may result in permanent hearing loss. While you become accustomed to higher volumes over time, so that they may seem normal to you, your sense of hearing can still be impaired. The higher you adjust the volume, the faster your sense of hearing can be damaged. Note: Using earphones while driving a motor vehicle is not recommended and is prohibited in some countries. Always drive carefully and with full concentration. Stop using your MP3 player if you become distracted or interrupted by it when driving a motor vehicle or during other activities that require your full attention. Do not use USB cables longer than 3 meters. The manufacturer retains the right to continually improve the product. These changes may be made without being directly described in these operating instructions. For this reason, the information provided in these operating instructions may not reflect the current state of the art. The manufacturer only guarantees suitability for the product's intended purpose. In addition, the manufacturer is not responsible for damages or loss of data and subsequent consequences. Copyright © 2006 TrekStor GmbH & Co. KG. All rights reserved. Other cited product or company names may be trademarks or brand names of the respective owner.
