USER MANUAL HNU51312S BEKO

Illustration of a kitchen range hood with three circular buttons (no text or symbols)

HNU51311SH | HNU71311S

HNU51311SH | HNU51312S

EN DE FR PL CS

SK ET LV LT

beko

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Warning for danger of fire.

Warning for electric shock.

This appliance has been manufactured in environmentally friendly modern plants without giving any harm to the nature.

CONTENTS

ENGLISH 04-16

DEUTSCH 17-34

FRANÇAIS 35-51

POLSKI 52-69

ČESKY 70-85

SLOVENSKÝ 86-101

EESTI 102-115

LATVISKI 116-129

LIETUVA 130-145

01M-8808823200-2019

01M-8808833200-2019

01M-8808843200-2019

01M-8808853200-2019

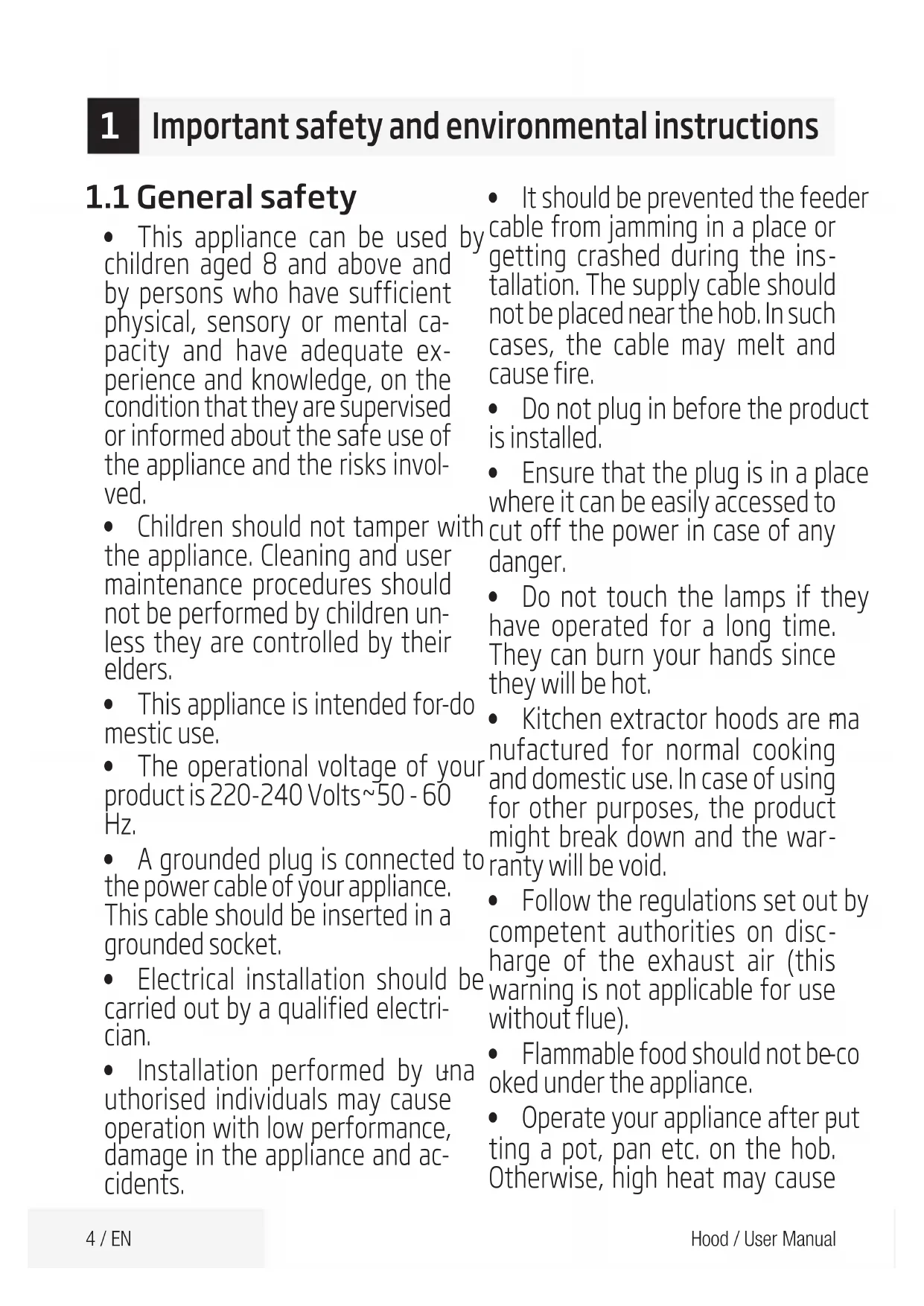

1 Important safety and environmental instructions

1.1 General safety

• This appliance can be used children aged 8 and above and by persons who have sufficient physical, sensory or mental capacity and have adequate experience and knowledge, on the condition that they are supervised or informed about the safe use of the appliance and the risks involved.
• Children should not tamper with the appliance. Cleaning and user maintenance procedures should not be performed by children unless they are controlled by their elders.
• This appliance is intended for-do mestic use.
• The operational voltage of your product is 220-240 Volts\~50 - 60 Hz.
• A grounded plug is connected to the power cable of your appliance. This cable should be inserted in a grounded socket.
• Electrical installation should be carried out by a qualified electrician.
  • Installation performed by una authorised individuals may cause operation with low performance, damage in the appliance and accidents.

- It should be prevented the feeder cable from jamming in a place or getting crashed during the installation. The supply cable should not be placed near the hob. In such cases, the cable may melt and cause fire.

• Do not plug in before the product is installed.
• Ensure that the plug is in a place where it can be easily accessed to cut off the power in case of any danger.
• Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.
• Kitchen extractor hoods are manufactured for normal cooking and domestic use. In case of using for other purposes, the product might break down and the warranty will be void.
• Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use without flue).
• Flammable food should not be cooked under the appliance.
• Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, high heat may cause

1 Important safety and environmental instructions

deformation in some parts of your product.

• Turn off the hob before taking the pot, pan etc. from it.
• Do not left hot oil on the hob. Pans with hot oil may cause self-combustion.
• Pay attention to your curtains and covers since oil may catch fire while cooking food such as fries.
• Ensure that the filters are changed on time. There is the risk of fire due to the oil building up on the filters that have not been changed on time.
• Do not use non-fire-resistant filtering materials instead of the filter.
• Do not operate the product with hout the filter, do not remove the filters while the product is run- ning.
• In case of fire, cut off the power of the hood and cooking appliances. (Unplug the appliance or turn off the main switch).
• There is a risk of fire if the periodical cleaning is not performed properly.

• Cut off the power of your appliance before maintenance works. (Unplug the appliance or turn off the main switch).

• The negative pressure in the environment should not exceed 4 Pa (4 x 10 bar) while the hood for electric hob and appliances running on another type of energy but electricity operate simultaneously.

• In the environment where the appliance is being used, the exhaust of devices running on fuel oil or gas, such as room heater must be absolutely isolated or device must be hermetical type.
• When connecting the flue, use pipes with a diameter of 120 or 150 ~mm . Pipe connection must be as short as possible and have as few elbows as possible.
  • Children should not tamper with the appliance.
• For your safety, use a fuse of "MAX 6 A" in the hood assembly.
• Keep the packaging materials away from children since they may pose a danger to them.
• If the supply cable is damaged, it must be replaced by the manufacturer, its service agent or similarly skilled personnel to avoid any danger.
• In case of fire, cut the power of the hood and hob and cover the flame. Never use water to put out the fire.

1 Important safety and environmental instructions

• When cooking appliances are run-electric hob is used simultaneously with the devices operating on gas or other fuels (this may not hot.

- This product is not intended for apply to appliances that only discharge the air back into the room). 1.1 Compliance with the WEEE Directive and disposal of the waste product This product does not include harmful or prohibited materials specified in the "Regulation for Supervision of the Waste

- When the installation of the hood for electric hobs is complete, there should be a minimum distance of 65 cm between the appliance and electric hobs.

- The hood outlet must not be connected to air channels that include other smoke.

- Care must be taken when the appliance is used with devices that use air and fuel (e.g. heaters; water heaters that are operated with gas, diesel fuel, coal, wood; or water heaters) in the same environment. This may adversely affect combustion since the hood discharges the air in the environment.

• This warning does not cover the use without flue.
• The ventilation in the room may be insufficient when the hood for

1.1 Compliance with the WEEE Directive and disposal of the waste product

This product does not include harmful or prohibited materials specified in the "Regulation for Supervision of the Waste Electric and Electronic Appliances" issued by the Ministry of Environment and Urbanisation. Conforms to the WEEE Regulation. This product has been made from high-quality parts and materials which can be recycled and re-used. Therefore, do not throw the product away with household and other waste at the end of its life. Take it to a collection point for recycling electrical and electronic devices. Contact local authorities for the collection points in your region. Help protect the environment and natural resources by recycling used products.

1.2 Package of the Appliance

The packaging used for your product is made of recyclable materials. Please en-

1 Important safety and environmental instructions

sure that the packaging materials are disposed as per the applicable local rules in order to include the materials in recycling process for environment protection.

1.3 Vital Risk Poisoning Risk

Safety warning symbol and electrical hazard diagram showing skull, smoke, and circuit components

Pic. 1: Poisoning Risk

Simple line icons showing a checkmark and a house with pipes (no text or symbols)

Pic. 2: Poisoning Risk

DANGER! Warning - Risk of Suffocation

Package materials are risky for children. Do not allow children to tamper with the packing materials.

DANGER! Warning - Danger of Death

Vital risk, poisoning risk occurs due to the reabsorbed combustion gases. For use with an air outlet, do not use the appliance simultaneously with objects that expel poisonous gases, such as stoves with air circulation, which operates with gas, oil, wood or charcoal, bath stoves, water heaters, etc., unless sufficient air is supplied. Pic. 3

Objects with air circulation (e.g. stoves that are operated with gas, oil, wood or charcoal, bath stoves, water heaters) retrieves the air from the installation place and expel the waste gas by means of a waste gas system (e.g. flue). Air is absorbed by the appliance during operation from the kitchen and neighboring rooms. Vacuuming occurs if sufficient amount of air is not supplied. In this case, poisonous gases are absorbed backed from the flue and waste gas duct and return into the home. Pic. 1

For this reason, it should be ensured that the clean air is always supplied sufficiently. Pic. 2

1 Important safety and environmental instructions

WARNING!

Danger of fire!

Oil sludge on the oil filter may catch fire. Clean the oil filter at least once every three months. Do not operate the appliance without the oil filter.

Oil sludge on the oil filter may catch fire. Never work with flame near the appliance (e.g. flambé) It is only allowed to install the appliance near a heating equipment that is heated via solid fuel (e.g. wood or coal) provided that a closed cover that is not removable is available. There should be no sparks caused.

Hot vegetable oils and fat catch fire easily. Attention should always be paid to hot vegetable oils and fats. Do not try to put out the fire with water.

Turn off the hob. Carefully cover the flame with a lid, fire blanket or a similar object.

Gas hobs that have no cooking utensils on them generate high heat during operation. A ventilation device placed on the hob may therefore get damaged or burn. Operate gas hobs only when there is a cooking utensil on them.

Operating more than one gas hob simultaneously causes high heat. A ventilation device placed on the hob may therefore get damaged or burn. Do not operate two gas hobs at a high flame setting for more than 15 minutes. A burner with over 5kW (Wok) power is equal to the burner with two gas levels.

WARNING!

Risk of electric shock!

A faulty appliance may cause electric shock. Do not operate any faulty appliance. Unplug it or shut down the fuse from the fuse box. Call the customer service centre.

Repairs that do not comply with the instructions pose a threat. Repairs and change of faulty electric cables should only be performed by a customer services technician trained by our company. If the appliance is faulty, unplug it or shut down the fuse from the fuse box. Call the customer service centre.

Water leaking into the appliance may cause electric shock. High pressure or steam cleaners must not be used.

1 Important safety and environmental instructions

DANGER!

Risk of injury!

There is a risk of injury during installation due to the sharp edges. Always use protective gloves during installation of the appliance.

All safety bolts and safety covers should be installed as stated in the user manual due to the risk of falling of the appliance.

The objects on the appliance may fall down. Do not put any objects on the appliance.

The LED light is too bright and may harm your eyes (hazard group 1). Do not directly look at the LED light for more than 100 seconds.

CAUTION

Accessible parts may get hot when used with the cooking equipment.

In case of repair procedures that have not been performed appropriately or according to the rules, please shut down the fuse or unplug the appliance. Repair works may only be carried out by the authorised service or authorised skilled personnel.

In case of repair procedures that have not been performed appropriately or according to the rules, please shut down the fuse or unplug the appliance. Repair works may only be carried out by the authorised service or authorised qualified personnel.

DANGER!

Risk of burning, risk of electric shock!

Wait for the appliance to cool down before cleaning or maintenance works. Shut down the fuse or unplug the appliance.

Risk of damage occurs due to the humidity intrusion into the electronics. Never clean the controllers with a wet cloth.

Surface may be damaged due to improper cleaning. Clean the stainless steel surfaces only in the direction of brushing. Do not use stainless steel cleaner for controllers.

The surface may be damaged due to abrasive or rubbing cleaning agents. Never use abrasive or rubbing cleaning agents.

2 General appearance

2.1 Overview

Technical diagram of a device casing with numbered components for identification

1. Air Exhaust Flue
2. Body
3. Hob Lighting
4. Control Panel
5. Aluminum Oil Filter

2.2 Technical Data

This appliance complies with the European CE Directive numbered 2014/30/EU (Electromagnetic Compatibility Directive) and 2014/35/EU (Low Voltage Directive (LVD)).

Supply Voltage 220-240V 50 Hz.
Lamp Power (W) 2x3 W
Motor Power (W) 1x125 W
Motor Insulation Class F
Insulation Class CLASS I

Technical and design modifications are reserved. The dimensions presented in the technical drawings are in mm. This image is only provided to inform about the parts of the appliance. Parts may vary according to the model of the appliance. Pictures are provided in a representative manner.

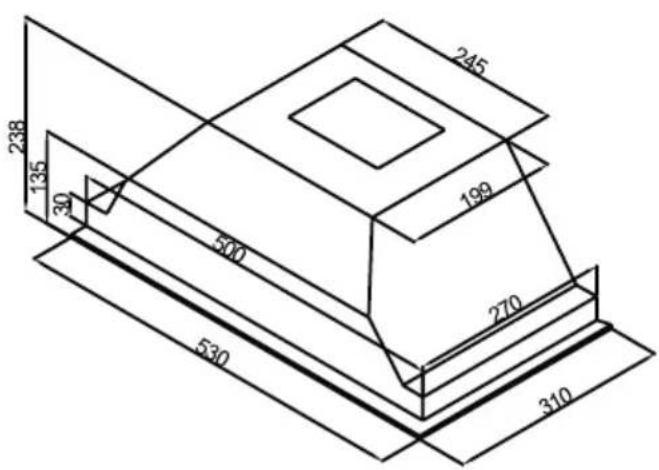

2.3 Scaled Technical Drawing

245 238 135 30 500 199 270 530 310

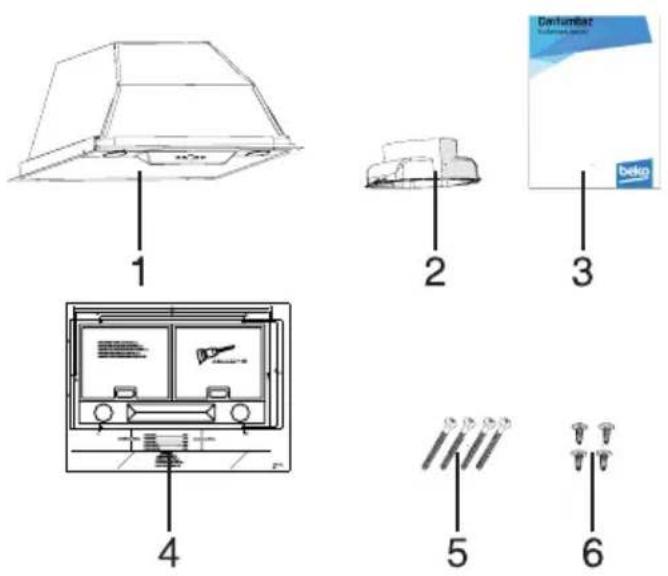

2.4 Package Content

1 2 3 4 5 6 Columbus Belg

1. Hood
2. ∅120 mm Plastic Flue
3. User Manual
4. Installation Draft
5. 4x 4x40 Screw (Used for Installation of Hood)
6. 3.5×9.5 Screw
   (Used for Installation of Plastic Flue)

3 Installation and Use of the Appliance

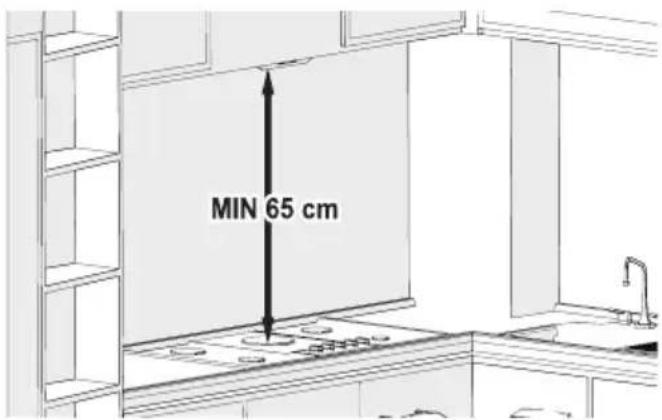

3.1 Position of the Appliance

MIN 65 cm

• Attention should be paid to the distance between the hob and hood before installation. This distance should be 65 cm.
• The measure must be taken from the grill surface on gas hobs and from the glass surface on electric hobs.

Your new appliance is especially energy efficient. You will find here some advises on how to save more energy while using the appliance, and required to destroy the appliance in a proper way.

3.2 Things to do for energy saving;

• Ensure sufficient air intake to make the hood operate efficiently and with low operation noise during cooking.
• Set the fan level according to the density of steam in kitchen. Use the high level only when needed. A lower fan level means less energy consumption.
• If dense smoke is expected in the kitchen, select a higher level of fan in advance. It is required to operate the hood much longer to remove the smoke already spread all over kitchen.
• Turn off the hood when not in use.
• Clean or replace the filter at intervals stated,

thus, the efficiency of the ventilation is increased and the risk of fire is eliminated.

3.3 Installation of the Appliance

CAUTION

Use protective gloves and glasses while performing drilling and cutting operations.

MINTUARY CABBAGE ROYA LE MOZZARELLA BARRAGUS RUBA LE BARRAGUS MINTUARY ROYA LE BARRAGUS MINTUARY ROYA LE BARRAGUS MINTUARY ROYA LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRICE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRACLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE ABRCLE LE

Pic. 6

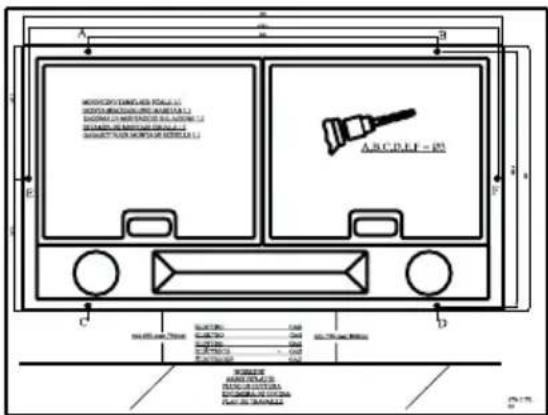

Drilling Mounting Holes

• Adhere the installation template provided with the appliance onto the surface on which the installation will be carried out.
• Drill the holes indicated on the installation draft with A, B, C, D using a 04 mm drill bit. Pic. 6

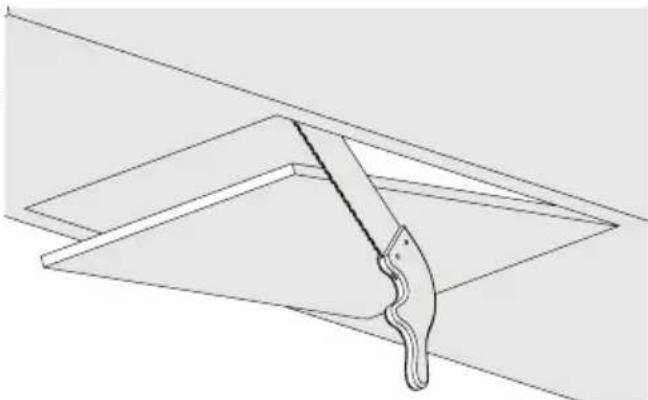

Technical line drawing of a saw cutting through a rectangular frame (no text or symbols)

Pic. 7

- Cut the lower surface of the cabinet where the hood will be installed in the dimensions specified in the technical drawing (Pic. 7).

3 Installation and Use of the Appliance

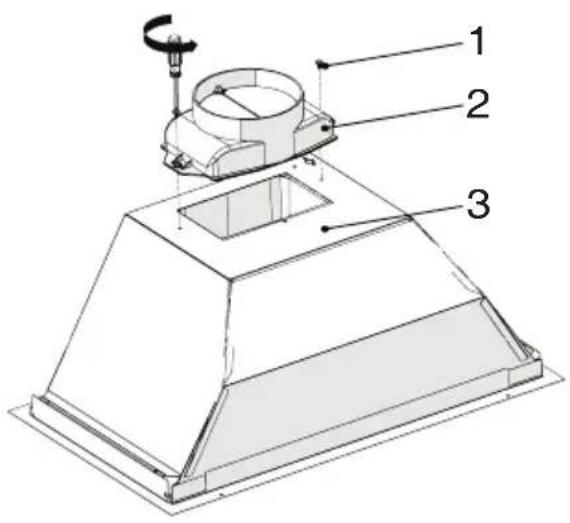

Technical diagram of a mechanical device with numbered components labeled 1, 2, and 3

Pic. 8

1. 3.5 × 9.5 Screw
2. ∅ 120 mm Plastic Flue
3. BodyValve Pin Socket

- Attach the plastic flue contained in the package to the body of the appliance using 2 screws 3.5 x 9.5. (Pic. 8) Do not rub it against the surface. Pic. 8

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

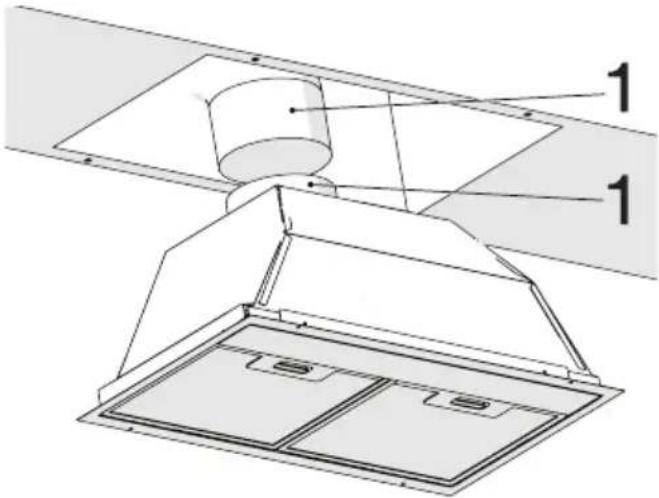

Pic. 9

1. Air discharge pipe
2. Air exhaust flue of the hood

- Attach the air discharge pipe to the air exhaust flue and fasten via clamp (Pic. 9).

CAUTION

As the bends and elbows in the aluminum pipe will cause decrease in the air suction power, using these must be avoided as much as possible.

Technical diagram showing a folding panel with labeled parts and measurement indicators

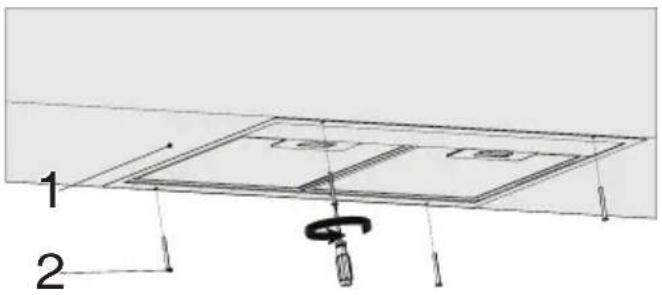

Pic. 10

1. Kitchen cabinet bottom view
2. 4x40 hood installation screw

- Place the hood into the kitchen cabinet and attach the hood to 4 installation holes drilled before (Pic.10).

3.4 Use of the Appliance

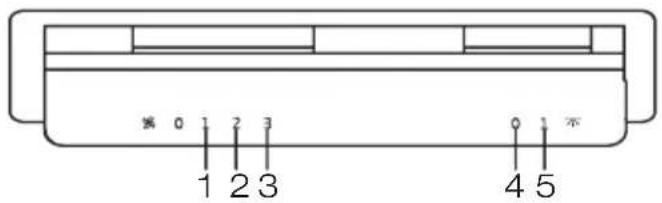

3.4.1 Use of the Rocker Switch

• Bring the lamp switch to position '0' to turn off the lamp.
• Bring the lamp switch to position '1' to turn on the lamp.
• Bring the motor switch to position '0' to turn off the motor.
• You can operate the motor in the 1st speed level minimum and in the 3rd speed level maximum according to the density of cooking steam.

3 Installation and Use of the Appliance

3.4.2 Use of the Digital Switch

A 1 B 2 C 3 3 D 4 E 5

A-1. Level Button
B-2. Level Button
C- Digital Display
D-3. Level Button
E- Lamp On/Off Button

(A) Button: The hood operates in 1st speed level by pressing this button. (Displayed on the screen) The screen and hood turn off when you press this button again to switch off the appliance.
(B) Button: The hood operates in 2nd speed level by pressing this button. (Displayed on the screen) The screen and hood turn off when you press this button again to switch off the appliance.
(E) Button: The hood operates in 3rd speed level by pressing this button. (Displayed on the screen) The screen and hood turn off when you press this button again to switch off the appliance.
(C) Digital Display: It shows the selected speed and warning symbols.
(D) Lamp On/Off button: You can illuminate the cooking area by pressing this button.

Cleaning Periods for Metal Filters: Filters should be cleaned when "C" symbol is shown on the display (every 60 hours) or every four weeks (according to use). Press and hold down the button A for more than 3 seconds (while the appliance is off) to delete the "C" symbol after cleaning and installing the filters. The letter E will be shown on the display and it will switch to normal operation. If you want to operate the appliance without deleting the C signal, the active speed will be shown for 1 second when you press any of the level buttons and the

motor will continue to operate in the selected level after the C signal is shown again.

Automatic Stop 15 mins.: The appliance has an automatic stop feature to eliminate the odour, to discharge the steam after cooking is complete, and to have the appliance stopped automatically while ventilating the environment for a while.

To activate the automatic stop feature, press the same button (A, B, D) according to the current speed level for 3 seconds. At the end of operation for 15 minutes, all operating functions of your appliance will stop.

Automatic stop feature will be deactivated and the motor of the appliance will stop when you press the same button corresponding to the speed level while the automatic stop feature is active. This feature will be deactivated when you switch to different speed levels. If you want the appliance to stop automatically, you need to reactivate the automatic stop function of the appliance.

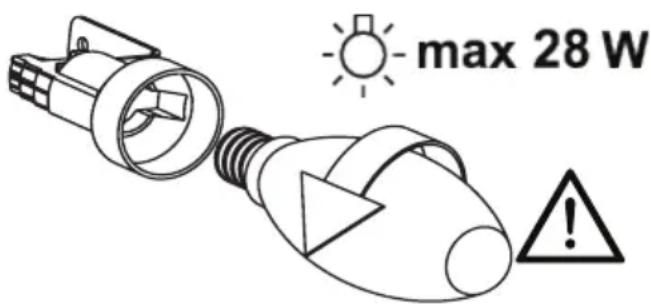

3.5 Lamp Replacement 3.5.1 Candle Bulb Replacement

WARNING

Cut the power supply of the hood. Lamps may burn your hands while hot, so wait for them to cool down.

max 28 W !

Pic. 11: Candle Bulb Replacement

- Remove the aluminum cartridge filter. Remove the faulty lamp and replace it with the one having the same value. Pic. 11

3 Installation and Use of the Appliance

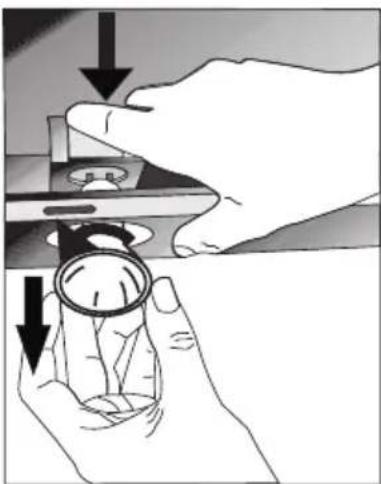

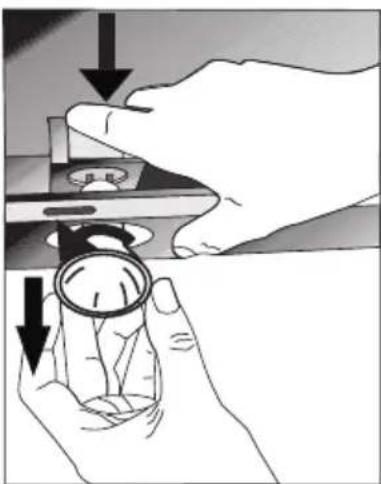

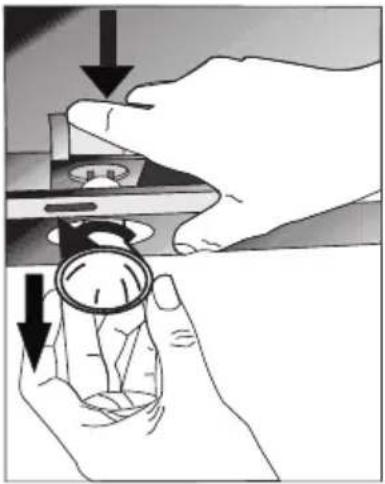

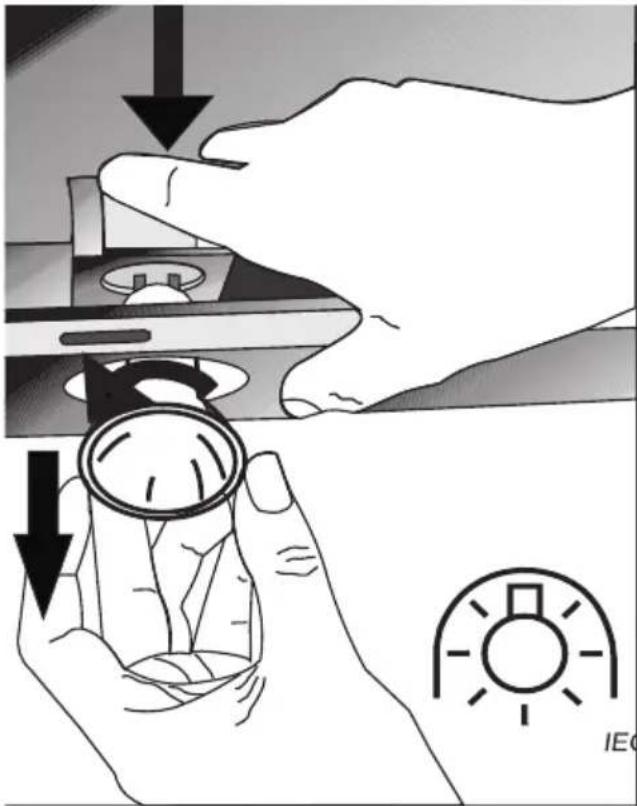

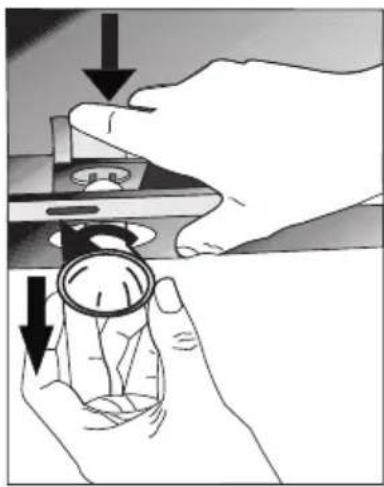

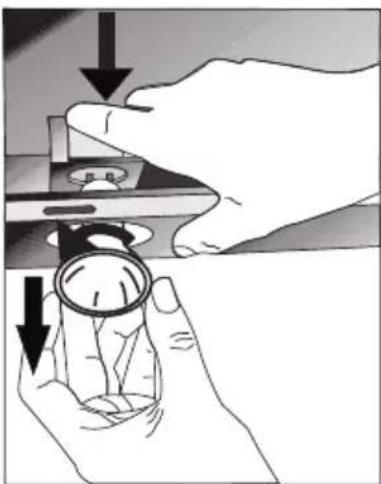

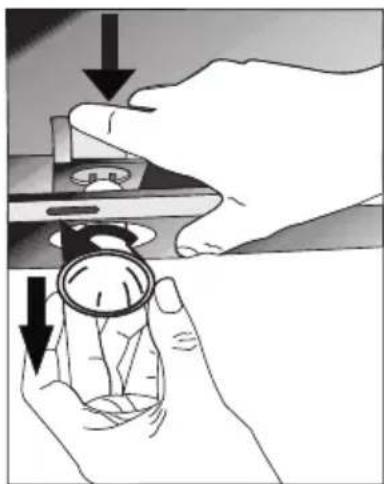

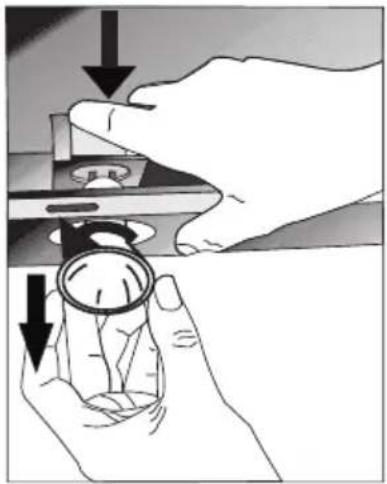

3.5.2 Replacement of Halogen Lamp

Pic. 12: Replacement of Halogen Lamp

- In order to replace the halogen lamps; press down from the back of lamp holder and remove the lamp downwards and then turn a little bit counter-clockwise and remove downwards. Pic. 12

max 50 W

Diagram illustrating a mechanical operation with hands operating a rotating knob and directional arrows indicating motion or force.

WARNING

Use only self-protection tungsten halogen lamp or self-protection metal halide lamp.

NOTE:

If the appliance breaks down or gets damaged, shut down the fuse or unplug the appliance and call the authorised service agent.

NOTE:

If the supply cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified personnel to avoid any danger.

NOTE:

Shut down the fuse or unplug the appliance in case of breakdown of the lamps of the appliance. Replace immediately the faulty lamps in order to prevent other lamps from being overloaded (wait for the lamps to cool down first).

4 Cleaning and Maintenance

CAUTION

Risk of damage due to the corrosion damage. Always operate the appliance while cooking in order to prevent condensate formation. Condensate may cause corrosion damage. Replace immediately the faulty lamps in order to prevent other lamps from being overloaded. The risk of damage occurs due to the humidity intrusion to the electronics. Never clean the controllers with a wet cloth. Surface may be damaged due to improper cleaning. Clean the stainless steel surfaces only in the direction of brushing. Do not use stainless steel cleaner for controllers. The surface may be damaged due to abrasive or rubbing cleaning agents. Never use abrasive or rubbing cleaning agents. There is the risk of damage due to backflow of condensate. Install the air outlet duct with a slope of 1°, slightly downwards the appliance.

CAUTION

You can use this appliance in waste air mode and in air circulation mode.

Waste air mode

Absorbed air is cleaned by oil filters and expelled by means of a piping system. (Pic. 3) If you want to transfer the waste air to a disabled smoke or waste gas flue, you have to obtain permission from an authorised flue cleaning specialist. If the waste air is expelled over the external wall, a telescopic wall frame should be used.

Absorbed air is cleaned by oil filters and an active carbon filter and retransferred to the kitchen. Pic. 4

NOTE!

The waste air should not be transferred to a smoke or waste gas flue, nor to a flue used for ventilation of the places where heating sources are installed.

To seal the materials causing odour in the circulating air mode, you should install an active carbon filter. Consult your authorised dealer to learn different opportunities for operating the appliance in the circulating air mode. You can buy accessories necessary for this procedure from relevant points of sale, authorised service agents or online sales centre.

The appliance you have purchased is suitable for use with carbon filter. To attach the carbon filter; 1- Place the carbon filter into its housing. Pic. 15/12- Turn the carbon filter clockwise to make sure that it is tightly inserted. Pic. 15/2

Res.13

Res.14Res.15

If the carbon filter is not properly attached, it can fall and damage your product.

CAUTION

Never wash the carbon filters. Keep the carbon filters away from children.

4 Cleaning and Maintenance

CAUTION

Cleaning and user maintenance should not be performed by children without supervision.

• The surface may be damaged due to abrasive or rubbing cleaning agents. Never use abrasive and rubbing cleaning agents. Acquire the cleaning agents and protective materials suitable for your appliance form your authorised service. The surface of the appliance and the controllers are sensitive to scratching.
• Clean the surfaces with a soft and damp cloth, dishwashing liquid or a soft glass cleaning agent. Soften the dried and adhered dirt with a damp cloth. Do not scratch out!
• Dry cloths, sponges that may scratch, materials that require rubbing, sand and the other effective cleaning agents containing mineral water, acid or chloride are not suitable.

- Clean the stainless steel surfaces only in the direction of grinding.

- Do not use stainless steel cleaning agent or wet cloths for control units. Cleaning the metal oil filters Used metallic oil filters hold the humidity generated in the kitchen and the oily particles contained within the steam. In case of regular use (1 to 2 hours per day), clean the metal oil filters about once every 3 months.

- Do not use over-effective, acidified or corrosive cleaning agents.

- For the cleaning of the metal oil filters, use a damp cloth to clean holding parts of metal oil filters inside the appliance.

- You can clean the metal oil filters in the dishwasher or by hand.

- Do not apply spray cleaning agents directly on the appliance.

- Do not put flammable and/or heavy decorative items on the appliance.

4.1 Washing in the Dishwasher

• In case of washing in the dishwasher, slight discoloration may occur. This does not affect the function of the metal oil filter.
• Do not wash heavily soiled metal oil filters together with the dishes.

- Place the metal oil filters in the dishwasher loosely or freely. Metal oil filters should be placed in the dishwasher without being jammed.

4.2 Washing By Hand

• You can use a special oil dissolving agent for stubborn dirt. You can get this agent from the authorised sales center.
• Soften the metal oil filter in hot water containing dishwashing liquid.

- Use a brush for cleaning and wait for the liquid on the metal oil filter to be drained well. Rinse the filters well after cleaning.

- Technical specifications and this manual may be changed without prior notice.

- This appliance complies with the Regulation for Supervision of the Waste Electric and Electronic Equipment.

- This hood is designed to be used over the hob. Make sure that the wall can bear the weight of the hood. Cost of crushing, cutting and similar procedures to be carried out on the wall or cabinet during installation should be covered by the consumer. The hood may be used with a flue system that discharges the air, or without a flue (by attaching the carbon filter). Pay attention to the matters that may be encountered before or during the installation. Installation should be performed by the authorised service agent. Installation should be carried out by an authorised specialist who has knowledge of ventilation. Service life of the appliance identified by the Ministry of Industry (period of availability for the spare parts required for the performance of functions of the appliance) is 10 (ten) years.

- Your appliance must be kept in its original packaging to avoid damage to its components during handling and transportation.

- Keep the appliance in its normal position during handling.

- Do not drop the appliance and protect it against damage during transportation. Warranty does not cover the faults and damages occurred during transportation after delivery of the appliance to the customer.

Safety warning symbol and electrical hazard diagram showing a skull, smoke, and circuit components

Simple line icons showing a checkmark and a house with pipes (no text or symbols)

Technical diagram of a device with numbered components, likely an air duct or fan assembly

MIN 65 cm

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 1, 2, and 3.

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Abb. 9

Two technical line drawings: a bulb and a circular indicator with a square symbol, labeled 'IEC' at the bottom (no text or symbols on the diagrams themselves)

Illustration of hands using a magnifying glass to adjust a mechanical component (no text or symbols present)

Safety warning symbol and hazard symbol for a hazard test setup

Simple line drawing of a house with a checkmark and directional arrows (no text or symbols)

Technical diagram of a device casing with numbered components for identification

MIN 65 cm

Line drawing of a saw cutting through a rectangular frame (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 1, 2, and 3.

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Pic. 9

max 50 W IEC

Illustration of hands using a tool to adjust a circular component, showing motion arrows (no text or symbols)

Safety warning symbol and electrical hazard diagram showing a skull and smoke inside a house with airflow arrows

Simple line drawing of a house with a checkmark and piping (no text or symbols)

Technical diagram of a device casing with numbered components for identification

MIN 65 cm

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 1, 2, and 3.

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Rys. 9

Technical diagram showing a folding panel with labeled parts and measurement indicators

Rys.10

Two technical line drawings: a top-down view of a lamp and a circular dial with IEC label (no text or symbols on the diagram itself)

Illustration of hands using a tool to adjust a circular component, showing force application (no text or symbols)

Safety warning symbol showing a skull and explosion next to an electrical circuit diagram with pipes and valves.

Simple line icons showing a checkmark and a house outline (no text or symbols)

Obr. 2: Riziko otravy

Technical diagram of a device casing with numbered components for identification

MIN 65 cm

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L U V W X Y Z A B C D E F G H I J K L U V W X Y Z A B C D

Obr. 6

Technical line drawing of a saw cutting through a rectangular frame (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 1, 2, and 3.

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Obr. 9

Illustration of hands using a tool to adjust a circular component, showing force application (no text or symbols)

Safety warning symbol and diagram showing a skull hazard and smokestack with airflow arrows

Obr. 1: Riziko otrávenia

Simple line icons showing a checkmark and a house with pipes (no text or symbols)

Technical diagram of a device casing with numbered components for identification

MIN 65 cm

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D M10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 M1254568888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888

Obr. 6

Line drawing of a saw cutting through a rectangular frame (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 1, 2, and 3

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Obr. 9

Technical diagram of a roof structure with labeled components (no text or symbols present)

Obr. 10

Technical line drawing of a lamp and a circular indicator with IEC label (no text or symbols on components)

Illustration of hands using a tool to adjust a circular component, showing motion arrows (no text or symbols)

Safety warning symbol showing a skull hazard inside a triangular warning triangle and a house with smokestacks and airflow arrows.

Simple line icons showing a checkmark and a house outline (no text or symbols)

Technical diagram of a device casing with numbered components for identification

MIN 65 cm

MOUNTING TING, FLOR, FLA MOUNTING MOUNTING MOUNTING FLA MOUNTING MOUNTING FLA MOUNTING MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FLA MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNTING FL A MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INFL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT INCL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNT IN CL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL MOUNTINFL

Pilt 6

Kinnitusavade puurimine

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 1, 2, and 3.

1. 3,5×9,5 kruvi
2. ∅ 120 mm plastlõör
3. KorpusKlapp Varras Pesa

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Pilt 9

Simple line drawing of a lamp and a circular indicator with IEC label (no text or symbols on the diagram itself)

Illustration of hands using a tool to adjust a circular component, showing downward force arrows (no text or symbols)

Safety warning symbol showing a skull hazard and a house with airflow arrows, indicating hazard or hazard.

att. 1: Risks saindēties

Simple line icons showing a checkmark and a house with pipes (no text or symbols)

att. 2: Risks saindēties

Technical diagram of a device casing with numbered components for identification

MIN 65 cm

Technical line drawing of a saw cutting through a rectangular frame (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 1, 2, and 3.

1. 3,5 x 9,5 skrūve
2. ∅120 mm Plastmasas dūmvads
3. KorpussVärsts Tapas ligzda

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Att. 9

Technical line drawing of a lamp and a circular indicator with IEC label (no text or symbols on components)

Illustration of hands using a tool to adjust a circular component, showing force application (no text or symbols)

Safety warning symbol and diagram showing a skull and smoke next to an industrial chimney with piping and valve

Pav. 1: Apsinuodijimo pavojus

Simple line icons showing a checkmark and a house with pipes (no text or symbols)

Pav. 2: Apsinuodijimo pavojus

Technical diagram of a device casing with numbered components labeled 1 through 5

MIN 65 cm

MOUNTING AIR VENTURE AVOCATING AIR VENTURE AVOCATING AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE Air VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE AIR VENTURE A B C D E F G H I N I N J M I N K I N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N_L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L IN M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M I N N L I N M i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m i n m j o l l o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a c t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e b t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e a t o r e A B C D E F E S T O R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T U R E T u r s u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u lf u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f u l f v 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Pav. 6

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 1, 2, and 3.

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Pav. 9

Technical line drawing of a lamp and a circular component with IEC label (no text or symbols on components)

Illustration of hands using a tool to adjust a circular component, showing downward force arrows (no text or symbols)
