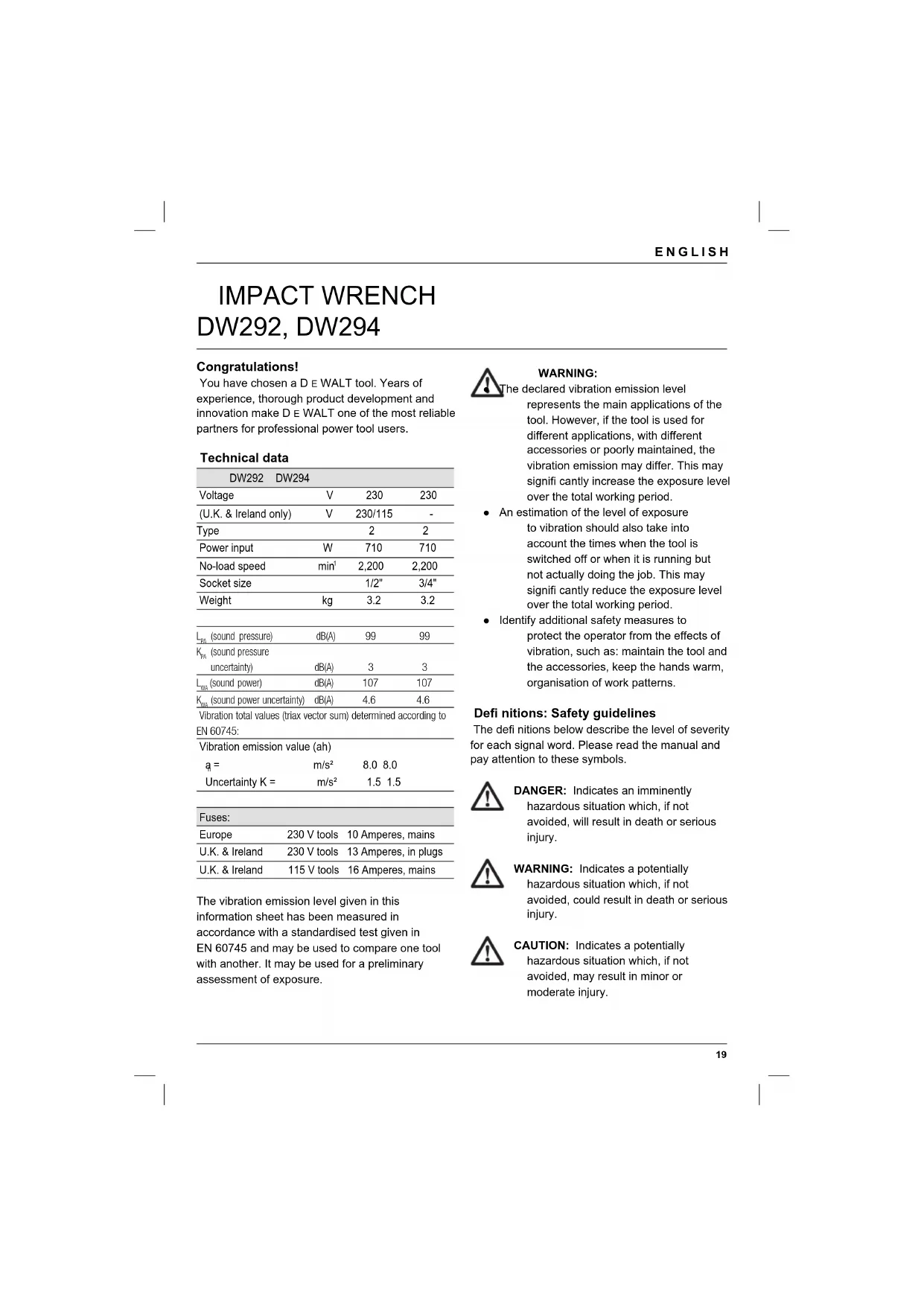

USER MANUAL DW292 DEWALT

● The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may signifi cantly increase the exposure level over the total working period. ● An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may signifi cantly reduce the exposure level over the total working period. ● Identify additional safety measures to protect the operator from the effects of vibration, such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. Defi nitions: Safety guidelines The defi nitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently

hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially

hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. Congratulations! You have chosen a D E WALT tool. Years of experience, thorough product development and innovation make D E WALT one of the most reliable partners for professional power tool users. Technical data DW292 DW294 Voltage V 230 230 (U.K. & Ireland only) V 230/115 - Type 2 2 Power input W 710 710 No-load speed min

(sound pressure) dB(A)

(sound pressure uncertainty) dB(A)

(sound power uncertainty) dB(A)

= m/s² 8.0 8.0 Uncertainty K = m/s² 1.5 1.5 Fuses: Europe 230 V tools 10 Amperes, mains U.K. & Ireland 230 V tools 13 Amperes, in plugs U.K. & Ireland 115 V tools 16 Amperes, mains The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.20 ENGLISH NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage. Denotes risk of electric shock.

Denotes risk of fi re. EC-Declaration of conformity MACHINERY DIRECTIVE

DW292, DW294 DEWALT declares that these products described under “technical data” are in compliance with: 2006/42/EC, EN 60745-1, EN 60745-2-2. These products also comply with Directive 2004/108/EC. For more information, please contact

EWALT at the following address or refer to the back of the manual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of

Horst Großmann Vice President Engineering and Product Development

WARNING: To reduce the risk of injury,

read the instruction manual. General Power Tool Safety Warnings

WARNING: Read all safety warnings

and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool. 1 Work Area Safety a Keep work area clean and well lit. Cluttered or dark areas invite accidents. b Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2 Electrical Safety a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.21 ENGLISH d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. 3 Personal Safety a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust- related hazards. 4 Power Tool Use and Care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5 Service a Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.22 ENGLISH

ADDITIONAL SPECIFIC SAFETY RULES

Safety Instructions for All Impact Drills

• Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.

• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.

• Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live" wire will make exposed metal parts of the tool “live" and shock the operator.

• Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

• Wear safety goggles or other eye protection. Hammering and drilling operations cause chips to fly. Flying particles can cause permanent eye damage.

• Bits, sockets and tools get hot during operation. Wear gloves when touching them.

• Do not operate this tool for long periods of time. Vibration caused by tool action may be harmful to your hands and arms. Use gloves to provide extra cushion and limit exposure by taking frequent rest periods. Residual Risks In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are: – Impairment of hearing . – Risk of personal injury due flying particles. – Risk of burns due to accessories becoming hot during operation. – Risk of personal injury due to prolonged use. Markings on Tool The following pictograms are shown on the tool: Read instruction manual before use. DATE CODE POSITION (FIG. A) The Date Code (7), which also includes the year of manufacture, is printed into the housing. Example: 2010 XX XX Year of Manufacture Package Contents The package contains: 1 Impact wrench 1 Instruction manual 1 Exploded drawing ● Check for damage to the tool, parts or accessories which may have occurred during transport. ● Take the time to thoroughly read and understand this manual prior to operation. Description (fi g. A)

tool or any part of it. Damage or personal injury could result. 1 On/off switch 2 Forward/reverse slider 3 Anvil 4 Socket Intended Use Your DW292, DW294 impact wrench has been designed for professional screwdriving and nutsetting applications. DO NOT use this tool under wet conditions or in presence of fl ammable liquids or gases. This impact wrench is a professional power tool. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool. Electrical Safety The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate. Your DEWALT tool is double insulated in accordance with EN 60745; therefore no earth wire is required.23 ENGLISH

WARNING: 115 V units have to

be operated via a fail-safe isolating transformer with an earth screen between the primary and secondary winding. If the supply cord is damaged, it must be replaced by a specially prepared cord available through the

EWALT service organisation. Mains Plug Replacement (U.K. & Ireland Only) If a new mains plug needs to be fitted:

• Safely dispose of the old plug.

• Connect the brown lead to the live terminal in the plug.

• Connect the blue lead to the neutral terminal.

WARNING: No connection is to be made

to the earth terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13 A. Using an Extension Cable If an extension cable is required, use an approved extension cable suitable for the power input of this tool (see technical data). The minimum conductor size is 1 mm

; the maximum length is 30 m. When using a cable reel, always unwind the cable completely. Assembly and Adjustment

WARNING: Prior to assembly and

adjustment always unplug the tool. Fitting and Removing Sockets Your DW292 impact wrench uses a 1/2" square drive system with detent pin. Your DW294 impact wrench uses a 3/4" square drive system with detent pin. Fitting Sockets (fi g. B) ● Align the hole (6) in the side of the socket with the detent pin (5) on the anvil. ● Push the socket (4) onto the anvil (3) until it snaps into place. Tap it lightly if required. Removing Sockets (fi g. C) ● Depress the detent pin (5) through the hole (6) in the socket and pull the socket off the anvil. Setting the Direction of Rotation (fi g. D) ● Select forward or reverse rotation using the forward/reverse switch (2).

WARNING: Always wait until the motor

has come to a complete standstill before changing the direction of rotation. OPERATION Instructions for Use

Always observe the safety instructions and applicable regulations.

WARNING: To reduce the risk of

serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. Screwdriving or Nutsetting (fi g. A) ● Select the appropriate socket for the screw or nut to be driven. ● Select forward or reverse rotation as described above. ● Hold the tool in line with the fastener. Proper Hand Position (fi g. A, E)

WARNING: To reduce the risk of

serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of

serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction. Proper hand position requires one hand on the main handle (8), as shown. Switching On and Off (fi g. A) ● To run the tool, press the on/off switch (1). ● To stop the tool, release the switch.24 ENGLISH MAINTENANCE Your D E WALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

WARNING: To reduce the risk of

injury, switch off and disconnect the tool from the power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. Be sure the tool is switched off. An accidental start-up can cause injury.

Lubrication Your power tool requires no additional lubrication.

WARNING: Blow dirt and dust out of

the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

WARNING: Never use solvents or other

harsh chemicals for cleaning the non- metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid. Optional Accessories Consult your dealer for further information on the appropriate accessories.

WARNING: Since accessories, other

than those offered by D E WALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only D E WALT, recommended accessories should be used. Various types of sockets, holders and adaptors are available as an option. Protecting the Environment

Separate collection. This product must not be disposed of with normal household waste. Should you fi nd one day that your D E WALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product. D E WALT provides a facility for the collection and recycling of D E WALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf. You can check the location of your nearest authorised repair agent by contacting your local D E WALT offi ce at the address indicated in this manual. Alternatively, a list of authorised D E WALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com25 ENGLISH GUARANTEE

EWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

• 30 DAY NO RISK SATISFACTION GUARANTEE • If you are not completely satisfied with the performance of your D EWALT tool, simply return it within 30 days, complete with all original components, as purchased, to the point of purchase, for a full refund or exchange. The product must have been subject to fair wear and tear and proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT • If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorised DEWALT repair agent. Proof of purchase must be produced. Includes labour. Excludes accessories and spare parts unless failed under warranty.

• ONE YEAR FULL WARRANTY • If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, DEWALT guarantees to replace all defective parts free of charge or – at our discretion – replace the unit free of charge provided that:

• The product has not been misused;

• The product has been subject to fair wear and tear;

• Repairs have not been attempted by unauthorised persons;

• Proof of purchase is produced;
