Product Type	Surveillance Camera
Brand	JVC
Model	TKC9510E
Horizontal Resolution	550 TVL (typical)
Video S/N Ratio	52 dB (typical, AGC OFF)
Minimum Illumination (Color)	0.05 lx (50%, F1.2, AGC HIGH)
Minimum Illumination (Black & White)	0.006 lx (50%, F1.2, AGC HIGH)
Lens Mount	CS Mount
Power Supply	24 V AC 50/60 Hz or 12 V DC
Power Consumption	390 mA
Operating Temperature	-10 °C to 50 °C
Weight	310 g
Supplied Accessories	Instruction Manual, CD-ROM
Installation	Professional installation required (ceiling/wall mount)
Standards	Compliant with European directives (EMC, electrical safety)
Safety Power Supply	Isolated power supply required (24 V AC or 12 V DC)
Maintenance	No user-adjustable parts, refer to qualified personnel
European Representative	JVC Technical Services Europe GmbH, Germany

Frequently Asked Questions - TKC9510E JVC

What is the resolution of the JVC TKC9510E camera?

The horizontal resolution is 550 TVL (typical), providing a clear image for surveillance.

What type of power supply does this camera require?

It operates on 24 V AC 50/60 Hz or 12 V DC. The power supply must be isolated and installed by a professional.

What is the low light sensitivity?

In color mode, the minimum illumination is 0.05 lx (50%, F1.2, AGC HIGH). In black and white mode, it drops to 0.006 lx.

Can I use a different lens?

Yes, the camera has a CS mount, compatible with most standard CS lenses.

How do I mount the camera on the ceiling?

Installation must be performed by a professional. Ensure the bracket is sturdy enough and the screws are tightened to prevent falling.

What is the operating temperature range?

The camera can operate between -10 °C and 50 °C. For optimal performance, the recommended ambient temperature is 0 °C to 40 °C.

Is the camera compatible with alarm systems?

Yes, thanks to its standard video output, it can be integrated with most surveillance and alarm systems.

How do I clean the camera?

Use a soft, dry cloth. Do not use chemicals. For interior cleaning, refer to a qualified technician.

What to do in case of malfunction?

Do not attempt to repair yourself. Contact JVC after-sales service or an authorized technician. The device contains no user-serviceable parts.

Where can I find the full manual?

The manual is available for free download in PDF format at notice-facile.com. You can also request a translation via the form on the site.

USER MANUAL TKC9510E JVC

MANUEL D'INSTRUCTIONS

3D rendering of a mechanical device housing with a central circular component and mounting base (no text or symbols visible)

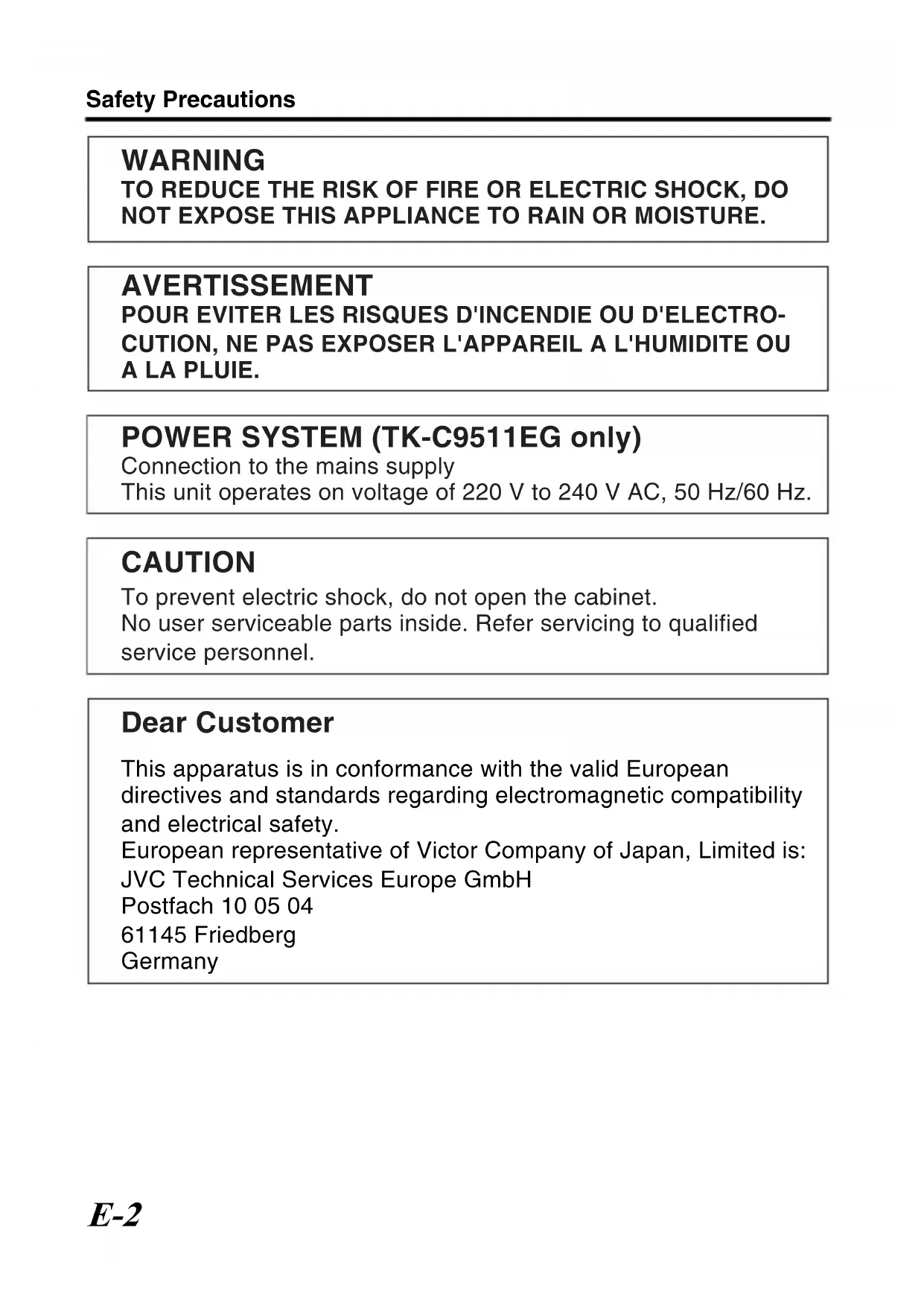

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

AVERTISSEMENT

POUR EVITER LES RISQUES D'INCENDIE OU D'ELECTROCUTION, NE PAS EXPOSER L'APPAREIL A L'HUMIDITE OU A LA PLUIE.

POWER SYSTEM (TK-C9511EG only)

Connection to the mains supply

This unit operates on voltage of 220 V to 240 V AC, 50 Hz/60 Hz.

CAUTION

To prevent electric shock, do not open the cabinet.

No user serviceable parts inside. Refer servicing to qualified service personnel.

Dear Customer

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Germany

Information for Users on Disposal of Old Equipment [European Union]

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Attention:

This symbol is only valid in the European Union.

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page http://www.jvc.eu to obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

● The unit is to be powered by an AC 24 V or a DC 12 V power supply. (TK-C9510E only)
● The AC 24 V and 12 V DC power supply shall conform to the following: Isolated power supply only. (TK-C9510E only)
● This installation should be made by a qualified service person and should conform to all local codes.
● This installation shall be in accordance with the National Electrical Code, ANSI/NFPA 70.
● Any Mention in this manual of Alarm inputs have not been evaluated by UL to be used for Burglar Alarm Functionality.
● Special technique is required when installing this product. Please refer to your dealer for installation.
● Rating label is pasted on the camera unit.
- JVC is not liable for any compensation if you drop the camera due to insecure mounting by not following the installation description. Pay careful attention during installation.
- When mounting this product to a ceiling or wall, select a location strong enough to support the weight, be sure to reinforce the ceiling or wall before installation.
- The camera may drop if the mounting screws are not tightened securely. Check that the screws are tightened appropriately and securely.
- Do not install the camera near lighting fixtures of high temperature, such as spot lights. It might result in failure or fires.

Thank you for purchasing this product.

Please refer to "INSTRUCTIONS" (pdf) of supplied CD-ROM for details.

Specifications

Horizontal resolution	: 550TV lines (typical)
Video S/N ratio	: 52 dB (typical, AGC OFF)
Minimum illumination	: Colour mode:0.05 lx (Standard, 50 %, F1.2, AGC HIGH)0.025 lx (Standard, 25 %, F1.2, AGC HIGH)Black-and-white mode:0.006 lx (Standard, 50 %, F1.2, AGC HIGH)0.003 lx (Standard, 25 %, F1.2, AGC HIGH)
Lens mount	: CS mount
Power supply	: AC 24 V 50 Hz/60 Hz, DC 12 V (TK-C9510E)AC 220 V - AC 240 V 50 Hz/60 Hz (TK-C9511EG)
Length of power supply cable	: 1900 mm (TK-C9511EG)
Current consumption	: 390 mA (TK-C9510E)60 mA (TK-C9511EG)
Ambient temperature	:-10 °C to 50 °C (operating range)0 °C to 40 °C (recommended)
Mass	: 310 g (TK-C9510E)490 g (TK-C9511EG)
Accessories	: Instructions × 1CD-ROM × 1

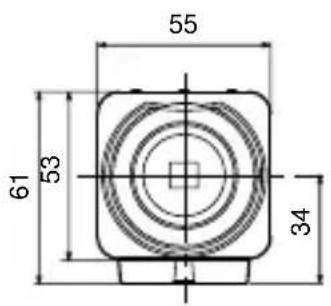

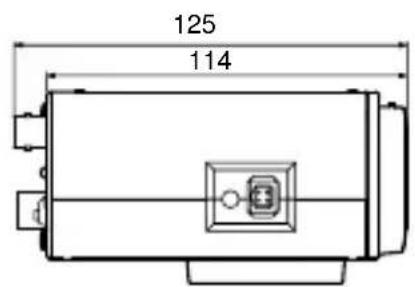

Dimensional Outline (Unit: mm)

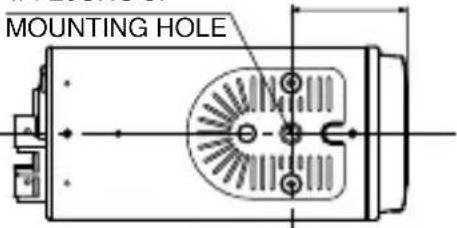

1/4 20UNC 37

* Specifications and appearance of this camera are subject to change for improvement without prior notice.

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text present)

Hinweis:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Attention :

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Atención:

Symbol of a trash bin crossed with no visible text or labels

Attenzione:

Pure electrical circuit lines without any symbols

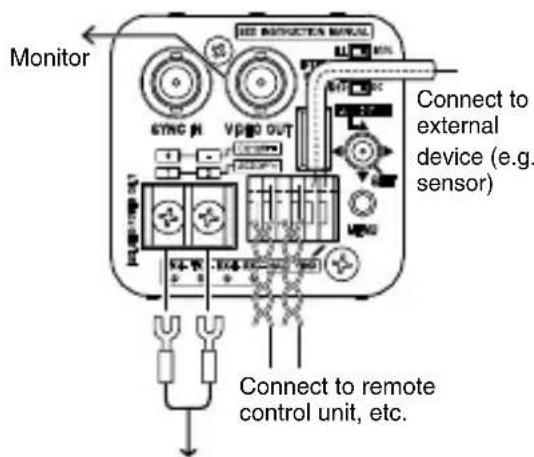

2 Connection

To AC 24 V or DC 12 V power supply (TK-C9510E)

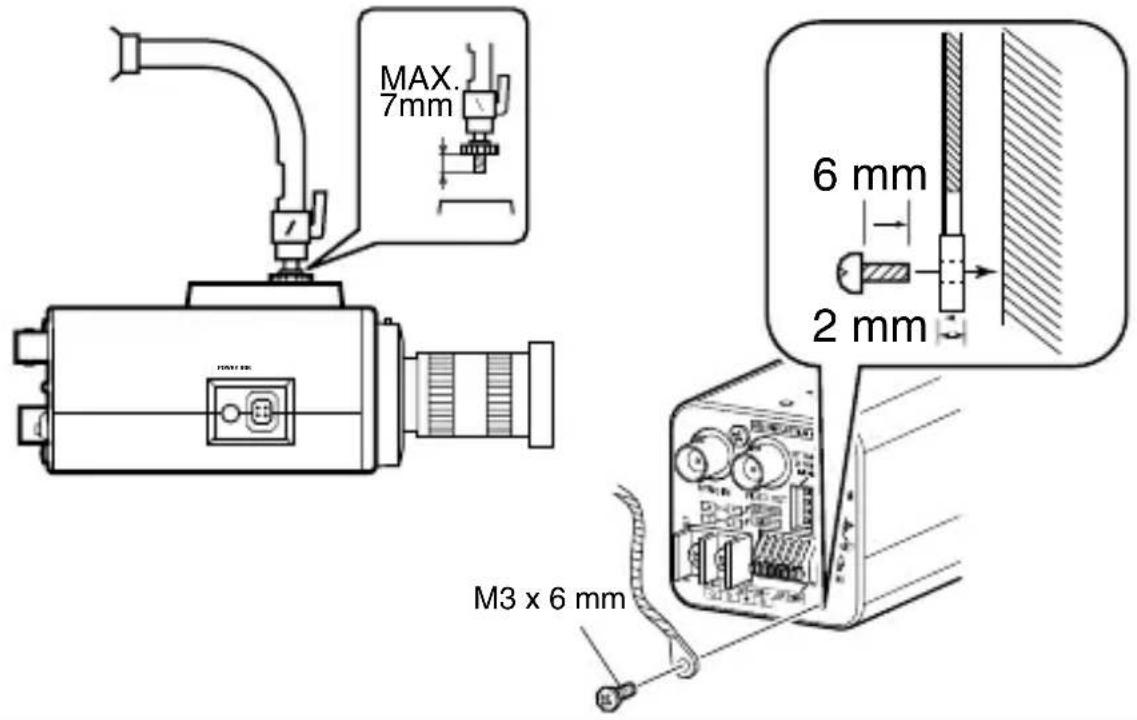

3 Mounting the Camera

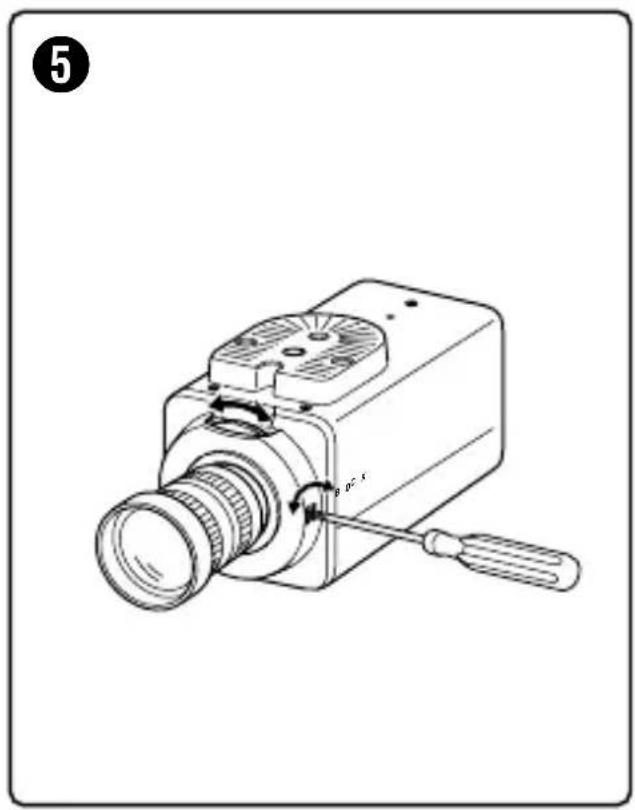

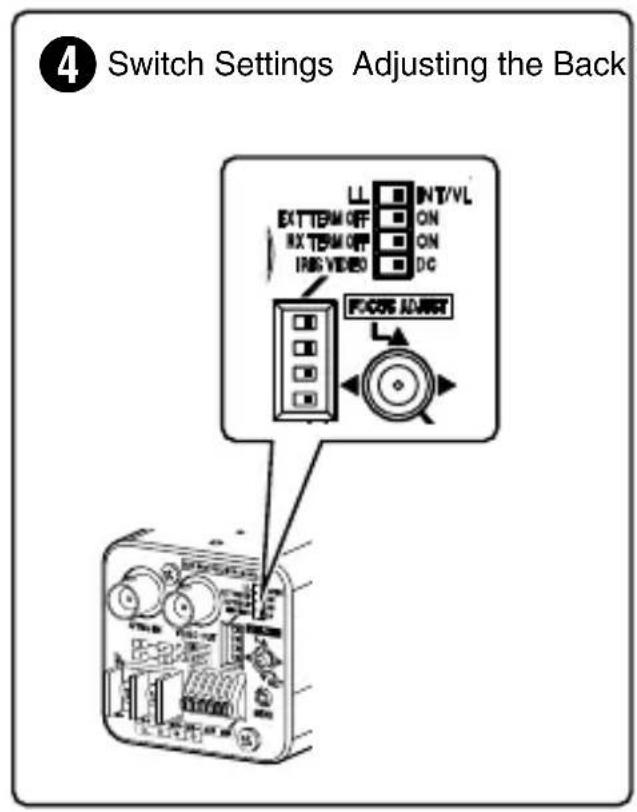

Focus

Line drawing of a mechanical device with a screwdriver and lens, no text or symbols present

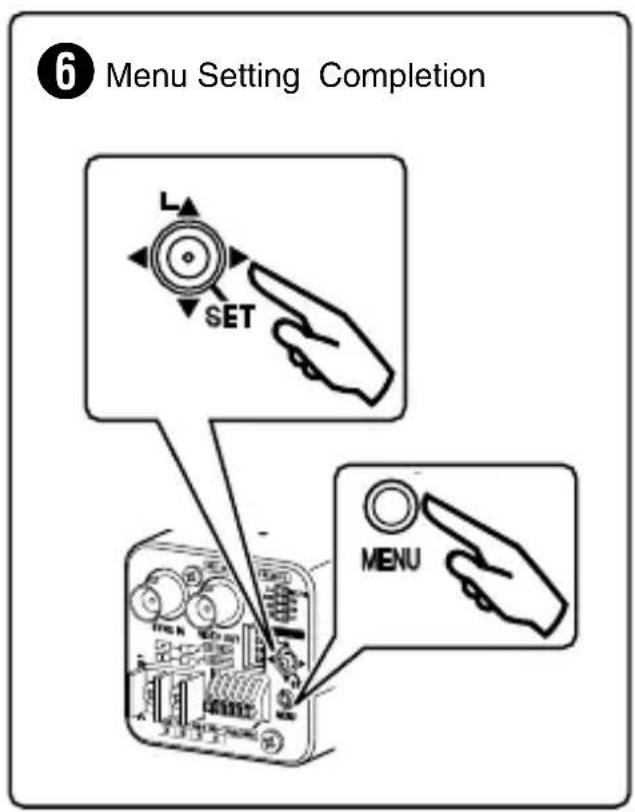

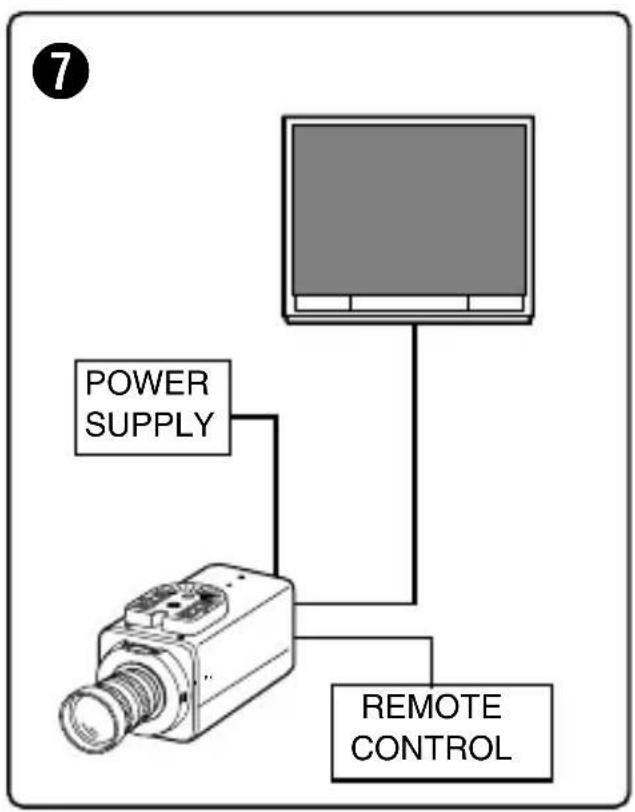


COUR Video CAMERA

TK-C9511EG

TK-C9510E
