USER MANUAL KST-OH100 JVC

KY-PZ100 (Black recommended)

KST-OH100 outdoor System V2.0

Modular outdoor housing for JVCKENWOOD KY-PZ100 Camera Systems, including heating- and ventilation-system, Protection Class IP64.

▶ Protection Class IP64 standard
- Keeps camera-, lens- and P/T system clean and dry
▶ Temperature range between -20°C and +40°C assured by active heating and ventilation
▶ Maximum protection against environmental influences such as dust, smog, salt, moisture and insects
- Air-in-and out-take protected by dust-and insect-filter
▶ Available with transparent

▶ Available in different output- and power-configurations
▶ Power-connection : 230 VAC, alt. 12 VDC or POE
▶ Signal-connection : SDI/HDSDI out ( or HDMI ), optional CVBS out, LAN
▶ Remote-connection : LAN, optional RS422m, USB (WLAN / 4G LTE with optional 3rd party dongle)
▶ Length of the cable-set : 2,5 m from mountingbase (optional special lengths, connectors in bracket or junction boxes for outdoor installation)

OPTIONAL :

▶ Wall bracket fitted with ceiling, pole mount or special mounts if requested (Page 3)
▶ Integrated Fibre Transmission (F) or POE Injector/Splitter (POE)

KSTI

MOSCHKAU GMBH

Datasheet

Release: 07/17

Modular Outdoor-

System-Housing for JVCKENWOOD

KY-PZ100 Camera-Series.

Protection Class IP 64

Temperature range :

-20°C to +40°C

for KY-PZ100

Air intake with protective filter
Modular construction for extension by optional modules

Modular construction for extension by optional modules
Sun- and weather protection-shield

(for example, fiber optic Transm. or POE-Splitter)

Types with wall-mount :

KST-OH100WM-SH

Outdoor-Housing for KY-PZ100 PTZ-Cameras incl. DBH-06 wall-mount

• Camera-Housing protection class IP64 standard
• Active heating and ventilation
• Air-In and Out-let protected by dust-and insect-filter
• 12V DC power suppley
• 2,5m cable-set ( SDI, HDMI, Lan, 240VAC )

Housing with DBH-06 wall-mount

KST-OH100WM-POE

Outdoor-Housing for KY-PZ100 PTZ-Cameras incl. DBH-06 wall-mount

• Camera-Housing protection class IP64 standard
• Active heating and ventilation
• Air-In and Out-let protected by dust-and insect-filter
• POE injector/splitter 90W
• 2,5m cable-set ( SDI, HDMI, POE-Lan, 240VAC f.Injector )

KST-OH100WM-F

Outdoor-Housing for KY-PZ100 PTZ-Cameras incl. DBH-06 wall-mount

• Camera-Housing protection class IP64 standard
• Active heating and ventilation
• Air-In and Out-let protected by dust-and insect-filter
• 12V DC power suppley
• HDMI Fibre-Extender-Transmitter and Receiver
• 2,5m cable-set ( SC multimode Fibre, Lan, 240VAC )

Types with ceiling-mount :

KST-OH100CM-SH

Outdoor-Housing for KY-PZ100 PTZ-Cameras incl. DBH-07 ceiling-mount

• Camera-Housing protection class IP64 standard
• Active heating and ventilation
• Air-In and Out-let protected by dust-and insect-filter
• 12V DC power suppley
• 2,5m cable-set ( SDI, HDMI, Lan, 240VAC )

KST-OH100CM-POE

Outdoor-Housing for KY-PZ100 PTZ-Cameras incl. DBH-07 ceiling-mount

• Camera-Housing protection class IP64 standard
• Active heating and ventilation
• Air-In and Out-let protected by dust-and insect-filter
• POE injector/splitter 90W
• 2,5m cable-set ( SDI, HDMI, POE-Lan, 240VAC f.Injector )

KST-OH100CM-F

Outdoor-Housing for KY-PZ100 PTZ-Cameras incl. DBH-07 ceiling-mount

• Camera-Housing protection class IP64 standard
• Active heating and ventilation
• Air-In and Out-let protected by dust-and insect-filter
• 12V DC power suppley
• HDMI Fibre-Extender-Transmitter and Receiver
• 2,5m cable-set ( SC multimode Fibre, Lan, 240VAC )

Standard- Wallmount KST-DBH06

The wall mount DBH06, made of aluminum, serves as a base for special mounting adapters shown below.

The connecting cables of the camera system are hidden and protected by the arm.

Load capacity up to 25kg (included in KST-OH100WM versions)

Pole-Mount-Adapter KST-DBHWGC

The pole mount adapter DBHWGC is combined with the wall bracket DBH06. It allows the installation of the system on poles with diameters of 210mm-225mm.

Load capacity up to 25kg

Pole-Mount-Adapter KST-PTCC1

( It is possible to mount 2 DBH06 opposite )

The pole mount adapter PTC1 is combined with the wall bracket DBH06. It allows the installation of the system on poles with diameters of 80mm-150mm.

Load capacity up to 50kg

Edge-Mount-Adapter KST-WCWGC

The corner mounting adapter WCWGC is combined with the wall bracket DBH06. It allows the installation of the system on building corners.

Load capacity up to 50kg

Ceiling-Mount KST-DBH07

The ceiling mount DBH07, made of aluminum, can be mounted under eaves, canopies or similar horizontal mounting locations. It is an alternative to the standard wall mount DBH06.

The connecting cables of the camera system are hidden and protected by the arm.

Load capacity up to 25kg (included in KST-OH100CM versions)

Connection Versions

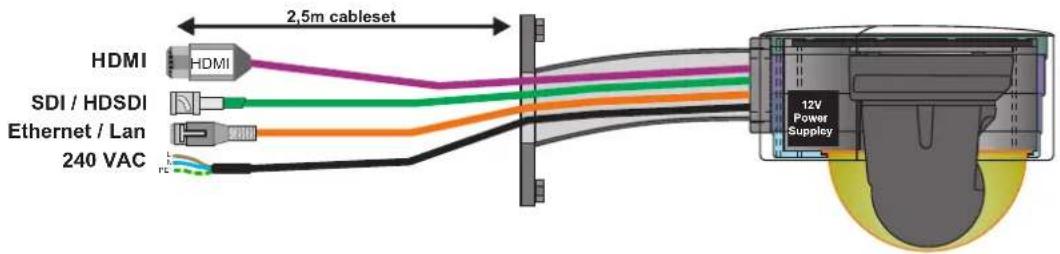

KST-OH100(W/C)M-SH
Version with SDI, HDMI, Ethernet and 240VAC connection

KST-OH100(W/C)M-POE
Version with POE (Line) Ethernet, SDI and HDMI connection

KST-OH100(W/C)M-F
Version with HDMI-Fibre-Ext., Ethernet connection

Technical views

Ventilation situations

Cooling situation ( starting \~21°C internal system temperature )

Heating situation ( starting \~7°C internal system temperature )
