WM14VEH7NL - Washing machine SIEMENS - Free user manual and instructions

Product type	Front-loading washing machine
Brand	Siemens
Model	WM14VEH7NL
Washing capacity	7 kg
Maximum spin speed	1400 rpm
Dimensions (H x W x D)	84.8 x 59.8 x 59.0 cm
Weight	71 kg
Power supply	230 V ~ 10 A, 50 Hz
Energy class	A+++
Annual water consumption	49 L per cycle
Noise level (washing/spinning)	72 dB / 74 dB
Display	LED screen
Opening type	Porthole
Motor	Brushless motor (iQdrive)
Main functions	Delayed start, child safety, end delay, load detection
Wash programs	20 programs including cotton, synthetics, delicates, wool, spin & drain
Options	Prewash, speedPerfect, ecoPerfect, waterPlus, start button
Automatic dosing system	i-Dos (optional)
Maintenance and cleaning	Drum cleaning, accessible pump filter, removable detergent drawer
Safety	Child lock, stop when door open, anti-overflow system
Spare parts and repairability	Detailed repair manual for part replacement (top, control panel, detergent drawer, door, seal, door lock, light, pump cover, front panel)
Repairability index	8.3/10 (estimated)
Connectivity	Home Connect (Wi-Fi)

Frequently Asked Questions - WM14VEH7NL SIEMENS

How to clean the pump filter?

To clean the pump filter, open the pump cover (located at the bottom right). Remove the pump cover by turning it, then carefully remove the filter. Clean it under running water and put it back in place. Make sure the appliance is unplugged and the water is drained.

How to change the door seal?

Replacing the door seal requires removing the front panel, top, and control panel. Follow the steps in the repair manual. You need to undo the clamping ring, disconnect the connectors, and remove the old seal. Assembly is done in reverse order by tightening the tension ring to 3.4 Nm.

What to do if the washing machine does not start?

First check the power supply and that the door is properly closed. If the screen does not light up, check the circuit breaker. If an error message appears, consult the user manual. A door lock problem may require replacement of the door lock (see repair manual).

How to use the drum cleaning program?

Select the 'Drum Cleaning' program (or 'Drum Clean') on the control panel. Start the program without laundry and add a specific cleaning product. The program heats the water to 90°C to remove residues and bacteria.

How to reset the washing machine?

To reset, unplug the appliance for at least 60 seconds then plug it back in. If the screen displays an error code, note it down and consult the manual. Some models allow a reset by pressing a combination of buttons (see manual).

How to change the drum light bulb?

The drum light bulb is located behind a bracket. First remove the top, detergent drawer, and control panel. Take out the light bracket, disconnect the electrical connections, and remove the bulb from its holder. Reassemble in reverse order.

Why does water remain in the detergent drawer?

This may be due to a clogged or improperly inserted detergent drawer. Clean the detergent drawer under hot water. Make sure the drawer is properly engaged. If the problem persists, check the water inlet hose and the inlet filter.

How to replace the detergent drawer handle?

First remove the detergent drawer by pressing the latch. Then remove the handle's fastening elements and pull it out. Mount the new handle in reverse order.

What does a water leak under the machine mean?

It may come from a worn door seal, a loose inlet or drain hose, or a poorly closed pump filter. Check these points. For the door seal, a repair is necessary (see repair manual).

How to reverse the door opening direction?

The WM14VEH7NL model allows changing the door opening direction. You must disassemble the door, remove the hinges and reposition them on the other side. Follow the instructions in the installation manual. It is recommended to call a professional.

USER MANUAL WM14VEH7NL SIEMENS

3.2 CmHa Ha aacadnnaheI 7

3.2.1 CbJIHe Ha pacaHnaHn.. 7
3.2.2 MoHTIpaHHe Ha fapaHnnaHn 7

3.3 CmHa Ha YekMeJKeTo 3a nepuHn npenapat 8

3.3.1 CbAJIHe Ha YekMeDKeTo 3a nepuHn npenapat 8
3.3.2 MoHTIpaHHe Ha YekMeDKeTo 3a nepInen npenapaT...

3.4 CmHa Ha dpbKaTa Ha YekMeJKeTo 3a nepuH npenapat.. 9

3.4.1 CbAHe Ha dpBkKaTa Ha YekMeJKeTo 3a nepnEn npenapaT.. 9
3.4.2 MoHTnpaHe Ha DpbXkKaTa Ha YekMeXdKeTo 3a nepnEn npenapat .9

3.5 CmHa Ha BpaTata 10

3.5.1 ⅡBaKaHa Ha BpaTaTa... 10
3.5.2 MoHTnpaHe Ha BpaTaTa.. 10

3.6 CMraHa HA KOMnOHeHTnte Ha BpaTata 11

3.6.1 CbaJHe Ha KOMnoHEHTte Ha BpaTaTa 11
3.6.2 MoHTIpaHe Ha KOMNoHEHTIe Ha BpaTaTa 11

3.7 CmHa Ha ynnbTHHeHMeTo Ha BpaTaTa 12

3.7.1 CbaJnHe Ha yIbTHHeHcTo Ha BpaTaTa 12
3.7.2 MoHTIpaHe Ha yNbTHHeHMeTo Ha BpTaTa 15

3.8 CmHa Ha KInoua Ha BpaTata 16

3.8.1 CbajHe Ha KIOUaKata Ha BpaTata 16
3.8.2 MoHTnpaHe Ha KIOUHAnKaTa Ha BpaTaTa 17

3.9 CMHa Ha ocBETJeHneTo Ha 6apa6aHa.. 18

3.9.1 CbaJrHe Ha oCBetJeHMeTo Ha 6apa6aHa 18
3.9.2 MoHTnpaHe Ha OCBeTJIeHMeTo Ha 6apa6aHa 18

HakpainnK Torx TX20 cOTBOP,6,30MM (14") 152mm,3a BnHTOBe c [00341272]

N3nCKBaHe:

YpeBte n3KIOUeHOT 3aXpaHbHeTo.
YpeBTe N3KJIoueH OT BDOcHa6nITeHnTa MpeXa.

3.1.1 CbJIaHe Ha ropHna pa6oTeH nIOT

1.CBaneTe BnHTOBete(1).
2.И36yTaIte rOpHnpa6oTeH nnoT KbM 3aHnKpAHa ypeDa (2).
3. PpemecTeTe ropon paoboteH nnot Harope (3), 3a da ro cbaJnte.

3.1.2 MoHTnpaHe Ha roPnHa pa6oTe Hnnot

MoHTnpaTaTe B o6paTeH peJ.

PemOH

3.2CMHaHaΦacHnaHaen

BHIMATEJIHO

Octpn p60Be Ha Kopnycal

HapaHbAHmO Tnp3BaHe

HocTe npedna3Hn pbKaBnU.

NPEyynPExKDEHNE

Ppnnb3BaHe Ha HAKNOHEn ypeNi!

KoctHn ppaKtpn/HapaHbAHHN O Tnpema3BaHe

YkpeneTe ypeDnTe cpeu npnnB3BaHe.

BHIMATEJIHO

Pnck OT naaun yactn npadn pa3xa6eHN BHTOBe!

HapahBaHe npaDn npaaun qact

3akpenete KOMnoHEnTa, Taka He da He naHe.

BHIMAHHEI

Pnck OT naaun yactn npaepa3xna6eHN BnHTOBE!

PobpeHa npTu yactu Ha ypeHa nnB DOMa Ha KnneHTa, HAp. bHo

10.

3akpenete KOMnoHeHTa, Taka Ye da He naHHe.

N3nCKBaHe:

YpeBt E N3KIOUeH OT 3aXpaHbHeTo.
YpeBTe H3KNIOHcHOT BOOCHa6DITeHtA MpeKa.
TopnraT paOteH nnot e cBaaneH.→6
YekmejkeTo 3a nepunHnna npenapat e cbaneHo.→8

3.2.1 CbAaHe Ha aacadnnaHae

1. 1.CBANETEBHTOBETE(1).

2.Ocbo6oTe KpenexHnTe eMeHTn (2,3).

2.OCB6oDoTeUeCenHToCbeHNHeHHe Ha KOHTpONnIbOK
3.CbaneTe paacdHnaHen.

3.2.2 MoHTpaHHe Ha facaHnHaHEn

MoHTnpaTBeBobpaTeHpe.

PemOH

3.3CMHaHa YekMeJKeTo 3a nepuH npenapaT

N3nCKBaHe:

YpeBbTe H3KnIOueHOT 3axpaHBAHeTo.
YpeBt E n3KIOUeH OT BOOCha6DnTeHnHa MPeka.

3.3.1 CbJIaHHe Ha YekMeJKeTo 3a nepIeH npenapat

1.ИЗТERNTeYeKMeDxKeTo3a nepuInen npenapat.
2.1.HaTnCHete HADONY Bbpxy NOIIOKKaTa(1).

2.CbaneTe YekMeJKeTo 3a nepuInen npenapat (2).

3.3.2 MoHTnpaHe Ha YekMeJKeTo 3a nepnne npenapat

MOnTpaaTeB06paTeHpe.

PemOH

3.4 CmHa Ha dpbkkKaTa Ha YekMeDxKeTo 3a nepnIeH npenapaT

N3nCKBaHe:

YpeBte n3KNIOueHOT3aXpaHBAHeTO.
YpeBt E n3KIOUeH OT BOOChA6DnTeNHaT MpeXa.
YekmeJeKeTo 3a nepunHn npenapat e cBaeneHo.→8

3.4.1 CbAJIHe Ha dpBxKkata Ha YekMeJKeTo 3a nepnEn npenapat

1.OcboboTe KpenexHnTe enemHTN.

2.CaIeTe pBkKaTHa HcKMeJKeTo 3a nepuHn npenapat.

3.4.2 MoTHnpaHe Ha DpBkkKaTa Ha YekMeXdKeTo 3a nepnne npenapat

MOHTPauTe B opaTeH peI.

PemOH

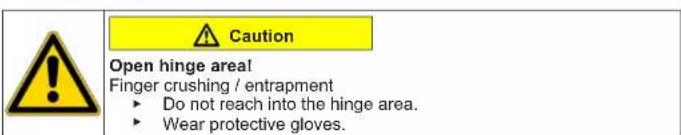

3.5 CMHa Ha BpTaTa

BHIMATEJIHO

OTBopeTe 0bIacTHa naHTnTe!

Ppema3BaHe/3axBaUaHHe Hn pbcTNTe

He nocaire Te KbM oBnaCTTa Ha naHTnte.

Hocete npedna3HN pKabu.

N3nCKBaHe:

YpeBte n3KNIOUeHOT 3aXpaHbHeTo.
YpeBte n3KIOueH OT BOOChA6nTeNaTa MPexa.
Bpatata e otbopeha.

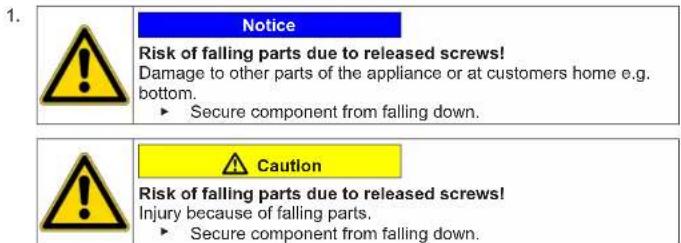

3.5.1 NbBaxDaHe Ha BpaTata

1.

BHIMAHHEI

Pnck OT naaun yactn nopadn pa3xna6eHn BNHTOBe!
NoBpeHa npTuHnHa ypeHa NIN B DOna Ha KInHeHTA, HAnp.
TbHOTO.
3akpenete KOMnoHeHTa, Taka Ye da He naHe.

BHIMATEENHO

Pnck OT npdaun yactn nopadpa3xa6eHN BuHToBe!

HapaHbAhe npa ndaun yactn.
3akpenTe KOMnoHEHTa, Taka Ye da He naDHe.

CbaTe BHTOBete(1).

2.ИЗБАДЕТЕВРАТАНОРЕ.

3.5.2 MoHTIpaHe Ha BpaTaTa

MoHTnpaTBeBobpaTeHpeI.

PemOH

3.6CMHaHa KOMNoHEnTHe Ha BpaTaTa

BHMMATEIHO

OTBOpTe 06nactTa Ha naHTnte!

Ppema3BaHe/3axBaUaHHe Hn pbcTNTe
He nocaire Te KbM oBnaCTTa Ha naHTnte.
Hocete npedna3Hn pbkABuN.

N3nckBaHe:

YpeBt E n3KnIOueH O T 3axpaHbAHeTo.
YpeBte n3KIOueH OT BOOChA6nTeNaTa MPexa.
Bparatae cbaneha.→10

3.6.1 CbAJaHe Ha KOMnOHeHTNe Ha BpaTaTa

Pa3rno6eTe BpaTata OTBbH HABbTpco.

3.6.2 MoHTnpaHe Ha KOMNoHEHTuTe Ha BpaTaTa

MOHTnpaTBeB o6paTeH peI.

PemOH

3.7 CmHa Ha yynbTHHeHMeTo Ha BpaTaTa

BHIMATEIHO

Octpn p6oBe Ha Kopnycal

HapaHbAHnO T npa

Hocete npedna3n pbkauu.

BHIMATEIHO

Pnck O T npaun qactn nopadn pa3xna6eHn BnHTOBe!

HapaHbAHe npaui nadaun yactn.

3akpenete KOMnoHEHTa, Taka Ye da He naHe.

BHIMAHINE!

Pnck OT nadaun qactn nopadn pa3xna6eHn BNHTOBe!

NopeHa npyn TaCn Ha ypeHa nn B doma Ha knneHtA, Hap. bHO

TO.

3akpenete KOMnoHEHTa, Taka He naHe naHe.

M3nCKBaHe:

YpeDbTe N3KJIIOUeHOT 3aXpaHbHaHeTO.
YpeBt E N3KJIoueH OT BDOChA6DnTeHnHaT MaPexKa
YekmendkeTo 3a nepunHnna npenapa t cBaaneHo.→8
BpataTa e cBaneha.→10
KanakbHa nomnatae cBaJeH.→19

3.7.1 CbJIaHe Ha yIbTHHeHrTo Ha BpaTaTa

1.

PPEyPEXDEHNE

Ppnnb3BaHe Ha HakoNeHn ypeNi!

KocTHn ppaKtpn/HapaHbHaHnO TnpMa3BaHe

Ykpene Te ypeDnte cpeu npnnB3BaHe.

NoBnHHeTe ypea Otnpe.

1. Paxna6e BnHToBte B DonHa TaCt Ha npEHHa HaeI (1).

3.CnycheTe ypeDa Haidony.

PemOH

1. OTePahETe BnHToBete B 6bnaCTa Ha nomrata (2).5.1. Pa3Xna6e BnHToBete ot3ad Ha ypeDa (1).

Pnck OT nadaun yactn nopadn Hnpabunen MONTAX!

HapaHbBaHe nn nobpeXdaHe Ha ypeHa.

Haterhepe nptnckcaaia npbcteh Ha ynpttheHHeTo Ha bpaata 3,4Nm.

MoHTnpaTBeBobpaTeHpe.

PemOH

3.8CMHaHaKJIOHaBaPaTaTa

Kato npo3BODIeH NHE CME 3aBbJIeHN Da npoeOCTaBM HA noTpe6NIteNtE Kato
peepBa HAcT KIOUAnJa 3a Bpata, BIKIOENTENHO IHCTpyKJy3a 3ePOEMHT BcBOT-ETCTBe C PernAmHe (EC) 2019/2023. BxMxNCkAn DA ot E6TeKHM O6Ae, 4e
CneL CMHATA Ha KIOUAnKaTA Ha Bpata, e Heo6XoDmO Da ce N3BbpUn eneKTPO
TEXHNECKA npOBepKa 3a BeOnaHOCOT kBAJINPHINAPAN EneKTPOEXHK, Pnpd ype
Bt da 6bde Ncchat B EKCNNoaTuArTo. ToBa Nlue TpRaBA da 6bde c NotBpDeHa KBA
fikmaCaCb rnacho CneuPhnHtete 3a CTPaHATa 3aKOHn, paopeDn b CTaNaptiN

OTIACHOCT

Pnck OT TKOB ydap npaH nuactn noHanpeKeHne!

Onachoc3aXUBOTaOTOKOByapBCnyuHa HenpabUNeH peMOHT

EneKtpnue Tp8Ba da ce pmoHTnpaT OT kauHnHnPAH neneKtpoTeKHn
CnepemOnTaT6BaJaCeN3BbPmI npOBepKa 3a 6E30NaCHOCTcbrnacoVDE0701nnBcOETBtCTBne CbcCnEuHHTNE3a cTpaHata paoNpe6M.

BHIMATEJIHO

Otpn p6oBe Ha Kpyncal HapaHbAHH o np3BaHe Hocete npedanshpKaBau

IPEyIPeXJEHNE

Ppnnb3BaHe Ha HAKIOHEn ypeDn!

KocTHn ppaKtpn/HapaHbHaHnO TnpMa3BaHe

YkpeneTe ypeDnte cpei npnnB3BaHe.

BHIMATEHNO

Pck on 4nanaa npa7n npa7n pa3xna6bne BNHTOB! Hapnahanepnpa7n panaa7n aactn.

3akpenete KOMnoHeHTa, Taka Ye da He naHe.

BHIMAHME!

Pnck o npdaun qactn nopadip a3xna6eHH BHTOBe! Pobpea Ha npyur cactn Ha ypea HINB DOMA HA KIneH

3akpeneteKOMNOEHTa,Taka Ye da He naHe.

N3MCKBaHe:

YpeBt en3KNIOHOT 3aXpaHbHaHeTO.
YpeBt EINKIOHcHOT BOOCHA6dNTHeHaMpeKa.
YpeDnTe ca CBO6OHO DocTbNH.
Tognnt paoboteH nnot e cBaneH.→6
ΦacadHnT nHaHe n cBaJIeH.
BpataTa e cBaneha.→10
O6Tgauunr npbctHe cBaen.
IpeDnHrT nHaHe e CbAeH.
YnntbTheHMeTo Ha BpaTaTa e CbaNeHO.

3.8.1 CbānHe Ha KlnouaKaTa Ha BpaTaTa

1.ИЗкючeteцencelaHaKIOUAnkataHaBpaTaTa.
2.Ocbo6oDeTe KIOHcAnKaTa Ha BpaTata.

3.CbaneTe KIOHuaKata Ha BpaTata.

PemOH

3.8.2 MoHTmpeHa KJIIOUaJIkAraHa BpaTaTa

MOHTnpaTBeBobpaTeHpe.

MOnHTnpaIteB06paTeHpeI.

PemOH

CbaTe BnHToBeTe Otnpei, KaTo 3aOnuHHeTe OToIy Harope (2, 3).

1. CbaTe npednnaHn

3.11.2 MoNTIpaHe Ha npEHNHaHEn

MOnTnpaIeB06paTeHpeI.

Poranéni padajíimi dily.

Sorg for at sikre apparater mod at glide.

Fare for nedfaldende dele pga. Iosnede skruer!

ersonskade pga. neddaldende dele.

Sorg for at sikre komponenten mod at falde ned.

Fare for nedfaldende dele pga. Iosnede skruer!

Sorg for at sikre componenten mod at falde ned.

Preindstilling:

1. Abn pumpens afdaekning.

1. Fjern pumpens afdaekning.

Sorg for at sikre apparater mod at glide.

Sorg for at sikre componenten mod at falde ned.

Reparation

BEMAERK!

Fare for nedfaldende dele pga. Iosnede skruer!

Sorg for at sikre componenten mod at falde ned.

Repair hints - Washing machine

1 Concerning this document. 108

1.1 Important information 108
1.1.1 Purpose 108
1.2 Explanation of symbols 108
1.2.1 Danger levels 108
1.2.2 Hazard symbols 108
1.2.3 Structure of the warnings.. 109
1.2.4 General symbols 109

Tools and aids 110

Repair 111

3.1 Replacing worktop 111
3.1.1 Removing worktop 111
3.1.2 Installing worktop 111
3.2 Replacing fascia panel 112
3.2.1 Removing fascia panel 112
3.2.2 Installing fascia panel 112

3.3 Replacing detergent drawer 113

3.3.1 Removing detergent drawer 113
3.3.2 Installing detergent drawer 113

3.4 Replacing detergent drawer handle 114

3.4.1 Removing detergent drawer handle 114
3.4.2 Installing detergent drawer handle 114

3.5 Replacing door 115

3.5.1 Removing door 115
3.5.2 Installing door 115
3.6 Replacing door components 116
3.6.1 Removing door components 116
3.6.2 Installing door components 116

3.7 Replacing door seal 117

3.10 Replacing pump cover 124

3.10.1 Removing pump cover 124
3.10.2 Installing pump cover 124

3.11 Replacing front panel 125

3.11.1 Removing front panel 125
3.11.2 Installing front panel 127

Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observation of the warning message will result in death or serious injuries.
Warning	Non-observation of the warning message could result in death or serious injuries.
Caution	Non-observation of the warning message could result in minor injuries.
Notice	Non-observation of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

Hazard symbol Meaning
!	General warning message
!	Danger from electrical voltage
	Risk of explosion
	Danger of cuts
	Danger of crushing

Concerning this document

Hazard symbol Meaning
	Danger from hot surfaces
	Danger from strong magnetic field
	Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Danger

Type and source of danger!

Possible consequences of ignoring the danger / warning.

Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
1	Identification of a special tip (text and/or graphic)
0	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Table 3: General symbols

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Tools and aids

Designation Details Images
Auxiliary tool [15000155]	Tool for loosening out of plastic parts
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Torque spanner [15000441]	Torque spanner 20 - 100 Nm
Slot screwdriver [00340854]	Blade 3.5 mm x 0.6 mm x 100 mm, Protective Insulation 1000 V AC
Slot screwdriver [00340855]	Blade 5.5 mm x 1.0 mm x 125 mm, Protective Insulation 1000 V AC
Needle-nose pliers, angled pattern [00341269]	Length 200 mm
Side-cutting pliers [00342182]	Length: 200 mm

Designation Details Images
Combination wrench [00340811]	Wrench size 10°mm, M6
Combination wrench [00340814]	Wrench size 13°mm, M8
Combination wrench [00340817]	Wrench size 17 mm, M10
Combination wrench [15000459]	Wrench size 16°mm, M10

Repair

3.1 Replacing worktop

Required tools:

Torx Bit TX20 with hole, long 6.3^ (1/4^) 152^ , for screws [00341272] with safety pin

Prerequisite:

Appliance is disconnected from power supply.
Appliance is disconnected from water supply.

3.1.1 Removing worktop

1. Remove screws (1).
2. Push worktop to the back of the appliance (2).
3. Move worktop upwards (3) to remove it.

3.1.2 Installing worktop

Install in reverse order.

Repair

3.2 Replacing fascia panel

Sharp housing edges!

Cut injuries

Wear protective gloves.

Slipping of tilted appliances!

Bone fractures / crush injuries

Secure appliances against slipping.

Risk of falling parts due to released screws!

Injury because of falling parts

Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot

tom.

Secure component from falling down.

Prerequisite:

Appliance is disconnected from power supply.
Appliance is disconnected from water supply.
Worktop has been removed. Page 111
Detergent drawer has been removed. Page 113

3.2.1 Removing fascia panel

1. 1. Remove screws (1).

2. Release catch elements (2, 3).

1. Release plug contact of control unit.
2. Remove fascia panel.

3.2.2 Installing fascia panel

Install in reverse order.

Repair

3.3 Replacing detergent drawer

Prerequisite:

Appliance is disconnected from power supply.
Appliance is disconnected from water supply.

3.3.1 Removing detergent drawer

1. Pull out detergent drawer.
   2.1. Press down on insert (1)

2. Remove detergent drawer (2).

3.3.2 Installing detergent drawer

Install in reverse order.

Repair

3.4 Replacing detergent drawer handle

Prerequisite:

Appliance is disconnected from power supply.
Appliance is disconnected from water supply.
Detergent drawer has been removed. Page 113

3.4.1 Removing detergent drawer handle

1. Release catch elements.

1. Remove detergent drawer handle.

3.4.2 Installing detergent drawer handle

Install in reverse order.

Repair

3.5 Replacing door

Prerequisite:

Appliance is disconnected from power supply.
Appliance is disconnected from water supply.
Door is opened.

3.5.1 Removing door

Remove screws (1).

1. Remove door upwards.

Install in reverse order.

Repair

3.6 Replacing door components

Caution

Open hinge area!

Finger crushing / entrapment
Do not reach into the hinge area.
Wear protective gloves.

Prerequisite:

Appliance is disconnected from power supply.
Appliance is disconnected from water supply.
Door has been removed. Page 115

3.6.1 Removing door components

Disassemble door from outside to inside.

3.6.2 Installing door components

Install in reverse order.

Repair

3.7 Replacing door seal

Caution

Sharp housing edges!

Cut injuries

Wear protective gloves.

Caution

Risk of falling parts due to released screws!

Injury because of falling parts.

• Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot

tom.

Secure component from falling down.

Prerequisite:

Appliance is disconnected from power supply.
Appliance is disconnected from water supply.
Detergent drawer has been removed. Page 113
Door has been removed. Page 115
Pump cover has been removed. Page 124

Slipping of tilted appliances!
Bone fractures / crush injuries
Secure appliances against slipping.

Lift up appliance at front.

1. Release screws at bottom of front panel (1).

1. Lower appliance down.

Repair

1. Remove screws in pump area (2). 5. 1. Release screws at back of appliance (1).

1. Remove worktop (2, 3).

Repair

6.1. Remove screws (1).

1. Release cat elements of fascia panel (2, 3).
2. Release screws of dispenser housing.

1. Remove fascia panel.

2. Remove drum light holder at top.

Notice

Risk of damaged surface! Surface of appliance can be scratched by using wrong tools. Only use plastic tools to replace the tension ring.

Remove tension ring from gasket with a plastic tool.

1. Release door seal from front panel.
2. Release cable connector from door lock.

Repair

1. Release screws on top of front panel (3).

1. Remove front panel.

2. Release all hose connections.

1. Remove door seal.

Risk of falling parts due to incorrect installation! Injury or damage to the appliance.

Tighten tension ring of boot gasket with 3,4 Nm.

Install in reverse order.

Repair

3.8 Replacing door lock

As a manufacturer, we are obliged to provide consumers with the spare part door lock including repair instructions in accordance with Regulation (EU) 2019/2023. However, we would like to point out that after replacing a door lock, an electrotechnical safety test by a qualified electrician is required before the device is put into operation. This person must be verifiably qualified according to the country-specific laws, regulations and standards.

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Sharp housing edges!

Cut injuries

Wear protective gloves.

Slipping of tilted appliances!

Bone fractures / crush injuries

Secure appliances against slipping.

Risk of falling parts due to released screws!

Injury because of falling parts.

• Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

• Secure component from falling down.

Prerequisite:

Appliance is disconnected from power supply.
Appliance is disconnected from water supply.

Appliances is freely accessible.
Worktop has been removed. Page 111
Fascia panel has been removed.
Door has been removed. Page 115
Tension ring has been removed.
Front panel has been removed.
Door seal has been removed.

1. Disconnect door lock plug.
2. Release door lock.

1. Remove door lock.

Repair

Install in reverse order.

Repair

3.9 Replacing drum light

Caution

Sharp housing edges!

Cut injuries

Wear protective gloves.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries

Secure appliances against slipping.

Caution

Risk of falling parts due to released screws!

jury because of falling parts

Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot

m.

Secure component from falling down.

Prerequisite:

Appliance is disconnected from power supply.
Appliance is disconnected from water supply.
Appliances is freely accessible.
Worktop has been removed. Page 111
Detergent drawer has been removed. Page 113
Fascia panel has been removed.

3.9.1 Removing drum light

1. Pull drum light holder out of appliance.
2. Disconnect electrical connections.
3. Remove drum light from drum light holder.

3.9.2 Installing drum light

Install in reverse order.

Repair

3.10 Replacing pump cover

Prerequisite:

Appliance is disconnected from power supply.
Appliance is disconnected from water supply.

3.10.1 Removing pump cover

1. Open pump cover.

1. Remove pump cover.

3.10.2 Installing pump cover

Install in reverse order.

Repair

3.11 Replacing front panel

Sharp housing edges!

Cut injuries

Wear protective gloves.

Prerequisite:

Appliance is disconnected from power supply.
Appliance is disconnected from water supply.
Detergent drawer has been removed. Page 113
Door has been removed. Page 115
Door seal has been removed.
Pump cover has been removed. Page 124

3.11.1 Removing front panel

1.

Lift up appliance at front.

1. Remove screws at bottom (1).

1. Lower appliance down.

Repair

4.1. Remove screws (1).

1. Push worktop to the back of the appliance (2).
2. Move worktop upwards (3) to remove it.

5.1. Remove screws (1).

1. Release catch elements (2, 3).

1. Remove fascia panel.

7.

Caution

Risk of falling parts due to released screws! Injury because of falling parts.

Secure component from falling down.

Repair

Notice

Risk of falling parts due to released screws! Damage to other parts of the appliance or at customers home e.g. bottom.

Remove screws at front beginning from bottom to top (2, 3).

1. Remove front panel.

3.11.2 Installing front panel

Install in reverse order.

Remonditeave - Pesumasin

1 Selle dokumendiga seoses 129

1.1 Tahtis teave 129
1.1.1 Eesmärk 129
1.2 Sumbolite selgitus 129
1.2.1 Ohutased 129
1.2.2 Ohusumbolid 129
1.2.3 Hoiatuste struktuur 130
1.2.4 Üldised sumbolid 130

Tööristad ja abinoud. 131
Remont. 132
3.1 Toopinna yahetamine 132
3.1.1 Toopinna eemaldamine 132
3.1.2 Toopinna paigaldamine 132
3.2 Valispaneeli vahetamine 133
3.2.1 Valispaneeli eemaldamine 133
3.2.2 Valispaneeli paigaldamine 133
3.3 Pesuaine sahtli vahetamine 134
3.3.1 Pesuaine sahtli eemaldamine 134
3.3.2 Pesuaine sahtli paigaldamine 134
3.4 Pesuaine sahtli kaepideme vahetamine 135
3.4.1 Pesuaine sahtli kaepideme eemaldamine 135
3.4.2 Pesuaine sahtli kaepideme paigaldamine 135
3.5 Ukse vahetamine 136
3.5.1 Ukse eemaldamine 136
3.5.2 Ukse paigaldamine 136
3.6 Ukseosade vahetamine 137
3.6.1 Ukse osade eemaldamine 137
3.6.2 Ukse osade paigaldamine 137
3.7 Ukse tihendi vahetamine 138
3.7.1 Ukse tihendi eemaldamine 138
3.7.2 Uksetihendi paigaldamine 141
3.8 Ukseluku vahetamine 142
3.8.1 Ukseluku eemaldamine 142
3.8.2 Ukseluku paigaldamine 143
3.9 Trumli valgustuse vahetamine 144

3.9.1 Trumli valgustuse eemaldamine 144
3.9.2 Trumli valgustuse paigaldamine 144

3.10 Pumba katte vahetamine 145

3.10.1 Pumba katte eemaldamine 145
3.10.2 Pumba katte paigaldamine 145

3.11 Esipaneeli vahetamine 146

3.11.1 Esipaneeli eemaldamine 146
3.11.2 Esipaneeli paigaldamine 148

Selle dokumendiga seoses

1.1 Tahtis teave

1.1.1 Eesmark

Need remondinouanded toetavad tarbjat seadmete iseseisval remontimisel vastavalt kehtivale okodisaini märusele (03/2021).

Tabel 1: Ohutasedmed

1.2.2 Ohusumbolid

Ohusumbolid on sumboolsed kujutised, mis viytavad ohu laadile. Selles dokumendis kasutatakse alljargnevoid ohusumboleid.

1. Remova o painei frontal.

3.11.2 Instalar o painei frontal
