USER MANUAL DN200AZB DENON

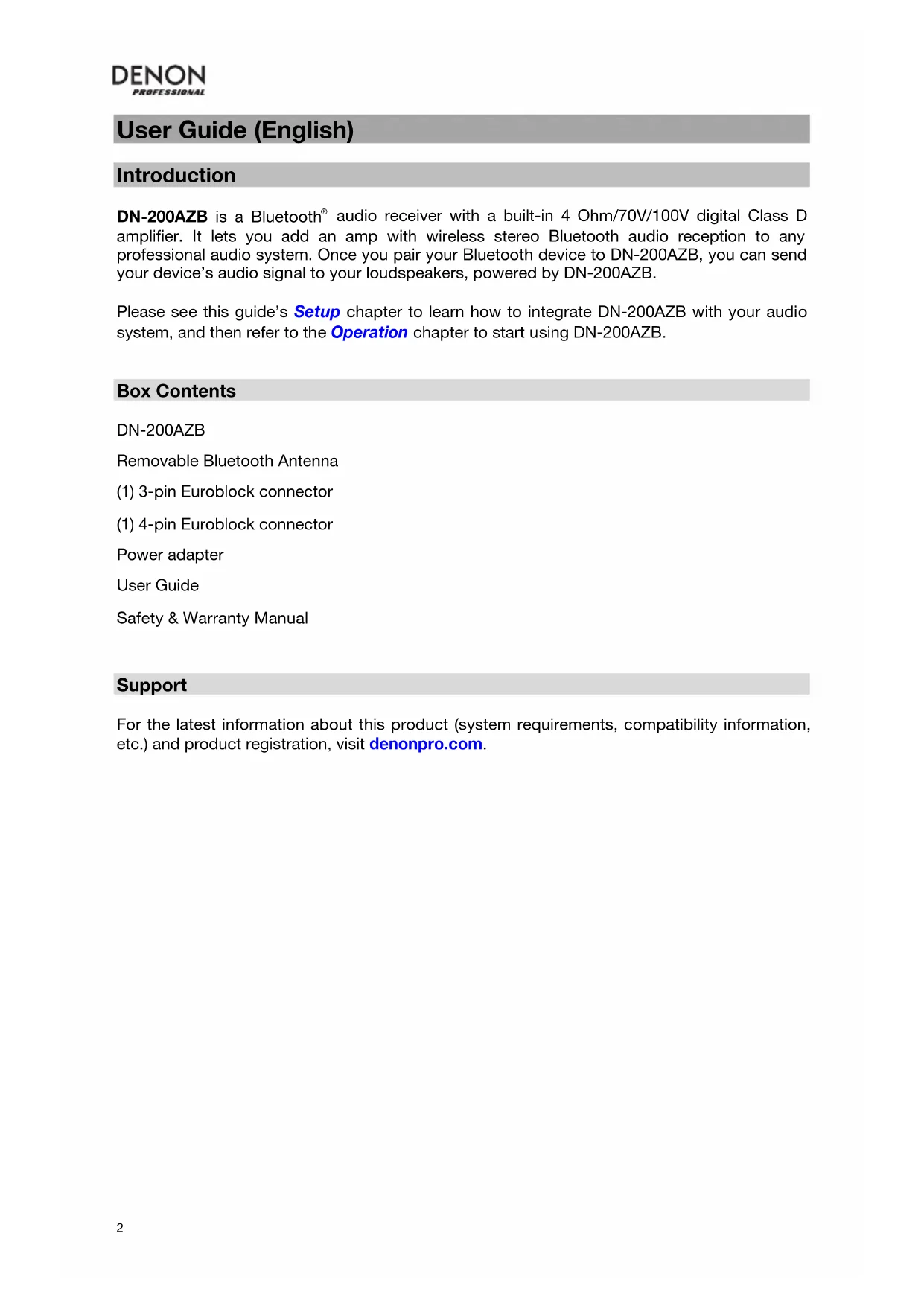

audio receiver with a built-in 4 Ohm/70V/100V digital Class D amplifier. It lets you add an amp with wireless stereo Bluetooth audio reception to any professional audio system. Once you pair your Bluetooth device to DN-200AZB, you can send your device’s audio signal to your loudspeakers, powered by DN-200AZB. Please see this guide’s Setup chapter to learn how to integrate DN-200AZB with your audio system, and then refer to the Operation chapter to start using DN-200AZB.

Box Contents DN-200AZB Removable Bluetooth Antenna (1) 3-pin Euroblock connector (1) 4-pin Euroblock connector Power adapter User Guide Safety & Warranty Manual

Support For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit denonpro.com.3

1. Power Input: Use the included power adapter to connect this input to a power outlet.

See Setup for more information.

2. Power Button: Press this button to turn DN-200AZB on or off. Make sure you have

already made all device connections before powering DN-200AZB on.

3. Bluetooth Antenna: Connect the included removable Bluetooth antenna to this

connector. The antenna receives and transmits the Bluetooth signal from a paired Bluetooth device. DN-200AZB has a communication range up to 100 feet (30.5 meters).

4. Pair Button: Press and hold this button for 3 seconds to make DN-200AZB available for

pairing to a nearby Bluetooth device. See Operation for more information.

5. Status Light: This LED indicates the DN-200AZB’s Bluetooth pairing status:

• Not lit: DN-200AZB is not paired to a Bluetooth device.

• Flashing quickly (approximately twice per second): DN-200AZB can be paired to a Bluetooth device.

• Solidly lit: DN-200AZB is paired to a Bluetooth device. See Operation to learn how to pair/unpair a Bluetooth device to/from DN-200AZB.

6. Level Knob: Turn this knob to adjust the output volume level (sent to the output).

7. Input: This input receives the audio from an optional external receiver (sold separately).

Use standard speaker wire to connect a receiver to this input. See Setup for more information. The signal sent to this input takes priority over the signal from the Bluetooth connection. For example, if a Bluetooth device is paired and playing back audio and then an audio device is connected to the line Input, the audio from the line Input will be heard from the Output. To reestablish playback from a paired Bluetooth device, disconnect the device from the line Input.

8. Output: This output sends the audio from a paired Bluetooth device and optional external

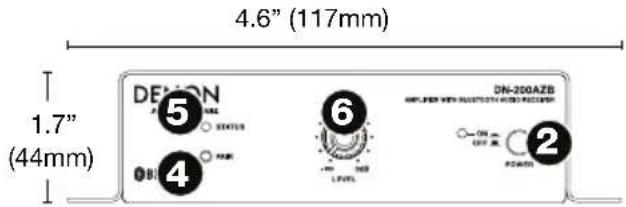

receiver (sold separately) connected to the Input. Use standard speaker wire to connect this output to your loudspeakers. See Setup for more information. 4.6” (117mm) 1.7” (44mm) Front Panel Rear Panel4

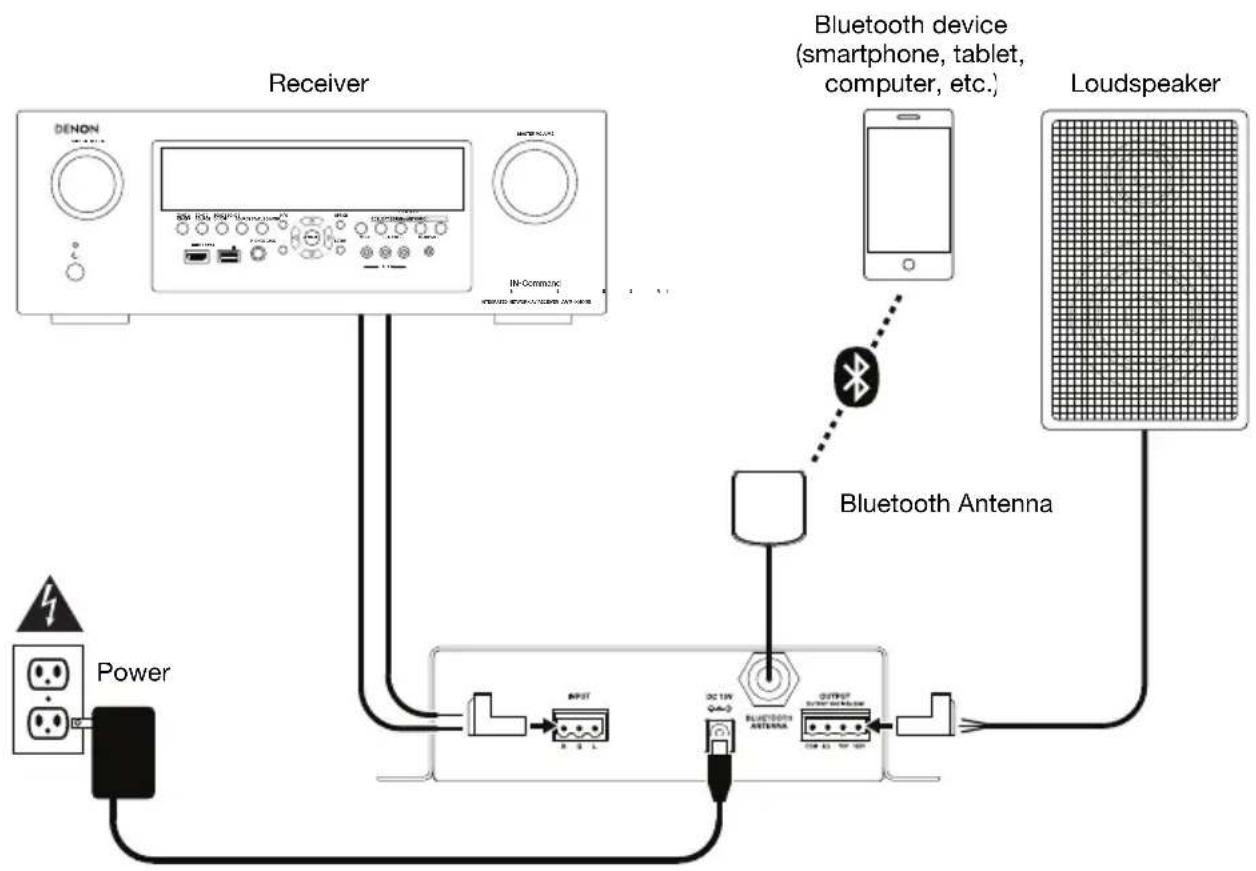

Setup Items not listed under Introduction > Box Contents are sold separately. Warnings: Do not make any connections when any device is powered on. Do not allow the wires from terminals to come in contact with each other. Do not connect either positive output to chassis ground.

1. Use standard speaker wire (up to 16 AWG) to connect your loudspeakers to the included

4-pin Euroblock connector. Insert that Euroblock connector into DN-200AZB’s output.

2. Optional: Use standard speaker wire (up to 16 AWG) to connect an external receiver or

amplifier to the included 3-pin Euroblock connector. Insert that Euroblock connector into DN-200AZB’s input.

3. Use the included power adapter to connect DN-200AZB’s power input to your power

source. Important: Do not use DN-200AZB near a microwave oven, which can interfere with the Bluetooth signal reception.

4. Make sure all of your connections are secure, and power on your receiver first (if you are

using one) and any devices connected to it.

5. Press DN-200AZB’s power button to power it on.

Operation You can play audio from an audio device that sends its signal over a Bluetooth connection (e.g., smartphones, tablet computers, etc.). DN-200AZB uses Bluetooth CSR 4.0 and has a transmission range up to 100 feet (30.5 meters). Once you “pair” your Bluetooth device with DN-200AZB, they are “connected” wirelessly. You can play audio on your Bluetooth device, and it will be sent out of DN-200AZB’s outputs. Important:

• DN-200AZB will not receive audio from a phone call. While using it, we recommend disabling your cellular connection, if possible.

• Do not use DN-200AZB near a microwave oven, which can interfere with the reception.

• While DN-200AZB is paired with a Bluetooth device, other Bluetooth devices cannot pair to it. You must unpair (“disconnect”) the current Bluetooth device from DN-200AZB to make it available to others. To pair your Bluetooth device to DN-200AZB:

1. If DN-200AZB is off, use the included power adapter to connect its power input to your

power source. The Status Light will begin flashing.

2. Make sure your desired Bluetooth device has its Bluetooth connectivity on and is within

range. DN-200AZB will automatically try to pair with the last-paired Bluetooth device, if any. If you are using that Bluetooth device again, you can start playing audio immediately. If you want to use a different Bluetooth device, continue to Step 3.

3. On your Bluetooth device, enter its Bluetooth settings menu, and select DN-200AZB.

When DN-200AZB successfully pairs to a Bluetooth device, the Status Light will stop flashing and remain lit. Note: (Some older Bluetooth devices may require you to enter a PIN. If this is the case, enter 0000 as the PIN.) If no device pairs within 20 seconds, DN-200AZB will exit pairing mode and the LED will turn off. To re-enter pairing mode, press and hold DN-200AZB’s Pair button for 3 seconds. When the Status Light starts flashing, release the Pair button.

4. On your Bluetooth device, start playing audio.

To adjust your volume level, we recommend setting the volume control of your devices in the following order:

i. your Bluetooth device

ii. your receiver, if any (its input channel level[s], then its main output level)

iii. DN-200AZB, using its Level Knob

Set each volume level as high as possible without creating distortion or any “clipping” of the sound. Important: DN-200AZB will not receive audio from a phone call. While using it, we recommend disabling your cellular connection, if possible. To unpair your Bluetooth device from DN-200AZB, do one of the following:

• Enter your Bluetooth device’s Bluetooth settings menu, and disconnect from DN-200AZB.

• Press and hold DN-200AZB’s Pair button for 3 seconds, and then release it. DN-200AZB will unpair from your Bluetooth device and be available to pair to another one.6

Troubleshooting If you encounter a problem, try doing these things first:

• Make sure all cables and other connected devices are properly and securely connected.

• Make sure you are using DN-200AZB as described in this User Guide.

• Make sure your other devices or media are working properly.

• If you believe DN-200AZB is not working properly, check the following table for your problem and solution. Problem: Solution: Please see: Power does not turn on. Make sure DN-200AZB’s power input is properly connected to a power outlet using the included power adapter. Setup DN-200AZB does not produce any sound, or the sound is distorted. Make sure all cable and device connections are secure and correct. Make sure none of the cables are damaged. Make sure the settings on your Bluetooth device, loudspeaker, mixer, etc. are correct. Setup Audio from my Bluetooth device does not play through DN-200AZB. Make sure you have properly paired your Bluetooth device. Improve the Bluetooth signal reception by moving your Bluetooth device closer to DN-200AZB. Also, remove obstacles (walls, furniture, etc.) so there is a clear line of sight between your Bluetooth device and DN- 200AZB. To check for short circuits, check the line from DN-200AZB’s output to the input of your loudspeaker. If this line is still good, check your loudspeaker's internal connections and components. Short circuits are often due to bad cables or speaker components—rarely due to the amplifier itself. Setup and Operation Pairing my Bluetooth device to DN-200AZB requires a PIN. Enter 0000 as the PIN. (Some older Bluetooth devices may require you to enter a PIN.) Operation

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.7

Appendix (English) Technical Specifications All values are measured with a 1 KHz audio signal with Level knob at “unity” position. Specifications are subject to change without notice. Amplifier 4 Ohm, 70V, 100V, 20 W RMS, Class D design Frequency Response 50 Hz

Transmission Range: Up to 100 feet

Receiver Sensitivity: -80 dBm @ 0.1% BER Supported Profiles: AVCTP 1.0, AVRCP 1.0, GAVDP 1.2, AVDTP 1.0, A2DP 1.2, Hands-Free Profile (HFP) 1.6, Headset Profile (HSP) 1.2 Supported Codec:

Connectors 1 3-pin Euroblock input (R, G, L), up to 16 AWG 1 4-pin Euroblock output (Common, 4 Ω, 70 V, 100 V), up to 16 AWG 1 power adapter input Power 15 V DC, 2.5 A, center-positive (power adapter included) 15 V DC, 2.4 A, center-positive (Japan Only) Dimensions (width x depth x height) 6.4” x 6.0” x 1.9” 163 mm x 153 mm x 48 mm Weight

• Bluetooth range is affected by walls, obstructions, and movement. For optimal performance, place the product in the center of the room so it is unobstructed by walls, furniture, etc.

Trademarks and Licenses Denon Professional is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. All other product or company names are trademarks or registered trademarks of their respective owners.denonpro.com
