AVC-X3700H - AV receiver DENON - Free user manual and instructions
Find the device manual for free AVC-X3700H DENON in PDF.
| Product Type | AV Receiver |
| Brand | Denon |
| Model | AVC-X3700H (also AVR-X3700H) |

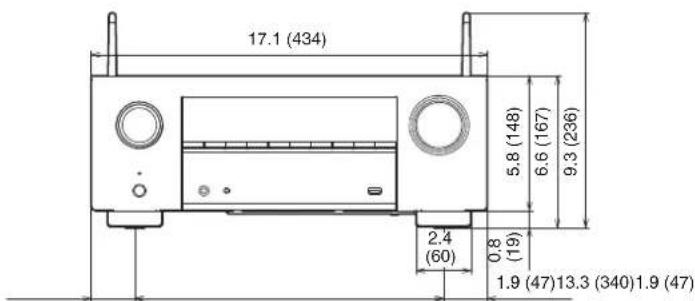

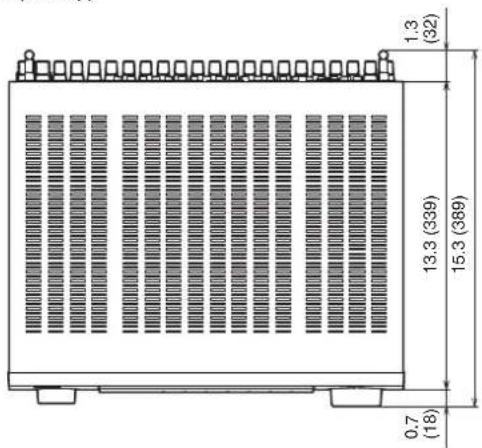

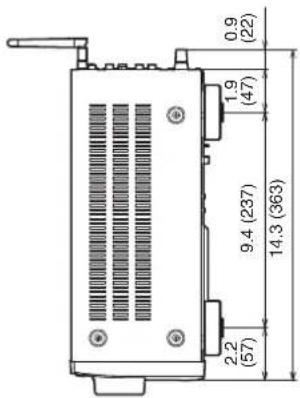

| Dimensions (W x H x D) | 17.1 x 9.4 x 15.3 in (434 x 237 x 389 mm) |
| Weight | 27.6 lb (12.5 kg) |
| Power Supply | AC 120 V, 60 Hz |
| Power Consumption | 660 W |
| Standby Power Consumption | 0.1 W (Network Control Off, HDMI Pass Through Off) |
| Amplifier Output (8 ohms, 20 Hz - 20 kHz, 0.08% THD) | 105 W per channel (all channels) |
| HDMI Inputs / Outputs | 7 inputs / 3 outputs (1 x eARC, 1 x ZONE2) |
| Supported Audio Formats | Dolby Atmos, DTS:X, IMAX Enhanced, DSD, FLAC, ALAC, etc. |
| Network Connectivity | Wired LAN, Wi-Fi (IEEE 802.11a/b/g/n), Bluetooth 4.2 |
| Multi-Room Audio | HEOS Built-in, ZONE2 speaker output, All Zone Stereo |
| Video Upscaling | Up to 8K upscaling from SD/HD/4K via HDMI |
| FM/AM Tuner | FM 87.5-107.9 MHz, AM 520-1710 kHz |
| Eco Mode | Yes (ECO Mode, Auto Standby) |
| Safety Notes | Do not touch speaker terminals while power connected; use proper impedance speakers (4-16 ohms); disconnect power before connections. |
| Accessories Included | Remote control (RC-1239), batteries, calibration microphone, FM/AM antennas, quick start guide, safety instructions |
Frequently Asked Questions - AVC-X3700H DENON
User questions about AVC-X3700H DENON
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your AV receiver in PDF format for free! Find your manual AVC-X3700H - DENON and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AVC-X3700H by DENON.
USER MANUAL AVC-X3700H DENON
Contents Connections Playback Settings Tips Appendix
DENON®
AVR-X3700H
INTEGRATED NETWORK AV RECEIVER
Owner's Manual

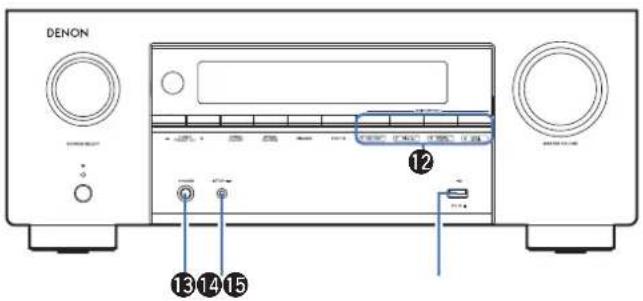

Front panel D

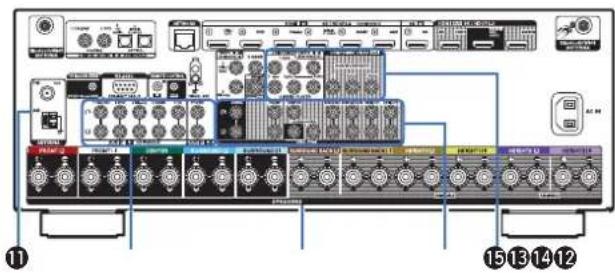

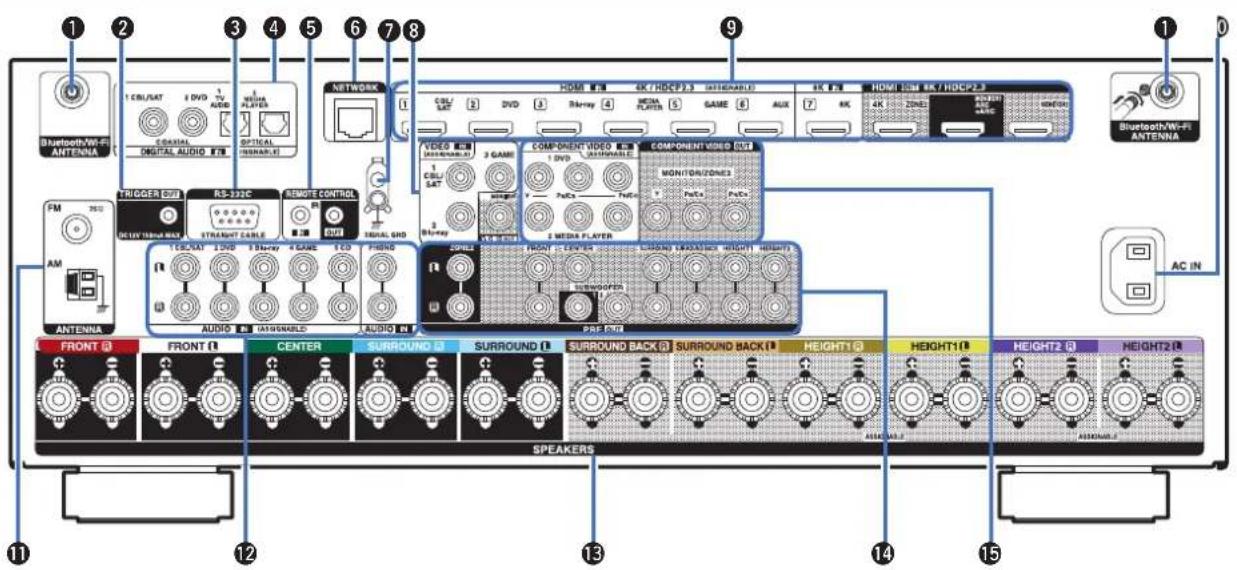

y Rear panel Re
Index
Contents Connections Playback Settings Tips Appendix
Accessories 8 Inserting the batteries 9 Operating range of the remote control unit 9
Features 10 High quality sound 10 High performance 11 Easy operation 16

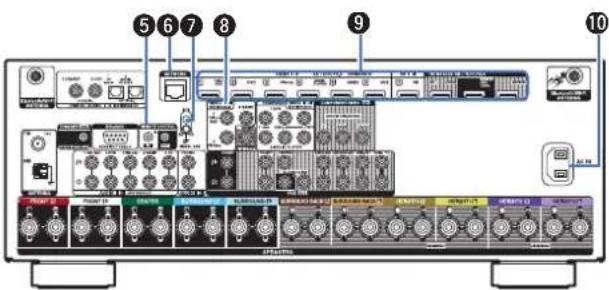

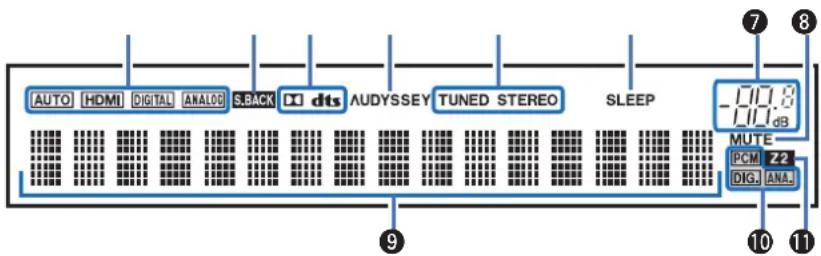

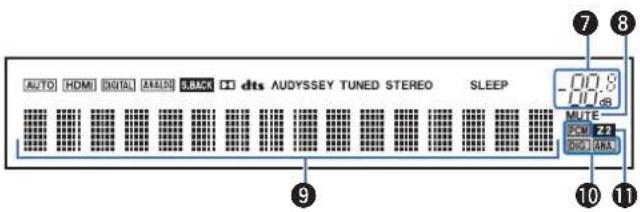

Part names and functions 17 Front panel 17 Display 20 Rear panel 22 Remote control unit 26
Connections

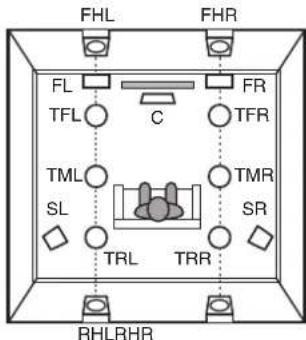

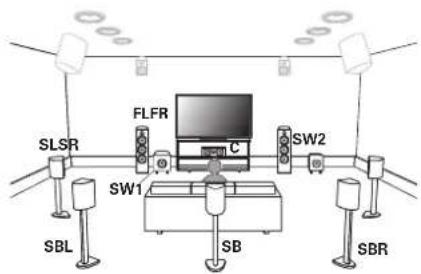

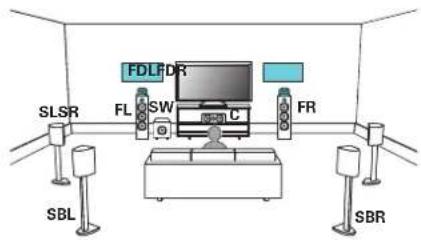

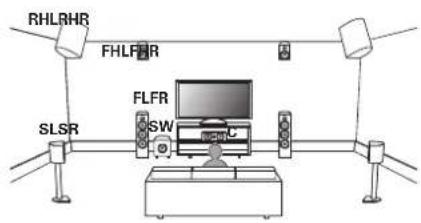

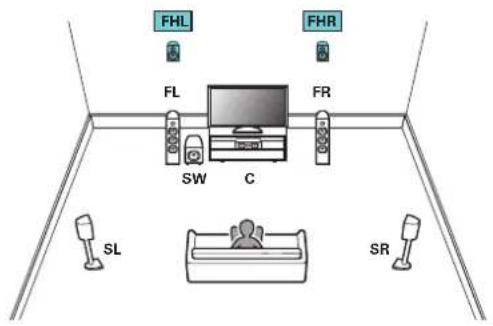

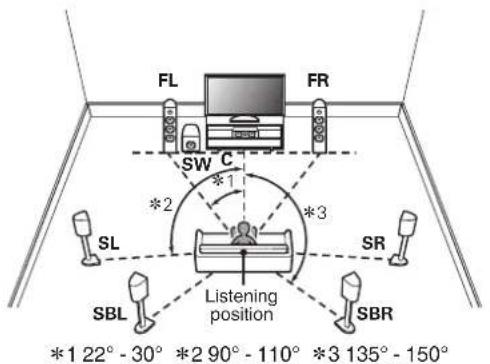

Speaker installation 30 Connecting speakers 37 Before connecting speakers 37 Speaker configuration and “Amp Assign” settings 41 Connecting 5.1-channel speakers 43 Connecting 7.1-channel speakers 44 Connecting 9.1-channel speakers 48 Connecting 11.1-channel speakers 55 Connecting 7.1-channel speakers: Bi-amp connection of front speakers 59 Connecting 7.1-channel speakers: Second pair of front speakers 60 Connecting multi-zone speakers 61

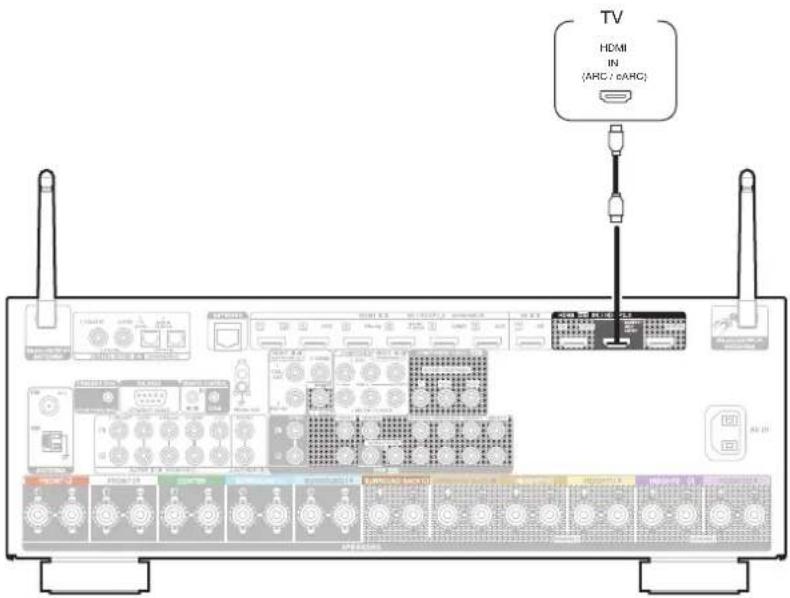

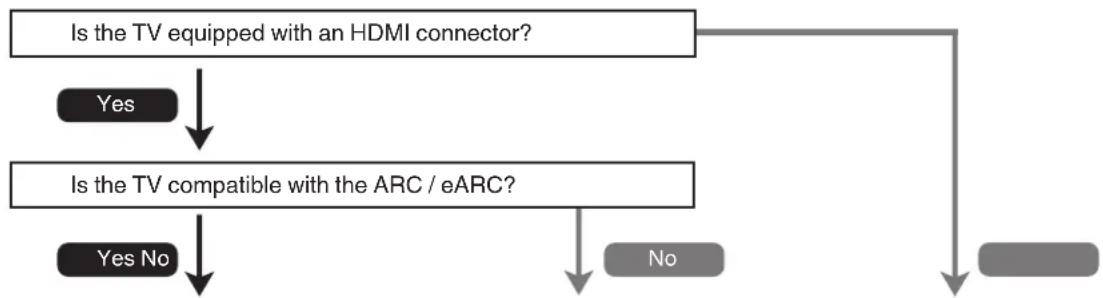

Connecting a TV 64 Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel) 65 Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel) 66 Connection 3 : TV equipped without an HDMI connector 67 Connecting a playback device 68 Connecting a set-top box (Satellite tuner/cable TV) 69 Connecting a DVD player or Blu-ray Disc player 70 Connecting a player device compatible with the 8K 71 Connecting a video camcorder or game console 72 Connecting a turntable 73 Connecting a USB memory device to the USB port 74 Connecting FM/AM antennas 75 Connecting to a home network (LAN) 77 Wired LAN 77 Wireless LAN 78 Connecting an external control device 79 REMOTE CONTROL jacks 79 TRIGGER OUT jack 80 Connecting the power cord 81
Front panel D
Rear panel Re
Index
2
Contents Connections Playback Settings Tips Appendix
Playback

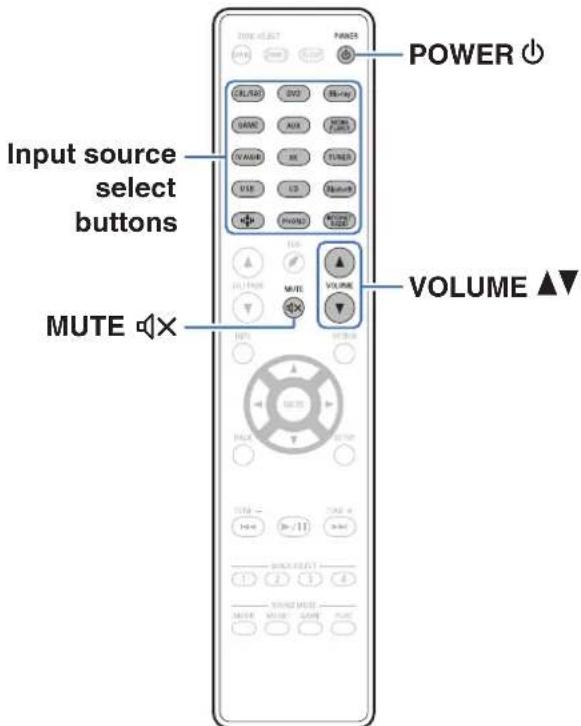

Basic operation 83
Turning the power on 83
Selecting the input source 83
Adjusting the volume 84
Turning off the sound temporarily (Muting) 84
Playback a DVD player/Blu-ray Disc player 84

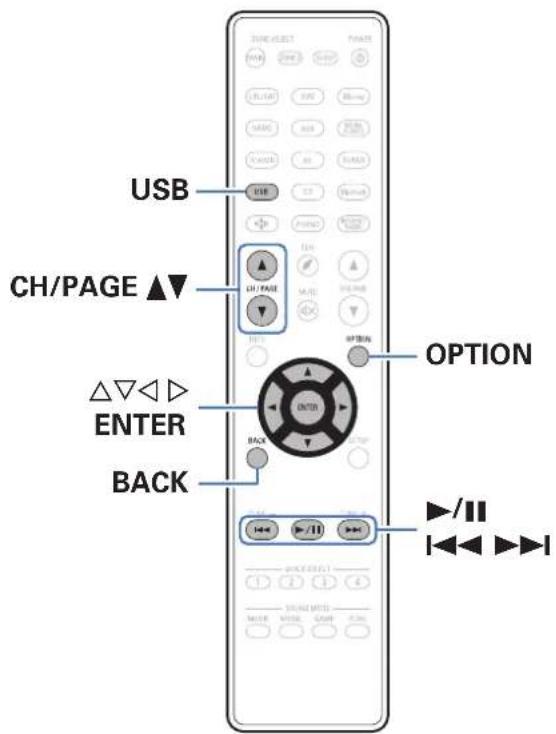

Playing a USB memory device 85
Playing files stored on USB memory devices 86
Listening to music on a Bluetooth device 89
Playing music from Bluetooth device 90
Pairing with other Bluetooth devices 91
Reconnecting to this unit from a Bluetooth device 92

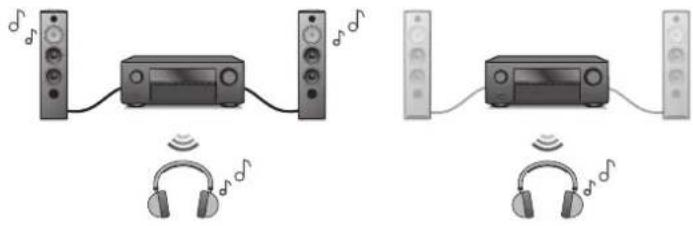

Listening to audio on Bluetooth headphones 93
Listening to audio on Bluetooth headphones 94
Reconnecting to a Bluetooth headphones 95
Disconnecting Bluetooth headphones 95

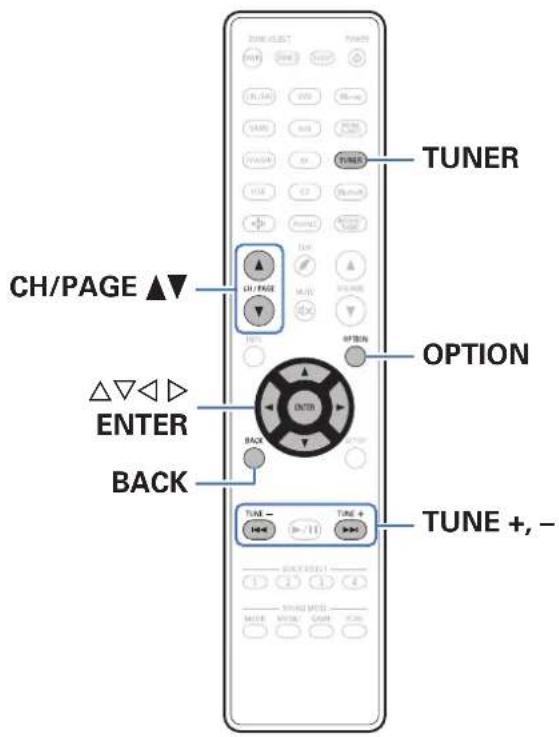

Listening to FM/AM broadcasts 96
Listening to FM/AM broadcasts 97
Tuning in by entering the frequency (Direct Tune) 98
Changing the tune mode (Tune Mode) 99
Tuning in to stations and presetting them automatically (Auto
Preset Memory) 99
Presetting the current broadcast station (Preset Memory) 100
Listening to preset stations 100
Specify a name for the preset broadcast station (Preset Name) 101
Skipping preset broadcast stations (Preset Skip) 102
Cancelling Preset Skip 103

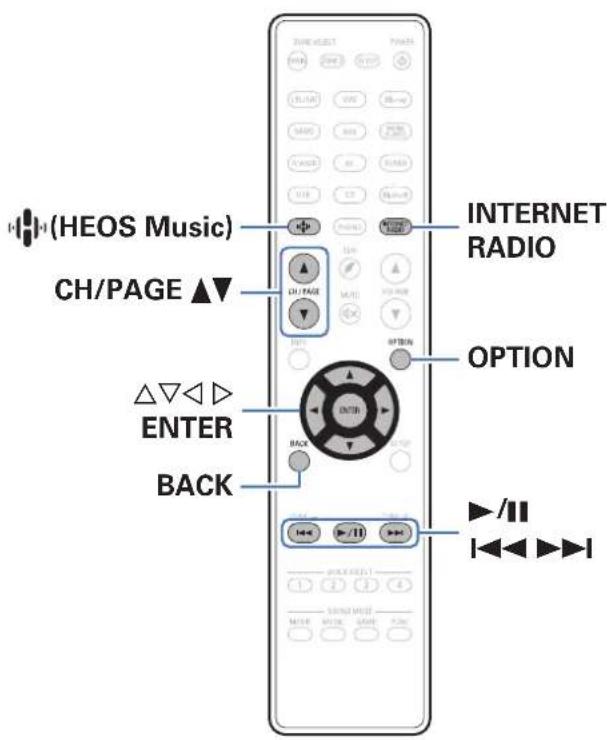

Listening to Internet Radio 104
Listening to Internet Radio 105
Playing back files stored on a PC or NAS 106
Playing back files stored on a PC or NAS 107
Getting the HEOS App 110
HEOS Account 111
Playing from streaming music services 112

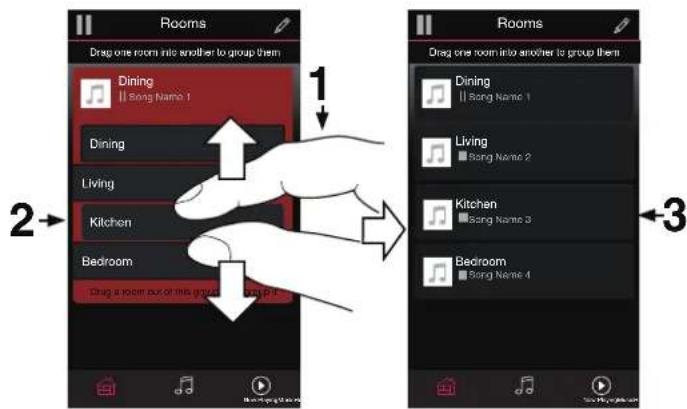

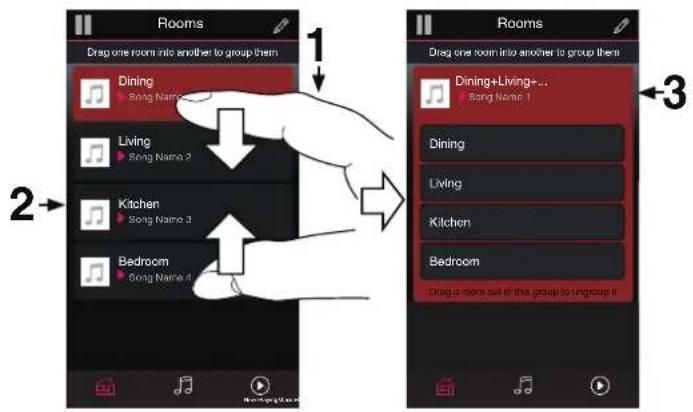

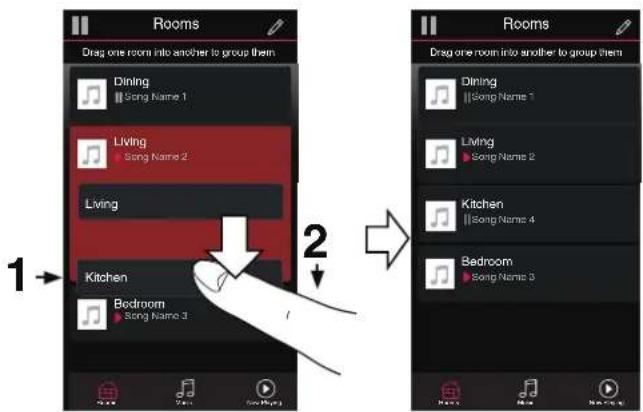

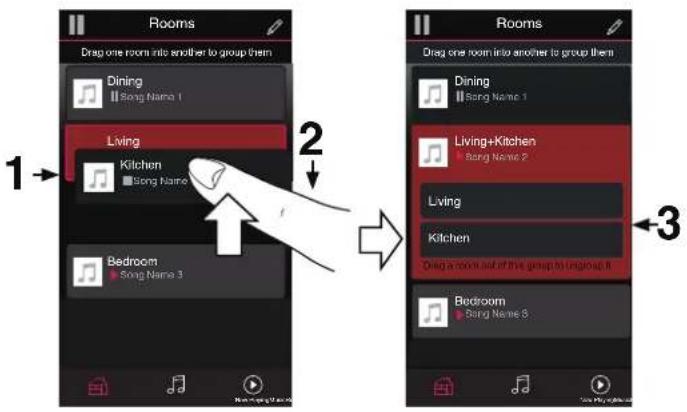

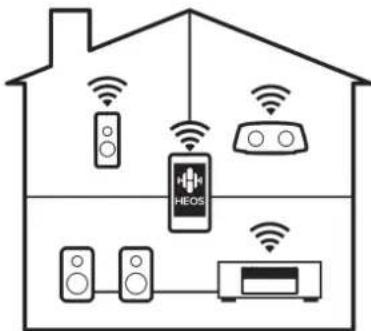

Listening to the same music in multiple rooms 115

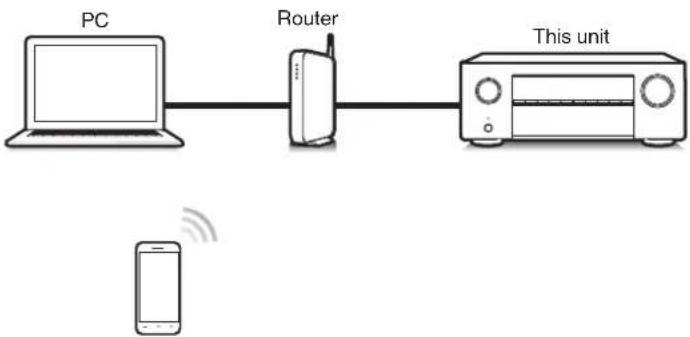

AirPlay function 119
Playing songs from your iPhone, iPod touch or iPad 120
Playing iTunes music with this unit 120
Play a song from your iPhone, iPod touch or iPad on multiple
synced devices (AirPlay 2) 121

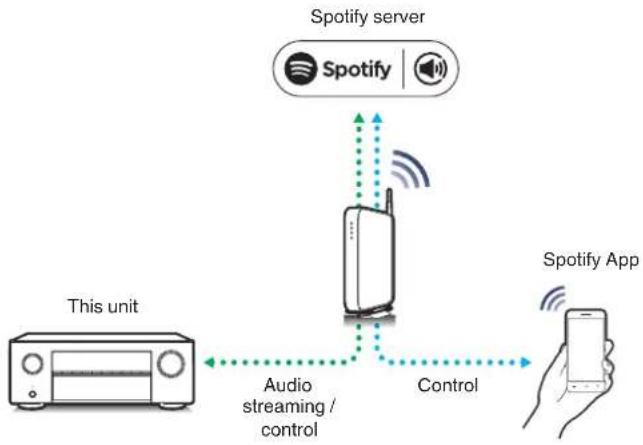

Spotify Connect function 122
Playing Spotify music with this unit 122
Front panel D
Rear panel Re
Index
3
Contents Connections Playback Settings Tips Appendix
| Convenience functions | 123 |
| Adding to HEOS Favorites | 124 |
| Playing back HEOS Favorites | 124 |
| Deleting a HEOS Favorites | 125 |
| Adjusting the volume of each channel to match the input source (Channel Level Adjust) | 126 |
| Adjusting the tone (Tone) | 127 |
| Displaying your desired video during audio playback (Video Select) | 128 |
| Adjusting the picture quality for your viewing environment (Picture Mode) | 129 |
| Playing the same music in all zones (All Zone Stereo) | 130 |
| Changing the speaker settings to match the listening environment (Speaker Preset) | 131 |

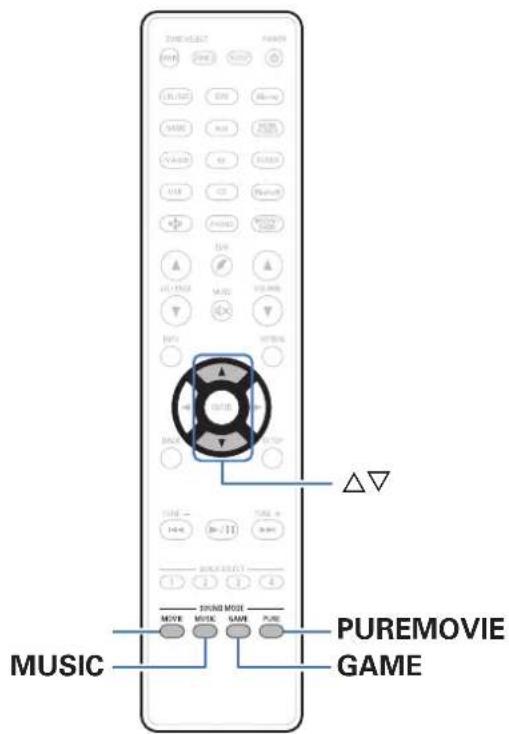

| Selecting a sound mode | 132 |
| Selecting a sound mode | 133 |
| Direct playback | 134 |
| Pure Direct playback | 135 |
| Auto surround playback | 135 |
| Description of sound mode types | 136 |
| Sound mode that can be selected for each input signal | 141 |
| HDMI Control function | 147 |
| Setting procedure | 147 |
| Smart Menu function | 148 |
| Sleep timer function | 150 |
| Using the sleep timer | 151 |
| Quick select plus function | 152 |
| Calling up the settings | 153 |
| Changing the settings | 154 |
| Panel lock function | 155 |
| Disabling all key button operations | 155 |
| Disabling all button operations except VOLUME | 155 |
| Canceling the Panel lock function | 156 |
| Remote lock function | 157 |
| Disabling the sensor function of the remote control unit | 157 |
| Enabling the remote sensor function | 157 |

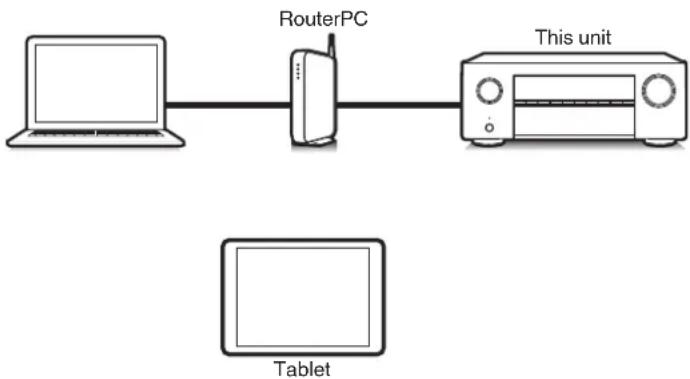

| Web control function | 158 |
| Controlling the unit from a web control | 158 |

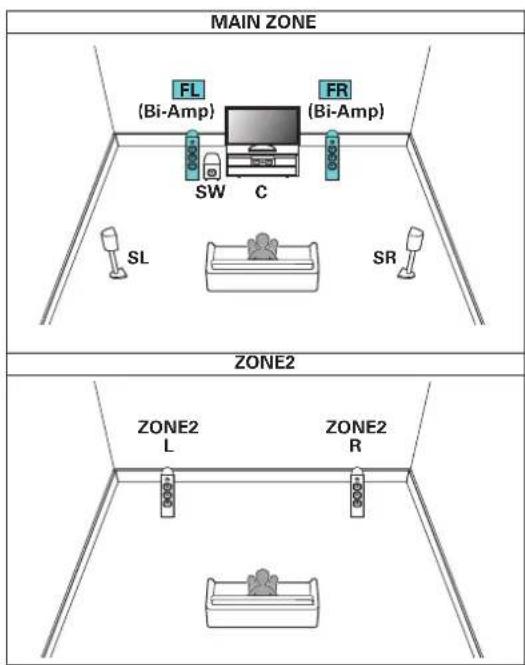

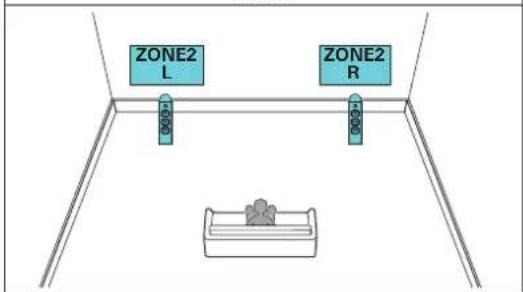

| Playback in ZONE2 (Another room) | 160 |
| Connecting ZONE2 | 160 |
| Playback in ZONE2 | 163 |
Front panel D
Rear panel Re
Index
4
Contents Connections Playback Settings Tips Appendix
Settings
| Menu map | 165 |
| Menu operations | 169 |
| Audio | 170 |
| Center Level Adjust | 170 |
| Subwoofer Level Adjust | 170 |
| Surround Parameter | 171 |
| Restorer | 177 |
| Audio Delay | 178 |
| Volume | 179 |
| Audyssey® | 180 |
| Graphic EQ | 183 |
| Video | 185 |
| Picture Adjust | 185 |
| HDMI Setup | 187 |
| Output Settings | 192 |
| On Screen Display | 196 |
| Screen Saver | 197 |
| 4K/8K Signal Format | 197 |
| HDCP Setup | 199 |
| TV Format | 199 |
| Inputs | 200 |

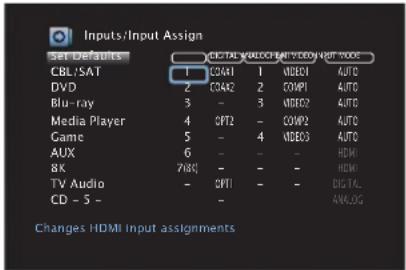

| Input Assign | 200 |
| Source Rename | 203 |
| Hide Sources | 203 |
| Source Level | 203 |
| Speakers | 204 |

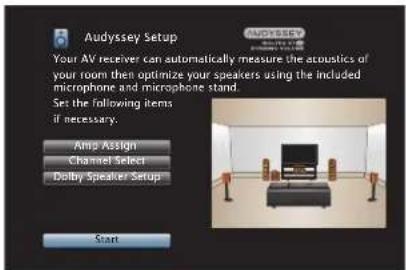

| Audyssey® Setup | 204 |

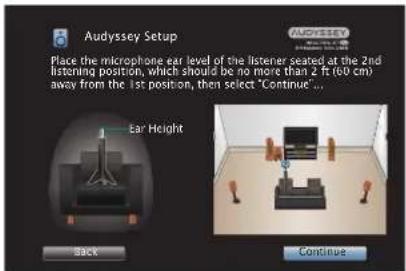

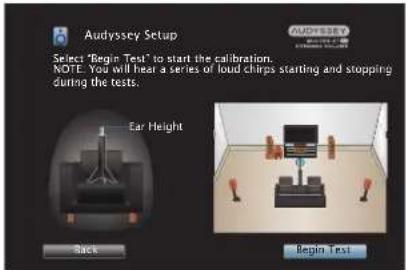

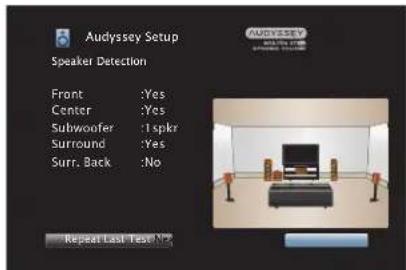

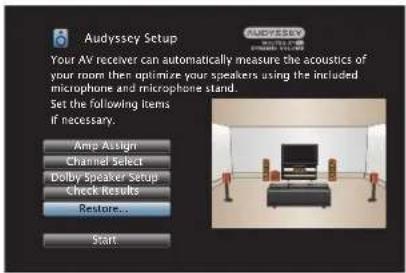

| Procedure for speaker settings (Audyssey® Setup) | 206 |

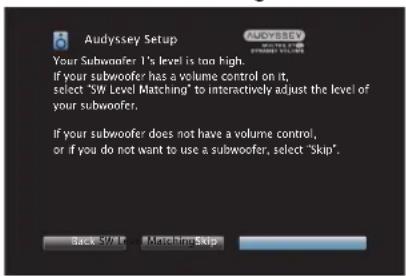

| Error messages | 212 |
| Retrieving Audyssey® Setup settings | 214 |
Front panel D
Rear panel Re
Index
5
Contents Connections Playback Settings Tips Appendix
Manual Setup 215
Amp Assign 215
Speaker Config. 221
Distances 225
Levels 227
Crossovers 228
Bass 229
Front Speaker 230
Speaker Preset 230
Network 231

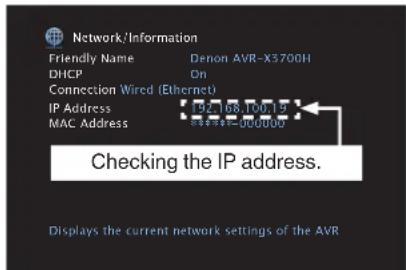

Information 231
Connection 231
Wi-Fi Setup 232
Settings 234
Network Control 236
Friendly Name 236
Diagnostics 237
AirPlay 237
HEOS Account 238
You have not signed in 238
You have already signed in 238
General 239
Language 239
ECO 239
Bluetooth Transmitter 243
ZONE2 Setup 244
Zone Rename 246
Quick Select Names 246
Trigger Out 247
Front Display 247
Firmware 248
Information 251
Usage Data 253
Save & Load 253
Setup Lock 254
Reset 254
Limiting the operating zone with the remote control 255
Front panel D
Rear panel Re
Index
6
Contents Connections Playback Settings Tips Appendix
Tips
| Tips | 257 |
| Troubleshooting | 259 |
| Power does not turn on / Power is turned off | 260 |
| Operations cannot be performed through the remote control unit | 261 |
| Display on this unit shows nothing | 261 |
| No sound comes out | 262 |
| Desired sound does not come out | 263 |
| Sound is interrupted or noise occurs | 266 |
| No video is shown on the TV | 267 |
| The menu screen is not displayed on the TV | 269 |
| The color of the menu screen and operations content displayed on the television is different from normal | 269 |
| AirPlay cannot be played back | 270 |
| USB memory devices cannot be played back | 271 |
| Bluetooth cannot be played back | 272 |
| The Internet radio cannot be played back | 274 |
| Music files on PC or NAS cannot be played back | 275 |
| Various online services cannot be played | 276 |
| The HDMI Control function does not work | 276 |
| Cannot connect to a wireless LAN network | 277 |
| When using HDMI ZONE2, the devices does not function properly | 278 |
| Update/upgrade error messages | 279 |
| Resetting factory settings | 280 |
| Resetting network settings | 281 |
Appendix
| About HDMI | 282 |
| Relationship between video signals and monitor output | 286 |
| Playing back a USB memory devices | 288 |
| Playing back a Bluetooth device | 289 |
| Playing back a file saved on a PC or NAS | 290 |
| Playing back Internet Radio | 291 |
| Personal memory plus function | 291 |
| Last function memory | 291 |
| Explanation of terms | 292 |
| Trademark information | 301 |
| Specifications | 303 |
| Index | 309 |
Front panel D
Rear panel Re
Index
7
Contents Connections Playback Settings Tips Appendix
Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner's manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
 Quick Start Guide |  Safety Instructions Notes |  on radio Warranty |  (for North Americamodel only) |  Cable labels |

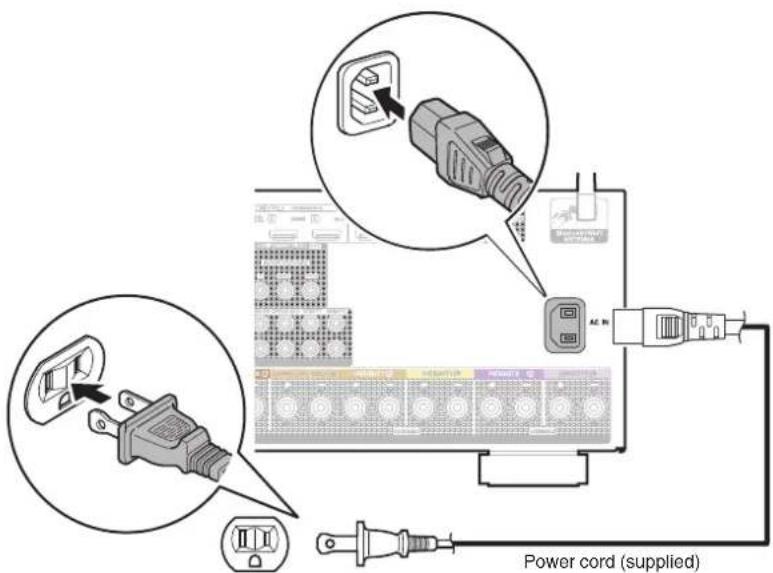

 Power cord |  FM indoor antenna |  AM loop antenna |  Sound calibrationmicrophone |  Sound calibrationmicrophone stand |
 Remote control unit (RC-1239) |  R03/AAA batteries |  External antennas forBluetooth/wirelessconnectivity | ||
Front panel D
Rear panel Re
Index
8
Contents
Connections Playback Settings Tips Appendix
Inserting the batteries
1 Remove the rear lid in the direction of the arrow and remove it.
2 Insert two batteries correctly into the battery compartment as indicated.
3 Put the rear cover back on.
Front panel D
Rear panel Re
Index
9
NOTE
• To prevent damage or leakage of battery fluid:
- Do not use a new battery together with an old one.
- Do not use two different types of batteries.
- Remove the batteries from the remote control unit if it will not be in use for long periods.
- If the battery fluid should leak, carefully wipe the fluid off the inside of the battery compartment and insert new batteries.

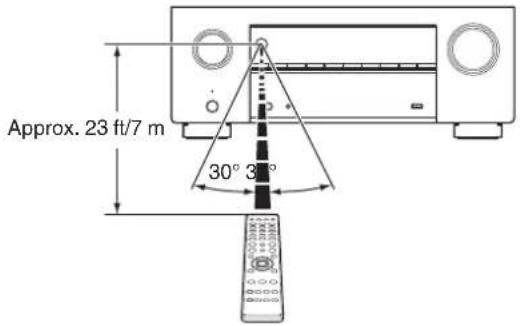

Operating range of the remote control unit
Point the remote control unit at the remote sensor when operating it.
Features
High quality sound
- Powerful 9-Channel Amplifier with the Latest Home Cinema Specs
Featuring discrete high-current amplifiers on all channels, this unit delivers high-power performance at 105 watts per channel (8 ohms, 20Hz-20kHz, THD: 0.08%, 2 ch. driven) to ensure a powerful and precise entertainment experience, every time.

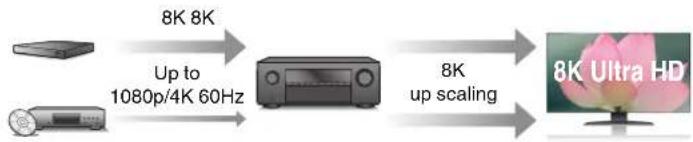

This unit features an advanced HDMI section with HDCP 2.3 support, and video processing with 4K and 8K pass-through and upscaling for HDMI sources.
Upgrade your expectations in home theater entertainment.
• Dolby Atmos (p. 293)
This unit is equipped with a decoder that supports Dolby Atmos audio format. The placement or movement of sound is accurately reproduced by the addition of overhead speakers, enabling you to experience an incredibly natural and realistic surround sound field.
• Speaker Virtualizer (p. 173)
Speaker Virtualizer enables you to access a more immersive entertainment experience from traditional channel based speaker layouts through digital signal processing including Dolby Atmos height virtualization and surround virtualization.
- Speaker Virtualizer is not for use when both height speakers and surround speakers are connected.
- Height Virtualization may be applied when surround speakers are connected.
• DTS:X (p. 296)
This unit is equipped with the DTS:X decoder technology. DTS:X brings the home theater experience to new heights with its immersive object based audio technology which removes the bounds of channels. The flexibility of objects allows for sound to be scaled large or small and moved around the room with greater accuracy than ever before leading to a richer immersive audio experience.
• DTS Virtual:X (p. 296)
DTS Virtual:X technology features DTS's proprietary virtual height and virtual surround processing to deliver an immersive sound experience from any type of input source (stereo to 7.1.4 channel) and speaker configuration.
- DTS Virtual:X is not for use when Height speakers are connected.
• IMAX Enhanced (p. 296)
This IMAX Enhanced product have met stringent performance standards established by IMAX and DTS in order to create a consistent and higher bar for sound performance. DTS has developed a special method for reproducing an IMAX signature sound experience in the consumer's home. This method combines a unique conversion process for IMAX theatrical audio mixes utilizing an enhanced DTS codec technology. The IMAX theatrical audio format with point source surround speakers closely matches the speaker configuration most consumers have in their homes today. Coupled with DTS audio technology, IMAX Enhanced audio products will ensure the best and most accurate audio reproduction over 5.1 or more speaker channels.
Front panel D
y Rear panel Re
Index
10
Contents Connections Playback Settings Tips Appendix
- Audyssey LFC™ (Low Frequency Containment) (p. 182)
Audyssey LFC ^™ solves the problem of low frequency sounds disturbing people in neighboring rooms or apartments. Audyssey LFC ^™ dynamically monitors the audio content and removes the low frequencies that pass through walls, floors and ceilings. It then applies psychoacoustic processing to restore the perception of low bass for listeners in the room. The result is great sound that no longer disturbs the neighbors.
- Discrete subwoofers and Audyssey Sub EQ HT™ (p. 205)
The unit has two subwoofer output capability and can adjust the level and delay for each subwoofer individually.
Audyssey Sub EQ HT™ makes the integration seamless by first compensating for any level and delay differences between the two subwoofers and then applying Audyssey MultEQ® XT32 to both subwoofers together for improved deep bass response and detail.
High performance
• Ultimate Home Theater Experience – 8K Ready
This unit delivers the ultimate home theater experience with 8K/60Hz pass-through, 4K/120Hz pass-through for gaming, and support for the latest HDMI specifications. This unit allows you to build the best 4K home theater system, and offers the convenience of knowing that the used AV receiver is ready for 8K format whenever the user decides to use it.
Enjoy the highest quality 3D audio and video for even the most demanding entertainment needs.
- HDCP 2.3
This unit is compatible with HDCP 2.3 copyright protection standard.
Front panel D
Rear panel Re
Index
11
Contents
Connections Playback Settings Tips Appendix
- Digital video processor upscales SD (resolution) or HD (720p/1080p) / 4K to 8K
This unit is equipped with a 8K video upscaling function that allows SD (Standard Definition) or HD (High Definition)/4K 60Hz video to be output via HDMI at 8K (7680 × 4320 pixels) resolution. This function enables the device to be connected to a TV using a single HDMI cable, and produces high definition images for any video source.

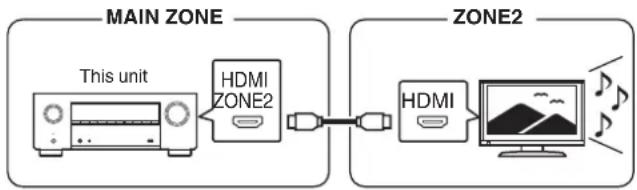

• Equipped with HDMI ZONE2 output (p. 160)
The ZONE2 multi-room output includes an HDMI output that lets you enjoy a different A/V source in that room, with another program playing in the main room.
- HDMI connections enable connection to various digital AV devices (7 inputs, 3 outputs)
AY["OutIn"]
For connection to a broad range of digital sources, this unit features 7 HDMI inputs, that lets you quickly and conveniently connect a camcorder, game console or other HDMI-equipped device. There are dual HDMI outputs for the main room, and a third HDMI output for ZONE2.
• eARC (Enhanced Audio Return Channel) function compatibility
The eARC function is compatible with conventional ARC function-compatible audio formats in addition to multichannel linear PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X and other audio formats a conventional ARC function cannot transmit. Additionally, connecting to an eARC function-compatible television enables enjoyment of higher-quality surround playback of the audio content played from your television.
Front panel D
Rear panel Re
Index
12
Contents
Connections Playback Settings Tips Appendix
- The device is equipped with a AirPlay® function in addition to network functions such as Internet radio etc. (p. 119)
You can enjoy a wide variety of content, including listening to Internet Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music library from an iPhone ^® , iPad ^® , iPod touch ^® or iTunes ^® .
• Supports AirPlay 2 ^® wireless audio
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous playback.
This unit supports AirPlay 2 and requires iOS 11.4 or later.
- Playback of DSD and FLAC files via USB and networks This unit supports the playback of high resolution audio formats such as DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality playback of high resolution files.
- Wireless connection with Bluetooth devices can be carried out easily (p. 89)
You can enjoy music simply by connecting wirelessly with your smartphone, tablet, PC, etc.
Front panel D
Rear panel Re
Index
13
Contents
Connections Playback Settings Tips Appendix
- Connect Bluetooth headphones
This unit can transmit Bluetooth so you can enjoy audio wirelessly through your Bluetooth headphones.
Playback can be performed using connected speakers and Bluetooth headphones simultaneously, or only using Bluetooth headphones.


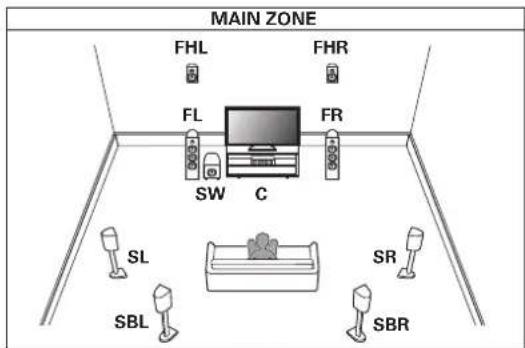

【MAIN ZONE】
In addition, when the All Zone Stereo function is used, the music being played back in MAIN ZONE can be enjoyed in all the zones at the same time. This is useful when you want to let the background music propagate throughout the whole house.
• Energy-saving design
This unit is equipped with an ECO Mode function that allows you to enjoy music and movies while reducing the power consumption during use, and also an auto-standby function that automatically turns off the power supply when the unit is not in use. This helps reduce unnecessary power use.
Front panel D
Rear panel Re
Index
14
Contents
Connections Playback Settings Tips Appendix
- Compatible with the "Denon 2016 AVR Remote" App* for performing basic operations of the unit with an iPad, iPhone or Android™ devices (Google, Amazon Kindle Fire)
Along with many new features, the graphics and user interface have been completely overhauled. The new app gives you full control of this unit as well as access to its setup menu for detailed adjustments from your phones or tablets. "Denon 2016 AVR Remote" App also gives you quick access to the receiver's status display, option menus, Denon Blu-ray Disc player control, and online owner's manual for your convenience.
* Download the appropriate "Denon 2016 AVR Remote" App for your iOS or Android devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless LAN) network that the iPad, iPhone or Android™ is connected to.

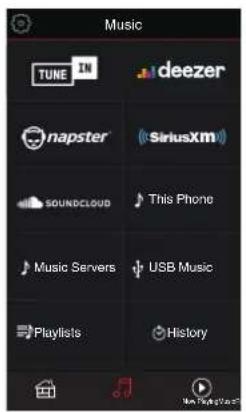

• HEOS provides streaming music from your favorite online music sources
HEOS wireless multi-room sound system that enables you to enjoy your favorite music anywhere and everywhere around your home. By utilizing your existing home network and the HEOS App (available for iOS, Android and Amazon devices), you can explore, browse, and play music from your own music library or from many online streaming music services.
When multiple products with HEOS Built-in are connected to the same network, they can be grouped to play the same music on all products simultaneously, or different music can be played on each one.
Front panel D
Rear panel Re
Index
15
Contents Connections Playback Settings Tips Appendix
Easy operation
- "Setup Assistant" provides easy-to-follow setup instructions First select the language when prompted. Then simply follow the instructions displayed on the TV screen to set up the speakers, network, etc.
- Easy to use Graphical User Interface This unit is equipped with a Graphical User Interface for improved operability.
Front panel D
y Rear panel Re
Index
16
Contents
Connections Playback Settings Tips Appendix
Part names and functions

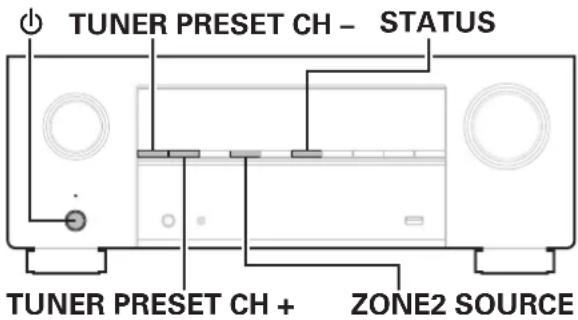

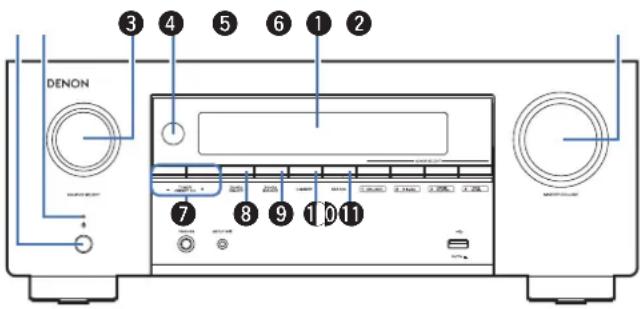

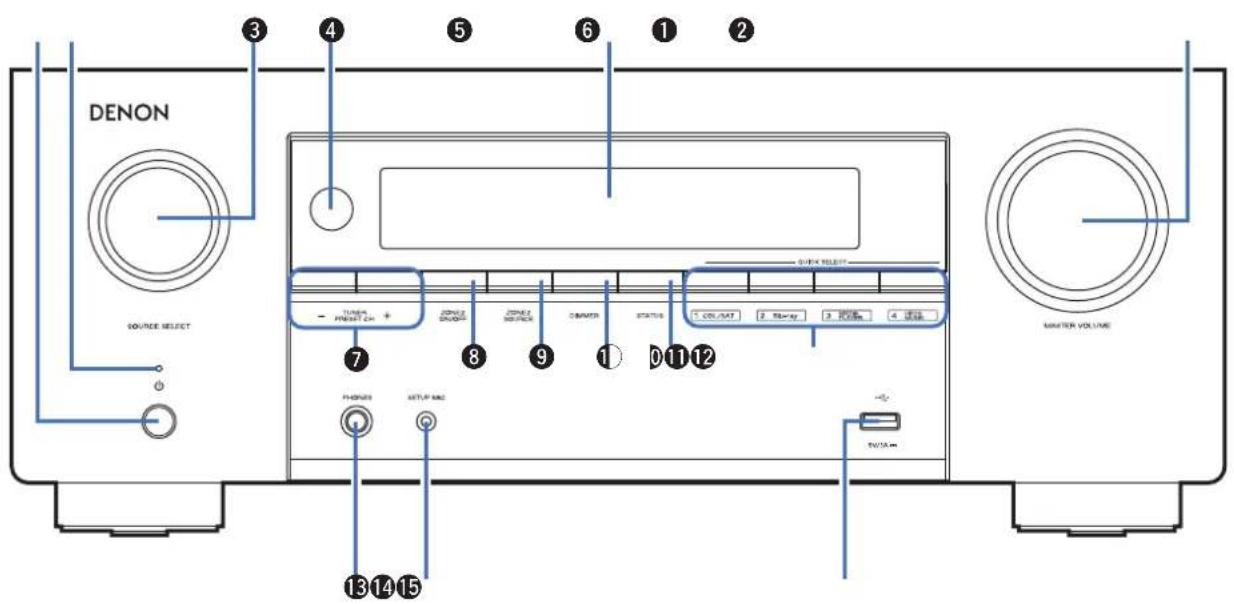

Front panel
For details, see the next page.
Front panel D
Rear panel Re
In
17
Contents
Connections Playback Settings Tips Appendix
① Power operation button (⏻)
Used to turn the power of the MAIN ZONE (room where this unit is located) on/off (standby). (p. 83)
② Power indicator
This is lit as follows according to the power status:
- White: Power on
- Off: Normal standby
- Red:
- When "HDMI Pass Through" is set to "On" (1 p. 187)
- When "HDMI Control" is set to "On" (189)
- When "Network Control" is set to "Always On" (p. 236)

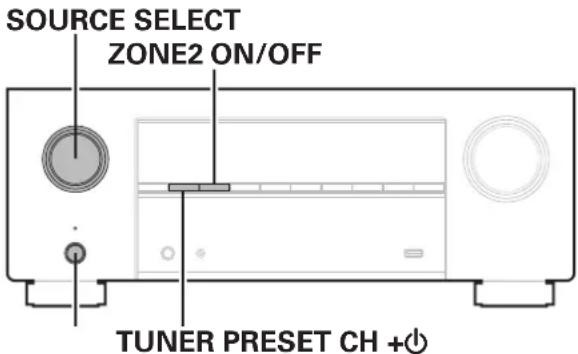

③ SOURCE SELECT knob
This selects the input source. (☐ p. 83)
4 Remote control sensor
This receives signals from the remote control unit. (☐ p. 9)
⑤ Display
This displays various pieces of information. (p. 20)
⑥ MASTER VOLUME knob
This adjusts the volume level. (☐ p. 84)

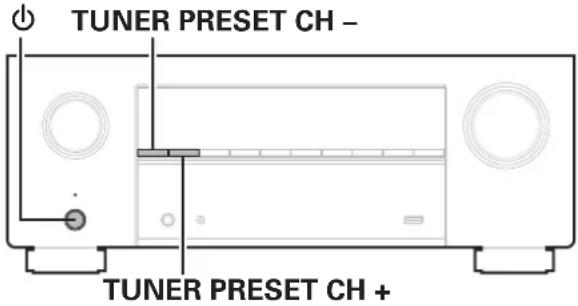

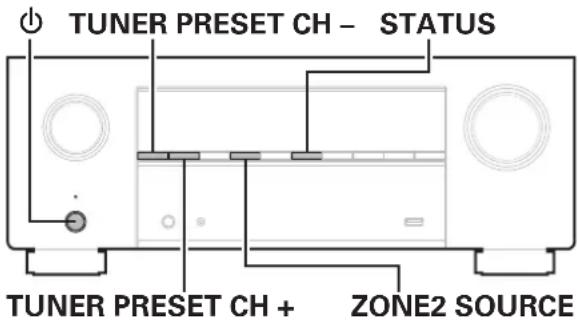

⑦ Tuner preset channel buttons (TUNER PRESET CH +, -)
These select preset broadcast stations. (p. 100)
8 ZONE2 ON/OFF button
This turns the power of ZONE2 (another room) on/off. (p. 163)
⑨ ZONE2 SOURCE button
This selects the input source for ZONE2. (☐ p. 163)
⑩ DIMMER button
Each press of this switches the brightness of the display. (p. 247)
⑪ STATUS button
Each press of this switches the status information that is shown on the display.
Front panel D
y Rear panel Re
Index
Contents
Connections Playback Settings Tips Appendix

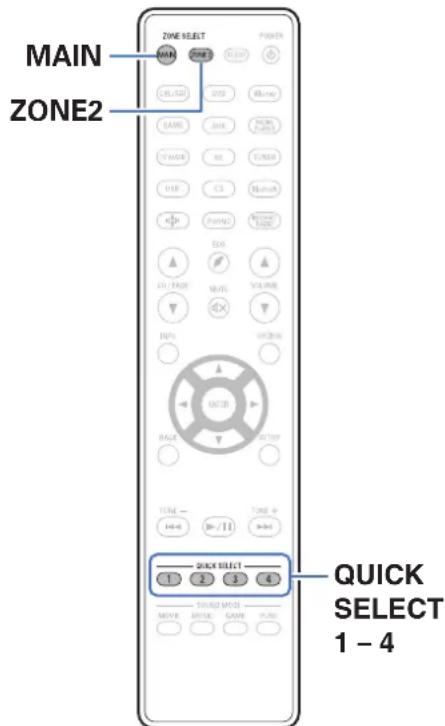

⑫ QUICK SELECT buttons
With a single press of any of these buttons, you can call up various settings you've registered to each button such as the input source, volume level and sound mode settings. (p. 152)
⑬ Headphones jack (PHONES)
This is used to connect headphones. When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.
NOTE
- To prevent hearing loss, do not raise the volume level excessively when using headphones.
⑭ SETUP MIC jack
This is used to connect the supplied Sound calibration microphone. (17 p. 207)

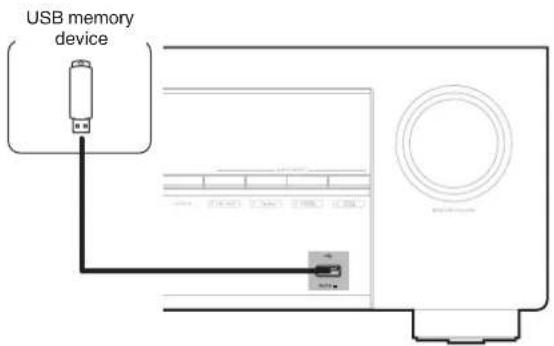

⑮ USB port (←)
This is used to connect USB storages (such as USB memory devices). (1 p. 74)
Front panel D
y Rear panel Re
Index
19
Contents Connections Playback Settings Tips Appendix
Display
① Input mode indicators
These light according to the audio input mode settings of each input source. (127 p. 202)
② Surround back indicator
This lights when audio signals are being output from the surround back speakers. (☐ p. 223)
③ Decoder indicators
These light when Dolby or DTS signals are input or when the Dolby or DTS decoder is running.
④ Audyssey® indicator
This lights when "MultEQ® XT32", "Dynamic EQ", "Dynamic Volume" or "Audyssey LFC™" has been set up. (10 p. 180)
⑤ Tuner reception mode indicators
These light up according to the reception conditions when the input source is set to "Tuner".
TUNED: Lights up when the broadcast is properly tuned in.
STEREO: Lights up when receiving FM stereo broadcasts.
⑥ Sleep timer indicator
This lights when the sleep mode is selected. (☐ p. 150)
Front panel D
y Rear panel Re
Index
20
Contents
Connections Playback Settings Tips Appendix
⑦ Volume indicator
⑧ MUTE indicator
This blinks while the sound is muted. (Kp. 84)
9 Information display
The input source name, sound mode, setting values and other information are displayed here.
⑩ Input signal indicators
The respective indicator will light corresponding to the input signal. (p. 202)
⑪ ZONE2 indicator
This lights up when ZONE2 (another room) power is turned on. (163 p. 163)
Front panel D
y Rear panel Re
Index
21
Contents
Connections Playback Settings Tips Appendix

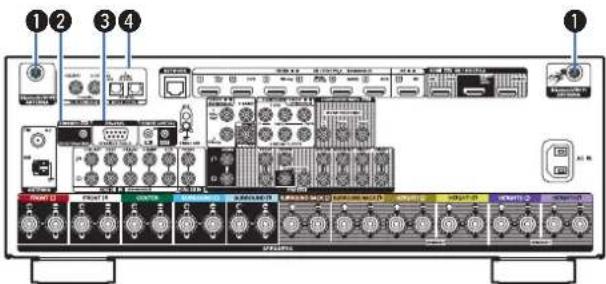

Rear panel
For details, see the next page.
Front panel D
Rear panel Rel
Index
22
Contents
Connections Playback Settings Tips Appendix

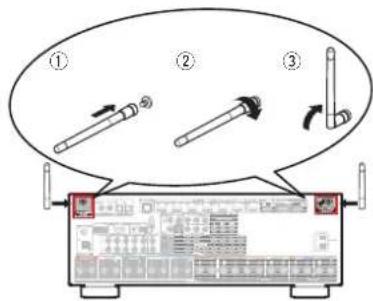

① Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. (p. 78)
① Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
② Turn clockwise until the antennas is fully connected.
③ Rotate the antenna upwards for best reception.
Front panel D
y Rear panel Re
Index
23

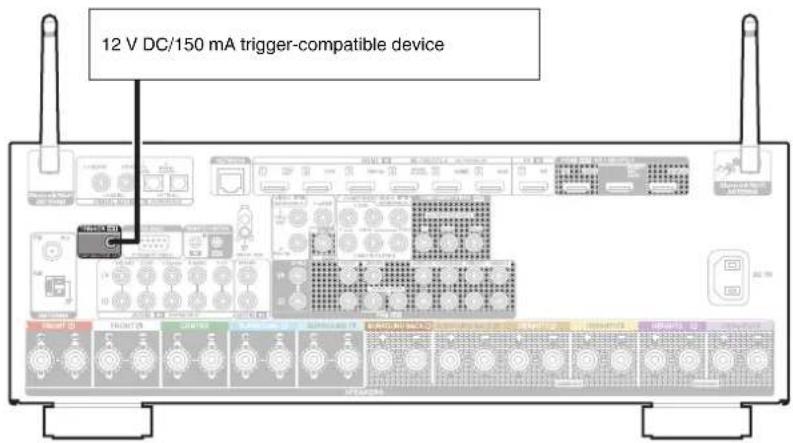

② TRIGGER OUT jack
Used to connect devices equipped with the trigger function. (17 p. 80)
③ RS-232C connector
Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner's manual of the home automation controller for more information about serial control of this unit.
Perform the operation below beforehand.
① Turn on the power of this unit.
② Turn off the power of this unit from the external controller.
③ Check that the unit is in the standby mode.
4 Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
- "Connection 2: TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)" (p. 66)

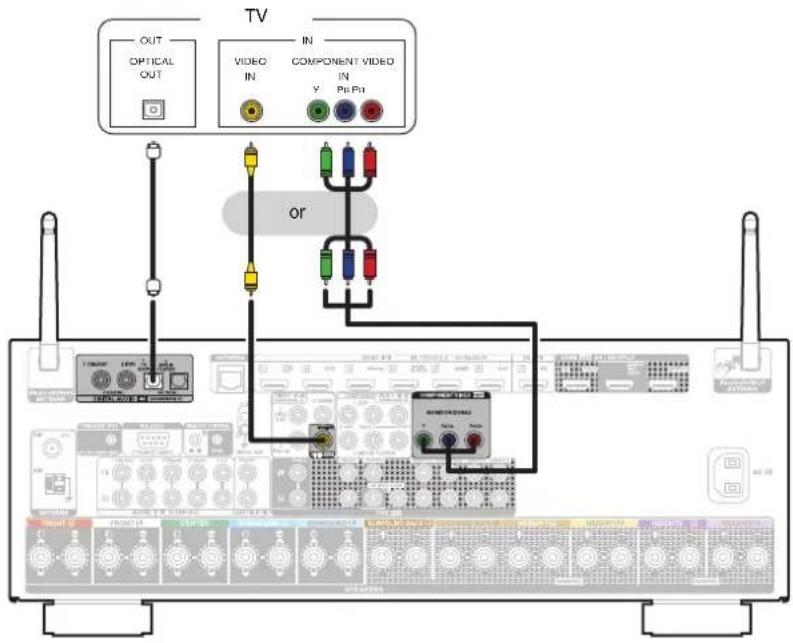

- "Connection 3: TV equipped without an HDMI connector" (179 p. 67)

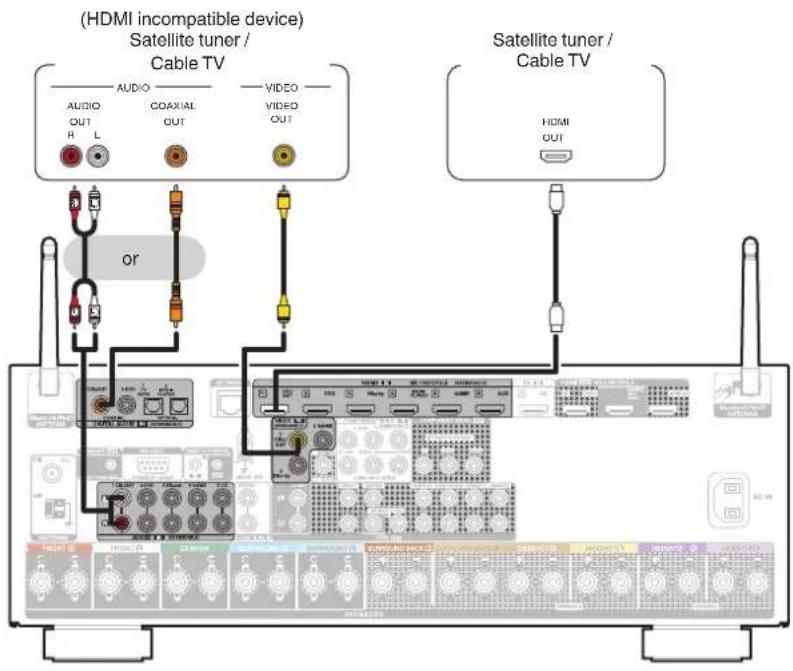

- "Connecting a set-top box (Satellite tuner/cable TV)" (p. 69)

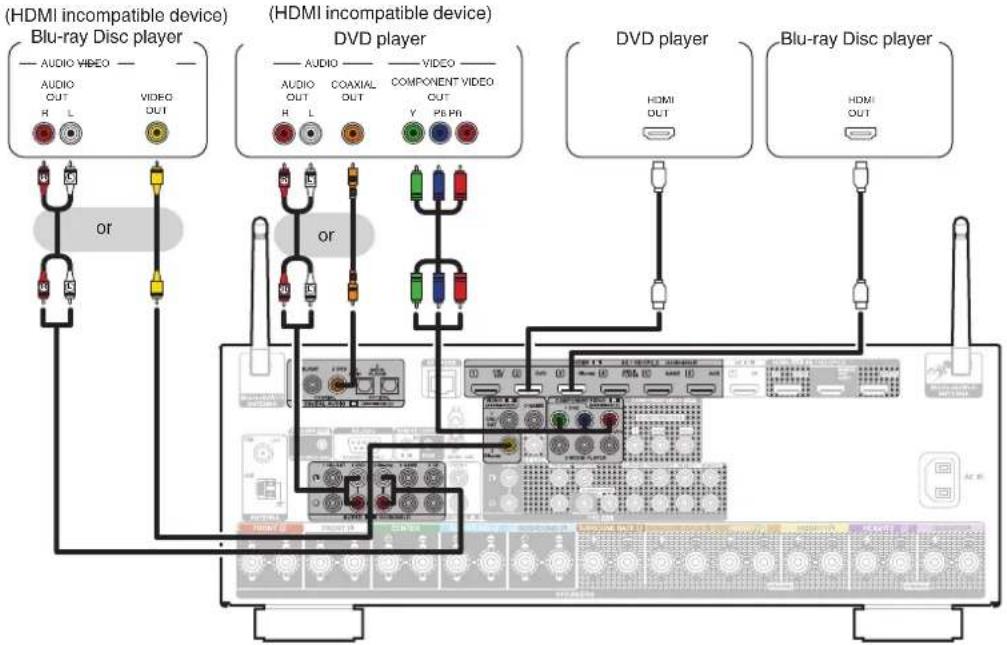

- "Connecting a DVD player or Blu-ray Disc player" (p. 70)
Contents
Connections Playback Settings Tips Appendix

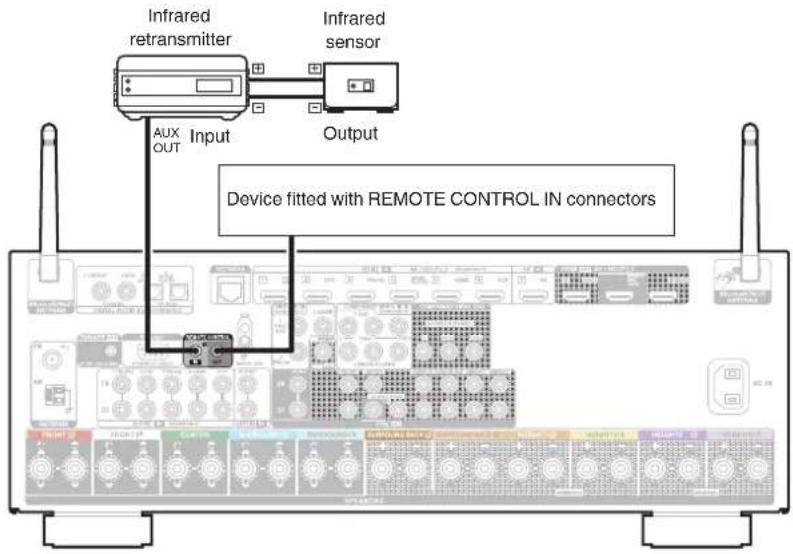

⑤ REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. (P. 79)

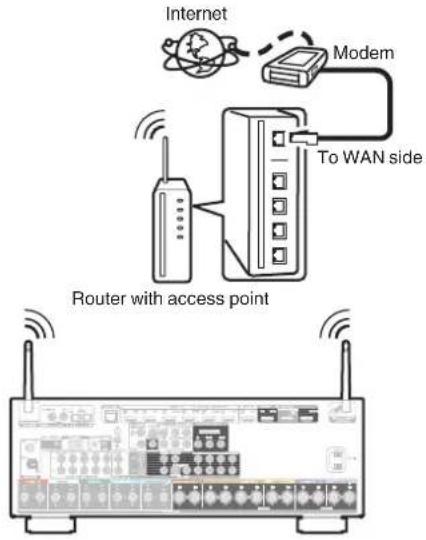

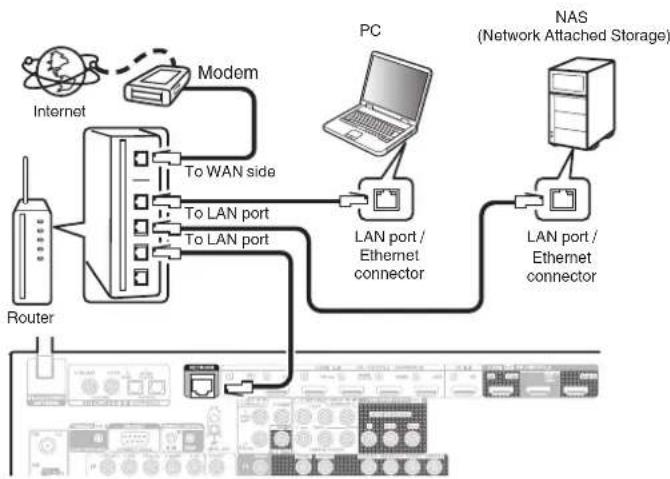

6 NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN network. (p. 77)

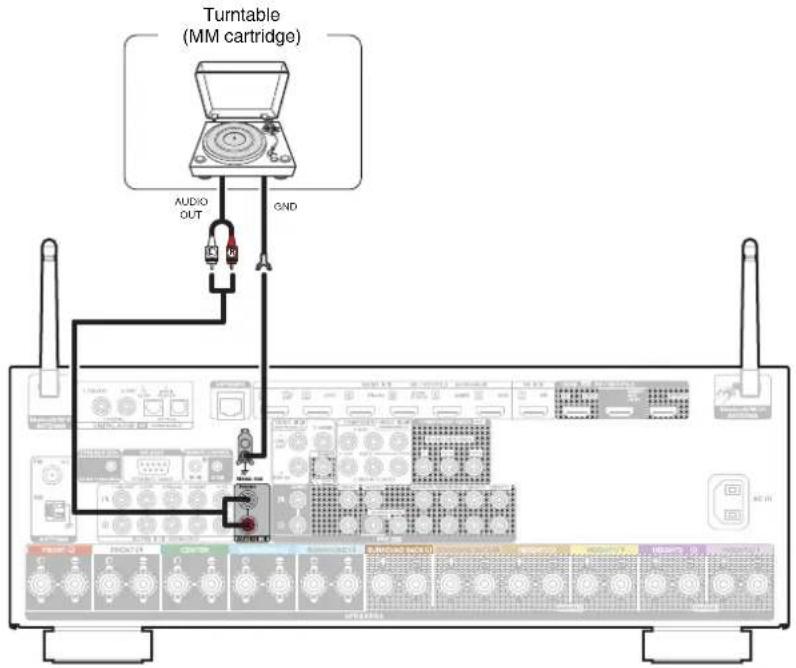

⑦ SIGNAL GND terminal
Used to connect a ground wire for the turntable. (☐ p. 73)
⑧ Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
- "Connection 3: TV equipped without an HDMI connector" (p. 67)
- "Connecting a set-top box (Satellite tuner/cable TV)" (p. 69)
- "Connecting a DVD player or Blu-ray Disc player" (p. 70)
⑨ HDMI connectors
Used to connect devices equipped with HDMI connectors.

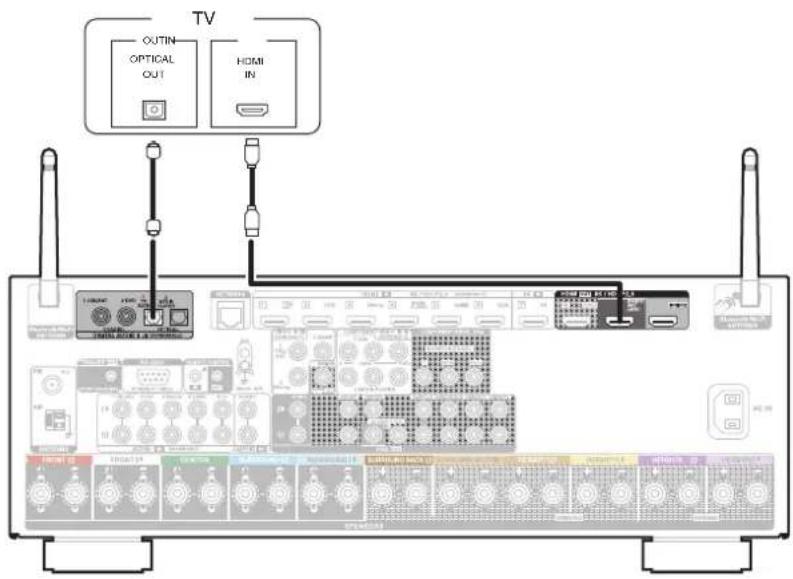

- "Connection 1: TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)" (eF p. 65)
- "Connection 2: TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)" (p. 66)
- "Connecting a set-top box (Satellite tuner/cable TV)" (p. 69)
- "Connecting a DVD player or Blu-ray Disc player" (p. 70)

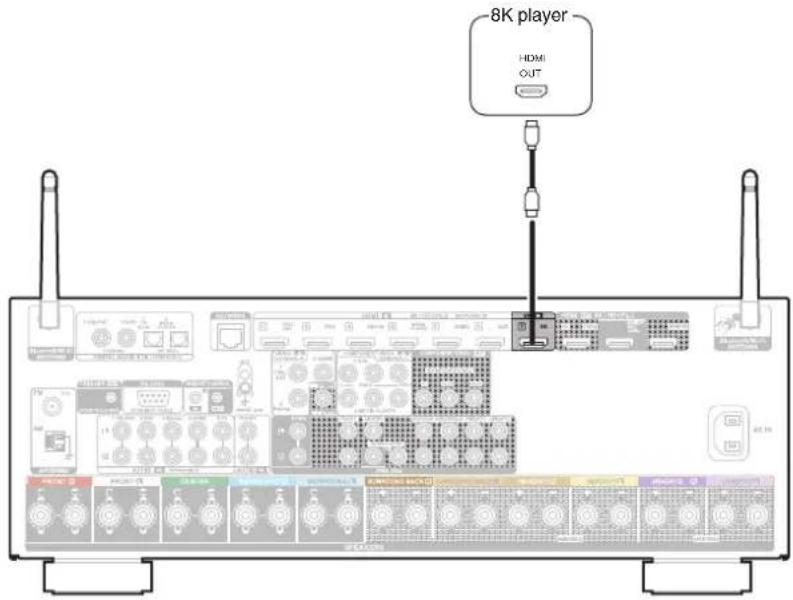

- "Connecting a player device compatible with the 8K" (p. 71)

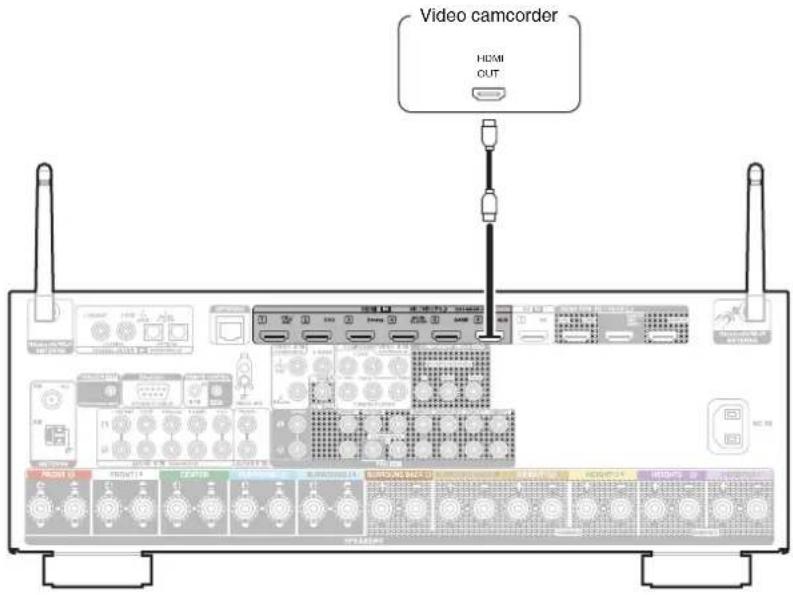

- "Connecting a video camcorder or game console" (1 p. 72)
⑩ AC inlet (AC IN)
Used to connect the power cord. (p. 81)
Front panel D
y Rear panel Re
Index
24
Contents Connections Playback Settings Tips Appendix

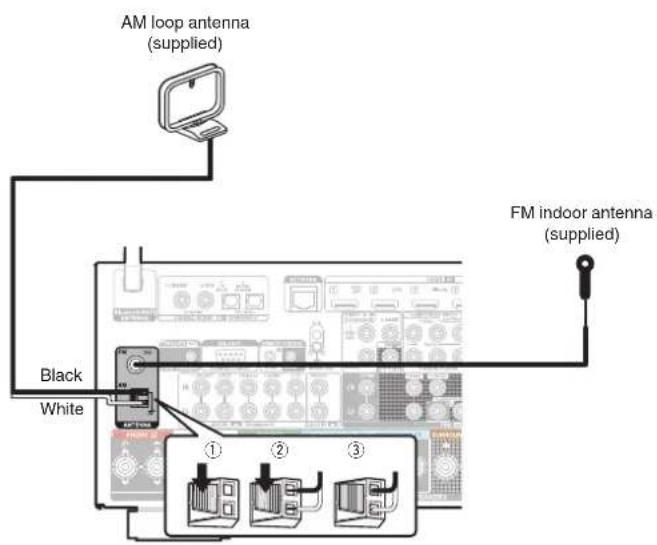

FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (☐ p. 75)
⑫ Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
- "Connecting a set-top box (Satellite tuner/cable TV)" (p. 69)
- "Connecting a DVD player or Blu-ray Disc player" (10 p. 70)
- "Connecting a turntable" (p. 73)

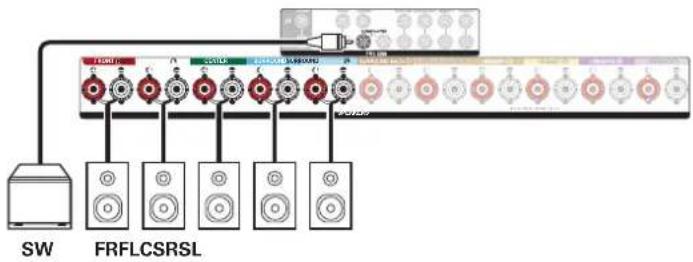

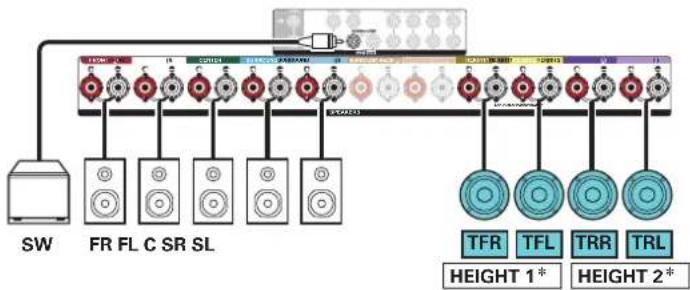

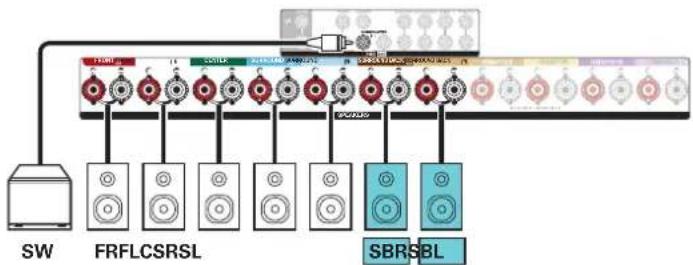

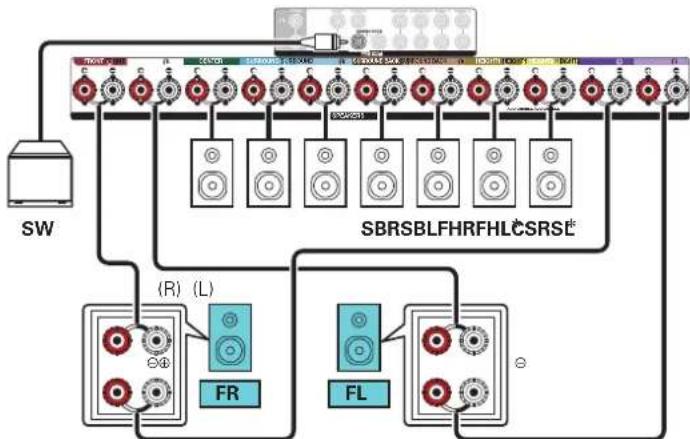

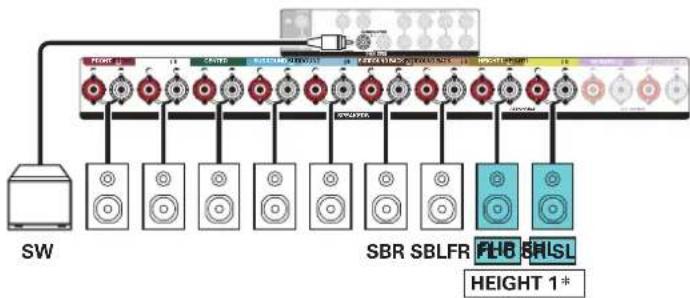

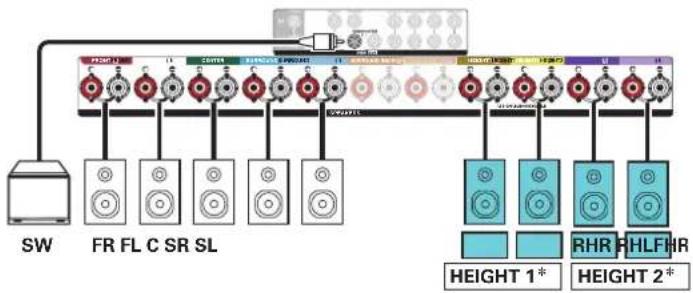

13 Speaker terminals (SPEAKERS)
Used to connect speakers. (p. 37)

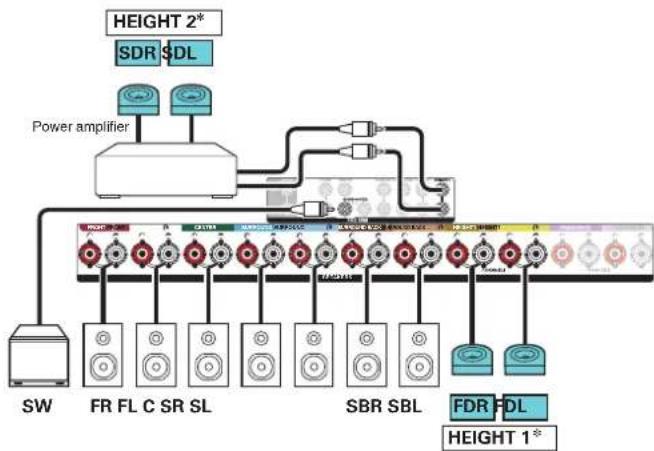

⑭ PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or an external power amplifier.

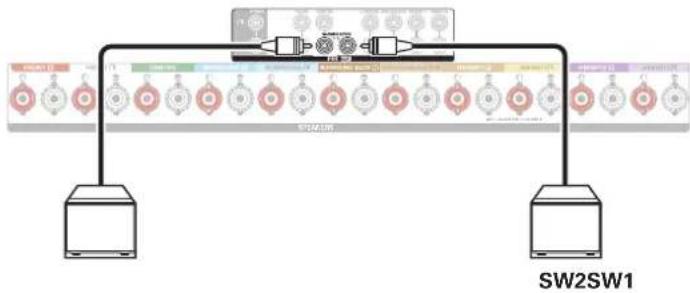

- "Connecting the subwoofer" (p. 38)

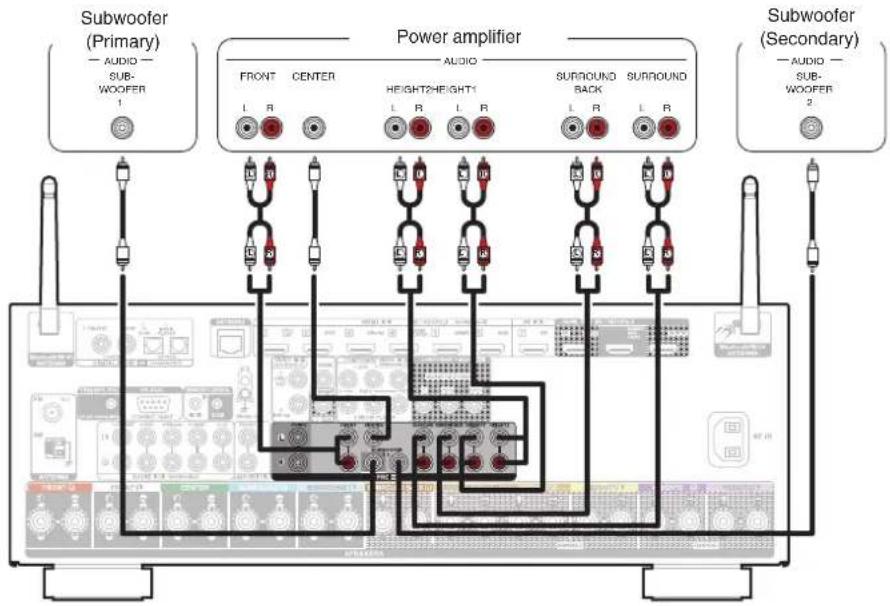

- "Connecting an external power amplifier" (p. 63)

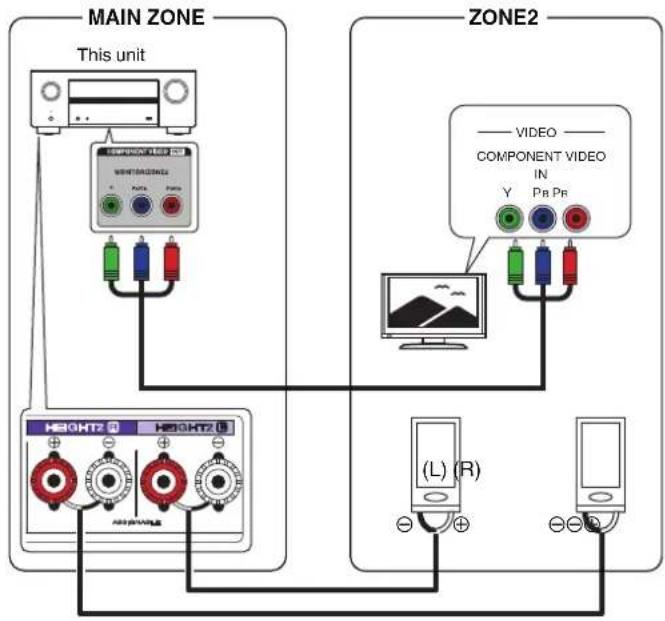

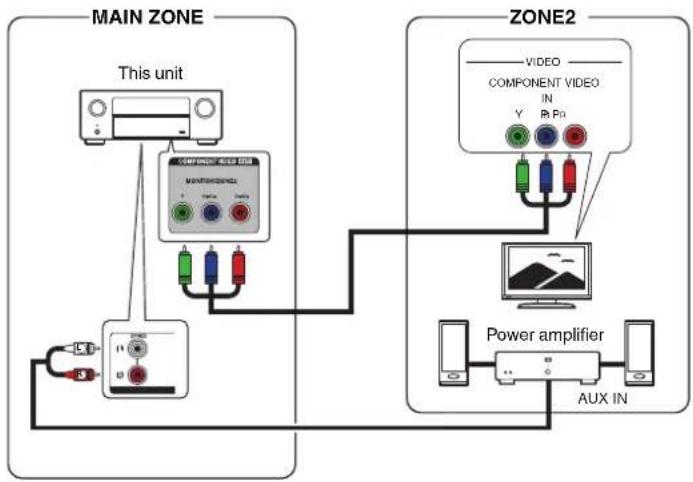

- "Connection 3: Connection using an external amplifier (ZONE2)" (☐ p. 161)

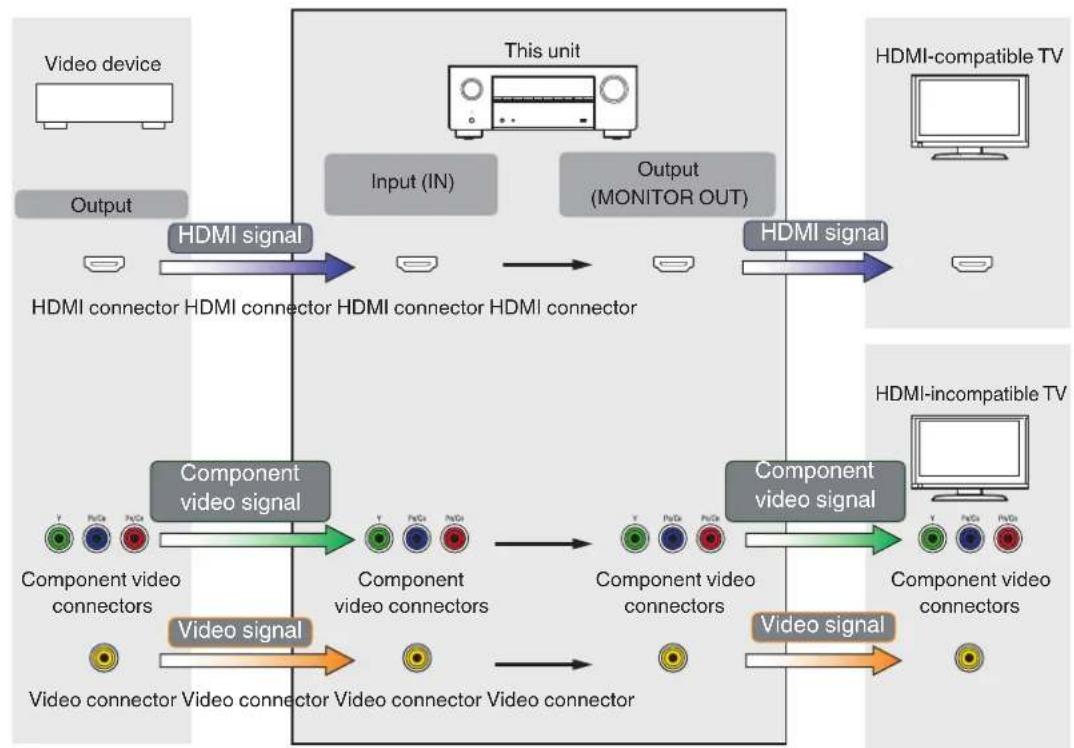

⑮ Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
- "Connection 3: TV equipped without an HDMI connector" (1 p. 67)
- "Connecting a DVD player or Blu-ray Disc player" (p. 70)
NOTE
- Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
Front panel D
y Rear panel Re
Index
25
Contents
Connections Playback Settings Tips Appendix

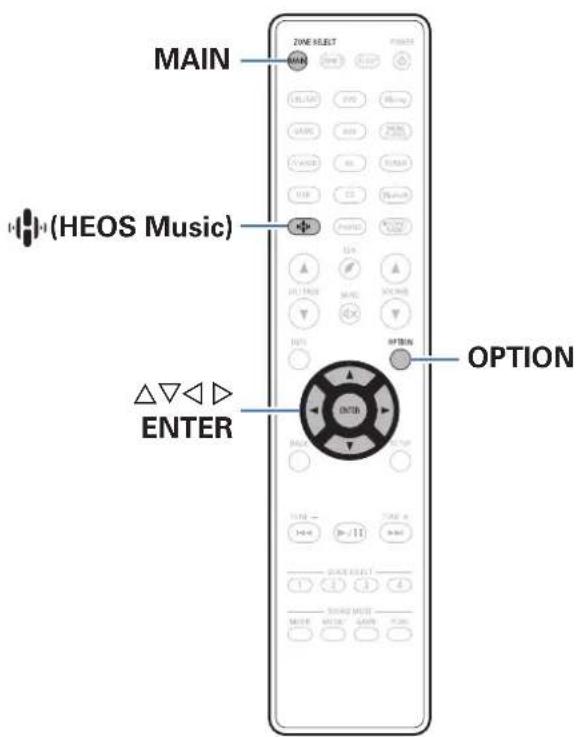

Remote control unit
Front panel D
Rear panel Re
Index
26

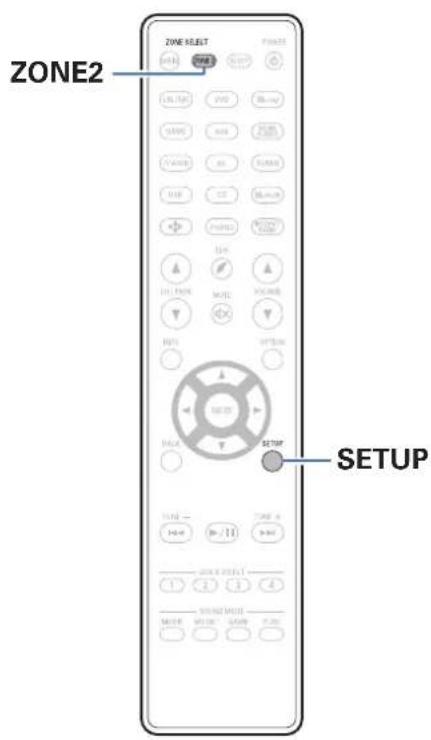

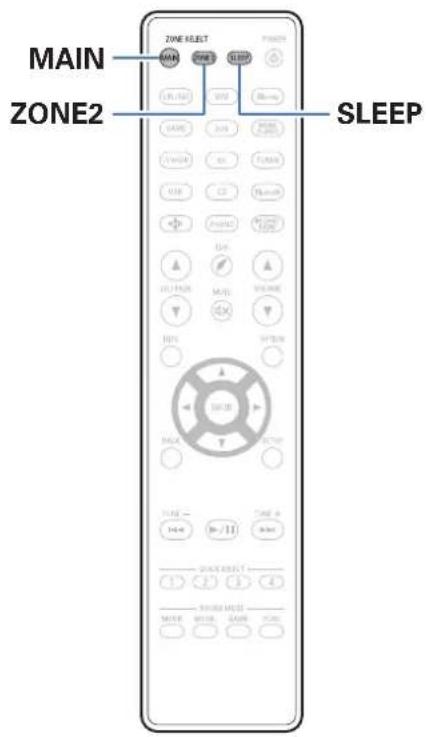

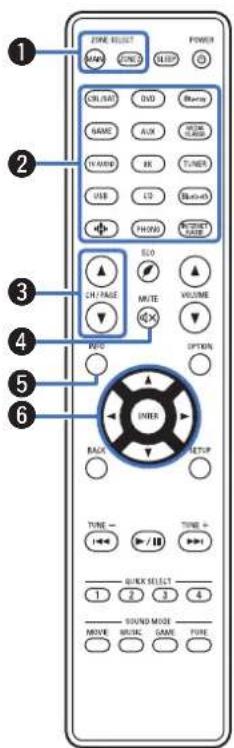

① ZONE SELECT buttons
These switch the zone (MAIN ZONE, ZONE2) that is operated through the remote control unit.
- "Playback in ZONE2" (p. 163)
- "Menu operations" (p. 169)
② Input source select buttons
These selects the input source.
- "Selecting the input source" (p. 83)
- "Playback in ZONE2" (p. 163)
③ Channel/page search buttons (CH/PAGE ▲▼)
These select radio stations registered to presets or switch pages. (p. 100)
④ MUTE button (☐X)
This mutes the output audio.
- "Turning off the sound temporarily (Muting)" (p. 84)
- "Turning off the sound temporarily (Muting) (ZONE2)" (p. 164)

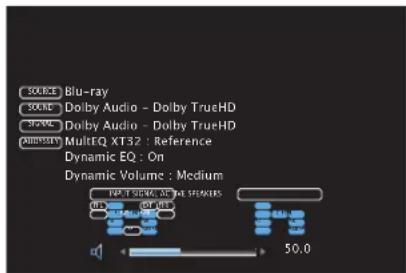

⑤ Information button (INFO)
This displays the status information on the TV screen. (☐ p. 252)
⑥ Cursor buttons (△▽◀▶)
These select items.
Contents
Connections Playback Settings Tips Appendix

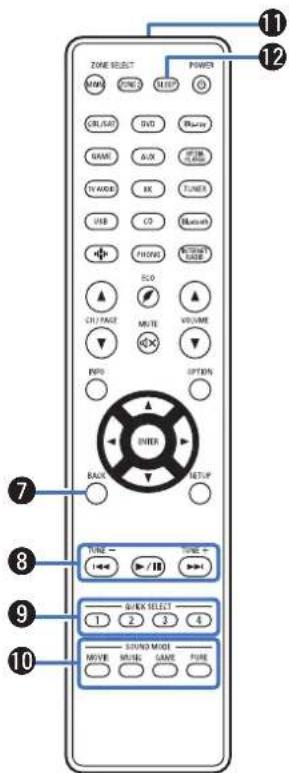

⑦ BACK button
This returns to the previous screen.
⑧ System buttons
These perform playback related operations.
Tuning up / Tuning down buttons (TUNE +, -)
These select either FM broadcast or AM broadcast. (☐ p. 97)
9 QUICK SELECT buttons (1 - 4)
These call up settings registered to each button, such as input source, volume level and sound mode settings. (p. 152)
10 SOUND MODE buttons
These select the sound mode. (1 p. 132)
⑪ Remote control signal transmitter
This transmits signals from the remote control unit. (1p. 9)
⑫ SLEEP button
This sets the sleep timer. (p. 150)
Front panel D
Rear panel Rel
Index
27
Contents
Connections Playback Settings Tips Appendix

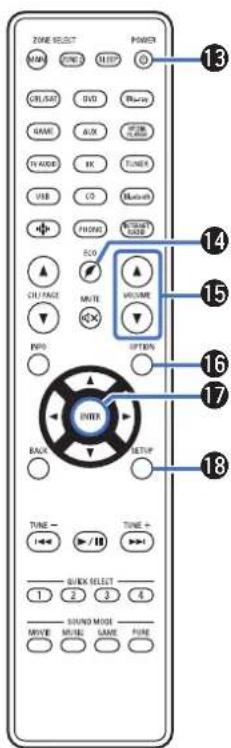

⑬ POWER button (⏻)
This turns the power on/off.
- "Turning the power on" (p. 83)
- "Playback in ZONE2" (p. 163)
⑭ ECO Mode button (✗)
This switches to ECO Mode. (p. 239)
⑮ VOLUME buttons (▲▼)
These adjusts the volume level.
- "Adjusting the volume" (p. 84)
- "Adjusting the volume (ZONE2)" (p. 164)
⑯ OPTION button
This displays the option menu on the TV screen.
⑰ ENTER button
This determines the selection.
18 SETUP button
This displays the menu on the TV screen. (☐ p. 169)
Front panel D
Rear panel Rel
Index
28
Contents
ctions
ettings Tips Appendix
Contents
Speaker installation 30
Connecting speakers 37
Connecting a TV 64
Connecting a playback device 68
Connecting a USB memory device to the USB port 74
Connecting FM/AM antennas 75
Connecting to a home network (LAN) 77
Connecting an external control device 79
Connecting the power cord 81
NOTE
- Do not plug in the power cord until all connections have been completed. However, when the "Setup Assistant" is running, follow the instructions in the "Setup Assistant" (page 9 in the separate "Quick Start Guide") screen for making connections. (During "Setup Assistant" operation, the input/output connectors do not conduct current.)
- Do not bundle power cords together with connection cables. Doing so can result in noise.

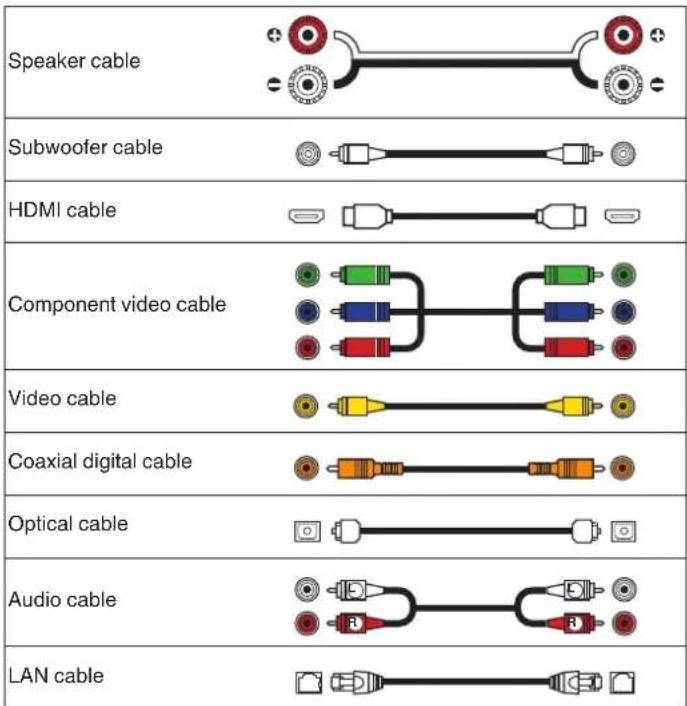

■ Cables used for connections
Provide necessary cables according to the devices you want to connect.
Front panel D
Rear panel Re
In
29
Contents
ctions
ettings Tips Appendix

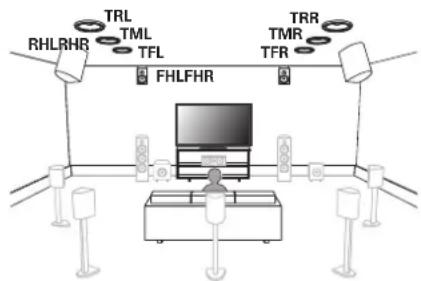

Speaker installation
Determine the speaker system depending on the number of speakers you are using and install each speaker and subwoofer in the room. Speaker installation is explained using this example of a typical installation.
| FL/FR(Front speaker left/right): | Place the FRONT left and right speakers an equal distance from the main listening position. The distance between each speaker and your TV should also be the same. |
| C(Center speaker): | Place the CENTER speaker in between the front speakers and above or below your TV. |
| SL/SR(Surround speaker left/right): | Place the SURROUND left and right speakers an equal distance to the left and right sides of the main listening position. If you don't have surround back speakers, move the surround speakers slightly behind your listening position. |
| SBL/SBR(Surround back speaker left/right): | Place the SURROUND BACK left and right speakers an equal distance from the main listening position and directly behind the main listening position. When using a single surround back speaker (SB), place it directly behind the listening position. |
| SW 1/2(Subwoofer): | Place the SUBWOOFER at a convenient location near the front speakers. If you have two subwoofers, place them asymmetrically across the front of your room. |
Front panel D
Rear panel Re
Index
30
Contents
ctions
ettings Tips Appendix
| FHL/FHR(Front height speaker left/right): | Place the FRONT HEIGHT left and right speakers directly above the front speakers. Mount them as close to the ceiling as possible and aim them towards the main listening position. |
| TFL/TFR(Top front speaker left/right): | Mount the TOP FRONT left and right speakers on the ceiling slightly in front of your main listening position and aligned with the left and right front speakers. |
| TML/TMR(Top middle speaker left/right): | Mount the TOP MIDDLE left and right speakers directly above the main listening position and aligned with the left and right front speakers. |
| TRL/TRR(Top rear speaker left/right): | Mount the TOP REAR left and right speakers on the ceiling slightly behind your main listening position and aligned with the left and right front speakers. |
| RHL/RHR(Rear height speaker left/right): | Place the REAR HEIGHT left and right speakers directly behind the main listening position. Mount them as close to the ceiling as possible and aligned with the left and right front speakers. |
Front panel D
Rear panel Re
Index
31
Contents
Connections
ayback Settings Tips Appendix
| FDL/FDR(Front Dolby speaker left/right): | Place the FRONT Dolby Atmos Enabled speaker on the front speaker. For a Dolby Atmos Enabled integrated with a front speaker, place the Dolby Atmos Enabled speaker instead of the front speaker. |
| SDL/SDR(Surround Dolby speaker left/right): | Place the SURROUND Dolby Atmos Enabled speaker on the surround speaker. For a Dolby Atmos Enabled speaker integrated with a surround speaker, place the Dolby Atmos Enabled speaker instead of the surround speaker. |
| BDL/BDR(Back Dolby speaker left/right): | Place the BACK Dolby Atmos Enabled speaker on the surround back speaker. For a Dolby Atmos Enabled speaker integrated with a surround back speaker, place the Dolby Atmos Enabled speaker instead of the surround back speaker. |
About Dolby Atmos Enabled speakers
Dolby Atmos Enabled speakers reflect the sound off the ceiling to allow the sound to come from over your head by using a special upward-pointing speaker that is placed on the floor.
You can enjoy the Dolby Atmos 3D sound even in an environment where speakers cannot be installed on the ceiling.
Rear panel Re
Index
32
Contents
Connections
yback Settings Tips Appendix
- This unit is compatible with Dolby Atmos and DTS:X which offers an even wider and deeper surround sensation.
- The "Speaker Virtualizer" must be set to "On" for Dolby Atmos playback with 5.1-channel speaker configurations or less. (17 p. 173)
- IMAX DTS:X / DTS:X can be selected regardless of the speaker configuration.

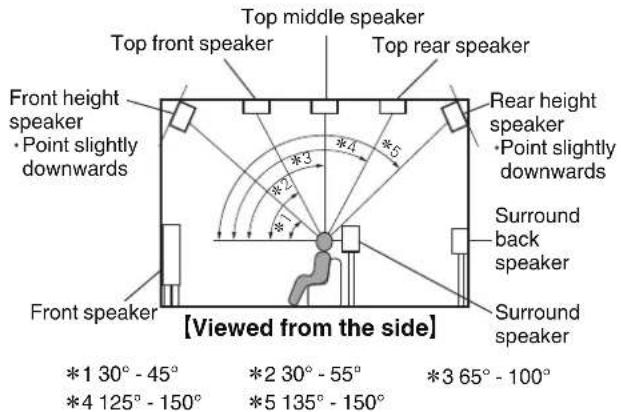

- Use the illustration below as a guide for how high each speaker should be installed. The height does not need to be exactly the same.
![Top middle speaker Top front speaker Top rear speaker Front height speaker • Point slightly downwards *1 30° - 45° *2 30° - 55° *3 65° - 100° *4 125° - 150° *5 135° - 150° Rear height speaker • Point slightly downwards Surround back speaker Surround speaker [Viewed from the side] Front speaker](/content/2026/05/878819/images/b75840080289f14d6ce51373c21ea89a04c1045c8760f8f813fa1caf2617457e.jpg)
Height speakers layout
[Viewed from the top]
Front panel D
Rear panel Re
Index
33
Contents
Connections
yback Settings Tips Appendix

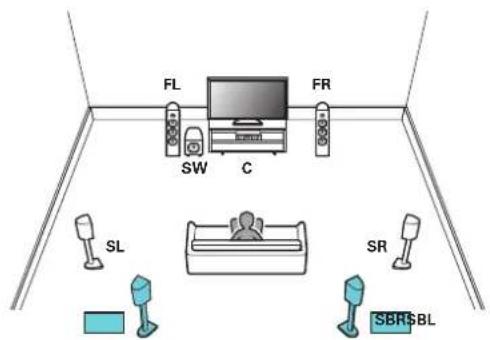

■ When 7.1-channel speakers are installed using surround back speakers

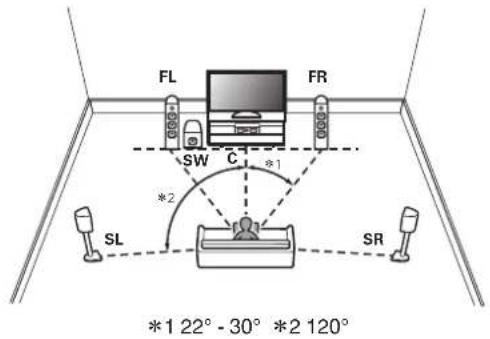

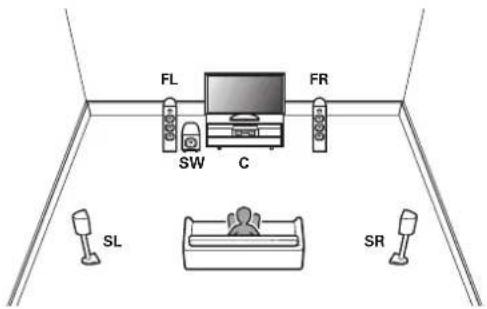

■ When 5.1-channel speakers are installed
- When using a single surround back speaker, place it directly behind the listening position.
Front panel D
Rear panel Rel
Index
34
Contents
Connections
yback Settings Tips Appendix

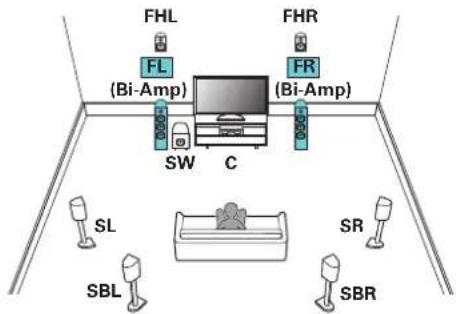

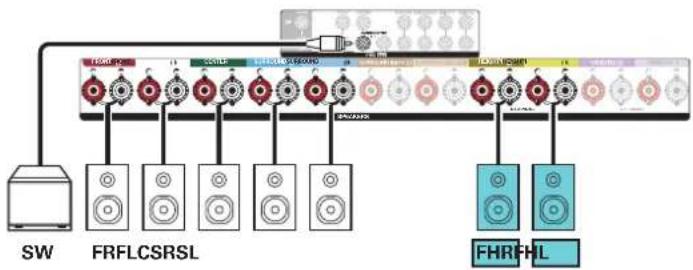

■ Layout including height speakers and ceiling speakers

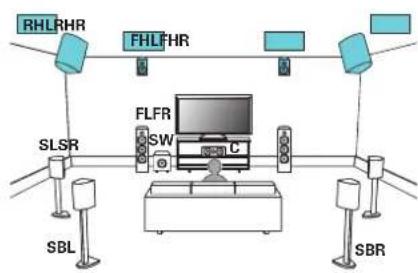

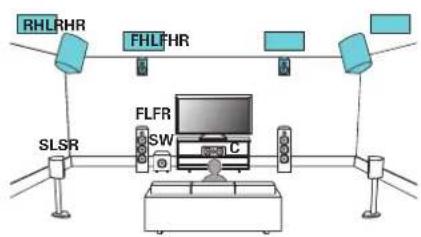

☐ Height speaker layout example
Combination of 5.1-channel layout and front height/rear height speakers.

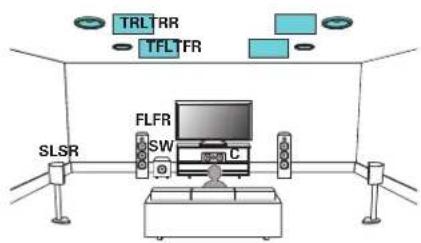

☐ Ceiling speaker layout example
Combination of 5.1-channel layout and top front/top rear speakers.
Front panel D
Rear panel Re
Index
35
Contents
Connections
ayback Settings Tips Appendix

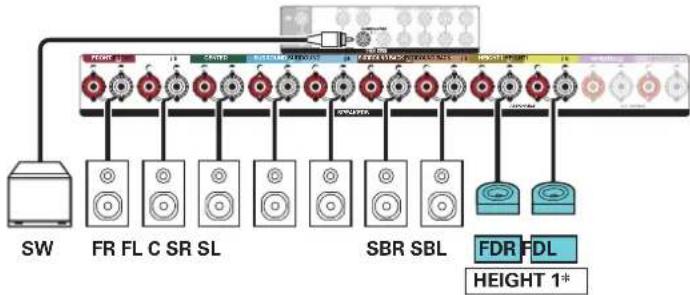

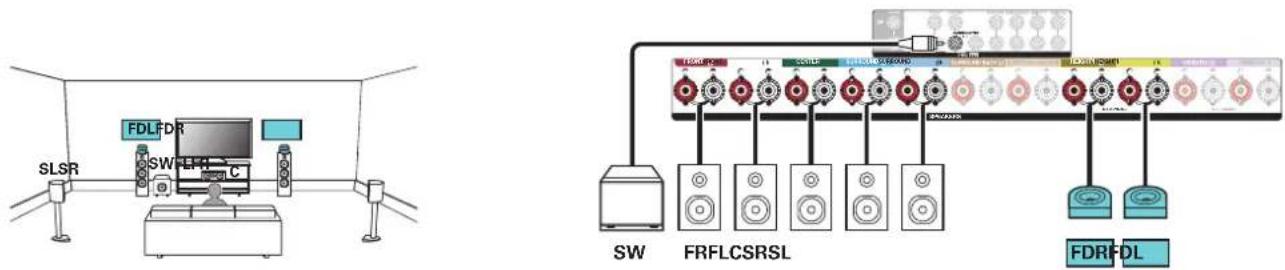

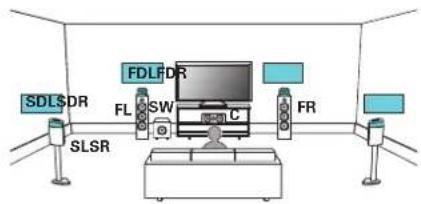

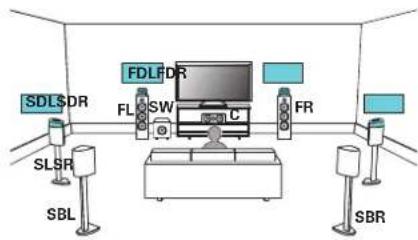

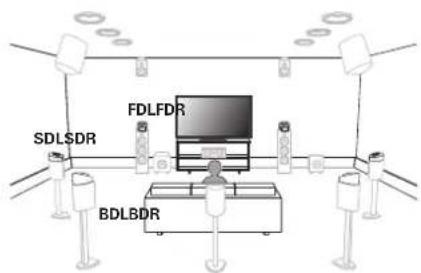

☐ Dolby Atmos Enabled speaker layout example
Combination of 5.1-channel layout and front Dolby/surround Dolby speakers.
Front panel D
Rear panel Re
Index
36
Contents
Connections
ayback Settings Tips Appendix
Connecting speakers
Here we connect the speakers in the room to this unit.
Before connecting speakers
NOTE
- Disconnect this unit's power plug from the power outlet before connecting the speakers. Also, turn off the subwoofer.
- Connect so that the speaker cable core wires do not protrude from the speaker terminal. The protection circuit may be activated if the core wires touch the rear panel or if the + and - sides touch each other. ("Protection circuit" (12 p. 300))
- Never touch the speaker terminals while the power cord is connected. Doing so could result in electric shock. When the "Setup Assistant" (page 9 in the separate "Quick Start Guide") is running, follow the instructions in the "Setup Assistant" screen for making connections. (Power is not supplied to the speaker terminals while the "Setup Assistant" is running.)
- Use speakers with an impedance of 4 – 16 Ω/ohms.
NOTE
- Carry out the following settings when using a speaker with an impedance of 4 – 6 Ω/ohms.
- Press and hold the main unit's ZONE2 SOURCE and STATUS at the same time for at least 3 seconds.
"V.Format:
" appears on the display. - Press DIMMER on the main unit three times. "Sp.Imp.:<8ohms>" appears on the display.
- Press TUNER PRESET CH + or TUNER PRESET CH — on the main unit to select the impedance.
| 8ohms(Default): | Select when the impedance for all of the connected speakers is 8 Ω/ohms or over. |
| 6ohms: | Select when the impedance for any of the connected speakers is 6 Ω/ohms. |
| 4ohms: | Select when the impedance for any of the connected speakers is 4 Ω/ohms. |
- Press the main unit's STATUS to complete the setting.
Front panel D
Rear panel Re
Index
37
Contents
Connections
yback Settings Tips Appendix
■ Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to this unit, and be sure to connect the channels and polarities correctly.
1 Peel off about 3/8 inch (10 mm) of sheathing from the tip of the speaker cable, then either twist the core wire tightly or terminate it.
2 Turn the speaker terminal counterclockwise to loosen it.
3 Insert the speaker cable's core wire to the hilt into the speaker terminal.
4 Turn the speaker terminal clockwise to tighten it.
Front panel D
Rear panel Re
Index
38
■ Connecting the subwoofer
Use a subwoofer cable to connect the subwoofer. Two subwoofers can be connected to this unit.
To use two subwoofers, set "Subwoofer" to "2 spkrs" in the "Speaker Config." setting. (17 p. 222)
The level and distance can be set separately for Subwoofer 1 and Subwoofer 2.
| Contents | Connections | Playback | Settings | Tips | Appendix |
■ About the cable labels (supplied) for channel identification
The channel display section for speaker terminals on the rear panel is color-coded for each channel to be identifiable.
Attach the cable label corresponding to each speaker to each speaker cable.
This makes it easy to connect the correct cable to the speaker terminals on the rear panel.
| Speaker Color | |
| FRONT L White | |
| FRONT R | |
| CENTER | |
| SURROUND L Light Blue | |
| SURROUND R Blue | |
| SURROUND BACK L Beige | |
| SURROUND BACK R | |
| FRONT HEIGHT L Light Yellow | |
| FRONT HEIGHT R Yellow | |
| TOP FRONT L Light Yellow | |
| TOP FRONT R Yellow | |
| TOP MIDDLE L Light Purple | |
| TOP MIDDLE R |
| Speaker Color | |
| TOP REAR L Light Purple | |
| TOP REAR R | |
| REAR HEIGHT L | Light Purple |
| REAR HEIGHT R | Purple |
| FRONT DOLBY L | Light Yellow |
| FRONT DOLBY R | Yellow |
| SURROUND DOLBY L | Light Purple |
| SURROUND DOLBY R | Purple |
| BACK DOLBY L | Light Purple |
| BACK DOLBY R | Purple |
| SUBWOOFER 1 | Black |
| SUBWOOFER 2 | Black |
39
Contents
ctions
ettings Tips Appendix
Attach the cable label for each channel to its speaker cable as shown in the diagram.
Refer to the table and attach the label to each speaker cable.
Then, make connection so that the color of the speaker terminal matches that of the cable label.
[How to attach the cable labels]
Speaker
Front panel D
Rear panel Re
Index
40
Contents
Connections
ayback Settings Tips
Appendix
Speaker configuration and “Amp Assign” settings
This unit has a built-in 9-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the "Amp Assign" settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback. (p. 215)
Perform "Amp Assign" settings to suit the number of rooms and speaker configuration to be installed. (p. 215)
| Playback speaker in each zone | “Amp Assign” settings | Connection page | |
| MAIN ZONE ZONE2 | |||
| 5.1-channel playback | 2-channel (Pre-out) | Can be set in all “Amp Assign” modes. 43 | |

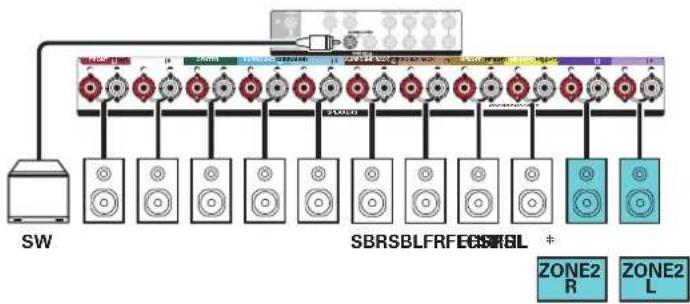

| 7.1-channel playback 7.1ch + ZONE2 (Default) 44 | |||
| 9.1-channel playback 9.1ch 48 | |||
| 11.1-channel playback 11.1ch 55 | |||
| 7.1-channel playback (bi-amp connection of front speakers) | 7.1ch (Bi-Amp) 59 | ||

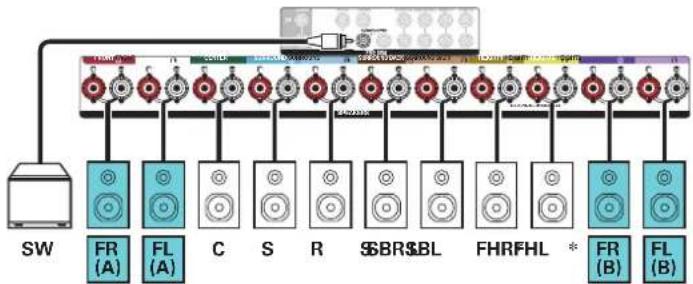

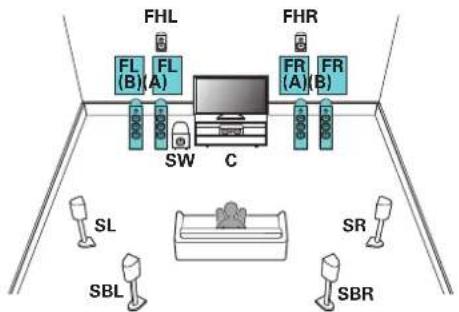

| Second front speakers 7.1ch + Front B 60 | |||
| 7.1-channel playback 2-channel | (Speaker out) | 7.1ch + ZONE2 (Default) 61 | |

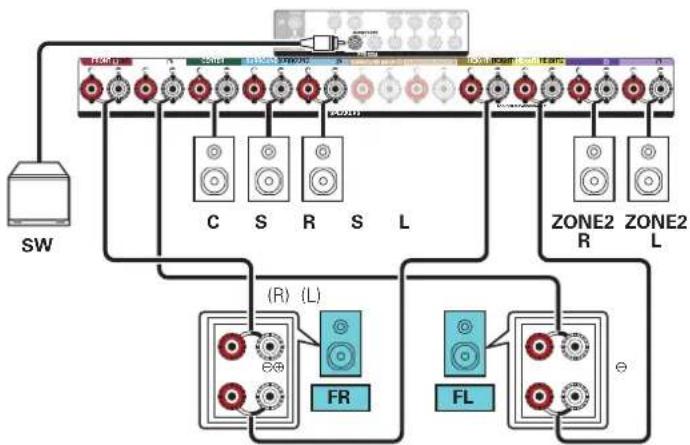

| 5.1-channel playback (bi-amp connection of front speakers) | 2-channel (Speaker out) | 5.1ch (Bi-Amp) + ZONE2 62 | |
| 9.1-channel playback (using this unit as a pre amplifier) Not used Pre Amplifier 63 | |||
The sound mode that can be selected varies according to the speaker configuration.
The following pages provide basic connection examples.
Front panel
Display
Rear panel
41
Remote
Index
Contents
Connections
Playback
Settings
Tips
Appendix
- In addition to the connections described in p.43 - 62, this unit allows for various speaker connections with the "Amp Assign" setting.

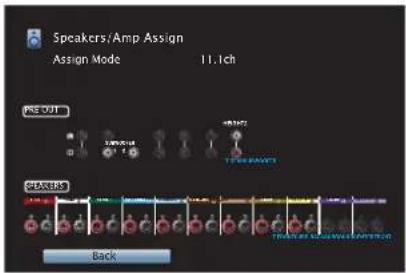

Also refer to the menu screen in "View Terminal Config." on the "Amp Assign" setting screen, which shows how to make connections in your environment.
Front panel
Display
Rear panel
42
Remote
Index
Contents
ctions
ettings Tips Appendix
Connecting 5.1-channel speakers
This serves as a basic 5.1-channel surround system.
Front panel D
Rear panel Rel
Index
43
Connecting 7.1-channel speakers
■ Example connections when using surround back speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.
- When using a single surround back speaker, connect it to the SURROUND BACK L terminal.
- Set "Floor" to "5ch & SB" in the menu when connecting in this configuration. (p. 217)
Front panel
Display
Rear panel
44
Remote
Index
Contents
ctions
ettings Tips Appendix

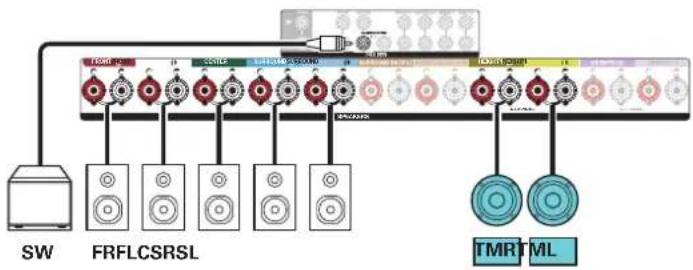

■ Example connections when using ceiling speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with ceiling speakers.
- Set "Floor" to "5ch" and "Height Sp" to "2ch" in the menu when connecting in this configuration. (1 p. 217)
- The top front or top rear speakers can be connected instead of the top middle speakers. In this case, set the ceiling speakers to be connected under "Height" - "Layout" in the menu. (p. 219)
Front panel D
Rear panel Re
In
45
Contents
ctions
ettings Tips Appendix
■ Example connections when using height speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.
- Set "Floor" to "5ch" and "Height Sp" to "2ch" in the menu when connecting in this configuration. (1 p. 217)
- The rear height speakers can be connected instead of the front height speakers. In this case, set the height speakers to be connected under "Height" - "Layout" in the menu. (p. 219)
Front panel D
Rear panel Re
Index
46
■ Example connections when using Dolby Atmos Enabled speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby speakers.
- Set "Floor" to "5ch" and "Dolby Sp" to "2ch" in the menu when connecting in this configuration. (1 p. 217)
- The surround Dolby speakers can be connected instead of the front Dolby speakers. In this case, set the Dolby Atmos Enabled speakers to be connected under "Height" - "Layout" in the menu. (p. 219)
Front panel
Display
Rear panel
47
Remote
Index
Connecting 9.1-channel speakers
This system, which is based on a 5.1-channel system, plays back up to 9.1-channels at the same time.
You can connect speakers for up to 11-channels for MAIN ZONE. When you connect speakers for 10 or more channels, the output speakers automatically switch according to the input signal and sound mode.

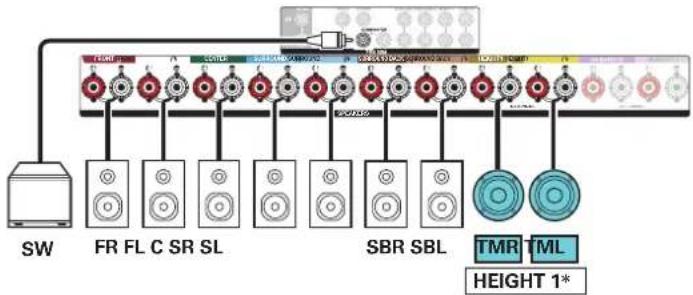

■ Example connection when using one set of ceiling speakers
- Set "Height" - "Height Sp" to "2ch" in the menu when connecting in this configuration. (p. 218)
* The top front or top rear speakers can be connected instead of the top middle speakers. In this case, set the ceiling speakers to be connected under "Height" - "Layout" in the menu. (L27 p. 219)
Front panel
Display
Rear panel
48
Remote
Index


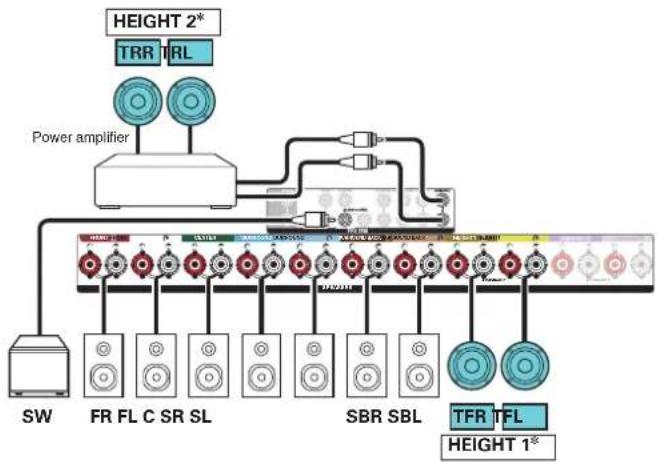

■ Example connection when using two sets of ceiling speakers
* You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (17 p. 54)
- Set "Height" - "Height Sp" to "4ch" in the menu when connecting in this configuration. (12p. 217)
49
Contents
Connections
ayback Settings Tips Appendix
■ Example connection when using one set of height speakers
- Set "Height" - "Height Sp" to "2ch" in the menu when connecting in this configuration. (1 p. 218)
* The rear height speakers can be connected instead of the front height speakers. In this case, set the height speakers to be connected under "Height" - "Layout" in the menu. (p. 219)
Front panel D
Rear panel Re
In
50


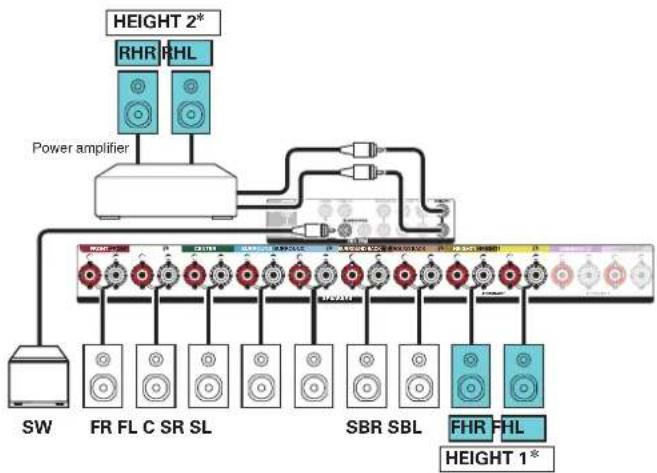

■ Example connection when using two sets of height speakers
* You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (17 p. 54)
- Set "Height" - "Height Sp" to "4ch" in the menu when connecting in this configuration. (12p. 217)
51
Contents
Connections
ayback Settings Tips Appendix
■ Example connection when using one set of Dolby Atmos Enabled speakers
- Set "Height" - "Dolby Sp" to "2ch" in the menu when connecting in this configuration. (15 p. 218)
* The surround Dolby or back Dolby speakers can be connected instead of the front Dolby speakers. In this case, set the Dolby Atmos Enabled speakers to be connected under "Height" - "Layout" in the menu. (12 p. 219)
Front panel D
y Rear panel Re
In
52
[Non-Text]
[Non-Text]
■ Example connection when using two sets of Dolby Atmos Enabled speakers
* You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (i.e. p. 54)
- Set "Height" - "Dolby Sp" to "4ch" in the menu when connecting in this configuration. (127 p. 217)
53
Contents
Connections
Playback
Settings
Tips
Appendix
Channels output from the HEIGHT1 and HEIGHT2 speaker terminals can be changed to the following patterns according to the speaker systems being used.
Set this from "Amp Assign" in the menu. (☐ p. 215)
| Combination of height speakers to be used Connected terminals | ||||
| Number of height/ceiling speakers | Number of Dolby Speakers | Combination pattern HEIGHT1 SPEAKER | HEIGHT2 SPEAKER | |
| 2 speakers None | Front Height Front Height - | |||
| Top Front Top Front - | ||||
| Top Middle Top Middle - | ||||
| Top Rear Top Rear - | ||||
| Rear Height Rear Height - | ||||
| None 2 speakers | Front Dolby Front Dolby - | |||
| Surround Dolby Surround Dolby | - | |||
| Back Dolby | Back Dolby | - | ||
| 4 speakers None | Front Height & Top Middle | Front Height | Top Middle | |
| Front Height & Top Rear | Front Height | Top Rear | ||
| Front Height & Rear Height | Front Height | Rear Height | ||
| Top Front & Top Rear Top Front | Top Rear | |||
| Top Front & Rear Height | Top Front | Rear Height | ||
| Top Middle & Rear Height | Top Middle | Rear Height | ||
| 2 speakers | 2 speakers | Front Dolby & Top Rear | Front Dolby | Top Rear |
| Front Dolby & Rear Height | Front Dolby | Rear Height | ||
| Front Height & Surr. Dolby | Front Height | Surround Dolby | ||
| Top Front & Surr. Dolby | Top Front | Surround Dolby | ||
| None | 4 speakers | Front Dolby & Surround Dolby | Front Dolby | Surround Dolby |
Front panel
Display
Rear panel
54
Remote
Index
Connecting 11.1-channel speakers
This system, which is based on a 5.1-channel system, plays back up to 11.1-channels at the same time. You can connect speakers for 11-channels for MAIN ZONE by using an external power amplifier.
■ Example connection when using two sets of ceiling speakers
- Set "Height" - "Height Sp" to "4ch" in the menu when connecting in this configuration. (12 p. 218)
* You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (17 p. 58)
Front panel
Display
Rear panel
55
Remote
Index
■ Example connection when using two sets of height speakers
- Set "Height" - "Height Sp" to "4ch" in the menu when connecting in this configuration. (12p. 218)
* You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (r p. 58)
Front panel
Display
Rear panel
56
Remote
Index
■ Example connection when using two sets of Dolby Atmos Enabled speakers
- Set "Height" - "Dolby Sp" to "4ch" in the menu when connecting in this configuration. (127 p. 218)
* You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (1 p. 58)
Front panel
Display
Rear panel
57
Remote
Index
Contents
Connections
Playback
Settings
Tips
Appendix
The combination of the HEIGHT1 and HEIGHT2 channels can be changed to the following patterns according to the speaker system being used. Set this from "Amp Assign" in the menu. (p. 215)
| Combination of height speakers to be used Connected terminals | ||||
| Number of height/ceiling speakers | Number of Dolby Speakers | Combination pattern HEIGHT1 | SPEAKER HEIGHT2 PRE OUT | |
| 2 speakers None | Front Height Front Height - | |||
| Top Front Top Front - | ||||
| Top Middle Top Middle - | ||||
| Top Rear Top Rear - | ||||
| Rear Height Rear Height - | ||||
| 4 speakers None | Front Height & Top Middle Front Height Top Middle | |||
| Front Height & Top Rear Front Height Top Rear | ||||
| Front Height & Rear Height | Front Height | Rear Height | ||
| Top Front & Top Rear | Top Front | Top Rear | ||
| Top Front & Rear Height | Top Front | Rear Height | ||
| Top Middle & Rear Height | Top Middle | Rear Height | ||
| None 2 speakers | Front Dolby | Front Dolby | - | |
| Surround Dolby | Surround Dolby | - | ||
| Back Dolby Back Dolby | - | |||
| 2 speakers | 2 speakers | Front Dolby & Top Rear | Front Dolby | Top Rear |
| Front Dolby & Rear Height | Front Dolby Rear Height | |||
| Front Height & Surr. Dolby Front Height | Surround Dolby | |||
| Front Height & Back Dolby | Front Height | Back Dolby | ||
| Top Front & Surround Dolby | Top Front | Surround Dolby | ||
| Top Front & Back Dolby | Top Front | Back Dolby | ||
| None 4 speakers | Front Dolby & Surround Dolby | Front Dolby | Surround Dolby | |
| Front Dolby & Back Dolby | Front Dolby | Back Dolby | ||
Front panel
Display
Rear panel
58
Remote
Index
Contents
Connections
Playback
Settings
Tips
Appendix
Connecting 7.1-channel speakers: Bi-amp connection of front speakers
This system plays back 7.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality. You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.
NOTE
- When making bi-amp connections, be sure to remove the short-circuiting plate or wire between the speaker's woofer and tweeter terminals.
* The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from "Height" - "Layout" in the menu. (T p. 219)
Front panel
Display
Rear panel
59
Remote
Index
Contents
Connections
ayback Settings Tips
Appendix
Connecting 7.1-channel speakers: Second pair of front speakers
This system enables switching playback between front speakers A and B as desired.
You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.
* The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from "Height" - "Layout" in the menu. (K7 p. 219)
Front panel
Display
Rear panel
60
Remote
Index
Connecting multi-zone speakers
■ 7.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2)
This type of configuration plays back 7.1-channels in MAIN ZONE and 2-channels in ZONE2.
You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.
ZONE2
* The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from "Height" - "Layout" in the menu. (T) p. 219)
Front panel
Display
Rear panel
61
Remote
Index
Contents
Connections
ayback Settings Tips Appendix
■ 5.1-channel playback (bi-amp connection of front speakers: MAIN ZONE) + 2-channel playback (ZONE2)
This type of configuration plays back 5.1-channels in MAIN ZONE and 2-channels in ZONE2. You can use the bi-amp connection for front speakers in MAIN ZONE.
Front panel
Display
Rear panel
62
Remote
Index
Contents
Connections
ayback Settings Tips Appendix
■ Connecting an external power amplifier
You can use this unit as a pre-amp by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each channel, the realness of the sound can be further enhanced.
Select the terminal to use and connect the device.
- Set "Assign Mode" to "Pre Amplifier" if connecting all channels to the Pre-out connectors using an external amplifier. (p. 217)
This stops operation of the internal power amplifier of this unit, reducing interference in the pre amplifier created by the power amplifier. - When using just one surround back speaker, connect it to the left channel (L) terminal.
Front panel D
y Rear panel Re
Index
63
Contents
ctions
ettings Tips Appendix
Connecting a TV
Connect a TV to this unit so that the input video is output to the TV. You can also enjoy audio from the TV on this unit.
How to connect a TV depends on the connectors and functions equipped on the TV.
ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel) function plays TV audio on this unit by sending the TV audio signal to this unit via HDMI cable.
"Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)" (p. 65)
"Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)" (17 p. 66)
"Connection 3 : TV equipped without an HDMI connector" (p. 67)
Front panel D
Rear panel Re
Index
64
Contents
Connections
Byback Settings Tips Appendix
Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)
Use an HDMI cable to connect a TV that is compatible with the ARC / eARC function to this unit.
Set "HDMI Control" to "On" or "ARC" to "On" when using a TV that supports the ARC function. (p. 189)
Using an eARC function-compatible television enables audio playback from the speaker connected to this unit, regardless of "HDMI Control" and "ARC" settings in the menu.
- When using the ARC / eARC function, connect to the HDMI MONITOR 1 connector.
- eARC function settings may be required depending on the eARC function-compatible television you are using. Make sure eARC is set to on if this setting exists on your television. For more information, check your television's owner's manual.
- When an ARC and eARC function-compatible television is connected, the eARC function is prioritized.
- Use a "High Speed HDMI Cable with Ethernet" when using an ARC / eARC function-compatible television.
- Use an "Ultra High Speed 48 Gbps HDMI cable" to enjoy 8K video.
- Set "4K/8K Signal Format" to "8K Enhanced" in the menu to enjoy 8K video. (p. 197)
Front panel D
Rear panel Re
Index
65
Contents
Connections
ayback Settings Tips Appendix
Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)
Use an HDMI cable to connect the TV to this unit.
To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit.
Front panel D
Rear panel Re
Index
66
Contents
Connections
yback Settings Tips Appendix
Connection 3 : TV equipped without an HDMI connector
Use a component video or a video cable to connect the TV to this unit.
To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit.
Front panel D
Rear panel Re
Index
67
Contents
ctions
ettings Tips Appendix
Connecting a playback device
This unit is equipped with three types of video input connectors (HDMI, component video and composite video) and three types of audio input connectors (HDMI, digital audio and audio).
Select input connectors on this unit according to the connectors equipped on the device you want to connect.
If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI connections.
In the HDMI connection, audio and video signals can be transmitted through a single HDMI cable.
- "Connecting a set-top box (Satellite tuner/cable TV)" (p. 69)
- "Connecting a DVD player or Blu-ray Disc player" (p. 70)
- "Connecting a player device compatible with the 8K" (p. 71)
- "Connecting a video camcorder or game console" (1章 p. 72)
- "Connecting a turntable" (p. 73)
- Connect devices to this unit as indicated by the input sources printed on the audio/video input connectors of this unit.
- The source that is assigned to the HDMI IN, DIGITAL AUDIO IN, COMPONENT VIDEO IN, VIDEO IN and AUDIO IN connectors can be changed. See "Input Assign" on how to change the input source assigned to the input connectors. (17 p. 200)
- To play back audio signals that are input to this unit on a TV connected via HDMI, set in the menu "HDMI Audio Out" to "TV". (1 p. 187)
• To enjoy content that is copyright protected by HDCP 2.2 or HDCP 2.3, use a playback device and TV compatible with HDCP 2.2 or HDCP 2.3.
Front panel D
Rear panel Re
Index
68
Contents
Connections
ayback Settings Tips Appendix
Connecting a set-top box (Satellite tuner/cable TV)
This explanation uses the connection with a satellite tuner/cable TV STB as an example.
Select the input connectors on this unit to match the connectors on the device that you want to connect to.
Front panel D
Rear panel Re
Index
69
Contents
Connections
ayback Settings Tips Appendix
Connecting a DVD player or Blu-ray Disc player
This explanation uses the connection with a DVD player or Blu-ray Disc player as an example.
Select the input connectors on this unit to match the connectors on the device that you want to connect to.
Front panel D
Rear panel Re
Index
70
Contents
Connections
yback Settings Tips Appendix
Connecting a player device compatible with the 8K
This unit supports 8K HDMI video signals.
If your player supports 8K, connect it to the HDMI 7 (8K) connector on your device.
- To enjoy 8K video, connect an 8K-compatible TV with an "Ultra High Speed 48 Gbps HDMI cable".
- Set "4K/8K Signal Format" to "8K Enhanced" in the menu to enjoy 8K video. (p. 197)
Front panel D
Rear panel Re
Index
71
Contents
Connections
yback Settings Tips Appendix
Connecting a video camcorder or game console
This explanation uses the connection with a video camcorders as an example. Connect a playback device to this unit, such as a video camcorder or game console.
Front panel D
Rear panel Re
Index
72
Contents
Connections
yback Settings Tips Appendix
Connecting a turntable
This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer.
If you set this unit's input source to "Phono" and you accidentally increase the volume without having a turntable connected, you may hear a hum noise from the speakers.
NOTE
- The earth terminal (SIGNAL GND) of this unit is not for safety grounding purposes. If this terminal is connected when there is a lot of noise, the noise can be reduced. Note that depending on the turntable, connecting the ground line may have the reverse effect of increasing noise. In this case, it is not necessary to connect the ground line.
Front panel D
Rear panel Re
Index
73
Contents
ctions
ettings Tips Appendix
Connecting a USB memory device to the USB port
For operating instructions see "Playing a USB memory device" (p. 85).
- Denon does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter, use that device's supplied AC adapter.
NOTE
• USB memory devices will not work via a USB hub.
- It is not possible to use this unit by connecting the unit's USB port to a PC via a USB cable.
- Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.
Front panel D
Rear panel Re
Index
74
Contents
Connections
yback Settings Tips Appendix
Connecting FM/AM antennas
Connect the antenna, tune in to a broadcast and then move the antenna to the location where there is least noise. Then use tape, etc. to fix the antenna in this location. ("Listening to FM/AM broadcasts" (1 p. 96))
- If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For details, inquire at the retail store where you purchased the unit.
NOTE
- Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.
Front panel D
Rear panel Re
Index
75
Contents
Connections
ayback Settings Tips Appendix
■ Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
Nail, tack, etc.
Standing alone
Use the procedure shown above to assemble.
When assembling, refer to "AM loop antenna assembly".
■ AM loop antenna assembly
1 Put the stand section through the bottom of the loop antenna from the rear and bend it forward.
2 Insert the projecting part into the square hole in the stand.
Front panel D
Rear panel Re
Index
76
Contents
Connections
yback Settings Tips Appendix
Connecting to a home network (LAN)
This unit can connect to a network using a wired LAN or wireless LAN.
You can connect this unit to your home network (LAN) to enable various types of playback and operations as described below.
- Playback of network audio such as Internet Radio and from your media server(s)
- Playback of streaming music services
• Using the Apple AirPlay function
• Operation on this unit via the network
• Operation with the HEOS wireless multi-room sound system - Firmware Update
For connections to the Internet, contact an ISP (Internet Service Provider) or a computer shop.
Wired LAN
To make connections via wired LAN, use a LAN cable to connect the router to this unit as shown in the figure below.
Front panel D
Rear panel Re
Index
77
Contents
ctions
ettings Tips Appendix
Wireless LAN
When connecting to the network via wireless LAN, connect the external antennas for Bluetooth/wireless connectivity connection to the rear panel and stand them upright.
See "Wi-Fi Setup" on how to connect to a wireless LAN router. (K 232)
Front panel D
Rear panel Re
Index
78
- When using this unit, we recommend you use a router equipped with the following functions:
• Built-in DHCP server
This function automatically assigns IP addresses on the LAN.
- Built-in 100BASE-TX switch
When connecting multiple devices, we recommend a switching hub with a speed of 100 Mbps or greater.
- Only use a shielded STP or ScTP LAN cable (readily available at electronics stores). (CAT-5 or greater recommended)
- The normal shielded-type LAN cable is recommended.
If a flat-type cable or unshielded-type cable is used, other devices could be affected by noise.

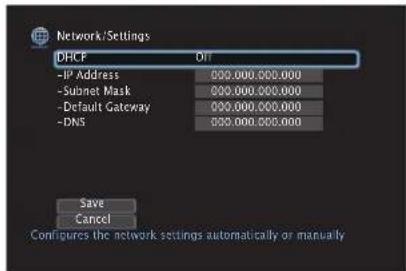

- When using this unit connected to a network with no DHCP function, configure the IP address, etc. in "Network". (1 p. 231)
NOTE
- The types of routers that can be used depend on the ISP. Contact your ISP or a computer shop for details.
- This unit is not compatible with PPPoE. A PPPoE compatible router is required if your contracted line is not set using PPPoE.
- Do not connect a NETWORK connector directly to the LAN port / Ethernet connector on your computer.
- Various online services may be discontinued without prior notice.
Contents
Connections
ayback Settings Tips Appendix
Connecting an external control device
REMOTE CONTROL jacks
When this unit is installed in a location where the remote control signals cannot reach (installation in a cabinet etc.), it can still be controlled by the remote control by connecting a remote control receiver unit (sold separately).
You can also use it to remotely control ZONE2 (another room).
Front panel D
Rear panel Re
Index
79
Contents
ctions
ettings Tips Appendix
TRIGGER OUT jack
When a device with TRIGGER IN jack is connected, the connected device's power on/standby can be controlled through linked operation to this unit. The TRIGGER OUT jack outputs a maximum 12 V DC/150 mA electrical signal.
NOTE
- Use a monaural mini-plug cable for connecting the TRIGGER OUT jack. Do not use a stereo mini-plug cable.
- If the permissible trigger input level for the connected device is larger than 12 V DC/150 mA, or has shorted, the TRIGGER OUT jack cannot be used. In this case, turn off the power to the unit, and disconnect it.
Front panel D
Rear panel Re
Index
80
Contents
Connections
ayback Settings Tips Appendix
Connecting the power cord
After completing all the connections, insert the power plug into the power outlet.
To household power outlet
(AC 120 V, 60 Hz)
Front panel D
Rear panel Re
Index
81
Contents
Connections
Playback
Settings
Tips
Appendix
Contents
Basic operation
| Turning the power on 83 |
| Selecting the input source 83 |
| Adjusting the volume 84 |
| Turning off the sound temporarily (Muting) 84 |
| Selecting a sound mode 132 |
Playback a device
| Playing a DVD player/Blu-ray Disc player 84 |
| Playing a USB memory device 85 |
| Listening to music on a Bluetooth device 89 |
| Listening to audio on Bluetooth headphones 93 |
| Listening to FM/AM broadcasts 96 |
Playback network audio/service
| Listening to Internet Radio 104 |
| Playing back files stored on a PC or NAS 106 |
| Getting the HEOS App 110 |
| AirPlay function 119 |
| Spotify Connect function 122 |
Convenience functions
| Convenience functions 123 | |
| HDMI Control function 147 | |
| Smart Menu function | 148 |
| Sleep timer function 150 | |
| Quick select plus function | 152 |
| Panel lock function | 155 |
| Remote lock function | 157 |
Other functions
| Web control function | 158 |
| Playback in ZONE2 (Another room) | 160 |
Front panel
Display
Rear panel
82
Remote
Index
Contents Connections
Setti
ngs Tips Appendix

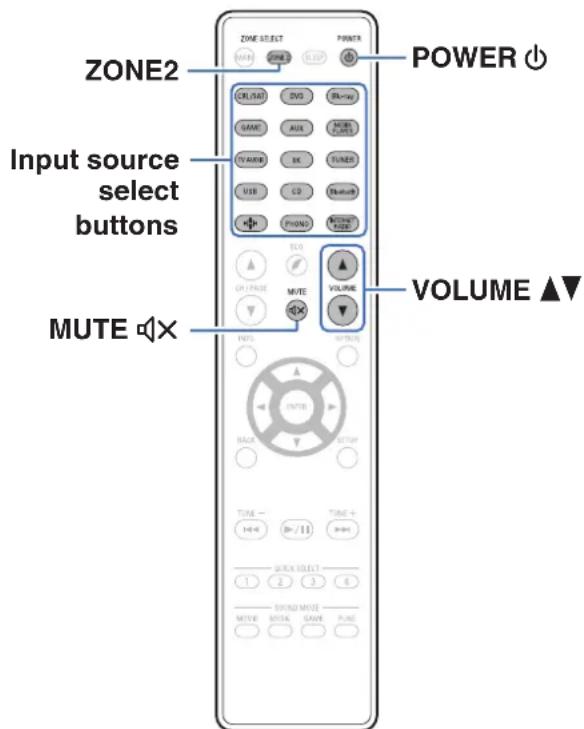

Basic operation
Turning the power on
1 Press POWER ⏻ to turn on power to the unit.
- You can press the input source select button when the unit is in standby mode to turn on the power.
- You can also switch the power to standby by pressing ⏻ on the main unit.
Selecting the input source
1 Press the input source select button to be played back. The desired input source can be selected directly.
- You can also select the input source by turning SOURCE SELECT on the main unit.
Front panel D
Rear panel Re
Index
83
Adjusting the volume
1 Use VOLUME ▲▼ to adjust the volume.
- The variable range differs according to the input signal and channel level setting.
- You can also adjust the master volume by turning MASTER VOLUME on the main unit.
Turning off the sound temporarily (Muting)
1 Press MUTE 📄X.
- MUTE indicator on the display flashes.
• 📁X appears on the TV screen.
- The sound is reduced to the level set at "Mute Level" in the menu. (17 p. 179)
- To cancel mute, either adjust the sound volume or press MUTE 📄X again.
- If ☒ is displayed on the TV screen for more than 5 minutes when the "Screen Saver" is set to "On", the ☒ symbol moves randomly over the TV screen. (p. 197) (This feature will be supported via firmware update.)
Playback a DVD player/Blu-ray Disc player
The following describes the procedure for playing DVD player/Blu-ray Disc player.
1 Prepare for playback.
① Turn on the power of the TV, subwoofer and player.
② Change the TV input to the input of this unit.
2 Press POWER ⏻ to turn on power to the unit.
3 Press DVD or Blu-ray to switch an input source for a player used for playback.
4 Play the DVD player or Blu-ray Disc player.
■ Surround playback (p. 132)
Front panel D
Rear panel Re
Index
84
Playing a USB memory device
- Playing back music files stored on a USB memory device.
- Only USB memory devices conforming to mass storage class standards can be played on this unit.
- This unit is compatible with USB memory devices in "FAT32" or "NTFS" format.
- The audio format types and specifications supported by this unit for playback are as follows.
See "Playing back a USB memory devices" (☐ p. 288) for details. - WMA
- MP3
- WAV
- MPEG-4 AAC
- FLAC
- Apple Lossless
• DSD
85
Contents
Connections
pack
Appendix
Playing files stored on USB memory devices
1 Insert a "FAT32" or "NTFS" formatted USB memory device into the USB port.
2 Press USB to switch the input source to "USB".
3 Select the name of this unit.
4 Browse the music on your USB memory device and select something to play.

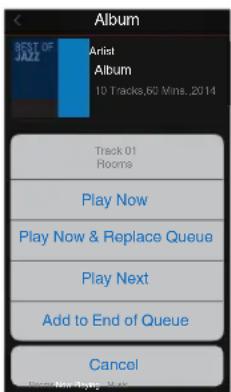

- When you select something to play you will be asked how you want to queue up your music.
| Play Now: | Inserts the item into the queue after the currently playing track and plays the selected item immediately. |
| Play Now & Replace Queue: | Clears the queue and plays the selected item immediately. |
| Play Next: | Inserts the item into the queue after the current song and plays it when the current song ends. |
Add to End of Queue: Adds the item to the end of the queue.
Front panel D
Rear panel Re
Index
86
Contents Connections
Setti
ngs Tips Appendix
5 Use △▽ to select the "Play Now" or "Play Now & Replace Queue", then press ENTER.
Playback starts.
| Operation buttons | Function |
| ▶/■ | Playback / Pause |
| I◀◀ ▶▶ | Skip to previous track / Skip to next track |
| CH/PAGE ▲▼ | Switch to the previous page/next page in the list display |
- When an MP3 music file includes album art data, the album art can be displayed while playing the file.
NOTE
- Note that Denon will accept no responsibility whatsoever for any problems arising with the data on a USB memory device when using this unit in conjunction with the USB memory device.
- When a USB memory device is connected to this unit, the unit loads all of the files on the USB memory device. Loading may take a while if the USB memory device contains a large number of folders and/or files.
Front panel D
Rear panel Re
Index
87
Contents Connections
Setti
■ Operations accessible through the option menu
- "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (p. 126)
- "Adjusting the tone (Tone)" (☐ p. 127)
- "Displaying your desired video during audio playback (Video Select)" (p. 128)
- "Playing the same music in all zones (All Zone Stereo)" (p. 130)
Front panel D
Rear panel Re
Index
88
Contents Connections
Setti
ngs Tips Appendix
Listening to music on a Bluetooth device
Music files stored on Bluetooth devices such as smartphones, digital music players, etc. can be enjoyed on this unit by pairing and connecting this unit with the Bluetooth device.
Communication is possible up to a range of about 98.4 ft/30 m.
NOTE
- To play back music from a Bluetooth device, the Bluetooth device needs to support the A2DP profile.
Front panel D
Rear panel Rel
Index
89

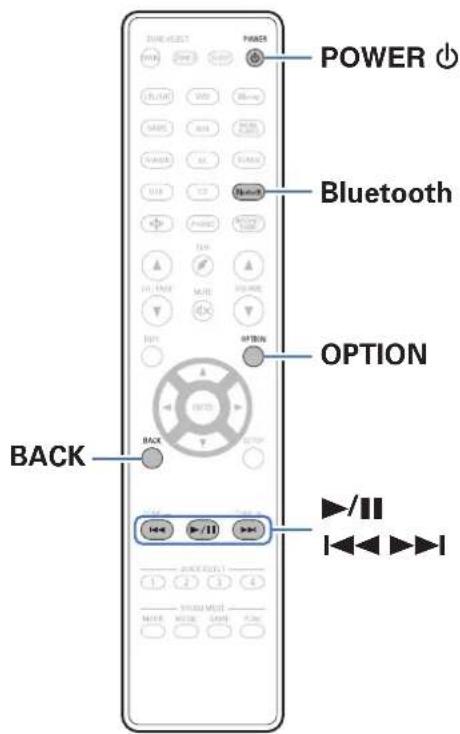

Playing music from Bluetooth device
In order to enjoy music from a Bluetooth device on this unit, the Bluetooth device must first be paired with this unit.
Once the Bluetooth device has been paired, it does not need to be paired again.
1 Prepare for playback.
① Connect the supplied external antennas for Bluetooth/wireless connectivity to the Bluetooth/wireless LAN antenna connectors on the rear panel. (1) p. 23
② Press POWER ⏻ to turn on power to the unit.
2 Press Bluetooth.
When using for the first time, the unit will go into the pairing mode automatically and "Pairing..." will appear on the display of the unit.
3 Activate the Bluetooth settings on your mobile device.
4 Select this unit when its name appears in the list of devices displayed on the screen of the Bluetooth device.
Connect to the Bluetooth device while "Pairing" is being displayed on the display of the unit.
Perform the connection with the Bluetooth device close to the unit (about 3.3 ft/1 m).
5 Play music using any app on your Bluetooth device.
- The Bluetooth device can also be operated with the remote control of this unit.
- The next time the Bluetooth button is pressed on the remote control unit, this unit automatically connects to the last Bluetooth device that was connected.
| Operation buttons | Function |
| ▶/II | Playback / Pause |
| |◀◀▶▶| | Skip to previous track / Skip to next track |
- Press STATUS on this unit during playback to switch the display between Title name, Artist name, Album name, etc.
Front panel D
Rear panel Re
Index
90
Contents
Connections
back
Appendix
Pairing with other Bluetooth devices
Pair a Bluetooth device with this unit.
1 Activate the Bluetooth settings on your mobile device.
2 Press and hold Bluetooth on the remote control unit for at least 3 seconds.
This unit will go into the pairing mode.
3 Select this unit when its name appears in the list of devices displayed on the screen of the Bluetooth device.
- This unit can be paired with a maximum of 8 Bluetooth devices. When a 9th Bluetooth device is paired, it will be registered in place of the oldest registered device.
- You can also enter pairing mode by pressing the OPTION button when the Bluetooth playback screen is displayed and selecting "Pairing Mode" from the displayed option menu.
NOTE
- To operate the Bluetooth device with the remote control of this unit, the Bluetooth device needs to support the AVRCP profile.
- The remote control of this unit is not guaranteed to work with all Bluetooth devices.
- Depending on the type of Bluetooth device, this unit outputs audio that is coupled to the volume setting on the Bluetooth device.
■ Operations accessible through the option menu
- "Pairing with other Bluetooth devices" (p. 91)
- "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (12 p. 126)
- "Adjusting the tone (Tone)" (127)
- "Displaying your desired video during audio playback (Video Select)" (p. 128)
- "Playing the same music in all zones (All Zone Stereo)" (15 p. 130)
Front panel D
Rear panel Re
Index
91
Contents
Connections
back
Appendix
Reconnecting to this unit from a Bluetooth device
After pairing is completed, the Bluetooth device can be connected without performing any operations on this unit.
This operation also needs to be performed when switching the Bluetooth device for playback.
1 If a Bluetooth device is currently connected, deactivate the Bluetooth setting of that device to disconnect it.
2 Activate the Bluetooth setting of the Bluetooth device to be connected.
3 Select this unit from the Bluetooth device list on your Bluetooth device.
4 Play music using any app on your Bluetooth device.
- The screen automatically switches to the "Bluetooth" playback screen if a Bluetooth device is connected while the power of this unit is on.
- When the "Network Control" setting of this unit is set to "Always On" and a Bluetooth device is connected with the unit in the standby state, the power of the unit will be turned on automatically. (127 p. 236)
Front panel D
Rear panel Re
Index
92
Contents
Connections
back
Appendix
Listening to audio on Bluetooth headphones
You can listen to audio playing through the MAIN ZONE of this unit on Bluetooth headphones.
Output audio from connected speakers and Bluetooth headphones simultaneously, or only using Bluetooth headphones.
Front panel D
Rear panel Re
Index
93
Listening to audio on Bluetooth headphones
1 Set "Transmitter" to "On" from the "General" - "Bluetooth Transmitter" setting in the menu. (p. 243)
2 Select "Output Mode", and set audio output method.
| Bluetooth + Speakers(Default): | Audio is output to Bluetoothheadphones and main zone speakers.This simultaneous output is suitable forfamily movie night and other groupactivities. |
| Bluetooth Only: | Audio is output to Bluetoothheadphones only.This is suitable for listening to music orwatching movies by yourself at nightwhen you need to keep quiet. |
3 Enter pairing mode on the Bluetooth headphones you want to connect to this unit.
4 Select "Device List" and select the name of the Bluetooth headphones from the device list.
5 Adjust the volume of connected Bluetooth headphones after the connection is completed.
- "Output Mode" can also be set from "Bluetooth Transmitter" in the option menu.
- A2DP profile-compatible Bluetooth speakers can be connected following the same steps used to connect Bluetooth headphones.
NOTE
- Bluetooth headphones volume cannot be adjusted from this unit. Adjust volume of your Bluetooth headphones.
- Stereo mode is fixed as the sound mode when using Bluetooth headphones. Any sound modes and other audio settings are not reflected in audio output on Bluetooth headphones.
Audio settings, sound modes and All Zone Stereo mode are not available while using Bluetooth headphones and "Output Mode" is set to "Bluetooth Only".
• Audio may be delayed when sent over Bluetooth. - Bluetooth headphones cannot be connected when use a Bluetooth input source in any zone.
Furthermore, selecting a Bluetooth input source in any zone will terminate the connection between this unit and Bluetooth headphones. - Bluetooth headphones cannot be connected when this unit is grouped in the HEOS App.
CAUTION:
Using Bluetooth headphones without a volume adjustment function
- In order to avoid hearing loss, do not connect Bluetooth headphones that lack volume adjustment functionality.
- Bluetooth headphone volume may be unexpectedly loud when this unit connects to Bluetooth headphones.
- Bluetooth headphone volume cannot be adjusted from this unit.
Front panel D
Rear panel Re
Index
94
Reconnecting to a Bluetooth headphones
Follow any of the steps below to reconnect the most recently used Bluetooth headphones:
- Reconnect to this unit with Bluetooth headphone's reconnect function.
- Go to "Bluetooth Transmitter" and then select "Reconnect" within the options menu.
- If "Output Mode" is set to "Bluetooth + Speakers", this unit will automatically connect to the most recently used Bluetooth headphones when power is turned on.
- Select the device you wish to connect from the "Device List" under "Bluetooth Transmitter" in the menu.
Disconnecting Bluetooth headphones
Complete any of the following steps to disconnect your Bluetooth headphones:
- Turn off your Bluetooth headphones.
- Go to "Bluetooth Transmitter" and then select "Disconnect" within the options menu.
- In the setup menu, go to "General" - "Bluetooth Transmitter", and set "Transmitter" to Off. (1 p. 243)
Front panel D
Rear panel Re
Index
95
Contents Connections
Setti
ngs Tips Appendix
Listening to FM/AM broadcasts
You can use the built-in tuner of this unit to listen to FM broadcasts and AM broadcasts.
Make sure the FM antenna and AM loop antenna are connected to this unit first.
Front panel D
Rear panel Rel
Index
96
Listening to FM/AM broadcasts
1 Connect the antenna. ("Connecting FM/AM antennas" (p. 75))
2 Press TUNER to switch the input source to "Tuner".
[TV screen]
[Display of this unit]
3 Press OPTION.
The option menu screen is displayed.
4 Use to select “FM/AM”, then press ENTER.
This displays the reception band input screen.
5 Use ◀▷ to select "FM" or "AM", then press ENTER.
FM: When listening to an FM broadcast.
AM: When listening to an AM broadcast.
6 Press TUNE + or TUNE – to select the station you want listen to.
Scanning is performed until it finds an available radio station. When it finds a radio station, it stops the scan automatically and tunes in.
- The modes for receiving FM broadcasts consists of "Auto" mode that automatically searches available broadcast stations and "Manual" mode that lets you tune in using buttons to change the frequency. The default setting is "Auto". You can also use "Direct Tune" to tune in by entering the frequency directly. In "Auto" mode, you cannot tune in to radio stations if the reception is not good. If this is the case, then use the "Manual" mode or "Direct Tune" mode to tune in.
Operation buttons Function
TUNE +, – Selects the radio station (up/down)
| CH/PAGE ▲▼ | Selects preset radio stations |
| △▽ | Selects the radio station (up/down) |
| ◀▷ | Selects preset radio stations |
Front panel D
Rear panel Re
Index
97
Contents
Connections
back
Appendix
■ Operations accessible through the option menu
- "Tuning in by entering the frequency (Direct Tune)" (p. 98)
- "Changing the tune mode (Tune Mode)" (p. 99)
- “Tuning in to stations and presetting them automatically (Auto Preset Memory)” (p. 99)
- "Presetting the current broadcast station (Preset Memory)" (p. 100)
- "Specify a name for the preset broadcast station (Preset Name)" (p. 101)
- "Skipping preset broadcast stations (Preset Skip)" (102)
- "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (p. 126)
- "Adjusting the tone (Tone)" (p. 127)
- "Displaying your desired video during audio playback (Video Select)" (p. 128)
- "Playing the same music in all zones (All Zone Stereo)" (p. 130)
Tuning in by entering the frequency (Direct Tune)
You can enter the receiving frequency directly to tune in.
1 Press OPTION when the input source is "Tuner". The option menu screen is displayed.
2 Use to select “Direct Tune”, then press ENTER.
The screen that lets you enter the frequency is displayed.
3 Use to select a number, then press .
• If is pressed, the immediately preceding input is cancelled.
4 Repeat step 3 and enter the frequency of the radio station you want to hear.
5 When setting is completed, press ENTER.
The preset frequency is tuned in.
Front panel D
Rear panel Re
Index
98
Contents Connections
Setti
Changing the tune mode (Tune Mode)
You can change the mode for tuning into FM and AM broadcasts. If you cannot tune in automatically with "Auto" mode, change the mode to "Manual" and tune in manually.
1 Press OPTION when the input source is "Tuner". The option menu screen is displayed.
2 Use to select “Tune Mode”, then press ENTER.
3 Use ◀▷ to select the tune mode, then press ENTER.
| Auto: | Automatically search for and tune to a receivable radio station. |
| Manual: | Manually change the frequency one step at a time each time the button is pressed. |
Tuning in to stations and presetting them automatically (Auto Preset Memory)
A maximum of 56 radio stations can be automatically preset.
1 Press OPTION when the input source is "Tuner". The option menu screen is displayed.
2 Use to select “Auto Preset Memory”, then press ENTER.
3 Press ENTER.
The unit starts to tune in to radio stations automatically and preset them.
- When presetting is completed, "Completed" is displayed for about 5 seconds and the option menu screen turns off.
- The preset memory is overwritten.
Front panel D
Rear panel Re
Index
99
Presetting the current broadcast station (Preset Memory)
Your favorite broadcast stations can be preset so that you can tune them in easily.
Up to 56 stations can be preset.
1 Tune in the broadcast station you want to preset. ("Listening to FM/AM broadcasts" (p. 97))
2 Press OPTION.
The option menu screen is displayed.
3 Use to select “Preset Memory”, then press ENTER.
The list of already preset channels is displayed.
4 Use to select the channel you want to preset, then press ENTER.
The current broadcast station that is preset.
- To preset other stations, repeat steps 1 to 4.
| Channel Default settings | |
| 1 – 8 | 92.10 / 92.30 / 92.50 / 92.70 / 93.10 / 93.50 / 93.70 / 94.10 MHz |
| 9 – 16 | 94.30 / 94.50 / 94.70 / 94.90 / 95.10 / 95.30 / 95.50 / 95.70 MHz |
| 17 – 24 | 98.10 / 98.30 / 98.50 / 98.70 / 98.90 / 99.10 / 100.10 / 100.30 MHz |
| 25 – 32 | 100.50 / 100.70 / 100.90 / 101.10 / 101.30 / 101.50 / 101.70 / 101.90 MHz |
| 33 – 40 | 103.10 / 103.30 / 103.50 / 103.70 / 103.90 / 104.10 / 104.30 / 104.50 MHz |
| 41 – 48 | 104.70 / 104.90 / 105.10 / 105.30 / 105.50 / 105.70 / 105.90 / 106.10 MHz |
| 49 – 56 | 106.30 / 106.50 / 106.70 / 106.90 / 107.10 / 107.30 / 107.50 / 107.90 MHz |
Listening to preset stations
1 Use CH/PAGE ▲▼ to select the desired preset channel.
- You can also select preset broadcast stations by pressing TUNER PRESET CH + or TUNER PRESET CH – on the main unit.
Front panel D
y Rear panel Re
Index
100
Specify a name for the preset broadcast station (Preset Name)
You can set the name to the preset broadcast station or change it. Up to 8 characters can be input.
1 Press OPTION when the input source is "Tuner". The option menu screen is displayed.
2 Use to select “Preset Name”, then press ENTER.
The “Preset Name” screen is displayed.
3 Use ◀▷ to select the group of the broadcast station you want to name.
4 Use to select the broadcast station you want to name, then press ENTER.
5 Use to select a name label, then press ENTER.
The screen that lets you edit the Preset Name is displayed.
- If you select "Set Defaults", then the unit returns to displaying the frequency.
6 Enter the characters, then press "OK".
7 Press OPTION to return to the previous screen.
Front panel D
Rear panel Re
Index
101
Skipping preset broadcast stations (Preset Skip)
Perform auto preset memory to save all the broadcasting stations that can be received in the memory. Selecting a broadcast station becomes easier by skipping unnecessary memories.
1 Press OPTION when the input source is "Tuner".
The option menu screen is displayed.
2 Use to select “Preset Skip”, then press ENTER.
The "Preset Skip" screen is displayed.
3 □ To set the stations you want to skip by groups
① Use ◀ ▷ to select the group of broadcast stations you want to skip.
② Press to select “Set No.* - * to Skip”, then press ENTER. Skip all the broadcast stations that are included in the selected group “*-*”.
(* is the selected group number.)
☐ To set the stations you want to skip by stations
① Use ◀▷ to select the group of broadcast stations you want to skip.
② Use to select the broadcast station you want to skip.
③ Use ◀ ▷ to select "Skip".
The station you selected is not displayed.
4 Press OPTION to return to the previous screen.
Front panel D
Rear panel Re
Index
102
Contents Connections
Setti
ngs Tips Appendix
Cancelling Preset Skip
1 While the "Preset Skip" screen is displayed, use ◀ to select a group containing a broadcast station to cancel the skip for.
2 Use to select a broadcast station to cancel the skip for.
3 Use ◀▷ to select "On".
The skip is cancelled.
NOTE
- "Preset Skip" cannot be cancelled for groups.
Front panel D
Rear panel Re
Index
103
Contents Connections
Setti
ngs Tips Appendix
Listening to Internet Radio
- Internet Radio refers to radio broadcasts distributed over the Internet. Internet Radio stations from around the world can be received.
- The Internet Radio station list on this unit the database service provided by TuneIn Radio service.
- The audio format types and specifications supported by this unit for playback are as follows.
See "Playing back Internet Radio" (p. 291) for details.
• WMA
- MP3
- MPEG-4 AAC
Front panel D
Rear panel Rel
Index
104
Contents
Connections
back
Appendix
Listening to Internet Radio
1 Press INTERNET RADIO.
- You can also press "H" (HEOS Music). Use to select "Tuneln Internet Radio", then press ENTER.
2 Select the station you want to play.
| Operation buttons Function | |
| ▶/II* | Playback / Pause |
| |◀◀▶▶|* | Skip to previous track / Skip to next track |
| CH/PAGE ▲▼ | Switch to the previous page/next page in the list display |
* Enabled when playing Podcasts.
- The display switches between track title and radio station name etc. each time the main unit's STATUS is pressed.
NOTE
- The radio station database service may be suspended or be otherwise unavailable without notice.
■ Operations accessible through the option menu
- "Adding to HEOS Favorites" (p. 124)
- "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (126 p. 126)
- "Adjusting the tone (Tone)" (1 p. 127)
- "Displaying your desired video during audio playback (Video Select)" (p. 128)
- "Playing the same music in all zones (All Zone Stereo)" (☐ p. 130)
Front panel D
Rear panel Re
Index
105
Contents Connections
Setti
ings Tips Appendix
Playing back files stored on a PC or NAS
- This unit can play back music files and playlists (m3u, wpl) from DLNA compatible servers including PCs and NAS devices on your network.
- Supported file formats: For details, see "Playing back a file saved on a PC or NAS" (p. 290).
• WMA
• MP3
• WAV
- MPEG-4 AAC
- FLAC
- Apple Lossless
• DSD
Front panel D
Rear panel Re
Index
106
Contents
Connections
back
Appendix

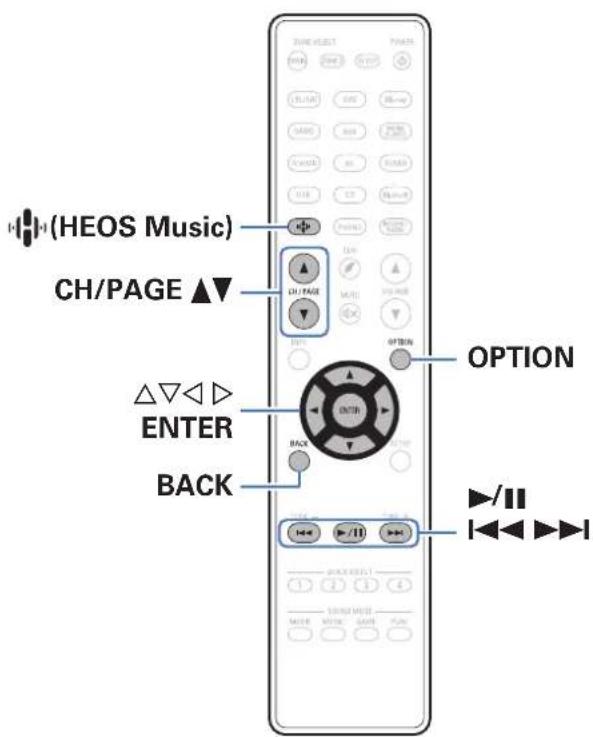

Playing back files stored on a PC or NAS
Use this procedure to play music files or playlists stored on DLNA files servers on your local network.
1 Press (HEOS Music).
2 Use to select “Music Servers”, then press ENTER.
3 Select the name of your networked PC or NAS (Network Attached Storage) server.
4 Browse the music on your PC/NAS and select something to play.
- When you select something to play you will be asked how you want to queue up your music.
| Play Now: | Inserts the item into the queue after the currently playing track and plays the selected item immediately. |
| Play Now & Replace Queue: | Clears the queue and plays the selected item immediately. |
| Play Next: | Inserts the item into the queue after the current song and plays it when the current song ends. |
Add to End of Queue: Adds the item to the end of the queue.
Front panel D
Rear panel Re
Index
107
Contents Connections
Setti
ngs Tips Appendix
5 Use △▽ to select the "Play Now" or "Play Now & Replace Queue", then press ENTER.
Playback starts.
| Operation buttons | Function |
| ▶/II | Playback / Pause |
| |◀◀▶▶| | Skip to previous track / Skip to next track |
| CH/PAGE ▲▼ | Switch to the previous page/next page in the list display |
- The display switches between track title, artist name, and album title each time the main unit's STATUS is pressed.
- When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file includes album art data, the album art can be displayed while the music files are playing.
- If you use Ver.11 or later of Windows Media Player, the album art for WMA files can be displayed.
NOTE
- When playing back music files with your PC or NAS connected through wireless LAN, audio may be interrupted depending on your wireless LAN environment. In this case, connect using a wired LAN.
- The order in which the tracks/files are displayed depends on the server specifications. If the tracks/files are not displayed in alphabetical order due to the server specifications, searching by the first letter may not work properly.
Front panel D
Rear panel Re
Index
108
Contents Connections
Setti
■ Operations accessible through the option menu
- "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (p. 126)
- "Adjusting the tone (Tone)" (☐ p. 127)
- "Displaying your desired video during audio playback (Video Select)" (p. 128)
- "Playing the same music in all zones (All Zone Stereo)" (p. 130)
- "Changing the speaker settings to match the listening environment (Speaker Preset)" (p. 131)
Front panel D
Rear panel Re
Index
109
Contents Connections
Setti
ngs Tips Appendix
Getting the HEOS App
You can use many online music streaming services from the HEOS App. Depending upon your geographical location, there are several options to choose from. For more information about which services are available in your area please visit http://www.HEOSbyDenon.com Download the HEOS App for iOS or Android by searching App Store, Google Play store or Amazon Appstore for "HEOS".
Front panel D
y Rear panel Re
Index
110
[Non-Text]
[Non-Text]
#
HEOS Account
HEOS Accounts can be registered in "HEOS Account" (p. 238) in the menu of this unit or by tapping "Music" tab - "Settings" icon in the HEOS App.
■ What is a HEOS Account?
A HEOS Account is master account or "keychain" for managing all of your HEOS music services with one single username and password.
■ Why do I need a HEOS Account?
With the HEOS Account you just have to enter your music services login names and passwords one time. This allows you to easily and quickly use multiple controller apps on different devices.
You just log into your HEOS Account on any device and you will have access to all of your associated music services, play history and custom playlists, even if you are at a friend's house listening to music on their HEOS system.
■ Signing up for a HEOS Account
You will be instructed to signup for a HEOS Account the first time you try to access any music service from the main "Music" menu of the HEOS App.
■ Changing your HEOS Account
1 Tap the "Music" tab.
2 Select the Settings icon ⚙️ in the upper left corner of the screen.
3 Select "HEOS Account".
4 Change your location, change your password, delete your account or sign out of your account.
Front panel D
Rear panel Re
Index
111
Contents
Connections
back
Appendix
Playing from streaming music services
A music service is an online music company that provides access to vast music collections via free and/or paid subscriptions. Depending upon your geographical location, there are several options to choose from. For more information about which services are available in your area please visit http://www.HEOSbyDenon.com
NOTE
- The HEOS App and brand is not affiliated with any manufacturer of any mobile device. Availability of music services may vary by region. Not all services may be available at time of purchase. Some services may be added or discontinued from time to time based on decisions of the music service providers or others.
■ Selecting a room/device
1 Tap the "Rooms" tab, and select "Denon AVR-X3700H" if there are multiple products with HEOS Built-in.
- Tap the Pencil icon 📋 at the top right to switch edit mode. You can change the displayed name.
Front panel D
Rear panel Re
Index
112
Contents
Connections
back
Appendix
■ Selecting the music track or station from music sources
1 Tap the "Music" tab and select a music source.
- All music services displayed may not be available in your location.
Front panel D
Rear panel Re
Index
113
Contents
Connections
back
Appendix
2 Browse the music to play.
After selecting a music track or radio station the app will automatically change to the "Now Playing" screen.
- When you select a music track to play you will be asked how you want to queue up your music.
| Play Now: | Inserts the item into the queue after the currently playing track and plays the selected item immediately. |
| Play Now & Replace Queue: | Clears the queue and plays the selected item immediately. |
| Play Next: | Inserts the item into the queue after the current song and plays it when the current song ends. |
Add to End of Queue: Adds the item to the end of the queue.
- When you select a radio station the following items are displayed.
Play Now: Plays the selected item immediately.
Add to HEOS Favorites: Adds to HEOS Favorites.
Front panel D
Rear panel Re
Index
114
Contents
Connections
back
Appendix
Listening to the same music in multiple rooms
This system is a true multi-room audio system. You can create one or more HEOS groups to automatically synchronize audio playback between multiple products with HEOS Built-in so that the music playing different rooms is perfectly in sync and always sounds amazing! You can easily add up to 32 products to your system in total. You can group up to 16 individual products to have them play the same song fully synchronized.
■ Grouping rooms
1 Press and hold your finger on room that is not playing music.
2 Drag it into the room that is playing music (indicated by the red outline) and lift your finger.
3 The two rooms will be grouped together into a single device group and both rooms will be playing the same music in perfect sync.
Front panel D
Rear panel Re
Index
115
Contents
Connections
back
Appendix
■ Ungrouping rooms
1 Press and hold your finger on room that you want to remove from the group.
2 Drag it out of the group and lift your finger.
NOTE
- You can not remove the first room that started playing the music before grouping.
Front panel D
Rear panel Re
Index
116
Contents
Connections
back
Appendix
■ Grouping all rooms (party mode)
You can easily group 16 rooms together into Party Mode by using a "pinch" gesture.
1 Place two fingers on the screen over the list of rooms.
2 Quickly pinch your two fingers together and release.
3 All of your rooms will be joined together and begin playing the same music in perfect sync.
Front panel D
Rear panel Re
Index
117
Contents
Connections
back
Appendix
■ Ungrouping all rooms
You can easily ungroup all of your rooms and exit Party Mode by using a "spread" gesture.
1 Place two fingers close together on the screen over list of rooms.
2 Quickly spread your two fingers apart from each other and release.
3 All of your rooms will be ungrouped.
Front panel D
Rear panel Re
Index
118
Contents Connections
Setti
ngs Tips Appendix
AirPlay function
Music files stored on your iPhone, iPod touch, iPad or iTunes can be played on this unit via the network.
- Source input will be switched to "HEOS Music" when AirPlay playback is started.
- You can stop AirPlay playback by choosing other input source.
• To see song and artist names together, press STATUS on the main unit. - For information about how to use iTunes, also see the Help for iTunes.
- The screen may differ depending on the OS and software versions.
This unit supports AirPlay 2.
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous playback.
• This unit supports AirPlay 2 and requires iOS 11.4 or later.
Front panel D
Rear panel Re
Index
119
Contents
Connections
back
Appendix
Playing songs from your iPhone, iPod touch or iPad
If you update your "iPhone/iPod touch/iPad" to iOS 4.2.1 or later, you can stream music stored in your "iPhone/iPod touch/iPad" directly to this unit.
1 Connect your iPhone, iPod touch or iPad Wi-Fi to the same network as this unit.
- For details, see your device's manual.
2 Play the song on your iPhone, iPod touch or iPad.
AirPlay icon is displayed on the iPhone, iPod touch or iPad screen.
3 Tap the AirPlay icon and select this unit.
[Example] iOS 12
[Example] iOS 10
Playing iTunes music with this unit
1 Install iTunes 10, or later, on a Mac or Windows PC that is connected to the same network as this unit.
2 Turn this unit ON.
Set "Network Control" to "Always On" for this unit. (p. 236)
NOTE
- When "Network Control" is set to "Always On", the unit consumes more standby power.
3 Start iTunes and click the AirPlay icon to select this unit.
[Example] iTunes
4 Choose a song and click play in iTunes. The music will stream to this unit.
Front panel D
Rear panel Re
Index
120
Contents
Connections
back
Appendix
NOTE
- In playback using the AirPlay function, the sound is output at the iPhone, iPod touch, iPad or iTunes volume setting level. You should turn down the iPhone, iPod touch, iPad or iTunes volume prior to playback and then adjust it to a suitable level.
Play a song from your iPhone, iPod touch or iPad on multiple synced devices (AirPlay 2)
Songs from an iPhone, iPod touch or iPad operating iOS 11.4 or later can be synced with multiple AirPlay 2 supported devices for simultaneous playback.
1 Play the song on your iPhone, iPod touch or iPad.
AirPlay icon is displayed on the iPhone, iPod touch or iPad screen.
2 Tap the AirPlay icon.
Displays a list of devices/speakers that can be played back on the same network.
- A circle is displayed to the right of AirPlay 2 compatible devices.
3 Tap the devices/speakers you want to use.
- Multiple AirPlay 2 compatible devices can be selected. - Volume can be adjusted for each device individually or for all synced devices simultaneously.
Front panel D
Rear panel Re
Index
121
Contents Connections
Setti
ngs Tips Appendix
Spotify Connect function
Spotify is all the music you'll ever need. Millions of songs available instantly. Just search for the music you love, or let Spotify play you something great. Spotify works on your phone, tablet, computer and home speakers. So you'll always have the perfect soundtrack for whatever you're doing. Now you can enjoy Spotify with your free account as well as Premium account.
Use your phone, tablet or computer as a remote control for Spotify. Go to www.spotify.com/connect to learn how.
Playing Spotify music with this unit
Download the "Spotify App" onto your Android or iOS device beforehand. To play a Spotify track in this unit, you need to register in the Spotify premium account first.
1 Connect the Wi-Fi settings of the iOS or Android device in the same network as this unit.
2 Launch the Spotify App.
3 Play back the Spotify track.
4 Tap the Spotify icon Ⓜ to select the unit.
The music will stream to this unit.
Front panel D
Rear panel Re
Index
122
Convenience functions
This section explains how to use convenient functions that can be used for each input source.
These functions can only be set in the MAIN ZONE.
Contents Connections
Setti
Adding to HEOS Favorites
1 While content is playing, press OPTION.
The option menu screen is displayed.
2 Use to select “Add to HEOS Favorites”, then press ENTER.
Playing back HEOS Favorites
1 Press (HEOS Music).
2 Use △▽ to select "HEOS Favorites", then press ENTER.
3 Browse the content and select something to play.
Front panel D
Rear panel Re
Index
124
Contents Connections
Setti
ngs Tips Appendix
Deleting a HEOS Favorites
1 While the HEOS Favorites content list is displayed, use to select the item you want to remove from HEOS Favorites, then press OPTION.
2 Use to select “Remove from HEOS Favorites”, then press ENTER.
Front panel D
Rear panel Re
Index
125
Adjusting the volume of each channel to match the input source (Channel Level Adjust)
The volume of each channel can be changed while listening to music. You can set this for each input source.
1 Press OPTION.
An option menu screen is displayed.
- When the input source is "HEOS Music", an option menu for online music is displayed. Select "AVR Options...", then press ENTER.
2 Use to select “Channel Level Adjust”, then press ENTER.
The "Channel Level Adjust" screen is displayed.
3 Use to select the channel that you wish to adjust.
4 Use ◀▷ to adjust the volume.
-12.0 dB - +12.0 dB (Default: 0.0 dB)
5 Use △▽◀▷ to select "Exit", then press ENTER.
- Select "Reset" and press ENTER if you want to restore the adjustment values of the various channels to "0.0 dB" (Default).
- Headphone volume can be adjusted when a headphone is connected.
- "Channel Level Adjust" settings are stored for each input source.
- You can only set this for speakers that output audio. In addition, you cannot set this when in the menu "HDMI Audio Out" is set to "TV". (P. 187)
Front panel D
Rear panel Re
Index
126
Contents Connections
Setti
ngs Tips Appendix
Adjusting the tone (Tone)
Adjusts the tonal quality of the sound.
1 Press OPTION.
An option menu screen is displayed.
- When the input source is "HEOS Music", an option menu for online music is displayed. Select "AVR Options...", then press ENTER.
2 Use to select “Tone”, then press ENTER.
The "Tone" screen is displayed.
3 Use ◀▷ to set the tone control function to on/off.
On: Allow tone adjustment (bass, treble).
Off
(Default):
Playback without tone adjustment.
4 Select "On" in step 3 and press to select the sound range to be adjusted.
Bass: Adjust bass.
Treble: Adjust treble.
5 Use ◀▶ to adjust the tone, then press ENTER.
-6 dB - +6 dB (Default : 0 dB)
- "Tone" settings are stored for each input source.
- This cannot be set when the sound mode is set to "Direct" or "Pure Direct".
- This item cannot be set when "Dynamic EQ" is set to "On". (p. 181)
- You cannot set this when no audio signal is input or in the menu "HDMI Audio Out" is set to "TV". (1 p. 187)
Front panel D
Rear panel Re
Index
127
Displaying your desired video during audio playback (Video Select)
This unit can display video from a different source on TV during audio playback. You can set this for each input source.
□ Supported input sources:
CD\* / Tuner / HEOS Music / Phono
* This cannot be set when any of the HDMI, component video or video connectors are assigned.
1 Press OPTION.
An option menu screen is displayed.
- When the input source is "HEOS Music", an option menu for online music is displayed. Select "AVR Options...", then press ENTER.
2 Use to select “Video Select”, then press ENTER.
The "Video Select" screen is displayed.
3 Use ◀▷ to select the Video Select mode.
Off
Disable Video Select mode.
(Default):
On: Enable Video Select mode.
4 If you selected "On" in step 3, press and select "Source".
5 Use ◀▷ to select the input source for video you want to play back, then press ENTER.
- "Video Select" settings are stored for each input source.
Front panel D
y Rear panel Re
Index
128
Adjusting the picture quality for your viewing environment (Picture Mode)
☐ Supported input sources : CBL/SAT / DVD / Blu-ray / Game / AUX / Media Player / CD* / TV Audio*
* You can set the picture mode when an HDMI, component video or video connector is assigned and "i/p Scaler" is set to anything other than "Off". (17 p. 193)
1 Press OPTION.
An option menu screen is displayed.
2 Use to select “Picture Mode”, then press ENTER.
The “Picture Mode” screen is displayed.
3 Use ◀▷ to select the picture mode.
| Off(Default): | No picture quality adjustment is done with this unit. |
| Standard: | The standard mode suited for most living room viewing environments. |
| Movie: | A mode suited for watching movies in a dark room such as a theater room. |
| Vivid: | A mode that makes graphic images for games, etc. brighter and more vivid. |
| Streaming: | A mode suited for low bit rate video sources. |
| ISF Day: | A mode suited for watching movies in a bright room during the day. |
| ISF Night: | A mode suited for watching movies in a dark room at night. |
| Custom: | Adjusts the picture quality manually. |
4 Press ENTER.
- "Picture Mode" settings are stored for each input source.
Front panel D
y Rear panel Re
Index
129
Playing the same music in all zones (All Zone Stereo)
You can play back the music being played back in MAIN ZONE simultaneously in ZONE2 (another room).
It is useful when you want to enjoy the same music at the same time in multiple rooms during home party or when you want to play back the same background music in the entire house.
1 Press OPTION.
An option menu screen is displayed.
- When the input source is "HEOS Music", an option menu for online music is displayed. Select "AVR Options...", then press ENTER.
2 Use to select “All Zone Stereo”, then press ENTER.
The "All Zone Stereo" screen is displayed.
3 Select "Start", then press ENTER.
The input source for ZONE2 is switched to the same input source as for MAIN ZONE, and playback starts in the All Zone Stereo mode.
■ Stopping the All Zone Stereo mode
1 During playback in All Zone Stereo mode, press OPTION.
An option menu screen is displayed.
- When the input source is "HEOS Music", an option menu for online music is displayed. Select "AVR Options...", then press ENTER.
2 Use to select “All Zone Stereo”, then press ENTER.
3 Select "Stop", then press ENTER.
- The All Zone Stereo mode is canceled even when the power supply of the MAIN ZONE is turned off.
- In the All Zone Stereo mode, only the "Multi Ch Stereo" and "Stereo" sound modes can be selected.
- When "HDMI Audio Out" is set to "TV", the All Zone Stereo mode is not available. (15 p. 187)
- Save the All Zone Stereo mode playback status to the Quick Select Plus function to enable simple playback in All Zone Stereo mode with a single touch.
Front panel D
Rear panel Re
Index
130
Contents Connections
Setti
Changing the speaker settings to match the listening environment (Speaker Preset)
Two speaker settings can be saved to suit the environments where you use your speakers.
1 Press OPTION.
An option menu screen is displayed.
- When the input source is "HEOS Music", an option menu for online music is displayed. Select "AVR Options...", then press ENTER.
2 Use to select “Speaker Preset”, then press ENTER.
The "Speaker Preset" screen is displayed.
3 Use ◀▷ to set the preset.
Preset 1
Use Preset 1.
(Default):
Preset 2: Use Preset 2.
- This function can be used in the following cases.
- Adjust the speaker settings manually after setting "Speaker Preset" to "Preset 2".
- Save the result to "Preset 2" after performing Audyssey® Setup for a second time.
Front panel D
Rear panel Re
Index
131
Contents Connections
Setti
ngs Tips Appendix
Selecting a sound mode
This unit allows you to enjoy various kinds of surround and stereo playback modes.
Disc formats such as Blu-ray Disc and DVD, as well as being supported by digital broadcasting, and even by streaming movies and music from internet-based subscription services.
This unit supports playback of almost all of these multi-channel audio formats. It also supports surround playback of audio formats other than multi-channel audio such as 2-channel stereo audio.
- For audio formats recorded on a disc, see the disc jacket or label.
Front panel D
Rear panel Re
Index
132
Selecting a sound mode
1 Press MOVIE, MUSIC or GAME to select a sound mode.
| MOVIE : | Switches to the sound mode suitable for enjoying movies and TV programs. |
| MUSIC : | Switches to the sound mode suitable for enjoying music. |
| GAME : | Switches to the sound mode suitable for enjoying games. |
- The MOVIE, MUSIC, or GAME button memorizes the last sound mode selected for its button. Pressing MOVIE, MUSIC, or GAME recalls the same sound mode as the one selected at the previous playback.
- If the content played back does not support the previously selected sound mode, the most appropriate sound mode for the content is automatically selected.
■ Switching the sound mode
- Press MOVIE, MUSIC or GAME to display a list of the sound modes that can be selected. Each time you press MOVIE, MUSIC or GAME, the sound mode changes.
- While the list is displayed, you can also use to select a sound mode.
- Try out various sound modes and enjoy sound mode in your favorite mode.
- Please set the surround mode to Dolby Atmos/Surround when playing back Dolby Atmos encoded content. Dolby Atmos/Surround delivers the optimum playback experience from Blu-ray and streaming sources encoded with Dolby Atmos as well as channel based content. The default setting of this receiver is Dolby Atmos/Surround.
Front panel D
Rear panel Re
Index
133
Contents Connections
Setti
[Example] When MOVIE is pressed
This unit provides not only sound modes that conform to the formats recorded on discs such as Dolby and DTS, but also extended types of modes that match your speaker configuration and "original sound modes" that create atmosphere of Rock Arena and Jazz Club, etc.
Direct playback
Sound recorded in source is played as is.
1 Press PURE to select "Direct". Direct playback begins.
- While DSD signals are played back, "DSD Direct" is displayed.
Front panel D
Rear panel Rel
Index
134
Contents Connections
Setti
Pure Direct playback
This mode is for playback with higher sound quality than in Direct playback mode.
This mode turns off the main unit display and analog video circuit. Doing so suppresses noise sources that affect sound quality.
1 Press PURE to select "Pure Direct".
The display goes dark, and Pure Direct playback begins.
- In Direct and Pure Direct sound modes, the following items cannot be adjusted.
- Tone (p. 127)
- Restorer (p. 177)
- MultEQ ^ XT32 (p. 180)
• Dynamic EQ (p. 181)
• Dynamic Volume (p. 182)
• Graphic EQ (p. 183)
NOTE
- Video signals are only output when HDMI signals are played in the Pure Direct mode.
- When the Pure Direct mode has been selected, the display turns off after about 5 seconds.
Front panel D
Rear panel Re
Index
135
Auto surround playback
This mode detects the type of input digital signal, and automatically selects the corresponding mode for playback.
Perform stereo playback when the input signal is PCM. When the input signal is Dolby Digital or DTS, the music is played back according to the respective channel number.
1 Press PURE to select "Auto".
Auto surround playback begins.
Contents Connections
Setti
ngs Tips Appendix
Description of sound mode types
Dolby sound mode
| Sound mode type Description | |
| Dolby Atmos | Please select this mode to play content encoded with Dolby Atmos. If you have selected a different sound mode previously, please select again this mode for Dolby Atmos content play back. It decodes Dolby Atmos content and its positioning data in real time and outputs audio from the appropriate speakers, creating natural audio images regardless of the speaker layout. Use ceiling speakers and/or Dolby Atmos Enabled speakers to realize a three-dimensional sound field. An immersive audio experience can be enjoyed from traditional speaker layouts that do not employ overhead or Dolby Atmos Enabled Speakers by selecting the Speaker Virtualizer feature. |
| Dolby TrueHD Please select this mode to play back the contents encoded with Dolby TrueHD at 192kHz/96kHz. | |
| Dolby Digital Plus Please select this mode to play back the contents encoded with Dolby Digital Plus. | |
| Dolby Digital Please select this mode to play back the contents encoded with Dolby Digital. | |
| Dolby Surround | This mode uses Dolby Surround Upmixer to extend various sources to natural and realistic multi channels for playback. Use ceiling speakers such as top middle speakers to realize a three-dimensional sound field. |
Front panel D
Rear panel Re
Index
136
Contents Connections
Setti
ngs Tips Appendix
DTS sound mode
| Sound mode type Description | |
| DTS Surround This mode can be selected when playing sources recorded in DTS. | |
| DTS ES Dscrt6.1*1 | This mode is suitable for playing discs recorded in DTS-ES.The surround back channel added using the discrete method is played as an independent channel.Since all channels are independent, the 360-degree spacial expressiveness and sound localization are enhanced. |
| DTS ES Mtrx6.1*1 | This mode is suitable for playing discs recorded in DTS-ES.The surround back channel added to the surround-left and surround-right channels by a matrix encoder at software recording time is decoded by this unit's matrix decoder and played from each channel (surround left, surround right, surround back). |
| DTS 96/24 This mode can be selected when playing sources recorded in DTS 96/24. | |
| DTS-HD This mode can be selected when playing sources recorded in DTS-HD. | |
| DTS Express This mode can be selected when playing sources recorded in DTS Express. | |
| DTS:X This mode can be selected when playing back content encoded with DTS:X.It decodes DTS:X content and its positioning data in real time and outputs audio from the appropriate speakers, creating natural audio images regardless of the speaker layout. Use height speakers to realize a three-dimensional sound field. | |
Front panel D
y Rear panel Re
Index
137
Contents
Connections
back
Appendix
| Sound mode type Description | |
| IMAX DTS | This mode is automatically activated when playing back IMAX Enhanced content featuring a DTS bitstream. (ICP p. 173)Also this mode is selectable when “Surround Parameter” - “IMAX” is set to “On” in the menu and a 48 kHz sampling frequency DTS 5.1 channel signal is being input.When “Speaker Config.” - “Surr. Back” is set to “2 spkrs”, “Speaker Config.” - “Center” is set to “Large” or “Small”, and sound mode is set to “IMAX DTS”, surround audio is output from the surround back speaker. Audio is not output from the surround speaker.The bass information of speakers are not redirected to the subwoofer, but getting a better bass effect from front and center speakers by special algorithm of IMAX when the “Front” and “Center” are set to “Small”. |
| IMAX DTS:X This mode is automatically activated when playing back IMAX Enhanced content featuring a DTS:X bitstream. (ICP p. 173)The bass information of speakers are not redirected to the subwoofer, but getting a better bass effect from front and center speakers by special algorithm of IMAX when the “Front” and “Center” are set to “Small”. | |
| DTS Neural:X | This mode uses DTS Neural:X Upmixer to extend various sources to natural and realistic multi channels for playback. Use height speakers such as front height speakers to realize a three-dimensional sound field. |
| DTS Virtual:X*2*3 | This mode uses DTS Virtual:X with virtual height and virtual surround processing to realize a three-dimensional sound field when the height speakers are not used. |
*1 This can be selected when "Speaker Config." - "Surr. Back" is not set to "None". (eP p. 223)
*2 It cannot be selected when the input signal is Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos.
*3 This can be selected when Height, Ceiling and Dolby Atmos Enabled speakers are not being used.
Front panel D
Rear panel Re
Index
138
Contents Connections
Setti
ngs Tips Appendix
PCM multi-channel sound mode
| Sound mode type Description | |
| Multi Ch In This mode can be selected when playing multi-channel PCM/DSD sources. |
Original sound mode
| Sound mode type Description | |
| Multi Ch Stereo This mode is for enjoying stereo sound from all speakers. | |
| Rock Arena This mode simulates the expansive sound of a live concert in an arena. | |
| Jazz Club This mode simulates the experience of being in an intimate jazz club. | |
| Mono Movie | This mode works with monaural audio sources and delivers a surround sound effect. For optimum channel balance and surround sound effects, connect the monaural source to both of the front (L/R) audio inputs. |
| Video Game This mode provides an exciting, dynamic surround sound effect with your favorite action video games. | |
| Matrix This mode adds a spacious surround sound effect with stereo music sources. | |
| Virtual This mode lets you experience an expansive surround sound effect when playing back through just the front (L/R) speakers only, and when listening with stereo headphones. | |
Auto sound mode
| Sound mode type Description | |
| Auto | In this mode, the type of digital signal input, such as Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Atmos, DTS, DTS-HD, DTS:X, DTS-ES, PCM (multi-channel) is detected, and the playback mode switches automatically to the corresponding mode.If the input signal is analog or PCM (2-channel), stereo playback is used. For Dolby Digital or DTS, the music is played back according to the respective channel number. |
Front panel D
Rear panel
Remote
139
Index
Contents Connections
Setti
ngs Tips Appendix
Stereo sound mode
| Sound mode type Description | |
| Stereo This mode plays 2-channel stereo audio with no additional surround sound processing. | Sound is output from the front left and right speakers, and subwoofer if connected.When multi-channel signals are inputted, they are mixed down to 2-channel audio and are played back with no additional surround sound processing. |
Direct sound mode
| Sound mode type Description | |
| Direct This mode plays back audio as recorded in the source. | |
| Pure Direct This mode plays back an even higher quality sound than the “Direct” mode.The following circuits are stopped in order to further improve sound quality.• Display indicator circuit of the main body (display will go off.)• The analog video input/output switcher and processor is disabled. |
Front panel D
y Rear panel Re
Index
140
Contents
Connections
back
Appendix
Sound mode that can be selected for each input signal
- The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons.
- Adjust the sound field effect with the menu "Surround Parameter" to enjoy surround sound the way you like it. (p. 171)
*1 2-channel also includes analog input.
*2 This mode plays back 2-channel sources in 5.1, 7.1, 9.1 or 11.1-channel playback. It cannot be selected when headphones are used or when the speaker configuration is front speakers only.
*3 It cannot be selected when headphones are used, or when a speaker configuration with any height speakers is used.
*4 It cannot be selected when the input signal is Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos.
Front panel D
Rear panel Re
Index
141
Contents Connections
Settings Tips
Appendix
| Sound modelInput signal | MOVIE button | GAME buttonMUSIC | ||
| Multi-channel *5 | Stereo | ○ | ○ | ○ |
| Dolby Digital | Dolby Digital | ○ | ○ | ○ |
| Dolby Digital + Dolby Surround *6 ○ | ○ | ○ | ||
| Dolby Digital + Neural:X *6 ○ | ○ | ○ | ||
| Dolby Digital Plus | Dolby Digital Plus | ○ | ○ | ○ |
| Dolby Digital Plus + Dolby Surround *6*7 | ○ | ○ | ○ | |
| Dolby Digital Plus + Neural:X *6 ○ | ○ | ○ | ||
| Dolby Atmos *6*8 ○ | ○ | ○ | ||
| Dolby TrueHD | Dolby TrueHD | ○ | ○ | ○ |
| Dolby TrueHD + Dolby Surround *6*7 ○ | ○ | ○ | ||
| Dolby TrueHD + Neural:X *6 ○ | ○ | ○ | ||
| Dolby Atmos *6*8 ○ | ○ | ○ | ||
| Dolby Atmos Dolby Atmos | ○ | ○ | ○ |
*5 The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels.
*6 This cannot be selected when headphones are used.
*7 This can be selected when the input signal does not contain Dolby Atmos.
*8 This can be selected when the input signal contains Dolby Atmos.
Front panel
Display
Rear panel
142
Remote
Index
Contents
Connections
Playback
Settings
Tips
Appendix
*3 It cannot be selected when headphones are used, or when a speaker configuration with any height speakers is used.
*5 The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels.
*6 This cannot be selected when headphones are used.
*9 Selectable when "Surround Parameter" - "IMAX" is set to "On" in the menu and a 48 kHz sampling frequency DTS 5.1 channel signal is being input. (T p. 173)
Front panel
Display
Rear panel
143
Remote
Index
Contents Connections
Setti
ngs Tips Appendix
*3 It cannot be selected when headphones are used, or when a speaker configuration with any height speakers is used.
*5 The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels.
*6 This cannot be selected when headphones are used.
*10 Selectable when "Surround Parameter" - "IMAX" is set to "Auto" in the menu. When "IMAX" is set to "Off", playback is normal DTS or DTS:X. (① p. 173)
Front panel
Display
Rear panel
144
Remote
Index
Contents Connections
Setti
ings Tips Appendix
| Sound modelInput signal | MOVIE button | GAME buttonMUSIC | ||
| Multi-channel *5 | Multi Ch Stereo | ○ | ○ | ○ |
| Mono Movie | ○ | |||
| Rock Arena | ○ | |||
| Jazz Club | ○ | |||
| Matrix | ○ | |||
| Video Game | ○ | |||
| Virtual | ○ | ○ | ○ |
*5 The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels.
Front panel D
Rear panel Re
Index
145
Contents Connections
Setti
ngs Tips Appendix
■ Views on the display
① Shows a decoder to be used.
- In the case of the Dolby Digital Plus decoder, "DD+" is displayed.
② Shows a decoder that creates sound output.
- "DSur" indicates that the Dolby Surround decoder is being used.
Front panel D
y Rear panel Re
Index
146
HDMI Control function
A recent addition to the HDMI standard is CEC (Consumer Electronics Control), which allows control signals from one device to communicate with another device via the HDMI cable connection.
Setting procedure
1 Enable the HDMI Control function of this unit.
Set "HDMI Control" to "On". (p. 189)
2 Turn the power on for all the devices connected by HDMI cable.
3 Set the HDMI Control function for all devices connected by HDMI cable.
- Please consult the operating instructions for the connected devices to check the settings.
- Carry out steps 2 and 3 should any of the devices be unplugged.
4 Switch the television input to the HDMI input connected to this unit.
5 Switch the input source of this unit to check that video from the player connected by HDMI is played back correctly.
6 When you turn the TV's power to standby, check that the power of this unit also goes to standby.
NOTE
- Some functions may not operate depending on the connected TV or player. Check the owner's manual of each device for details beforehand.
- The HDMI ZONE2 function is not compatible with the HDMI Control function.
- When the HDMI ZONE2 function is used with "HDMI Control" in the menu set to "On", the HDMI ZONE2 function may not fully work.
Front panel D
Rear panel Re
Index
147
Contents Connections
Setti
ngs Tips Appendix
Smart Menu function
This function can be used to configure the settings of this unit, select an input source and set Tuner and Internet Radio stations using the TV remote control.
1 Enable the HDMI Control function of this unit and the TV. (☐ p. 189)
2 Set "Smart Menu" to "On" on this unit. (p. 191)
3 Select "AV Receiver" in a TV menu such as "Input"* or "Operate Connected HDMI Device"*.
The Smart Menu of this unit is displayed on the TV.
- This unit can be operated with the TV remote control while the Smart Menu is displayed.
* The selection method differs depending on your TV.
Now Playing
Enjoy content from the input source currently selected on this unit.
Source
Switch the input of this unit.
If you select "HEOS Music" or "Tuner", you can continue to operate this unit using the TV remote control.
Sound Mode
Change the sound mode of this unit.
You can select from the following three sound modes.
| Surround: | Surround sound playback according to the input signal. |
| Stereo: Stereo playback. | |
| Multi Ch Stereo: Multi-channel stereo playback. | |
Front panel D
Rear panel Re
Index
148
Contents
Connections
back
Appendix
Setup Menu
Displays a setup menu for configuring the settings of this unit.
Quick Select
Calls up the "Quick Select" items registered to this unit.
NOTE
- If the "HDMI Control" or "Smart Menu" settings have been changed, always reset the power to connected devices after the change.
- The Smart Menu function may not work properly depending on the specifications of your TV. In this case, set "Smart Menu" to "Off". (19 p. 191)
Front panel D
Rear panel Re
Index
149
Sleep timer function
You can have the power automatically switched to standby once a set time has elapsed. This is convenient for viewing and listening while going to sleep. The sleep timer function can be set for each zone.
Contents Connections
Setti
ngs Tips Appendix
Using the sleep timer
1 Press MAIN or ZONE2 to select the operating zone with the remote control.
The button for the selected zone is lit.
2 Press SLEEP and display the time you want to set.
- The SLEEP indicator lights up on the display and the sleep timer starts.
- You can set the sleep timer in the range from 10 to 120 minutes in steps of 10 minutes.
■ Checking the remaining time
Press SLEEP when the sleep timer is in operation.
The remaining time appears on the display.
■ To cancel the sleep timer
Press SLEEP to select "Off".
The SLEEP indicator on the display turns off.
- The sleep timer setting is canceled when the unit switches to standby mode.
NOTE
- The sleep timer function cannot turn off the power of devices connected to this unit. To turn off the power of those connected devices, set up sleep timers on the connected devices themselves.
Front panel D
Rear panel Re
Index
151
Contents Connections
Setti
ngs Tips Appendix
Quick select plus function
Settings such as the input source, volume level and sound mode can be registered to the QUICK SELECT 1 - 4 buttons.
You can simply press one of the registered QUICK SELECT buttons in subsequent playbacks to switch to the group of saved settings in a batch. By saving frequently used settings at the QUICK SELECT 1 – 4 buttons, you will always be able to easily call up the same playback environment. The Quick Select Plus function can be memorized for each zone.
- The QUICK SELECT button on main unit can only be used to operate the MAIN ZONE.
Front panel D
Rear panel Re
Index
152
Contents Connections
Setti
ngs Tips Appendix
Calling up the settings
1 Press MAIN or ZONE2 to select the operating zone with the remote control.
The button for the selected zone is lit.
2 Press QUICK SELECT.
The Quick Select settings registered to the button you pressed are called up.
- The default settings for the input source are as shown below.
【MAIN ZONE】/【ZONE2】
| Button Input source | |
| QUICK SELECT 1 CBL/SAT | |
| QUICK SELECT 2 Blu-ray | |
| QUICK SELECT 3 Media Player | |
| QUICK SELECT 4 HEOS Music |
- Volume is not registered to Quick Select Plus in the factory default settings. See "Changing the settings" to register volume to Quick Select Plus. (15 p. 154)
Front panel D
Rear panel Re
Index
153
Contents
Connections
back
Appendix
Changing the settings
1 Set the items below to the settings you want to register.
The following settings from ① to ⑪ can be memorized for MAIN ZONE, and settings ① and ② can be memorized for ZONE2.
① Input source (p. 83)
② Volume (p. 84)
③ Sound mode (p. 132)
④ Audyssey (Audyssey MultEQ® XT32, Audyssey Dynamic EQ®, Audyssey Dynamic Volume®, Audyssey LFC™) (Lp. 180)
⑤ "Restorer" (p. 177)
⑥ "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (17 p. 126)
⑦ "Displaying your desired video during audio playback (Video Select)" (128 p. 128)
⑧ "Adjusting the picture quality for your viewing environment (Picture Mode)" (p. 129)
⑨ "All Zone Stereo" (p. 130)
⑩ "Speaker Preset" (p. 131)
⑪ "HDMI Video Output" (p. 192)
- Press and hold QUICK SELECT while a radio station is being received is being played back with any of the following sources, the current radio station is memorized.
- Tuner / Internet Radio Station
2 Press MAIN or ZONE2 to select the operating zone with the remote control.
The button for the selected zone is lit.
3 Press and hold the desired QUICK SELECT until "Quick\* Memory" or "Z2 Quick\* Memory" appear on the display.
The current settings will be memorized.
* is displayed the number for the QUICK SELECT button you pressed.
■ Changing the Quick Select Name
The MAIN ZONE Quick Select name displayed on the TV screen or display of this unit can be changed to a different name.
For the name change method, see "Quick Select Names". (10 p. 246)
Front panel D
Rear panel Re
Index
154
Contents Connections
Setti
ngs Tips Appendix
Panel lock function
To prevent accidental operation of this unit, you can disable operation of the buttons on the front panel.
Disabling all key button operations
1 Press ⏻ while you press and hold TUNER PRESET CH + and ZONE2 SOURCE with the unit in standby mode.
2 Use TUNER PRESET CH + or TUNER PRESET CH - to select "FP/VOL LOCK On".
3 Press STATUS to enter the setting.
All button operations except ⏻ are disabled.
Disabling all button operations except VOLUME
1 Press ⏻ while you press and hold TUNER PRESET CH + and ZONE2 SOURCE with the unit in standby mode.
2 Use TUNER PRESET CH + or TUNER PRESET CH - to select "FP LOCK On".
3 Press STATUS to enter the setting.
All button operations except ⏻ and VOLUME are disabled.
Front panel D
Rear panel Re
Index
155
Contents Connections
Setti
ngs Tips Appendix
Canceling the Panel lock function
1 Press ⏻ while you press and hold TUNER PRESET CH + and ZONE2 SOURCE with the unit in standby mode.
2 Press TUNER PRESET CH + or TUNER PRESET CH - to select "FP LOCK *Off".
(* The currently set mode.)
3 Press STATUS to enter the setting.
The Panel lock function is canceled.
- Even when the Panel lock function is set, you can operate the unit using the remote control unit.
Front panel D
Rear panel Re
Index
156
Remote lock function
When connecting an IR receiver, enable the Remote lock function. When the function is enabled, you can not perform operations with the remote control unit.
By default, this function is disabled.
Disabling the sensor function of the remote control unit
1 Press ⏻ while you press and hold TUNER PRESET CH + and ZONE2 SOURCE with the unit in standby mode.
2 Use TUNER PRESET CH + or TUNER PRESET CH - to select "RC LOCK On".
3 Press STATUS to enter the setting.
The infrared light receiving function is disabled.
Enabling the remote sensor function
1 Press ⏻ while you press and hold TUNER PRESET CH + and ZONE2 SOURCE with the unit in standby mode.
2 Press TUNER PRESET CH + or TUNER PRESET CH - to select "RC LOCK *Off".
(* The currently set mode.)
3 Press STATUS to enter the setting. Infrared light receiving function on the main unit is enabled.
Front panel D
Rear panel Re
Index
157
Contents Connections
Setti
ngs Tips Appendix
Web control function
You can control this unit from a web control screen on a web browser.
D["Tablet"]
- This unit and the PC or tablet need to be connected correctly to the network in order to use the web control function. (E p. 77)
- Depending on the settings of your security-related software, you may not be able to access this unit from your PC. If this is the case, then change the settings of the security-related software.
Controlling the unit from a web control
1 Switch the "Network Control" setting to "Always On". (p. 236)
2 Check the IP address of this unit with "Information". (p. 231)
3 Start up the web browser.
Front panel D
Rear panel Re
Index
158
Contents Connections
Setti
ngs Tips Appendi
4 Enter the IP address of this unit in browser's address box.
For example, if the IP address of this unit is "192.168.100.19", enter "http://192.168.100.19".
5 When the top menu is displayed on the web browser, click on the menu item you want to operate.
Front panel D
Rear panel Re
Index
159
Playback in ZONE2 (Another room)
You can operate this unit to enjoy video and audio in a room (ZONE2) that is different from the room where this unit is placed (MAIN ZONE).
You can simultaneously play back the same source in both the MAIN ZONE and ZONE2. You can also play back separate sources in the MAIN ZONE and ZONE2.
Connecting ZONE2
You can use the following three methods to play back video and audio in ZONE2.
- "Connection through the HDMI ZONE2 connector" (p. 160)
- "Connecting using a speaker output terminal" (p. 161)
- "Connecting using an external amplifier" (p. 161)
■ Connection 1 : Connection through the HDMI ZONE2 connector
When a TV is connected to the HDMI ZONE2 OUT connector, you can play back a video or audio from the device connected to the HDMI 1 - 7 IN connector in ZONE2 (HDMI ZONE2 function).
- When a TV is connected to the HDMI ZONE2 OUT connector, and the MAIN ZONE and ZONE2 are set to the same input source, the MAIN ZONE audio may be mixed down to 2-channel audio.
Front panel D
y Rear panel Re
Index
160
■ Connection 2: Connecting using a speaker output terminal
When "Assign Mode" is set to "ZONE2" in the menu, ZONE2 audio is output from the HEIGHT2 speaker terminal. (p. 215)
■ Connection 3 : Connection using an external amplifier (ZONE2)
The audio signals of this unit's ZONE2 audio output connectors are output to the ZONE2 amplifiers and played on these amplifiers.
161
Contents Connections
Setti
ngs Tips Appendix
- If the input for ZONE2 is set to "Source", all types of input signals can be listened to from ZONE2. (p. 163)
- If the input for ZONE2 is set to a specific source (like CBL/SAT), only analog signal or 2-channel PCM signal input (from HDMI connectors or digital connectors (OPTICAL/COAXIAL)) can be listened to from ZONE2. To playback HDMI signal other than 2-channel PCM in ZONE2, set "HDMI Audio" to "PCM". (17) p. 245) 2-channel PCM signals are output from a device connected to the input source selected for ZONE2 and can be played back in ZONE2. In this case, the MAIN ZONE audio will also be converted to 2-channel PCM signals if the MAIN ZONE and ZONE2 are set to the same input source. However, depending on the playback device, the playback signal may not be converted to PCM even if this setting is configured.
- The menu screen is not output in ZONE2.
Front panel D
Rear panel Re
Index
162
Playback in ZONE2
Front panel D
Rear panel Re
Index
163
1 Press ZONE2 to set the operating zone to ZONE2 with the remote control.
The ZONE2 button lights.
2 Press POWER ⏻ to turn on the ZONE2 power.
The Z2 indicator on the display lights.
- Power in ZONE2 can be turned on or off by pressing ZONE2 ON/OFF on the main unit.
3 Press the input source select button to select the input source to be played.
The audio signal of the selected source is output to ZONE2.
- To perform an operation with the main unit, press ZONE2 SOURCE. Each time you press ZONE2 SOURCE, the input source changes.
- Setting the input source of ZONE2 as the "Source" allows you to play the same content in MAIN ZONE and in ZONE2, regardless of the type of input signal.
- Set the input source of ZONE2 as the "Source" by pressing the ZONE2 SOURCE button on the main unit.
- If the MAIN ZONE input source is changed while ZONE2 is selected as the "Source", then ZONE2's input source will be changed to mirror the MAIN ZONE's input source.
Contents
Connections
back
Appendix
■ Adjusting the volume (ZONE2)
Use VOLUME ▲▼ to adjust the volume.
- At time of purchase, "Volume Limit" is set to "70 (-10 dB)". (Kp. 245)
- Turn MASTER VOLUME after pressing ZONE2 SOURCE on the main unit to adjust the volume.
■ Turning off the sound temporarily (Muting) (ZONE2)
Press MUTE 📄X.
The sound is reduced to the level set at "Mute Level" in the menu. (p. 246)
- To cancel mute, either adjust the sound volume or press MUTE 📄X again.
Front panel D
Rear panel Re
Index
164
Contents
Connections
Playback
Settings
Tips
Appendix
Menu map
When using menu operations, connect this unit to a TV and operate this unit while viewing the TV.
The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences.
| Setting items | Detailed items Description Page | ||
 Audio | Center Level Adjust | Adjusts the center channel volume to clarify the dialog for all sources. | 170 |
| Subwoofer Level Adjust Adjusts | justs the subwoofer channel volume for all input sources. 170 | ||
| Surround Parameter Adjusts | surround sound parameters. 171 | ||
| Restorer Expands the low and high frequency components of compressed audio content such as MP3 files to enable richer audio playback. | 177 | ||
| Audio Delay Compensates for incorrect timing between video and audio. 178 | |||
| Volume Sets the MAIN ZONE | (room where the unit is located) volume setting. 179 | ||
| Audyssey | Makes Audyssey MultEQ ^ XT32, Audyssey Dynamic EQ ^ , Audyssey Dynamic Volume ^ and Audyssey LFCTM settings. | 180 | |
| Graphic EQ Uses the graphic equalizer to adjust the tone of each speaker. 183 | |||
 Video | Picture Adjust | Adjusts picture quality. | 185 |
| HDMI Setup | Makes settings for HDMI Audio Out, HDMI Pass Through and HDMI Control settings. | 187 | |
| Output Settings | Makes settings for video output. | 192 | |
| On Screen Display | Configures the on-screen display settings. | 196 | |
| Screen Saver | Select the screen saver setting. | 197 | |
| 4K/8K Signal Format | Sets signal format options for your 4K or 8K video equipment. | 197 | |
| HDCP Setup | Sets the HDCP version for each HDMI input source. | 199 | |
| TV Format | Sets the video signal format to be output for the TV you are using. | 199 | |
Front panel
Display
Rear panel
165
Remote
Index
Contents
Connections
Playback
Settings
Tips
Appendix
| Setting items Detailed items Description Page | |||
 Inputs | Input Assign Changes input connector assignment and the audio input mode. 200 | ||
| Source Rename Changes the display name for input source. 203 | |||
| Hide Sources Removes from the display input sources that are not used. 203 | |||
| Source Level Adjusts the play back level of the audio input. 203 | |||
 Speakers | Audyssey® Setup | The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. | 204 |
| Manual Setup | Sets up the speakers manually or changes Audyssey® Setup settings. | 215 | |
 Network | Information Displays network information. 231 | ||
| Connection Selects whether to connect the home network to a wireless LAN or a wired LAN. 231 | |||
| Settings Used for manually setting the IP address. 234 | |||
| Network Control | Enables network communication in standby power mode. | 236 | |
| Friendly Name | The “Friendly Name” is the name of this unit displayed on the network. You can change the Friendly Name according to your preferences. | 236 | |
| Diagnostics | Used to check the network connection. | 237 | |
| AirPlay | Settings for Apple AirPlay. | 237 | |
Front panel
Display
Rear panel
166
Remote
Index
| Contents | Connections | Playback | Settings | Tips | Appendix |
| Setting items Detailed items Description Page | |||
 HEOS Account | [When the user is signed out the HEOS Account] | ||
| I have a HEOS Account Selects to sign in. 238 | |||
| Create Account Creates new | HEOS Account. 238 | ||
| Forgot Password | If you forgot your password, we'll send you an email with instructions about how to reset it. | 238 | |
| [When the user is signed in the HEOS Account] | |||
| Signed in As Displays your HEOS Account. 238 | |||
| Change Location Selects your location. 238 | |||
| Change Password Changes your HEOS Account Password. 238 | |||
| Delete Account Deletes your HEOS Account. 238 | |||
| Sign Out Sign out of your HEOS Account. 238 | |||
Front panel
Display
Rear panel
167
Remote
Index
Contents
Connections
Playback
Settings
Tips
Appendix
| Setting items Detailed items Description Page | |||
 General | Language Changes the language of the display on the TV screen. 239 | ||
| ECO Configures the ECO Mode and Auto Standby energy-saving functions. 239 | |||
| Bluetooth Transmitter Sets Bluetooth transmitter settings. 243 | |||
| ZONE2 Setup Makes settings for audio playback with ZONE2. 244 | |||
| Zone Rename Changes the display title of each zone to one you prefer. 246 | |||
| Quick Select Names Changes the Quick Select Name display title to one you prefer. 246 | |||
| Trigger Out | Select the conditions for activating trigger out function. | 247 | |
| Front Display | Makes settings related to the display on this unit. | 247 | |
| Firmware | Checks for the latest firmware information about updates and upgrades, updates the firmware, and sets up the notification message display. | 248 | |
| Information | Shows information about this unit settings, input signals, etc. | 251 | |
| Usage Data | Selects whether or not to send anonymous usage data to Denon. | 253 | |
| Save & Load | Save and restore device settings by using a USB memory device. | 253 | |
| Setup Lock | Protects settings from inadvertent changes. | 254 | |
| Reset | Various settings are reset to the factory default values. | 254 | |
 Setup Assistant | Begin Setup... | Performs basic installation/connections/settings from the beginning according to the guidance indicated on the TV screen. | Page 9 of the separate manual“Quick Start Guide” |
| Language Select | Sets individual setting items according to the guidance displayed on the TV screen. | ||
| Speaker Setup | |||
| Speaker Calibration | |||
| Network Setup | |||
| TV Audio Connection | |||
| Input Setup | |||
| Mobile Apps | |||
Front panel
Display
Rear panel
168
Remote
Index
Contents
Connections Playback
Tips Appendix

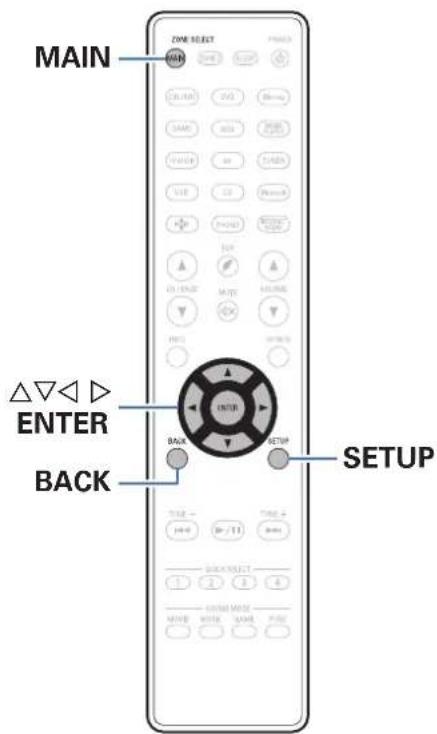

Menu operations
1 Press MAIN on the remote control unit to set the operating zone to the MAIN ZONE. The MAIN button lights.
2 Press SETUP.
The menu is displayed on the TV screen.
3 Use to select the menu to be set or operated, then press ENTER.
4 Use ◀▶ to change to desired setting.
5 Press ENTER to enter the setting.
• To return to the previous item, press BACK.
- Exiting the menu, press SETUP while the menu is displayed. The menu display disappears.
Front panel D
Rear panel Re
Index
169
Contents Connections Playback
Tips Appendix
Audio
Make audio-related settings.
Center Level Adjust
Adjusts the center channel volume to clarify the dialog for all sources.
Center
Adjusts the volume output from the center channel.
-12.0 dB - +12.0 dB (Default: 0.0 dB)
- This setting is also reflected in the center channel level in the "Speakers" - "Levels" menu settings. (12 p. 227)
Subwoofer Level Adjust
Adjusts the subwoofer channel volume for all input sources.
■ Subwoofer 1 / Subwoofer 2
Adjusts the volume level for the Subwoofer 1 and Subwoofer 2.
-12.0 dB - +12.0 dB (Default: 0.0 dB)
- This setting is also reflected in the subwoofer channel level in the "Speakers" - "Levels" menu settings. (i.e. p. 227)
Front panel D
Rear panel Re
Index
170
Contents Connections Playback
Tips Appendix
Surround Parameter
You can adjust the surround audio sound field effects to match your preferences.
The items (parameters) that can be adjusted depend on the signal being input and the currently set sound mode.
- Some setting items cannot be set while playback is stopped. Make the settings during playback.
- "Surround Parameter" settings are stored for each sound mode.
Cinema EQ
Gently softens the upper treble range of movie soundtracks to reduce possible harshness and improve clarity.
| On: | “Cinema EQ” is used. |
| Off(Default): | “Cinema EQ” is not used. |
- This item cannot be set when sound mode is "Direct", "Pure Direct", "Stereo" and "Original sound modes".
■ Loudness Management
This sets whether to output as specified in "Dynamic Compression" or output directly without compressing the dynamic range of audio recorded in the disc.
| On(Default): | Outputs are given based on enabling the settings made in “Dynamic Compression” and Dialogue normalization function. |
| Off: | “Dynamic Compression” settings and Dialogue normalization are disabled, and the signals on the disc are output as is. |
- "Loudness Management" can be set when Dolby Digital, Dolby Digital Plus, Dolby TrueHD and Dolby Atmos signal is input.
Front panel D
Rear panel Re
Index
171
Contents Connections Playback
Tips Appendix
■ Dynamic Compression
Compress dynamic range (difference between loud and soft sounds).
| Auto: | Automatic dynamic range compression on/off control according to source. |
| Low / Medium / High: These set the compression level. | |
| Off: | Dynamic range compression is always off. |
- "Dynamic Compression" can be set when Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos or DTS signal is input.
- The default setting is "Off". When the input signal is the Dolby TrueHD or Dolby Atmos source, the default setting is "Auto".
- "Auto" cannot be set when inputting a DTS signal.
■ Dialog Control
Adjust the volume of dialog in movies, vocals in music, etc. so these can be heard more easily.
0 - 6 (Default : 0)
- This can be set when a DTS:X signal that is compatible with the Dialog Control function is input.
■ Low Frequency Effects
Adjust the low frequency effects level (LFE).
-10 dB - 0 dB (Default: 0 dB)
- This can be set when the LFE signal is included in the input signal.
- This item can be selected when a Dolby Digital or DTS signal or DVD-Audio is played.
- For proper playback of the different sources, we recommend setting to the values below.
• Dolby Digital sources: 0 dB
• DTS movie sources: 0 dB
• DTS music sources: -10 dB
Front panel D
Rear panel Re
Index
172
Contents Connections Playback
Tips Appendix
■ Speaker Virtualizer
The Speaker Virtualizer enhances the surround and height speaker channels to create an enveloping virtual surround effect.
| On(Default): | Enables “Speaker Virtualizer”. |
Off: Disables "Speaker Virtualizer".
- You can set this when the sound mode is "Dolby Atmos", "Dolby Surround" or sound mode that has "+Dolby Surround" in the sound mode name.
- Usable when not using height, ceiling or "Dolby Atmos Enabled" speakers, or when not using surround speakers.
- Audio is not output when "Speaker Config." - "Surr. Back" in the menu is set to "1 spkr". (1 p. 223)
■ DTS Neural:X
DTS Neural:X Expands the non-object based audio signals and optimizes them for your speaker configuration.
| On(Default): | Use “DTS Neural:X”. |
Off: Do not use "DTS Neural:X".
- You can set this when sound mode is "DTS:X" or "DTS:X MSTR".
IMAX
Sets the audio mode for IMAX playback.
| Auto(Default): | Automatically enables the IMAX mode when IMAX content is detected. |
| On: | Enables IMAX settings for IMAX streaming content when automatic detection is not possible. |
Off: Disables the IMAX mode.
- In case of streaming the IMAX contents from online streaming service using TV Apps or player Apps (such as Blu-ray player's App), this unit may not detect the signal as IMAX contents automatically. In this case, you can enable IMAX mode by setting this parameter to "On" manually.
- This setting can only be turned "On" when DTS 5.1 channel content recorded as IMAX DTS is input.
- This setting cannot be set when headphones are used.
Front panel D
Rear panel Re
Index
173
Contents Connections Playback
Tips Appendix
IMAX Audio Settings
You can configure special IMAX audio settings to recreate the conditions of an IMAX theater.
| Auto(Default): | Applies the optimized speaker settings to reproduce similar to the IMAX theater environment. |
| Manual: | Manually adjusts the “High Pass Filter”, “Low Pass Filter” and “Subwoofer Mode”. |
- You can set this when sound mode is "IMAX DTS" or "IMAX DTS:X".
- "Speakers" - "Crossovers", "Bass" - "Subwoofer Mode" and "LPF for LFE" in the menu cannot be applied during IMAX playback.
■ High Pass Filter
Set the high pass filter cutoff frequency for all speakers during IMAX playback.
40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 180 Hz / 200 Hz / 250 Hz (Default: 80 Hz)
- You can set this when "IMAX Audio Settings" is set to "Manual".
■ Low Pass Filter
Set the low pass filter cutoff frequency of the LFE signal during IMAX playback.
80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 180 Hz / 200 Hz / 250 Hz (Default: 120 Hz)
- You can set this when "IMAX Audio Settings" is set to "Manual".
Subwoofer Mode
Set the bass signal to be played by the subwoofer during IMAX playback.
| On: | The low range signal of all speakers is added to the LFE signal output from the subwoofer. The LFE signal and the bass component of each speaker is played. |
| Off (Default): | Only the LFE signal is played. |
- You can set this when "IMAX Audio Settings" is set to "Manual".
Front panel D
Rear panel Re
Index
174
Contents
Connections Playback
Tips Appendix
Delay Time
Adjust the audio delay time against video to extend the sound field image.
0 ms - 300 ms (Default: 30 ms)
- You can set this when the sound mode is "Matrix".
Effect Level
Adjust the sound effect level of the current sound mode.
1 - 15 (Default: 10)
- This item can be set when sound mode is "Rock Arena", "Jazz Club", "Mono Movie" and "Video Game".
- Set to a lower level if the positioning and sense of phase of the surround signals seems unnatural.
Room Size
Determine size of acoustic environment.
| Small: Simulate acoustics of a small room. | |
| Medium small: | Simulate acoustics of a medium-small room. |
| Medium (Default): | Simulate acoustics of a medium room. |
| Medium large: | Simulate acoustics of a medium-large room. |
Large: Simulate acoustics of a large room.
- This item can be set when sound mode is "Rock Arena", "Jazz Club", "Mono Movie" and "Video Game".
- "Room Size" does not indicate the size of the room in which sources are played.
Front panel D
Rear panel Re
Index
175
Contents
Connections Playback
Tips Appendix
Speaker Select
Makes settings for the speakers outputting sound.
Floor: Plays back without height speakers.
Floor & Height
(Default):
Plays back with height speakers.
- This can be set when the sound mode is the original sound mode.
Subwoofer
Turn subwoofer output on and off.
On
The subwoofer is used.
(Default):
Off: The subwoofer is not used.
- You can set this when the sound mode is "Direct" or "Stereo" and in the menu "Subwoofer Mode" is set to "LFE+Main". (19 p. 229)
Set Defaults
The "Surround Parameter" settings are returned to the default settings.
Front panel D
Rear panel Re
Index
176
Contents Connections Playback
Tips Appendix
Restorer
Compressed audio formats such as MP3, WMA (Windows Media Audio) and MPEG-4 AAC reduce the amount of data by eliminating signal components that are hard for the human ear to hear. The "Restorer" function generates the signals eliminated upon compression, restoring the sound to conditions near those of the original sound before compression. It also restores the original bass characteristics for a rich and expanded tonal range.
Mode
| High: | Optimized mode for compressed sources with very weak highs (64 kbps and under). |
| Medium: | Apply suitable bass and treble boost for all compressed sources (96 kbps and under). |
| Low: | Optimized mode for compressed sources with normal highs (96 kbps and over). |
| Off: Do not use “Restorer”. | |
- This item can be set with analog signals or PCM signal (Sample Rate = 44.1/48 kHz) is input.
- This item default setting for "HEOS Music" is "Low". All others are set to "Off".
- This cannot be set when the sound mode is set to "Direct" or "Pure Direct".
- "Restorer" settings are stored for each input source.
Front panel D
Rear panel Re
Index
177
Contents Connections Playback
Tips Appendix
Audio Delay
Compensates for incorrect timing between video and audio.
- Audio Delay for game mode can be set when "Video Mode" is set to "Auto" or "Game". (1 p. 193)
- "Audio Delay" settings are stored for each input source.
■ Auto Lip Sync
Automatically adjusts the audio processing time to compensate for delays in audio/video timing from TV compatible with Auto Lip Sync.
On
(Default):
Correct automatically.
Off: Do not correct automatically.
- Automatic correction may not be performed depending on the specifications of your TV even when "Auto Lip Sync" is set to "On".
Adjust
The timing mismatch between the picture and sound needs to be corrected manually.
0 ms - 500 ms (Default : 0 ms)
- You can also finely adjust the delay correction value set by "Auto Lip Sync".
- Adjust for game mode can be set when "Video Mode" is set to "Auto" or "Game". (197 p. 193)
Front panel D
Rear panel Re
Index
178
Volume
Set the MAIN ZONE (room where the unit is located) volume setting.
Scale
Set how volume is displayed.
| 0 - 98(Default): | Display in the range 0 (Min) to 98. |
| -79.5 dB - 18.0 dB: | Display ---dB (Min), in the range -79.5 dB to 18.0 dB. |
- "Scale" settings are reflected in all the zones.
Limit
Make a setting for maximum volume.
60 - 80 (-20 dB - 0 dB)
Off (Default)
- The dB value is displayed when the "Scale" setting is "-79.5 dB - 18.0 dB". (Kp. p. 179)
Power On Level
Define the volume setting that is active when the power is turned on.
| Last (Default): | Use the memorized setting from the last session. |
| Mute: | Always use the muting on condition when power is turned on. |
1 - 98 (-79 dB - 18 dB) : The volume is adjusted to the set level.
- The dB value is displayed when the "Scale" setting is "-79.5 dB - 18.0 dB". (p. 179)
Mute Level
Set the amount of attenuation when muting is on.
| Full(Default): | The sound is muted entirely. |
| -40 dB : The sound is attenuated by 40 dB down. | |
| -20 dB : The sound is attenuated by 20 dB down. | |
Front panel D
Rear panel Re
Index
179
Audyssey®
Set Audyssey MultEQ ^® XT32, Audyssey Dynamic EQ ^® , Audyssey Dynamic Volume ^® and Audyssey LFC ^™ . These can be selected after Audyssey ^® Setup has been performed.
For additional information on Audyssey technology, please see "Explanation of terms" (p. 292).
- "MultEQ® XT32", "Dynamic EQ", "Reference Level Offset", "Dynamic Volume", "Audyssey LFC™" and "Containment Amount" settings are stored for each input source.
- When the sound mode is in the "Direct" or "Pure Direct" mode, "MultEQ® XT32", "Dynamic EQ", "Dynamic Volume" and "Audyssey LFC™" settings cannot be configured.
- When the sound mode is in "DTS Virtual:X" or sound mode that have "+Virtual:X" in the sound mode name, "Dynamic EQ", "Dynamic Volume" and "Audyssey LFC™" settings cannot be configured.
- This item cannot be selected when a DTS:X format with a sampling frequency of over 48 kHz is input.
- "MultEQ® XT32", "Dynamic EQ", "Dynamic Volume" and "Audyssey LFC™" cannot be selected when a DTS:X format with a sampling frequency of over 48 kHz is input.
■ MultEQ® XT32
MultEQ ^® XT32 compensates for both time and frequency characteristics of the listening area based on Audyssey ^® Setup measurement results. Selection is done from three types of compensation curves. We recommend the “Reference” setting.
| Reference (Default): | Selects the default calibrated setting with a slight roll off at high frequencies, which is optimized for movies. |
| L/R Bypass: | Selects the reference setting, but bypasses MultEQ® XT32 on the front left and right speakers. |
| Flat: | Selects the calibrated setting which is optimized for small rooms where your listening position is closer to the speakers. |
| Off: | Do not use “MultEQ® XT32”. |
- When using headphones, "MultEQ® XT32" is automatically set to "Off".
Front panel D
Rear panel Re
Index
180
Contents Connections Playback
Tips Appendix
■ Dynamic EQ
Solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics.
Works with MultEQ ^® XT32.
On
Use "Dynamic EQ".
(Default):
Off: Do not use "Dynamic EQ".
- When the menu "Dynamic EQ" setting is "On", it is not possible to do "Tone" adjustment. (127 p. 127)
- This item cannot be set when "MultEQ® XT32" in the menu is set to "Off".
■ Reference Level Offset
Audyssey Dynamic EQ ^® is referenced to the standard film mix level. It makes adjustments to maintain the reference response and surround envelopment when the volume is turned down from 0 dB. However, film reference level is not always used in music or other non-film content. Dynamic EQ Reference Level Offset provides three offsets from the film level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard. Recommended setting levels for content are shown below.
| 0 dB (Film Reference) (Default): | Optimized for content such as movies. |
| 5 dB : | Select this setting for content that has a very wide dynamic range, such as classical music. |
| 10 dB : | Select this setting for jazz or other music that has a wider dynamic range. This setting should also be selected for TV content as that is usually mixed at 10 dB below film reference. |
| 15 dB : | Select this setting for pop/rock music or other program material that is mixed at very high listening levels and has a compressed dynamic range. |
- Setting is enabled when "Dynamic EQ" is "On". (18) p. 181
Front panel D
Rear panel Re
Index
181
Contents Connections Playback
Tips Appendix
■ Dynamic Volume
Solves the problem of large variations in volume level between TV, movies and other content (between quiet passages and loud passages, etc.) by automatically adjusting to the user's preferred volume setting.
Works with MultEQ ^® XT32.
| Heavy: | Most adjustment to softest and loudest sounds. |
| Medium: | Medium adjustment to loudest and softest sound. |
| Light: | Least adjustment to loudest and softest sounds. |
| Off(Default): | Do not use “Dynamic Volume”. |
- If "Dynamic Volume" is set to "Yes" in "Audyssey® Setup", the setting is automatically changed to "Medium". (127 p. 204)
- This item cannot be set when "MultEQ® XT32" in the menu is set to "Off".
Audyssey LFC™
Adjusts the low frequency band to prevent bass and vibration from being conveyed to neighboring rooms.
Works with MultEQ ^® XT32.
On: Use "Audyssey LFC™".
Off
(Default):
Do not use "Audyssey LFC™".
- This item cannot be set when "MultEQ® XT32" in the menu is set to "Off".
■ Containment Amount
Adjusts the amount of low frequency containment. Use higher settings if you have close neighbors.
1 - 7 (Default : 4)
- This can be set when "Audyssey LFC™" in the menu is set to "On".
Front panel D
Rear panel Re
Index
182
Contents Connections Playback
Tips Appendix
Graphic EQ
Uses the graphic equalizer to adjust the tone of each speaker.
- Speakers for which "Graphic EQ" can be set differ according to the sound mode.
- This can be set when "MultEQ® XT32" setting is "Off". (p. 180)
- This cannot be set when the sound mode is set to "Direct" or "Pure Direct".
- If you are using headphones, you can set the equalizer for headphones. (187 p. 183)
■ Graphic EQ / Headphone EQ
Set whether to use the graphic equalizer or not.
| On: | Use the graphic equalizer. |
| Off(Default): | Do not use the graphic equalizer. |
- "Headphone EQ" is set in the menu when headphones are used.
■ Speaker Selection
Select whether to adjust tones for individual speakers or for all speakers.
All: Adjust all speaker tones together.
| Left/Right(Default): | Adjust the left and right speaker tones together. |
Each: Adjust the tone for each speaker.
■ Adjust EQ
Adjust tonal balance for each frequency band.
- Select the speaker.
- Select the adjustment frequency band. 63 Hz / 125 Hz / 250 Hz / 500 Hz / 1 kHz / 2 kHz / 4 kHz / 8 kHz / 16 kHz
- Adjust the level. -20.0 dB - +6.0 dB (Default: 0.0 dB)
- Front Dolby, Surround Dolby and Back Dolby speakers can only be set when 63 Hz/125 Hz/250 Hz/500 Hz/1 kHz.
Front panel D
Rear panel Re
Index
183
Contents Connections Playback
Tips Appendix
■ Curve Copy
Copy the Flat correction curve created in Audyssey ^® Setup.
- "Curve Copy" is displayed after Audyssey® Setup has been performed.
- "Curve Copy" cannot be used when using headphones.
Set Defaults
The "Graphic EQ" settings are returned to the default settings.
Front panel D
Rear panel Re
Index
184
Video
Make video-related settings.
Picture Adjust
Picture quality can be adjusted.
- This can be set when "HDMI" is assigned for each input source. (10 p. 201)
- "Contrast", "Brightness", "Saturation", "Noise Reduction" and "Enhancer" can be set when "Picture Mode" is set to "Custom". (17 p. 185)
- "Picture Adjust" settings are stored for each input source.
- "Picture Adjust" cannot be set when 4K or 8K signals are input.
- This cannot be set when "Video Mode" is set to "Bypass" or "i/p Scaler" is set to "Off". (125 p. 193)
- "Picture Adjust" cannot be set when sound mode is set to "IMAX DTS" or "IMAX DTS:X".
Picture Mode
Select the desired picture mode according to the video content and your viewing environment.
| Standard: | The standard mode suited for most living room viewing environments. |
| Movie: | A mode suited for watching movies in a dark room such as a theater room. |
| Vivid: | A mode that makes graphic images for games, etc. brighter and more vivid. |
| Streaming: | A mode suited for low bit rate video sources. |
| ISF Day: | A mode suited for watching movies in a bright room during the day. |
| ISF Night: | A mode suited for watching movies in a dark room at night. |
| Custom: Adjusts the picture quality manually. | |
| Off(Default): | No picture quality adjustment is done with this unit. |
Front panel D
Rear panel Re
Index
185
Contents Connections Playback
Tips Appendix
- The two special adjustment modes, "ISF Day" and "ISF Night", should be used by a certified technician to adjust the color calibration to match the installation conditions.
We recommend that the settings and adjustments be carried out by an ISF-certified technician. - These settings can also be configured using "Picture Mode" in the option menu. (12 p. 185)
Contrast
Adjust picture contrast.
$$ - 5 0 - + 5 0 (\text { Default }: 0) $$
Brightness
Adjust picture brightness.
$$ - 5 0 - + 5 0 (\text { Default }: 0) $$
Saturation
Adjust picture chroma level (color saturation).
$$ - 5 0 - + 5 0 (\text { D e f a u l t }: 0) $$
Noise Reduction
Reduce overall video noise.
Low / Medium / High / Off (Default : Off)
■ Enhancer
Emphasize picture sharpness.
$$ 0 - + 1 2 (\text {Default:} 0) $$
Front panel D
Rear panel Re
Index
186
HDMI Setup
Make settings for HDMI Audio Out, HDMI Pass Through and HDMI Control settings.
NOTE
- When "HDMI Pass Through" and "HDMI Control" is set to "On", it consumes more standby power. ("HDMI Pass Through" (187), "HDMI Control" (189)) If you are not using this unit for an extended period, it is recommended that you unplug the power cord from the power outlet.
■ HDMI Audio Out
Select HDMI audio output device.
| AVR(Default): | Play back through speakers connected to the unit. |
| TV: | Play back through TV connected to the unit. |
- When the HDMI Control function is activated, priority is given to the TV audio setting. (r ^2 p. 147)
- When the power of this unit is on and "HDMI Audio Out" is set to "TV", audio is output as 2-channel from the HDMI OUT connector.
■ HDMI Pass Through
Selects how this unit will transmit HDMI signals to the HDMI output in standby power mode.
| On(Default): | Transmits the selected HDMI input through this unit's HDMI output when this unit is in standby power mode. |
| Off: | No HDMI signals are transmitted through this unit's HDMI output in standby power mode. |
Front panel D
Rear panel Re
Index
187
Contents Connections Playback
Tips Appendix
■ Pass Through Source
Sets the HDMI connector that inputs HDMI signals when in standby.
| Last: | The most recently used input source will go into standby mode. |
| CBL/SAT / DVD / Blu-ray / Media Player / Game / AUX / 8K / TV Audio / CD* (Default : CBL/SAT): | Pass through the selected input source. |
*“Pass Through Source” can be set when any of the HDMI connectors is assigned to “CD” for the input source in the “Input Assign” setting. (12) p. 200)
- "Pass Through Source" can be set when "HDMI Control" is set to "On" or "HDMI Pass Through" is set to "On". ("HDMI Pass Through" (p. 187), "HDMI Control" (p. 189))
■ RC Source Select
Set whether to allow this unit to be turned on by the input source select button on the remote control when this unit is on standby.
| Power On + Source (Default): | The power of this unit is turned on and the input source changes. |
| Source Select Only: | The HDMI input source changes while this unit is on standby. The power display of this unit blinks when the input source select button of the remote control is pressed. |
- "RC Source Select" can be set when "HDMI Control" is set to "On" or "HDMI Pass Through" is set to "On". ("HDMI Pass Through" (187, p. 187), "HDMI Control" (187, p. 189))
Front panel D
Rear panel Re
Index
188
Contents
Connections Playback
Tips Appendix
HDMI Control
You can link operations with devices connected to HDMI and compatible with HDMI Control.
On: Use HDMI Control function.
Off
(Default):
Do not use HDMI Control function.
- If using the HDMI Control function, connect a TV compatible with HDMI control to the HDMI MONITOR 1 connector.
- Please consult the operating instructions for each connected device to check the settings.
- Refer to "HDMI Control function" for more information about the HDMI Control function. (1-2 p. 147)
NOTE
- If the "HDMI Control" settings have been changed, always reset the power to connected devices after the change.
ARC
On the TV connected to the HDMI MONITOR 1 connector, set whether to receive sound from the TV via HDMI.
On: Use ARC function.
Off
(Default):
Do not use ARC function.
- You can adjust the volume of this unit using the TV remote control.
- If using this function, use a TV compatible with ARC (Audio Return Channel) and enable the HDMI Control function of the TV.
- When "HDMI Control" is set to "On", the "ARC" settings automatically switch "On". (125 p. 189)
NOTE
- If the "ARC" settings have been changed, always reset the power to connected devices after the change.
- Using an eARC function-compatible television enables audio playback from the speaker connected to this unit, regardless of "ARC" settings in the menu.
Front panel D
Rear panel Re
Index
189
Contents Connections Playback
Tips Appendix
TV Audio Switching
Sets automatic switching to the "TV Audio" input when a TV connected via HDMI sends an appropriate CEC control command to this unit.
| On(Default): | Select the “TV Audio” input automatically when receiving a command from the TV. |
| Off: | Do not select the “TV Audio” input automatically when receiving a command from the TV. |
- "TV Audio Switching" can be set when "HDMI Control" is set to "On". (189)
Power Off Control
Links the power standby of this unit to external devices.
| All(Default): | If power to a connected TV is turned off independently of the input source, power to this unit is automatically set to standby. |
| Video: | With an input source being selected that is assigned either “HDMI”, “COMP” or “VIDEO”, when you turn the power of the TV off, power to this unit is automatically set to standby. (ICP p. 201) |
Off: This unit does not link with power to a TV.
- "Power Off Control" can be set when "HDMI Control" is set to "On". (127 p. 189)
Front panel D
Rear panel Re
Index
190
Contents
Connections Playback
Tips Appendix
Power Saving
If "TV Speaker" is set as the audio output setting of your TV, this unit is automatically set to standby mode to reduce power consumption.
This function is activated in the following cases.
- When "TV Audio" is selected as the input source of this unit
- When playing content from a device connected by HDMI
On: Use Power Saving function.
Off
(Default):
Do not use Power Saving function.
- "Power Saving" can be set when "HDMI Control" is set to "On". (☐ p. 189)
Smart Menu
This function can be used to configure the settings of this unit, select an input source and set Tuner and Internet Radio stations using the TV remote control.
On: Use Smart Menu function.
Off: Do not use Smart Menu function.
- "Smart Menu" can be set when "HDMI Control" is set to "On". (图 189)
NOTE
- If the "Smart Menu" settings have been changed, always reset the power to connected devices after the change.
- The Smart Menu function may not work properly depending on the specifications of your TV. In this case, set "Smart Menu" to "Off".
Front panel D
Rear panel Re
Index
191
Output Settings
Makes settings for video output.
- This can be set when "HDMI" is assigned for each input source. (18 p. 201)
- “Resolution”, “Sharpness”, “Progressive Mode” and “Aspect Ratio” can be set when “i/p Scaler” is set to “On”. (“Resolution” (197 p. 194), “Sharpness” (197 p. 194), “Progressive Mode” (197 p. 195), “Aspect Ratio” (197 p. 195))
- "Output Settings" cannot be set when 4K or 8K signals are input.
- "Video Mode", "i/p Scaler", "Resolution", "Sharpness", "Progressive Mode" and "Aspect Ratio" cannot be set when sound mode is set to "IMAX DTS" or "IMAX DTS:X". ("Video Mode" (197 p. 193), "i/p Scaler" (197 p. 193), "Resolution" (197 p. 194), "Sharpness" (197 p. 194), "Progressive Mode" (197 p. 195), "Aspect Ratio" (197 p. 195))
- "Video Mode", "i/p Scaler", "Resolution", "Sharpness", "Progressive Mode" and "Aspect Ratio" settings are stored for each input source. ("Video Mode" (p. 193), "i/p Scaler" (p. 193), "Resolution" (p. 194), "Sharpness" (p. 194), "Progressive Mode" (p. 195), "Aspect Ratio" (p. 195))
■ HDMI Video Output
Select the HDMI monitor connector to be used.
| Auto(Dual)(Default): | The presence of a TV connected to the HDMI MONITOR 1 or HDMI MONITOR 2 connector is detected automatically, and that TV connection is used. |
| Monitor 1: | A TV connected to the HDMI MONITOR 1 connector is always used. |
| Monitor 2: | A TV connected to the HDMI MONITOR 2 connector is always used. |
- If both the HDMI MONITOR 1 and HDMI MONITOR 2 connectors are connected and "Resolution" is set to "Auto", the signals are output with a resolution that is compatible with both TVs. (☑ p. 194) When the "Resolution" setting in the menu is not set to "Auto", set the resolution in "Video" - "HDMI Monitor 1" and "HDMI Monitor 2" to one that is compatible with both TVs. (☑ p. 251)
- You can check which resolutions are compatible with your TV in "HDMI Monitor 1" and "HDMI Monitor 2". (1 p. 251)
- When connecting multiple Dolby Vision TVs, the signal will only be optimal for one TV. A TV connected to the HDMI MONITOR 1 connector has priority.
Front panel D
Rear panel Re
Index
192
Contents
Connections Playback
Tips Appendix
Video Mode
Configure the video processing method to match the type of video content.
| Auto(Default): | Process video automatically based on the HDMI content information. |
| Game: | Always process video for game content.Minimize the video delay when the video is delayed compared to the button operations on the controller of the game console. |
| Movie: | Perform image processing that is suitable for contents other than games. |
| Bypass: | Remove all video processing from the HDMI video path. |
- If "Video Mode" is set to "Auto", the mode is switched according to the input contents.
- Information displays such as the volume bar cannot be overlaid with the video signal when "Video Mode" is set to "Bypass".
- This item can be set when "HDMI" is assigned for each input source.
■ i/p Scaler
Set the video input signal to be subjected to i/p Scaler processing. i/p Scaler will convert the resolution of the input video signal to the value set in "Resolution". (194)
On: Use i/p Scaler function.
Off: Do not use i/p Scaler function.
- This item can be set when "HDMI" is assigned for each input source.
- This item can be set when "Video Mode" is set to anything other than "Bypass". (195 p. 193)
- This function is not effective when the input signal is "x.v.Color", 3D, sYCC601 color, Adobe RGB color, Adobe YCC601 color or computer resolutions.
Front panel D
Rear panel Re
Index
193
Contents Connections Playback
Tips Appendix
Resolution
Set the output resolution.
| Auto(Default): | The resolution supported by the TV connected to the HDMI MONITOR OUT connector is detected automatically and the appropriate output resolution is set. |
| 480p/576p / 1080i / 720p / 1080p / 4K / 8K : | Set the output resolution. |
- This item can be set when "i/p Scaler" is set to "On". (1) p. 193
Sharpness
Enables the sharpness feature which enhances the edges of images when up-scaling video to 4K or 8K.
| On: | Enables the video enhancer sharpness feature to provide image edge contouring which is optimized for converting lower resolution standard definition video to 4K or 8K. |
| Off (Default): | Disables the video enhancer sharpness feature. |
- This item can be set when "i/p Scaler" is set to "On". (p. 193)
- We recommend using this sharpness feature only when your TV sharpness is set to 0.
Front panel D
Rear panel Re
Index
194
Contents Connections Playback
Tips Appendix
■ Progressive Mode
Set an appropriate progressive conversion mode for the source video signal.
| Auto(Default): | The video signal is automatically detected and the appropriate mode is set. |
| Video: Select mode suitable for video playback. | |
| Video and Film: | Select mode suitable for video and 30-frame film material playback. |
- This item can be set when "i/p Scaler" is set to "On". (1 p. 193)
■ Aspect Ratio
Set the aspect ratio for the video signals output to the HDMI.
| 16:9(Default): | Output at 16:9 aspect ratio. |
| 4:3 : | Output at 4:3 aspect ratio with black bars on the sides of a 16:9 TV screen. (except for 480p/576p output) |
- This item can be set when "i/p Scaler" is set to "On". (p. 193)
Front panel D
Rear panel Re
Index
195
Contents Connections Playback
Tips Appendix
On Screen Display
Select the on-screen display user interface preferences.
Volume
Sets where to display the volume level.
Bottom
(Default):
Display at the bottom.
Top: Display at the top.
Off: Turn display off.
- When the master volume display is hard to see when superimposed text (closed captioning) or movie subtitles are present, set to "Top".
Info
Displays status of operation temporarily when the input source is switched.
On
(Default):
Turn display on.
Off: Turn display off.
Front panel D
Rear panel Re
Index
196
Now Playing
Sets the display time for the playback display when the input source is "HEOS Music" or "Tuner".
| Always On (Default): | Show display continuously. |
| Auto Off: | Show display for 30 seconds after operation. |
Contents Connections Playback
Tips Appendix
Screen Saver
Select the screen saver setting.
A screen saver is activated if no operation is performed for more than 5 minutes when no video signal is input or when the same screen (e.g. the setup menu) is displayed.
Use to clear the screen saver.
On: Turns screen saver on.
| Off(Default): | Turns screen saver off. |
- The screen saver is activated in the following cases.
- When the setup menu is displayed
- When no video signal is input
- When the network, USB, Bluetooth or Tuner playback screen is displayed
- This feature will be supported via firmware update.
4K/8K Signal Format
Set the format of 4K and 8K signal to be played back by this unit when the TV or playback device connected to this unit is HDMI 4K or 8K signal compatible.
■ 4K/8K Signal Format
Set the format of 4K and 8K signal played back by this unit.
| Standard: | Select if your TV and playback devices support 4K 60p 4:2:0 8 bit video signals. |
| Enhanced (Default): | Select if your TV, playback devices, and cables support high quality 4K 60p 4:4:4 8 bit, 4:2:2 or 4:2:0 10 bit video signals. |
| 8K Enhanced: | Select if your TV, playback devices, and cables support high quality 8K 60p or 4K 120p video signals. |
Front panel D
Rear panel Re
Index
197
Contents Connections Playback
Tips Appendix
【Relation between the "4K/8K Signal Format" setting and supported resolutions】
| Support Resolution | Color Space | Pixel Depth | 4K/8K Signal Format | ||
| Standard | Enhanced | 8K Enhanced | |||
| 4K 24p, 4K 30p, 4K 25p | RGB / YCbCr 4:4:4 | 8 bit | √ √ | √ | |
| 10,12 bit - | √ | √ | |||
| YCbCr 4:2:2 1 | 2 bit | √ √ | √ | ||
| 4K 60p, 4K 50p | YCbCr 4:2:0 | 8 bit | √ √ | √ | |
| 10,12 bit - | √ | √ | |||
| RGB / YCbCr 4:4:4 | 8 bit - | √ | √ | ||
| 10,12 bit - | √ | ||||
| YCbCr 4:2:2 1 | 2 bit - | √ | √ | ||
| 4K 120p, 4K 100p | YCbCr 4:2:0 | 8,10,12 bit | - | - | √ |
| RGB / YCbCr 4:4:4 | 8,10 bit - | √ | |||
| YCbCr 4:2:2 1 | 2 bit -- | √ | |||
| 8K 24p, 8K 30p, 8K 25p | YCbCr 4:2:0 | 8,10,12 bit | - | - | √ |
| RGB / YCbCr 4:4:4 | 8,10 bit - | √ | |||
| YCbCr 4:2:2 1 | 2 bit -- | √ | |||
| 8K 60p, 8K 50p | YCbCr 4:2:0 8 | 10 bit -- | √ | ||
- When setting this to "Enhanced", we recommend using a "Premium High Speed HDMI Cable" or "Premium High Speed HDMI Cable with Ethernet" that has an "HDMI Premium Certified Cable" label attached to the product package.
- When setting this to "8K Enhanced", we recommend using an "Ultra High Speed 48 Gbps HDMI cable".
- When this setting is "Enhanced" or "8K Enhanced", configure the television or playback device settings to match this setting.
- When this setting is "Enhanced" or "8K Enhanced", video may not be output correctly depending on the connected playback device or HDMI cable. In this case, change this setting to "Standard".
- "Custom" is displayed for the setting item if our service engineers or custom installers has configured the HDMI signal format for this unit.
- "4K/8K Signal Format" can also be set by the following procedure. However, the menu screen is not displayed. Watch the display while configuring the setting.
- Press and hold the main unit's ZONE2 SOURCE and STATUS at the same time for at least 3 seconds.
"V.Format:" appears on the display. - Press the main unit's DIMMER.
"4K/8K:" appears on the display. - Use the main unit's TUNER PRESET CH + or TUNER PRESET CH - and select the 4K/8K Signal Format.
- Press the main unit's STATUS to complete the setting.
Front panel D
Rear panel Re
In
198
Contents Connections Playback
Tips Appendix
HDCP Setup
Sets the HDCP version for each HDMI input source.
Video may not be output depending on the HDCP version of your player and the TV.
If this issue occurs, use this setting to set one version of HDCP. This may be able to output video.
| Auto(Default): | Automatically applies the HDCP version of this unit according to TV. |
1.4: Fixes the HDCP version of this unit to 1.4.
2.3: Fixes the HDCP version of this unit to 2.3.
- "Custom" is displayed for the setting item if our service engineers or custom installers has configured the HDCP version for this unit.
TV Format
Set the video signal format to be output for the TV you are using.
Format
NTSC
Select NTSC output.
(Default):
PAL: Select PAL output.
- "Format" can also be set by the following procedure. However, the menu screen is not displayed. Following the display content to make the setting.
- Press and hold the main unit's ZONE2 SOURCE and STATUS at the same time for at least 3 seconds.
"V.Format:
" appears on the display. - Use the main unit's TUNER PRESET CH + or TUNER PRESET CH - and set the video signal format.
- Press the main unit's STATUS to complete the setting.
NOTE
- When a format other than the video format of the connected TV is set, the picture will not be displayed properly.
Front panel D
Rear panel Re
Index
199
Contents
Connections
Playback
Settings
Tips
Appendix
Inputs
Perform settings related to input source playback.
You do not have to change the settings to use the unit. Make settings when needed.
Input Assign
By making connections as indicated by the input sources printed on the audio/video input connectors of this unit, you can just press one of the input source select buttons to easily play back audio or video from a connected device.
Please change the assignment of the HDMI input connector, digital audio input connector, analog audio input connector, component video input connector and video input connector when connecting an input source that differs from that printed to the audio/video input connectors of this unit.
Sets the audio input mode for each "INPUT MODE" source. "AUTO" is normally recommended for this setting. This automatically detects and plays signal input to this unit prioritized in the following order: HDMI > DIGITAL > ANALOG.
- By default, each item is set as follows.
| Input source | Input connector | INPUT MODE | |||
| HDMI DIGITAL | ANALOG | VIDEO | |||
| CBL/SAT 1 COA | X1 1 VIDEO | 1 AUTO | |||
| DVD 2 COAX2 2 | COMP1 AUTO | ||||
| Blu-ray 3 | - | 3 VIDEO2 AUTO | |||
| Media Player | 4 | OPT2 | - COMP2 AUTO | ||
| Game | 5 | - | 4 VIDEO3 AUTO | ||
| AUX | 6 | - | - | - | HDMI |
| 8K | 7(8K) | - | - | - | HDMI |
| TV Audio | - | OPT1 | - | - | DIGITAL |
| CD | - | - | 5 | - | ANALOG |
Front panel
Display
Rear panel
200
Remote
Index
Contents Connections Playback
Tips Appendix
☐ TV set top box/satellite users please note
When using the digital audio output on a TV/satellite box: To play the video signal assigned to "HDMI" combined with the audio signal assigned at "Input Assign" - "DIGITAL", you will also need to select "DIGITAL" in the "INPUT MODE".
- The same input connector can be assigned to multiple input sources. For example, assign the same HDMI input connector to multiple sources to use each input source in combination with analog or digital audio as you prefer. In such cases, set the audio connector for playback in "INPUT MODE".
HDMI
Set this to change the HDMI input connectors assigned to the input sources.
| 1 / 2 / 3 / 4 / 5 / 6 / 7(8K): | Assign an HDMI input connector to the selected input source. |
| - : | Do not assign an HDMI input connector to the selected input source. |
- Only "HDMI7" can be assigned to the "8K" input source.
- When "HDMI Control" or "ARC" is set to "On" in the menu, "HDMI" cannot be assigned to "TV Audio". ("HDMI Control" (1 p. 189), "ARC" (1 p. 189))
- The eARC function does not operate when "HDMI" is set as the "TV Audio" input source.
DIGITAL
Set this to change the digital audio input connectors assigned to the input sources.
| COAX1 (Coaxial) / COAX2 / OPT1 (Optical) / OPT2: | Assign a digital audio input connector to the selected input source. |
| - : | Do not assign a digital audio input connector to the selected input source. |
ANALOG
Set this to change the analog audio input connectors assigned to the input sources.
| 1/2/3/4/5: | Assign a analog audio input connector to the selected input source. |
| -: | Do not assign a analog audio input connector to the selected input source. |
VIDEO
Set this to change the component video input connectors and composite video input connectors assigned to the input sources.
| COMP1 (Component video) / COMP2 /VIDEO1 / VIDEO2 /VIDEO3: | Assign the video input connector to the selected input source. |
| - : | Do not assign a video input connector to the selected input source. |
Front panel D
Rear panel Re
Index
201
Contents Connections Playback
Tips Appendix
■ INPUT MODE
Set the audio input modes for each input source.
It is normally recommended to set the audio input mode to "AUTO".
| AUTO(Default): | Automatically detect input signal and perform playback. |
HDMI: Play only signals from HDMI input.
DIGITAL: Play only signals from digital audio input.
ANALOG: Play only signals from analog audio input.
- When digital signals are properly input, the DIG. indicator lights on the display. If the DIG. indicator does not light, check "Input Assign" and the connections. (127 p. 200)
- If "HDMI Control" is set to "On" and a TV compatible with the ARC is connected via the HDMI MONITOR 1 connectors, the input mode whose input source is "TV Audio" is fixed to ARC.
- When an eARC function-compatible television is connected to the HDMI MONITOR 1 connector, the input mode whose input source is "TV Audio" is fixed to eARC.
Set Defaults
The "Input Assign" settings are returned to the default settings.
Front panel D
Rear panel Re
Index
202
Contents Connections Playback
Tips Appendix
Source Rename
- Changes the display name of the input source. Once changed, the name is displayed on the display and menu screens of this unit.
- If the device name can be acquired from a connected HDMI device, the display name is changed automatically.
Use this function to change names as needed when the device you are using differs from the input source on this unit.
| CBL/SAT / DVD / Blu-ray / Media Player / Game / AUX / 8K / TV Audio / CD / Phono: | Change the display name for input source. |
| Set Defaults: | The “Source Rename” settings are returned to the default settings. |
- Up to 16 characters can be input.
Hide Sources
Remove from the display input sources that are not used.
Show
Use this source.
(Default):
Hide: Do not use this source.
Source Level
This function corrects the playback level of the selected input source's audio input.
Make this setting if there are differences in the input volume levels between the different sources.
-12 dB - +12 dB (Default : 0 dB)
- "Source Level" settings are stored for each input source.
Front panel D
Rear panel Re
Index
203
Contents
Connections Playback
Tips Appendix
Speakers
The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. This is called "Audyssey® Setup".
You do not have to perform Audyssey ^® Setup when you have already performed “Speaker Calibration” in “Setup Assistant”.
To set up the speakers manually, use "Manual Setup" on the menu. (☐ p. 215)
Audyssey® Setup

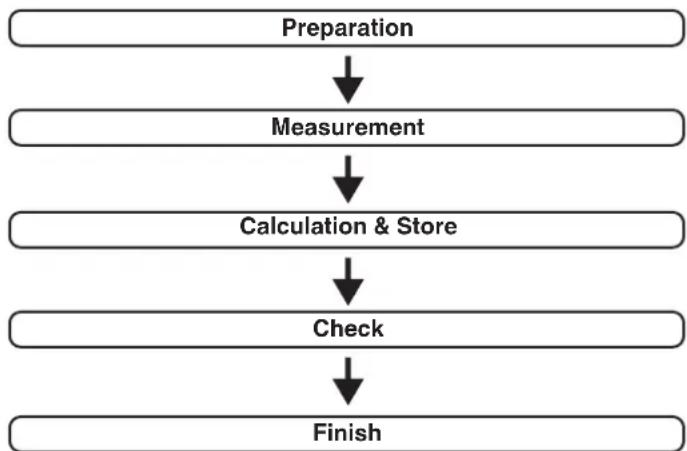

To perform measurement, place the Sound calibration microphone in multiple locations all around the listening area. For best results, we recommend you measure in six or more positions, as shown in the illustration (up to eight positions).
When measuring the second and subsequent positions, install the Sound calibration microphone within 2 ft (60 cm) of the first measurement position (main listening position).
- If you perform Audyssey® Setup, Audyssey MultEQ® XT32, Audyssey Dynamic EQ®, Audyssey Dynamic Volume® and Audyssey LFC™ functions are enabled. (EPT p. 180)

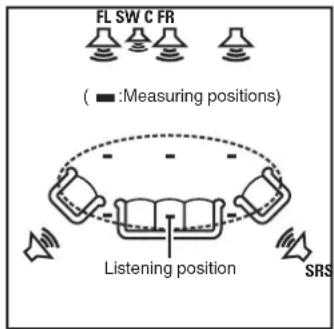

FL Front speaker (L)
FR Front speaker (R)
C Center speaker
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)
Front panel D
Rear panel Re
Index
204
Contents
Connections Playback
Tips Appendix
■ About the main listening position
The main listening position is the position where listeners would normally sit or where one would normally sit alone within the listening environment. Before starting Audyssey® Setup, place the Sound calibration microphone in the main listening position.
Audyssey MultEQ ^® XT32 uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.
■ About Audyssey Sub EQ HT™
Audyssey Sub EQ HT ^™ makes the integration of dual subwoofers seamless by first compensating for any level and delay differences between the two subwoofers and then applying Audyssey MultEQ ^® XT32 to both subwoofers together.
To run Audyssey Sub EQ HT™ you must select "Measure (2 spkrs)" in "Channel Select". (p. 207).
NOTE
- Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows and turn off the power on electronic devices (radios, air conditioners, fluorescent lights, etc.). The measurements could be affected by the sounds emitted by such devices.
- During the measurement process, place cell phones outside the listening room. Cell phone signals could disrupt the measurements.
- Do not stand between the speakers and Sound calibration microphone or allow obstacles in the path while the measurements are being made. Also, install the Sound calibration microphone at least 20 inches (50 cm) away from the wall. Failure to do so will result in inaccurate readings.
- During the measurement process, audible test tones will come from the speakers and subwoofer(s), but this is part of normal operation. If there is background noise in the room, these test signals will increase in volume.
- Operating VOLUME ▲▼ on the remote control unit or MASTER VOLUME on the main unit during the measurements will cancel the measurements.
- Measurement cannot be performed when headphones are connected. Unplug the headphones before performing Audyssey® Setup.
Front panel D
Rear panel Re
Index
205
Contents Connections Playback
Tips Appendix
Procedure for speaker settings (Audyssey® Setup)
1 Attach the Sound calibration microphone to the supplied microphone stand or own tripod and install it at the main listening position.
When installing the Sound calibration microphone, point the tip of the microphone toward the ceiling and adjust the height to match the height of the ears of a listener in a seated position.
2 If using a subwoofer capable of the following adjustments, set up the subwoofer as shown below.
☐ When using a subwoofer with a direct mode
Set the direct mode to "On" and disable the volume adjustment and crossover frequency setting.
☐ When using a subwoofer without a direct mode
Make the following settings:
• Volume : 12 o'clock position
• Crossover frequency : Maximum/Highest Frequency
- Low pass filter : Off
- Standby mode : Off
Front panel D
Rear panel Re
Index
206
Contents Connections Playback
Tips Appendix
3 Connect the Sound calibration microphone to the SETUP MIC jack of this unit.
When the Sound calibration microphone is connected, the following screen is displayed.
4 Select "Start", then press ENTER.
Audyssey ^® Setup can also make the following settings.
- Amp Assign
The signals output from the HEIGHT1 and HEIGHT2 speaker terminals can be switched in accordance with your speaker environment. ("Amp Assign" (125 p. 215))
- Channel Select
If channels that are not to be used are set in advance, measurement for the set channels is skipped, and measuring time can be reduced. You can also change the number of surround back speakers and subwoofer.
- Dolby Speaker Setup
Set the distance between the Dolby Atmos Enabled speaker and the ceiling.
This can be set when using the Front Dolby Atmos Enabled, Surround Dolby Atmos Enabled or Back Dolby Atmos Enabled speaker.
5 Follow the instructions on the screen display and press "Next" to proceed further.
Front panel D
Rear panel Re
Index
207
Contents Connections Playback
Tips Appendix
6 When the following screen is displayed, select "Begin Test" and then press ENTER.
Start the measurement of the first position.
• Measurement requires several minutes.
NOTE
- If "Caution!" is displayed on TV screen:
- Go to "Error messages" (p. 212). Check any related items, and perform the necessary procedures.
- If the volume level for the subwoofer is not appropriate, an error message is displayed. See "Subwoofer level error message and how to adjust" (tF p. 213).
7 When the detected speaker is displayed, select "Next" and then press ENTER.
Front panel D
Rear panel Re
Index
208
Contents Connections Playback
Tips Appendix
8 Move the Sound calibration microphone to position 2, select "Continue", then press ENTER.
The measurement of the second position starts.
Measurements can be made in up to eight positions.
□ Stopping Audyssey® Setup
① Press BACK to display the popup screen.
② Press ◀ to select "Yes", then press ENTER.
9 Repeat step 8, measuring positions 3 to 8.
- To skip measuring the fourth and subsequent listening position, press ◀ to select "Complete" and press ENTER to proceed to step 11.

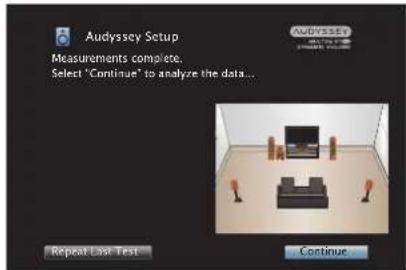

10 Select "Continue", then press ENTER.
Start the analysis and storage of the measurement results.
- Analysis takes several minutes to complete. The more speakers and measurement positions that there are, the more time it takes to perform the analysis.
NOTE
- When the measurement results are being saved, make sure the power is not turned off.
Front panel D
Rear panel Re
Index
209
Contents Connections Playback
Tips Appendix
11 Perform the settings for Audyssey Dynamic EQ ^® and Audyssey Dynamic Volume ^® .
The following screen is displayed during the analysis. Configure the settings as preferred.
- Dynamic EQ corrects the frequency response in consideration of the audio characteristics of the room and human hearing ability so that sound can be heard even at low volume.
This is recommended when using the unit with the volume turned down, e.g. when enjoying a movie or TV program in the middle of the night. - Dynamic Volume adjusts the output volume to the optimal level while constantly monitoring the level of the audio input to the unit. Optimal volume control is performed automatically without any loss in the dynamism and clarity of the sound when, for example, the volume suddenly increases for commercials shown during television programs.
12 When the analysis and storage ends, unplug the Sound calibration microphone from the SETUP MIC jack on the main unit and then press "Next".
Front panel D
Rear panel Re
Index
210
Contents
Connections Playback
Tips Appendix
- When performing Audyssey® Setup for the first time, the measurement data is automatically saved to "Preset 1" of "Speaker Preset".
- If Audyssey® Setup has already been performed, the following "Speaker Preset" selection screen is displayed.
- See "Speaker Preset" for detailed information on the Speaker Preset function. (1 p. 230)
13 Select "Details" and press ENTER to verify the measurement results.
- Subwoofers may measure a greater reported distance than the actual distance due to added electrical delay common in subwoofers.
NOTE
- Do not enable new speakers in speaker configuration menu after Audyssey® Setup. If it is changed, run Audyssey® Setup again in order to configure the optimum equalizer settings.
Front panel D
Rear panel Re
Index
211
Contents Connections Playback
Tips Appendix
Error messages
An error message is displayed if Audyssey® Setup could not be completed due to speaker placement, the measurement environment, etc. If an error message is displayed, check the relevant items and perform the necessary measures. Be sure to turn off the power before checking speaker connections.
| Examples Error details | Measures | |
| No speakers found. | Sound calibration microphone is not detected.Not all speakers could be detected. | Connect the included Sound calibration microphone to the SETUP MIC jack of this unit.Check the speaker connections. |
| Ambient noise is too high or level is too low | There is too much noise in the room.Speaker or subwoofer sound is too low. | Either turn off any device generating noise or move it away.Perform again when the surroundings are quieter.Check the speaker installation and the direction in which the speakers are facing.Adjust the subwoofer's volume. |
| Front R : None | The displayed speaker could not be detected. | Check the connections of the displayed speaker. |
| Front R : Phase | The displayed speaker is connected with the polarity reversed. | Check the polarity of the displayed speaker.For some speakers, this error message may be displayed even if the speaker is properly connected. If you are sure the connection is correct, press to select “Ignore”, then press ENTER. |
Front panel D
Rear panel Re
Index
212
Contents Connections Playback
Tips Appendix
■ Subwoofer level error message and how to adjust
The optimal level of each subwoofer channel for Audyssey® Setup measurement is 75 dB.
During subwoofer level measurement, an error message is displayed when one level of subwoofers is outside the 72 - 78 dB range.
When using a subwoofer with built-in amplifier (active type), adjust the subwoofer volume so that the subwoofer level is within the 72 to 78 dB range.
[Error message]
1 Select "SW Level Matching" and then press ENTER.
2 Adjust the volume control on your subwoofer so that the measured level is within the 72 to 78 dB range.
3 When the measured level is within the 72 to 78 dB range, select "Next" and then press ENTER.
- If you use two subwoofers, the second subwoofer's adjustment will be started. Repeat the operation from step 2, 3.
Front panel D
Rear panel Re
Index
213
Contents
Connections Playback
Tips Appendix
Retrieving Audyssey® Setup settings
If you set "Restore..." to "Restore", you can return to Audyssey® Setup measurement result (value calculated at the start by MultEQ® XT32) even when you have changed each setting manually.
Front panel D
Rear panel Re
Index
214
Contents Connections Playback
Tips Appendix
Manual Setup
Perform when setting the speakers manually or when changing settings made in Audyssey® Setup.
- If you enable new speakers in the speaker configuration menu after performing Audyssey® Setup, you will no longer be able to select Audyssey MultEQ® XT32, Audyssey Dynamic EQ® or Audyssey Dynamic Volume®. (p. 180)
- Changing the following settings: Speaker size (Large or Small) / Distances / Levels / Crossovers settings will not disable Audyssey® or require running Audyssey® Setup again.
- "Manual Setup" can be used without changing the settings. Please set if necessary.
Amp Assign
Select the power amplifier usage method to match your speaker system.
Assign Mode
Select how to use the power amp.
You need to configure the detailed settings for the speaker configuration in accordance with the selected mode. Select Assign Mode configure the corresponding detailed settings.
11.1ch:
- Setting to use the 9-channel power amplifier in this unit and an external power amplifier connected to PRE OUT to play back up to 11.1-channels.
- You can connect speakers for up to 11.1-channels for MAIN ZONE.
Front panel D
y Rear panel Re
Index
215
Contents Connections Playback
Tips Appendix
| 9.1ch: | Settings to assign all power amplifier within this unit to MAIN ZONE to play back up to 9.1-channels.You can connect speakers for up to 11.1-channels for MAIN ZONE.Speakers to output audio are automatically switched for playing back up to 9.1-channels in accordance with the input signal and sound mode. | 7.1ch (Bi-Amp): | Setting to assign the power amplifiers in this unit for front speaker bi-amp connection to 2-channels.You can connect speakers for up to 9.1-channels for MAIN ZONE.Speakers to output audio are automatically switched for playing back up to 7.1-channels in accordance with the input signal and sound mode. |
| 7.1ch + ZONE2(Default): | Setting to assign the power amplifiers in this unit for ZONE2 to 2-channels.You can connect speakers for up to 9.1-channels for MAIN ZONE.Speakers to output audio are automatically switched for playing back up to 7.1-channels in accordance with the input signal and sound mode. | 5.1ch (Bi-Amp) + ZONE2: | Setting to assign the power amplifiers in this unit for front speaker bi-amp connection to 2-channels.Setting to assign the power amplifiers in this unit for ZONE2 to 2-channels. |
Front panel D
Rear panel Re
Index
216
Contents Connections Playback
Tips Appendix
| 7.1ch + Front B: | Setting to assign the power amplifiers within this unit for connecting the second set of front speakers.You can switch between the desired combination of front speakers A and front speakers B.Switch the front speaker using the “Front Speaker” setting. (p. 230)You can connect speakers for up to 9.1-channels for MAIN ZONE.Speakers to output audio are automatically switched for playing back up to 7.1-channels in accordance with the input signal and sound mode. |
| Pre Amplifier: | All of the speakers are connected using an external power amplifier and this unit is used as an integrated amplifier. |
- When "Assign Mode" is set to "7.1ch + ZONE2", "7.1ch (Bi-Amp)" or "7.1ch + Front B" in the menu, the assigned channels are output from HEIGHT2 speaker terminals.
- When Assign Mode is set to "5.1ch (Bi-Amp) + ZONE2" in the menu, the front channels for Bi-Amp connection are output from HEIGHT1 speaker terminals, and the ZONE2 channels are output from HEIGHT2 speaker terminals.
Floor
Select the floor speakers location.
| 5ch & SB(Default): | This layout combines a surround back speaker with the basic 5-channel layout. |
| 5ch: | This is a basic 5-channel layout that uses front speakers, center speakers and surround speakers. |
Front panel D
Rear panel Re
Index
217
Contents Connections Playback
Tips Appendix
Height
Height Sp
Select the number of the height speakers and ceiling speakers used in MAIN ZONE.
None: Uses no height and ceiling speakers.
| 2ch(Default): | Uses a set of (two) height speakers or ceiling speakers. |
| 4ch: | Uses two sets of (four) height speakers or ceiling speakers. |
□ Dolby Sp
Select the number of the Dolby Atmos Enabled speakers used in MAIN ZONE.
| None (Default): | Uses no Dolby Atmos Enabled speakers. |
| 2ch: | Uses a set of (two) Dolby Atmos Enabled speakers. |
| 4ch: | Uses two sets of (four) Dolby Atmos Enabled speakers. |
Front panel D
Rear panel Re
Index
218
Contents
Connections
Playback
Settings
Tips
Appendix
Layout
Select the height, ceiling, or Dolby Atmos Enabled speaker location.
The layouts that can be selected differ depending on the combinations of "Assign Mode" and "Floor" in the menu. ("Assign Mode" (p. 215), "Floor" (p. 217))
| Settings AUDIO OUT connectors | |||||
| Height Sp Dolby | Sp NOTE Layout HEIGHT 1 HEIGHT 2 | ||||
| None None - - | |||||
| 2ch None | Front Height (Default) Front Height - | ||||
| Top Front Top Front - | |||||
| Top Middle Top Middle | - | ||||
| Top Rear | Top Rear | - | |||
| Rear Height | Rear Height | - | |||
| 4ch None | *1 | Front Height & Top Middle | Front Height | Top Middle | |
| Front Height & Top Rear | Front Height | Top Rear | |||
| Front Height & Rear Height | Front Height | Rear Height | |||
| Top Front & Top Rear Top Front | Top Rear | ||||
| Top Front & Rear Height Top Front | Rear Height | ||||
| Top Middle & Rear Height | Top Middle | Rear Height | |||
| None 2ch | Front Dolby | Front Dolby | - | ||
| Surround Dolby Surround Dolby | - | ||||
| Back Dolby*2 | Back Dolby | - | |||
*1 This can be selected when "Assign Mode" is set to "11.1ch" or "9.1ch" in the menu.
*2 This can be selected when "Assign Mode" is set to "11.1ch" and "Floor" is set to "5ch & SB" in the menu.
Front panel
Display
Rear panel
219
Remote
Index
Contents
Connections
Playback
Settings
Tips
Appendix
| Settings AUDIO OUT connectors | |||||
| Height Sp Dolby | Sp NOTE Layout HEIGHT 1 HEIGHT 2 | ||||
| 2ch 2ch | *1 | Front Dolby & Top Rear Front Dolby Top Rear | |||
| Front Dolby & Rear Height Front Dolby Rear Height | |||||
| Front Height & Surr. Dolby Front Height Surround Dolby | |||||
| Front Height & Back Dolby*3 | Front Height Back | Dolby | |||
| Top Front & Surr. Dolby Top Front | Surround Dolby | ||||
| Top Front & Back Dolby *3 | Top Front Back Dolby | ||||
| None 4ch | *1 | Front Dolby & Surr. Dolby | Front Dolby | Surround Dolby | |
| Front Dolby & Back Dolby*3 | Front Dolby | Back Dolby | |||
*1 This can be selected when "Assign Mode" is set to "11.1ch" or "9.1ch" in the menu.
*3 This can be selected when "Assign Mode" is set to "11.1ch" and "Floor" is set to "5ch & SB" in the menu.
Front panel
Display
Rear panel
220
Remote
Index
Contents Connections Playback
Tips Appendix
■ Pre-out
When "Assign Mode" is set to "11.1ch", selects the PRE OUT connector the external power amplifier used in MAIN ZONE.
The PRE OUT connectors that can be selected differ depending on the combination of "Floor" and "Height" - "Layout" settings configured in the menu.
■ View Terminal Config.
This shows how to connect the speaker terminals and PRE OUT connectors for your "Amp Assign" setting on the menu screen.
Speaker Config.
Select whether or not speakers are present, playback capacity for low bass frequencies and speaker size.
- When speakers for which you assigned Height1 in "Amp Assign" are set to "None", "None" is automatically set for Height2.
Front
Set the front speaker size.
| Large (Default): | Use a large speaker that can adequately play back very low bass frequencies. |
| Small: | Use a small speaker that has inadequate playback capacity for very low bass frequencies. |
- When "Subwoofer" is set to "No", "Front" is automatically set to "Large".
- When "Front" is set to "Small", you cannot set speakers other than "Front" to "Large".
Front panel D
Rear panel Re
Index
221
Contents Connections Playback
Tips Appendix
Center
Set the presence and size of the center speaker.
| Large: | Use a large speaker that can adequately play back very low bass frequencies. |
| Small(Default): | Use a small speaker that has inadequate playback capacity for very low bass frequencies. |
| None: | Select when a center speaker is not connected. |
Subwoofer
Set the presence of a subwoofer.
| 2 spkrs: | Use two subwoofers. |
| 1 spkr(Default): | Use only one subwoofer. |
| None: | Select when a subwoofer is not connected. |
- When "Subwoofer" is set to "None" and you set "Front" to "Small", "Subwoofer" is automatically set to "1 spkr".
■ Surround
Set the presence and size of the surround speakers.
| Large: | Use a large speaker that can adequately play back very low bass frequencies. |
| Small (Default): | Use a small speaker that has inadequate playback capacity for very low bass frequencies. |
| None: | Select when the surround speakers are not connected. |
- When "Surround" is set to "None", "Surr. Back", "Surround Dolby" and "Back Dolby" are automatically set to "None".
Front panel D
Rear panel Re
Index
222
Contents Connections Playback
Tips Appendix
■ Surr. Back
Set the presence, size and number of surround back speakers.
| Large: | Use a large speaker that can adequately play back very low bass frequencies. |
| Small(Default): | Use a small speaker that has inadequate playback capacity for very low bass frequencies. |
| None: | Select when the surround back speakers are not connected. |
| 2 spkrs(Default): | Use two surround back speakers. |
| 1 spkr: | Use only one surround back speaker. Connect to the L terminal to SURROUND BACK when this setting is selected. |
- When "Surr. Back" is set to "None" or "1 spkr", "Back Dolby" is automatically set to "None".
Front Height
Set the presence and size of the front height speakers.
| Large: | Use a large speaker that can adequately play back very low bass frequencies. |
| Small (Default): | Use a small speaker that has inadequate playback capacity for very low bass frequencies. |
| None: | Select when the front height speakers are not connected. |
Top Front
Set the presence and size of the top front speakers.
| Large: | Use a large speaker that can adequately play back very low bass frequencies. |
| Small (Default): | Use a small speaker that has inadequate playback capacity for very low bass frequencies. |
| None: | Select when the top front speakers are not connected. |
Front panel D
Rear panel Re
Index
223
Contents Connections Playback
Tips Appendix
Top Middle
Set the presence and size of the top middle speakers.
| Large: | Use a large speaker that can adequately play back very low bass frequencies. |
| Small(Default): | Use a small speaker that has inadequate playback capacity for very low bass frequencies. |
| None: | Select when the top middle speakers are not connected. |
Front Dolby
Set the presence and size of the front Dolby speakers.
| Large: | Use a large speaker that can adequately play back very low bass frequencies. |
| Small (Default): | Use a small speaker that has inadequate playback capacity for very low bass frequencies. |
| None: | Select when the front Dolby speakers are not connected. |
■ Surround Dolby
Set the presence and size of the surround Dolby speakers.
| Large: | Use a large speaker that can adequately play back very low bass frequencies. |
| Small (Default): | Use a small speaker that has inadequate playback capacity for very low bass frequencies. |
| None: | Select when the surround Dolby speakers are not connected. |
Top Rear
Set the presence and size of the top rear speakers.
| Large: | Use a large speaker that can adequately play back very low bass frequencies. |
| Small (Default): | Use a small speaker that has inadequate playback capacity for very low bass frequencies. |
| None: | Select when the top rear speakers are not connected. |
Front panel D
Rear panel Re
Index
224
Contents Connections Playback
Tips Appendix
Rear Height
Set the presence and size of the rear height speakers.
| Large: | Use a large speaker that can adequately play back very low bass frequencies. |
| Small(Default): | Use a small speaker that has inadequate playback capacity for very low bass frequencies. |
| None: | Select when the rear height speakers are not connected. |
■ Back Dolby
Set the presence and size of the back Dolby speakers.
| Large: | Use a large speaker that can adequately play back very low bass frequencies. |
| Small (Default): | Use a small speaker that has inadequate playback capacity for very low bass frequencies. |
| None: | Select when the back Dolby speakers are not connected. |
- When speakers for which you assigned Height1 in "Amp Assign" are set to "None", "None" is automatically set for Height2.
Distances
Set distance from listening position to speakers.
Measure beforehand the distance from the listening position to each speaker.
Unit
Set the unit of distance.
Feet (Default)
Meters
Step
Set the minimum variable width of the distance.
1 ft / 0.1 ft (Default: 1 ft)
0.1 m / 0.01 m
Front panel D
Rear panel Re
Index
225
Contents Connections Playback
Tips Appendix
■ Set the distance
0.0 ft - 60.0 ft / 0.00 m - 18.00 m
- The speakers that can be selected differ depending on the "Amp Assign" and "Speaker Config." settings. ("Amp Assign" (p. 215), "Speaker Config." (p. 221))
- Default settings: Front L / Front R / F. Height L / F. Height R / Center / Front Dolby L / Front Dolby R / Subwoofer 1 / Subwoofer 2: 12.0 ft (3.60 m) Speakers other than the above: 10.0 ft (3.00 m)
- Set the difference in the distance between the speakers to less than 20.0 ft (6.00 m).
■ Dolby Speaker Setup
Set the distance between the Dolby Atmos Enabled speaker and the ceiling.
3.0 ft - 11.0 ft / 0.90 m - 3.30 m (Default: 6.0 ft / 1.80 m)
- This can be set when "Front Dolby", "Surround Dolby" or "Back Dolby" is set to "Large" or "Small" in "Speaker Config.".
Set Defaults
The "Distances" settings are returned to the default settings.
Front panel D
Rear panel Re
Index
226
Contents
Connections Playback
Tips Appendix
Levels
Set the volume of the test tone to be the same at the listening position when it is output from each speaker.
Test Tone Start
A test tone is output from the selected speaker.
While listening to the test tone, adjust the volume output from the selected speaker.
-12.0 dB - +12.0 dB (Default : 0.0 dB)
- The set "Levels" are reflected in all sound modes.
- If you wish to adjust the channel level for each input source, carry out the settings in "Channel Level Adjust". (12 p. 126)
- When headphones are connected to the PHONES connector on this unit, you cannot set "Levels".
Set Defaults
The "Levels" settings are returned to the default settings.
Front panel D
Rear panel Re
Index
227
Crossovers
Set in accordance with the lower limit frequency of the base frequencies that can be played back through each speaker. See the speaker manual for information concerning speaker crossover frequency.
■ Speaker Selection
Selects how to set the crossover frequency.
| All(Default): | Sets the same crossover frequency for all speakers. |
| Individual: | Selects the crossover points for each speaker individually. |
■ Set the crossover frequency
40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 180 Hz / 200 Hz / 250 Hz (Default: 80 Hz)
- "Crossovers" can be set when the "Subwoofer Mode" setting is "LFE+Main", or when you have a speaker that is set to "Small". (12) p. 229
- The default crossover frequency is "80 Hz", which will work best with the widest variety of speakers. We recommend setting to a higher frequency that the crossover frequency when small speakers are used. For example, set to "250 Hz" when the frequency range of the speakers is 250 Hz – 20 kHz.
- Sound below the crossover frequency is cut off from the output of the speakers set in "Small". This cut off bass frequency is output from the subwoofer or front speakers.
- The speakers that can be set when "Individual" is selected differ depending on to the "Subwoofer Mode" setting. (12 p. 229)
- When "LFE" is selected, speakers set to "Small" at "Speaker Config." can be set. If the speakers are set to "Large", "Full Band" is displayed and the setting cannot be made. (p. 221)
- When "LFE+Main" is selected, speakers can be set regardless of the "Speaker Config." setting. (☐ p. 221)
- The audio settings in "IMAX Audio Settings" are applied during IMAX playback. (p. 174)
Front panel D
Rear panel Re
Index
228
Contents Connections Playback
Tips Appendix
Bass
Set subwoofer and LFE signal range playback.
Subwoofer Mode
Select low range signals to be reproduced by subwoofer.
| LFE(Default): | The low range signal of the channel set to “Small” speaker size is added to the LFE signal output from the subwoofer. |
| LFE+Main: | The low range signal of all channels is added to the LFE signal output from the subwoofer. |
- "Subwoofer Mode" can be set when "Speaker Config." - "Subwoofer" in the menu is set to other than "None". (125 p. 222)
- Play music or a movie source and select the mode offering the strongest bass.
- If "Speaker Config." - "Front" and "Center" are set to "Large", and "Subwoofer Mode" is set to "LFE", no sound may be output from the subwoofers, depending on the input signal or selected sound mode. (12) p. 221) Select "LFE+Main" if you want the bass signals to always be produced from the subwoofer.
- The audio settings in "IMAX Audio Settings" are applied during IMAX playback. (r ^2 p. 174)
LPF for LFE
Set LFE signal playback range. Set this when you want to change the playback frequency (low pass filter point) of the subwoofer.
80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 180 Hz / 200 Hz / 250 Hz (Default: 120 Hz)
- The audio settings in "IMAX Audio Settings" are applied during IMAX playback. (p. 174)
Front panel D
Rear panel Re
Index
229
Front Speaker
Set the front speaker A/B to use for every sound mode.
A
Front speaker A is used.
(Default):
B : Front speaker B is used.
A+B : Both front speakers A and B are used.
- This can be set when "Assign Mode" is set to "7.1ch + Front B". (☐ p. 217)
Speaker Preset
Two speaker settings can be saved to suit the environments where you use your speakers.
For example, you can configure two presets easily to switch between equalizer or speaker settings measured using Audyssey® Setup if the characteristics of your room differ depending on factors such as whether you use the screen.
If you want to use a preset, select the preset you want to use and then configure settings such as Audyssey® Setup or the speaker settings to save those settings to the preset you have selected.
Preset 1
Saves the settings to Preset 1.
(Default):
Preset 2: Saves the settings to Preset 2.
- The following settings are saved to presets.
- "Amp Assign" settings
- "Speaker Config." settings
- "Distances" settings
- "Levels" settings
- "Crossovers" settings
- "Bass" settings
- "Front Speaker" settings
- "MultEQ® XT32" data
- "Graphic EQ" data
- This setting also be configured using "Speaker Preset" in the option menu. (15 p. 131)
Front panel D
Rear panel Re
Index
230
Contents Connections Playback
Tips Appendix
Network
To use this unit by connecting it to a home network (LAN), you must configure network settings.
If you set up your home network (LAN) via DHCP, set "DHCP" to "On". (Use the default setting.) This allows this unit to use your home network (LAN).
When assigning an IP address to each device manually, you need to assign an IP address to this unit using the "IP Address" settings, and enter
information about your home network (LAN) such as the gateway address and subnet mask, etc.
Information
Display network information.
Friendly Name / Connection / SSID / DHCP / IP Address / MAC Address (Ethernet) / MAC Address (Wi-Fi) / Wi-Fi signal strength
Connection
Choose whether to connect the home network to a wireless LAN or a wired LAN.
When connecting to the network using wired LAN, select "Wired (Ethernet)" after connecting a LAN cable.
When connecting to the network using wireless LAN, select "Wireless (Wi-Fi)" and configure the "Wi-Fi Setup". (127 p. 232)
Connect Using
Select the method for connecting to the home network (LAN).
Wired (Ethernet): Use a LAN cable to connect to a network.
Wireless (Wi-Fi) (Default): Use the wireless LAN (Wi-Fi) function to connect to a network.
Front panel D
Rear panel Re
Index
231
Contents Connections Playback
Tips Appendix
Wi-Fi Setup
Connect to a wireless LAN (Wi-Fi) router.
The router can be connected in the following ways. Select the connection method to suit your home environment.
■ Scan Networks
Select the network you wish to connect to from the list of possible networks shown on the TV screen.
- Select the network you wish to connect to from the list of wireless networks.
Select "Rescan" if the network cannot be found.
- Enter your password and select "OK".
■ Use iOS Device
Use your iOS device (iPhone/iPod/iPad) to connect to the network. By connecting your iOS device to this unit using Wi-Fi, the unit can be automatically connected to the same network as your device.
-
Select "Use iOS Device" on the TV screen.
-
Check that your iOS device is connected to the wireless LAN (Wi-Fi) router and select "Denon AVR-X3700H" from "SET UP NEW AIRPLAY SPEAKER..." at the bottom of the Wi-Fi configuration screen of your iOS device.
-
Tap "Next" on the screen of the iOS device.
- The iOS device firmware version needs to support iOS 7 or later.
Front panel D
Rear panel Re
Index
232
Contents Connections Playback
Tips Appendix
WPS Router
Use a WPS-compatible router to connect using the push button method.
- Select "Push Button" on the TV screen.
- Switch to the WPS mode by pressing the WPS button of the router you wish to connect to.
- The time for pressing the button varies depending on the router.
- Select "Connect" on the TV screen within 2 minutes.
■ Manual
Enter the name (SSID) and password of the network you wish to connect to.
- Set the following items.
| SSID: | Input the name of the wireless network (SSID). |
| Security: | Select the encryption method according to the encryption setting of the access point you are using. |
Password: Input the password.
- Select "Connect" at the end of the setting.
Front panel D
Rear panel Re
Index
233
Contents
Connections Playback
Tips Appendix
- The wireless LAN (Wi-Fi) settings of this unit can also be configured from a PC or tablet that supports wireless LAN connection.
- Press and hold the DIMMER and STATUS buttons on the main unit for at least 3 seconds when the power of the unit is on.
- Connect the wireless LAN of the PC or tablet used to "Denon AVR-X3700H" when the message "Connect your Wi-Fi device to Wi-Fi network called "Denon AVR-X3700H"." appears in the display.
- Start up the browser and enter "192.168.1.16/settings/" in the URL.
- Use the browser to enter the settings, select "Connect" and then exit the settings.
- The Default key of this unit is fixed at "1". Set Default key of the router to "1" to use.
Settings
Configure the IP address.
- If you are using a broadband router (DHCP function), the information required for network connection such as the IP address will be automatically configured since the DHCP function is set to "On" in the default settings of this unit.
- Set up the IP Address, Subnet Mask, Default Gateway and DNS server information only when assigning a fixed IP address or when connecting to a network without DHCP function.
Front panel D
Rear panel Re
Index
234
Contents
Connections Playback
Tips Appendix
DHCP
Selects how to connect to the network.
| On(Default): | Configure the network settings automatically from your router. |
Off: Configure the network settings manually.
IP Address
Set the IP address within the ranges shown below.
- The Network Audio function cannot be used if other IP addresses are set.
CLASS A: 10.0.0.1 - 10.255.255.254
CLASS B: 172.16.0.1 - 172.31.255.254
CLASS C: 192.168.0.1 - 192.168.255.254
Subnet Mask
When connecting an xDSL modem or connector adapter directly to this unit, input the subnet mask indicated in the documentation supplied by your provider. Normally input "255.255.255.0".
■ Default Gateway
When connected to a gateway (router), input its IP address.
DNS
Enter the DNS address indicated in the documentation supplied by your provider.
- If you cannot connect to the Internet, recheck the connections and settings. (t ☐ p. 77)
- If you do not understand about Internet connection, contact your ISP (Internet Service Provider) or the store from which you purchased your computer.
Front panel D
Rear panel Re
Index
235
Contents
Connections Playback
Tips Appendix
Network Control
Enables network communication in standby power mode.
Off In Standby: Suspend network function during standby.
Always On (Default):
Network is on during standby. Main unit operable with a network compatible controller.
- When using the web control function, Denon 2016 AVR Remote App or HEOS App, use with the "Network Control" setting set to "Always On".
NOTE
- When "Network Control" is set to "Always On", the unit consumes more standby power.
Friendly Name
The Friendly Name is the name of this unit displayed on the network. You can change the Friendly Name according to your preferences.
■ Friendly Name
Selects Friendly Name from the list.
When you select "Other", you can change the Friendly Name according to your preferences.
Home Theater /Living Room / Family Room / Guest Room / Kitchen / Dining Room / Master Bedroom / Bedroom / Den / Office / Other
- Up to 30 characters can be input.
- The default Friendly Name on first use is "Denon AVR-X3700H".
■ Set Defaults
Restores Friendly Name, which you had changed, to the default setting.
Front panel D
Rear panel Re
Index
236
Contents Connections Playback
Tips Appendix
Diagnostics
Used to check the network connection.
■ Physical Connection
Checks the physical LAN port connection.
OK
| Error: | The LAN cable is not connected. Check the connection. |
- When connected using a wireless LAN, "Connection Wireless (Wi-Fi)" will be displayed.
Router Access
Checks the connection from this unit to the router.
OK
| Error: | Failed to communicate with the router.Check the router settings. |
Internet Access
Checks whether this unit has access to the Internet (WAN).
| OK | |
| Error: | Failed to connect to the Internet. Check the Internet connection environment or router settings. |
AirPlay
Settings for Apple AirPlay.
| On(Default): | Enables Apple AirPlay. |
Off: Disables Apple AirPlay.
Front panel D
Rear panel Re
Index
237
Contents
Connections Playback
Tips Appendix
HEOS Account
Make HEOS Account-related settings.
HEOS Account is needed in order to use HEOS Favorites.
The menu displayed differs depending on the status of the HEOS Account.
You have not signed in
I have a HEOS Account
If you already have a HEOS Account, enter the current account name and password to sign in.
■ Create Account
If you do not have a HEOS Account, create a new HEOS Account.
■ Forgot Password
If you have forgotten the password, an email explaining how to reset the password will be sent.
You have already signed in
■ Signed in As
The currently signed in HEOS Account is displayed.
■ Change Location
Change the regional settings for the signed in HEOS Account.
■ Change Password
Change the password for the signed in HEOS Account.
Delete Account
Delete the signed in HEOS Account.
■ Sign Out
Sign out from the HEOS Account.
Front panel D
Rear panel Re
Index
238
Contents Connections Playback
Tips Appendix
General
Make various other settings.
Language
Set the language for display the menu on the TV screen.
English / Français / Español (Default: English)
- "Language" can also be set up by the following operation. However, the menu screen is not displayed. Watch the display while configuring the settings.
- Press and hold the main unit's ZONE2 SOURCE and STATUS at the same time for at least 3 seconds. "V.Format: < NTSC>" appears on the display.
- Press DIMMER on the main unit twice.
"Lang.:" appears on the display. - Use the main unit's TUNER PRESET CH + or TUNER PRESET CH - and set the language.
- Press the main unit's STATUS to complete the setting.
ECO
Configure the ECO Mode and auto standby mode settings.
ECO Mode
This mode can reduce the power consumption and heat generation of this unit when power on.
This is done by reducing the power supply line to the power amplifier, in turn the maximum power output.
Front panel D
Rear panel Re
Index
239
Contents Connections Playback
Tips Appendix
| On: | Power savings are always active, regardless of volume or input signal. |
| Auto(Default): | Gives you the best balance between power savings and maximum power output:For low volume levels, the power savings are active. If you increase the volume level, the power savings are switched off automatically, so you can enjoy maximum output power without distortion.If the volume is set to a high level but no input signal is detected for more than 2 minutes, this unit will enable power savings. When an input signal is detected again or the input source is changed, this unit will automatically turn off power savings again at high volume levels. |
| Off: | No power savings. |
- When the unit is switching between the different power saving states in "ECO Mode: Auto", you may notice a click noise from the inside of this unit, this is normal.
- If content is paused for more than 2 minutes and playback is resumed from the same source at these high volume levels, there may be short delay before maximum power is restored.
- "ECO Mode" can also be switched by pressing ECO on the remote control unit.
Front panel D
Rear panel Re
Index
240
Contents Connections Playback
Tips Appendix
Power On Default
Set the mode to ECO when the power is on.
| Last (Default): | The ECO Mode will be set to the previous setting before the power was switched off. |
| On: | When power is turned on, the mode will always be switched to the ECO Mode in “On”. |
| Auto: | When power is turned on, the mode will always be switched to the ECO Mode in “Auto”. |
| Off: | When power is turned on, the mode will always be switched to the ECO Mode in “Off”. |
■ On Screen Display
Display the power consumption of this unit using a meter on the TV screen.
| Always On: | Always display the meter on the TV screen. |
| Auto(Default): | Display the meter when changing the mode or volume. |
| Off: Do not display the meter. | |
Front panel D
Rear panel Re
Index
241
Contents Connections Playback
Tips Appendix
■ Auto Standby
Set so the unit power automatically switches to standby.
MAIN ZONE
Sets the time for switching to auto standby when there are no audio or video signals input into this unit.
Before the unit enters standby mode, "Auto Standby" is displayed on the unit display and the menu screen.
| 60 min: | The unit goes into standby after 60 minutes. |
| 30 min: | The unit goes into standby after 30 minutes. |
| 15 min: | The unit goes into standby after 15 minutes. |
| Off(Default): | The unit does not go into standby automatically. |
ZONE2
When there are no operations for a certain period of time as set here, the power is automatically shut off even if there is audio or video input.
| 8 hours: | Switches ZONE2 the standby state after about 8 hours. |
| 4 hours: | Switches ZONE2 to the standby state after about 4 hours. |
| 2 hours: | Switches ZONE2 to the standby state after about 2 hours. |
| Off(Default): | Does not automatically switch ZONE2 to the standby state. |
Front panel D
Rear panel Re
Index
242
Bluetooth Transmitter
Sets this unit's Bluetooth transmitter.
Set to use Bluetooth headphones to listen to audio playing in the MAIN ZONE.
Transmitter
Enables or disables the Bluetooth transmitter.
| Off(Default): | Disables the Bluetooth transmitter feature. |
On: Enables the Bluetooth transmitter feature.
Output Mode
Selects the audio output method.
| Bluetooth + Speakers (Default): | Audio is output to Bluetooth headphones and main zone speakers. |
| Bluetooth Only: | Audio is output to Bluetooth headphones only. |
■ Connected device
Displays the Bluetooth device connected to this unit.
Device List
Available devices are displayed in the list once you start pairing mode on the Bluetooth headphones you want to connect. Select your Bluetooth headphones from the list to pair them.
This unit can only pair with one Bluetooth headphone at a time. However, up to 8 Bluetooth headphones can be registered. Switch between registered devices from Device List in the "Bluetooth Transmitter" setup menu.
To remove a saved Bluetooth device from the list, use the buttons to select it, then press the OPTION button and select "Forget This Device".
- "Output Mode" can also be set from "Bluetooth Transmitter" in the option menu.
- A2DP profile-compatible Bluetooth speakers can be connected following the same steps used to connect Bluetooth headphones.
NOTE
- Bluetooth transmitter and Bluetooth receiver function cannot be used at the same time. Settings in this menu are not available when listening to music on a Bluetooth device in any zone.
- Even when "Transmitter" is set to "On", press Bluetooth on the remote control to select the "Bluetooth" source and enable the Bluetooth receiver function. To listen to music stored on Bluetooth devices such as smartphones on this unit, press Bluetooth on the remote control to switch the input source to Bluetooth, then reconnect the Bluetooth device.
- Menu settings for Bluetooth Transmitter are not available when this unit is grouped within the HEOS App.
Front panel D
Rear panel Re
Index
243
Contents Connections Playback
Tips Appendix
ZONE2 Setup
Makes settings for audio playback with ZONE2.
- Values set for "Volume Limit" and "Power On Volume" are displayed according to the setting specified for the volume "Scale". (179 p. 179)
Bass
Adjust bass.
-10 dB - +10 dB (Default : 0 dB)
Treble
Adjust treble.
-10 dB - +10 dB (Default : 0 dB)
■ High Pass Filter
Make settings for cutting the low range to reduce distortion in the bass.
| On: | The low range is attenuated. |
| Off(Default): | The low range is not attenuated. |
Lch Level
Adjust the left channel output level.
-12 dB - +12 dB (Default : 0 dB)
Rch Level
Adjust the right channel output level.
-12 dB - +12 dB (Default : 0 dB)
Channel
Set whether to playback in stereo or monaural.
Stereo
Stereo playback.
(Default):
Mono: Monaural playback.
Front panel D
Rear panel Re
Index
244
Contents Connections Playback
Tips Appendix
HDMI Audio
Selects the audio signal format for playing an HDMI source in ZONE2.
| Through (Default): | The HDMI audio signal is passed through this unit to the device in ZONE2. |
| PCM: | The HDMI audio signal input into this unit is converted to a PCM signal that can be output from the ZONE2 PRE OUT connectors or speaker terminals. |
Volume Level
Set the volume output level.
| Variable(Default): | Volume can be adjusted. |
| 1 – 98(-79 dB – 18 dB): | Volume is fixed at the desired level. The volume cannot be adjusting using the remote control unit. |
- The dB value is displayed when the "Scale" setting is “-79.5 dB - 18.0 dB”. (128 p. 179)
Volume Limit
Make a setting for maximum volume.
60 - 80 (-20 dB - 0 dB)
(Default : 70 (-10 dB))
Off: Do not set a maximum volume.
- This can be set when "Volume Level" is set to "Variable". (☐ p. 245)
- The dB value is displayed when the "Scale" setting is "-79.5 dB - 18.0 dB". (T p. 179)
Power On Volume
Define the volume setting that is active when the power is turned on.
| Last (Default): | Use the memorized setting from the last session. |
| Mute: Always mute when power is turned on. | |
| 1 – 98 (-79 dB – 18 dB): | The volume is adjusted to the set level. |
- This can be set when "Volume Level" is set to "Variable". (p. 245)
- The dB value is displayed when the "Scale" setting is "-79.5 dB - 18.0 dB". (17 p. 179)
Front panel D
Rear panel Re
Index
245
Contents Connections Playback
Tips Appendix
Mute Level
Set the amount of attenuation when muting is on.
Full
(Default):
The sound is muted entirely.
-40 dB : The sound is attenuated by 40 dB down.
-20 dB : The sound is attenuated by 20 dB down.
Zone Rename
Change the display title of each zone to one you prefer.
MAIN ZONE / ZONE2
Set Defaults:
The default setting is restored for the edited zone name.
- Up to 10 characters can be input.
Quick Select Names
Change the quick select name that appears on the TV screen to one you prefer.
Quick Select 1 / Quick Select 2 / Quick Select 3 / Quick Select 4
Set Defaults:
The default setting is restored for the edited quick select name.
- Up to 16 characters can be input.
Front panel D
Rear panel Re
Index
246
Contents Connections Playback
Tips Appendix
Trigger Out
Select the conditions for activating trigger out.
For details about how to connect the TRIGGER OUT jack, see "TRIGGER OUT jack" (1: p. 80).
☐ When setting for zone (MAIN ZONE / ZONE2)
Trigger out is activated through linkage to the power of the zone set to "On".
☐ When setting for input source
Activate trigger out when the input source set to "On" is selected.
☐ When setting for HDMI monitor
Activate trigger out when the HDMI monitor set to "On" is selected.
On: Activate trigger on this mode.
-- -: Do not activate trigger on this mode.
Front Display
Makes settings related to the display on this unit.
Dimmer
Adjust the display brightness of this unit.
Bright
Normal display brightness.
(Default):
Dim: Reduced display brightness.
Dark: Very low display brightness.
Off: Turns the display off.
- You can also adjust the display by pressing DIMMER on the main unit.
Front panel D
Rear panel Re
Index
247
Contents Connections Playback
Tips Appendix
Firmware
Checks for the latest firmware information about updates and upgrades, updates the firmware, and sets up the notification message display for upgrades.
■ Check for Update
Check for firmware updates.
The firmware can be updated if a firmware update has been released.
| Update Now: | Execute the update process. When the update starts, the menu screen is shut down. During the update, the progress is shown on the display. |
Update Later: Update later.
- This unit automatically retries updating if updating fails. If an update still cannot be performed, an "Update Error" message appears in the display. See "Troubleshooting" – "Update/upgrade error messages" for information on update error messages. (12) p. 279)
Check the conditions according to the message and try the update again. - This menu cannot be selected when "Allow Update" is set to "Off".
■ Auto-Update
Turns on Automatic Updates so that futures updates are automatically downloaded and installed when this unit is in standby mode.
Auto-Update
This unit will automatically update to the newest firmware when in standby mode.
On: Turns on Automatic Updates.
Off
(Default):
Turns off Automatic Updates.
Time Zone
Change the time zone.
Set the time zone that matches the area where you live.
- This menu cannot be selected when "Allow Update" is set to "Off".
Front panel D
Rear panel Re
Index
248
Contents Connections Playback
Tips Appendix
Allow Update
Enable or disable updates and upgrades for this unit.
| On(Default): | Enables this unit to receive updates and upgrades. |
| Off: | Prevents this unit from receiving update and upgrade. |
- This setting causes Incompatibilities between this unit and HEOS App.
■ Upgrade Notification
When the latest Upgrade firmware is available, a notification message is displayed on the TV screen at power on.
The notification message is displayed for about 40 seconds when the power is turned on.
On
Display upgrade message.
(Default):
Off: Do not display upgrade message.
- This menu cannot be selected when "Allow Update" is set to "Off".
Front panel D
Rear panel Re
Index
249
■ Add New Feature
Display new features that can be downloaded to this unit and perform an upgrade.
Upgrade Package: Display the items to be upgraded.
| Upgrade Status: | Display a list of the additional functions provided by the upgrade. |
| Upgrade: | Execute the upgrade process.When the upgrade starts, the menu screen is shut down. During the upgrade, the amount of upgrade time which has elapsed is displayed. |
- Information regarding the "Update" function and "Add New Feature" will be announced on the Denon website each time related plans are defined. See the Denon website for details about upgrades.
- When the procedure is complete, "Registered" is displayed in this menu and upgrades can be carried out. If the procedure has not been carried out, "----" is displayed.
The ID number shown on this screen is needed when carrying out the procedure.
The ID number can also be displayed by pressing and holding the main unit's TUNER PRESET CH + and STATUS for at least 3 seconds. - If the upgrade is not successful, "Upgrade Error" message appears in the display. See "Troubleshooting" – "Update/upgrade error messages" for information on upgrade error messages. (1 p. 279)
Check the settings and network environment and then perform the upgrade again. - This menu cannot be selected when "Allow Update" is set to "Off".
Notes concerning use of "Update" and "Add New Feature"
- In order to use these functions, you must have the correct system requirements and settings for an Internet connection. (12 p. 77)
- Do not turn off the power until updating or upgrading is completed.
- Approximately 1 hour is required for the updating/upgrading procedure to be completed.
- Once updating/upgrade starts, normal operations on this unit cannot be performed until updating/upgrading is completed. Furthermore, there may be cases where backup data is reset for the parameters, etc., set on this unit.
- If the update or upgrade fails, press and hold the ⏻ on the main unit for more than 5 seconds, or remove and re-insert the power cord. After about 1 minute, "Please wait" appears on the display and update restarts. If the error continues, check the network environment.
Front panel D
Rear panel Re
Index
250
Contents Connections Playback
Tips Appendix
Information
Show information about this unit settings, input signals, etc.
Audio
Show the audio information for MAIN ZONE.
Sound Mode: The currently set sound mode.
Input Signal: The input signal type.
| Format: | The number of input signal channels (presence of front, surround, LFE). |
| Sample Rate: The input signal's sampling frequency. | |
| Offset: | The dialogue normalization correction value. |
| Flag: | This is displayed when inputting signals including a surround back channel.“MATRIX” is displayed with DTS-ES Matrix input signals, “DISCRETE” with DTS-ES Discrete signals. |
Video
Show the HDMI input/output signals and HDMI monitor information for MAIN ZONE.
HDMI Signal Info.
Resolution / HDR / Color Space / Pixel Depth / ALLM / QMS / QFT
HDMI Monitor 1 / HDMI Monitor 2
Interface / HDR / Resolutions / Enhanced Features
- A or B may be displayed at the end of "Resolution". A represents "Uncompressed Video" and B represents "Compressed Video".
ZONE
Show information about current settings.
| MAIN ZONE: | This item shows information about settings for MAIN ZONE. The information displayed differs according to the input source. |
| ZONE2: | This item shows information about settings for ZONE2. |
Front panel D
Rear panel Re
Index
251
Contents
Connections Playback
Tips Appendix
■ Firmware
| Version: | Displays information for the current firmware. |
| DTS Version: | Displays the current DTS version. |
Notifications
Displays and sets notifications.
Also, sets whether or not to display the notification when the power is turned on.
Notification Alerts
On
Notification messages are displayed.
(Default):
Off: Notification messages are not displayed.
- Press INFO on the remote control unit to display current source name, volume, sound mode name, and other information at the bottom of the screen.
Front panel D
Rear panel Re
In
252
Contents
Connections Playback
Tips Appendix
Usage Data
To help us improve our products and customer service, Denon collects anonymous information about how you use this unit (such as frequently used input sources and sound modes and speaker settings).
Denon will never provide any information we collect to third parties.
| Yes: | Provide information on the operating status of this unit. |
| No: | Do not provide information on the operating status of this unit. |
Save & Load
Save and restore device settings by using a USB memory device.
- Use a USB memory device that has at least 128 MB of free space and is formatted to FAT32. Data may not Save/Load correctly to some USB memory devices.
- It may take up to 10 minutes for data to Save/Load. Do not turn off the power until the process is complete.
■ Save Configuration
Current unit settings are stored on the USB memory device.
When the settings are saved correctly, "Saved" appears on the display and the file "config.avr" is created on the USB memory device.
- Do not change the file name of the created file. Doing so will prevent the file from being recognized as a settings file when restoring.
Load Configuration
Settings saved on the USB memory device are restored.
When the saved settings are restored correctly, "Loaded" appears on the display and the unit automatically restarts.
Front panel D
Rear panel Re
Index
253
Contents Connections Playback
Tips Appendix
Setup Lock
Protect settings from inadvertent changes.
Lock
On: Turn protection on.
Off
(Default):
Turn protection off.
- When cancelling the setting, set "Lock" to "Off".
NOTE
- When "Lock" is set to "On", no setting items are displayed except for "Setup Lock".
Reset
Returns settings to the factory default.
Initialization can be performed for all unit settings or for Network settings only.
All Settings
All settings are reset to the factory default values.
■ Network Settings
Only network settings are reset to the factory default values.
- Before returning the settings to the default settings, use the "Save & Load" function from the menu to save and restore the details of various settings configured on the unit. (p. 253)
- The "Reset" operation can also be performed by using the button on the main unit. For details on resetting all of the settings to the factory defaults see "Resetting factory settings" (i ^2 p. 280), and for details on resetting the network settings to the factory defaults see "Resetting network settings" (i ^2 p. 281).
NOTE
- Do not disconnect the power or turn the device off during network settings initialization.
Front panel D
Rear panel Re
Index
254
Contents Connections Playback
Tips Appendix
Limiting the operating zone with the remote control
ZONE2 operations can be disabled using the remote control.
1 Press and hold ZONE2 and SETUP.
The MAIN and ZONE2 buttons blink.
■ Canceling the settings
1 Press and hold ZONE2 and SETUP while configuring the setting.
The MAIN and ZONE2 buttons blink and the setting is canceled.
Front panel D
Rear panel Re
Index
255
Contents
Connections
Playback
Settings
Tips
Appendix
Contents
Tips
| I want the volume not to become too loud by mistake 257 |
| I want to keep the volume at the same level when I turn the power on 257 |
| I want to have the subwoofer always output audio 257 |
| I want to make human voices in the movies clearer 257 |
| I want to keep bass and clarity during playback at a lower volume level 257 |
| I want to automatically adjust the volume level difference in content such as TV and movies 257 |
| I want to set the optimized listening environment after changing the configuration/position of the speakers or changing a speaker to a new one 258 |
| I want to combine a desired video with the current music 258 |
| I want to skip unused input sources 258 |
| I want to enjoy the same music in all zones at the home party, etc. 258 |
| I want to minimize the delay in video signals when I'm playing a game on my game console 258 |
| I want to operate this unit using the TV remote control 258 |
Troubleshooting
| Power does not turn on / Power is turned off 260 | |
| Operations cannot be performed through the remote control unit 261 | |
| Display on this unit shows nothing 261 | |
| No sound comes out 262 | |
| Desired sound does not come out | 263 |
| Sound is interrupted or noise occurs | 266 |
| No video is shown on the TV | 267 |
| The menu screen is not displayed on the TV | 269 |
| The color of the menu screen and operations content displayed on the television is different from normal | 269 |
| AirPlay cannot be played back | 270 |
| USB memory devices cannot be played back | 271 |
| Bluetooth cannot be played back | 272 |
| The Internet radio cannot be played back | 274 |
| Music files on PC or NAS cannot be played back | 275 |
| Various online services cannot be played | 276 |
| The HDMI Control function does not work | 276 |
| Cannot connect to a wireless LAN network | 277 |
| When using HDMI ZONE2, the devices does not function properly | 278 |
| Update/upgrade error messages | 279 |
Front panel
Display
Rear panel
256
Remote
Index
Contents
Connections Playback Settings
Appendix
Tips
I want the volume not to become too loud by mistake
- Set the volume upper limit for "Volume Limit" in the menu beforehand. This prevents children or others from increasing the volume too much by mistake. You can set this for each zone. ("Volume" (p. 179), "Volume Limit" (p. 245))
I want to keep the volume at the same level when I turn the power on
- By default, the volume setting when power was previously set to standby on this unit is applied at next power on with no change. To use a fixed volume level, set the volume level at power on for "Power On Volume" in the menu. You can set this for each zone. ("Volume" (p. 179), "Power On Volume" (p. 245))
I want to have the subwoofer always output audio
- Depending on the input signals and sound mode, the subwoofer may not output audio. When “Subwoofer Mode” in the menu is set to “LFE+Main”, you can have the subwoofer always output audio. (p. 229)
I want to make human voices in the movies clearer
- Use "Center Level Adjust" in the menu to adjust the level. (☐ p. 170)
I want to keep bass and clarity during playback at a lower volume level
- Set “Dynamic EQ” in the menu to “On”. This setting corrects the frequency characteristics to allow you to enjoy clear sound without the bass being lost even during playback at a lower volume level. (p. 181)
I want to automatically adjust the volume level difference in content such as TV and movies
- Set “Dynamic Volume” in the menu. Volume level changes (between quiet scenes and loud scenes) in TV shows or movies are automatically adjusted to your desired level. (p. 182)
Front panel D
Rear panel Re
Index
257
Contents
Connections Playback Settings
Appendix
I want to set the optimized listening environment after changing the configuration/position of the speakers or changing a speaker to a new one
- Perform Audyssey® Setup. This automatically makes the optimized speaker settings for the new listening environment. (p. 204)
I want to combine a desired video with the current music
- Set "Video Select" in the option menu to "On". You can combine the current music with your desired video source from a Set-top Box or DVD, etc. while listening to music from the Tuner, CD, Phono, HEOS Music, USB or Bluetooth. (127 p. 128)
I want to skip unused input sources
- Set unused input sources for "Hide Sources" in the menu. This allows you to skip unused input sources when turning the SOURCE SELECT knob on this unit. (1 p. 203)
I want to enjoy the same music in all zones at the home party, etc.
- Set "All Zone Stereo" in the option menu to "Start". You can simultaneously play back music in another room (ZONE2) that is played back in MAIN ZONE. (197 p. 130)
I want to minimize the delay in video signals when I'm playing a game on my game console
- When the video is delayed against button operations with the controller on the game console, set "Video Mode" in the menu to "Game". (p. 193)
I want to operate this unit using the TV remote control
- Select "AV Receiver" in a TV menu such as "Input"* or "Operate Connected HDMI Device"*. The Smart Menu of this unit is displayed on the TV. This Smart Menu can be operated using the remote control of your TV.
* The selection method differs depending on your TV. See the owner's manual of your TV for details.
Front panel D
y Rear panel Re
Index
258
Contents Connections Playback Settings
Appendix
Troubleshooting
If a problem should arise, first check the following:
- Are the connections correct?
- Is the set being operated as described in the owner's manual?
- Are the other devices operating properly?
- If steps 1 to 3 above do not improve the problem, restarting the device may improve the problem.
Continue pressing the ⏻ button on the unit until "Restart" appears in the display, or remove and re-insert the power cord of the unit.
If this unit does not operate properly, check the corresponding symptoms in this section.
If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power immediately and contact the store where you purchased this unit.
Front panel D
Rear panel Re
Index
259
Contents
Connections Playback Settings
Appendix
Power does not turn on / Power is turned off
Power does not turn on.
- Check whether the power plug is correctly inserted into the power outlet. (☐ p. 81)
Power automatically turns off.
- The sleep timer is set. Turn on the power again. (p. 150)
- "Auto Standby" is set. "Auto Standby" is triggered when there is no operation for a set amount of time. To disable "Auto Standby", set "Auto Standby" on the menu to "Off". (1 p. 242)
Power turns off and the power indicator flashes in red approx. every 2 seconds.
- The protection circuit has been activated due to a rise in temperature within this unit. Turn the power off, wait about an hour until this unit cools down sufficiently, and then turn the power on again. (17 p. 300)
- Please re-install this unit in a place having good ventilation.
Power turns off and the power indicator flashes in red approx. every 0.5 seconds.
- Check the speaker connections. The protection circuit may have been activated because speaker cable core wires came in contact with each other or a core wire was disconnected from the connector and came in contact with the rear panel of this unit. After unplugging the power cord, take corrective action such as firmly re-twisting the core wire or taking care of the connector, and then reconnect the wire. (129 p. 37)
- Turn down the volume and turn on the power again. (10 p. 83)
- This unit's amplifier circuit has failed. Unplug the power cord and contact our customer service center.
Power does not turn off even when the power button is pressed, and the display shows "ZONE2 On".
- The power supply of ZONE2 is turned to ON. To turn off the power supply of this unit (standby), press the ZONE2 ON/OFF on the main unit, or press the POWER ◊ button after pressing the ZONE2 button on the remote control unit to turn off the power supply of ZONE2.
Front panel D
Rear panel Re
Index
260
Contents
Connections Playback Settings
Appendix
Operations cannot be performed through the remote control unit
Operations cannot be performed through the remote control unit.
- Batteries are worn out. Replace with new batteries. (☐ p. 9)
- Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30^ . (19 p. 9)
- Remove any obstacle between this unit and the remote control unit.
- Insert the batteries in the proper direction, checking the and marks. (1) p. 9)
- The set's remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the remote control sensor will not be exposed to strong light.
- The operation target zone does not correspond to the zone setting specified on the remote control unit. Press the MAIN or ZONE2 button to select the operating zone of the remote control. (169)
- When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not affect operations from the remote control unit of this unit.
Display on this unit shows nothing
Display is off.
- Set "Dimmer" on the menu to something other than "Off". (p. 247)
- When the sound mode is set to "Pure Direct", the display is off. (☐ p. 135)
Front panel D
Rear panel Re
Index
261
Contents
Connections Playback Settings
Appendix
No sound comes out
No sound comes out of speakers.
- Check the connections for all devices. (☐ p. 37)
- Insert connection cables all the way in.
- Check that input connectors and output connectors are not reversely connected.
- Check cables for damage.
- Check that speaker cables are properly connected. Check that cable core wires come in contact with the metal part on speaker terminals. (1 p. 37)
- Securely tighten the speaker terminals. Check speaker terminals for looseness. (12p. 37)
- Check that a proper input source is selected. (p. 83)
- Adjust the volume. (1 p. 84)
- Cancel the mute mode. (1-6 p. 84)
- Check the digital audio input connector setting. (p. 200)
- Check the digital audio output setting on the connected device. On some devices, the digital audio output is set to off by default.
- When a headphone is plugged into the PHONES jack on the main unit, sound is not output from the speaker terminal and PRE OUT connector.
- Audio is output to your Bluetooth headphones, but not to speakers or pre-outs when "Output Mode" set to "Bluetooth Only". Change "Output Mode" to "Bluetooth + Speakers" to output audio from your Bluetooth headphones as well as your speakers or pre-outs. (123)
No sound comes out when using the DVI-D connection.
- When this unit is connected to a device equipped with a DVI-D connector, no sound is output. Make a separate audio connection.
Front panel D
Rear panel Re
Index
262
Contents
Connections Playback Settings
Appendix
Desired sound does not come out
The volume does not increase.
- The maximum volume is set too low. Set the maximum volume using "Limit" on the menu. (☐ p. 179)
- Appropriate volume correction processing is performed according to the input audio format and settings, so the volume may not reach the upper limit.
The volume of Bluetooth headphones does not decrease.
- Bluetooth headphones volume cannot be adjusted from this unit. Use a Bluetooth headphones with volume adjustment.
No sound comes out with the HDMI connection.
- Check the connection of the HDMI connectors. (p. 65)
- When outputting HDMI audio from the speakers, set "HDMI Audio Out" on the menu to "AVR". To output from the TV, set "TV". (17) p. 187)
- When using the HDMI Control function, check that the audio output is set to the AV amplifier on the TV. (17 p. 147)
When an eARC function-compatible television is connected, television audio is not output from the speaker connected to this unit
- eARC function settings may be required depending on the eARC function-compatible television you are using. Make sure eARC is set to on if this setting exists on your television. For more information, check your television's owner's manual.
- Make sure the input source of this unit is "TV Audio".
- The eARC function does not operate when the HDMI input connector is set to the "TV Audio" input source. To enable eARC function operation, remove the HDMI input connector setting, then restart this unit and the television. (p. 201)
No sound comes out of a specific speaker.
- Check that speaker cables are properly connected.
- Check that a selection other than "None" is set for the "Speaker Config." setting in menu. (☐ p. 221)
- Check the "Assign Mode" setting in the menu. (p. 215)
- When the sound mode is "Stereo" and "Virtual", audio is only output from the front speakers and subwoofer.
- Audio is not output from the surround back speaker if "Speaker Virtualizer" is set to "On" when "Speaker Config." - "Surr. Back" is set to "1 spkr" in the menu. (173)
- When "Speaker Config." - "Surr. Back" is set to "2 spkrs", "Speaker Config." - "Center" is set to "Large" or "Small", and sound mode is set to "IMAX DTS", surround audio is output from the surround back speaker. Audio is not output from the surround speaker. (1 p. 223)
Front panel D
Rear panel Re
Index
263
Contents
Connections Playback Settings
Appendix
No sound is produced from subwoofer.
- Check the subwoofer connections.
- Turn on the subwoofer's power.
- Set "Speaker Config." - "Subwoofer" in the menu to "1 spkr" or "2 spkrs". (p. 222)
- When "Speaker Config." - "Front" in the menu is set to "Large", depending on the input signal and the sound mode, no sound may be output from the subwoofer. (p. 222)
- When no subwoofer audio signal (LFE) is included in the input signals, no sound may be output from the subwoofer. (p. 229)
- You can make the subwoofer always output sound by setting the "Subwoofer Mode" to "LFE+Main". (p. 229)
DTS sound is not output.
- Check that the digital audio output setting on the connected device is set to "DTS".
Dolby Atmos, Dolby TrueHD, DTS-HD, Dolby Digital Plus audio is not output.
• Make HDMI connections. (p. 69)
- Check the digital audio output setting on the connected device. On some devices, "PCM" is set by default.
DTS Neural:X mode cannot be selected.
- DTS Neural:X cannot be selected when using the headphones.
Dolby Surround mode cannot be selected.
- Dolby Surround cannot be selected when using the headphones.
IMAX DTS:X cannot be selected.
- IMAX DTS:X and IMAX DTS cannot be selected but DTS:X and DTS can be selected, when the headphones are used.
Sound modes other than "Stereo" or "Direct" cannot be selected.
- Only "Stereo" or "Direct" can be selected for the sound mode if Headphone:X signals are input.
264
Contents
Connections Playback Settings
Appendix
Audyssey MultEQ ^® XT32, Audyssey Dynamic EQ ^® , Audyssey Dynamic Volume ^® and Audyssey LFC ^™ cannot be selected.
- These cannot be selected when you have not performed Audyssey® Setup. (p. 204)
- Switch to a sound mode other than "Direct" or "Pure Direct". (1 p. 134)
- Audyssey Dynamic EQ ^ , Audyssey Dynamic Volume ^ and Audyssey LFC ^TM cannot be selected when sound mode is “DTS Virtual:X” or sound mode that have “+ Virtual:X” in the sound mode name.
• These cannot be selected when using the headphones.
"Restorer" cannot be selected.
- Check that an analog signal or PCM signal (Sample Rate = 44.1/48 kHz) is input. For playback of multichannel signals such as Dolby Digital or DTS surround, "Restorer" cannot be used. (17 p. 177)
- Switch to a sound mode other than "Direct" or "Pure Direct". (☐ p. 134)
No audio is output from PRE OUT or speakers for ZONE2.
- In ZONE2, the audio can be played back when signals input from digital connectors (OPTICAL/COAXIAL) are in 2ch PCM format.
- In ZONE2, the audio can be played back when signals input from the HDMI connector are in 2ch PCM format. To play back the audio in ZONE2 irrespective of the input signal format, set "HDMI Audio" in the menu to "PCM". Depending on the played back device, the audio may not be played back even with this setting. In that case, set the audio format to "PCM (2ch)" on the played back device. (p. 245)
- When listening to audio from a Bluetooth device in ZONE2, remove any obstructions between the Bluetooth device and this unit and use it within a range of about 98.4 ft/30 m.
Sound mode settings are not available when using Bluetooth headphones. Audio menu settings are also not available.
- This unit cannot change sound mode or audio menu settings for audio output to Bluetooth headphones.
Front panel D
Rear panel Re
Index
265
Contents
Connections Playback Settings
Appendix
Sound is interrupted or noise occurs
During playback from the Internet radio or USB memory device, sound is occasionally interrupted.
- When the transfer speed of the USB memory device is slow, sound may occasionally be interrupted.
- The network communication speed is slow or the radio station is busy.
When making a call on iPhone, noise occurs in audio output on this unit.
- When making a call, keep a distance of 0.7 ft/20 cm or longer between iPhone and this unit.
Noise often occurs in FM/AM broadcasting.
- Change the antenna orientation or position. (☐ p. 75)
- Separate the AM loop antenna from the unit.
- Use an outdoor antenna. (☐ p. 75)
- Separate the antenna from other connection cables. (1) p. 75
The sounds appear to be distorted.
- Lower the volume. (10 p. 84)
- Set "Off" to the "ECO Mode". When "On" or "Auto" is in the "ECO Mode", the audio may be distorted when the playback volume is high. (p. 239)
Sound cuts out when using Wi-Fi connection.
- The frequency band used by the wireless LAN is also used by microwave ovens, cordless telephones, wireless game controllers and other wireless LAN devices. Using such devices at the same time as this unit may cause sound to cut out due to electronic interference. Sound cut out can be improved using the following methods. (17 p. 77)
- Install devices that cause interference away from this unit.
- Turn off the power supply to devices that cause interference.
- Change the settings of the router channel to which this unit is connected to. (See the instruction manual of the wireless router for details on how to change the channel.)
- Switch to a wired LAN connection.
- Particularly when you play back large music files, depending on your wireless LAN environment, the playback sound may be interrupted. In this case, make the wired LAN connection. (p. 232)
Front panel D
Rear panel Re
Index
266
Contents
Connections Playback Settings
Appendix
No video is shown on the TV
No picture appears.
- Check the connections for all devices. (☐ p. 65)
- Insert connection cables all the way in.
- Check that input connectors and output connectors are not reversely connected.
- Check cables for damage.
- Match the input settings to the input connector of the TV connected to this unit. (p. 200)
- Check that the proper input source is selected. (15 p. 83)
- Check the video input connector setting. (p. 200)
- Check that the resolution of the player corresponds to that of the TV. (195 p. 251)
- Check whether the TV is compatible with copyright protection (HDCP). If connected to a device not compatible with HDCP, video will not be output correctly. (1 p. 285)
• To enjoy content that is copyright protected by HDCP 2.2 or HDCP 2.3, use a playback device and TV compatible with HDCP 2.2 or HDCP 2.3. - To play back a 4K video, use a “High Speed HDMI Cable” or an “High Speed HDMI Cable with Ethernet”. In order to achieve a higher fidelity for 4K videos, it is recommended to use a “Premium High Speed HDMI Cables” or an “Premium High Speed HDMI Cables with Ethernet” that has an HDMI Premium Certified Cable label on the product package.
- Use an "Ultra High Speed 48 Gbps HDMI cable" to enjoy 8K or 4K 120Hz video.
No video is shown on the TV with the DVI-D connection.
- With the DVI-D connection, on some device combinations, devices may not function properly due to the copy guard copyright protection (HDCP). (12 p. 285)
Front panel D
Rear panel Re
Index
267
Contents Connections Playback Settings
Appendix
While the menu is being displayed, no video is shown on the TV.
- The video being played will not appear in the background of the menu when the menu is operated during playback of the following video signals.
- Some images of 3D video contents
- Computer resolution images (example: VGA)
- Video with an aspect ratio other than 16:9 or 4:3
- 4K or 8K video
- Some kind of HDR signals
- Some kind of game contents
- Compressed video
When using HDMI ZONE2, the video output in MAIN ZONE is interrupted.
- When ZONE2 is operated with the same input source selected for MAIN ZONE and ZONE2, video in MAIN ZONE may be interrupted.
Front panel D
Rear panel Re
Index
268
Contents
Connections Playback Settings
Appendix
The menu screen is not displayed on the TV
The menu screen or status information screen is not displayed on the TV.
- The menu screen is only displayed on this unit and a TV connected with an HDMI cable. If this unit is connected to a TV using a different video output connector, operate while watching the display on this unit.
-
The status information will not appear on the TV when the following video signals are being played.
-
Some images of 3D video content
- Computer resolution images (example: VGA)
- Video with an aspect ratio other than 16:9 or 4:3
- Some kind of HDR signals
- Some kind of game contents
-
Compressed video
-
When a 2D video is converted to a 3D video on the TV, the menu screen or status information screen is not displayed properly. (p. 252)
- In the pure direct playback mode, the menu screen or status information is not displayed. Switch to a sound mode other than the pure direct mode. (127 p. 133)
- Set the "TV Format" setting in the menu to a selection that is appropriate for the TV. (17 p. 199)
The color of the menu screen and operations content displayed on the television is different from normal
The color of the menu screen and operations content displayed on the television is different.
- Performing operations on this unit during playback of a Dolby Vision signal may cause variance in the color display of the menu screen and operations content. This is a characteristic of the Dolby Vision signal and is not a malfunction.
Front panel D
Rear panel Re
Index
269
Contents
Connections Playback Settings
Appendix
AirPlay cannot be played back
The AirPlay icon is not displayed on iTunes / iPhone / iPod touch / iPad.
- This unit and PC / iPhone / iPod touch / iPad are not connected to the same network (LAN). Connect it to the same LAN as this unit. (1 p. 77)
- The firmware on iTunes / iPhone / iPod touch / iPad is not compatible with AirPlay. Update the firmware to the latest version.
Audio is not output.
- The volume on iTunes / iPhone / iPod touch / iPad is set to the minimum level. The volume on iTunes / iPhone / iPod touch / iPad is linked with the volume on this unit. Set a proper volume level.
- The AirPlay playback is not performed, or this unit is not selected. Click the AirPlay icon on the iTunes / iPhone / iPod touch / iPad screen and select this unit. (120)
Audio is interrupted during the AirPlay playback on iPhone / iPod touch / iPad.
- Quit the application running in the background of the iPhone/iPod touch/iPad, and then play using AirPlay.
- Some external factors may be affecting the wireless connection. Modify the network environment by taking measures such as shortening the distance from the wireless LAN access point.
iTunes cannot be played back through the remote control unit.
- Enable the “Allow iTunes audio control from remote speakers” setting on iTunes. Then, you can perform playback, pause, and skip operations through the remote control unit.
Front panel D
Rear panel Re
Index
270
Contents
Connections Playback Settings
Appendix
USB memory devices cannot be played back
USB memory device is not recognized.
- Disconnect and reconnect the USB memory device. (☐ p. 74)
- Mass storage class compatible USB memory devices are supported.
- This unit does not support a connection through a USB hub. Connect the USB memory device directly to the USB port.
- The USB memory device must be formatted to "FAT32" or "NTFS".
- Not all USB memory devices are guaranteed to work. Some USB memory devices are not recognized. When using a type of portable hard disc drive compatible with the USB connection that requires power from an AC adapter, use the AC adapter that came with the drive.
Files on the USB memory device are not displayed.
- Files of a type not supported by this unit are not displayed. (p. 85)
- This unit is able to display files in a maximum of eight folder layers. A maximum of 5000 files (folders) can also be displayed for each layer. Modify the folder structure of the USB memory device.
- When multiple partitions exist on the USB memory device, only files on the first partition are displayed.
iOS and Android devices are not recognized.
- The USB port of this unit does not support playback from iOS and Android devices.
Files on a USB memory device cannot be played.
- Files are created in a format that is not supported by this unit. Check the formats supported by this unit. (P. 288)
- You are attempting to play a file that is copyright protected. Files that are copyright protected cannot be played on this unit.
- Playback may not be possible if the album art file size exceeds 2 MB.
Front panel D
Rear panel Re
Index
271
Contents
Connections Playback Settings
Appendix
Bluetooth cannot be played back
Bluetooth devices cannot be connected to this unit.
- The Bluetooth function in the Bluetooth device has not been enabled. See the Owner's Manual of the Bluetooth device to enable the Bluetooth function.
- Bring the Bluetooth device near to this unit.
- The Bluetooth device cannot connect with this unit if it is not compatible with the A2DP profile.
- Turn the power of the Bluetooth device off and on again, and then try again.
Smartphones and other Bluetooth devices cannot be connected.
- Smartphones and other Bluetooth devices cannot be connected when "Transmitter" is set to "On". Press Bluetooth on the remote control to switch the input source to Bluetooth, then connect the device. (127 p. 243)
Cannot connect Bluetooth headphones.
- Bring the Bluetooth headphones near to this unit.
- Turn the power of the Bluetooth headphones off and on again, and then try again.
- Go to "General" - "Bluetooth Transmitter", and set "Transmitter" to "On" within the menu. (p. 243)
- Make sure this unit is not already connected to another pair of Bluetooth headphones. Check the currently connected Bluetooth headphones by pressing INFO on the remote control or STATUS button on the unit. Disconnect the connected Bluetooth headphones before connecting the ones you want to use.
- Bluetooth headphones cannot be connected if Bluetooth is being used as an input source in any zone.
- Bluetooth headphones cannot be connected if this unit is grouped in the HEOS App. Remove this unit from the group to enable Bluetooth headphones connection.
- The Bluetooth headphones cannot connect with this unit if it is not compatible with the A2DP profile.
- Connection and operation are not guaranteed for all Bluetooth-enabled devices.
- This unit can only connect to one Bluetooth headphone at a time. However, up to 8 Bluetooth headphones can be registered. You can switch between registered devices from "Device List" in the "Bluetooth Transmitter" menu. (129 p. 243)
Front panel D
Rear panel Re
Index
272
Contents
Connections Playback Settings
Appendix
The sound is cut off.
- Bring the Bluetooth device near to this unit.
- Remove obstructions between the Bluetooth device and this unit.
• To prevent electromagnetic interference, locate this unit away from microwave ovens, wireless LAN devices and other Bluetooth devices. - Reconnect the Bluetooth device.
The sound is cut off or noise occurs when using Bluetooth headphones.
- Move the Bluetooth headphones closer to this unit.
- Remove obstructions between the Bluetooth headphones and this unit.
- Reconnect the Bluetooth headphones.
• To prevent electromagnetic interference, locate this unit away from microwave ovens, wireless LAN devices and other Bluetooth devices. - We recommend using wired LAN to connect this unit and other devices.
- Bluetooth transmits on the 2.4 GHz band which may interfere with Wi-Fi transmitted on this band. Connect this unit and other devices to Wi-Fi network on a 5 GHz band if available on your Wi-Fi router.
Audio is delayed on my Bluetooth headphones.
- This unit cannot adjust audio delay on Bluetooth headphones.
Front panel D
Rear panel Re
Index
273
Contents
Connections Playback Settings
Appendix
The Internet radio cannot be played back
A list of broadcasting stations is not displayed.
- The LAN cable is not properly connected, or the network is disconnected. Check the connection status. (Lp p. 77)
- Perform the network diagnostic mode.
Internet Radio cannot be played.
- The selected radio station is broadcasting in a format that is not supported by this unit. Formats that can be played back in this unit are MP3, WMA and AAC. (127 p. 291)
- The firewall function is enabled on the router. Check the firewall setting.
• The IP address is not properly set. (p. 234) - Check the power of the router is on.
- To obtain the IP address automatically, enable the DHCP server function on the router. Also, set the DHCP setting to "On" on this unit. (p. 234)
- To obtain the IP address manually, set the IP address on this unit. (p. 234)
- Some radio stations broadcast silently during some time period. In this case, no audio is output. Wait for a while and select the same radio station, or select another radio station. (105)
- The selected radio station is not in service. Select a radio station in service.
Cannot connect to favorite radio stations.
- Radio station is not currently in service. Register radio stations in service.
Front panel D
Rear panel Re
Index
274
Contents
Connections Playback Settings
Appendix
Music files on PC or NAS cannot be played back
Files stored on a computer cannot be played.
- Files are stored in a non-compatible format. Record in a compatible format. (p. 290)
- Files that are copyright protected cannot be played on this unit.
- The USB port of this unit cannot be used for connection to a computer.
- Media sharing settings on the server or NAS do not allow this unit. Change the settings to allow this unit. For details, see the owner's manual of the server or NAS.
Server is not found, or it is not possible to connect to the server.
- The computer's or router's firewall is activated. Check the computer's or router's firewall settings.
- Computer's power is not turned on. Turn on the power.
- Server is not running. Launch the server.
- IP address of this unit is wrong. Check the IP address of this unit. (128 p. 231)
Music files on PC cannot be played back.
• Even if PC is connected to the USB port on this unit, music files on it cannot be played back. Connect PC to this unit through the network. (p. 77)
Files on PC or NAS are not displayed.
- Files of a type not supported by this unit are not displayed. (p. 290)
Music stored on a NAS cannot be played.
- If you use a NAS in conformity with the DLNA standard, enable the DLNA server function in the NAS setting.
- If you use a NAS that does not conform with the DLNA standard, play the music via a PC. Set Windows Media Player's media sharing function and add NAS to the selected play folder.
- If connection is restricted, set audio equipment as the connection target.
Front panel D
Rear panel Re
Index
275
Contents
Connections Playback Settings
Appendix
Various online services cannot be played
Various online services cannot be played.
- The online service may have been discontinued.
The HDMI Control function does not work
The HDMI Control function does not work.
- Check that "HDMI Control" in the menu is set to "On". (☐ p. 189)
- You cannot operate devices that are not compatible with the HDMI Control function. In addition, depending on the connected device or the settings, the HDMI Control function may not work. In this case, operate the external device directly. (Kp. 147)
- Check that the HDMI Control function setting is enabled on all devices connected to this unit. (p. 147)
- When you make connection related changes such as connecting an additional HDMI device, the link operation settings may be initialized. Turn off this unit and devices connected via HDMI, and turn them on again. (p. 147)
- The HDMI MONITOR 2 connector is not compatible with the HDMI Control function. Use the HDMI MONITOR 1 connector to connect to the TV. (p. 65)
Front panel D
Rear panel Re
Index
276
Contents
Connections Playback Settings
Appendix
Cannot connect to a wireless LAN network
Cannot connect to the network.
- The network name (SSID), password and encryption setting have not been set up correctly. Configure the network settings according to the setting details of this unit. (127 p. 233)
- Shorten the distance from the wireless LAN access point and remove any obstructions to improve access first before re-connecting again. Place the unit away from microwave ovens and other network access points.
- Configure the access point channel settings away from channels that are being used by other networks.
- This unit is not compatible with WEP (TSN).
Cannot connect to a WPS Router.
- Check that the WPS mode of the router is operating.
- Press the WPS button on the router and then press the "Connect" button displayed on the TV within 2 minutes.
- A router/settings that are compatible with WPS 2.0 standards are required. Set the encryption time to "None", "WPA-PSK (AES)" or WPA2-PSK (AES). (12) p. 233)
- If the router encryption method is WEP/WPA-TKIP/WPA2-TKIP, you cannot connect by using the WPS button on the router. In this case, use the "Scan Networks" or "Manual" method to connect.
Cannot connect to the network using iPhone/iPod touch/iPad.
- Update the iPhone/iPod touch/iPad firmware to the latest version.
- When configuring the settings via a wireless connection, iOS 7 or later needs to be supported.
Front panel D
Rear panel Re
Index
277
Contents
Connections Playback Settings
Appendix
When using HDMI ZONE2, the devices does not function properly
When using MAIN ZONE, video output is interrupted in HDMI ZONE2.
- With the same input source selected for MAIN ZONE and ZONE2, when you operate MAIN ZONE, video may be interrupted in HDMI ZONE2.
When using HDMI ZONE2, no video or audio is output from the TV in ZONE2.
- Check that the power is on for ZONE2. (☐ p. 163)
- Check the input source for ZONE2. (p. 163)
- The AUX-HDMI and HDMI 7 connector does not support the HDMI ZONE2 function.
- In ZONE2, playback is only possible when the input signals are HDMI signals.
- When the TV does not support the input audio format, audio is not output. Set the audio format to "PCM" on the playback device. Alternatively, set "ZONE2 Setup" - "HDMI Audio" in the menu to "PCM". (12 p. 245)
- When the TV is not compatible with the resolution of the input video, no video is output. Set the output resolution on the playback device to a resolution that is compatible with the TV.
When using HDMI ZONE2, MAIN ZONE audio is played back as PCM.
- When the same input source is selected for MAIN ZONE and ZONE2, the audio format is limited according to the specifications of the TV in ZONE2.
Front panel D
Rear panel Re
Index
278
Contents Connections Playback Settings
Appendix
Update/upgrade error messages
If an update/upgrade is interrupted or fails, an error message appears.
| Display Description | |
| Connection failed. Please check your network, then try again. | The network connection is unstable.Connection to the server failed.Check your network environment and try the update again. |
| Update failed. Please check your network, then try again. | The download of the firmware failed.Check your network environment and try the update again. |
| Upgrade failed. Please check your network, then try again. | The download of the firmware failed.Check your network environment and try the upgrade again. |
| Please check your network, unplug and reconnect the power cord, and try again. | The update failed.Press and hold the ⏻ on the main unit for more than 5 seconds, or remove and re-insert the power cord.The update restarts automatically. |
| Please contact customer service in your area. This unit may be broken.Contact our Customer Service Center in your area. | |
Front panel D
y Rear panel Re
Index
279
Contents
Connections Playback Settings
Appendix
Resetting factory settings
If the indicators are incorrect or the unit cannot be operated, restarting the unit may improve the problem. We recommend restarting the unit before returning the settings to the default settings. (p. 259)
If the operations are not improved by restarting the unit, follow the steps below.
Various settings are reset to the factory default values. Make settings again.
1 Turn off the power using ⏻.
2 Press ⏻ while simultaneously pressing TUNER PRESET CH + and TUNER PRESET CH -.
3 Remove your fingers from the two buttons when "Initialized" appears on the display.
- Before returning the settings to the default settings, use the "Save & Load" function from the menu to save and restore the details of various settings configured on the unit. (P p. 253)
- You can also reset all settings to the factory defaults using "Reset" - "All Settings" in the menu. (1 p. 254)
Front panel D
Rear panel Re
Index
280
Contents Connections Playback Settings
Appendix
Resetting network settings
If network contents cannot be played or the unit cannot connect to the network, restarting the unit may improve the problem. We recommend restarting the unit before returning the settings to the default settings. (15 p. 259)
If the operations are not improved by restarting the unit, follow the steps below.
Network settings are reset to the factory default values. Make settings again.
However, the menu "Amp Assign", "Speaker Config." and "Video" settings are not reset.
1 Press ⏻ to turn on power to the unit.
2 Turn SOURCE SELECT to select "HEOS Music".
3 Press and hold the main unit's TUNER PRESET CH + and ZONE2 ON/OFF at the same time for at least 3 seconds.
4 Remove your fingers from the two buttons when "Network Reset..." appears on the display.
5 "Completed" is shown in the display when reset is complete.
- Before returning the settings to the default settings, use the "Save & Load" function from the menu to save and restore the details of various settings configured on the unit. (P p. 253)
- You can also reset the network settings to the factory defaults using "Reset" - "Network Settings" in the menu. (10 p. 254)
NOTE
- Do not turn the power off until reset is complete.
Front panel D
Rear panel Re
Index
281
Contents
Connections Playback Settings Tips
About HDMI
HDMI is an abbreviation of High-Definition Multimedia Interface, which is an AV digital interface that can be connected to a TV or amplifier. With the HDMI connection, high definition video and high quality audio formats adopted by Blu-ray Disc players (Dolby Digital Plus, Dolby TrueHD, DTS-HD, DTS-HD Master Audio) can be transmitted, which is not possible with the analog video transmission. Furthermore, in the HDMI connection, audio and video signals can be transmitted through a single HDMI cable, while in conventional connections it is necessary to provide audio and video cables separately for connection between devices. This allows you to simplify the wiring configuration that tends to be quite complex in a home theater system. This unit supports the following HDMI functions.
- Deep Color
An imaging technology supported by HDMI. Unlike RGB or YCbCr, which uses 8 bits (256 shades) per color, it can use 10 bits (1024 shades), 12 bits (4096 shades), or 16 bits (65536 shades) to produce colors in higher definition. Both devices linked via HDMI must support Deep Color.
• x.v.Color
This function lets HDTVs display colors more accurately. It enables display with natural, vivid colors. "x.v.Color" is trademark of Sony Corporation.
• 3D
This unit supports input and output of 3D (3 dimensional) video signals of HDMI. To play back 3D video, you need a TV and player that provide support for the HDMI 3D function and a pair of 3D glasses.
• 4K / 8K
This unit supports input and output of 4K (3840 x 2160 pixels) and 8K (7680 x 4320 pixels) video signals of HDMI.
- Content Type
It automatically makes settings suitable for the video output type (content information).
- Adobe RGB color, Adobe YCC601 color
The color space defined by Adobe Systems Inc. Because it is a wider color space than RGB, it can produce more vivid and natural images.
- sYCC601 color
Each of these color spaces defines a palette of available colors that is larger than the traditional RGB color model.
• ALLM (Auto Low Latency Mode)
This unit automatically switches to low latency mode depending on playback contents when using a combination of television and game console compatible with the ALLM function.
Front panel D
Rear panel Re
Index
282
Contents
Connections Playback Settings Tips
- Auto Lip Sync
This function can automatically correct delay between the audio and video.
Use a TV that is compatible with the Auto Lip Sync function.
• HDMI Pass Through
Even when the power to this unit is set to standby, signals input from the HDMI input connector are output to a TV or other device that is connected to the HDMI output connector.
- HDMI Control
If you connect the unit and an HDMI Control function compatible TV or player with an HDMI cable and then enable the HDMI Control function setting on each device, the devices will be able to control each other.
- Power off link
This unit power off can be linked to the TV power off step.
• Audio output destination switching
From the TV, you can switch whether to output audio from the TV or the AV amplifier.
• Volume adjustment
You can adjust this unit's volume in the TV volume adjustment operation.
- Input source switching
You can switch this unit input sources through linkage to TV input switching.
When playing the player, this unit input source switches to the source for that player.
• ARC (Audio Return Channel)
This function transmits audio signals from the TV to this unit through the HDMI cable and plays back the audio from the TV on this unit based on the HDMI Control function.
If a TV without the ARC function is connected via HDMI connections, video signals of the playback device connected to this unit are transmitted to the TV, but this unit can not play back the audio from the TV. If you want to enjoy surround audio for TV program, a separate audio cable connection is required.
In contrast, if a TV with the ARC function is connected via HDMI connections, no audio cable connection is required. Audio signals from the TV can be input to this unit through the HDMI cable between this unit and the TV. This function allows you to enjoy surround playback on this unit for the TV.
• eARC (Enhanced Audio Return Channel)
The eARC function is an extension of the conventional ARC function. It utilizes dedicated eARC function control to play back television audio from this unit without passing through HDMI control. Furthermore, the eARC function can transmit multichannel linear PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X and other audio formats not compatible with conventional ARC. Connecting to an eARC function-compatible television also enables enjoyment of higher-quality surround playback of the audio content played from your television.
Front panel D
Rear panel Re
Index
Contents Connections Playback Settings Tips
• VRR (Variable Refresh Rate):
VRR reduces or eliminates lag, stutter and frame tearing for more fluid and better detailed gameplay.
• QMS (Quick Media Switching):
QMS for movies and video eliminates the delay that can result in blank screens before content is displayed.
• QFT (Quick Frame Transport):
QFT reduces latency for smoother no-lag gaming, and real-time interactive virtual reality.
■ Supported audio formats
| 2-channel Linear PCM | 2-channel, 32 kHz – 192 kHz, 16/20/24 bit |
| Multi-channel Linear PCM | 7.1-channel, 32 kHz – 192 kHz, 16/20/24 bit |
| Bitstream | Dolby Digital / DTS / Dolby Atmos / Dolby TrueHD / Dolby Digital Plus / DTS:X / DTS-HD Master Audio / DTS-HD High Resolution Audio / DTS Express |
| DSD 2-channel – | 5.1-channel, 2.8 MHz |
■ Supported video signals
• 480i
• 480p
• 576i
- 576p
- 720p 60/50Hz
• 1080i 60/50Hz
• 1080p 60/50/24Hz
• 4K 120/100/60/50/30/25/24 Hz
• 8K 60/50/30/25/24 Hz
Front panel D
Rear panel Re
Index
284
Contents Connections Playback Settings Tips
Copyright protection system
In order to play back digital video and audio such as BD video or DVD video via HDMI connection, both this unit and the TV or player must to support the copyright protection system known as HDCP (High-bandwidth Digital Content Protection System). HDCP is copyright protection technology comprised of data encryption and authentication of the connected AV devices. This unit supports HDCP.
- If a device that does not support HDCP is connected, video and audio are not output correctly. Read the owner's manual of your television or player for more information.
Front panel D
y Rear panel Re
Index
285
Relationship between video signals and monitor output
Contents
Connections Playback Settings Tips
This unit can convert the input video signals to the resolution that is set for "Resolution" in the menu before outputting them to the TV. (P. 194)
| Input signal\Output signal | HDMI | |||||||||||
| 480i/576i | 480p/576p | 720p 10 | 80i | 1080p30/25/24Hz | 1080p60/50Hz | 4K30/25/24Hz | 4K60/50Hz | 4K120/100Hz | 8K30/25/24Hz | 8K60/50Hz | ||
| HDMI | 480i/576i | √ | √ | √ | √ | √ | √ | √ | ||||
| 480p/576p | √ | √ | √ | √ | √ | √ | ||||||
| 720p | √ | √ | √ | √ | √ | |||||||
| 1080i | √ | √ | √ | √ | ||||||||
| 1080p 30/25/24Hz | √ | √ | √ | |||||||||
| 1080p 60/50Hz | √ | √ | √ | |||||||||
| 4K 30/25/24Hz | √ | √ | ||||||||||
| 4K 60/50Hz | √ | √ | ||||||||||
| 4K 120/100Hz | √* | |||||||||||
| 8K 30/25/24Hz | √* | |||||||||||
| 8K 60/50Hz | √* | |||||||||||
* Only supported by the HDMI 7 connector.
y Rear panel Re
287
Contents
Connections
Playback
Settings
Tips
Appendix
Playing back a USB memory devices
- This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
- This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4.
- This unit is compatible with WMA META tags.
- If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/Apple Lossless/DSD) or 349 × 349 (MPEG-4 AAC), then music may not be played back properly.
■ Compatible formats
| Sampling frequency Channel Bit rate Extension | ||||
| WMA*1 | 32/44.1/48 kHz 2-channel 48 – 192 kbps .wma | |||
| MP3 32/44.1/48 kHz 2-channel | 32 – 320 kbps .mp3 | |||
| WAV | 32/44.1/48/88.2/96/176.4/192 kHz | 2-channel – .wav | ||
| MPEG-4 AAC*1 | 32/44.1/48 kHz 2-channel 48 - 320 kbps .aac/.m4a | |||
| FLAC | 44.1/48/88.2/96/176.4/192 kHz | 2-channel – .flac | ||
| Apple Lossless*2 | 44.1/48/88.2/96/176.4/192 kHz | 2-channel – .m4a | ||
| DSD 2.8/5.6 MHz 2-channel – .dsf/.dff | ||||
*1 Only files that are not protected by copyright can be played on this unit.
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer's settings.
*2 The Apple Lossless Audio Codec (ALAC) decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).
Front panel
Display
Rear panel
288
Remote
Index
Contents
Connections Playback Settings Tips
■ Maximum number of playable files and folder
The limits on the number of folders and files that can be displayed by this unit are as follows.
| Item\Media | USB memory device |
| Number of folder directory levels *1 | 8 levels |
| Number of folders 500 | |
| Number of files*2 | 5000 |
*1 The limited number includes the root folder.
*2 The allowable number of files may differ according to the USB memory device capacity and the file size.
Playing back a Bluetooth device
This unit supports the following Bluetooth profile.
- A2DP (Advanced Audio Distribution Profile): When a Bluetooth device that supports this standard is connected, monaural and stereo sound data can be streamed at a high quality.
- AVRCP (Audio/Video Remote Control Profile): When a Bluetooth device that supports this standard is connected, the Bluetooth device can be operated from this unit.
■ About Bluetooth communications
Radio waves broadcast from this unit may interfere with the operation of medical devices. Make sure you turn off the power of this unit and Bluetooth device in the following locations as radio wave interference may cause malfunctions.
- Hospitals, trains, aircraft, petrol kiosks and places where flammable gases are generated
• Near automatic doors and fire alarms
Front panel D
Rear panel Re
Index
289
Contents
Connections
Playback
Settings
Tips
Appendix
Playing back a file saved on a PC or NAS
- This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
- This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4.
- This unit is compatible with WMA META tags.
- If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/WAV/FLAC/Apple Lossless/DSD) or 349 × 349 (MPEG-4 AAC), then music may not be played back properly.
- A server or server software compatible with distribution in the corresponding formats is required to play music files via a network.
For playing mentioned audio formats via a network a server software, for example Twonky Media Server or jRiver Media Server, needs to be installed on your computer or NAS for full support. There are other server software available too. Please check supported formats.
■ Specifications of supported files
| Sampling frequency Channel Bit rate Extension | ||||
| WMA*1 | 32/44.1/48 kHz 2-channel 48 – 192 kbps .wma | |||
| MP3 32/44.1/48 kHz 2-channel | 32 – 320 kbps .mp3 | |||
| WAV | 32/44.1/48/88.2/96/176.4/192 kHz | 2-channel – .wav | ||
| MPEG-4 AAC*1 | 32/44.1/48 kHz 2-channel 48 - 320 kbps .aac/.m4a | |||
| FLAC | 44.1/48/88.2/96/176.4/192 kHz | 2-channel – .flac | ||
| Apple Lossless*2 | 44.1/48/88.2/96/176.4/192 kHz | 2-channel – .m4a | ||
| DSD 2.8/5.6 MHz 2-channel – | .dsf/.diff | |||
*1 Only files that are not protected by copyright can be played on this unit.
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer's settings.
*2 The Apple Lossless Audio Codec (ALAC) decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).
Front panel
Display
Rear panel
290
Remote
Index
Contents Connections Playback Settings Tips
Playing back Internet Radio
■ Playable broadcast station specifications
| Sampling frequency | Bit rate | Extension | |
| WMA 32/44.1/48 kHz | 48 – 192 kbps | .wma | |
| MP3 32/44.1/48 kHz | 32 – 320 kbps | .mp3 | |
| MPEG-4 AAC 32/44.1/48 kHz | 48 - 320 kbps | .aac/.m4a |
Personal memory plus function
The most recently used settings (input mode, HDMI output mode, sound mode, tone control, channel level, MultEQ ^® XT32, Dynamic EQ, Dynamic Volume, Restorer and audio delay, etc.) are saved for each input source.
- "Surround Parameter" settings are stored for each sound mode.
Last function memory
This function stores the settings which were made before going into the standby mode.
Front panel D
Rear panel Re
Index
291
Contents
Connections Playback Settings Tips
Explanation of terms
Audyssey
Audyssey Dynamic EQ ^®
Audyssey Dynamic EQ ^® solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics.
Audyssey Dynamic EQ ^® works in tandem with Audyssey MultEQ ^® XT32 to provide well-balanced sound for every listener at any volume level.
Audyssey Dynamic Volume®
Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Audyssey Dynamic EQ ^® is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression, and dialog clarity remain the same.
Audyssey LFC™ (Low Frequency Containment)
Audyssey LFC ^™ solves the problem of low frequency sounds disturbing people in neighboring rooms or apartments. Audyssey LFC ^™ dynamically monitors the audio content and removes the low frequencies that pass through walls, floors and ceilings. It then applies psychoacoustic processing to restore the perception of low bass for listeners in the room. The result is great sound that no longer disturbs the neighbors.
Audyssey MultEQ® XT32
Audyssey MultEQ ^® XT32 is a room equalization solution that calibrates any audio system so that it can achieve optimum performance for every listener in a large listening area. Based on several room measurements, MultEQ ^® XT32 calculates an equalization solution that corrects for both time and frequency response problems in the listening area and also performs a fully automated surround system setup.
Front panel D
y Rear panel Re
Index
292
Contents
Connections Playback Settings Tips
Dolby
Dolby Atmos
Introduced first in the cinema, Dolby Atmos brings a revolutionary sense of dimension and immersion to the Home Theater experience. Dolby Atmos is an adaptable and scalable object based format that reproduces audio as independent sounds (or objects) that can be accurately positioned and move dynamically throughout the 3 dimensional listening space during playback. A key ingredient of Dolby Atmos is the introduction of a height plane of sound above the listener.
Dolby Atmos Stream
Dolby Atmos content will be delivered to your Dolby Atmos Enabled AV receiver via Dolby Digital Plus or Dolby TrueHD on Blu-ray Disc, downloadable files and streaming media. A Dolby Atmos stream contains special metadata that describes the positioning of sounds within the room. This object audio data is decoded by a Dolby Atmos AV receiver and scaled for optimum playback through Home Theater speaker systems of every size and configuration.
Dolby Digital
Dolby Digital is a multi-channel digital signal format developed by Dolby Laboratories.
A total of 5.1-channels are played: 3 front channels ("FL", "FR" and "C"), 2 surround channels ("SL" and "SR") and the "LFE" channel for low frequency effects.
Because of this, there is no crosstalk between channels and a realistic sound field with a “three-dimensional” feeling (sense of distance, movement and positioning) is achieved. This delivers a thrilling surround sound experience in the home.
Dolby Digital Plus
Dolby Digital Plus is an improved Dolby Digital signal format that is compatible with up to 7.1-channels of discrete digital sound and also improves sound quality thanks to extra data bit rate performance. It is upwardly compatible with conventional Dolby Digital, so it offers greater flexibility in response to the source signal and the conditions of the playback device.
Dolby Surround
Dolby Surround is a next generation surround technology that intelligently up mixes stereo; 5.1 and 7.1 content for playback through your surround speaker system. Dolby Surround is compatible with traditional speaker layouts, as well as Dolby Atmos enabled playback systems that employ in-ceiling speakers or products with Dolby speaker technology.
Front panel D
Rear panel Re
Index
293
Contents
Connections Playback Settings Tips
Dolby Speaker Technology (Dolby Atmos Enabled speakers)
A convenient alternative to speakers built into the ceiling, Dolby Atmos Enabled speakers employ the ceiling above you as a reflective surface for reproducing audio in the height plane above the listener. These speakers feature a unique upward firing driver and special signal processing. These features can be built into a conventional speaker or standalone speaker module. The features minimally impact the overall speaker footprint while providing an immersive listening experience during Dolby Atmos and Dolby Surround playback.
Dolby TrueHD
Dolby TrueHD is a high definition audio technology developed by Dolby Laboratories, using lossless coding technology to faithfully reproduce the sound of the studio master.
This format provides the facility to support up to 8 audio channels with a sampling frequency of 96 kHz/24 bit resolution and up to 6 audio channels with a sampling frequency of 192 kHz/24 bit resolution.
Speaker Virtualizer
Dolby Atmos height virtualization is a digital signal processing solution that leverages Dolby's deep understanding of human audio perception to create the sensation of overhead sound from the listener-level speakers.
This signal processing applies height-cue filters to overhead audio components contained within the audio signal before they are mixed into the listener-level speakers.
These filters simulate the natural spectral cues imparted by our ears to sounds that originate from overhead.
For stereo and 3.1-channel speaker configuration, Dolby Atmos height virtualization is combined with surround virtualization to create an enveloping 360-degree audio minus the speakers that would ordinarily be employed behind or to the side of the listener.
Front panel D
Rear panel Re
Index
294
Contents
Connections Playback Settings Tips
DTS
Dialog Control
Gives you control of the listening experience. You can lift the dialog out from the background sounds when clarity and intelligibility are desired. This requires that content has been authored to support Dialog Control.
DTS
This is an abbreviation of Digital Theater System, which is a digital audio system developed by DTS. DTS delivers a powerful and dynamic surround sound experience, and is found in the world's finest movie theaters and screening rooms.
DTS 96/24
DTS 96/24 is a digital audio format enabling high sound quality playback in 5.1-channels with a sampling frequency of 96 kHz and 24 bit quantization on DVD-Video.
DTS Digital Surround
DTS ^™ Digital Surround is the standard digital surround format of DTS, Inc., compatible with a sampling frequency of 44.1 or 48 kHz and up to 5.1-channels of digital discrete surround sound.
DTS-ES™ Discrete 6.1
DTS-ES ^™ Discrete 6.1 is a 6.1-channel discrete digital audio format adding a surround back (SB) channel to the DTS digital surround sound. Decoding of conventional 5.1-channel audio signals is also possible according to the decoder.
DTS-ES™ Matrix 6.1
DTS-ES™ Matrix 6.1 is a 6.1-channel audio format that inserts a surround back (SB) channel to the DTS digital surround sound through matrix encoding. Decoding of conventional 5.1-channel audio signals is also possible according to the decoder.
DTS Express
DTS Express is an audio format supporting low bit rates (max. 5.1-channels, 24 to 256 kbps).
DTS-HD
This audio technology provides higher sound quality and enhanced functionality than the conventional DTS and is adopted as an optional audio for Blu-ray Disc.
This technology supports multi-channel, high data transfer speed, high sampling frequency, and lossless audio playback. Maximum 7.1-channels are supported in Blu-ray Disc.
Front panel D
Rear panel Re
Index
295
Contents Connections Playback Settings Tips
DTS-HD High Resolution Audio
DTS-HD High Resolution Audio is an improved version of the conventional DTS, DTS-ES and DTS 96/24 signals formats, compatible with sampling frequencies of 96 or 48 kHz and up to 7.1-channels of discrete digital sound. High data bit rate performance provides high quality sound. This format is fully compatible with conventional products, including conventional DTS digital surround 5.1-channel data.
DTS-HD Master Audio
DTS-HD Master Audio is a lossless audio format created by Digital Theater System (DTS). This format provides the facility to support up to 8 audio channels with a sampling frequency of 96 kHz/24 bit resolution and up to 6 audio channels with a sampling frequency of 192 kHz/24 bit resolution. It is fully compatible with conventional products, including conventional DTS digital surround 5.1-channel data.
DTS:X
DTS:X produces a hemisphere of audio, where flyovers as well as ambient backgrounds become truly enveloping. DTS:X objects enable audio to move smoothly from one speaker to any other creating life-like realism.
DTS Neural:X
Enables an immersive audio experience for older content. DTS Neural:X can upmix your stereo, 5.1 or 7.1 content to take full advantage of all speakers in your surround sound system.
DTS Virtual:X
DTS Virtual:X allows you to enjoy multi-dimensional sound regardless of room size, layout, or speaker configuration.
IMAX®
IMAX® is well admired around the world for a premium large format movie experience. IMAX delivers the most advanced movie projection technology combined with rich, deep sound.
Front panel D
Rear panel Re
Index
296
Contents
Connections Playback Settings Tips
Audio
Apple Lossless Audio Codec
This is a codec for lossless audio compression method developed by Apple Inc. This codec can be played back on iTunes, iPod or iPhone. Data compressed to approximately 60 – 70 % can be decompressed to exactly the same original data.
FLAC (Free Lossless Audio Codec)
FLAC stands for Free lossless Audio Codec, and is a lossless free audio file format. Lossless means that the audio is compressed without any loss in quality.
The FLAC license is as shown below.
Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Josh Coalson
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
LFE
This is an abbreviation of Low Frequency Effect, which is an output channel that emphasizes low frequency effect sound. Surround audio is intensified by outputting 20 Hz to 120 Hz deep bass to the system subwoofer(s).
MP3 (MPEG Audio Layer-3)
This is an internationally standardized audio data compression scheme, using the "MPEG-1" video compression standard. It compresses the data volume to about one eleventh its original size while maintaining sound quality equivalent to a music CD.
Front panel D
Rear panel Re
Index
297
Contents
Connections Playback Settings Tips
MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4
These are the names for digital compression format standards used for the encoding of video and audio. Video standards include "MPEG-1 Video", "MPEG-2 Video", "MPEG-4 Visual", "MPEG-4 AVC". Audio standards include "MPEG-1 Audio", "MPEG-2 Audio", "MPEG-4 AAC".
WMA (Windows Media Audio)
This is audio compression technology developed by Microsoft Corporation.
WMA data can be encoded using Windows Media® Player.
To encode WMA files, only use applications authorized by Microsoft Corporation. If you use an unauthorized application, the file may not work properly.
Sampling frequency
Sampling involves taking a reading of a sound wave (analog signal) at regular intervals and expressing the height of the wave at each reading in digitized format (producing a digital signal).
The number of readings taken in one second is called the “sampling frequency”. The larger the value, the closer the reproduced sound is to the original.
Speaker impedance
This is an AC resistance value, indicated in (ohms).
Greater power can be obtained when this value is smaller.
Dialogue normalization function
This function operates automatically during playback of Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS or DTS-HD sources. It automatically corrects the standard signal level for individual program sources.
Dynamic range
The difference between the maximum undistorted sound level and the minimum discernible level above the noise emitted by the device.
Downmix
This function converts the number of channels of surround audio to a lower number of channels and plays back according to the system's configuration.
Front panel D
Rear panel Re
Index
298
Contents
Connections Playback Settings Tips
Video
ISF
ISF (Imaging Science Foundation) is an organization that certifies video technicians who are then qualified to carry out calibration and adjustment to match the installation conditions. It also sets quality standards for the optimization of device video performance.
Progressive (sequential scanning)
This is a scanning system of the video signal that displays 1 frame of video as one image. Compared to the interlace system, this system provides images with less flickering and jagged edges.
Network
AirPlay
AirPlay sends (plays) contents recorded in iTunes or on an iPhone/iPod touch/iPad to a compatible device via the network.
WEP Key (network key)
This is key information used for encrypting data when conducting data transfer. On this unit, the same WEP key is used for data encryption and decryption, so the same WEP key must be set on both devices in order for communications to be established between them.
Wi-Fi®
Wi-Fi Certification assures tested and proven interoperability by the Wi-Fi Alliance, a group certifying interoperability among wireless LAN devices.
WPA (Wi-Fi Protected Access)
This is a security standard established by the Wi-Fi Alliance. In addition to the conventional SSID (network name) and WEP key (network key), it also uses a user identification function and encrypting protocol for stronger security.
WPA2 (Wi-Fi Protected Access 2)
This is a new version of the WPA established by the Wi-Fi Alliance, compatible with more secure AES encryption.
Front panel D
Rear panel Re
Index
299
Contents
Connections Playback Settings Tips
WPA-PSK/WPA2-PSK (Pre-shared Key)
This is a simple authentication system for mutual authentication when a preset character string matches on the wireless LAN access point and client.
Network Names (SSID: Service Set Identifier)
When forming wireless LAN networks, groups are formed to prevent interference, data theft, etc. These groups are based on “SSID (network names)”. For enhanced security, a WEP key is set so that communication is unavailable unless both the “SSID” and the WEP key match. This is suitable for constructing a simplified network.
Others
HDCP
When transmitting digital signals between devices, this copyright protection technology encrypts the signals to prevent content from being copied without authorization.
MAIN ZONE
The room where this unit is placed is called the MAIN ZONE.
Pairing
Pairing (registration) is an operation that is required in order to connect a Bluetooth device to this unit using Bluetooth. When paired, the devices authenticate each other and can connect without mistaken connections occurring.
When using Bluetooth connection for the first time, you need to pair this unit and the Bluetooth device to be connected.
Protection circuit
This is a function to prevent damage to devices within the power supply when an abnormality such as an overload, excess voltage occurs or over temperature for any reason.
Front panel D
Rear panel Re
Index
300
Trademark information
Works with
Apple AirPlay
Apple, AirPlay, iPad, iPad Air, iPad Pro and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
The trademark "iPhone" is used in Japan with a license from Aiphone K.K.
Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.
AUDYSSEY
MULTEQ XT32
DYNAMIC VOLUME
AUDYSSEY
LFC
Manufactured under license from Audyssey Laboratories™. U.S. and foreign patents pending. Audyssey MultEQ® XT32, Audyssey Dynamic EQ®, Audyssey Dynamic Volume® and Audyssey LFC™ are registered trademarks of Audyssey Laboratories.
Bluetooth
The Bluetooth ^® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc. is under license. Other trademarks and trade names are those of their respective owners.
DOLBY
ATMOS
COMPATIBLE
DOLBY
VISION
Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Audio, Dolby Surround, Dolby Vision, and the double-D symbol are trademarks of Dolby Laboratories.
Front panel D
Rear panel Re
Index
301
Contents Connections Playback Settings Tips
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, DTS:X, the DTS:X logo, Virtual:X, and the DTS Virtual:X logo are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
HIGH DEFINITION MULTIMEDIA INTERFACE
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
HDR10+TM logo is a trademark of HDR10+ Technologies, LLC.
IMAX®
ENHANCED
Manufactured under license from IMAX Corporation. IMAX ^® is a registered trademark of IMAX Corporation in the United States and/or other countries. All Rights Reserved. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries © DTS, Inc. All Rights Reserved.
CERTIFIED
The Wi-Fi CERTIFIED logo is a registered trademark of the Wi-Fi Alliance.
Wi-Fi Certification provides assurance that the device has passed the interoperability test conducted by the Wi-Fi Alliance, a group that certifies interoperability among wireless LAN devices.
Front panel D
Rear panel Re
Index
302
Specifications
■ Audio section
- Power amplifier
Rated output: Front:
105 W + 105 W (8 Ω/ohms, 20 Hz - 20 kHz with 0.08 % T.H.D.)
135 W + 135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Center:
105 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Surround:
105 W + 105 W (8 Ω/ohms, 20 Hz - 20 kHz with 0.08 % T.H.D.)
135 W + 135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Surround back / Height1 / Height2:
105 W + 105 W (8 Ω/ohms, 20 Hz - 20 kHz with 0.08 % T.H.D.)
135 W + 135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Output connectors: 4 – 16 Ω/ohms
Front panel D
y Rear panel Re
Index
303
Contents Connections Playback Settings Tips
- Analog
Input sensitivity: 200 mV
Frequency response: 10 Hz – 100 kHz — +1, -3 dB (Direct mode)
S/N: 100 dB (IHF-A weighted, Direct mode)
Distortion: 0.008 % (20 Hz – 20 kHz) (Direct mode)
Rated output: 1.2 V
- Digital
D/A output: Rated output — 2 V (at 0 dB playback)
Total harmonic distortion — 0.008 % (1 kHz, at 0 dB)
S/N ratio — 102 dB
Dynamic range — 100 dB
Digital input: Format — Digital audio interface
- Phono equalizer
Input sensitivity: 2.5 mV
RIAA deviation: ±1 dB (20 Hz to 20 kHz)
S/N: 74 dB (IHF-A)
Distortion factor: 0.03 % (1 kHz, 3 V)
Front panel D
y Rear panel Re
In
304
Contents Connections Playback Settings Tips
■ Video section
- Standard video connectors
Input/output level and impedance: 1 Vp-p, 75 Ω/ohms
Frequency response: 5 Hz – 10 MHz — 0, -3 dB
• Color component video connector
Input/output level and impedance: Y signal — 1 Vp-p, 75 Ω/ohms
P_B/C_B signal — 0.7 Vp-p, 75 Ω/ohms
P_R/C_R signal — 0.7 Vp-p, 75 Ω/ohms
Frequency response: 5 Hz – 60 MHz — 0, -3 dB
■ Tuner section
[FM] [AM]
(Note: V at 75 /ohms, 0 dBf = 1 x 10^-15 W)
Reception frequency range: 87.5 MHz – 107.9 MHz 520 kHz – 1710 kHz
Effective sensitivity: 1.2 μV (12.8 dBf) 18 μV
50 dB sensitivity: MONO - 2.8 μV (20.2 dBf)
S/N ratio: MONO - 70 dB (IHF-A weighted, Direct mode)
STEREO - 67 dB (IHF-A weighted, Direct mode)
Distortion: MONO - 0.7 % (1 kHz)
STEREO - 1.0 % (1 kHz)
Front panel
Display
Rear panel
305
Remote
Index
![DENON AVC-X3700H - [FM] [AM] - 1](/content/2026/05/878819/images/60d1a94a79d41d232a74ecbd881674f0b00987f4618da9292601a5125d3423de.jpg)
Contents Connections Playback Settings Tips
■ Wireless LAN section
Network type (wireless LAN standard): Conforming to IEEE 802.11a/b/g/n
(Wi-Fi® compliant) *1
Security: WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Used frequency range: 2.4 GHz, 5 GHz
*1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.
Front panel D
Rear panel Re
Index
306
Contents
Connections Playback Settings Tips
Bluetooth section
Communications system: Bluetooth Specification Version 4.2
Transmission power: Bluetooth Specification Power Class 1
Maximum communication range: Approx. 98.4 ft/30 m in line of sight *2
Used frequency range: 2.4 GHz
Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum)
Supported profiles: Receiver function
A2DP (Advanced Audio Distribution Profile) 1.2
AVRCP (Audio Video Remote Control Profile) 1.5
Transmitter function
A2DP (Advanced Audio Distribution Profile) 1.2
Corresponding codec: SBC
Transmission range (A2DP): 20 Hz – 20,000 Hz
*2 The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.
General
Operating temperature: 41 °F - 95 °F (5 °C - 35 °C)
Power supply: AC 120 V, 60 Hz
Power consumption: 660 W
Power consumption in standby mode: 0.1 W *
Power consumption in CEC standby mode: 0.5 W
* When "Network Control" in the menu is set to "Off In Standby" and "HDMI Pass Through" is set to "Off".
For purposes of improvement, specifications and design are subject to change without notice.
Front panel D
Rear panel Re
Index
307
Contents Connections Playback Settings Tips
■ Dimensions (Unit : in. (mm))
■ Weight: 27.6 lb (12.5 kg)
Front panel D
Rear panel Re
Index
308
Contents
Connections Playback Settings Tips
Index
Numerics
11.1-channel 55
3D 282
4K/8K 282
5.1-channel 34,43
7.1-channel 34,44
9.1-channel 48
A
AirPlay 119
All Zone Stereo 130
Audio formats 284, 288, 290, 291
Audio settings 165, 170
Audyssey Dynamic EQ® 292
Audyssey Dynamic Volume® 292
Audyssey LFC™ 292
Audyssey MultEQ® XT32 292
Audyssey settings 180, 206
Audyssey Sub EQ HT™ 205
Audyssey® Setup 204
Auto sound mode 135
Auto Standby 242
B
Bi-amp 59
Bluetooth device 90
Blu-ray Disc player 70,84
C
Cable TV 69
D
Direct sound mode 140
Display 20
Dolby Atmos 293
Dolby sound mode 136, 293
DTS sound mode 137,295
DVD player 70,84
E
ECO Mode 239
External control device 79
F
Firmware Update 248
FM/AM antenna 75,97
Front panel 17
G
Game console 72
General settings 168, 239
H
HDCP 285
HDMI Control 147, 189
HEOS Account 111,238
HEOS Favorites 124
Front panel D
Rear panel Re
Index
309
Contents
Connections Playback Settings Tips
1
Input Assign 200
Input settings 166,200
Input source 83
Internet Radio 104
L
Listening position 204
M
Menu map 165
Muting 84
N
NAS 106
Network settings 231
0
Original sound mode 139
P
Pairing 90, 91
PC 106
PCM multi-channel sound mode 139
Picture Mode 185
Protection circuit 300
Pure direct 135
Q
Queue 86,107,114
Quick select plus 152
R
Rear panel 22
Remote control unit 26
Resetting factory settings 280
Resetting network settings 281
Restorer 177
S
Satellite tuner 69
Set-top box 69
Setup Assistant 168
Sleep timer 150
Sound mode 133
Speaker connection 37
Speaker settings 166, 204
Spotify 122
Stereo sound mode 140
Front panel D
Rear panel Re
Index
310
Contents Connections Playback Settings Tips
T
Tips 257
Troubleshooting 259
TV 65, 66, 67
U
USB memory device 74,85
V
Video camcorder 72
Video Select 128
Video settings 165, 185
Volume 84,126
W
Web control 158
Wi-Fi settings 232
Wired LAN 77,231
Wireless LAN 78,232
Z
ZONE2 61,160
Front panel D
Rear panel Re
Index
311
DENON®
www.denon.com
3520 10735 00AD
©2020 Sound United. All Rights Reserved.
- DENON®
- AVR-X3700H
- Owner's Manual
- Contents Connections Playback Settings Tips Appendix
- Connections
- Playback
- Accessories
- Inserting the batteries
- NOTE
- Operating range of the remote control unit
- Features
- High quality sound
- High performance
- Contents
- Connections Playback Settings Tips Appendix
- Front panel D
- Rear panel Re
- Index
- - Connect Bluetooth headphones
- • Multi-Room audio (p. 130)
- • Energy-saving design
- Easy operation
- Part names and functions
- ① Power operation button (⏻)
- ② Power indicator
- ③ SOURCE SELECT knob
- Remote control sensor
- ⑤ Display
- ⑥ MASTER VOLUME knob
- ⑦ Tuner preset channel buttons (TUNER PRESET CH +, -)
- ZONE2 ON/OFF button
- ⑨ ZONE2 SOURCE button
- ⑩ DIMMER button
- ⑪ STATUS button
- y Rear panel Re
- ⑫ QUICK SELECT buttons
- ⑬ Headphones jack (PHONES)
- ⑭ SETUP MIC jack
- ⑮ USB port (←)
- Display
- ① Bluetooth/wireless LAN antenna connectors
- ② TRIGGER OUT jack
- ③ RS-232C connector
- Digital audio connectors (DIGITAL AUDIO)
- ⑤ REMOTE CONTROL jacks
- NETWORK connector
- ⑦ SIGNAL GND terminal
- ⑧ Video connectors (VIDEO)
- ⑨ HDMI connectors
- ⑩ AC inlet (AC IN)
- Remote control unit
- ① ZONE SELECT buttons
- ② Input source select buttons
- ③ Channel/page search buttons (CH/PAGE ▲▼)
- ④ MUTE button (☐X)
- ⑤ Information button (INFO)
- ⑥ Cursor buttons (△▽◀▶)
- ⑬ POWER button (⏻)
- ⑭ ECO Mode button (✗)
- ⑮ VOLUME buttons (▲▼)
- ⑯ OPTION button
- ⑰ ENTER button
- SETUP button
- ■ Cables used for connections
- Speaker installation
- About Dolby Atmos Enabled speakers
- yback Settings Tips Appendix
- ■ When 7.1-channel speakers are installed using surround back speakers
- ■ When 5.1-channel speakers are installed
- ■ Layout including height speakers and ceiling speakers
- ☐ Height speaker layout example
- ☐ Ceiling speaker layout example
- ☐ Dolby Atmos Enabled speaker layout example
- Connecting speakers
- Before connecting speakers
- ■ Connecting the speaker cables
- ■ Connecting the subwoofer
- ■ About the cable labels (supplied) for channel identification
- ctions
- ettings Tips Appendix
- Speaker configuration and “Amp Assign” settings
- Connecting 5.1-channel speakers
- Connecting 7.1-channel speakers
- ■ Example connections when using surround back speakers
- ■ Example connections when using ceiling speakers
- ■ Example connections when using height speakers
- ■ Example connections when using Dolby Atmos Enabled speakers
- Connecting 9.1-channel speakers
- ■ Example connection when using one set of ceiling speakers
- ■ Example connection when using two sets of ceiling speakers
- ■ Example connection when using one set of height speakers
- ■ Example connection when using two sets of height speakers
- ■ Example connection when using one set of Dolby Atmos Enabled speakers
- ■ Example connection when using two sets of Dolby Atmos Enabled speakers
- Connecting 11.1-channel speakers
- Connecting 7.1-channel speakers: Bi-amp connection of front speakers
- Connecting 7.1-channel speakers: Second pair of front speakers
- Connecting multi-zone speakers
- ■ 7.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2)
- ■ 5.1-channel playback (bi-amp connection of front speakers: MAIN ZONE) + 2-channel playback (ZONE2)
- ■ Connecting an external power amplifier
- Connecting a TV
- Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)
- Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)
- Connection 3 : TV equipped without an HDMI connector
- Connecting a playback device
- Connecting a set-top box (Satellite tuner/cable TV)
- Connecting a DVD player or Blu-ray Disc player
- Connecting a player device compatible with the 8K
- Connecting a video camcorder or game console
- Connecting a turntable
- Connecting a USB memory device to the USB port
- Connecting FM/AM antennas
- ■ Using the AM loop antenna
- ■ AM loop antenna assembly
- Connecting to a home network (LAN)
- Wired LAN
- Wireless LAN
- Connecting an external control device
- REMOTE CONTROL jacks
- TRIGGER OUT jack
- Connecting the power cord
- Basic operation
- Turning the power on
- Press POWER ⏻ to turn on power to the unit.
- Selecting the input source
- Press the input source select button to be played back. The desired input source can be selected directly.
- Adjusting the volume
- Use VOLUME ▲▼ to adjust the volume.
- Turning off the sound temporarily (Muting)
- Press MUTE 📄X.
- Playback a DVD player/Blu-ray Disc player
- Playing a USB memory device
- Playing files stored on USB memory devices
- Browse the music on your USB memory device and select something to play.
- Use △▽ to select the "Play Now" or "Play Now & Replace Queue", then press ENTER.
- ■ Operations accessible through the option menu
- Listening to music on a Bluetooth device
- Playing music from Bluetooth device
- Prepare for playback.
- Press Bluetooth.
- Activate the Bluetooth settings on your mobile device.
- Select this unit when its name appears in the list of devices displayed on the screen of the Bluetooth device.
- Play music using any app on your Bluetooth device.
- Pairing with other Bluetooth devices
- Reconnecting to this unit from a Bluetooth device
- Listening to audio on Bluetooth headphones
- CAUTION:
- Using Bluetooth headphones without a volume adjustment function
- Reconnecting to a Bluetooth headphones
- Disconnecting Bluetooth headphones
- Listening to FM/AM broadcasts
- Tuning in by entering the frequency (Direct Tune)
- Changing the tune mode (Tune Mode)
- Tuning in to stations and presetting them automatically (Auto Preset Memory)
- Presetting the current broadcast station (Preset Memory)
- Listening to preset stations
- Specify a name for the preset broadcast station (Preset Name)
- Use to select a name label, then press ENTER.
- Enter the characters, then press "OK".
- Press OPTION to return to the previous screen.
- Skipping preset broadcast stations (Preset Skip)
- ☐ To set the stations you want to skip by stations
- Press OPTION to return to the previous screen.
- Cancelling Preset Skip
- Listening to Internet Radio
- Press INTERNET RADIO.
- Select the station you want to play.
- Playing back files stored on a PC or NAS
- Browse the music on your PC/NAS and select something to play.
- Getting the HEOS App
- HEOS Account
- ■ What is a HEOS Account?
- ■ Why do I need a HEOS Account?
- ■ Signing up for a HEOS Account
- ■ Changing your HEOS Account
- Playing from streaming music services
- ■ Selecting a room/device
- ■ Selecting the music track or station from music sources
- Tap the "Music" tab and select a music source.
- back
- Appendix
- Browse the music to play.
- Listening to the same music in multiple rooms
- ■ Grouping rooms
- ■ Ungrouping rooms
- ■ Grouping all rooms (party mode)
- ■ Ungrouping all rooms
- AirPlay function
- This unit supports AirPlay 2.
- Playing songs from your iPhone, iPod touch or iPad
- Playing iTunes music with this unit
- Play a song from your iPhone, iPod touch or iPad on multiple synced devices (AirPlay 2)
- Play the song on your iPhone, iPod touch or iPad.
- Tap the AirPlay icon.
- Tap the devices/speakers you want to use.
- Spotify Connect function
- Playing Spotify music with this unit
- Convenience functions
- Adding to HEOS Favorites
- Playing back HEOS Favorites
- Deleting a HEOS Favorites
- Adjusting the volume of each channel to match the input source (Channel Level Adjust)
- Press OPTION.
- Use to select “Channel Level Adjust”, then press ENTER.
- Use to select the channel that you wish to adjust.
- Use ◀▷ to adjust the volume.
- Use △▽◀▷ to select "Exit", then press ENTER.
- Adjusting the tone (Tone)
- Use to select “Tone”, then press ENTER.
- Use ◀▷ to set the tone control function to on/off.
- Select "On" in step 3 and press to select the sound range to be adjusted.
- Use ◀▶ to adjust the tone, then press ENTER.
- Displaying your desired video during audio playback (Video Select)
- □ Supported input sources:
- CD\* / Tuner / HEOS Music / Phono
- Use to select “Video Select”, then press ENTER.
- Use ◀▷ to select the Video Select mode.
- Adjusting the picture quality for your viewing environment (Picture Mode)
- Playing the same music in all zones (All Zone Stereo)
- Use to select “All Zone Stereo”, then press ENTER.
- Select "Start", then press ENTER.
- ■ Stopping the All Zone Stereo mode
- During playback in All Zone Stereo mode, press OPTION.
- Select "Stop", then press ENTER.
- Changing the speaker settings to match the listening environment (Speaker Preset)
- Use to select “Speaker Preset”, then press ENTER.
- Use ◀▷ to set the preset.
- Selecting a sound mode
- Press MOVIE, MUSIC or GAME to select a sound mode.
- ■ Switching the sound mode
- Direct playback
- Pure Direct playback
- Press PURE to select "Pure Direct".
- Auto surround playback
- Press PURE to select "Auto".
- Description of sound mode types
- Sound mode that can be selected for each input signal
- ■ Views on the display
- HDMI Control function
- Setting procedure
- Smart Menu function
- Now Playing
- Source
- Sound Mode
- Setup Menu
- Quick Select
- Sleep timer function
- Using the sleep timer
- Press MAIN or ZONE2 to select the operating zone with the remote control.
- Press SLEEP and display the time you want to set.
- ■ Checking the remaining time
- ■ To cancel the sleep timer
- Quick select plus function
- Calling up the settings
- Press QUICK SELECT.
- Changing the settings
- Set the items below to the settings you want to register.
- Press MAIN or ZONE2 to select the operating zone with the remote control.
- Press and hold the desired QUICK SELECT until "Quick\* Memory" or "Z2 Quick\* Memory" appear on the display.
- ■ Changing the Quick Select Name
- Panel lock function
- Disabling all key button operations
- Disabling all button operations except VOLUME
- Canceling the Panel lock function
- Remote lock function
- Disabling the sensor function of the remote control unit
- Enabling the remote sensor function
- Web control function
- Controlling the unit from a web control
- Enter the IP address of this unit in browser's address box.
- When the top menu is displayed on the web browser, click on the menu item you want to operate.
- Playback in ZONE2 (Another room)
- Connecting ZONE2
- ■ Connection 1 : Connection through the HDMI ZONE2 connector
- ■ Connection 2: Connecting using a speaker output terminal
- ■ Connection 3 : Connection using an external amplifier (ZONE2)
- Contents Connections
- Setti
- ngs Tips Appendix
- Playback in ZONE2
- ■ Adjusting the volume (ZONE2)
- ■ Turning off the sound temporarily (Muting) (ZONE2)
- Menu map
- Menu operations
- Audio
- Center Level Adjust
- Center
- Subwoofer Level Adjust
- ■ Subwoofer 1 / Subwoofer 2
- Surround Parameter
- Cinema EQ
- ■ Loudness Management
- Contents Connections Playback
- Tips Appendix
- ■ Dynamic Compression
- ■ Dialog Control
- ■ Low Frequency Effects
- ■ Speaker Virtualizer
- ■ DTS Neural:X
- IMAX
- IMAX Audio Settings
- ■ High Pass Filter
- ■ Low Pass Filter
- Subwoofer Mode
- Delay Time
- Effect Level
- Room Size
- Speaker Select
- Subwoofer
- Set Defaults
- Restorer
- Audio Delay
- ■ Auto Lip Sync
- Adjust
- Volume
- Scale
- Limit
- Power On Level
- Mute Level
- Audyssey®
- ■ MultEQ® XT32
- ■ Dynamic EQ
- ■ Reference Level Offset
- ■ Dynamic Volume
- Audyssey LFC™
- ■ Containment Amount
- Graphic EQ
- ■ Graphic EQ / Headphone EQ
- ■ Speaker Selection
- ■ Adjust EQ
- ■ Curve Copy
- Video
- Picture Adjust
- Picture Mode
- Contrast
- Brightness
- Saturation
- Noise Reduction
- ■ Enhancer
- HDMI Setup
- ■ HDMI Audio Out
- ■ HDMI Pass Through
- ■ Pass Through Source
- ■ RC Source Select
- HDMI Control
- ARC
- TV Audio Switching
- Power Off Control
- Power Saving
- Smart Menu
- Output Settings
- ■ HDMI Video Output
- Video Mode
- ■ i/p Scaler
- Resolution
- Sharpness
- ■ Progressive Mode
- ■ Aspect Ratio
- On Screen Display
- Info
- Screen Saver
- 4K/8K Signal Format
- ■ 4K/8K Signal Format
- HDCP Setup
- TV Format
- Format
- Inputs
- Input Assign
- ☐ TV set top box/satellite users please note
- HDMI
- DIGITAL
- ANALOG
- ■ INPUT MODE
- Source Rename
- Hide Sources
- Source Level
- Speakers
- Audyssey® Setup
- ■ About the main listening position
- ■ About Audyssey Sub EQ HT™
- Connect the Sound calibration microphone to the SETUP MIC jack of this unit.
- Select "Start", then press ENTER.
- Follow the instructions on the screen display and press "Next" to proceed further.
- When the following screen is displayed, select "Begin Test" and then press ENTER.
- When the detected speaker is displayed, select "Next" and then press ENTER.
- Move the Sound calibration microphone to position 2, select "Continue", then press ENTER.
- □ Stopping Audyssey® Setup
- Repeat step 8, measuring positions 3 to 8.
- Select "Continue", then press ENTER.
- Perform the settings for Audyssey Dynamic EQ ® and Audyssey Dynamic Volume ® .
- When the analysis and storage ends, unplug the Sound calibration microphone from the SETUP MIC jack on the main unit and then press "Next".
- Connections Playback
- Select "Details" and press ENTER to verify the measurement results.
- Error messages
- ■ Subwoofer level error message and how to adjust
- Retrieving Audyssey® Setup settings
- Manual Setup
- Amp Assign
- Assign Mode
- Floor
- Height
- Height Sp
- □ Dolby Sp
- Layout
- ■ Pre-out
- ■ View Terminal Config.
- Speaker Config.
- Front
- ■ Surround
- ■ Surr. Back
- Front Height
- Top Front
- Top Middle
- Front Dolby
- ■ Surround Dolby
- Top Rear
- Rear Height
- ■ Back Dolby
- Distances
- Unit
- Step
- ■ Set the distance
- ■ Dolby Speaker Setup
- Levels
- Test Tone Start
- Crossovers
- ■ Set the crossover frequency
- Bass
- LPF for LFE
- Front Speaker
- Speaker Preset
- Network
- Information
- Connection
- Connect Using
- Wi-Fi Setup
- ■ Scan Networks
- ■ Use iOS Device
- WPS Router
- ■ Manual
- Settings
- DHCP
- IP Address
- Subnet Mask
- ■ Default Gateway
- DNS
- Network Control
- Friendly Name
- ■ Friendly Name
- ■ Set Defaults
- Diagnostics
- ■ Physical Connection
- Router Access
- Internet Access
- AirPlay
- You have not signed in
- I have a HEOS Account
- ■ Create Account
- ■ Forgot Password
- You have already signed in
- ■ Signed in As
- ■ Change Location
- ■ Change Password
- Delete Account
- ■ Sign Out
- General
- Language
- ECO
- ECO Mode
- Power On Default
- ■ On Screen Display
- ■ Auto Standby
- MAIN ZONE
- ZONE2
- Bluetooth Transmitter
- Transmitter
- Output Mode
- ■ Connected device
- Device List
- ZONE2 Setup
- Treble
- Lch Level
- Rch Level
- Channel
- HDMI Audio
- Volume Level
- Volume Limit
- Power On Volume
- Zone Rename
- Quick Select Names
- Trigger Out
- Front Display
- Dimmer
- Firmware
- ■ Check for Update
- ■ Auto-Update
- Auto-Update
- Time Zone
- Allow Update
- ■ Upgrade Notification
- ■ Add New Feature
- Notes concerning use of "Update" and "Add New Feature"
- ZONE
- ■ Firmware
- Notifications
- Notification Alerts
- Usage Data
- Save & Load
- ■ Save Configuration
- Load Configuration
- Setup Lock
- Lock
- Reset
- All Settings
- ■ Network Settings
- Limiting the operating zone with the remote control
- Tips
- I want the volume not to become too loud by mistake
- I want to keep the volume at the same level when I turn the power on
- I want to have the subwoofer always output audio
- I want to make human voices in the movies clearer
- I want to keep bass and clarity during playback at a lower volume level
- I want to automatically adjust the volume level difference in content such as TV and movies
- Connections Playback Settings
- Troubleshooting
- Power does not turn on / Power is turned off
- Power does not turn on.
- Power automatically turns off.
- Power turns off and the power indicator flashes in red approx. every 2 seconds.
- Power turns off and the power indicator flashes in red approx. every 0.5 seconds.
- Power does not turn off even when the power button is pressed, and the display shows "ZONE2 On".
- Operations cannot be performed through the remote control unit
- Operations cannot be performed through the remote control unit.
- Display on this unit shows nothing
- Display is off.
- No sound comes out
- No sound comes out of speakers.
- No sound comes out when using the DVI-D connection.
- Desired sound does not come out
- The volume does not increase.
- The volume of Bluetooth headphones does not decrease.
- No sound comes out with the HDMI connection.
- When an eARC function-compatible television is connected, television audio is not output from the speaker connected to this unit
- No sound comes out of a specific speaker.
- No sound is produced from subwoofer.
- DTS sound is not output.
- Dolby Atmos, Dolby TrueHD, DTS-HD, Dolby Digital Plus audio is not output.
- DTS Neural:X mode cannot be selected.
- Dolby Surround mode cannot be selected.
- IMAX DTS:X cannot be selected.
- Sound modes other than "Stereo" or "Direct" cannot be selected.
- "Restorer" cannot be selected.
- No audio is output from PRE OUT or speakers for ZONE2.
- Sound is interrupted or noise occurs
- No video is shown on the TV
- No picture appears.
- No video is shown on the TV with the DVI-D connection.
- Contents Connections Playback Settings
- While the menu is being displayed, no video is shown on the TV.
- When using HDMI ZONE2, the video output in MAIN ZONE is interrupted.
- The menu screen is not displayed on the TV
- The menu screen or status information screen is not displayed on the TV.
- The color of the menu screen and operations content displayed on the television is different from normal
- AirPlay cannot be played back
- Audio is not output.
- USB memory devices cannot be played back
- USB memory device is not recognized.
- Files on the USB memory device are not displayed.
- iOS and Android devices are not recognized.
- Files on a USB memory device cannot be played.
- Bluetooth cannot be played back
- Bluetooth devices cannot be connected to this unit.
- Smartphones and other Bluetooth devices cannot be connected.
- Cannot connect Bluetooth headphones.
- The sound is cut off.
- The sound is cut off or noise occurs when using Bluetooth headphones.
- Audio is delayed on my Bluetooth headphones.
- The Internet radio cannot be played back
- A list of broadcasting stations is not displayed.
- Internet Radio cannot be played.
- Cannot connect to favorite radio stations.
- Music files on PC or NAS cannot be played back
- Files stored on a computer cannot be played.
- Server is not found, or it is not possible to connect to the server.
- Music files on PC cannot be played back.
- Files on PC or NAS are not displayed.
- Music stored on a NAS cannot be played.
- Various online services cannot be played
- The HDMI Control function does not work
- Cannot connect to a wireless LAN network
- Cannot connect to the network.
- Cannot connect to a WPS Router.
- Cannot connect to the network using iPhone/iPod touch/iPad.
- When using HDMI ZONE2, the devices does not function properly
- Update/upgrade error messages
- Resetting factory settings
- Resetting network settings
- About HDMI
- - Deep Color
- • x.v.Color
- • 3D
- • 4K / 8K
- - Content Type
- - Adobe RGB color, Adobe YCC601 color
- - sYCC601 color
- • ALLM (Auto Low Latency Mode)
- Connections Playback Settings Tips
- - Auto Lip Sync
- • HDMI Pass Through
- - HDMI Control
- • ARC (Audio Return Channel)
- • eARC (Enhanced Audio Return Channel)
- Contents Connections Playback Settings Tips
- ■ Supported video signals
- Copyright protection system
- Playing back a USB memory devices
- ■ Maximum number of playable files and folder
- Playing back a Bluetooth device
- ■ About Bluetooth communications
- Playing back a file saved on a PC or NAS
- Playing back Internet Radio
- Personal memory plus function
- Last function memory
- Explanation of terms
- Audyssey
- Audyssey Dynamic EQ ®
- Audyssey Dynamic Volume®
- Audyssey LFC™ (Low Frequency Containment)
- Audyssey MultEQ® XT32
- Dolby
- Dolby Atmos
- Dolby Atmos Stream
- Dolby Digital
- Dolby Digital Plus
- Dolby Surround
- Dolby Speaker Technology (Dolby Atmos Enabled speakers)
- Dolby TrueHD
- Speaker Virtualizer
- DTS
- Dialog Control
- DTS 96/24
- DTS Digital Surround
- DTS-ES™ Discrete 6.1
- DTS-ES™ Matrix 6.1
- DTS Express
- DTS-HD
- DTS-HD High Resolution Audio
- DTS-HD Master Audio
- DTS:X
- DTS Neural:X
- DTS Virtual:X
- IMAX®
- Apple Lossless Audio Codec
- FLAC (Free Lossless Audio Codec)
- LFE
- MP3 (MPEG Audio Layer-3)
- MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4
- WMA (Windows Media Audio)
- Sampling frequency
- Speaker impedance
- Dialogue normalization function
- Dynamic range
- Downmix
- ISF
- Progressive (sequential scanning)
- WEP Key (network key)
- Wi-Fi®
- WPA (Wi-Fi Protected Access)
- WPA2 (Wi-Fi Protected Access 2)
- WPA-PSK/WPA2-PSK (Pre-shared Key)
- Network Names (SSID: Service Set Identifier)
- Others
- HDCP
- Pairing
- Protection circuit
- Trademark information
- Apple AirPlay
- Bluetooth
- ENHANCED
- CERTIFIED
- Specifications
- ■ Audio section
- - Analog
- - Digital
- - Phono equalizer
- ■ Video section
- ■ Tuner section
- [FM] [AM]
- ■ Wireless LAN section
- Bluetooth section
- ■ Dimensions (Unit : in. (mm))
- ■ Weight: 27.6 lb (12.5 kg)
- Numerics
- A
- B
- C
- D
- E
- F
- G
- H
- 1
- L
- M
- N
- 0
- P
- Q
- R
- S
- T
- U
- V
- W
- Z
Brand : DENON
Model : AVC-X3700H
Category : AV receiver
