Product Type	Freezer
Brand	LG
Model	GBB539SWHWB
Power Supply	220-240 V, 50 Hz
Refrigerant	R600a (isobutane)
Climate Class	SN, N, ST, T (from +10°C to +43°C)
Temperature Setting	Electronic thermostat with LCD/LED display
Miracle Zone (Freshness Compartment)	Adjustable to 2°C (fruits/vegetables) or -1°C (meat/fish)
Express Freezing	Quick freezing for about 3 to 24 hours
Vacation Mode	Energy-saving function
Door Alarm	Audible signal if door open too long, can be enabled/disabled
Automatic Ice Maker	8 ice cubes per cycle, 60-80 ice cubes per day, automatic stop when full
Water Dispenser	Optional, with 2.3 L water reservoir (or compatible bottle)

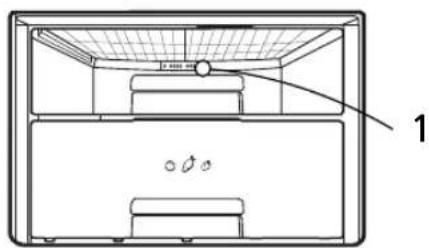

Interior Lighting	Vita LED light for vegetable compartment

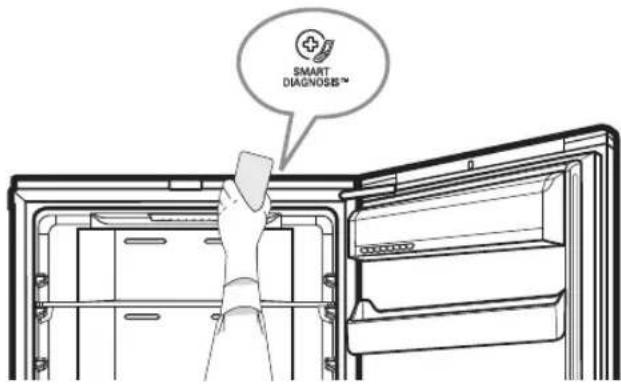

Smart Diagnosis	Remote diagnosis via phone for troubleshooting
Defrosting	Automatic, water evaporates in tray
Cleaning	Soft cloth with soapy water, avoid abrasive products
Door Reversal	Possible, contact after-sales service (out of warranty)
Warranty	24 months, linear compressor guaranteed 10 years (parts)
Country of Manufacture	Not specified

Frequently Asked Questions - GBB539SWHWB LG

How to set the temperature of my LG GBB539SWHWB freezer?

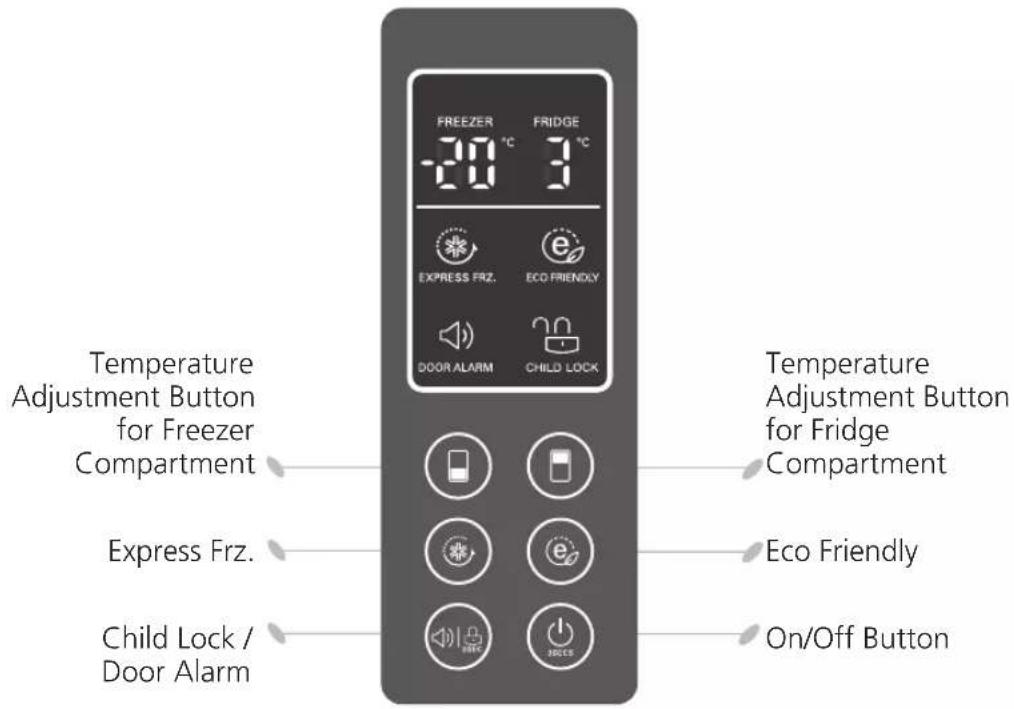

Use the control panel. On LCD models, press any button to activate adjustment, then adjust the freezer compartment temperature by pressing Freezer and selecting the desired value (default -20°C). For the refrigerator compartment (if present), adjust with Fridge (default 3°C).

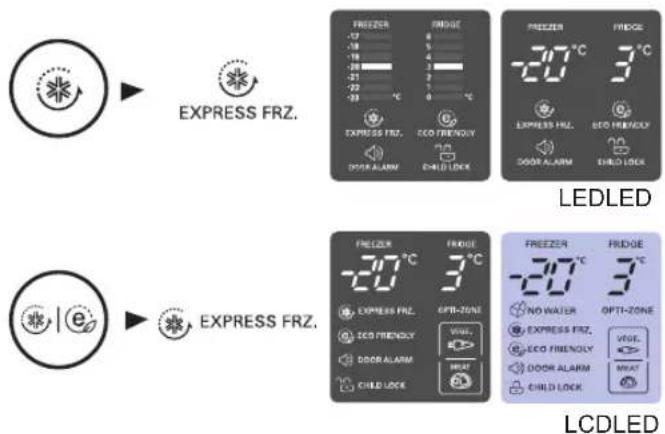

How to activate quick freezing (Express Frz)?

Press the Express Frz button. The indicator lights up. The function lasts about 3 hours (or up to 24 hours depending on model). It stops automatically and returns to the previous setting. To stop manually, press the button again.

What to do if the door alarm sounds?

The alarm triggers if the door is left open too long. Close the door. If the alarm persists, contact after-sales service. You can disable the alarm by briefly pressing the Door Alarm button.

How to use the Miracle Zone (freshness compartment)?

The Miracle Zone keeps food at optimal temperature. Press the VEGE button for fruits/vegetables (2°C) or FRESH (or similar) for meat/fish (-1°C). The corresponding indicator lights up.

Can I reverse the door opening direction?

Yes, the doors are reversible. However, reversal is not covered by warranty. Contact LG after-sales service or a qualified technician to perform the operation.

How to clean the freezer?

Unplug the appliance. Clean the interior with a soft cloth and soapy water. Do not use abrasive products (benzene, thinner). Dry thoroughly. Defrosting is automatic.

What to do in case of a power outage?

Do not open the door unnecessarily. Food stays frozen for 1 to 2 hours. If the outage lasts longer, check the food and discard any that have thawed.

How to make ice cubes?

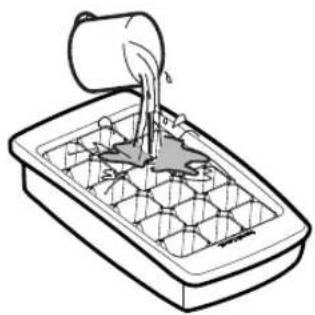

Fill the ice cube tray with water up to the indicated level and place it in the freezer compartment. For automatic production, use the ice maker (if present): fill the water reservoir, turn the switch on (I). Discard the first ice cubes.

Why is there condensation on the external surface?

This may happen in humid weather. Wipe with a dry cloth. Avoid opening the door too frequently or for too long. Check that the door closes properly.

How to use the water dispenser (if present)?

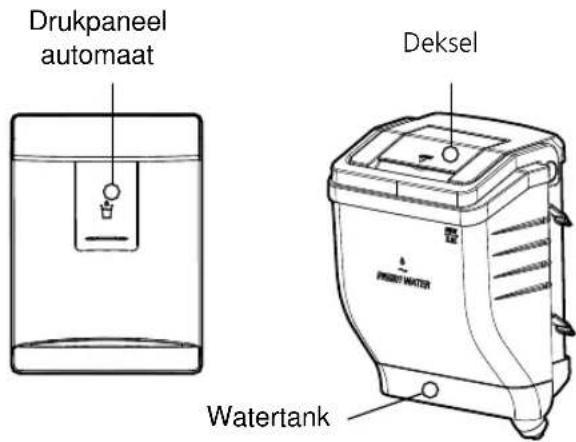

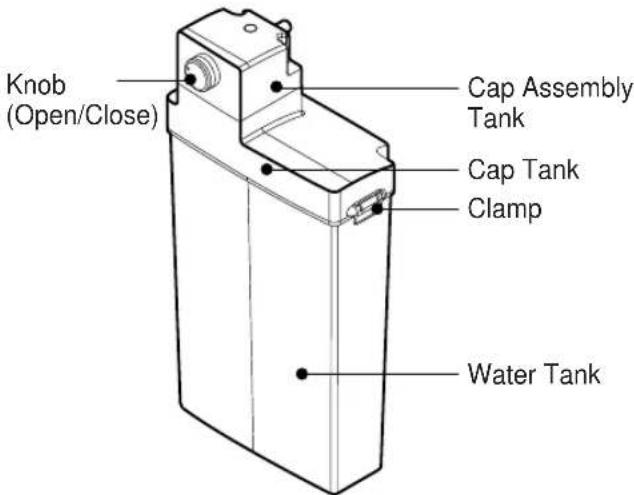

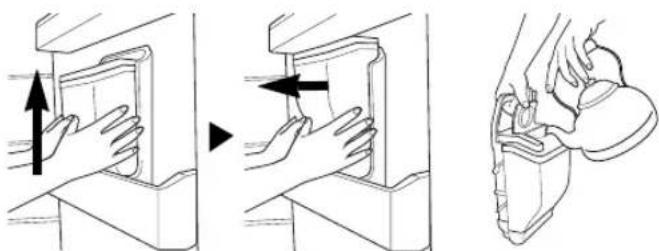

Fill the water reservoir (max 2.3 L) and replace it correctly. Press a glass against the dispenser pad. Water flows as long as you maintain pressure. Use only drinking water, not carbonated drinks.

USER MANUAL GBB539SWHWB LG

OWNER'S MANUAL & WARRANTY CARD

REFRIGERATOR-FREEZER

Please read this owner's manual thoroughly before operating and keep it handy for reference at all times.

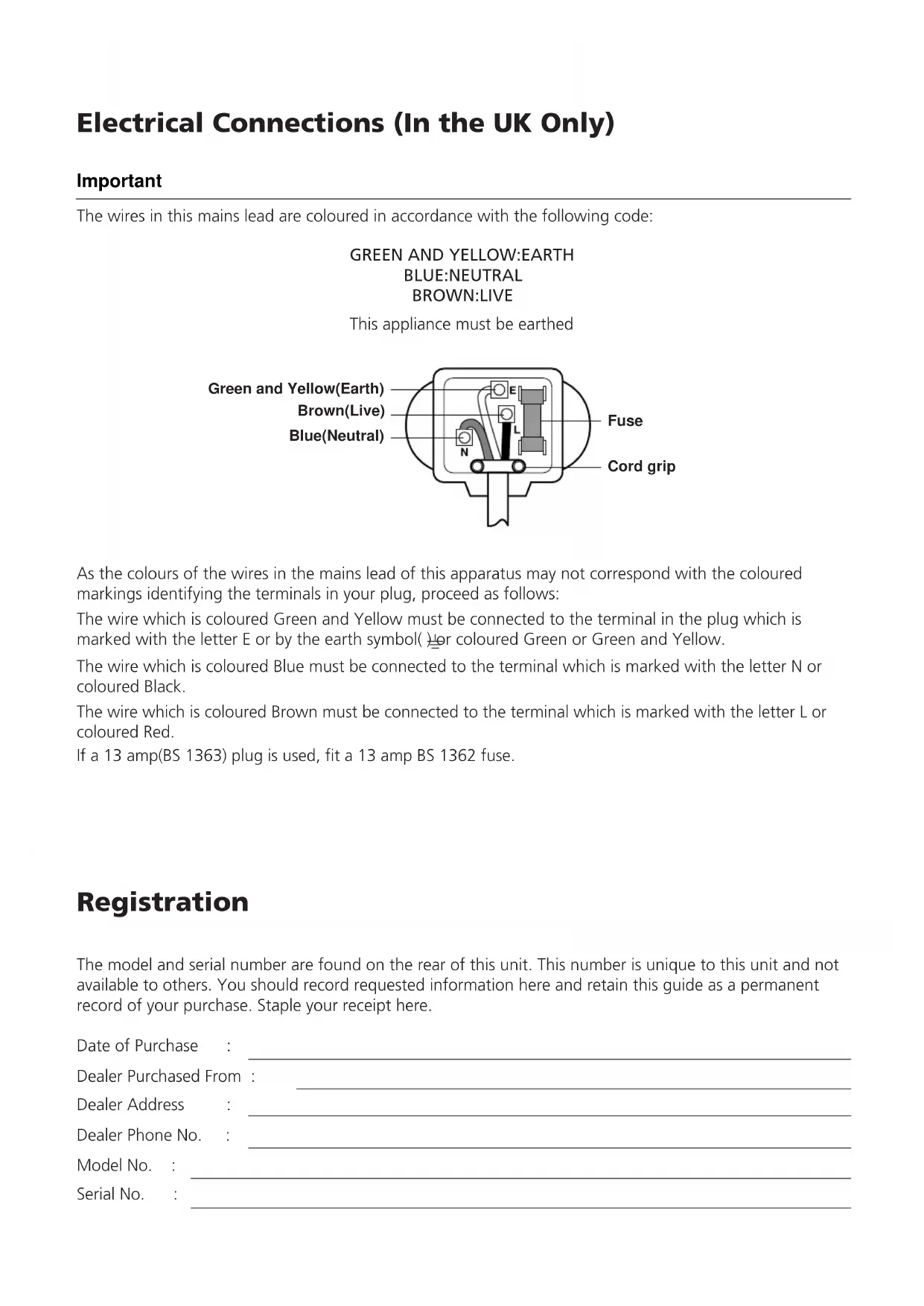

Electrical Connections (In the UK Only)

Important

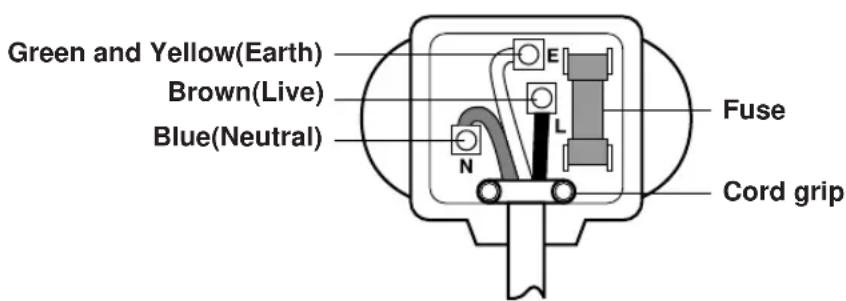

The wires in this mains lead are coloured in accordance with the following code:

GREEN AND YELLOW: EARTH, BLUE: NEUTRAL, BROWN: LIVE

This appliance must be earthed.

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol ( ) or coloured Green or Green and Yellow.

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black.

The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red.

If a 13 amp (BS 1363) plug is used, fit a 13 amp BS 1362 fuse.

Registration

The model and serial number are found on the rear of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.

Date of Purchase:

Dealer Purchased From:

Dealer Address:

Dealer Phone No.:

Model No.:

Serial No.:

Table of Contents
Introduction	Important Safety Instruction 4

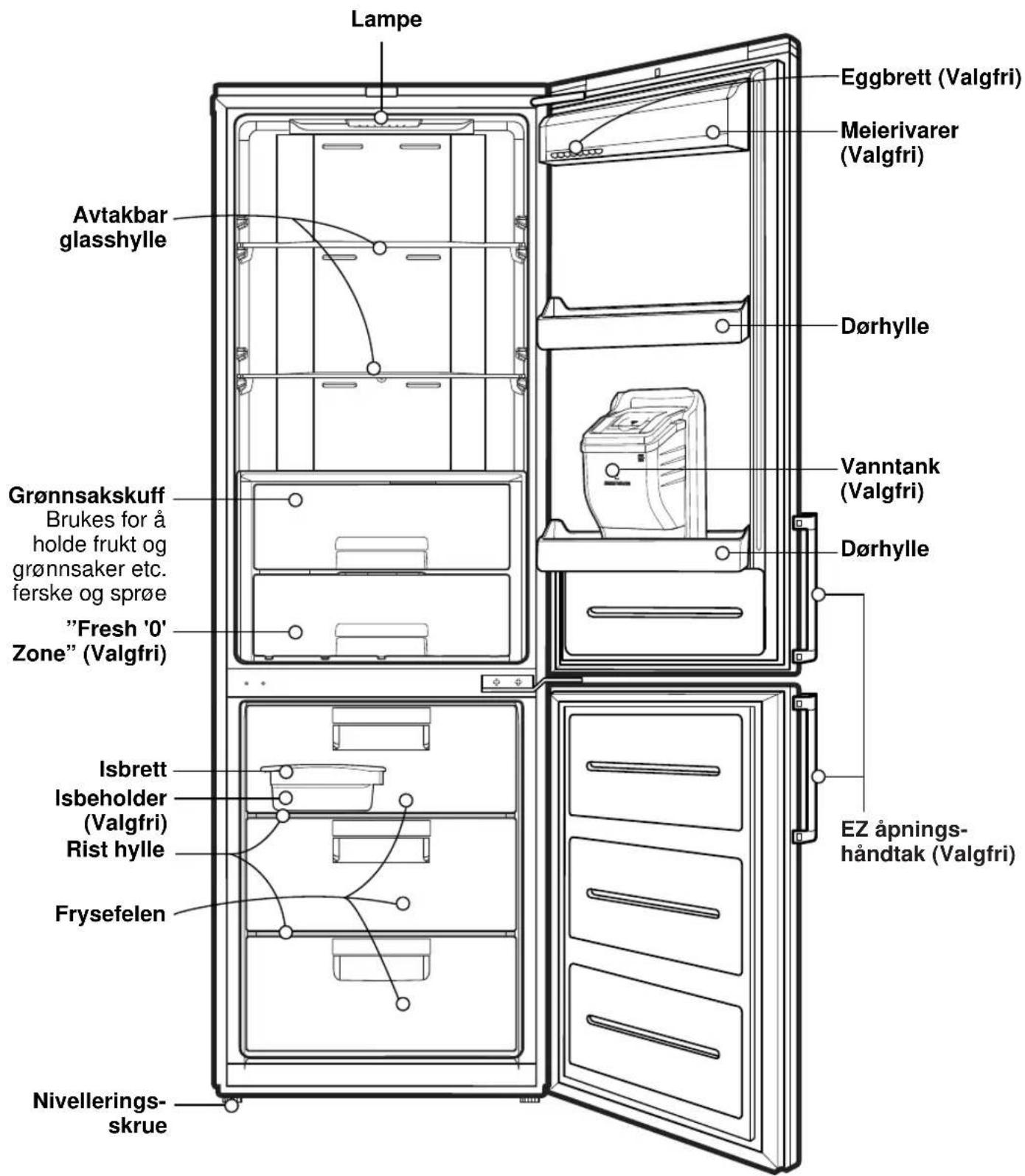

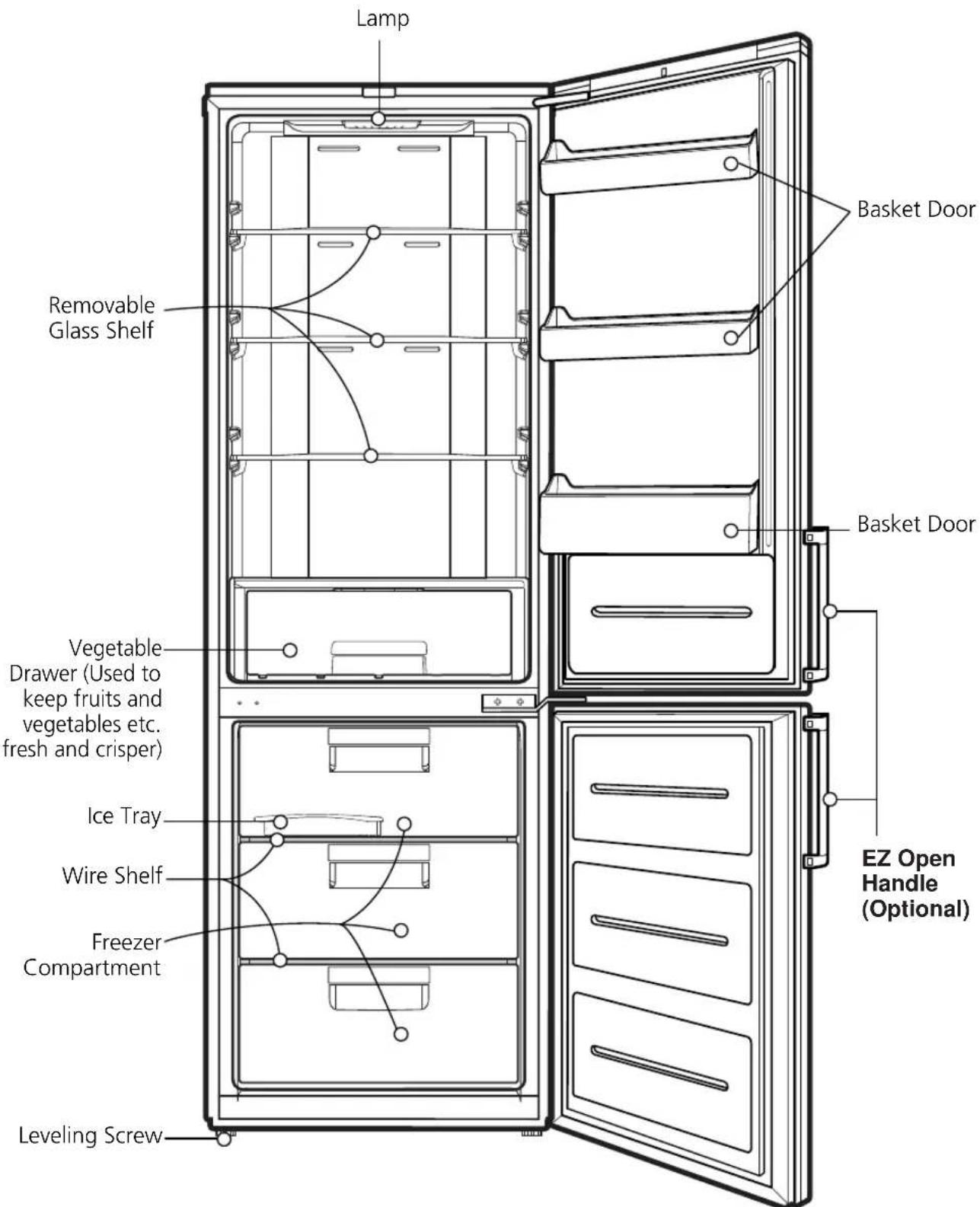

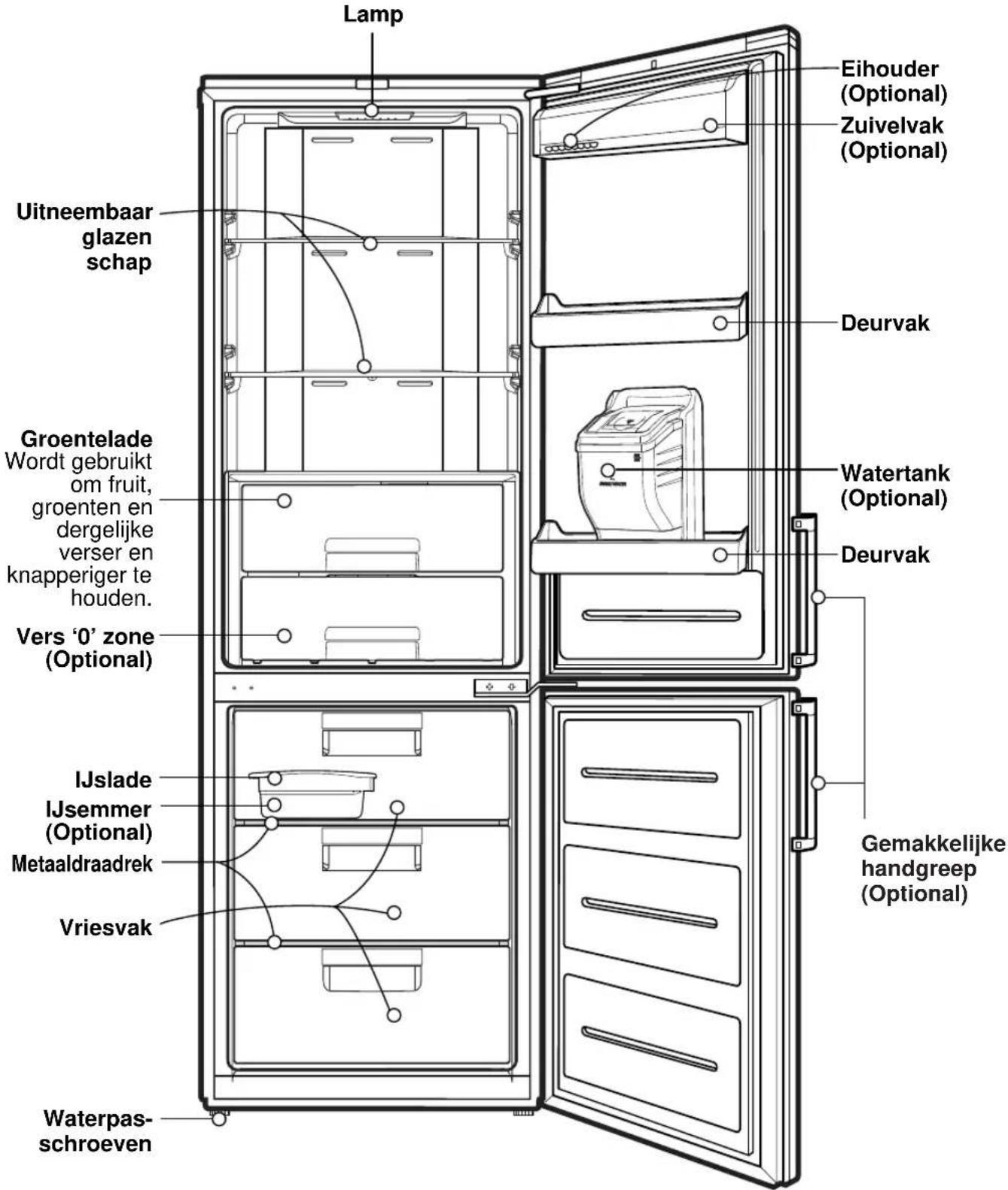

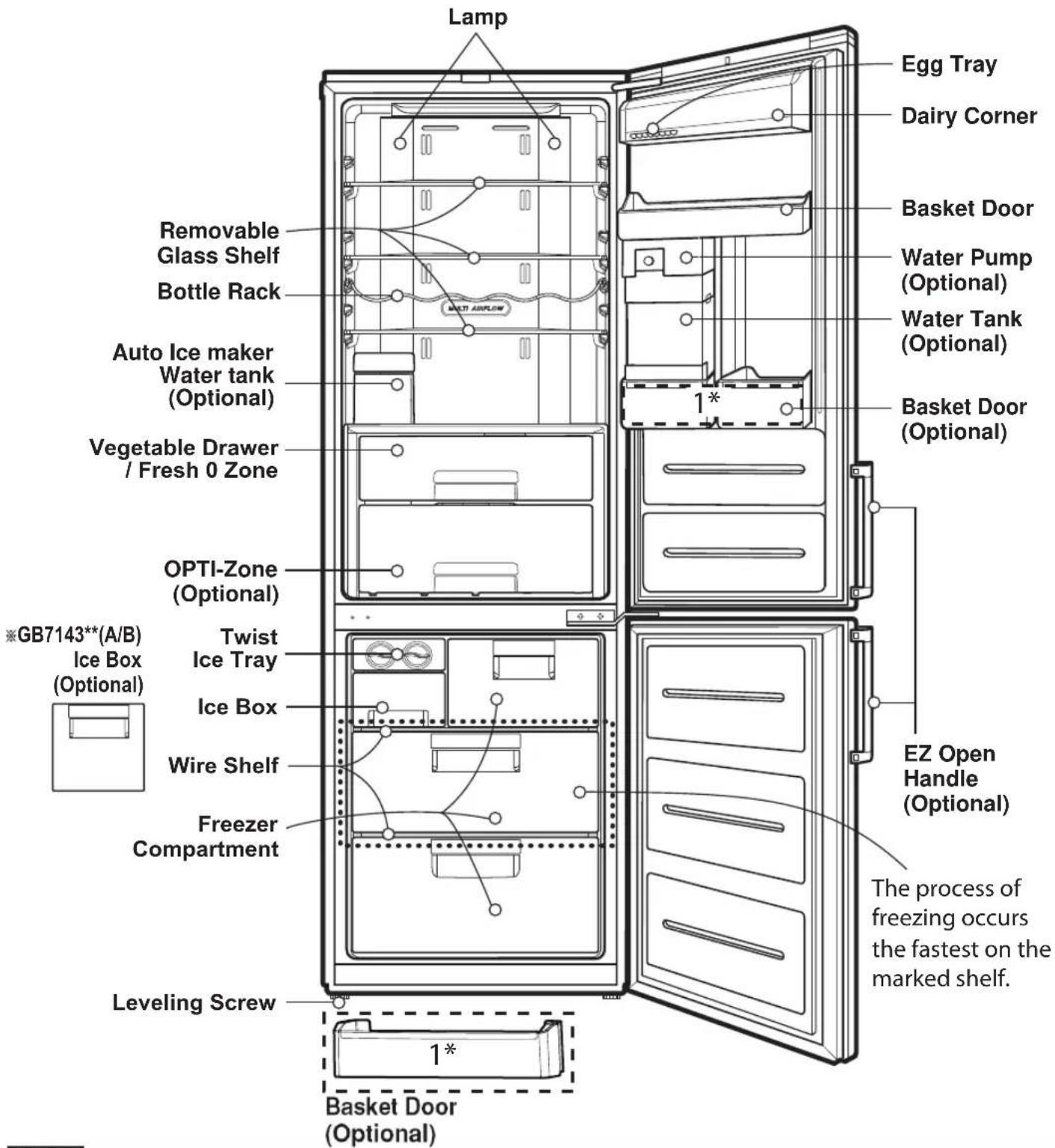

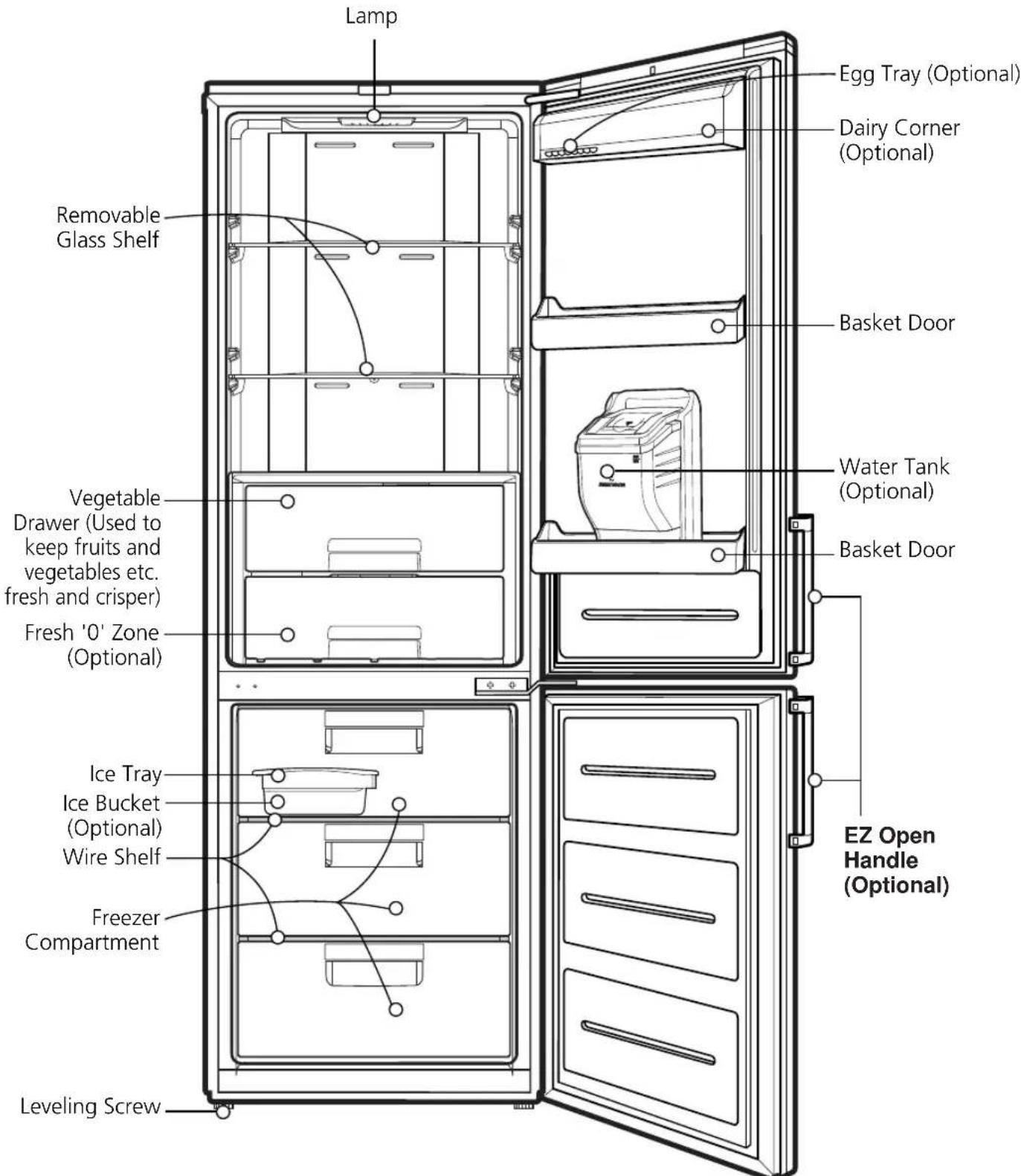

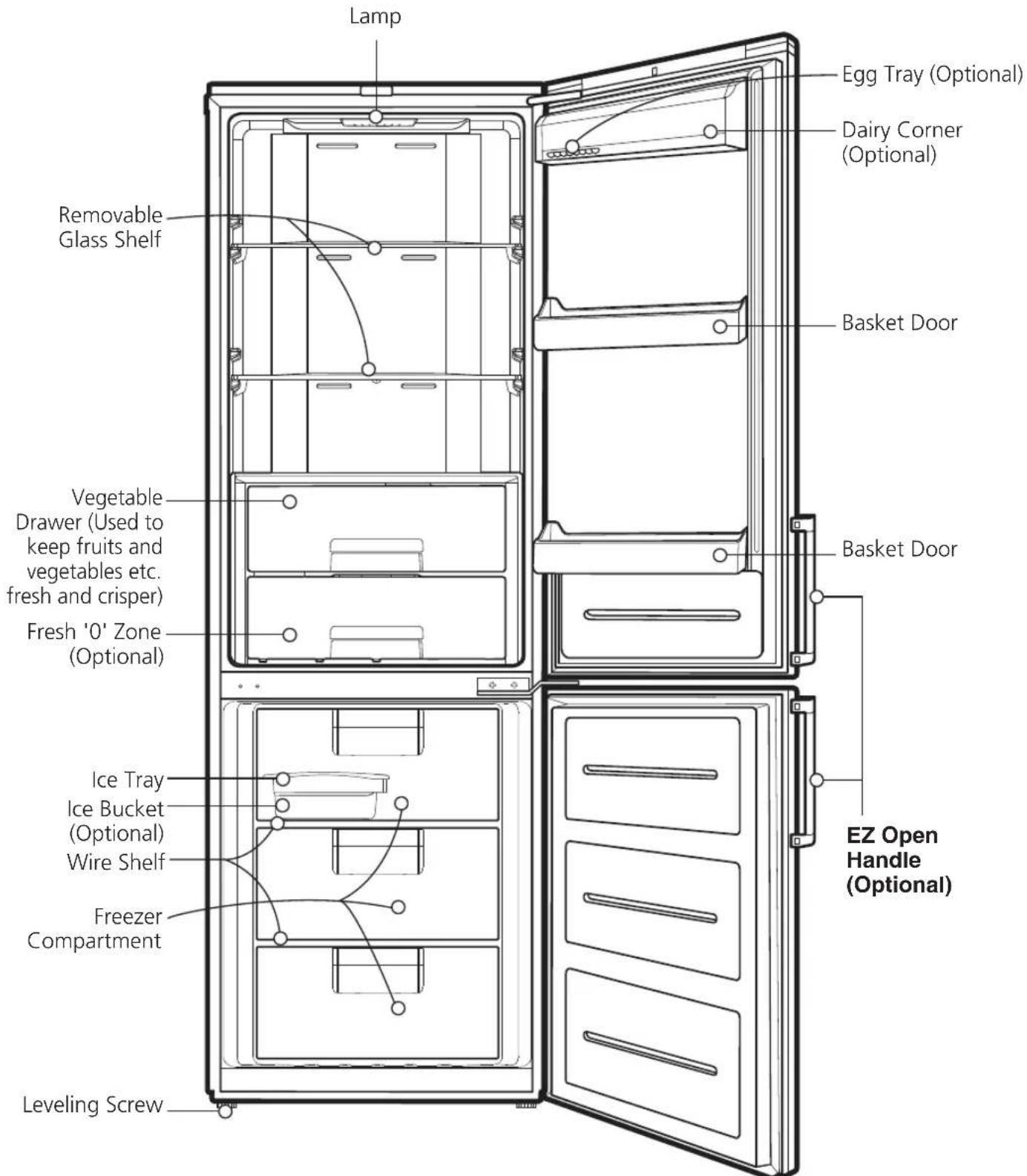

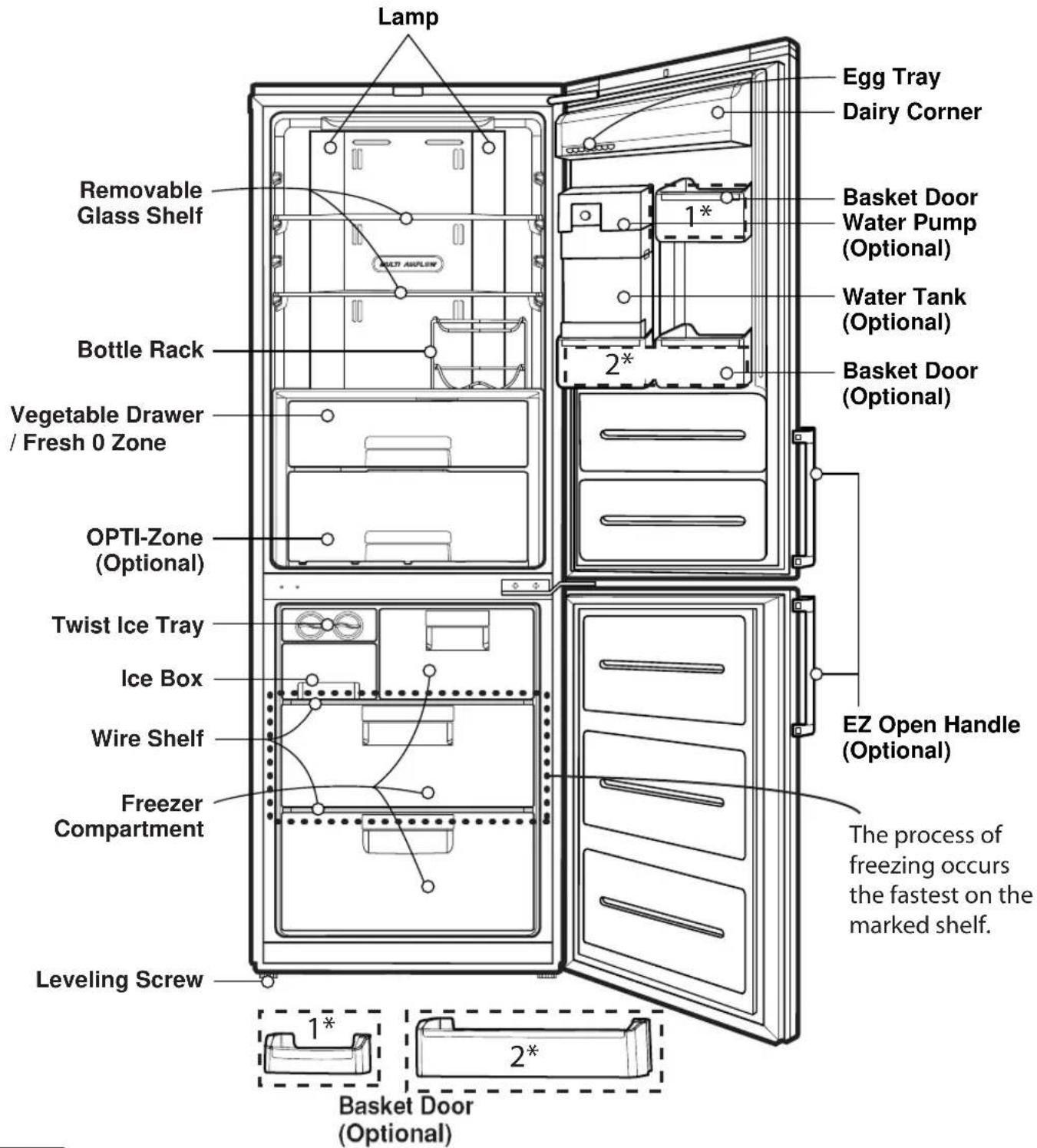

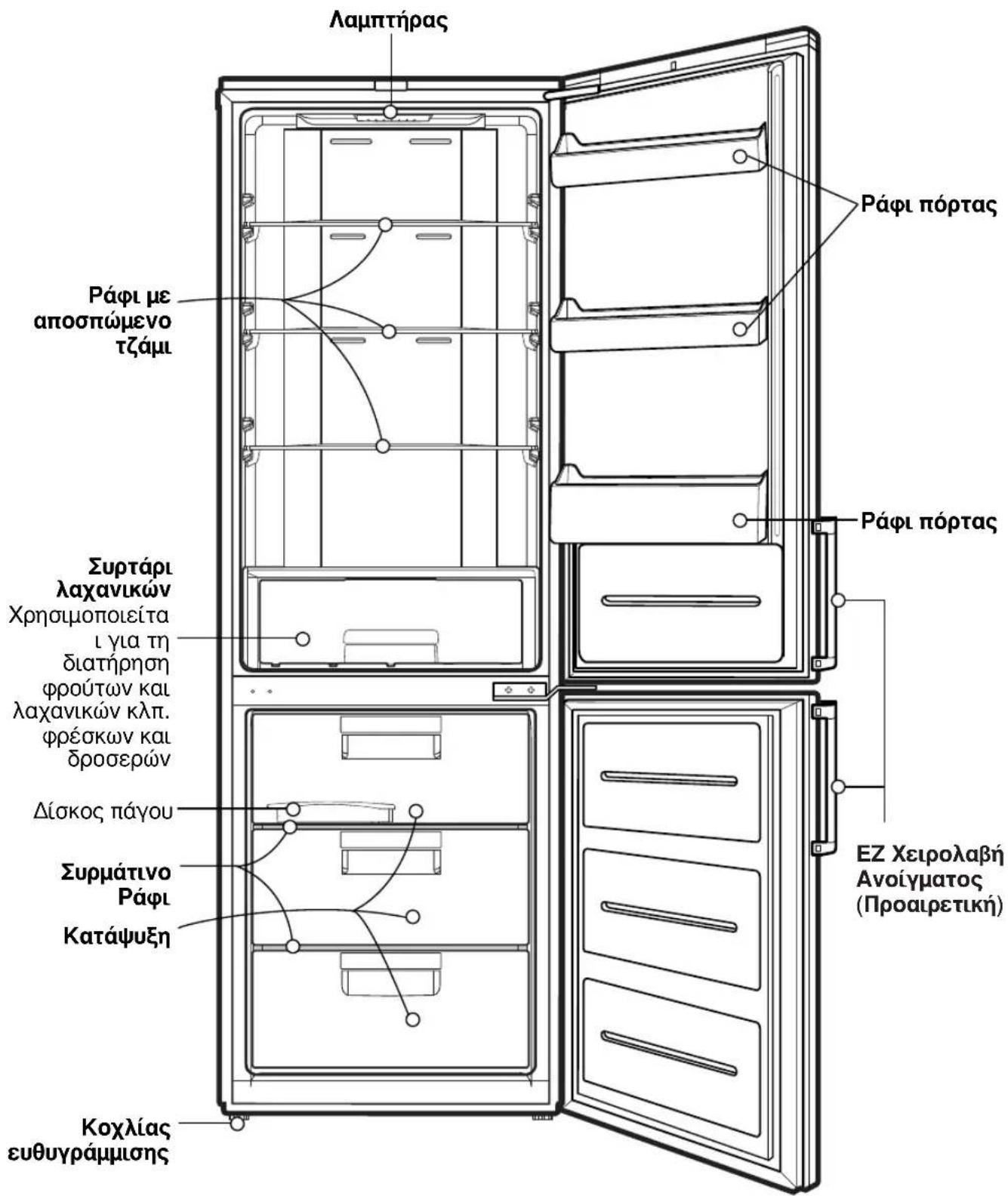

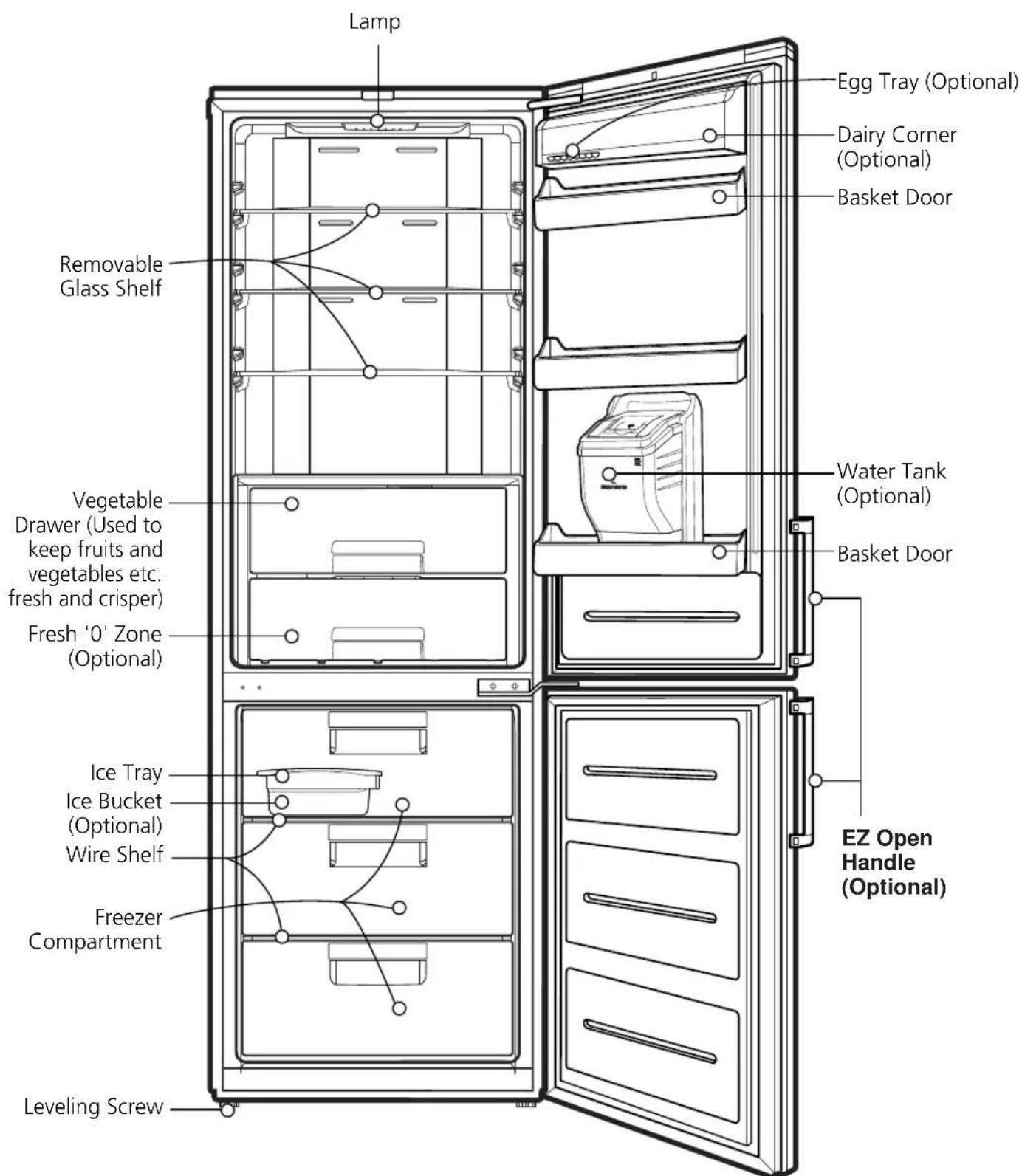

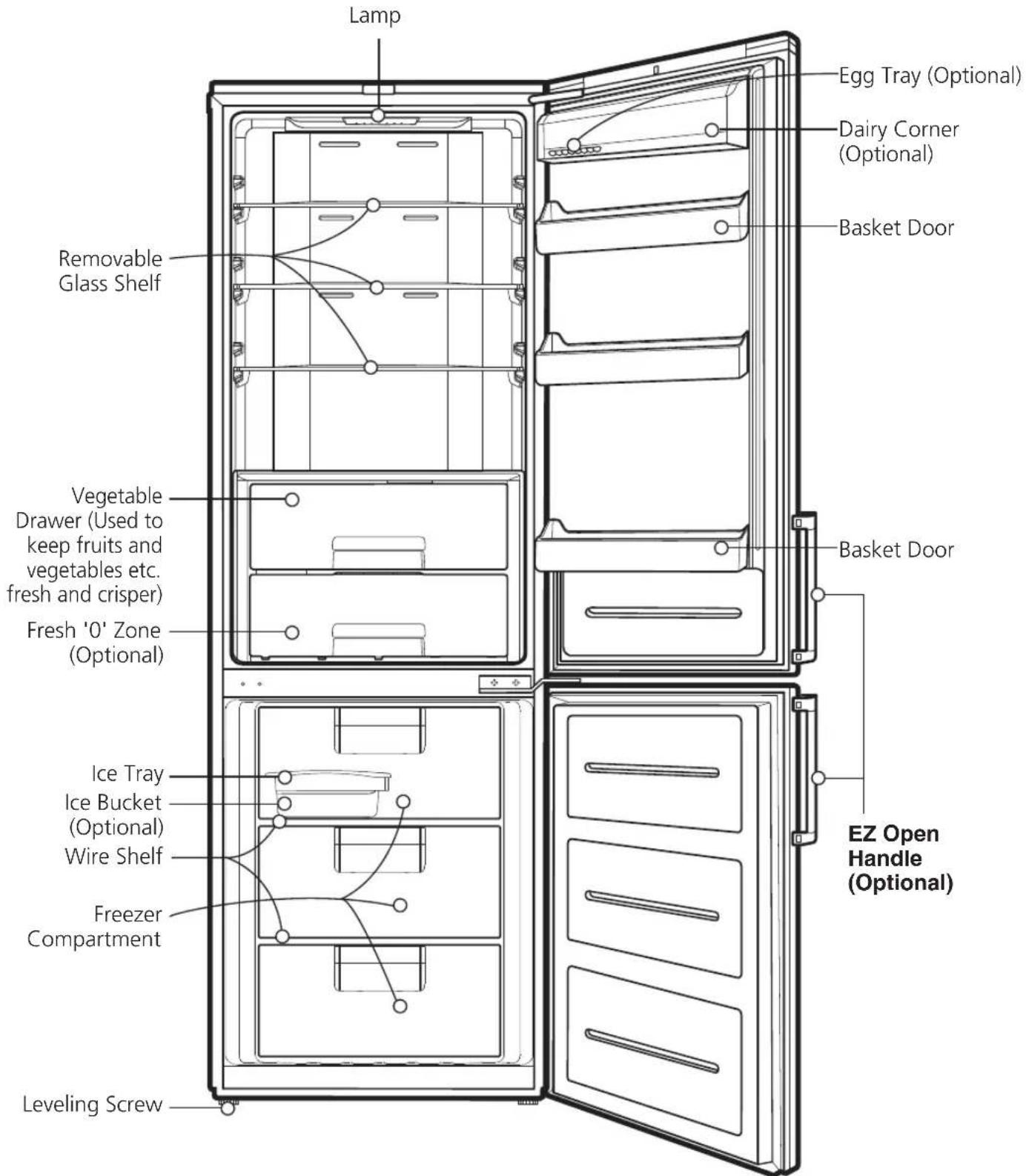

	Identification of Parts 10

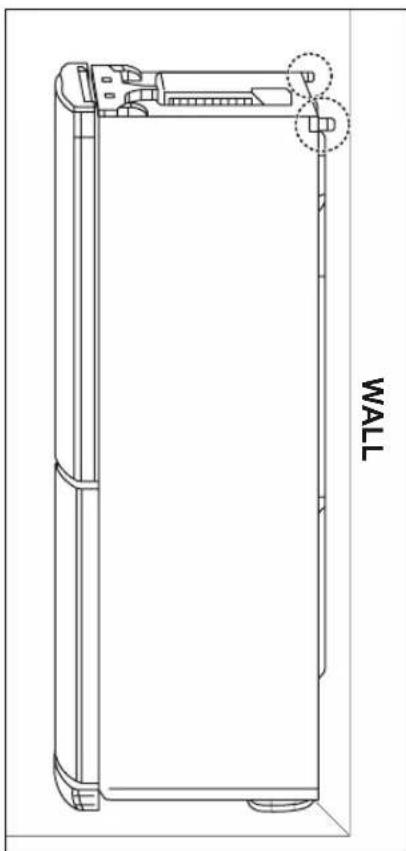

Installation	Installation 17
	Starting 18

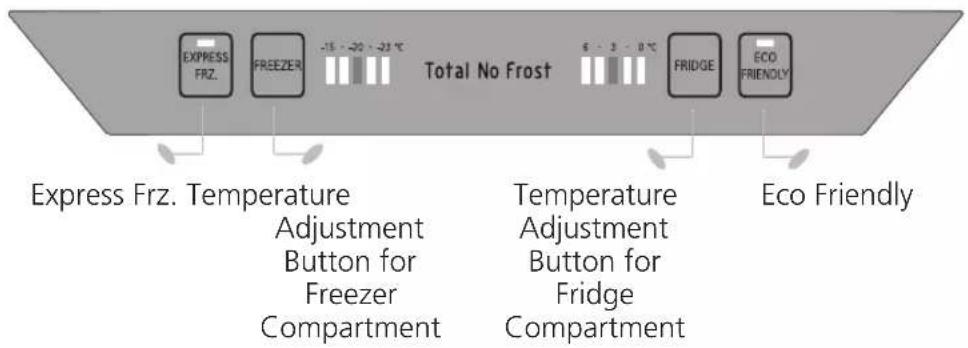

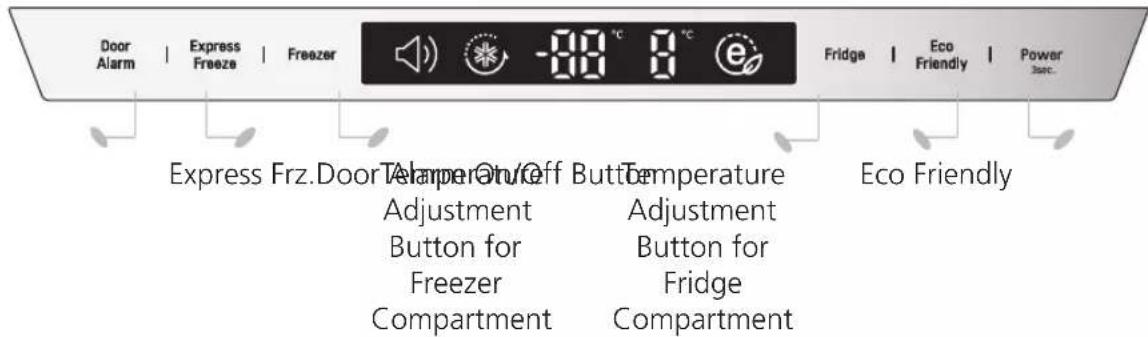

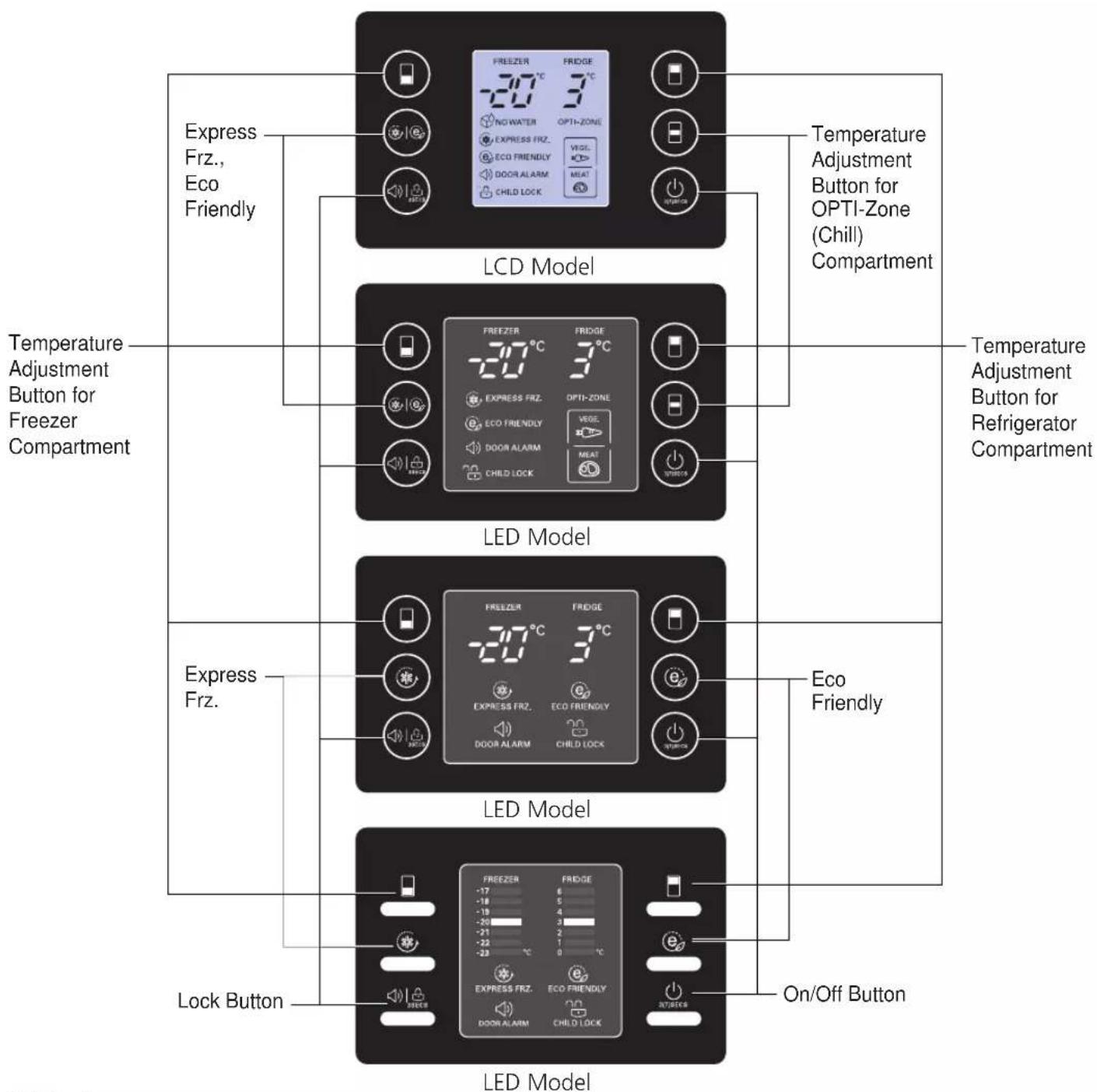

Operation	Temperature Control 19
	OPTI-Zone (Chill) 21
	Express Frz. 22

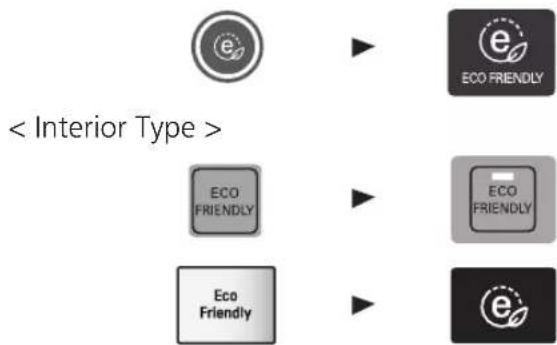

	Eco Friendly 22
	Self Test 22
	Lock 23
	On/Off 23
	Fridge Compartment 23
	Vita Light 24
	Door Alarm 24
	Ice Making 25
	Defrosting 25

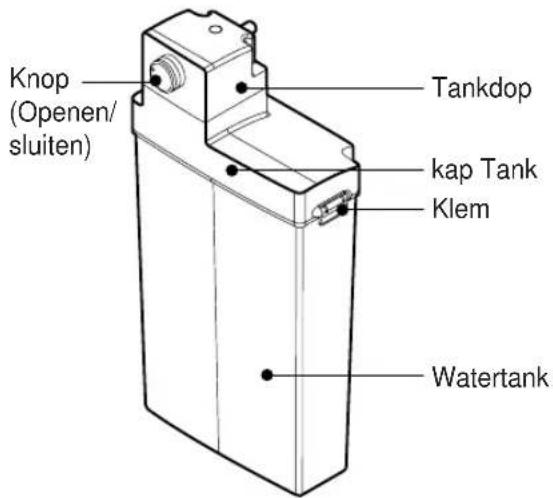

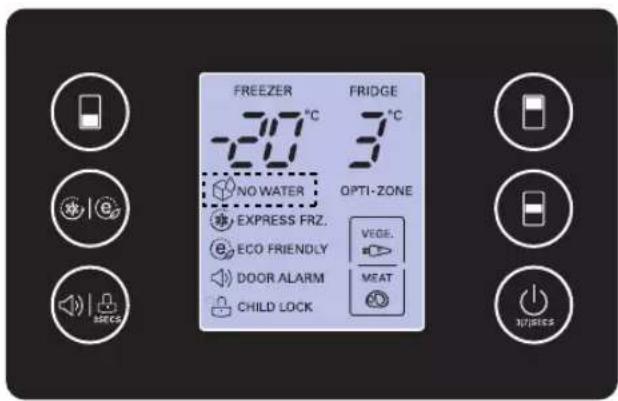

	Water Dispenser 26
	Bottle Rack 28
	Removable Glass Shelf 28

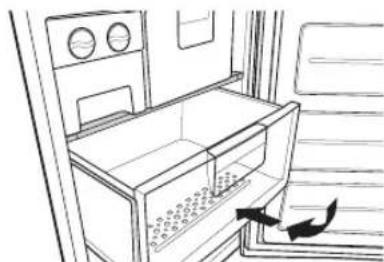

	Freezer Compartment 28
	Auto Ice maker 29
Suggestion On Food storage	Storing Food 31
	Suggestion for energy saving 31
Care and Maintenance	General Information 32
	To Reverse the Doors 32
	Cleaning 33
Trouble Shooting	Smart DiagnosisTM 34
	Trouble Shooting 35

Important Safety Instruction

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you don't follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance.

1. When connecting the power

The dedicated outlet should be used.

• Using several devices at one outlet may cause fire.
• The electric leakage breaker may damage food and the dispenser may be leaked.

Do not allow the power plug to face upward or to be squeezed at the back of the fridge-freezer.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Prevent the power cord from being squeezed or imprinted if the refrigerator is pushed in after the power plug is extracted during the installation.

It becomes the cause of fire or electric shock. When moving your appliance away from the wall, be careful not to roll over or damage the power cord.

Do not allow the power cord bent or pressed by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

Do not extend or modify the length of the power plug.

It causes electric shock or fire due to electric damage to the power cord or other components.

Unplug the power plug when cleaning, handling, or replacing the interior lamp of the fridge-freezer.

It may cause electric shock or injury. - When replacing the interior lamp of the fridge-freezer, make sure that the rubber ring for

preventing electric sparks within the socket is not removed.

Important Safety Instructions

Do not pull out the cord or touch the power plug with wet hands.

It may cause electric shock or injury.

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water, or unstable connection may cause fire or electric shock.

Pull out the power plug by grasping the plug, not the cord.

It may cause electric shock or short circuit leading to fire.

Make sure of grounding. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts about whether the appliance is properly grounded.

Incorrect grounding may cause breakdown and electric shock.

Be sure to use a grounded, exclusive, proper voltage outlet for the power plug. It may cause fire.

When the power cord or the power plug is damaged or the holes of the outlet are loose, do not use them.

It may cause electric shock or short circuit, resulting in fire.

Wait for 5 minutes or longer before reconnecting the plug. Failure to do so may cause the freezer to malfunction.

2. When using the fridge-freezer

Do not place heavy objects or dangerous objects (such as containers with liquid) on top of the fridge-freezer.

They may fall and cause injury, fire, or electric shock when opening or closing the door.

Do not hang on the door, door shelves, or the cool chamber.

This may cause the fridge-freezer to tip over or injure your hands. Especially, do not allow children to do this.

Prevent children from entering the product.

If a child enters the refrigerator, it may endanger the child's life.

Vigorously opening and closing the refrigerator door may cause stored food in the basket to fall and injure feet, so take precautions.

Do not install the fridge-freezer in a wet place or where water or rain can splash onto it.

Deterioration of insulation of electrical parts may cause electric leakage.

Important Safety Instructions

Do not use or store flammable materials such as ether, benzene, alcohol, medicine, LP gas, spray, or cosmetics near or inside the fridge-freezer. This may cause explosion or fire.

Do not place lit candles inside the fridge-freezer to deodorize. Do not use a hair dryer to dry the inside, nor light a candle to remove odor. This may cause explosion or fire.

Do not store the medicine or the academic materials in the refrigerator-freezer.

When materials with strict temperature control are stored, they may deteriorate or cause unexpected reactions, leading to potential risks.

Do not use combustible sprays near the refrigerator-freezer. It may cause fire.

Avoid heating devices. Install in places away from fire, such as where flammable gas may leak.

It may cause fire.

Do not place flower vases, cups, cosmetics, medicine, or any containers with water on the refrigerator-freezer.

It may cause fire, electric shock, or injury from falling objects.

In case of thunder and lightning, or if not in use for a long period, detach the power plug.

There is a danger of electric shock or fire.

Use the submerged refrigerator-freezer only after checking it.

It may cause electric shock or fire.

When gas is leaked, do not touch the refrigerator-freezer or the outlet, and ventilate the room immediately.

The explosion caused by a spark may lead to fire or burns.

• Because this refrigerator-freezer uses natural gas (isobutane, R600a) as an environmentally friendly refrigerant, even a

small amount (80~90g) is combustible. When the gas is leaked due to severe damage during delivery, installation, or use, any spark may cause fire or burns.

Do not spray water at the outside or the inside of the fridge-freezer or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

When any strange smell or smoke is detected from the fridge-freezer, disconnect the power plug immediately and contact to the service center.

It may cause fire.

Important Safety Instruction

Do not allow any person except

the qualified engineer to disassemble, repair or alter the fridge-freezer.

It may cause injury, electric shock or fire.

Do not use the fridge-freezer for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

When disposing the fridge-freezer, remove the packing materials from the door.

It may cause to lock out the child.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Install the fridge-freezer on the solid and level floor.

Installing it on an unstable surface may cause the fridge-freezer to fall, resulting in injury or death when opening or closing the door.

Do not insert hands or metal sticks into the cool air outlet, the cover, the bottom of the fridge-freezer, or the heatproof grill (exhaust hole) at the back.

This may cause electric shock or injury.

CAUTION

Violating this instruction may cause injury or damage to the house or furniture. Always be careful.

Do not touch food or containers in the freezer with wet hands.

This may cause frostbite.

Do not place food in disorder inside the refrigerator.

Food may fall when opening and closing the refrigerator door, potentially hurting people.

Do not put bottles in the freezer.

The contents may freeze and break the bottle, causing injury.

Do not insert hands into the bottom of the fridge-freezer.

The iron plate at the bottom may cause injury.

Important Safety Instructions

Carry the fridge-freezer using the handle bar at the bottom of the front and the top of the rear.

Otherwise, your hands may slip and cause injury. Because the product is heavy, carrying it alone may hurt people or cause accidents.

Be careful when opening or closing the door of the fridge-freezer, as it may cause injury to people nearby.

Opening or closing the door may cause feet or hands to be caught in the gap, or children may be hurt by the corner.

Do not put any living animal in the fridge-freezer.

Precaution

WARNING

• This fridge-freezer must be properly installed and located in accordance with the Installation Instructions before it is used.
• Never unplug your fridge-freezer by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. After your fridge-freezer is in operation, do not touch the cold surfaces in the freezer compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.

Accessibility of Supply Plug

The supply plug of the refrigerator-freezer should be placed in an easily accessible position for quick disconnection in an emergency.

Supply Cord Replacement

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.

DANGER

Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors. Leave the shelves in place so that children may not easily climb inside.

Don't store

• Don't store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Don't store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Grounding (Earthing)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current. In order to prevent possible electric shock, this appliance must be grounded. Improper use of the grounding plug can result in an electric shock.

Important Safety Instruction

WARNINGCAUTION

A. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not damage the refrigerant circuit. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. When disposal, please consult with service agent or a similarly qualified person.

This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 1m² in size for every 8 g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

• If the wall socket is loose, do not insert the power plug. It may cause electric shock or fire.
• Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet. You may disconnect a wire and cause a short circuit.
• Do not use a wet or damp cloth when cleaning the plug. Remove any foreign matter from the power plug pins. Otherwise, there is a risk of fire.
• After unplugging the appliance, wait for at least five minutes before plugging it again to the wall socket. Abnormal operation of the freezer may cause material damage.
• If the appliance is not to be used for a long time, pull out the power plug. Any deterioration in the insulation may cause fire.
• Do not let children touch or play with the control panel on the front of the appliance.
• The refrigerant used in fridge/freezer and the gases in the insulation material require special disposal procedures. Ensure that none of the pipes on the back of the appliances are damaged prior to disposal.

WARNING

Please do not use a dishwasher to clean the lower drawers; the high temperature may cause damage to the baskets which make them unusable.

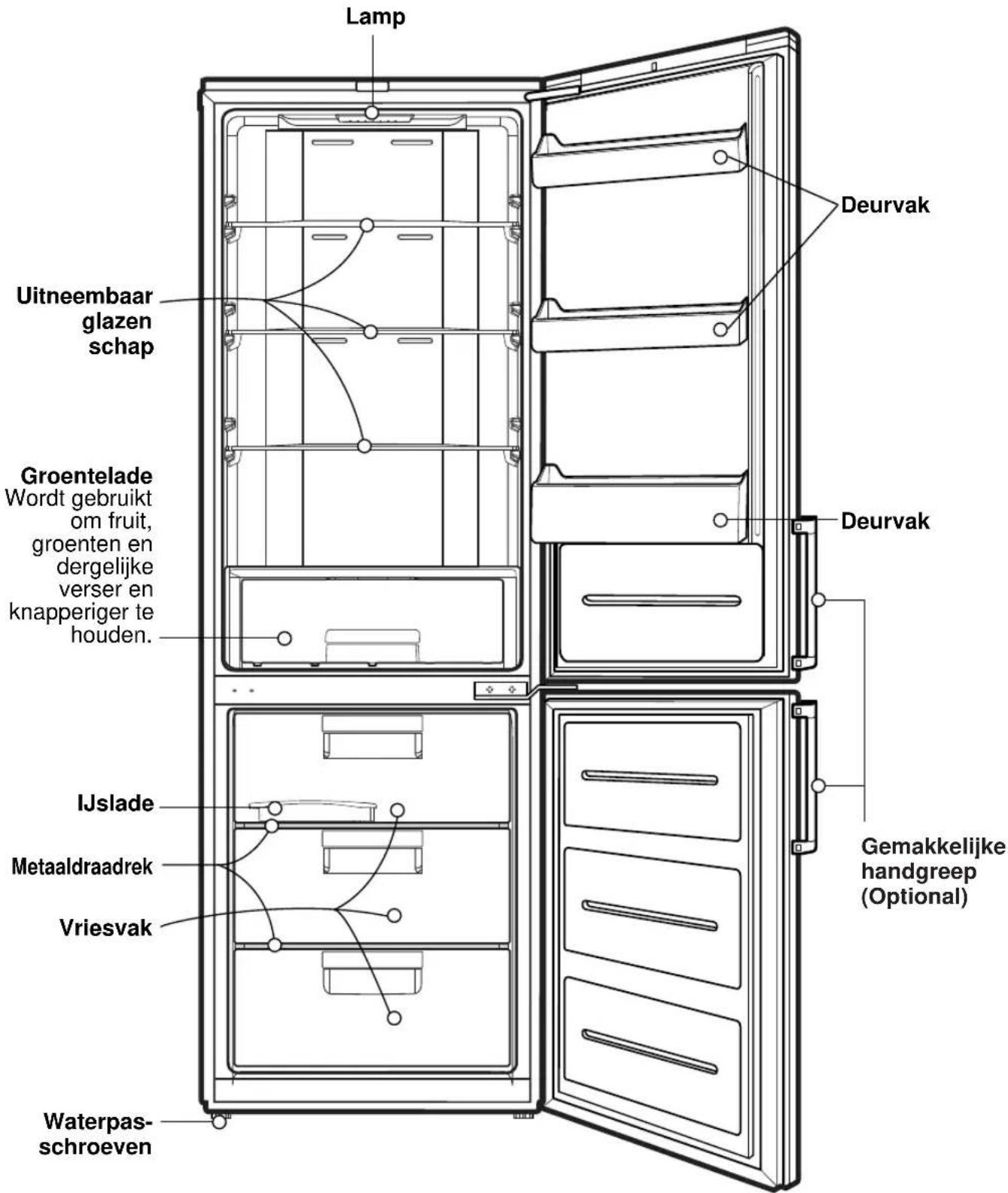

Identification of Parts

Model Name: GB7143**(A/B/G/P/R)*

Note

If you find some parts missing from your unit, they may be parts only used in other models. (i.e. the "OPTI-Zone" is not included in all models)

Model Name: GB7138****

Note

If you find some parts missing from your unit, they may be parts only used in other models. (i.e. the "OPTI-Zone" is not included in all models)

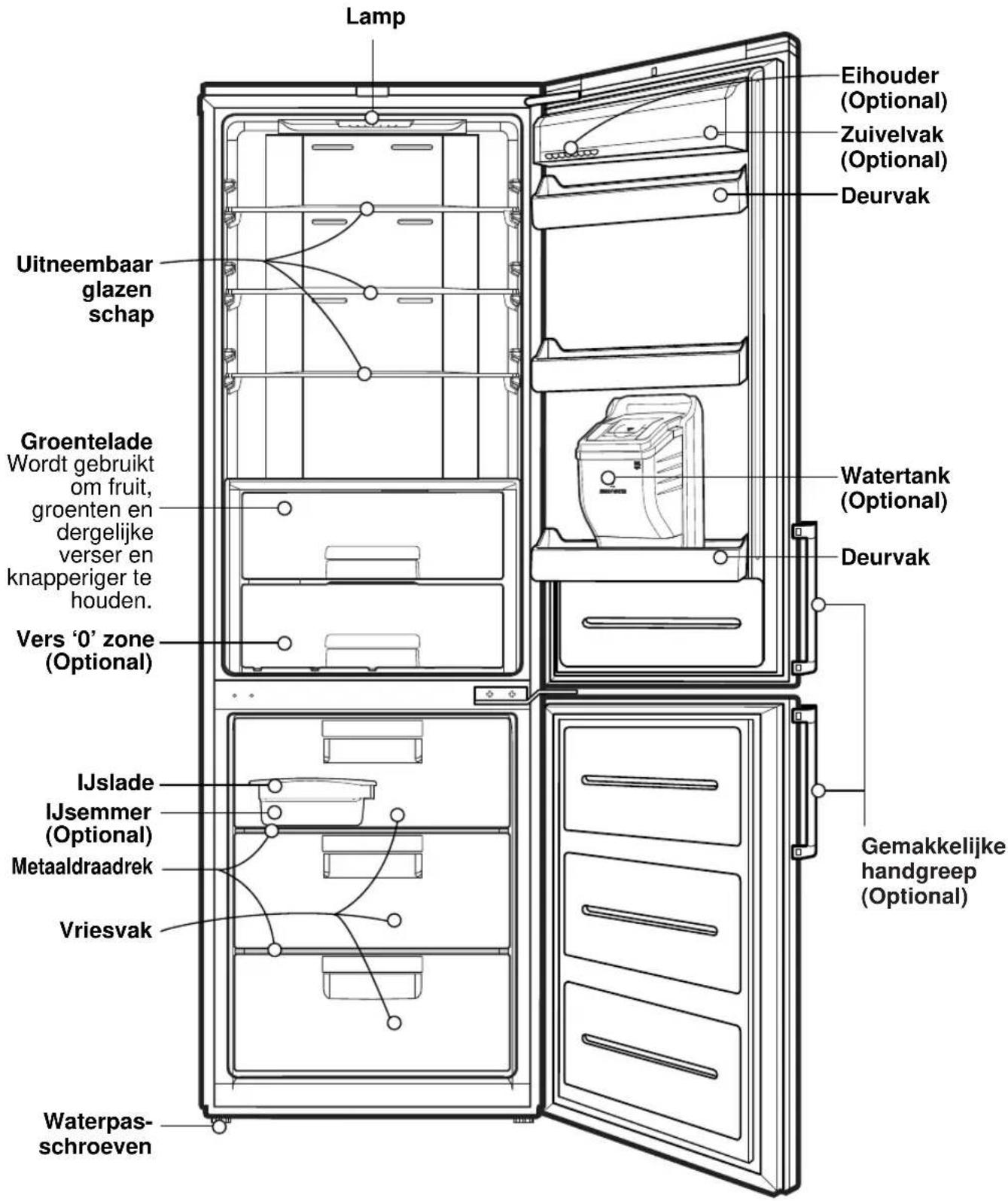

Identification of Parts

Model Name : GBB530****

Note

If you find some parts missing from your unit, they may be parts only used in other models.

Model Name: GBB539****

Note

If you find some parts missing from your unit, they may be parts only used in other models.

Identification of Parts

Model Name: GB5240****

Note

If you find some parts missing from your unit, they may be parts only used in other models.

Model Name: GB5237****

Note

If you find some parts missing from your unit, they may be parts only used in other models.

Identification of Parts

Model Name: GB5234***

Note

If you find some parts missing from your unit, they may be parts only used in other models.

Installation

1. Select a good location.

Place your fridge-freezer where it is easy to use.

1. Avoid placing the unit near heat sources, direct sunlight or moisture.
2. To ensure proper air circulation around the fridge-freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
3. To avoid vibration, the unit must be leveled. If required, adjust the leveling screws to compensate for the uneven floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise ( ) to raise the unit, clockwise ( ) to lower it.

1. Clean your fridge-freezer thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.

Applicable to some models only:

1. To provide necessary air circulation, you should leave enough space on each side, top and behind the refrigerator-freezer.

Set the limit stops in the upper corners of the back plate of the device as shown in Fig. 1. Stops (2) can be found in the drawer inside refrigerator compartment.

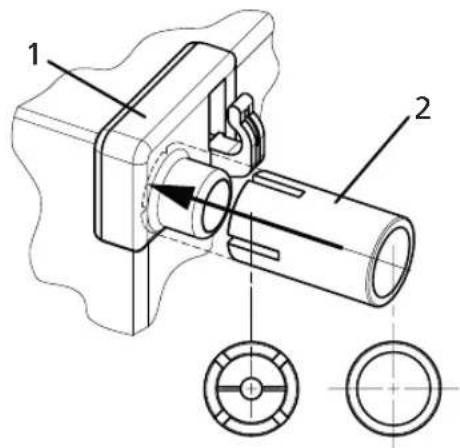

Fig. 1. Push Stopper (2) onto part (1) until the end

Fig. 2. Push the refrigerator to the wall.

Appliance usage range

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications

Starting

When your fridge-freezer is installed, allow it 2-3 hours to stabilize at normal operating temperature prior to filling it with fresh or frozen foods. If power plug is disconnected, allow 5 minutes delay before restarting.

Your fridge-freezer is now ready for use.

Note

Do not move refrigerator while the refrigerator is operating. Compressor may occur a temporary rattling noise. (This is normal and will not impact on the performance or the life of the compressor. The rattling will stop after the refrigerator comes to a rest.)

Climate class

The appliance is designed to operate at the limited range of ambient temperature, depending on climate zones. Do not use the appliance at the temperature out of the limit. Climate class of your appliance is indicated on the label with technical description inside the fridge compartment.

Class	Symbol	Ambient temperature range °C
Extended temperate	SN	+10 ~ +32
Temperate	N	+16 ~ +32
Subtropical	ST	+16 ~ +38
Tropical	T	+16 ~ +43

Temperature Control

Your fridge-freezer has controls that let you regulate the temperature in the fridge and freezer compartments.

Display Panel For Temperature Control

Adjusting the temperatures and functions

Note

All adjust function of LCD Model is operated after pressing any button.

Display Panel For Temperature Control

Adjusting the temperatures and functions

How to adjust the temperature in the refrigerator and freezer compartment

• The initial temperature of the freezer and refrigerator compartment is -20°C and 3°C respectively.

You can now adjust the temperature of the compartments as you want.

LCD Model

LED Model

LED Model

< Exterior Type >

< Interior Type >

Note

The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not the actual temperature within the refrigerator.

Refrigeration function is weak in the initial time. Please adjust temperature as above after using the refrigerator for a minimum of 2~3 days.

OPTI-Zone (Chill) (Optional)

• By pressing the button, store vegetables, fruits (at relatively low conservation temperature) or other types of food such as meat to be defrosted.

Method to Use

• You can select the optimum temperature range depending on the types of food stored.

• 2 steps of temperature selection including vegetables, fruits (2°C) and meat and fish (-1°C) are available.
• Vegetables and cold storage foods requiring humidity maintenance and meats/fishes can be more freshly stored depending on the type of foods stored.
• When the "VEGE." button's lamp is turned on, OptiZone is set to chill compartment.
• Chill compartment's temperature is maintained within -2°C to 3°C regardless of ambient temperature.

Chill compartment is the special temperature zone.

OPTI-ZONE

Express Frz.

• Please select this function for prompt freezing.
• This function is used when you want to freeze foods quickly. Press the Express Frz. button once, and the quick freeze operation starts with the lamp on.
• The Express Frz. operation takes about 3/24 hours. When its operation ends, it automatically returns to the previous temperature setting. If you want to stop the quick freeze operation, press the Express Frz. button once more, the lamp goes out, and the Express Frz. operation stops and the refrigerator returns to the previous temperature setting.

< Exterior Type >

< Interior Type >

• The arrow mark graphic remains at the on status after flickering for 4 times when selecting Express Frz. is turned "On".

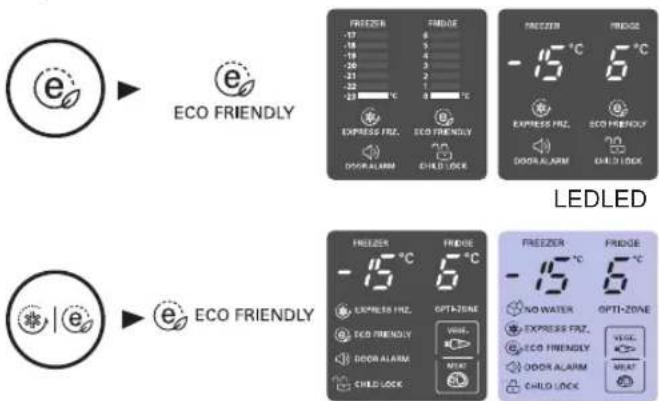

Eco Friendly

• This function makes the fridge-freezer work in a power saving mode which is useful for when you are away on holiday, by reducing energy consumption.

Pressing 'ECO FRIENDLY' starts operation with lamp on and pressing it again stops the operation.

< Exterior Type >

Note

When the Eco Friendly mode is "ON", the other buttons will not operate. When you come back from Eco Friendly, press the Eco Friendly mode off so that other buttons work and the refrigerator returns to previous temperature setting.

Self Test

• This function automatically detects failure when failure is found in product during the use of refrigerator.
• If the failure occurs at product and it does not operate by pressing any button and normal indication is not done, do not turn the power off and immediately contact with the local service center.
• A lot of time is needed for service engineer to detect the failed part by turning it off.

Lock

For LED Model

• Pressing this button stops operation of other buttons. Locking or Un-Locking is repeated whenever pressing the LOCK button. (For Locking, press the LOCK button for 3 secs. For Un-Locking, press the LOCK button for 3 secs.)
• When 'LOCK' is activated, pressing the other buttons would not work.

< Exterior Type >

On/Off

• Pressing this button refrigerator power is ON or OFF. ON or OFF is repeated whenever pressing the ON/OFF button. (For OFF, press the ON/OFF button for 3~7 secs. For ON, press the ON/OFF button for 1 sec.)

Fridge Compartment (Applicable to some models only)

Fresh '0' Zone

Store only meat, fish.

If store vegetables and fruits, they can be frozen.

"Fresh 0 Zone" temperature can be changed by setting listed like below.

When the refrigerator room is set on 6°C, FRESH 0 ZONE has 4°C.

When the refrigerator room is set on 3°C, FRESH 0 ZONE has 0°C.

When the refrigerator room is set on 0°C, FRESH 0 ZONE has -3°C.

How to Separate the Cover Assembly

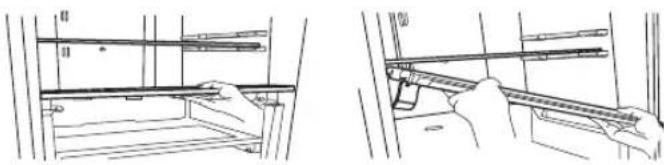

For Roller Model

When separating the vegetable drawer, pull the vegetable drawer toward you and then lift the drawer.

1. Lift the front of the Cover Assembly slightly and pull the Cover Assembly toward yourself.
2. Lean the Cover Assembly slightly to one side.
3. Pull out the Cover Assembly.

Vita Light (Optional)

1. The LED lamp operates automatically all day. It may help vegetables photosynthesize. The Vita Light is located at the rear of the vegetable drawer.

Viewing the laser output with certain optical instruments (e.g., telescopes, binoculars, glasses, magnifiers) may pose an eye hazard. The LEDs will operate automatically. Do not uncover the LEDs. Contact a qualified service technician if there is any failure in the LEDs.

CAUTION

• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

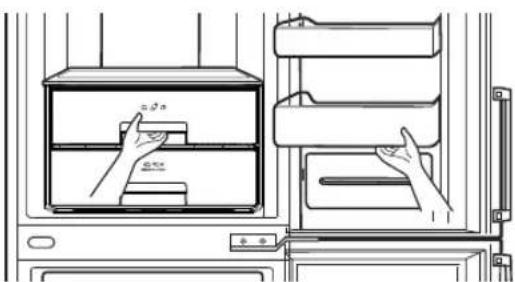

How to Separate the Vegetable Drawer

Remove the lower basket from the door by lifting it up.

Pull the drawer until it stops, then slightly lift it up and pull it out.

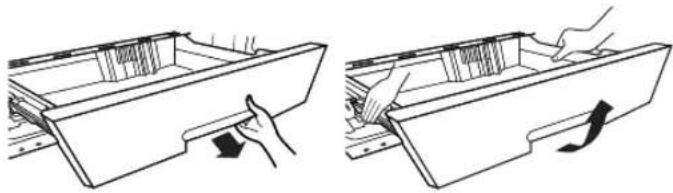

How to Separate the Vegetable Drawer or Opti-Zone Drawer (Optional)

For Rail Model

When separating the vegetable and opti-zone drawer, pull the vegetable toward you and then lift the drawer up with both hands.

Door Alarm

• When the door of the fridge is opened for a while, the alarm sounds. Please contact the local service center if the warning continues to sound even after closing the door.
• You can choose door alarm on/off by pressing the door alarm button shortly.

Ice Making

Take out the twist ice maker, fill it up, and put it back to its original location.

• Ice will be dropped into the ice storage bin by rotating the ice separation handle of the ice making compartment.

• You can make ice and also use this space as a storage space for frozen food. Remove (1) (Twist ice maker) as shown in the picture.

Note

• Rotating the ice separation handle before ice is fully frozen may cause the remaining water to drop into the ice storage bin and lump the ice together.
• Take the ice out of the ice storage bin for use, but do not pour water into the ice storage bin to freeze the water into ice. The ice storage bin can be frozen and broken.
• When the ice is full, it is designed for the ice to fall to the bottom in case the ice storage bin cannot be pulled out. Be careful not to store the ice too full.

Ice Making

Take out the container with ice tray. Fill the ice tray to the water level and put it back. - You can place the container with ice tray in the upper or middle drawer of the freezing compartment.

• If ice cubes are required fast, press the «EXPRESS FRZ.» button.
• To remove ice cubes, hold the tray at its ends and twist gently.

TIP

To remove ice cubes easily, run water on the tray before twisting.

Defrosting

• Defrosting takes place automatically.
• The defrosting water flows down to the evaporating tray and is evaporated automatically.

Water Dispenser (Optional)

Features

Filling of WATER TANK

1. Turn the knob shutter to open. And pull out the water tank assembly. After unlocking the clamp, open the cap tank and then fill water using a kettle etc.
2. After filling potable water, fix the cap cover and then lock the clamp.
3. When long period does not use or the first use, You have to fill the water tank with over 3.2 L water.

Water Dispenser (Optional)

Dispenser Pad Cap Cover

Filling of WATER TANK

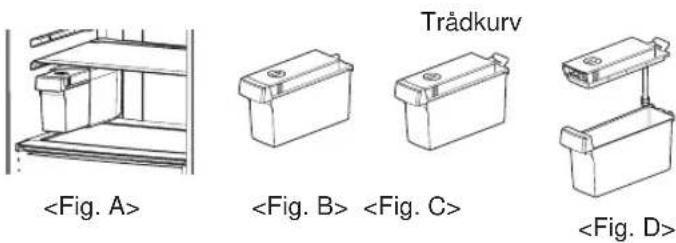

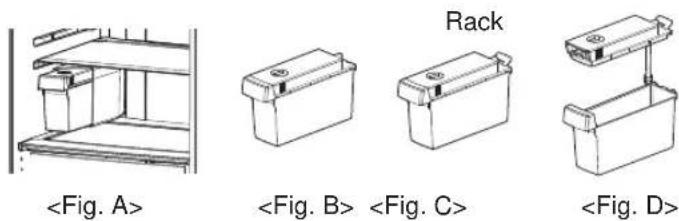

How to Remove the Water Tank

• The assembly is the reverse of removal.
• Be careful not to press on with valve.
• When you assemble water tank on the door, be careful to install certainly.
• Pull out the water tank. Then open the cap cover.
• Water can be filled up to 2.3 liter.
• After filling potable water. Close the Cap Cover.

Filling of PET Bottle (Optional)

When using the water bottle, you can connect the cap assembly tank to the general water bottle to use the water bottle, instead of the water tank provided.

1. Turn the cap assembly tank in open direction to separate from cap tank. Open the water bottle and insert the tube into the water bottle.

1. Assembly water bottle by the cap assembly tank (Height of water bottle Below 350 mm Beyond 300 mm ). Please relocate the tilting basket. There are some types that are not compatible.

1. Assembly the water bottle on the door.

CAUTION

• Please use bottled water currently circulated.
• If you fill soft drinks, milk and fruit juices or ground water (included Ca, Mg, Si etc.) or no filtered water, it may cause malfunctioning.
• When you fill water tank with water, please let hot water cool before putting water tank in refrigerator.
• Hot water cause malfunctioning.
• When you install water tank in refrigerator, cap should fit into (plug) housing and safety knob has to be pointed to "close".
• When water tank is not correctly inserted, dispenser might not work or water tank might fall off on the floor.

• If you want to take out water tank for redispensing or cleaning, you should grab and pull the upper part of the water tank and have safety knob pointed to "open".

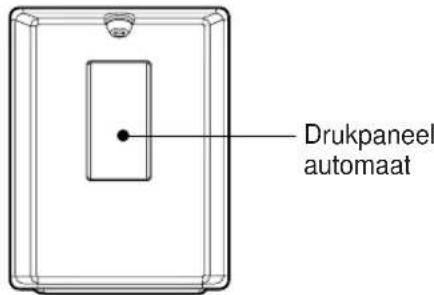

Drinking

1. Press the dispenser pad with a cup.
2. If you press the pad, water inside the dispenser is supplied.
3. If you slowly remove a cup from the pad, water will not fall down.
4. Some noise after dispensing is the sound of absorbing water remaining in the tube, which is for sanitation purposes.

CAUTION

Do not use beverages other than potable water (such as milk, juice, carbonated drinks, etc.). Especially, beverages containing grains must not be used (may cause malfunction).

WARNING

Fill with potable water only.

The pump may generate some noise while cool water is taken from the tank (e.g., bottle, water tank).

Bottle Rack

Model Name: GB7143***

• Bottles can be stored laterally with this wine corner.

Then you can invert the wine rack and place it on the shelf.

This will enable more shelf space.

Example: in use

Model Name: GB7138***

• Bottles can be stored laterally with this wine corner.

Then you can invert the wine rack and place it on the cover, assembly.

Removable Glass Shelf

1. Lift the front of the removable glass shelf. 2. Pull the removable glass shelf toward the door direction about 11 cm to 14 cm. 3. Lean the glass shelf slightly to one side. 4. Separate the glass shelf to the designated place.

Freezer Compartment

If a large quantity of food is to be placed in the freezer compartment,

1. The upper drawer of the freezer compartment, twist ice maker kit shall be taken out of the appliance and the food shall be stacked directly on the wire shelf.
2. The middle drawer of the freezer compartment shall be taken out of the appliance and food shall be stacked directly on the wire shelf.

The freezer compartment provides a wire shelf on default to maximize food storage capacity. And also the drawer is provided for convenient usage for watery meat or half-liquid state food.

Max Freezing capacity: If there is already food in the compartment, please set the freezer to the coldest condition (-23°C) and press on "Express frz," button several hours before placing fresh produce in the freezer compartment to get maximum capacity. As a rule, 7 hours is adequate.

Auto Ice maker

WARNING

Personal Injury Hazard

DO NOT insert your hands into the icemaker while it is operating. This may cause injury.

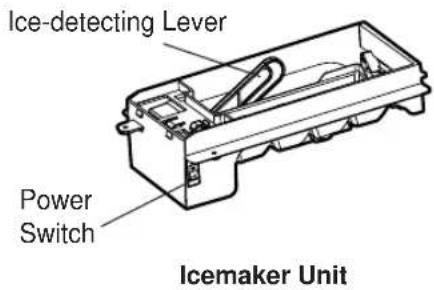

OPERATION INSTRUCTIONS

A newly-installed refrigerator may take 12 to 24 hours to begin making ice.

1. The automatic icemaker can automatically make 8 cubes at a time, 60~80 pieces per day. This quantity may vary by circumstance, including ambient temperature, door opening, freezer load, etc.
2. Throw away the first few batches of ice to allow the water line to clear.
3. Ice making stops when the ice storage bin is full.
4. If you don't want to use the automatic icemaker, turn the icemaker switch to OFF. If you want to use the automatic icemaker again, change the switch to ON.
5. If ice is not used frequently, old ice cubes will become cloudy, taste stale, and shrink.

Note

The sound produced when the ice drops into the ice storage bin is normal. It is not caused by a defective product.

WARNING

• If ice is not used frequently, old ice cubes will become cloudy, taste stale, and shrink.
• Do not store ice (cubes) longer than two weeks.

WHEN YOU SHOULD SET THE POWER SWITCH TO O (OFF)

• When the water supply will be shut off for several days.
• When the ice storage bin is removed for more than a minute or two.
• When the refrigerator will not be used for several days.

PREPARING FOR VACATION

• Set the icemaker power switch to O (OFF) and shut off the water supply to the refrigerator.

Water tank

No Plumbing Ice & Water

You can use the water in the water tank to use the Auto ice maker function without having to connect the water pipe to the refrigerator.

How to uninstall (Cleaning)

• When filling water to the water tank, pull the cover on top sides to open the water tank as shown in (1).

• When assembling the water tank, please push water tank until indicated line matches the hole. As shown in (2).

Auto ice making is not operating when water tank is in wrong position. At this moment you can see "no water" signal on display window.

NO WATER Indicator

NO WATER mark (NO WATER) appears on the display when Water Tank is not equipped with refrigerator or no water in the Water Tank. - NO WATER mark disappears on the display if Water Tank filled with water is re-equipped with refrigerator. But if Water Tank filled with no water is equipped with refrigerator, NO WATER mark disappears for a moment and NO WATER mark is displayed again. - The sound made while the ice is dropping to the bin is normal. After dispensing, "thump" may be heard as the pump operates. This is a normal sound.

Note

• When assembling or disassembling the water tank, be careful not to apply excessive force as it can damage the water tank.
• If there is no water in the water tank, you will not be able to use the Auto Ice Maker function.
• When the water in the water tank is low, the size of the ice may be made smaller.
• When you are refilling the water to the water tank, it is good to empty the water.
• Please fill water tank with water until 1.5L.

WARNING

• Please use potable water currently circulated
• If you soft drinks, milk and fruit juices or ground water (included Ca, Mg, Si, etc...) or no filtered water, it may cause out of working.
• When you fill water tank with water, please let hot water cool and put water tank in refrigerator - Hot water can be caused out of working.
• Because the water tank can get heavy, don't let children use or hold the water tank, especially with on hand.

Storing Food

CAUTION

• Do not store food which goes bad easily at low temperature, such as banana, and melon.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• When storing the food, use a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer and cause the temperature to rise.
• Never keep too many foods in the door rack, as this may stop the door from fully closing.
• Do not store bottles in the freezer compartment—they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
• Do not store pharmaceutical products, scientific materials, or other temperature-sensitive products in the refrigerator. Products that require strict temperature controls must not be stored in the refrigerator.
• If you want to quick freeze new food, put it in the middle drawer of the freezer compartment, and then press the Express Frz. button.
• To ensure good air circulation in the appliance, insert the freezer drawers all the way.

Suggestion for energy saving

• Please do not keep the door open for a long time; close the door in the shortest time.
• Too much food is not advised to be put in. Enough space should be kept for cool air to circulate freely.
• Do not set the temperature of the fridge-freezer lower than needed. Do not put food near the temperature sensor. Keep a distance of at least 5mm from the sensors.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps the fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer and cause the temperature to rise.
• Keeping the position of inner parts like baskets, drawers (fridge), shelves, and wire shelves supplied by the manufacturer is the most efficient usage for energy saving.

General Information

Power Failure

• A 1-2 hour power failure does no harm to the stored foods. Try to avoid opening and closing the door too frequently.

If You Move

Take out foods from the fridge-freezer and firmly fix the loose items with tape. - Turn the leveling screws until they stop before moving the fridge-freezer. Otherwise the screw may scratch the floor or the fridge-freezer cannot move.

Anti Condensation Pipe

The Anti-Condensation pipe is installed around the front side of the fridge and freezer, and also on the partition between the fridge compartment and freezer compartment to prevent dewing. - Especially after installation or when ambient temperature is high, the fridge-freezer may feel hot, which is quite normal.

To Reverse the Doors

• Your fridge-freezer is designed with reversible doors, so that they may open from either the left or right hand side to suit your kitchen design.

Door Handles (2-tone models)

• If you have chosen a two-tone refrigerator and would like to reverse the doors, you can either re-attach the handles that come with the unit or can purchase an alternative pair in the opposite colour tone.

To purchase these handles please call LG Customer Services at the telephone number shown on your warranty card, or contact the retailer where you bought the unit.

CAUTION

However, when you want to reverse the doors, you must call a service agent. Reversing the doors is not covered by the warranty.

Cleaning

Before Cleaning

Be sure to unplug the power.

Exterior

Clean the outside of the fridge-freezer with a soft cloth soaked with hot water or liquid detergent. If you use a detergent, be sure to wipe it with a clean wet cloth.

Interior

Same as above.

After Cleaning

Check that the power cord is not damaged, the power plug has not overheated, and that the power plug is tightly inserted into the outlet.

WARNING

Be sure to dry the appliance with a cloth after washing it with water.

Do not use abrasive, petroleum, benzene, thinner, hydrochloride acid, boiling water, rough brush, etc., as they may damage parts of the fridge-freezer.

Drip Tray

Wipe moisture out around the door part and the drip tray using a clean cloth.

Exterior Dispenser

Wipe moisture out of dispenser and on the dispenser pad using a cloth.

Water Tank

1. Turn the knob shutter to open.

And pull out the water tank assembly.

1. After unlocking the clamp and removing it, clean and fully rinse the inside and outside of the water tank using a neutral cleansing agent.

Cap assembly tank & Cap tank

Clean and fully rinse the cap assembly tank and cap tank using a neutral cleansing agent.

Especially for the groove part of the cap tank, it is convenient to clean it using a small brush.

CAUTION

Do not separate the screw and tube from the cap assembly tank. Please clean the outer surface.

Smart Diagnosis™ (Optional)

Should you experience any problems with your refrigerator, it has the capability of transmitting data via your telephone to the LG service center. This gives you the capability of speaking directly to our trained specialists. The specialist records the data transmitted from your machine and uses it to analyze the issue, providing a fast and effective diagnosis.

If you experience problems with your refrigerator, call the LG service center. Only use the Smart Diagnosis feature when instructed to do so by the LG call center agent. The transmission sounds that you will hear are normal and sound similar to a fax machine.

Smart Diagnosis cannot be activated unless your refrigerator is connected to power. If your refrigerator is unable to turn on, then troubleshooting must be done without using Smart Diagnosis.

First, call the LG service center. Only use the Smart Diagnosis feature when instructed to do so by the LG call center agent.

1. Open the refrigerator door.
2. Press and hold the 'Freezer' button for 3 seconds.

Note

If the door has been opened for over one minute, you must close the door and start again from No. 1.

1. Following the instructions of the operator, hold the phone's microphone close to the 'Smart Diagnosis' icon.

4. Hold the phone in position until the end of the sound data transfer.

1. Keep the phone in place until the tone transmission has finished. This takes about 3 seconds. Resume your conversation with the specialist, who will then be able to assist you in using the information transmitted for analysis.

Note

• For best results, do not move the phone while the tones are being transmitted.
• If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.
• Call quality differences by region may affect the function.
• Use the home telephone for better communication performance, resulting in better service.
• Bad call quality may result in poor data transmission from your phone to the machine, which could cause Smart Diagnosis to not work properly.

Before calling for service, check this list.

It may save you both time and expense.

This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

Problem

Fridge-Freezer does not operate

Possible Causes

• Power plug may be unplugged from the electric outlet. Plug it in securely.
• House fuse has blown or circuit breaker has tripped. Check and/or replace fuse and reset circuit breaker.
• Power cut. Check house lights.

Fridge or Freezer Compartment Temperature too warm

• Temperature control not set on proper position. Refer to Temperature Control section.
• Appliance is placed close to heat source. Warm weather-frequent door openings.
• Door left open for a long time.
• Package holding door open or blocking air duct in freezer compartment.

Vibration or Rattling or Abnormal Noise

• The floor on which the fridge-freezer is installed may be uneven or the fridge-freezer may be unstable. Make it even by rotating the leveling screw.
• Unnecessary objects placed in the back side of the fridge-freezer.

Frost or Ice Crystals on frozen Food

• Door may have been left ajar or package holding door open.
• Too frequent or too long door openings.
• Frost within package is normal.

Moisture forms on Cabinet Surface

• This phenomenon is likely to occur in a wet space. Wipe it with a dry towel.

Moisture collects inside

• Too frequent or too long door openings.
• In humid weather, air carries moisture into fridge when doors are opened.

Fridge has odor

• Foods with strong odors should be tightly covered or wrapped.
• Check for spoiled food.
• Interior needs cleaning. Refer to CLEANING section.

Door not closing properly	·Food package is keeping door open. Move packages that keep door from closing. ·Fridge-freezer is not level. Adjust the leveling screws. ·The floor on which the fridge-freezer is installed may be uneven or the fridge-freezer may be unstable. Slightly raise the front side with the leveling screw.
Interior light does not work	·No power at outlet. ·When you want to replace the lamp, you must contact service agent.
No water dispensing	·To low water level in Water Tank. Fill the Water Tank with over 3.2L water.

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

OPTI-Zone (Chill) (Optional)

Freezer compartment

Model: GB5234****

Napata npn

If some parts of the appliance are missing from the box, they may be parts used only in other models.

Installation

1. Choose a suitable location.

Place your refrigerator in a place where it will be easy to use.

1. Avoid placing the unit near heat sources, direct sunlight or moisture.
2. To ensure proper air circulation for cooling and condensation, please leave space on both sides as well as above the unit and keep a distance of at least 5 cm from the back wall and the ceiling.
3. To avoid vibrations, the unit must be properly leveled.

The appliance must be installed by a qualified person according to the manufacturer's instructions.

The front edge should be slightly higher than the rear edge to ensure proper drainage.

The appliance must be easily accessible for cleaning, maintenance, and repair.

Energy saving tips

Do not keep the door open for long periods. Close the door quickly. - The symbol Δ indicates the placement of large quantities of food. There must be enough space for cool air to circulate freely. Do not set the thermostat to a colder temperature than necessary. Do not place food items against the temperature sensor. Maintain a distance of at least 5mm from the sensors. Allow food to cool before placing it. Placing warm food in the refrigerator may increase energy consumption. Do not block the air vents with food, as proper circulation of cool air maintains the refrigerator's temperature. Do not open the door frequently. Opening the door lets warm air in and increases energy consumption. - For the preservation of internal parts such as shelves, crisper drawers, and dairy compartments, the manufacturer provides the most effective usage to save energy.

General Information

How to Reverse the Doors

Model name: GB5240****

Note

Model name: GB5237****

Note

Model name: GB5234****

Note

Water Dispenser (Optional)

Features

Water Dispenser (Optional)

Moisture forms on Cabinet Surface

This occurs more frequently in humid and poorly ventilated areas. Wipe off moisture with a dry cloth.

Moisture accumulates inside

DOOR HANDLE (for 2-ton models)

Model Name: GB5237***

Mark

No plumbing for water

DOOR HANDLE (for 2-tone models)

DISPOSING OF THE OLD APPLIANCE

1. When this symbol with a crossed-out wheeled bin is attached to a product, it means that the product is covered by EU Directive 2002/96/EC.
2. All electrical and electronic products must be disposed of at separate recycling stations set up by state or local authorities.
3. Proper waste handling of the old appliance helps prevent possible negative consequences for the environment and public health.
4. For more detailed information about waste handling of old appliances, you can contact local authorities, the waste disposal service provider, or the store where you purchased the product.

INSTRUCTIONS FOR USE

REFRIGERATOR-FREEZER

Disconnection (cleaning)

When filling the water tank, pull the layer aside at the top to open the water tank, as shown in (1)

Warranty Certificate

We offer a 24-month warranty for this apparatus

During the 24-month warranty period, we will repair your apparatus at no cost to you or make available spare parts to your dealer free, if this apparatus fails due to manufacturing or material defects. Further claims are excluded. We are not liable for damages due to acts of providence or damages occurring during transport. The buyer assumes shipping and packaging costs. Your warranty conditions on the rear also apply!

Type of apparatus :

Serial number:

Name of buyer:

Purchase date :

Dealer's stamp and signature

Warranty conditions for refrigerator

1. The warranty period begins on the purchase date and is valid for 24 months. Begin of warranty period is proven if, the buyer submits purchase receipt together with the warranty card, filled in and signed by the seller. The serial number of the product must agree with the number entered onto the warranty card.
2. During the warranty period, we will correct any defects at no cost to you, if it can be proven that these are attributed to manufacturing or material defects.
3. Damages due to incorrect handling, noncompliance with instructions for use, and normal wear are not covered by this warranty. Also, the warranty does not cover wear parts or easily broken parts (for example, viewing glass, light bulbs). The buyer is responsible for any damages during transport as well as shipping and packaging costs.
4. We decide whether to make repairs, exchange, or replace parts. Exchanged or replaced parts are our property. The original warranty period is not prolonged if a refrigerator is repaired or certain parts are replaced.
5. The warranty is nullified if any person intervenes in the apparatus that are not authorized by LG Electronics, or if the apparatus is used for commercial purposes.
6. Always keep the original packaging, so that if the apparatus requires servicing, it can be transported without damaging it.
7. If a repair is covered by this warranty, always contact your dealer or an authorized service centre.
8. Further claims are excluded. If parts of these provisions are invalid, they apply in the sense of the wording. The validity of the other provisions is not affected.
9. LINEAR Models which have POP (as seen on the left) on the door have applied Linear Compressor. Only the models with the POP are applicable to 10 Year Linear Compressor Warranty.

Warranty period of Linear Compressor: Ten (10) years from the date of original retail purchase. Part only (Consumer will be charged for labor). Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or operating the unit in an unsuitable environment will not be covered under this warranty.

Centro Empresarial Fleming

Parque Tecnológico

Warranty Certificate: For offer a 24-month warranty for this apparatus

During the 24-month warranty period, we will repair your apparatus at no cost to you or make available spare parts to your dealer free, if this apparatus fails due to manufacturing or material defects. Further claims are excluded. We are not liable for damages due to acts of providence or damages occurring during transport. The buyer assumes shipping and packaging costs. Your warranty conditions on the rear also apply!

Type of apparatus:

Serial number:

Name of buyer:

Purchase date:

Dealer's stamp and signature

Warranty conditions for refrigerator

1. The warranty period begins on the purchase date and is valid for 24 months. Begin of warranty period is proven if, the buyer submits purchase receipt together with the warranty card, filled in and signed by the seller. The serial number of the product must agree with the number entered onto the warranty card.
2. During the warranty period, we will correct any defects at no cost to you, if it can be proven that these are attributed to manufacturing or material defects.
3. Damages due to incorrect handling, noncompliance with instructions for use and normal wear are not covered by this warranty. Also, the warranty does not cover wear parts or easily broken parts (for example, viewing glass, light bulbs). The buyer is responsible for any damages during transport as well as shipping and packaging costs.
4. We decide whether to make repairs, exchange or replace parts. Exchanged or replaced parts are our property. The original warranty period is not prolonged if a refrigerator is repaired or certain parts are replaced.
5. The warranty is nullified if any person intervenes in the apparatus that are not authorised by LG Electronics, if the apparatus is used for commercial purposes.
6. Always keep the original packaging, so that if the apparatus requires servicing, it can be transported without damaging it.
7. If a repair is covered by this warranty, always contact your dealer or an authorised service centre.
8. Further claims are excluded. If parts of these provisions are invalid, they apply in the sense of the wording. The validity of the other provisions is not effected.
9. LINEAR Models which have POP (as seen on the left) on the door has applied Linear Compressor. Only the models with the POP are applicable to 10 Year Linear Compressor Warranty. Warranty period of Linear Compressor : Ten (10) years from the date of original retail purchase. Part only (Consumer will be charged for labor). Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or operating the unit in an unsuitable environment will not be covered under this warranty.

Warranty card

For inquiries or comments, visit www.lg.com or call;

902-500-234

SPAIN

01805473784

GERMANY

438-1014-4131

AUSTRIA

199600099

ITALIA

808-78-5454

PORTUGAL

0900-543-5454

NEDERLAND

/036-5377780

SVERIGE

0771-41-4379

EAA

801-11-200-900

BELGIUM

015-200-255

LUXEMBOURG

32-15-200-255

DENMARK

8088-5758

FINLAND

0800-116-587

NORWAY

800-18-740

Register your product online!

The model and serial number of the refrigerator is located on the back or one side of the refrigerator. Record it below should you ever need service.

MODEL

SERIAL

Manufacturer address:

LG Electronics Wroctaw Sp. zo.o., ul. LG Electronics 1-2, Biskupice Podgorne, 55-040 Kobierzyce, Poland.

Printed in Poland
