USER MANUAL FR9065 TRISTAR

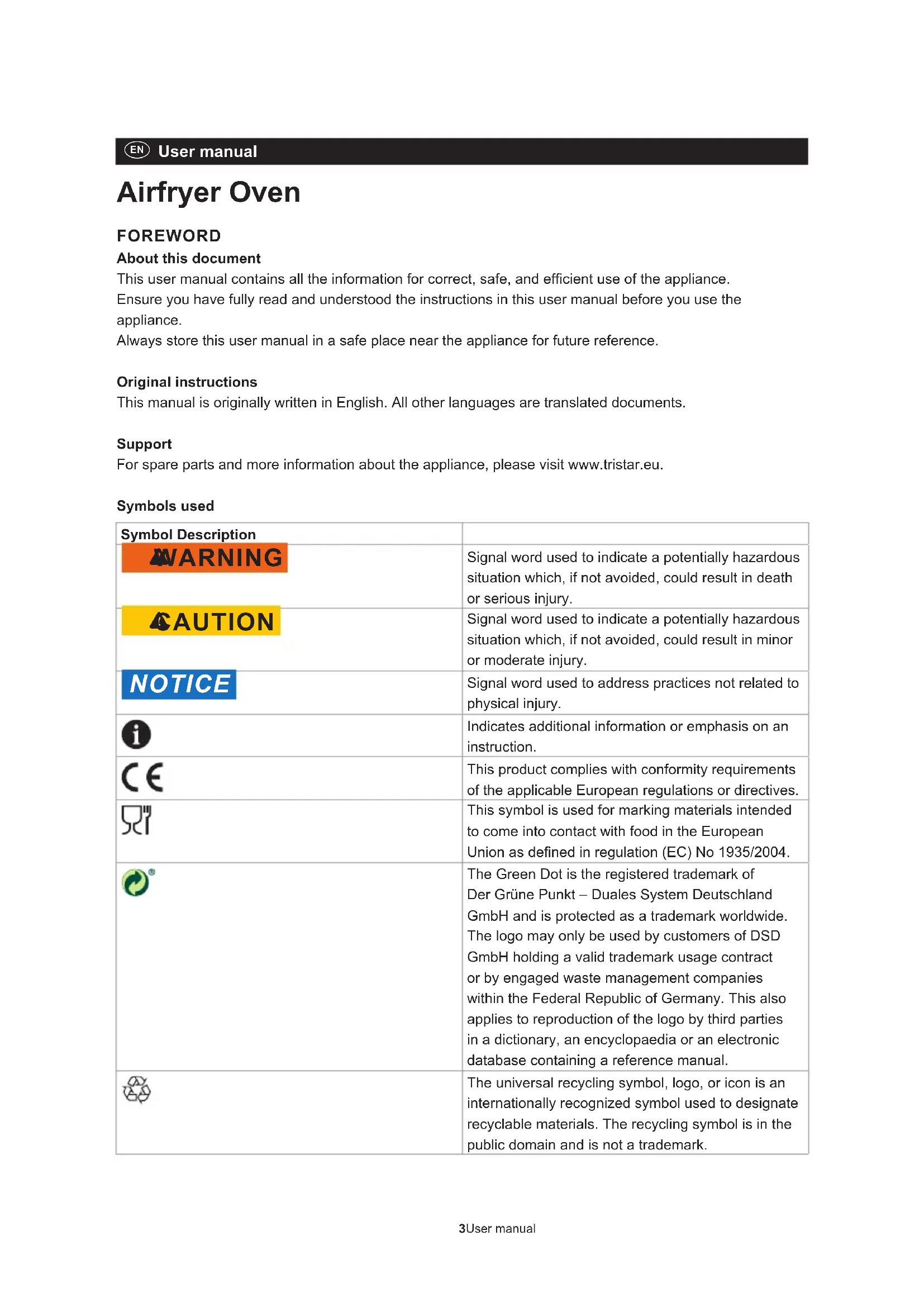

User manual Airfryer Oven FOREWORD About this document This user manual contains all the information for correct, safe, and efficient use of the appliance. Ensure you have fully read and understood the instructions in this user manual before you use the appliance. Always store this user manual in a safe place near the appliance for future reference. Original instructions This manual is originally written in English. All other languages are translated documents. Support For spare parts and more information about the appliance, please visit www.tristar.eu. Symbols used Symbol Description

WARNING Signal word used to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION Signal word used to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Signal word used to address practices not related to physical injury. Indicates additional information or emphasis on an instruction. This product complies with conformity requirements of the applicable European regulations or directives. This symbol is used for marking materials intended to come into contact with food in the European Union as dened in regulation (EC) No 1935/2004. The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual. The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.4Tristar Europe B.V. | Airfryer Oven | FR-9065 Applicable in France: The product or packaging can be recycled and components must be disposed of separately. Follow the local regulations. Applicable in Italy: The product or packaging can be recycled and components must be disposed of separately. Follow the local regulations. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling advice. APPLIANCE DESCRIPTION About this appliance The Tristar FR-9065 is an air fryer for grilling, baking, and roasting food using hot air with little to no use of oil. Intended use This appliance is intended for indoor use only. This appliance is intended exclusively for domestic, non-commercial use. This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels, and other residential type environments; - bed and breakfast type environments. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised. The appliance is not intended to be operated by means of an external timer or a separate remote-control system. Any use of the appliance other than described in this user manual is regarded as misuse and may cause injury or damage to the appliance and void the warranty. Technical specications Appliance name Airfryer Oven Article number FR-9065 Power supply 220 – 240 V ~ 50/60 Hz Power consumption in use 1600 - 1800 W5User manual Main parts (see image A)

Basket with handle Control panel (see image B)

Re-heat button SAFETY Safety symbols Symbol Description Indication for a hot surface. Contact may cause burns. Do not touch. Safety precautions

WARNING Safety hazard due to unintended use:

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Never lift the appliance by the power cable. Lifting the appliance by the power cable may damage the power cable. Only lift the appliance by holding the handle.

• The appliance must be placed on a stable, level surface.

• This appliance is only to be used for household purposes and only for the purpose it is made for. In worst case the food can catch fire. (i.e. do not use more than one tea spoon of oil, no meat that will release to much grease or water intended for boiling foods.

• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning6Tristar Europe B.V. | Airfryer Oven | FR-9065 use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.

• The appliance is to be connected to a socketoutlet having an earthed contact (for class I appliances).

• Never use the appliance if there are visible signs of damage or defects. Always replace a damaged or defective appliance immediately.

• The inner cavity does not contact acidic food. Electric shock hazard due to short-circuiting:

• Never use the appliance if there are visible signs of damage or defects to the appliance or power cable. Always replace a damaged or defective appliance or power cable immediately or contact customer service.

• Always avoid spillage on the power cable.

• Never open the appliance. The appliance may only be opened for maintenance by an authorised technician.

• Never replace the power cable yourself. Always let the manufacturer, its service agent or a similarly qualified person replace the power cable.

• Always unplug the power cable when the appliance is not in use or unattended, and before cleaning.

• Always check if the voltage stated on the type plate of your appliance matches your mains voltage before use.

• Never insert any objects into the air vent openings.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Never move the appliance by pulling the cord and make sure the cord cannot become entangled. Fire hazard due to overheating:

• Never leave the appliance unattended when in use. Only use the appliance under supervision. Switch off the appliance and remove the power cable from the power outlet when you leave the room.

• Never use the appliance with a programmer, timer, separate7User manual remote control system or any other device that switches the appliance on automatically.

• Never place the appliance directly underneath a power outlet. The appliance may become hot during use. Always keep the back of the appliance clear of any objects.

• In order to prevent disruptions of the airflow do not put anything on top of the appliance and make sure there is always 10 centimeter of free space around the appliance.

• Never place the appliance near a heat source.

• Never fill the pan with oil. Fire hazard due to short-circuiting:

• Never drop the appliance and avoid bumping. Excessive vibrations can lead to loosened connections and can influence proper functioning of the appliance. Stop using the appliance if the appliance has been dropped.

• Never use the appliance with an extension cable.

• Never connect any other appliance with high power consumption to the same group. Fire hazard due to burnt food:

• Always clean all parts that come into contact with food after use.

• Never exceed the maximum level indicated on the inside of the pan to avoid contact with the heating element. Burning hazard due to hot liquids:

• Never use the appliance on recreational vehicles or boats. Hot liquid may spill out of the appliance.

• Always ensure the basket is fully closed. Hot liquid may splatter out of the appliance.

• Never move the appliance during use. Hot liquid may spill out of the appliance. Choking hazard due to plastic packaging:

• Never let children play with the packaging material. Always keep the packaging material out of the reach of children. Snagging hazard due to moving parts:

• Always switch off and disconnect the appliance from the power source before changing accessories or approaching parts that move in use.8Tristar Europe B.V. | Airfryer Oven | FR-9065

CAUTION Burning hazard due to heat:

• Children should be supervised to ensure that they do not play with the appliance.

• Never touch the hot surfaces during or shortly after use. The hot surfaces may be subject to residual heat. Let the appliance cool down completely before handling the appliance. Tripping hazard due to loose cables:

• Never leave the power cable hanging out in a way that someone might trip over it or accidentally pull it. NOTICE Risk of damaging the appliance:

• The appliance must be placed on a stable, level surface.

• Never use aggressive chemical cleaning agents that can damage the appliance when cleaning the appliance.

• Only use the appliance with the provided accessories or accessories recommended by Tristar.

• Never fill the pan above the maximum capacity marking to prevent overflowing.

• Never place the appliance in a dishwasher.

• Never place the appliance near the edge of a countertop during use. Vibrations may occur during use which may cause the appliance to move. Always place the appliance on a stable, flat, heat, and moisture resistant surface.

• Never use metal utensils to remove food from the pan. Metal utensils may damage the non-stick coating.

• Remove all packaging material.

• Remove any stickers or labels from the appliance.

• Rinse all other accessories with soap and warm water or in the dishwasher.

• Wipe the inside and outside of the appliance with a moist cloth.

• When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon. Preparing for use

• Place the appliance on a stable, horizontal and level surface, do not place the appliance on non-heat- resistant surfaces.

• Place the basket in the frying tray properly. USE

• Put the mains plug in an earthed wall socket.9User manual

• After plugging in and Power button B

was turning on, press Power button. All icons will light up, allowing you to use the + & - buttons to select your desired temperature and time. You can also choose specific cooking programs for different foods using the icons.

, and the airfryer will start cooking under the selected program. Each program comes with preset temperature and time refer to the cooking instructions for details.

• The temperature range is 50-200°C. Press the Temperature control B

button to adjust. Each press of +/- adjusts by 10°C. If you hold "+" under 200°C, it resets to 50°C, and under 50°C, pressing "-" sets it to 200°C. The temperature number flashes for 3 seconds, confirming your selection.

• The timer range is 1-60 minutes. Press the Timer control B

button to adjust. Each press of +/- adjusts by 1 minute. Pressing "+" under 60 mins resets to 1 min, and pressing "-" under 1 min sets it to 60 mins. The timer number flashes for 3 seconds to confirm your selection.

• After confirming the cooking program, temperature, and timing, press Start/stop button B

to begin. The button will flash, and a buzzer confirms the start. During cooking, press Start/stop button to pause; the button stops flashing, and the timer stops counting. To stop completely, press the power button; a buzzer confirms shutdown, returning to standby mode.

• When cooking is done, the buzzer beeps 2 times, signaling it's finished. The machine stops heating and running. Note: After cooking ends and the timer reaches 0:00, you can't adjust temperature or timing until you select the next cooking program.

to turn on/off the light. For safety, opening the main door during cooking, turns off the light, heating element, and motor, and shuts down the control panel.10Tristar Europe B.V. | Airfryer Oven | FR-9065 TIMER FUNCTION

. The appointed time was 3 hours, adjustable by pressing "+/-" in 0.5-hour increments from 0.5 to 8 hours. After selecting the timer, the machine starts after 3 seconds, displaying the chosen cooking time. During timer cooking, only the power button works. To cancel the preset timer, press the power button and select the next operation. Press the preset button during timer cooking to view the program's temperature and time. MEMORY FUNCTION

• When you open the main door during operation, the machine pauses. After closing the door, you'll hear one beep, and the machine resumes the selected cooking program with the same settings. If the power goes out or is unplugged, the machine stops completely. When power is restored, you'll hear one beep, and the machine resumes cooking with the same settings.

CLEANING AND MAINTENANCE

• Always unplug the power cable when the appliance is not in use or unattended, and before cleaning. Note: open the door to let the airfryer cool down more quickly.

• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.

• Rinse all other accessories with soap and warm water or in the dishwasher. In the case of stubborn dirt, we recommend soaking the accessories in warm water and washing-up liquid beforehand. Note: The frying tray is dishwasher-proof.

• Clean the inside of the appliance with hot water and a non-abrasive sponge.

• Clean the heating element with a cleaning brush to remove any food residues. STORAGE Store the appliance in a dry and enclosed space. Make sure all parts are clean and dry. TROUBLESHOOTING Problem Possible cause Possible solution The airfryer oven does not work The power cable is not properly connected to a working power outlet. Plug the power cable into a working power outlet. You have not set the timer. Set the timer to the required preparation time to switch on the appliance. The ingredients fried with the airfryer oven are not done. The amount of the ingredients in the basket is too much. Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly. The preparation time is too short. Turn the temperature control button to the required temperature setting (see section 'Settings'). The temperature is set too low. Turn the temperature control knob to the required preparation time (see section 'Settings'). The food is not crispy. You used a type of snacks meant to be prepared in a traditional deep fryer. Use oven snacks or lightly brush some oil onto the snacks for a crispier result.11Gebruiksaanwijzing White smoke comes out of the appliance. You are preparing greasy ingredients. Pay attention that the temperature is well-controlled to be under 180°C, when you fry greasy ingredients in the air fryer. The pan still contains greasy residues from previous use. White smoke is caused by grease heating up in the pan. Make sure you clean the pan properly after each use. ENVIRONMENT This appliance should not be put into the domestic garbage at the end of its durability, but must be o󰀨ered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection. Support You can nd all available information and spare parts at www.tristar.eu!

• When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon. Klaarmaken voor gebruik
