Product Type	Inflatable towable buoy for water sports
Brand	Vevor
Model	SS1006
Maximum number of riders	3
Maximum air pressure	0.8 psi (0.055 bar)
Tow rope length	15.25 to 19.8 m (50 to 65 feet)
Tow rope breaking strength	3350 lb (1520 kg) for 3 riders
Recommended maximum towing speed	Adults: 32 km/h (20 mph); Children: 24 km/h (15 mph)
Main material	Reinforced PVC
Valve type	Boston valve and quick safety valve
Included accessories	2 nozzle covers, 2 repair patches, user manual
Minimum age for use	6 years (adult supervision required)
Minimum safety distance	55 m (180 feet) from shore, docks, swimmers, etc.
Intended use	Towing behind a boat, on water only
Maintenance	Rinse with fresh water after use; store away from sunlight, deflated if unused for long
Mandatory safety	Wear a type III life jacket (PFD) certified EN ISO 12402-5
Repairability	PVC repair patches included for repairing tears
Warranty	Electronic warranty certificate available at vevor.com/support
Manufacturer	Shanghaiuxinmuyeyouxianggsi, Shanghai, China

Frequently Asked Questions - SS1006 Vevor

How to properly inflate the SS1006 buoy?

Use a low-pressure pump. First inflate the small chambers (floor, backrests) to 25%, then the main chamber to 85% maximum. Do not overinflate. In hot weather, leave room for expansion. Close the Boston valve by screwing the cap.

How to attach the tow rope?

Pass the looped end of the rope through the cleat hole. Place the loop over the bottom of the cleat and pull firmly. Check that the rope is clear of all body parts before use.

What is the maximum towing speed?

The speed must not exceed 32 km/h (20 mph) for adults and 24 km/h (15 mph) for children. Respect these limits to avoid accidents.

How many people can use the buoy at the same time?

The SS1006 model is designed for 3 riders maximum. Never exceed this capacity.

How to repair a tear on the buoy?

Deflate the buoy, clean the damaged area. Cut a round or oval repair patch, remove the backing paper and apply it firmly, smoothing out air bubbles. Let dry.

Can the buoy be used without a life jacket?

No. Wearing a type III life jacket (PFD) certified EN ISO 12402-5 is mandatory for all users. This product is not a personal flotation device.

How to store the buoy out of season?

Rinse it with fresh water, dry it completely, deflate it and store it in a cool, dry place away from sunlight. Avoid high temperatures.

What type of pump to use for inflation?

Use a low-pressure pump. A high-pressure pump (compressor) can be used with caution to avoid overinflation. Maximum pressure is 0.8 psi.

Is the buoy suitable for children?

Yes, from 6 years old, under adult supervision. Children must wear a life jacket and the towing speed must not exceed 24 km/h (15 mph).

What safety distances should be observed?

Maintain a distance of at least 55 m (180 feet) from shore, docks, pontoons, swimmers, and other boats. Do not tow in shallow water.

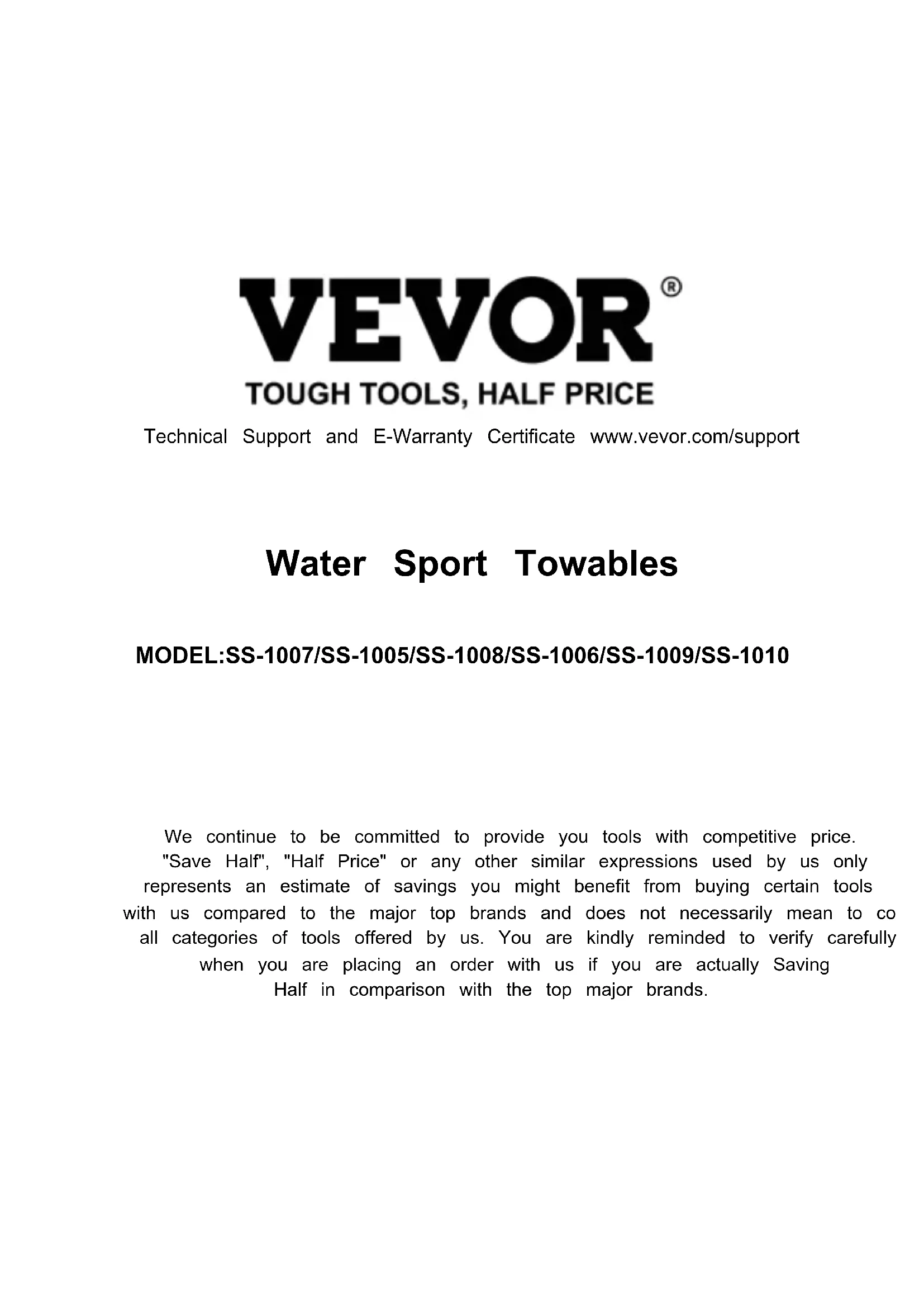

USER MANUAL SS1006 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Water Sport Towables

MODEL:SS-1007/SS-1005/SS-1008/SS-1006/SS-1009/SS-1010

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

WATER SPORT TOWABLES

MODEL: SS-1007/SS-1005/SS-1008/SS-1006/SS-1009/SS-1010

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating o servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

1. INFLATING THE TUBE

It is recommended to use a low-pressure inflation pump. A high-pressure (air compressor type) may be used but with extreme caution so as not to o inflate the tube. First, if your tube has smaller chambers like an Inflatable flo backrests, or bolsters, inflate them first. Second, inflate the main air chambers to approximately 25% . Adjust the tube inside of the cover. To finis inflate the tube to 85% .

DO NOT OVER INFLATE!

OVERINFLATION MAY CAUSE PERMANENT DAMAGE TO YOUR TUBE!

On warm sunny days, it is important to remember to leave room for air to only inflate the tube to about 85% , leave the tube in sunlight for a few min prior to use, then check the firmness.

2. STORAGE AND CARE

When not in use, rinse off with fresh water and store in a cool, dry place direct sunlight. The tube should be deflated if it is not to be used for an e period of time. Using common sense and reasonable care will greatly extend life of this product.

3. PROPER TOW LINE ATTACHMENT

USE A TOW ROPE SPECIFICALLY DESIGNED TO PULL INFLATABLE

TUBES!

The rope must be properly attached to work correctly. The loop end of the must go through hole 1 prior to wrapping the loop around the cleat. Inspect molded tow cleat prior to each use; if it shows signs of damage, cracking, or breaking, do not use it.

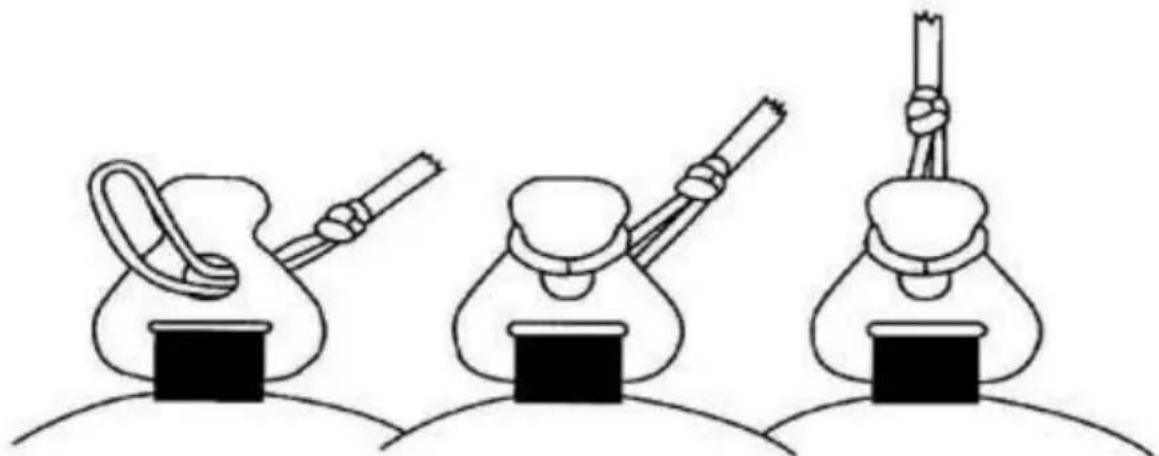

Important Warning!

Tow line Attachment Directions. The rope MUST be properly attached to work correctly.

1. Put the loop end of the rope through the hole.
2. Place the end of the loop on the bottom of the cleat.
3. Pull the rope tight.

WARNING !

Use of this product and participation in the sport involves inherent risks injury or death.

• Do not use at speeds that exceed the skills of the rider. Boat speed should never exceed 20 mph for adults and 15 mph for children.

• This product should never be used by children except under adult supervision

• This is not a personal flotation device.

• Always wear a U.S. Coast Guard-approved Type III (PFD) vest.

• Never place wrists or feet through handles or towing harnesses. Ensure the rope is clear of all body parts prior to or during use.

• Rider should keep feet out of the water.

• Watercraft driver is responsible for the ride since the tube cannot be controlled by the rider. Always have a person other than the driver as an observer.

• Watercraft drivers should avoid excessive speed or sharp turns, which might cause the tube to flip over abruptly, resulting in serious injury to the rider.

• Do not tow in shallow water or near shore, docks, pilings, swimmers, or o boats.

• Do not exceed the manufacturer's recommended number of riders for your particular tube.

• Use a tow rope of at least 1500 lbs. average tensile strength I or pulling person, 2375 lbs. average tensile strength for pulling two people, 3350 lbs. average tensile strength for pulling for three people, and 4100 lbs. tensile strip for pulling four people on an inflatable tube. The tow rope should be at least feet in length but not exceed 65 feet.

• Do not operate watercraft or ride under the influence of alcohol or drugs.

• Read the Operator's Manual before use.

Notes:

1. The running speed should be no more than 32km / h
   2.The minimum length of the towing rope is 18 meters.
2. Guardians are required for those under 12 years old.
3. The flat handle is only used for carrying the product and shall not be use playing.

SAVE THESE INSTRUCTIONS

	No protection against drowning	50ft(15,25m)-65ft(19,8m)	Tow rope must be at least 15m (50ft in length but not exceed 20m (65ft.)
	Riders should keep hands and feet out of the water		Always wear an ENISO 12402-5approved personal flotation device
	Read the instruction manual first		Number of users: Adults/Children-see on the manua
	Always observe children when they are in the water		Do not tow or ric under the influence of alcohol or drugs
MAX<32KWH<24KWH<20MPH<15MPH	Never exceed 32km/h (20mph) when towing adults or 24km/h (15mph) with children	100%	Inflate all air chambers

Max. Capacity - see on the manual	0.069 bar 1.0 PSI	Maximum pressure
Recommended break strength tow rope - see on the manual	0-6	Not to be used by children under six
Safe distance to shore, docs, swimmers, boats, bridges, pilings etc. 55 m/180 feet		Do not dive under device
Do not use in breaking waves		Never place wrists feet through handles or towing harness

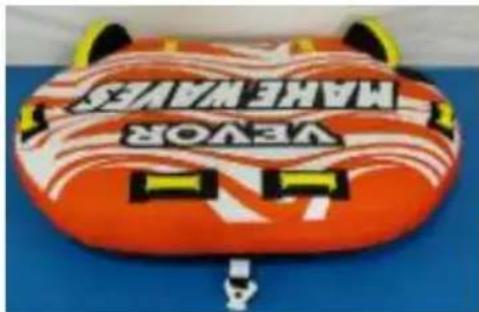

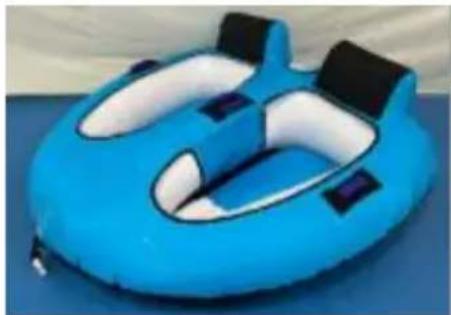

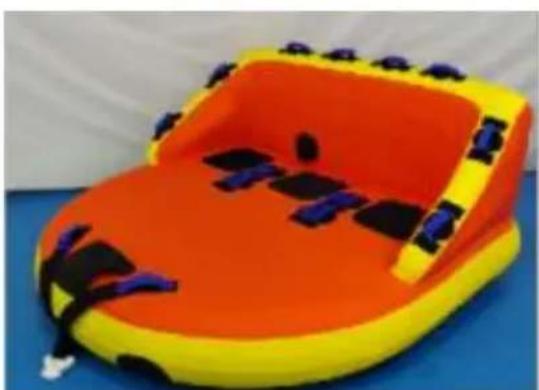

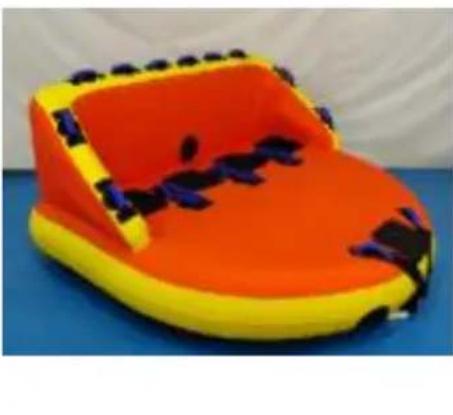

SPECIFICATION

Model	SS-1007	SS-1005	SS-1008	SS-1006	SS-1009	SS-1010
Maximum number of riders	2	2	3	3	/	4
Maximum air pressure	0.8psi	1psi	1psi	1psi	0.8psi	1psi
Length of tow rope	50ft(15.25m)-65ft(19.80m)

PACKING LIST

Model		SS-1007	SS-1005	SS-1008	SS-1006	SS-1009	SS-1010
Air nozzle cover		3	3	3	2	1	2
Repair subsidies		2
User Manual		1
SS-1009		Pull ropes * 3 (already installed on the product front + in the middle + at the rear)

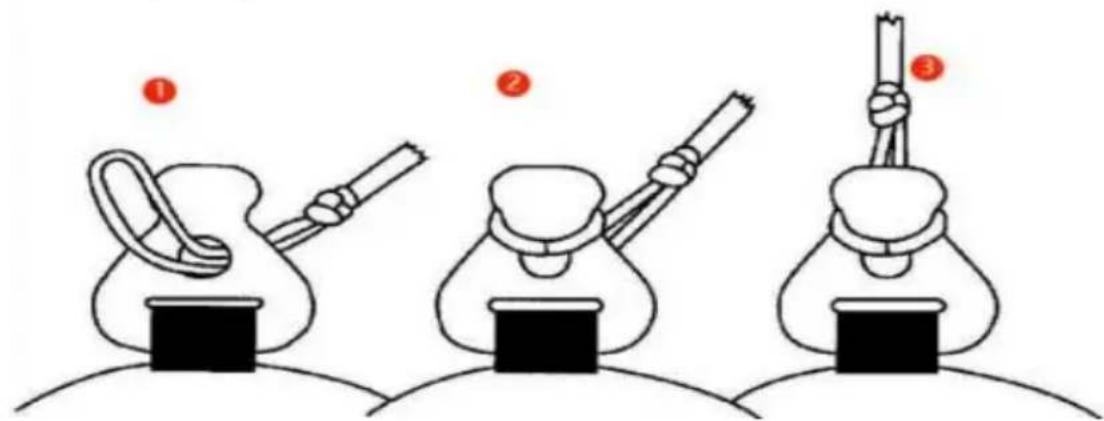

TOWABLE TUBE USAGE

1. Put the loop end of the rope through the hole.
2. Place the end of the loop on the bottom of the cleat.
3. Pull the rope tight.

If your product has this type of system, please refer to the diagram below. the top nylon strap through the bottom loop and pull up tautly on the nylon Affix your rope to the nylon strap and you will be ready to go.

Special Note: The tow system should only be used as shown in this diagram. Towing from the top or bottom strap alone will cause the tube to function incorrectly and may risk damage to the cover or tube.

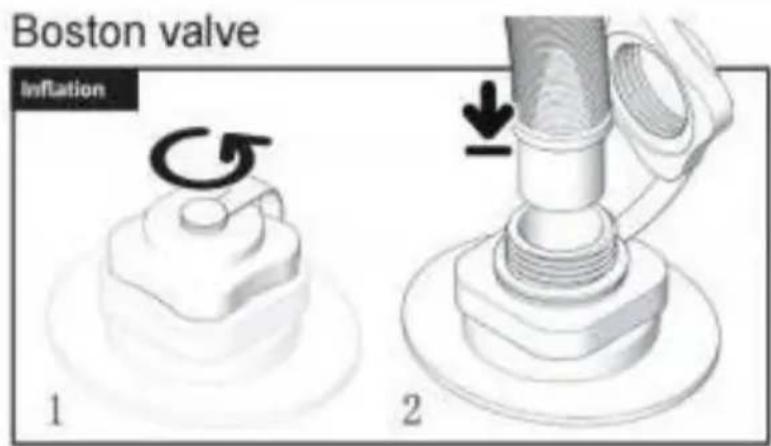

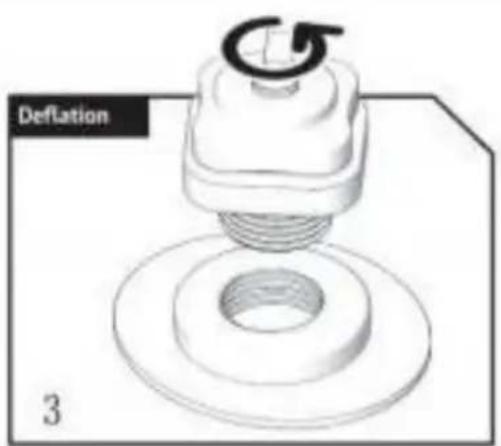

Charging and discharging

The Boston valve is a rigid valve with a dual threaded closure. To inflate, use the upper cap counterclockwise (Fig. 1), and insert the end of the inflation hole in the way in (Fig. 2). When you're done inflating, screw the upper cap back off to deflate the air chamber quickly, turn the entire valve counterclockwise (Fig. 3).

Speed Safety Valve: Pull it out for fast inflation/deflation, and then it can be pushed in flush with the tube. Secure the valve by firmly fastening the bottom part of the valve into the base. To inflate, open the cap or the top part valve. Using the hose from your compatible pump, inflate through the top opening of the valve.

USE OF REPAIR SUBSIDIES

REPAIR PATCH FOR PVC

Deflate product. Clean defective areas. Cut round or oval patch. Remove the paper backing. Apply the sticky film to repair area. Squeeze out all air bubb

Before repair

After repair

PRODUCT INSTRUCTIONS AND WARNINGS

Water sports can be safe and fun for all levels of enthusiasts. The Operator Manual is presented to enhance your enjoyment of the sport. It is intended for you to some of the potentially dangerous conditions that can arise in all water sports.

To reduce the risk of injury or death, follow these guideline

• Carefully read this manual and follow the instructions.

• Only use your tube with a responsible watercraft operator who knows how operate a watercraft properly.

• Take all reasonable precautions in the use and operation of your tube and

• Teach anyone using your tube how to attach it to the rope, how to ride how to maintain it.

• Use a single tube for no more than one rider and no more than two for a tube. Do not exceed the manufacturer's recommended number of riders for your particular tube.

• If the tube is designed for more than one person, take extra precautions to colliding with one another.

• The stress on the rope is different from the stress on the tube, and will the weight of the passengers, design, and surface area of the tube.

• Never strap or attach anyone to the tube or cover. Never put your feet o through the strapping of the towing system or handles. Never wedge your ha or feet under the cover or between the cover and the tube.

• Never attempt jumps or dangerous tricks with your tube. If more than one being towed, avoid collisions with other tubes.

• Scout the area before use to avoid any debris or obstacles that might pre safety hazard.

• Know your own limits. Stop when you are tired. Act responsibly. Be in good physical condition and be cautious in your use of this or any other towable

• Check the rope and connector for frays, cuts, sharp edges, knots, or wear before each use. Discard the rope if any such condition exists or if the rope appears to be worn. Such conditions may lead to breaks.

• Do not use tow rope with elastic or bungee material to pull skiers or ride an addition can break or stretch, injuring users or boat occupants.

• Rope is subject to deterioration when exposed to direct sunlight. The life of product will be extended when stored away from sunlight.

• The tow rope should be replaced when signs of deterioration appear, indicate by the existence of discoloration, wearing, fraying, or raveling.

• Do not add hardware or attachments that are not otherwise supplied by the manufacturer.

WATERSPORTS SAFETY CODE

Water sports are fun and challenging but involve inherent risks of injury or of. To increase your enjoyment of the sport and to reduce your risks, use comr sense and follow these rules:

Before you start:

• Familiarize yourself with all applicable federal, state and local laws, the risk inherent in the sport and the proper use of the equipment.
• Know the waterways.
• Always have a person other than the driver as an observer.
• Skier/ rider, observer and driver must agree on hand signals.
• Never start out until skier/ rider signals he/ she is ready.
• Carbon Monoxide (CO) poisoning from engine exhaust may cause injury or death. Do not sit on the boat transom or swim platform while the engine is These activities may lead to excessive CO exposure which may cause injury death. If you can smell engine exhaust while in the boat, do not stay seat that position for prolonged periods. Never "Platform Drag" by holding onto the swim platform or being dragged directly behind the boat. An improperly tuned engine will produce excessive exhaust. Have your engine checked and corrected by a mechanic. Changing boat speed or direction relative to the wi can reduce or increase boat exhaust from accumulating near the boat and ri Consult your boat Owners Manual, or the United States Coast Guard's website www.uscg boating.org for more information on how to help protect others and yourself from the dangers of CO poisoning
• Use caution and common sense.
• Do not exceed the weight guidelines of your boat. Only use water ballast people for additional weight. Do not allow passengers to hang outside the boat sit on the gunwales outside the normal seating area of the boat. Uneven we distribution or additional weight may affect the handling of the boat. Never all water to overflow the gunwales of your boat, your equipment, and your tow - Inspect all equipment prior to use. Check bindings, fins, tube and attachme point, and flotation device prior to each use. Do not use if damaged.

• Always wear a U. S. Coast Guard Type III (PFD) vest.

• Rope should be attached to the watercraft in an approved fashion with hard designed for towing. Refer to your watercraft manual for instructions on propetow rope attachment.

• Tow ropes stretch during use. If a rope breaks or is suddenly released, it snap back into the watercraft.

Warm all riders, skiers and occupants of the danger of rope recoil .

• When in the boat, keep away from the tow rope to avoid injury. Passenger be hit or become entangled in the rope.
• Inspect the tow rope and its attachments before using. Do not use tow ro frayed, knotted, or damaged. Replace when signs of excessive deterioration are indicated by discoloration, broken filaments, unraveling, or other obvious signs wear on the rope or hardware.
• Use proper tow rope for the activity.
• Ensure the tow rope is clear of all body parts prior to starting out or dur
• Keep persons and ropes away from the propeller when the engine is runnily even in neutral. Should the rope become entangled in the propeller, SHUT ON ENGINE AND REMOVE IGNITION KEY BEFORE RETRIEVEING ROPE.

When you ski or ride:

• Attempting land or dock starts can increase the risk of injury or death. US PRODUCT ONLY ON WATER.
• Always remove any slack in the rope between the watercraft and the skier before starting. Sudden shock loads may cause injury to the skier/ rider or fat of rope, resulting in snap-back or breakage.
• Do not ski or ride in shallow water, near shore, pilings, docks, rafts, swim other boats or other obstacles. Such obstacles are examples of risks that are inherent in the sport.
• The driver and skier rider must watch for and be able to stop or turn to obstacles.
• Always ski or ride in control and at speeds appropriate for your ability. Sk within your limits. Do not ski or ride over ramps or jumps without prior instr
• Falling and the injuries that may result are inherent risks in the sport.
• Use a flag to signal to others that a skier or rider is in the water.
• Driver must use extra caution approaching a fallen skier/rider and keep eye contact on fallen skier/rider at all times.
• Put the boat in neutral when near a fallen skier/ rider. Turn the engine of people are getting into or out of the boat or in the water near the boat.
• Do not operate watercraft, ski, or ride under the influence of alcohol or dr

THE WARNINGS AND PRACTICES SET FORTH ABOVE IN THE WATERSPORTS SAFETY CODE REPRESENT SOME COMMON RISKS ENCOUNTERED BY USERS. THE CODE DOES NOT PURPORT TO COVER ALL INSTANCES OF RISK OR DANGER. PLEASE USE COMMON SENSE A GOOD JUDGMENT.

Manufacturer: Shanghaiuxinmuyeyouxiangonsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Placid Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR

TOUGH TOOLS, HALF PRICE

Assistance technique et certificat de garantie electronique www.vevor.com/support

A/S YH Consulting Limited Bureau 147, Centurion Maison, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR

TOUGH TOOLS, HALF PRICE

Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion Haus, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR

TOUGH TOOLS, HALF PRICE

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Francoforte sul Meno.

CONSULENZA YH LIMITATA.

C/O YH Consulting Limited Ufficio 147, Centurion Casa, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Soporte的技术ico y certificate de garantia electrònica www.vevor.com/support

C/O YH Consulting Limited Oficina 147, Centurion Casa, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR

TOUGH TOOLS, HALF PRICE

WYKORZYSTANIE DOTACJI NA NAPRAWY

LATKA NAPRAWCZA DO PCV

C/O YH Consulting Limited Biuro 147, Centurion Dom, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

Watersport sleepboten

MODEL: SS-1007/SS-1005/SS-1008/SS-1006/SS-1009/SS-1010

HULP NODIG? NEEM CONTACT MET ONS OP!

1. DE BINNENBAND OPBLAASEN

PRODUCTINSTRUCTIES EN WAARSCHUWINGEN

C/O YH Consulting Limited Kantoor 147, Centurion Huis, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

ANVÄND ETT DREP SÄRSKILT DESIGNET FÖR ATT DRA UPPBLASBART RÖR!

Repet maste vara ordentlich fastsatt for att fungera korrekt. Slingandan pa repetition

maste gá genom hal 1 innan du lindar öglan runt klossen. Inspektera

REPARATIONSPLATS FÖR PVC

Tömprodukten. Rengör defekta områden. Klipp rund eller oval lapp. Ta bort pappersbaksida. Applicera den klubbiga filmen på reparationsområdet. Krama ut alla Luftbubblor.

Innan reparation After reparation

PRODUKTINSTRUKTIONER OCH VARNINGAR

Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
