USER MANUAL 1AX Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

INFRARED PAINT LAMP

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read ins manual carefully.

This device complies with Part 15 of the FCC Rules. O is subject to the following two conditions: (1)This device cause harmful interference, and (2)this device must accept interference received, including interference that may cause undesired operation.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed indicates that the product requires separate refuse collect the European Union. This applies to the product and all accessories marked with this symbol. Products marked as may not be discarded with normal domestic waste, but it is taken to a collection point for recycling electrical and electronic devices

PARAMETER LIST

Model	2X3	3K	1A	1AX	1AS-1	2A	3A
Voltage(V)	110/220	110/220	110/220	110/220	110/220	110/220	110/220
Power(kw)	3	3	1.5	1	2	2.2	3.3
Timer(min)	NO	NO	1-60	1-60	1-60	1-60	1-60
Baking area(m²)	/	/	0.32	0.23	0.33	0.48	0.8
Net Weight(kg)	4.65	6.95	10.9	1.7	3.55	14.65	28.9(st and column /8.5(la mp holder))

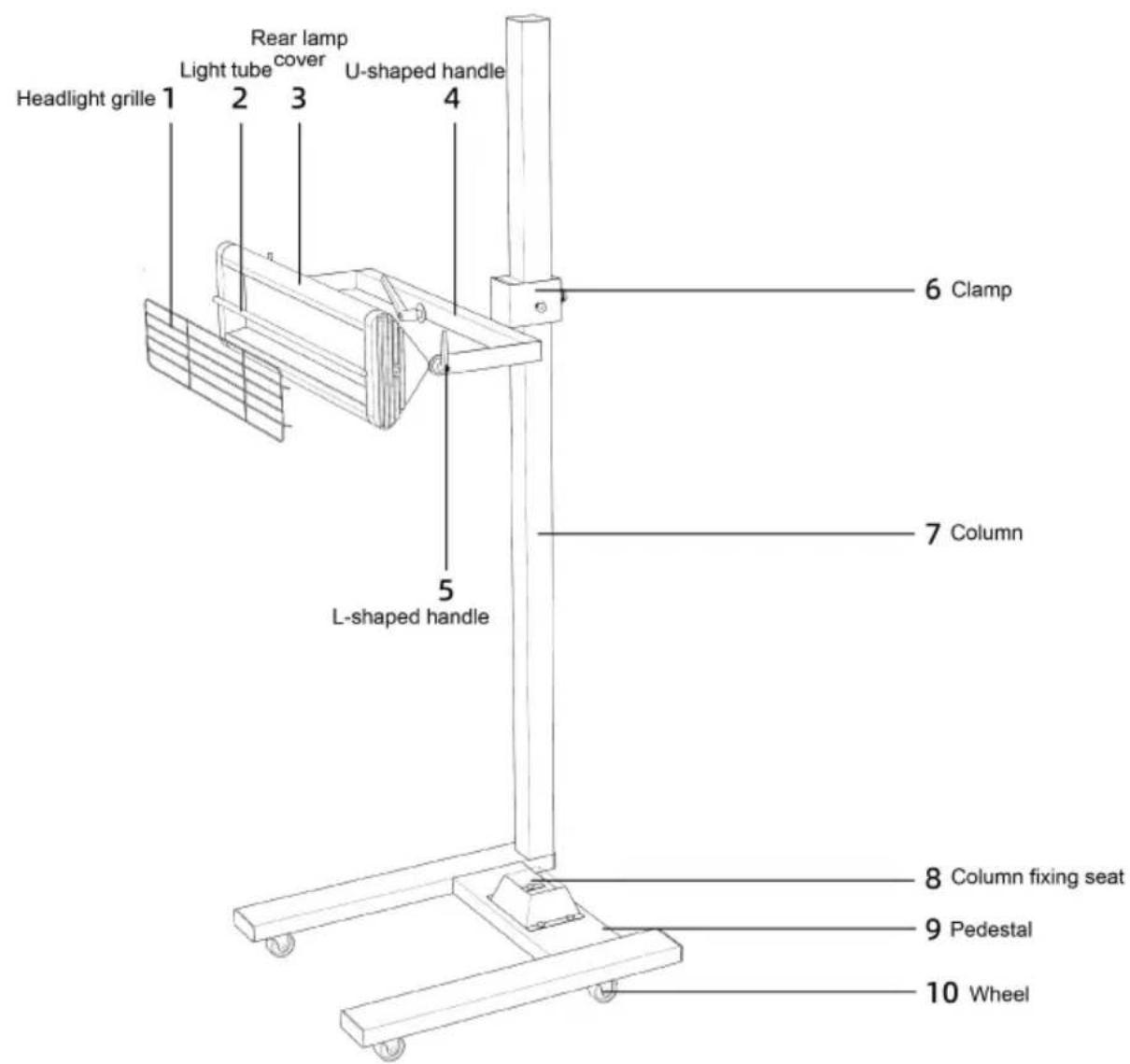

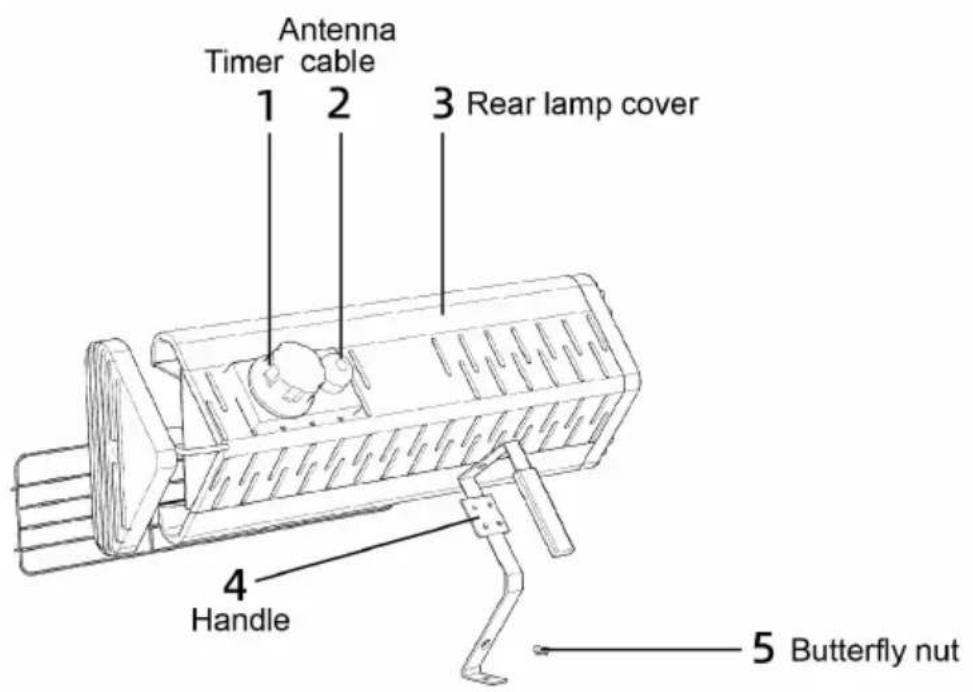

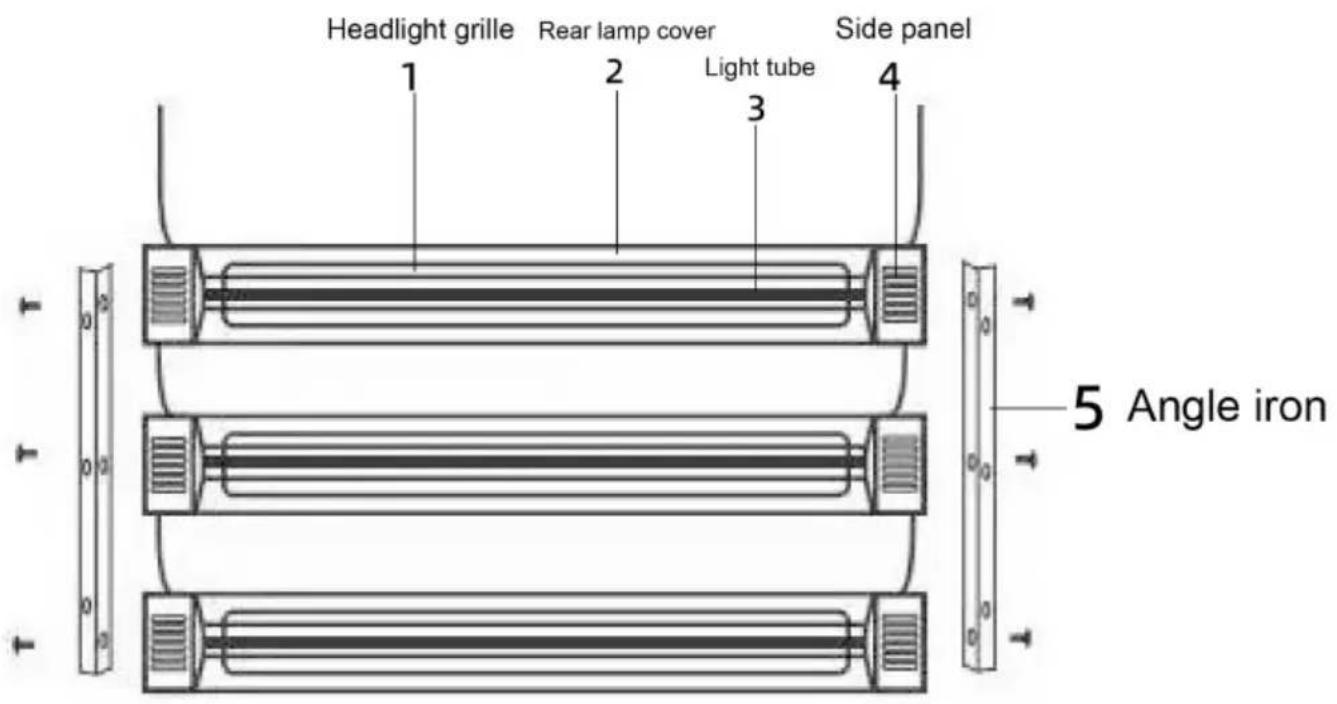

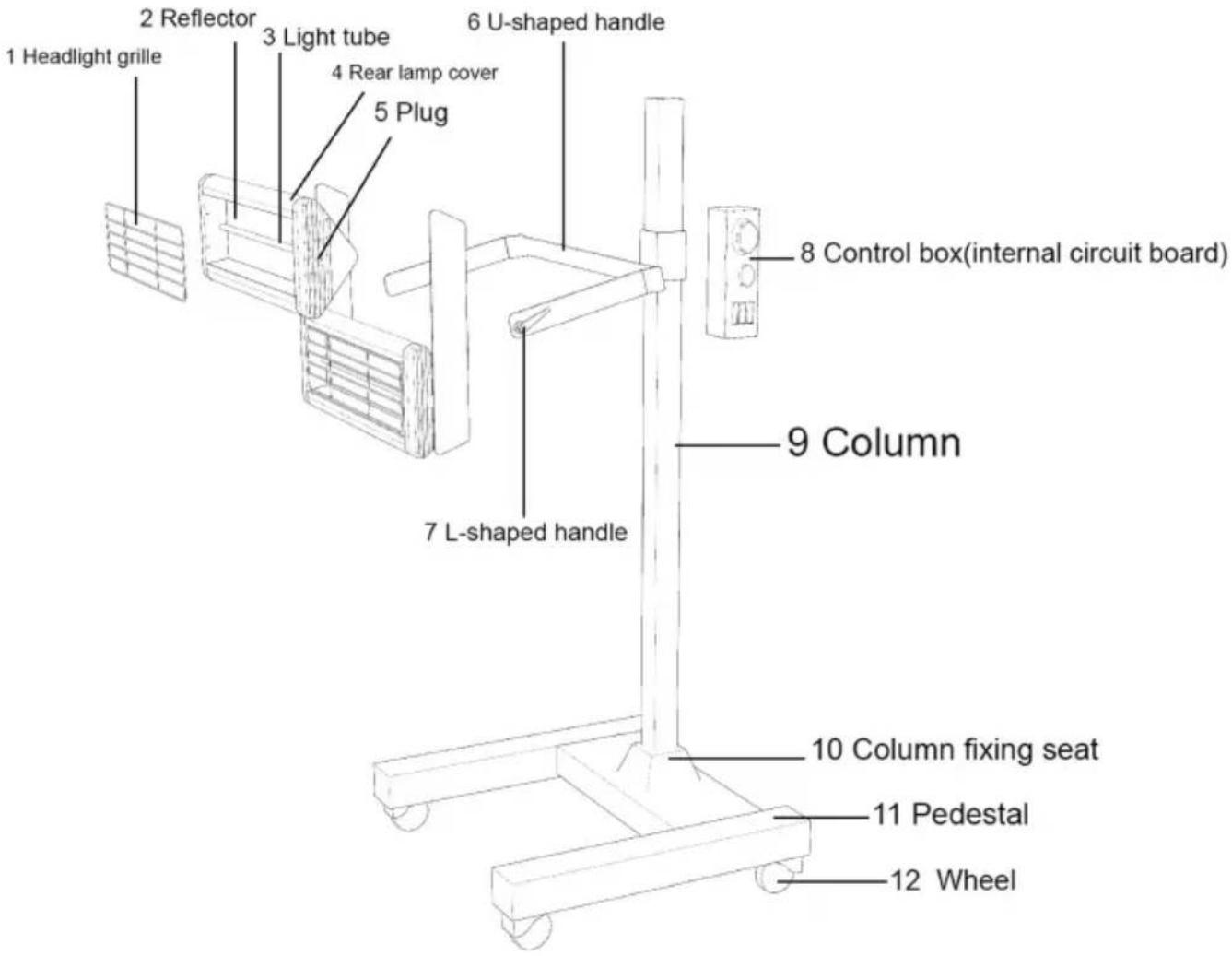

PART LIST

Model	Picture	Accessories
2X3		Lamp head*6 Lamp holder*4 Screw(M6*8)*12
3K		Lamp head*9 Lamp holder*6 Screw9(M6*8)*18
1A		Lamp head*1 Columns (column A+column B)*1 Clamps (clamp A+clamp B)*1 1 U-shaped handle*1 Base*1 / Base holder*1 Models of adjustable handles*3(2 for M8 for M12 * 95) Models of plum blossom handles*2(1 for 50 * 30/1 for M8 * 30 * 20) M8 * 55 screws*6 / M8 nuts*6; flat pads wrench*1 / hexagon socket*1 casters*4 (2 brakes / 2 activity wheels)
1AX		Lamp head*1
1AS-1		Lamp head*1 Replace lamp tube*2 Tripod*1 Handle*1
2A		Lamp head*1 Columns*1 (column A+column B) Clamps *1(clamp A+clamp B) Base*1 / Base holder*1 Adjustable handle model*1(M12 * 95) Models of plum blossom handles*2(1 M10 * 30 / 1 M8 * 30 * 20) M8 * 55 screws *6/ M8 nuts*6 / Flat wa / Wrench*1 / Hexagon socket*1 Casters*4 (2 Brakes / 2 Activity wheels) Control system*1 Connection lines*2
3A		Box A: 1 set of Lamp holders (Including 3 Lamp assembled into one); Box B: 1 set of Column Control System 1 set of Base Adjustable handles *3 (With 2 Washers a Screw) Inner hexagonal corners*2 Casters*4 (2 brakes / 2 movable) Handle*2

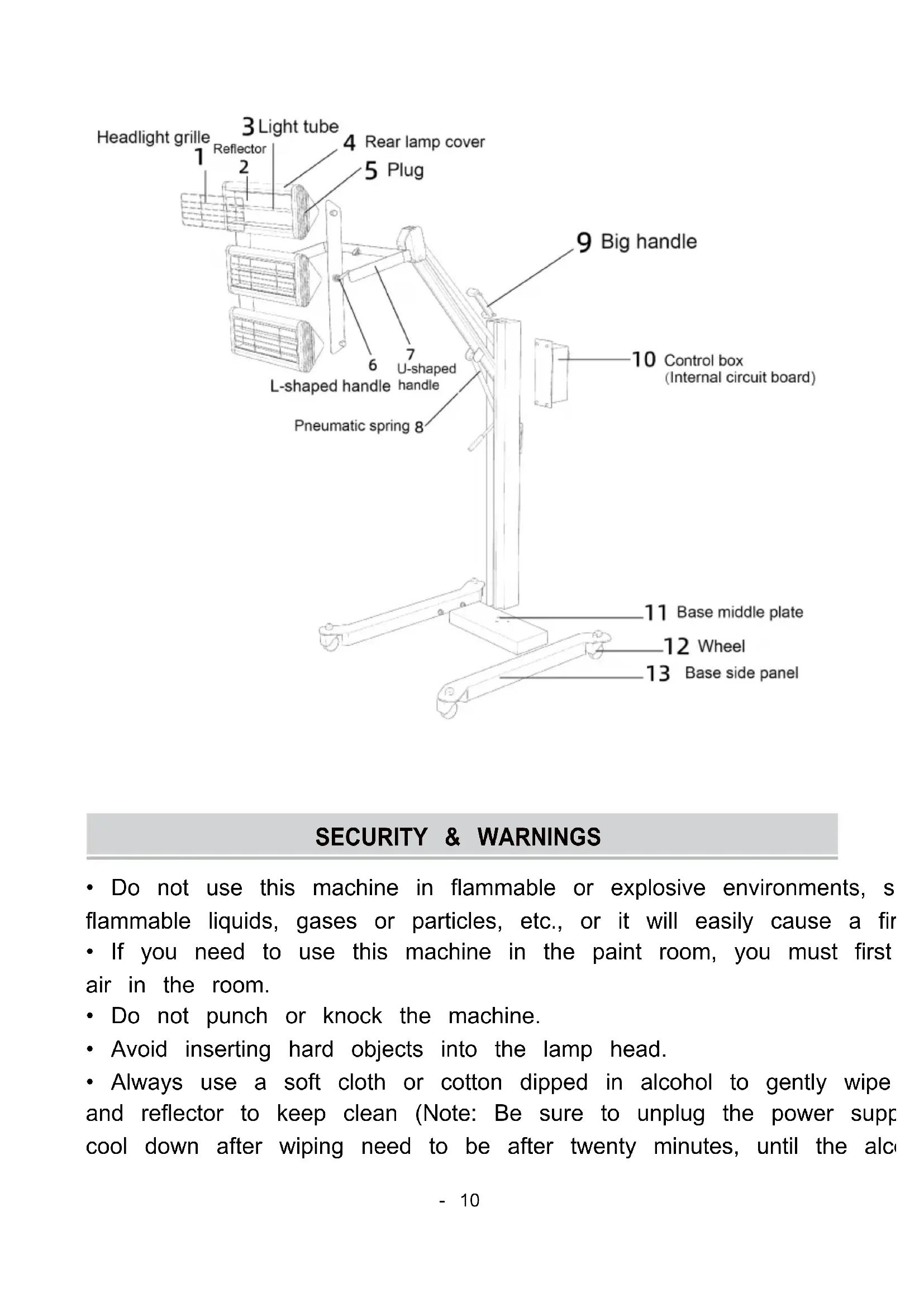

SECURITY & WARNINGS

• Do not use this machine in flammable or explosive environments, s flammable liquids, gases or particles, etc., or it will easily cause a fire
• If you need to use this machine in the paint room, you must first air in the room.
• Do not punch or knock the machine.
• Avoid inserting hard objects into the lamp head.
• Always use a soft cloth or cotton dipped in alcohol to gently wipe and reflector to keep clean (Note: Be sure to unplug the power supp cool down after wiping need to be after twenty minutes, until the alo

evaporates completely before starting the lamp, otherwise the lamp is to burst!)

• When moving the machine, pay attention to the potholes to avoid overturning.
• The machine must be connected to the ground wire to ensure safe grounding machine must be connected to an outlet installed under pro guidelines. Do not change or convert the ground connection. Do not any outlet converter. In case of uncertainty, have the grounding check correctness by a professional electrician.
• Always ensure good grounding to avoid electric shock.
• Remove objects from the front of the lamp head before switching off machine.
• Keep at least 4 meters away from the paint spraying location when unit is turned on.
• If the lamp does not light up after power is on, the socket may be
• To avoid accidents caused by clutter and dim light, please keep the clean and well-lit.
• Avoid using the machine in rainy and wet areas. Water ingress may be electric shock or damage to the machine.
• If the machine is to be used outdoors, use a special outdoor cord with "W-A" or "W" to prevent electric shock.
• Avoid touching your body to a grounded surface to increase the power of electric shock.
• Replace damaged cords promptly to prevent electric shock.
• Do not use the cord inappropriately. Do not move the machine by on the cord or pulling the plug from the outlet. The cord must be k from too hot, oily or sharp parts and moving objects. Replace damag cords promptly to prevent electric shock.
• To avoid excessive heat, do not cover the heater. If the heater is or placed in the wrong position can result in a fire hazard.
• Do not use the heater in the bathroom or around swimming pools.

• Avoid the presence of non-professionals, such as bystanders, children and visitors, when the machine is in use. If necessary, guard the man

• It is forbidden to bake two lamps against each other or to bake c on the other without any baked object.

• Lamp replacement should be done at a service center or by a professional.

OPERATION

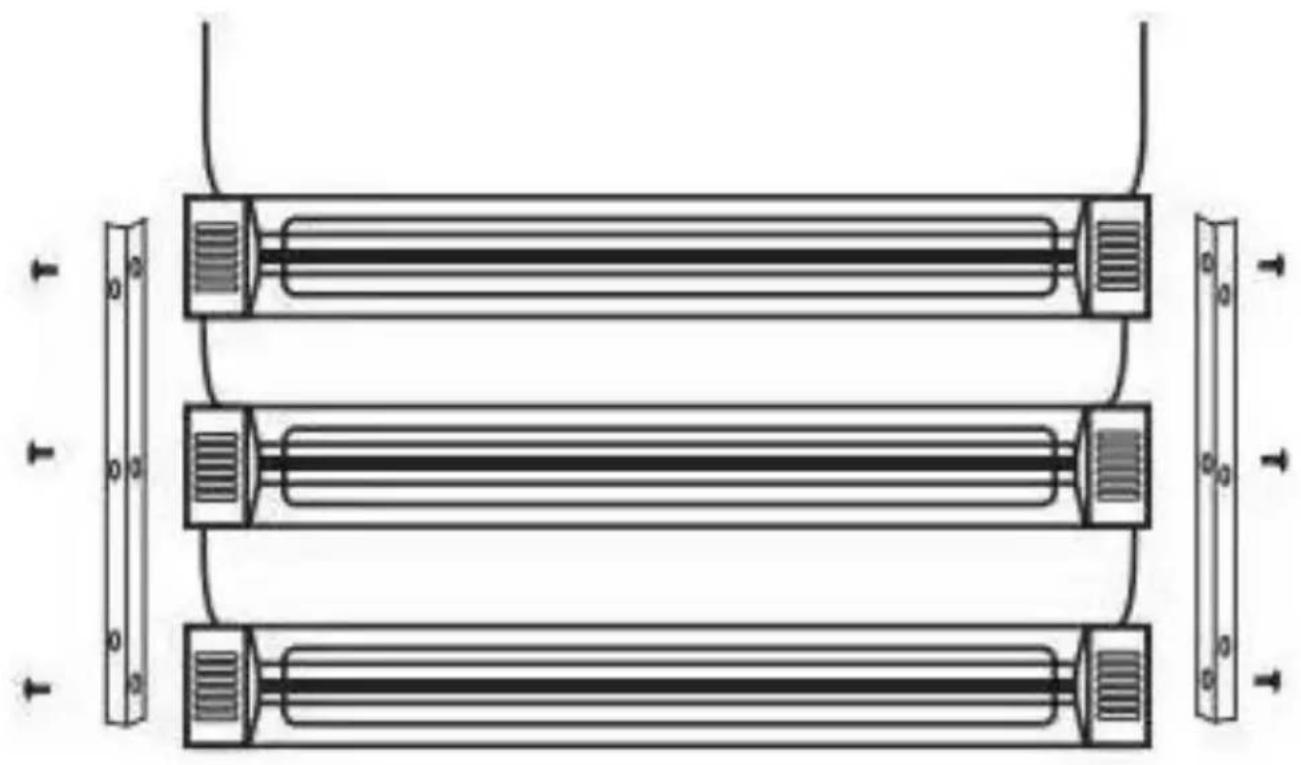

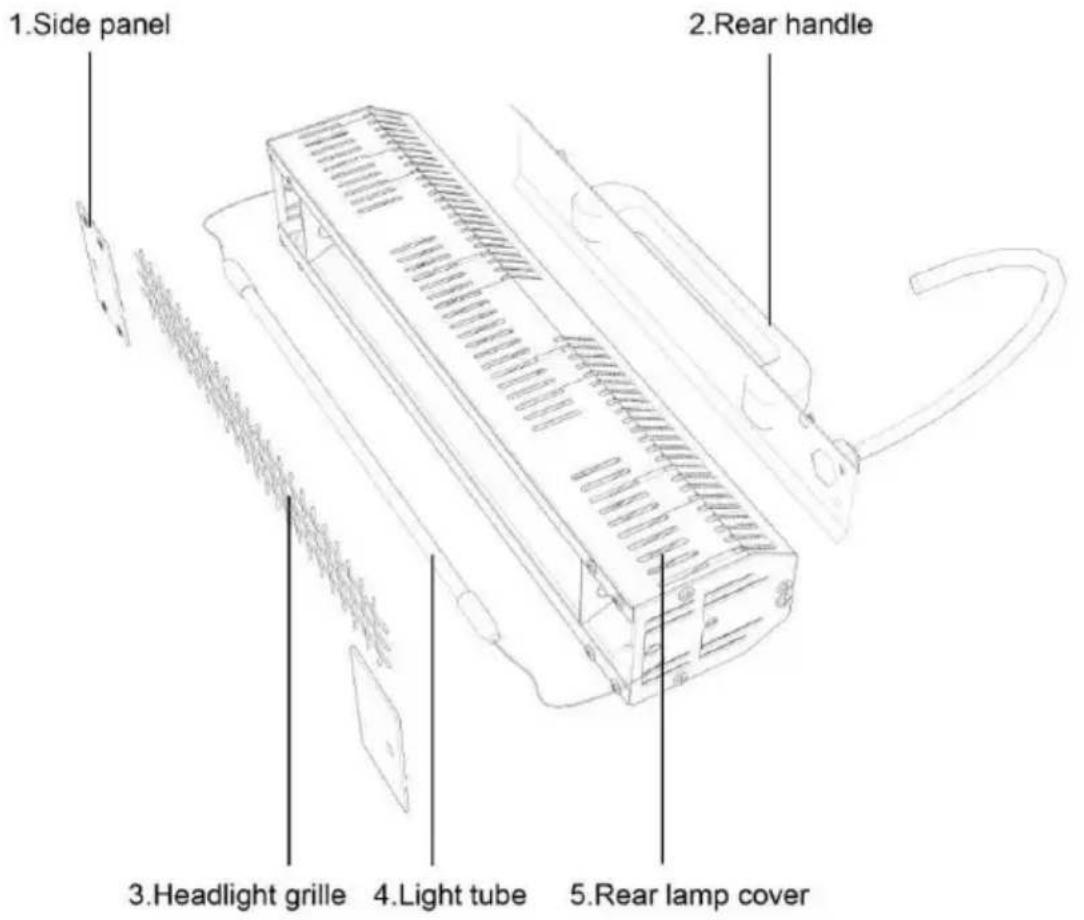

2X3、3K

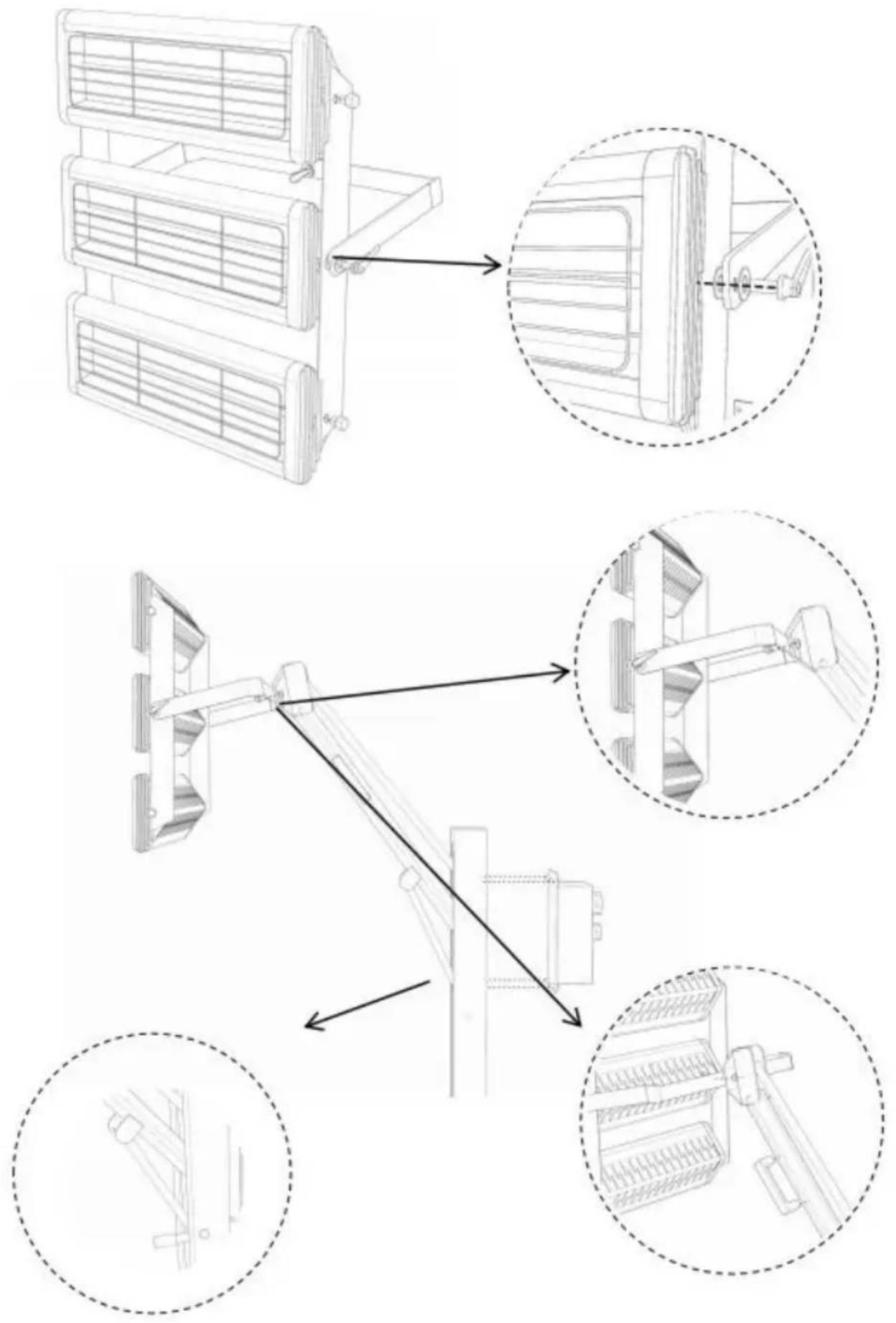

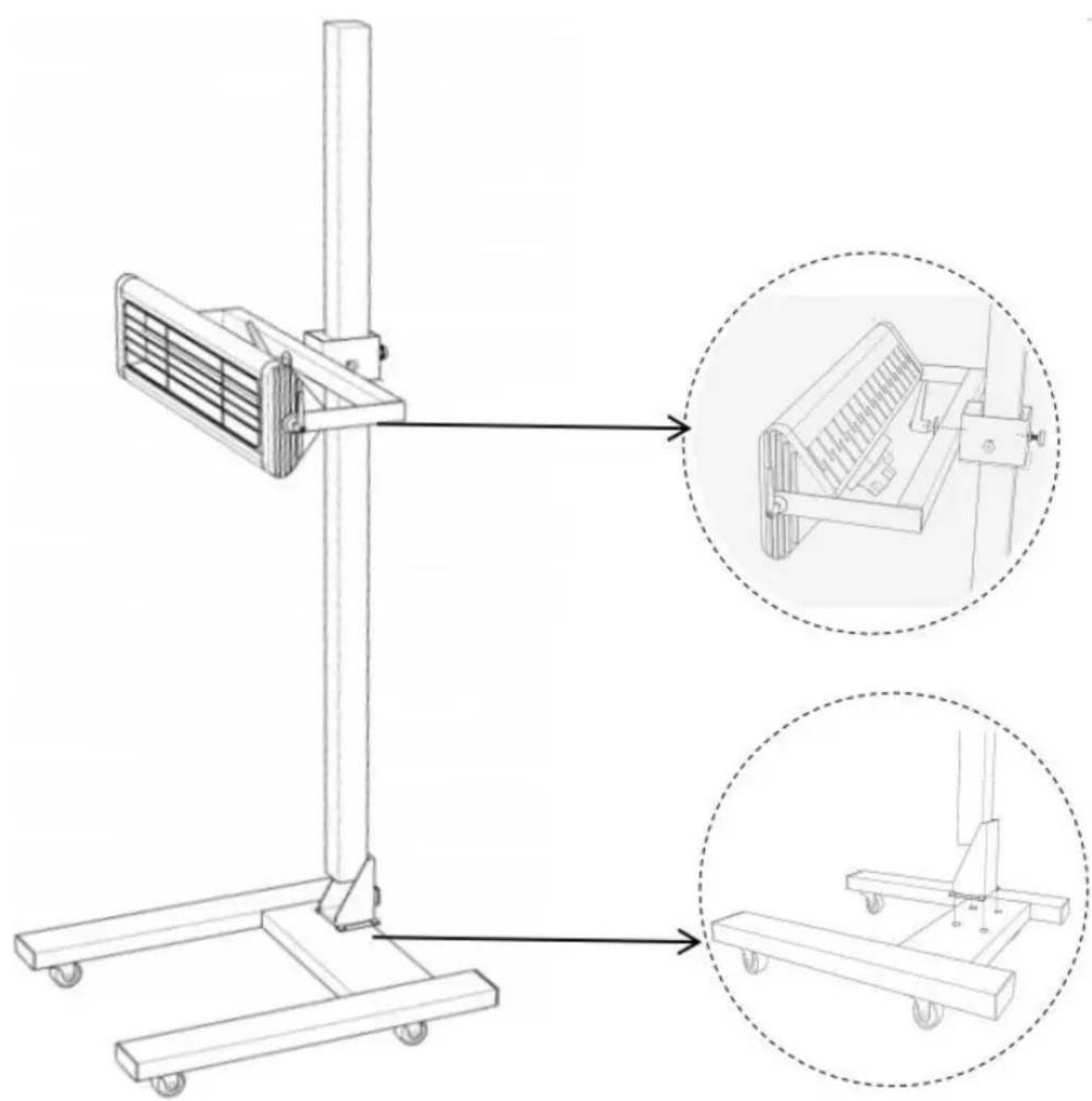

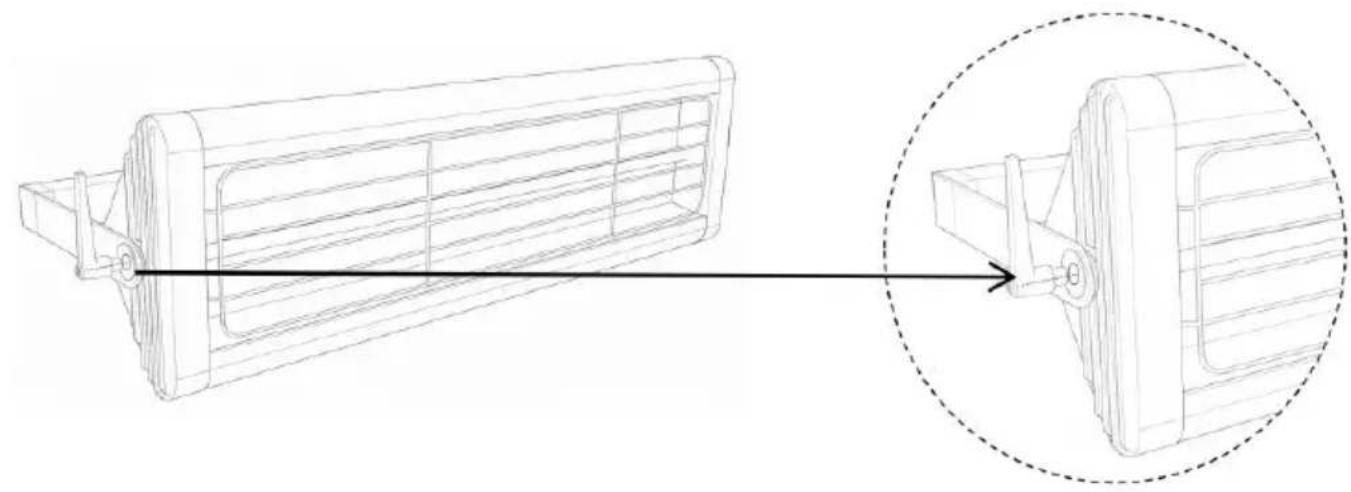

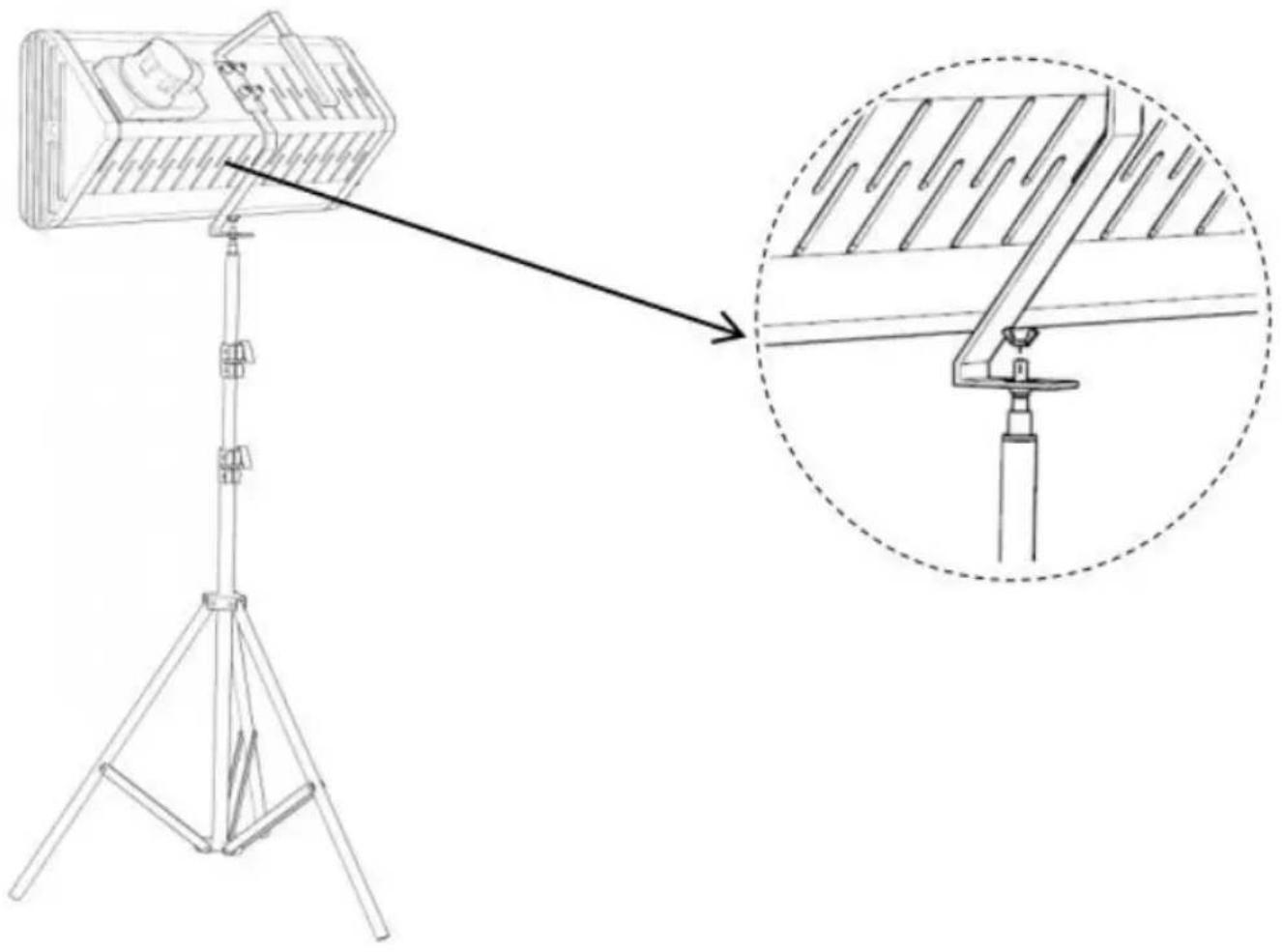

1A

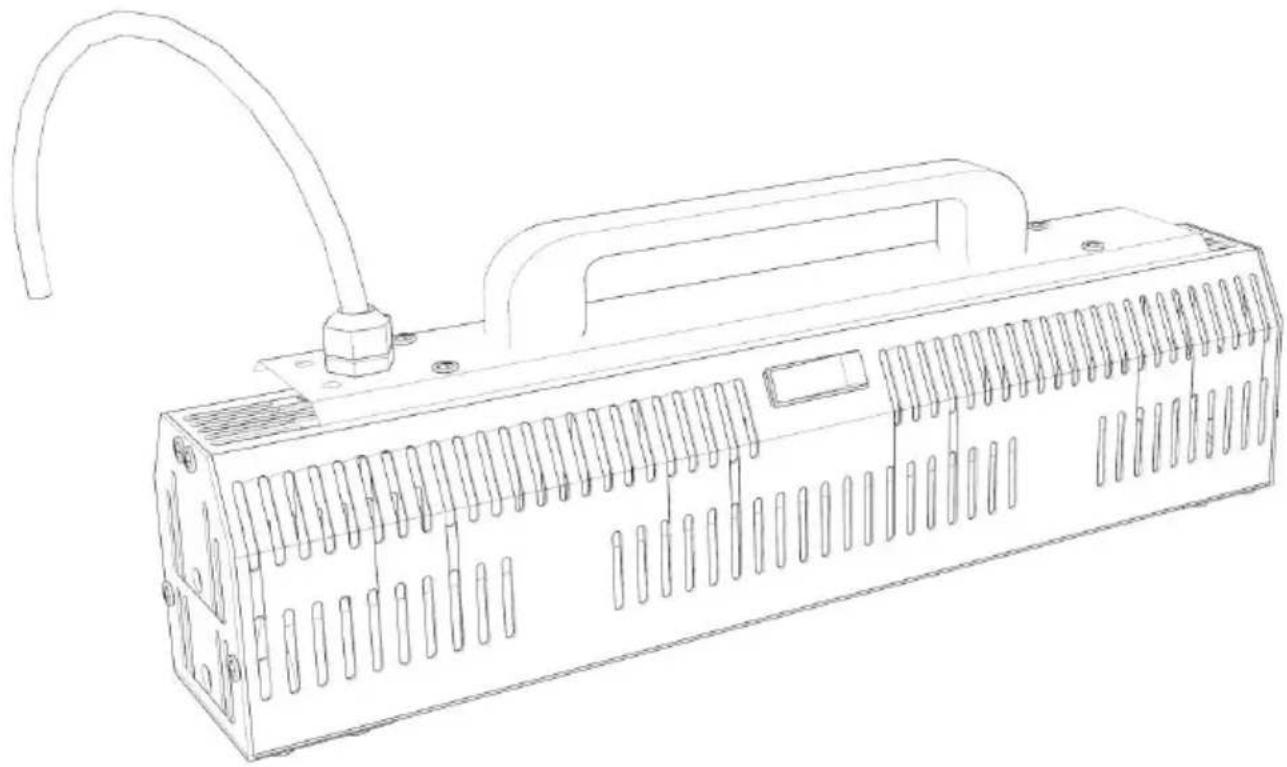

1AX

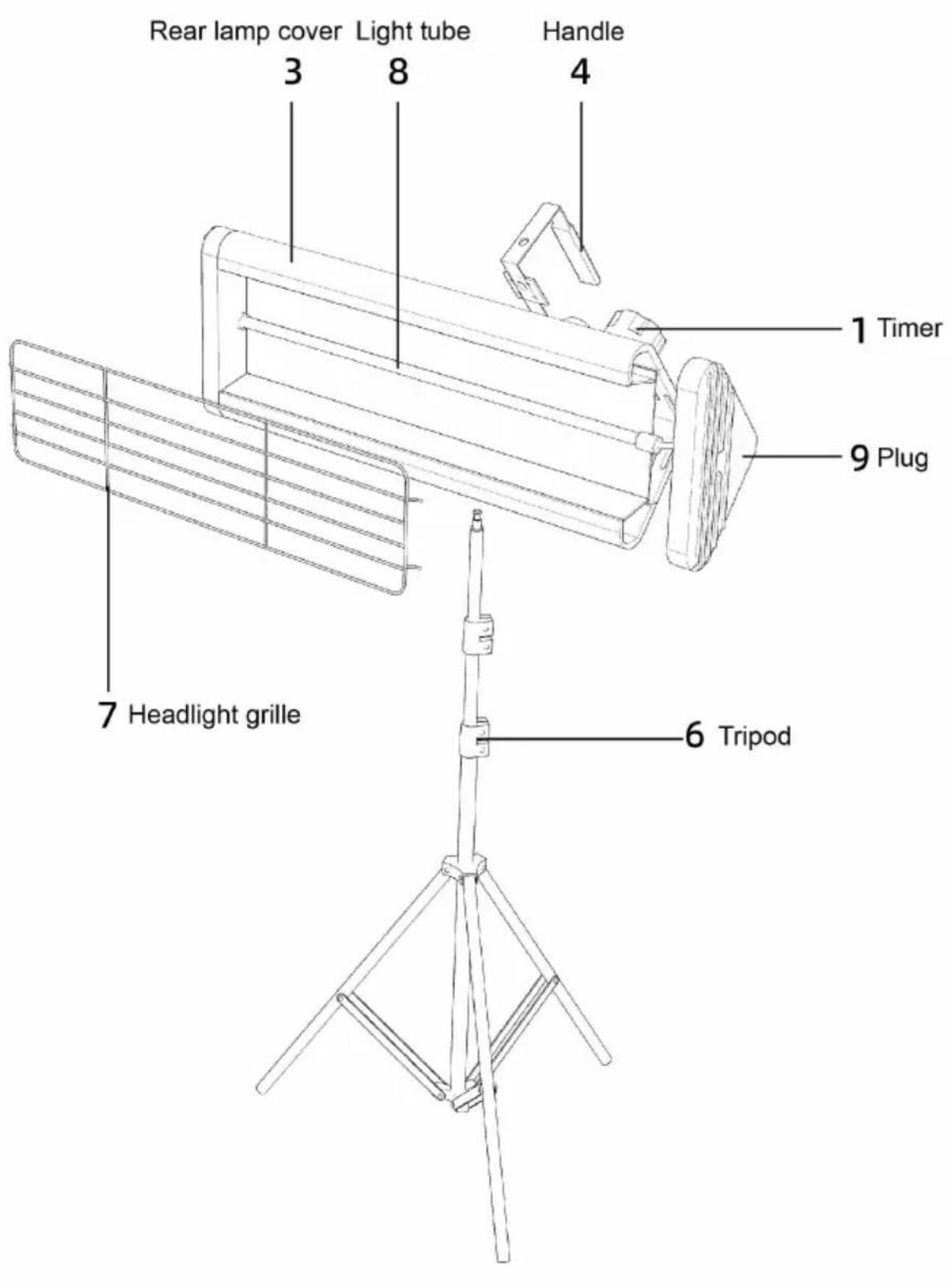

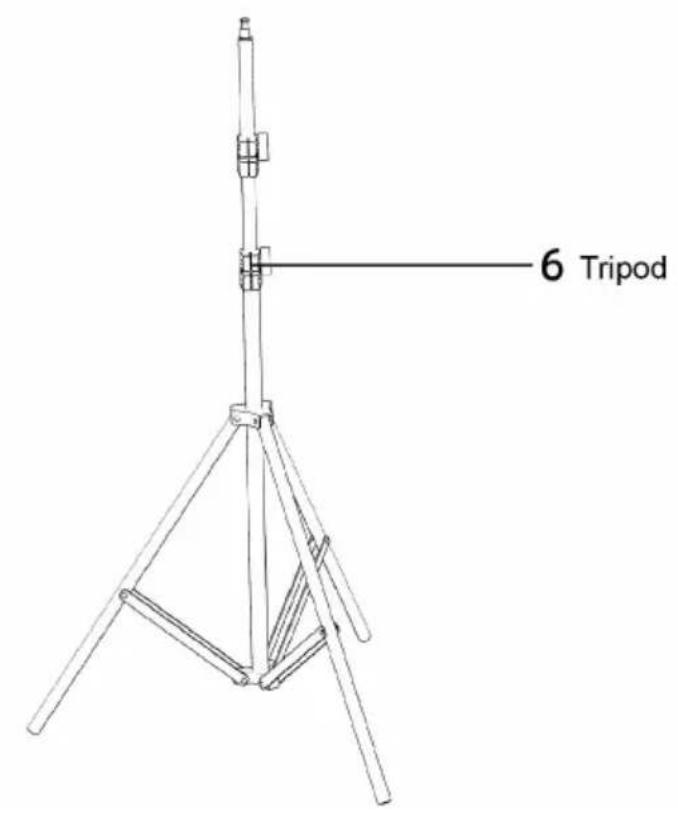

1AS-1

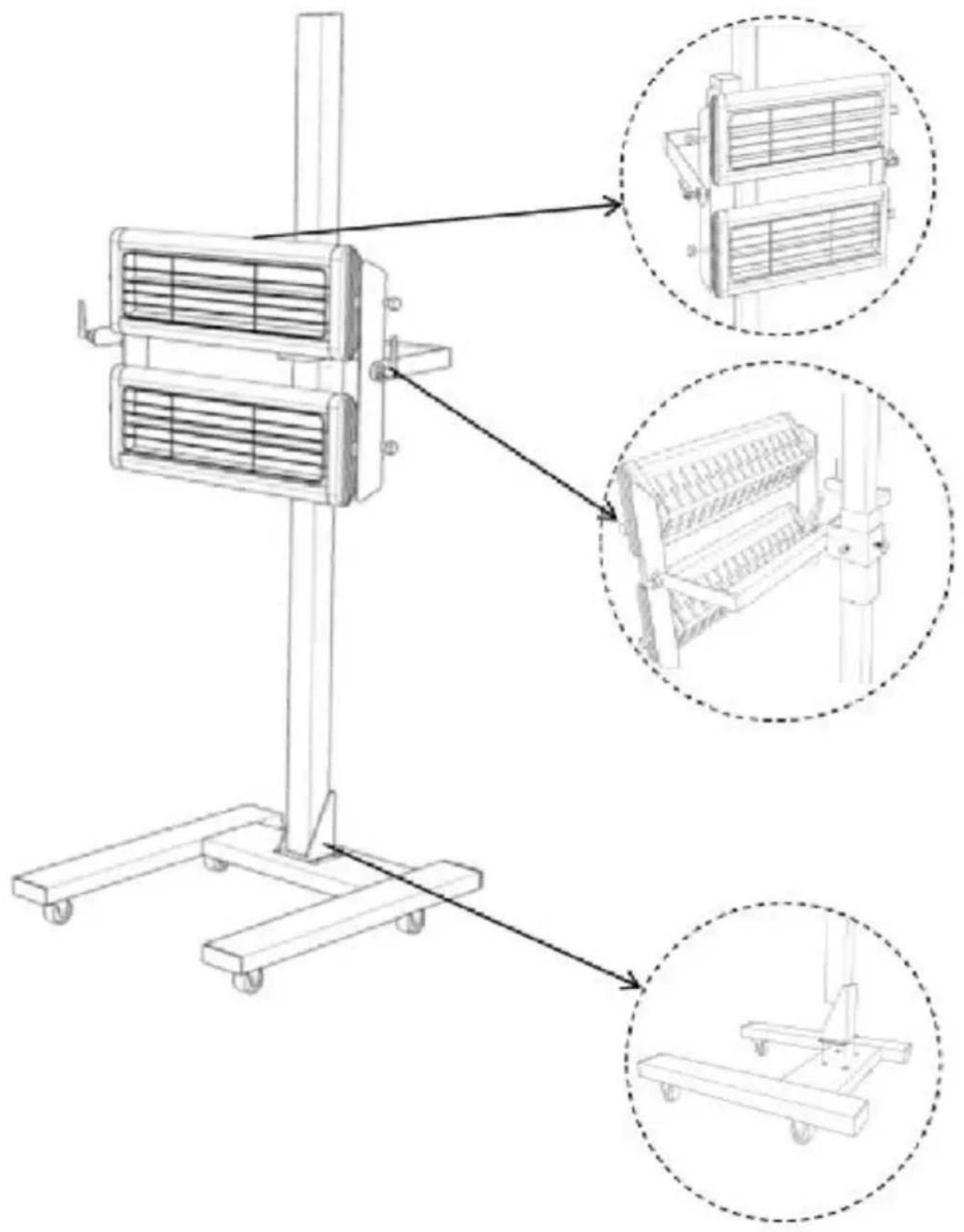

2A

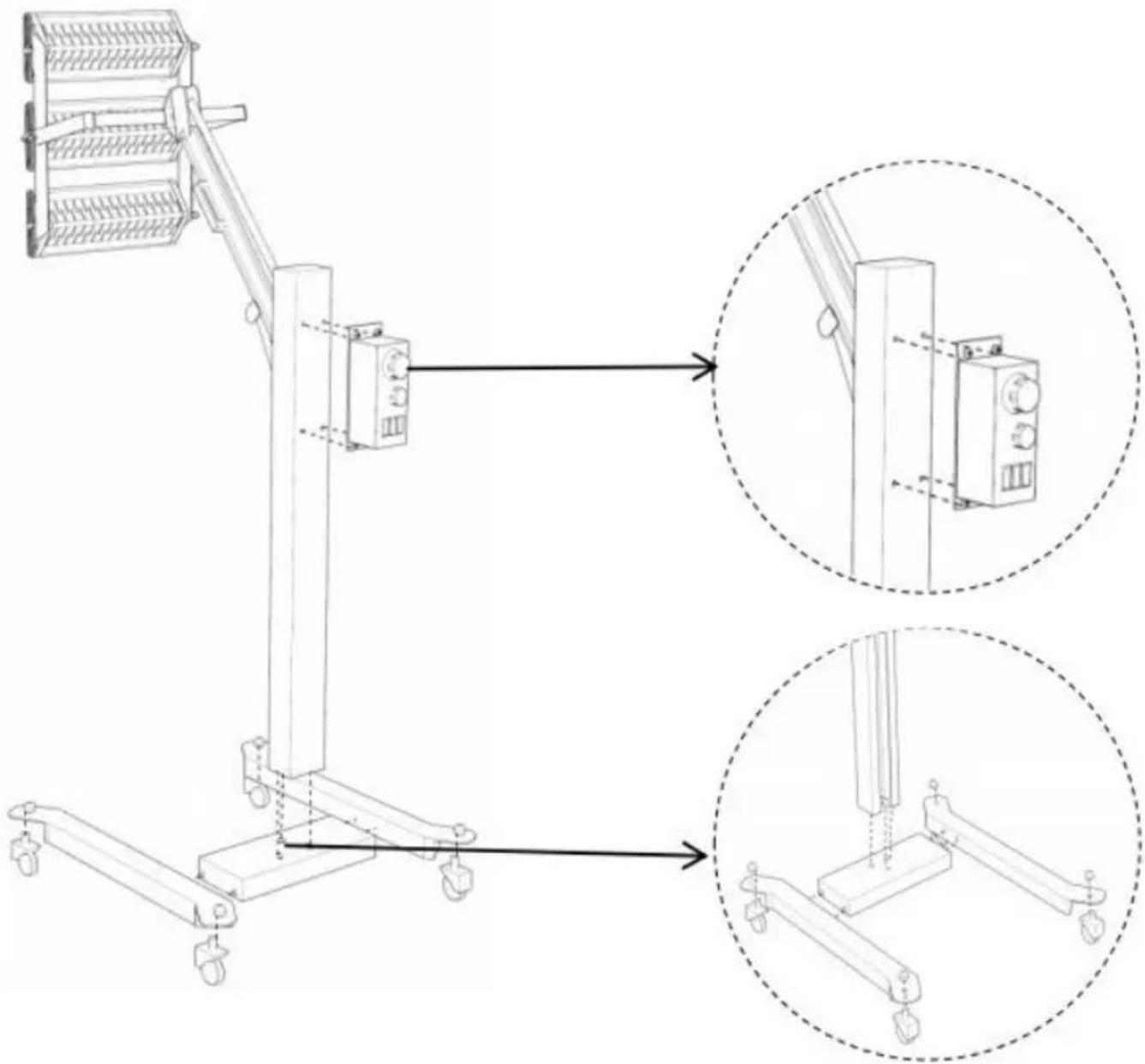

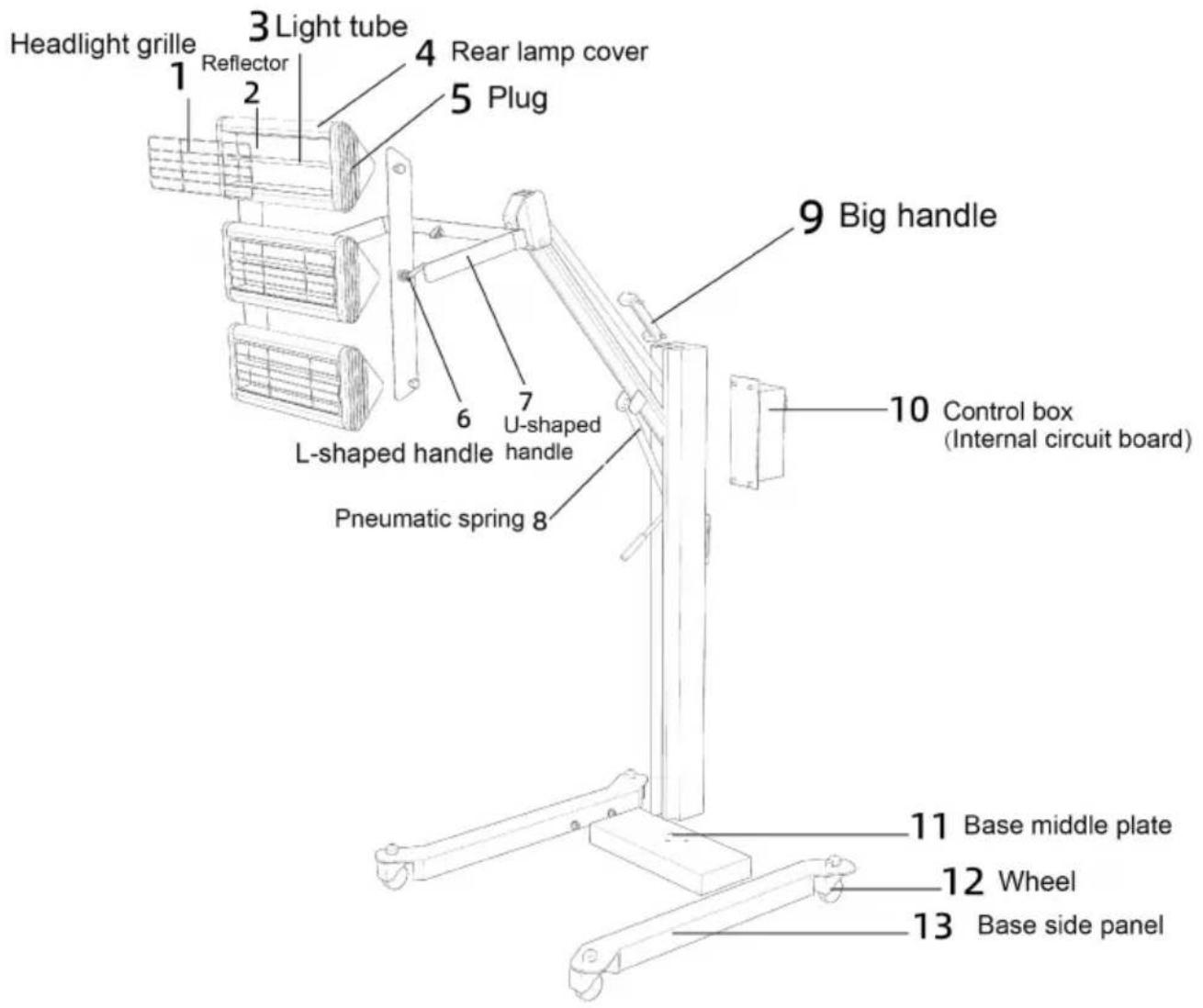

3A

Lamp Replacement

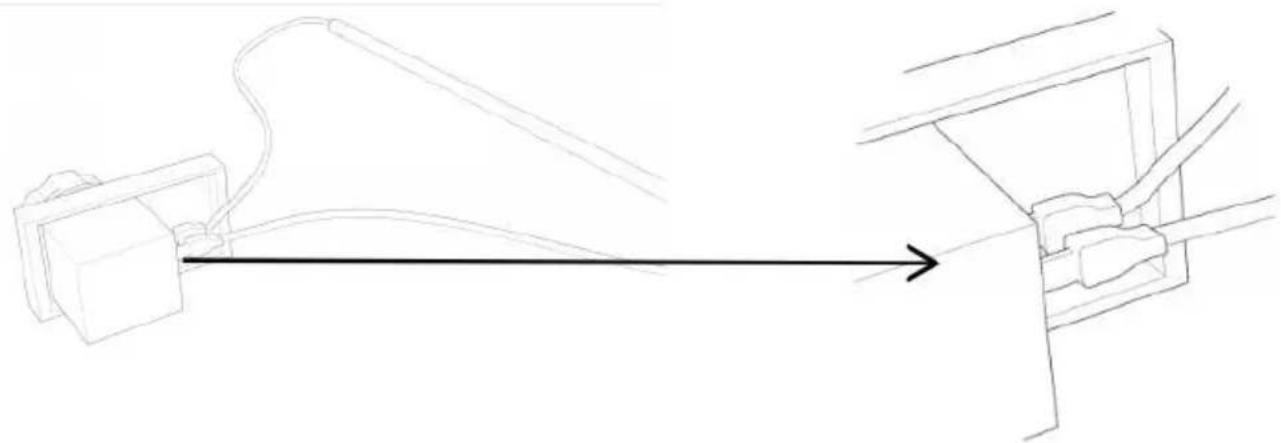

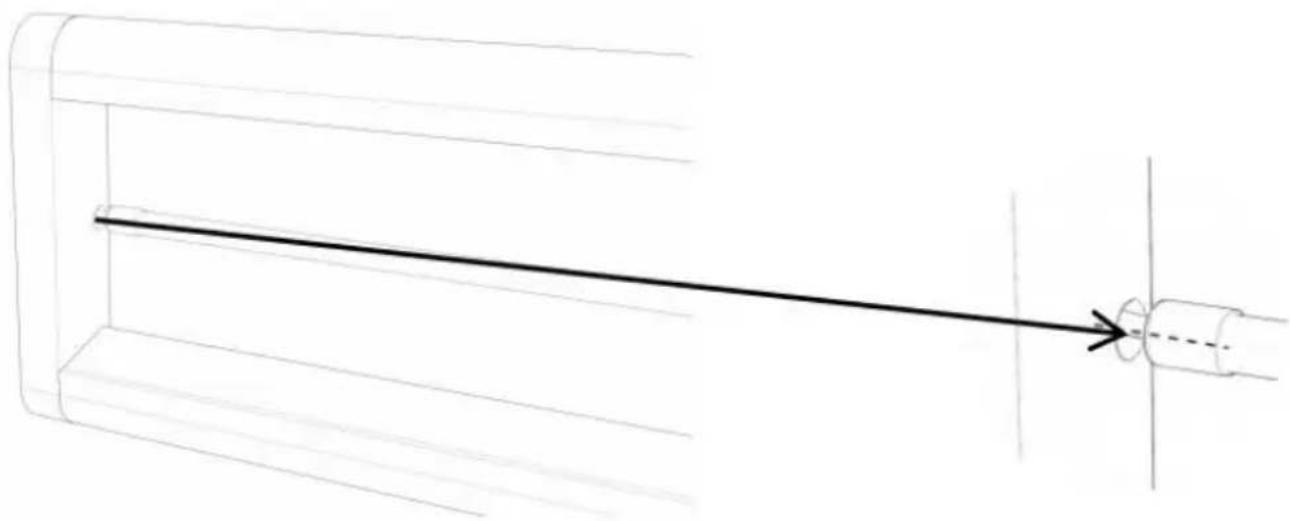

Connect the lamp's cord socket as shown here.

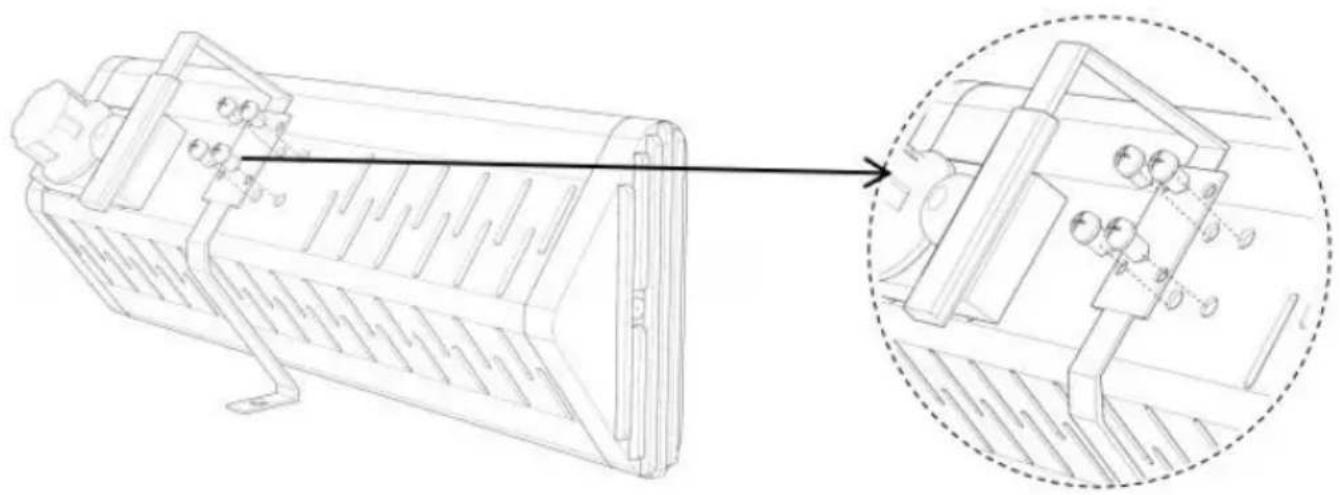

Lamps are screwed to the housing on both sides.

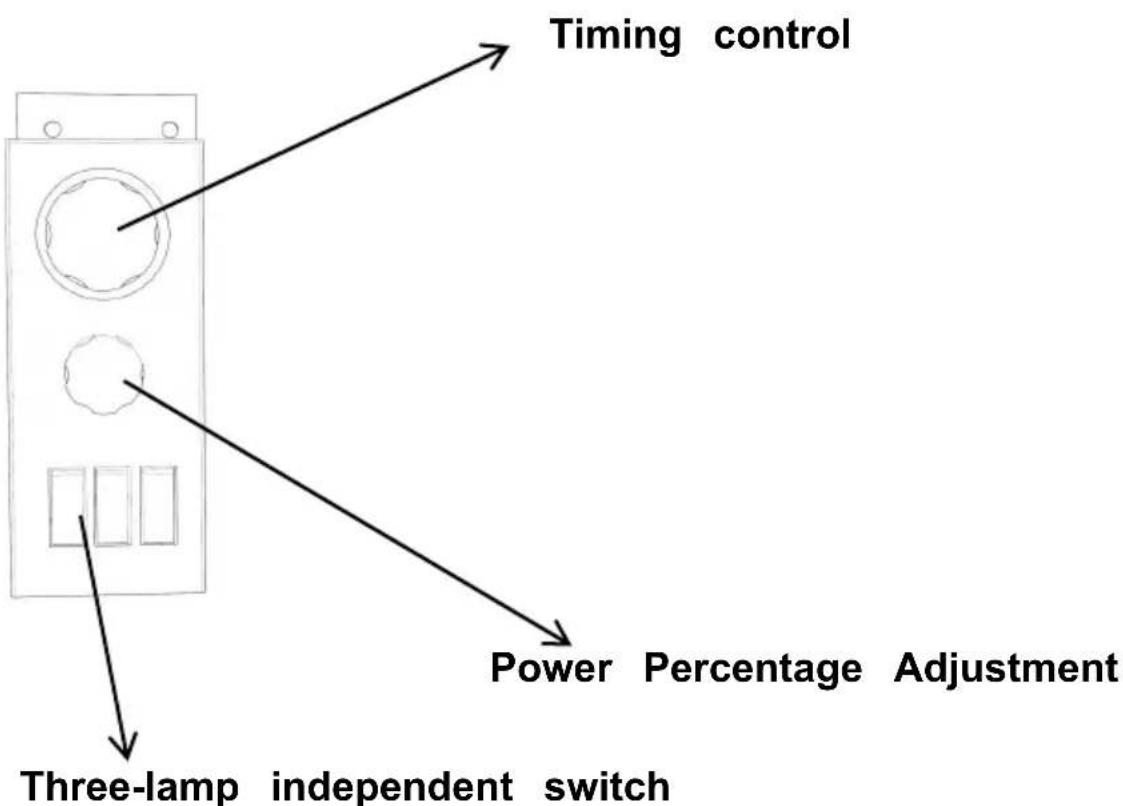

Key Description

Timing control
