Product type	Cold drink dispenser
Model	LYJ10LX3
Brand	Vevor
Power supply	220-240V~50Hz or 110-130V~60Hz depending on version
Cooling power	430 W
Cold drink temperature range	7-12 °C
Tank capacity	Approximately 10 liters
Spout material	Stainless steel
Main functions	Cooling, mixing, dispensing
Use	Indoors only, domestic or professional use
Maintenance and cleaning	Daily cleaning of bowls with mild detergent; dust the condenser every 6 months
Safety	Grounding mandatory; unplug before cleaning; do not immerse in water
Spare parts and repairability	Exploded diagram provided; parts listed in the manual; professional repair recommended
Approximate dimensions (L x W x H)	40 x 35 x 50 cm
Net weight	Approximately 18 kg
Included accessories	Tanks, handles, seals, user manual

Frequently Asked Questions - LYJ10LX3 Vevor

How to install the Vevor LYJ10LX3 dispenser?

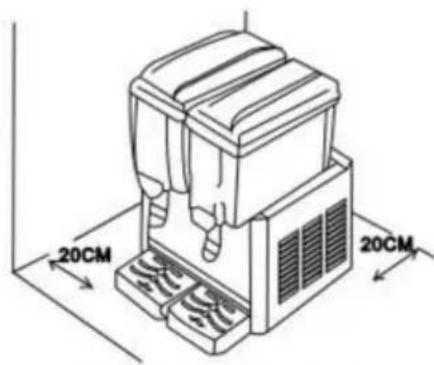

Place the machine on a flat and stable surface indoors, at least 20 cm from the wall for ventilation. Plug it into a grounded outlet compatible with the voltage indicated on the rating plate. Make sure the tank is properly installed with the O-rings in place.

What is the ideal temperature for drinks?

The cold drink temperature is set between 7 and 12°C. The machine automatically maintains this range after reaching the set temperature.

What to do if the dispenser does not cool?

Check that the power is plugged in and the cooling switch is on. If the compressor does not start, wait 3 minutes before turning it on again. Possible causes include a damaged capacitor, gas leak, or clogged capillary; contact a professional.

How to clean the dispenser?

Turn off and unplug the appliance. Remove the tanks, disassemble the parts (turbine, seals) and wash them with warm water and a mild detergent. Rinse thoroughly. Clean the condenser every six months with a vacuum cleaner or soft brush. Never rinse the inside of the machine directly with water.

Why is there a water leak at the tank?

Check that the O-ring is properly installed and in good condition. If the tank leaks from the bottom, press it firmly to ensure a seal. Replace worn seals if necessary.

The machine makes an abnormal noise, what to do?

Check that all screws and nuts are tight. A rattling noise may come from excessive play between the turbine and the tank; adjust or replace the parts. If the noise persists, contact technical service.

Can I use thick juices or pulpy drinks in this dispenser?

It is not recommended to use too thick drinks or those containing particles, as this may clog the spout. Prepare well-mixed and strained drinks if necessary.

What is the required power supply voltage?

The LYJ10LX3 model works on 220-240V~50Hz or 110-130V~60Hz, depending on the version. Check the rating plate and use a voltage stabilizer if the local voltage varies by more than ±10%.

Is special grounding required?

Yes, for safety reasons, the machine must be plugged into a properly grounded outlet. If you use an extension cord, make sure it is suitable for the power of the appliance.

Where to find spare parts or technical assistance?

Spare parts are listed in the manual with an exploded diagram. For technical assistance and warranty, visit the website www.vevor.com/support.

USER MANUAL LYJ10LX3 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

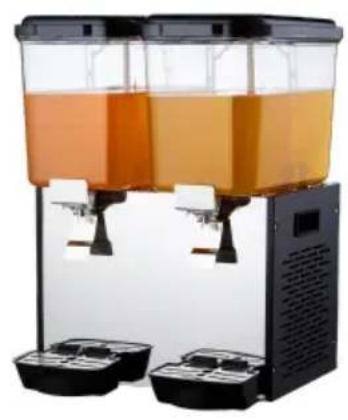

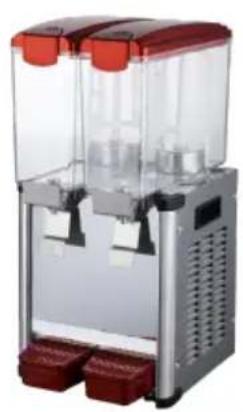

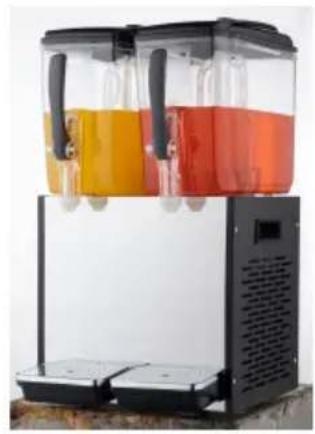

BEVERAGE DISPENSER

MODEL:LYJ10LX2/LYJ10LX3/LYJ10LX4/LYJ12LX1/LYJ12LX2 /LYJ12LX3/LYJ12LX4/LYJ18LX1/LYJ18LX2/LYJ18LX3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:LYJ10LX2/LYJ10LX3/LYJ10LX4/LYJ12LX1/LYJ12LX2/LYJ12L X3/LYJ12LX4/LYJ18LX1/LYJ18LX2/LYJ18LX3

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Main technology parameters

Model	LYJ18L	LYJ18Lx2	LYJ18Lx3
Power Supply	220V-240V 50Hz 110V-130V 60Hz
Power	Cold 300w	Cold 370W	Cold 512W
Cold-beverage temperature	7-12℃	7-12℃	7-12℃

Model	LYJ12L	LYJ12Lx2	LYJ12Lx3	LYJ12Lx4
Power Supply	220V-240V 50Hz 110V-130V 60Hz
Power	Cold 246W	Cold 286W	Cold 370W	Cold 510W
Cold-beverage temperature	7-12°C	7-12°C	7-12°C	7-12°C

Model	LYJ10Lx2	LYJ10Lx3	LYJ10Lx4
Power Supply	220V-240V 50Hz 110V-130V 60Hz
Power	Cold 270W	Cold 430W	Cold 440W
Cold-beverage temperature	7-12°C	7-12°C	7-12°C

Tips:

Please purchase a model that is suitable for the local voltage

Warning-To reduce the risk of injury, user must re instructions manual carefully.

Indoor Use Only

CORRECT DISPOSAL This product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin cross through indicates that the product requires separate recollection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to acollection point for recycling electronic devices.

Important Safeguards

When using electrical appliances, basic safety precautions should be followed, including the following.

1. READ ALL INSTRUCTIONS.
2. Unplug from outlet when not in use, before putting on or taking parts, and before cleaning.
3. Please check that the specified supply voltage in the product is consistent with the supply voltage(AC only).
4. This appliance can be used by children aged from 8 years and a and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved.
5. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
6. To protect against electrical hazards, do not put the Drink Mixer in

or other liquids

1. Avoid contact with moving parts.
2. Do not operate the Drink Mixer or any other electrical equipment damaged cord or plug, or after the unit malfunctions or is dropped or damaged in any manner. Return it to the nearest authorized service for examination, repair, or adjustment.
3. Do not use outdoors. FOR HOUSEHOLD USE ONLY
4. Do not let the cord hang over the edge of the table or counter hot surfaces.
5. Put this instruction manual in a safe place. Do not discard.
6. If the supply cord is damaged, it must be replaced by the manu its service agent or similarly qualified persons in order to avoid a ha
7. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by a qualified maintenance personnel.
8. WARNING! It is strictly prohibited to put the main body of the machine and the power cord into any liquid. The machine must be fully cool cleaning.
9. Do not place the product directly on the fire or near the source otherwise the product will be damaged or even result in danger. Onc of the product is on fire, do not directly use water to extinguish the a wet cloth to cover the fire site.
10. When the plug is plugged into the socket, it must be plugged to otherwise it will cause the components overheating and burning due to poor contact.
11. Do not leave the product to work with no one watching. If the I is overheating, please stop working immediately and unplug the power

FCC Information:

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t

equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2)This product must accept any interference received, including

interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lin a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television

reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

Chapter One Safety Precaution

Notice

·Prevent water and conductive liquid entering into the machine; ·Please do not throw stick and other things into the ·When the machine is in moving process, the angle not beyond 45°; ·The distance between ventilation slot and wall should be less than 20CM, to keep good ventilation, dry and clean

Safety warning

The machine should be operated by professional or of have been trained; ·To ensure personal safety, please keep the machine properly grounded; ·Ensure that the power supply is the same as the and the working voltage bias between rated voltage is ±10%; ·If the power wire is damaged, it should be changed professionals to avoid danger; ·When stop using, disassembling or do some clean please cut off the power; ·To avoid electric shock, please do not pour water or plug, motor and other electrical components. ·Foamed material flammable, the user may not arbitrar discarded or dispose, should be in accordance with the relevant provisions of the state by the designated dep/cycling.

Chapter Two Basic structure

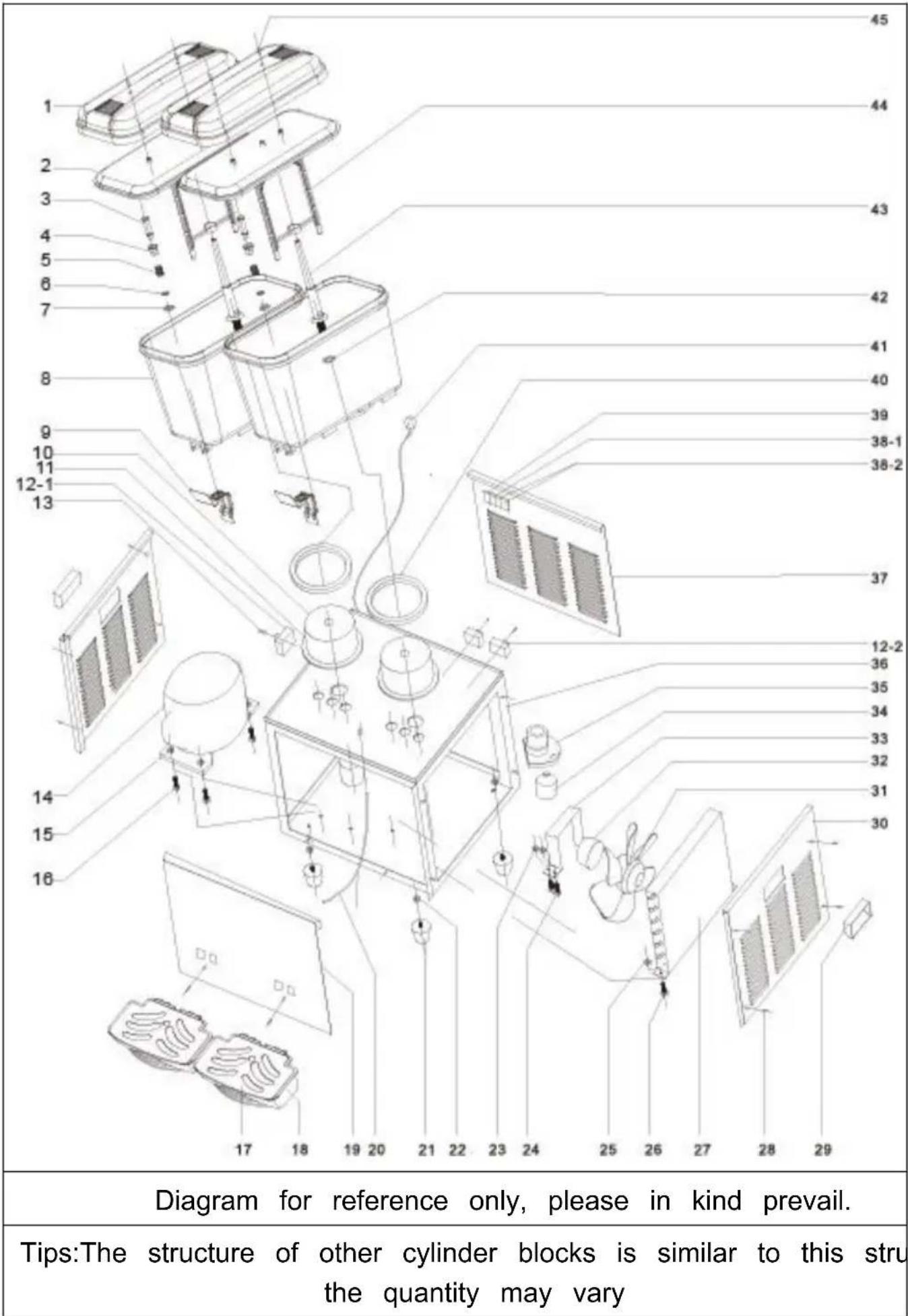

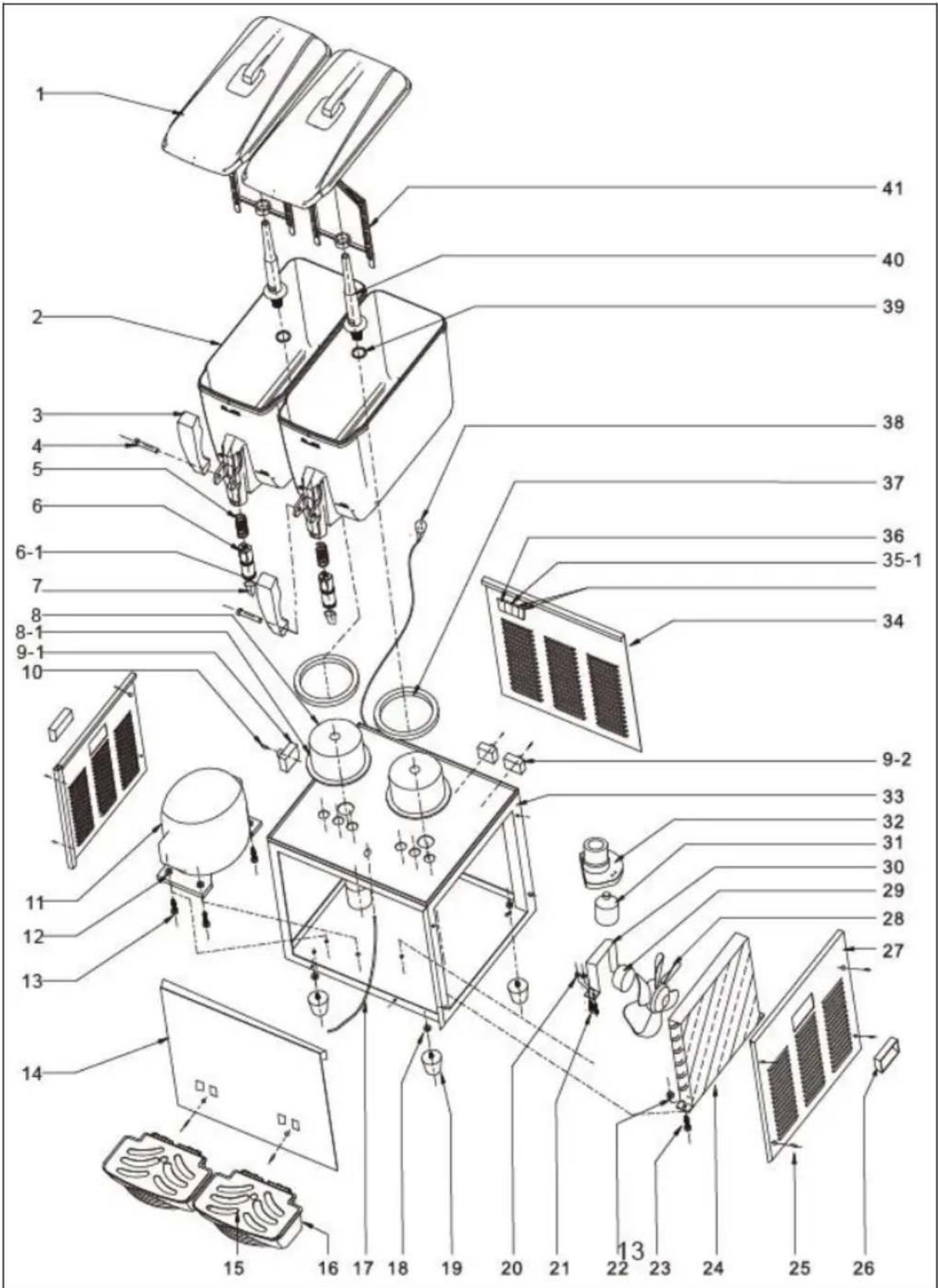

Exploded view (two bowl) Agitator type

1	Roof	24	Support fixed screw rod
2	inner Roof	25	Outer hex nut
3	Stainless steel spout	26	Outer hex screw
4	fixed nut	27	Condenser
5	Spring	28	Mounting screw for coaming
6	Stainless steel cover	29	Left/right handle
7	C- snap spring	30	Left/right panel
8	Tank	31	Fan
9	oulet handle	32	Fan motor
10	Evaporator	33	holder of fan motor
11	seal ring of evaporator	34	Mix motor
12-1	Cold temperature contro	35	Mixing motor base
13-12-1	Temperature control screw	36	Main body frame
14	compressor	37	Back panel
15	Outer hex nut	38-1	Mix switch
16	Outer hex screw	38-2	Cooling switch
17	roof of Water tray	39	Heating switch
18	box of watertray	40	Seal ring for tank
19	Front panel	41	Power line
20	Capillary drain	42	small seal ring of Mix pole
21	Machine foot	43	Mix pole
22	Outer hex nut	44	Mix leaf
23	Support fixed nut	45	Tank screw
Exploded view (two bowl) Agitator type

Diagram for reference only, please in kind prevail.
Tips:The structure of other cylinder blocks is similar to this stru the quantity may vary
1	Roof	21	Support fixed screw rod
2	Tank	22	Outer hex nut
3	handle	23	Outer hex screw
4	Pin of handle	24	Condenser
5	Spring	25	Mounting screw for coaming
6	Plunger	26	Left/right handle
6-1	small Seal ring	27	Left/right panel
7	Nipple	28	Fan
8	Evaporator	29	Fan motor
8-1	Small Seal ring for Evaporator	30	holder of fan
9-1	Cold temperature contro	31	the holder of fan moto
10-9-1	Temperature control screw	32	Mixing motor
11	Compressor	33	Main body frame
12	Outer hex nut	34	Back panel
13	Outer hex screw	35-1	Cooling switch
14	Front panel	36	Startup switch
15	Roof of Watertray	37	Seal ring of tank
16	the box of watertray	38	Power line
17	Capillary drain	39	Seal ring of Mix pole
18	Support fixed nut	40	Mix pole
19	Machine foot	41	Mix leaf
20	Support fixed nut

Chapter Three Installation and operation

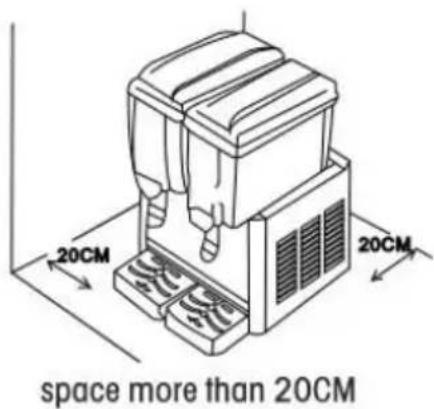

A.Installation

1) Remove the package and move out the machine to a proper place check the goods

according to the packing list, if there exists differences, please contact distributor.

2)Operating environment

a.Ambient temperature range: 10^ 38^

Ambient humidity: relative humidity ≤90%

b.The machine should be placed indoors at a drafty environment, for ventilation efficiency, more than 20cm space is required around the machine.

c.Avoid direct sunlight and keep the machine away from heat source, order to avoid water and other liquid splashing into machine,do not p at a humid or easily-splashing place.

3)Installation of the Tank Assembly

2)Clean the machine

a.Please wash the machine on time, in order to stay healthy.

b. Turn all the power off.

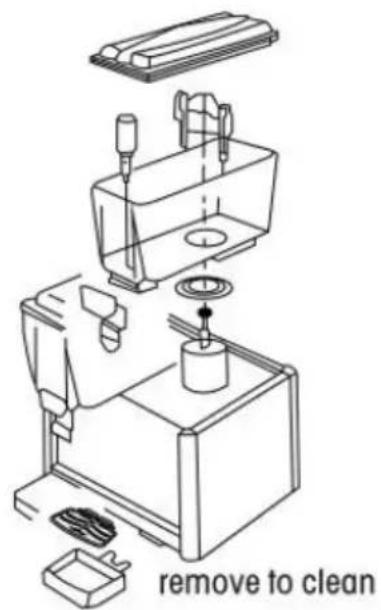

c.Let the remaining liquid out of cylinder ,then remove the cylinder < hold andmove slowly >

d.Cleaning cylinder:

Take off the nut or valve plate, then remove the gaske and impeller.

No	Part
1	Cylinder
2	Handle
3	Spring
4	Pin
5	Out water mouth
6	Outlet sealing ring

No	Part
1	Cylinder
2	Plate
3	Self-fapping screws
4	Spring
5	Nut
6	Valve plate
7	Spool
8	Gasket

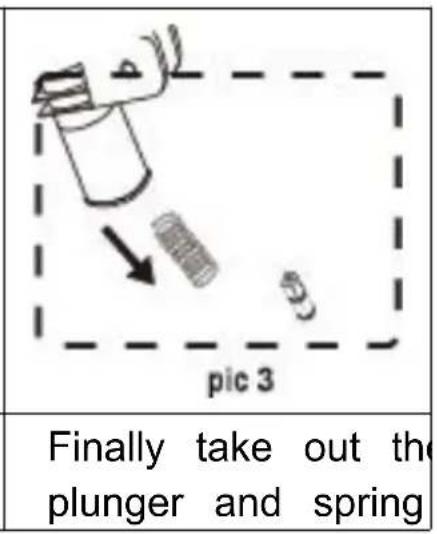

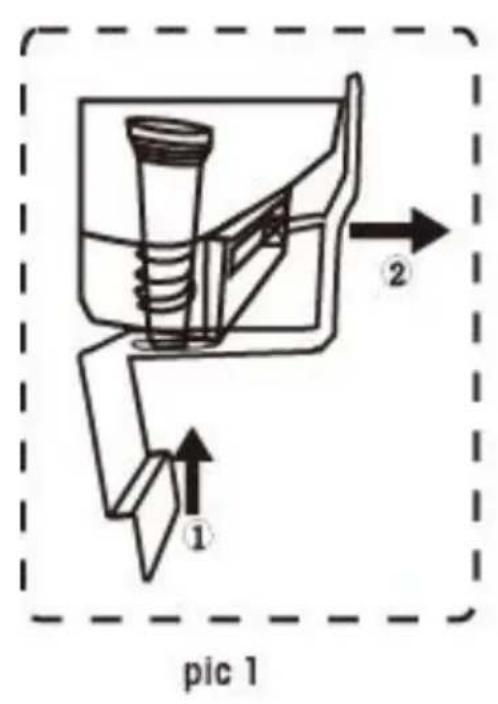

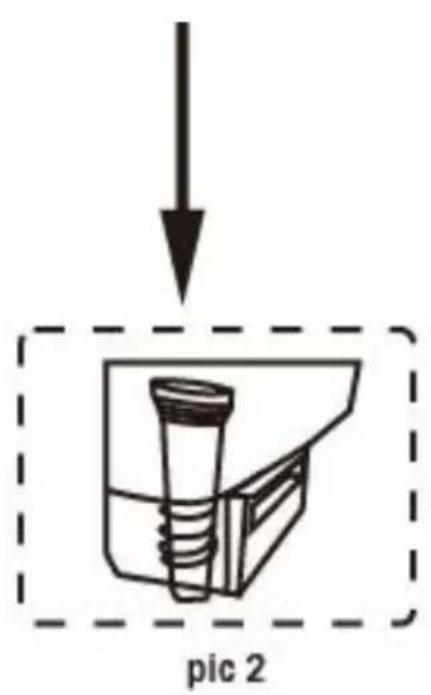

Water Outlet Dismounting Method

The water outlet is installed at the tank, we have toup lift the bottle then pull out in the fron(see②)

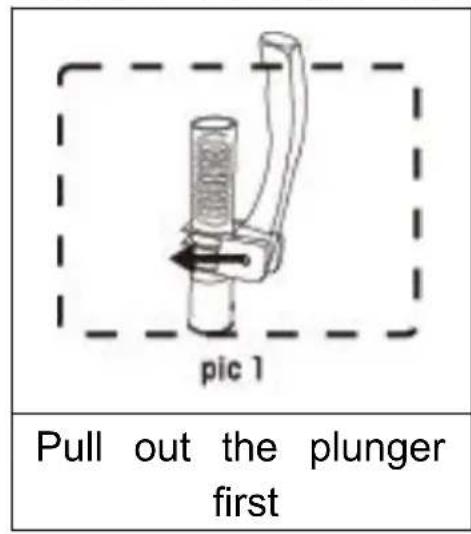

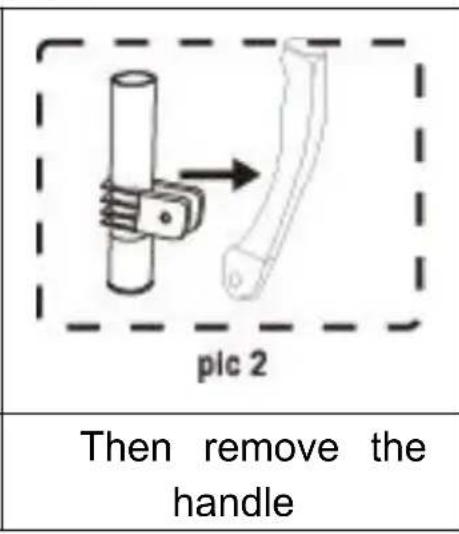

Handle removal method

3)Plug in

The socket and other appliance should comply with user's local electr regulations and national rules, also the voltage and current should cor with the rated value according to nameplate, (if use external plug, sh use connection board with right current), and the machines should be properly grounded.

If the voltage ranges too much(beyond the rated value ± 10% ), it may the machine can not start, or break the PCB board, or break compre In this condition, adding a appropriate voltage stabilizer is necessary.

B.Testing

When the tank is installed well, firstly pour in a little drinking water. the bottom of the tank and dispensing mouth, if there is a slight lea the bottom of the tank, use your hand diagonally to take the tank a downward, to make sure the tank and O-ring into the right place; if leakage on the dispensing mouth, please check the O-ring is in proper place, or change it if it is necessary. Then add beverage into the bus switch on cooling.

Chapter Four Usage instruction

A.Ingredients preparation

1) Ingredients include : dried fruit powder, syrup or plum juice and drii water, mix the fruit juice and the drinking water according to certain proportion (for delicious advisable). Stir mixed liquor completely in a c container, and particles are not allowed; otherwise the dispensing mouth will be blocked.

2)The temperature of mixed liquor cannot exceed 35^ .

3)Please remember that do not use too thick juice or drink with prec. otherwise easily result in water pipe blockage.

Warning: connect or use drinking water, the formula materials

should conform to the requirements of the food hygiene license.

B.Operation method

1) Pour the drink into the tank and make sure the drink shall not be at maximum level line, not less than the minimum level line.

2) Plug the power plug after pouring the drink, turn on the refrigerat stirring switches to run the machine. When the machine reaches the temperature, it will stop refrigeration, but will keep rotating.

3) After turning off the refrigeration switch, it need to wait for 3 min turning on the switch again, otherwise it will damage the compressor.

4) Temperature rage: for cold drink: 7 -12°C;
5) Empty drinks in bowl when it's off business hours to prolong key service lifetime

Chapter Five Daily clean and maintenance

A. Cleaning

1)Wash all parts of bowl thoroughly in mild detergent and warm water
2)Rinse in clean running water.
3)Reassemble all parts of bowl.
4) Pour sanitizer and water into bowl. Turn on beater motor and allow sanitizer to flow inside of the bowl for a period of time.
5)Drain liquid through the valve completely and thoroughly during each step of the cleaning process (wash, rinse, sanitize, rinse).

Notice: 1.The bowls assembly should be cleaned everyday.

1. O-ring should be checked after cleaning, and must be replaced if are worn.
2. In case of parts heat cracking, with high temperature disinfection is prohibited and do not use more than 60^ boiled water to clean the and components.

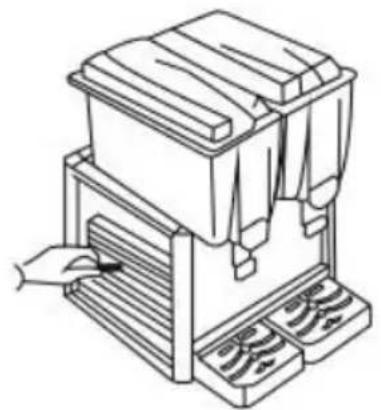

B.Maintenance

Use a cleaning cloth or brush to clear away all the dust and attach the surface or inside of the machine regularly. Do not flush the intermachine with water directly. Before cleaning, please cut off power and disconnect the plug, it is very important.

turn off clean ash

1) Cut off the power firstly, and disassemble all the panels of machine then clear the dust attached to compressor, copper pipe and bottom Using water is forbidden.
2)After being used over a period of time, the condenser maybe thick dust, and this will affect radiating heat and cause bad cooling, so it periodic cleaning (every half year)
Step 1: Disconnected the main power switch.
Step 2: Remove the back panel and side panels.

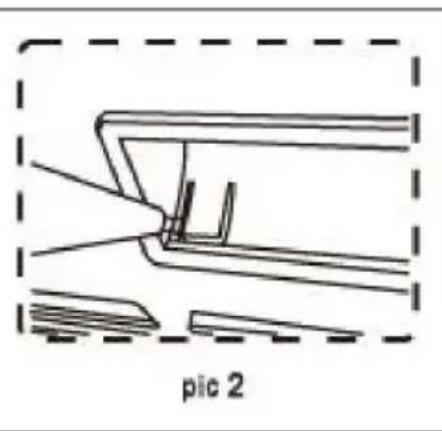

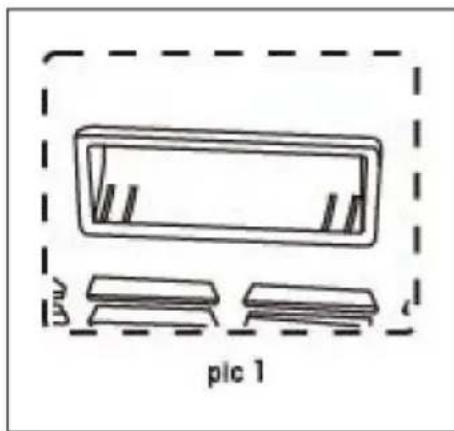

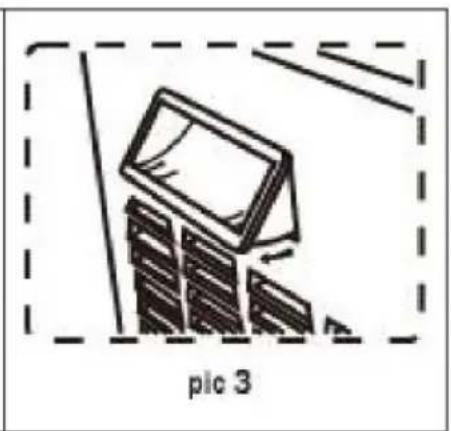

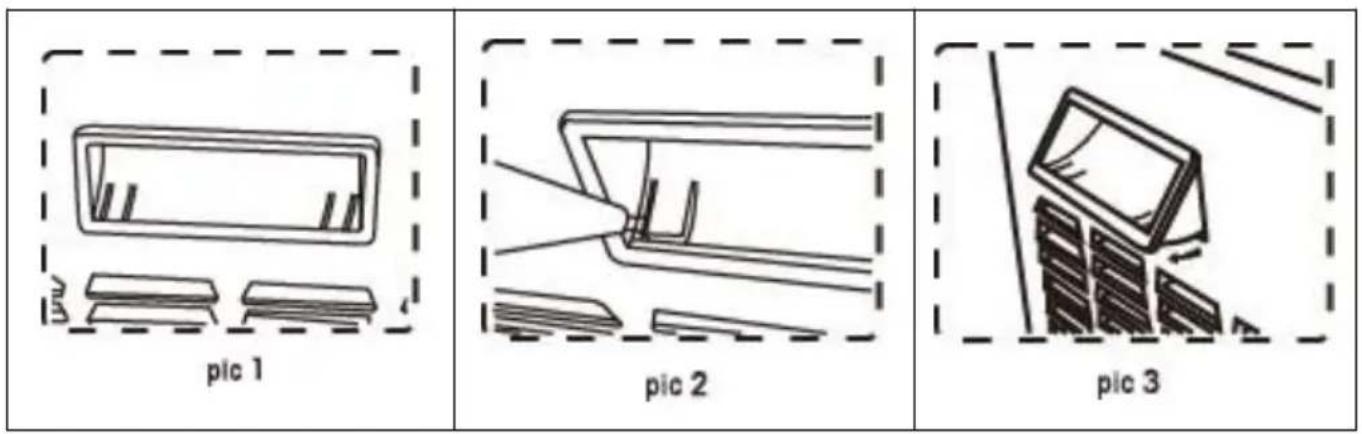

Panel Dismounting Method

In order to take off panel ,we have to to off the handle first (see pic 1)

Using slot type screwdriver pry up th panel side( see pic

Pry up both side of handle , then take the handle from par

Step 3: Clean dust with tools such as vacuum cleaner, high-pressure and hairbrush, be careful while cleaning to avoid damaging the fins or condenser.

3) Check all the screws and nuts if they are loose or rusty, and fast to replace them to avoid causing noise.
4)Finally, assemble all the panels, fasten all screws, and clear the su

Chapter Six Trouble shooting

The following table lists showed the possible machine fault and its repair and processing method. For general simple fault, can follow the table of processing method and processing, such as the fault is still cannot be found out, as well as more complex fault, please contact professional maintenance staff immediately, never sloppy handling, so as not to bring you unnecessary loss.

Troubles	Causes	Repair methods
Compressor stops Working	1 .The supply pow off or not connecte Switch damaged Circuit trouble Over load and the protector broken	1 .Check the supply power socketReplace the switchCheck and repairCheck and replace
Compressor runs but no refrigeration	1 .Capillary stop 2.The refrigeration fluid leaked the electrical broker	1.replace the capillary or dry filterCheck the systems and add the medicineReplace the electrical machin
Winnowing water abnormally	1 .differences in the pump inside impeller and holes damaged circuit damaged big clearance between the impeller and crock	1.clean 2.Replace the impeller and pump 3.check and repair 4adjust the clearance
Crock leaking	Sealing ring old or installed badly	Replace or re-install
Valve leaking	Sealing ring old or installed badly	Replace or re-install

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Assistance technique et certificat de garantie electronique www.vevor.com/support

YH CONSULTING LIMITEE. C/O YH Consulting Limited
Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

space more than 20CM

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Limited Office 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 FrancofortesulMeno.

VEVOR

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Soporte专业技术o y certificate de garantia electrònica www.vevor.com/support

YH CONSULTING LIMITADO. C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

ODPOWIEDZIALNOŚCIA. C/O YH Consulting Limited Office

147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

DRANKENDISPSER

MODEL:LYJ10LX2/LYJ10LX3/LYJ10LX4/LYJ12LX1/LYJ12LX2 /LYJ12LX3/LYJ12LX4/LYJ18LX1/LYJ18LX2/LYJ18LX3

HULP NODIG? NEEM CONTACT MET ONS OP!

Exploded view (tweekommen)

Type roerwerk

Panel demontagemethode

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
