Product type	Freestanding combined refrigerator
Brand	Severin
Model	DT 8770
Dimensions (H x W x D)	1425 x 495 x 560 mm
Weight	42 kg
Total volume	173 litres
Refrigerator volume	121 litres
Freezer volume	52 litres (4 stars)
Energy class	C
Annual consumption	124 kWh/year
Climate class	N-ST (ambient temperature 16-38 °C)
Freezing capacity	2.6 kg/24h
Power failure autonomy	7 hours
Refrigerator defrost	Automatic
Freezer defrost	Manual
Interior lighting	LED (not replaceable by user)
Refrigerant	Isobutane (R600a)
Power	85 W
Voltage / Frequency	220-240 V, 50 Hz
Noise	40 dB(A) – class C
Number of glass shelves	4
Number of door bins	3
Number of freezer drawers	2
Special functions	VeggiBox, door alarm (90s), reversible doors
Care tips	Monthly cleaning with warm water and dish soap; do not use abrasive cleaners

Frequently Asked Questions - DT 8770 SEVERIN

How to adjust the refrigerator temperature?

Use the regulator near the interior light. Turn clockwise to cool more (1 to 7), counterclockwise to warm. The middle position (4-6°C) is recommended for fresh food.

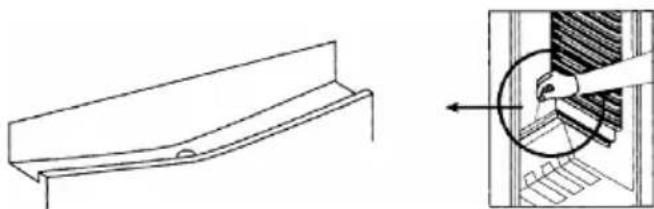

How to defrost the freezer?

Unplug the appliance, remove food, leave the door open. To speed up, place a pot of hot water (not boiling) inside. Do not use sharp tools. Once defrosted, clean and plug back in.

What to do if the door alarm sounds?

The alarm triggers if the refrigerator door is left open for more than 90 seconds. Close the door to deactivate it.

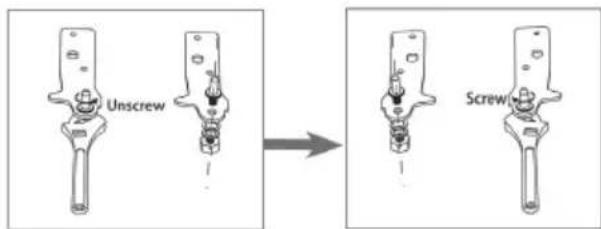

How to reverse the door opening direction?

Unplug the appliance. Follow the detailed procedure in the manual: remove the hinges, reverse the doors and handles. Have a second person assist you. Check the seal after reassembly.

What is the maximum freezing capacity per day?

The maximum capacity is 2.6 kg per 24 hours, as indicated in the technical data sheet.

How to clean the inside of the refrigerator?

Unplug the appliance. Use warm water with a little dish soap. Do not use abrasive or alcohol-based products. Rinse with clean water and dry. Do not put accessories in the dishwasher.

What to do in case of a power outage?

Keep the door closed to preserve the cold. The autonomy is 7 hours. Do not refreeze thawed food.

Why is there frost on the back wall of the refrigerator?

This may be due to a door left open, hot food placed inside, or too low a temperature. Check the door closure and adjust the thermostat.

How to save energy with this appliance?

Place the appliance in a cool place, away from sunlight and heat sources. Allow food to cool before storing. Do not leave the door open too long. Do not set the temperature too low.

The interior lighting no longer works, what to do?

The lighting is an LED not replaceable by the user. Contact Severin customer service for an intervention.

USER MANUAL DT 8770 SEVERIN

Exterior view of a modern white refrigerator with no visible text or symbols on the door or side.

ART.-NR. DT 8770

GB Instructions for use Double-door fridge 16

- WARNUNG: BRANDGEFAHR!

Warning sign depicting a flame symbol inside a triangle, indicating hazard or caution

Technical diagram of a refrigerator with numbered parts labeled ① to ⑤, showing internal compartments and doorways.

Two vertical panels with checkmark and cross symbols, likely indicating approval or rejection status

Aufstellmaße

Technical line drawing of a mechanical component with an inset showing a magnified view of a component (no text or symbols)

ok blut ... guns ... Brr ... Brr ...

Simple line drawing of a tool or bracket with an arrow indicating direction (no text or symbols)

Technical line drawing of a sewing machine needle stitching fabric (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Simple line drawing of a folded corner or panel with mounting holes and dashed lines indicating measurement or alignment (no text or symbols)

Technical line drawing of a mechanical lever system with inset detail (no text or symbols)

Pure technical line drawing of a mechanical part with circular cutout and alignment arrows (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Unscrew Screw

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-up views (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

Pure architectural line drawing of a window with vertical supports and horizontal beams (no text or symbols)

Technical line drawing of a mechanical assembly with a circular component and mounting bracket (no text or symbols)

Line drawing of a rectangular object with two downward arrows indicating measurement or alignment (no text or symbols)

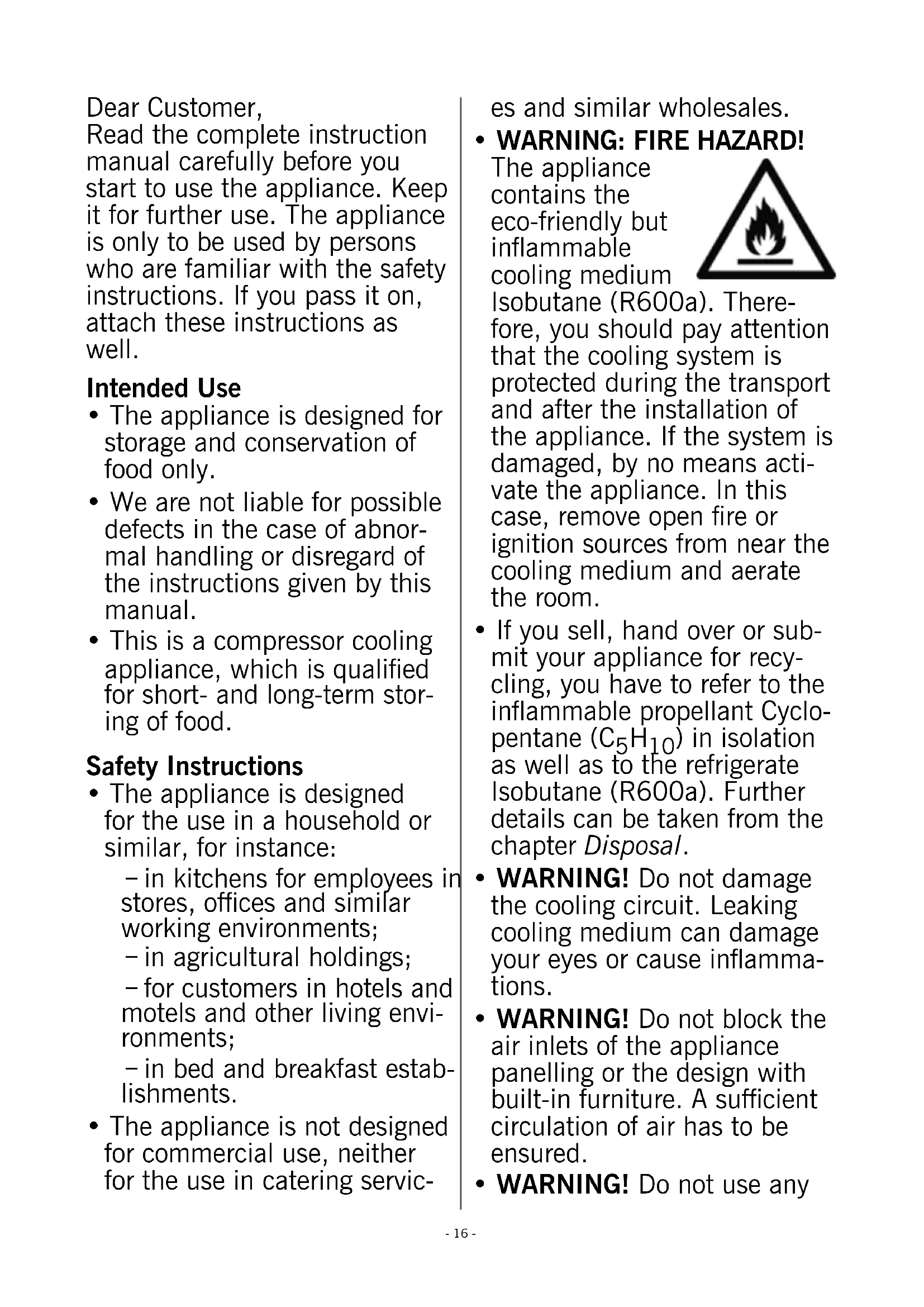

Dear Customer, Read the complete instruction manual carefully before you start to use the appliance. Keep it for further use. The appliance is only to be used by persons who are familiar with the safety instructions. If you pass it on, attach these instructions as well.

Intended Use

• The appliance is designed for storage and conservation of food only.
• We are not liable for possible defects in the case of abnormal handling or disregard of the instructions given by this manual.
• This is a compressor cooling appliance, which is qualified for short- and long-term storing of food.

Safety Instructions

• The appliance is designed for the use in a household or similar, for instance:
• in kitchens for employees in stores, offices and similar working environments;
• in agricultural holdings;
  – for customers in hotels and motels and other living environments;
  – in bed and breakfast establishments.

- The appliance is not designed for commercial use, neither for the use in catering servic-

es and similar wholesales.

• WARNING: FIRE HAZARD!

The appliance contains the eco-friendly but inflammable cooling medium

Warning sign depicting a flame symbol in a triangle, indicating hazard or caution

Isobutane (R600a). Therefore, you should pay attention that the cooling system is protected during the transport and after the installation of the appliance. If the system is damaged, by no means activate the appliance. In this case, remove open fire or ignition sources from near the cooling medium and aerate the room.

- If you sell, hand over or submit your appliance for recycling, you have to refer to the inflammable propellant Cyclopentane (C 5 H 10 ) in isolation as well as to the refrigerate Isobutane (R600a). Further details can be taken from the chapter Disposal.

- WARNING! Do not damage the cooling circuit. Leaking cooling medium can damage your eyes or cause inflammations.

- WARNING! Do not block the air inlets of the appliance panelling or the design with built-in furniture. A sufficient circulation of air has to be ensured.

- WARNING! Do not use any

electric appliances (e.g., ice machines. etc.) that are not described in the manual.

• WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING! Do not locate portable multiple socket-outlets or portable power supplies at the rear oft he appliance.
• Before plugging it in, check for possible damage during shipping in the power cord or in the appliance itself. If this is the case, the appliance must not be put into operation.
• In this appliance, explosive substances such as an aerosol container with inflammable propellant cannot be stored.
• If reparations or interventions on the appliance are necessary, they have to be executed by an authorized repair service, in order to follow the safety regulations and to prevent endangerment. This also applies to the replacement of the power plug.
• The appliance can be used by children of 8 years or older as well as persons with reduced physical, sensory or mental abilities or lack of experience and/or knowledge, but only if they are supervised or instructed relating to the

safe use of the appliance and thus understand the resulting dangers.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
  • Children are not allowed to play with the appliance.
• Cleaning and maintenance must not be executed by children without supervision.
• Tepid water with an addition of washing-up liquid is suitable for regular maintenance. Further details of the cleaning can be taken from the chapter Cleaning and Defrosting (Maintenance).
• WARNING! Do not use other mechanical devices or any other means, e.g., heating appliances, to speed up defrosting.
• WARNING! Do not take off the cover of the LED interior lighting. In case of a defect of the LED-lamp call the after-sales service (see appendix).
• Observe the following instructions to store food in the best possible way to avoid contamination and unnecessary waste from food:
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the

appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store unpackaged foods (especially raw meat and fish) in suitable containers in the fridge so they do not touch or drip onto other foods.
• If the fridge-freezer is to remain empty for an extended period, switch it off, allow it to defrost and clean it. Dry it and leave the doors/compartments/flaps open to prevent mould growth.
• There are different zones of low temperature in the refrigerator. The warmest zone is at the top of the door in the refrigerator. The coldest zone is on the back wall at the bottom of the refrigerator.
• For this reason, arrange the food in the following way:

- On the shelves in the freezer (top to bottom): Baked goods, ready-made meals, dairy produce, meat, fish and sausages.

- In the VeggiBox: Vegetables, salad and fruits.

- In the door (from top to bottom): Butter, cheese, eggs, tubes, small bottles, big bottles, milk and juice bags.

- Avoid overloading the shelves/ compartments/boxes so that you can easily open and close

them and the doors.

• In order to prevent damage to persons or property, the appliance can only be transported in a box, and it requires two persons to be installed.
• Caution! Keep your children away from packaging material - choking hazard!
• Regularly check the power plug for damages. If this is the case, do not use the appliance.
• Do not use electric appliances on the storage space to prevent fire hazards. Also, do not put liquid containers on the appliance, so that possible leaking liquids do not interfere with the electronics and the isolation.
• Store high-proof alcoholic substances only tightly sealed and upright.
• Do not store glass bottles with freezable liquids or carbonated liquids in the freezer of the appliance, since they could burst while freezing.
• Do not consume expired food. This could lead to food poisoning. Do not refreeze already defrosted groceries.
• Do not misuse any shelves, compartments, doors, etc., as a tread or for leaning on.
• Do not handle open fire or ignition sources in the interior space of the appliance.
• Pull the power plug:
• in case of disturbances during the operation;
• before every cleaning;
• while working on the appliance.
• Do not pull the power cord; always grab the power plug for this purpose.
  • We reserve technical changes.
  In order to prevent damage to persons or property, the appliance can only be transported in a box, and it requires two persons to be installed.
• Caution! Keep your children away from packaging material - choking hazard!
• Regularly check the power plug for damages. If this is the case, do not use the appliance.
• Do not use electric appliances on the storage space to prevent fire hazards. Also, do not put liquid containers on the appliance, so that possible leaking liquids do not interfere with the electronics and the isolation.
• Store high-proof alcoholic substances only tightly sealed and upright.
• Do not store glass bottles with freezable liquids or carbonated liquids in the freezer of the appliance, since they could burst while freezing.
• Do not consume expired food. This could lead to food poisoning. Do not refreeze already defrosted groceries.
• Do not misuse any shelves, compartments, doors, etc., as a tread or for leaning on.
• Do not handle open fire or ignition sources in the interior space of the appliance.
• Pull the power plug:
• in case of disturbances during the operation;
• before every cleaning;
• while working on the appliance.
• Do not pull the power cord; always grab the power plug for this purpose.
  • We reserve technical changes.

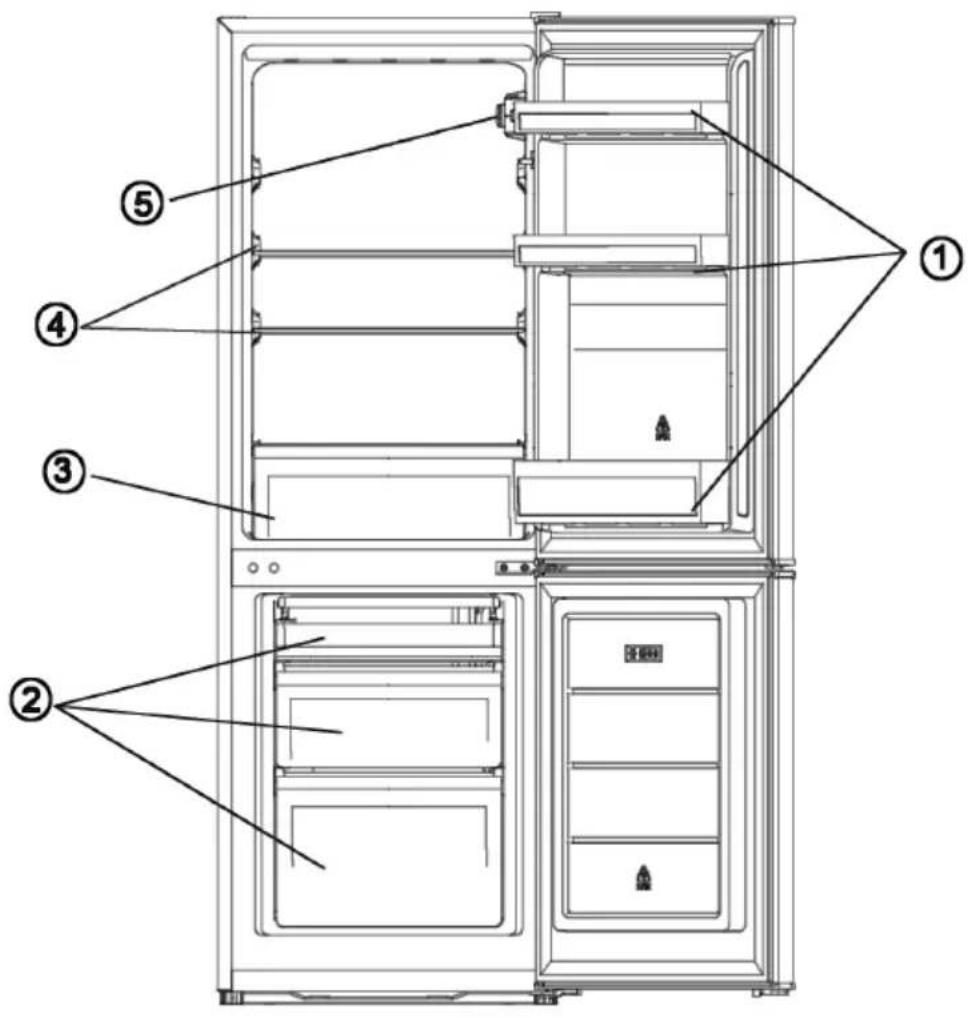

Configuration

Technical diagram of a refrigerator with numbered parts labeled for identification

1 Cooling compartment door shelves

2 Freezer compartment drawers

3 Vegetable box

4 Cooling compartment glass shelves

5 Control panel with lighting unit

Not illustrated:

Egg holder

Ice cube tray

Transport of the appliance

• During the transport, you have to secure all loose parts in and on the appliance, in order to prevent damage.
• The appliance should be transported in a vertical position and at the same time not tilted over more than 30 degrees. Wait 30 minutes after the installation, before you connect the appliance to the mains.
• If the appliance was transported with a tilt of more than 30 degrees, wait 4 hours before you connect the appliance to the mains.

Before the initial operation

• Remove the protective sheets and all packaging material incl. the transport securing of the storage spaces and of the trays from the appliance.
• Dispose the packaging professionally.
• You might notice a slight ‘new smell’ when you start the appliance for the first time. It goes away once the appliance begins to cool.
• Clean the interior with tepid water with the addition of washing-up liquid. Clean the equipment separately with rinsing water, not in the dishwasher.
• Before you fill the appliance with food, let it work for 24 hour, so that the target temperature can be reached.

Fitting the door handles

To fit the door handles, loosen the hole covers on the appropriate door sides. Screw the door handles tight.

Installation of the appliance

• The appliance should be installed in a dry and well-aired room.
• The appliance can be operated at a humidity of max. 70 %.
• The product specifications at the end of the manual contain information on the ambient temperature (climate class) suitable for the appliance.
• WARNING! It is possible that the appliance will not be able to maintain sufficient internal temperatures if operated outside the specified climate class.
• Do not install the appliance outdoors.
• Bear in mind that you can pull the power plug anytime.
• Protect the appliance from direct insolation. It should not be installed near heat sources (stove, heater, etc.). If this, however, cannot be avoided, you should put isolation between the heat source and the appliance.
• This fridge is not intended to be used as a built-in appliance. The installation of the fridge directly under a board or a cabinet is disallowed.

- The unevenness of the floor can be compensated with the two vertically adjustable screw-in feet in the front, so that safe stability is attained.

Two vertical panels with checkmarks and an 'X' symbol, no text or labels present

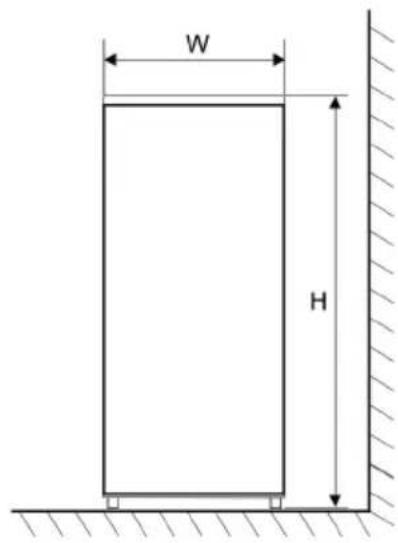

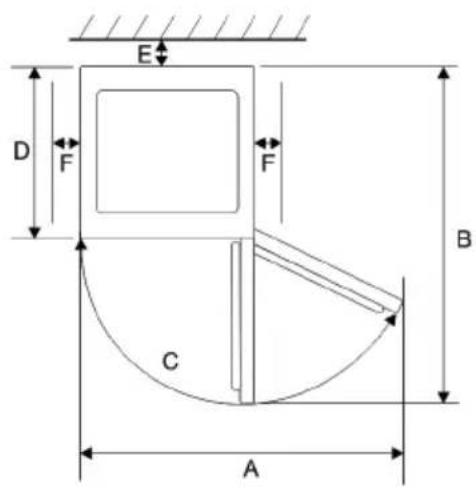

Installation measures

If the appliance is placed sideways on a wall, you will leave a lateral gap of at least 100 mm, so that the doors of the appliance can open in a 90-degree angle. In order to be able to remove the VeggiBox completely from the appliance, detach the bottle compartment if necessary.

W H

E D F F B C A

Width (W)	Depth (D)	Height (H)
495 mm 560	mm 1425 mm

A B C E F
1000 mm	1060 mm	125° 50 mm	100 mm

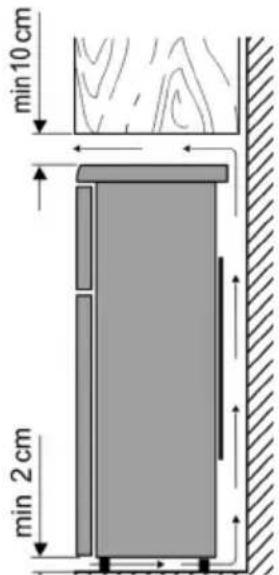

Ventilation

min 10 cm min 2 cm

The air warmed behind the appliance needs to circulate freely. For this reason, the circulation of air cannot be compromised.

Caution! Do not cover possible existing ventilation openings in the back area of the top cover plate!

Connection

• Before you connect the appliance, you have to make sure that itself and the power plug do not show any transport damages.
• Connect the appliance only to a shockproof outlet. The mains voltage has to correspond to the one stated on the tool identification plate.
• The appliance complies with the guidelines that are obligatory for CE marking.
• Do not connect the appliance to an inverter
• The power plug should not touch the back-side, in order to avoid possible vibration noise.
• The appliance can be put into operation by plugging the mains plug into the point.
• A complete switching-off only occurs by pulling the mains plug.
• If the appliance has been disconnected from the mains, wait approx. 5 minutes after plugging in the mains plug before setting the temperature controller to the desired position.

Operating elements

The temperature adjustment for the refrigerator compartment is set via the controller on the lighting inside the refrigerator.

4 5 3 6 2 7 1 0

Place it in a central position to set an optimal temperature for normal use. The more you turn the controller clockwise, the lower the temperature

in the cooling compartment (7). The more you turn the controller anti-clockwise, the higher the temperature in the cooling compartment (1).

The compressor is switched off at position "O". The appliance does not cool, but it can only be switched off completely by unplugging it from the mains.

Tip! A medium temperature setting (approx. 4-6 °C) ensures optimum preservation of fresh food. A higher temperature can shorten the shelf life of food.

VeggiBox

The VeggiBox serves as the optimal storage for fruits and vegetables.

Temperature in the freezer compartment

The temperature in the freezer compartment is set to ≤ -18^ by default.

Interior Lighting

Do not take off the cover of the interior lighting. The appliance is equipped with high quality, durable LED-lighting. If the light is inoperative, call our after-sales service.

Freezer Door

The freezer door should always stay closed so that the food does not defrost. Thereby, the formation of ice and frost accretion is reduced. Therefore, make sure that the door is only open for withdrawal of food or rather for filling the freezer.

Door alarm

An acoustic alarm sounds when the fridge door is left open for more than 90 seconds. After closing the door, the acoustic alarm stops.

Freezing/Storing of Food

Freezer:

• The freezer is designed for the freezing of food, for the long-term storage of frozen food as well as for the appliance ion of ice cubes.
• Fresh food should be frozen to the core as quickly as possible, so that the nutritional value, the vitamins, etc. do not get lost. For this reason, put the food in one or two rows in the freezer.
• Do not bring them into contact with already frozen food.
• Do not exceed the freezing capacity per day! The respective value for the maximum freezing capacity can be taken from the appliance specification sheet at the end of the manual.
• The freezing time shortens if the food to be frozen is divided into small portions.
• Store the frozen food in the appliance only packaged. You can use uncoloured plastic sheets/bags or aluminium foil as packaging material. Remove the air from the packaging before freezing and check for airtightness. Provide every packaging with a label with the content, date of freezing and date of expiry on it.
• Do not freeze carbonated liquids, warm foods or liquids in a glass container or bottle.
• Defrost frozen appliances in the refrigerator. Foods keep their taste when they are defrosted slowly, and the emitted cooling energy from these appliances can be used to maintain the intended temperature in the refrigerator.
• If the appliance is turned off for a longer period of time, e.g., because of a mains failure, leave the door closed. Thereby, a more significant loss of cooling energy can be avoided. The maximum storage time during malfunction can be taken from the appliance specification sheet at the end of the manual. Because of the higher interior temperature, the storage time for food is shortened.

Data for expiry dates of frozen food are indicated in the chart per month.

Do not store the frozen food longer than the given time in the freezer. Pay attention to the expiry date of the frozen food indicated by producer.

Refrigerator:

• Store the food only packaged or covered in the refrigerator, in order to sustain the flavour and the freshness. Especially foods with a strong smell or prone to absorbing smell (cheese, fish, butter, among others) have to be stored separately.
• At first, set an average cooling temperature. If the cooling is too strong, set a higher temperature and if the cooling is too weak, set a lower temperature.
  If frost is built upon the back wall, then the cause of this could be that the door was opened too long, warm dishes were in the appliance or the temperature was set too low.
• Warm foods have to be cooled down to room temperature before they can be stored in the appliance.
• Make sure that the door is closed correctly and that it is not blocked by cooled food.

Cleaning and Defrosting (Maintenance)

Cleaning

• Always pull the mains plug before cleaning.

- Do not pour water into the appliance.

- Tepid water with a bit of washing-up liquid is suitable for the regular maintenance. In order to avoid an unpleasant smell in the cooling room, a cleaning of the latter once a month is recommended.

- Clean the equipment separately with rinsing water, not in the dishwasher.

- Do not use aggressive, abrasive or alcoholic detergents.

- After cleaning it with clear water, wipe the surface and carefully dry it off. Subsequently, plug the mains plug with dry hands.

- The rating label in the interior of the appliance cannot be damaged or even removed while cleaning.

Defrosting

Defrosting the freezer

If the ice layer in the interior is 2-4 mm thick, the freezer must be defrosted. Clean it at least twice a year.

• Disconnect the mains plug from the socket.
• Remove food from the freezer and store it as cool as possible, e.g., together with ice packs and covered in a plastic recipient. Please remember that the lifetime of the goods is shortened by the temperature increase and that they should be consumed as quickly as possible.
• Leave the door open. To speed up defrosting, place one or more pots with hot but not boiling water in the freezer.
  • Dry the freezer thoroughly after cleaning.
• Plug in the mains plug. Wait approx. 5 minutes and set the temperature controller to the desired position.

Defrosting the refrigerator

The refrigerator does not have to be defrosted but it does have to be cleaned.

The refrigerator's evaporator is fixed into the rear wall, which is why the rear walls can become covered with frost. Whenever the compressor is not working, frost can melt. The resulting water is led through a hose system to the basin on the compressor, where it then evaporates due to the heat generated. When setting the temperature controller, avoid permanent frost without a defrost phase.

Technical line drawing of a mechanical component with an inset showing a magnified view of a component (no text or symbols)

Make sure that the drain gully and the drain opening are not blocked so that the water produced in the refrigerator can always flow off unobstructed.

Tips for Energy Saving

• For the installation of the appliance, choose a cool, dry and well-aired room.
• Protect the appliance from direct insolation. It should not be installed near heat sources (stove, heater etc.). If this cannot be avoided, some sort of isolation between heat source and appliance has to be used.
• Don't cover the ventilation openings and grid. Provide enough circulation of air on the backside of the appliance.
• To maximise energy efficiency, place the shelves, racks and compartments in their original position (see figure “Assembly”).
• Let warm food cool down before you store it in the fridge.
• Do not leave the door open too long when withdrawing or putting food inside. Otherwise, the formation of ice in the interior will be accelerated.
• Do not set the temperature lower than necessary. More details on temperature settings can be taken from the chapter 'Operating elements'.

Operation Noises

There might be some typical operation noises when the appliance is turned on. These are:

• Noise of the electric motor is arising from the working compressor.
  When the compressor starts to operate, then
  the noises get slightly louder for a short time.
• Noises in the tubes of the circulation of the refrigerant.

Reversing the door

• The door hinging can be changed from the right opening to the left one and vice versa.
• Warning! Always disconnect the mains plug from the power outlet before performing any work on the appliance.

- Always change the door hinging with the assistance of another person to avoid personal injury and damage to property.

- Before you proceed, here are some basic instructions:

- Always pay attention to the number of washers on the pivot pins and screws.

- Always align the doors accurately so that they close tightly.

1. Remove the cover of the top door hinge on the upper side of the appliance.

Simple line drawing of a tool or bracket with an arrow indicating direction (no text or symbols)

1. Loosen the screws holding the top door hinge and remove the hinge.

Line drawing of a sewing machine needle stitching fabric (no text or symbols)

1. Loosen the hole cover and remove it.

Pure mechanical diagram showing a lever mechanism with no text or symbols

1. Replace the hole cover on the opposite upper side of the appliance.

Remove the upper door and place it on a soft surface to avoid scratches.

Simple line drawing of a folded corner or panel with mounting holes and a curved edge (no text or symbols)

1. Loosen the screws holding the centre door hinge and remove the hinge.

Remove the lower door and place it on a soft surface to avoid scratches.

Technical line drawing of a mechanical lever assembly with inset detail (no text or symbols)

1. Loosen the centre hole covers and replace them on the opposite side of the appliance.

Pure technical line drawing of a mechanical part with circular cutout and dimension arrows (no text or symbols)

1. Tilt the appliance back slightly and loosen the screws holding the bottom door hinge and the adjustable feet.

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

1. Unscrew the pin on the bottom door hinge, turn the hinge over and screw the pin back onto the hinge.

Unscrew Screw

1. Screw the bottom door hinge back on the opposite side of the appliance. Screw the base plates for the adjustable feet onto the respective opposite sides of the appliance. Refit both adjustable feet by screwing them back on.

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-up views (no text or symbols)

1. Loosen the hole covers in the centre of the appliance and attach them on the opposite side.

Pure technical line drawing of a mechanical component with no text or symbols

1. Put the appliance back upright and fit the lower fridge door onto the bottom door hinge. When fitting the doors, always ensure the hinge pin engages in the door hole.

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

1. Screw on the centre door hinge.

Pure architectural line drawing of a window with vertical supports and horizontal beams (no text or symbols)

1. Fit the upper door onto the centre door hinge. Screw the top door hinge tightly.

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

1. Replace the door hinge cover and hole cover.

Line drawing of a rectangular object with two downward arrows indicating force or damage (no text or symbols)

1. Check whether the door seals are deformed. If so, remove the door seals, flip them over and refit them.

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

1. Loosen the screw covers on the door handles. Unscrew the door handles. Loosen the hole covers on the opposite side. Screw the door handles back on and replace the screw covers.

2. Finally, check that the doors are properly aligned and close tightly on all sides. Adjust the front adjustable feet to ensure the appliance is stable and sits evenly on the ground. If the appliance has been tilted by more than 30 degrees, wait about 4 hours before plugging it into the mains.

Disposal

Appliances that are marked with this symbol have to be disposed of separately from household rubbish. These appliances contain valuable resources that can be recycled. A correct waste disposal protects the environment and the health of those around you. To get informed about it, either defer to your municipal administration or the retailer.

• Pull the mains plug out of the socket and disconnect it from the appliance before getting rid of it.
• Before disposing of the appliance, dismantle the doors to prevent people from being accidentally locked in.
• Before disposing of the appliance, remove the lights if they are detachable and can be removed without causing damage.
• The cooling medium Isobutane (R600a) and the propellant in the isolation Cyclopentane (C5H10) are inflammable substances, thus, need to be appropriately disp
• Make sure the tubes of the cooling circuit don't get damaged before the proper disposal.

Details for After-Sales Service

If a repair is necessary, please contact the service hotline directly with an explanation of the defect. Before you do that, write down the article number from the rating label on the appliance (see figure), since this is needed for the smooth processing of your request.

Information on the ecodesign requirements and energy labelling can be found in the European Product Registry for Energy Labelling (EPREL) at the following link: https://eprel.ec.europa.eu.

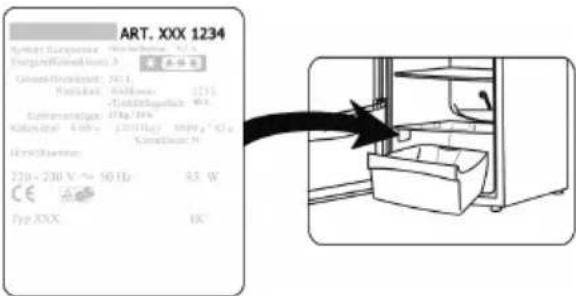

The item number you should enter in this registry can be found on the rating plate of your appliance (see figure above).

Malfunction Removal

Subsequently, there is a table with possible malfunctions and recovery methods. Check if the recovery methods can repair the malfunctions. If this is not the case, then the appliance has to be disconnected from the mains supply, and the after-sales service has to be contacted.

Fault Possible reason	and rectification
The appliance is not working.	Power cut.The main fuse has dropped out.The fuse in the wall socket is not working. Check this by plugging another appliance into the same point.
The noises are too loud (if the normal operation noises change).	Does the device have a solid stand?Does the running cooling unit set adjoining furniture or objects into vibration?Do objects positioned on the top of the appliance vibrate?

Appliance specification sheet

Model identifier DT 8770
Type of refrigerating appliance:
Low-noise appliance: No Design type: Free-standing
Wine storage appliance: No Other refrigerating appliance: Yes
Overall dimensions (H ×W ×D in mm) 1425 x 495 x 560
Total volume (in l) 173
EEI 64
Energy efficiency class C
Annual energy consumption (in kWh/a)* 124
Airborne acoustical noise emission class			C
Airborne acoustical noise emissions (in dB[A] re 1pW)			40
Climate class			N-ST
This appliance is intended for use at ambient temperatures (in °C) of:			16-38
Storage time in case of power failure (in h)			7
Weight (in kg)			42
Winter setting			No
Compartment Parameters:
Type	Volume (in l)	Recommended temperature (in°C)	Freezing capacity (kg/24h)	Defrosting type A=auto M = manual	Fast freezing facility
Fresh food	121	4	-	A	-
4 stars	52	-18	2,6	M	-
Light source parameters:
Type of light source			LED
Energy efficiency class			-
Electric data See rating label

*) The actual consumption depends on the use and the location of the appliance.

Warning sign depicting a flame symbol in a triangular shape

Technical diagram of a refrigerator with numbered parts for identification

Two vertical panels with checkmark and cross symbols, likely indicating approval or rejection status

Technical line drawing of a mechanical component with an inset showing a magnified view of a textured surface (no text or symbols)

Simple line drawing of a tool or bracket with an arrow indicating direction (no text or symbols)

Technical line drawing of a sewing machine needle stitching fabric (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical lever system with inset detail showing internal components (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Unscrew Screw

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-up views (no text or symbols)

Pure technical line drawing of a mechanical part with no text, numbers, or symbols

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

Line drawing of a cabinet or cabinet frame with a handle and scroll, no text or symbols present

Technical line drawing of a mechanical assembly with a circular component and mounting bracket (no text or symbols)

Line drawing of a mechanical component with two downward arrows indicating force or alignment (no text or symbols)

Abstract diagram of a document with arrows indicating rotational or directional movement (no text or symbols)

WAARSCHUWING: BRANDGGEVAAR!

Warning sign depicting a flame symbol in a triangular shape

Technical diagram of a refrigerator with numbered parts for identification

Two vertical panels with check and cross icons, likely indicating approval or rejection status

Technical line drawing of a mechanical component with an inset showing a magnified view of a circular feature (no text or symbols)

Simple line drawing of a mechanical lever with a handle and a pull rod, no text or symbols present

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Pure technical line drawing of a mechanical component with mounting holes and dashed lines indicating hidden edges (no text or symbols)

Technical line drawing of a mechanical lever assembly with inset detail (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Unscrew Screw

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-up views (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

Pure architectural line drawing of a window with vertical supports and horizontal beams (no text or symbols)

Technical line drawing of a mechanical assembly with a circular component and mounting bracket (no text or symbols)

Line drawing of a rectangular object with two downward arrows indicating measurement or alignment (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazard or caution.

Technical diagram of a refrigerator with numbered labels pointing to internal compartments and storage areas.

Two vertical panels with check and cross icons, likely indicating approval or rejection status

W H D F E F B C A

Technical line drawing of a structural component and its magnified view showing internal components (no text or symbols)

Simple line drawing of a tool or bracket with a downward arrow indicating motion (no text or symbols)

Technical line drawing of a sewing machine needle stitching a fabric (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Pure geometric line drawing of a 3D rectangular structure with corner markers and dashed lines indicating hidden edges (no text or symbols)

Technical line drawing of a mechanical lever system with inset detail showing internal components (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with two views: top shows circular components, bottom shows a pulley mechanism (no text or symbols)

Unscrew Screw

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-up views (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

Pure architectural line drawing of a window with vertical supports and horizontal beams (no text or symbols)

Technical line drawing of a mechanical assembly with a circular component and mounting base (no text or symbols)

Line drawing of a mechanical component with two downward arrows indicating force or alignment (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

Warning sign depicting a flame symbol inside a triangle, indicating hazard or caution

Technical diagram of a refrigerator with numbered parts labeled for identification

Two vertical panels with checkmark and cross symbols, likely indicating approval or rejection status

Technical line drawing of a mechanical component with an inset showing a magnified view of a component (no text or symbols)

Simple line drawing of a mechanical lever with a downward arrow indicating force or direction (no text or symbols)

Line drawing of a sewing machine needle stitching fabric (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Simple line drawing of a folded corner or panel with no text, numbers, or symbols

Technical line drawing of a mechanical lever system with inset detail (no text or symbols)

Pure technical diagram showing a rectangular block and a circular component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Unscrew Screw

Technical line drawing of a mechanical clamp or bracket assembly with two circular insets showing close-up views (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

Pure architectural line drawing of a cabinet or cabinet frame with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

Line drawing of a rectangular object with two downward arrows indicating features or points (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

Warning sign depicting a flame symbol inside a triangle, indicating hazard or caution

Technical diagram of a refrigerator with numbered parts labeled ① to ⑤ for identification.

Two vertical panels with check and cross icons, likely indicating approval or rejection status

Installationsmått

Technical line drawing of a mechanical component with an inset close-up showing a magnified view of internal components (no text or symbols)

Simple line drawing of a mechanical lever with a handle and a pull rod, no text or symbols present

Technical line drawing of a sewing machine needle stitching fabric (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Pure technical line drawing of a mechanical component with mounting holes and dashed lines indicating hidden edges (no text or symbols)

Technical line drawing of a mechanical lever assembly with inset detail (no text or symbols)

Pure technical line drawing of a mechanical part with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Unscrew Screw

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Pure geometric diagram with two rectangular panels and a circular cutout, no text or symbols present

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

Pure architectural line drawing of a window with vertical supports and horizontal beams (no text or symbols)

Technical line drawing of a mechanical assembly with a circular component and a bracket (no text or symbols)

Line drawing of a mechanical component with two downward arrows indicating features (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

Warning sign depicting a flame symbol in a triangular shape

Technical diagram of a refrigerator with numbered parts labeled ① to ⑤, showing internal compartments and doorways.

Two vertical panels with checkmark and cross symbols, likely indicating approval or rejection status

Asennusmitat

Technical line drawing of a mechanical component with an inset showing a magnified view of a circular component (no text or symbols)

ok to be... to be... to be...

Simple line drawing of a tool or bracket with an arrow indicating direction (no text or symbols)

Technical line drawing of a sewing machine needle stitching a fabric (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Simple line drawing of a folded corner or panel with mounting holes and dashed lines indicating hidden edges (no text or symbols)

Technical line drawing of a mechanical lever system with inset detail (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Unscrew Screw

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

Pure architectural line drawing of a window frame with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a circular component and mounting bracket (no text or symbols)

Line drawing of a rectangular object with two downward arrows indicating a cut or edge (no text or symbols present)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

ART. XXX 1234 Air Quality Condition: Air Quality Control Temperature/Maximum/Minimum / + - - - - - Pressure/Maximum/Minimum / 500 V Air Quality Control / Maximum / 200 V Air Quality Control / Minimum / 500 V Air Quality Control / Maximum / 200 V Air Quality Control / Minimum / 500 V Air Quality Control / Maximum / 200 V Air Quality Control / Minimum / 500 V Air Quality Control / Maximum / 200 V Air Quality Control / Minimum / 500 V Air Quality Control / Maximum / 200 V Air Quality Control / Minimum / 5, 200 V Air Quality Control / Maximum / 200 V Air Quality Control / Minimum / 5, 200 V Air Quality Control / Maximum / 200 V Air Quality Control / Minimum / 5, 200 V Air Quality Control / Maximum / 200 V Air Quality Control / Minimum / 5, 200 V Air Quality Control / Maximum / 200 V Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Controls Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Control Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Controller Air Quality Container

EPREL-tietokanta

Warning sign depicting a flame symbol in a triangular shape

Technical diagram of an refrigerator with numbered parts labeled ① to ⑤ for identification.

Two vertical signs with check and cross symbols, likely indicating approval or rejection status

Technical line drawing of a structural component with an inset showing a magnified view of a component (no text or symbols)

ok notch... notch... brr... brr...

Simple line drawing of a tool or bracket with a downward arrow indicating motion (no text or symbols)

Technical line drawing of a sewing machine needle stitching fabric (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Pure technical line drawing of a mechanical part with no text, numbers, or symbols

Technical line drawing of a mechanical lever assembly with inset detail (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Unscrew Screw

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

Pure architectural line drawing of a cabinet or cabinet with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

Line drawing of a rectangular object with two downward arrows indicating force or alignment (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)
