Product type	Refrigerator
Brand	SEVERIN
Model	KS 9822
Dimensions (H x W x D)	84 x 50 x 55 cm
Net weight	25 kg
Total net capacity	90 L
Refrigerator compartment capacity	80 L
Freezer compartment capacity	10 L
Energy class	A+
Annual energy consumption	120 kWh
Noise level	42 dB
Power supply	230 V, 50 Hz
Power consumption	100 W
Climate class	SN-ST (10°C – 38°C)
Defrost	Automatic (refrigerator compartment), manual (freezer compartment)
Interior lighting	LED
Shelves	2 removable glass shelves
Door balconies	2 adjustable door balconies
Vegetable drawer	1 transparent drawer
Adjustable feet	Yes, at the front
Door reversibility	Yes
Refrigerant	R600a
Maintenance	Regular cleaning with a soft cloth and soapy water; do not use abrasive products
Spare parts	Available from SEVERIN after-sales service or on the official website
Warranty	2 years

Frequently Asked Questions - KS 9822 SEVERIN

How to adjust the temperature of my SEVERIN KS 9822 refrigerator?

Use the temperature adjustment button located inside the refrigerator. Turn it to the desired position: from 1 (less cold) to 5 (colder). The ideal temperature is between 4°C and 5°C.

What to do if my refrigerator is making noise?

A slight noise is normal (compressor, refrigerant circulation). If the noise is excessive, check that the appliance is level, that it is not touching a wall or furniture, and that the adjustable feet are in full contact with the floor.

How to properly install the refrigerator?

Place the appliance in a dry and well-ventilated area, away from heat sources. Leave at least 10 cm of space around the appliance for air circulation. Adjust the feet so that it is level. Plug it into a 230 V/50 Hz outlet.

Do I need to defrost the refrigerator?

The refrigerator compartment is automatically defrosted. The freezer compartment must be defrosted manually when the frost layer exceeds 3 mm. To do this, unplug the appliance, empty the freezer and place a container to collect the water.

Can the door opening direction be reversed?

Yes, the door is reversible. Follow the instructions in the manual: disassemble the door, move the hinges to the other side, then reassemble the door. Make sure to tighten all screws properly.

What to do if the refrigerator no longer cools?

First check that the appliance is plugged in and that the thermostat is on. Make sure the door closes properly and that the seals are clean. If the problem persists, contact SEVERIN after-sales service.

How to clean the interior of the refrigerator?

Unplug the appliance and empty it. Use a soft cloth dipped in warm soapy water (mild dish soap). Do not use abrasive products or solvents. Rinse and dry thoroughly before plugging back in.

What is the power consumption of the refrigerator?

The annual consumption is approximately 120 kWh according to energy class A+. This varies depending on temperature settings, door opening frequency, and ambient temperature.

Where to buy spare parts for the SEVERIN KS 9822?

Spare parts (shelf, door balcony, door seal, etc.) are available from SEVERIN after-sales service or on their official website. Please specify the model KS 9822 when ordering.

How long does the warranty last?

The legal warranty is 2 years from the date of purchase. Keep your receipt or invoice. For conformity defects, you can contact the retailer or SEVERIN after-sales service.

USER MANUAL KS 9822 SEVERIN

Exterior view of a white stainless steel refrigerator with a handle (no visible text or symbols)

GB Instructions for use Refrigerator 10

Line drawing of a rectangular cabinet or enclosure with two vertical supports and a top panel (no text or symbols)

Technical line drawing of a rectangular frame with a curved internal component, showing dimension lines (no text or symbols)

Line drawing of a rectangular table with a recessed top and two side legs, against a plain background (no text or symbols)

Line drawing of a rectangular table with a recessed top frame and two side supports (no text or symbols)

Technical line drawing of a square frame with an arrow pointing to a small component (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and an arrow pointing to a small component (no text or symbols)

Line drawing of a simple rectangular table with a small object on top (no text or symbols)

Technical line drawing of a door frame with labeled points A and B, showing structural components without any text or symbols.

Technical line drawing of a mechanical assembly with mounting holes and base components (no text or symbols)

Technical line drawing of a mechanical assembly with two stacked plates and mounting holes (no text or symbols)

Diagram showing two rectangular panels with internal structures and directional arrows indicating movement or force (no text or symbols)

Simple line drawing of an oval with a smaller inner circle and a horizontal line, no text or symbols present.

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

• Do not operate this unit by means of a transformer.
• To prevent noise vibration, ensure that the power cord does not touch any part of the rear of the unit

General information

• This appliance is a compressor refrigerator, designed for short-term storage of food.
• Refrigeration appliances are classified into certain climate classes. Please refer to the product data sheet for information on the classification for this unit; the data sheet can be found at the end of this manual.
• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

Important safety instructions

- This appliance is intended for domestic or similar applications, such as

• in shops, offi ces and other similar working environments,
• in agricultural areas,
• by customers in hotels, motels etc. and similar establishments,

• in bed-and breakfast type environments.

• This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments.

• The cooling circuit in this appliance contains the refrigerant isobutane (R600a), a natural gas with a high level of environmental compatibility, which is

nevertheless fl ammable. Ensure, therefore, that none of the components of the refrigerant circuit become damaged during transportation and installation of the

appliance. If damage to the cooling circuit does occur, do not switch on or connect the appliance to the mains power. In the case that there is an open fire or any other sources of ignition in the vicinity of the refrigerant gas, make sure it is removed immediately from this area and that the room is then thoroughly ventilated.

• Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Suffi cient ventilation must be ensured at all times.
• Warning: Do not damage the cooling circuit. Any escaping refrigerant causes damage to the eyes; there is also a danger of the gas igniting.
• Warning: Do not use any external device (e.g.; heaters or heating fans) to accelerate de-frosting; follow only the methods recommended in this manual.

• Warning: Do not operate any electrical appliances (e.g. ice makers) inside the storage compartment that are not specifically permitted in these instructions.

• Before it is connected to the mains power, the unit must be thoroughly checked for transport damage, including its power cord. In the event of any such damage being found, the appliance must not be connected to the mains.

• This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.
• If the unit is sold, handed over to a third party or disposed of at a suitable recycling facility, attention must be drawn to the presence of the insulation agent 'cyclopenthane' as well as to the refrigerant R600a. For additional information on correct recycling please refer to the section Disposal.
• In order to comply with safety regulations and to avoid hazards, any repairs or modifications to this unit must be carried out by our authorised service personnel, including the replacement of the power cord.
  • This appliance may be used by children (at least 8

years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

• Children must not be permitted to play with the appliance.

• Children must not be permitted to carry out any cleaning or maintenance work on the appliance.

- For frequent cleaning we recommend the use of warm water with some mild detergent. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning.

- For detailed information on replacing the light bulb, please refer to the section Interior lighting.

• To prevent the risk of personal injury or damage to the unit, it must only be transported while in its original packaging.

- Caution: Keep any packaging materials well away from children: there is a risk of suffocation.

- The ice removed from the unit during de-frosting is not suitable for human consumption.

- The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.

- To avoid the risk of fire, do not place any thermo-electric appliances on top of the unit. Do not place liquid containers on top of the unit, to prevent any leaking or escaping liquid damaging the electrical insulation.

• This unit is designed for storing food only.

• Alcoholic substances may be stored only in properly sealed containers and in upright positions.

- Do not store any glass bottles containing carbonated or other freezable liquids in the unit: such bottles may burst during the freezing process.

- To avoid the risk of food poisoning, do not consume food after its storage time has expired. Thawed foods must not be frozen a second time.

- Do not lean or put undue weight on the shelves, compartments, door etc.

- Protect the inside of the refrigerator at all times from open flames and any other sources of ignition.

- Remove the plug from the wall socket

- in case of any malfunction,

- before de-frosting,

- during cleaning,

- before maintenance or repair work is carried out.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- If the unit is not used for an extended period of time, we recommend keeping the door open.

• We reserve the right to introduce technical modifications.

Familiarisation

1. Door storage area with egg tray
2. Door storage areas
3. Bottle storage
4. Temperature control and interior lighting
5. Storage shelves (height-adjustable)
6. Fruit/vegetable storage cover
7. Fruit/vegetable storage
8. Adjustable foot (left and right)

Before using for the first time

Ensure that the following accessories are included with the appliance:

1 door handle
2 screws
2 screw covers
1 hinge opening cover

- Remove any exterior and interior packaging materials completely, including the adhesive strips.

- To install the door handle, first remove both blind covers. Then secure the handle with the two screws, and finally fit the screw covers.

Line drawing of a rectangular cabinet or enclosure with two vertical supports and a top panel (no text or symbols)

Technical line drawing of a rectangular box with a curved internal component, showing dimension lines and arrows (no text or symbols)

• For positioning, we recommend that you tilt the unit slightly backwards. In this way, the transport rollers can be used to move it to its intended place of installation.
• Before it is connected to the mains, the unit must be thoroughly checked for transport damage, including its power cord.
• Clean the unit according to the instructions given in the Defrosting and cleaning section.
• Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.
• If the unit has been tilted more than 30^ during transport, allow it to stand upright for at least 4 hours before it is connected to the mains.
• When the unit is first switched on, a slight smell may be noticed. However, this will disappear once the cooling process has begun.

Installation

• The appliance should be set up in a well-ventilated, dry room.
- It should be operated in conditions where the relative humidity is no more than 70%.
• Do not use the appliance outdoors.
• The product data sheet at the end of this manual contains details of the ambient temperature range suitable for this appliance.
- Ensure that the plug is accessible and can be removed from the wall socket at any time.
- Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc).
- The unit must not be installed inside a cabinet, nor directly below a hanging cupboard, shelf or similar object.
- Ensure that the door can swing open to an angle of 160^ .
- In the case of uneven floors, the adjustable feet on the unit can be used to compensate and ensure optimum stability.

Ventilation

Ensure that there is enough space around the unit so that the air circulation round and behind it is not obstructed. (Rear and sides 5 cm, top 10 cm.)

Reversible door

The design provides for the door to be reversed, i.e. for right-hinged (default installation) to become left-hinged.

Warning: Always disconnect the unit from the mains before

any maintenance or repair work is carried out.

Before reversing the door, place the unit on its side, ensuring that it rests on a soft, smooth, non-damaging surface.

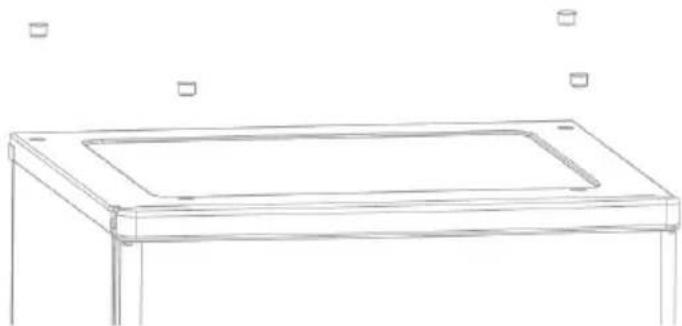

1. Remove the screw covers.

Line drawing of a rectangular table with a recessed top (no text or symbols)

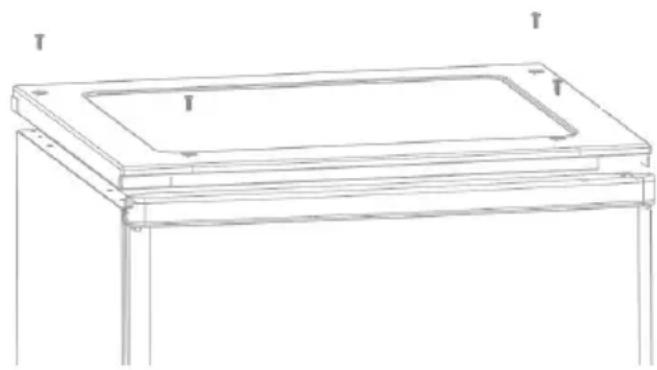

1. Take out the screws and lift off the top cover.

Line drawing of a rectangular table with two top supports and a central opening (no text or symbols)

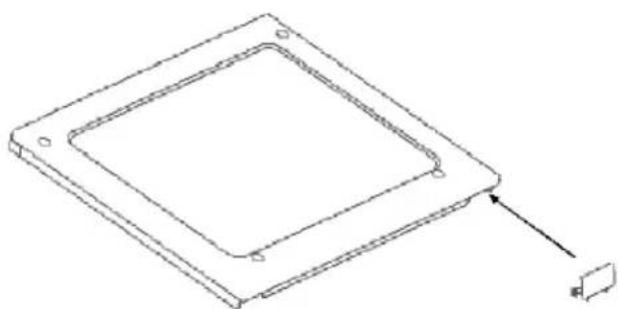

1. Remove the small panel from the front of the top cover.

Technical line drawing of a square frame with an arrow pointing to a small component (no text or symbols)

1. Reposition the small panel on the other side of the cover.

Technical line drawing of a square mechanical component with mounting holes and a small inset showing a small rectangular feature (no text or symbols)

1. Take off the upper hinge by removing the 3 screws. Take off the door and place it also on a soft, non-damaging surface to protect it against scratching.

Line drawing of a simple wooden table with two small items on top (no text or symbols)

1. Remove the hinge cover B from the inside of the door and install the hinge cover A provided into the hinge opening on the other side of the door.

Technical line drawing of a door frame structure with labeled points A and B (no text or symbols beyond labels)

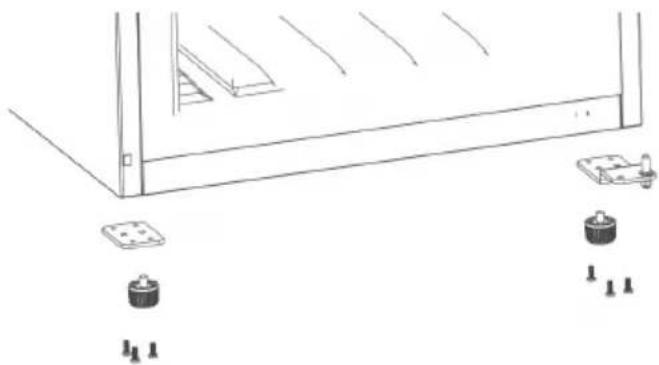

1. Remove both adjustable feet and the screws holding the lower hinge and the foot mounting.

Technical line drawing of a mechanical assembly with multiple slots and small components (no text or symbols)

1. Remove the lower hinge. Unscrew the hinge pin and reposition it in the other opening in the hinge. Now fit the lower hinge and the foot mounting on the respective opposite sides. Fit the two adjustable feet. Place the door onto the lower-hinge pin.

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Line drawing of a cabinet or shelf with mounting feet and control knobs (no text or symbols)

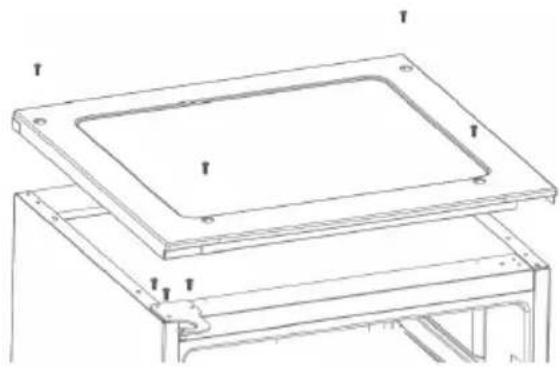

1. Take out the screws on the top left-hand side of the unit and replace them on the top right. Turn the upper hinge round through 180°. Unscrew the hinge pin and reposition it in the other opening in the hinge. Unscrew the hinge pin and reposition it in the other opening in the hinge. Fit the hinge pin into the corresponding opening in the door and tighten the screws to the secure the upper hinge to the housing.

Replace the top cover and secure it by tightening the holding screws. Finally, replace the screw covers.

Technical line drawing of a mechanical frame assembly with mounting brackets (no text or symbols)

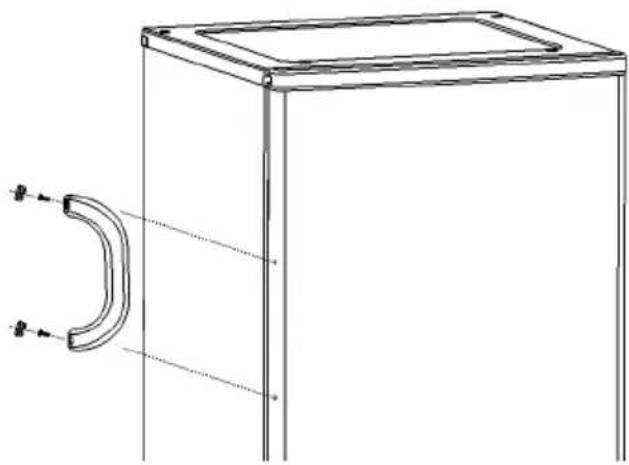

1. Now change the position of the door handle:

Take off the screw covers, remove the screws and then take off the handle.

Remove the blind covers on the other side of the door and reposition the handle in the new location.

Replace the blind covers on the other side.

Diagram showing two door frame structures with directional arrows indicating movement or force (no text or symbols)

1. Put the unit back in its intended position and wait for about two hours before connecting it to the mains.

Temperature control

The unit is activated by connecting it to the mains. It is only switched off completely when the plug is removed from the wall socket.

The temperature in the refrigerator cabinet can be adjusted by setting the temperature control. Turning the control clockwise will decrease the temperature, while turning it anti-clockwise will increase it.

• After switching on, the temperature control should be set to its highest setting.
- After approx. 30 minutes, the temperature should be changed to a medium setting, which is usually sufficient for home or offi ce use.
- Following a power interruption, or if the unit has been switched off on purpose, it may take 3 to 5 minutes before it switches on again.

Note: In position '0', the cooling function is switched off, though the appliance is still connected to the mains.

Interior lighting

Changing the light bulb:

• Remove the plug from the wall socket.
• Use a suitable screw-driver to remove the screw holding the light cover and take the cover off.
  • Take out the defective bulb and fit a new one (max. 15 W).
• Put the cover back into position, replace the screw and tighten it.
• Connect the unit to the mains power. It may take 3 to 5 minutes before it switches on again.

Storing food

• The temperature inside the refrigerator depends mainly on the ambient temperature, the temperature control setting and the amount of food stored.
• Different areas of the refrigerator cabinet are affected differently by the cooling effect. The warmest area is around the door in the higher part of the cabinet, the coldest around the rear wall and in the lower part of the cabinet.
  • The food should therefore be stored as follows:
• On main cabinet shelves (from top to bottom): bakery items, ready meals, dairy products, meat, fi sh and cold meats/sausages.
  • In the vegetable compartment: vegetables, salad and fruit.
• In the door (from top to bottom): butter, cheese, eggs, tubes (eg mustard), small bottles, large bottles, milk and fruit-juice tetra-packs.
• Initially, the temperature control should be set to position 4. If the cooling effect is too strong, lower it to position 1-3; if it is insufficient, raise it to 5-7.
• If you notice frost on the rear wall, the most likely causes are that the door has been left open for too long, warm food has been placed inside the refrigerator or the temperature control has been set too high.

• Liquid or strong-smelling food, or food which is likely to absorb strong odours (e.g. cheese, fi sh, butter), should be stored separately or in hermetically sealed containers.

• Warm food should be left to cool down to room temperature before being placed in the refrigerator.

• Always ensure that the door is properly closed and that the seal is not obstructed by food stored inside the cabinet or door.

De-frosting and cleaning

The integral evaporator is sealed in foam within the walls; you may therefore notice a build-up of frost around the rear area. This layer of frost will start melting when the compressor is not working. Through a system of hoses, the melt-water drains into the collection tray below the compressor, where it will be absorbed into the surrounding air. The unit does not therefore require de-frosting, but only proper cleaning.

- To enable the melt-water to drain freely, always ensure that the channel and discharge opening in the cabinet are free of any blockage. The drain channel should be frequently cleaned.

- Always remove the plug from the wall socket before cleaning.

• Do not pour water over or inside the unit.
• For frequent cleaning we recommend the use of warm water with some mild detergent. To prevent any unpleasant odour within the refrigerator, it should be cleaned about once a month.
• Any accessories should be cleaned separately with soapy water. Do not put them in a dishwasher.
• Do not use abrasives or harsh cleaning solutions or any cleaning agents that contain alcohol.
  • After cleaning, thoroughly clean all surfaces with fresh water before wiping them completely dry. When re-inserting the plug into the wall socket ensure that you have dry hands.
  • To save energy and to ensure optimum performance, the compressor (at the rear) should be carefully cleaned at least twice a year, with a brush or a vacuum cleaner.
  • Take care not to remove or damage the rating plate inside the cabinet during cleaning.

Energy saving tips

• The appliance should be set up in a well-ventilated, dry room.
• Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be installed between the heat source and the unit.
• Do not cover the ventilation openings and grilles, and ensure sufficient air circulation behind the unit.
• The compressor (at the rear) should be cleaned at regular intervals. Accumulated dust causes an increase in energy consumption.
• Warm food should be allowed to cool down before it is stored inside.
• Do not leave the fridge door open for too long when loading or taking out food.
• Do not set a lower-than-necessary temperature. For detailed information on the temperature settings, please refer to the section Temperature control.

Trouble-shooting

Certain typical sounds can be heard when the appliance is switched on. These sounds are:

- caused by the electric motor within the compressor assembly; during compressor start-up the sound level will be slightly higher for a limited period of time.

- caused by the cooling agent flowing through the circuit.

The following table lists the possible malfunctions, their probable causes and solutions. In the event of operational problems, check first whether a solution can be found using this table. If the problem persists, disconnect the appliance from the mains power and contact our Customer Service Department.

Problem Possible cause and solution
The appliance is not working.	There is a power failureThe main fuse has blown.The temperature control is set to ‘0’.The fuse in the wall socket (if applicable) has blown. This can be checked by connecting another electrical device to the socket and checking for function.
The normal operating sound changes or becomes louder.	Check for proper positioning (uneven floor?).Are any adjacent objects affected by the running of the cooling unit (i.e. caused to vibrate?)Are there any objects on top of the unit which might be vibrating?
Water is collecting on the bottom of the unit.	The melt-water drain system is blocked. Remove the blockage and clean the system.

Transporting the unit

To prevent damage to the unit during transport, ensure that all accessories and components inside and around the appliance are securely fastened.

The unit must only be transported in its vertical position; do not tilt any more than 30^ .

Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.

If the unit has been tilted more than 30^ during transport, allow it to stand in an upright position for at least 4 hours before it is connected to the mains.

Disposal

This appliance has been manufactured from recyclable materials. After removing the plug from the wall socket, the unit should be rendered unusable by cutting off the power cord before being disposed

of through special waste collection points in accordance with local regulations. The refrigerant and the chemical agent in the insulation foam must be disposed of through a competent agency. Take special care not to damage the cooling circuit before the unit is handed over for competent disposal.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Information needed by the Customer Service

Should repairs to the appliance become necessary, please contact our Customer Service, providing a detailed fault description and quoting the model number KS ... on the rating plate of the appliance (see picture). This information will help us to handle your request efficiently.

In case of any malfunction or other problem, or for ordering replacement parts, please contact our Customer Services Department hotline.

Art. no. KS 9822
Product category Refrigerator
Energy efficiency classification	A+
Energy consumption in kWh/year 132
The actual consumption depends on the pattern of use and the location of the appliance
Usable refrigerator capacity (litres) 250
Usable capacity * * * * - Freezer unit (litres)	--
Frost-free : refrigeration unit / freezer unit yes / --
Safe storage time in case of malfunction, hrs --
Freezing capacity, kg/24h --
Climate classifi cation N,ST,T
Ambient temperature range, °C 16-43°C
Noise emission 43 dB(a)
Dimensions (H x W x D) in mm 1440 x 551 x 554
Weight (kg) 40
Electrical specifi cations See rating plate

Réfrigérateur

Chère cliente, Cher client,

Warning symbol of a flame inside a triangle (no text or numbers)

Line drawing of a rectangular table with a recessed top and two side supports (no text or symbols)

Line drawing of a rectangular table with two top supports and a central opening (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small attached component (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small inset showing a small object (no text or symbols)

Line drawing of a simple wooden table frame with two small items on top (no text or symbols)

Technical line drawing of a door frame with labeled points A and B, showing structural components without any text or symbols.

Technical line drawing of a mechanical assembly with multiple slots and small components (no text or symbols)

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

Diagram showing two door-like structures with directional arrows indicating movement or force (no text or symbols)

Simple line drawing of an oval with internal segments labeled 1, 2, and 3 (no text or symbols beyond labels)

Line drawing of a rectangular table with a recessed top and two side supports (no text or symbols)

1. Neem er de schroeven uit en til er de topafdeking af.

Line drawing of a rectangular table with two top supports and a central opening (no text or symbols)

Technical line drawing of a square frame with an arrow pointing to a small component (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small inset showing a small component (no text or symbols)

Line drawing of a rectangular frame with a lid and two small items on top (no text or symbols)

Technical line drawing of a door frame with labeled points A and B, showing structural components without any text or symbols.

Technical line drawing of a mechanical assembly with multiple supports and mounting components (no text or symbols)

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

1. Verander nu de positie van de deurhendel:

Diagram showing two door frame structures with directional arrows indicating movement or force (no text or symbols)

Simple line drawing of an oval with internal segments labeled 3, 4, and 5 (no text or symbols beyond labels)

Line drawing of a rectangular cabinet or enclosure with two vertical supports and a top panel (no text or symbols)

Technical line drawing of a rectangular frame with a curved internal component, showing dimension lines (no text or symbols)

Line drawing of a rectangular table with a recessed top and legs, no text or symbols present

Line drawing of a rectangular frame with two side supports and a central opening, no text or symbols present

Technical line drawing of a square mechanical component with a small inset showing a small component (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small rectangular element attached (no text or symbols)

Line drawing of a simple wooden table with a flat top and two small items on the side (no text or symbols)

Technical line drawing of a door frame with labeled points A and B, showing structural components without any text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with two stacked components and mounting holes (no text or symbols)

Diagram showing two door-like structures with directional arrows indicating movement or force, no text or symbols present.

Simple line drawing of an elliptical shape with a smaller inner circle (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Line drawing of a rectangular table with a recessed top and legs, against a plain background (no text or symbols)

Line drawing of a rectangular table with two side supports and a central opening (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small inset component (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small inset showing a small object (no text or symbols)

Line drawing of a simple rectangular table with a flat top and side legs, no text or symbols present.

Technical line drawing of a door frame with labeled points A and B, showing structural components without any text or symbols.

Technical line drawing of a mechanical assembly with multiple supports and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with two stacked components and mounting holes (no text or symbols)

Diagram showing two door-like structures with directional arrows indicating movement or force, no text or symbols present.

Simple line drawing of an oval with a smaller inner circle and a horizontal line, no text or symbols present.

Line drawing of a rectangular cabinet or enclosure with two vertical supports and a top panel (no text or symbols)

Technical line drawing of a rectangular box with a curved internal component, showing dimension lines and arrows (no text or symbols)

Line drawing of a rectangular table with a recessed top and legs, no text or symbols present

Line drawing of a rectangular table with two top supports and a central opening (no text or symbols)

Technical line drawing of a square frame with a small component attached (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small attached component (no text or symbols)

Line drawing of a simple metal frame with a small inset showing a small object, no text or symbols present.

Technical line drawing of a door frame with labeled points A and B, showing structural components without any text or symbols.

Technical line drawing of a mechanical assembly with mounting holes and base components (no text or symbols)

Technical line drawing of a mechanical assembly with two stacked components and mounting brackets (no text or symbols)

Diagram showing two door-like structures with directional arrows indicating movement, no text or symbols present

Line drawing of a rectangular cabinet or enclosure with two vertical supports and a top panel (no text or symbols)

Technical line drawing of a rectangular frame with a curved internal component, showing dimension lines and arrows (no text or symbols)

Line drawing of a rectangular table with a recessed top (no text or symbols)

Line drawing of a rectangular table with two top supports and a central opening (no text or symbols)

Technical line drawing of a square mechanical component with an arrow pointing to a small component (no text or symbols present)

Technical line drawing of a square mechanical component with a small inset showing a small object (no text or symbols)

Line drawing of a simple wooden table with two small items on top (no text or symbols)

Technical line drawing of a door frame structure with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting holes and base components (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Line drawing of a cabinet or shelf with mounting feet and control knobs (no text or symbols)

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

Diagram showing two door-like structures with directional arrows indicating movement or force (no text or symbols)

Simple line drawing of an elliptical shape with a smaller inner circle (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Line drawing of a rectangular cabinet or enclosure with two vertical supports and a top shelf (no text or symbols)

Technical line drawing of a rectangular box with a curved internal component, showing dimension lines and arrows (no text or symbols)

Line drawing of a rectangular table with a recessed top (no text or symbols)

Line drawing of a rectangular table with two top supports and a central opening (no text or symbols)

Technical line drawing of a square frame with a small component attached to the right side (no text or symbols)

Technical line drawing of a square mechanical component with a small inset showing a small object (no text or symbols)

Line drawing of a simple wooden table with a flat top and two small items on the side (no text or symbols)

Technical line drawing of a door frame with labeled points A and B, showing structural components without any text or symbols.

Technical line drawing of a mechanical assembly with multiple supports and mounting components (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Line drawing of a room interior with wall-mounted fixtures and small circular components (no text or symbols)

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

Diagram showing two door frame structures with directional arrows indicating movement, no text or symbols present

Simple line drawing of an elliptical shape with a smaller inner circle, no text or symbols present.

Warning symbol of a flame inside a triangle (no text or numbers)

Line drawing of a rectangular cabinet or enclosure with two vertical supports and a top panel (no text or symbols)

Technical line drawing of a rectangular frame with a curved cutout and dimension lines (no text or symbols)

Line drawing of a rectangular table with a recessed top and two small square items on top (no text or symbols)

Line drawing of a rectangular table with two handles and a central opening (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small attached component (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small attached component (no text or symbols)

Line drawing of a simple wooden table with two small items on top (no text or symbols)

Technical line drawing of a door frame structure with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with multiple slots and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

Diagram showing two door-like structures with directional arrows indicating movement or force (no text or symbols)

Regulator temperature

Warning symbol of a flame inside a triangle (no text or numbers)

Line drawing of a rectangular cabinet or enclosure with two vertical supports and a top panel (no text or symbols)

Technical line drawing of a rectangular frame with a curved cutout and dimension arrows (no text or symbols)

Line drawing of a rectangular table with a recessed top (no text or symbols)

Line drawing of a rectangular table with a recessed top frame and two side supports (no text or symbols)

Technical line drawing of a square mechanical component with an arrow pointing to a small component (no text or symbols present)

Technical line drawing of a square mechanical component with a small inset showing a small object (no text or symbols)

Line drawing of a simple rectangular table with a flat top and side legs, no text or symbols present.

Technical line drawing of a door frame with labeled points A and B, showing structural components without any text or symbols.

Technical line drawing of a mechanical assembly with multiple slots and small components (no text or symbols)

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

Diagram showing two rectangular panels with internal structures and directional arrows indicating movement or force (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Technical line drawing of two mechanical components with dimension annotations (no text or symbols)

Line drawing of a rectangular table with a recessed top and legs, no text or symbols present

Line drawing of a rectangular table with a recessed top frame and two side supports (no text or symbols)

Technical line drawing of a square electronic component with a small inset showing a small component (no text or symbols)

Technical line drawing of a square mechanical component with mounting holes and a small rectangular base (no text or symbols)

Line drawing of a simple rectangular table with a small object on top, no text or symbols present

Technical line drawing of a door frame structure with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with multiple slots and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with two stacked components and mounting holes (no text or symbols)

Diagram showing two door frame structures with directional arrows indicating movement, no text or symbols present

2/F., Block A, Dong He Industrial Building

Yue He Street, Sha Shen Road, Sha Tou Jiao

Shenzhen

Tel.: [phone] or 25550852

Fax: [phone] or 25357498

eMail: [e-mail]

Web: http://www.severinchina.com

Czech Republic

BVZ Commerce s.r.o.

Parkerova c.p. 618

CZ 25067 Klecany

Tel.: [phone]

Fax: [phone]

Danmark

F&H of Scandinavia A/S

Gl. Skivevej 70

DK-8800 Viborg

Tel.: [phone]

Fax: [phone]

F-67210 OBERNAI CEDEX

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Web: http://www.severin.fr

Greece

BERSON

C. Sarafi dis Bros. S.A.

Agamemnonos 47

176 75 Kallithea, Athens

Tel.: [phone]

Philippos Business Center

Service Post of Thermi

570 01 Thessaloniki, Greece

Tel.: [phone]

Hong Kong

Pacifi c Coff ee Company

7/F Hollywood Centre, 233 Hollywood Road,

Sheung Wan, Hong Kong

Tel.: [phone]

Fax: [phone]

eMail: espresso@pacifi ccoff ee.com

India

Zansaar

1210, 2nd Floor

Fawar Manor, 100ft Road

Indiranagar, Bangalore 560 038

Tel.: [phone]

eMail: [e-mail]

Web: http://www.zansaar.com

Iran

IRAN-SEVERIN KISH CO. LTD.

No. 668, 7th. Floor

Bahar Tower

Ave. South Bahar

TEHRAN - IRAN

Tel.: [phone]

Fax: [phone]

[e-mail]

www.iranseverin.com

Iraq

Al JOUD Home Appliances Manufacturing Co. Ltd

PIC: Eng. Ahmad Al-Sharabi

Al Joud Building Karadat Kharej

Baghdad - Iraq

Tel.: [phone]

[phone]

[phone]

Ireland

Bluestone Sales & Distribution Ltd

26 Oaktree Business Park

Trim Co Meath Ireland

Tel.: [phone]

Fax: [phone]

Web: www.bluestone.ie

Italia

via Dino Col 52r-54r-56r,

I - 16149 Genova

Green Number: 800240279

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

Jordan

J.L.C.

P.O. Box 910330

Mecca Street, Jaber Complex Building No. 193

Amman 11191 Jordan

Tel: [phone]

Korea

Jung Shin Electronics co., Ltd.

501, Megaventuretower 77-9,

Moonrae-Dong 3ga, Yongdeungpo-Gu

Seoul, Korea

Tel: [phone]\~7

Fax: [phone]

Service Hotline: [phone]

Kuwait

Mohammed Abdulrahman Al Bahar

Al Bahar Building P.O. Box 148

Safat 13002 Kuwait

Tel: [phone]

Latvia

SERVO Ltd.

Mr. Janis Pivovarenoks

Tel: [phone]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Tel: [phone]

Fax:[phone]

eMail: [e-mail]

Internet: www.khouryhome.com

Luxembourg

Ser-Tec

GHALA 112, P.O. Box 996

Muscat Sultanate of Oman

Tel.: [phone]

Fax.: [phone]

Philippines

COLOMBO MERCHANT PHILIPPINES, INC.

Mezzanine 1, South Center Tower

2206 Venture Street, Madrigal Business Park

Alabang, Muntinlupa City

Tel.: [phone]

eMail: [e-mail]

Polska

SERV- SERWIS SP. Z 0.0.

UL. WSCHODNIA 4

46-070 CHMIELOWICE K/OPOLA

Tel: [phone]

Fax: [phone]

Serbia and Montenegro

tel: + 381-21-524-638

tel: [phone]

fax: [phone]

Singapore

Beste (S) Pte. Ltd.

Tagore Building

6 Tagore Drive, #03-04

Singapore 787623

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljubljana

Tel: [phone]

Fax: [phone]

Slowak Republic

PREMT,s.r.o.

Skladová 1

917 01 Trnava

Tel: [phone]

Fax: [phone]

eMail: [e-mail]

South Africa

AL.CD. Ashley (Pty) Ltd

ABSA on Grove

Grove Avenue

Claremont, Cape Town 7708

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Web: www.alcdashley.co.za

Svenska

Rakspecialisten HS

Möllevångsgatan 34

214 20 Malmö

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Switzerland

VB Handels Sàrl GmbH

Postfach 306

1040 Echallens

Tel: [phone]

Fax: [phone]

mail: [e-mail]

Syria

Joud Industries Domestic Appliances Co.

P.O. Box 199 or 219

Motorway entrance

Lattakia - Syria

Tel.: [phone]

[phone]

Fax: [phone]

Thailand

Verasu Ltd. part.

83/7 Wireless Rd., Lumpini,

Patumwan, Bangkok 10330

Tel.: [phone]

eMail: [e-mail]

United Arab Emirates

Juma al Majid Est

P.O. Box 156

Dubai U.A.E.

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Web: www.al-majid.com

United Kingdom

Homespares Centres Limited

Firwood Industrial Estate

Thicketford Road

Bolton, BL2 3TR

Tel.: [phone]

Fax: [phone]

eMail: offi [e-mail]

Web: www.hscl.info

Vietnam

Brand Partner

W.22, D. Binh Thanh

180/38 Nguyen Huu Canh Street

Ho Chi Minh City. Vietnam

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Stand: 05.2014 (Special Edition)
