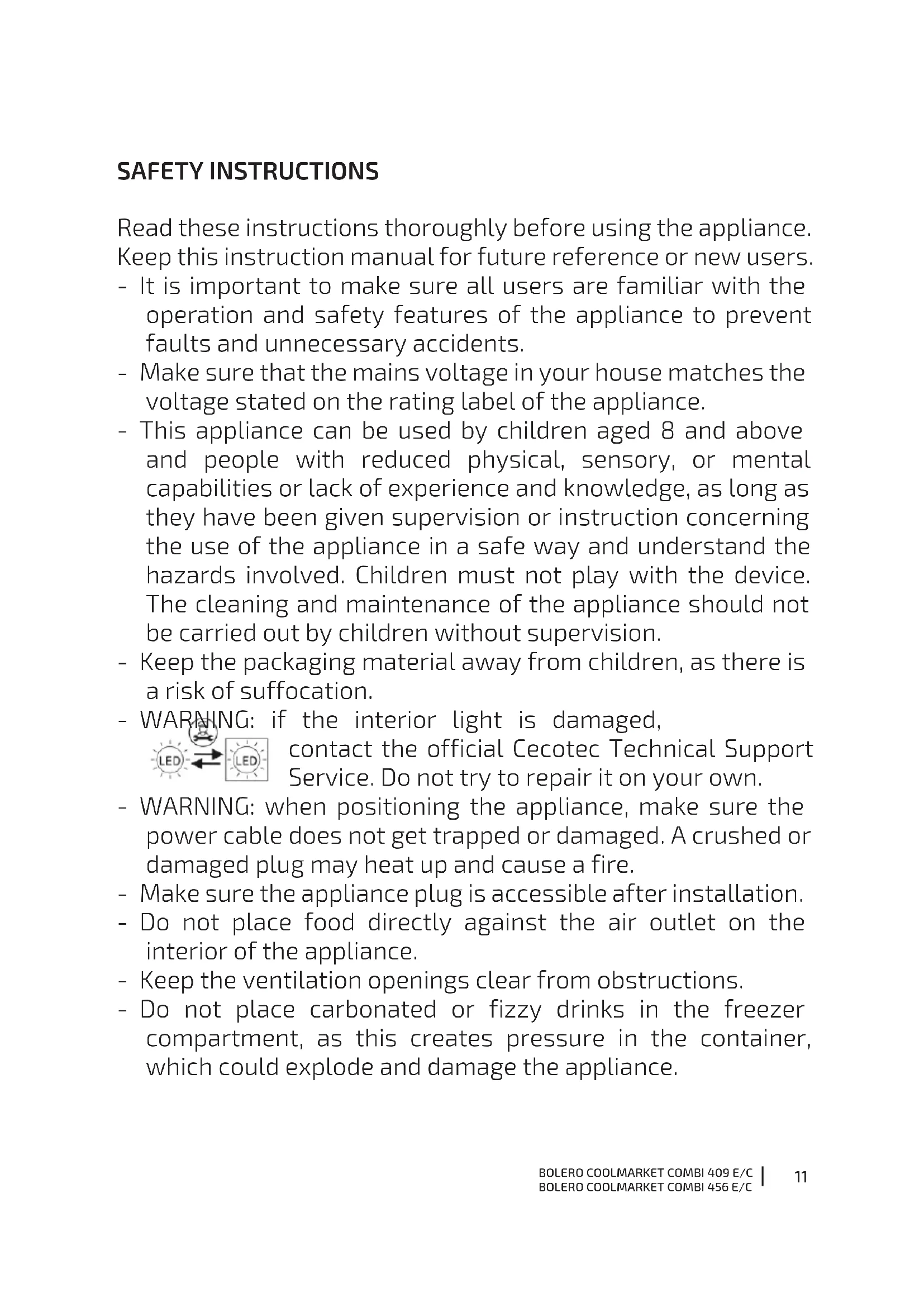

SAFETY INSTRUCTIONS Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users. - It is important to make sure all users are familiar with the operation and safety features of the appliance to prevent faults and unnecessary accidents. - Make sure that the mains voltage in your house matches the voltage stated on the rating label of the appliance. - This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the device. The cleaning and maintenance of the appliance should not be carried out by children without supervision. - Keep the packaging material away from children, as there is a risk of suffocation. - WARNING: if the interior light is damaged, contact the official Cecotec Technical Support Service. Do not try to repair it on your own. - WARNING: when positioning the appliance, make sure the power cable does not get trapped or damaged. A crushed or damaged plug may heat up and cause a fire. - Make sure the appliance plug is accessible after installation. - Do not place food directly against the air outlet on the interior of the appliance. - Keep the ventilation openings clear from obstructions. - Do not place carbonated or fizzy drinks in the freezer compartment, as this creates pressure in the container, which could explode and damage the appliance.12

- WARNING: do not use mechanical appliances or other means to accelerate the defrosting process other than those recommended by Cecotec. - WARNING: do not damage the refrigeration circuit. - If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards. - WARNING: do not use electrical appliances inside the refrigerator. - We recommend you check the power cable regularly to detect any sign of possible damage. Do not use the appliance if the cable is damaged. - To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface. - You should never use this refrigerator with an extension lead or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply. - When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation. - Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature beforehand. - Do not place any other appliance on top of the refrigerator and do not get it wet. - Do not store explosive substances such as aerosols or flammable propellants in this appliance. - This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices. - WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions. - This appliance has a built-in earthed plug. Make sure the power supply in your house is properly earthed.13

- Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged. - This appliance is not intended to be operated by means of an external timer or separate remote-control system. - Always handle the appliance carefully to avoid any damage on it. - Frozen food can cause frostbites if consumed right after removing it from the freezer compartment. - Do not remove or touch items in the freezer compartment with your hands wet, as it could cause skin abrasions or frost/freeze burns. - Never use the base, drawers, or door as support. - Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance. - WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the appliance. - To avoid food contamination, please follow the instructions below: o Opening the door for a long period of time may cause a significant increase in temperature in the appliance compartments. o Regularly clean the surfaces that come into contact with food and with the accessible draining systems. o Clean the water tank if it has not been used for 48 hours. o Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on other food. o The two-star compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.14

o Compartments with one, two, or three stars are not suitable for freezing fresh food. o If the appliance is not going to be used or be empty for a long period of time, switch it off, allow it to defrost, clean it, dry it, and leave the doors open to prevent interior mould growth. - Before carrying out any maintenance and cleaning task, turn off the appliance and unplug it. - It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor. - Air must flow around the appliance. Lack of air leads to overheating. To achieve good ventilation, follow the installation instructions. - Whenever possible, the rear part of the appliance should not be too close to the wall to prevent it from touching or reaching the hot parts (the compressor and the condenser). To avoid risk of fire, follow the installation instructions. - Make sure that the mains plug is accessible after installation of the appliance. - All electrical work required to maintain this appliance must be carried out by a qualified electrician. - Use the appliance only for the purposes described in this manual. Incorrect or improper use can damage the appliance and be dangerous for the user. Temperature range - The appliance temperature range information can be found on its marking. It indicates the optimum room temperature for proper operation of the appliance. Climate range Optimum room temperature SN From +10 °C to +32 °C15

N From +16 °C to +32 °C ST From +16 °C to +38 °C T From +16 °C to +43 °C Note: - Taking into account the limiting values of the room temperature range for the climates for which the appliance is designed and that internal temperatures may be affected by factors such as the location of the appliance, room temperature and frequency of door opening, it may be necessary to modify the setting of any temperature control device according to these factors. - If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to maintain the desired indoor temperatures. Refrigerant - Isobutane refrigerant (R600a), contained within the refrigeration circuit of the appliance, is a natural gas with a high level of environmental compatibility; however, it is flammable. Make sure that no components of the refrigeration circuit have been damaged during the transport and installation of the appliance. - WARNING: the refrigerant and the insulator gas are flammable. When disposing of the device, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames. - WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.16

- This symbol means: warning, risk of fire/flammable materials. - If the refrigeration circuit is damaged: o Avoid open flames and sources of ignition. o Completely air the room where the appliance is located.

2. Crisper drawer (GreenHub)

3. Adjustable temperature drawer (Freshness Flex Hub)

4. Freezer-compartment shelf

5. Freezer-compartment drawer

NOTE: To make the most out of the refrigerator in terms of energy, place all the shelves and drawers in their original position, that is, as shown in Figure 1. The graphics in this manual are schematic representations and may not exactly match the product.

- This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all packaging materials are recycled accordingly. - Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately. Box content - Refrigerator - Instruction manual Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

- Before using your refrigerator, remove all packaging materials, including the baseBOLERO COOLMARKET COMBI 409 E/C

ENGLISH cushion, foam padding inside the refrigerator, adhesive tape, etc., and remove the protective film from the door and refrigerator body. - Keep the refrigerator away from heat sources and avoid direct sunlight. Do not place it in humid or wet areas to prevent rust or reduced insulation effectiveness. - Do not spray or clean the refrigerator with water, and do not place it where it may be exposed to moisture or water splashes, as this could affect the electrical insulation performance. - Place the refrigerator in a well-ventilated indoor location with a flat, firm floor (if there is any instability, adjust the levelling feet by turning left or right to level it). - This refrigerator must be installed as a freestanding unit and cannot be used as a built- in appliance, otherwise this will result in fitting issues with cabinets, reduced product lifespan, and void the manufacturer’s basic product warranty. Notes - After transport, wait more than 2 hours before connecting the refrigerator to the power supply, otherwise this may cause product performance degradation or damage. - Before storing fresh or frozen food, let the refrigerator run for 2-3 hours; if the room temperature is high, the refrigerator should run for more than 4 hours before use. - In case of a power failure or cleaning, unplug the appliance and wait at least five minutes before turning the power back on to prevent compressor damage from continuous starts. Levelling the refrigerator Turn the bottom levelling feet clockwise to raise the refrigerator. Turn the bottom levelling feet counterclockwise to lower the refrigerator. Reversing the door opening direction To reverse the door opening direction you will need the following tools (not included): crosshead screwdriver, 5/16” socket wrench, flat-head screwdriver and paper jointing tape. Fig. 2 key:

Decorative hinge cover

Decorative hinge hole cover

Decorative hinge cover Follow these steps carefully to reverse the door opening direction. Please pay special attention to the figures.

1. Remove all food items from the door shelves.

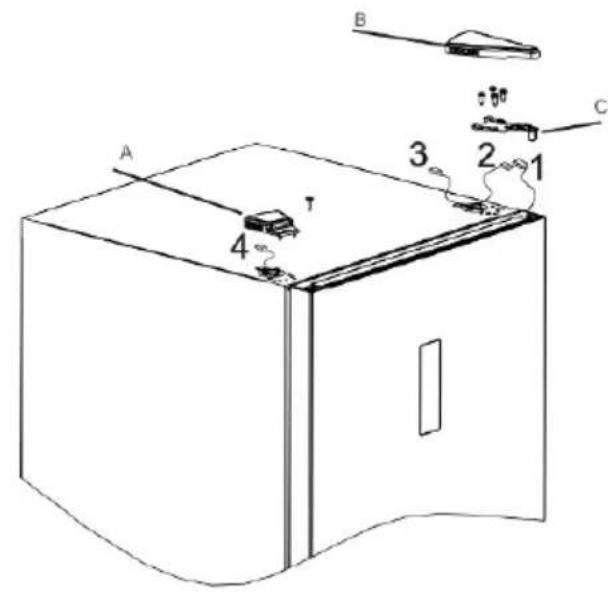

2. Remove the upper hinge cover, decorative hinge cover and upper hinge. Disconnect the

connection cables (wire terminals 1 and 2) at the top right side of the refrigerator. Fig. 2

3. Remove the refrigerator door (pay attention to small parts such as the shaft sleeve and

door stopper, make sure they are not lost). Remove the middle hinge and the decorative hinge hole cover from the opposite side. Fig. 3

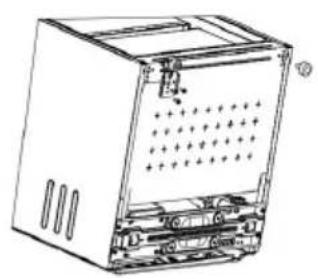

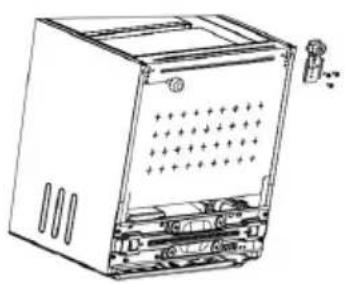

4. Remove the lower hinge and levelling feet. Remove the stopper and lower hinge shaft and

install them on the other side. Install the lower hinge, along with these two components, on the opposite side of the refrigerator. The levelling feet should be installed in its original position. Fig. 4

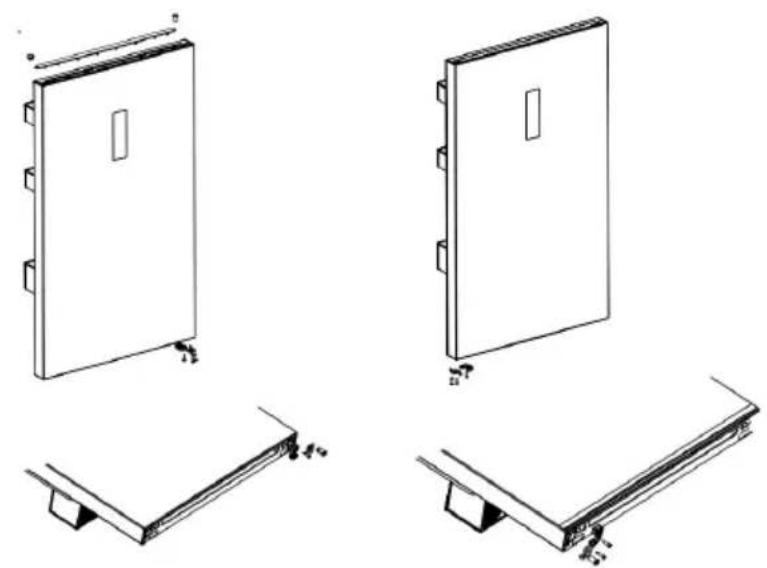

5. Replacing the refrigerator door: Remove the top end cover cap and hole plug from the

refrigerator door end cover, install the upper shaft sleeve and door connection cables on the opposite side, and insert the top end cover cap. Then install the hole plug on the opposite side of the top end cover. Take the door self-locking component, door bracket and door shaft sleeve from the accessories bag. Remove the left door self-locking component and install it on the left side of the refrigerator door bottom end cap. Replace the door bracket and shaft sleeve on the left side of the refrigerator door bottom end cap. Fig. 5

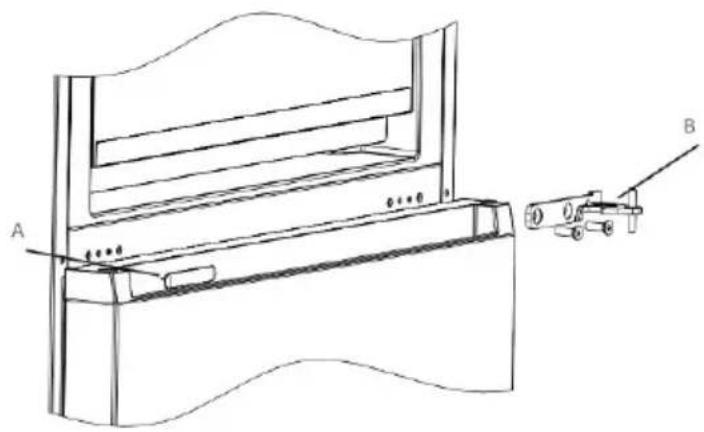

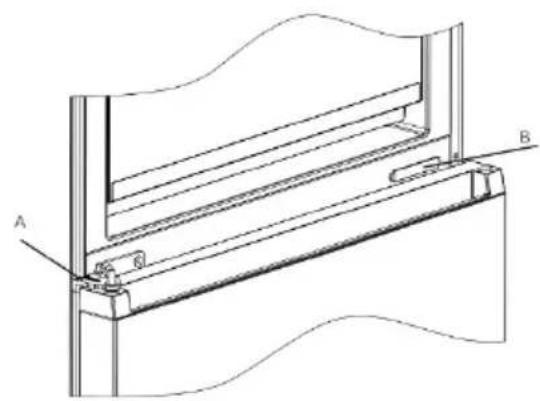

6. Replacing the freezer door: Remove the shaft sleeve from the top end cap of the

refrigerator door and install it on either the left or right side (depending on desired door opening direction). Remove the freezer door self-locking component, take the left door self-locking component from the accessories bag and install it on the left side of the freezer door bottom end cap. Replace the door bracket and shaft sleeve on the left side of the freezer door bottom end cap. Fig. 6

the connection cable 4 on the top of the refrigerator to the connection cable 1 on the door. Finally, install the hinge cover on the upper left side. The decorative hinge cover is installed on the upper right side. Fig. 8 NOTE: The figures in this section are for reference only and may vary from the actual installation procedure.BOLERO COOLMARKET COMBI 409 E/C

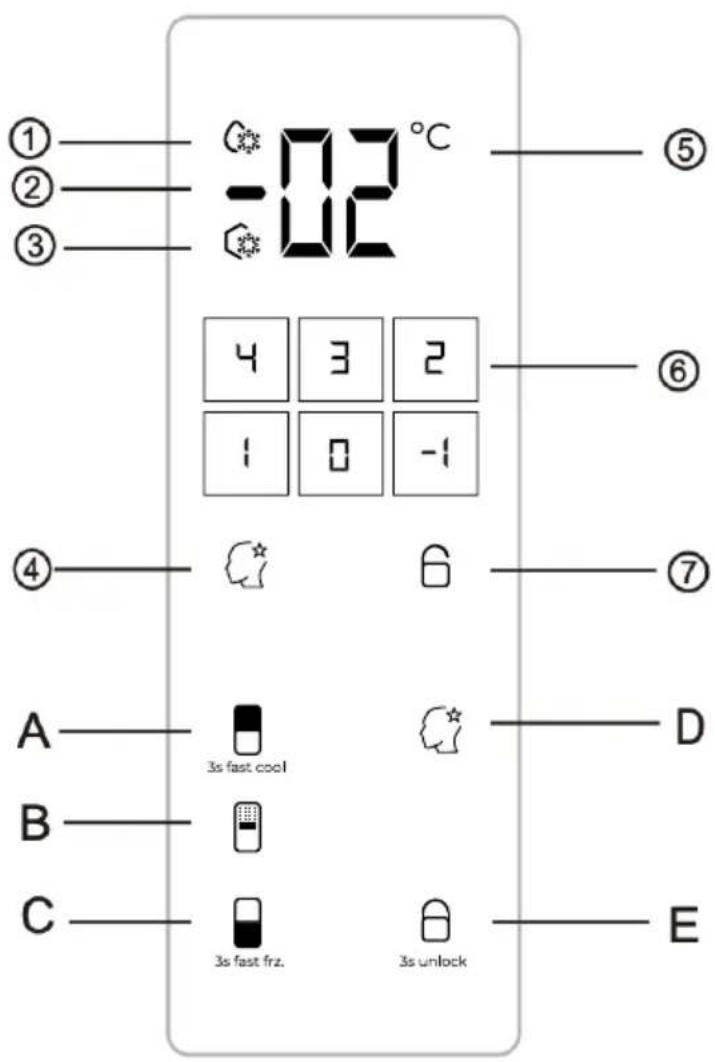

6. Adjustable temperature setting indicator lights (Freshness Flex Hub)

Refrigerator-compartment temperature setting

Adjustable temperature drawer temperature setting (Freshness Flex Hub)

Freezer-compartment temperature setting

Lock/unlock button - The first time you connect the refrigerator, the display lights up fully for 3 seconds with a start-up sound. Default temperature settings are: refrigerator 5 °C, adjustable temperature drawer 4 °C, and freezer -18 °C. - Temperature display area: During normal operation, the set temperature of the refrigerator compartment is displayed every 3 seconds. If there is a fault, the error code is displayed cyclically after locking. While adjusting the temperature, its indicator area lights up and the other areas are turned off. - Under normal circumstances, in the locked state, the display turns off if a door is not opened or a button is not pressed after 30 seconds. - Each time a door is opened or a button is pressed, the display returns to its normal operation. - For visible error codes, the display lights up and turns off after 30 seconds. Lock/unlock function - When unlocked, press and hold the lock/unlock button for 3 seconds to enter the locked state. The unlock indicator light will turn off. - When locked, press and hold the lock/unlock button for 3 seconds to enter the unlocked state. The unlock indicator light will light up. - After 30 seconds without pressing any buttons, the refrigerator automatically enters the locking state. - All settings must be made in the unlocked state. If attempted while locked, the unlock indicator light will flash for 3 seconds, and the appliance will beep at the same time. Refrigerator compartment settings - If a temperature between 2 and 8 °C is not shown on the display, press the refrigerator- compartment temperature setting button once.BOLERO COOLMARKET COMBI 409 E/C

ENGLISH - Press the button again to adjust the temperature of the refrigerator compartment. The temperature will increase 1 °C each time it is pressed. When the temperature reaches 8 °C, press the button again to return to 2 °C and so on. NOTE: You can set the temperature of the refrigerator between 2 °C and 8 °C. - Press and hold the button for 3 seconds to activate the Fast Cooling mode and the corresponding indicator light will light up. At this time, the display will show 2 °C. Press and hold the button again for 3 seconds to deactivate the Fast Cooling mode and restore the previous temperature setting. NOTE: The Fast Cooling mode default temperature is 2 ºC and cannot be changed. - The setting will be done after the refrigerator is locked. Adjustable temperature drawer (Freshness Flex Hub) temperature and Fresh Flex function setting - Press the adjustable temperature drawer temperature setting button . Each time you press the button, the temperature will change as follows: -1→4→3→2→1→0→-1 (°C) → ... - The setting will be done after the refrigerator is locked. Freezer compartment settings - If a temperature between -16 and -24 °C is not shown on the display, press the freezer- compartment temperature setting button once. - Press the button again to adjust the temperature of the freezer compartment. The temperature will drop 1 °C each time it is pressed. When the temperature reaches -24 °C, press the button again to bring the temperature back to -16 °C and so on. NOTE: You can set the temperature of the freezer between -16 °C and -24 °C. - Press and hold the button for 3 seconds to activate the Fast Freezing mode and the corresponding indicator light will light up. At this time, the display will show -26 °C. Press and hold this button again for 3 seconds to deactivate the Fast Freezing mode and restore the previous temperature setting. NOTE: The Fast Freezing mode default temperature is -26 ºC and cannot be changed. - The setting will be done after the refrigerator is locked. ECO mode - Press the ECO mode button to activate it. The refrigerator-compartment temperature is set to 5 °C and the freezer-compartment temperature to -18 °C (the temperature of the adjustable temperature drawer maintains its original setting). Press the button again to deactivate this mode. NOTE: The ECO mode default temperature is 5 °C (refrigerator compartment) and -18 °C (freezer compartment) and cannot be changed.BOLERO COOLMARKET COMBI 409 E/C

ENGLISH Display control - After 30 seconds of operation, the display backlight will automatically turn off. Press any button to light it up again. Shutdown memory - If there is a power failure, the appliance continues to operate according to the previous settings when power returns. Open door alarm - If the refrigerator door is not closed properly or is open for more than 120 seconds, an alarm will sound and stop when the door is closed.

5. CLEANING AND MAINTENANCE

Unplug the power cord from the mains before cleaning and defrosting the refrigerator. Cleaning - Clean the dust around the refrigerator to improve the heat dissipation effect and save energy. - The interior of the refrigerator should be cleaned frequently to avoid unpleasant odours. Use a soft cloth dampened with water and wipe dry with another cloth. Do not use hard brushes, steel wool, wire brushes, abrasives (such as toothpaste), organic solvents (such as alcohol, benzene, lacquer thinner, etc.), boiling water, acid and alkaline substances to clean the refrigerator. This can damage the surface and coating of the refrigerator. Do not use water for cleaning, so as not to affect the performance of the electrical insulation. Use a dry cloth when cleaning electrical components such as the light bulb. Defrost This refrigerator has a total cooling system with automatic defrost function without the need for manual operation. Defrost cycle Room temperature Defrost cycle Time Specific conditions 32 °C Minimum defrost cycle 12 h Frequent use, the freezer compartment cannot reach the set temperature. Maximum defrost cycle 96 h The door is not opened and closed frequently, and the ECO mode is not activated.BOLERO COOLMARKET COMBI 409 E/C

ENGLISH - In case of power failure: The door opening frequency should be reduced as much as possible when the power is cut off. - If the refrigerator is not going to be used for a long time: disconnect the refrigerator from the power socket to avoid electric shock or fire due to the aging of the power cord. Cleaning the inside of the refrigerator: open the refrigerator door for a while and close it after the refrigerator is completely dry. - When moving the refrigerator: Remove all food items from the appliance before relocating it, secure the glass partition and the fruit and vegetable crisper drawer with tape, and tighten the levelling feet. Close the refrigerator door tightly and secure it with tape to prevent it from opening. Do not place it upside down or horizontally during transportation. The angle of inclination during handling should not exceed 45 degrees. Do not grip the door or hinge during transportation. Note: Once the refrigerator is in operation, it is best to use it continuously. Under normal circumstances, do not switch off the refrigerator so as not to affect its service life.

If the following simple problems occur, you can try to solve them yourself. If the problem persists, please contact the official Cecotec Technical Support Service. Problem Possible causes The refrigerator does not work. Check if the power supply is connected and the plug is properly plugged in. The voltage is too low. The refrigerator has an unpleasant odour. Strong-smelling food should be well wrapped. Check for spoiled food. The interior of the refrigerator needs to be cleaned. The compressor runs for a long time. In summer, it is normal for the refrigerator to run for a long time because the room temperature is higher. Too much food has been placed at once. Allow cooked food to cool down before placing it in the refrigerator. The refrigerator door is opened too often. The refrigerator light does not turn on. Check if the refrigerator is switched on or if the bulb is damaged. The bulb must be replaced by a professional. To do so, please contact the official Cecotec Technical Support Service. The refrigerator door does not close properly. The door is jammed with food, so it cannot be closed. Too much food has been placed in the refrigerator. The refrigerator is not level. The refrigerator makes noises. Check if the floor is flat and the refrigerator is placed in a stable position. Check if the refrigerator accessories are in normal position. The door gasket appears to be loose. Remove any foreign material from the door gasket. Heat the door gasket and restore it after cooling (with a hair dryer or hot towel).BOLERO COOLMARKET COMBI 409 E/C

ENGLISH Problem Possible causes Water accumulates on the floor. Too much stored food or too much humidity in the refrigerator causes a large amount of water during defrosting. Incorrect placement of food and other reasons cause air to enter and form frost, increasing the water produced by defrosting. The side of the refrigerator heats up. It is normal for the built-in resistor to dissipate heat through the housing. The room temperature is too high, and there is too much food, or a short compressor run time. This causes the housing to heat up. Pay attention to ventilation and heat dissipation. There is external condensation. When the room temperature is too high, condensation will occur on the outside surface of the refrigerator and on the door surface. This is a normal phenomenon and can be cleaned with a cloth. There is an abnormal sound in the refrigerator. Buzzing: When the compressor runs, it will produce a buzzing sound. The sound is loud when it starts or stops, but it is a normal phenomenon. Squeaking: It is a normal phenomenon for the refrigerant in electrical appliances to make a squeaking noise when flowing. Error codes If any of the following codes appear on the display, stop using the refrigerator. Although the refrigerator may still be able to cool when one of these errors occurs, you should contact the official Cecotec Technical Support Service as soon as possible. Error code Description E1 Refrigerator-compartment temperature sensor fault E2 Freezer-compartment temperature sensor fault E3 Adjustable temperature drawer temperature sensor fault E4 Freeze/defrost cycle sensor fault E5 Room temperature sensor fault E6 Communication circuit faultBOLERO COOLMARKET COMBI 409 E/C

ENGLISH Rated current

1.0 A 1.0 A 1.0 A 1.0 A

Climate class SN, N, ST, T SN, N, ST, T SN, N, ST, T SN, N, ST, T Refrigerant R600a (67 g) R600a (67 g) R600a (67 g) R600a (67 g) Insulator Cyclopentane Cyclopentane Cyclopentane Cyclopentane Technical specifications may change without prior notification to improve product quality. (*) Refrigeration appliance intended for use in ambient temperatures between 10 °C and 43 °C. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities. For detailed information on how to properly dispose of electrical and electronic appliances and/or batteries, consumers should contact their local authorities. Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations. Repairs should be carried out by qualified personnel. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at +34 96 321 07 28.

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.BOLERO COOLMARKET COMBI 409 E/C

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/ declaration-of-conformityBOLERO COOLMARKET COMBI 409 E/C
