| Product type | Electric mixer (mixing drill) |
| Brand | Eibenstock |
| Model | EHM 162 S |
| Rated voltage | 230 V ~ |
| Power consumption | 2000 W |
| Frequency | 50 / 60 Hz |
| No-load speed | 0 – 800 min⁻¹ |
| Speed under load | 0 – 430 min⁻¹ |
| Maximum mixing paddle diameter | 180 mm |
| Shaft type | M14 (female thread) |
| Protection class | II (double insulation) |
| Protection rating | IP 20 |
| Weight | 6.0 kg |
| Reference | 077E3000 |
| Standards of conformity | EN 62841-1, EN 55014, EN 61000 |
| Maximum mixing capacity | 80 kg (paints, adhesives, mortar) |
| Package contents | Mixer with shaft, operating manual |
| Required safety equipment | Ear protection, safety glasses, mask, gloves |
| Sound pressure level | May exceed 85 dB(A) |
| Hand-arm vibration typical | < 2.5 m/s² |
| Maintenance | Clean ventilation slots, repair by professional |
| Warranty | According to national legal provisions |
| Special accessories | Paddles WG 160, MG 160, MG 180, SG 150, RPG 160 (M14) |
Frequently Asked Questions - EHM 162 S Eibenstock
User questions about EHM 162 S Eibenstock
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric drill in PDF format for free! Find your manual EHM 162 S - Eibenstock and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EHM 162 S by Eibenstock.
USER MANUAL EHM 162 S Eibenstock

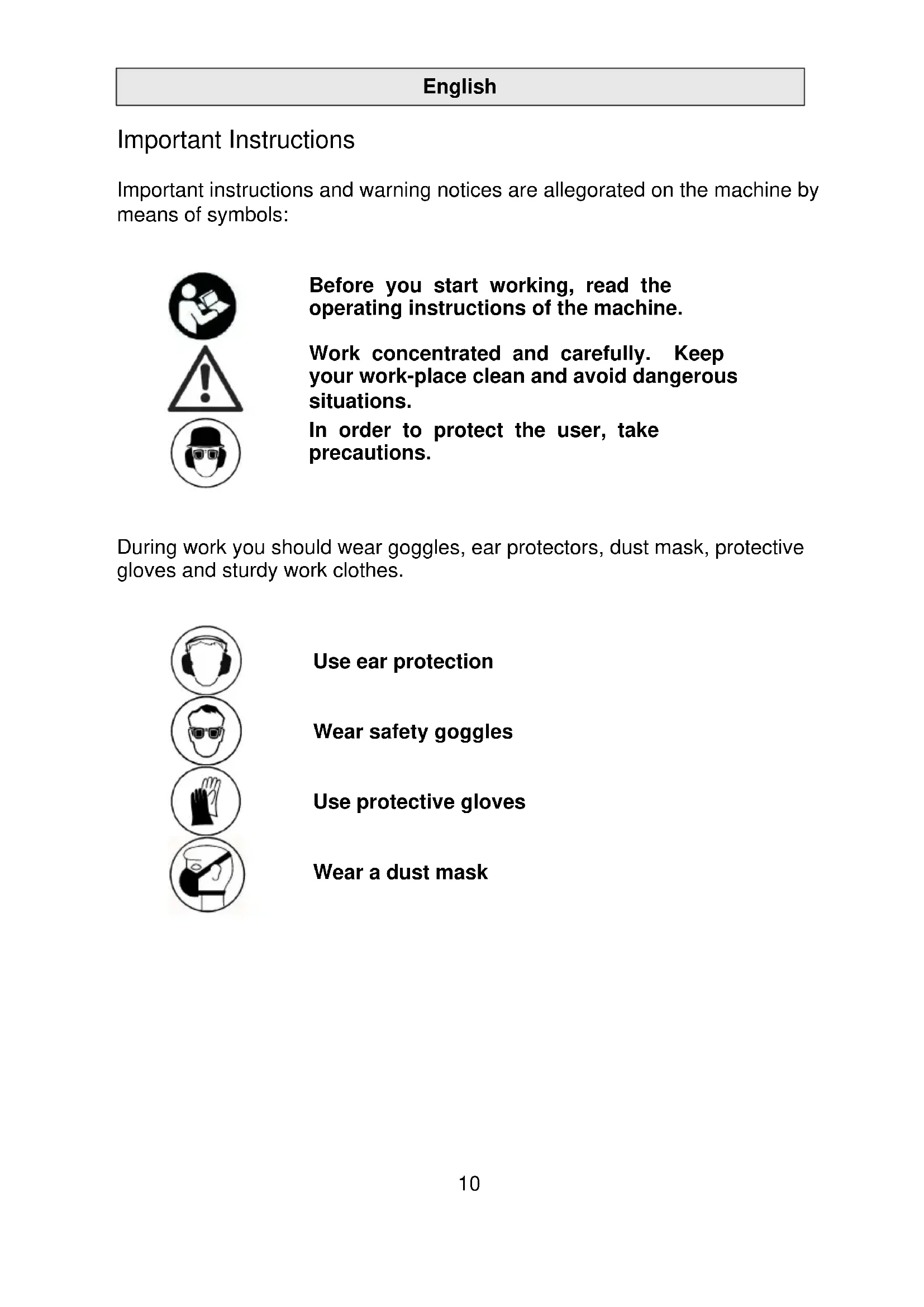

Important Instructions
Important instructions and warning notices are allegorated on the machine by means of symbols:
Before you start working, read the operating instructions of the machine.
Work concentrated and carefully. Keep your work-place clean and avoid dangerous situations.
In order to protect the user, take precautions.
During work you should wear goggles, ear protectors, dust mask, protective gloves and sturdy work clothes.
Use ear protection
Wear safety goggles
Use protective gloves
Wear a dust mask
Specifications
Stirrer EHM 162 S
| Rated voltage: | 230 V ~ |
| Rated power input: | 2000 W |
| Frequency: | 50 / 60 Hz |
| No Load Speed: | 0 - 800 rpm |
| Load Speed: | 0 – 430 rpm |
| Max. basket diameter: | 180 mm |
| Thread connection: | M 14 |
| Protection class: | II |
| Degree of protection: | IP 20 |
| Net weight: | about. 6,0 kg |
| Order number: | 07779000 |
Interference suppression:
EN 55014 and EN 61000
Available accessories:
| Item | Order no. |
| Helicon Ribbon Stirring Rod WG 160 31227000 | |
| Mortar Stirring Rod MG160 31327000 | |
| Mortar Stirring Rod MG 180 31328000 | |
| Disc Stirring Rod SG 150 31527000 | |
| Mixing Paddle RPG 160 31437000 | |
| ... with M 14 thread connection | |
Supply
Stirrer with stirring rod and operating instructions in a set box
Application for Indented Purpose
The Stirrer EHM 162 S is designed for use in mixing material of high viscosity, such as prefab mortar and plaster, cement, lime, concrete, quartz-filled epoxy resins, screed, pastes, sealing compounds as well as gypsum and granulates in batches up to 80kg . The diameter of the used stirring rods should not exceed 180mm .
Safety Instructions
Safe work with the machine is only possible if you read this operating instruction and the safety instructions completely and follow the instructions contained strictly.
Additionally, the general safety instructions of the leaflet supplied with the tool must be observed. Prior to the first use, the user should absolve a practical training. Save all warnings and instructions for future reference.
If the connection cable gets damaged or cut during the use, do not touch it, but instantly pull the plug out of the socket. Never use the tool with a damaged connection cable.
The tool must neither be wet nor used in humid environment.
- Do not use the tool near explosive materials (petrol, dilution).
- Modifications of the tool are prohibited.
- Always check the tool, cable and plug before use. Have damages only repaired by specialists. Only insert the plug into the socket when the tool switch is off.
- When the machine runs outside, always use a protection switch (30 mA max.) against fault current.
- Pull the plug and switch the machine off if it is not under supervision, e.g. in case of setting up and stripping down the machine, in case of voltage drop or when fixing or mounting an accessory.
- Switch the machine off if it stops for whatever reason. This way, you avoid that it starts suddenly and not under supervision.
- Do not use the machine if one part of the housing is damaged or in case of damages on the switch, cable or plug.
- Electric tools have to be inspected by a specialist in regular intervals.
- Do not touch rotating parts.
- Persons under 16 years of age are not allowed to use the tool.
- Before starting up, check that the mixing rod is securely attached and rotates without a hitch.
- Do not reach into the mixing container with your hands or insert any other objects into it while mixing is in progress. Risk of crushing!
- Wait until the machine or tool comes to a complete standstill. Rotating tools can snag and cause injuries or damage.
- When working with this machine wear ear protectors, goggles, dust mask and protective gloves.
- During use, always hold the machine with both hands and maintain a safe standing position. Start up and run down the machine in the mixing container only. Pay attention to the reaction moment of the machine.
For further safety instructions, please refer to the enclosure.
Electrical Connection
Before starting the machine check the correspondence between voltage and frequency according to the data mentioned on the identification plate.
Voltage differences from +6% and -10% are allowed. The stirrer is made in protection class II. Only use extension cables with a sufficient cross-section. A cross-section which is too small could lead to an excessive power loss and to an overheating of motor and cable.
Recommended minimum cross sections and maximum cable lengths
| Mains voltage | Cross section in sq. mm | |
| 1.5 | 2.5 | |
| 110V | 20 m | 40 m |
| 230V | 50 m | 80 m |
Tool Change
Attention!
Before any work on the tool, disconnect the plug from the mains! When inserting the tool, you could catch your hands. For this reason, always wear protective gloves for changing the tool.
The work spindle of the machine has an M 14 - internal thread. Keep threads and front surface clean.
Please hold up with a jaw wrench 24 to remove the stirring rod.
Tool Protection
Wrong handling can cause damages on the tool. Therefore, the following instructions should be observed:
Only use stirring rods which have a M 14 - external thread (diameter 180 mm max.) and are recommended by the producer. Do not allow blocking of the tool.
Only use original accessories made by EIBENSTOCK.
Switching on and off
Switching-on: press the on/off switch
Switching-off: release the on/off switch
The stirrer is equipped with an electronic switch.
With this switch the speed can be regulated according to the pressure on the button. The use is only recommended for the starting and running out of the machine to avoid material flying around. A permanent operation with reduced speed will cause an overload because the motor then gets less cooling air and therefor the machine will be overheated much faster.
Before the beginning of maintenance or repair works you have to disconnect the plug from the mains.
Repairs may be executed only by appropriately qualified and experienced personnel. After every repair the machine has to be inspected by an electric specialist. Due to its design, the machine needs a minimum of care and maintenance. However, the following points always have to be observed:
- Always keep the power tool and the ventilation slots clean.
- During work, please pay attention that no particles get inside the machine.
- In case of failure, a repair has to be carried out by an authorised service workshop.
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts.
EIBENSTOCK's application service team will gladly answer questions concerning our products and their accessories.
Environmental Protection
Raw material recycling instead of waste disposal
To avoid damages on transportation, the power tool has to be delivered in a sturdy packing. The packing as well as the tool and its accessories are made of recyclable materials which makes it possible to remove environmental friendly und differentiated because of available collection facilities.
Only for EU countries
Do not dispose of electric tools together with household waste material! In observance of the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.
Noise Emission/Vibration
The indication of noise emission is measured according EN 62841-2-10. The level of acoustic pressure on work place could exceed 85 dB (A); in this case protection measures must be taken.
Wear ear protectors!
The typical hand-arm vibration is below 2.5m / s^2
Measured values determined according to EN 62841-2-10.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Warranty
According to our general terms of delivery for business dealings, suppliers have to provide to companies a warranty period of 12 months for redhibitory defects (to be documented by invoice or delivery note). Damages due to natural wear, overstressing or improper handling are excluded from this warranty. Damages due to material defects or production faults shall be eliminated free of charge by either repair or replacement.
Complaints will be accepted only if the tool is returned in non-dismantled condition to the manufacturer or an authorized Eibenstock service centre.
EU - Declaration of Conformity
We declare under our sole responsibility that the product described under "Technical Data" is in conformity with the following standards or standardization documents:
EN 62841-1:2023-03
according to the provisions of the directives 2011/65/EU, 2014/30/EU, 2006/42/EG
Technical file (2006/42/EC) at:
GB - Declaration of Conformity
We declare under our sole responsibility that the product described under "Technical Data" is in conformity with the following standards or standardization documents:
BS EN 62841-1:2023-03
according to the provisions of the directives 2011/65/EU, 2014/30/EU, 2006/42/EG
Technical file (2006/42/EC) at:
Subject to change without notice.
