USER MANUAL Classic 3.82 SE AL-KO

INFORMATION I MANUALS I SERVICE

• Safety instructions p. 17
• Assembly p. 18
• Work instructions p. 18
• Storage p. 19
• Repairs p. 19
• Maintenance and care p. 19
• Troubleshooting p. 20

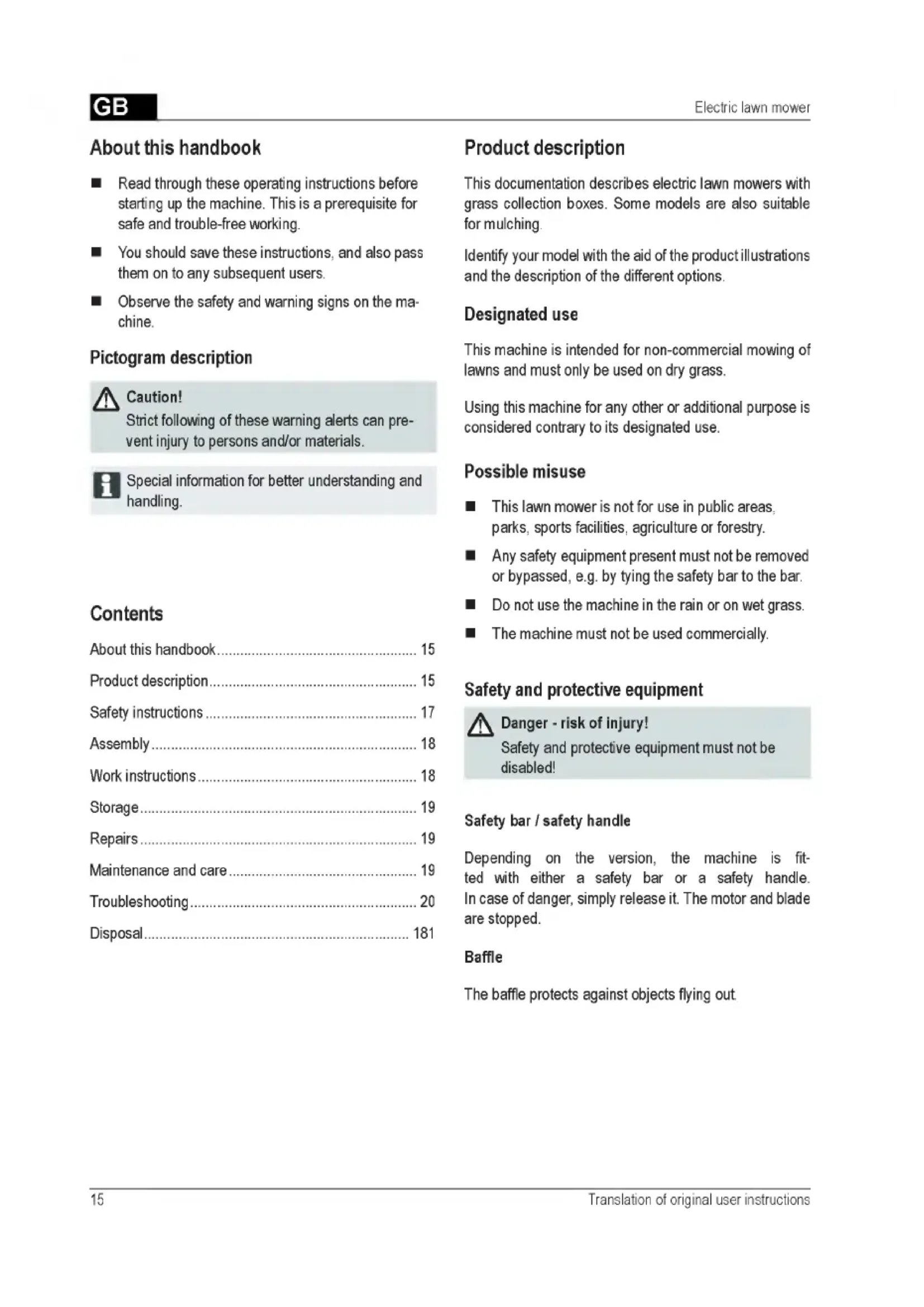

• Disposal Product description This documentation describes electric lawn mowers with grass collection boxes. Some models are also suitable for mulching. Identify your model with the aid of the product illustrations and the description of the different options. Designated use This machine is intended for non-commercial mowing of lawns and must only be used on dry grass. Using this machine for any other or additional purpose is considered contrary to its designated use. Possible misuse ■ This lawn mower is not for use in public areas, parks, sports facilities, agriculture or forestry. ■ Any safety equipment present must not be removed or bypassed, e.g. by tying the safety bar to the bar. ■ Do not use the machine in the rain or on wet grass. ■ The machine must not be used commercially. Safety and protective equipment A Danger - risk of injury! Safety and protective equipment must not be disabled! Safety bar / safety handle Depending on the version, the machine is fit- ted with either a safety bar or a safety handle. In case of danger, simply release it. The motor and blade are stopped. Baffle The baffle protects against objects flying out. A Caution! Strict following of these warning alerts can pre vent injury to persons and/or materials. Special information for better understanding and handling. p. 181

Translation of original user instructionsGB Symbols on the machine

Caution! Handle carefully.

Always disconnect the machine from the mains before commencing maintenance work or if the cable is damaged.

Read instruction manual before starting up the machine!

Risk of electrical shock.

Danger! Keep hands and feet away from cutting parts! Keep away from the danger area. Keep the connecting cable away from blades.

Keep third parties away from the danger area! 474269_c 16GB Electric lawn mower Safety instructions The machine operator or user is responsible for accidents involving other persons and their property.

Caution! Use the machine and extension lead only if they are in faultless technical condition! Safety and protective equipment must not be disabled! A Danger - risk of injury! Safety and protective equipment must not be disabled! Electrical safety A Danger from electric current! Danger from contact with live parts! Immediately disconnect the plug from the mains if the extension lead is damaged or severed! ■ The domestic mains voltage must match the mains voltage specifications in the technical data; do not use any other supply voltage. ■ Use only extension leads designed for use outdoors - minimum cross-section 1.5 mm2. ■ Damaged or brittle extension leads must not be used. ■ Always check the condition of your extension lead before operating the machine. ■ Always use the special cable strain relief for the extension lead. ■ Always keep cables out of the cutting area and routed away from the machine. ■ Never run over the extension lead with the lawn mower. ■ Protect the machine against moisture. Safety instructions for operation ■ Children and other persons who are unfamiliar with these operating instructions must not operate the machine. ■ Observe local regulations regarding minimum age requirements for operating the machine. ■ The machine must not be operated if the operator is under the influence of alcohol, drugs or medication. ■ Always check the machine for damage before using it and have any damaged parts replaced. ■ Carefully check the entire area to be mown and re- move all foreign bodies. ■ Wear appropriate working clothes: ■ Long trousers ■ Sturdy, non-slip shoes ■ Always ensure stability when working. ■ Keep third parties away from the danger area. ■ Keep body, limbs and clothing away from cutting parts. ■ Only work if there is sufficient daylight or artificial lighting. ■ Always unplug from the mains and wait until the ma- chine has stopped: ■ in the event of faults or unusual vibration of the machine. ■ before releasing blockages. ■ before unclogging the machine. ■ after contact with foreign bodies. After contact with foreign bodies, check the lawn mower for damage. Carry out the necessary repairs before restarting and working with the lawn mower. ■ The operator must take particular care when turning the lawn mower or pulling it towards himself. ■ Do not mow over obstacles (e.g. twigs, tree roots). ■ Only remove cut grass when the motor is stopped. ■ Switch of the motor if it is necessary to cross an area other than the area to be cut. ■ Never lift or carry the machine with the motor run- ning. ■ Do not leave the operational machine unattended.

Translation of original user instructionsGB Assembly Follow the enclosed assembly instructions. A Caution! The machine must not be operated before as- sembly work has been completed! Attaching the grass collection box ^ Danger - risk of injury! Only remove or attach the grass collection box with the motor switched off and the blade station- ary.

1. Lift the baffle and insert the grass collection box

into the holder. Emptying the grass collection box (11)

2. Lift the grass collection box out of the holder and

backwards to remove it.

back into the holder. Plug into mains

1. Plug mains connector of the machine connecting

cable into the switch/connector combination (15).

2. Secure machine connecting cable with cable strain

relief (14). The loop of the mains cable must be long enough for the cable strain relief to slide from one side to the other. Switching on the motor Only start the lawn mower on even ground and not in long grass. The ground must be free of foreign bodies, such as stones. Do not lift the lawn mower to start it.

2. Pull the safety bar / handle against the bar and hold

1. Release the safety bar / handle.

2. Wait until the blade has stopped moving.

Work instructions Comply with local regulations regarding operation of lawn mowers. ■ Carefully check the entire area to be mown and re- move all foreign bodies. ■ Only operate the lawn mower if there are no third parties in the danger area. ■ Only mow if visibility is good. ■ Only operate the machine at walking pace. ■ Only operate the mower if the blade is sharp. ■ Do not mow over obstacles (e.g. twigs, tree roots). ■ On sloping terrain, always mow across the slope. Do not mow uphill or downhill or on slopes where the inclination exceeds 20°. ■ Exercise particular care when changing direction on sloping terrain. Tips for mowing ■ Start mowing as close as possible to the power socket. ■ Always keep the extension lead on the section of lawn than has already been mown. ■ Maintain a constant cutting height of 3-5 cm; do not shorten the grass to less than half its original height. ■ Do not overload the lawnmower! If the motor speed drops perceptibly due to long, heavy grass, in- crease the cutting height and mow several times. ■ Mow in the morning or late afternoon to prevent the freshly cut grass from drying out. ■ During phases of strong growth, mow twice weekly; in periods of low rainfall, increase intervals between mowing accordingly. 474269_c 18Electric lawn mower Storage After maintenance work on insulated parts (a n o v r h a n n i n n a h la r lo \ a n i n c i i la t in n nrc ■ Always unplug the machine from the mains for storage. (e.g. exchanging a blade), an insulation protec- tion check must be carried out in accordance with VDE Guideline 701. ■ To save space during storage, fold down the upper bar. Repairs ■ Store the machine in a dry condition and out of reach of children and unauthorized persons ■ Professional inspection required: ■ after collision with an obstacle ■ after sudden stoppage of the motor ■ if the blade is bent ■ if the motor shaft is bent ■ Repair work may only be carried out by AL-KO Service Centres and authorized specialist work- shops. ■ To prevent loss of balance, cutting tools and fasten- ing bolts must be exchanged together. Maintenance and care

OnucaHue Ha npogyKTa

Sound power level measured / guaranteed

Notified body TUV Industrieservice GmbH TUV Sud Gruppe WestendstraSe 199 D-80686 Munchen Kotz, 2012-03-15 Antonio De Filippo, Managing Director W arranty GB If any material or manufacturing defects are found during the statutory customer protection period, we will either repair or replace the equipment, whichever we consider the more appropriate. This statutory period may vary according to the legislation in force in the country where the equipment was purchased. Our warranty is valid only if: ■ The equipment has been used properly ■ The operating instructions have been followed ■ Genuine replacement parts have been used The warranty is no longer valid if: ■ The equipment has been tampered with ■ Technical modifications have been made ■ The trimmer was not used for its intended purpose (for example, used for commercial or communal ap- plications) The following are not covered by warranty: ■ Paint damage due to normal wear
