Product type	Surveillance camera
Brand	Bea-fon
Model	Mini 1M
Video resolution	2304 x 1296 (Super-HD)
Image sensor	1/2.8" CMOS 3 megapixels
Night vision	Up to 10 meters (IR)
Lens	3.6 mm @ F2.0 (wide angle 86°/47°/100°)
View angle	86° (horizontal), 47° (vertical), 100° (diagonal)
Video compression	H.264
Audio	Built-in speaker and two-way microphone
Connectivity	Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n)
Storage	MicroSD card slot (max 256 GB) and cloud storage
Power supply	5 V DC / 1 A (USB Type-C)
Power consumption	2.5 W max.
Dimensions	62 x 61 x 89 mm
Net weight	Approximately 60 g
Operating temperature	-20 °C to 50 °C
Motion detection	Yes, with push notifications
Day and night vision	Automatic (ICR), color and B&W
Video flip	Yes, vertical
Continuous recording	On SD card or cloud
Maintenance	Clean with a soft cloth and mild detergent. Do not use abrasive products.
Safety	Do not open or repair yourself. Private use only. Comply with data protection laws.
Box contents	Power adapter, USB cable, adhesive tape, wall plug/screws, user manual

Frequently Asked Questions - Mini 1M Bea-fon

What to do if the camera images are not displayed correctly?

Check that the network is working normally. Place the camera as close to the router as possible. If the problem persists, reset the camera and add it again in the application.

Why is the camera still in the device list after reset?

The reset clears the network configuration but not the app data. To remove it completely, go to the app, delete the camera from your account, then reset it before reconfiguring.

How to set up the camera on another Wi-Fi network?

First delete the camera from your account in the app, then reset the device. Then follow the normal setup procedure with the new network.

Why doesn't the camera recognize my SD card?

Make sure the SD card is inserted after turning off the camera. Check that it is in FAT32 format and recognized (max 256 GB). An unstable network environment can also prevent recognition.

Why am I not receiving app notifications on my phone?

Confirm that the app is running and that notifications are enabled in the app and system settings. Also check that motion detection is enabled.

Can I use the camera with a 5 GHz Wi-Fi network?

No, the camera only supports 2.4 GHz Wi-Fi. If your router broadcasts on 5 GHz, configure it to also broadcast on 2.4 GHz.

How to record videos continuously?

You can insert a MicroSD card (up to 256 GB) into the camera for local recording, or subscribe to cloud storage via the Beafon Home app.

Is the Beafon Home app compatible with all smartphones?

The app is compatible with iOS 9 or later and Android 5 or later. Download it from the App Store or Google Play.

Can I access my camera remotely?

Yes, once configured, you can view the live stream and receive alerts via the Beafon Home app wherever you are, as long as you have an Internet connection.

What is in the box of the Bea-fon Mini 1M camera?

The box contains the camera, a power adapter (5 V / 1 A), a USB Type-C cable, adhesive tape, wall plugs and screws, and a user manual.

USER MANUAL Mini 1M Bea-fon

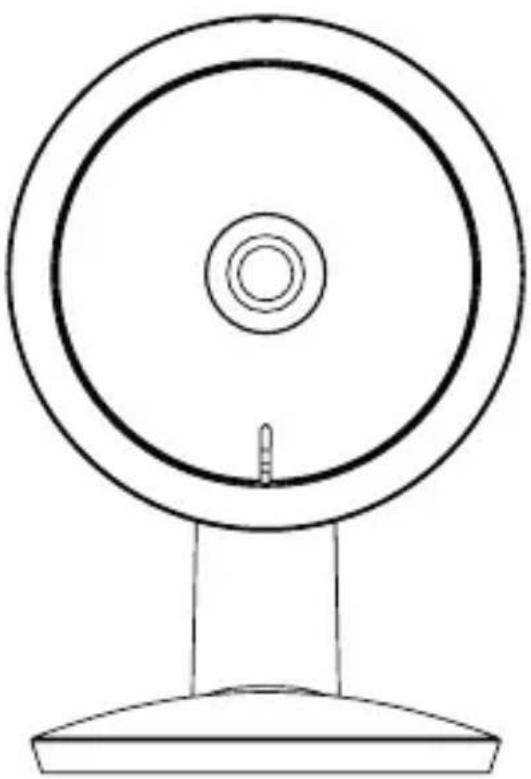

Line drawing of a circular mechanical device with a central hub and base (no text or symbols)

MINI1M

Deutsch S. 2-17

English P. 18-32

Español P. 33-47

Italiano P. 48-62

Français P. 63-77

Dutch P. 78-92

bea·fon

Smart Home

Line drawing of a circular mechanical device with a central hub and base (no text or symbols)

MINI1M

Bedienungsanleitung

Lieferumfang

MINI 1M

Ladegerät

Ladekabel

Klebepad

Beschreibung

Strom/Eingang DC 5V +-10%

Simple line drawing of a cone with shaded interior (no text or symbols)

Simple line drawing of a circular mechanical component with two side brackets (no text or symbols)

Simple line drawing of a desk lamp with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present

Verbindung

Download

Registrierung

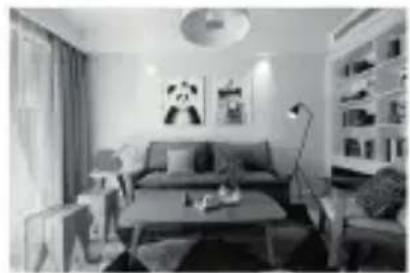

Schritt 1

Interior view of a modern living room with sofa, coffee table, lamp, and wall art (no visible text or symbols)

Tag Nacht

Interior view of a modern living room with sofa, coffee table, and panda-themed wall art (no visible text or symbols)

Bildsensor: 1/2.8" 3Megapixel CMOS

WLAN 64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Bay Area Compliance Laboratories Corp. China Kunshan No.248 Chenghu Road, Kunshan Development Zone, Jiangsu -Zip

Line drawing of a circular mechanical device with a central hub and base (no text or symbols)

MINI1M

Manual

What's in the box

Mini 1M

Power adapter

Power cabel

Adhesive tape

Pin

Manual

Please consult this checklist for all parts.

Caution

Please note the EU General Data Protection Regulation (GDPR)

Surveillance and privacy laws vary by jurisdiction.

Before using this product, review all relevant laws in your jurisdiction to ensure that your use does not violate any applicable laws

Bea-fon Mobile GmbH assumes no responsibility for the consequences of false using.

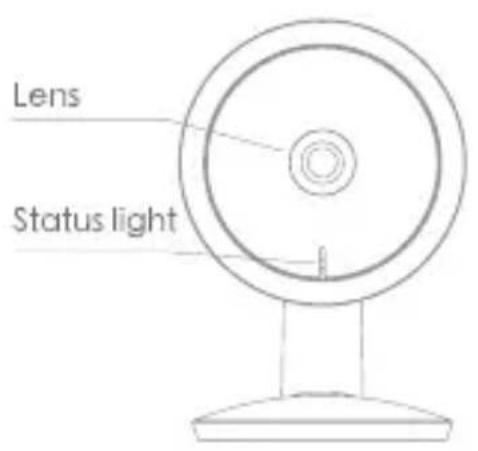

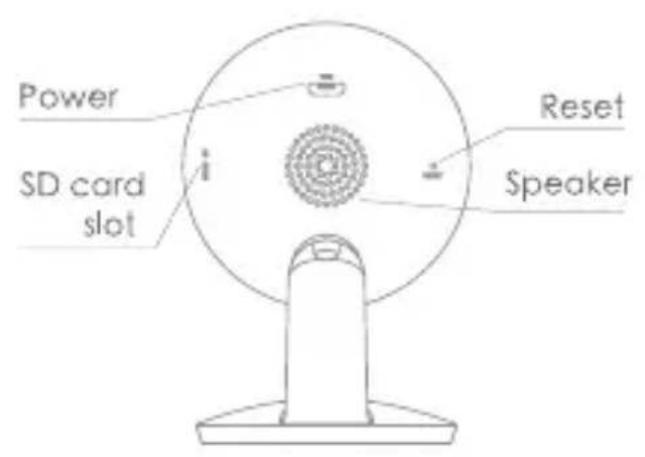

Description

Power Port DC 5V +-10%

Status light • Solid red light on: the camera is turning on or malfunctional

• Blinking red light: awaiting WiFi connecting
  • Solid blue light on: camera running correctly
• Blinking blue light: currently connecting

Microphone Captures sounds for your video

SD card slot Supports local SD Card storage (Max.128G)

Reset Press and hold the ,reset' for 5 seconds to reset the device (if you have modified settings, they will return to factory defaults)

Install

1. Stick the adhesive tape in the middle of camera bottom.

Simple line drawing of a circle with a shaded triangular section inside (no text or symbols)

Simple line drawing of a circular mechanical component with two side brackets (no text or symbols)

1. Put the camera on the clean plane.

Simple line drawing of a desk lamp with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present

Connect

Download

Beafon Home App is available for both iOS and Android OS. Search the name „Beafon Home“ in App Store or Google Play, or scan the QR-Code to download the App.

Support

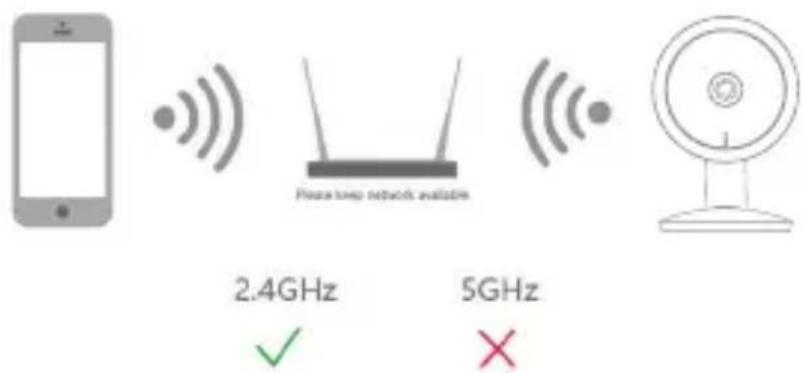

Set up router

The router supports the 2.4GHz WiFi (doesn't support the 5GHz). Before connecting to the WiFi network, please set the parameters of the router, and record the SSID and password of your WiFi.

Registration

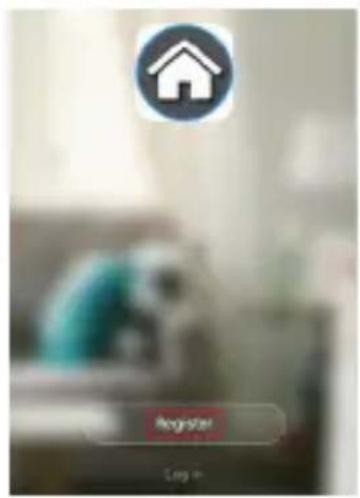

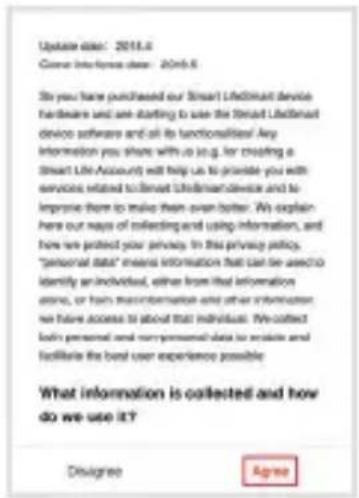

Step 1

Open the Beafon Home App, click „Register“, read the „Privacy Policy“ and click „Agree“.

Step 2

Input a legal and valid Mobile number or Email address and click „Continue“. Input Verification Code, then log in the app.

QR Code Configuration

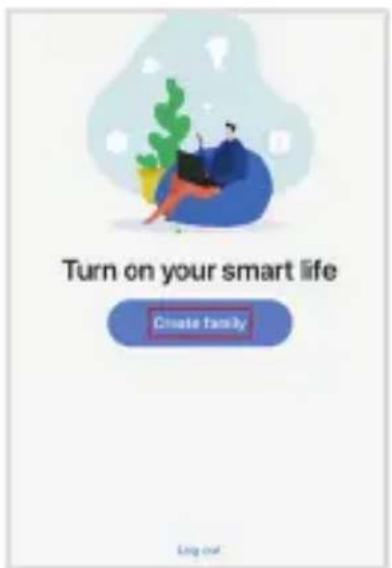

Step 1

Open the BeafonHome App, click „Create family“, and you can customize the Family name and related settings.

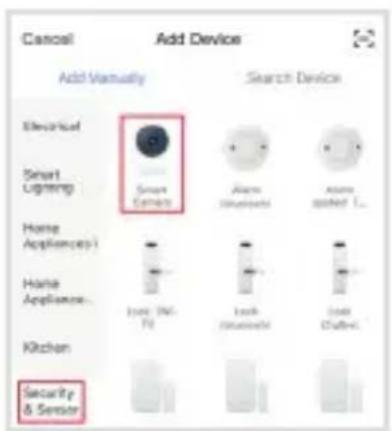

Step 2

Continue to click „Security & Sensor“ >> „Smart Camera“, and then choose „Add Device“ or „+“, ready to add camera.

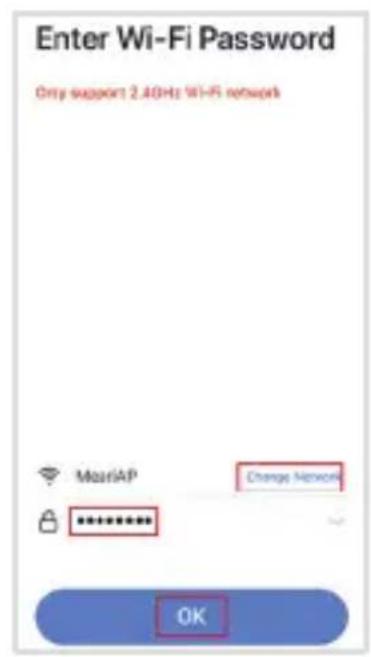

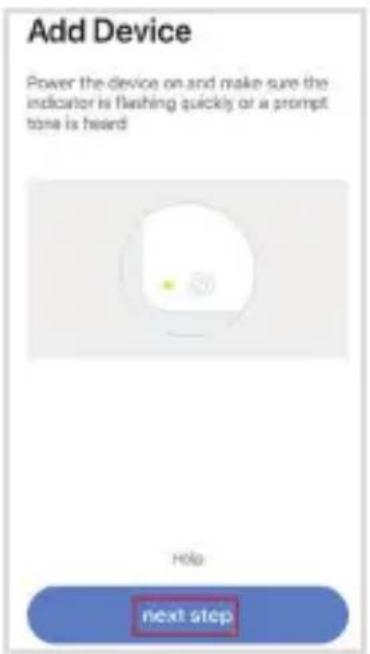

Step 3

In „Add Device“ this interface, continue to click „next step“, and then you should input your WiFi's passwords.

Note:

1. Camera only supports 2.4GHz WiFi network.
2. The number of bits in the ssid and passwords of the router should not exceed 24 digits.

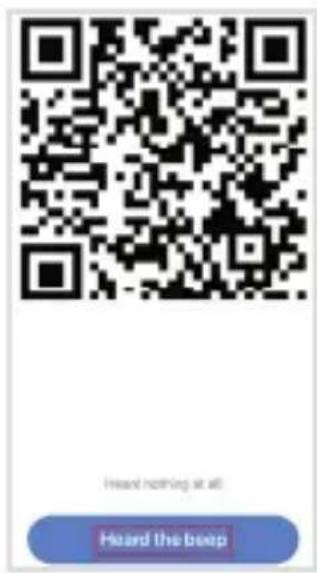

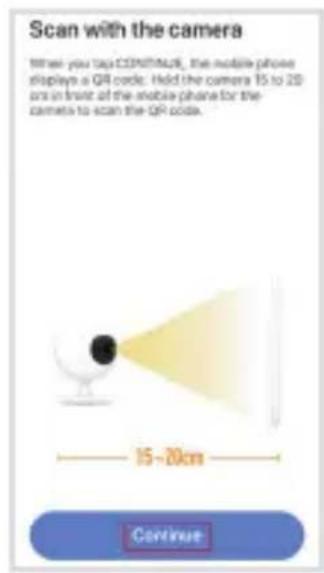

Step 4

In this interface, you should scan the QR code in your phone with the camera, when the camera comes out „dong dong dong“. And you can complete the configuration about 30s.

Step 5

When connecting, you should make sure your router, mobile, and camera are as close as possible. When camera added successfully, click , , you could also DIY the camera's name.

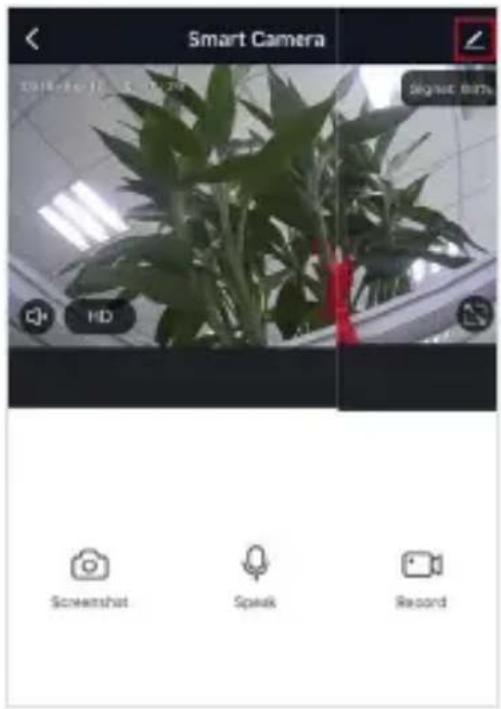

Settings

In „Mini 1M“ interface, click „My You can set the camera common functions.

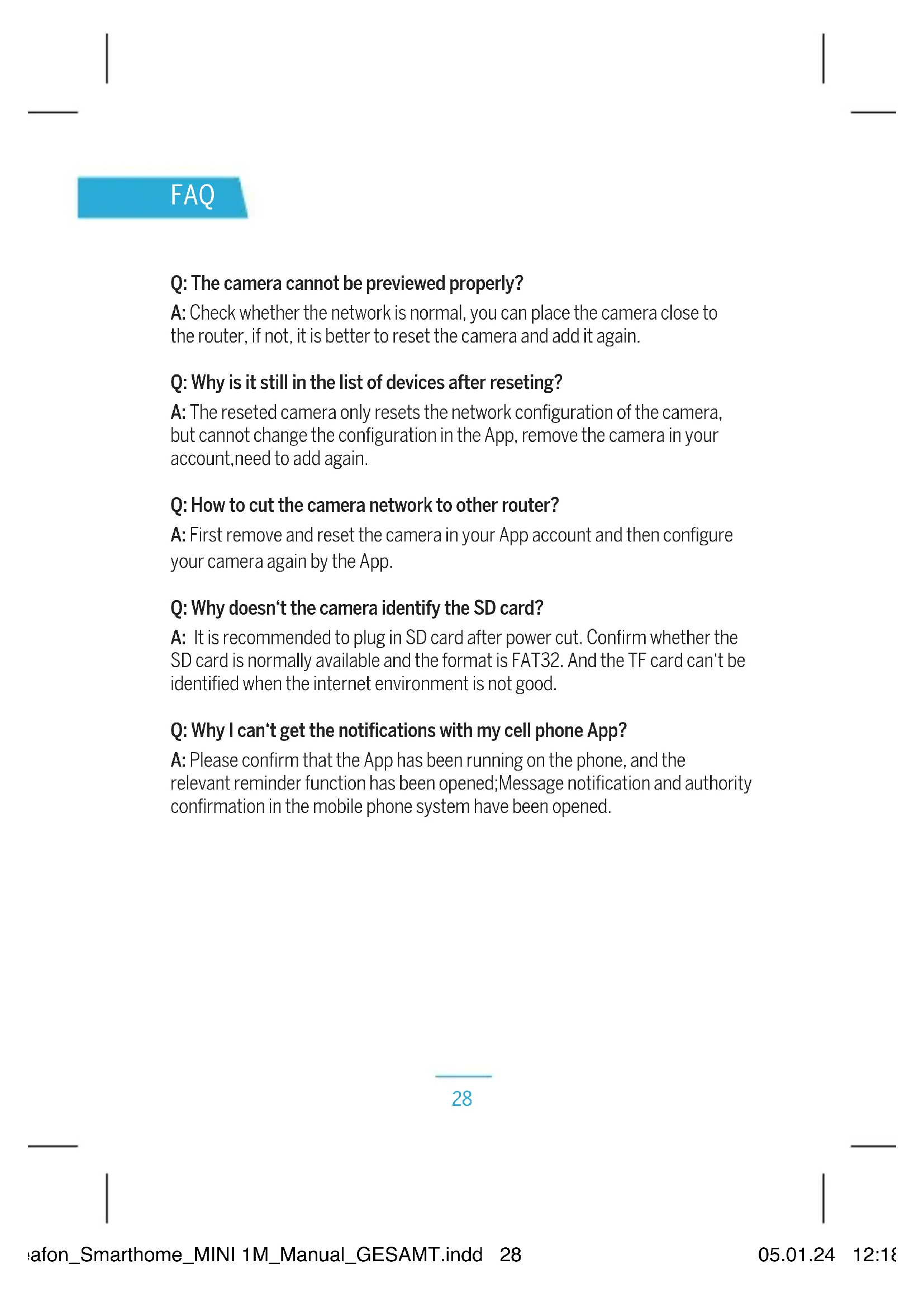

FAQ

Q: The camera cannot be previewed properly?

A: Check whether the network is normal, you can place the camera close to the router, if not, it is better to reset the camera and add it again.

Q: Why is it still in the list of devices after resetting?

A: The reseted camera only resets the network configuration of the camera, but cannot change the configuration in the App, remove the camera in your account, need to add again.

Q: How to cut the camera network to other router?

A: First remove and reset the camera in your App account and then configure your camera again by the App.

Q: Why doesn't the camera identify the SD card?

A: It is recommended to plug in SD card after power cut. Confirm whether the SD card is normally available and the format is FAT32. And the TF card can't be identified when the internet environment is not good.

Q: Why I can't get the notifications with my cell phone App?

A: Please confirm that the App has been running on the phone, and the relevant reminder function has been opened;Message notification and authority confirmation in the mobile phone system have been opened.

Functions

Video flip

Flip your video stream vertically anytime for maximum flexibility.

Motion detection

Motion sensors will notify you when movement is detected.

Record

Record every moment using high capacity SD card storage or Cloud Storage.

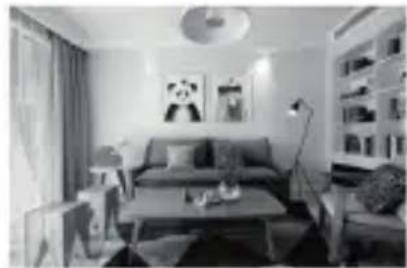

Day & Night

Powerful night vision means no interruptions, even in complete darkness.

Interior view of a modern living room with sofa, coffee table, and wall art (no visible text or symbols)

Day Night

Interior view of a modern living room with sofa, coffee table, and wall art (no visible text or symbols)

General safety instructions

Read the instructions before using for the first time!

1. Do not operate the device beyond the specified temperature, humidity, or power source values.
2. Mount the device securely on vertical surfaces (solid walls / doors) that are not prone to vibrations or shocks. Avoid excessive moisture, strong dust, and aggressive vapors.
3. Do not install the devices in the vicinity of heat sources such as radiators, stoves or in the vicinity of entertainment electronics devices (e.g. TVs, stereo receivers, amplifiers).
4. Handle the device carefully. Do not hit or shake as this may damage the device.
5. Do not try to open or repair the device yourself - it is essential that you contact your dealer!
6. In the event of disposal, the device must be disposed of separately from household waste in an environmentally friendly manner (old device collection point for electronics / batteries) (in accordance with the Electrical and Electronic Equipment Act)
7. Use only a mild detergent and wipe gently with a soft cloth. Do not use strong or abrasive cleaning agents.

IMPORTANT: Only private areas may be recorded with the camera (picture and sound)! Any orientation in public space is strictly forbidden within the meaning of the law!

Detailed technical data

Camera

Image sensor: 1/2.8" 3Megapixel CMOS

Resolution: 2304(H) x 1296(V) = Super-HD

Shutter speeds: 1/20\~1/10s

Exposure: Farbe 0.1Lux @F2.0 Schwarz/Weiß 0.01Lux @F2.0

Infrared night sensor: up to 10 meters

Night mode: Automatic (ICR) - color / black and white

Contrast: DWDR (Digital Wide Dynamic Range)

Lens: 33,6mm@F2.0(86°/47°/100°) wide angle

Video & audio

Compression: H.264

Bit rate: 32Kbps \~ 2Mbps

Audio: integrated loudspeaker and micro 2-way

Network

Alarm trigger: intelligent motion detection

WLAN 64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Connection protocols: HTTP, DHCP, DNS, TCP/IP, RTSP

Connection: 2,4G Wi-Fi (IEEE802.11b/g/n)

Maximum transmission line

WiFi 2.4GHz: 0,063W (18dBm)

Supported software: iOS 9 or newer, Android 5 or newer

Security: user authentication, encrypted connection

General

Operating temperature: -20 to 50 °C

Power supply: DC 5V/1A (USB Typ-C)

Consumption: 2,5W max.

Storage: MicroSD card slot (max 256GB)

Dimensions: 62x61x89mm

Net weight: approx. 60g

Declaration of conformity

Manufacturer: Beafon Mobile GmbH

Enzing 4, 4722 Peuerbach, Austria

Importer: Bea-fon Mobile GmbH

Website: www.beafon.com;

Model: Mini 1M / BEASH-1M-W / Mini 8

Item description: IP camera

Bay Area Compliance Laboratories Corp. China Kunshan No.248 Chenghu Road, Kunshan Development Zone, Jiangsu - Zip

Code : 215300 , China has the following EU type examination certificates (Zertifikat Nr.: AOC RSHA210901001-02 / AOC

RSHA210901001-03) and Shen Zhen UONE Test Co., LTD. Unit 4B, Building B4, China Merchants Guangming Science Park, Tourist Road 3009, Guangming New District, Shenzhen, RoHS-Zertifikat (Report Nr.: U00903230201603-1E) issued.

The object of the declaration described above is in compliance with the relevant Union harmonization legislation:

EU Directive 2014/30/EU, EU Radio Equipment Directive 2014/53/EU (RED) and RoHS Directive(EU) 2015/863 amending Annex II to Directive 2011/65/EU

The manufacturer/importer is solely responsible for issuing this declaration of conformity.

Test Standards:

EMC Directive 2014/30/EU

Harmonized Standards	Test Report Number
EN50130-4:2011+A1:2014EN 55032:2015+A1:2020EN 55035:2017+A11:2020EN IEC 61000-3-2:2019+A1:2021EN 61000-3-3:2013+A1:2019	RSHA210901001-01A

Radio Equipment Directive 2014/53/EU

Essential Requirement Harmonized Standards Test Report Number
Radio	ETSI EN 300 328 V2.2.2 (2019-07)	RSHA210901001-01B
EMC	ETSI EN 301 489-1 V2.2.3 (2019-11)ETSI EN 301 489-17 V3.2.4 (2020-09)	RSHA210901001-02
Health	EN IEC 62311:2020	RSHA210901001-01C
Safety	EN IEC 62368-1:2014+A11:2017	RSHA210901001-SF

RoHS Directive(EU) 2015/863 amending Annex II to Directive 2011/65/EU

Applicable Standards	Test Report Number
IEC 62321-1:2013, IEC 62321-2:2021IEC 62321-3-1:2013IEC 62321-4:2013+A1:2017, IEC 62321-5:2013IEC 62321-6:2015, IEC 62321-7-1:2015IEC 62321-7-2:2017, IEC 62321-8:2017	U00903230201603-1E

For the correctness:

Line drawing of a circular mechanical device with a central hub and base (no text or symbols)

MINI1M

Manual

Qué incluye la caja

Mini 1M

Descripción

Simple line drawing of a circle with a shaded triangular section inside (no text or symbols)

Simple line drawing of a circular mechanical component with two side brackets (no text or symbols)

Simple line drawing of a desktop computer with a monitor and base, showing a downward arrow (no text or symbols)

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present

Conectar

Descargar

Two blue square icons: iOS and Android robot, no text or symbols present.

Paso 3

Interior view of a modern living room with sofa, coffee table, lamp, and wall art (no visible text or symbols)

Día Noche

Interior view of a modern living room with sofa, coffee table, and wall art (no visible text or symbols)

WLAN 64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Line drawing of a circular mechanical device with a central hub and base (no text or symbols)

MINI1M

Manuale

Descrizione

Simple line drawing of a cone with shaded interior (no text or symbols)

Simple line drawing of a circular mechanical component with two side brackets (no text or symbols)

Simple line drawing of a desk lamp with a downward arrow indicating compression or reduction (no text or symbols)

Simple line drawing of a mechanical device with a curved component and an upward arrow (no text or symbols)

Connetti

Scarica

Two blue square icons: iOS with white text and Android robot logo (no additional text or symbols)

Interior view of a modern living room with sofa, coffee table, and wall art (no visible text or symbols)

Interior view of a modern living room with sofa, coffee table, lamp, and wall art (no visible text or symbols)

Giorno Notte

WLAN 64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Line drawing of a circular mechanical device with a central hub and base (no text or symbols)

MINI1M

Manuel

Contenu de la boîte

MINI 1M

Description

Simple line drawing of a circle with a shaded triangular section (no text or symbols)

Simple line drawing of a circular mechanical component with two side brackets (no text or symbols)

Simple line drawing of a desk lamp with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present

Connexion

Téléchargement

Two blue square icons: iOS logo and Android robot icon (no text or symbols)

Enregistrement

Étape1

Étape 3

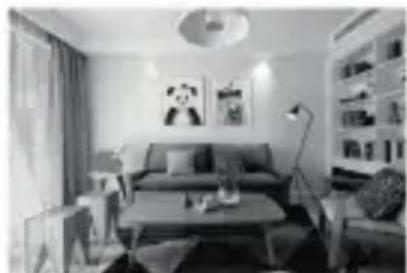

Interior view of a modern living room with sofa, coffee table, and panda-themed wall art (no visible text or symbols)

Jour Nuit

Interior view of a modern living room with sofa, coffee table, and wall art (no visible text or symbols)

WLAN 64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Protocoles de connexion : HTTP, DHCP, DNS, TCP/IP, RTSP

Connexion: 2,4G Wi-Fi (IEEE802.11b/g/n)

Line drawing of a circular mechanical device with a central hub and base (no text or symbols)

MINI1M

Handleiding

Leveringsomvang

Mini 1M

Stroomadapter

USB-kabel

Plakband

Pin

Handleiding

Beschrijving

Voedingspoort DC 5V +-10%

Simple line drawing of a cone with shaded interior (no text or symbols)

Simple line drawing of a circular mechanical component with two side brackets (no text or symbols)

Simple line drawing of a desk lamp with a circular head and a downward arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present

Verbinden

Download

Registratie

Stap 1

Stap 2

Stap 2

Stap 3

Opmerking:

Stap 5

Instellingen

Veelgestelde vragen

Interior view of a modern living room with sofa, coffee table, and wall art (no visible text or symbols)

Dag Nacht

Interior view of a modern living room with sofa, coffee table, and bookshelf (no visible text or symbols)

WLAN 64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Verbinding: 2,4G Wi-Fi (IEEE802.11b / g / n)

Ondersteunde software: iOS 9 of later, Android 5 of later

Website: www.beafon.com;

Model:

Mini 1M / BEASH-1M-W / Mini 8

Item description: IP camera

Bay Area Compliance Laboratories Corp. China Kunshan No.248 Chenghu Road, Kunshan Development Zone, Jiangsu - Zip Code : 215300 , China has the following EU type examination certificates (Zertifikat Nr.: AOC RSHA210901001-02 / AOC RSHA210901001-03) and Shen Zhen UONE Test Co., LTD. Unit 4B, Building B4, China Merchants Guangming Science Park, Tourist Road 3009, Guangming New District, Shenzhen, RoHS-Zertifikat (Report Nr.: U00903230201603-1E) issued.

The object of the declaration described above is in compliance with the relevant Union harmonization legislation: EU Directive 2014/30/EU, EU Radio Equipment Directive 2014/53/EU (RED) and RoHS Directive(EU) 2015/863 amending Annex II to Directive 2011/65/EU

The manufacturer/importer is solely responsible for issuing this declaration of conformity.

Test Standards:
EMC Directive 2014/30/EU

Harmonized Standards	Test Report Number
EN50130-4:2011+A1:2014EN 55032:2015+A1:2020EN 55035:2017+A11:2020EN IEC 61000-3-2:2019+A1:2021EN 61000-3-3:2013+A1:2019	RSHA210901001-01A

Radio Equipment Directive 2014/53/EU

Essential Requirement	Harmonized Standards	Test Report Number
Radio ETSI EN 300	328 V2.2.2 (2019-07)	RSHA210901001-01B
EMC	ETSI EN 301 489-1 V2.2.3 (2019-11)ETSI EN 301 489-17 V3.2.4 (2020-09)	RSHA210901001-02
Health	EN IEC 62311:2020	RSHA210901001-01C
Safety	EN IEC 62368-1:2014+A11:2017	RSHA210901001-SF

RoHS Directive(EU) 2015/863 amending Annex II to Directive 2011/65/EU

Applicable Standards	Test Report Number
IEC 62321-1:2013, IEC 62321-2:2021IEC 62321-3-1:2013IEC 62321-4:2013+A1:2017, IEC 62321-5:2013IEC 62321-6:2015, IEC 62321-7-1:2015IEC 62321-7-2:2017, IEC 62321-8:2017	U00903230201603-1E

For the correctness:
