De Dietrich produces beautifully crafted products to help you get the most

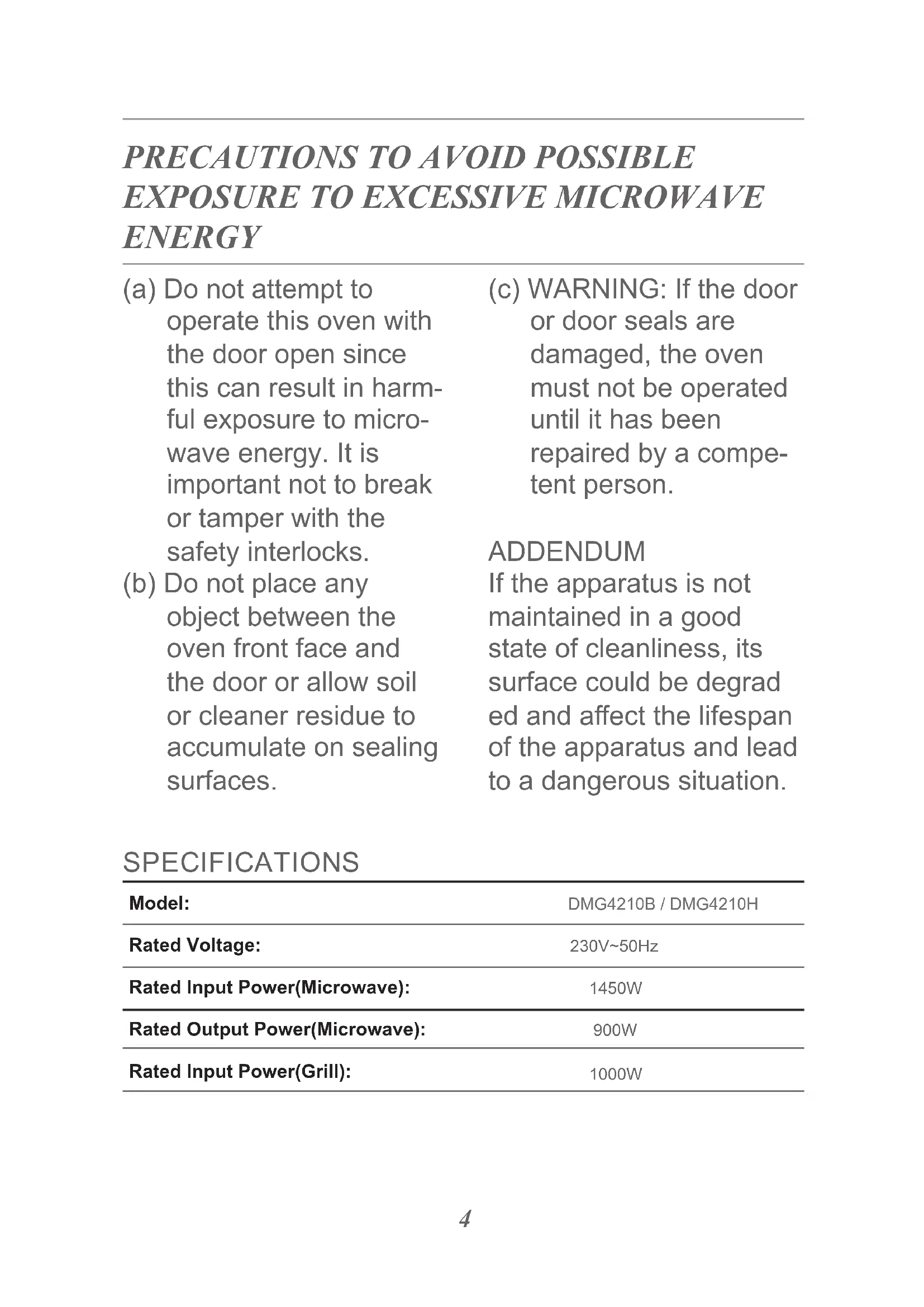

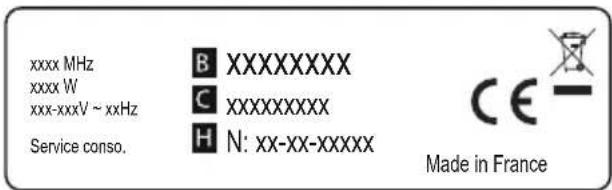

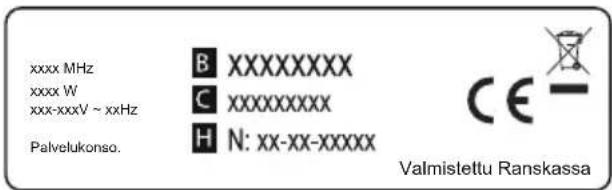

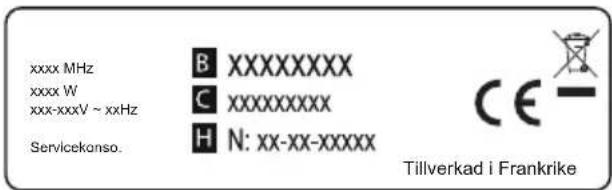

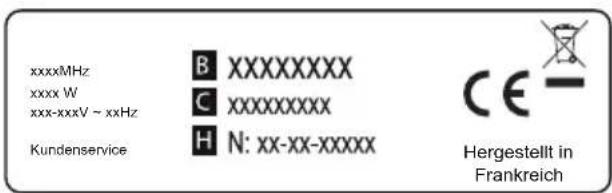

ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harm- ful exposure to micro- wave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven PXstQRWEHRSHUDWHG until it has been repaired by a compe- tent person. ADDENDUM If the apparatus is not maintained in a good stDWHRIFOHDQOLQHVVLWV surface could be degrad HGDQGDႇHFWWKHOLIHVSDQ of the apparatus and lead to a dangerous situation. SPECIFICATIONS Model: Rated Voltage: Rated Input Power(Microwave): Rated Output Power(Microwave): Rated Input Power(Grill): 230V~50Hz 1450W 900W 1000W

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: — Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE (1(5*< — This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children less than 8 years of age shall be kept away unless continuously supervised. — Keep the appliance and its cord out of reach of children less than 8 years. — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.( For DSSOLDQFHZLWKW\SH< attachment) 5— WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. — WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. — WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode. — When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. — Only use utensils that are suitable for use in

IMPORTANT SAFETY INSTRUCTIONS

microwave ovens. — If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. — Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. — The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. — Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. — The oven should be cleaned regularly and any food deposits

6IMPORTANT SAFETY INSTRUCTIONS

removed. — Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. — Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.) — The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.) — This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments. — The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. — Metallic containers for food and beverages are not allowed during microwave cooking. — The appliance shall not be cleaned with a steam cleaner. — Care should be taken not to displace the turntable

7IMPORTANT SAFETY INSTRUCTIONS

when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor and having detacha le turntables. But this is not applicable for appliances with horizontal bottom hinged door.) — The microwave oven is intended to be used built-in. — Steam cleaner is not to be used. — Surface of a storage drawer can get hot. — WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. — During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. — WARNING: Accessible parts may become hot during use. <RXQJFKLOGUHQVKRXOG be kept away. — The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.) — WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

8IMPORTANT SAFETY INSTRUCTIONS

— Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. 5($'&$5()8//<$1'

REFERENCE 9To Reduce the Risk of Injury to Persons Grounding Installation DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper us e of the gro unding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord. — A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. — If a long cord set or extension cord is used: 1)The marked electrical rating of the cord set or extension cord should be at least as great as 10To Reduce the Risk of Injury to Persons Grounding Installation CLEANING the electrical rating of the appliance. 2)The extension cord must be a grounding-type 3-wire cord. 3)The long cord should be arranged so that it Be sure to unplug the appliance from the power supply. — Clean the cavity of the oven after using with a slightly damp cloth. — Clean the accessories in the usual way in soapy water. — The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty. will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. — Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. — Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 11CLEANING 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth. UTENSILS CAUTION Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test: — Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question. — Cook on maximum power for 1 minute. — Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking. — Do not exceed 1 minute cooking time. 12Materials you can use in microwave oven Utensils Remarks Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. UTENSILS Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Paper plates and cups Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. 13UTENSILS Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish. Metal or metal- trimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing. Metal twist ties Paper bags Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack. 14Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. <RXURYHQFRPHVZLWKWKHIROORZLQJ accessories: Glass tray 1 Turntable ring assembly Instruction Manual

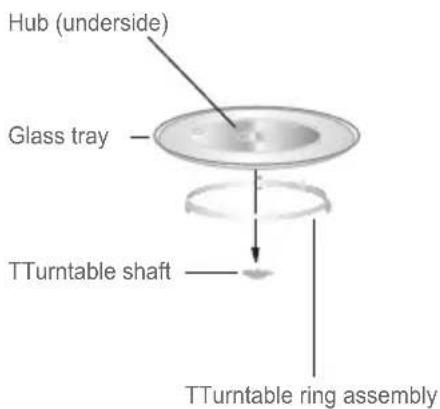

Grill Rack( Can not be used in microwave function and must be placed on the glass tray ) Turntable Installation TTurntable ring assemblyHub (underside)Glass trayTTurntable shaft

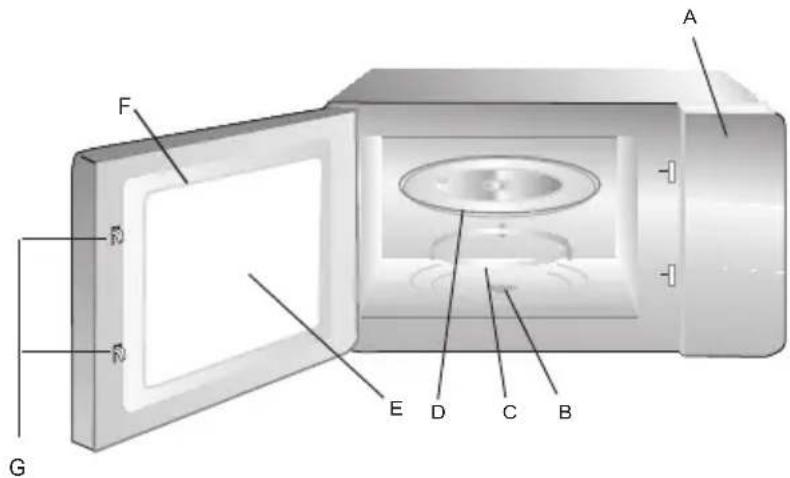

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system a. Never place the glass tray upside down. The glass trayshould never be restricted.b. Both glass tray and turntable ring assembly must always beused during cooking.c. All food and containers of food are always placed on theglass tray for cooking.d. If glass tray or turntable ring assembly cracks or breaks,contact your nearest authorized service center.

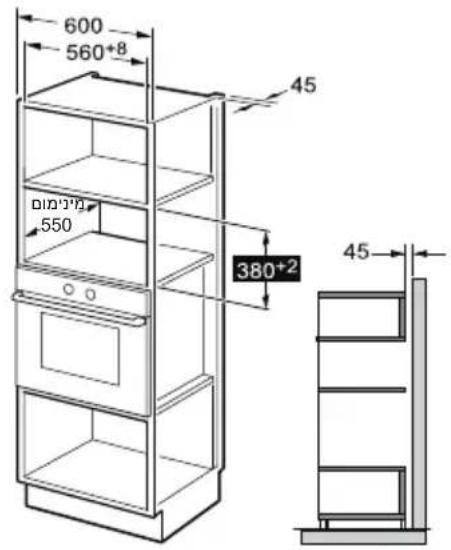

Installation and connection

1. This appliance is only intended for

domestic use. 2.This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.

3. Please observe the special

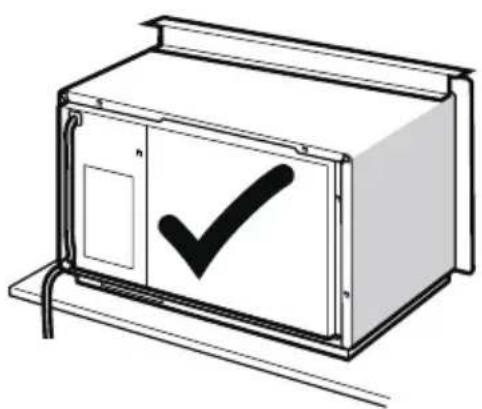

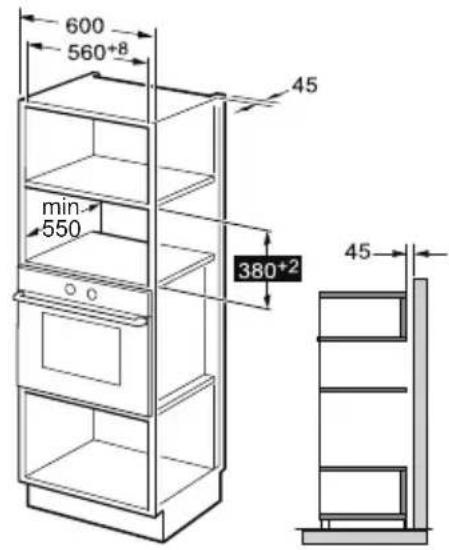

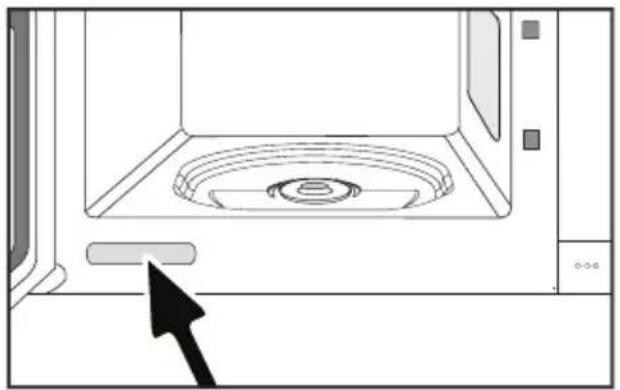

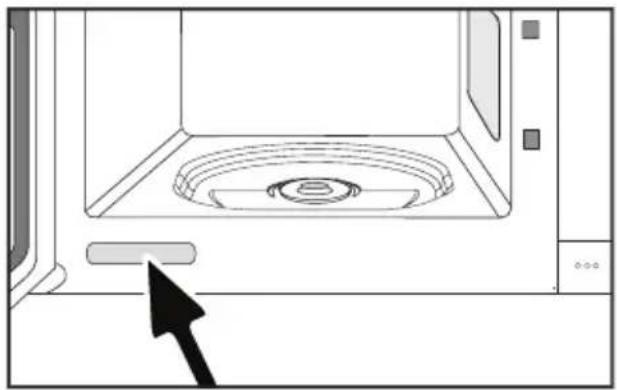

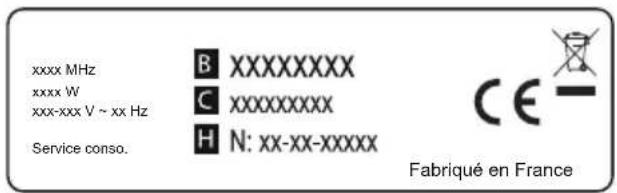

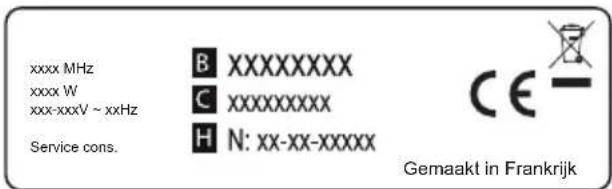

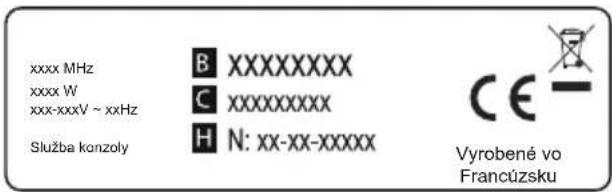

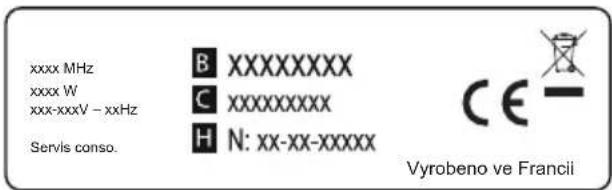

installation instructions. 4.The appliance can be installed in a 60cm wide wallmounted cupboard. 5.The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. 6.The mains voltage must correspond to the voltage specified on the rating plate. 7.The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm. 8.Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire. The accessible surface may be hot during operation.

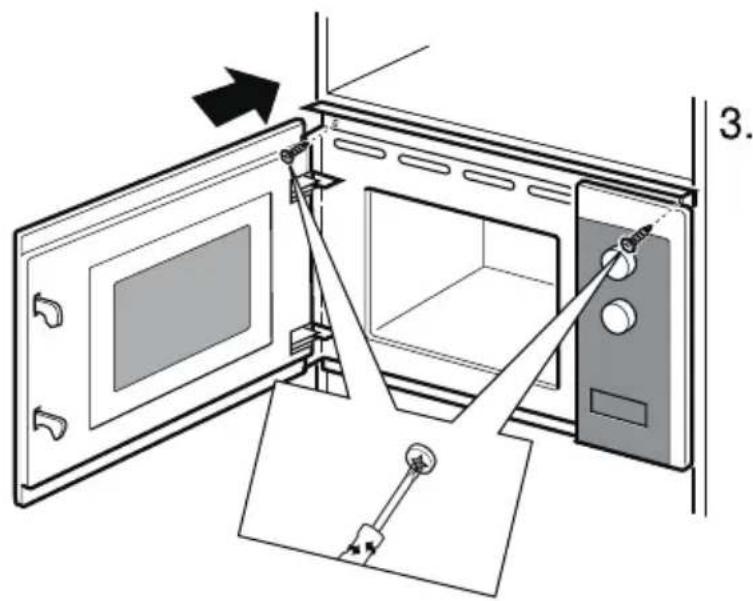

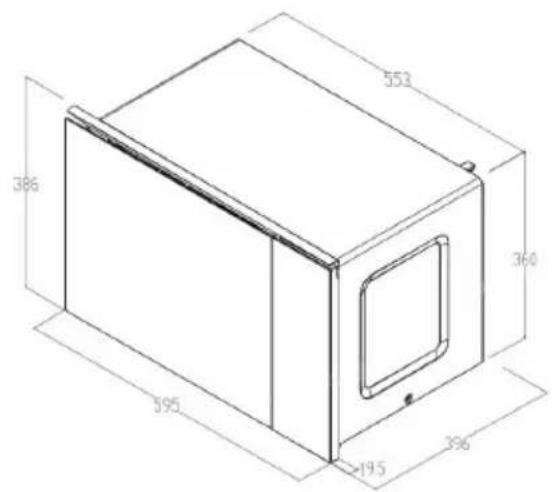

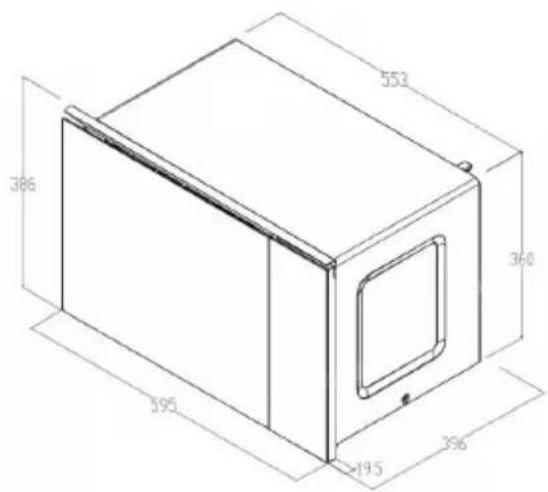

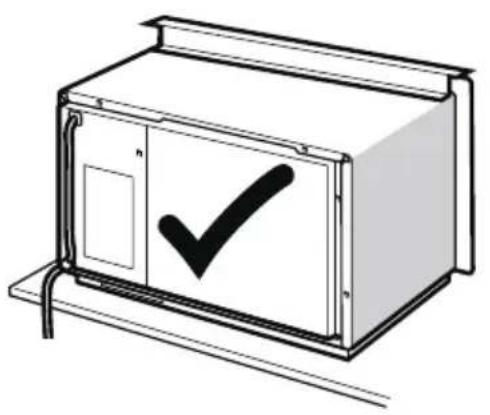

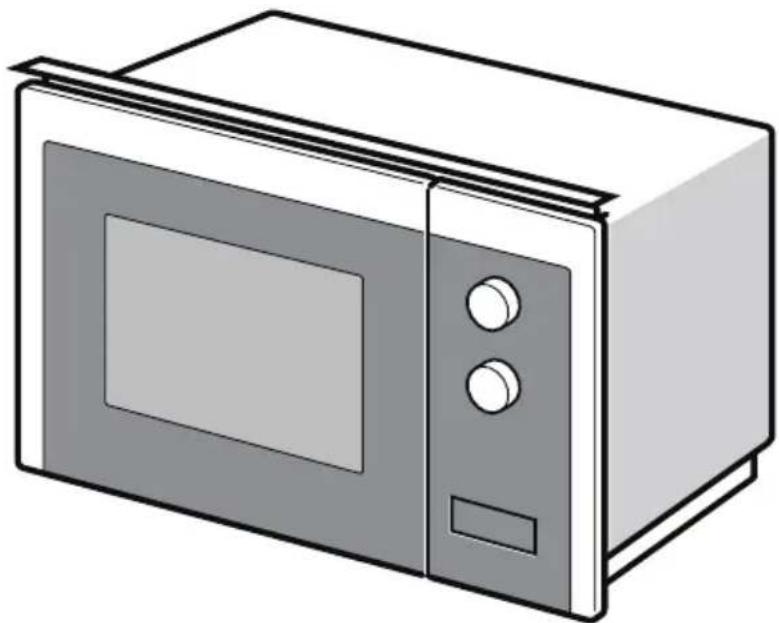

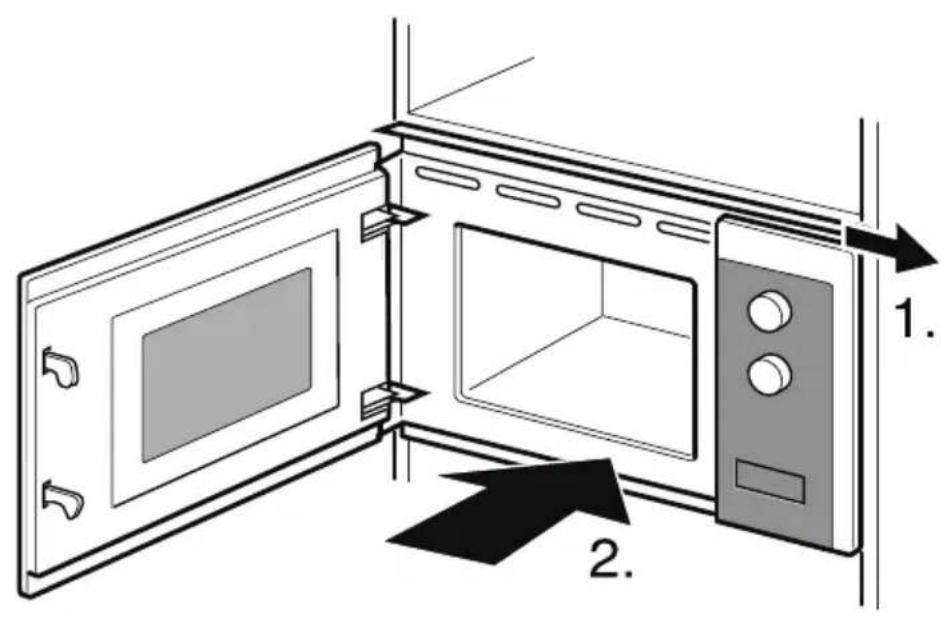

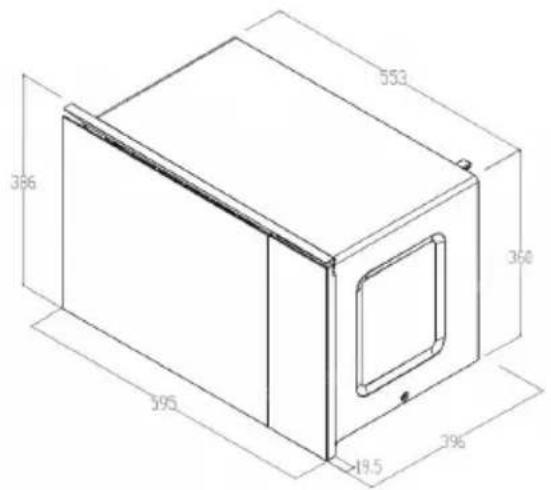

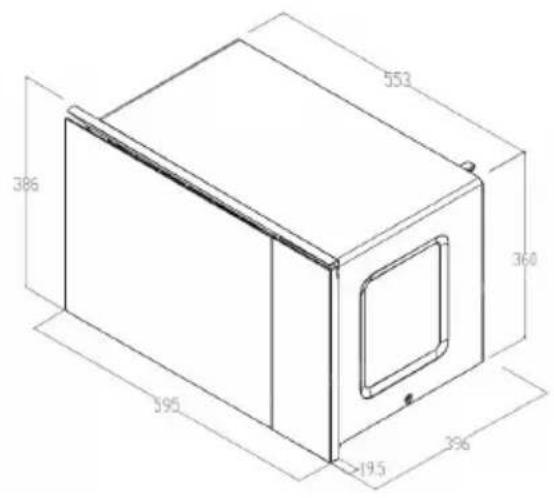

Installation Instruction

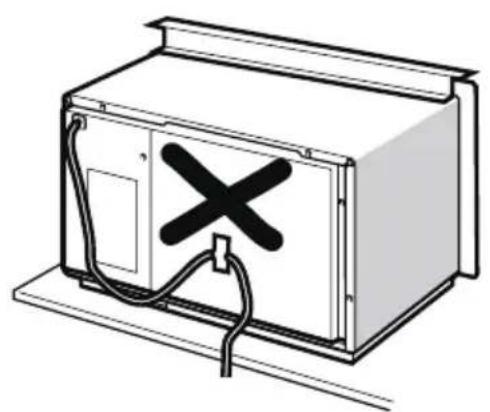

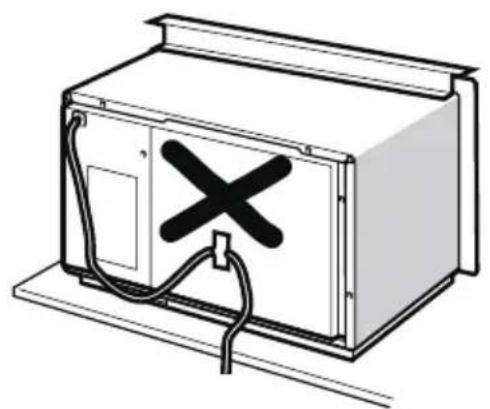

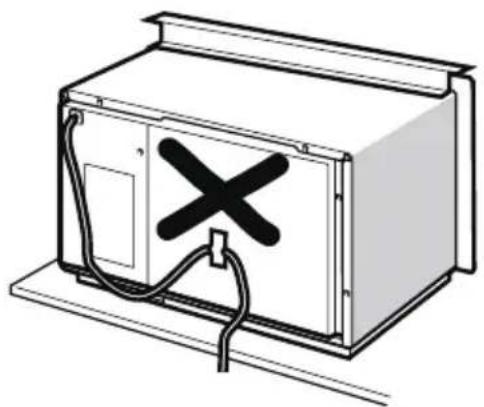

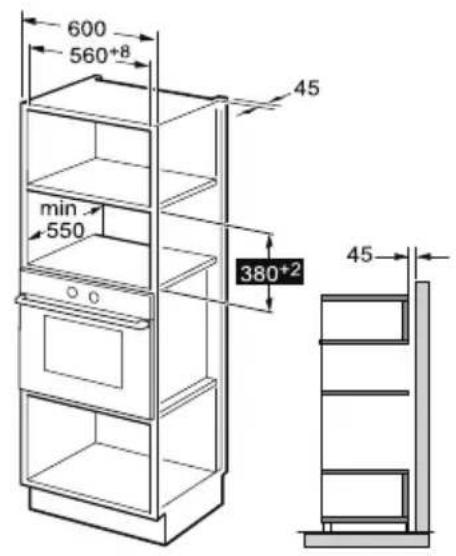

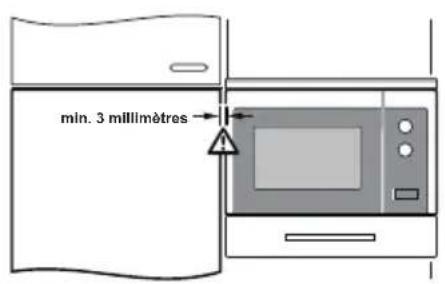

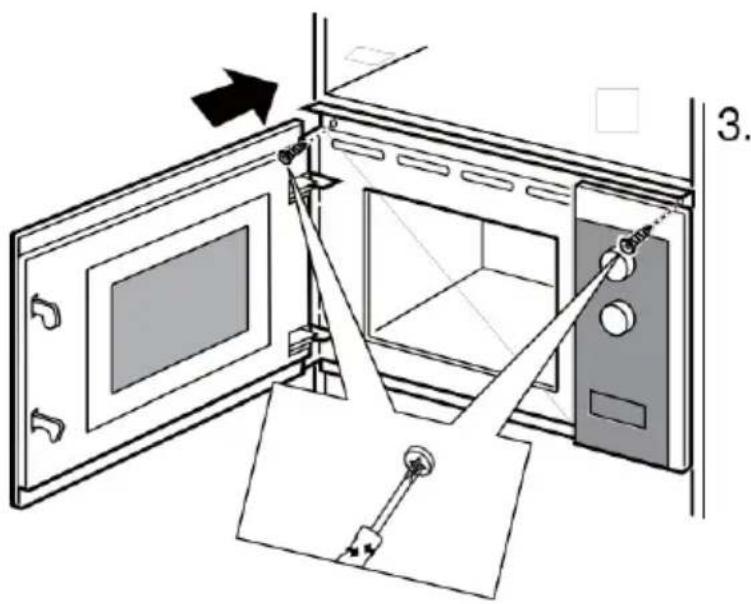

The following must be noted Electrical connection The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. Only a qualified electrician who takes the appropriate regulations into account may install the socket or replace the connecting cable. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm. Contact protection must be ensured by the installation. Fitted units The installation cabinet must not have a back panel behind the appliance. Minimum installation height: 850 mm. Ventilation slots and intakes must not be covered. Installing the oven - Fig. 2 Note: Do not trap or kink the mains lead.

Installation Instruction

Installation Instruction

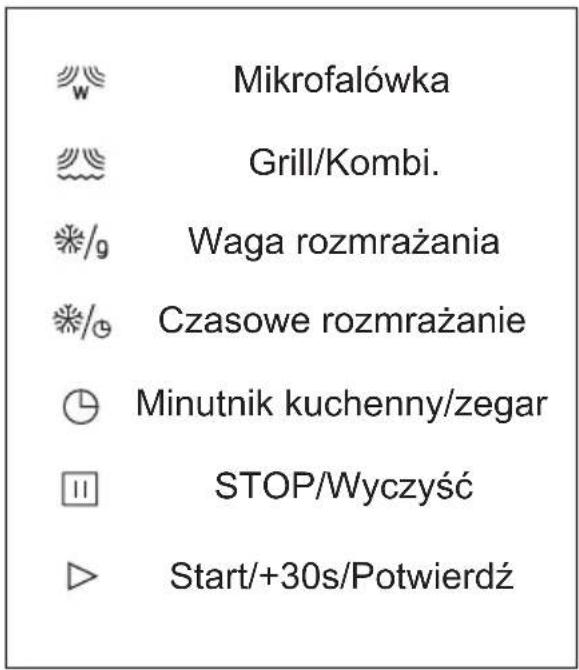

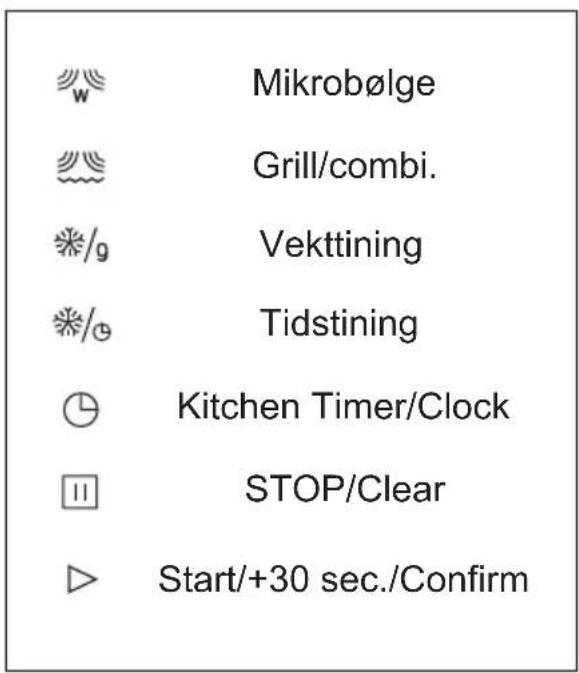

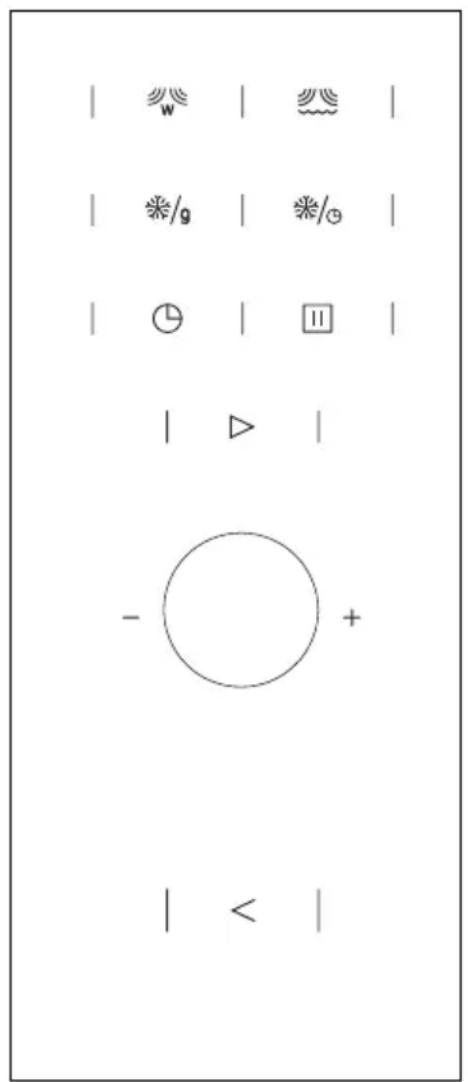

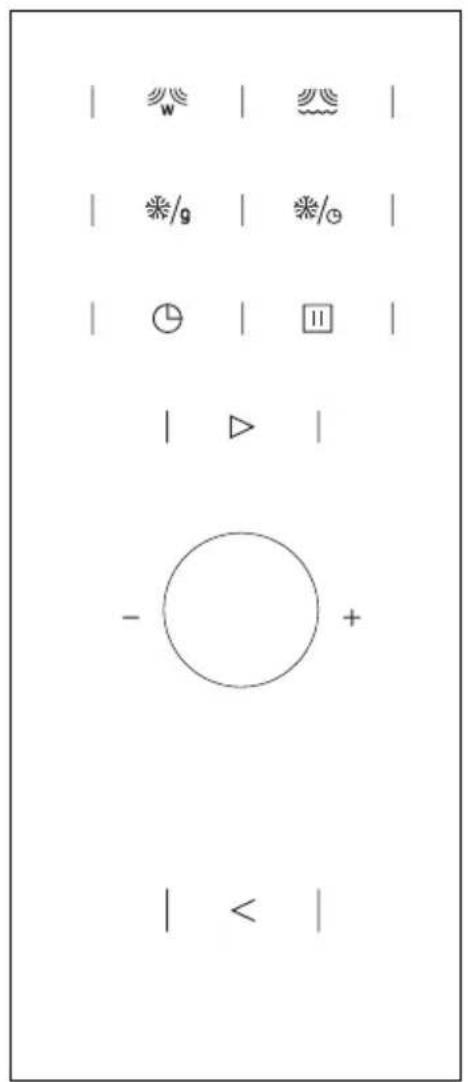

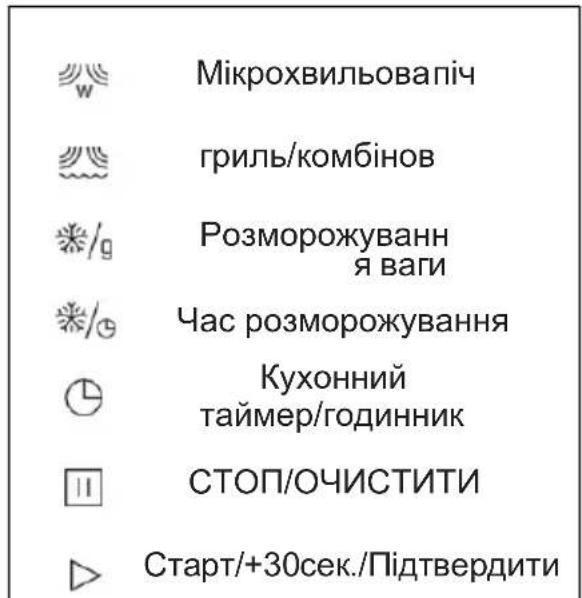

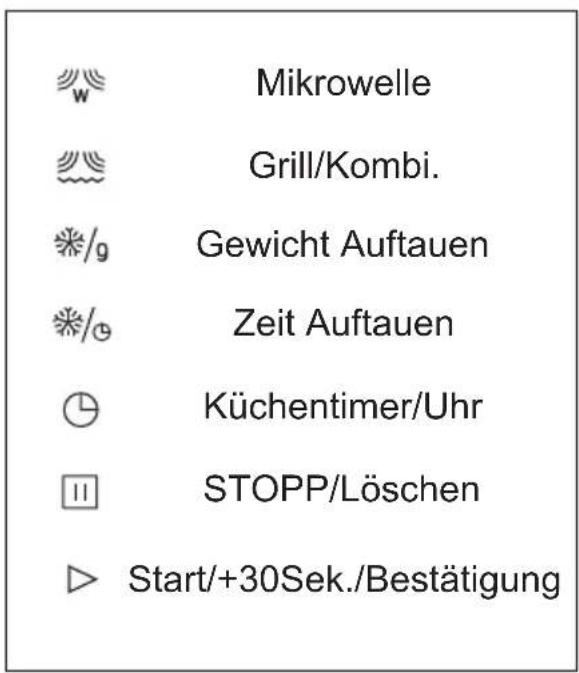

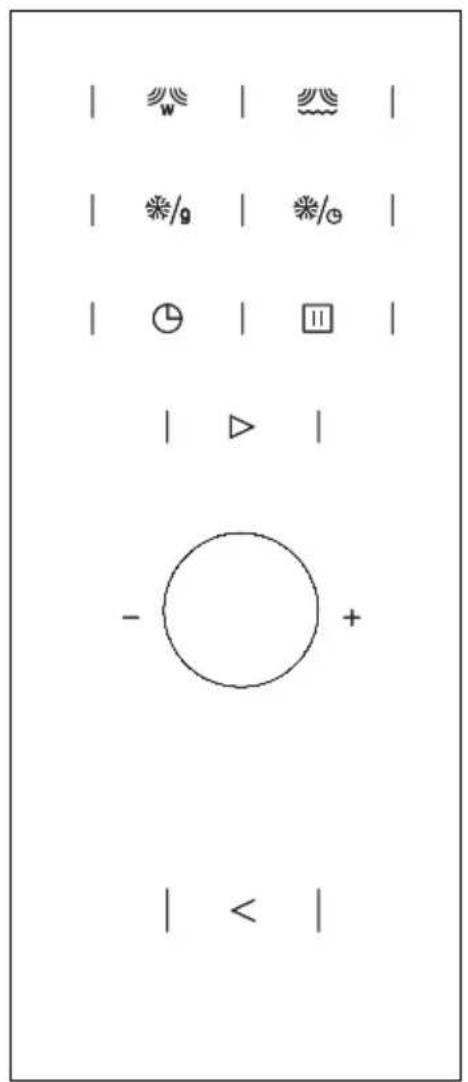

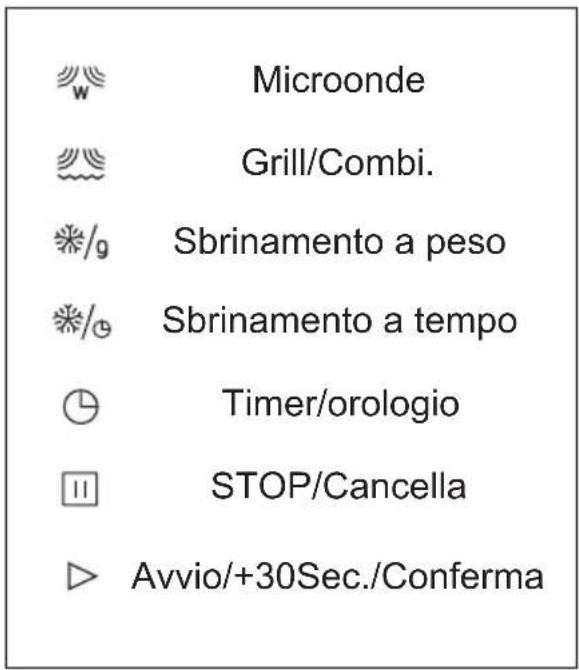

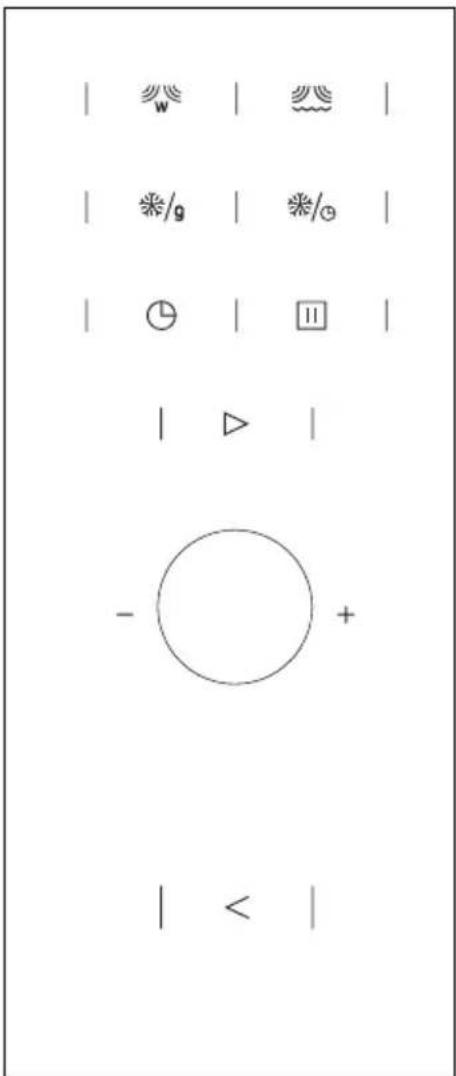

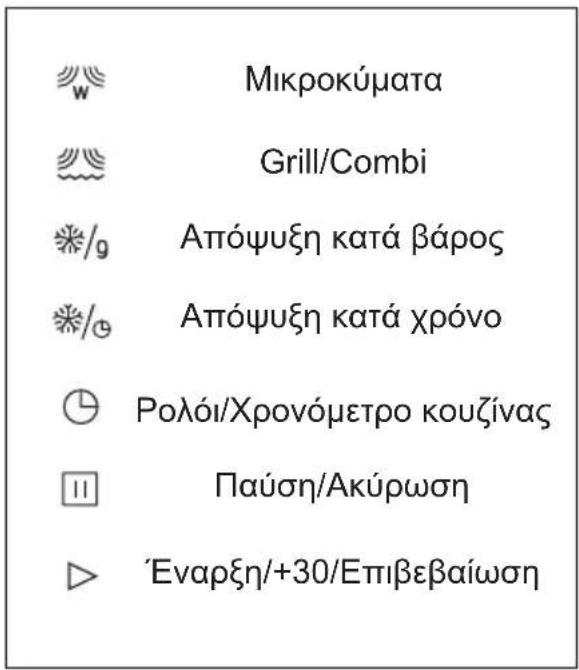

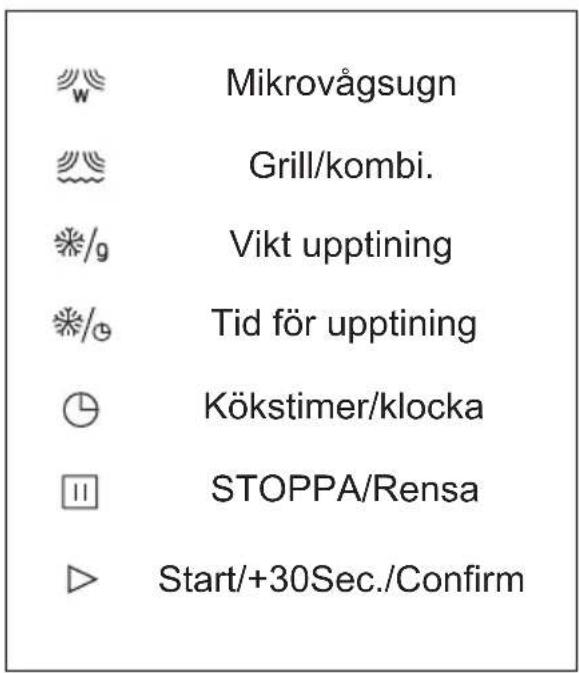

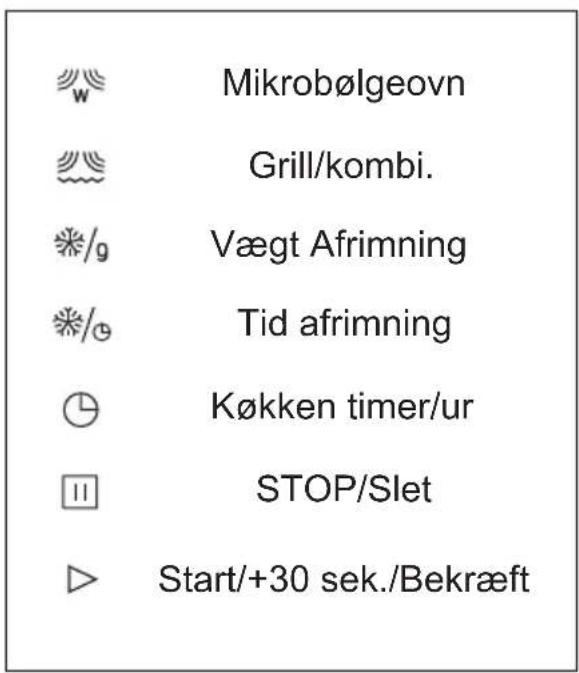

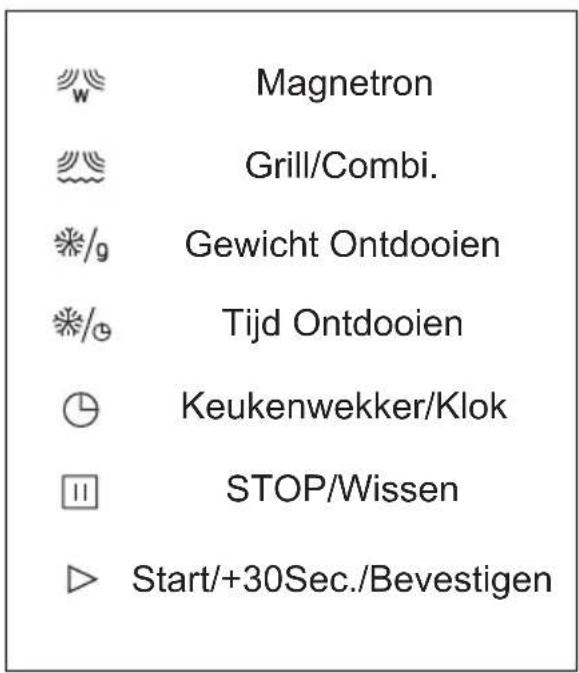

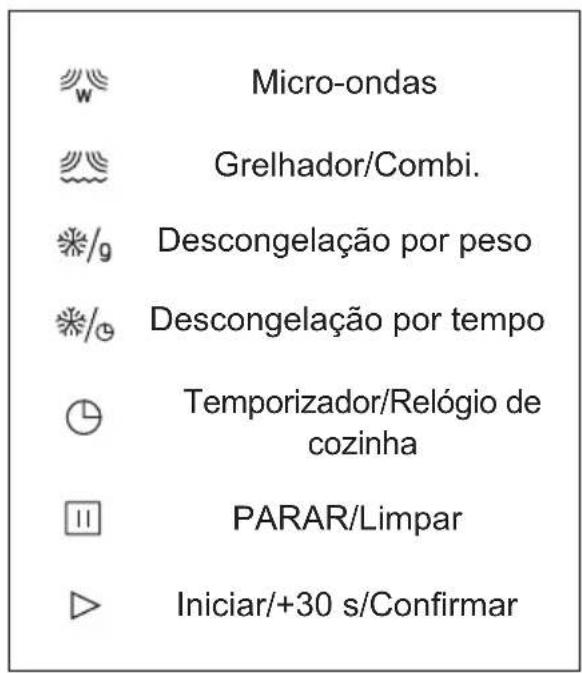

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking. When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once. The oven will enter to waiting state.

1) Press " Kitchen Timer/Clock " twice,

the hour figures will flash;

2) Turn " " to adjust the hour

figures,the input time should be within 0--23. 1.Clock Setting

1) Press the " Microwave " key once,

and "P100" will display.

2) Press " Microwave " repeatedly or

turn " " to select the microwave power. "P100", "P80", "P50", "P30", "P10" will display in order.

3) Press " Start/+30Sec./Confirm " to

confirm setting. 4)Turn " " to adjust the cooking time. (The maximum cooking time is 95 minutes)

5) Press " Start/+30Sec./Confirm " to

2. Microwave Cooking

NOTE: the step quantities for the adjustment time of the coding switch are as follow: 0---1 min : 5 seconds 1---5 min : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes

3) Press " Kitchen Timer/Clock " to

confirm, the minute figures will flash.

4) Turn " " to adjust the minute

figures, the input time should be within 0--59.

5) Press " Kitchen Timer/Clock " to

finish clock setting. ":" will flash. The current time will display. Note: If the clock is not set, it would not function when powered. Microwave Power Chart Microwave Power Display High Med.High Med. Med.Low Low P100 P80 P50 P30 P10

Press " Grill/Combi. " once, the screen will display "G", and press " Grill/Combi. " repeatedly or turn " " to choose the power you want, and "G","C-1" or "C-2" will display. Press " Start/+30Sec./Confirm " to confirm the power. Turn " " to set cooking time. (The maximum cooking time is 95 minutes) Press " Start/+30Sec./Confirm " again to start cooking. Example: If you want to use 55% microwave power and 45% grill Note:If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press " Start/+30Sec./Confirm " to continue cooking. If no operation, the oven will continue working.

3. Grill or Combi. Cooking

power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " Grill/Combi. " once, the

3) Press " Start/+30Sec./Confirm " to

4) Turn " " to adjust the cooking

time until the oven displays "10:00".

5) Press " Start/+30Sec./Confirm " to

start cooking. Combination Power instructions: Program Display Microwave Power Grill Power Grill G 0% 100%Combi.1 C-1 55% 45%Combi.2 C-2 36% 64%

1) Press " Weight Defrost " once, the

screen will display "dEF1".

2) Turn " " to select the food

weight. The range of weight is 100-2000g.

3) Press " Start/+30Sec./Confirm " key

to start defrosting.

4. Defrost By Weight

1) Press " Time Defrost " once, the

screen will display "dEF2".

2) Turn " " to select the cooking

time.The maximum time is 95 minutes.

3) Press " Start/+30Sec./Confirm " key

to start defrosting. Note: If half the defrost time passes, the oven sounds twice, and this is normal. In order to have a better effect of defrosting, you should turn the food over, close the door, and then press" Start/+30Sec./Confirm " to continue cooking. If no operation, the oven will continue working.

2 stages can be maximumly set. If one stages is defrosting, it should be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin. 6.Multi-Stage Cooking Note: Auto menu and speedy cooking cannot be set as one of the multi-stage. Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press " Time Defrost " once, the

screen will display "dEF2".

2) Turn " " to adjust the defrost

3) Press " Microwave " once, the

screen will display "P100".

4) Press " Microwave " repeatedly to

choose microwave power till "P80" displays;

5) Press " Start/+30Sec./Confirm " to

6) Turn " " to adjust the cooking

7) Press " Start/+30Sec./Confirm " to

1) Press " Kitchen Timer/Clock " once,

the screen will display " 00:00 " .

2) Turn " " to enter the correct

timer. (The maximum cooking time is 95 minutes)

3) Press " Start/+30Sec./Confirm " to

4) When the kitchen time is reached,

the buzzer will ring 5 times. If the clock has been set(24-hour system), the screen will display the current time. Note: The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.

1) In waiting state, turn" " right to

2) Press " Start/+30Sec./Confirm " to

confirm the menu you choose.

3) Turn " " to choose the the

4) Press " Start/+30Sec./Confirm " to

1) In waiting state, press "

Start/+30Sec./Confirm " key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.

microwave,grill,combination cooking and the defrost by time process, press " Start/+30Sec./Confirm " to increase the cooking time.

3) Under the states of auto menu and

defrost by weight, cooking time cannot be increased by pressing" Start/+30Sec./Confirm ".

4) In waiting state, turn " " left to

choose the cooking time. After adjusting the cooking time, press" Start/+30Sec./Confirm " to start microwave cooking with 100 % power lever.

Lock: In waiting state, press " STOP/Clear " for 3 seconds to enter the children-lock state and the current time will display if the time has been set, otherwise, the screen will display " ". Lock quitting: In locked state, press " STOP/Clear " for 3 seconds, the lock is released.

10. Lock Function for Children

1) If the door is opened in the process

of cooking, close the door and then press " Start/+30Sec./Confirm " to continue cooking.

2) Once the cooking programme has

been set , " Start/+30Sec./Confirm " is not pressed in 1 minutes. The current time will be displayed. The setting will be cancelled.

3) The buzzer sounds once by efficient

press " " button, the oven door will open.

13. Open the oven door

1) In cooking states of microwave or

grill and combination. Press " Microwave " or " Grill/Combi. " , the current power will be displayed for 3 seconds.

11. Inquiring Function

2) If the clock has been set , during

cooking state, press " Kitchen Timer/Clock " to check the current time. It will be displayed for 3 seconds.

Trouble shooting Normal Microwave oven interferingTV receptionRadio and TV reception may be interfered whenmicrowave oven operating. It is similar to theinterference of small electrical appliances, likemixer, vacuum cleaner, and electric fan.It is normal.Dim oven lightIn low power microwave cooking, oven light may become dim. It is normal.Steam accumulating ondoor, hot air out of ventsIn cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.Oven started accidentallywith no food in.It is forbidden to run the unit without any food inside.It is very dangerous. Trouble Possible Cause Remedy Oven cannotbe started.(1) Power cord is not plugged in tightly.Unplug. Then plug again after 10 seconds.(2) Fuse blowing or circuit breaker works.Replace fuse or reset circuitbreaker (repaired by professional personnel of our company)(3) Trouble with outlet.Test outlet with other electrical appliances.Oven does not heat. (4) Door is not closed well. Close door well.According to Waste of Electrical and Electronic Equipment(WEEE) directive, WEEE should be separately collected andtreated. If at any time in future you need to dispose of thisproduct please do NOT dispose of this product with householdwaste. Please send this product to WEEE collecting pointswhere available.
