Product Type	Built-in Microwave
Brand	De Dietrich
Model	DME1115X
Capacity	25 L
Microwave Power	900 W
Grill Power	1000 W
Display Type	LED
Control Type	Touch Control + Rotary Dial
Number of Power Levels	10
Functions	Auto Cook, Defrost, Grill, Express Cooking, Keep Warm
Turntable Diameter	315 mm
Interior Material	Stainless Steel
Door Type	Drop-down door
Safety Features	Child Lock, Door Interlock
Dimensions (H x W x D)	390 x 595 x 400 mm
Built-in Dimensions (H x W x D)	382 x 560 x 500 mm
Weight	20 kg
Energy Consumption	0.9 kWh (conventional), 0.8 kWh (microwave)
Power Supply	230 V, 50 Hz, 10 A
Cleaning	Easy-clean enamel interior
Spare Parts Availability	Turntable, waveguide cover, fuse available via service
Repairability Index	7.0 / 10
User Manual	Downloadable PDF from manual websites

Frequently Asked Questions - DME1115X DE DIETRICH

How do I set the clock on the De Dietrich DME1115X?

Press the Clock button, then use the dial to set the hour and minute. Confirm by pressing the same button again.

How do I use the auto cook function?

Select Auto Cook from the menu, choose the food type using the dial, then press Start. The oven adjusts time and power automatically.

Can I use metal containers in the microwave?

No, metal can cause sparks. Use only microwave-safe glass, ceramic, or plastic containers.

How do I clean the interior of the DME1115X?

Wipe with a damp cloth and mild detergent. For stubborn stains, heat a bowl of water with lemon slices for 2 minutes to loosen residue.

What is the child lock feature and how to activate it?

To activate child lock, press and hold the Stop button for 3 seconds. The display shows a lock icon. Repeat to deactivate.

How do I defrost food using the microwave?

Press Defrost, enter the weight of the food, and the oven calculates the defrost time. Turn food halfway for even results.

What does the grill function do?

The grill uses a heating element to brown and crisp food. Use it for gratins, toast, or roasting. Combine with microwave for shorter cooking.

How do I replace the turntable if broken?

Order a replacement turntable (part number available in manual). Remove the old one, place the new turntable on the drive hub, and ensure it rotates freely.

Why is the microwave not heating?

Check the power cord and fuse. Ensure the door is fully closed. If problem persists, the magnetron may need servicing. Contact De Dietrich support.

Can I use the microwave without the turntable?

No, the turntable ensures even cooking. Never operate the microwave without it.

USER MANUAL DME1115X DE DIETRICH

Modern kitchen interior with stainless steel appliances and large glass partitions (no visible text or symbols)

Dear valued customer,

To discover a De Dietrich product is to experience the range of unique emotions which only high-value items can produce.

The attraction is immediate, from the moment you set eyes on the product. The sheer quality of the design shines through thanks to the timeless style and outstanding finishes which make each appliance an elegant and refined little masterpiece in its own right, each in perfect harmony with the others.

Next, comes the irresistible urge to touch it. De Dietrich's design makes extensive use of robust and prestigious materials. The accent is placed firmly upon authenticity.

By combining state-of-the-art technology with top quality materials, De Dietrich produces beautifully crafted products to help you get the most from the culinary arts, a passion shared by all lovers of cooking and fine food.

We hope that you enjoy using this new appliance and we would love to receive your suggestions and to answer any questions you may have. Please feel free to contact our customer service department via our website.

To benefit from the many advantages offered by the brand, we recommend that you register your product at: www.de-dietrich.com.

Thank you for choosing a De Dietrich product.

De Dietrich

You can find a full range of information about the brand at www.de-dietrich.com Visit the De Dietrich Gallery, 6 rue de la Pépinière (Paris eighth district) Open from Tuesday to Saturday from 10 am to 7 pm Customer service department: 0892 02 88 04

1/NOTICES TO THE USER

• SAFETY GUIDELINES 4
- PROTECTING THE ENVIRONMENT 5
• HOW YOUR OVEN WORKS 5

2/ INSTALLING YOUR APPLIANCE

• BEFORE CONNECTION 6
  • ELECTRICAL CONNECTION 6

5/ MAINTAINING AND CLEANING YOUR APPLIANCE .... 13

6/ TROUBLESHOOTING 14

7/ AFTER SELL SERVICES 15

Important:

Important safety instructions - Read carefully and retain for future use. If the appliance is ever sold or given to another person, ensure that the new owner receives the accompanying guide. Please read these guidelines before installing and using your appliance. They were written for your safety and the safety of others.

• SAFETY GUIDELINES

This appliance is not intended for use by individuals (including children) with impaired physical, sensorial or mental abilities, or persons lacking in knowledge or experience, unless they receive prior supervision or instructions on using the appliance from a person responsible for their safety.

Children should be supervised to ensure they do not play with the appliance.

This appliance is designed to cook with the door closed.

WARNING: It is dangerous for anyone other than a qualified person to perform maintenance or repair that requires the removal of the cover providing protection against exposure to microwave power.

WARNING: Liquids and other foods must not be heated in sealed containers, as they may explode.

Only use utensils suitable for usage in microwave ovens.

When heating food items in plastic or paper containers, monitor the microwave's contents due to the risk of combustion.

If smoke appears, stop or unplug the oven and leave the door closed to stifle any flames present.

Heating beverages in the microwave oven can cause the sudden and/or delayed splattering of boiling liquid, so care must be taken when handling their containers.

The contents of baby bottles and baby food jars must be stirred or rearranged and the temperature must be checked before consumption, so as to prevent burns.

It is not recommended to heat eggs in their shells or whole hardboiled eggs in a microwave oven, as they may explode, even after cooking has ended.

WARNING: Only allow children to use the oven without supervision if adequate instructions have been given so that the child is able to use the oven safely and understands the dangers of incorrect use.

Your appliance is solely intended for domestic use for cooking, reheating and defrosting food. The manufacturer does not accept any liability in the event of inappropriate use.

To avoid damaging your appliance, never operate it while empty or without the turntable.

Do not interfere with the openings on the lock on the front of the appliance; this could cause damage to your appliance that would require a service callout.

The seal and frame of the door must be regularly examined to ensure that they have not become damaged.

In microwave mode, it is not recommended to use metallic cookware, forks, spoons, knives or metal staples or fasteners for defrosting bags.

Never heat a baby bottle with the teat on, as it may explode.

Always use oven gloves to remove dishes from the oven. Some dishes absorb the heat from food and are therefore very hot.

When heating small quantities (a sausage, a croissant, etc.) place a glass of water next to the food.

Excessive cooking times may dry out food and burn it. To prevent this occurring, never use the same times recommended for cooking in a conventional oven.

• PROTECTING THE ENVIRONMENT

This appliance's packaging materials are recyclable. Please recycle them and help protect the environment by depositing them in municipal containers provided for this purpose.

Your appliance also contains various recyclable materials. It is therefore marked with this logo to indicate that used appliances must not be mixed with other waste. The appliance recycling organised by your manufacturer will therefore be conducted in optimum conditions, in accordance with European directive 2002/96/EC on electrical and electronic equipment waste. Consult your local authority or your retailer to locate your nearest used appliance drop-off points. Thank you for your help in protecting the environment.

The microwaves used for cooking are electromagnetic waves. They are commonly found in our environment in the form of radio waves, light and infrared rays.

Their frequency is in the 2450 MHz range.

Their behaviour:

•They are reflected by metals.
- They travel through all other materials.
- They are absorbed by water, fat and sugar molecules.

When food is exposed to microwaves its molecules begin moving rapidly, causing it to heat up.

The penetration depth of waves into the food is approximately 2.5 cm; if the food is thicker, the centre of the food will be cooked by conduction, as in conventional cooking.

Note that microwaves cause a simple thermal phenomenon within food and are not harmful to health.

Diagram of a chicken on a tray with directional arrows indicating movement or flow (no text or symbols)

- BEFORE CONNECTION

Warning:

Ensure that your appliance has not suffered any damage during transport (bent door or seal, etc.). If you notice any kind of damage, contact your retailer before using the appliance.

In order to easily locate the make, model number, etc. of your appliance, we recommend that you note this information on the "After-Sales Service Department and Customer Support" page.

• ELECTRICAL CONNECTION

Ensure that:

• The electrical installation has sufficient voltage.
• The electrical wires are in good condition.
• The diameter of the wires complies with the installation requirements.
• Your electrical installation is equipped with 16-ampere thermal-sensitive protection.
  If in doubt, consult your electrician.

Electrical connections should be completed before the appliance is placed in the wall unit.

The appliance must be recess-fitted correctly to ensure electrical safety. During recess fitting and maintenance operations, the appliance must be unplugged from the socket; fuses must be cut off or removed.

The plug must remain accessible after the appliance is installed.

Your electrical installation should include an accessible feature that allows users to disconnect the power supply.

If the power cable is damaged, it should be replaced by the manufacturer, its after-sales service or a similarly qualified person so as to prevent a hazard.

Important:

We cannot accept liability for any accident or incident resulting from non-existent, defective or incorrect grounding.

If the oven malfunctions in any way, unplug the appliance or remove the fuse for the oven's connection line.

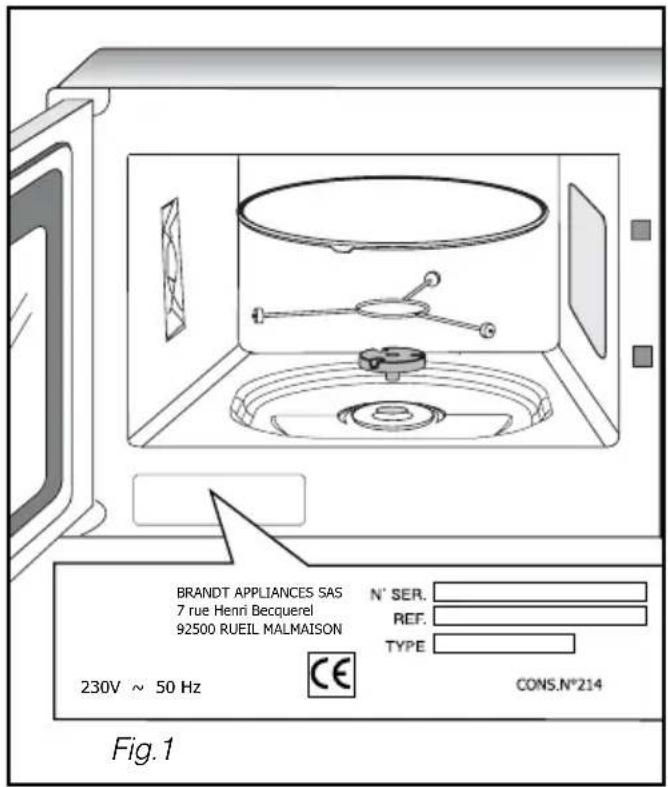

• THE APPLIANCE

Identification label
TurntableWheel support

- THE TURNTABLE :

ensures equal cooking of food throughout with no need to intervene.

• It may be used as a cooking dish.
• Rotation is controlled by the drive shaft and the wheel support.
• The turntable rotates in both directions.
• If it does not turn, verify that all components are properly positioned.

- TURNTABLE OFF ∅ :

stops the turntable from revolving in order to use platters which require the entire oven space. When stopped, remember to stir the contents or turn the dish midway through the programme.

• THE WHEEL SUPPORT :

Do not try to rotate the roller ring manually, as you could damage the drive system. If it does not turn smoothly, make sure that there is nothing in the well beneath the turntable.

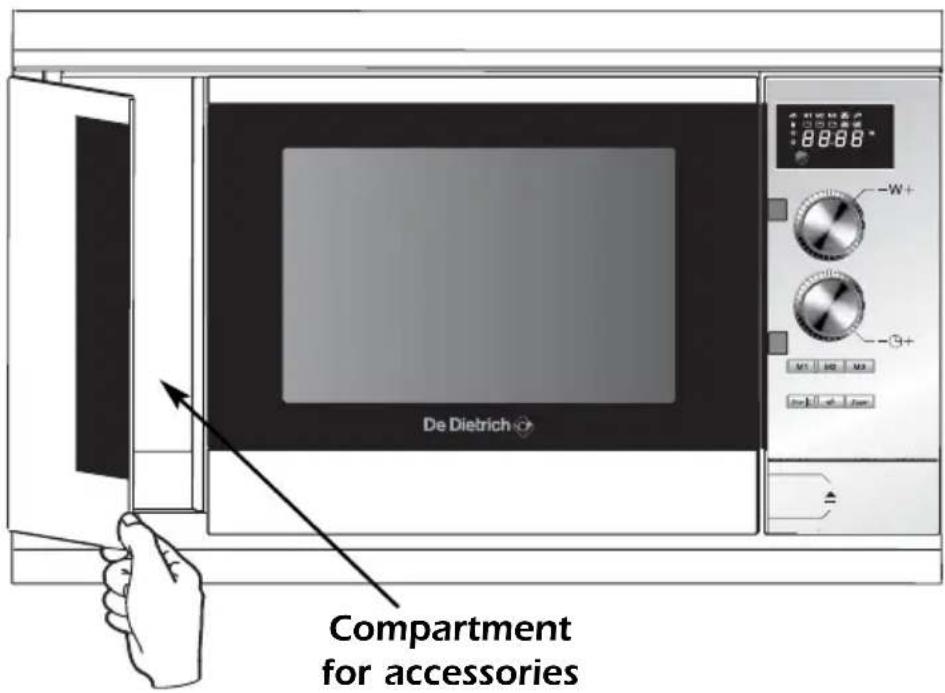

• GENERAL DECSCRIPTION

- The compartment for accessories: to store various accessories which can be used with the appliance. (eg: any plate, plate cover, manual...).

WARNING : Do not store any food nor any cleaning materials within the recess. Pull the small door to open as shown above.

LOCATION

• The appliance should be installed at a distance of 85 cm above the floor.
• Place the oven on a flat and horizontal surface, away from any source of heat or steam.
• Make sure that air may circulate freely around the oven.

- Check all the characteristics and building-in conditions in the user's manual supplied with the appliance.

- Make sure that nothing obstructs the ventilation louvers at the back of the appliance.

- Make sure the electrical plug will be accessible after installation.

- Do not use your appliance immediately (wait approx. 1-2 hours) after transfer from a cold place to a warm place as condensation may cause a malfunction.

• THE CONTROL PANEL

A Display window : to simplify programming, the display indicates : the time of day, the programme length, and the functions programmed.

B The clock setting key.

to set the clock.

C Microwave power selector knob W: to set the microwave power level.

D Time selector knob: to set the clock, the programme length.

E MEMORY keys M1/M2/M3 : for rapid access to 3 preprogrammed operations.

F CLEAR/STOP key STOP|C :

to interrupt (press once) or to cancel a programme (press twice).

STOP-TURNTABLE key : to stop the turntable from revolving.

H START key START :

to start all programmes.

Door open button : to open the door or stop the oven.

- SETTING THE CLOCK

After the plugging in of the appliance or a power cut, the flashing

0 0 : 0 0 invites you to set the clock.

To set the clock :

• Push the clock setting key.
• Set the clock with the time selector knob (ex. 12:00).
• Validate with a single push on the clock setting key.

The clock is set.

• MICROWAVE POWER SETTINGS

POWER SETTING APPLICATION
	DEFROST 150	To defrost meat, fish, fruit, bread or delicate dishes.
	VERY LOW COOK 250	To top off cooking of delicate dishes or to cook very slowly.
	LOW COOK 350	To finish programmes begun with the HIGH COOK power setting which might otherwise over-cook on the outside, for instance veal or pork roast.
	SIMMER 500	To cook fish and poultry. To finish programmes begun with the HIGH COOK power setting such as beans, lentils or milk-based dishes.
	REHEAT 700	To reheat all fresh or frozen pre-cooked dishes and frozen vegetables.
	HIGH COOK 750	To cook fresh vegetables and soup. To heat up all liquids.
MICROWAVE OUTPUT POWER: 750 W

- SETTING A MICROWAVE PROGRAMME

Your microwave oven is now plugged in and the clock is set.

Open the door, set the dish inside, close the door. If the door is not properly shut, the appliance will not operate.

If the dish is too large to turn freely inside the oven, press the STOP TURNTABLE key before or during the programme.

6 microwave power levels are available :

(150 - 250 - 350 - 500 - 700 - 750 W).

Example : Set a microwave programme at the HIGH COOK power level (750 W).

Turn the microwave power selector knob to 750 W

is displayed.

- Set the programme time with the time selector knob, ex. 5 minutes :

is displayed.

®Press START.

The programme begins: the turntable revolves, the oven light comes on. 3 beeps announce the end of a programme. The beeps are repeated every minute for 10 minutes until you open the door.

If there is an error in the programming, press the CLEAR/STOP key twice.

• EXPRESS PROGRAMME

¬Set the programme time with the selector knob, ex. three minutes :

is displayed.

- Press START.

The HIGH COOK programme begins automatically: the turntable revolves, the oven light comes on.

• MEMORY KEYS M1/M2/M3

The Memory keys allow you to store 3 frequently used programmes which you can then access simply by pressing M1 / M2 / M3. You may memorize any programme you wish.

Example : Use the Memory key to preprogramme the heating up of a plate of food. Proceed as if setting the programme for immediate use :

Turn the microwave power selector knob to HIGH COOK (750 W):

is displayed.

Set the programme time with the time selector knob, ex. 2 min :

is displayed.

Instead of pressing START, press the MEMORY key M1; after several seconds you will hear a tone confirming that the personalized programme has been memorized.

is displayed.

You may memorize two more programmes by pressing Memory keys M2 / M3.

To call up a programme, press the corresponding Memory key; the preprogrammed information is displayed.

Press START, the memorized programme begins.

• You may stop or start the turntable revolving during a programme by pressing the TURN-TABLE STOP key ☐.
• To change a programme, press the C/\$STOP key twice and programme again.
• If you open the door before the end of the programme, shut the door and press the START key to continue the programme.
• When using the defrost function (150W), turn the food midway through the programme to obtain the best results. Close the door and press the START key to continue the second half of the programme.
• If you remove a dish before the end of the programme, press the C/STOP key twice to erase the programme.

5/ MAINTAINING AND CLEANING YOUR APPLIANCE

We recommend that you clean the oven regularly and remove any deposits of food inside and outside of the appliance. Use a damp sponge and a little soap. If the appliance is not cleaned regularly, its surface could become damaged, permanently affecting the appliance's lifespan and possibly causing a safety hazard. If the door or door seal are damaged, the oven should not be used until it has been repaired by a qualified person.

Do not clean the appliance with a steam cleaner.

The use of abrasive products, alcohol or thinners is not recommended as they are likely to damage the appliance.

Do not use abrasive maintenance products or hard metal scrapers to clean the oven door as they may scratch the surface or break the glass.

If the oven smells bad or is dirty, boil a cup of water with lemon juice for 2 minutes and clean the walls with a small amount of washing up liquid.

The turntable can be removed for easy cleaning. To remove it, pick it up using the access zones provided for this purpose. If you take out the support with the drive spindle, make sure you do not let water get into the motor spindle orifice.

Remember to put back the support, the support wheels and the turntable.

• TROUBLESHOOTING GUIDE

Problem

t The time counts down, but the appliance does not function the turntable does not rotate, the light does not come on and the food is not heated)

t The microwave oven is noisy when operating

t Condensation forms on the door glass

t The turntable does not revolve correctly

t The microwave programmes do not produce the desired results

t The appliance produces sparks

Suggestion

s Press the TURNTABLE OFF key ∅ for five seconds.

s Adjust the front left foot. Clean the wheels and the well area beneath the turntable.

s Wipe the water off with the help of a cloth in order to avoid.

s Clean the wheels and the well beneath the turntable.

s Clean the vents under the appliance. Make sure that you use only containers which are suitable for microwave cooking.

s Check whether the wheel support is correctly positioned. Thoroughly clean the appliance : remove any greasy deposits, cooking residue, etc... Move any metal objects away from the oven walls.

• SERVICE CALLS

Any repairs that are made to your appliance must be performed by a qualified professional certified as a brand agent. When you call, please mention your appliance's "Service" reference, as well as the "Nr" serial number. This information appears on the manufacturer's nameplate (see Fig.1).

ORIGINAL PARTS

When servicing is performed, ask the engineer to only use certified original spare parts.
