ME by Starck D4200500 - Toilet Duravit - Free user manual and instructions

Product Type	Floor-standing toilet
Brand	Duravit
Model	ME by Starck D4200500
Color	White (default)
Material	Vitrified ceramic
Flush System	Dual flush (3.5/5.0 L or 0.92/1.32 GPF)
Required Water Pressure	140 – 550 kPa (20 – 80 psi) for dual flush; 172 – 550 kPa (25 – 80 psi) for single flush
Dimensions (W x D x H)	Approx. 670 x 380 x 400 mm
Weight	Approx. 35 kg
Power Supply	None (only water supply)
Installation Type	Floor-mounted, with connection flange
Assembly Instructions	Installation by a qualified sanitary installer required
Package Contents	Tank, bowl, flush mechanism, fixing kit, manual
Accessories Not Included	Seat, stop valve, connection flange
Care and Cleaning	Clean with a soft cloth and mild detergent; avoid abrasive products
Safety	Handle with care (risk of breakage); use of gloves recommended; two persons for transport
Water Level Adjustment	Via float valve (see Configuration section of manual)
Repairability	Spare parts available (fill valve, flush mechanism, seals)
Warranty	Consult reseller or Duravit

Frequently Asked Questions - ME by Starck D4200500 Duravit

How to adjust the water level in the tank?

Remove the adjustment screw, unlock the float valve, adjust the float height to the desired level, then lock and replace the screw. Check after flushing.

What water pressure is required for this toilet?

For the dual flush version: 20 to 80 psi (140 to 550 kPa). For the single flush version: 25 to 80 psi (172 to 550 kPa).

Can I install this toilet myself?

It is highly recommended to call a qualified sanitary installer due to the technical skills required for proper installation.

What to do in case of water leakage?

Check the tightness of all connections. If the seal is damaged, replace it. Do not lift or shake the toilet after installation.

How to maintain the ceramic?

Clean regularly with a soft cloth and a mild non-abrasive detergent. Avoid chlorine-based or acidic products that could damage the surface.

What accessories are required for installation?

You will need a stop valve, a connection flange, and a seat (not included in the box).

The tank leaks after installation, what to check?

Ensure that the tank-to-bowl fixing bolts are properly tightened (not over-tightened). Check that the gasket between the tank and bowl is correctly positioned.

How to install the seat?

Follow the instructions provided with the seat. Generally, it attaches using bolts and washers to the holes at the back of the bowl.

The flush mechanism does not fill completely

Check the water pressure and the adjustment of the float valve. Ensure the stop valve is open. If the problem persists, clean or replace the fill valve.

What is the water consumption per flush?

In single flush mode: 4.8 L (1.28 GPF). In dual flush mode: 5.0 L for full flush and 3.5 L for half flush.

USER MANUAL ME by Starck D4200500 Duravit

MOUNTING INSTRUCTIONS

Mounting instructions

Two-piece toilet

Notice de montage

Cuvette Two Piece

1930 Series Happy D.2

213001..00 + # 087230..05 # 011201..62 + # 092910..05

D1002200 # 217401..00 + # 093420..01

D410200

Darling New

212601..00 + # 093120..05

ME by Starck

D2101800 # 217101..00 + # 093820..01

217101..85 + # 093820..85

D-Code

D4201600

011701..62 + # 092720..02 # D4201700

D4005700

P3 Comforts

DuraStyle

216801..00 + # 093720..01

216001..00 + # 093520..05 # 216801..85 + # 093720..85

216001..00 + # 093520..83 # D4501200

216001..85 + # 093520..85

D4051900

Starck 3

D4052000 # 212501..00 + # 092040..04

212501..00 + # 092060..01

DuraStyle Basic

D1909700

218801..00 + # 094160..05/U2

218801..85 + # 094150..02/U3

218801..85 + # 094150..82/U4

Important information 4

Installation 5

Settings 9

Remarques importantes 12

Montage 13

Réglages 17

About these instructions

The installation instructions come as part of the Duravit product and must be read carefully prior to installation.

Target readership and qualifications

This is a professional grade product. A working knowledge of construction techniques and code compliant plumbing installation are required for proper installation and user satisfaction. The product must be installed by a licensed plumber.

Explanation of the key words and symbols

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

NOTICE

Is used to address practices not related to physical injury.

Link to other instructions

Inspection (e.g. for scratches)

Inspect for leaks and that all connections have a watertight seal

Action required

Safety instructions

Risk of personal injury or breakage through fragile product!

> 2 people are recommended of handling.

Handle with care.

Product and/or property damage

The breach of local and country-specific regulations and standards can cause damage to the product and/or property damage.

Observe the local installation regulations and any country-specific standards at all times.

Prior to the installation

Please read specification sheets prior to the installation. Specification sheets are available for download at pro.duravit.us.

Water installation

HET (high

efficiency toilet)

Operation pressure

Recommended:

Single flush 1.28 gpf / 4.8 lpf 25 - 80 psi /

172-550kPA

Dual flush 1.32/0.92 gpf /

20-80 psi/

5.0/3.5

140-550kPA

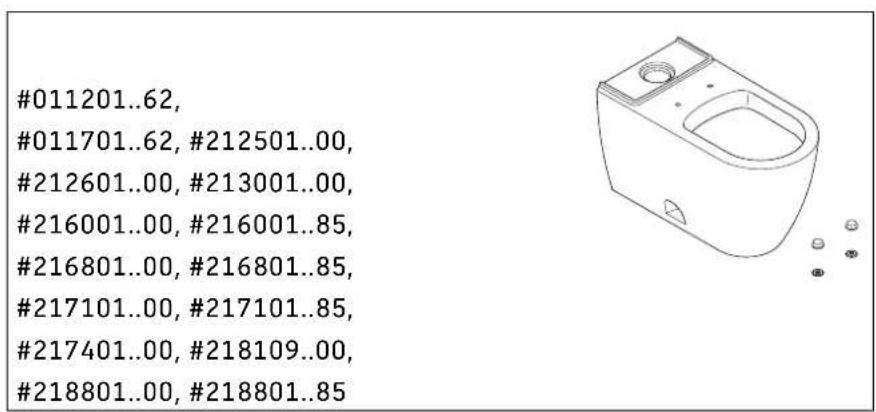

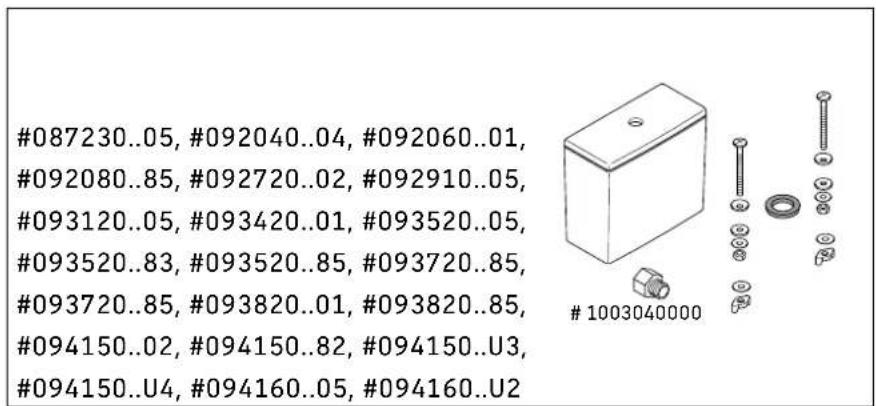

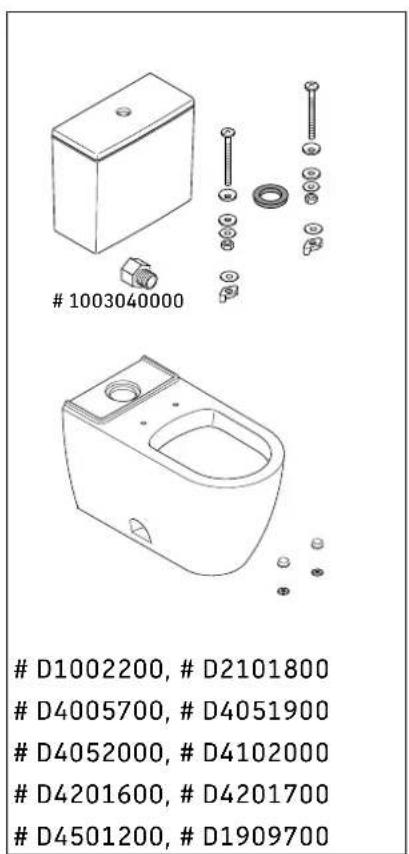

Delivery contents

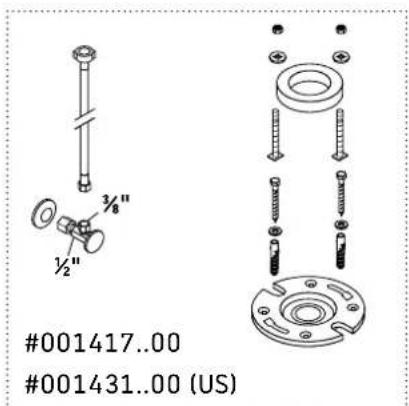

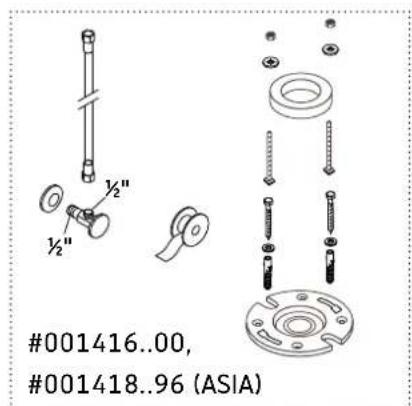

Accessories (not included)

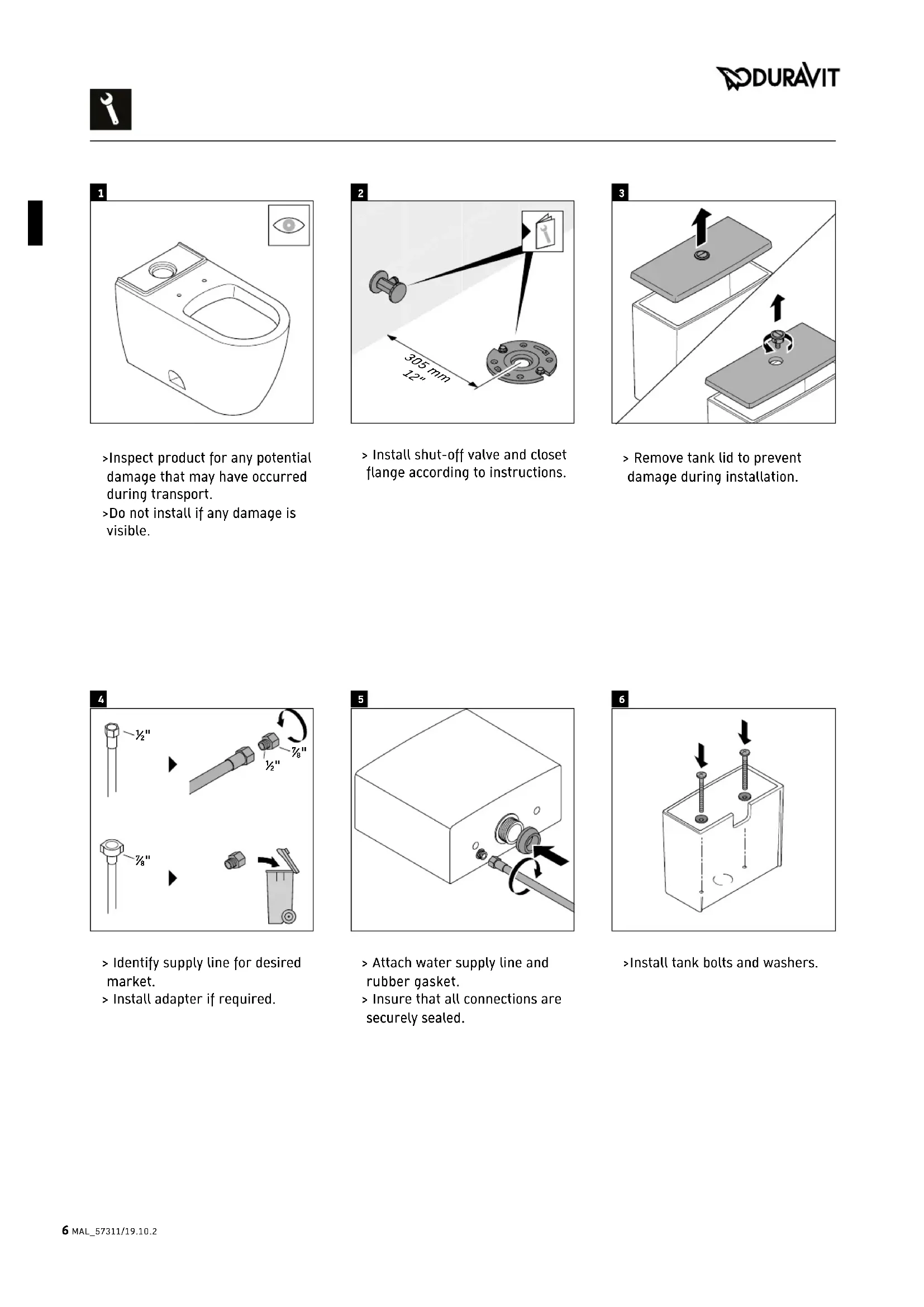

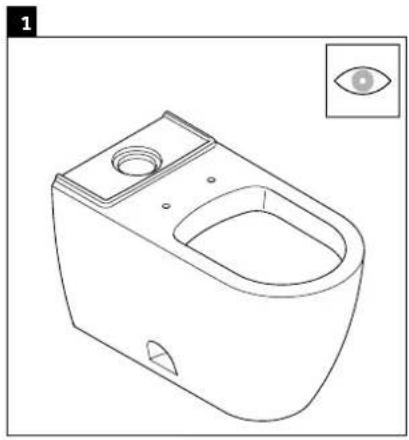

Inspect product for any potential damage that may have occurred during transport.

Do not install if any damage is visible.

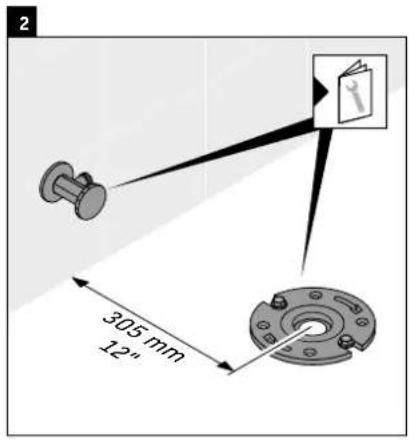

Install shut-off valve and closet flange according to instructions.

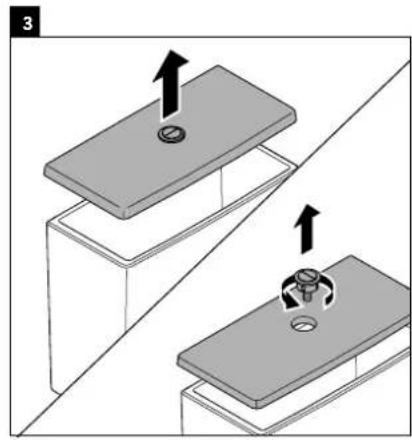

Remove tank lid to prevent damage during installation.

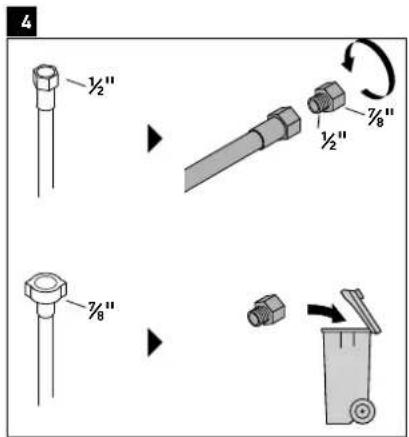

Identify supply line for desired market.

Install adapter if required.

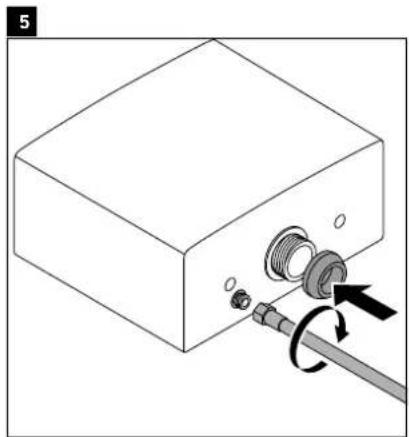

Attach water supply line and rubber gasket.

Insure that all connections are securely sealed.

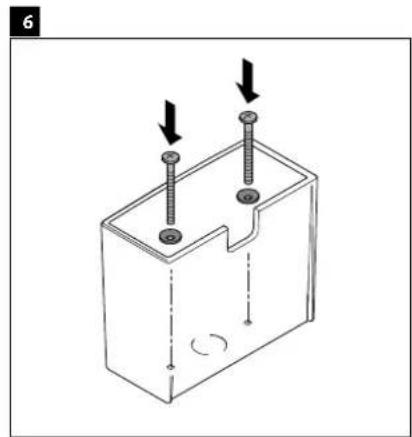

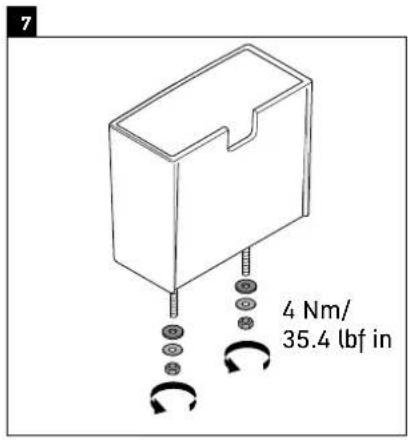

Install tank bolts and washers.

Attach and secure hardware to tank.

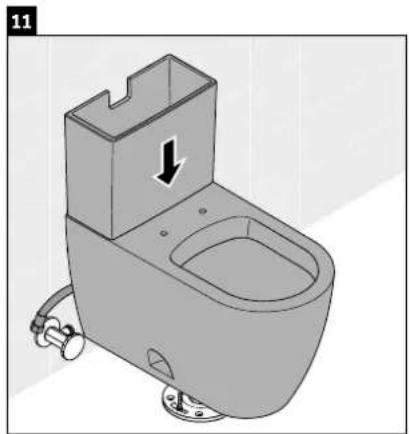

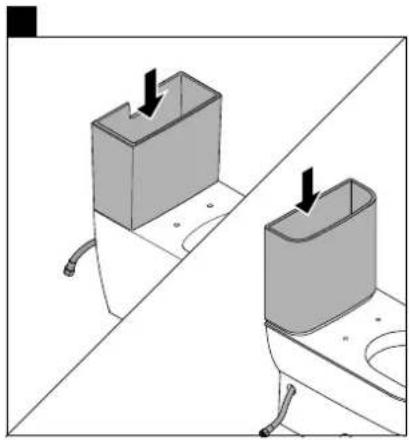

Lift tank onto toilet bowl.
Install water supply line either through the hole or behind the toilet pending model.

Attach tank to toilet bowl using supplied hardware.

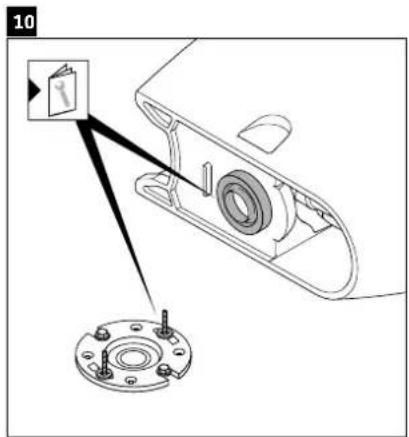

Install wax ring and T-bolts according to instructions.

NOTICE

Risk of external leaks!

Do not lift or rock the toilet after placement.
If you break the watertight seal, you must install a new wax seal.
Install toilet to floor flange.

NOTICE

Risk of product damage!

Overtightening may cause breakage or chipping of vitreous china.
Handle with care.

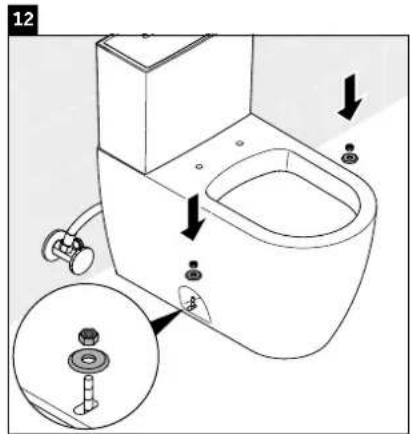

Install washer and nuts to secure toilet to floor.

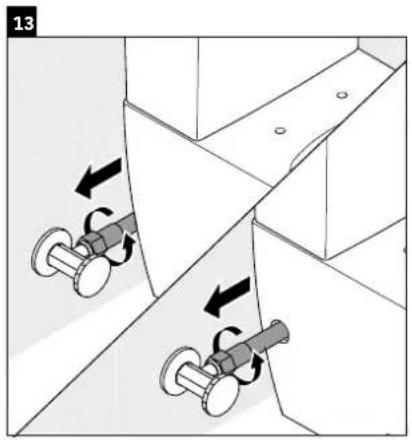

Attach water supply line to shut-off valve.

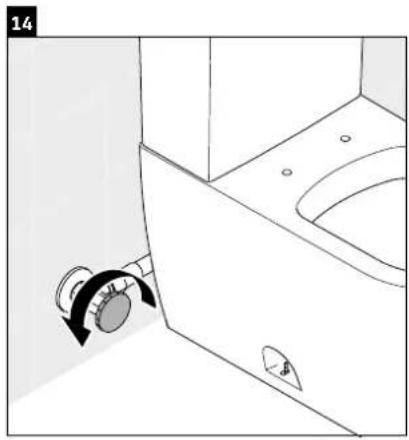

Turn on shut-off valve.

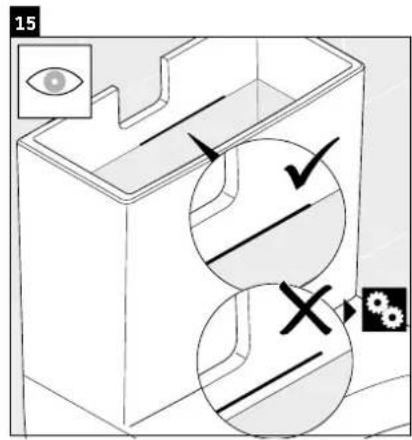

Check water level in tank.

Adjust water level up to proper setting if required (see section "Settings").

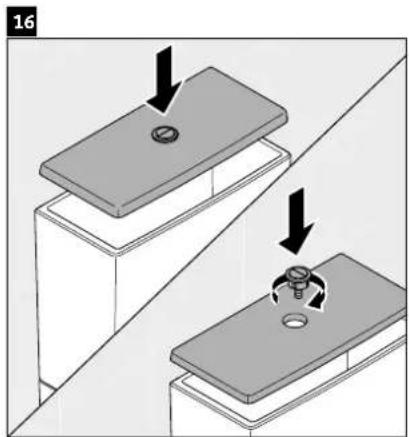

Install and secure tank lid.

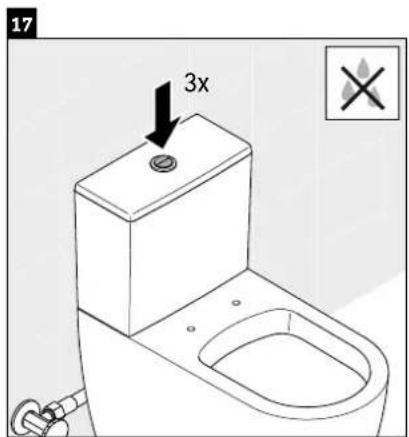

Flush toilet three times.

Inspect for leaks and that all connections have a water tight seal.

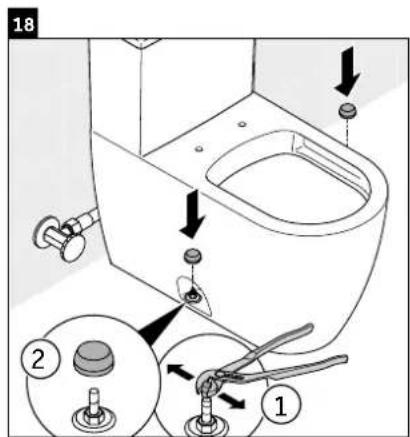

Cut/brake off bolts and install caps.

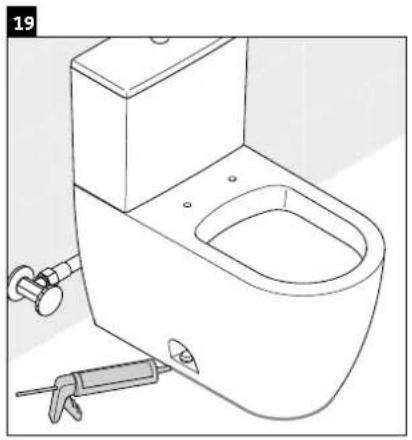

Apply silicone around the base of the toilet.

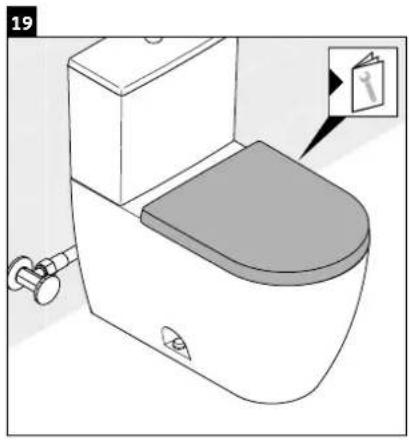

Install seat according to instructions.

A

087230..05,

093120..05, #093120..05,

093520..05/83,

093720..01/85,

093820..85/01,

093420..01,

094160..05/U2,

D1002200, D2101800, D4052000,
D4501200, D4201600, D4201700

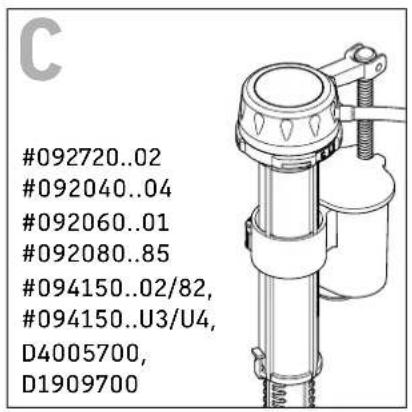

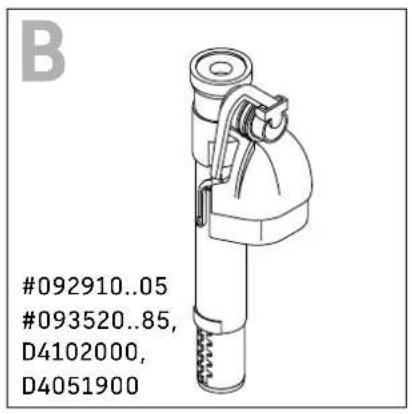

Identify correct fill valve for appropriate toilet.

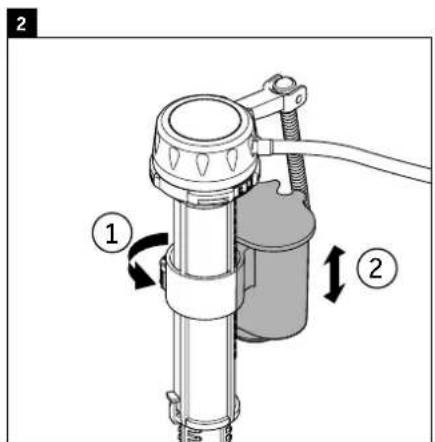

Remove adjustable screw.
Unlock float valve.

Set float valve to correct height.

Lock float valve.
Reattach adjustable screw.

Identify correct fill valve for appropriate toilet.

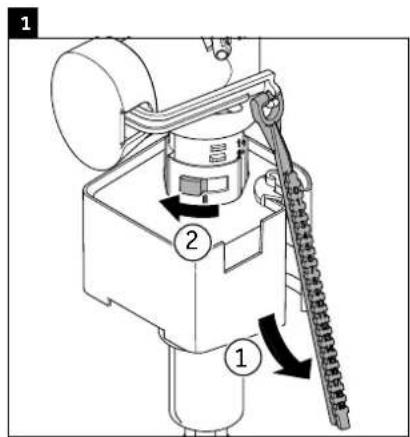

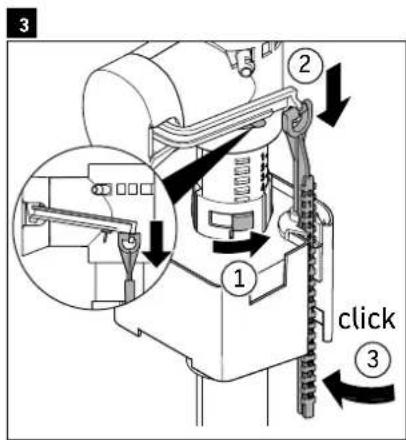

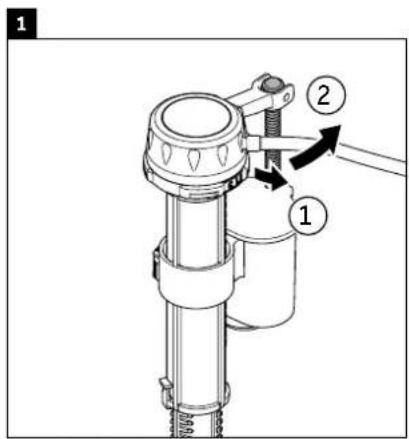

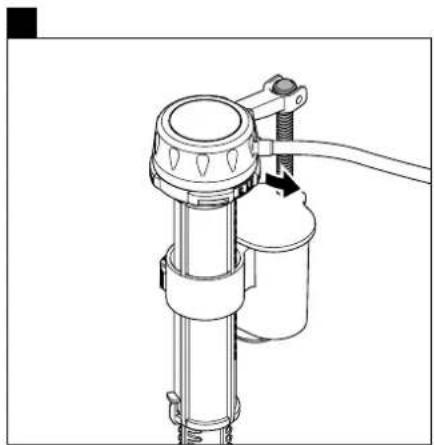

Unlock float valve.

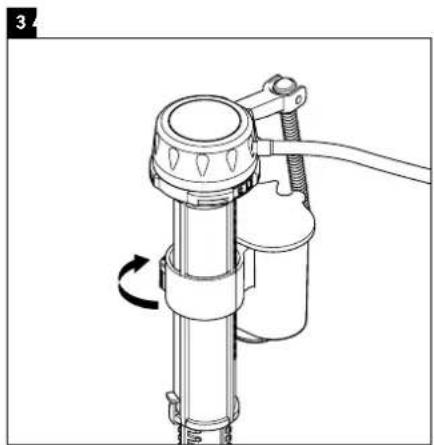

Rotate to release.

Set float valve at correct height.

Rotate to secure.

Lock float valve.

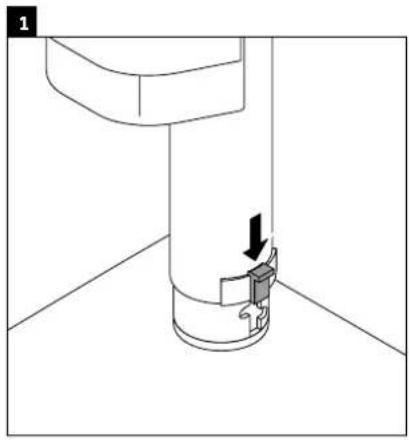

Identify correct fill valve for appropriate toilet.

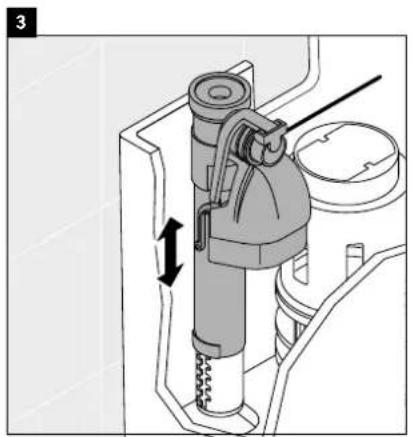

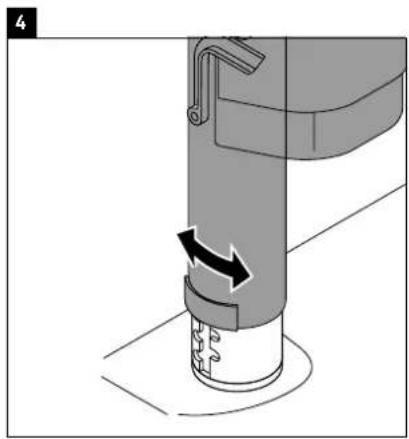

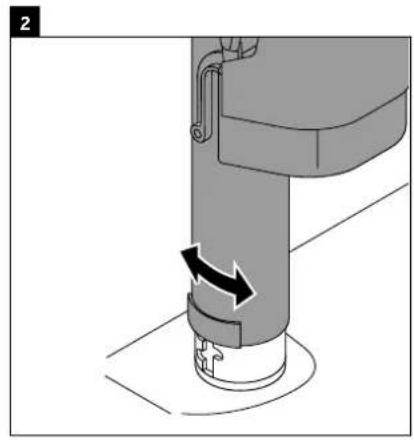

Rotate rod quarter turn and release.

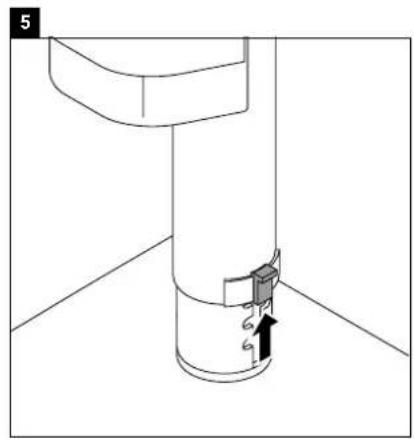

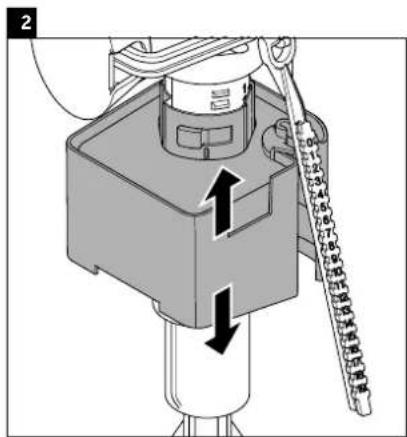

Slide clip and adjust basket to correct height.

Secure clip,

reattach and

lock rod.

093120..05, #093120..05,

093520..05/83,

093720..01/85,

093820..85/01,

093420..01,

094160..05/U2,

D1002200, D2101800, D4052000,
D4501200, D4201600, D4201700

Toll Free 888-DURAVIT

Phone [phone]

Fax [phone]

[e-mail]

www.duravit.us
