Ketho KT665004949 - Sanitary Duravit - Free user manual and instructions

Product Type	Washbasin
Brand	Duravit
Model	Ketho KT665004949
Material	Ceramic
Color	White
Shape	Rectangular
Mounting Type	Wall-mounted
Dimensions (W x D x H)	600 mm x 450 mm x 150 mm
Weight	15 kg
Overflow	Yes
Tap Holes	1
Waste Set Included	Yes
Warranty	2 years
Cleaning Instructions	Use mild detergent and soft cloth. Avoid abrasive cleaners.
Maintenance	Regular cleaning to prevent lime scale buildup.
Safety Notes	Do not stand on the basin. Ensure proper wall fixing.
Spare Parts Availability	Overflow kit, waste set, fixing brackets
Repairability	Replaceable waste and overflow components
Compatibility	Compatible with Duravit bathroom furniture and taps

Frequently Asked Questions - Ketho KT665004949 Duravit

What are the exact dimensions of the Duravit Ketho KT665004949 washbasin?

The dimensions are approximately 600 mm width, 450 mm depth, and 150 mm height.

Is the washbasin suitable for wall-mounting?

Yes, it is designed for wall-mounting. Ensure the wall can support the weight and use the provided fixing brackets.

Does the basin come with an overflow?

Yes, it includes an overflow to prevent water spillage.

How many tap holes does the basin have?

It typically has one tap hole, suitable for a single-lever mixer.

Can I use abrasive cleaners on this ceramic basin?

No, avoid abrasive cleaners. Use mild soap or a gentle bathroom cleaner with a soft cloth to preserve the surface.

What is the weight of the basin?

The basin weighs approximately 15 kg.

Are spare parts like the waste set available?

Yes, spare parts such as the waste set and overflow kit are available from Duravit or authorized dealers.

How do I install the washbasin?

Follow the included manual. Mount the bracket securely to the wall, attach the basin, connect the plumbing, and seal edges with silicone.

What is the warranty period for this product?

Duravit offers a 2-year warranty from the date of purchase against manufacturing defects.

Can this basin be combined with Duravit Ketho furniture?

Yes, it is designed to match other Ketho series items like vanity units and mirrors.

USER MANUAL Ketho KT665004949 Duravit

Installation instructions

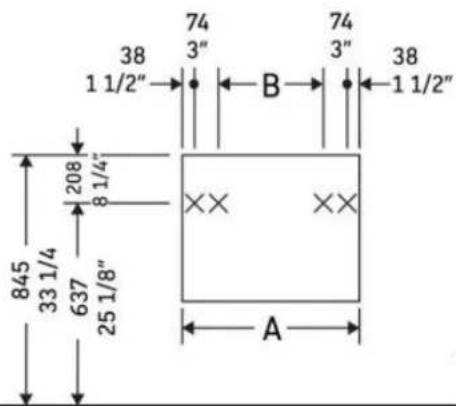

A mm	A inch	B mm	B inch
600	23 5/8"	376	14 3/4"

034265

Instructions for use

The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.

Though designed for the wet environment, direct contact with water should be avoided, for example, when showering.

We reserve the right to make technical improvements and design modifications to the products illustrated.

12

Reference the washbasin specification to establish the position of mounting bolts, mark the holes to be drilled for the anchors.

The image is too blurry to recognize any text content.

Using a 3/8" and 5/8" drill bit, drill the anchor holes that have been marked.

•

The plastic anchors provided are for concrete wall applications.

4

For wood stud walls, bolts should be screwed into wood backing.

5

When mounting the washbasin into a wood stud wall, there must be adequate bracing. We recommend doubling up 2 x 6's or 2 x 8's between the studs to form a solid anchoring point. Screw mounting bolts into the pre drilled holes with an adjustable wrench. Screw in the full length of the mounting bolt, so that the lag thread is no longer visible. Carefully slide washbasin onto the mounting bolts. Insert the white plastic sleeve over bolt and into the hole in the washbasin. Install provided washer and nut. Hand tighten the nut, so the washbasin is secure. Install the siphon.

The image is too blurry to recognize any text content.

Remove the vanity drawer. Using a screwdriver, adjust

•

the vanity mounting hinge system clockwise.

8

Slide the vanity under the washbasin. Tighten mounting bolts with a wrench until the washbasin is stable.

Using a screwdriver adjust the vanity mounting hinge system counter-clockwise.

Check the leveling of vanity for adjustment.

Screw two set screws until desired leveling of the vanity has been reached.

Using the appropriate bit for the wall material, drill pilot holes.

The plastic anchors provided are for concrete wall applications.

For wood stud walls, bolts should be screwed into wood backing.

Install the faucet and siphon.

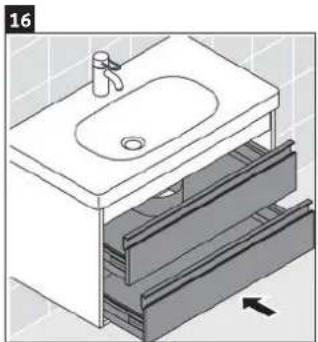

Install the vanity drawer.

Remove plate with Duravit logo.

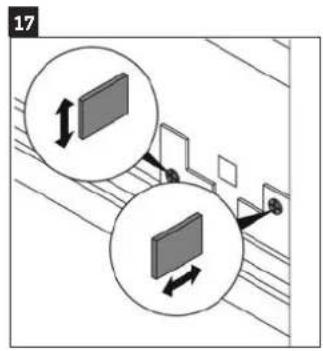

Level the vanity drawer by adjusting the two screws.

Re-attach plate with Duravit logo.

Apply silicone bead between washbasin and the wall.

Furniture complies with applicable requirements of the referenced standard(s):

Safety Household and Commercial Furnishings (UL 962, 3rd ed. Issued: 07/07/08, Revised: 08/05/13)

Portable Luminaires CSA C22.2 No. 12 - 1982 (R2004)

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical furnishing, basic precautions should always be followed, including the following:

Read all instructions before using this furnishing.

DANGER To reduce the risk of electric shock:

1. Always power down all circuits before cleaning.

WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Disconnect from power before putting on or taking off parts. A minimum of two people is required to remove and replace cabinet doors.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacture.
4. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the furnishing to a service center for examination and repair.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8. For loading always put heavier items at the bottom and not near the top in order to help prevent the possibility of the furnishing tipping over.

MAXIMUM SHELF LOAD IN POUNDS ALLOWED: 6.61 lbs

1. To disconnect, power down all circuits.

2. Risk of Injury to Persons - do not place video equipment such as televisions or computer monitors on furnishing.

GROUNDING INSTRUCTIONS

This product must be connected to a grounded metal, permanent wiring system, or an equipment - grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the product.

ABOUT THE PRODUCT

Products requiring electricity are designed to be switched at the wall and hardwired to a circuit provided by the customer. Product should be installed according to electrical code by a qualified technician. Read important safety instructions carefully. Direct wetting should be avoided. This products is intended for household/residential use only. We reserve the right to make technical improvements and to enhance the appearance of the products shown.

SAVE THESE INSTRUCTIONS
