Product Type	Wall-mounted or pedestal washbasin
Brand	Duravit
Model	Vero 2350500000
Material	Vitreous china
Dimensions (approx.)	Width: 23.6 in (600 mm), Depth: 18.9 in (480 mm), Height: 7.9 in (200 mm)
Weight	Approx. 33 lbs (15 kg)
Mounting Type	Wall-mount with brackets or pedestal
Included Hardware	Mounting bolts, plastic sleeves, washers, nuts, plastic anchors (for concrete)
Faucet Holes	Single center hole (1 3/8 in diameter) for faucet
Overflow	Yes, with siphon cover
Compliance	UPC®, National Plumbing Code of Canada, ASME A112.19.2/CSA B45.1
Installation Professional	Required (licensed plumber)
Cleaning	Mild soap and water; avoid abrasive cleaners
Warranty	Refer to Duravit warranty terms
Spare Parts	Mounting hardware kit #695100 0000

Frequently Asked Questions - Vero 2350500000 Duravit

What is the recommended mounting height for the Vero 2350500000 washbasin?

Refer to the specification sheet for recommended mounting height. Typically, the top of the basin is installed at 36 inches (915 mm) from the floor, but adjust to your preference. Use the mounting hole locations shown in the sheet.

Does the Vero 2350500000 include mounting hardware?

Yes, the washbasin includes mounting hardware kit #695100 0000 with bolts, plastic sleeves, washers, nuts, and plastic anchors for concrete walls. For wood stud walls, lag bolts screw directly into wood backing.

Can I install this washbasin as a pedestal model?

Yes, a pedestal is optional. The pedestal must be used only with listed washbasins. Scan the QR code on the packaging or visit qr.duravit.com/[article number] to confirm compatibility.

How do I level the washbasin after mounting?

Use the white plastic sleeves that fit over the mounting bolts. They protect the china and allow slight height adjustment. Loosen nuts, level the basin, then re-tighten.

What types of walls is the mounting hardware suitable for?

Plastic anchors are for concrete walls. For wood stud walls, ensure adequate bracing (double 2x6 or 2x8 between studs) and screw lag bolts directly into wood. Do not mount to drywall only.

Do I need to apply silicone to the edges?

Yes, apply a bead of silicone along the top edge where the washbasin meets the wall to prevent water ingress. For pedestal installations, also silicone around the basin edges after final positioning.

How do I install the pedestal?

First mount the washbasin on the wall, then gently lift the front and slide the pedestal underneath. Tighten mounting bolts, then check level and adjust. Finally, test for leaks.

What is the recommended faucet and trap assembly?

Install a faucet and trap assembly per manufacturer's instructions. Ensure the faucet fits the center hole (1 3/8 in diameter). Test for leaks after installation.

How should I clean the vitreous china washbasin?

Clean with a soft cloth and mild soap or non-abrasive cleaner. Harsh chemicals or scouring pads may damage the finish. Rinse thoroughly.

Where can I find the full installation manual?

The manual is included with the product and available for download at www.pro.duravit.us or via the QR code on the packaging. You can also find it on notice-facile.com.

USER MANUAL Vero 2350500000 Duravit

Installation instructions

Washbasin

2 MAL_51193/21.03.3

Important information 4

Installation 10

MAL_51193/21.03.3 3

en

About these instructions

These mounting instructions come as part of the Duravit washbasin and are to be read carefully prior to the installation.

Target readership and qualifications

This is a professional grade product. A working knowledge of construction techniques and code compliant plumbing installation are required for proper installation and user satisfaction. The product must be installed by a licensed plumber.

Explanation of the signal words and symbols

NOTE! To avoid property damage

Link to the mounting instructions in this section

Inspection (e.g. for scratches)

Check for leaks and leak-tightness

Indication of the length of time (e.g. 10 minutes)

Safety instructions

Product and/or property damage

The breach of local and country-specific regulations and standards can cause damage to the product and/or property damage.

Observe the local installation regulations and any country-specific standards at all times.

Prior to installation

Please read the specifications sheets prior to installation. Specification sheets are available for download at www.pro.duravit.us.

Products are in compliance with the following codes:

• Uniform Plumbing Code (UPC®)
• National Plumbing Code of Canada
• Following standards: ASME A112.19.2/CSA B45.1

4 MAL_51193/21.03.3

Delivery contents

The washbasin will include mounting hardware model # 695100 0000. The plastic anchors provided are for concrete wall applications. For wood stud walls, the lag bolts should be screwed into the wood backing.

N 1 2

When mounting the washbasin on a pre-wall carrier, install the mounting bolts to the element.

When mounting the washbasin into a wood stud wall, there must be adequate bracing. We recommend doubling up 2x6's or 2x8's between the studs to form a solid anchoring point. Reference the washbasin specification sheet to establish the height and the spacing of the mounting bolts.

Washbasins with siphon cover > Continue with mounting A
Washbasin with pedestal

Continue with mounting B

The washbasin specification sheet will provide the recommended mounting height and show the location of the mounting holes. (The height can be adjusted to your personal preference)

A1

Mark the location of the mounting holes.

•

Using the appropriate bit for the wall material, drill pilot holes.

Please note if the washbasin will be mounted on a concrete wall application, anchors must be used.

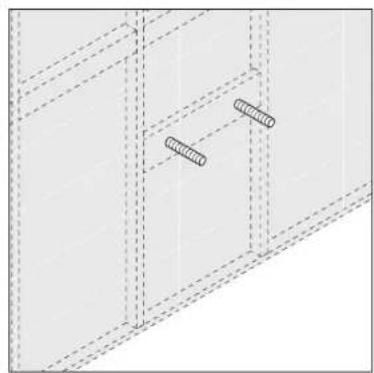

Screw mounting bolts into the pre-drilled holes with an adjustable wrench.
Screw in the full length of the mounting bolt, so the lag thread is no longer visible.

Install Shut off valves according to manufacturer's installation instructions.

Carefully slide washbasin onto the mounting bolts.
Insert white plastic sleeve over the bolt and into the hole of the washbasin.
Install provided washer and nut.
Hand tighten the nut so the washbasin is secure.

Leveling the washbasin: the white plastic sleeves protect the china from the metal bolt and allow for slight adjustment in the height of the washbasin to level it.

Apply silicone around washbasin edges.

Install faucet and trap assembly according to manufacturer's installation instructions.

MAL_51193/21.03.37

N 11

085810..., #085824..., #085827..., #085829..., #085833..., #085836..., #085839..., #086327..., #086330..., #086341..., #086386..., #086398..., #086502..., #086516..., #262200..., #085770..., #086321..., #086320..., #086308..., #085791..., #085790..., #085842...

Pedestal

Note!

Pedestal may only be installed with corresponding listed washbasin.

Scan QR Code on packaging label or visit the webadress qr.duravit.com/"articlenumber" to get listed washbasin.

B1

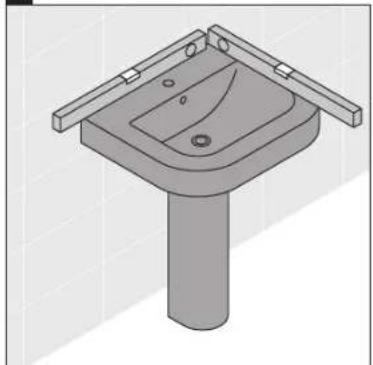

Set washbasin on pedestal leg carefully, then using a level, properly align the washbasin.

Mark the location of the mounting holes. Mark the location of the back edge where the washbasin meets the wall.

Using the appropriate bit for the wall material, drill pilot holes.

B4

Please note if the washbasin will be mounted on a concrete wall application, anchors must be used.

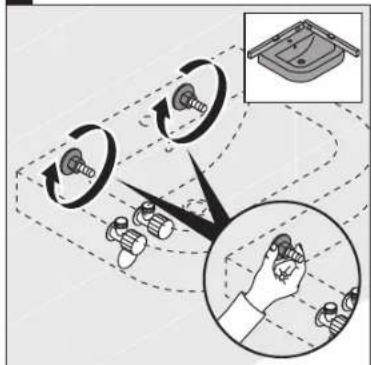

Screw mounting bolts into the pre-drilled holes with an adjustable wrench.
Screw in the full length of the mounting bolt, so the lag thread is no longer visible.

8 MAL_51193/21.03.3

B5

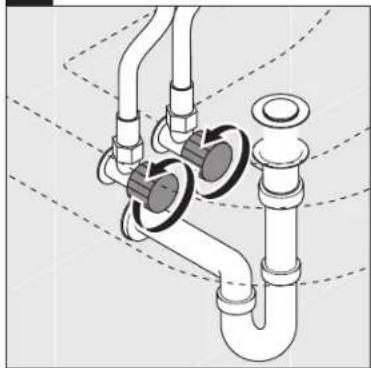

Install Shut off valves according to manufacturer's installation instructions.

∴ m = 3/11

Carefully slide washbasin onto the mounting bolts.
Insert white plastic sleeve over the bolt and into the hole of the washbasin.
Install provided washer and nut.
Hand tighten the nut so the washbasin is secure.

•

Leveling the washbasin: the white plastic sleeves protect the china from the metal bolt and allow for slight adjustment in the height of the washbasin to level it.

B8

Install the faucet according to the corresponding installation instructions.

•

Install the siphon according to the corresponding installation instructions.

∴ m = 3/11

Turn on Shut off valves to test water flow to faucet and drain.

N I L

B11

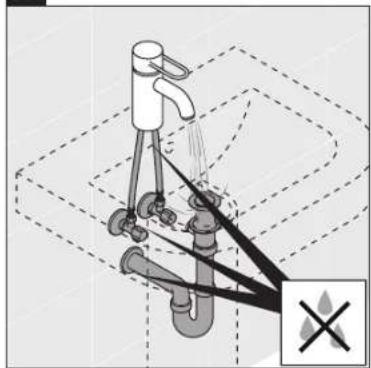

Test faucet and drain to ensure there are no leaks.

B12

Gently lift the front of the washbasin to allow pedestal to slide underneath. Slightly loosen mounting if needed to allow for safe lift of basin lip.

B13

Tighten mounting bolts with wrench to secure. Inspect and adjust for proper level.
Washbasin should sit snug upon pedestal base.

B14

Test faucet and drain to ensure there are no leaks.

B15

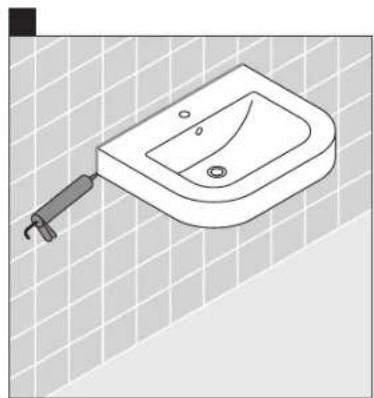

Apply silicone around washbasin edges.

10 MAL_51193/21.03.3
