USER MANUAL SMA 500 F1 SILVERCREST

13. Warranty information ................................................................................ 46SilverCrest SMA 500 F1 English - 27 Congratulations! By purchasing the SilverCrest SMA 500 F1 milk frother, hereinafter referred to as milk frother, you have opted for a high-quality product. Familiarise yourself with the milk frother before using it for the first time and read these operating instructions carefully. Observe the safety instructions and only use the milk frother in the manner described in these operating instructions and for the indicated fields of application. Keep these operating instructions in a safe place. Hand over all documents in the event that you pass on the milk frother to a third party.

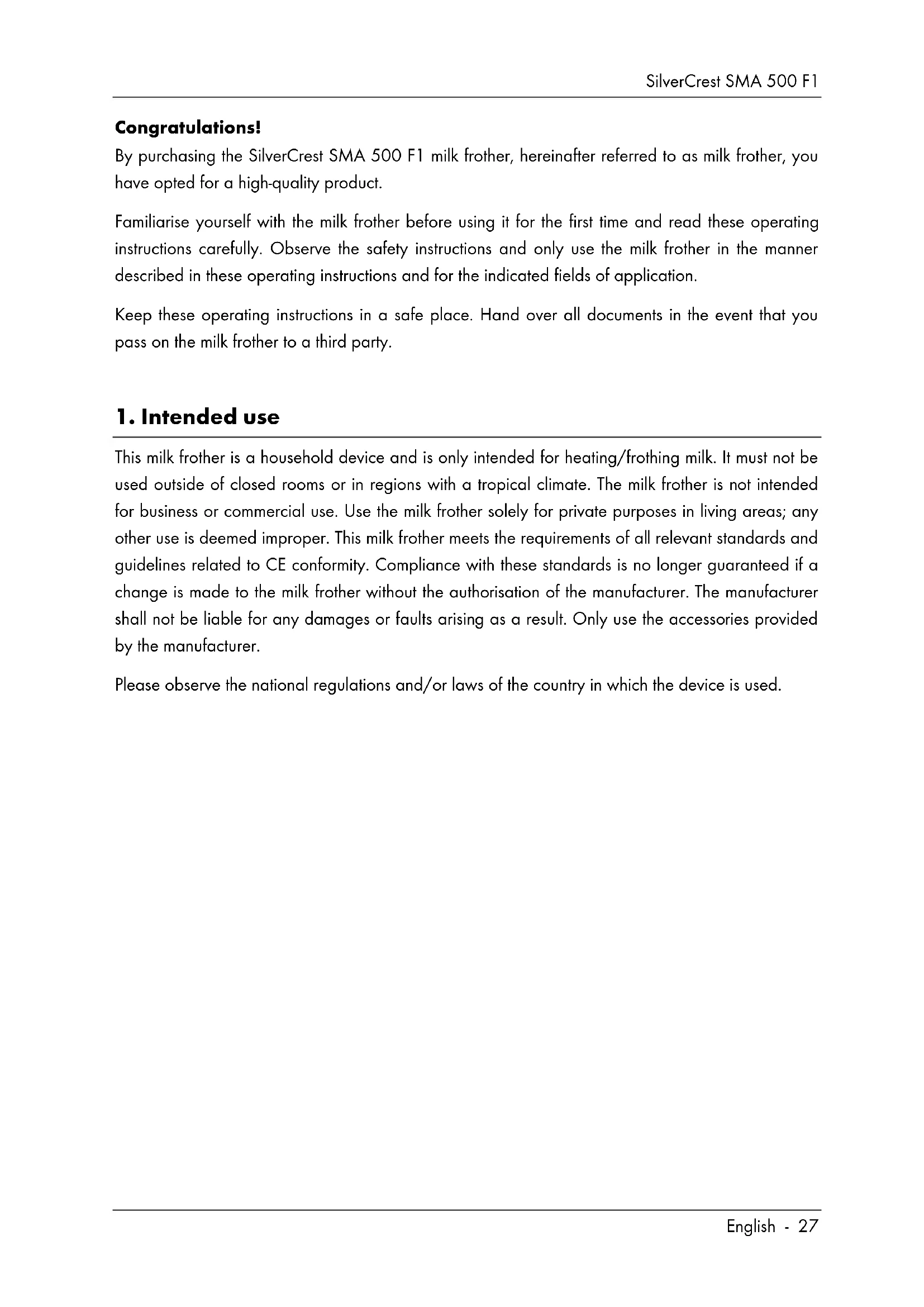

This milk frother is a household device and is only intended for heating/frothing milk. It must not be used outside of closed rooms or in regions with a tropical climate. The milk frother is not intended for business or commercial use. Use the milk frother solely for private purposes in living areas; any other use is deemed improper. This milk frother meets the requirements of all relevant standards and guidelines related to CE conformity. Compliance with these standards is no longer guaranteed if a change is made to the milk frother without the authorisation of the manufacturer. The manufacturer shall not be liable for any damages or faults arising as a result. Only use the accessories provided by the manufacturer. Please observe the national regulations and/or laws of the country in which the device is used.SilverCrest SMA 500 F1

Unpack the milk frother and all of the accessories. Remove all packaging materials and check all of the components for completeness and signs of damage. If any parts are missing or damaged, please contact the manufacturer.

• Device base with power cable

• These operating instructions The inside of the cover provides a schematic of the SilverCrest milk frother SMA 500 F1 and all controls. The numbers identify the following parts/functions:

Manufacturer TARGA GmbH Designation SilverCrest SMA 500 F1 Power supply 220–240 V~, 50/60 Hz Power consumption 500 W Capacity Froth: max. 150 ml Heat and stir: max. 300 ml Dimensions (H x W x D) approx. 20.6 x 15.0 x 10.9 cm Weight approx. 940 g (overall) The specifications and design are subject to change without notice.

4. Safety instructions

Before using the milk frother for the first time, please read the following instructions carefully and observe all warnings, even if you are familiar with using electronic and household devices. Keep this operating manual in a safe place for future reference. If you give sell the milk frother, or give it to someone else, please pass on this operating manual. It is an integral part of the milk frother. Key to symbols DANGER! This warning indicates a hazard involving a high level of risk, which if not avoided, may result in severe injury or death. WARNING! This warning indicates a hazard involving a medium level of risk, which if not avoided, may result in severe injury or death. DANGER! This icon indicates hazards to health and/or property posed by an electric shock, potentially including risk of death.SilverCrest SMA 500 F1

Danger, hot surface! DANGER! This symbol warns against the danger of injuries/burns caused by contact with hot surfaces. This symbol indicates products whose physical and chemical composition have been tested and found to be safe for use in contact with foodstuffs in accordance with Regulation EC 1935/2004. This symbol gives you further information on the topic. AC voltage Manufacturer´s address Foreseeable misuse

• Only heat the canister (5) using the base (10) designed for this purpose. Do not attempt to heat the canister on the hob under any circumstances, and do not use the base from any other milk frother.

• Do not use the canister (5) for other liquids; it should be used for milk only.

• Always use fresh milk. Do not consume any milk that has been left in the canister (5) for a long period of time.

• Do not reheat milk that has cooled. Always pour away any old milk. The milk frother must not be operated using an external timer or a separate remote-control system.

• This milk frother may be used by children aged eight and over and by people with reduced physical, sensory or mentalSilverCrest SMA 500 F1 English - 31 abilities or who lack experience and knowledge, provided they are supervised or have been instructed in the safe use of the device and understand the resulting dangers.

• Children must not play with the milk frother.

• Children must not clean or carry out maintenance on the device unless they are over eight years of age and supervised by an adult.

• Children under eight years of age should be kept away from the milk frother and the power cord (11). DANGER! The packaging is not a toy. Children must not play with plastic bags, there is a risk of suffocation. Store the milk frother out of reach of children. General safety instructions DANGER of burns

• Never touch the canister house (5) during or immediately after operation. Always use the handle (4) to hold or carry the canister (5).

• Hot steam can escape when heating milk. Be careful not to burn yourself. Wear oven gloves if necessary. Turn the canister (5) so that the steam is directed away from you.

The surface of the heating element will still be hot after use.

Only clean the canister (5) once it has cooled down completely.

Do not fill the canister (5) up beyond the MAX marking on the inside. If you pour in too much milk, it may boil over, causing burns and damage to property.SilverCrest SMA 500 F1

• Only operate the milk frother with the lid (1) on. Otherwise, hot milk can escape and cause burns and damage to property.

Do not remove the lid (1) when the milk frother is in use.

Clean the inside of the canister (5) with hot water, washing-up liquid and a soft cloth or the fine side of a washing-up sponge. You can also clean the canister using a soft washing-up brush. Soak stubborn milk residue in hot soapy water before cleaning. Then rinse the canister (5) thoroughly with clean water to fully remove any detergent residue.

WARNING - potential damage to property

• Only use the canister (5) with the matching base (10).

• Do not put any objects on the base (10).

• Only operate the milk frother on a flat, stable and fire-proof surface. If the milk frother is not placed on a level surface it may tip over, potentially causing damage to property and/or burns.

• Never leave the milk frother unattended when in use.

• Take the plug out of the power socket whenever the milk frother is unattended.

DANGER of electric shock

• The power cord (11) must not be damaged. Never attempt to replace a damaged power cord (11). Contact customer services instead. If the power cord (11) is damaged, there is a risk of electric shock.SilverCrest SMA 500 F1 English - 33

• If the device’s power cord is damaged, it must be replaced by the manufacturer, their service department or by a similarly qualified person in order to prevent any hazards.

• Never open the housing of the base (10), as it does not contain any parts requiring maintenance. If the housing is open, there is a risk of electric shock.

• If you notice any smoke, unusual noises or smells, switch the milk frother off immediately, and remove the plug from the power socket. If this happens, you must stop using the milk frother until it has been checked by a specialist technician. If the device catches fire, do not inhale any resulting smoke. If you do inhale any smoke, seek medical attention. Smoke inhalation can be harmful to your health.

• Make sure the power cord (11) cannot be damaged by any sharp edges or hot surfaces.

• Make sure the power cord (11) is not jammed or squashed.

• The milk frother must always be disconnected from the mains network if left unattended, prior to assembly and disassembly, or during cleaning.

• Always unplug the device from the power socket by pulling on the plug, and never by tugging on the power cord (11).

• If you find any visible damage on the milk frother or the power cord (11), switch off the milk frother immediately, remove the plug from the power socket and contact customer services.

• Only plug the base (10) into a power socket that is properly installed and easily accessible, and whose mains voltage matches the specification on the rating plate. The user does not have to do anything to switch the product between 50SilverCrest SMA 500 F1

and 60 Hz. The product is suitable for both 50 and 60 Hz supplies. Once the device is plugged in, the power socket must be kept easily accessible so that the plug can be pulled out quickly in an emergency.

• Do not spill liquid on the plug for the device.

• Never immerse the base (10) or the canister (5) in water or any other liquid. If liquid enters the base (10), immediately remove the plug from the power socket and contact customer services.

DANGER of fire Always fill the canister (5) with milk up to at least the MIN marking on the inside. If you do not pour in enough milk, the canister may overheat and cause a fire.

All contents of this operating manual are subject to copyright law and are provided to the user solely as a source of information. Any form of copying or reproduction of data and information without the express written permission of the author is prohibited. This also concerns commercial use of the content and data. The text and illustrations correspond to the technical standards at the time of printing. Subject to alterations.

Remove the SMA 500 F1 milk frother and all accessories from the packaging and check the completeness of the delivery. Remove any protective films as well as the ILAG sticker, which you can find inside the canister (5). Keep the packaging material away from children and dispose of it in an environmentally-friendly manner.SilverCrest SMA 500 F1 English - 35

Before you prepare milk for consumption for the first time, you must first clean the milk frother in order to remove dust and any remnants of the packaging material. Follow the procedure described in the ‘Maintenance/cleaning’ section. DANGER of electric shock Keep the base (10) away from water. There is danger of electric shock. WARNING – Risk of burns Only operate the milk frother with the lid (1) on. The surface of the heating element will still be hot after use. WARNING – Risk of injury Always use fresh milk. Do not consume milk that has been sitting in the canister (5) for a long period of time. Please note: If you lift the canister (5) off the base (10) during operation, the preparation process stops automatically. Place the canister (5) onto the base (10) again, use the FUNCTION button (7) to select an operating mode (6, 8, 12, 13) and restart the process using the START/STOP button (9). Cable rewind A built-in cable rewind is located on the bottom of the base (10). You can adapt the length of the power cable (11) to the conditions at your location. You can minimise the length of the cable when you are not using the milk frother.

• Unwind the power cable (11) on the underside of the base (10) against the direction of the arrow.

• Place the base (10) on a flat, non-slip and dry surface. Make sure that the power cable (11) passes through the opening on the underside of the base (10). This is to ensure that the milk frother is positioned securely. WARNING If the power cable (11) does not pass through the opening on the underside of the base (10), the base (10) and canister (5) are not positioned securely.

7.1 The FUNCTION button (7) – selecting an operating mode

The FUNCTION button (7) is used to select the operating mode (6, 8, 12, 13) of the milk frother. Press the FUNCTION button (7) as many times as necessary for the symbol to indicate the required operating mode (6, 8, 12, 13).SilverCrest SMA 500 F1

7.2 The START/STOP button (9) – starting/stopping the milk frother

• First, use the FUNCTION button (7) to select the desired operating mode (6, 8, 12, 13). Then, press the START/STOP button (9) to start the selected operating mode (6, 8, 12, 13).

• Once the program for the selected operating mode (6, 8, 12, 13) is complete, the symbol for the operating mode (6, 8, 12, 13) continues to flash for a short time. The milk frother then switches automatically switch off.

• The programme length depends on the chosen operating mode and the amount of liquid used.

• You can cancel the active operating mode at any time by pressing the START/STOP button (9).

7.3 Function of the whisk (3)

Please note that the milk may burn if the milk frother is operated without a whisk (3). Whisk Heat up and stir

The milk frother has four different operating modes. Select the operating mode that best suits your preference. Operating mode 1 max. 150 ml Firm, warm froth Choose this operating mode to create warm milk froth with a firm consistency. Operating mode 2 max. 150 ml Warm and creamy froth Choose this operating mode to create warm, creamy, fine- pored milk froth. Operating mode 3 max. 300 ml Heat milk with little froth Choose this operating mode to heat up milk. Operating mode 4 max. 150 ml Cold frothing Choose this operating mode to create cold, creamy milk froth.SilverCrest SMA 500 F1 English - 37

7.5 MIN and MAX markings

There are three markings indicated inside the canister (5).

• The MIN marking indicates the minimum fill capacity.

• The lower MAX marking indicates the maximum fill capacity when making milk froth.

• The upper MAX marking indicates the maximum fill capacity when heating milk. CAUTION! A program must never be selected at this fill capacity for making milk froth! It would not be possible to prevent the milk from overflowing.

7.6 Tips on how to make good milk froth

Please note that the frothing quality depends on the milk used and can vary greatly. We recommend using cow’s milk. Other types of milk behave differently during the frothing process. This can result in milk overflowing out of the milk frother. It is best to use milk with a fat content of 3.5 per cent. Low-fat milk and skimmed milk do not froth well. The milk should be cool. Do not try to froth the milk a second time if you do not like the milk froth the first time. This is because the milk can burn. If you find the milk froth to be too liquidy, we recommend leaving it to rest for around 30 seconds. During this time, the liquid milk can sink down and the milk froth achieves a better consistency.

7.7 Making warm milk froth

• Insert the whisk (3) up to the stop on the drive shaft inside the canister (5).

• Take the canister (5) off the base (10) and pour milk up to the MIN marking inside the canister (5). The volume of the milk increases during the frothing process. Only pour milk up to the lower MAX marking in order to prevent the milk froth from overflowing.

• Place the lid (1) onto the canister (5).

• Place the canister (5) onto the base (10). You can make two types of warm milk froth as described in section 7.4:SilverCrest SMA 500 F1

• Use the FUNCTION button (7) to select operating mode 1. The symbol for the operating mode 1 (12) flashes. Then, press the START/STOP button (9) to start creating milk froth.

• Use the FUNCTION button (7) to select operating mode 2. The symbol for the operating mode 2 (13) flashes. Then, press the START/STOP button (9) to start creating milk froth.

• As soon as the milk froth is ready, the milk frother automatically switches off and the symbol of the selected operating mode (12, 13) flashes, it then goes out again after a short time. You can stop the preparation process at any time by briefly pressing the START/STOP button (9).

• Wait around 30 seconds until any remaining liquid milk settles at the bottom of the canister (5).

• Lift the canister (5) off the base (10), remove the lid (1) and use the milk froth as you wish.

• Wait two to three minutes before using the milk frother again.

• Clean the milk frother with tap water after each use to remove any residues.

• Be aware that the milk frother may retain a certain level of residual heat after frothing warm milk.

7.8 Making cold milk froth

• Insert the whisk (3) up to the stop on the drive shaft inside the canister (5).

• Take the canister (5) off the base (10) and pour milk up to the MIN marking inside the canister (5). The volume of the milk increases during the frothing process. Only pour milk up to the lower MAX marking in order to prevent the milk froth from overflowing.

• Use the FUNCTION button (7) to select operating mode 4. The symbol for the operating mode 4 (8) flashes. Then, press the START/STOP button (9) to start creating milk froth.

• As soon as the milk froth is ready, the milk frother automatically switches off and the symbol of the selected operating mode (8) flashes; it then goes out again after a short time. You can stop the preparation process at any time by briefly pressing the START/STOP button (9).

• Wait around 30 seconds until any remaining liquid milk settles at the bottom of the canister (5).

• Lift the canister (5) off the base (10), remove the lid (1) and use the milk froth as you wish.

7.9 Heating milk evenly

• Insert the whisk (3) up to the stop on the drive shaft inside the canister (5).

• Take the canister (5) off the base (10) and pour milk up to the MIN marking inside the canister (5). Only pour milk up to the upper MAX marking in order to prevent the hot milk from overflowing.SilverCrest SMA 500 F1 English - 39

• Use the FUNCTION button (7) to select operating mode 3. The symbol for the operating mode 3 (6) flashes. Then, press the START/STOP button (9). The whisk (3) begins to turn, which ensures even heating.

• As soon as the milk is hot, the milk frother automatically switches off and the symbol of the selected operating mode (6) flashes; it then goes out again after a short time. You can stop the preparation process at any time by briefly pressing the START/STOP button (9).

• Lift the canister (5) off the base (10), remove the lid (1) and use the hot milk as you wish.

• Wait two to three minutes before using the milk frother again.

• Clean the milk frother with tap water after each use to remove any residues.

• Be aware that the milk frother may retain a certain level of residual heat after frothing warm milk.SilverCrest SMA 500 F1

You can use your freshly made milk froth in various beverages. We have included some recipes for you here. Viennese Blend Freshly brewed coffee Hot milk Milk froth Place the same amount of freshly brewed black coffee and hot milk into a large cup until there is about one centimetre to the rim of the cup. Pour in the freshly made milk froth. Latte Macchiato 150 ml milk for the milk froth 1 portion of espresso (25–30 ml) Use the milk to make fresh milk froth and pour the froth into a latte macchiato glass until the glass is three quarters full. Next, slowly and carefully pour the espresso into the milk froth. Those who like strong coffee can add an extra portion of espresso at this stage. Ideally, the espresso has now collected in the centre. The liquid milk is at the bottom and the top of the drink is crowned by a thick layer of froth. If there is any leftover milk froth and space in the glass, you can carefully add it to the rest of the milk froth. Carajillo – A Spanish drink combining coffee with a shot 1 cup of espresso 1 cl brandy or rum 1–2 cl egg liqueur 1 heaped teaspoon of fine cane sugar Milk froth Stir the espresso with the brandy and dissolve the cane sugar in it. Put the egg liqueur into a large glass and then very slowly slide the espresso over a spoon onto the egg liqueur. This creates two layers in the glass. Fill the glass with the freshly made milk froth. Coffee with nut nougat cream 1 cup of freshly brewed coffee 2 teaspoons of nut nougat cream Milk froth Stir the nut nougat cream directly into the freshly brewed coffee, provided it is still very hot. Pour in the freshly made milk froth. If you like, you can stir some chilli powder into your coffee and sprinkle a little bit onto the milk froth. Enjoy!SilverCrest SMA 500 F1 English - 41

8. Maintenance/cleaning

DANGER of electric shock Always remove the plug from the power socket before beginning to clean the base (10). Otherwise, there is a risk of electric shock. Do not pour or spray any liquids onto the base (10) or immerse it into water or any other liquids. Otherwise, there is a risk of electric shock and a fire hazard due to short circuits. DANGER of burns Always fill the canister (5) with tap water first when cleaning the milk frother, as the heating element may still be hot. Failure to do so may cause burns.

WARNING - potential damage to property Do not use any scratching or abrasive cleaning agents or abrasive objects (such as a metal scourer) for cleaning purposes. Otherwise the milk frother may be damaged. Never clean the canister (5) under running water. When cleaning, please make sure that no water gets into the canister (5) from underneath or through the control panel! Do not clean the milk frother and its accessories in the dishwasher, as this may cause irreparable damage.

• Leave the whisk (3) in place.

• Fill the canister (5) with water considering the MIN and MAX markings and place the lid (1) onto it.

• Allow the milk frother to run for around 30 seconds.

• Next, rinse the canister (5) with plenty of clean water and rinse the lid (1) under running water.

8.2 Thorough cleaning

• Remove the power cable (11) from the power socket.

• Remove the whisk (3).

• Clean the interior of the canister (5) with warm water and some washing-up liquid. Use a sponge or a soft cloth. Make sure to remove milk residue in and around the whisk drive shaft. Next, rinse the canister (5) with plenty of clean water.

• Remove the cover seal (2) from the lid (1) and clean the two parts in mild rinse water. Rinse with clean water, dry both parts thoroughly and position the cover seal (2) back on the lid (1).

• Clean the whisk (3) in mild rinse water and rinse it with clear water.

• Next, rinse the canister (5) with plenty of clean water and rinse the lid (1) under running water.

• Clean the outer surfaces, the base (10) and the power cable (11) with a soft, damp cloth, using a mild detergent for stubborn stains. Dry all of the parts thoroughly. WARNING - potential damage to property After cleaning and before using the device again, ensure that the contact area on the underside of the canister (5) is completely dry and free from any detergent residue. If not, placing the canister (5) on the base (10) can cause a short circuit, which in turn will result in a defective milk frother.SilverCrest SMA 500 F1

9. Storing the device when not in use

If the milk frother is not going to be used for a longer period of time, store it in a safe, clean and dry place.

• Before storing the device, clean it thoroughly as described in the previous section.

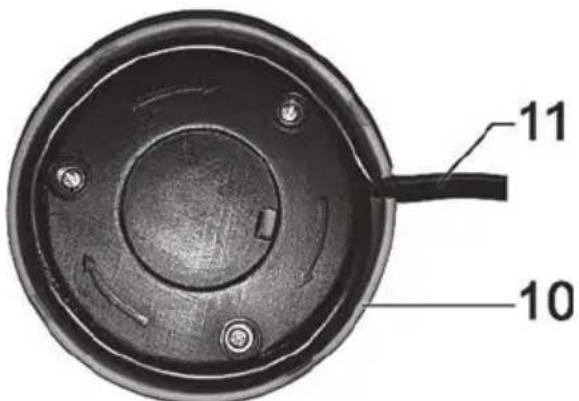

• Wrap the power cable (11) around the cable rewind under the base (10) in the direction of the arrow and store the milk frother in a safe, dust-free place.

If your milk frother does not work as usual, use the following instructions to try and solve the problem. If working through the following tips does not eliminate the fault, please contact our hotline.

10.1 The milk frother is not working

• The plug is not inserted. Insert the plug into the power socket.

• The power socket is faulty. Try the milk frother in another power socket that you know definitely works.

• The milk frother is not switched on. Press the FUNCTION button (7) to select an operating mode (6, 8, 12, 13). Then, start the selected operating mode by pressing the START/STOP button (9).

• The milk frother has overheated and the overheating protection is preventing the device from switching on. If this is the case, the LEDs of the operating mode symbols (6, 12, 13) will stay on. Wait until the milk frother has cooled down. Pour milk up to the MIN marking inside the milk frother to prevent this from happening. Now remove the canister (5) from the base (10) for a moment.

• The inserted whisk (3) does not rotate. The whisk drive axle may be stuck due to milk residues. Remove the plug and fill the canister (5) with some lukewarm water. Leave the water in for some time and then try to rotate the whisk drive axle several times with your hand. Pour out the water. The milk frother should now work again.

10.2 The milk in the canister won’t froth

• Check whether the whisk (3) is inserted. Insert the whisk (3), if necessary.

• The inserted whisk (3) is not securely in place on the whisk drive shaft. Push the whisk (3) up to the stop on the whisk drive shaft.

• Please note that the frothing quality depends on the milk used and can vary greatly. See section ‘7.6 Tips on how to make good milk froth’.SilverCrest SMA 500 F1 English - 43

11. Environmental and waste disposal information

Electrical and electronic devices are marked with a symbol of a crossed-out wheelie bin. This symbol indicates that electrical and electronic devices may not be disposed of with normal domestic waste, but must instead be taken to a separate disposal centre. The materials contained in the old electrical devices can be reused. In addition, any old batteries, whether conventional or rechargeable, which are removable and lamps which can be removed from the old device without causing damage should be removed from the device prior to disposal. In accordance with Section 17, Paragraph 1 and 2 ElektroG (Electrical and Electronic Device Act), we are obliged to take back old devices free of charge. You can take your old electrical devices to a local collection point for disposal free of charge. On request, we can take back the following when you purchase a new electrical or electronic device - a heat transfer unit, - a screen, monitor or device with a screen with a surface area of more than 100 square centimetres or - an old device with at least one external dimension of more than 50 centimetres (large appliance) free of charge, providing the listed devices are the same type of device and largely fulfil the same functions as the new device. Small devices, lamps, small IT and telecommunications devices where none of the external dimensions measures more than 50 centimetres and devices which have no external dimension greater than 25 centimetres can be returned free of charge to us on purchase of a comparable new device. Irrespective of the purchase of a new electrical device, you can return an old device with no dimension greater than 25 cm to us free of charge. Please note that you are responsible for the deletion of any personal data on your old device. The symbol of the crossed-out wheelie bin on conventional and rechargeable batteries indicates that they cannot be disposed of in normal domestic waste but must be disposed of separately. Where batteries contain toxic materials, the chemical symbol of the toxic material is shown underneath the symbol, with meanings as follows: - Pb: Battery contains lead - Cd: Battery contains cadmium - Hg: Battery contains mercury You are obliged by law to return used batteries. Old batteries can contain toxic materials which can be damaging to health or the environment if not properly stored or disposed of. Batteries also contain important raw materials, such as iron,SilverCrest SMA 500 F1

zinc, manganese and nickel, which can be reused. After use, you can return the batteries to us or to a local collection point (e.g. in retail outlets or a local collection point) free of charge. Please note that batteries must be disposed of fully discharged at appropriate collection points for old batteries. If disposing of batteries which are not fully discharged, take precautions to prevent short circuits. Make sure that the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device will be collected by your local waste management company and disposed of in an environmentally friendly manner. ES/PT Only relevant for France: “Sorting made easy” The product is recyclable, subject to advanced manufacturer responsibility and is sorted and collected separately. Please pay attention to the labels on packaging materials when you separate waste; these are marked with abbreviations (a) and numbers (b) that mean the following: 1–7: Plastics/20–22: Paper and cardboard/80–98: Composite materials. Symbol Material This product contains the following packaging components Polyethylene terephthalate

High-density polyethylene

Polyvinyl chloride --- Low-density polyethylene ---SilverCrest SMA 500 F1 English - 45 Polypropylene --- Polystyrene --- Other plastics --- Corrugated cardboard Sales packaging Other cardboard Tissue paper, used to protect the milk frother during transport. Paper --- Paper/Cardboard/ Plastics

Paper/Cardboard/ Plastics/Aluminium

12. Marks of conformity

This product meets the requirements specified in applicable European and national regulations. This product’s conformity has been verified. The declarations and documents are stored with the manufacturer. This product fulfils the requirements specified in the applicable national policies for the Republic of Serbia.

This product meets the requirements specified in the applicable national policies for the United Kingdom. You can download the full EU declaration of conformity at the following link: https://www.targa.gmbh/downloads/conformity/393299_2201.pdfSilverCrest SMA 500 F1

Warranty of TARGA GmbH Dear Customer, This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below. Warranty conditions The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate. Warranty period and legal warranty rights The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge. Scope of warranty The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced. Submitting warranty claims To ensure speedy handling of your complaint, please note the following: - Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline. - Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase. - If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. - You can find this and many more manuals, product videos and installation software available for download at www.lidl-service.com. This QR code takes you directly to theSilverCrest SMA 500 F1 English - 47 LIDL service page (www.lidl-service.com). There, you can enter the item number (IAN) to access your operating manual.

Manufacturer Please note that the following address is not a service address. First contact the service point stated above. TARGA GmbH Coesterweg 45 59494 Soest GERMANYSilverCrest SMA 500 F1

Polyvinylchloride --- Low-density polyethyleen
