Watch GT 5 - Smartwatch HUAWEI - Free user manual and instructions

Product type	Smartwatch
Brand	Huawei
Model	Watch GT 5
Reference	JNA-B19
Dimensions (approx.)	46 mm diameter, 11 mm thickness
Weight (approx.)	Approximately 48 g (without strap)
Battery capacity	455 mAh (typical)
Battery life (typical usage)	Up to 14 days
Water resistance	IP68 (immersion up to 1.5 m for 30 min) and 5ATM (50 m)
Case material	Aluminum alloy or stainless steel
Display	Color AMOLED, 1.43 inches
Resolution	466 x 466 pixels
Connectivity	Bluetooth 5.2, Wi-Fi 2.4 GHz, NFC
Sensors	Accelerometer, gyroscope, heart rate sensor, pulse oximeter (SpO2), barometer, compass, GNSS
Main features	Sports tracking (running, swimming, etc.), heart rate, sleep, stress, SpO2, Bluetooth calls, notifications, music, NFC payment, voice assistant
Operating system	HarmonyOS 3.0 (or later)
Companion app	Huawei Health (iOS and Android)
Operating temperature	-20 °C to +45 °C
Storage temperature	-20 °C to +55 °C
Maintenance and cleaning	Clean with a slightly damp soft cloth; avoid abrasive products and prolonged immersion
Safety	Safety distance: 15 cm from electronic implants; do not wear if skin irritation occurs; turn off in sensitive areas (hospitals, airplanes)
Spare parts and repairability	Built-in battery not user-replaceable; repair by Huawei or authorized service
General information	Compliant with EU standards (RED, RoHS); SAR head 0.18 W/kg, limbs 0.66 W/kg, trunk 0.32 W/kg

Frequently Asked Questions - Watch GT 5 HUAWEI

How to pair the Huawei Watch GT 5 with my phone?

Download the Huawei Health app from AppGallery or consumer.huawei.com. Open the app, go to the devices screen, select 'Add' and follow the instructions. Make sure Bluetooth is enabled.

What is the battery life of the Watch GT 5?

Typical battery life is 14 days with normal use (notifications, activity tracking). With intensive use (GPS, calls), it may drop to around 7 days.

Is the watch waterproof? Can I swim with it?

Yes, it is certified IP68 and 5ATM, so it resists immersion up to 50 meters. You can swim in fresh water, but avoid salt water and hot showers.

Can I make calls with the Watch GT 5?

Yes, via Bluetooth, you can make and receive calls directly from the watch when your phone is connected.

Does the watch measure blood oxygen saturation (SpO2)?

Yes, it has a SpO2 sensor to measure blood oxygen level. Enable measurement in the Huawei Health app.

How to clean the watch?

Use a soft, slightly damp cloth (clean water). Avoid chemicals, alcohol or abrasive cleaners. Dry it after cleaning.

Is the Watch GT 5 compatible with iPhone?

Yes, it works with iOS via the Huawei Health app. Some features (message reply) may be limited.

Can I use the watch without a phone?

Yes, it can operate independently for activity tracking, stored music playback, and NFC payment. But notifications and calls require a phone connection.

What to do if the watch does not turn on?

Make sure it is charged (plug in the charger). If it still does not turn on, press and hold the top button for 10 seconds to force restart.

Is a screen protector necessary?

The watch uses reinforced glass (likely 3D glass), but a screen protector can be added to avoid scratches. Choose a protector compatible with the curved screen.

USER MANUAL Watch GT 5 HUAWEI

English

Before using the device, review and download the latest Quick Start Guide at https://consumer.huawei.com/en/support/.

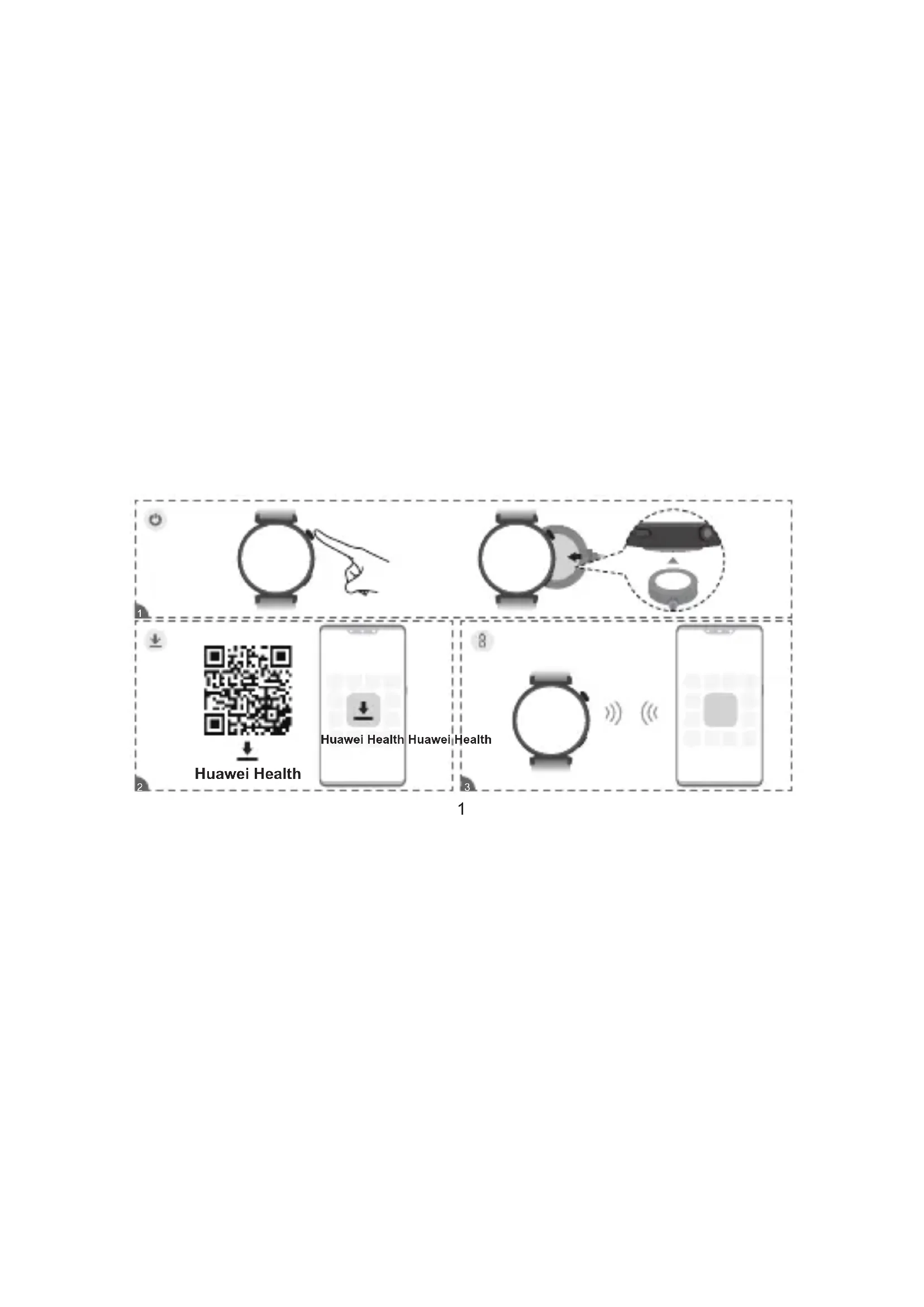

Set Up Your Device

1. Press and hold the Up button or charge the device to power it on.
2. Use your phone to scan the QR code on the first page, or search for "Huawei Health" in AppGallery or on consumer.huawei.com to download the Huawei Health app.
3. Open the Huawei Health app, go to the devices screen, choose the devices you wish to add, and follow the onscreen instructions to complete pairing.

Blasting Caps and Areas

Turn off your mobile phone or wireless device when in a blasting area or in areas posted turn off "two-way radios" or "electronic devices" to avoid interfering with blasting operations.

Petrol stations and explosive atmospheres

In locations with potentially explosive atmospheres, obey all posted signs to turn off wireless devices such as your phone or other radio equipment. Areas with potentially explosive atmospheres include

fuelling areas, below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles, such as grain, dust, or metal powders.

Operation and safety

• To prevent possible hearing damage, do not listen at high volume levels for long periods.
• Ideal temperatures: -20^ to +45^ for operating, -20^ to +55^ for storage.
• Keep the battery away from fire, excessive heat, extremely low air pressure and direct sunlight. Do not place it on or in heating devices. Do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in liquids, or expose it to external force or pressure, as this may cause it to leak, overheat, catch fire, or even explode.
• Do not attempt to replace the battery yourself — you may damage the battery, which could cause overheating, fire, and injury. The built-in battery in your device should be serviced by Huawei or an authorised service provider.

• Adult supervision is advised if children are to use or come into contact with this product.

• Please consult your doctor and the device manufacturer to determine if operation of your device may interfere with the operation of your medical device.

• Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.
• This product is not designed to be a medical device, and is not intended to diagnose, treat, cure or prevent any disease. All data and measurements should be used for personal reference only. If you experience skin discomfort when wearing the device, take it off and consult a doctor.
• Switch off your wireless device when requested to do so in hospitals, clinics or health care facilities. These requests are designed to prevent possible interference with sensitive medical equipment.

• Switch off your wireless device whenever you are instructed to do so by airport or airline staff. Consult the airline staff about the use of wireless devices on board the aircraft, if your device offers a ‘flight mode’ this must be enabled prior to boarding an aircraft.

• Ensure that the power adapter meets the requirements of IEC/EN 62368-1 and has been tested and approved according to national or local standards.

• To prevent damage to your device's parts or internal circuits, do not use it in dusty, smoky, damp or dirty environments or near magnetic fields.

- WARNING: This device contains a coin, button, or small-sized cell battery. Do not swallow the battery, as it constitutes a chemical burn hazard.

- If the coin, button, or small size cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

- Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

- Your device meets requirements of IP68 (IEC 60529) and complies with the 5ATM-rated resistance level.

Disposal and recycling information

The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and the environment. For more information, please contact your local authorities, retailer, or household waste disposal service or visit the website https://consumer.huawei.com/en/.

EU regulatory conformance

Hereby, Huawei Device Co., Ltd. declares that this device JNA-B19 is in compliance with the following Directive: RED 2014/53/EU, RoHS 2011/65/EU.

The full text of the EU declaration of conformity and most recent information about accessories & software are available at the following internet address: https://consumer.huawei.com/certification.

UK regulatory conformance

Hereby, Huawei Device Co., Ltd. declares that this device JNA-B19 is in compliance with the relevant statutory instruments in the UK. The full text of the declaration of conformity is available at the following internet address: https://consumer.huawei.com/certification.

UK PSTI Compliance

This product meets the relevant security requirements specified in Schedule 1 of the Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023. The full text of the PSTI Statement of Compliance is available at the following website: https://consumer.huawei.com/certification.

RF exposure requirements

As recommended by international guidelines, the device is designed to comply with the limits established by the market that the device will be placed on.

For the countries that adopt the SAR limit of 2.0 W/kg(Head) and 4.0 W/kg(Limbs) over 10 grams of tissue. The device complies with RF specifications when the device is worn on the wrist and at a distance of 1.0 cm from your face.

Highest reported SAR value: Head SAR: 0.18 W/kg; Limbs SAR: 0.66 W/kg.

Frequency bands and power

Frequency bands in which the radio equipment operates: Some bands may not be available in all countries or all areas. Please contact the local carrier for more details.

Wi-Fi 2.4GHz: 17 dBm, Bluetooth 2.4GHz: 14 dBm, NFC 13.56MHz: 42dBμA/m at 10 m, Watch Wireless Charger: 110.5 kHz-119 kHz: 42dBμA/m at 10 m, 119 kHz-135 kHz: 66 descending 10 dB/dec above 119 kHz at 10 m, 135 kHz-140 kHz: 42dBμA/m at 10 m, 140 kHz-148 kHz: 37.7dBμA/m at 10 m.

Please go to Settings > About > Regulatory information on the device to view the E-label screen.

Français européen

https://consumer.huawei.com/it/support/.

https://consumer.huawei.com/certification.

https://consumer.huawei.com/certification.

https://consumer.huawei.com/certification.

https://consumer.huawei.com/en/.

Atitiktis ES reglamentams

https://consumer.huawei.com/certification.

https://consumer.huawei.com/en/.

https://consumer.huawei.com/en/.
