USER MANUAL KFZ 121 E W Koenic

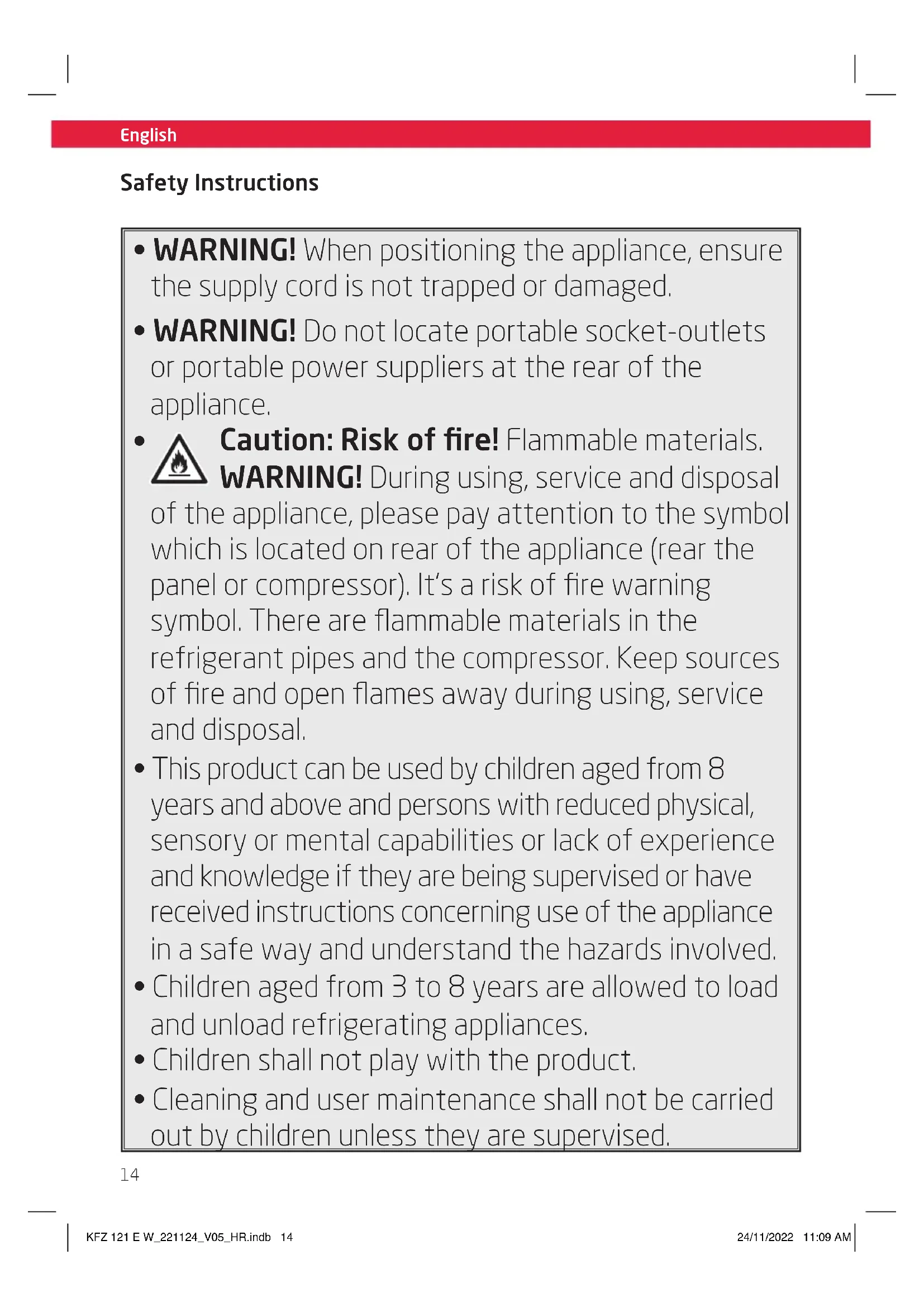

• WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

• WARNING! Do not locate portable socket-outlets or portable power suppliers at the rear of the appliance.

Caution: Risk of fire! Flammable materials. WARNING! During using, service and disposal of the appliance, please pay attention to the symbol which is located on rear of the appliance (rear the panel or compressor). It’s a risk of fire warning symbol. There are flammable materials in the refrigerant pipes and the compressor. Keep sources of fire and open flames away during using, service and disposal.

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have received instructions concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• Children shall not play with the product.

• Cleaning and user maintenance shall not be carried out by children unless they are supervised. KFZ 121 E W_221124_V05_HR.indb 14KFZ 121 E W_221124_V05_HR.indb 14 24/11/2022 11:09 AM24/11/2022 11:09 AMEnglish

• A damaged power cord may only be replaced by an authorised service agent in order to avoid hazards.

• The product is designed for the storage of normal household quantities in the home, or in household- like, non-commercial environments. Household- like environments include sta kitchens in shops, oces, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

• Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Warning: Do not damage the refrigerant circuit.

• Warning: Do not use electrical appliances inside the food storage compartments of the product, unless they are of the type recommended by the manufacturer.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this product. KFZ 121 E W_221124_V05_HR.indb 15KFZ 121 E W_221124_V05_HR.indb 15 24/11/2022 11:09 AM24/11/2022 11:09 AMEnglish

• Follow the instructions in the chapter Cleaning and care.

• Warning: The refrigerant and insulation blowing gas are flammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.

• To avoid contamination of food, please respect the following instructions: -Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. -Clean surfaces, that can come in contact with food as well as accessible drainage systems, on a regular basis. -Store raw meat and fish in suitable containers in the product, so that it does not come into contact with or drip onto other food. -Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice- cream and making ice cubes. -One-, two- and three-star compartments are not suitable for the freezing of fresh food. KFZ 121 E W_221124_V05_HR.indb 16KFZ 121 E W_221124_V05_HR.indb 16 24/11/2022 11:09 AM24/11/2022 11:09 AMEnglish

Safety Instructions -If the refrigerating appliance is left empty for long periods, switch it o, defrost, clean, dry the appliance, and leave the door open to prevent mold developing within the appliance.

• The temperature distribution in the freezer is the same in all compartments. Oberserve the instructions for the storage of food and beverages in this manual.

1. Read this manual thoroughly before first

use. It contains important information for your safety as well as for the use and maintenance of the equipment.

2. Do not place any objects on top of the

3. Never immerse electrical parts of the

product in water or any other fluids during cleaning or operation. Never hold the product under running water.

4. Do not under any circumstances attempt

to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

5. The mains voltage must match the

information on the rating label of the product.

6. Only unplugging from the power socket can

separate the product completely from the mains.

7. Avoid damages to the power cord that may

be caused by kinks or contact with sharp corners.

8. Keep this product including power cord

and power plug away from all heat sources such as ovens, hot plates and other heat- producing products/objects.

9. Only unplug from the power socket by the

plug itself. Do not pull on the cord.

10. Unplug the product ...

- when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

11. Use this product in dry indoor areas only

12. This product is not intended for commercial

use. It is designed for household use only.

13. Make sure that electrical components, live

parts and the power cord do not become wet.

14. Use accessories supplied with the device or

recommended by the manufacturer only!

15. Do not cover the product while in use. Fire

16. Important! Check to ensure that the

product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or it’s suspected to be defect.

17. Refrigerants must be evacuated and

disposed of by a qualified specialist in accordance with federal and local regulations before the appliance is scraped. KFZ 121 E W_221124_V05_HR.indb 17KFZ 121 E W_221124_V05_HR.indb 17 24/11/2022 11:09 AM24/11/2022 11:09 AM18 English Congratulations! Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference. Intended use This product is suitable for freezing food only. Any other use may damage the device or cause injuries. - This product is not intended to be used as a built-in appliance. - This refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C The product is only intended to be used in private households and shall not be used for commercial purposes. The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer’s specified purpose. Before first time use Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and care. After you have installed the refrigerator, wait for at least 6 hours before you connect it to the mains to permit the cooling system to regain full capacity. Warranty and spare parts The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years. Content 1 x Freezer 1 x Ice cube tray 1 x User manual 1 x Warranty card Controls and components

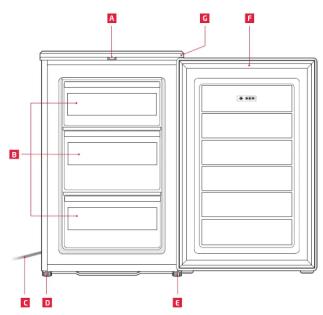

Temperature control MIN MED MAX

Power cord with plug

Adjustable feet, in front

Upper door hinge Installation Note: The installation should be performed by at least 2 persons to avoid dangers. Fig.

Place the unit on a level and stable surface. Keep the minimum distances to all sides. Fig.

Unevenness can be compensated with the adjustable front feet. Ensure, that the product is in a horizontal position to enable the correct working of the cooling circuit. It’s adviced to use a spirit level for correct positioning. Fig.

The freezer is equipped with four drawers and one tray at the top. The drawers and the tray can be removed for cleaning, but must be used to store the food, as otherwise the energy consumption might be increased due to ineective positioning of the food. KFZ 121 E W_221124_V05_HR.indb 18KFZ 121 E W_221124_V05_HR.indb 18 24/11/2022 11:09 AM24/11/2022 11:09 AM19 English Operation Fig.

Plug the power plug into an appropriate mains socket outlet. Fig.

Turn the temperature regulator to the desired setting. Fig.

Allow the product to pre-cool for at-least 6 hours before starting to store food. Temperature regulator Refer to below table for the specific temperatures of the levels MIN-MED-MAX: Interval MIN/°C MED/°C MAX/°C 3 -14 -18 -24 Note:

• The most common temperature for the freezer should be -18°C (MED) or lower.

• To determine the temperature of the product, obtain a suitable thermometer, and place it inside the product.

• The temperature of the product depends on the setting of the temperature regulator. Note that, the lower the set temperature, the higher the energy consumption of the product.

• Please make sure the door is closed properly and is not obstructed by foods.

• Never store warm or hot foodstus in the freezer, as this will impair the cooling performance of the appliance and will also defrost other foodstus. Defrosting Fig.

Defrost the freezer when the layer of ice on the surface reaches 3 to 4 mm. Remove all foods from the freezer. Unplug the freezer and open the door. After the ice has molten, wipe up the water and clean the interior. Note: In order to reduce the build-up of ice, make sure, that the door is opened only for a short period of time and never store warm/hot food in the freezer. Adjust the side of the hinges Note:

• If necessary, or if the premises require it, the mounting of the doors can be changed. To do this, follow below instructions in the given order.

• The following tools are required: Socket wrench or wrench 8 mm, phillips screwdriver, slotted screwdriver. Due to the uniqueness of the appropriate tools, those are not mentioned separately in the following instructions.

1. Remove the two screws at rear side of top

2. Remove top cover and thermostat knob,

door and place it on a soft pad to avoid damaging it.

4. Unscrew the bottom hinge. Then remove

the adjustable feet from both sides.

5. Unscrew and remove the bottom hinge pin,

turn the bracket over and replace it.

6. Refit the bracket fitting the bottom hinge

pin. Replace both adjustable feet.

7. Detach the door gasket, rotate and

8. Place the door back on. Ensure the door is

aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the top hing.

9. Put on top cover and fasten it with the 2

screws at the back. Note: For detailed information see overview illustration . Caution After you have placed the refrigerator upright on its feet, wait for 6 hours before you connect it to the mains to permit the cooling system to regain full performance. KFZ 121 E W_221124_V05_HR.indb 19KFZ 121 E W_221124_V05_HR.indb 19 24/11/2022 11:09 AM24/11/2022 11:09 AM20 English Note: When installing the door, ensure that the top of the door is level with the top of the cabinet. If the door is not level, the rubber gasket will not make a good seal with the cabinet which can cause the appliance to malfunction. Energy saving tips

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).

• Ensure unobstructed air flow around the refrigerator and freezer.

• If a layer of ice has built, defrost the unit. A thick layer of ice aects the transmission of the cold, thus the energy consumption will be increased.

• When opening and taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.

• Select the temperature regulator setting according to the filling amount of the product.

• Use drawers, baskets or shelves to store the food. If the energy of the product is used eciently, the energy consumption can be minimized.

• Only place cold or cooled down foodstus in the freezer. Never insert hot items.

• It’s advised not to remove the provided accessories, such as drawers, shelves balconies, as this might increase the energy consumption, due to inecient storage of food. Cleaning and care Warning

• Unplug the product before cleaning.

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).

• Never use oil or grease on the door seal. This will make it porous over time.

• Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.

• Clean the product’s exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior (for example, through the switch).

• Wipe the door seal with clean water only, and dry it thoroughly afterwards.

• Removable parts e.g. the glass plate can be taken out for cleaning. KFZ 121 E W_221124_V05_HR.indb 20KFZ 121 E W_221124_V05_HR.indb 20 24/11/2022 11:09 AM24/11/2022 11:09 AM21 English Troubleshooting If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt. Problem Possible causes Solution Product does not work. • Interrupted power supply. • Check the power supply. Temperature in the compartments is not low enough.

• The door is not closed firmly or it is opened too often.

• Re-arrange the food so that the door can be closed firmly.

• Open the door less frequently.

• The ambient temperature is lower than 16°C or higher than 38°C.

• The product is intended to be operated in an ambient temperature of 16°C to 38°C. Decommissioning If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Clean the interior of the freezer compartment and let it dry.

• Carefully clean all the accessories ice cube maker etc.

• Leave the door open to avoid the formation of unpleasant odors and mold. Technical data Voltage : 220 - 240 V~ Frequency : 50 Hz Rated current : 0.6 A Energy Consumption kWh/24h : 0.407 kWh kWh/year : 165 kWh Net capacity of freezer : 87 L Freezing capacity : 4.4 kg/ 24h Ambient temperature : 16°C - 38°C Measurement (H x W x D) : 850 x 550 x 580mm Depth with door open : 1130 mm based on EN 62552: 2020 This refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C Climate class Ambient temperature N +16 °C to +32 °C ST +16 °C to +38 °C Use the link https://eprel.ec.europa.eu/ to access the European product database (EPREL), in which more information about the product is saved. Type in the model identifier, which can be found on the panel of the product as well as on the energy label or simply scan the QR-code on the energy label to access the model information. KFZ 121 E W_221124_V05_HR.indb 21KFZ 121 E W_221124_V05_HR.indb 21 24/11/2022 11:09 AM24/11/2022 11:09 AM22 English Storage of food and beverages

Area Recommended food and temperature setting A Freezer (-18°C) Foods for long-term storage - Top: Storage of frozen food and ice cream. - Middle: storage for frozen vegetables, chips - Bottom: storage for raw meat, poultry, fish How to store food and beverages for best preservation over the longest period, in order to avoid food waste?

• Store food when fresh and undamaged. The quality and freshness will then be retained for longer.

• In the case of convenience products and bottled goods, do not exceed the minimum sell-by date or use-by date specified by the manufacturer.

• To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance. This will prevent flavours being transferred between foods and the plastic parts from becoming discoloured.

• Leave warm food and beverages to cool down before placing them in the freezer compartment.

• If you only store small amounts of food in the freezer, it is recommended to use the coldest area in the freezer (corresponds to the middle area).

• The recommended temperature of the freezer, at which food should be stored, is -18°C.

• Storage time of frozen food: not longer than 12 month.

• The storage period specified on the packaging is decisive for commercially available frozen products.

INFORMATION FOR FREEZING FOOD

• Freeze larger quantities of food in the lower frozen food containers. This is where the food will freeze especially quickly and gently.

• Distribute food in the compartments or frozen food containers.

• Do not bring food which is to be frozen into contact with frozen food. If required, restack frozen food in the frozen food containers.

• Important for unrestricted air circulation in the appliance: push in frozen food containers up to the limit stop. Note: Storage of foods at the wrong temperature may lead to an increase of food waste. Storage times and temperature Note: Overlong storage or storage at inappropriate freezing temperature may cause spoiled foods, which causes food waste, is inedible and may cause food poisoning. The minimum temperature in most cases should be -18°C or colder. Follow the maximum recommended storage times below:

• Stew, ice cream, sausages, bread: 2-6 months.

• Fish, shrimp, lamb, meat: 4-8 months.
