USER MANUAL H4F272WCH1 HAIER

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Legend

General information and tips

Warning-Important Safety information

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Warning!

Risk of injury of suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the door, the door catch and seals, to prevent children and pets to get closed in the appliance.

1 - Safety 4
2 - Intended Use. 8
3 - Product Description 9
4 - Control panel. 10
5-Use 11
6 - Energy saving 14
7 - Equipment 14
8-Care and Cleaning. 15
9 - Troubleshooting 17
10-Installation 20
11 - Technical Data 24
12-Customer Service. 25

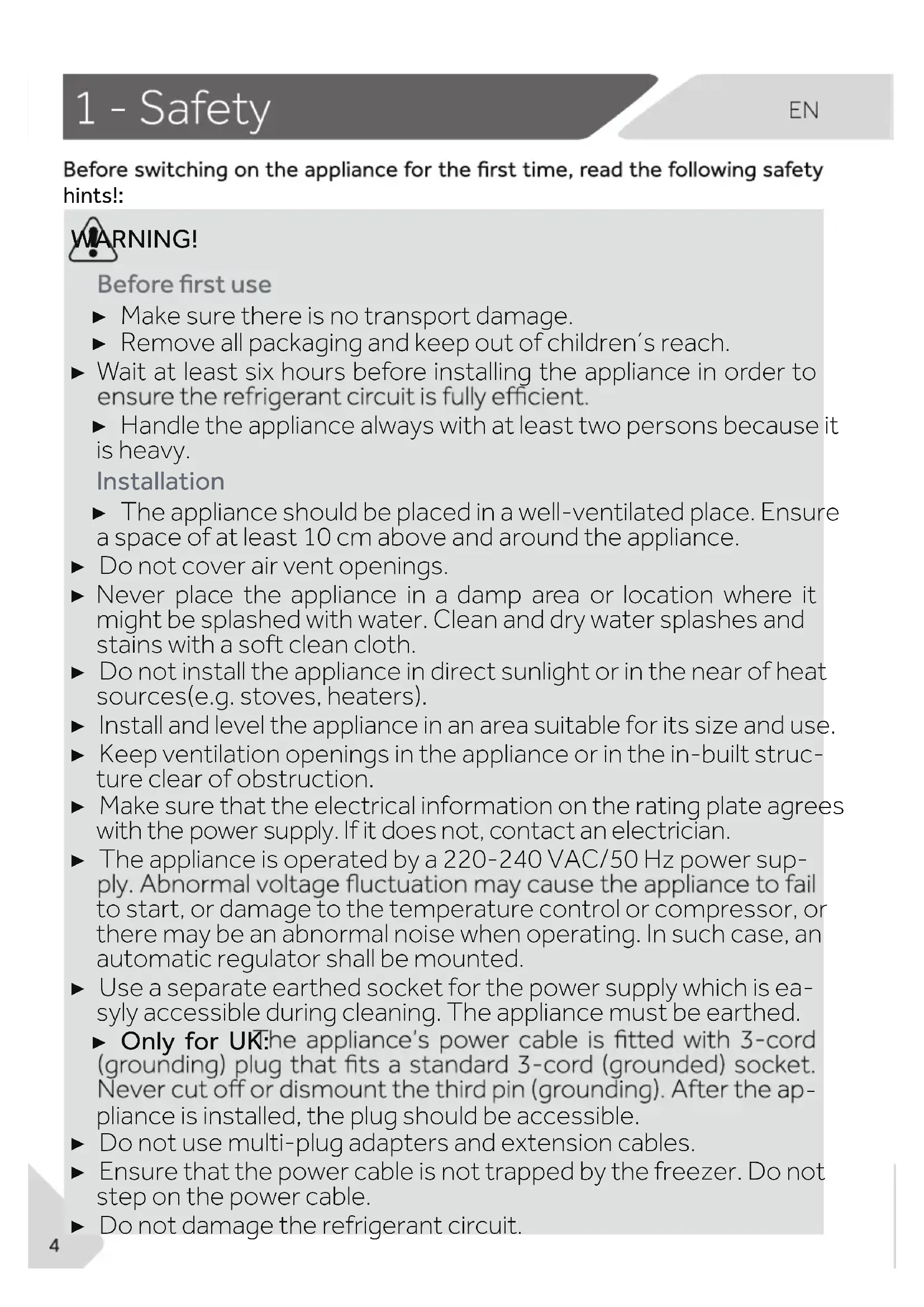

1 - Safety

Before switching on the appliance for the first time, read the following safety hints!

RNING!

Before first use

Make sure there is no transport damage.
- Remove all packaging and keep out of children's reach.

Installation

• Wait at least six hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
• Handle the appliance always with at least two persons because it is heavy.
  The appliance should be placed in a well-ventilated place. Ensure a space of at least 10cm above and around the appliance.
  Do not cover air vent openings.
• Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
• Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
  Install and level the appliance in an area suitable for its size and use.
• Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
• Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
  The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
• Use a separate earthed socket for the power supply which is easily accessible during cleaning. The appliance must be earthed.
• Only for UK:he appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
• Do not use multi-plug adapters and extension cables.
• Ensure that the power cable is not trapped by the freezer. Do not step on the power cable.
• Do not damage the refrigerant circuit.

WARNING!

Daily use

and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Keep away children under 3 years of age from the appliance unless they are constantly supervised.

Children shall not play with the appliance.
- If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the freezer or any other appliance.
- Notice that the appliance is set for operation at a specific ambient range between 10 and 43^ . The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
- Do not place unstable articles (heavy objects, containers filled with water) on top of the freezer, to ovoid personal injury caused by falling or electric shock caused by contact with water.
- Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the freezer doors only when there are no children standing within the range of door movement.
- Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
- Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
- On refrigerating mode without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs; on freezing mode with a 4-star compartment: this freezing appliance is not suitable for refrigerating foodstuffs.
- Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
- Check the condition of food if a warming in the freezer has taken place.
- Do not set unnecessarily low temperature in the freezer compartment. Attention: Bottles can burst.

1 - Safety

WARNING!

Daily use

cially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!

face.

ance, as frequent starting may damage the compressor.

ed by the manufacturer.

manufacturer or by the qualified person at the specified maintenance provider.

Maintenance/cleaning

sure children are supervised if they carry out cleaning and maintenance.

fore restarting the appliance, as frequent starting may damage the compressor.

Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.

ufacturer.

Do not spray or flush the appliance during cleaning.

facturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.

Refrigerant gas information

RNING!

The appliance contains the flammable refrigerant ISOBUTHANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

WARNING!

Taking care to avoid causing a fire by igniting flammable material.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
For flammable refrigerants is used in the freezer, please be careful when installing, handling, serving and recycling the appliance.
- Please contact to the service agent to dispose the appliance because the flammable blowing gas was used.

2 - Intended use

2.1 Intended Use

"This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.

This appliance is intended for freezing food. It has been designed exclusively for use in dryinterior house-holds. It is not intended for commercial or industrial use. On demand this appliance can be used as fresh food compartment.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

2.2 Accessories

Check the accessories and literature in accordance with this list:

2.2
Energy label

Quick Guide

User manual Warranty card C

Door extension cord

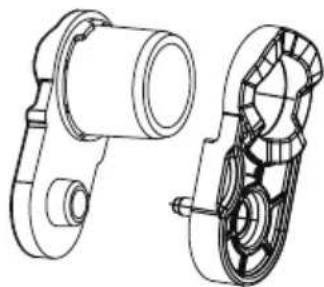

Upper left hinge for door reversibility
Upper left hinge cover

Axe covers

Notice: Differences

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

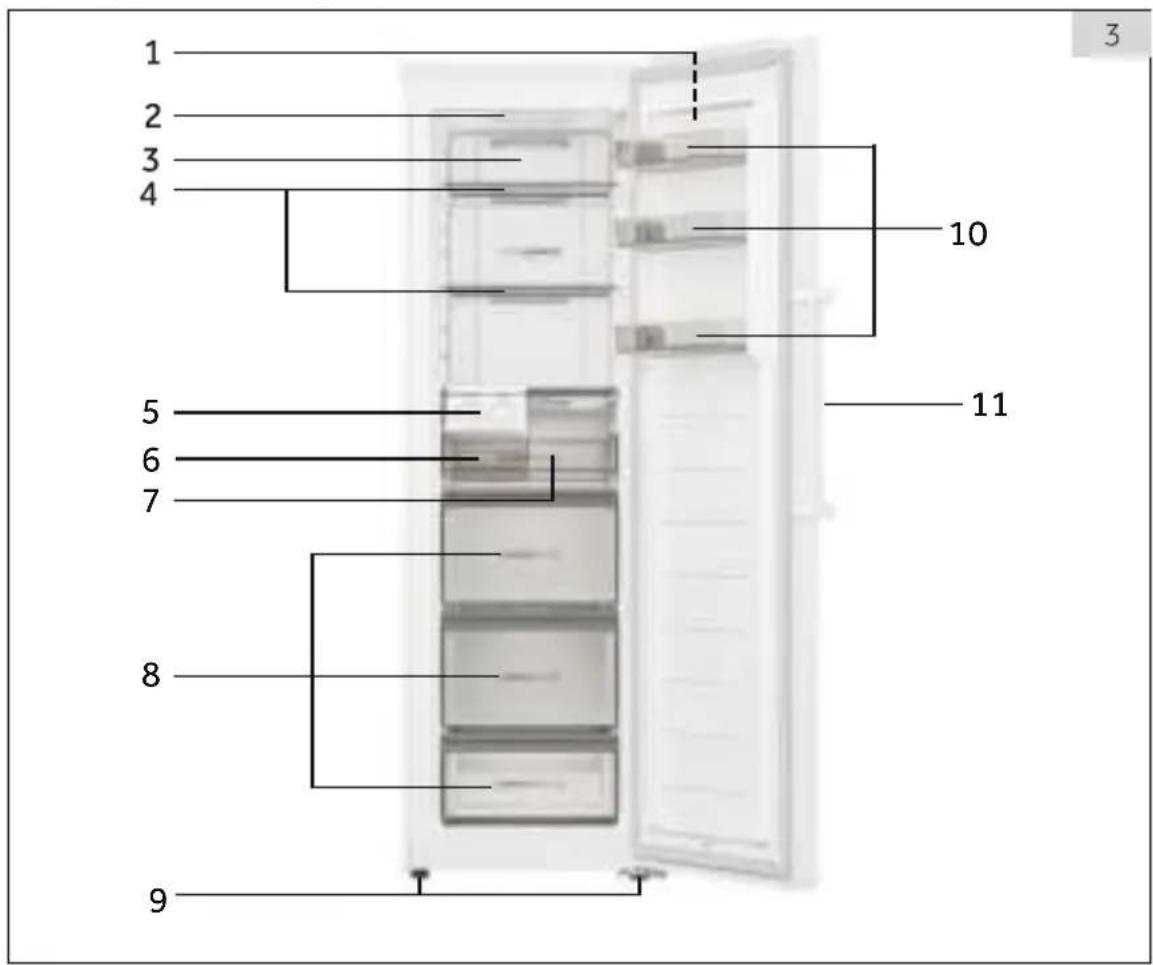

Picture of appliance (Fig. 3)

1 Control panel

7 Sliding tray

2 LED light

8 Drawers

3 Air duct

9 Adjustable feet

4 Glass shelves

10 Removable door racks

5 Ice maker assembly

11 Door handle

6 Ice receiver

Note: This product contains a light source of energy efficiency class < G>

H4F272/226*EH1has four Drawers,without components 5/6/7.

H4F226 without components 10

4 - Control panel

EN

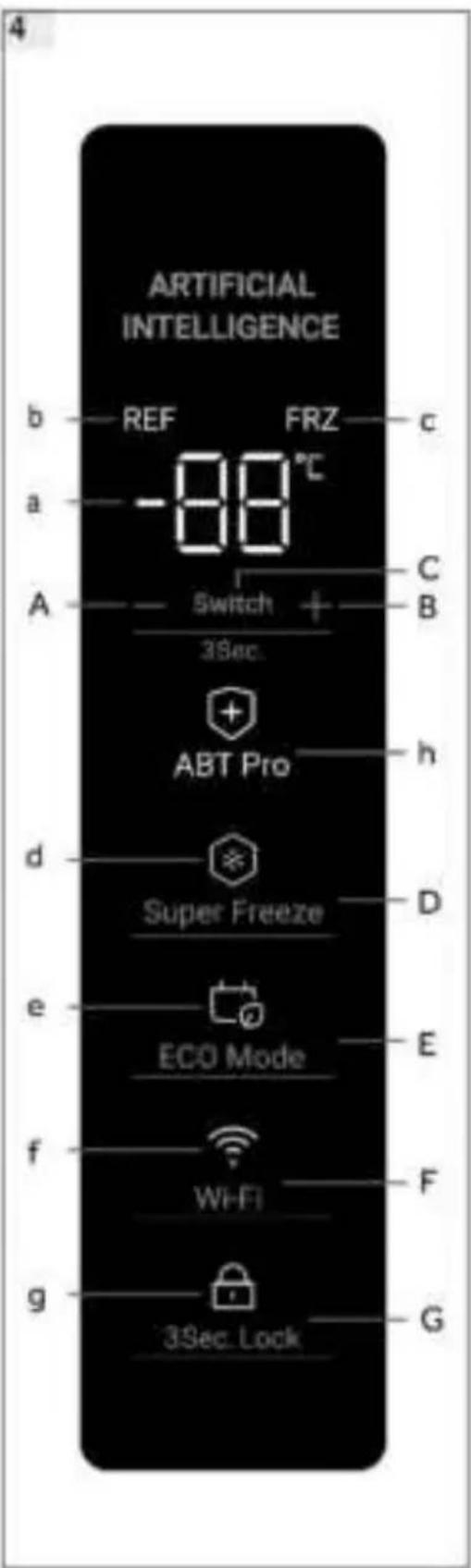

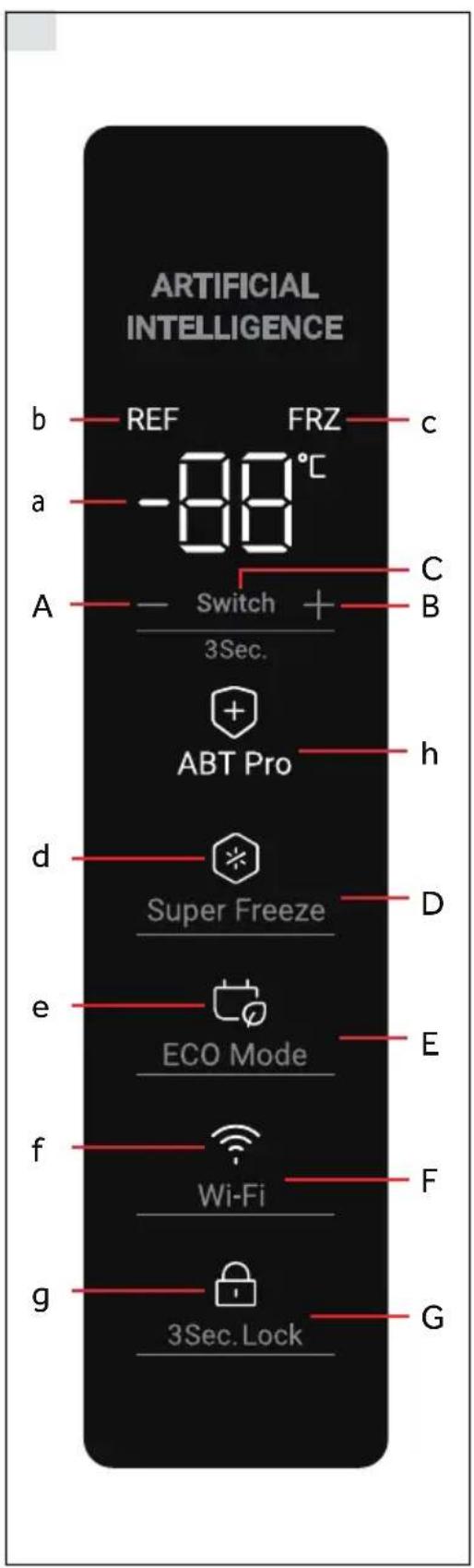

Control panel(Fig. 4)

A - (Temperature decrease)

C Instaswitch
B + (Temperature increase)
D Super Freeze mode
E ECO Mode
F Wi-Fi
G 3 Sec. Lock

5.1 Before first Use

• Remove all packaging materials, keep them out of childrens reach and dispose them in an environmentally friendly manner.
• Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.

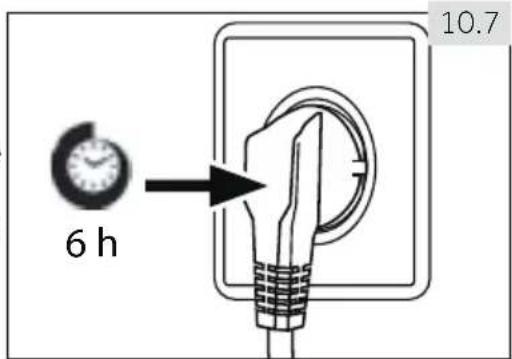

  After the appliance has been levelled and cleaned, wait for at least 6 hours before connecting it to the power supply. See Section INSTALLATION.
  Precool the compartment for 2 hours at high settings before loading with food. To do so, please set the temperature to lower than -20^ .

5.2 Switching the appliance on /off

The appliance is in operation as soon as it is connected to the power supply.

The freezer temperature is automatically set to -18^ . This is the recommended setting and the ideal temperature for frozen goods. If desired, you can change the temperatures manually. Please see ADJUSTING THE TEMPERATURE.

Indicators (a-g) will flash once consecutively. If the door is closed, the display switches off after 30 seconds. The panel lock might be active.

Pre: Presettings

The appliance is preset to the recommended temperature of -18^ . Under normal ambient condition you don't need to set a temperature.
- When the appliance is switched on after being disconnected from the main power supply, it may take up to 12 hours for the correct temperature to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out off the power socket.

5.3 Standby-mode of display

When the door is closed the display screen turns off automatically 30 seconds after without operation. The display locks automatically. It lights up automatically when touching any button or opening the door.

5.4 Display lock and unlock

Automatic locking

Display is automatically locked after about 30 seconds without operation.

Manual locking

When the display is unlocked, press "3 Sec. Lock" (G) and hold for 3 seconds, after a beep, "3 Sec. Indicator is light, display is locked. When the display is locked, press "3 Sec. Lock"(G) and hold for 3 seconds, after a beep, "3 Sec. Lock"(g) indicator is off, display is unlocked.

ce: Display lock

When display is locked, functions such as temperature setting or super freeze are disabled. When above operation is attempted, 3 SchedAtt will blink for 3 times, to remind that the display is locked.

5.5 Freeze/Refrigerate mode switch

When display is unlocked, by pressing "Switch"(C) for 3 seconds, the freezer could switch

indicator "REF"(b) is off and the indicator "FRZ"(c) is on. In Refrigerate mode the default s-

There is a big difference in temperature between Freeze and Refrigerate modes for different food storage. Prior to making any mode change, please make sure to change the food inside the freezer, so that food will not be damaged because of mode change.

5.6 Temperature setting

When display is unlocked and freezer is not in Super Freeze or ECO mode, by touching "-" (A) and "+" (B), different temperature could be set and flashing displayed on indicator (a), this process will be accompanied by beeps. After 5 seconds from stop touching, the indicator (a) will stop flashing and redisplay the temperature before adjustment. The set temperature is displayed after cooling effect is achieved.

5.7 Super Freeze mode (D)

Super Freeze mode is optimal for preserving food nutrition, it could freeze food in less time. Before putting lots of food inside the freezer, activate Super Freeze function to have lower temperature, to make sure better freeze result.

When display is unlocked and freezer is in Freeze mode, touching "Super Freeze mode" (D), indicator "Super Freeze"(d) is hightlighted and freezer works in Super Freeze mode. To deactivate manually, repeat steps above and indicator "Super Freeze"(d) turns to low lit-ht. If not deactivated manually, the mode will be automatically deactivated after 50 hours. If you have a large amount of food to freeze at one time, it is recommended that

after 50 hours or manually. Power consumption will increase when this function is on.

Notice: Super Freeze

• When the set gear before entering the freeze to the -18 gear;
• When entering the set gear before freezing<-18, the freezing will exit and return to the original set gear

In Super Freeze mode, temperature could not be adjusted. If you do so, Super Freeze indicator will blink a while to remind that freezer is in Super Freeze mode.
- Only in Freeze mode, Super Freeze mode could be set. In Refrigerate mode, Super Freeze indicator is off and Super Freeze mode could not be set.

5.8 ECO mode (E)

When display is unlocked, touching "ECO Mode"(E), indicator "ECO Mode"(e) is hight light and freezer works in ECO mode. To deactivate manually ECO mode, repeat steps above and indicator "ECO Mode"(e) is low light.

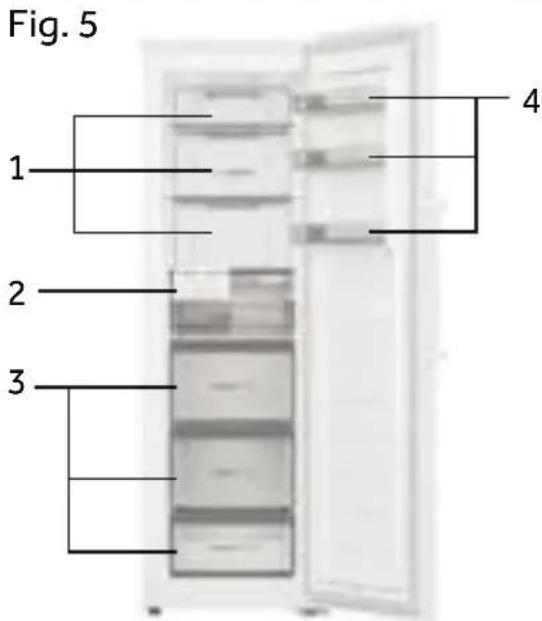

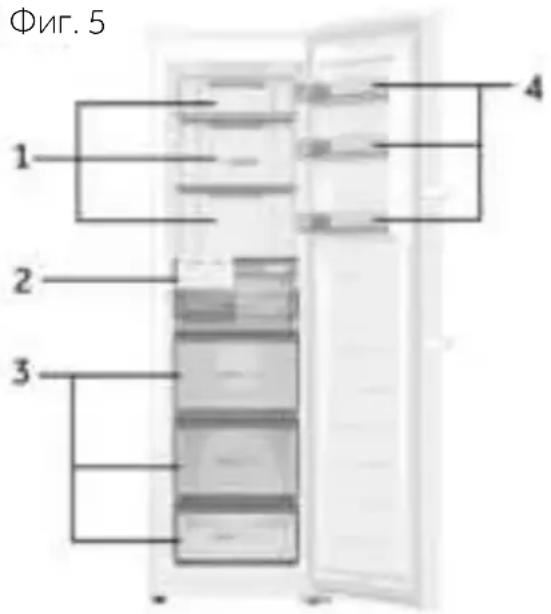

Different foods should be placed in different areas according to their properties (Fig. 5).

1 Pickled foods, canned food, fruit, vegetables, salad, etc.
2 Ice maker components.
3 Meat products, snack foods, etc.
4 Eggs, canned food, spices, drinks and bottled foods, etc.

On refrigerating mode without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs; on freezing mode with a 4-star compartment this freezing appliance is not suitable for refrigerating foodstuffs.

Food can be stored in the freezer at a temperature of at least -18^ for 2 to 12 months, depending on

its properties (e.g., meat: 3-12 months, vegetables: 6-12 months).

In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods.

5.9 ABT Pro(only for H4F306WDH1)

The freezer is equipped with an Antibacterial module, which runs autonomously after power-on, and users do not need to operate. The indicator (h) lightens up showing that the module is running.

5.10 Power-off memory

This freezer has power-off memory, settings before power-off will be memorized. When power is back on, freezer will return to settings before power-off and continue to function.

Display lock is not memorized, after power back on, display is unlocked.

5.11 Door open alarm

When freezer is kept open for more than 1 minute, alarm tone is sounded. The alarm to-ne will be sounded every 30 seconds if door is kept open. The alarm will stop until door is closed or after 7 minutes from door opening. The alarm tone stops and freezer light goes off.

5.12 High temperature alarm

The freezer is equipped with high temperature alarm. In Freeze mode, if "HH" is flashing displayed on indicator (a) with alarm tone sounded, touch any button, the alarm tone stops, that means temperature in the freezer is too high. Please check if freezer door is tightly closed or if large amount of warm food is put inside the freezer. After a period, "HH" will disappear. If not, and the alarm tone come back, please contact aftersales service.

5.13 Error indication

This freezer is equipped with error indication. When an error is encountered, display will show flashing codes for different errors. In this situation, the freezer could still freeze but user should contact after sales service as soon as possible for optimal control of the freezer.

5.14 Wi-Fi

After the refrigerator is connected to Wi-Fi, it can be remotely controlled through a mobile app. (Please refer to the configuration page for specific configuration methods)

6 - Energy saving tips

Energy saving tips

Make sure the appliance is properly ventilated (see INSTALLATION).
- Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).

creases the lower the temperature in the appliance is set.

• Allow warm food to cool down before placing it in the appliance.
  Open the appliance door as little and as briefly as possible.
• Make sure the door always closes correctly and unimpaired by food position. Keep door seals clean.
  Defreeze frozen food in a fridge.
  Clean the rear of the appliance regularly. Dust increases energy consumption.
  The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance on factory-fresh condition, and food to be placed without blocking the air outlet of the duct.

7 - Equipment

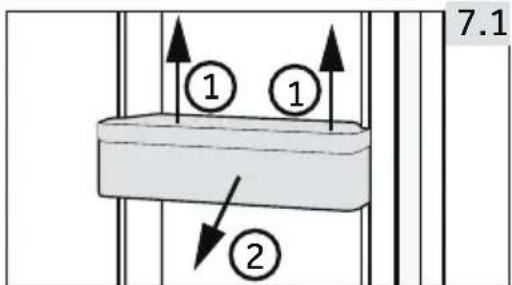

7.1 Removable door racks

The door rack can be removed for cleaning:

Place hands on each side of the rack, lift it upwards (1) and pull it out (2) (Fig. 7.1).

In order to insert the door rack, the above steps are carried out in reverse order.

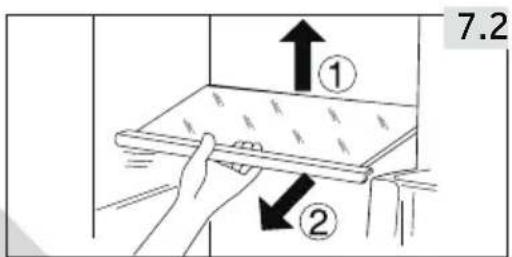

7.2 Glass shelves

1. To take out a shelf, remove it first by uplifting its hind edge (1) and pulling it out (2) (Fig. 7.2).
2. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides.

WARNING!

Disconnect the appliance from the power supply before cleaning.

8.1 General

Clean the appliance when only little or no food is stored.

WARNING!

• Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special freezer detergent to avoid damage.
• Do not spray or flush the appliance during cleaning.
  Do not scrape off frost and ice with sharp objects.
• Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
• Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
• Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
  In case of heating check the condition of frozen goods.
• Do not try to repair the appliance by yourself. In case of repair please contact our customer service.

Always keep the door gasket clean.

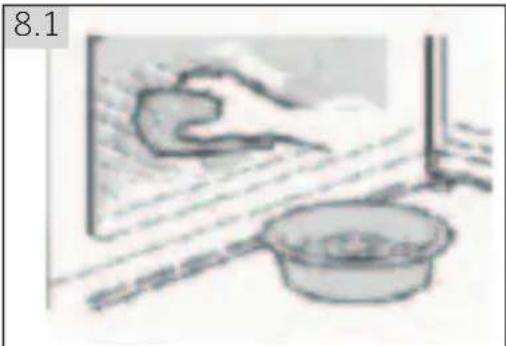

Clean the inside and housing of the appliance with a soft cloth or sponge dampened in warm water and neutral detergent (Fig. 8.1).
Rinse and dry with soft cloth.
- Do not clean any of the parts of the appliance in a dishwasher.
Clean the accessory only with warm water and mild neutral detergent.

8- Care and Cleaning

EN

The user manual includes instructions for the using and operation of multiple models. Please refer to the instructions for the purchased models.

Drawer cleaning steps

1.Remove the front cover of drawer:

2.Cleaning of drawer body:

3.Cleaning of drawer cover:

1. Assembly after cleaning:

Ice maker cleaning

1. Remove the ice maker and glass shelf

2.Remove the ice maker from the shelf in the left and right directions

4.Cleaning of ice box:

1. Assembly after cleaning:

Door seal cleaning

1. Door seal strip remove

1. Door seal cleaning

3.Installation after cleaning

8- Care and Cleaning

8.2 Non-use for a long period

If the appliance is not used for an extended period of time:

Take out the food.
Unplug the power cord.
Clean the appliance as described above.

Remove the door of the appliance (open the door and hold it before removing the screws) to avoid children entering into the appliance and getting locked in.

Notice: Switch off

To ensure the service life of the appliance, turn it off only if strictly necessary.

8.3 Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the freezer with adhesive tape.
3. Close the door and secure it with tape.
4. Do not tilt the freezer more than 45^ to avoid damaging the refrigerating system.
5. Wrap the feet of the freezer to avoid scratching the floor. Never move the freezer forcefully.

WARNING!

• Do not lift the appliance by its handles.
  Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

the mains socket.

Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.

similarly qualified persons in order to avoid a hazard.

The acoustic alarm can be switched off by pressing any button..

9.1 Troubleshooting

Problem Possible Cause Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.
The appliance runs frequently or for a too long period of time.	ture is too high. The appliance has been off power frequently or for too long.	apppliance to run longer. for the appliance to cool down completely. apppliance is located on a level ground and there is no food or container jarring the door. quently. til a satisfactory temperature is obtained. It takes 24 hours for the temperature to become stable. place them by the customer service.
	cracked or mis-matched.
	guaranteed.
The appliance makes abnormal sounds.	level ground. close to it. floor or near wooden walls.	apppliance. Wood amplifies the sound. Set the appliance somewhere else.

9 - Troubleshooting

Problem Possible Cause	Possible Solution
The appliance makes a clicking sound	·This is normal. It is caused by the refrigeration unit switching on or off.	·
A slight sound is to be heard similar to that of flowing water.	·	·
The appliance makes a motor sound	·The refrigeration unit has just turned itself on. This is normal	·
It is not cold enough ancence.	·The temperature is set too high. ·been stored. ·a time. ·The goods are too close to each other. ·The door has been opened too frequently or for too long.	·Reset the temperature. ·fore storing them. ·Always store small quantities of food. ·foods allowing air flowing. ·Close the door. ·sequently.
It is too cold inside the appliance.	·The temperature is set too low. ·tivated or has been running too long.	·Reset the temperature. ·Switch off the Fast-freezing function.
lates on the surface of the appliance.	·damp.	·This is normal in damp climate midity decreases. Wipe dry with a cloth.
Strong ice and frost partment.	·The goods were not adequately packaged. ·The door has been opened too frequently or for too long. ·The door gasket is dirty, worn, cracked or mis-matched. ·Something on the inside prevents the door from closing properly.	·Close the door. ·quently. ·place them by the customer service. ·Reposition the shelves, door racks, or internal containers to allow the door to close.
The cooling system does not work.	·Mains plug is not connected to the mains socket.	·Check the electrical supply to tricity company!
Problem Possible Cause Possible Solution
The sides of the cabinet and door strip get warm.
You hear an alarm signal.	The door is open The temperature inside product is too high	Close the door or silence the alarm manually.
The door is difficult to open.	Once the appliance runs, it has an internal vacuum.	air enter the appliacne.
The door can't be closed properly. It always leaves a gap.	temperature, the door seal can easily get hard and deformed.	Use a hair dryer or put a hot towel on the spot where the gasket is deformed. press it tightly.

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

9.2 Power Interruption

In the event of a power cut, food should remain safely cold for about 18 hours. Follow these tips during a prolonged power interruption, especially in summer:

partment.

the storage period and edible quality of food will be reduced. Any food that defrosts wards in order to prevent health risks.

Notice: Memory function during power interruption

fore the power failure.

10 - Installation

10.1 Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.

mentally friendly manner.

Take the appliance out of the packaging.

Remove all packaging materials.

10.2 Environmental conditions

The room temperature should always be between 18^ and 43^ , since it can influence the amount of heat-emitting appliances (ovens, refrigerators) without isolation.

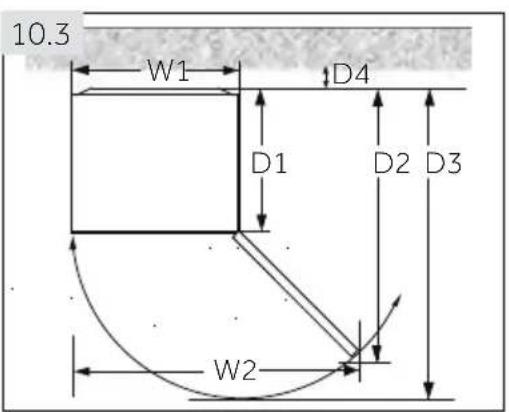

10.3 Space requirements

Required space to open the door (Fig. 10.3):

Width in mm	Depth in mm	Distance to wall in mm
W1 W2 D1 D2 D3 D4
595 930 600 1133 1217 100

This appliance is not intended to be used as a built-in appliance.

10.4 Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed (Fig. 10.4).

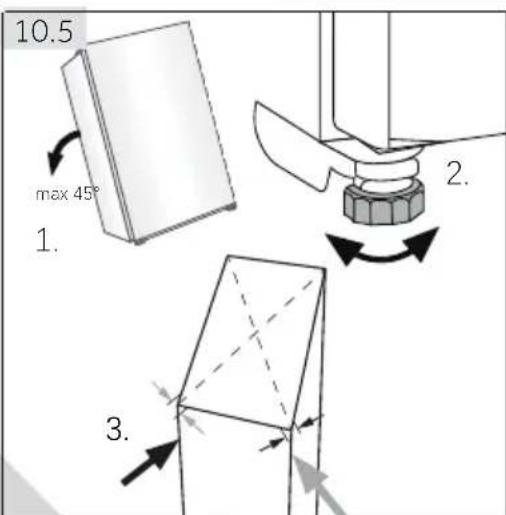

10.5 Aligning the appliance

The appliance should be placed on a flat and solid surface. If the appliance is placed on a pedestal, strong and fire-resistant materials must be used. Never use the foam packing material as a pedestal.

1. Tilt the appliance slightly backwards (Fig. 10.5).
2. Set the feet to the desired level.
3. The stability can be checked by alternately bumping on the diagonals. The slight swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear eases the closing of the door.

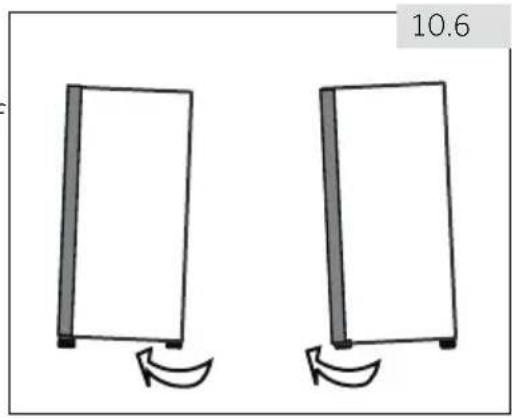

10.6 Using adjustable feet

tate the adjustable feet according to the direction of arrow (Fig. 10.6) to turn them up or down:

Turning the feet clockwise raises the appliance.
Turning the feet counterclockwise lowers it.

10.7 Waiting time

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait 6 hours (Fig. 10.7) so that the oil runs back into the capsule.

10.8 Electrical connection

Before each connection check if:

power supply, socket and fusing are appropriate to the rating plate.
the power socket is earthed and no multi-plug or extension.
the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

10 - Installation

10.9 Door Reversibility

Before connecting the appliance to the power supply you should check, whether the door swing must changed from right (as delivered) to left, if this is required by the installation location and the usability.

WARNING!

The appliance is heavy. You need two persons to carry out the door reversibility.
Before any operation, first unplug the appliance from the mains.
- Do not tilt the appliance more than 45^ to prevent damage of the cooling system.

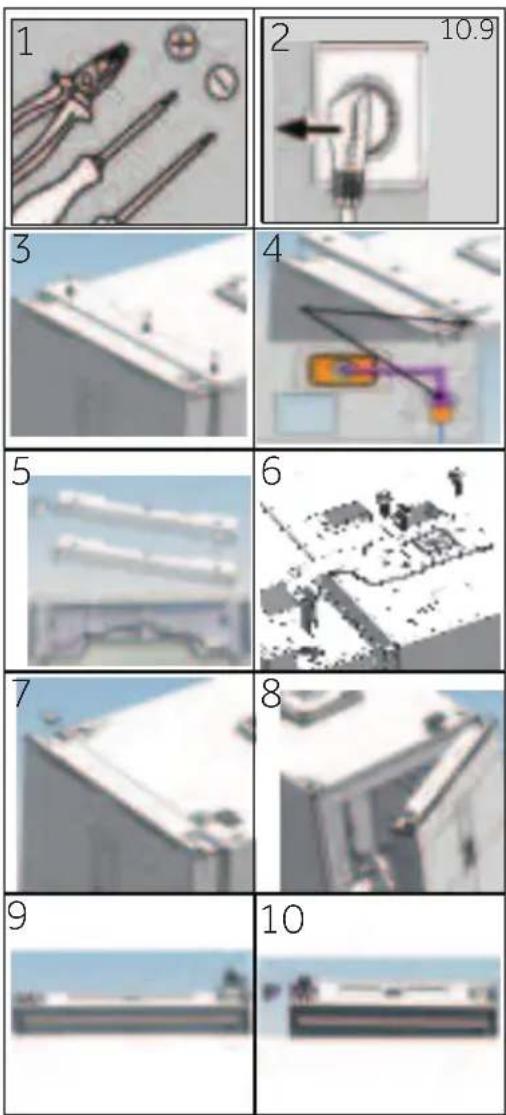

Assembly steps (Fig. 10.9):

1. Provide necessary tool.

2. Unplug the appliance.

3. Remove the screw hole cover, bolts, and hinge cover.

4. Unplug the connection cable.

5. Take upper left hinge cover and door extension cord

nge cover and install theextension cord into the wiring slot of the hinge cover.

1. Removes screws and hinge.
2. Remove cover on door. Remove axe cover on door
3. Open and remove the door.
4. Turn the door upside down, remove 3 screws on the bottom of the door. Remove 3 screws, door stopper and Lifting shaft sleeve on the bottom of the door

Fix the lifting stop, Door stop, and 3 screws on the left side of the door

11 12

13

14

15

16

17

18

1920

1. Tilt slightly backwards the cabinet, remove 3 screws and then the lower hinge.
2. shaft
   13.Install the lifting shaft sleeve and lifting shaft in the left
   14.Fix the hinge to the opposite position of the cabinet with 3 screws.
3. On opposite side of the door, pull out left side connection cable and put it through the axe cover from step 5, mount axe cover. Mount the hole cover on the right side.
4. Mount the door.
5. Fix upper right upper hinge with 3 screws. (Add lubricating oil to the upper hinge before installation)
6. Connect the wiring harness as shown in the figure
   19.Install the assembled hinge cover in step 5, secure the three screws and screw hole covers
7. Finished.

10.10 Move ice maker

(The ice maker can move its position according to user usage)

In order to protect the ice maker from damage during transportation, it is installed on the hingeside, and customers can use it according to their own needs,Mobile ice maker position.(Fig. 10.9):

It is recommended to place the ice maker on both sides. If placed in the middle position, it may reduce ice making efficiency

11 - Technical Data

11.1 Product registration EU No. 2019/2016

Trade mark	Haier
Model identifier	H4F306*DH1	H4F272*DH1	H4F272*EH1	H4F226*DH1	H4F226*EH1
Category of the model	Upright freezer
Energy efficiency class D DE D E
Annual energy consumption(kWh/year)1)	204	197	247	184 230
Storage volume cooling(L)	not applicable
Storage volume freezing(L)*** 301		276 226
Star rating	****
Temperature of othercompartments>14°C	not applicable
Frostfree system	yes
Power cut safe(h)	12 12	11		1112
Freezing capacity(kg/24h)	20	20	16	18	14
Climate classThis appliance is intended to beused at an ambient temperaturebetween 10°C Cand 43°C	SN-T
Airborne acoustical noiseemissions(dB(A)re 1pW)	37
Construction type	freestanding

1) based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Regarding specification details, please consult the rating plate and energy label inside the product. This appliance is intended to be used at an ambient temperature indicated below:

SN + 10°C~+32°C

N + 16°C~+32°C

ST + 16°C~+38°C

T + 16°C~+43°C

11.2 Additional Technical Data

Voltage / Frequency	220-240V ~/ 50Hz
Rated current (A) H4F306/272/226*DH1	1.5
Rated current (A) H4F272/226*EH1	0.8
Coolant	R600a
Dimensions (H/W/D in cm) H4F306*DH1	190/59,5/69
Dimensions (H/W/D in cm) H4F272*(D/E)H1	177.5/59,5/69
Dimensions (H/W/D in cm) H4F226*(D/E)H1	153.5/59,5/69
Light power/Light voltage	1.5W/ DC 12V

11.3 Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING

If you cannot find a solution there, please contact

your local dealer or
- the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model

Serial No.

Also check the Warranty Card supplied with the product in case of warranty.

For general business enquiries please find below our addresses in Europe:

European Haier addresses
Country*	Postal address	Country*	Postal address
Italy	Haier Europe Trading SRL Via De Cristoforis, 12 21100 Varese ITALY	France	Haier France SAS 3-5 rue des Graviers 92200 Neuilly sur Seine FRANCE
Spain Portugal	Haier Iberia SL Pg. Garcia Faria, 49-51 08019 Barcelona SPAIN	Belgium-FR Belgium-NL Netherlands Luxembourg	Haier Benelux SA Anderlecht Route de Lennik 451 BELGIUM
Germany Austria	Haier Deutschland GmbH Hewlett-Packard-Str. 4 D-61352 Bad Homburg GERMANY	Poland Czechia Hungary Greece Romania Russia	Haier Poland Sp. zo.o. Al. Jerozolimskie 181B 02-222 Warszawa POLAND
United Kingdom	Haier Appliances UK Co.Ltd. One Crown Square Church Street East Woking, Surrey, GU21 6HR UK

*For more information please refer to www.haier.com

Haier

Ръководстvo 3a noTppe6nteЯ

BeptnkaJIeH φριЗер

H4F306*DH1

H4F272*DH1

H4F272*EH1

H4F226*DH1

H4F226*EH1

*-LBeTOBnKOd

5.8 Pekim, "ECO" (E)

B ECO pexim ce noctura ukoHOMna Ha eheprn. TempepatpaTa aBTomatuHNo 6bde 3aadaHa ha - 16^ B pexim Ha 3ampa3BaHe nnn 8°C B pexim Ha oxlaJdaHe.

Korato dincnpieTe oTKnHoyen,doKocBaHeTo Ha „Pexim ECO"(E),nHdNkatOpbT „Pexim ECO"(e) cBeTu cnInHO n φpni3epbT pa6OtuB „Pexim ECO". 3a da deaktnBupate pbuHo Ha „Pexim ECO", noBtopeTe cTbKnite no-rope n nHdNkatOpbT „Pexim ECO"(e) ue CBeTu cna6o.

ΦnΓ.5

Pa3nHnTe xpaHn Tp6Ba Da ce nocTaBt B pa3nHn 3oHn CnopeD TexHnTe CBOIcTBA (ΦnR.5).

1 MapuHOBaHN xpaHn, KOHcepBvnpaHn xpaHn, PIOIDObE, 3eJIeHcyuN, caJaTa N Dp.
2 KomnoheHTn 3a MaunHaTa 3a JeI.
3 MeCNn npOdykTN, NOyΦa6pnKaTn I dp.
4Яиca，KOHcepBn，NODnpaBKN，HaNTKN 6byTnilpaHn XpaHn Ndp.

BpekIM Ha oxlaJaHahe 6e3 OTdeJeHne c 4 3Be3n:TO3n XlaJIneH ypeI He e NOdxOJaU 3a 3aMpa3BaHe Ha xpaHITeJIH INPOdyKT;BpeKIM Ha 3aMpa3BaHe C OTdeJeHne c 4 3Be3n,TO3n ypeI 3a 3aMpa3BaHe He e NOdxOJaU 3a OXlaJaHa HxpaHITeJIH INPOdyKT.

XpaHa MoKe Da 6bDe CbXpaHЯBaHa BbB φpɪ3epa npɪ TempepaTpa O T NoHe -18 °C 3a cPOK oT 2do 12 Meceua B 3aBnCmOCT oT xapakTepcntknte i (HaIp. Meco: 3-12 Meceua, 3eJIenHu: 6-12 Meceua).

3a da ce n36eHne n3TnuaHeTo Ha cPOKOBeTe 3a cbxpaHene, MoJ, o6bPHeTe BHNMaHne Ha daTaHa Ha 3aMpa3aBaHe, cPoKa N IMeTO Ha xpaHaTa BbpXy ONaKOBkTa CNopeD cPOKOBeTe 3a cbxpaHene Ha pa3JIuHn XpaHn.

5.9 ABT Pro (camo 3a H4F306WDH1)

Φριπερβe oobopydBaH c aHTn6aKtepeHaJIe H MOnyI, KOITO 3apa6oTbA aBTOHOMHO CJIeD BKNIOUbaHe n He e Heo6xOДIMO NOTpe6nteJIte Da npabrt HnIo. INNkKatOpbT (h) CBETBa, 3a da NOKaJKe, Ye MoDyJIbT pa6OTn.

5.10 3anaMeTЯBaHe npi npeKbcBaHe Ha 3axpaHbaHeTo

To3n φριηερ ΜMa παMeT B CγuayHa πpeKbCbaHe Ha 3axpaHbAHeTO, HactpoIKNITE npεπιν3KJIIOUBAHe Μe 6bDaT 3aONMHeH. KOraTO 3axpaHbAHeTO ce BKJIOnOTHOBO, φριηερβT Μe Ce BbpHe KM NaCTpOiKNTe ppeDn N3KJIIOUBAHe Μe npOdbJxN da ΦyHKUHOHPa. 3akJIIOUBAHeTo Ha DnCpIeR He ce 3aNaMeTЯBa, CneD NOBTOPOBHO BKJIIOUBAHe DnCpIeR Te OTKJIOnEh.

5.11 AlaMa 3a OTbaprHe Ha BpaTaTa

KoratoФризерьт OCTане OTBорен NOBE ue ot 1 MInHyta, ce ChyBa aIapMeH cnHaN. AIapMaTa 7e 3ByuHa HbCekn 30 cekyn, aKO BpaTata Ce DbpxN OTBopeHa. AIapMaTa 7e CnpE, KORATO BpaTata 6bJe 3aTBOpeHa nII N 7 MInHyTu CLeD OTBapRHe Ha BpaTata. AIapMeHnA TcngHacl CnIPA n CBeTlnHaTa HaФриЗepa n3racBa.

5.12 AlaMa 3a Bucoka TemnepaTpa

1. MoNTiPae He CJIeI NOUcTBaHe

8 - Гпжам поочстванe

8.2 Hen3noJ3BaHe 3a DbIbI nepNoI

Ako ypeBt He ce n3noI3Ba 3a npOdbJxHteJeH nepNoD OT BpeMe:

13BaTeXpaHaTa.
13KIOUeTe 3axpaHbuaNja Ka6eI OT KOHTaKaT.
NouchTeUpeDa, KaKTo e OnncaH No-rope.
OcTaBeTe BpaTata NyeKMeJKeTata Ha np3epa OTBopeHn, 3a da ce npeDoTbpatn pa3BVNTNeTo Ha HEnpNtHN MnpN3Mn BbTpe.

Maxhe Te BpaTata Ha ypea (OTBopeTe BpaTata n 3aApbXkTe, npeNi da OTCTpaHnTe BnHTOBeTe), 3a Da N36erHeTe BnI3aHcTo Ha Deca Bypea N 3akIIOUbaHcTo IM BbTpe.

3a6eJexKka: N3KJIIOUyBaHe

3a da ce rapaHTnpa ekCnIooatauOHnT XHBOT Ha ypeDa, ro n3KJIouyBaIte caMo aKO eCTporo Heo6xOdmo.

10.9 O6pbzhaHe Ha BpaTnTe

Ovladaci panel (obr. 4)

A-(snizeni teploty)

C Prepinač Instaswitch

B + (zvyseni teploty)

D Režim Super Freeze

E Režim ECO

FWi-Fi

G3 Sec. Lock

10.3 Anaiinoeicxwpou

11.3 StandardeŞidirective

Ovladaci panel (obr.4)

A - (pokles teploty)

D Režim Super Freeze
E Režim ECO

CInstaswitch
B + (zvysenie teploty)

FWi-Fi

G3szamka

5.1 Pred prvym použitim
