USER MANUAL RIVER havel Palmer

INFORMATION ON THIS USER MANUAL 4

MANUFACTURER’S DECLARATIONS 14

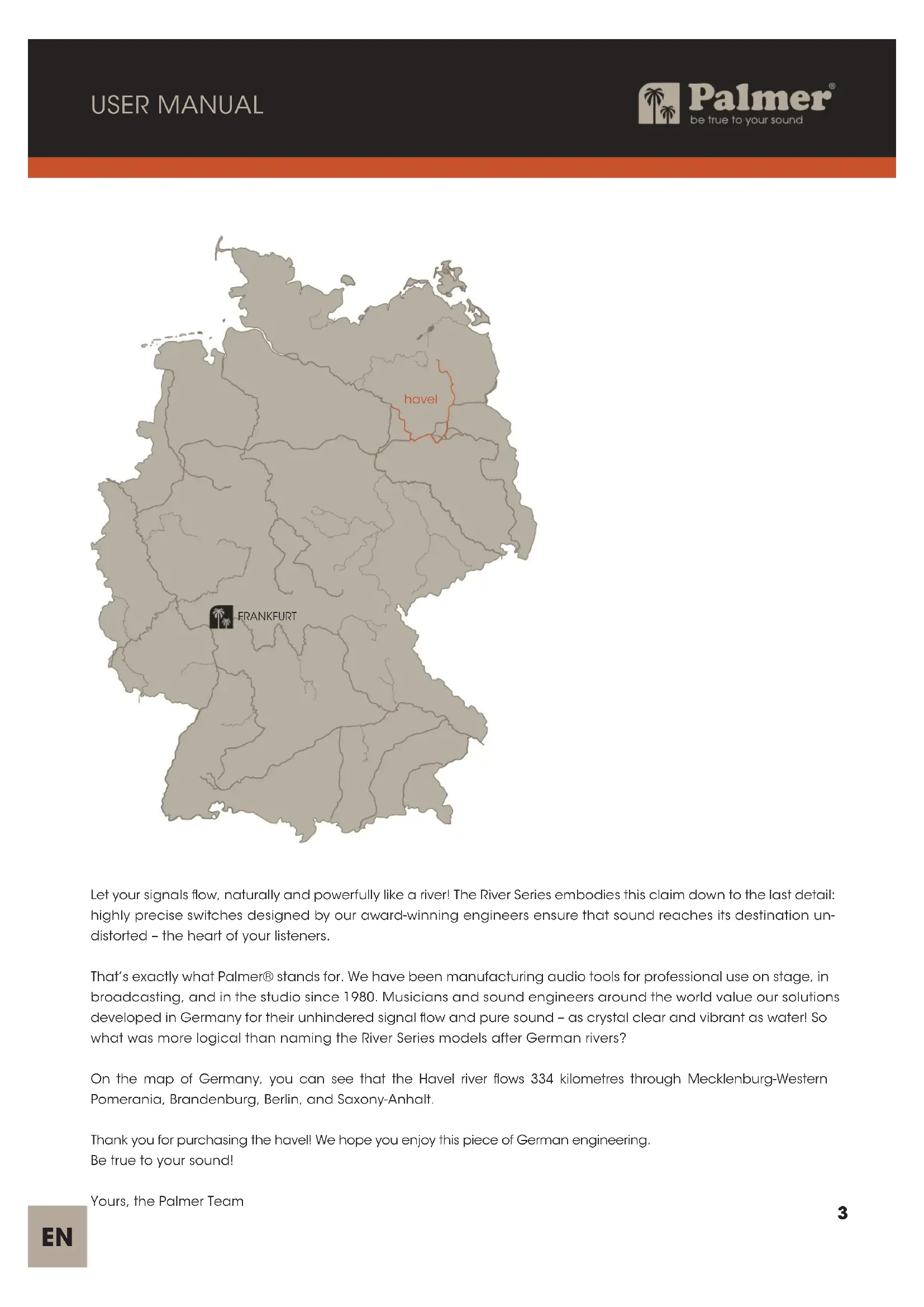

FRANKFURT havel Let your signals flow, naturally and powerfully like a river! The River Series embodies this claim down to the last detail: highly precise switches designed by our award-winning engineers ensure that sound reaches its destination un- distorted – the heart of your listeners. That’s exactly what Palmer® stands for. We have been manufacturing audio tools for professional use on stage, in broadcasting, and in the studio since 1980. Musicians and sound engineers around the world value our solutions developed in Germany for their unhindered signal flow and pure sound – as crystal clear and vibrant as water! So what was more logical than naming the River Series models after German rivers? On the map of Germany, you can see that the Havel river flows 334 kilometres through Mecklenburg-Western Pomerania, Brandenburg, Berlin, and Saxony-Anhalt. Thank you for purchasing the havel! We hope you enjoy this piece of German engineering. Be true to your sound! Yours, the Palmer Team4 USER MANUAL

Active one-channel DI box havel

INFORMATION ON THIS USER MANUAL

Carefully read the safety instructions and the entire manual before operating the device. ▶ Observe the warnings on the device and in the user manual. ▶ Always keep the user manual within reach. ▶ If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product. INTENDED USE This product is a device for event technology, as well as for the studio, TV, and broadcasting! ▶ The product has been developed for professional use in event technology, as well as in the studio, TV, and broadcasting. ▶ Furthermore, this product is only intended for qualified users with specialist knowledge of event technology, as well as studio, TV, and broadcasting! ▶ Use of the product outside the specified technical data and operating conditions is considered improper use! ▶ Liability for damage and third-party damage to persons and property due to inappropriate use is excluded! ▶ The product is not suitable for: ▶ Use by persons (including children) with limited physical, sensory, or mental abilities or lack of experience and knowledge. ▶ Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOL EXPLANATIONS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately hazardous situations or

conditions risking life and limb.

2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially hazardous situations or

conditions risking life and limb.

3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that may

4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that can

lead to damage to property and/or the environment. This symbol indicates hazards that can cause electric shock. This symbol indicates hazardous areas or hazardous situations.5 USER MANUAL

This symbol indicates hazards caused by hot surfaces. This symbol indicates hazards due to high volume levels. This symbol denotes a device that does not contain any user-serviceable parts. This symbol indicates additional information on the operation of the product. This symbol indicates a device that may only be used in dry rooms.

1. Do not open the device, and do not make any modifications to it.

2. If your device no longer functions properly, if liquids or objects get inside it, or if it has been damaged

in any other way, switch it off immediately and disconnect it from the power supply. The device may be repaired only by authorised repair technicians. ATTENTION:

1. Do not operate the device if it has been exposed to large temperature fluctuations (for example, after

transport). Moisture and condensation can damage the device. Switch on the device only when it has reached ambient temperature.

2. Make sure that the voltage and frequency of the mains correspond to the values specified on the

device. If the device has a voltage selector switch, do not turn the device on until it has been set correctly. Use only suitable mains cables.

3. To disconnect the device completely from the power supply, unplug the mains cable or the mains

adapter from the socket. It is not sufficient to press the on/off switch on the device. In addition, a connected amplifier must also be disconnected from the device!

4. Make sure that the fuse used corresponds to the type printed on the device.

5. Make sure that appropriate measures have been taken against power surges (for example, lightning

6. Observe the specified maximum output current on devices with a Power Out connection. Ensure that

the total current consumption of all connected devices does not exceed the specified value.

1. Danger of suffocation/choking! Plastic bags and small parts must be kept out of reach of persons

(including children) with reduced physical, sensory, or mental capabilities.

2. Danger caused by falling device! Make sure that the device is securely installed and cannot fall down.

Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that all applicable safety regulations are observed.

1. Use the device in the prescribed manner only.

2. Operate the device only with the accessories recommended and intended by the manufacturer.

3. During installation, observe the safety regulations applicable in your country.

4. After connecting the device, check all cable routes to avoid damage or accidents, for example, due to

stated, the minimum distance is 0.3 m. CAUTION: Moving components such as mounting brackets or other movable components may become jammed. ATTENTION:

1. Do not install or use the device in the vicinity of radiators, heat accumulators, furnaces, or other heat

sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.

2. Do not place any ignition sources such as burning candles near the device.

3. Use the original packaging or packaging provided by the manufacturer for transport.

4. Avoid shock or impact to the device.

5. Observe the IP protection class as well as the ambient conditions such as temperature and humidity

according to the specifications.

6. Devices can be continuously further developed. In the event of deviating information on operating

conditions, performance, or other device properties between the user manual and the device labelling, the information provided on the device always has priority.

7. The device is not suitable for tropical climates and for operation at heights of 2,000 m above sea level.

8. Unless explicitly stated, the device is not suitable for operation under marine conditions.

PLEASE NOTE: For conversion or retrofit kits supplied by the manufacturer, the enclosed installation instructions must be observed.7 USER MANUAL

CAUTION: HIGH-VOLUME AUDIO PRODUCTS! This device is designed for professional use. The commercial operation of this device is subject to the applicable national regulations and guidelines for accident prevention. Hearing damage due to high volume and continuous exposure: use of this product may generate high sound pressure levels (SPLs) that may cause hearing damage. Avoid exposure to high volumes. ATTENTION: Connecting signal cables and operating switches (for example, switching phantom power on and off) can cause significant interference noise. Make sure that input channels (mixer, audio interface, effects device, etc.) are muted while making connections and operating switches. Otherwise, noise levels may cause damage.

WARNING: Unplug the mains adapter from the socket AND disconnect any amplifier that might be

connected to the device to put the device in a completely voltage-free state. ATTENTION: Make sure that the device is not covered while in operation and that the air can freely circulate, especially for the rack mounting! PLEASE NOTE: Strong magnetic fields can cause humming. For this reason, do not position the device near strong magnetic fields (for example, mains transformer). PLEASE NOTE FOR PORTABLE INDOOR DEVICES:

1. Temporary operation! Event equipment is generally designed for temporary use only.

2. Continuous operation or permanent installation can impair the functioning of the device and

cause premature ageing.8 USER MANUAL

PACKAGING CONTENT Remove the product from the packaging and remove all packaging material. Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged. The packaging content for the product includes: ▶ 1× havel active one-channel DI box ▶ Product data sheet ▶ Tour label ▶ Rubber feet INTRODUCTION The one-channel DI box havel is a professional studio and stage tool that transforms unbalanced audio sig- nals into balanced audio signals without any distortion. The internal transformer offers an excellent dynamic range and outstanding overload stability. The DI box is used as a connecting link to connect string instru- ments with pickups (for example, electric acoustic guitars, electric guitars, and electric basses), instruments with line outputs (for example, keyboards), and speaker outputs from guitar amplifiers to balanced inputs of a mixer or audio interface. In addition, the DI box allows for interference-free transmission of audio signals over long cable runs.

WARNING: Power amplifiers may not be operated in Bridge mode on the DI box.

WARNING: If an amplifier is operated on the DI box, the ground connection between the input and output

must be disconnected (switch no. 6 in the unpressed LIFT position).

WARNING: A connected amplifier’s output must not exceed 120 W at 8 ohms!

ATTENTION: If a tube amplifier is used: there is no load resistor in the DI box circuit! To prevent damage to the amplifier, an appropriate guitar speaker or a suitable load resistor must be connected to the THRU jack socket using a speaker cable before switching on the amplifier!9 USER MANUAL

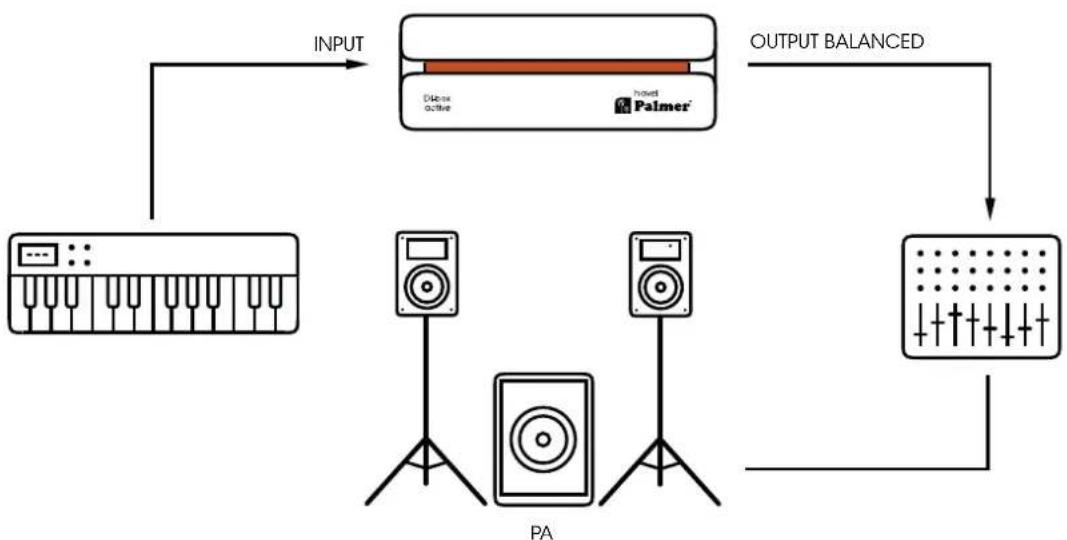

Audio input with a 6.3 mm jack socket. A. Connect an instrument using a shielded instrument cable. B. Connect the speaker output of a guitar amplifier using a speaker cable (tip: press PAD switch no. 3).

The input signal is output unchanged via the 6.3 mm jack socket.

3. PAD (passive attenuation device)

Press the corresponding switch to reduce the level of the output signal by 30 dB. The output level must be lowe- red if the channel input stage of the connected mixer or audio interface is overdriven.

4. BATTERY COMPARTMENT

Battery compartment for a 9 V block battery. Only use leak-proof brand products. To replace the battery, open the device’s battery compartment by pushing the battery compartment lid’s locking lever downwards and folding the lid forward. Remove the depleted battery and insert a new battery in the battery compartment. Make sure that the battery polarity matches the battery compartment polarity (see marking on the battery compartment lid). Put the battery compartment lid back on the housing until it clicks into place. If you do not use the device for a long period, remove the battery to prevent damage to the device from a leaking battery. Alternative power supply via phantom power via the OUTPUT XLR socket (48 V). Always make sure that the cable is connected to the audio output and that the channel volume for a connected mixer or audio interface is set to mini- mum before switching on phantom power. Before disconnecting the cable from the device, turn the channel volume to minimum and then deactivate phantom power.

Switch for disconnecting the ground connection between the input and output (ground lift). The ground con- nection is disconnected (LIFT) in the unpressed position; the connection is established when the switch is pressed (GND). The ability to prevent a humming loop using the ground lift switch depends on the grounding of the con- nected devices. It is therefore possible that either switch position effectively reduces or eliminates humming.

Balanced audio output with male three-pin XLR socket. Use a balanced, shielded cable (for example, microphone cable) in order connect the DI box to a mixer’s or audio interface’s balanced output. ATTENTION: Connecting signal cables can cause significant interference noise. Make sure that devices connected to the output channel (mixer, audio interface, etc.) and the THRU output are muted while making connections. Otherwise, noise levels may cause damage.

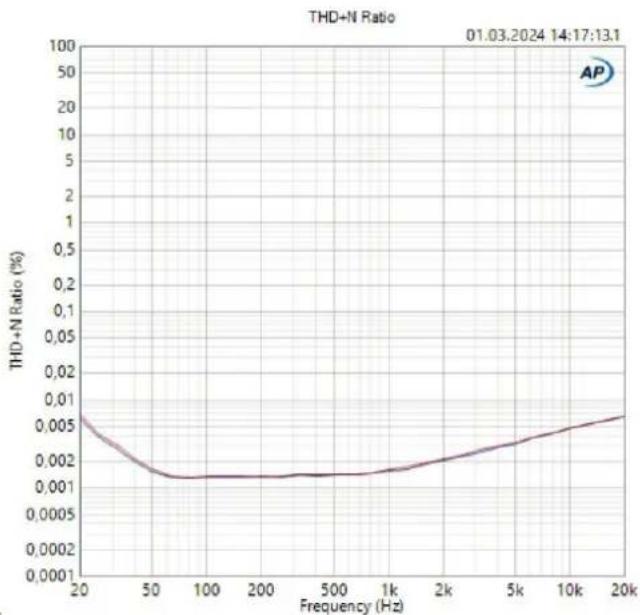

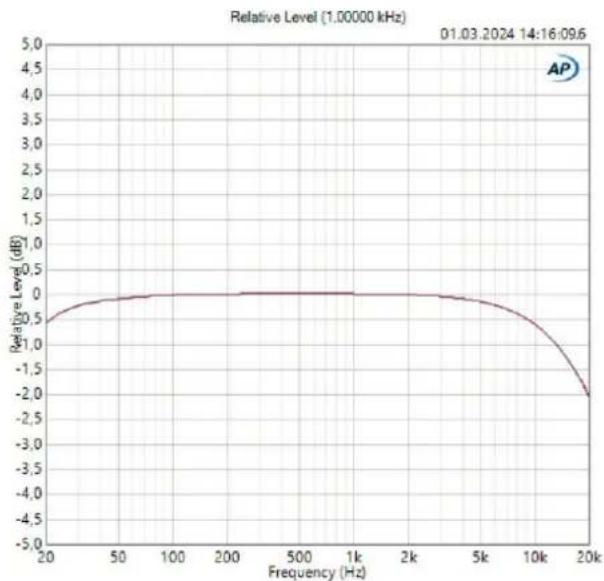

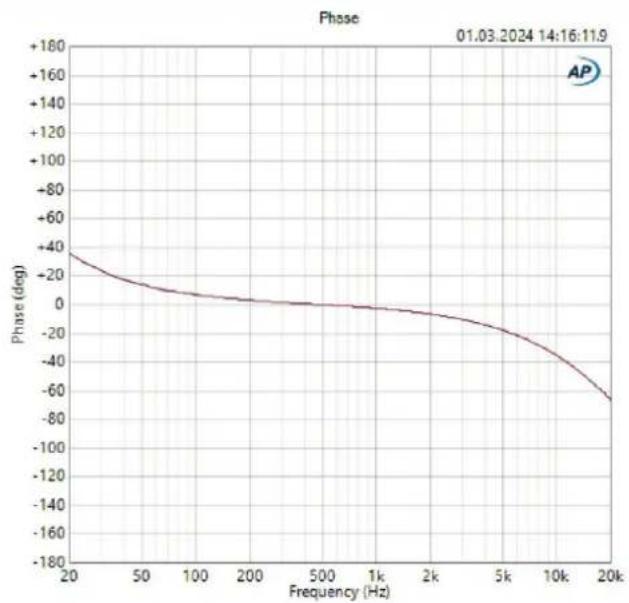

Product number PHAVEL Product type DI box No. of channels 1 Type Active Transformer isolated Yes No. of inputs 1 Input type Unbalanced Input connectors 6.3 mm jack No. of outputs 1 Output type Balanced Output connectors XLR THRU outputs per channel 1 Input attenuation (PAD) 0 dB/30 dB Ground/lift switch Yes Operating voltage P48 V, 9 V battery Power consumption 0.5 W Housing Aluminium continuous casting Dimensions (H/W/D) 140 × 50 × 68 mm Weight 0.41 kg Ambient temperature (for operation) - 20°C ... 70°C Relative air humidity < 80% (non-condensing) Included accessories Rubber feet, inscription label TECHNICAL DATA GENERAL Max. input level (< 1% THD, 20 Hz) +9.5 dBu Max. input level (< 1% THD, 1 kHz) +9.5 dBu Max. output level (< 1% THD, 1 kHz) +4.5 dBu Frequency response (±1 dB, relative 1 kHz) 20 Hz–20 kHz Input impedance (1 kHz, setting: 0 dB PAD) 500 kΩ Output impedance (1 kHz, setting: 0 dB PAD) 100 Ω THD+N (30 Hz, +4 dBu, unity, unweighted) < 0.0026% THD+N (1 kHz, +4 dBu, unity, unweighted) < 0.0017% IMD (SMPTE) (60 Hz/7 kHz, 4:1, +4 dBu) < 0.0017% SNR (+4 dBu, 22 kHz BW, unity, unweighted) 105 dB Transformer ratio 1:3 All measurements were performed with a generator with an output impedance of 600 Ω and 1 kΩ balanced load. AUDIO13 USER MANUAL EN14 USER MANUAL

1. Packaging can be fed into the reusable

material cycle using the usual disposal methods.

2. Please separate the packaging in

accordance with disposal laws and recycling regulations in your country. DEVICE:

1. This device is subject to the European

Waste Electrical and Electronic Equipment Directive in the currently valid version. WEEE Waste Electrical and Electronic Equipment Directive. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!

2. Observe all disposal laws applicable in

3. As a private customer, you can obtain

information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities. BATTERIES:

1. Batteries should not be disposed of in

household waste. Batteries and recharge able batteries must be disposed of via an approved disposal company or a municipal disposal facility.

2. Observe all disposal laws applicable in

3. As a private customer, you can obtain

information on environmentally friendly disposal options from the seller of the product or through the relevant regional authorities.

4. Devices with batteries that cannot be

removed by the user must be taken to a collection point for electrical appliances.

MANUFACTURER’S DECLARATIONS

Herstellergarantie und Haftungsbeschränkung Manufacturer’s warranty & limitation of liability Adam Hall GmbH Adam-Hall-Str. 1 61627 Neu-Anspach, Germany Email: [e-mail] / +49 (0)6081 / 9419-0. Our current warranty conditions and limitation of liability can be found at: cdn-shop.adamhall.com/ media/pdf/Manufacturers-Declarations-PALMER_DE_ EN_ES_FR.pdf Contact your distribution partner for service. CE CONFORMITY Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable): Low-Voltage Directive (2014/35/EU) EMC Directive (2014/30/EU) RoHS (2011/65/EU) RED (2014/53/EU)

CE DECLARATION OF CONFORMITY

Declarations of conformity for products that are subject to the LVD, EMC, RoHS Directives, can be requested at [e-mail]. Declarations of conformity for products that are subject to the RED Directive can be downloaded at www.adamhall.com/compliance/ FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. UKCA- Conformity Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable) Electrical Equipment (Safety) Regulations 2016 Electromagnetic Compatibility Regulations 2016 (SI 2016/1091). The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/3032) Radio Equipment Regulations 201 7(SI 2016/2015) Adam Hall Ltd. | The Seedbed Bus. Centre | SS3 9QY Essex | UK

UKCA- DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment (Safety) Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at [e-mail] Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from www.adamhall.com/compliance/

CORRECT DISPOSAL OF THIS PRODUCT
