USER MANUAL TQ513R01 SIEMENS

1.3 Restriction on user group........ 41

3 Installation and connection......45

3.1 Scope of delivery..................... 45

3.2 Installing and connecting the

7.1 Preparing and cleaning the

7.3 Overview of water hardness

7.5 Performing initial start-up ........ 50

8.1 Switching the appliance on

8.3 Dispensing a coffee drink

made from fresh beans........... 51

8.4 Dispensing a coffee drink

made from ground coffee ....... 52

8.5 Dispensing drinks with milk

8.7 Dispensing coffee drinks

with milk froth .......................... 53

8.8 Dispensing special drinks ....... 53

10.1 Activating and deactivating

11.1 Changing the basic set-

tings....................................... 56

11.2 Overview of the basic set-

Depending on the appliance specificationsen

12 Cleaning and servicing...........58

12.1 Dishwasher-safe compon-

12.4 Cleaning the drip tray and

coffee dregs container .......... 59

12.5 Cleaning the ground coffee

compartment ......................... 60

12.6 Cleaning the milk system...... 60

12.7 Cleaning the milk container .. 60

12.8 Cleaning the brewing unit ..... 61

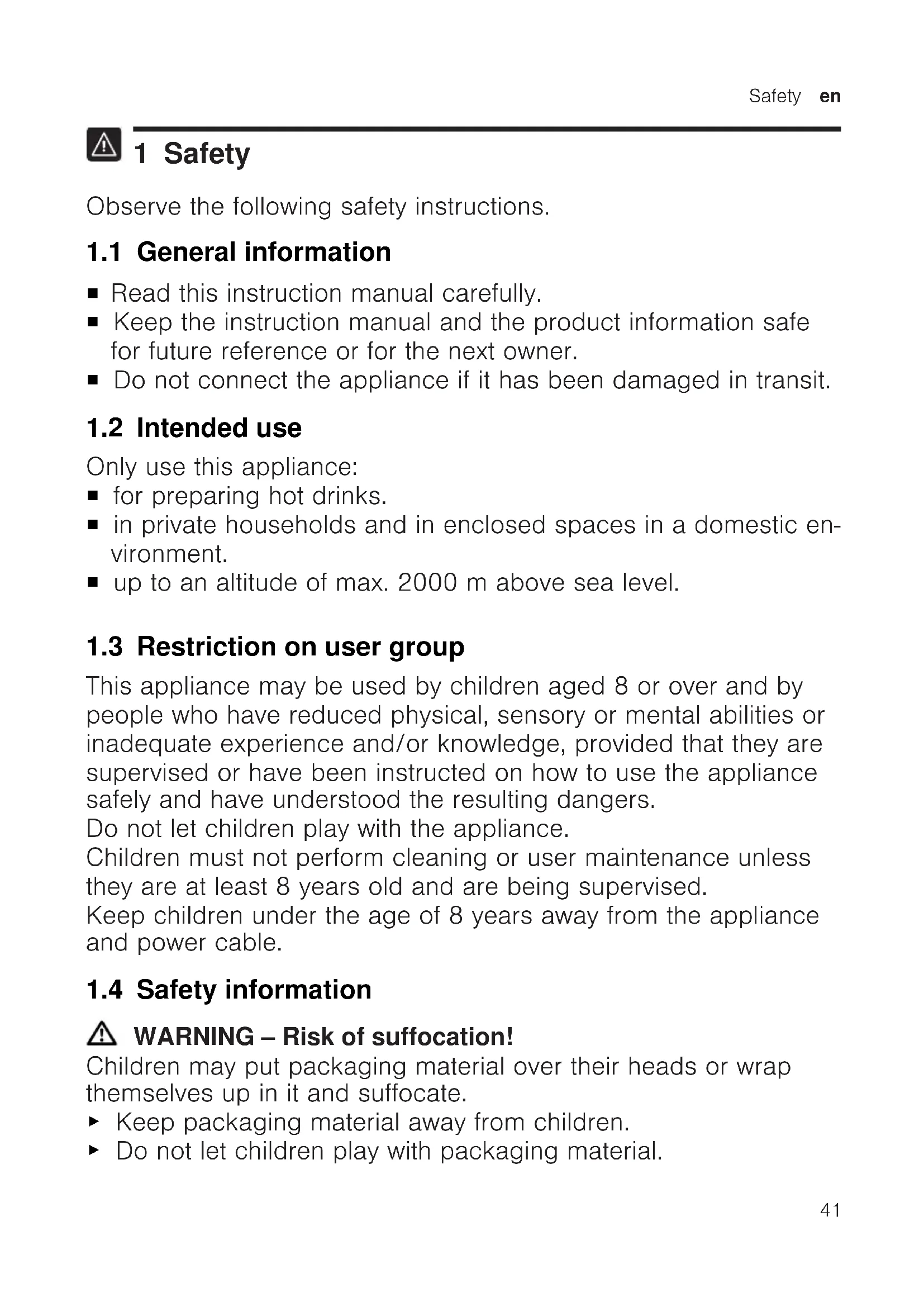

1 Safety Observe the following safety instructions. 1.1 General information

Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡ for preparing hot drinks. ¡ in private households and in enclosed spaces in a domestic en- vironment. ¡ up to an altitude of max. 2000m above sea level. 1.3 Restriction on user group This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Do not let children play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised. Keep children under the age of 8 years away from the appliance and power cable. 1.4 Safety information WARNING‒Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶ Do not let children play with packaging material.en Safety

Children may breathe in or swallow small parts, causing them to suffocate. ▶ Keep small parts away from children. ▶ Do not let children play with small parts. WARNING‒Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶ The protective conductor system of the domestic electrical in- stallation must be properly installed. If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. ▶ If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box. ▶ Call customer services. →Page69 Improper repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk. An ingress of moisture can cause an electric shock. ▶ Never immerse the appliance or the power cord in water. ▶ Liquids must not be spilled on the appliance plug connection. ▶ Only use the appliance in enclosed spaces. ▶ Never expose the appliance to intense heat or humidity. ▶ Do not use steam- or high-pressure cleaners to clean the appli- ance.Safety en

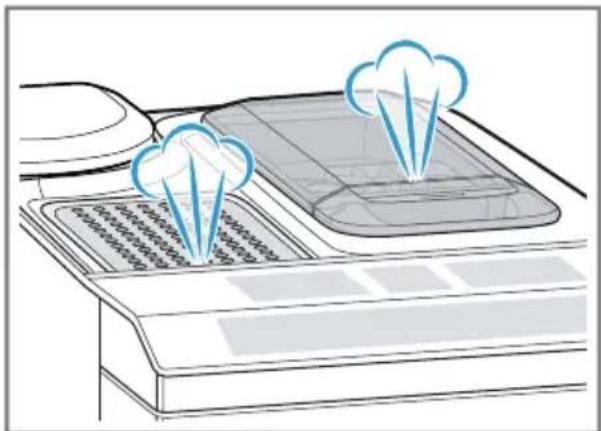

WARNING‒Risk of fire! The appliance will become hot. ▶ Ventilate the appliance adequately. ▶ Never operate the appliance in a cabinet. It is dangerous to use an extended power cord and non-approved adapters. ▶ Do not use extension cables or multiple socket strips. ▶ Only use adapters and power cords approved by the manufac- turer. ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted. WARNING‒Risk of burns! Some parts of the appliance become very hot. ▶ Never touch hot appliance parts. ▶ After use, allow hot appliance parts to cool down before touch- ing. WARNING‒Risk of scalding! Freshly prepared drinks are very hot. ▶ Leave drinks to cool down if necessary. ▶ Do not let escaping liquids or steam come into contact with your skin. WARNING‒Risk of injury! Improper use of the appliance may endanger the user. ▶ To avoid injuries, only use the appliance for its intended pur- pose. Trapped fingers when closing the appliance door. ▶ Be careful of your fingers when closing the appliance door. The grinder rotates. ▶ Never reach into the grinder.en Safety

WARNING‒Danger: Magnetism! The appliance contains permanent magnets. These may affect electronic implants, e.g. pacemakers or insulin pumps. ▶ People with electronic implants must stand at least 10 cm away from the appliance. ▶ This minimum distance of 10 cm must also be observed for the water tank when removed. WARNING‒Risk of harm to health! During filtering there may be a slight increase in the potassium level, which is possibly not good for dialysis patients and people with kidney disease. ▶ Consult a doctor before use if you have kidney disease or follow a special potassium diet. Soiling on the appliance may be harmful to health. ▶ To ensure hygiene, follow the cleaning instructions for the appli- ance. Water from the hot water circuit can be harmful to health. ▶ Only ever use the appliance with fresh, cold, non-carbonated drinking water.Environmental protection and saving energy en

Environmental protection and saving energy 2 Environmental protec- tion and saving energy Environmental protection and saving energy 2.1 Disposing of packaging The packaging materials are environ- mentally compatible and can be re- cycled. ▶ Sort the individual components by type and dispose of them separ- ately. 2.2 Tips for saving energy If you follow these instructions, your appliance will use less energy. Set the interval for automatic switch- off to the smallest value.

If the appliance is not being used, it will switch itself off earlier.

• "Basic settings", Page56 Do not interrupt the dispensing pro- cess prematurely.

The amount of water or milk that is heated is used optimally. Descale the appliance regularly.

Limescale deposits increase the appliance's energy consumption. Installation and connection 3 Installation and con- nection Installation and connection 3.1 Scope of delivery After unpacking all parts, check for any damage in transit and complete- ness of the delivery. Note:Different accessories are en- closed depending on the appliance model. This accessory is shown in a frame with a dashed line.

Fully automatic coffee ma- chine

Adapter for milk containers

Depending on the appliance spe- cifications 3.2 Installing and connecting the appliance ATTENTION! Risk of damage to the appliance. If the appliance is not started up cor- rectly, it may be damaged. ▶ Use the appliance in frost-free rooms only. ▶ If the appliance has been transpor- ted or stored below 0°C, wait 3hours at room temperature be- fore starting it up. ▶ After plugging in, always wait ap- prox.5seconds.

1. Place the appliance on a level, wa-

ter-resistant surface that is capable of bearing its weight.

2. Using the mains plug, connect the

appliance to an earthed socket that has been correctly installed.en Familiarising yourself with your appliance

Familiarising yourself with your appliance 4 Familiarising yourself with your appliance Familiarising yourself with your appliance 4.1 Appliance You can find an overview of the parts of your appliance here. Note:Individual details and colours may differ, depending on the appli- ance model.

Cover for water tank

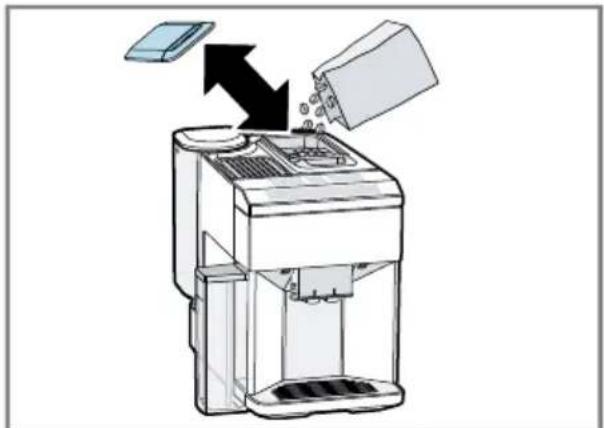

Ground coffee compartment

Brewing chamber door

Depending on the appliance spe- cifications 4.2 Control panel You can use the control panel to con- figure all functions of your appliance and to obtain information about the operating status. Symbol Explanation Switch the appliance on or off. Open or exit the menu. Note:The menu buttons are only visible when the menu is open. Navigate up in the menu. Navigate down in the menu. Confirm in the menu or save. Go back in the menu. Dispense two cups. Select the coffee strength. Adjust the quantity. Start or stop the process. 4.3 Display The display shows the selected drinks, settings and setting options, as well as messages about the appli- ance's operating status. The display shows additional informa- tion and action steps. The information is hidden after a short period or by pressing a button. The action steps are hidden when they have been completed. Note:If no display language is avail- able in your national language, select a display language that is available, e.g. English.Drinks overview en

Drinks overview 5 Drinks overview Drinks overview You can prepare a wide range of different drinks with your appliance. Quick selection Symbol Designa- tion Explanation Category Espresso Concentrated coffee. Best served in small, thick- walled cups. Preheat cups with hot water.

• "Dispensing a coffee drink made from fresh beans", Page51

• "Dispensing a coffee drink made from ground coffee", Page52 Caffe crema Coffee with a crema layer or large cup of coffee pre- pared using espresso method.

• "Dispensing a coffee drink made from fresh beans", Page51

• "Dispensing a coffee drink made from ground coffee", Page52 Cappuccino Espresso with frothed milk. Best served in small cups.

• "Dispensing coffee drinks with milk froth", Page53 LatteMac- chiato Coffee speciality with three layers: warm milk at the bottom, espresso in the middle, and milk froth on top. Best served in a glass.

• "Dispensing coffee drinks with milk froth", Page53 Special drinks Dispense other drinks.

• "Dispensing special drinks", Page53 Accessories 6 Accessories Accessories Use original accessories. These have been made especially for your appliance. Accessories Retail Customer service Cleaning tablets TZ80001A TZ80001B

Adapter for milk containers TZ50001 17004535 Before using for the first time 7 Before using for the first time Before using for the first time Prepare the appliance for use. 7.1 Preparing and cleaning the appliance Remove the protective foils and clean the appliance and individual parts. Follow the illustrated instruc- tions at the beginning of this manual. ATTENTION! Unsuitable beans can block the grinder. ▶ Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso ma- chines. ▶ Do not use glazed coffee beans. ▶ Do not use caramelised coffee beans. ▶ Do not use coffee beans that have been treated with additives con- taining sugar. ▶ Do not add instant coffee.

• Fig. 3 - 26 Note:Fill the water tank with fresh, cold, non-carbonated drinking water every day. Tip:To keep the coffee beans at their best, store them in a sealed container in a cool place. You can keep the coffee beans in the bean container for several days without them losing their aroma. 7.2 Checking the water hard- ness It is important to set the water hard- ness correctly so that your appliance indicates in good time that it needs descaling. You can use the enclosed test strip to check the water hardness or ask your local water company.

1. Briefly dip the test strip in fresh tap

2. Allow the water to drain off the test

3. Read the water hardness off the

test strip after 1minute.

• "Overview of water hardness levels", Page49 Note:If a water softening system is installed in your house, you can se- lect "Water softening system". Tips ¡ You can change the settings at any time.

• "Basic settings", Page56 ¡ If the water hardness exceeds 21°dH (3.8mmol/l), you can fill the water tank with prefiltered wa- ter to reduce limescale deposits.Before using for the first time en

7.3 Overview of water hardness levels The table shows allocation of the levels to the different degrees of water hard- ness. Setting Ring setting on INTENZA filter German degrees in °dH Total hardness in mmol/l 1 A 1 - 7 < 1.3 2 A 8 - 14 1.3 - 2.5 3 B 15 - 21 2.5 - 3.8

Factory setting 7.4 Water filter

You can use a water filter to minimise limescale deposits and reduce impur- ities in the water. The limescale content of the water in- fluences the aroma and crema of cof- fee. There is an aroma ring on the underside of the BRITA INTENZA wa- ter filter. Turn the aroma ring to set the optimum aroma level for your mains water. Inserting and activating the water filter ATTENTION! Possible damage to the appliance due to limescale build-up. ▶ Change the water filter in good time. ▶ Change the water filter after 2months at the latest. ▶ Observe the display messages. Note:If "Please replace or deactivate water filter in menu." is shown on the display, replace the water filter. If you are not inserting a new filter, select "No filter" and follow the in- structions on the display.

1. Immerse the water filter in a glass

of water and press the sides to- gether lightly until no more air bubbles rise to the surface.

3. Press or "Water filter" and

or "Replace water filter" and press

5. Note:If you are not inserting a new

filter, select "No filter" in the menu settings. Press the water filter firmly into the water tank.

6. Fill the water tank up to the "max"

7. Remove the milk container on the

left of the appliance.

8. Place a container with a capacity

of 1litre under the outlet system and press . a The filter will be rinsed and the fol- lowing message displayed: "Rins- ing complete.". a The appliance is ready to use. Tips ¡ You should also change your wa- ter filter for reasons of hygiene.

Depending on the appliance specificationsen Before using for the first time

¡ With a water filter you need to de- scale your appliance less fre- quently. ¡ If your appliance has not been used for a long time, for example if you were on holiday, you should rinse the water filter before use by dispensing a cup of hot water. ¡ The water filter can be purchased from retailers or customer service.

• "Accessories", Page47 7.5 Performing initial start-up After connecting the appliance to the power supply, configure the settings for first use. First use appears when switching on for the first time or after resetting to the factory settings.

1. Press to switch on the appli-

ance. a The display will show the language that is preset.

2. Press or until the display

shows the desired language.

4. Determine the water hardness.

8. Clean and fill the water tank.

11.To now insert a water filter now, press . 12.To insert a water filter later on, press . 13.Fill the bean container. 14.Press . 15.Press . a The appliance is rinsing and is ready to use. Tip:You can change the settings at any time.

• "Overview of the basic settings", Page57 7.6 General information Please bear this information in mind so that you can get the best out of your appliance. Notes ¡ The appliance has been pro- grammed at the factory with stand- ard settings for optimum operation. ¡ The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can adjust the grinding level when the grinder is running.

• "Adjusting the grinding level", Page55 ¡ During operation water droplets may form at the ventilation slits and on the lid of the tablet com- partment. ¡ If you do not perform any actions on the appliance for a certain period, it will switch off automatic- ally. You can change the duration in the basic settings. →Page56 ¡ For technical reasons steam can escape from the appliance.

¡ The first beverage will not yet have its full aroma if: – You are using the appliance for the first time. – You have run a service pro- gramme. – You have not used the appli- ance for a long time. Do not drink the beverage. Tip:You will get a stable, fine-pored crema after you have started up your appliance and dispensed a few cups. Basic operation 8 Basic operation Basic operation 8.1 Switching the appliance on or off

Switch the appliance on or off with

When the appliance switches on, the display shows the Siemens logo. When the appliance is switched on or off, it will rinse itself automatically. When switched off, the appliance will emit steam into the tray for cleaning. During the rinsing process, the display shows a drop. If the appliance is still warm when switched on, or if no drink was dispensed before it was switched off, the appliance doesn't rinse itself. 8.2 Dispensing drinks Find out how to prepare a drink of your choice. WARNING Risk of scalding! Freshly prepared drinks are very hot. ▶ Leave drinks to cool down if ne- cessary. ▶ Do not let escaping liquids or steam come into contact with your skin. Tips ¡ You can directly select the drink you want using the quick-selection buttons. The display shows you the drink and the current settings. ¡ Your appliance has other drinks besides the ones that you can ob- tain via the quick-selection buttons.

• "Dispensing special drinks", Page53 ¡ You can adapt your drink to your personal taste.

• "Drink settings", Page54 Notes ¡ If you do not change any settings for approx.5seconds, the appli- ance will exit settings mode. The settings will be automatically saved. ¡ With a number of settings your cof- fee is prepared in several steps. Wait until the process is fully com- pleted. 8.3 Dispensing a coffee drink made from fresh beans

Place your pre-warmed cup under the outlet system.

2. Press the drinks symbol for a cof-

fee drink without milk. a The display will show the drink and your current settings.

• "Adjusting the amount", Page55en Basic operation

• "Adjusting the coffee strength", Page54

The coffee beans are freshly ground for each brewing process. a The coffee is brewed and then dis- pensed into the cup. Tips ¡ You can press to stop the dis- pensing process prematurely. ¡ Find out how to make coffee drinks with milk.

• "Dispensing drinks with milk froth", Page52 8.4 Dispensing a coffee drink made from ground coffee ATTENTION! The ground coffee compartment can become blocked. ▶ Do not use coffee beans. ▶ Do not use instant coffee. ▶ Use a soft brush to gently direct the ground coffee residue into the shaft. Note When using ground coffee, the following selections are not available: ¡ Two cups at once ¡ Coffee strength ¡ "doubleshot"

1. Place your pre-warmed cup under

2. Press the symbol for your desired

3. Press repeatedly until the display

4. Open the ground coffee compart-

spoons of ground coffee, max. 12g.

6. Close the ground coffee compart-

a The coffee is brewed and then dis- pensed into the cup. Tips ¡ You can press to stop the dis- pensing process prematurely. ¡ If you would like another drink with ground coffee, repeat the process. ¡ Always add the ground coffee just before making the drink. 8.5 Dispensing drinks with milk froth You can use your appliance to dis- pense coffee drinks with milk froth. WARNING Risk of burns! The milk system can become ex- tremely hot. ▶ Never touch the milk system when it is hot. ▶ Allow the hot milk system to cool down before touching it. ATTENTION! Milk residues can dry on surfaces and are difficult to remove. ▶ Clean the milk system after every use. Tips ¡ You can also use plant-based al- ternatives to milk, e.g. soya milk. ¡ The quality of the milk froth de- pends on the type of milk or plant- based alternative used. 8.6 Using the milk container The milk container has been specially developed for this appliance. Only use the milk container in the home and for storing milk in the refriger- ator.Basic operation en

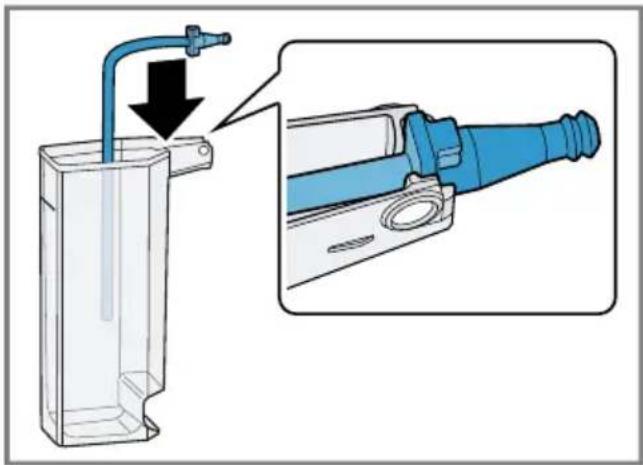

Note Only connect the milk container when the milk system is installed in the out- let system with the adapter and tube.

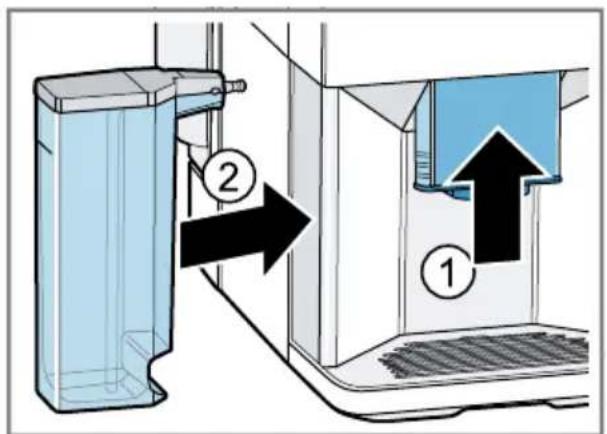

of the appliance. a The milk container will click into place. Tip Fold open the lid of the milk con- tainer, so more milk can be poured in while the drink is being dispensed. 8.7 Dispensing coffee drinks with milk froth Requirements ¡ The milk container has been con- nected. ¡ The milk container has been filled with sufficient milk.

1. Place your pre-warmed cup under

2. Press the symbol for a coffee drink

with milk. a The display will show the drink and your current settings.

• "Adjusting the amount", Page55 ‒ To adjust the coffee strength, press

• "Adjusting the coffee strength", Page54 ‒ Use the ground coffee compart- ment.

• "Dispensing a coffee drink made from ground coffee", Page52

a The beverage is prepared and then runs into the cup. a After preparing the beverage, the milk system will automatically clean itself with a short jet of steam. Tip:If you want to stop the dispens- ing process early, press . If you want to stop the dispensing process altogether, press . 8.8 Dispensing special drinks Your appliance has other drinks be- sides the ones that you can obtain via the quick-selection buttons.en Basic operation

▶ Press several times.

• "Drinks overview", Page47 8.9 Dispensing milk froth WARNING Risk of burns! The milk system can become ex- tremely hot. ▶ Never touch the milk system when it is hot. ▶ Allow the hot milk system to cool down before touching it. Requirements ¡ The milk container has been con- nected. ¡ The milk container has been filled with sufficient milk.

1. Place your pre-warmed cup under

2. Press repeatedly until the dis-

play shows "Milk froth".

• "Adjusting the amount", Page55

a The milk froth will run out of the outlet system.

5. To stop dispensing prematurely,

press . 8.10 Dispensing hot water WARNING Risk of burns! The milk system can become ex- tremely hot. ▶ Never touch the milk system when it is hot. ▶ Allow the hot milk system to cool down before touching it. Note:If the milk system has not been cleaned, small amounts of milk may be dispensed with the water. Requirement:The milk system has been cleaned. .

1. Place your pre-warmed cup under

2. Press repeatedly until the dis-

play shows "Hot water".

• "Adjusting the amount", Page55

a Hot water will run out of the outlet system.

5. To stop dispensing prematurely,

press . 8.11 Drink settings Prepare a drink according to your taste. Adjusting the coffee strength

Press the symbol for your desired drink.

2. To select the strength of the cof-

fee, press . You can select the following coffee strengths: – "mild" – "regular" – "strong" – "very strong" – "doubleshot" Note:The setting "doubleshot" is not available for every drink and drink volume. Tip:For a strong taste of coffee, select a high coffee strength when setting a large capacity.Basic operation en

Selecting ground coffee

Press the symbol for your desired drink.

2. Press repeatedly until the display

• "Dispensing a coffee drink made from ground coffee", Page52 AromaDouble Shot You can make your coffee extra strong by using the setting "doubleshot". The longer coffee is brewed, the more bitter substances and undesir- able aromas are released. These bit- ter substances and undesirable aromas affect the taste and digestibil- ity of the coffee. To ensure that only pleasant-tasting and easily digestible aromatic substances are released, fresh coffee beans are ground and brewed when half the quantity has been prepared. Note:The setting "doubleshot" is not available for every drink and drink volume. Adjusting the amount

Press the symbol for your desired drink.

2. Press repeatedly until the de-

sired volume is shown on the dis- play. Dispensing two cups at once Depending on the appliance model, you can make two cups at the same time for certain drinks. Note The "Double cup" function is not available for the following selections: ¡ "Gr. coffee" ¡ "doubleshot" ¡ Quantity smaller than 35ml

1. Press the symbol for your desired

a The setting is shown on the dis- play.

3. Place two cups on the left and

The drink is prepared in 2 steps. The beans are ground in 2 grind- ing operations. a The beverages are brewed and then run into the cups.

5. Wait until the process is complete.

8.12 Grinder Your appliance has an adjustable grinder, which you can use to cus- tomise the grinding level of your cof- fee beans. Adjusting the grinding level Set the desired grinding level while the coffee beans are being ground. WARNING Risk of injury! The grinder rotates. ▶ Never reach into the grinder. ATTENTION! Risk of damage to the grinder. The grinder may be damaged if the grind- ing level is not set properly. ▶ Only set the grinding level when the grinder is running. ▶ Select the grinding level using the rotary selector step by step. Grinding level Setting Fine grinding level for lightly roasted beans Turn rotary se- lector anticlock- wise.en Childproof lock

Grinding level Setting Coarse grind- ing level for dark-roasted beans Turn rotary se- lector clockwise. The grinding level setting only takes effect after the second cup. Tip:If the coffee is only dispensed drop by drop, set a coarser grinding level. If the coffee is dispensed too quickly and with too little crema, set a finer grinding level. Childproof lock 9 Childproof lock Childproof lock You can lock the appliance, to pro- tect children against scalding and burns. 9.1 Activating the childproof lock Requirement:The appliance is switched on. ▶ Press and hold for at least 3seconds. 9.2 Deactivating the child- proof lock

Press and hold for at least 3seconds. a The childproof lock is deactivated. Cup heater 10 Cup heater

Cup heater You can use the cup heater to pre- heat your cups. 10.1 Activating and deactivat- ing the cup heater

WARNING Risk of burns! The cup heater

can become very hot. ▶ Never touch the cup heater

while hot. ▶ Allow the hot cup heater

to cool down before touching it. Tip:Place the cups with their base on the cup heater to warm them to optimum effect

▶ You can activate or deactivate the cup heater

in the basic settings. Basic settings 11 Basic settings Basic settings You can configure the basic settings for your appliance to meet your needs and call up additional func- tions. 11.1 Changing the basic set- tings

2. Use or to select the desired

basic setting and press . a The display will show the setting options and the navigation sym- bols will light up. The display indic- ates the current setting.

3. Use or to make the desired

selection and press . a The setting is now saved.

11.2 Overview of the basic settings You can find an overview of the basic settings here. Setting Selection Description Cleaning and care Milk system Descale Clean calc'nClean Start service programme.

Cup warmer on Switch cup heater on or off.

• "Cup heater", Page56 Water filter New filter No filter Set use of the water fil- ter. Coffee temp. normal high max. Set the temperature for coffee drinks. Note:The setting is ef- fective for all preparation types. Languages See selection on the ap- pliance Set menu language. Changes are immedi- ately displayed. Autom. switch-off See selection on the ap- pliance Set how long the appli- ance should wait after preparing the last drink before automatically switching itself off. Water hardness 1 (soft) 2 (medium) 3 (hard) 4 (very hard)

Water softening system Set the appliance to the local water hardness. Statistics See selection on the ap- pliance Display the number of cups dispensed. Key tones Key tones on

Key tones off Switch the button tones on or off. Start-up rinsing ¡ Start-up rinsing off ¡ Start-up rinsing on The cup under the outlet system is not filled with rinsing water when the appliance is switched on.

Depending on the appliance specifications

Factory setting (may vary according to model)en Cleaning and servicing

Setting Selection Description How-to videos The display shows a QR code. Scan the QR code and watch instruction films online. Factory settings Full reset? Continue: OK Cancel: ← Restore settings to the factory settings. Note:All individual set- tings will be deleted and reset to the factory set- tings. Appliance information Licence information Display FOSS licence text.

Depending on the appliance specifications

Factory setting (may vary according to model) Cleaning and servicing 12 Cleaning and servi- cing Cleaning and servicing To keep your appliance working effi- ciently for a long time, it is important to clean and maintain it carefully. 12.1 Dishwasher-safe com- ponents Find out here which components can be put in the dishwasher. ATTENTION! Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher. ▶ Follow the operating instructions of the dishwasher. ▶ Only clean dishwasher-safe com- ponents in the dishwasher. ▶ Only use programmes that do not heat the components above 60°C. Dishwasher-safe ¡ Drip plate ¡ Drip grate ¡ Coffee dregs container ¡ Mechanical fill level indic- ator ¡ Milk system with adapter ¡ Ground coffee compart- ment with hinged lid ¡ Milk container with lid Not dishwasher-safe ¡ Drip tray ¡ Water tank ¡ Water tank lid ¡ Brewing unit ¡ Beverage dispenser cover 12.2 Cleaning agent Only use suitable cleaning agents. ATTENTION! Unsuitable cleaning products may damage the surfaces of the appli- ance. ▶ Do not use harsh or abrasive de- tergents. ▶ Do not use cleaning agents con- taining alcohol or spirits. ▶ Do not use hard scouring pads or cleaning sponges.Cleaning and servicing en

Unsuitable cleaning and descaling agents may damage the appliance. ▶ Do not use pure citric acid, vinegar or any vinegar-based agents to de- scale the appliance. ▶ Do not use descaling agent with phosphoric acid. ▶ Only use cleaning tablets and de- scaling tablets that have been spe- cially developed for the appliance.

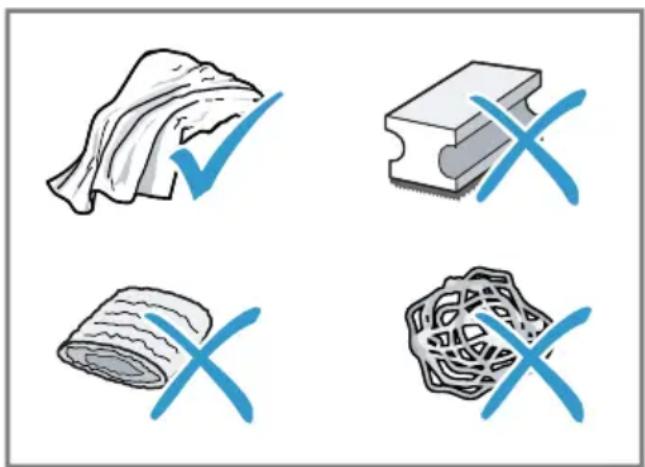

• "Accessories", Page47 Tips ¡ Wash new sponge cloths thor- oughly to remove any salt adher- ing to them. Salt can cause rust film to develop on stainless steel surfaces. ¡ Always remove any residues of limescale, coffee, milk and clean- ing/descaling solutions immedi- ately to prevent corrosion. 12.3 Cleaning the appliance WARNING Risk of electric shock! An ingress of moisture can cause an electric shock. ▶ Never immerse the appliance or the power cord in water. ▶ Liquids must not be spilled on the appliance plug connection. ▶ Do not use steam- or high-pres- sure cleaners to clean the appli- ance. WARNING Risk of burns! Some parts of the appliance become very hot. ▶ Never touch hot appliance parts. ▶ After use, allow hot appliance parts to cool down before touch- ing.

1. Disconnect the appliance from the

2. Clean the housing, the high-gloss

surfaces and the control panel with a microfibre cloth.

3. Clean the outlet system with a soft,

damp cloth after beverages have been dispensed.

4. Rinse the water tank with fresh,

5. If the appliance has not been used

for a long time, e.g. after a holiday, clean the entire appliance, includ- ing moving parts such as the brew- ing unit or water tank. Note:The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. The system is therefore self-cleaning. 12.4 Cleaning the drip tray and coffee dregs con- tainer Clean and empty the drip tray and coffee dregs container every day to prevent deposits.

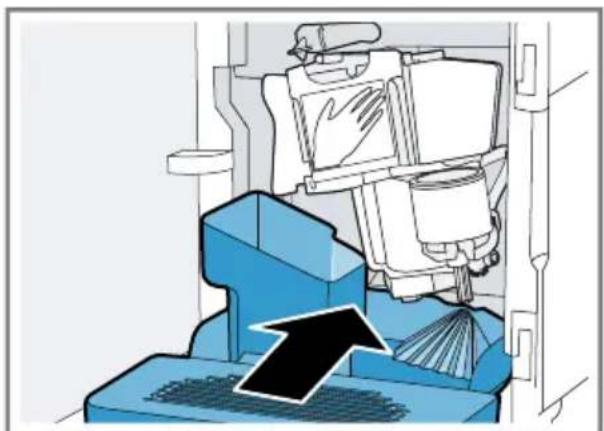

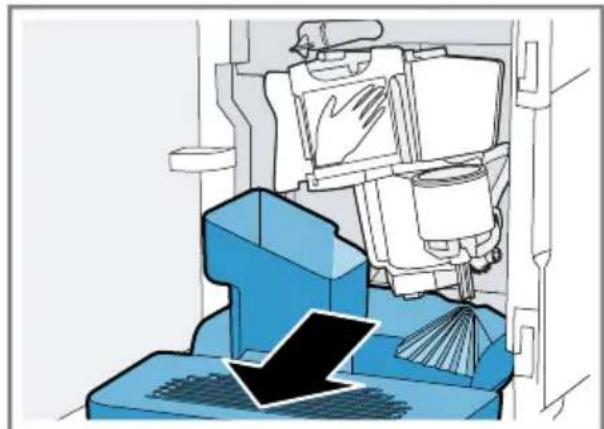

2. Pull the drip tray and the coffee

dregs container forwards and out.

3. Remove and clean the drip plate.

4. Empty and clean the drip tray and

coffee dregs container.

5. Clean the appliance interior and

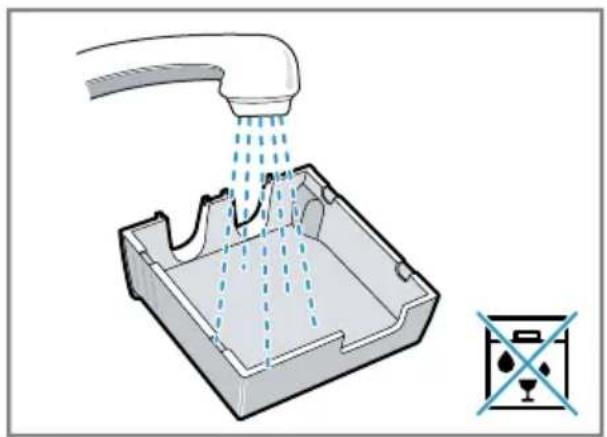

the drip tray holder.en Cleaning and servicing

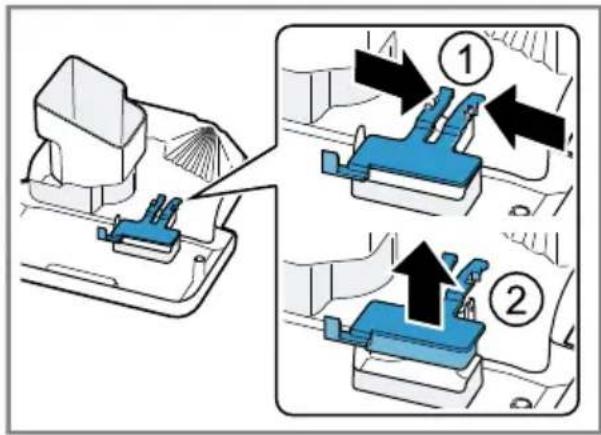

Tip If you press both brackets in, you can then remove the mechanical fill level indicator more easily. Remove the mechanical fill level in- dicator and clean with a damp cloth.

7. Assemble the drip tray, drip plate,

coffee dregs container and mech- anical fill level indicator and insert in the appliance.

12.5 Cleaning the ground cof- fee compartment Tip:You can clean the ground coffee compartment in the dishwasher.

1. Pull out the ground coffee com-

partment by the open lid.

2. Clean the ground coffee compart-

ment with washing-up liquid.

3. Dry the ground coffee compart-

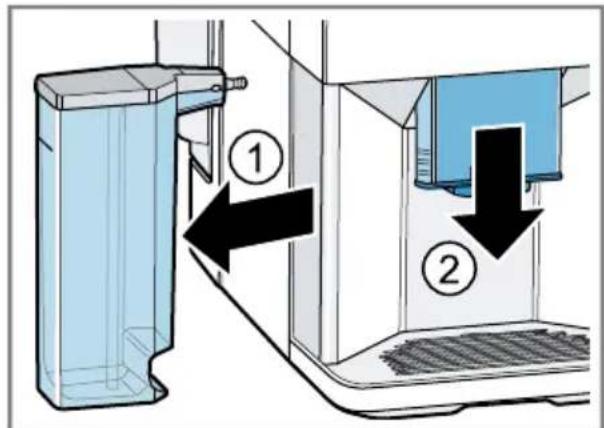

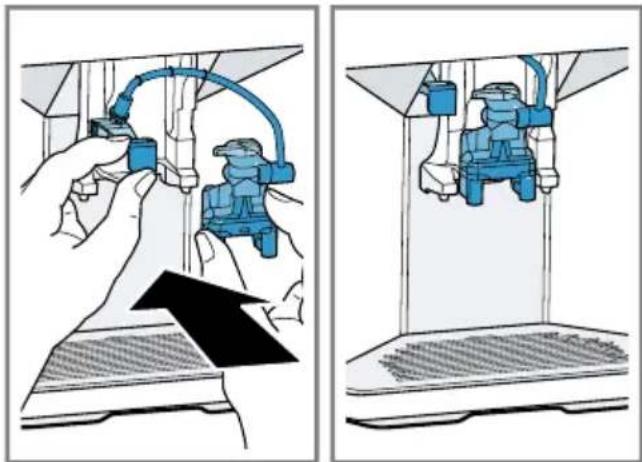

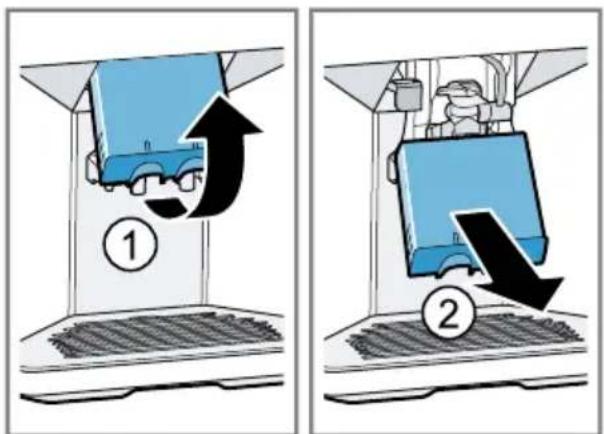

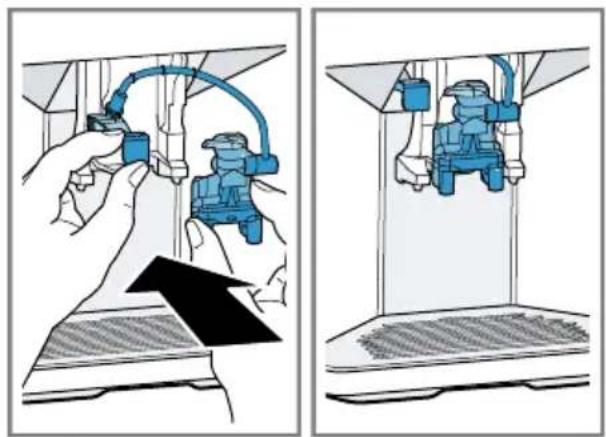

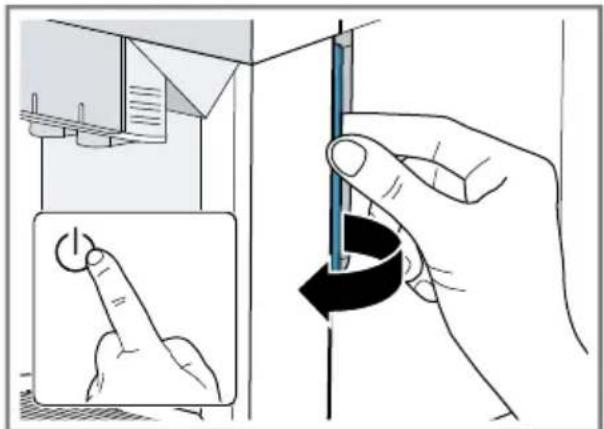

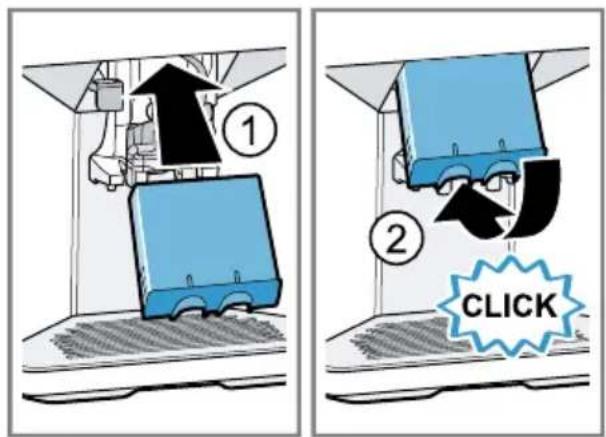

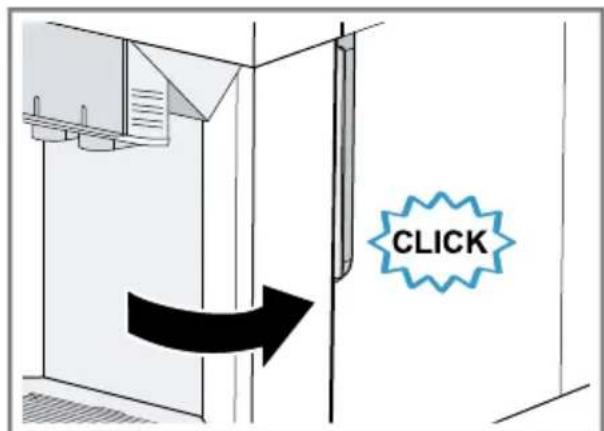

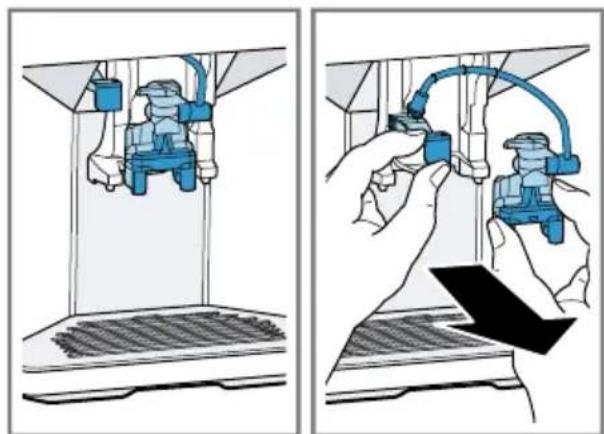

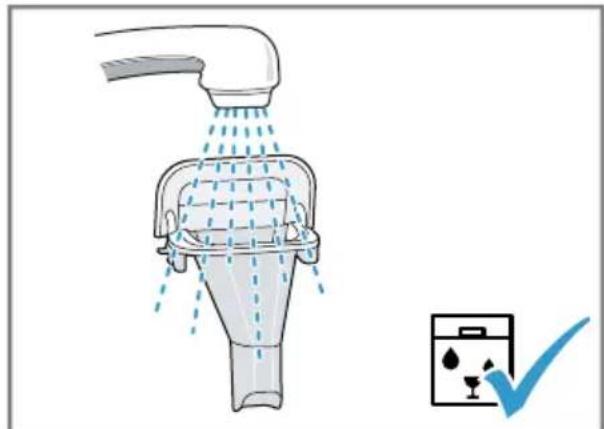

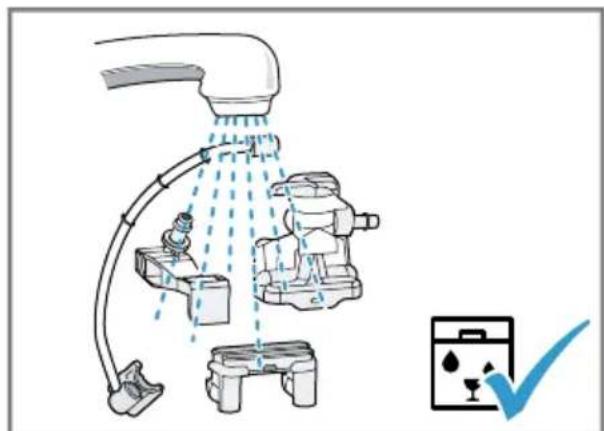

ment and insert it into the appli- ance. 12.6 Cleaning the milk sys- tem Clean the milk system regularly. Fol- low the illustrated instructions at the beginning of the manual. WARNING Risk of burns! The milk system can become ex- tremely hot. ▶ Never touch the milk system when it is hot. ▶ Allow the hot milk system to cool down before touching it. ATTENTION! The appliance may be damaged by improper cleaning. ▶ Do not put the cover of the outlet system in the dishwasher.

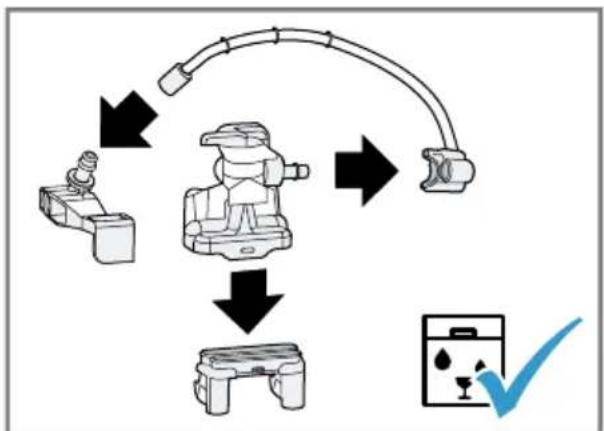

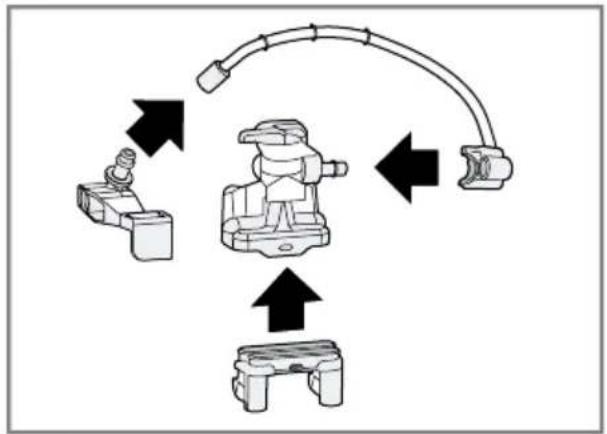

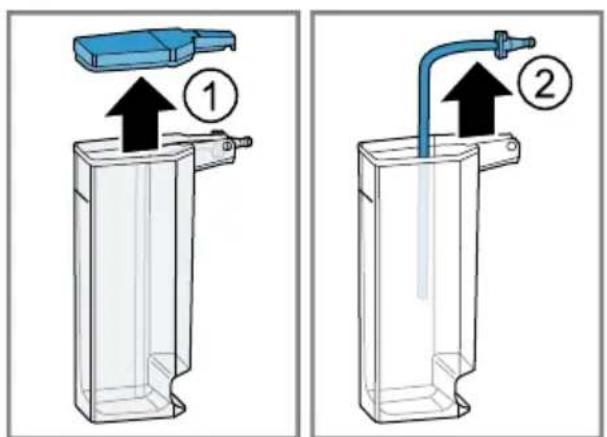

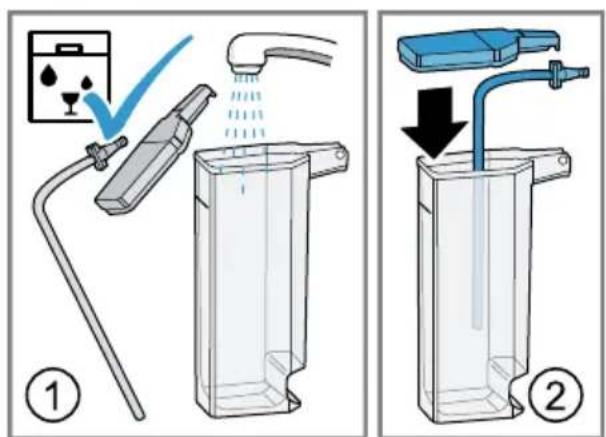

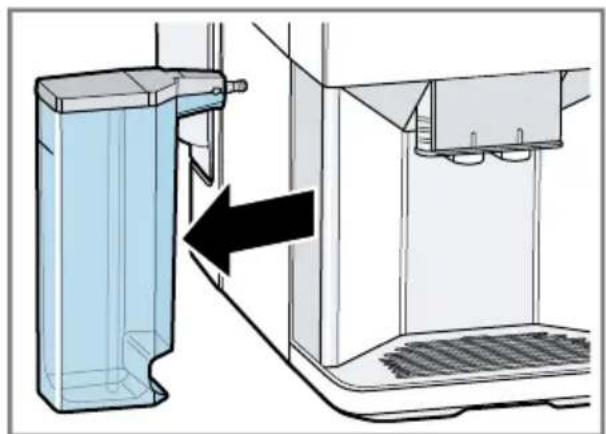

• Fig. 14 - 23 12.7 Cleaning the milk con- tainer Clean the milk container regularly for hygiene reasons. You can clean the milk container in the dishwasher. Fol- low the illustrated instructions at the beginning of this manual.

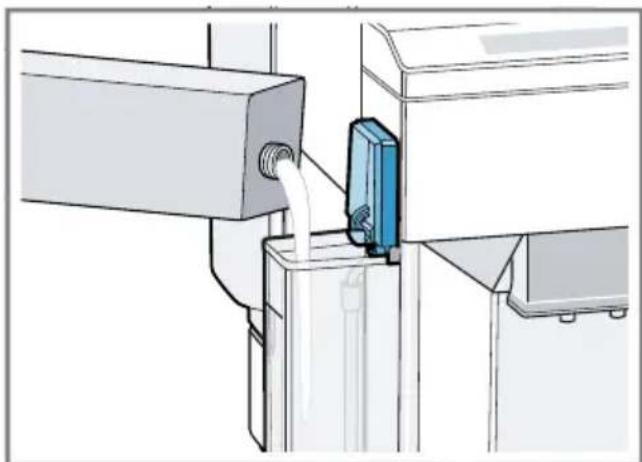

• Fig. 24 - 26 Tip Press the adapter piece firmly into the holder in the milk container.Cleaning and servicing en

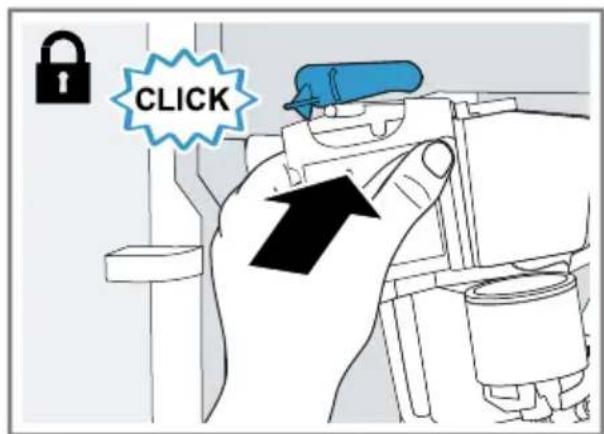

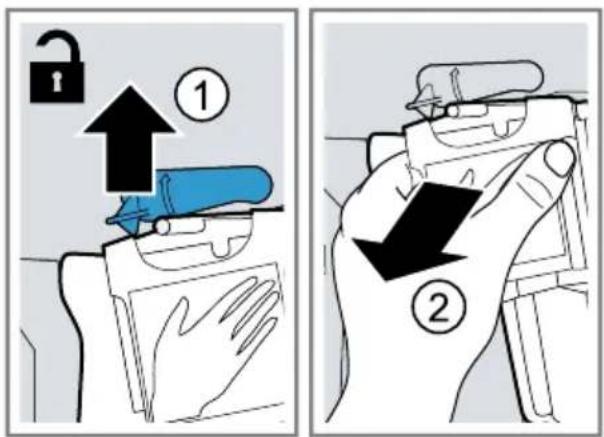

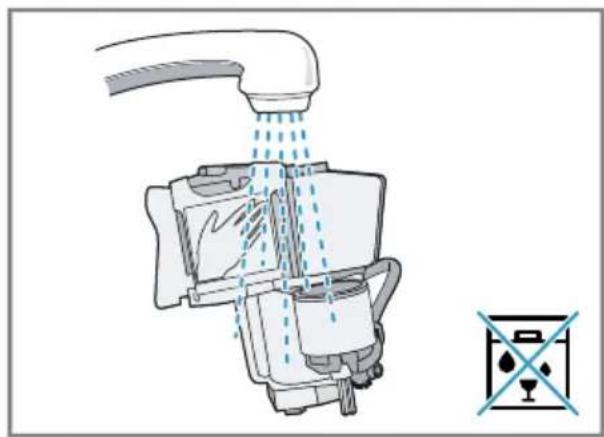

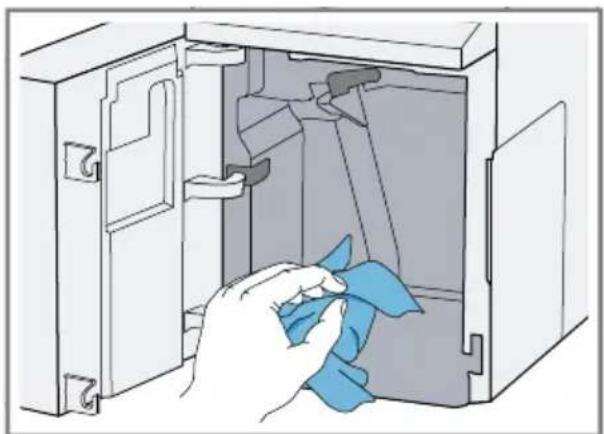

12.8 Cleaning the brewing unit In addition to automatic rinsing, also remove and clean the brewing unit regularly. Follow the illustrated in- structions at the beginning of the manual. WARNING Risk of burns! Some parts of the appliance become very hot. ▶ Never touch hot appliance parts. ▶ After use, allow hot appliance parts to cool down before touch- ing. ATTENTION! The brewing unit may be damaged by improper cleaning. ▶ Do not use washing-up liquid. ▶ Do not use cleaning agents con- taining vinegar or acids. ▶ Do not clean in the dishwasher.

• Fig. 27 - 34 Note:The door can only be closed if the brewing unit and drip tray are in- serted correctly. 12.9 Service programmes After certain time intervals, your appli- ance will recommend that you use the service programmes. Use the ser- vice programmes to clean your appli- ance thoroughly. ATTENTION! Improper cleaning and descaling or a delay in doing so may damage the appliance. ▶ Immediately perform the descaling process in accordance with the in- structions. ▶ Only put cleaning tablets in the ground coffee compartment. ▶ Do not put descaling tablets or other products in the ground cof- fee compartment. Notes ¡ The display indicates the progress of the descaling or cleaning pro- cess. ¡ If your appliance is not descaled in good time, the display will show the following message: "Descaling overdue. Appliance is locked. Please press menu for 3 sec.". ¡ If your appliance has been locked, you can only operate it again once the descaling process has been carried out. ¡ If you accidentally interrupt the ser- vice programme, you must reset it.

• "Resetting service programmes", Page62 Tips ¡ If you use a water filter, this will prolong the time until you have to run a service programme. ¡ You can combine "Descale" and "Clean" using the "calc'nClean" service programme. ¡ Clean your appliance with a soft, damp cloth immediately after a service programme to remove any descaling solution residues and prevent corrosion. Using the service programmes Notes ¡ If you are using the service pro- gramme "Rinse milk system", clean and connect the milk con- tainer. ¡ If you are using the service pro- gramme "Cleaning and care", clean the brewing unit beforehand.

• "Cleaning the brewing unit", Page61en Cleaning and servicing

2. Use and to select "Cleaning

and care" and press .

3. Use and to select the re-

Fill a container with 0.5l lukewarm water.

2. Add a descaling tablet to the water

and stir until it is fully dissolved. Resetting service programmes Perform the following steps if a ser- vice programme is interrupted, e.g. due to a power failure.

1. Rinse out the water tank.

2. Fill the water tank with fresh, non-

carbonated water up to the "max" marking.

a The appliance will rinse itself for approx.2minutes.

4. Empty and clean the drip tray.

5. Insert the drip tray and close the

Troubleshooting 13 Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. Fault Cause and troubleshooting Appliance no longer responds. Appliance has a fault.

1. Pull out the mains plug and wait 60seconds.

2. Re-insert the mains plug.

Appliance only dis- penses water, not cof- fee. Empty bean container is not detected by the appli- ance. ▶ Pour in coffee beans. Coffee shaft on brewing unit is blocked. ▶ Clean the brewing unit. Coffee beans are too oily and do not fall into the grinder. ▶ Gently tap the bean container. ▶ Change the coffee variety. ▶ Do not use oily beans. ▶ Clean the empty bean container with a damp cloth. Brewing unit is not inserted properly. ▶ Slide the brewing unit right back. Appliance is not dis- pensing milk froth. Milk system is soiled. ▶ Clean the milk system in the dishwasher. Milk tube not immersed in milk. ▶ Use more milk. ▶ Check whether the milk tube is immersed in the milk. Heavy build-up of limescale in the appliance. ▶ Descale the appliance.en Troubleshooting

Fault Cause and troubleshooting No milk intake by the milk system. The milk system is assembled incorrectly. ▶ Assemble the milk system correctly. Order for connecting the milk container and milk sys- tem is wrong. ▶ First insert the milk system into the outlet and then the milk container. Milk tube not immersed in milk. ▶ Use more milk. ▶ Check whether the milk tube is immersed in the milk. Milk froth is too cold. Milk is too cold. ▶ Use lukewarm milk. Appliance is not dis- pensing hot water. Milk system is soiled. ▶ Clean the milk system in the dishwasher. Milk system cannot be assembled or disas- sembled. Order of assembly is wrong. ▶ First connect the milk system and then the milk container. When disassembling, you must first re- move the milk container and then the milk system. Appliance is not dis- pensing drinks. Air is in the water filter.

1. Immerse the water filter in water with the opening

facing upwards until no more air bubbles escape.

2. Reinsert the filter.

• "Inserting and activating the water filter", Page49 ▶ Firmly press the water filter straight down into the tank connection. Residues of limescale remover are blocking the water tank.

1. Remove the water tank.

2. Clean the water tank thoroughly.

There is dripping wa- ter on the inner floor of the appliance. Drip tray was removed too soon. ▶ Wait a few seconds after the last drink was dis- pensed before removing the drip tray. Brewing unit cannot be removed. Brewing unit is not in the removal position. ▶ Switch the appliance back on. Appliance cannot be operated. Change displays. Appliance is in demo mode.

1. Remove the water tank and fill it with fresh, cold,

non-carbonated drinking water.

Fault Cause and troubleshooting Grinder won't start. Appliance is too hot.

1. Disconnect the appliance from the mains.

2. Wait 1hour so the appliance can cool down.

Grinder is not grinding any coffee beans des- pite full bean con- tainer. Coffee beans are too oily and do not fall into the grinder. ▶ Gently tap the bean container. ▶ Change the coffee variety. ▶ Do not use oily beans. ▶ Clean the empty bean container with a damp cloth. Display shows "Close" despite the fact that the door is closed. Door is not properly closed. ▶ Press the door firmly shut. Appliance is too hot.

1. Disconnect the appliance from the mains.

2. Wait 1hour so the appliance can cool down.

Display shows "Please empty drip tray and reinsert." despite the fact that the drip tray is empty. Appliance is switched off and does not detect empty- ing.

1. Switch the appliance on, and remove the drip tray.

2. Re-insert the drip tray.

Drip tray is soiled. ▶ Clean the drip tray thoroughly. Display shows "Please refill water tank" des- pite the water tank be- ing full. Water tank is wrongly inserted. ▶ Insert the water tank correctly. Float is stuck in the water tank.

1. Remove the water tank.

2. Clean the water tank thoroughly.

Carbonated water is in the water tank. ▶ Fill the water tank with fresh drinking water. New water filter was not rinsed as per instructions.

1. Rinse the water filter according to the instructions.

• "Inserting and activating the water filter", Page49

2. Place the water filter into operation.

Air is in the water filter.

1. Immerse the water filter in water with the opening

facing upwards until no more air bubbles escape.

2. Reinsert the filter.

• "Inserting and activating the water filter", Page49 Water filter is old. ▶ Insert a new water filter.en Troubleshooting

Fault Cause and troubleshooting Display shows "Please refill water tank" des- pite the water tank be- ing full. Limescale deposits in the water tank are blocking the system.

1. Clean the water tank thoroughly.

2. Start the descaling programme.

Display shows "Please clean brewing unit, re- place and close door.". Brewing unit is soiled. ▶ Clean the brewing unit. Mechanism of brewing unit is stiff. ▶ Clean the brewing unit. Too much ground coffee in the brewing unit. ▶ Use no more than 2 level measuring spoons of ground coffee. Display shows "Voltage (V) incor- rect.". There are problems with the power supply. ▶ Only operate the appliance at 220-240V. Display shows "Please restart appliance.". Brewing unit is heavily soiled or cannot be removed. ▶ Restart the appliance. ▶ Clean the brewing unit. Appliance has a fault.

1. Pull out the mains plug and wait 60seconds.

2. Re-insert the mains plug.

Display very frequently shows "calc'nClean". Decalcified water still contains small amounts of lime.

1. Insert a new water filter.

• "Inserting and activating the water filter", Page49

2. Set the corresponding water hardness.

Incorrect or too little descaling agent used. ▶ When descaling, only use suitable tablets. Service programme has not been carried out in its en- tirety. ▶ Reset the service programme.

• "Resetting service programmes", Page62 Coffee or milk froth quality varies widely. Build-up of limescale in the appliance. ▶ Descale the appliance. Milk froth quality var- ies widely. Milk froth quality depends on the type of milk or plant- based alternative used. ▶ Optimise the result through the selection of the milk or vegetable-based drink type.Troubleshooting en

Fault Cause and troubleshooting Coffee is not dis- pensed or has slowed to a trickle. Set quantity is not reached. Grinding level is set too fine. ▶ Set a coarser grinding level.

• "Adjusting the grinding level", Page55 Heavy build-up of limescale in the appliance. ▶ Descale the appliance. Air is in the water filter.

1. Immerse the water filter in water with the opening

facing upwards until no more air bubbles escape.

2. Reinsert the filter.

• "Inserting and activating the water filter", Page49 Appliance is soiled. ▶ Clean the brewing unit. ▶ Descale and clean the appliance. Coffee strength is set too high. ▶ Reduce the strength of your coffee to e.g. "regular".

• "Adjusting the coffee strength", Page54 Coffee has no crema. Type of coffee is not optimal. ▶ Use a coffee variety with a higher proportion of Ro- busta beans. ▶ Use beans with a darker roast. Coffee beans are no longer freshly roasted. ▶ Use fresh coffee beans. Grinding level is not appropriate for coffee beans. ▶ Adjust the grinder to a finer setting.

• "Adjusting the grinding level", Page55 Coffee is too acidic. Grinding level is set too coarse. ▶ Adjust the grinder to a finer setting.

• "Adjusting the grinding level", Page55 Type of coffee is not optimal. ▶ Use a coffee variety with a higher proportion of Ro- busta beans. ▶ Use beans with a darker roast. Coffee is too bitter. Grinding level is set too fine. ▶ Set a coarser grinding level.

• "Adjusting the grinding level", Page55 Type of coffee is not optimal. ▶ Change the coffee variety.en Troubleshooting

Fault Cause and troubleshooting Coffee tastes burnt. Grinding level is set too fine. ▶ Set a coarser grinding level.

• "Adjusting the grinding level", Page55 Type of coffee is not optimal. ▶ Change the coffee variety. Brewing temperature is too high. ▶ Set the brewing temperature lower.

• "Overview of the basic settings", Page57 Coffee grounds are not compact and are too wet. The grinding level is not set optimally. ▶ Adjust the grinder to a coarser or finer setting.

• "Adjusting the grinding level", Page55 Too little ground coffee. ▶ Use 2 level measuring spoons of ground coffee. Coffee beans are too oily. ▶ Use a different type of bean.Transportation, storage and disposal en

Transportation, storage and disposal 14 Transportation, stor- age and disposal Transportation, storage and disposal 14.1 Activate frost protection Protect your appliance from frost dur- ing transport and storage. ATTENTION! Residues of liquid in the appliance may damage it during transport or storage. ▶ Empty the pipe system before transport or storage. Requirements ¡ The appliance is ready to use. ¡ The water tank has been filled.

1. Remove the milk container.

2. Clean the brewing unit.

3. Place a large container under the

4. Press repeatedly until the dis-

play shows "Milk froth".

5. Press repeatedly until the dis-

7. Wait until steam escapes from the

8. Remove the water tank.

a The appliance drains itself auto- matically.

9. If the message "Please refill water

tank" appears, ignore it. 10.Empty and clean the water tank and drip tray. 11.Insert the water tank and drip tray. 12.Switch the appliance off and dis- connect it from the power supply. 14.2 Disposing of old appli- ance Valuable raw materials can be re- used by recycling.

1. Unplug the appliance from the

2. Cut through the power cord.

3. Dispose of the appliance in an en-

vironmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority. This appliance is la- belled in accordance with European Directive 2012/19/EU concerning used electrical and elec- tronic appliances (waste electrical and electronic equipment - WEEE). The guideline determ- ines the framework for the return and recycling of used appliances as applicable throughout the EU. Customer Service 15 Customer Service Customer Service Function-relevant genuine spare parts according to the corresponding Eco- design Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Eco- nomic Area. Note:Under the terms of the manu- facturer's warranty the use of Cus- tomer Service is free of charge. Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E- Nr.) and the production number (FD) of your appliance.en Technical specifications

The contact details for Customer Ser- vice can be found in the enclosed Customer Service directory or on our website. 15.1 Product number (E-Nr.) and production number (FD) You can find the product number (E- Nr.) and the production number (FD) on the appliance's rating plate. Make a note of your appliance's de- tails and the Customer Service tele- phone number to find them again quickly. Technical specifications 16 Technical specifica- tions Technical specifications Voltage 220– 240V∼ Frequency 50Hz Connection rating 1500W Maximum static pump pressure 15bar Maximum capacity of water tank (without fil- ter) 1.7l Maximum capacity of bean container 270g Length of the power cable 100cm Appliance height 37,3cm Appliance width 27,6cm Appliance depth 45,2cm Weight, empty 8-9kg Type of grinder Ceramicfr

4. Met of "Nieuw filter" of "Filter
