Product type	Connected radiator thermostat
Brand	Homematic IP
Model	HmIPeTRVB2 (HmIP-eTRV-B-2)
Category	Thermostat
Dimensions (L x H x D)	57 x 68 x 102 mm
Power supply	2 x 1.5 V LR6/Mignon/AA batteries
Battery life	2 years (typ.)
Protection rating	IP20
Operating temperature	0 to 50 °C
Radio frequency band	868.0-868.6 MHz / 869.4-869.65 MHz
Max radio range	250 m (open field)
Valve connection	M30 x 1.5 mm
Actuator force	> 80 N
Valve stroke	4.3 ± 0.3 mm
Functions	Auto/manual mode, Boost, offset, heating profile programming, holiday mode, control lock
Package contents	Thermostat, Danfoss RA adapter, support ring, M4 nut, screws, batteries, manual
Maintenance	Clean with a soft, dry cloth
Safety	Do not open, use in dry environment
Repairability	Consult a specialist, no user-serviceable parts

Frequently Asked Questions - HmIPeTRVB2 Homematic IP

How to install the Homematic IP thermostat?

Remove the old thermostat head. Mount the thermostat onto the valve using the cap nut. If necessary, use the Danfoss RA adapter or support ring. Insert the batteries and perform the adaptation travel by pressing the Menu/Boost button when AdA is displayed.

How to pair the device?

Open the battery compartment, remove the insulating strip. Press the system button for 4 seconds to activate pairing mode (flashing orange LED). Place the other device in pairing mode. A green flashing confirms success.

How to program a heating profile?

Access the menu by holding down the Menu button. Select Prg. Choose the days (single day, workdays, weekend or all week). Set the start times and desired temperatures for each period. Confirm each step with the Menu button.

What to do in case of error F1?

Error F1 means the valve actuator is stiff. Check if the valve pin is stuck. If the problem persists, contact a specialist.

How to replace the batteries?

Open the battery compartment cover by pulling it downwards. Remove the used batteries. Insert two new LR6/Mignon/AA batteries observing correct polarity. Close the cover. The device performs a self-test.

How to activate holiday mode?

Hold down the Menu button to access the menu. Select Holiday. Enter the end time and date, then the desired temperature. Confirm. The holiday symbol flashes.

What does an orange flashing every 10 seconds mean?

It indicates that pairing mode is active. Enter the last four digits of the serial number (SGTIN) in the app to confirm pairing.

How to restore factory settings?

Open the battery compartment, remove one battery. Reinsert it while holding down the system button until the LED flashes rapidly orange. Release then hold again until the LED turns steady green. Release to complete.

What is the radio range of the thermostat?

The radio range in open field is about 250 meters. Indoors, it may be reduced depending on obstacles and environment.

How to clean the device?

Use a soft, clean, dry cloth. Do not use cleaners containing solvents as they may damage the plastic housing.

USER MANUAL HmIPeTRVB2 Homematic IP

Printed in Hong Kong

A B C D E F G

2

0 1 6 1 12 1 18 1 24 88:00 AUTOMANU BOOST Start Ende MoTuWeThFrSaSu Offset Prg

3

Line drawing of hands holding a device with a blue downward arrow indicating a change or reduction (no text or symbols present)

4

4 s ↓ N → □ □ □

Homematic IP HAP

6 2 1 3

7

Diagram showing a device with labeled parts and directional arrows, including numbered annotations 1 and 2.

8

Technical diagram showing two mechanical components with numbered parts and a blue arrow indicating assembly or repair direction.

9

Technical line drawing of a mechanical device with a blue arrow pointing to a component (no text or symbols present)

10

In5u

11

2 AdRa 1

12

Diagram showing hand holding battery casing with blue arrows indicating internal components and charge distribution

Inhaltsverzeichnis

1 Homematic IP Radiator Thermostat – basic
1 Danfoss RA adapter
1 Support ring
1 Nut M4
1 Cylinder head screw M4 x 12 mm
2 1.5 V LR6/mignon/AA batteries
1 User manual
1 Supplement sheet with safety instructions

Documentation © 2022 eQ-3 AG, Germany

All rights reserved. Translation from the original version in German. This manual may not be reproduced in any format, either in whole or in part, nor may it be duplicated or edited by electronic, mechanical or chemical means, without the written consent of the publisher.

Typographical and printing errors cannot be excluded. However, the information contained in this manual is reviewed on a regular basis and any necessary corrections will be implemented in the next edition. We accept no liability for technical or typographical errors or the consequences thereof.

All trademarks and industrial property rights are acknowledged.

Printed in Hong Kong

Changes may be made without prior notice as a result of technical advances.

157367 (web)

Version 1.1 (12/2022)

Table of contents

1 Information about this manual 34
2 Hazard information 34
3 Function and device overview 35
4 General system information 36
5 Start-up 37

5.1 Pairing 37

5.1.1 Direct pairing with a Homematic IP device 37
5.1.2 Adding to the Access Point (alternative)....38

5.2 Mounting 40

5.2.1 Mounting the radiator thermostat 40
5.2.2 Danfoss RA adapter....41
5.2.3 Support ring....42

5.3 Adaption run 42

6 Configuration menu 43

6.1 Automatic operation....44
6.2 Manual operation....44
6.3 Offset temperature....44
6.4 Programming a heating profile....45
6.5 Operating lock....46
6.6 Time and date....46
6.7 Holiday mode 47

7 Operation 48
8 Replacing batteries 48
9 Troubleshooting 49

9.1 Weak batteries....49
9.2 Command not confirmed....49
9.3 Duty cycle 50
9.4 Error codes and flashing sequences 50

10 Restore factory settings....52
11 Maintenance and cleaning....53
12 General information about radio operation....53
13 Technical specifications 54

1 Information about this manual

Please read this manual carefully before beginning operation with your Homematic IP components. Keep the manual so you can refer to it at a later date if you need to.

If you hand over the device to other persons for use, please hand over this manual as well.

Symbols used:

Attention!

This indicates a hazard.

Please note:

This section contains important additional information.

2 Hazard information

Do not open the device. It does not contain any parts that can be maintained by the user. In the event of an error, please have the device checked by an expert.

The device may only be operated in dry and dust-free environment and must be protected from the effects of moisture, vibrations, solar or other methods of heat radiation, cold and mechanical loads.

For safety and licensing reasons (CE), unauthorized change and/or modification of the device is not permitted.

The device is not a toy; do not allow children to play with it. Do not leave packaging material lying around. Plastic films/bags, pieces of polystyrene, etc. can be dangerous in the hands of a child.

We do not assume any liability for damage to property or personal injury caused by improper use or the failure to observe the hazard information. In such cases, any claim under warranty is extinguished! For consequential damages, we assume no liability!

The device is only intended for use within residential, business and commercial areas as well as in small enterprises.

Please note that the room temperature control via the radiator thermostat is designed for a two-pipe heating system with one feed and return line per radiator. Use in single-pipe heating systems can lead to strong deviations in the set temperature due to fluctuations in the flow temperature.

Using the device for any purpose other than that described in this operating manual does not fall within the scope of intended use and shall invalidate any warranty or liability.

3 Function and device overview

The Homematic IP Radiator Thermostat offers time-controlled and demand-based regulation of the room temperature via a heating profile with individual heating phases.

You can directly configure the radiator thermostat on the device and adjust it to your personal needs. Alternatively, you can control the radiator thermostat in connection with a Homematic IP Access Point comfortably via the free smartphone app.

In connection with a Homematic IP Window and Door Contact the temperature is reduced automatically during ventilation.

The radiator thermostat fits to all common radiator valves and is easy to mount - without having to drain any water or intervene in the heating system. With the additional boost function, cool rooms can be heated within short by opening the heating valve.

Device overview (see figure 1):

(A) Union nut
(B) Battery compartment (and cover)
(C) Display
(D) System button (pairing button and LED)
(E) Minus button
(F) Plus button
(G) Menu/Boost button

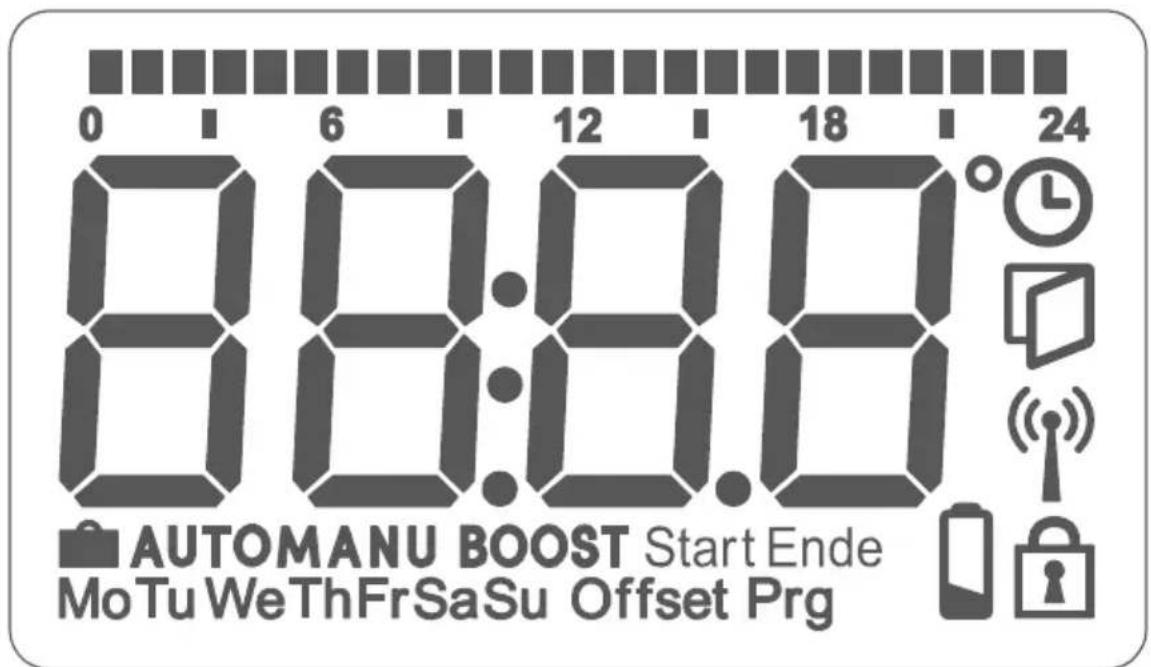

Display overview (see figure 2):

	Overview of heating phases
°C	Setpoint temperature
	Time and date*
	Operating lock*
	Open window symbol
	Radio transmission
	Empty batteries
	Holiday mode*
AUTO	Automatic operation*
MANU	Manual operation*
BOOST	Boost mode
Offset	Offset temperature*
Prg	Programming a heating profile*
Mo Tu We Th Fr Sa Su	Days of the week

* see see „6 Configuration menu“ on page 43

4 General system information

This device is part of the Homematic IP smart home system and works with the Homematic IP protocol. All devices of the system can be configured comfortably and individually with the user interface of the Central Control Unit CCU3 or flexibly via the Homematic IP smartphone app in connection with the Homematic IP cloud. All available functions provided by the system in combination with other components are described in the Homematic IP Wired Installation Guide. All current technical documents and updates are provided at www.homematic-ip.com.

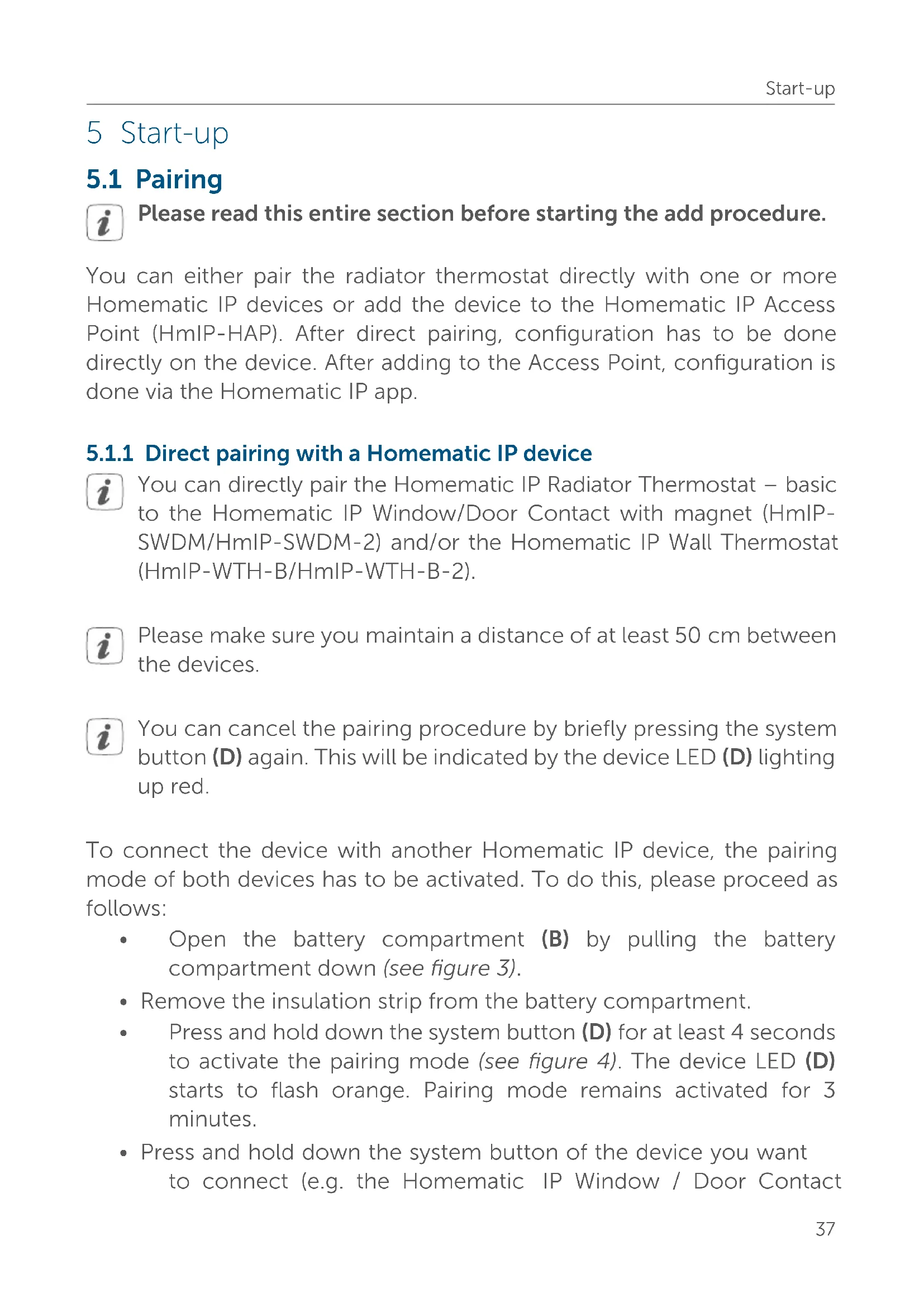

5 Start-up

5.1 Pairing

Please read this entire section before starting the add procedure.

You can either pair the radiator thermostat directly with one or more Homematic IP devices or add the device to the Homematic IP Access Point (HmIP-HAP). After direct pairing, configuration has to be done directly on the device. After adding to the Access Point, configuration is done via the Homematic IP app.

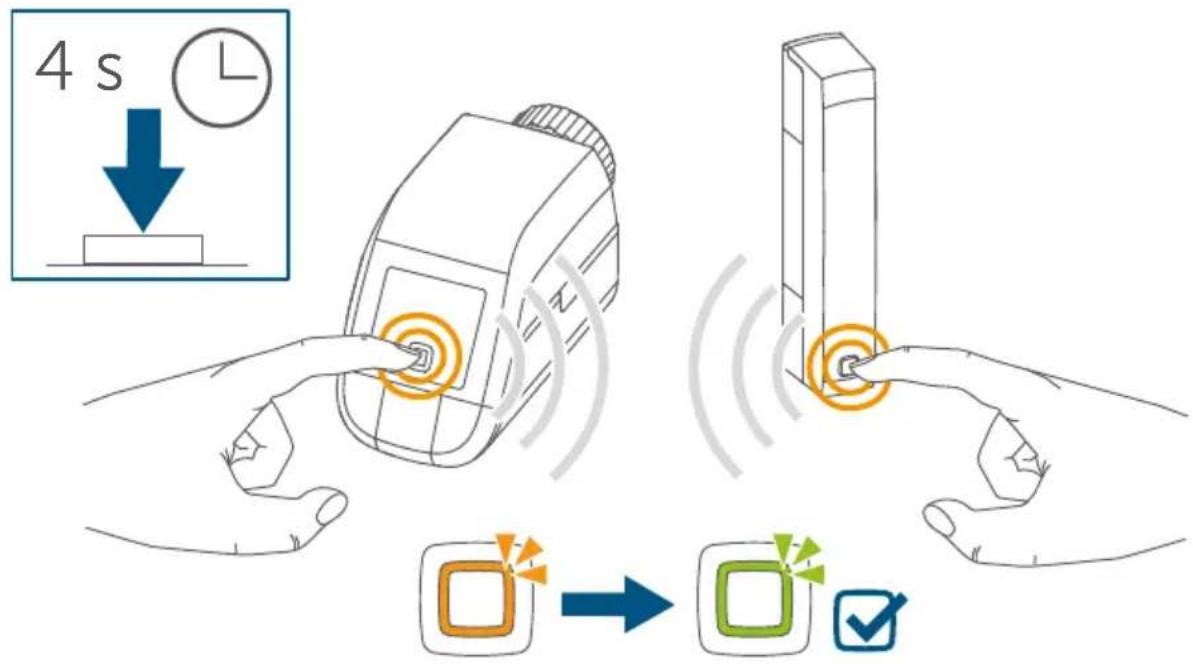

5.1.1 Direct pairing with a Homematic IP device

You can directly pair the Homematic IP Radiator Thermostat – basic to the Homematic IP Window/Door Contact with magnet (HmIP-SWDM/HmIP-SWDM-2) and/or the Homematic IP Wall Thermostat (HmIP-WTH-B/HmIP-WTH-B-2).

Please make sure you maintain a distance of at least 50 cm between the devices.

You can cancel the pairing procedure by briefly pressing the system button (D) again. This will be indicated by the device LED (D) lighting up red.

To connect the device with another Homematic IP device, the pairing mode of both devices has to be activated. To do this, please proceed as follows:

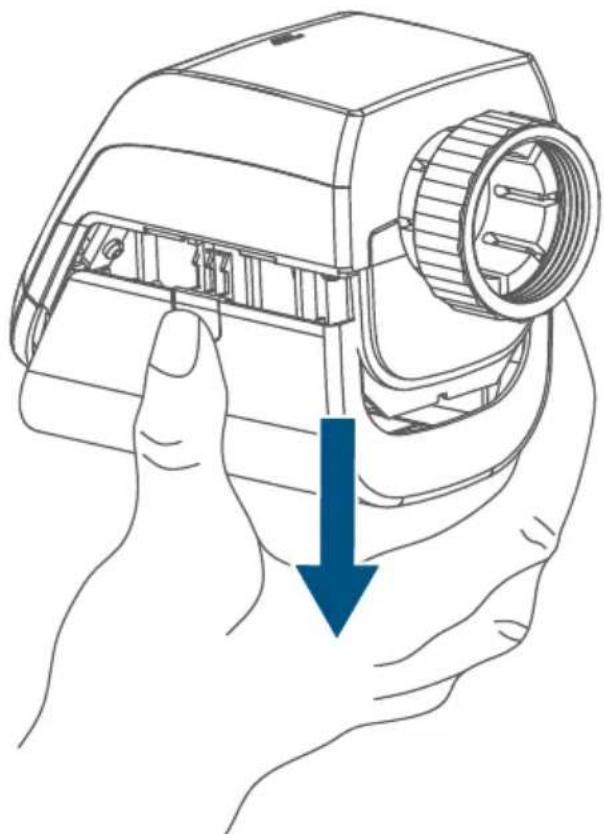

• Open the battery compartment (B) by pulling the battery compartment down (see figure 3).
• Remove the insulation strip from the battery compartment.
• Press and hold down the system button (D) for at least 4 seconds to activate the pairing mode (see figure 4). The device LED (D) starts to flash orange. Pairing mode remains activated for 3 minutes.
• Press and hold down the system button of the device you want to connect (e.g. the Homematic IP Window / Door Contact

with magnet) for at least 4 seconds to activate the pairing mode. The device LED starts to flash orange (see figure 4). For further information, please refer to the operating manual of the corresponding device.

The device LED lights up green to indicate that adding has been successful. If adding failed, the device LED lights up red. Please try again.

If no pairing operations are carried out, pairing mode is exited automatically after 3 seconds.
If you want to add another device to the existing devices, first activate the pairing mode of the existing device and afterwards the pairing mode of the new device.
If, for example, you want to add another radiator thermostat, first pair the new radiator thermostat to the existing radiator thermostat. Afterwards, you can pair the new radiator thermostat with the existing window / door contact.
If you are using several devices in one room, you should pair all devices with each other.

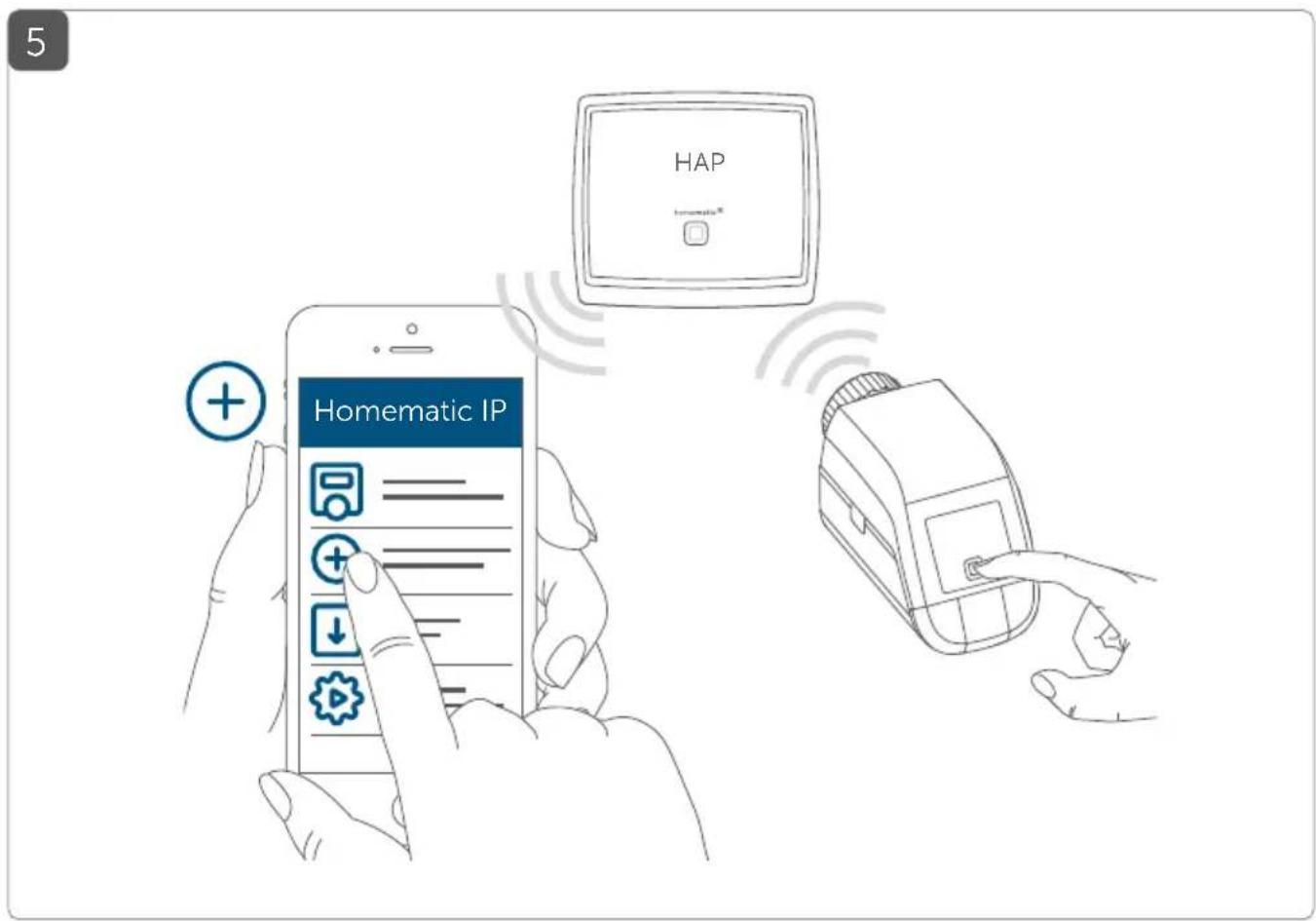

5.1.2 Adding to the Access Point (alternative)

If you have already connected the device to another Homematic IP device, you first have to restore the factory settings of the device before you can connect it to the Homematic IP Access Point or another Central Control Unit CCU3 (see see „1 Information about this manual“ on page 34).

i First set up your Homematic IP Access Point via the Homematic IP app to enable operation of other Homematic IP devices within your system. For further information, please refer to the operating manual of the Access Point.

You can connect the device either to the Access Point or to the Homematic Central Control Unit CCU3. For detailed information,

please refer to the Homematic IP User Guide, available for download in the download area of www.homematic-ip.com.

To integrate the device into your system and to enable control via the free Homematic IP app, you must add the device to your Homematic IP Access Point first.

To add the device, please proceed as follows:

• Open the Homematic IP app on your smartphone.
• Select the menu item "Add device".
• Open the battery compartment (B) by pulling the battery compartment down (see figure 3).
• Remove the insulation strip from the battery compartment. Pairing mode remains activated for 3 minutes (see figure 5).

You can manually start the pairing mode for another 3 minutes by pressing the system button (D) briefly (see figure 5).

• Your device will automatically appear in the Homematic IP app.
• To confirm, please enter the last four digits of the device number (SGTIN) in your app or scan the QR code. Therefore, please see the sticker supplied or attached to the device.
• Please wait until the adding is completed.
• If the addition was successful, the LED (D) lights up green. The device is now ready for use.
• If the LED lights up red, please try again.
• In the app, give the device a name and allocate it to a room.

5.2 Mounting

Please read this entire section before starting to mount the device.

The Homematic IP Radiator Thermostat is easy to install, and can be done without draining heating water or intervening in the heating system. No special tools are required, nor does the heating have to be switched off.

The union nut (A) attached to the radiator thermostat can be used universally and without accessories for all valves with a thread size of M30 x 1.5 from the most popular manufacturers such as

• Heimeier
• MNG
• Junkers
• Landis&Gyr (Duodyr)
  • Honeywell-Braukmann
• Oventrop
• Schlösser
• Comap
• Valf Sanayii
• Mertik Maxitrol
• Watts
• Wingenroth (Wiroflex)
  • R.B.M
• Tiemme
• Jaga
• Siemens
• Idmar

By means of the adapter in the delivery, the device can be installed also on radiator valves of type Danfoss RA (see see „5.1.1 Direct pairing with a Homematic IP device“ on page 37).

5.2.1 Mounting the radiator thermostat

In case of visible damage of the existing radiator, valve or heating pipes, please consult a specialist.

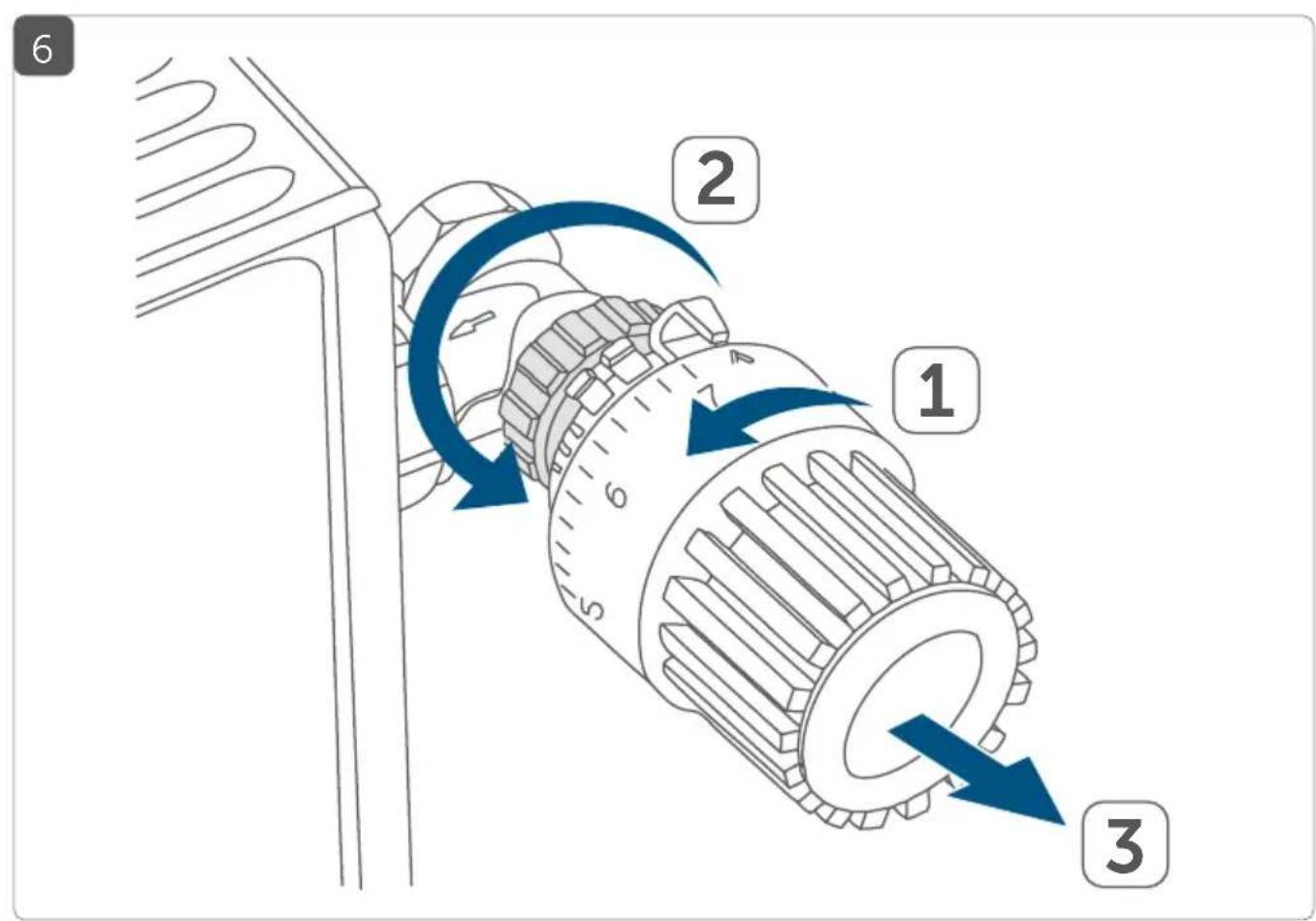

Remove the old thermostat dial from your radiator valve.

- Rotate the thermostat dial to the maximum value (1) anticlockwise (see figure 6). The thermostat dial then no longer presses against the valve spigot, making it easier to remove.

There are different ways of fixing the position of the thermostat dial:

- Union nut: Unscrew the union nut in an anticlockwise direction (2). The thermostat head can then be removed (3).

- Snap-on fastenings: Thermostat dials that have been attached using this method can be easily released by giving the lock/union nut a slight turn in the anticlockwise direction (2). The thermostat head can then be removed (3).

- Compression fitting: The thermostat dial is held in place by a mounting ring which is held together with a screw. Loosen this screw and remove the thermostat head from the valve (3).

- Threaded connection with set screw: Loosen the set screw and remove the thermostat head (3).

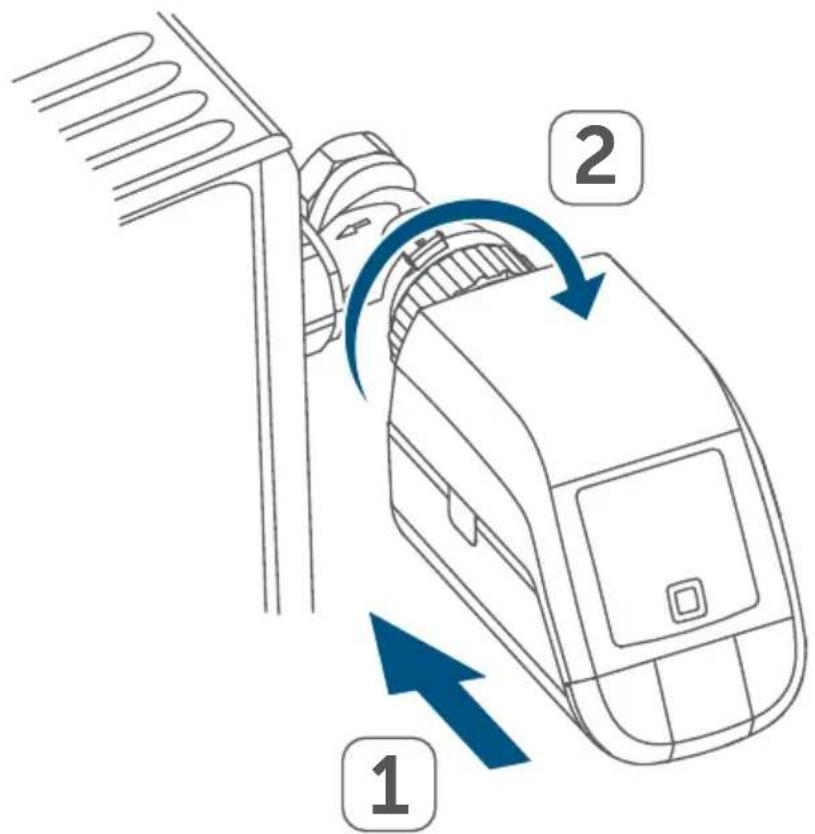

After removing the old thermostat dial you can mount the Homematic IP Radiator Thermostat with the union nut (A) to the radiator valve (see figure 7).

If required, you can use the supplied adapter for Danfoss RA valves (see see „5.1.1 Direct pairing with a Homematic IP device“ on page 37) or the supplied support ring (see see „5.2.3 Support ring“ on page 42).

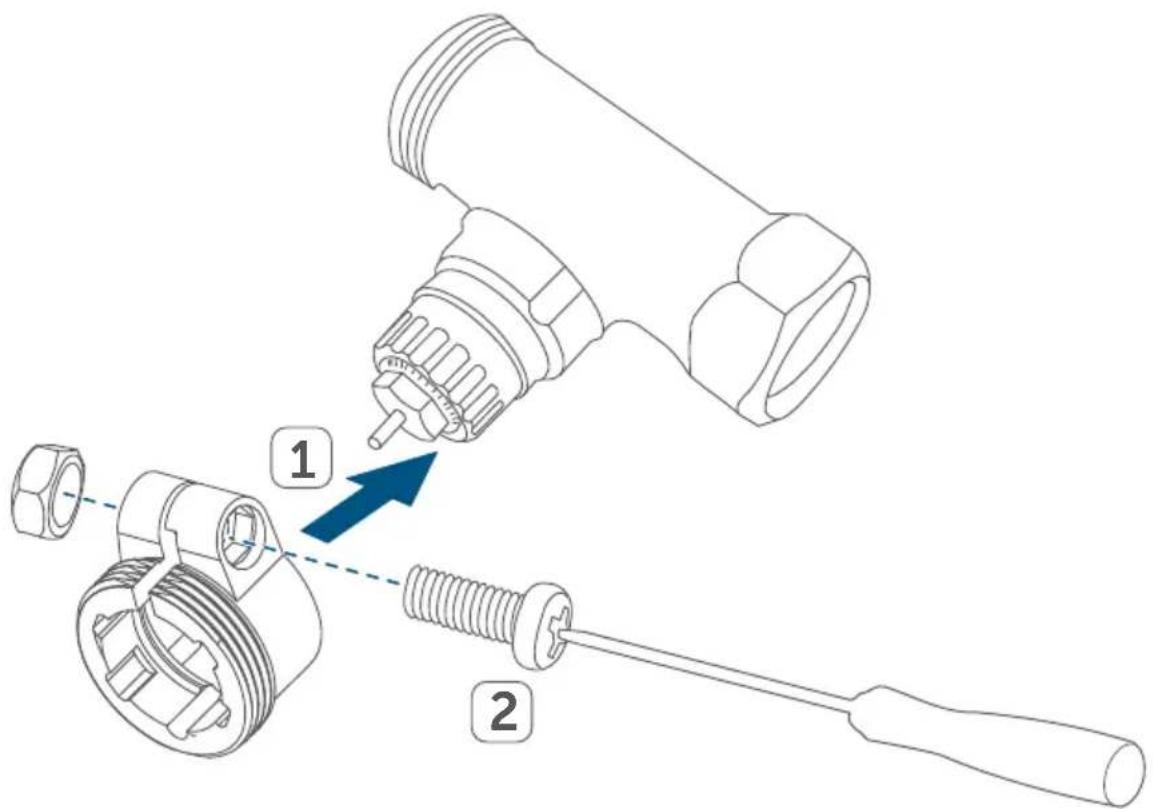

5.2.2 Danfoss RA adapter

The provided adapter is required to attach to Danfoss RA valves. The RA-Adapter has been manufactured with pre-tension in order to provide better fit. Use a screwdriver during installation if necessary and bend the adapter open slightly in the vicinity of the screw (see figure 8).

The Danfoss valve bodies have elongated notches around their circumference, which also ensure that the adapter is properly seated when it snaps on.

During installation, please ensure that the pins inside the adapter are lined up with the notches on the valve. Ensure that a suitable adapter for the valve is properly clipped on.

Please ensure that you do not trap your fingers between the two halves of the adapter!

After clipping onto the valve body, please attach the adapter using the provided screw and nut.

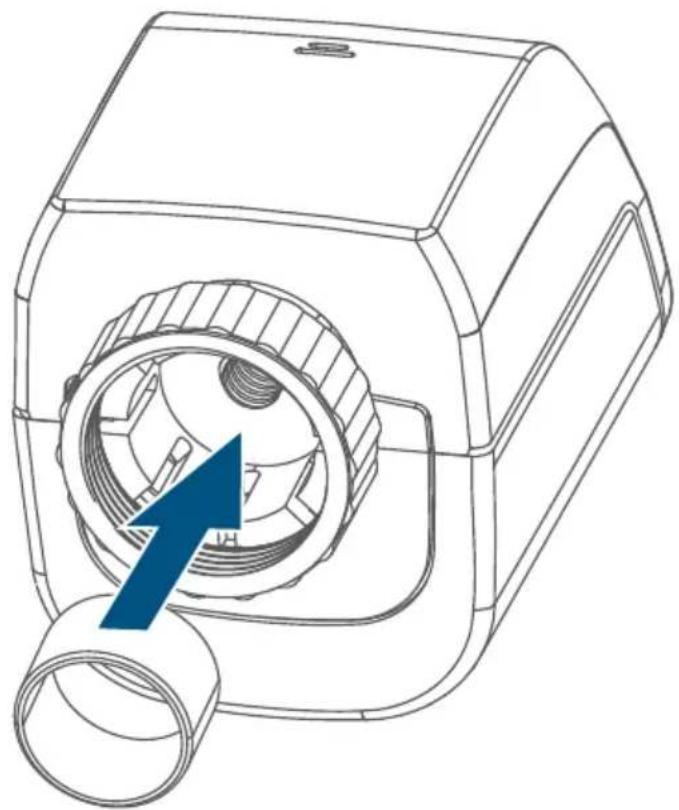

5.2.3 Support ring

The valves from different manufacturers may have tolerance fluctuations that make the radiator thermostat more loosely seated on the valve. In this case, the provided support ring should be placed into the flange before mounting the device (see figure 9).

5.3 Adaption run

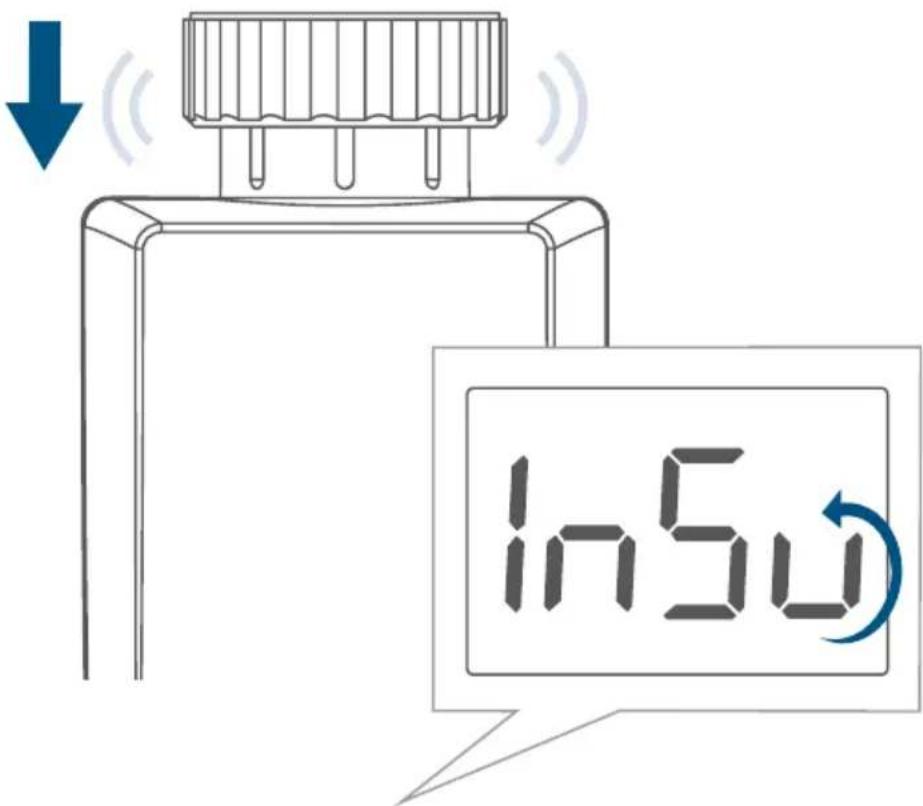

Once the batteries have been inserted, the motor reserves. Meanwhile, "InS" and the activity symbol (n) are displayed (see figure 10).

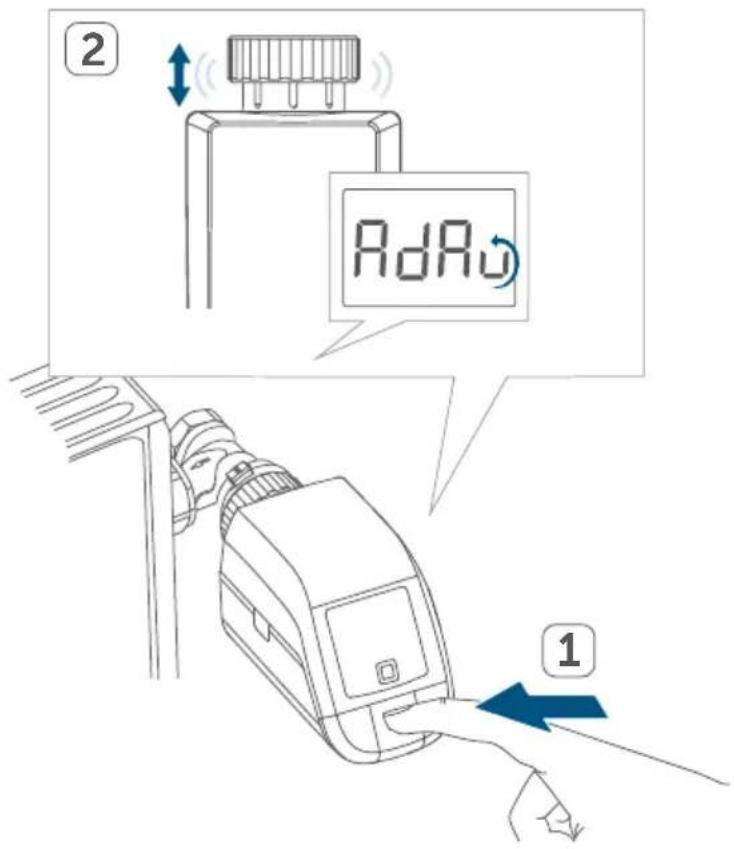

After the radiator thermostat has been mounted successfully, an adaption run (AdA) has to be performed in order to adapt the device to the valve. To do this, proceed as follows:

- As soon as "AdA" is displayed, press the menu/boost button (G) to start the adaption run (see figure 11).

Now the actuator performs an adaption run. "AdA" and the activity symbol (n) are displayed (see figure 11). During this time, no other operation is possible. After the adapting run has been successful, the display returns back to normal.

If the adapter run has been initiated prior to mounting or if an error message (F1, F2, F3) is displayed, press the menu/boost button (G) and the motor reverses to the "InS" position.

6 Configuration menu

When using the radiator thermostat without Homematic IP Access Point, you can select the following modes via the configuration menu after setup directly on the device and adjust the settings to your personal needs. To do this, proceed as follows:

• By pressing and holding the menu button (G), you will be entering the configuration menu.
• Select the desired icon via the plus and minus buttons (E + F) by pressing the menu button briefly to change the settings of the different menu items.

Press and hold down the control wheel to get back to the previous level. The menu automatically closes without applying changes if there is no operation for more than 1 minute.

6.1	AUTO	Automatic mode
6.2	MANU	Manual operation
6.3	Offset	Offset temperature
6.4	Prg	Programming a heating profile
6.5		Operating lock
6.6		Date and time
6.7		Holiday mode

If you connect the device to the Homematic IP Access Point, you can comfortably adjust the settings via the free Homematic IP app.

If you have already adjusted the settings in the configuration menu or if you have already connected the device to another Homematic IP device, you first have to restore the factory settings of the device before you can connect it to a Homematic IP Access Point or another Central Control Unit CCU3 (see see „10 Restore factory settings“ on page 52).

6.1 Automatic operation

In automatic mode, the temperature is controlled in accordance with the set heating profile. Manual changes are activated until the next point at which the profile changes. Afterwards, the defined heating profile will be activated again. To activate the automatic mode, please proceed as follows:

• Press and hold down the menu button (G) to open the configuration menu.
• Select "Auto" via the plus and minus buttons (E + F) in the menu.
• Confirm with the menu button.

To confirm, the symbol flashes twice and the device changes back to automatic mode.

6.2 Manual operation

In manual mode, the temperature is controlled in accordance with the current temperature set via the push-buttons (E + F). The temperature remains activated until the next manual change. To activate the manual mode, please proceed as follows:

• Press and hold down the menu button (G) to open the configuration menu.
• Select "Manu" via the plus and minus buttons (E + F) in the menu.
• Confirm with the menu button.

To confirm, the symbol flashes twice and the device changes back to manual mode.

6.3 Offset temperature

As the temperature is measured on the radiator thermostat, the temperature distribution can vary throughout a room. To adjust this, a temperature offset of ±3.5 ^ can be set. If a nominal temperature of e.g. 20 ^ is set but the room presents with only 18 ^ , an offset of -2.0 ^ needs to be set. An offset temperature of 0.0^ is set in the factory settings. To adjust the offset temperature, please proceed as follows:

• Press and hold down the menu button (G) to open the configuration menu.
• Select "Offset" via the plus and minus buttons (E + F) in the menu.
• Confirm with the menu button.
• Select the desired offset temperature using the plus or minus button and confirm with the menu button.

To confirm, the temperature flashes twice and the device changes back to the standard display.

6.4 Programming a heating profile

In this menu item, you can create a heating profile with heating and cooling phases according to your personal needs.

• Press and hold down the menu button (G) to open the configuration menu.
• Select "Prg" using the plus or minus buttons (E + F) and confirm with the menu button.
• In the menu item "dAy", use the plus and minus buttons to select single days of the week, all weekdays, the weekend or the entire week for your heating profile and confirm with the menu button.
• Confirm the start time 00:00 pm with the menu button.
• Select the desired temperature and start time using the plus or minus button and confirm with the menu button.
• The next time is shown in the display. You can adjust the time via the plus or minus buttons.
• Select the desired temperature for the next time period using the plus or minus button and confirm with the menu button.
• Repeat this procedure until temperatures are stored for the entire period between 0:00 and 23:59 h.

To confirm, the time flashes twice and the device changes back to the standard display.

6.5 Operating lock

Operation of the device can be locked to avoid settings being changed unintended (e.g. through involuntary touch). To activate the operating lock, please proceed as follows:

• Press and hold down the menu button (G) to open the configuration menu.
• Select "Operating lock" via the plus and minus buttons (E + F) in the menu.
• Confirm with the menu button.
• Use the plus or minus button to select "On" if you want to activate the operating lock or "OFF", to deactivate the function and confirm with the menu button.

To confirm, On or OFF flashes twice and the device changes back to the standard display.

After activating the operating lock, the "lock" symbol is shown in the display.

To deactivate the operating lock, please proceed as follows:

• Press and hold down the menu button (G) to open the configuration menu.
• Confirm with the menu button.
• Select "OFF" via the plus and minus buttons (E + F) to deactivate the operating lock.

6.6 Time and date

To set the date and time, please proceed as follows:

• Press and hold down the menu button (G) to open the configuration menu.
• Select "Date/time" via the plus and minus buttons (E + F) in the menu.
• Confirm with the menu button.
• Select the desired year using the plus or minus button and confirm with the menu button.
• Select the desired month using the plus or minus button and

confirm with the menu button.

• Select the desired day using the plus or minus button and confirm with the menu button.
• Select the desired hours using the plus or minus button and confirm with the menu button.
• Select the desired minutes using the plus or minus button and confirm with the menu button.

To confirm, the time flashes twice and the device changes back to the standard display.

6.7 Holiday mode

If you want to maintain a constant temperature for a certain period, e.g. during your holidays or a party, the holiday mode can be used. To activate the holiday mode, please proceed as follows:

• Press and hold down the menu button (G) to open the configuration menu.
• Select "Holiday" using the plus or minus buttons (E + F) and confirm with the menu button.
• Use the plus or minus buttons to select the time, until which you want to activate the holiday mode and confirm with the menu button.
• Use the plus or minus buttons to select the date, until which you want to activate the holiday mode and confirm with the menu button.
• Use the plus or minus buttons to select the temperature for the holiday mode and confirm with the menu button..

To confirm, the symbol flashes twice and the device changes to holiday mode.

7 Operation

After adding and mounting have been performed, simple operations are available directly on the device.

• Temperature: Press the left (E) or right (F) push-button to manually change the temperature of the radiator. In automatic mode, the manually set temperature will remain the same until the next point at which the profile changes. Afterwards, the defined heating profile will be activated again. During manual operation, the temperature remains activated until the next manual change.
• Boost function: Press the boost button (G) briefly to activate the boost function for heating up the radiator quickly and briefly by opening the valve. There will be a pleasant room temperature right away because of the radiated heat.

8 Replacing batteries

If the symbol for empty batteries (☐) appears in the display or in the app, please replace the used batteries by two new LR6/mignon/AA batteries. You must observe the correct battery polarity.

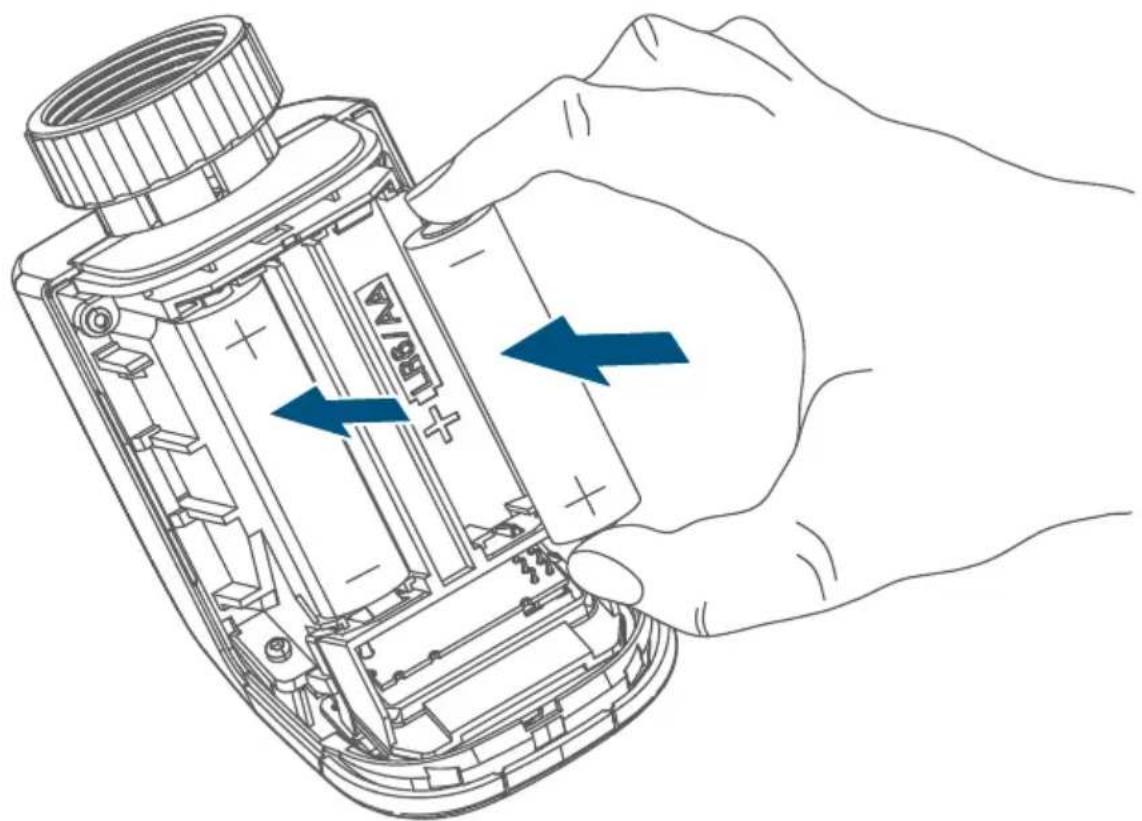

To insert new batteries, please proceed as follows:

• Open the battery compartment (B) by pulling the battery compartment down (see figure 3).
• Remove the batteries.
• Insert two new 1.5 V LR6/mignon/AA batteries into the battery compartment, making sure that you insert them the right way round (see figure 12).
• Close the battery compartment.
• Please pay attention to the flashing signals of the device LED while inserting the batteries (see see „9.4 Error codes and flashing sequences“ on page 50).

Once the batteries have been inserted, the radiator thermostat will perform a self-test and an adaption run, if required (approx. 2 seconds). Afterwards, initialisation is carried out. The LED test display will indicate that initialisation is complete by lighting up orange and green.

Caution! There is a risk of explosion if the battery is not replaced correctly. Replace only with the same or equivalent type. Never recharge non-rechargeable batteries. Do not throw the batteries into a fire. Do not expose batteries to excessive heat. Do not short-circuit batteries. Doing so will present a risk of explosion.

Used batteries should not be disposed of with regular domestic waste! Instead, take them to your local battery disposal point.

9 Troubleshooting

9.1 Weak batteries

Provided that the voltage value permits it, the radiator thermostat will remain ready for operation also if the battery voltage is low. Depending on the particular load, it may be possible to send transmissions again repeatedly, once the batteries have been allowed a brief recovery period. If the voltage drops too far during transmission, the empty battery symbol (☐) and the corresponding error code will be displayed on the device (see see „9.4 Error codes and flashing sequences“ on page 50). In this case, replace the empty batteries by two new batteries (see see „8 Replacing batteries“ on page 48).

9.2 Command not confirmed

If at least one receiver does not confirm a command, the device LED lights up red at the end of the failed transmission process. The failed transmission may be caused by radio interference (see see „12 General information about radio operation“ on page 53). The failed transmission may also be caused by the following:

• Receiver cannot be reached.
• Receiver is unable to execute the command (load failure, mechanical blockade, etc.).
• Receiver is defective.

9.3 Duty cycle

The duty cycle is a legally regulated limit of the transmission time of devices in the 868 MHz range. The aim of this regulation is to safeguard the operation of all devices working in the 868 MHz range. In the 868 MHz frequency range we use, the maximum transmission time of any device is 1% of an hour (i.e. 36 seconds in an hour). Devices must cease transmission when they reach the 1% limit until this time restriction comes to an end. Homematic IP devices are designed and produced with 100% conformity to this regulation. During normal operation, the duty cycle is not usually reached. However, repeated and radio-intensive pair processes mean that it may be reached in isolated instances during start-up or initial installation of a system. If the duty cycle is exceeded, this is indicated by one long flash of the device LED (D), and may manifest itself in the device temporarily working incorrectly. The device starts working correctly again after a short period (max. 1 hour).

9.4 Error codes and flashing sequences

Flashing code / LC display	Meaning Solution
F1 Valve drive sluggish	Please check whe-	ther the valve pin is stuck.
F2 Actuating range	too wide Please check the	fastening if the ra-diator thermostat
F3 Adjustment range	too small Please check whe-	ther the valve pin is stuck.
Battery symbol (☐)	Battery voltage low Replace the batteries of the device (see see „8 Repla-cing batteries" on page 48).
Battery symbol (☐) and ---	Valve moved to error position*	Replace the batte-ries of the device (see see „8 Repla-cing batteries" on page 48).
*If empty batteries are not replaced, the radiator thermostat moves to a "valve error position". This avoids that the set temperature in the room cannot be reached any more due to a low battery. A valve error position of 15 % is set in the factory settings.
Lock symbol (💡)	Operating lock activated Deactivate	the operating lock via the app.
Antenna symbol (💡) flashing	Communication problem with Homematic IP Access Point or connected device	Please check the connection with the Homematic IP Access Point or the connected devices.
Short orange flashing	Radio transmission/attempting to transmit/configuration data is transmitted	Wait until the transmission is completed.
1x long green lighting	Transmission confirmed You can	continue operation.
1x long red ligh-ting	Transmission failed or duty cycle limit is reached	Please try again (see sec. see „9.2 Command not confirmed" on page 49 or see „9.3 Duty cycle" on page 50).
Short orange flashing (every 10 s)	Pairing mode active Please enter	the last four numbers of the device serial number to confirm (see see „5.1.2 Ad- ding to the Access Point (alternative)" on page 38).
Fast orange flashing	Direct pairing mode active Activate	the pai-ring mode of the device you want to add (see see „5.1.1 Direct pairing with a Homematic IP device" on page 37)
Short orange lighting (after green or red confirmation)	Batteries empty Replace the batteries	-ries (see see „8 Re-placing batteries" on page 48).
6x long red flashing	Device defective Please see your	app for error mes-sage or contact your retailer.
1x orange and 1 x green lighting (after inserting batteries)	Test display Once the test dis-	play has stopped, you can continue.
Long and short orange flashing (alternating)	Update of device software (OTAU)	Wait until the up-date is completed.

10 Restore factory settings

The factory settings of the device can be restored. If you do this, you will lose all your settings.

To restore the factory settings of the device, please proceed as follows:

• Open the battery compartment (B) by pulling the battery compartment down (see figure 3).
• Remove a battery.
• Re-insert the battery making sure that it is right way around while pressing the system button (D) at the same time. Press and hold down the system button until the device LED (D) starts to flash quickly orange.
• Release the system button briefly and then press and hold the system button again until the orange flashing changes to a green lighting.
• Release the system button to finish the procedure.

The device will perform a restart.

11 Maintenance and cleaning

The device does not require you to carry out any maintenance other than replacing the battery when necessary. Enlist the help of an expert to carry out any repairs.

Clean the device using a soft, lint-free cloth that is clean and dry. Do not use any detergents containing solvents, as they could corrode the plastic housing and label.

12 General information about radio operation

Radio transmission is performed on a non-exclusive transmission path, which means that there is a possibility of interference occurring. Interference can also be caused by switching operations, electrical motors or defective electrical devices.

The range of transmission within buildings can differ greatly from that available in the open air. Besides the transmitting power and the reception characteristics of the receiver, environmental factors such as humidity in the vicinity have an important role to play, as do on-site structural/screening conditions.

Hereby, eQ-3 AG, Maiburger Str. 29, 26789 Leer/Germany declares that the radio equipment type Homematic IP HmIP-eTRV-B-2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.homematic-ip.com

13 Technical specifications

Device short name: HmIP-eTRV-B-2

Supply voltage: 2x 1.5 V LR6/mignon/AA

Current consumption: 100 mA max.

Battery life: 2 years (typ.)

Degree of protection: IP20

Degree of pollution: 2

Ambient temperature: 0 to 50 °C

Dimensions (W x H x D): 57 x 68 x 102 mm

Weight: 185 g (including batteries)

Radio frequency band: 868.0-868.6 MHz

869.4-869.65 MHz

Maximum radiated power: 10 dBm

Receiver category: SRD category 2

Typ. open area RF range: 250 m

Duty cycle: < 1 % per h/< 10 % per h

Software class: Class A

Method of operation: Type 1

Connection: M30 x 1.5 mm

Controlling torque: > 80 N

Valve travel: 4,3 ± 0,3 mm

Maximum travel position: 14,3 ± 0,3 mm

Minimum travel position: 10,0 ± 0,3 mm

Subject to technical changes.

Instructions for disposal

Do not dispose of the device with regular domestic waste! Electronic equipment must be disposed of at local collection points for waste electronic equipment in compliance with the Waste Electrical and Electronic Equipment Directive.

Information about conformity

CE The CE sign is a free trading sign addressed exclusively to the authorities and does not include any warranty of any properties.

For technical support, please contact your specialist dealer.

5.2.3 Bague de support

Poids : 185 g (piles comprises)

Printed in Hong Kong

Printed in Hong Kong

Apparaatcode: HmIP-eTRV-B-2

Voedingsspanning: 2x 1,5 V LR6/mignon/AA

Stroomopname: 100 mA max.

Free download of the Homematic IP app!

Blue QR code image, scannable for digital information retrieval

Download on the

App Store

Blue QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

ANDROID APP ON

Google play

Bevollmächtigter des Herstellers: Manufacturer's authorised representative:

eQ-3 AG

Maiburger Straße 29

26789 Leer / GERMANY

www.eQ-3.de
