USER MANUAL Ovation E910FC IP Chauvet

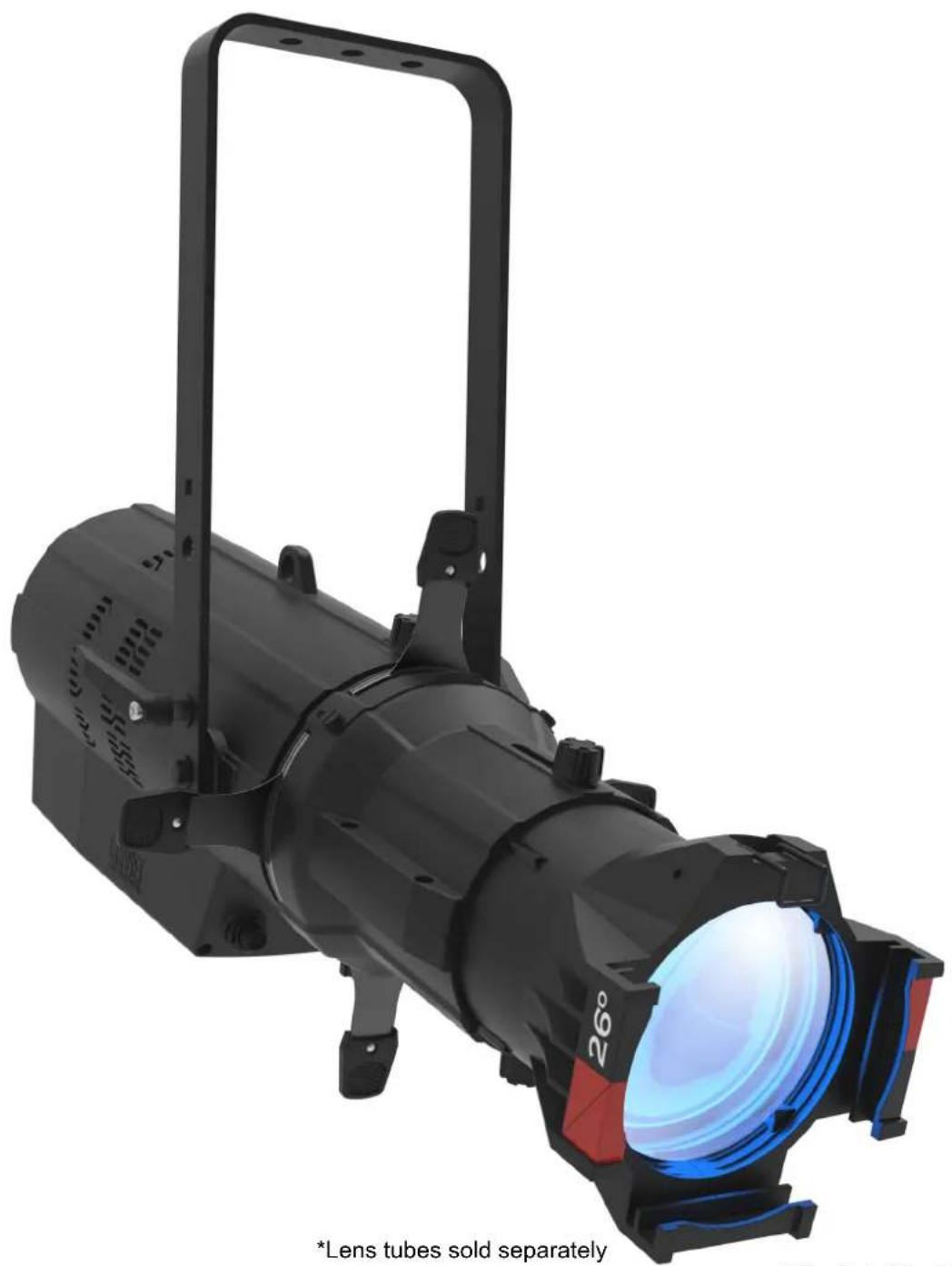

*Lens tubes sold separately

Model ID: OVATIONE910FCIF

About This Guide

The Ovation E-910FC IP Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, the customer must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTY. This warranty gives the customer specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

• The luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
  DO NOT leave any flammable material within 50~cm of this product while operating or connected to power.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• CAUTION: This product's housing may be hot when lights are operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

• Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:

• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
  Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.

• Locations that are prone to flooding or being buried in snow.

• Other areas where the product will be subject to extreme radiation or caustic substances.

• USE a safety cable when mounting this product overhead.

• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
  To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
  The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 16 ft (4.9 m) is not expected.
  If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
  The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
  The maximum ambient temperature is 113^ (45^) . Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact a distributor to request support or return a product. Visit Contact Us at the end of this QRG for contact information.

What is Included

Ovation E-910FC IP
Seetronic Powerkon IP65 power cord

• Soft focus filter
  Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100-240 VAC, 50 / 60Hz

Power Linking

It is possible to link up to 5 Ovation E-910FC IP products at 100 VAC, 6 products at 120 V, 11 products at 208 V, or 12 products at 230 or 240 VAC. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- When using this product in an outdoor IP65-type environment, be sure to use IP65 (or higher) rated power cables and secure unused ports with attached IP65 covers.

DMX Linking

The Ovation E-910FC IP will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation E-910FC IP uses a 5-pin DMX data connection for its DMX personalities: 1Ch, 4Ch, 6Ch, 8Ch, 11Ch, 13Ch, 14Ch, 17Ch, and HSV. See the User Manual for information about connecting and configuring the product for DMX operation.

When using this product in an outdoor IP65-type environment, be sure to use IP65-rated (or higher) data cables and secure unused ports with attached IP65 covers.

Master/Slave Connection

The Ovation E-910FC IP uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Ovation E-910FC IP supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

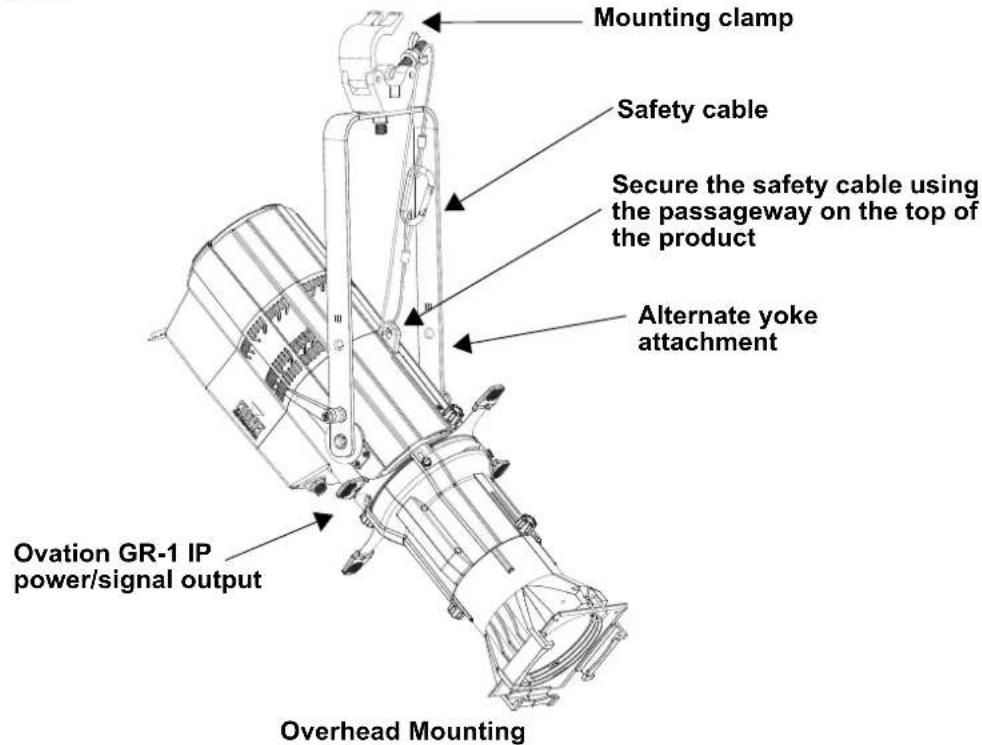

Product Mounting Diagram

Lens Tubes

The following lens tubes are available for purchase:

19^ 26^ 36^ and 50^ w/Gel frame (6.25 in/159 mm accessories)
14^ 15^ - 30^ and 25^ - 50^ Zoom Gel frame (7.5 in/191 mm accessories)

Passcode

After being prompted, enter the following passcode by pressing: , , , , . This passcode cannot be changed and must be used whenever prompted.

Soft Focus Filter

The Ovation E-910FC IP comes with a soft focus filter. To keep the soft focus filter in good condition:

Ensure that no fingerprints are left on the filter, as this may cause the filter to heat unevenly and eventually warp.
- When placing the filter in the holder, follow the orientation direction printed on the filter.
- When inserting shutter blades into the light path, note that the heat is reflected back at the filter. The deeper the blades are inserted, and the longer the fixture runs, the more heat gets reflected on to the filter, causing it to warp and potentially adhere to the shutter blades.

If there is a protective film on the soft-focus filter, it must be removed before use. The filter is in a holder in the metal gobo slot.

Virtual Color Wheel

The Ovation E-910FC IP includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming.

The DMX values used to mix these colors are provided below. The overall intensity of the Ovation fixture can be adjusted to more closely replicate familiar industry-standard colors. A chart is available on www.chauvetprofessional.com to compare Chauvet's premixed colors with popular gel colors. This chart is for comparison purposes only and is not an assertion that Chauvet's premixed colors match any of the gel colors listed.

Virtual Color Wheel Chart

DMX Value	Display Readout	Red Value	Green Value	Blue Value	Amber Value	Lime Value
000 ⇌ 005	--	-- -- -- --
006 ⇌ 013	C3050 - Md Yellow 233	163 20 123 255
014 ⇌ 021	C3040 - Lt Yellow	224 158 47 255 231
022 ⇌ 028	C3240 - Amb Yellow	180 60 0 245 255
029 ⇌ 035	C2340 - VLt Amber 245	107 81 255 213
036 ⇌ 043	C2040 - Lt Amber	230 130 62 255 155
044 ⇌ 051	C2050 - Md Amber	255 0 25 255 194
052 ⇌ 059	C2060 - Dk Amber	255 0 24 255 150
060 ⇌ 067	C1050 - Lt Red	255 37 27 30 38
068 ⇌ 075	C1080 - Md Red	255 4 17 0	0
076 ⇌ 083	C1020 - NC Pink	238 135 129 255 255
084 ⇌ 091	C1030 - Md Pink	255 131 120 255 195
092 ⇌ 099	C1630 - Dk Pink	250 165 123 255 210
100 ⇌ 107	C1250 - Md Red Amber	255 0 41 195 55
108 ⇌ 115	C1060 - Dk Red Amber	255 0 45 120 30
116 ⇌ 121	C1650 - Magenta	255	50	115	255	115
122 ⇌ 130	C6170 - Dk Magenta	255	35	117	0	0
131 ⇌ 138	C6020 - Lt Lavender	127 122 142 251 255
139 ⇌ 146	C5030 - Lt Blue	0 255 197 100 255
147 ⇌ 154	C5020 - VLt Blue	158 255 189 0 255
155 ⇌ 162	C5430 - Lt Blue2	0 255	180 0 243
163 ⇌ 170	C5070 - Blue	43 255 210 43 36
171 ⇌ 178	C5050 - Md Blue	0	255	218	0	181
179 ⇌ 186	C5060 - Dk Blue	0 210	206 0	118
187 ⇌ 194	C5690 - Indigo 65 0 210 40 55
195 ⇌ 202	C5080 - VDk Blue	0	203	230	0	40
203 ⇌ 210	C5081 - VDk Blue2	40 199 240 0 45
211 ⇌ 218	C4370 - Yel Green	27 255 28 16 104
219 ⇌ 226	C4070 - Green	49 255 55 120 90
227 ⇌ 234	C4550 - Turquoise	60 230 109 0 245
235 ⇌ 242	C4560 - Aqua 20 240 126 36 255
243 ⇌ 250	C4570 - Blue Green	0 255 79 30 53
251 ⇌ 255	--	-- -- -- --

Note: The colors above are simulated renditions of the color output produced compared with other similar incandescent products. Chauvet makes no guarantee of the color output accuracy.

Color Temperature DMX Chart

DMX Value	Color Temperature	Red Value	Green Value	Blue Value	Amber Value	Lime Value
000 ⇌ 005	No function	--- --	--	--
006 ⇌ 025	2800K	187 130 9	7 255 255
026 ⇌ 050	3000K	177	145	105	255	255
051 ⇌ 075	3200K	168 157	113	255 255
076 ⇌ 100	3500K	163 177 1	24 255 255
101 ⇌ 125	4000K	151	195	141	255	255
126 ⇌ 150	4500K	145 214 1	57 255 255
151 ⇌ 175	5000K	138 227 1	70 255 255
176 ⇌ 200	5600K	130	239	184	255	255
201 ⇌ 225	6000K	126 246 1	93 255 255
226 ⇌ 250	6500K	120 254 2	01 255 255
226 ⇌ 250	No function	--	--	--	--	--

Note: The colors above are simulated renditions of the color output produced compared with a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy.

Control Panel Description
Menu Map

Button Function

<MENU>Exists from the current menu or function

<ENTER>Enables the currently displayed menu or sets the currently selected value into the selected function

<UP>Navigates upwards through the menu list or increases the numeric value when in a function

<DOWN>Navigates downwards through the menu list or decreases the numeric value when in a function

Refer to the Ovation E-910FC IP product page on www.chauvetprofessional.com for the latest menu map.

Main Level	Programming Levels Description
DMX Address	001-512*			Selects DMX address (highest channel restricted to personality chosen)
DMX Channel	1Ch 1-channel: dimmer
	4Ch			4-channel: dimmer, VCW, color temperature, gobo rotation
	6Ch 6-channel: RGBAL, gobo rotation
	8Ch 8-channel: dimmer, RGBAL, strobe, gobo rotation
	11Ch			11-channel: 16-bit dimmer, RGBAL, strobe, VCW, color temperature, gobo rotation
	13Ch			13-channel: dimmer, RGBAL, strobe, VCW, color temperature, auto program, auto speed, dimmer speed mode, gobo rotation, red shift
	14Ch			14-channel: 16-bit dimmer, 16-bit RGBAL, strobe, gobo rotation
	17Ch			17-channel: 16-bit dimmer, 16-bit RGBAL, strobe, VCW, color temperature, gobo rotation, red shift
	HSV 4-channel: hue, saturation, value, gobo rotation
Virtual Color Wheel	Virtual Color Wheel	C3050-Md Yellow	Dimmer 0-255	Virtual color wheel simulates the output of each gel color. Refer to the Virtual Color Wheel section for specific values.
		C3040-Lt Yellow
		C3240-Amb Yellow
		C2340-VLt Amber
		C2040-Lt Amber
		C2050-Md Amber
		C2060-Dk Amber
		C1050-Lt Red
		C1080-Md Red
		C1020-NC Pink
		C1030-Md Pink
		C1630-Dk Pink
		C1250-Md Red Amber
		C1060-Dk Red Amber
		C1650-Magenta
		C6170-Dk Magenta
		C6020-Lt Lavender
		C5030-Lt Blue
		C5020-VLt Blue
		C5430-Lt Blue2
		C5070-Blue
		C5050-Md Blue
		C5060-Dk Blue
Main Level	Programming Levels			Description
Virtual Color Wheel (cont.)	Virtual Color Wheel (cont.)	C5690-Indigo	Dimmer 0-255	Virtual color wheel simulates the output of each gel color. Refer to the Virtual Color Wheel section for specific values.
		C5080-VDk Blue
		C5081-VDk Blue2
		C4370-Yel Green
		C4070-Green
		C4550-Turquoise
		C4560-Aqua
		C4570-Blue Green
	Color Temperature	2800K	Dimmer 0-255	Preset white color temperatures. Emulates a tungsten lamp at the specified color temperature. Refer to the Color Temperature DMX Chart section for specific values.
		3000K
		3200K
		3500K
		4000K
		4500K
		5000K
		5600K
		6000K
		6500K
	Manual Color Mixer	Red	0-255	Combine red, green, blue, amber, and lime to make a custom color (0-100%)
		Green
		Blue
		Amber
		Lime
	Color X-Fade Speed	Off Turns off the fade		transition between colors
		X-Fade Speed 1		Creates fade transition between colors when using colors in the Virtual Color Wheel or Color Temperature chart, from fast (X-Fade Speed 1) to slow (X-Fade Speed 4)
		X-Fade Speed 2
		X-Fade Speed 3
		X-Fade Speed 4
Auto Show	Auto 1-5 1-100 Selects automatic programs and program speed
Red Shift	On			Mimics halogen lamp dimming
	Off
Gobo Rotator	0-255 Rotating gobo index
Master/ Slave	Master DMX mode (Master)
	Slave Slave mode
Dimmer Curve	Linear			Sets the dimmer curve
	Square
	I Square
	SCurve
Dimmer Mode	Off Linear dimmer
	Dimmer 1-3			Dimming curves Dimmer 1 (fast) to Dimmer 3 (slow)
White Balance	Off Uses factory default white setting
	Manual	Red	LED maximun value	Sets red LED maximum value
		Green Sets green		mum value
		Blue Sets blue		m value
		Amber Sets amber		mum value
		Lime		Sets lime LED maximum value

Main Level	Programming Levels		Description
LED Frequency	600Hz		Sets the PWM frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Fan Mode	Auto Sets the fan to auto mode
	On Sets the fan to always on
	Off Sets the fan to always off
	Silent Sets the fan to silent
Back Light	10S		Turns off display backlight after 10 seconds of inactivity
	30S		Turns off display backlight after 30 seconds of inactivity
	2Min Turns off display backlight		light after 2 minutes of inactivity
	Always On Display backlight remains on
Key Lock	On		Turns passcode on or off (Password is <UP>, <DOWN>, <UP>, <DOWN>, <ENTER>)
	Off
Gobo Power	On		Enables or disables gobo power output
	Off
Information	Fixture Hours __	H	Shows total hours the product has been powered on
	LED Hours __	H Shows total LED hours
	Version V__Shows current firmware version
	UID __	Shows product UID
Reset Factory	No		Reset the product to factory default settings
	Yes

WARNING: When operating in Fan Mode: Off, the fixture will become hotter to the touch than when using other fan modes. User proper protective equipment to prevent burns. Keep a safe distance from flammable objects.

NOTICE: When operating in Fan Mode: Off, output of the fixture will be reduced and will not reach the same levels as when using other fan modes.

17Ch / 14Ch / 13Ch / 11Ch / 8Ch / 6Ch / 4Ch

DMX Values

4Ch 6Ch 8Ch 11Ch 13Ch 14Ch 17Ch							Function Value Percent/Setting
1	-	1	1	1	1	1	D i m m	e r	000 ⇌ 255 0-100%
-	-	-	2	-	2	2	Dimmer fine	000 ⇌ 255	0-100%
-	1	2	3	2	3	3	R e d	000 ⇌ 255	0-100%
-	-	-	-	-	4	4	Red fine	000 ⇌ 255	0-100%
-	2	3	4	3	5	5	Green	000 ⇌ 255	0-100%
-	-	-	-	-	6	6	Green fine	000 ⇌ 255	0-100%
-	3	4	5	4	7	7	Blue	000 ⇌ 255	0-100%
-	-	-	-	-	8	8	Blue fine	000 ⇌ 255	0-100%
-	4	5	6	5	9	9	Amber	000 ⇌ 255	0-100%
-	-	-	-	-	10	10	Amber fine	000 ⇌ 255	0-100%
-	5	6	7	6	11	11	Lime	000 ⇌ 255	0-100%
-	-	-	-	-	12	12	Lime fine	000 ⇌ 255	0-100%
-	-	7	8	7	1	3	1 3 S t r	000 ⇌ 010 011 ⇌ 255	No function Strobe, slow to fast
2	-	-	9	8	-	14	Virtual color wheel	000 ⇌ 255	See Virtual Color Wheel Chart
3	-	-	10	9	-	15	Color temperature	000 ⇌ 255	See Color Temperature DMX Chart
-	-	-	-	1	0	-	A u t	000 ⇌ 010 011 ⇌ 060 061 ⇌ 110 111 ⇌ 160 161 ⇌ 210 211 ⇌ 255	No function Auto program 1 Auto program 2 Auto program 3 Auto program 4 Auto program 5
-	-	-	-	11	-	-	Auto speed	000 ⇌ 255	Auto speed, slow to fast
4	6	8	11	-	14	16	Gobo rotation	000 ⇌ 127 128 ⇌ 190 191 ⇌ 192 193 ⇌ 255	Gobo index Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast

4Ch	6Ch	8Ch	11Ch	13Ch	14Ch	17Ch	Function	Value Percent/Setting
							Control (hold 3 seconds, then release)	000 ⇌ 007 No function 008 ⇌ 015 Dimmer reset 016 ⇌ 023 Red Shift On 024 ⇌ 031 Red Shift Off 032 ⇌ 039 Dimmer: S-Curve 040 ⇌ 047 Dimmer: Linear 048 ⇌ 055 Dimmer: Square 056 ⇌ 063 Dimmer: Inverse Square 064 ⇌ 071 Dimmer Mode Off 072 ⇌ 079 Dimmer Mode 1 080 ⇌ 087 Dimmer Mode 2 088 ⇌ 095 Dimmer Mode 3 096 ⇌ 103 Fan Auto 104 ⇌ 111 Fan On 112 ⇌ 119 Fan Off 120 ⇌ 127 Fan Silent 128 ⇌ 135 X-Fade Speed: OFF 136 ⇌ 143 X-Fade Speed: 1 (fastest) 144 ⇌ 151 X-Fade Speed: 2 152 ⇌ 159 X-Fade Speed: 3 160 ⇌ 167 X-Fade Speed: 4 (slowest) 168 ⇌ 225 No Function
-	-	-	-	1	2	-

1Ch

Channel	Function Value Percent/Setting
1	Dimmer	000 ⇌ 255	0-100% (color set through menu)

HSV

Channel	Function Value Percent/Setting
1	Hue	000 ⇌ 255	0-100%
2	Saturation	000 ⇌ 255	0-100%
3	Value	000 ⇌ 255	0-100%
4 Gobo rotation		000 ⇌ 127128 ⇌ 190191 ⇌ 192193 ⇌ 255	Gobo indexClockwise rotation, fast to slowStopCounterclockwise rotation, slow to fast

Acerca deEsta Guía

RDM (Remote Device Management)

Intentionally Left Blank Page

Contact Us

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Lerma, Edo. de Mexico, CP 52000

Voice: [phone]

Email: [e-mail]

Email:增值服务@chauvet.com.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

UL 1573

CSAC22.2No.166

US E113093
