EFL200W30V1 - Lighting EtiamPro - Free user manual and instructions

Brand	EtiamPro
Model	EFL200W30V1
Category	Outdoor LED Floodlight
Power Supply	100-240 V~, 50/60 Hz
Rated Power	200 W
Energy Consumption	197 kWh/1000 h
Power Factor	0.95
Recommended Driver	Mean Well ELG-200-48A
Light Source	320 LED SMD (non-replaceable)
Color Temperature	3000 K (warm white)
Color Rendering Index (CRI)	80
Beam Angle	90°
Rated Lifetime	50,000 hours
Switching Cycles	25,000
Protection Rating	IP65 (splashproof)
Impact Resistance	IK08
Dimensions (L x H x D)	404 x 84 x 471 mm
Weight	8050 g
Cable Length	1.5 m (type H07RN-F 3G1.0 mm²)
Ambient Temperature	-25°C to 43°C
Mounting	Outdoor wall, height 0.5-3.0 m, angle 60°
Minimum Illumination Distance	1 m

Frequently Asked Questions - EFL200W30V1 EtiamPro

How to install the EFL200W30V1 floodlight?

First, turn off the power at the circuit breaker. Attach the mounting bracket to the wall using the provided wall plugs, at a height of 0.5 to 3 m at a 60° angle. Route the cable through the grommet and connect it to the wire connector (N=blue, E=yellow/green, L=brown). Tilt the unit and tighten the hinges. Never install the unit upside down.

Can I adjust the brightness?

No, the brightness is not adjustable. The floodlight operates at full power only.

What does the IP65 rating mean?

IP65 means the unit is completely protected against dust (first digit 6) and protected against water jets from all directions (second digit 5). It can therefore be used outdoors.

How to clean the floodlight?

Turn off the unit and unplug it. Use a damp, lint-free cloth. Never use alcohol or solvent. Dry thoroughly before turning back on.

Can I replace the LED light source?

No, the light source is not replaceable. When it reaches its end of life (50,000 h), replace the entire unit.

What lenses are available and how to change them?

Interchangeable lenses are available: ref. EFLV1L1, EFLV1L2 and EFLV1L3. To change them, insert a screwdriver into the hole to unlock, unscrew the old lens and insert the new one. Close by clipping the cover back on.

What are the risks of incorrect installation?

Risk of electrocution, fire or the unit falling. Call a qualified electrician if you lack experience. The warranty does not cover damage due to incorrect installation.

Does the floodlight come with a switch?

No, there is no built-in switch. To cut the power, use the circuit breaker for the lighting circuit.

What is the lifespan of the floodlight?

The rated lifespan is 50,000 hours, with an estimated number of switching cycles of 25,000.

What are the warranty conditions?

For private use within the EU, the warranty is 24 months against manufacturing defects. It does not cover damage due to incorrect use, normal wear or unauthorized repairs. Keep the proof of purchase.

USER MANUAL EFL200W30V1 EtiamPro

EFL60W30V1/EFL120W30V1/EFL200W30V1 EFL60W40V1/EFL120W40V1/EFL200W40V1

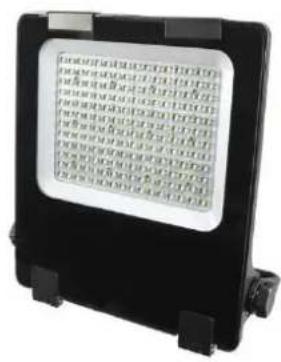

EFL60W30V1/EFL60W40V1

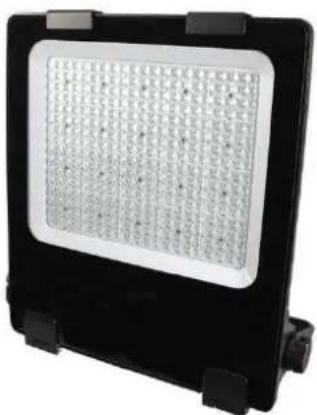

EFL120W30V1/EFL120W40V1

EFL200W30V1/EFL200W40V1

USER MANUAL 5

HANDLEIDING 12

MODE D'EMPLOI 19

MANUAL DEL USUARIO 26

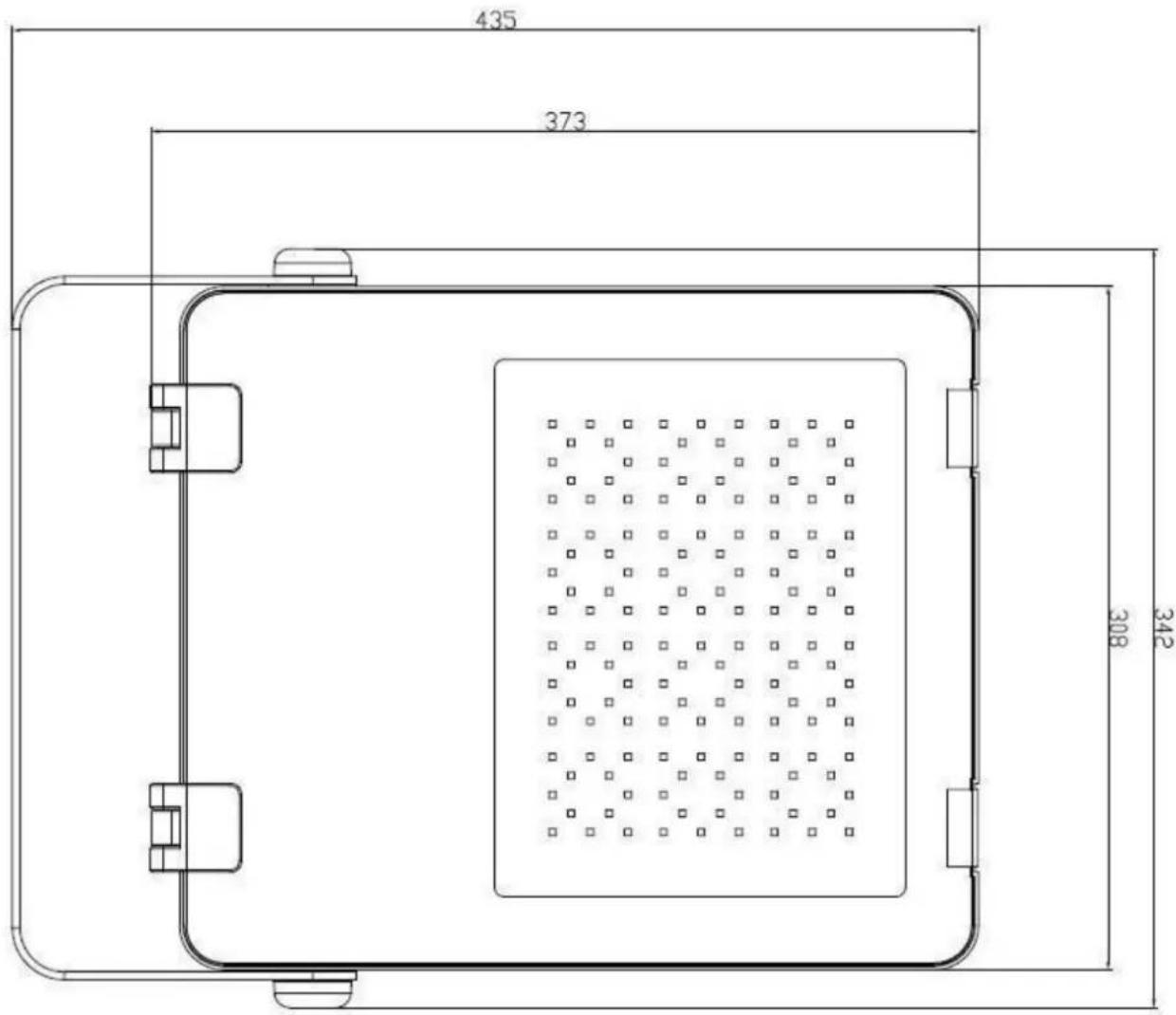

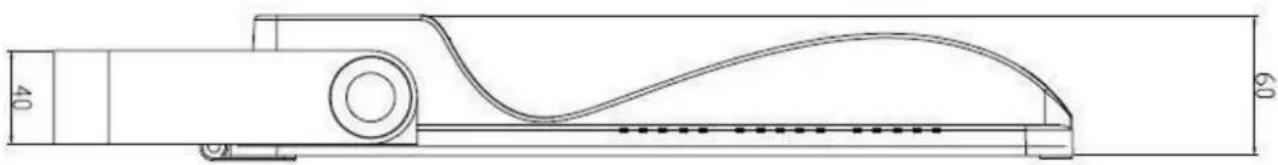

EFL120W30V1/EFL120W40V1

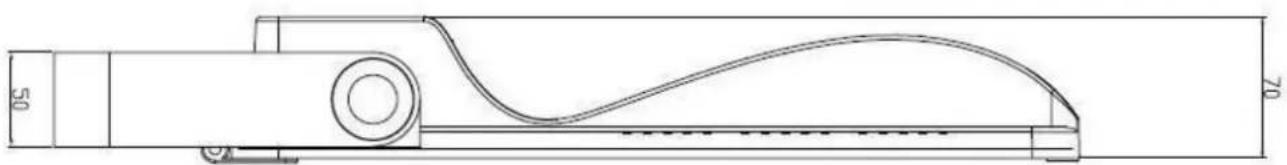

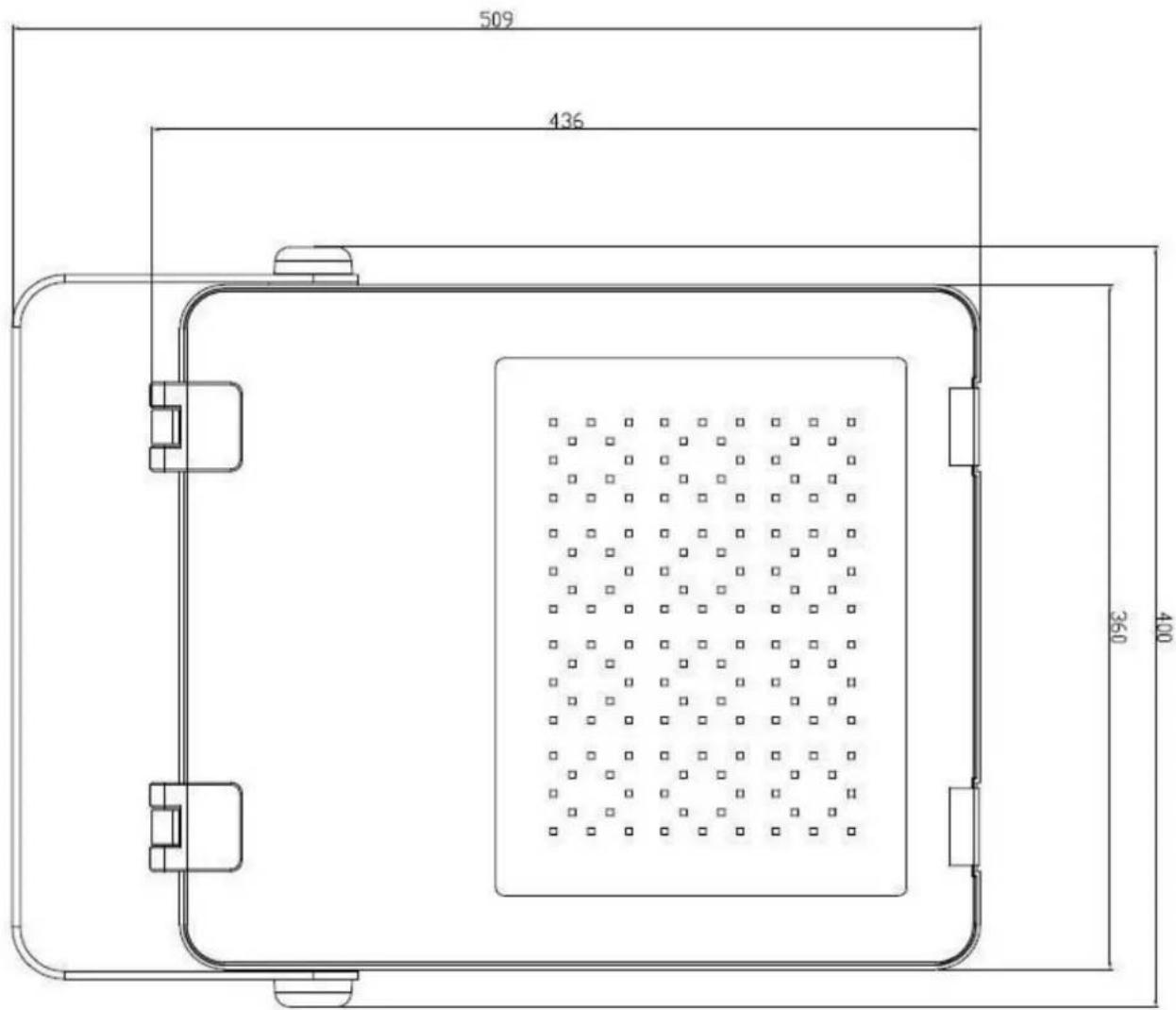

EFL200W30V1/EFL200W40V1

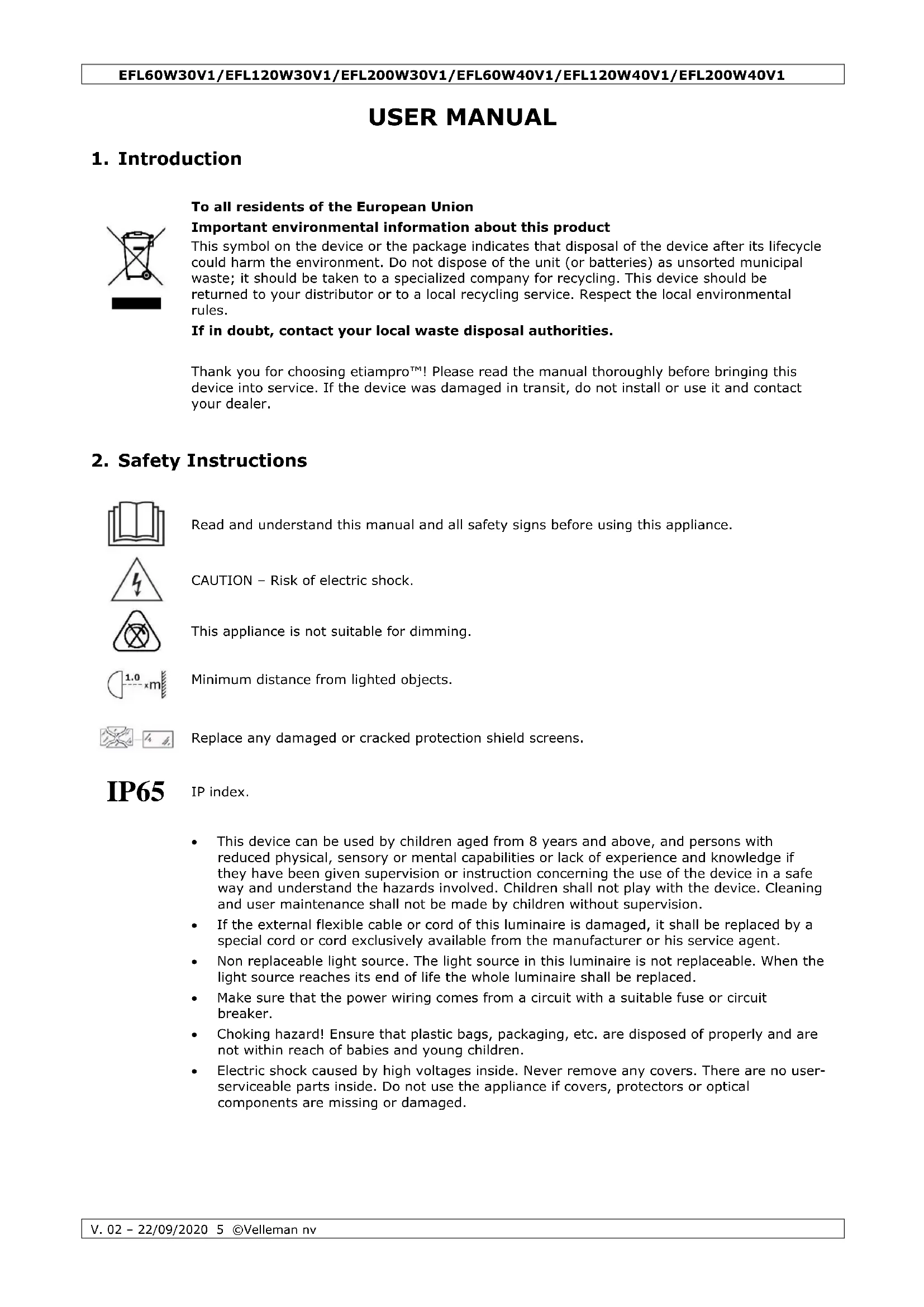

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing etiampro™! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

CAUTION - Risk of electric shock.

This appliance is not suitable for dimming.

Minimum distance from lighted objects.

Replace any damaged or cracked protection shield screens.

IP65

IP index.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
• Non replaceable light source. The light source in this luminaire is not replaceable. When the light source reaches its end of life the whole luminaire shall be replaced.
• Make sure that the power wiring comes from a circuit with a suitable fuse or circuit breaker.
• Choking hazard! Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children.

• Electric shock caused by high voltages inside. Never remove any covers. There are no user-serviceable parts inside. Do not use the appliance if covers, protectors or optical components are missing or damaged.

• Electric shock caused by short-circuit. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician.

• Eye damage caused by high light intensity. Never look directly into the light source.
• Risk of epileptic shock. Strobe lighting can trigger seizures in photosensitive epilepsy.
  Sensitive persons should avoid looking at strobe lights.
• Risk of fire. Do not cover the appliance nor any ventilation slots. Do not place the appliance near any direct heat source. Keep the appliance away from naked flames.

3. General Guidelines

Refer to the Velleman 假 Service and Quality Warranty on the last pages of this manual.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Nor Velleman nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) - of any nature (financial, physical...) arising from the possession, use or failure of this product.
- Keep this manual for future reference.

4. Installation

WARNING!

• Some countries may require installation of this appliance by a qualified electrician. Please check the laws and requirements in your country. If the housing is of aluminium, consult with an electrician about proper wiring methods.
• Before proceeding installation, switch off the power to the lighting circuit at the circuit breaker or fuse box to avoid electrical shocks.

Guidelines

• The construction to which the appliance is attached should be able to support 4 times the weight of the appliance for one hour without deformation.
• Never stand directly below the appliance when it is being mounted, removed or serviced. Have a qualified technician check the appliance once a year and once before you bring it into service.
  Overhead mounting requires extensive experience: calculating workload limits, determining the installation material to be used... Have the material and the appliance itself checked regularly. Do not attempt to install the appliance yourself if you lack these qualifications as improper installation may result in serious injuries.

Distances

• Keep at least 20~cm distance at the top and 30~cm on either side.
• Respect a minimum distance of 1m between the appliance's light output and any illuminated surface.

Choosing an Appropriate Location

• Please avoid installing the appliance upside-down in order to ensure its watertightness.
• The appliance should be fixed to a stable outdoor wall made of a non-flammable material approximately between 0.5 - 3.0m above the ground and at an angle of ± 60^ , preferably in a location under eaves where the unit is protected from the elements and shielded from direct sunlight.
  Do not install the appliance close to air conditioning vents, radiators, etc.

Mounting and Connection

1. This appliance does not have a built-in device to disconnect it from the electric mains. Make sure to electrically isolate the luminaire before installation or maintenance activities are performed.
2. Use the mounting bracket to determine the location of the mounting holes.
3. Drill the holes and secure the bracket using screws and wall plugs.
4. Connect the power cable to the screw terminal. Make sure there is no strain on the cable; leave sufficient slack.

N = neutral, blue

E = earth, yellow/green

L = line, brown

1. Tilt the lamp in the desired angle and tighten the hinges.

Changing the Lenses

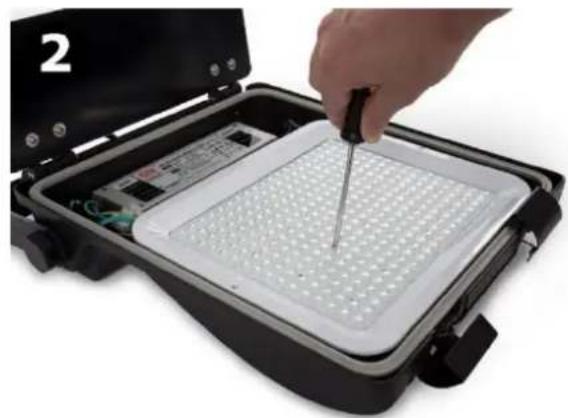

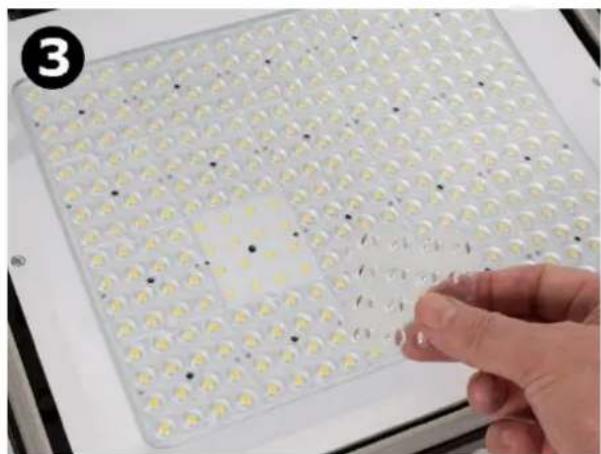

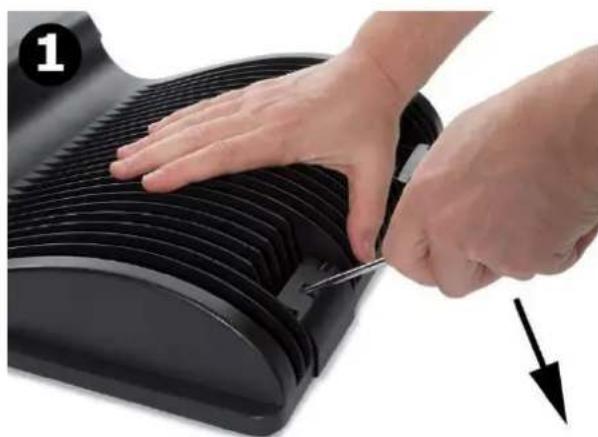

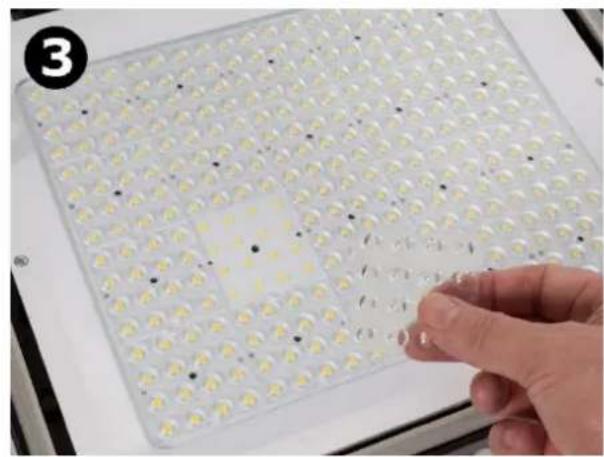

Other lenses are available if you want to change the beam angle. To open the appliance, insert a screwdriver into the clamp hole and press down to unlock.

Unscrew the lenses and install the new ones.

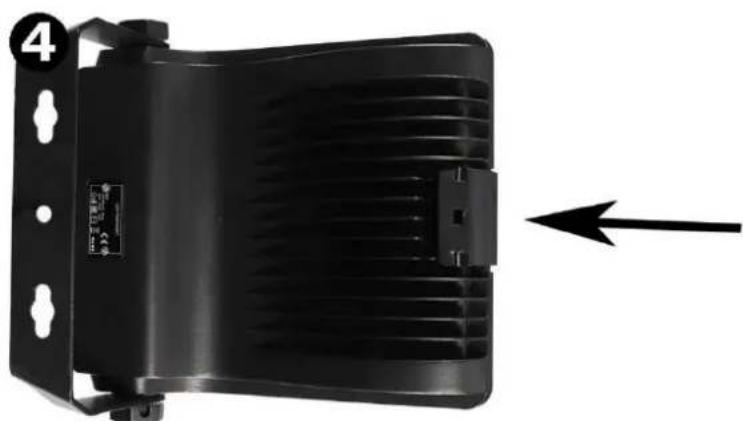

To close, press the clamp perpendicular to the appliance until it locks over the protection shield screen.

Please go to the product's page on www.velleman.eu for more information on the lenses (Velleman order number EFLV1L1, EFLV1L2, EFLV1L3), the different IES files and photometric test reports for each lens, and an explanatory video on how to open or close the appliance.

For more information about the power supply, please contact Mean Well Europe BV at www.meanwell.eu.

5. Care and Maintenance

Care

• This appliance does not need any particular maintenance. However, regularly check the mounting installation and external flexible cable or cord. Do not use the appliance if there is visible damage.

Cleaning

Regularly clean the protection shield screens to optimize the light output.
- The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the appliance.
- Before cleaning, switch off the appliance and disconnect from the mains. Use a lint-free damp cloth for cleaning. Never use solvents or alcohol for cleaning. Always dry the parts carefully.

Storage

• Store the appliance in its original package in a dry and clean place.

6. Technical Specifications

EFL60W30V1/EFL60W40V1

mechanical impact. 1K08

electrical data

power LED module. 96 x SMD LEDs

total nominal power 60 w

nominal voltage driver 100-240 V\~, 50/60 Hz

power factor 0.95

energy consumption 61 kWh/1000 h

recommended power supply Mean Well ELG-75-48A

light technical data

colour

EFL60W30V1...warm white

EFL60W40V1. neutral white

colour temperature

EFL60W30V1 3000K

EFL60W40V1 4000K

beam angle. 90°

luminous flux 8500 lm

colour rendering index 80

starting time. < 0.5s

warm-up time (60 %) < 1 s

lifespan

nominal lifetime 50 000 h

number of switching cycles 25000

cable type. H07RN-F 3G1.0mm2

cable length 1.5 m

dimensions (W× H× D) 289 x 69 x 364 mm

weight 3850g

ta 25°C

tx 43°C

_a Environmental temperature.
t_x Steady-state housing temperature.

EFL120W30V1/EFL120W40V1

mechanical impact. IK08

electrical data

power LED module. 192 x SMD LEDs

total nominal power 120 W

nominal voltage driver 100-240 V\~, 50/60 Hz

power factor 0.95

energy consumption 121 kWh/1000 h

recommended power supply Mean Well ELG-150-48A

light technical data

colour

EFL120W30V1 .warm white

EFL120W40V1 .neutral white

colour temperature

EFL120W30V1 3000K

EFL120W40V1 4000K

beam angle. 90°

luminous flux 16600 Im

colour rendering index 80

starting time. < 0.5s

warm-up time (60 %) < 1 s

lifespan

nominal lifetime 50 000 h

number of switching cycles 25000

cable type. H07RN-F 3G1.0mm2

cable length 1.5 m

dimensions (W× H× D) 352x69x405mm

weight 5300g

25 °C

tx 43C

t_a Environmental temperature.

t_x Steady-state housing temperature.

EFL200W30V1/EFL200W40V1

mechanical impact. 1K08

electrical data

power LED module. 320 x SMD LEDs

total nominal power 200 W

nominal voltage driver 100-240 V\~, 50/60 Hz

power factor 0.95

energy consumption

EFL200W30V1 197 kWh/1000 h

EFL200W40V1 196 kWh/1000 h

recommended power supply Mean Well ELG-200-48A

light technical data

colour

EFL200W30V1. warm white

EFL200W40V1 .neutral white

colour temperature

EFL200W30V1 3000K

EFL200W40V1 4000K

beam angle. 90°

luminous flux

starting time. < 0.5s

warm-up time (60%) < 1 s

lifespan

nominal lifetime 50 000 h

number of switching cycles 25000

cable type. H07RN-F 3G1.0mm²

cable length 1.5 m

dimensions (W× H× D) 404 x 84 x 471 mm

weight 8050 g

25°C

tx. 43oC

t_a Environmental temperature.

t_x Steady-state housing temperature.

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.VELLEMAN.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved.

No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
