Product type	Passive direct box
Reference	PWIPPER
Number of channels	1 (mono summing possible)
Inputs	2 x 6.35 mm TS (INPUT A and INPUT B/THRU)
Outputs	1 x XLR male balanced (OUTPUT), 1 x TS THRU
Input attenuation (Pad)	0 dB / -30 dB (switchable)
Ground Lift switch	Yes (LIFT / GND)
Additional functions	Mono summing, galvanically isolated transformer
Frequency response	10 Hz - 60 kHz (±0.2 dB)
Input impedance	47 kΩ (1 kHz, 0 dB Pad)
Output impedance	33 Ω (1 kHz, 0 dB Pad)
Max input level (< 1% THD)	+24 dBu (20 Hz), +32 dBu (1 kHz)
Distortion (THD)	< 0.02% (30 Hz, +4 dBu), < 0.0007% (1 kHz, +4 dBu)
Housing material	Continuous cast aluminum
Dimensions (H x W x D)	140 x 50 x 68 mm
Weight	0.43 kg
Operating temperature	-20 °C to 70 °C
Relative humidity	< 80% (non-condensing)
Included accessories	Rubber feet, labeling sticker
Intended use	Professional (stage, studio, broadcast)
Safety instructions	Do not open, do not modify, keep out of reach of children
Cleaning and maintenance	Use a dry cloth, avoid moisture

Frequently Asked Questions - Wipper Palmer

What is the Palmer Wipper direct box?

The Palmer Wipper is a passive direct box designed to convert an unbalanced audio signal into a balanced one. It allows connecting instruments (electric guitar, bass, keyboard) or the speaker output of an amplifier to a mixer or audio interface, while eliminating hum over long distances.

How do I connect my guitar to the mixer via the Wipper?

Plug your guitar into the INPUT A (6.35 mm TS) using a shielded instrument cable. Connect the OUTPUT (XLR male) to a balanced input on the mixer with a shielded XLR cable. Make sure the channel is muted when connecting.

What is the PAD switch for?

The PAD switch attenuates the input signal by 30 dB. Use it if the mixer or audio interface input is overloaded (distortion). When pressed, the attenuation is active.

How do I use the Ground Lift function?

The LIFT/GND switch disconnects the ground connection between input and output to eliminate ground loops. When not pressed (LIFT), the ground is lifted; when pressed (GND), the connection is maintained. Test both positions to reduce hum.

Can I connect two sources simultaneously?

Yes, by pressing the INPUT B switch (No. 3), the THRU/INPUT B jack becomes a second input. The signals from inputs A and B are then summed to mono on the OUTPUT. Ideal for connecting a stereo keyboard in mono.

What is the maximum power rating on the speaker input?

If you connect the speaker output of an amplifier to the INPUT A, the power must not exceed 120 W at 8 ohms. Do not use an amplifier in bridge mode with the direct box.

How do I use the THRU output?

The THRU output (6.35 mm TS) provides the input signal unchanged. It can be used to connect a guitar amplifier or another direct box in parallel. When the INPUT B switch is pressed, this jack becomes an additional input.

What cables should I use with the Wipper?

Use shielded instrument cables for the TS inputs (guitar, keyboard) and balanced XLR cables for the output to the mixer. For the speaker output, use a suitable speaker cable. Avoid unshielded cables.

Does the direct box require power?

No, the Palmer Wipper is a passive model, it requires no external power or battery. The internal transformer works without electricity, making it very reliable.

How do I clean and maintain the Wipper?

Clean the housing with a dry, soft cloth. Do not use chemical or abrasive cleaners. Avoid moisture and extreme temperatures. Store it in a dry, dust-free place. Never open it.

USER MANUAL Wipper Palmer

be true to your sound

INPUT A DIP-BOX passive wipper Palmer®

years

guarantee

DI-box

passive

wipper

wipper FRANKFURT

5. PAD (Passive Attenuation Device)

Ausgangsanschlüsse XLR

ENTSORGUNG

VERPACKUNG:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

wipper FRANKFURT

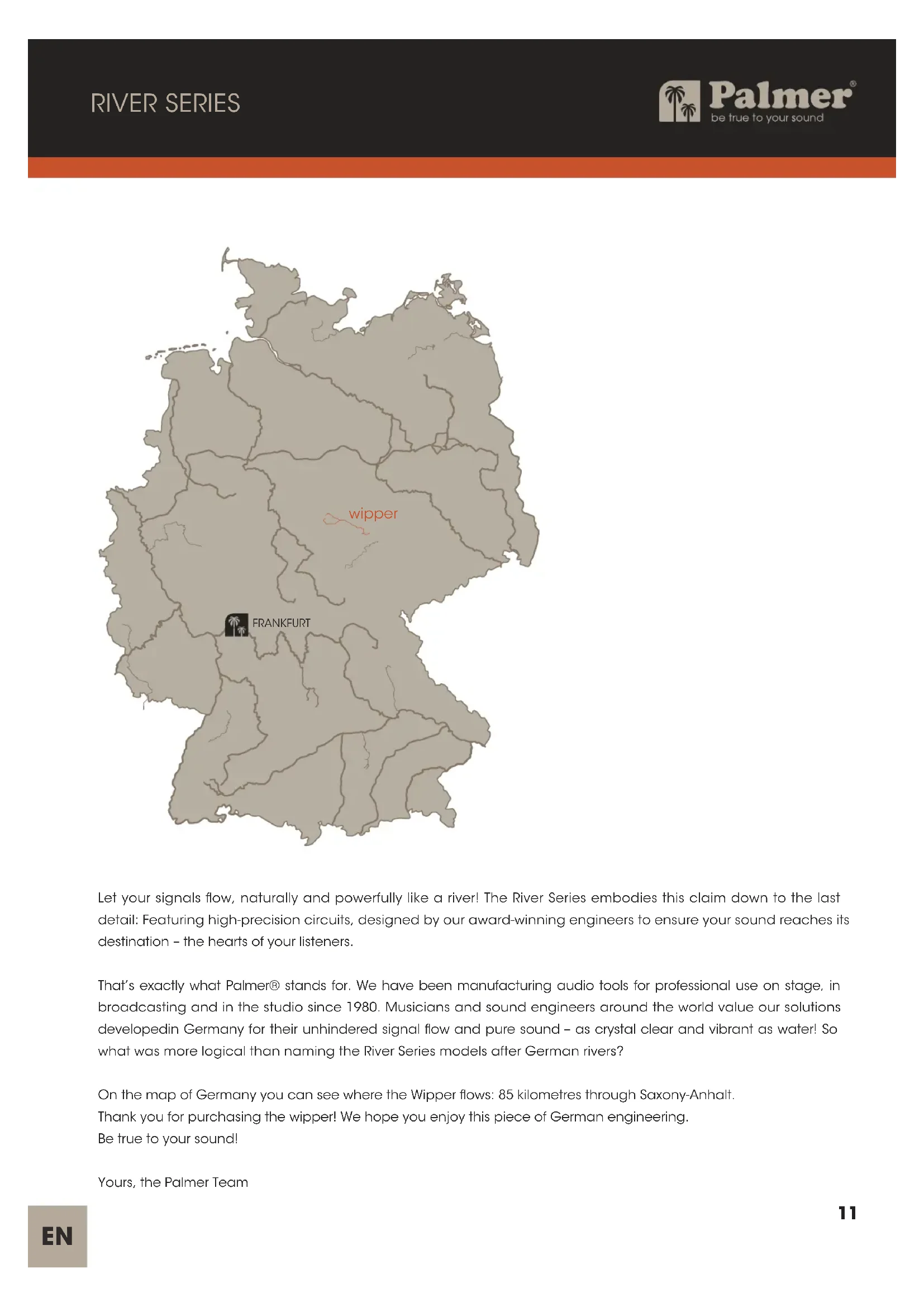

Let your signals flow, naturally and powerfully like a river! The River Series embodies this claim down to the last detail: Featuring high-precision circuits, designed by our award-winning engineers to ensure your sound reaches its destination – the hearts of your listeners.

That's exactly what Palmer® stands for. We have been manufacturing audio tools for professional use on stage, in broadcasting and in the studio since 1980. Musicians and sound engineers around the world value our solutions developed in Germany for their unhindered signal flow and pure sound - as crystal clear and vibrant as water! So what was more logical than naming the River Series models after German rivers?

On the map of Germany you can see where the Wipper flows: 85 kilometres through Saxony-Anhalt.

Thank you for purchasing the wipper! We hope you enjoy this piece of German engineering.

Be true to your sound!

Yours, the Palmer Team

wipper

DI box

passive

INTENDED USE

This product is a device for event technology, as well as studio, TV and broadcast!

This product has been developed for professional use in the field of event technology, studio, TV and broadcast.

It is not suitable for household use!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology, as well as studio, TV and broadcast!

Use of the product outside the specified technical data and operating conditions is considered inappropriate!

Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

This product is not suitable for:

▶ Persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
Children (children must be instructed not to play with the device).

SAFETY INSTRUCTIONS

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Use the device in the prescribed manner only.
5. Do not open the device and do not perform any modifications.

CHOKING HAZARD! KEEP OUT OF THE REACH OF CHILDREN! THE PRODUCT CONTAINS SMALL PARTS AND PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF THE REACH OF CHILDREN!

INTRODUCTION

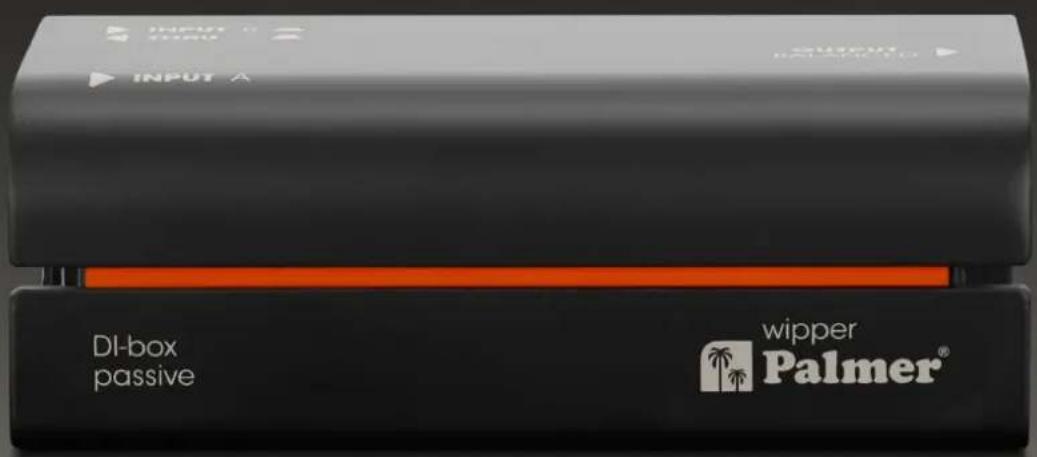

The DI box wipper is a professional studio and stage tool that transforms an unbalanced audio signal into a balanced audio signal. The internal transformer offers excellent dynamic range and excellent overload stability. The DI box is used as a link to connect string instruments with pickups such as electric acoustic guitars, electric guitars and electric basses, instruments with line outputs such as keyboards, as well as speaker outputs from guitar amplifiers to balanced mixer inputs or audio interfaces. With the DI box, audio signals can also be transmitted over long cable runs without humming.

wipper

DI box passive

CONNECTIONS AND OPERATING ELEMENTS

1. INPUT A

Audio input with 6.3 mm jack socket.

A. Connect an instrument using a shielded instrument cable.

B. Connect the speaker output of a guitar amplifier using a speaker cable (tip: Press PAD switch no. 5).

2 3 1 THRU INPUT B

WARNING: Amplifiers must not be operated in bridge mode on the DI box.

WARNING: If an amplifier is operated on the DI box, the ground connection between t and output must be disconnected (switch no. 6 in the non-pressed LIFT position).

WARNING: The amplifier output of a connected amplifier must not exceed 120 W at 8 ohms!

ATTENTION: When using a tube amplifier: There is no load resistance in the DI box circuit! In order to avoid damage to the amplifier, a suitable guitar speaker or a suitable load resistor must be connected to the THRU jack socket using a speaker cable before switching on the plifier, and switch no. 3 must be in the unpressed LINK OUT position!

2. THRU/INPUT B

THRU: The input signal (INPUT A no. 1) is output unchanged via the 6.3 mm jack socket (switch no. 3 in non-pressed position).

INPUT B: In addition to INPUT A, the 6.3 mm jack socket can be used as a second line input (e.g. keyboard L + R); the signals from INPUT A and INPUT B are mono summed and output at the line output OUTPUT (no. 4) (switch no. 3 in pressed position).

3. SWITCH THRU/INPUT B

Switch not pressed (THRU): The input signal (INPUT no. 1) is output unchanged via the 6.3 mm THRU/INPUT B jack socket.

Switch pressed (INPUT B): In addition to INPUT A (no. 1), the 6.3 mm THRU/INPUT B jack socket can be used as a second line input.

wipper

DI box passive

CONNECTIONS AND OPERATING ELEMENTS

4. OUTPUT

Balanced audio output with a male 3-pin XLR socket. Use a balanced, shielded cable (e.g. microphone cable) to connect the DI box to a balanced input on a mixer or audio interface.

5. PAD (Passive Attenuation Device)

Move the switch to the pressed position to lower the level of the output signal level by 30 dB. Lowering the output level is necessary if the channel input level of the connected mixer or audio interface is distorted.

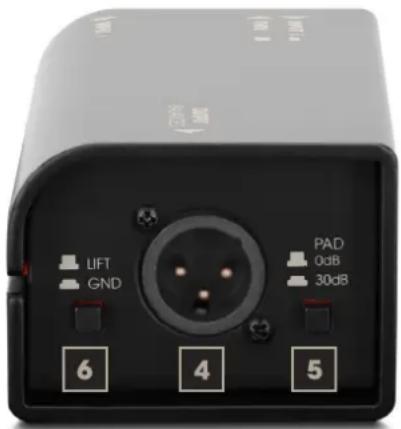

LIFT GND PAD 0dB 30dB 6 4 5

6. LIFT/GND

Switch for disconnecting the ground connection from the input and output (ground lift). In the non-pressed position, the ground connection is disconnected; the connection is established when the switch is pressed. The ability to prevent a humming loop using the ground lift switch depends on the grounding of the connected device. It is therefore possible that both one and the other switch position is able to effectively reduce or eliminate humming.

ATTENTION: Connecting signal cables can cause a lot of noise. Make sure that the input channel (mixer, audio interface, etc.) and devices connected to the THRU output are muted when plugging in. Otherwise, noise levels may cause damage.

PLEASE NOTE: STRONG MAGNETIC FIELDS CAN CAUSE HUMMING. THEREFORE, DO NOT POSITION THE DI BOX NEAR STRONG MAGNETIC FIELDS (E.G. MAINS TRANSFORMER).

WIRING EXAMPLES

TECHNICAL DATA

GENERAL

Product number PWIPPER

Product type DI box

No. of channels 1

Type

passive

Transformer isolated yes

No. of inputs 2

Input type unbalanced

Input connections

6.3 mm jack

No. of outputs 1

Output type balanced

Output connections XLR

THRU outputs per channel 1

Input attenuation (pad) 0/30 dB

Ground/lift switch

yes

Additional functions

Mono summing

Housing

Aluminium continuous casting

Dimensions (H/W/D)

140 x 50 x 68 mm

Weight

0.43 kg

Ambient temperature for operation

-20°C...70°C

Relative air humidity

<80%, non-condensing

Included accessories

Rubber feet, label (tour label)

AUDIO

Max. input level (< 1% THD, 20 Hz)

+24 dBu

Max. Input level (< 1% THD, 1 kHz)

+32 dBu

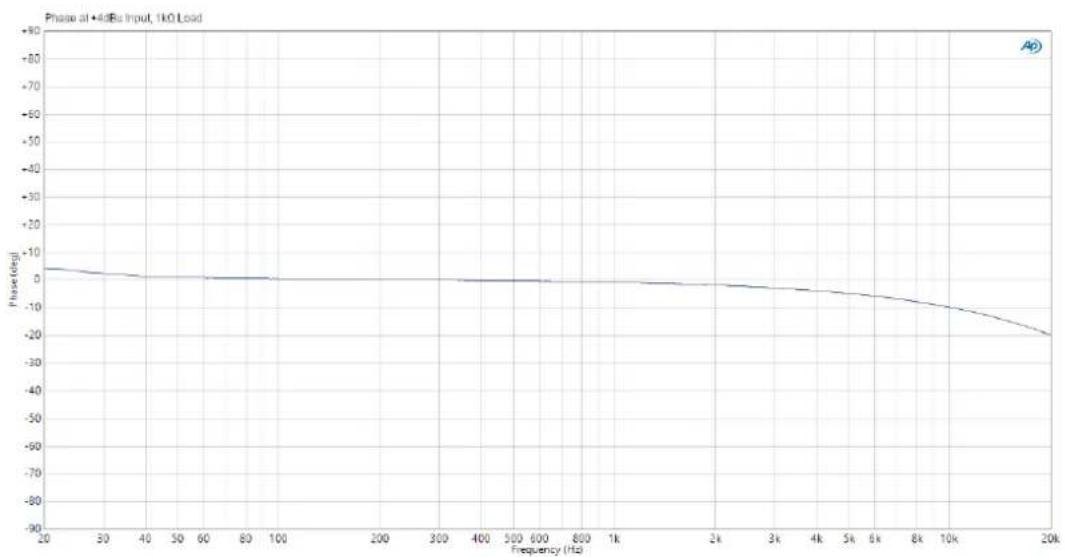

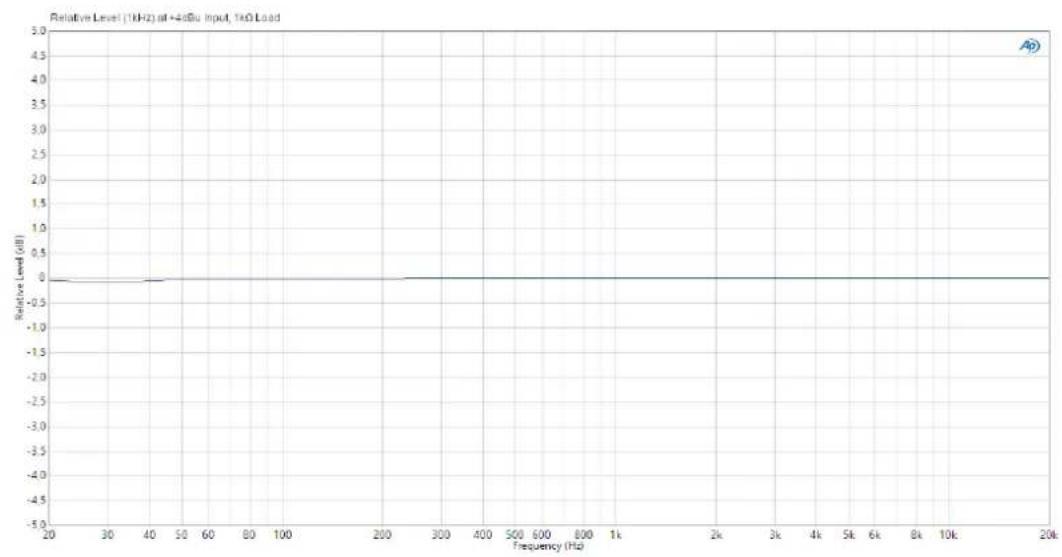

Frequency response (±0.2 dB, relative 1 kHz)

10 Hz-60 kHz

Input impedance (1 kHz, setting: 0 dB Pad, THRU)

47 kΩ

Output impedance (1 kHz, setting: 0 dB Pad, THRU)

33 Ω

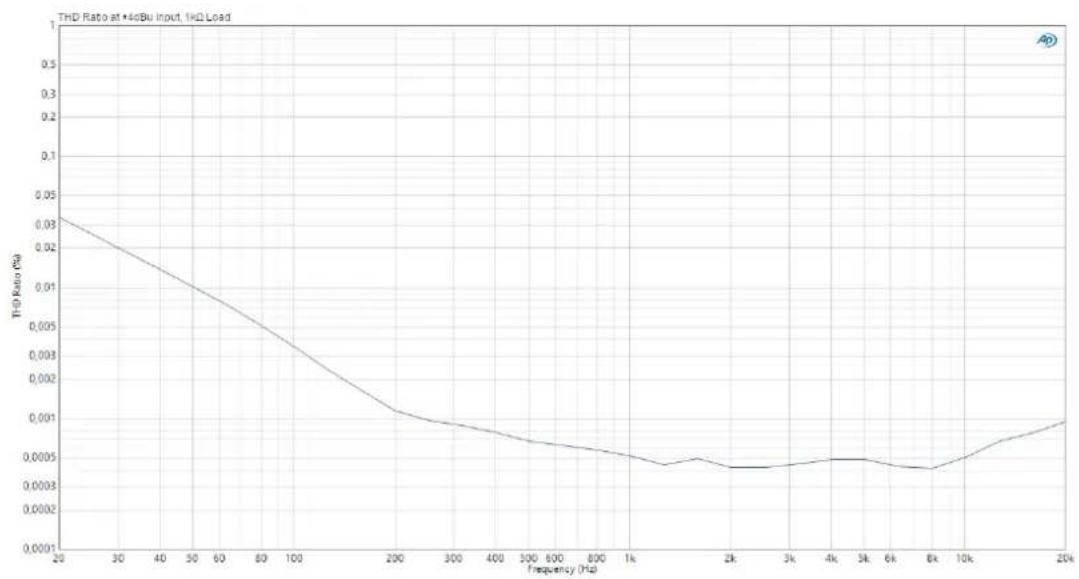

THD (30 Hz, +4 dBu, unity, unweighted)

< 0.02%

THD (1 kHz, +4 dBu, unity, unweighted)

< 0.0007%

IMD (SMPTE) (60 Hz/7 kHz, 4:1, +4 dBu)

< 0.002%

Transformer ratio

10:1

All measurements were performed with a generator with 600 Ω output impedance and 1 kΩ balanced load.

DISPOSAL

PACKAGING:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Waste Electrical and Electronic Equipment Directive in the currently valid version. WEEE Waste Electrical and Electronic Equipment Directive. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!

2. Observe all disposal laws applicable in your country.

3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

BATTERIES:

1. Batteries should not be disposed of in household waste. Batteries and rechargeable batteries must be disposed of via an approved disposal company or a municipal disposal facility.
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or through the relevant regional authorities.
4. Devices with batteries that cannot be removed by the user must be taken to a collection point for electrical appliances.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty & limitation of liability

Adam Hall GmbH

Adam-Hall-Str. 1

61627, Neu-Anspach, Germany

Email: [e-mail] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-PALMER_DE_EN_ES_FR.pdf

Contact your distribution partner for service.

CE CONFORMITY

Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable): Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

EC DECLARATION OF CONFORMITY

Declarations of conformity for products that are subject to the LVD, EMC, RoHS Directives, can be requested at [e-mail]. Declarations of conformity for products that are subject to the RED Directive can be downloaded at www.adamhall.com/compliance/

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

SUBJECT TO MISPRINTS AND ERRORS, AS WELL AS TECHNICAL OR OTHER MODIFICATIONS!
