X801DCU - GPS device ALPINE - Free user manual and instructions

Product type	GPS device with multimedia player
Brand	Alpine
Model	X801DCU
Chassis dimensions (W x H x D)	178 x 100 x 164 mm
Face dimensions (W x H x D)	190 x 121 x 22 mm
Weight	2.9 kg
Power supply	14.4 V DC (11-16 V allowed)
Maximum output power	50 W x 4
Screen size	8 inches
Screen resolution	800 x 480 pixels (RGB)
Main functions	GPS navigation, FM/MW/LW radio, DAB/DAB+/DMB, USB, HDMI, iPod/iPhone, hands-free Bluetooth, voice control, favorites
Supported audio formats (USB)	MP3, WMA, AAC, FLAC
Bluetooth version	Bluetooth V2.1+EDR
Bluetooth profiles	HFP, OPP, PBAP, A2DP, AVRCP, SPP
HDMI input	720p/480p/VGA
HDMI output	480p
Recommended fuse	Use a fuse of appropriate amperage (not specified)
Operating temperature	-20 °C to +60 °C
Safety	Do not watch video while driving, installation by expert, do not disassemble, use on 12 V negative ground vehicle
Maintenance and cleaning	Avoid moisture and dust; do not obstruct air vents
Spare parts and repairability	Contact an authorized Alpine distributor for repair; use only specified accessories

Frequently Asked Questions - X801DCU ALPINE

How to pair my Bluetooth phone with the Alpine X801DCU?

Go to Menu > Settings > Bluetooth and make sure Bluetooth is set to On. Press Register Bluetooth Devices then Search. Select your phone from the list and choose Audio, Hands-free or Both. Confirm the code if prompted.

How to add an item to the Favorites screen?

Press the ★ (Favorites) key, then Editor. Press Add and select the category then the desired item. You can add up to 54 items on 6 pages.

How to adjust the device volume?

Use the rotary knob /DOWN/UP (depending on model) or the MUTE button. To mute, briefly press the AUDIO button or the rotary knob.

How to use GPS navigation to go home?

Press the NAVI/NAV button for at least 2 seconds to display the route home. If the address is not set, the configuration screen appears.

Can I connect a USB flash drive to this device?

Yes, connect a USB flash drive to the designated port. The device reads audio files in MP3, WMA, AAC and FLAC formats. Maximum current consumption is 1500 mA.

How to make a hands-free call?

Make sure your phone is paired. For an incoming call, press the notification screen. To make a call, use the phonebook or keypad from the phone screen.

What to do if the screen is black or unresponsive?

Press the reset button (RST button on the front) with a stylus. If the problem persists, turn off the power for a few seconds then turn it back on.

How to switch between audio sources?

Press the AUDIO button to display the Audio/Visual screen. Then press again to change source (Radio, USB, iPod, etc.). You can also use the touch screen.

Is it possible to watch a video while driving?

No, it is forbidden to watch television or video while driving. The system is designed so that the driver cannot view video unless the parking brake is applied.

How to update navigation maps?

Refer to the instruction manual provided on the CD-ROM or contact your Alpine dealer. Updates are not detailed in this manual.

USER MANUAL X801DCU ALPINE

KPATKOE CINPABOUHOE PYKOBOJCTBO

SKROCONA INSTRUKCJA DLA UZYTKOWNIKA

Contents

WARNING 2
CAUTION 3
Getting Started 4
Favourite Function. 6
Registering Items 6
Radio/RDS Operation 7
DAB/DAB+/DMB Operation 8
USB Flash drive Operation (Optional) 9
HDMI Device (DVD Player) Operation (Optional) 10
iPod/iPhone Operation (Optional) 11
Hands-Free Phone Control 12

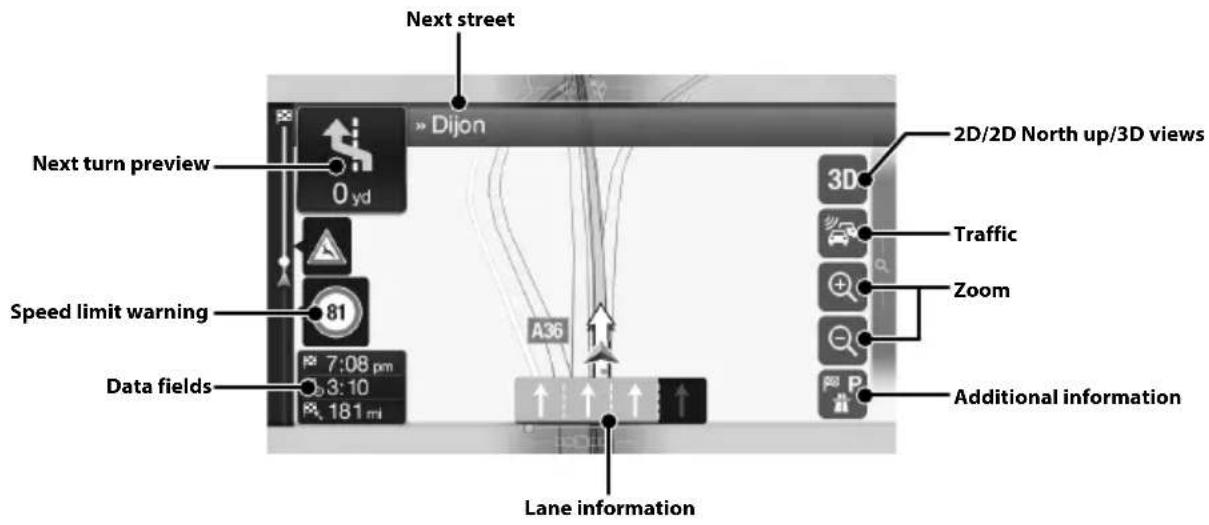

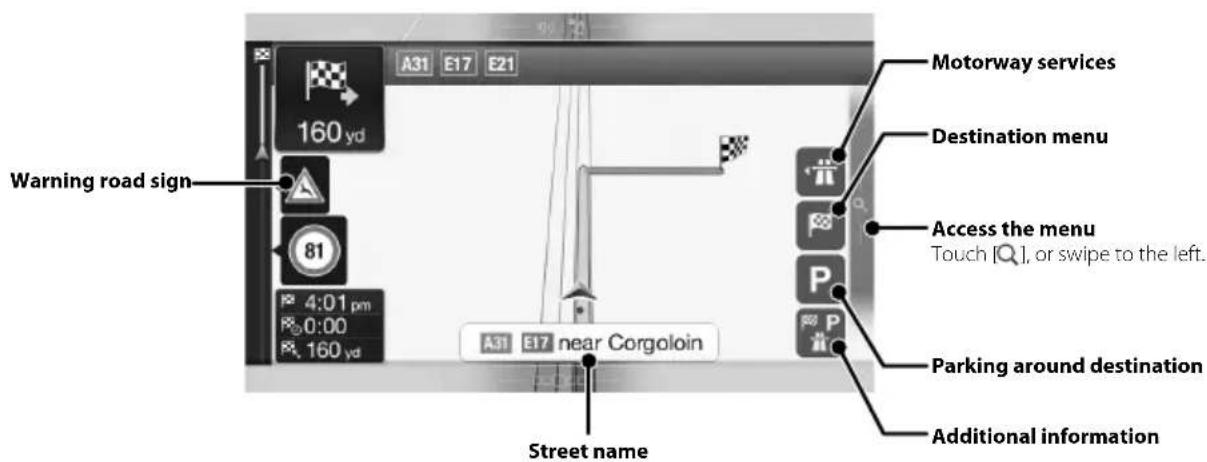

Map Functions 13

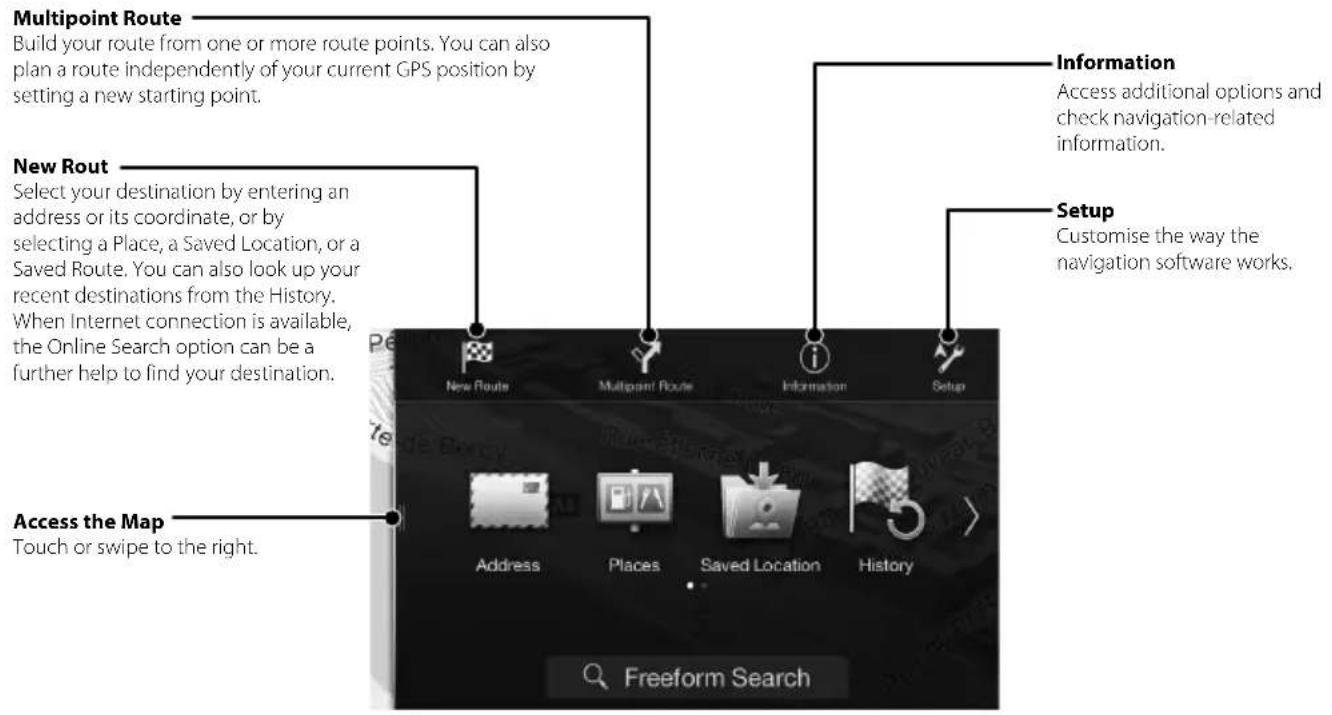

Navigation Menu. 14

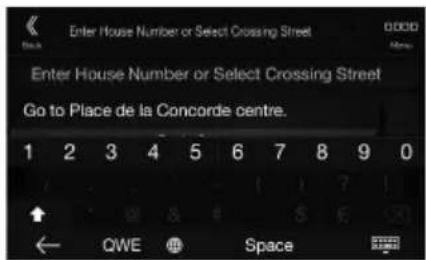

Setting a Destination 15
Specifications 16

IMPORTANT

Please record the serial number of your unit in the space provided below and keep it as a permanent record.

SERIAL NUMBER:
ISO SERIAL NUMBER: AL
INSTALLATION DATE:
INSTALLATION TECHNICIAN:
PLACE OF PURCHASE:

For details on all functions, refer to the Owner's Manual stored in the supplied CD-ROM. (As it is data CD, the CD cannot be used for playing back music and images on the player.) If required, an ALPINE dealer will readily provide you with a print out of the Owner's Manual contained in the CD-ROM.

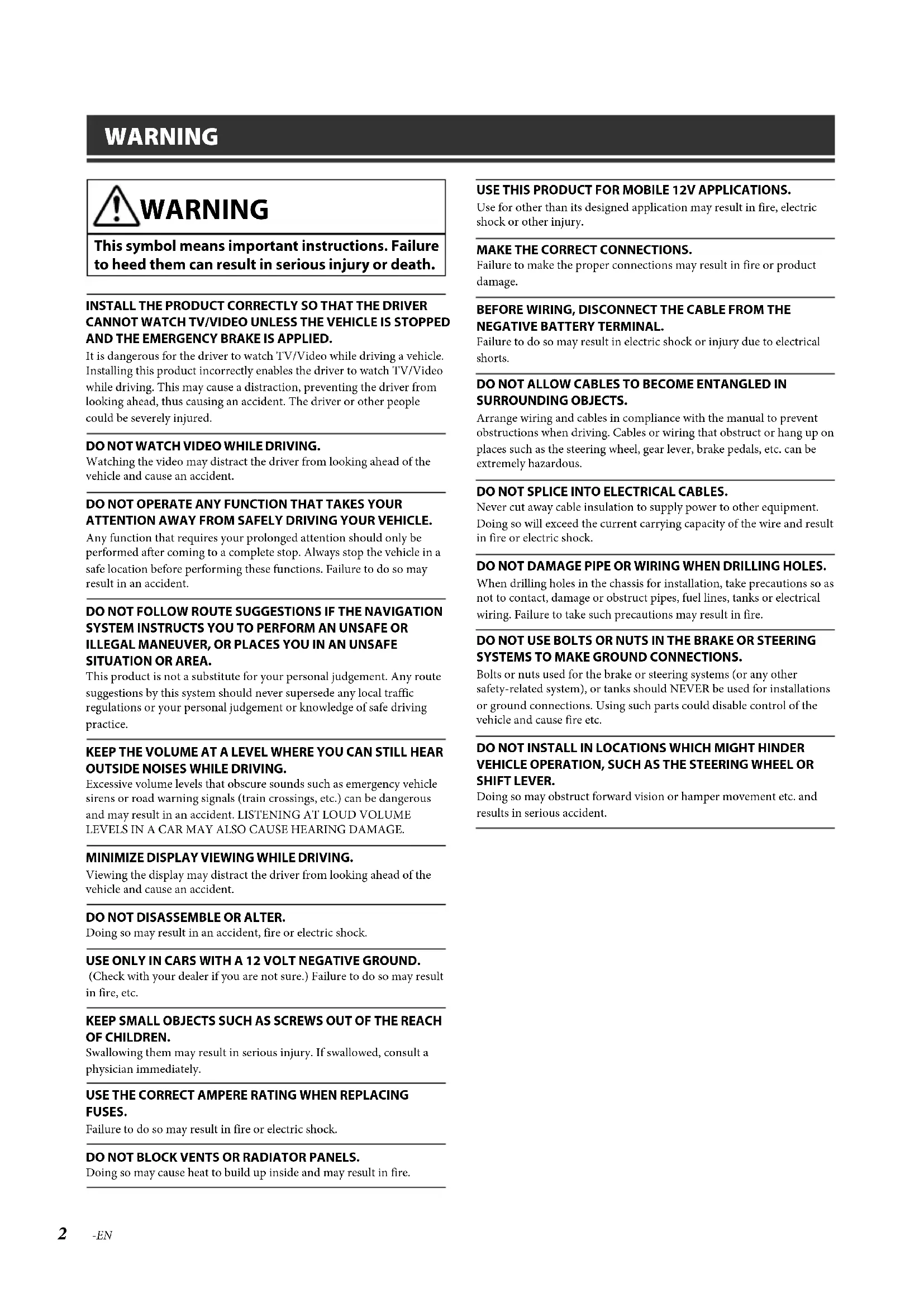

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

INSTALL THE PRODUCT CORRECTLY SO THAT THE DRIVER CANNOT WATCH TV/VIDEO UNLESS THE VEHICLE IS STOPPED AND THE EMERGENCY BRAKE IS APPLIED.

It is dangerous for the driver to watch TV/Video while driving a vehicle. Installing this product incorrectly enables the driver to watch TV/Video while driving. This may cause a distraction, preventing the driver from looking ahead, thus causing an accident. The driver or other people could be severely injured.

DO NOT WATCH VIDEO WHILE DRIVING.

Watching the video may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

DO NOT FOLLOW ROUTE SUGGESTIONS IF THE NAVIGATION SYSTEM INSTRUCTS YOU TO PERFORM AN UNSAFE OR ILLEGAL MANEUVER, OR PLACES YOU IN AN UNSAFE SITUATION OR AREA.

This product is not a substitute for your personal judgement. Any route suggestions by this system should never supersede any local traffic regulations or your personal judgement or knowledge of safe driving practice.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISES WHILE DRIVING.

Excessive volume levels that obscure sounds such as emergency vehicle sirens or road warning signals (train crossings, etc.) can be dangerous and may result in an accident. LISTENING AT LOUD VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING DAMAGE.

MINIMIZE DISPLAY VIEWING WHILE DRIVING.

Viewing the display may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

KEEP SMALL OBJECTS SUCH AS SCREWS OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire, electric shock or other injury.

MAKE THE CORRECT CONNECTIONS.

Failure to make the proper connections may result in fire or product damage.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL.

Failure to do so may result in electric shock or injury due to electrical shorts.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS.

Arrange wiring and cables in compliance with the manual to prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as the steering wheel, gear lever, brake pedals, etc. can be extremely hazardous.

DO NOT SPLICE INTO ELECTRICAL CABLES.

Never cut away cable insulation to supply power to other equipment.

Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES.

When drilling holes in the chassis for installation, take precautions so as not to contact, damage or obstruct pipes, fuel lines, tanks or electrical wiring. Failure to take such precautions may result in fire.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.

Bolts or nuts used for the brake or steering systems (or any other safety-related system), or tanks should NEVER be used for installations or ground connections. Using such parts could disable control of the vehicle and cause fire etc.

DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE OPERATION, SUCH AS THE STEERING WHEEL OR SHIFT LEVER.

Doing so may obstruct forward vision or hamper movement etc. and results in serious accident.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.

HAVETHE WIRING AND INSTALLATIONDONE BY EXPERTS.

The wiring and installation of this unit requires special technical skill and experience. To ensure safety, always contact the dealer where you purchased this product to have the work done.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY.

Be sure to use only the specified accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in place. This may cause parts to become loose resulting in hazards or product failure.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE.

Route the cables and wiring away from moving parts (like the seat rails) or sharp or pointed edges. This will prevent crimping and damage to the wiring. If wiring passes through a hole in metal, use a rubber grommet to prevent the wire's insulation from being cut by the metal edge of the hole.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST.

Avoid installing the unit in locations with high incidence of moisture or dust. Moisture or dust that penetrates into this unit may result in product failure.

Getting Started

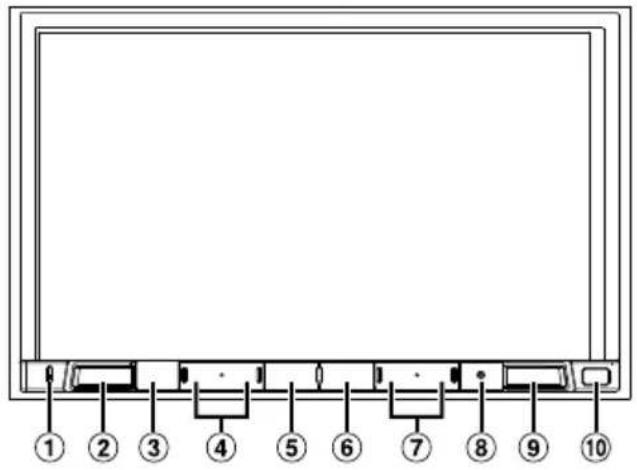

Location of Controls

The screen design used in the Owner's Manual may differ from the actual screen.

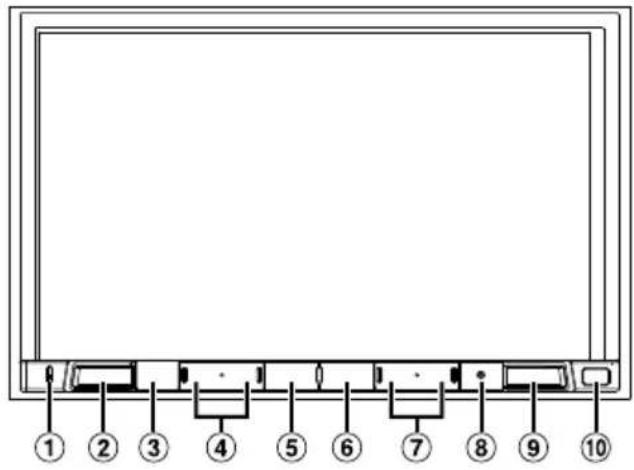

For X801D-U/INE-W997D For X701D

① Microphone

Used for Hands-free or Voice Control modes.

For X701D, the microphone is built into the left side of the monitor.

② (AUDIO)/ (Voice Recognition mode) button

Displays the Audio/Visual screen. If the Audio/Visual screen is already displayed, changes the source.

When a hands-free phone with Voice Recognition is connected, press and hold for at least 2 seconds to switch to the Voice Recognition mode.

(3) (MOTE) button (X801D-U/INE-W997D only)

Press to activate/deactivate the mute mode.

4 / DOWN/UP) button (X801D-U/INE-W997D only)

Press to adjust the volume.

(5) (Favourite) button

Recalls the Favourite screen.

• Press and hold this button for at least 2 seconds to switch to the Climate screen. (displayed only on the X801D-U/INE-W997D when connected to the optional CAN Interface box.)

• Press and hold this button for at least 2 seconds to switch to Vehicle info mode. (X701D only)

6 MENU/ (Power Off) button

Recalls the Menu screen.

Press and hold this button for at least 5 seconds to turn the power off.

7 /bckn

Press to seek down/up a station in radio mode or down/up a track, chapter, etc., in other audio/visual sources.

8 RESET switch

The system of this unit is reset.

9 (NAV/NAV) button

Recalls the navigation map screen.

Press again to switch to Navigation menu screen.

Press and hold this button for at least 2 seconds to change to Go Home route screen. (If Home is not set yet, it will change to the Home setting screen.)

For details of navigation operations, refer to "Navigation System OM" in the CD-ROM.

Remote Sensor

Point the remote control transmitter towards the remote sensor within a range of 2 meters.

CAM (CAMERA) button (X701D only)

Use to display the camera image.

12 Disc Slot (X701D with DVE-5300X only)

13 Rotary encoder/MUTE button (X701D only)

Adjust the volume by turning to the left or right. Press to activate/deactivate MUTE mode.

(14) (Eject) button (X701D with DVE-5300X only)

Ejects a disc.

1 Turn the ignition key to the ACC or ON position.
The system is turned on.
2 Press and hold the MENU button for at least 5 seconds to turn the power off.

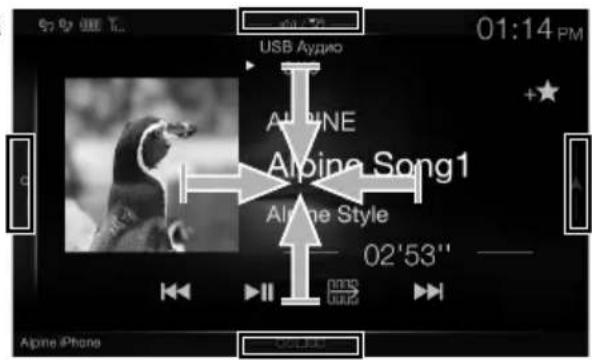

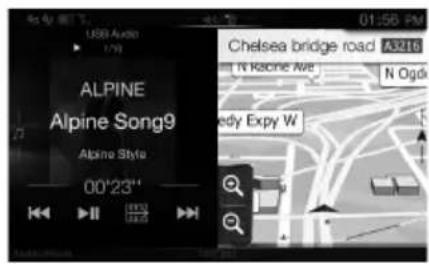

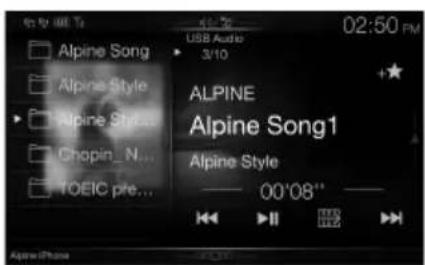

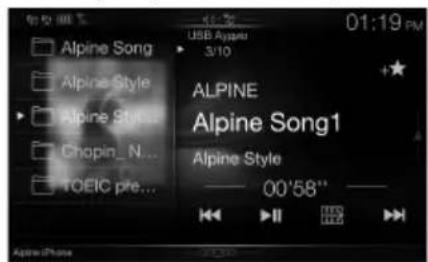

Switching the Audio Sources Screen to a Dedicated Screen

You can switch the Audio Sources screen to a dedicated screen by touching the icon on one of the four edges of the screen, or by swiping vertically or horizontally.

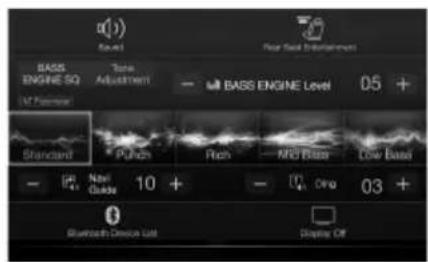

Shortcut Setup Screen

You can set the Sound Setup or Rear Seat Entertainment System.

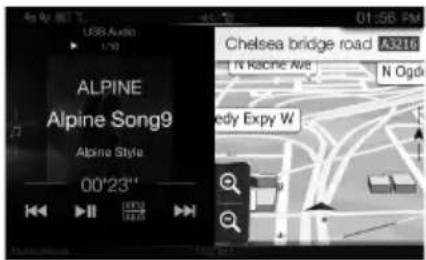

Dual Screen

You can switch between the displayed screens on the Dual Screen.

(USB Audio)

Audio Sources Screen

Preset button or Quick Search mode Screen*

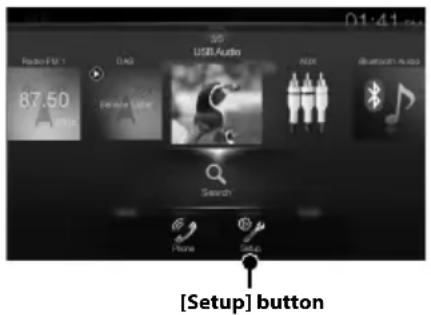

Menu Screen

You can make settings on the Menu Screen.

• The Search mode differs depending on the audio source. For details, see the operating instructions of the audio source.

Favourite Function

This unit enables you to recall functions easily by registering frequently used items such as the Audio source, the navigation search function, etc. to the Favourite screen. You can recall any of these items easily.

1 Press the (Favourite) button.

The Favourite screen is displayed.

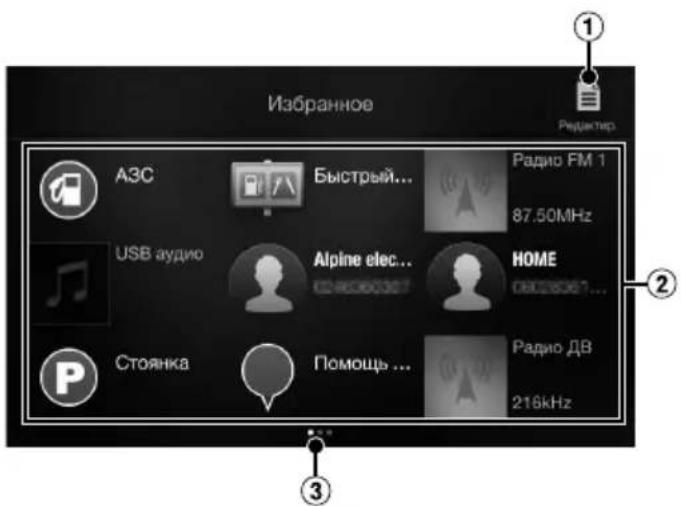

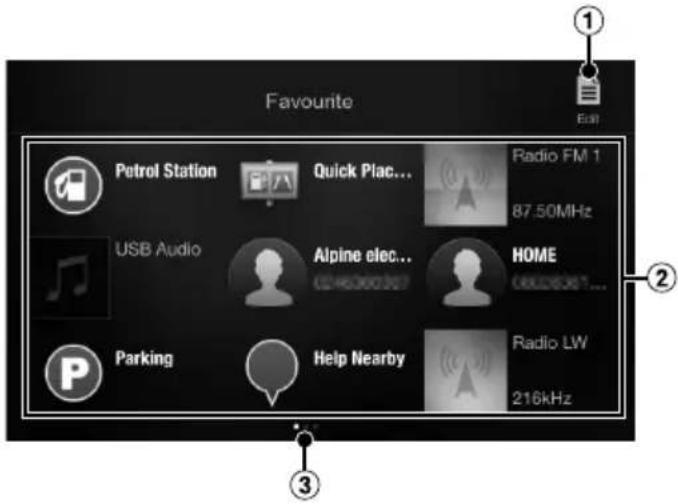

Favourite screen example

1 Changes to the Edit screen used for registering items or changing names.
2 Favourite registration item
3 Indicates the location of the currently displayed Favourite screen.

Swipe to the left and right to change the pages. You can add up to 6 pages.

Registering Items

1 Touch [] (Edit).

A checkbox is displayed on the upper left area of the registration icon and it changes to Edit mode.

2 Touch [] (Add).

The items to be added (categories) are displayed.

3 Touch the desired item to be added (category).

4 Choose the desired item to be added.

For details on the items to be added, refer to "Editing the Favourite Screen" in the Owner's Manual.

• You can add up to 54 items.
• You cannot register an item more than once.

5 After editing is complete, touch [ ] (Back).
6 After the caption for the confirmation is displayed, touch [OK].
7 Editing is complete and the screen switches to the Favourite screen.

• If you touch [Cancel] while editing, the screen switches to the previous Favourite Edit screen.

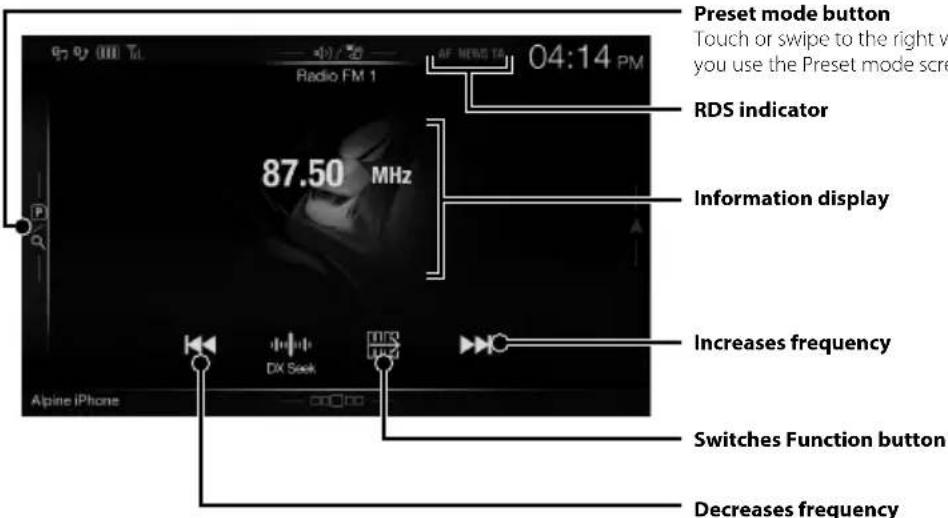

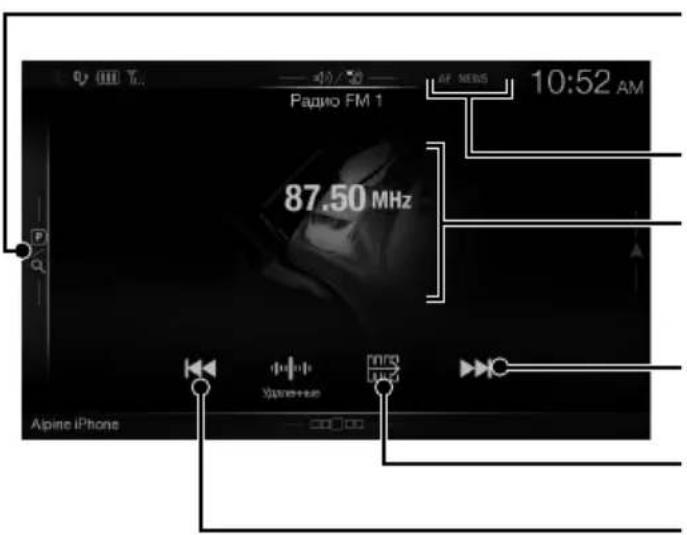

Radio/RDS Operation

Preset button

Displays the preset stations with a short touch.

Touch for at least 2 seconds to memorise the current station as a preset station.

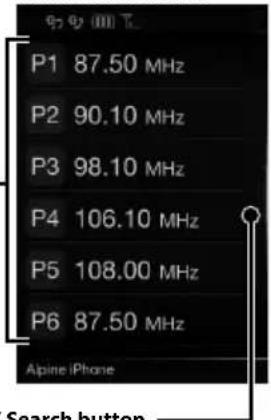

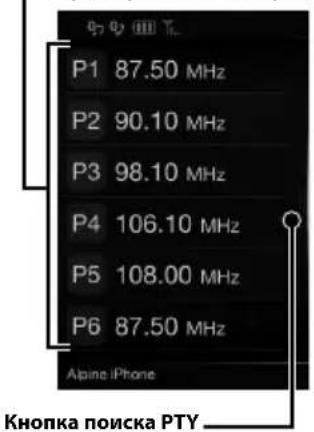

Preset mode screen
PTY Search button

Swipe to the right when you use the PTY list screen.

Preset mode button

Touch or swipe to the right when you use the Preset mode screen.

RDS indicator
Information display
Increases frequency

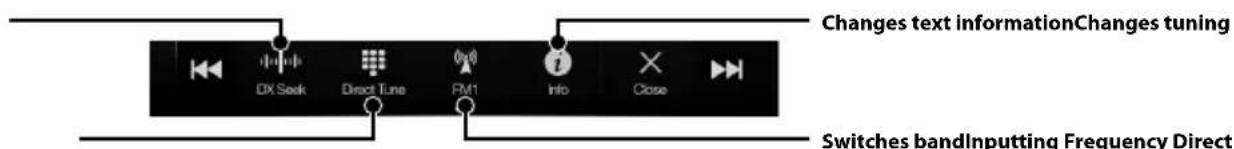

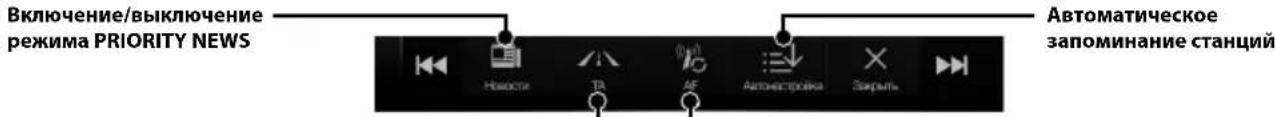

Switches Function button
Decreases frequency

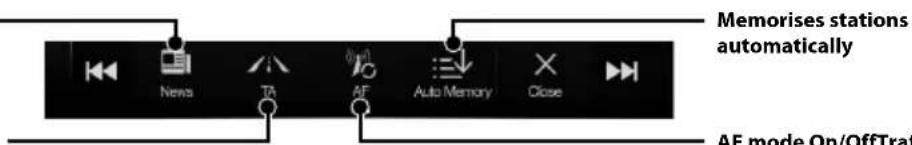

PRIORITY NEWS mode On/Off
Memorises stations
automatically
AF mode On/OffTraffic Information mode

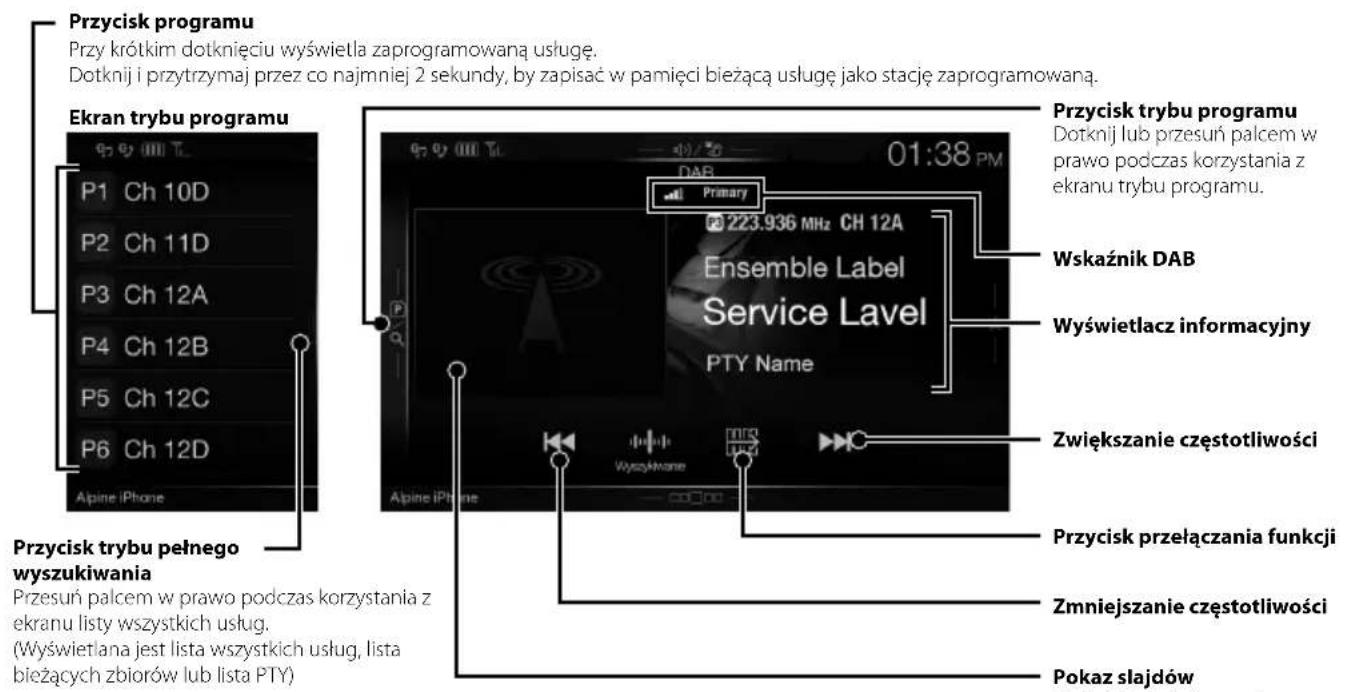

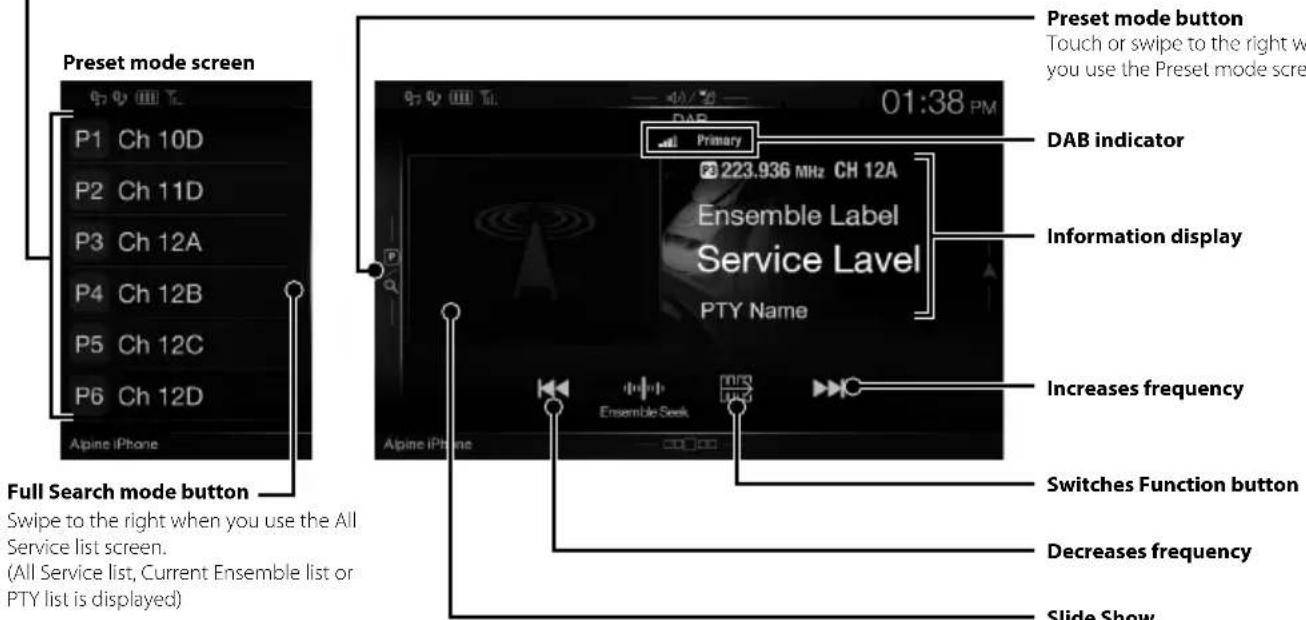

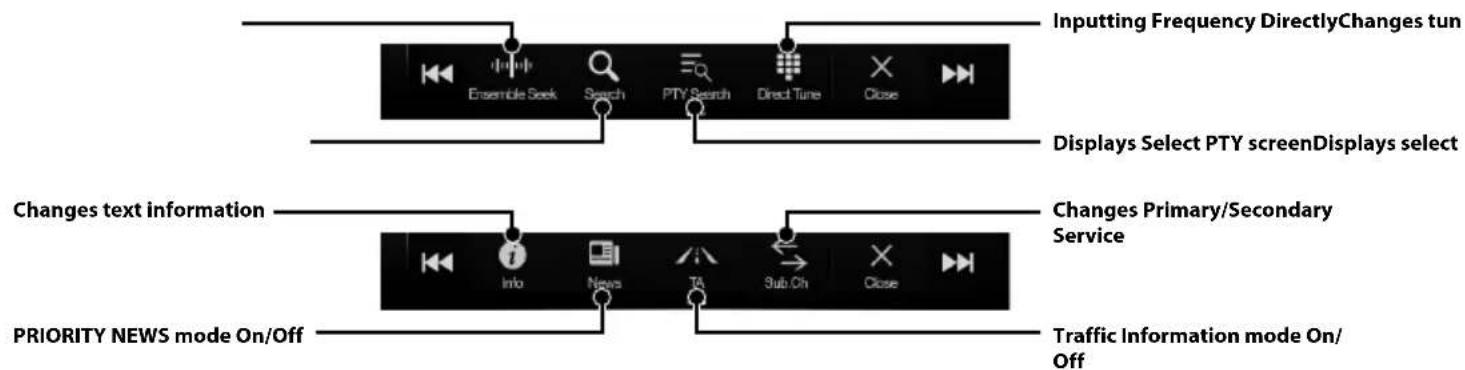

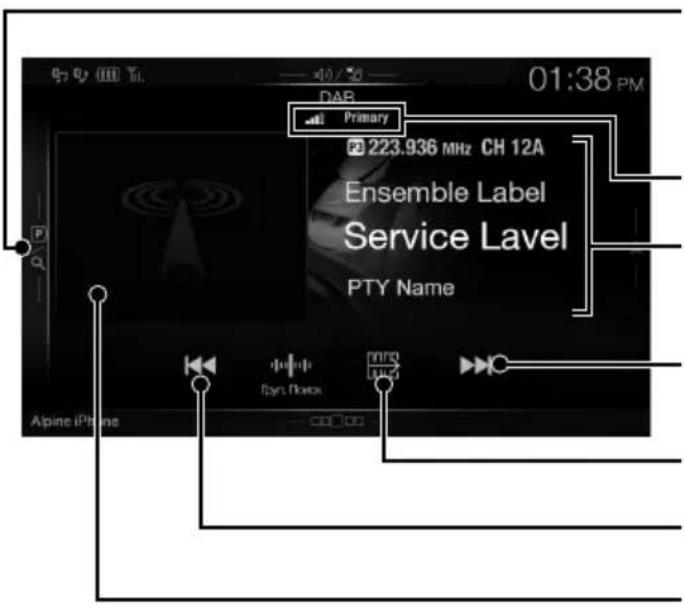

DAB/DAB+/DMB Operation

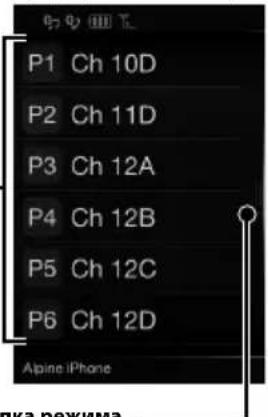

Preset button

Displays the preset service with a short touch.

Touch for at least 2 seconds to memorise the current service as a preset station.

DAB indicator
Information display
Increases frequency
Switches Function button
Decreases frequency
Slide Show

Preset mode button

Touch or swipe to the right when you use the Preset mode screen.

Displays the programme information, artist photos, and advertisements that are synchronised with the Service component currently being received.*

* They may not be displayed, depending on the Service component currently being received.

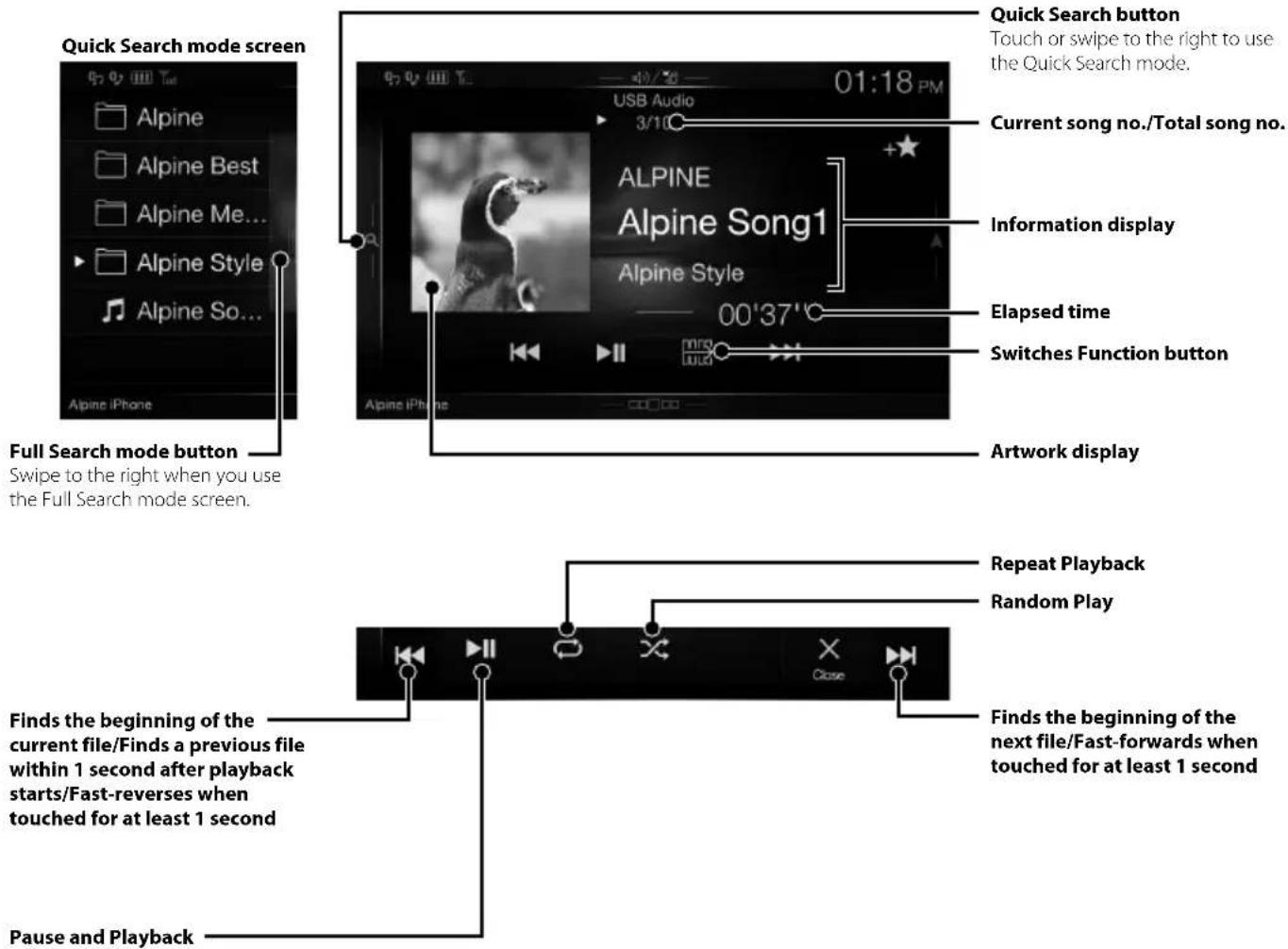

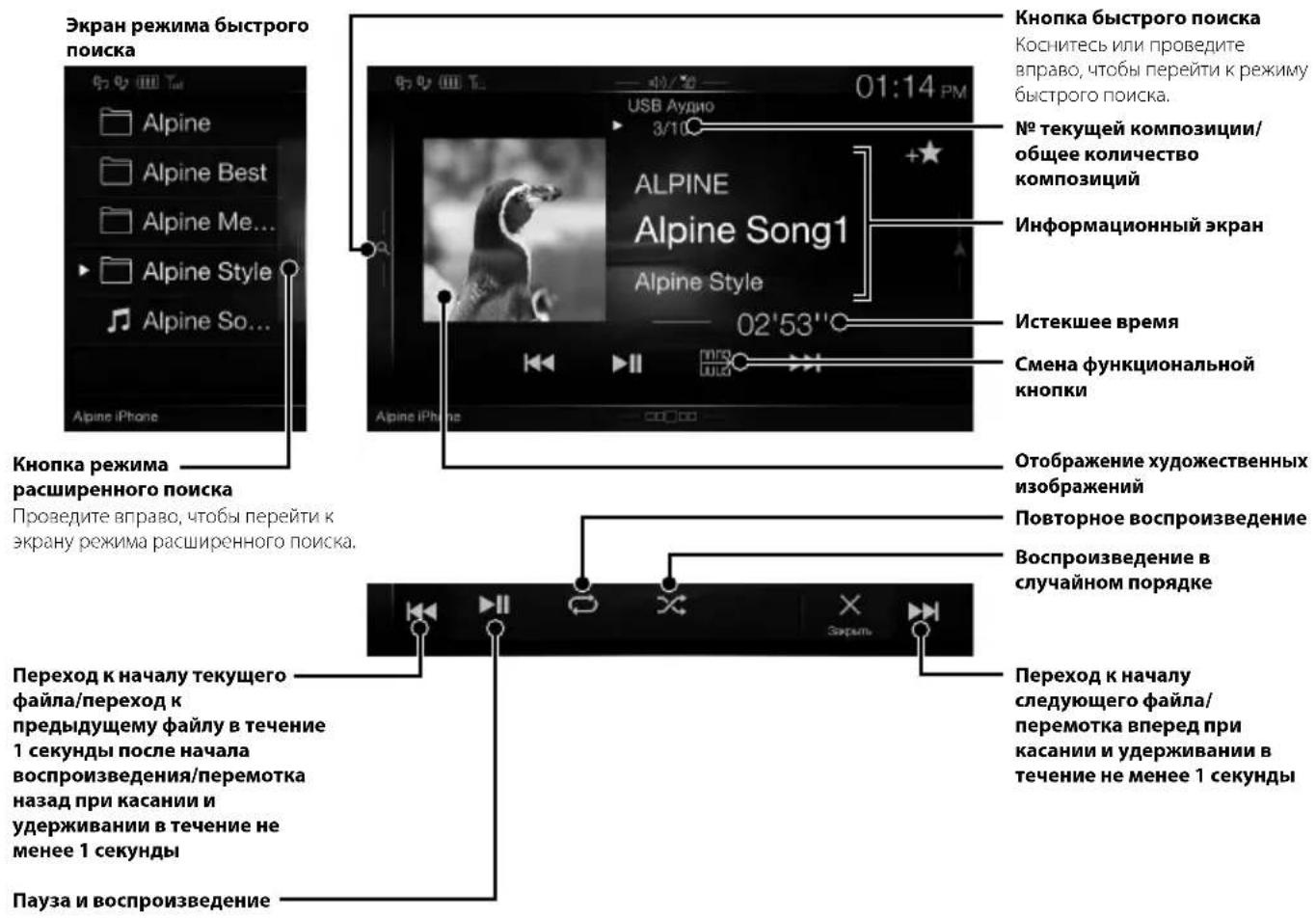

USB Flash drive Operation (Optional)

You can play back music files (MP3/WMA/AAC/FLAC) stored in a USB flash drive on the internal player of this system

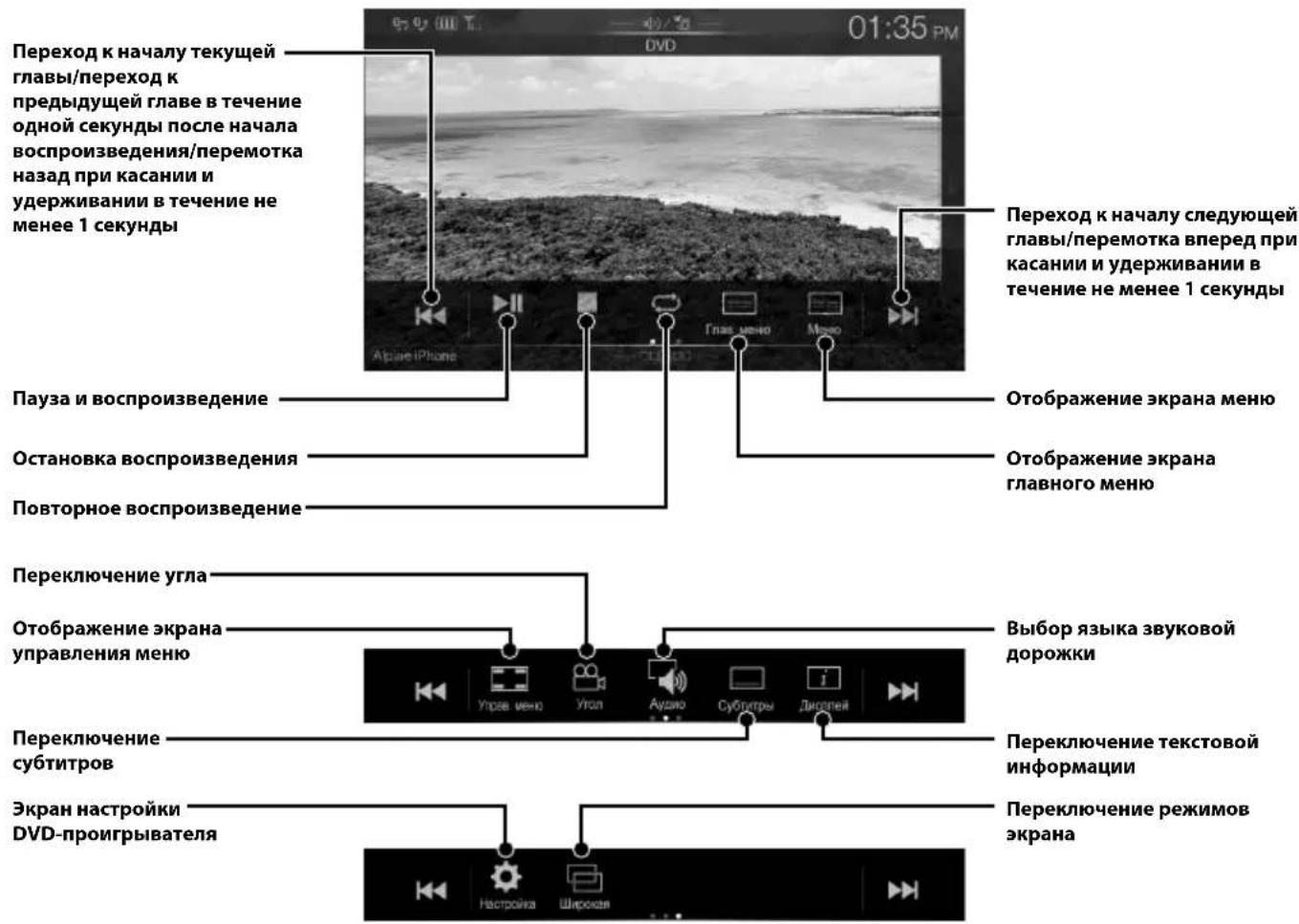

HDMI Device (DVD Player) Operation (Optional)

When you connect an optional DVE-5300 (DVD Player), you can operate it from the unit.

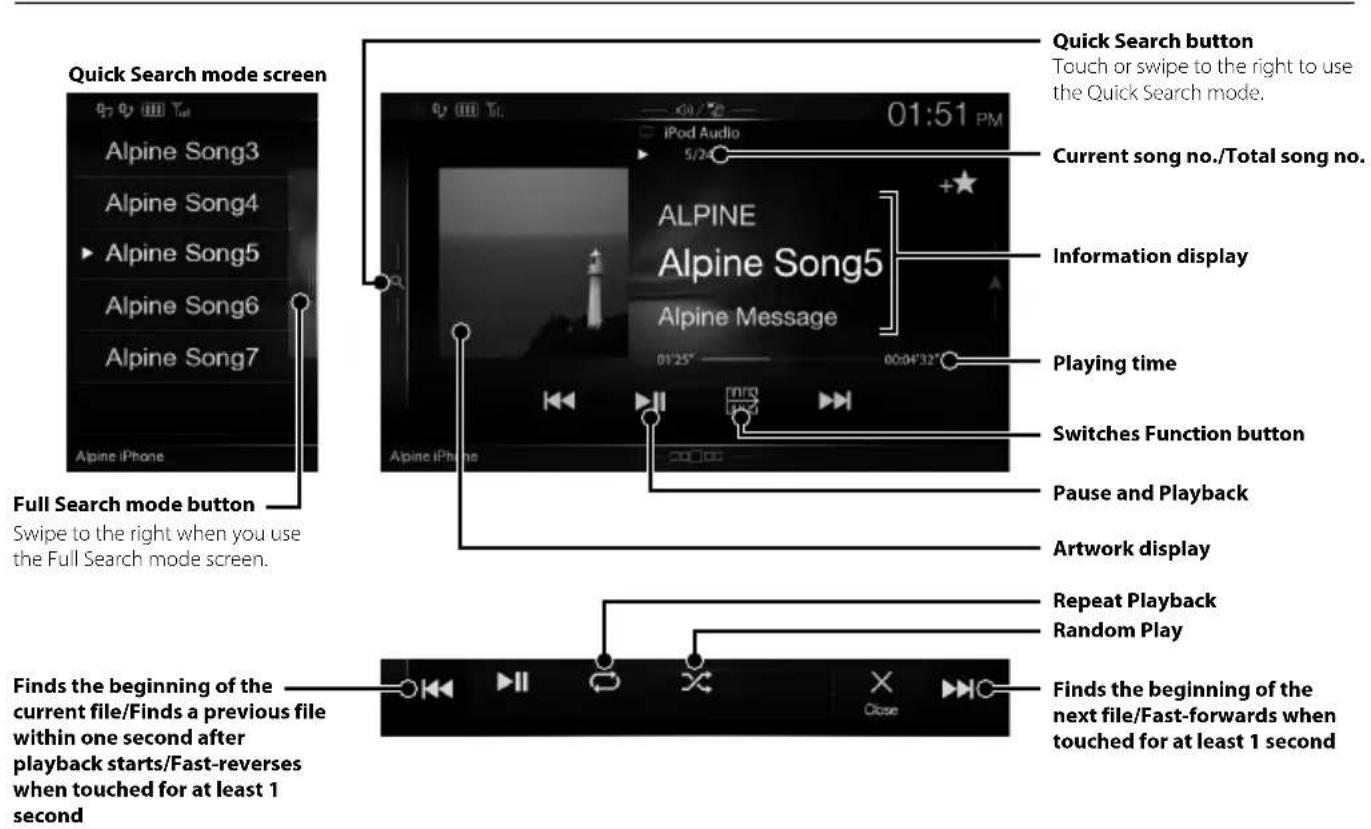

iPod/iPhone Operation (Optional)

A separately sold USB iPod/iPhone AV cable (KCU-461iV) or a separately sold Lightning to USB cable (KCU-471i) is required depending on the type of iPod/iPhone.

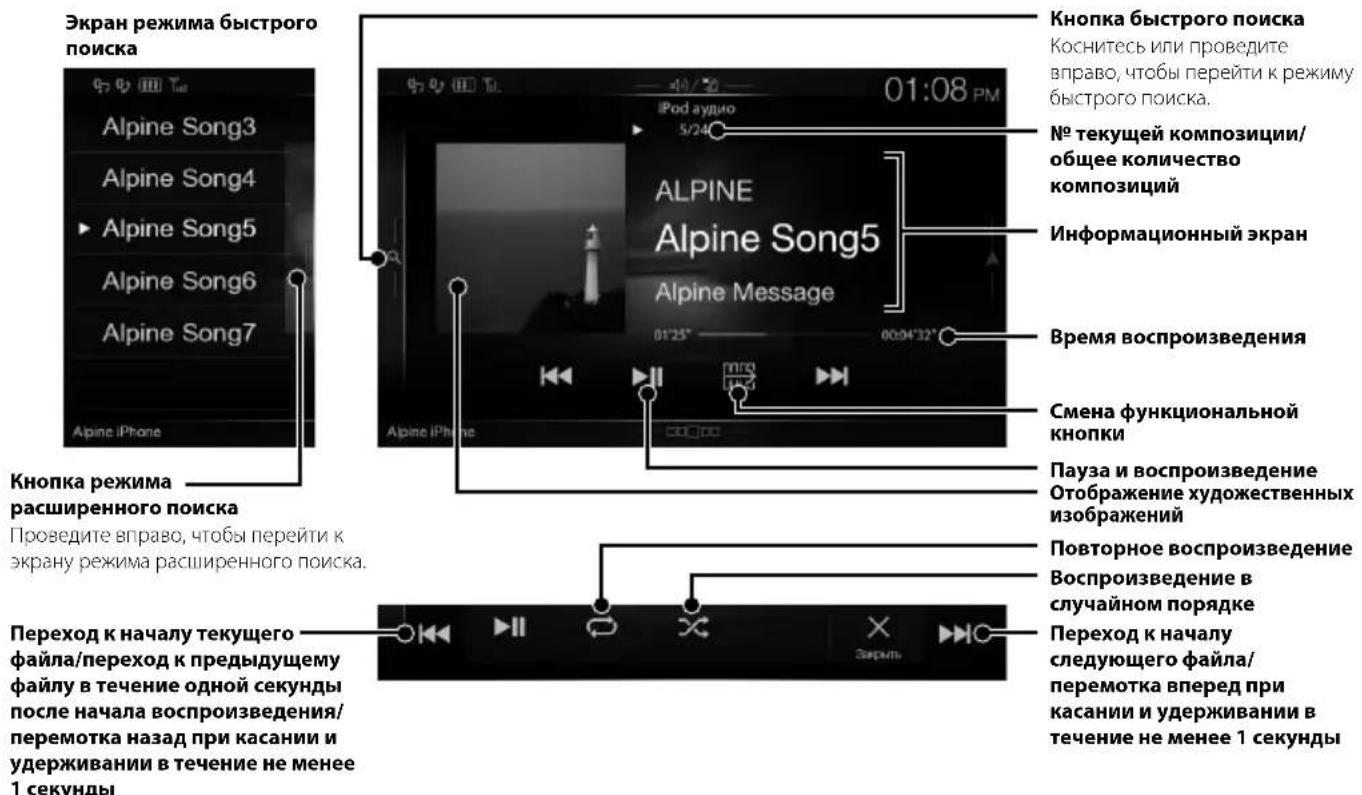

Audio mode

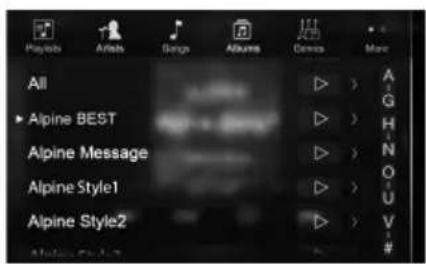

Searching for a Music File (Full Search Mode)

For example: Searching by Artist name

1 Touch [Artists] in the Full Search mode screen.

2 Touch the desired artist's name.

The Albums search screen of the selected artist is displayed.

Touching J of the desired artist will play back all songs of the selected artist.

3 Touch the desired album's name.

All songs of the selected album are displayed. Touching ] of the desired album will play back all songs of the selected album.

4 Touch the desired song's name.

The selected song is played back.

• Touching [ ] of "All" will play back all songs in the list.

Hands-Free Phone Control

Hands-free calls are possible when using an HFP (Hands-Free Profile) compatible mobile phone with this unit.

How to connect to a BLUETOOTH compatible device (Pairing)

The BLUETOOTH function is always available on this unit.

You can, therefore, search for a BLUETOOTH device for pairing at any time.

1 Touch [Setup] button on the Menu screen.

2 Touch [Bluetooth].

• Make sure the "Bluetooth" setting is "On".

3 Touch [Set Bluetooth Device].

4 Touch [ ] (Search) of "No Device."

5 Touch [ ] (Audio), [ ] (Hands-free) or [Both) of the device you want to connect from the list.

Audio: Sets for use as an Audio device.

Hands-free: Sets for use as a Hands Free Device.

Both: Sets for use as both an Audio device and Hands Free Device.

6 When the device registration is complete, a message appears and the device returns to normal mode.

• You can register up to 5 BLUETOOTH compatible mobile phones.
• The BLUETOOTH registration process differs depending on the device version and SSP (Simple Secure Pairing). If a 4 or 6 character Passcode appears on this device, enter the Passcode using the BLUETOOTH compatible device. If a 6 character Passkey appears on this device, make sure the same passkey is displayed on the BLUETOOTH compatible device and touch "Yes."

Answering a Call

1 An incoming call triggers the ringtone and an incoming call display.

Incoming call notification screen

2 Touch incoming call notification screen.

The call starts.

By touching the call info area during phone call, you can change to the Phone Operation screen and adjust the speech volume, etc.

Hanging up the Telephone

1 Touch [A] (End Call).

The call finishes.

Map Functions

Below is an overview of different buttons and icons on the map display. For more detailed information about this screen, please see the Owner's Manual.

Navigation Menu

To access the Navigation Menu, touch on the right edge of the map screen or swipe to the left. Alternatively, press the button.

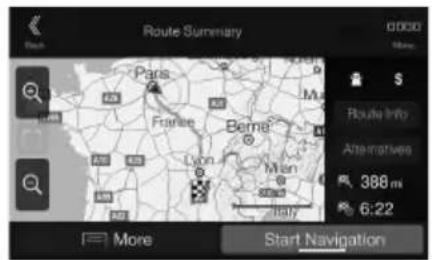

Setting a Destination

The following example describes how to search for a destination when choosing [Town/Postcode] from [Address].

• You can search and narrow down the Country/State by starting from [Country/State].

1 Touch [New Route] from the Navigation Menu.
2 Touch [Address].

7 Touch [More] to modify the route parameters, or touch [Start Navigation] to start your journey.

3 Touch [Town/Postcode].
4 Enter the town name or postcode.

• Touch to play the candidate list.

5 Enter the desired street name.

• Touch to play the candidate list.

6 Enter the house number or crossing street.

The route is calculated, and a map appears, showing the entire route. Here you can check route information and route alternatives.

Specifications

MONITOR SECTION

Screen Size 8" (X801D-U)

7" (X701D/INE-W997D)

LCD Type Transparent type TN LCD

Operation System TFT active matrix

Number of Picture Elements 1,152,000 pcs.

(800× 480× 3 RGB)

Effective Number of Picture Elements

99% or more

Illumination System LED

FM TUNER SECTION

Tuning Range 87.5 - 108.0 MHz

Mono Usable Sensitivity 8.1 dBf (0.7 V/75 ohms)

50 dB Quieting Sensitivity 12 dBf (1.1 V/75 ohms)

Alternate Channel Selectivity 80 dB

Signal-to-Noise Ratio 65 dB

Stereo Separation 35 dB

Capture Ratio 2.0 dB

MW TUNER SECTION

Tuning Range 531-1,602 kHz

Usable Sensitivity 25.1 V / 28 dBf

LWTUNERSECTION

Tuning Range 153-281 kHz

Sensitivity (IEC Standard) 31.6 V/30 dBf

USB SECTION

USB requirements USB 2.0

Max. Power Consumption 1,500 mA (CDP Support)

USB Class USB (Play From Device)/

USB (Mass Storage Class)

File System FAT16/32

Number of Channels 2-Channels (Stereo)

Frequency Response* 5 - 20,000Hz (±1 dB)

Total Harmonic Distortion 0.008% (at 1 kHz)

Dynamic Range 95 dB (at 1 kHz)

Signal-to-Noise Ratio 100 dB

Channel Separation 85 dB (at 1 kHz)

*1 Frequency response may differ depending on the encoder software/bit rate.

HDMI SECTION

Input Format 720p/480p/VGA

Output Format 480p

GPS SECTION

GPS Reception frequency 1,575.42 ±1 MHz

GPS Reception sensitivity -130 dB max.

Bluetooth SECTION

Bluetooth Specification Bluetooth V2.1+EDR

Output Power +4 dBm Max. (Power class 2)

Profile HFP (Hands-Free Profile)

OPP (Object Push Profile)

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

SPP (Serial Port Profile)

GENERAL

Power Requirement 14.4V DC

(11-16 V allowable)

Operating temperature

-4°F to +140°F

(-20^ to +60^)

Maximum Power Output

50W×4

Weight

2.9 kg (X801D-U)

2.7 kg (INE-W997D)

Audio output level

Preout (Front, Rear):

4V/10k ohms (max.)

Preout (Subwoofer):

4V/10k ohms (max.)

CHASSIS SIZE

Width 178mm

Height 100 mm

Depth 164 mm

NOSE SIZE

Width 190 mm (X801D-U)

170 mm (INE-W997D)

Height 121 mm (X801

96 mm (INE-W997D)

Depth 22 mm (X801D-U)

17 mm (INE-W997D)

• Due to continuous product improvement, specifications and design are subject to change without notice.

The LCD panel is manufactured using an extremely high precision manufacturing technology. Its effective pixel ratio is over 99.99% . This means that there is a possibility that 0.01% of the pixels could be either always ON or OFF.

X701D with DVE-5300X

CD/DVD SECTION

Frequency Response CD: 5 - 20,000 Hz (±1 dB)

Wow & Flutter (% WRMS) Below measurable limits

Total Harmonic Distortion 0.02% (at 1 kHz)

Dynamic Range 95 dB (at 1 kHz)

Channel Separation 65 dB (at 1 kHz)

Horizontal resolution 500 lines or greater

Video output level 1Vp-p (75 ohms)

Video S/N ratio DVD: 60 dB

Audio S/N ratio 95 dB

PICKUP

Wave length DVD:665 nm

CD:800 nm

Laser power CLASS II

REMOTE CONTROL

Battery Type CR2025 battery

Width 42mm

Height 90 mm

Depth 11.6 mm

Weight 50 g (battery excluded)

X801D-U/X701D/INE-W997D

Made for

iPodiPhone

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

DAB+

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

Windows

Media

Maps for Life

For Optional DVE-5300X

Made for

iPod iPhone

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

DAB+

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

WIND

Maps for Life

dt

2.0+Digital Out

DOLBY.

DIGITAL

VIDEO

DIGITALVIDEO

DIGITAL AUDIO

TEXT

• Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.
• iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• "Made for iPod," and "Made for iPhone," mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone may affect wireless performance.
  Android is a trademark of Google Inc.
• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Alpine Electronics, Inc. is under license.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.
• MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenue-generation) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www.mp3licensing.com
  ©1987-2014 HERE. All rights reserved.

X701D with DVE-5300X

• This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. ©DTS, Inc. All Rights Reserved.
  DVD is a trademark of DVD Format/Logo Licensing Corporation.

Inhalt

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

SPP (Serial Port Profile)

ALLGEMEINES

Spanningsversorgung

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

Windows

Media

Maps for Life

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

WIND

Maps for Life

dtts

2.0+Digital Out

DOLBY.

DIGITAL

VIDEO

DIGITALVIDEO

DIGITAL AUDIO

TEXT

DATE D'INSTALLATION:

TECHNICIEN D'INSTALLATION:

LIEU D'ACHAT:

3 Bouton (SILENCIEUX) (X801D-U/INE-W997D unquipment)

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

Windows

Media

Maps for Life

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

Window

Maps for Life

dtts

2.0+Digital Out

DOLBY.

DIGITAL

VIDEO

DIGITALVIDEO

DIGITAL AUDIO

TEXT

1 Toque [] (Editor).

(Mass Storage Class)

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

SPP (Serial Port Profile)

GENERAL

Alimentación 14,4VCC (11-16 V margen permissible)

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

Windows

Media

Maps for Life

Para DVE-5300X optional

Made for

iPodiPhone

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

DAB+

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

WIND

Maps for Life

dt

2.0+Digital Out

DOLBY.

DIGITAL

VIDEO

DIGITALVIDEO

DIGITAL AUDIO

TEXT

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

SPP (Serial Port Profile)

SPECIFICHE GENERALI

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

Windows

Media

Maps for Life

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

WIND

Maps for Life

dt

2.0+Digital Out

DOLBY.

DIGITAL

VIDEO

DIGITALVIDEO

DIGITAL AUDIO

TEXT

INSTALLATIONSTEKNIKER:

INKÖPSSTÄLLE:

4 / (NER/OPP)-knapp (endast X801D-U/ INE-W997D)

4 Tryck pa [ ] (Sok) after "No Device".

5 Peka på [ ] (Audio), [ ] (Handsfree) aller [01] (Bada) for denenet pa listan du vill ansluta.

Digital Audio Broadcasting

Bluetooth

MP3

AAC

Plays

Windows

Media

Maps for Life

Digital Audio Broadcasting

Bluetooth

MP3

AAC

Plays

华

Methylation

Maps for Life

dtts

2.0+Digital Out

DOLBY.

DIGITAL

VIDEO

DIGITALVIDEO

DIGITAL AUDIO

TEXT

(3) (DEMPEN)-knop (alleen X801D-U/INE-W997D)

4 / (OMLAAG/OMHOOG)-knop (alleen X801D-U/INE-W997D)

USB (Mass Storage Class)

Bestandssysteme FAT16/32

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

Windows

Media

Maps for Life

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

Window

Maps for Life

dt

2.0+Digital Out

DOLBY.

DIGITAL

VIDEO

DIGITALVIDEO

DIGITAL AUDIO

TEXT

B pOHTNBOM cIyae BO3MOKeH HArpeB BHyTpEHINX IeTaJIe, KOTOpB MOKeT IpuBeCTN K Bo3rOpaHHIO.

NcNoB3yIe 3TOT NPOyKT TOnbKO IABTOMOBJIeI CBOPTOBOI CETbIO HANPRJxEHEM 12 B.

HeIpaBnHbOe HcIIIOB3OBaHHe MoKeT IpiBeCTN K Bo3ropaHIO, IopaaKeHHIO 3JIeKtpuYeCKM TOKOM IIIN DpyTM TpaBMam.

BbINOJIHrIe ITPABUNJbHbIe IOdKlIOUeHnA.

HeipabHbHoeIOKIOUeHHe MoKeT IpuHeCTN K Bo3ropaHIO HIOBpeKdEHIO pOdykTA.

NEPEI NOIKLIQUHHEM IPOBOIOB OTCOEINHHTE KABELB OT OTPUCATEJIbHORO NOJIOCA BATAPEI.

HecobIOJIeHHe 3TOrO Tpe6oBaIIH MoKeI PtNBeCTn K IopaKeHHIO 3JIeKtpuueckm TOKOM HIN K TpaBMe BCJIeCTBNE KOpOTKOTo 3aMbKaHn.

HE DONYCKAITE CNIETEHNA KABENEIC HAXOJAUUMNCR PADOM IPEMETAMN.

IpoBOkny KabeHn Heo6xHmO pa3MeCTHB COOTBeTcTBn C ykaaHHMn B pyKOBOcTBE, YTO6b H36eKaTb BO3MOKhBix IpeNTCTBn HIOmEX BO BpEm BoKdEHHa. Ka6Hn H IpOBoKa, KOtopa 6IOKpyET IOCTyN KpyeBOMy KOlecy, pbTuay IpeKeJIOUeHHa IpeDaq, IIeAaTHTOPMo3a N.T., MOyT CTaTb IIpnHHOIIaCHOI cHTyaHnn 3a pyJeM.

HECPAUUBAINTECJIEKTPNUECKMNKAEBIAIMN.

HnKorTa He cpeaIte Ka6eBHyIO H3OJIINIO IINIOIIKIOueHHN INTahnK npyTomy 6OpdyOBAHIO. B IpOTNBOM CUYae 6yET IIpeBbHeHa IOYCTHMn HApy3Ka IO TOKY dAHHOrIO IPOBOHa, IN pe3yIbTaTe BO3MOKHO BO3rOpaHne I NopaKeHNe 3JIeKTpuecknM TOKOM.

HE IOBPEIUTE TPy6KN IIN IPOBOIDKY IPN CBEPJIENI OTBEPCTNI.

Pn CbepeHn yctaHOBcHbX OTBepCTn B KOpHcy PnpMHTe Mepbl npEOCTOPoKHOCTN, YTO6b H36EkaTb KOtAKTa, NOBpeJHeHN H3N 3aKyIOpHaHH Tpy60k TOIIINBOIOPOBOOHN III EKeTPOIPOBOIK. HecO6HIOJIeHN 3TOrO Tpe6OBaHH MOKeT IIpNECTN K BO3TOpAHIO.

HE NCIIOJIb3YIte 5OJIbI JINI TAIKNI TOPMO3HOJ CNTEMbl IINI CNCTEMbl PYIEBOTO YIPABJIEHNJa DJIa 3A3EMJIeHnI.

BOITb HnraKn H3 TopMOsHcHCTeMb Hn cHCTeMb pyIeBOrO yipabHeHH (nnn IIO6oB npyToC B3aHHo C 6e301acHOCTbO cnCTeMb) Hn 6aKOB HNKOTIIA He cneJyET HcIOJIb3OBAt b npn ycTAHOBe Hn 3a3eMeHH. NcIOJIb3OBAHne TaKnx JTeAJIe MOKe6IoKIpOBaTb yipabHeHne ABTOMo6Uem n CTb IIpNCHHOB BO3ROPAHH.

HE YCTAHABJIUBAITEYCTPOICTBO B MECTAX,ΓE OHO MOXET MEUATb PABOTE ABTOMOBJIA, HAPPMEP, PADIOM C PYJEBBIM KOJECOM JIN PyiAROM PEPEKJIIOUeyHc CKOPOCTeN.

B IpoTINHOM Cnyae yCtpoCTHO MOKeT CO3aTb IOMExn IInIepeIHeo 063opa HIN 3aTpYHNb IBNKeHHe, YTO MOKeT IIpNBecTH K cepbe3HO abapnn.

BHIMAHHE

3TOT CUMBOI 603Haayet BaxHbIe NHCTpyKuIN.
IX Heco6nOJeHne MoXeT npNBecTu K TpaBMe IIN
BbIXOy U3 CTPOIpoDyKTa.

PNU BO3HNIKHOBEHNI PPOBJIEM HEMEJIENHIOPEKPATNE IICNOJIb3OBAHNE IPOJYKTA.

B IPOTUBHOM CNYae 3TO MOKET IIPNBECTN K NOJYueHHIO TpaBMb NIN IOBpcKDeHHIO IPOyKTa. BepHNTe IPOyKT cBOeMy aBTOpN3OBAHHOMI INepey Alpine ININ B 6NIkaIIIN cepBnCHbI IIeHTp Alpine nIpeMOHTa.

PPOKIAJKA PPOBOIOB N YCTAHOBKA DOJXHbI BbITb BbIIOJIHEHbI CNEUJAINCTAMN.

III npOKIaIKI npOBoIOB IyCtAHOBKn DaHOrO yCtpoIcTBa
Tpe6yIOTcIeIeNIAIbIbIe TeXHmEeKNe HABIKn OIIbIT. B IeJAX
06ecneueHHN 6eONaHcOCTn IIN BblNOHNHeHn pa6oTb BCerJa
06paIaIteCk K dIlepy, y KOTOPORO 6bl IpnOp6peTeH 3OT IpOnyKT.

NCIOJb3yIe TOJIbKO CNEUJAIN3NPOBAHHbie YCTAHOBOuHbIE KOMHOHEThb IN TtATEJIbHO IX 3AKPENJIaTE.

NcIOb3yTe ToIbKO cIEUHpOBaHHBe BCIOHOATEbHBie KOMIOHEHTb. NcIOb3OBAHHe HIIpeYCMOTpeHHBX KOMIOHETOB MOKe T B13BaT BHyTpeHnNE IOBpeKHeHn YcTpoHCTBa HIN CTaTB IIpyHnO erO HeHaJIeKHO yTaHOBKn. B pe3yJbTaTe MOKe T HApYHNTCBa KPeIIeHn TaKnx KOMIOHETOB, INPBOIN K BO3HNKHOBEHNO OAnCHOCTH NIN C6oIO pOdyKaTa.

IPIABINbHO IPOJIOXEHHAR IPOBOJKA HE IOJIKHNA3N6ATbCRA JIM 3AUEMJIaTbCRA OCTPbIMM METAJINUeCKIMM KPARMI.

Ipoklaibaate Ka6eHn I npoOky daJIeKO OT dNkUxcn qacte (HaIIpHMeP, HIIpaBIAIOXxCnEh) NocTpBX IN3 aocTePHIX KpaEB. 3TO IO3BOJAE TpeIOBTbATNBt 3aIeMJeHne IN3 3KaJTHe IPOBOIOB. EcHn IpoBOJa IPOXoHTpe3MetaIINueCKe OE tBepCTne, HIOHb3yIte pe3HHOBoe yIIOHTHeBHOe KOJIua, YTO6b IIpeIOBTbATNBtIOBpeKJeHne IN3OJIINm MeTInueCkHM Kpaem OTBepCTHn.

HEYCTAHABJINBAIYE YCTPOICTBO B MECTAX CBICOKIM YPOBHEM BIAKHOCTN JIN 3ANbJIENHOCTN.

136eraTe yctaHaBnBaTb yCTPOcTB O B MecTx C BBICOKM yPOBHeM BIAKHOCTH HIN 3aIIbIeHHOCTH. IPOHNKaIOUne B yCTPOcTB O BIAra H IIbMbOTBb3BaTb eO HeCNIPaBBOCtB.

Пристуная КрабоTe

PacnoIoxeHne 3JeMeHTOB ynpaBHeHn

BHeuHn BnD 3KpaHO, NcNoIb3yEmbIX B pyKOBOIDCTBe NOIb3OBATeN, MOKeT OTnuaTcAOTpeaHbIX 3KpaHOB.

X801D-U/INE-W997D X701D

① MnkpoΦoH

NcnoIb3yETcIpyekIma"Cbo6oHbIe pykn"nnpekIma roIocoboro ynpabneHn.

Ha moen X701DMKPOoH BCTPOeH BneByIO CTOPHY MOHTopa.

② Khonka (AUDIO)/(pekm pacno3haHra roloca)

OTo6paKeHHe 3KpaHa ayIno/BuJeO.Ecnn 3KpaH ayIno/BuJeO yKe OTo6paKaetC,ByeT BbINHeHa CMeHa NCTOHHKA.

EcnnoNIOKJIIOUeH TeIeOoH C yHKUeNe "CBo6OdHbIe pyKn" n peKIMOM paCNo3HaBaHnra rOloca, HAKMITE uyepeKnBaIte He MeHee 2 cekyHd dna nepeKIOuehnB peKIM paCNO3HaBaHnra rOLOca.

3 Khonka MUTE) (Tonbko dIa X801D-U/INE-W997D)

HaKMnTe, yTO6bI BkHIOuHTb/BbIKIOuHTb peKIMOTKIOUeHn3ByKa.

④ KhoNka /DOWN/UP (Tolbko dny X801D-U/INE-W997D)

PerynipOBKa rpoMKoCTN.

⑤ Khonka★ (N36paHHoe)

IpeeknioueHne Ha kpaH "N36paHHoe".

Haxmte u ydepknBaTe 3Tu KhoNky He Mehee 2 ceKyH, tO6bI OTo6pa3ntb EKpaH "KnMaT" (OTo6paxaetc TOnkO Ha X801D-U/INE-W997D npn NODKNIOHENK DONONHTeNbHOMy INTEPchomv 6nOKy CAN).

HaxMnte n ydepKnBaIte 3Ty KhoNky He MeHee 2 ceKyH, YTO6bl OTO6pa3nTb EKpaH "JaHHbIe aBTOM." (ToIbKO dna X701D).

⑥ Khonka MENU/ (otknouehne nTaHna)

IpeeknIOueHHe Ha kpaH MeHIO.

Haxmte u ydepknaite 3ty KhoNky He Mehee 5 cekyh, yTo6bl OTKIOHHTb NtAHHe.

⑦ Khonka

Haxmte, yTo6bI nepeTn IIO cnNcKy paNocTaHcIn Bn3/BBepx B pexime paNIO nIu YTO6bl nepeTn Bn3/BBepx NO cNcKy DOpOKe, rnaB nT. d. B npYROM nCTOHNke ayDNO/BnDeo.

⑧ KHONKa RESET

BocTaHOBHeHcNCTeMbI 3TOO yCTPOINCTBa.

Khonka (NAVI/NAV)

ÖKpbTne 3KpaHa C KapToH HABrAun.

Haxmte eue pa3,HTo6bI npeeyK 3kpaHy MeHO HABnraun.

Haxmte u yepknaBaeTcTy KhoNky He MeHee 2 ceKyH, YTO6bl NpeuTu Ha kpaH MappTyOB "Omoi".

(Ecn npaMeTp "Dom" eue He yctaHOBneH, OTo6pa3ntc8KpAH yCTaHOBKn npaMeTpa "Dom")

IINI NOUYEHN IONOHHTeHbHO INHOpMaUN O pa6ote CNTEmb HABnraCm.PyKOBoDCTBO NIOB3OBAteJI CNCTeMb HABnraCm"Ha DnCKe CD-ROM.

10 DaTuk DNCTAHUONHOYnpaBHeHn

HarpabBte nepeaTnK nybTa dncTaHNOHHOR ynpabHeHa DaTcNK Dc pacctOHHNdo 2 MetpoB.

11 KHONKa CAM

(CAMERA) (Tonbko X701D)

IcnoJIb3yInTe nIN OTO6paXeHnN INO6paXeHnKamepbI.

12 Cnot dna da nka (Tolbko dna X701D c DVE-5300X)

13 BpauaouicpepyaTOp/KNonKa MUTE (ToIbko dnaX701D)

PobepHnTe peryIaTOp BneBO n BnpaO, TTo6bl HAcTPOITb yPoBeHb rPOMKoCTN.

HaKMITE, UTO6bI BKJIOUHTb/BbIKJIOUHTb peKIM OTKNIOUeHn 3Byka (MUTE).

14 KhoNka DVE-5300X)

(N3BneueHne) (TOnbko dny X701D c

VcnoIb3yETcIaIuN3BneHEnIuNcKa.

1 NobeprnTe KIOU 3aXnraHnB nOIOxKeHne ACC nn ON.

CnCTemaBKNIOHTCA.

2 Haxmnte u ydepkmbaute KhoNky MENU B TeueHne He Mehee 5 cekyhd, 4to6bl BbIKIOHTb yctpoictBO.

IpeekloueHne 3KpaHa nCTOuHnKOB 3Byka Ha Heo6XoDmbl' 3KpaH

Mожно Nepeклочь ᵓКран�СTOчнков 3ВуКа Ha Heo6xODmbl ᵓКран, KocHyBwncb 3Haчka Ha OДHOM N3 YeTbIpx KpaEB ᵓКран ИИnpeTaunB ᵓКран NO BepTKaJI INI TROPINHTaJI.

3KpaH NaCTpoKn 6bICTporo Bbl3Oba

Moxho yctahOBntb NaCTPOky 3Byka nnCnCTeMy dna 3aHnX naCCaxIpOB.

3KpaH NcToUHKnOB 3ByKa

(USB Aydno)

Дбоьнй Экран

HaDBOHOM 3KpaHE MoXHO nepeKIOUaTbCa MEJy OTobpaKaemMbIMN 3KpaHaMn.

Khonnka npedBapnteIbHoi NaCTpoKn uNn 3KpaH pexmHa 6bictporo noncka*

3KpaH MeHIO

Ha 3KpaHe MeHIO MOXHO BbINONHrTb HAcTpOiKn.

• Pekum noucka pa3nuaemc8 3abucumocmu om ucmouhka 36yka. Дя поуеня dononhumenbnoi unfopmauu cm. uncmpykuu no ekcnnyamaauu umouhka 36yka.

Функця"ИЗбразноe"

DaHoe yctpoiCTBO NO3BOJRAET NOnyATb npocToI DOCTyn K FyHKUaM,do6abJraHa 3KpaH "U36paHHe" qacto IcnoJIb3yEmblE 3JeMeHTbl, Hapnimep nTOuHNK 3Byka, FyHKUIO NOnCKa HABnraCmN T.D. 3TO No3BOJRAET 6bICTPO BbIpaTb HyKbI 3JeMeHT.

1 Haxmte KhoNky (6paHHoe).

OTo6pa3ntcAekpah "U36paHoe".

■Пример Экрана "Избразноe"

① NepexoHa3KpaH“PeKaTnp."Jndo6aBHeHH 3NeMeHTOB MMN N3MeHeHH Ha3BaHm.
② ΘnementbI,do6aBneHHbIe Ha 3KpaH "M36paHHOe"
3 YkaaHne NOOKeHHN OTO6paXaEMOROB HactoIIM MOMENT 3KpaHa "U36paHHe".

PpOBeIe BnEBo HnBnBaBO, Yo6bI CmEHnTb CTpaHnUy. MoKHO Do6aBnTb Do 6 CTpaHnU.

Добavenец лем entob

1 KocHTecb [] (PedaKTHnp.).

OTo6pa3ntcA fnaKoB B cepxHneJeBOI o6NaCTn 3HaUka Do6aBHeHn I npOn3OJTe NpeKeKnIOueHne B pexm "PeJaKTnp."

2KocHTecb[]（O6aBntb).

OTo6pa3aTcIdo6abJnEMbIe 3IeMeHTbI (kaTeOpH).

3 KocHTecb Tpe6yemoro 3nemeHtA,TO6bI do6aBntb erO (kateropna).

4 BbI6epuTe Tpe6yembl 3JeMeHr, YTO6bl do6aBntb erO.

Длп поуени дононiteльно Ифорmaци Odoabajrembix АlemehTax CM. pa3dJI "PedaTnpobAHne ькраHA "N36paHHoe"" BpykoBOIDCTBE NOlb3OBaTeHn.

MOXHOIO6aBnTbdo543neMeHToB.
-Добавиь симementsбогеоногopa3a Heyyaactcra.

5 Nocne 3aBepweHnpeaKtupobanna KocHTecb (Ha3a).

6 Nocne oTo6paXeHn noTBepeKdaUoSei HAdnnC KoCHiTecb [OK].
7 PedaKtpoBaHne 6yTeT 3aBepseHo n npOn30iTeT nepexoK kKpaHy "I36paHHoe".

• Ecnu 60 bpema pedakmupobaa kochymbca [P (Ommena), npou3ouidem nepexod K npedbyuemy 3kpany pedakmupobaa anemehmoe 3kpana "H36paunoe".

Pa6ota c paamo/RDS

KhoNka npedBapntelbHoi NaCTpoKn

KopoTkoe kacaHne oTo6pa3nI npeBapntelHo hAcTpoEHhHe CTaHm.
Kochntecb u ydepkabai TeueHHe Me Hee 2 cekyHd, UTo6bl 3aONMHbTe Kcyuio CTaHcIO NdoBaHTB e B CnCOK npEnBaPntbHO HAcTpoHHbx.

3KpaH pexnma

npeBapuTeNbHnHaCTpoKn

PpoaeTe BnpaBO,TO6bI nepeTNI KkpaHcynckcPA TPY.

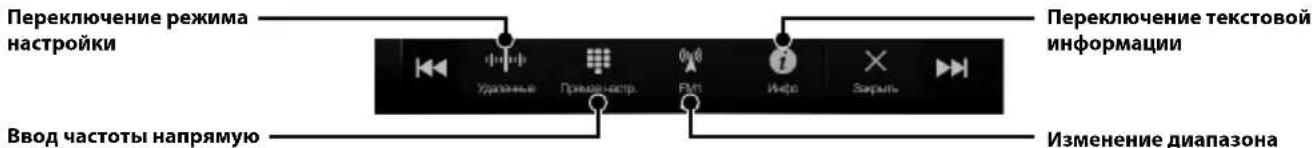

Khonka pexkma

PepBapntenbHoh HactpoKn KocHTeB UIN PPOBEJNTe BnPaBO, UTO6bI nepeTNI K 3KpaHy peXIMAPpeBapntenbHOH NaCTPOKN.

UHmkaTopRDS

HhphiMaunOHhbI 3KpaH

yBennueHueaTobI

CmeHa yHKUHOHaIbHoi KHONK

ymeHbWeHne yacToTbi

Bknouehne/BbiknoueHne pexnma npema Hhopmaun o cntyaun Ha doporax

Bknouehne/Bbkiouehne pekma AF

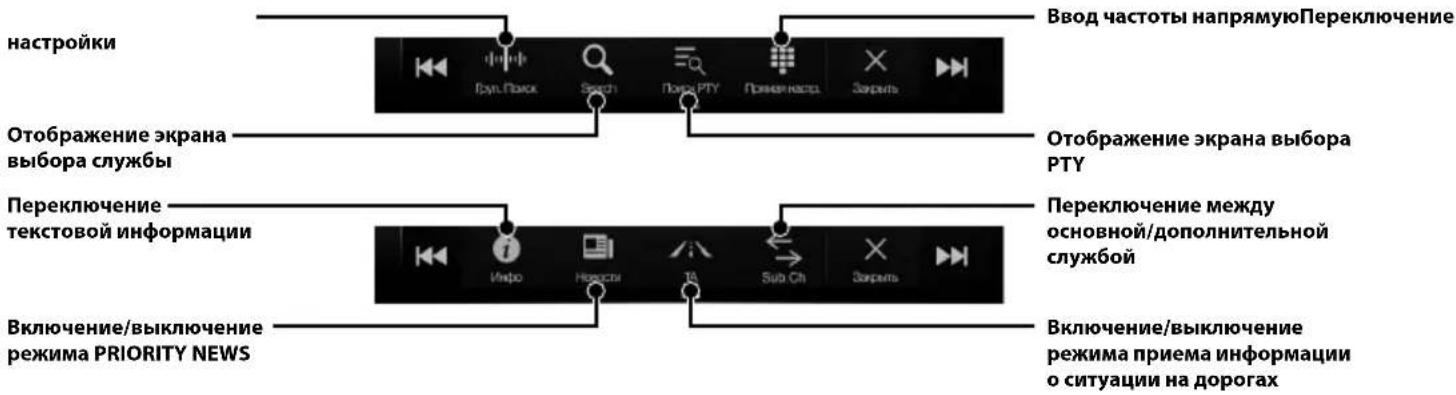

Pa6ota c DAB/DAB+/DMB

KhoNka npedBapntelbHoi NaCTpoKn

Kopotkoe kacaHne oTo6pa3nI ppeBaPntelbHo HacTpoEHHyO cnJxky.
Kochntecb nyepkmbaBte He MeHee 2 cekyH, TIObbl TaONMHnTB Tekyuio cyxby H doabnBee B cnCOK npedBaPteNbHO HAcTpoEHbIX.

3KpaHpeXnMa

PpeBapntelbHn HactpouKn

Khonnka pexkma pacwnpeHHoro noncka

PpOeIteBnPABO,HTo6bIpeepTNK 3kpaHcyCNcKa BCex CnyK6 (OTOpaNTCa CNcOK BCex CnyK6, TeKyuN CNcOK Nn CNcOK PTY).

Khonka pexkma

PepBaPteBHOH HAcTPOKn KocHeBvI npoBeNTe BnpABo, UTo6bI nepeTNI K3kPaHy pexIMAppeBaPteBHOH NaCtPOKn.

UHdkaTop DAB

HnΦopMaunOHbI kpaH

YBENUEHueyactoTbi

CmeHa yHKUHOHaIbHoi KHONK

ymeHbWeHne yacToTbi

Cnain-woy

OTo6paXaeTcHΦopMaunrO
Iporpamme,foTOrpaFIM
NCJOLNHITEnaPcknAMhBle
06bJIeHNnCnHXPOHn3NpyEmble
CO CnyKe6HbIM KOMNoHEtOM,
IPINHMaaEMbIM BHaCToHmM
Momet.

* Ohu moeym He omobpaqkambc8 3abucumocmu om clyke6h02 komnohehma, npuHumaem02 b hacmoaui Momehm.

Pa60Ta c Φлэш-нakоNTelem USB (прнобpeетаetсдОпоЛнтьho)

Ectb BO3MOXHOCTb BOCPON3BOINb ayinofaJnbl (MP3/WMA/AAC/FLAC), 3anncahhble Ha fniH-NAKOHTe USB,Ha BCTpoEHOM nneepe daHHoN cNCTembl.

Pa6oTa c ycTpoIcTBOM HDMI (DVD-mpoIrpbIbAteJIem) (npno6peTaETcraDOnOJIHNTeJbHo)

Pn noKluueHnn DOnonHntbHoro npounrpbaTeaDVE-5300 (DVD-nponrpbaTe) mMOxHo ynpabTb C daHHoro yctpoCTBa.

Pa6oTa c iPod/iPhone (npno6peTaetcra donoJHnTeIbHo)

B 3aBvncmoctn ot moen iPod/iPhone notpe6yetc hannue npno6petaemoro doonHntelho Ka6eJr USB-AV dans iPod/iPhone (KCU-461iV) nnn npno6petaemoro doonHntelho Ka6eJr Lightning-USB (KCU-471i).

Pexim aydno

KoIueCTBO 3nEMeHTOB N3O6paXeHn

1152000 nukcen

(800× 480× 3 RGB)

Daktnueckoe konuectBO 3nemehTOB n3o6paXeHHN

He MeHee 99%

CnCTema nooncbetkn LED

FM-TIOHEP

Huaon HacpoK 87,5-108,0M

Noporobar yBCTBNTeHOBtO OHORO KaHa

8,1BΦBT(0,7MKB/75OM)

Npororobar yBCTbTeNbHocTb 50 dB

12D5ΦB7(1,MKB/75OM)

U36npaTeJIbHOCTaJIbTePHTaNBHORO KaHana

80 dB

OTHOWEHNE CUNHAN/65dB

IpepexoHoe 3aTyxhaHne MeKny KaHaanMSTEReo

35dB

Ko3ΦΦuIeHt3axBaTa

2.0dB

MW-TIOHEP

HaaonHaCtpoKn153-281K

UyBCTBNTeJIbHOCTb (CTaHdapt IEC)

31,6 mKB/30ДБΦВТ

USB

Tpe6oBaHnK USB 2.0

MaKcImaJIbHaI NOtpe6nEma MoUHOCTb

KoJIueCTBO KaHaIIOB 2 KaHaJa (Ctepeo)

YacToTHaXapakTepeTnKa*5-20000Γu（±1dB)

CymMaHbI KO3ΦΦnUneHT rapMOHnueCKnx NCKaKeHH

0.008% (npn1KfU)

DnHaMueeckn Dnana3OH 95dB (npn1Kt)

OTHOeHnCunHan/ym 100 dB

Pa3deneHne KaHIOB

85 dB (npn 1 KfU)

*1 YactoTHaXapaKTepeNtKa MoKeT OTINuTaBcB 3aBnCmOCTn OT IpoIpaMMHO oEbcNeeHn yCTpoNCTBa KOInpOBaHn/CKOpOCTn IIpeJaun 6nt.

HDMI

BxOJHOHΦOpMaT

720p/480p/VGA

BbIXoHNOHΦOpMaT

480p

GPS

Uactota npnemGaPS 1575,42±1M

UyBCTBNTeJIbHOCTb npHema GPS

MaKc.-130 dB

Bluetooth

TexHnueckne xapaKTePncTnKn Bluetooth

Bluetooth V2.1+EDR

BbIXOHaMouHOCtB

MaKc. +4 1bM (KlaCC MOUHOCTn 2)

PpOΦnB

OPP (npofoiNb dny nepeaun

HFP (npoΦnJIb rapHnTpybl)

aainob)

PBAP (npoФиьдясбмeha

3aINcIMN B TeNEoHHbIX KHnRAx)

A2DP(pacwnpeHHbI npoΦnbl

pacnpoctpaehnaydno)

AVRCP (npoΦnB nCTaHNoHHOrO

MaKcImaJIbHaBbIXOHaMOLUHOCTb

50BT×4

Bec

2,9K（X801D-U）

2,7 kr (INE-W997D)

ypoBHeB BbIXoHOrO ayDIOcRHaHa

PepBaPntBbHbBbIXoD (pOHT, TbI):

4B/10KOM(MaKC.)

PepBapnTeNbHbY BbXoN (ca6Bypep):

4B/10KOM (MaKC.)

PA3MEP KOPITYCA

山uHa 178MM

BbICota 100MM

Iy6Ha 164MM

PA3MEP BbICTyIaIOUeI YACTN

山nHa 190MM(X801D-U)

170MM (INE-W997D)

BbCota 121 MM (X801D-U)

96 MM (INE-W997D)

Ipy6nHa 22MM(X801D-U)

17 MM (INE-W997D)

• 13-3a HenpebuBHO2O coBepueHcmboBaHua npodykma e2o mexHuueckue xapakmepucmuu u du3aun Moym u3MeHnmbc63 npedbapumelbHO2O yBedomneua.

IIaHeb LCD u320mOBeHa no cBepxmoHou mExHoOeuu. KoiuecMBO offfekmuBbix nuKceneu npebbuaem 99,99%. 3mo 03nauem, ymo cyuecmByem bepoamHocmb hauuua 0,01% nuKcenei, komopbte bceda BkIouenbu unu bceda bblKnIOueHb.

X701D c DVE-5300X

CD/DVD

YachToTHaXapaKTepeNCTnKa CD:5-20000Γu(±1dB)

Ko3ΦHmEHTeToHaun(%cp-KB)

Hnke n3mePMoI npedela

CymMapHbI KO3ΦΦNUEHT rapMOHNueCKNX NCKAXEHNI

0.02% (npn 1 kT)

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

Windows

Media

Maps for Life

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

WIND

Maps for Life

dt

2.0+Digital Out

DOLBY.

DIGITAL

VIDEO

DIGITALVIDEO

DIGITAL AUDIO

TEXT

• Windows Media n Iorotn Windows JIJIOTcT TOBAPbIMN 3HaKaMn INI 3apeINCTpnpOBaHHbIMN TOBAPbIMN 3HaKaMn Microsoft Corporation B CUSA n/ INI INpynx CTpaHax.
  iPhone, iPod, iPod classic, iPod nano n iPod touch YBJIHOCTa TOBaHbIMN 3HaKaAMn KOpnpauu Apple Inc., 3apeINCTpnpoBaHHbIMN B CIIJA n npyrrnx ctpaHax.
  "Made for iPod" and "Made for iPhone" 03haaot,уTo Злектоньий akcesсуap pa3pa6oTaH cneц�ьно дя поклоченя К устpoCTBy iPod и iPhone COOTBETCTBEHNO, И сеTpнфицрOBан pa3pa6oTчКOM Кak yIDOBLETBOPAOUДУЕТAUOHHbIM Сандам Apple. КорпорачиApple He HeceT OTBETCTBEHHOCTN 3a pa6Oу ДанHOrO yCTpoIcTBa ИИ ERO COOTBETCTBNE CTaHДApTAM 6e3OПaCHOCTN I peYJIaTINHBHbIM HOpMaM. ИмeTeВ BnDy,ЧTO ИСПОЛБЗОВАнUE DAнHOrO akcesсурасс iPhone может NOВлиЯть Ha pa6Oу 6ecPpOBODHoi CBa3N.
  Android ABnEeTcra TobapHbIM 3HaKoM Google Inc.
  CnoBechbln 3nK n JorotnbI Bluetooth® ABnIoTc3apeRnCTpnpOBaHbIMn TOBapHbIMn 3HaKaMn KopnapuNn Bluetooth SIG, Inc. n cNoJb3yIoTcKopnpauee Alpine Electronics, Inc. no liueH3nn.
• TepmnbHbHDMI n HDMl High-Definition Multimedia Interface, a TaKke IorotnHDMI ABnIOTc TobapHbIMn 3HaKaMn KOMnHnHDMI Licensing LLC, 3apeNCTpnpoBaHHbIMn B CUSA n npynx cTpaHax.
• LInueH3nHa TexHOJorIO KoIINPOBaHn 3Byka MPEG Layer-3 nOlyeHa ot Fraunhofer IIS u Thomson. Ppi NOCTabKe 3TOrO npOdykTa npEOCTaBJIeTcR naueH3n Ha uactHoe, HeKOMMepueckoe NcNOLb3OBaHne u He npEOCTaBJIeTcR naueH3n u He NpOpa3yMeBaOTcR KaKne-lNo6o npaba Ha NCNOb3OBaHne daHHoro npOdykTa B cEJnx KOMpeUeCKOrO (T.e. dJa nOlyeHnna npi6bln) paINOBEuAHN B peALbHOM BpeMeHN (Ha3EMHOrO, cNYTHNKOBOrO, Ka6bHOrO u/INn INHOrO), INpOKoRo BeuAHN uIN noTOKOBn PepeaUn daHHbIX uepe3 INtepHeT, INTPacETn u/INn INhle CETn INn DpyrNe cETn pacPpeJeHnra 3NeKtpOHHO rCOdprKaHnra, TaKne kak npINOJxehn 3ByKOBOcnpOn3BeDeHnra 3a pNaTy uIN No Tpe6OBaHnIO. Dnra taKoro NCNOb3OBaHnra Tpe6yEtc OTDenbHa JInueH3n. Dnla nOlyeHnna DOONHHTeNBHO INHOpMaun nocTe NTbe 6-caIT http://www.mp3licensing.com
  © 1987-2014 HERE. Bce npaba 3aunueHbl.

X701D c DVE-5300X

B 3TOM yCTpoNCTBe npImeHReTcRA TexHOLOrna 3aunTbI OT KONINPOBaHN, 3aunSeHHa nATEHTAMn CLUA n DpyrMM npaBaMn Ha nHTeJIeKTyajbHyIO CO6CTBeHHocTb Rovi Corporation. BocctaHOBJeHne aIropNTMa paOtbl n pa3bOpKa yCTpoNCTBa 3anpeUeHbl.
- I3roToBneHNO NO liueH3nKOMpaHn Dolby Laboratories."Dolby" nДBOHOn CmBON "D"ЯВJIaOTcT ToBapHbIMn 3HaKaAMn Dolby Laboratories.
-Дя получении Инфорmaци O nateHTax DTS noceTite Be6-caIT http://patents.dts.com. Пронзveedo no liuehen3nDTS Licensing Limited. DTS, cIMBON, a TakaKe DTS BmecTe C cIMBOJOMЯBIAOTc 3apernctpnpoBaHHbIM TOBapHbIM 3HaKaMn, a DTS Digital SurroundЯBnaeTcra TOBapHbIM 3HaKOM Kopnpaun DTS, Inc. © DTS, Inc. Bce npaba 3auniuhebl.
DVD ISBN TCA TOBAPHbIM 3HaKOM DVD Format/Logo Licensing Corporation.

OOO «KoMaHnBaBoHaH3a»

HΦopMaζη o cepBnchbIX ΒeHTpax

DocTyHa Ha caIte www.alpine.ru

Spistresci

Obsluga DAB/DAB+/DMB

Digital Audio Broadcasting

Bluetooth

Maps for Life

MP3 AAC

Plays

Windows

Media

Digital Audio Broadcasting

Bluetooth

MP3 AAC

Plays

Window

Maps for Life

dtts

2.0+Digital Out

DOLBY.

DIGITAL

VIDEO

DIGITALVIDEO

DIGITAL AUDIO

TEXT

161-165 Princes Highway,

Hallam Victoria 3803, Australia

Phone [phone]

ALPINE ELECTRONICS GmbH

Alpine House Fletchamstead Highway,

Coventry CV4 9TW, U.K.

www.alpine.co.uk

ALPINE ELECTRONICS France S.A.R.L.
