USER MANUAL MOF23110X BEKO

www.beko.com Microwave Oven User Manual MOF 23110 X 01M-8854313200-1217-01 EN DE FR IT ES PT NL PL CZ HR SK LT ET BG RO SL TRPlease read this manual first! Dear Customer, Thank you for purchasing a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Remember that this user manual is also applicable for several other models. Differ- ences between the models are explicitly described in the manual. Meanings of the symbols Following symbols are used in the various section of this user manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property. Warning for hot surfaces. This product has been manufactured in environmental friendly modern plants without giving any harm to the nature. This appliance conforms to the WEEE regulation. It does not contain PCB.3 / EN Microwave Oven / User Manual CONTENTS ENGLISH 4-21 DEUTSCH 22-40

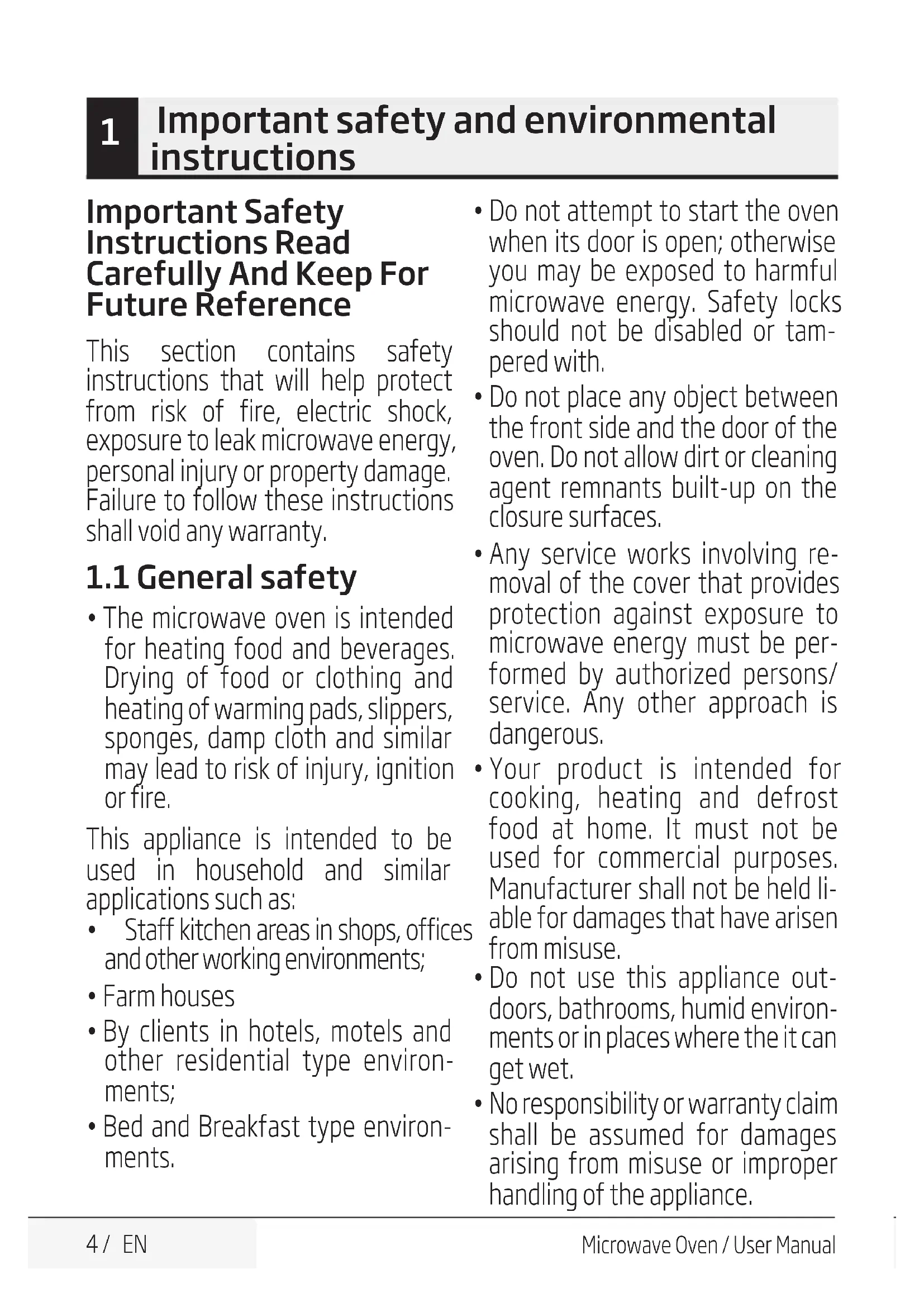

Important safety and environmental instructions Important Safety Instructions Read Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;

• By clients in hotels, motels and other residential type environ- ments;

• Bed and Breakfast type environ- ments.

• Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tam- pered with.

• Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants built-up on the closure surfaces.

• Any service works involving re- moval of the cover that provides protection against exposure to microwave energy must be per- formed by authorized persons/ service. Any other approach is dangerous.

• Your product is intended for cooking, heating and defrost food at home. It must not be used for commercial purposes. Manufacturer shall not be held li- able for damages that have arisen from misuse.

• Do not use this appliance out- doors, bathrooms, humid environ- ments or in places where the it can get wet.

• No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.5 / EN Microwave Oven / User Manual

Important safety and environmental instructions

• Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling.

• Only use the original parts or parts recommended by the manufac- turer.

• Do not leave this appliance unat- tended while it is in use.

• Always use the appliance on a stable, flat, clean dry, and non-slip surface.

• The appliance should not be oper- ated with an external clock timer or separate remote control sys- tem.

• Before using the appliance for the first time, clean all parts. Please see the details given in the "Clean- ing and Maintenance" section.

• Operate the appliance for its in- tended purpose only as described in this manual. Do not use abrasive chemicals or steam on this appli- ance. This oven is particularly in- tended for heating and cooking the food. It is not intended for industrial or laboratory use.

• Do not use your appliance to dry clothes or kitchen towels.

• Appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven.

• Your oven is not designed to dry any living being.

• Do not operate the oven empty.

• Only use utensils that are suitable for use in microwave ovens.

• Cooking utensil may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil.

• Utensils shall be checked to en- sure that they are suitable for use in microwave ovens.

• Do not place the oven on stoves or other heat generating appliances. Otherwise, it may be damaged and the warranty becomes void.

• Microwave oven must not be placed in a cabinet that is not in compliance with the installation instructions.

• Steam may come out while open- ing the covers or the foil after cooking the food.

• Use gloves while taking any kind of heated food out.Microwave Oven / User Manual 6 / EN

• The appliance and its accessible surfaces may be very hot when the appliance is in use.

• Door and outer glass may be very hot when the appliance is in use.

1.1.1 Electrical safety

• If the supply cord is damaged, it must be replaced by the manu- facturer or its service agent or a similarly qualified person in order to avoid a hazard.

• Beko Microwave Ovens comply with the applicable safety stan- dards; therefore, in case of any damage on the appliance or power cable, it should be repaired or re- placed by the dealer, service cen- ter or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

• Make sure that your mains power supply complies with the informa- tion supplied on the rating plate of the appliance. The only way to disconnect the appliance from the power supply is to remove the power plug from the power outlet.

• Use the appliance with a grounded outlet only.

• Never use the appliance if the power cable or the appliance itself is damaged.

• Do not use this appliance with an extension cord.

• Never touch the appliance or its plug with damp or wet hands.

• Place the appliance in a way so that the plug is always accessible.

• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

• Make sure that there is no danger that the power cable could be ac- cidentally pulled or that someone could trip over it when the appli- ance is in use.

• Unplug the appliance before each cleaning and when the appliance is not in use.

• Do not pull the power cable of the appliance to disconnect it from its power supply and never wrap its power cable around the appliance.

• Do not immerse the appliance, power cable, or power plug in water or any other liquids. Do not hold it under running water.

Important safety and environmental instructions7 / EN Microwave Oven / User Manual

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

• Remove the wire strings and/or metal handles of paper or plastic bags before placing bags suitable for use in microwave oven to the oven.

• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

• Do not use inside of the oven to store something. Do not leave paper items, cooking material or food inside the oven when it is not being used.

• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature shall be checked before consump- tion, in order to avoid burns.

• This appliance is a Group 2 Class B ISM equipment. Group 2 contains all ISM (Industrial, Scientific and Medical) equipment in which ra- dio-frequency energy is intention- ally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment.

• Class B equipment is suitable for use in domestic establishments and establishments directly con- nected to a low voltage power supply network.

• Door or outer surface of the appli- ance may become hot when it is in use.

1.1.2 Product safety

• Heating the beverages with mi- crowave may cause them to boil by splashing around after they have been taken out of the oven; so be careful when you are holding the containers.

• Do not roast anything in the oven. Hot oil may damage the compo- nents and materials of the oven, and it may even cause skin burns.

• Pierce food with thick crust such as potatoes, zucchinis, apples and chestnuts.

• Appliance must be placed so that the rear side is facing the wall.

• Before moving the appliance, please secure the turntable to prevent damage to it.

Important safety and environmental instructionsMicrowave Oven / User Manual 8 / EN

• Eggs in their shell and whole hard- boiled eggs must not be heated in microwave ovens since they may explode, even after microwave heating has ended.

• Never remove the parts at the rear and sides of the appliance, which protect the minimum distances between the cabinet walls and the appliance in order to allow for the required air circulation.

• Failure to maintain the oven in a clean condition could lead to dete- rioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

• Cleaning the door seals and adja- cent parts: Use hot soapy water. Clean with a dish cloth, do not scour. Do not use a metal or glass scraper for cleaning.

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to mi- crowave energy.

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• The oven should be cleaned reg- ularly and any food deposits re- moved.

• There should be min 30 cm free space above the top surface of the oven.

• Do not use the appliance for any- thing other than its intended use.

• Do not use the appliance as a heat source.

• Microwave oven is intended to thaw, cook and stew food only.

• Do not over-cook foods; other- wise, you may cause a fire.

• Do not use steam assisted clean- ers to clean the appliance.

Important safety and environmental instructions9 / EN Microwave Oven / User Manual

1.3 Children’s safety

• Extreme caution is advised when being used near children and per- sons who are restricted in their physical, sensory or mental abili- ties.

• This appliance can be used by the children who are at the age of 8 or over and by the people who have limited physical, sensory or men- tal capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly or understand the risks of using the product. Children should not play with the appliance. Cleaning and user maintenance procedures should not be performed by chil- dren unless they are controlled by their elders.

• Danger of choking! Keep all the packaging materials away from children.

• Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the microwave oven in a safe way and understands the hazards of improper use.

• Due to excessive heat that arises in grill and combination modes, children should only be allowed to use these modes under supervi- sion of an adult.

• Keep the product and its power cable so that they are inaccessible by children under 8 years old.

• The appliance and its accessible surfaces may be very hot when the appliance is in use. Keep chil- dren away.

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of ex- perience and knowledge, unless they have been given supervised or instruction concerning use of the appliance by a responsible person for their safely.

• Young children should be super- vised to ensure that they do not play with the appliance.

Only allow children to use the oven without supervi- sion when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Important safety and environmental instructionsMicrowave Oven / User Manual 10 / EN

1.4 Compliance with the WEEE

Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5 Compliance with RoHS

Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Important safety and environmental instructions11 / EN Microwave Oven / User Manual Markings on the product or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions. Power values are tested at 230V.

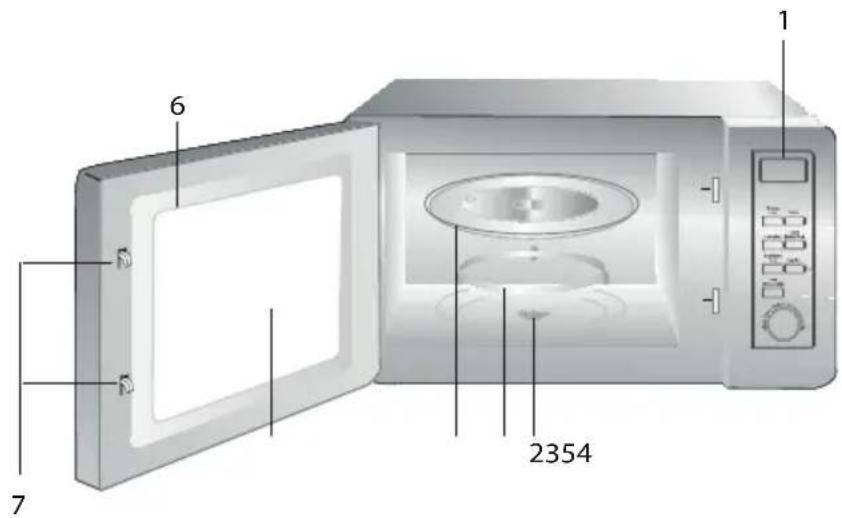

3. Turntable support

• Never place the glass tray upside down. The glass tray should never be restricted. • Both glass tray and turntable support must always be used during cooking. • All food and containers of food must always place on the glass tray for cooking. • If glass tray or turntable support crack or break, contact your nearest authorized service center.

Your microwave oven Hub (underside)Glass trayTurntable shaftTurntable support13 / EN Microwave Oven / User Manual

Installation and connection

3.1 Installation and

• Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

• Remove any protective film found on the microwave oven cabinet surface.

• Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

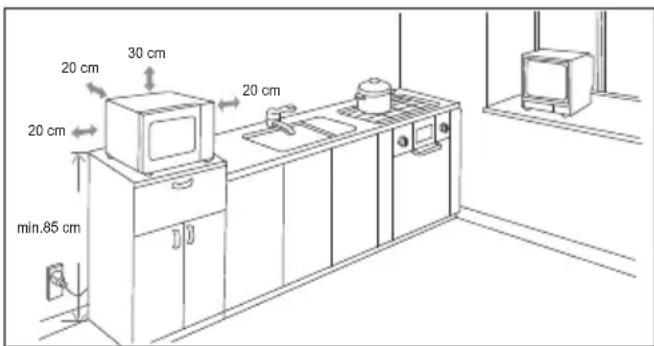

• Select a level surface that provide enough open space for the intake and/or outlet vents. 20 cm30 cm20 cmmin.85 cm20 cm

• Minimum installation height is 85 cm.

• The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

• Do not remove the legs from the bottom of the oven.

• Blocking the intake and / or outlet openings can damage the oven.

• Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a standard household

outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

Do not install oven over a range cooktop or other heat- producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void. The accessible surface may be hot during operation.Microwave Oven / User Manual 14 / EN

When the microwave oven is electrified, the LED will display “0:00”, buzzer will ring once.

time should be within 0--23.

time should be within 0--59.

5. Press “Clock/Kitchen Timer” to finish clock

setting. “:” will flash, and the time will light.

If the clock is not set, it would not function when powered.

During the process of clock setting, if you press “Stop/Clear” the oven will go back to the previous status automatically.

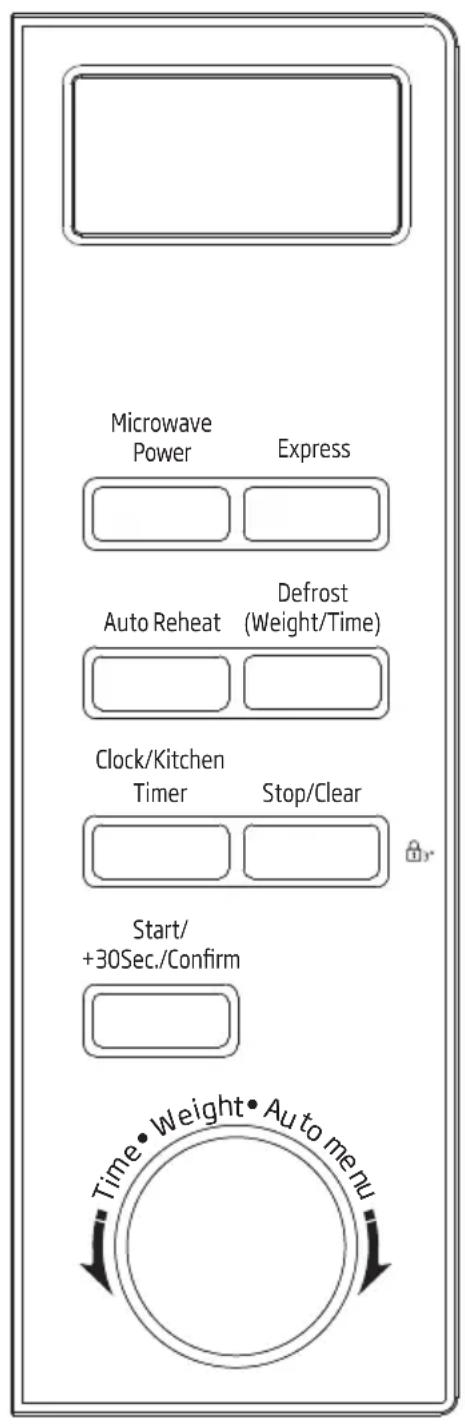

4.3 Microwave Cooking

Press “Microwave Power“ the LED will display “P100“.Press “Microwave Power“ for times or turn to choose the power you want, and “P100”, “P80” “P50”, “P30” or “P10” will display for each added press. Then press ”Start/+30Sec./Confirm“ to confirm, to set cooking time from 0:05to 95:00. Press again to start cooking .

1. Press “Microwave Power“ once, the screen

to choose 80% microwave power.

3. Press “Start/+30Sec./Confirm” to confirm, and

4. Turn to adjust the cooking time until the

oven displays “20:00”.

5. Press “Start/+30Sec./Confirm” to start cooking.

The step quantities for the adjustment time of the coding switch are as follow: Setting the duration Increment amount0-1 minute 5 seconds1-5 minutes 10 seconds5-10 minutes 30 seconds10-30 minutes 1 minute30-95 minutes 5 minutes “Microwave Power”Pad instructions Order Display Microwave Power1 P100 100%2 P80 80%3 P50 50%4 P30 30%5 P10 10%

1. In waiting state, Press “Start/+30Sec./Confirm”

to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.

2. In microwave, grill, combi. cooking or time

defrost state, each press of “Start/+30Sec./ Confirm” can increase 30 seconds of cooking time.

3. In waiting state, turn anti-clockwise to set

cooking time with 100% microwave power, then press “Start/+30Sec./Confirm” to start cooking.

4.5 Defrost by weight

1. Press “Weight Defrost“ once, the screen will

2. Turn to select the weight of food from 100

3. Press “Start/+30Sec./Confirm” to start defrost.

1. Press “Time Defrost“ twice, and the oven will

2. Turn to select the defrost time. The MAX.

3. Press “Start/+30Sec./Confirm” to start

defrosting. The power is P30 and it cannot be adjusted.

1. Turn right to choose the menu, and

“A-1” to “A-8” will display, which means hot drink, white meat, fish,poultry, frozen dishes,vegetable,potato and soup.

2. Press “Start/+30Sec./Confirm” to confirm.

3. Turn to choose the default weight as the

4. Press “Start/+30Sec./Confirm” to start cooking.

Example: If you want to use “Auto Menu” to cook fish for 350g.

2. Press “Start/+30Sec./Confirm” to confirm.

4. Press “Start/+30Sec./Confirm” to start cooking.

1. Press “Auto Reheat“ once, and the screen will

2. Press “Auto Reheat“ more times or turn to

choose the weight of food, and “400” or “600” g will be selected.

3. Press “Start/+30Sec./Confirm” to start cooking.

2. Press “Express“ more times or turn to choose

the weight of food, and “400” or “600” g will be selected.

3. Press “Start/+30Sec./Confirm” to start cooking.

4.10 Program set in Advance

1. Set the clock first. (Consult the instruction of

2. Input the cooking program. Two stages can be

set at most. Defrost should not be set as the cooking program.

Example: If you want to cook with 80% microwave power for 7 minutes, operate it as the following:

• Press “Microwave Power” once, the screen display “P100”.

• Press “Microwave Power” once again or turn to choose 80% microwave power.

• Press “Start/+30Sec./Confirm” to confirm, and the screen displays “P 80”.

• Turn to adjust the cooking time till the oven displays “7:00”. After the aboved steps, be careful not to press “Start/+30Sec./Confirm” to start cooking.

time should be within 0--23.

time should be within 0--59.

7. Press “Start/+30Sec./Confirm” to finish setting.

If the door is closed, buzzer will ring twice when the time arrives, then cooking will start automatically.

Clock must be set first. Otherwise, pre-set function will not work.

4.11 Multi-section cooking

At most 2 sections can be set for cooking. In multi- section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1. Press “Time Defrost“ once, the screen will

to choose 80% microwave power.Microwave Oven / User Manual 18 / EN

5. Press “Start/+30Sec./Confirm” to confirm, and

7. Press “Start/+30Sec./Confirm” to start cooking,

and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

4.12 Inquiring Function

1. In states of microwave, grill and combination

cooking, press ”Microwave Power”, the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;

2. In cooking state, press “Start/+30Sec./Confirm”

to inquire the time and the time will display for 3 seconds.

4.13 Lock-out Function for

Lock: In waiting state, press “Stop/Clear“ for 3 seconds, there will be a long beep denoting entering the children-lock state and the locked indicator will display if the time has been set, otherwise, the LED will display “ “.

Lock quitting: In locked state, press “Stop/ Clear“ for 3 seconds, there will be a long “beep” denoting that the lock is released.19 / EN Microwave Oven / User Manual

Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

Never immerse the appliance or its power cable in water or in any other liquid.

1. Turn the appliance off and disconnect it from

2. Wait for the appliance to completely cool down.

3. Keep the inside of the oven clean. Wipe with a

damp cloth when splashed food or spilled liquids stick on the walls of the oven. A mild detergent may be used if the oven gets very dirty. Avoid using sprays and other harsh cleaning agents as they may cause stains, marks, and opaqueness on the door surface.

4. Outer surfaces of the oven must be cleaned

with a damp cloth. Do not allow water ingress from ventilation openings to prevent damage to the operating parts in the oven.

5. Wipe both sides of the door and the glass, door

gaskets and parts near the gaskets frequently with a damp cloth in order to remove the overflowing and splashing stains. Do not use abrasive cleaning agents.

6. Do not allow control panel to get wet. Clean with

a soft damp cloth. Leave the door of the oven open to prevent inadvertent operation while cleaning the control panel.

7. If steam accumulates inside or around the oven

door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions. It is normal.

8. In some cases, you may need to remove the

glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.

Cleaning and maintenance

9. The roller ring and oven floor should be

cleaned regularly to avoid excessive noise. It would be sufficient to wipe the lower surface of the oven with a mild detergent. Roller ring may be washed in warm soapy water or in a dishwasher. When you remove the roller ring from oven internal floor for cleaning, ensure that you install it in the correct position while replacing it.

10. In order to remove bad odors in your oven, put a

glass of water and juice and peel of a lemon to a deep bowl suitable for use in microwave and operate the oven for 5 minutes in microwave mode. Wipe thoroughly and dry with a soft cloth.

11. Please contact the authorized service when

the oven lamp needs to be replaced.

12. The oven should be cleaned regularly and

any food deposits should be removed. If the oven is not kept clean, this may cause surface defects that would affect the lifecycle of the appliance negatively and that would possibly cause risks.

13. Please do not dispose this appliance with

household waste; old ovens shall be disposed to special waste centers provided by the municipalities.

14. When the microwave oven is used in grill

function, a small amount of smoke and odor may occur which will disappear after a certain time of usage.

• If you do not intend to use the appliance for a long time, please store it carefully.

• Please make sure that the appliance is unplugged, cooled down and totally dry.

• Store the appliance in a cool and dry place.

• Keep the appliance out of the reach of children.Microwave Oven / User Manual 20 / EN

Troubleshooting Normal Microwave oven interferes with TV reception Radio and TV reception may be interfered when microwave oven is operating. It is similar to the interference caused by small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal. Oven light is dimmed In low power microwave cooking, oven light may be dimmed. It is normal. Steam accumulating on door, hot air coming out of vents During cooking, steam may arise from the food. Most of this steam will get out from vents. But some may accumulate on a cool place like oven door. It is normal. Oven started accidentally with no food in it. It is not allowed to run the appliance without any food inside. It is very dangerous. Problem Possible Reason Solution Oven cannot be started. 1) Power cable is not plugged in properly. Unplug. Then plug again after 10 seconds.

2) Fuse is blown or circuit

breaker is activated. Replace fuse or reset circuit breaker (repaired by professional personnel of our company).

3) Trouble with outlet. Test the outlet with other

electrical appliances. Oven does not heat. 4) Door is not closed properly. Close the door properly. Glass turntable makes noise when microwave oven operates

5) Turntable and bottom of the

oven is dirty. Refer to “Cleaning and Maintenance" section to clean dirty parts.21 / EN Microwave Oven / User Manual

Guarantee and Service 12 months breakdown and repair guarantee Product Guarantee Guarantor: Beko plc, 1 Greenhill Crescent, Watford, Hertfordshire. WD18 8UF The guarantee does not in any way diminish your statutory or legal rights. Your microwave has the benefit of our manufacturer’s guarantee which covers the product for 12 months from the date of original purchase. This gives you reassurance that if within that time, your microwave is proven to be defective because of either workmanship or materials, we will at our discretion either repair or replace your microwave. The microwave mus t be correctly installed, located and operated in accordance with the instructions contained in the user manual. !The guarantor disclaims any liability for accidental or consequential damage. The Guarantee is subject to the following conditions: Documentary proof of the original purchase date is provided. The microwave has been installed and operated correctly and in accordance with our operating and maintenance instructions. The microwave is used only on the electricity supply on the rating plate. The microwave has only been used for normal domestic purposes. The microwave has not been altered, serviced, dismantled or otherwise interfered with by any person. The microwave is used in the United Kingdom or Republic of Ireland. Any parts removed during repair work or any product that has been replaced becomes our property. The guarantee is not transferrable if the product is resold. The Guarantee does not cover: Transit, installation or delivery damage. Accidental damage. Misuse or abuse. Replacement of any consumable item or accessories. These include but are not limited to: plugs, cables, light bulbs, knobs, filters and flaps. Repairs or replacements required as a result of unauthorised repairs or inexpert installation that fails to meet the requirements contained in the user guide or instruction book. Repairs to products used in commercial or non-residential household premises. How to obtain after sales service, help or general advice Please keep your purchase receipt or other proof of purchase in a safe place as you will need to show us this document if your product requires attention within the guarantee period. Please also record your product details below, which will allow you to access our services more quickly and help us identify your product. The model number is printed on the front of the user guide and the serial and model number is shown on your products rating plate. Model number Serial number Purchased from Date of purchase

3. Pressione “Clock/Kitchen Timer” e as horas co-

scherm toont “P100“.

scherm toont “P100“.

• Never place the glass tray upside down. The glass tray should never be restricted. • Both glass tray and turntable support must always be used during cooking. • All food and containers of food must always place on the glass tray for cooking. • If glass tray or turntable support crack or break, contact your nearest authorized service center.

1. "Clock/Kitchen Timer" (Saat/Mutfak

3. "Clock/Kitchen Timer" (Saat/Mutfak

5. “Clock/Ktchen Tmer” (Saat/Mutfak
