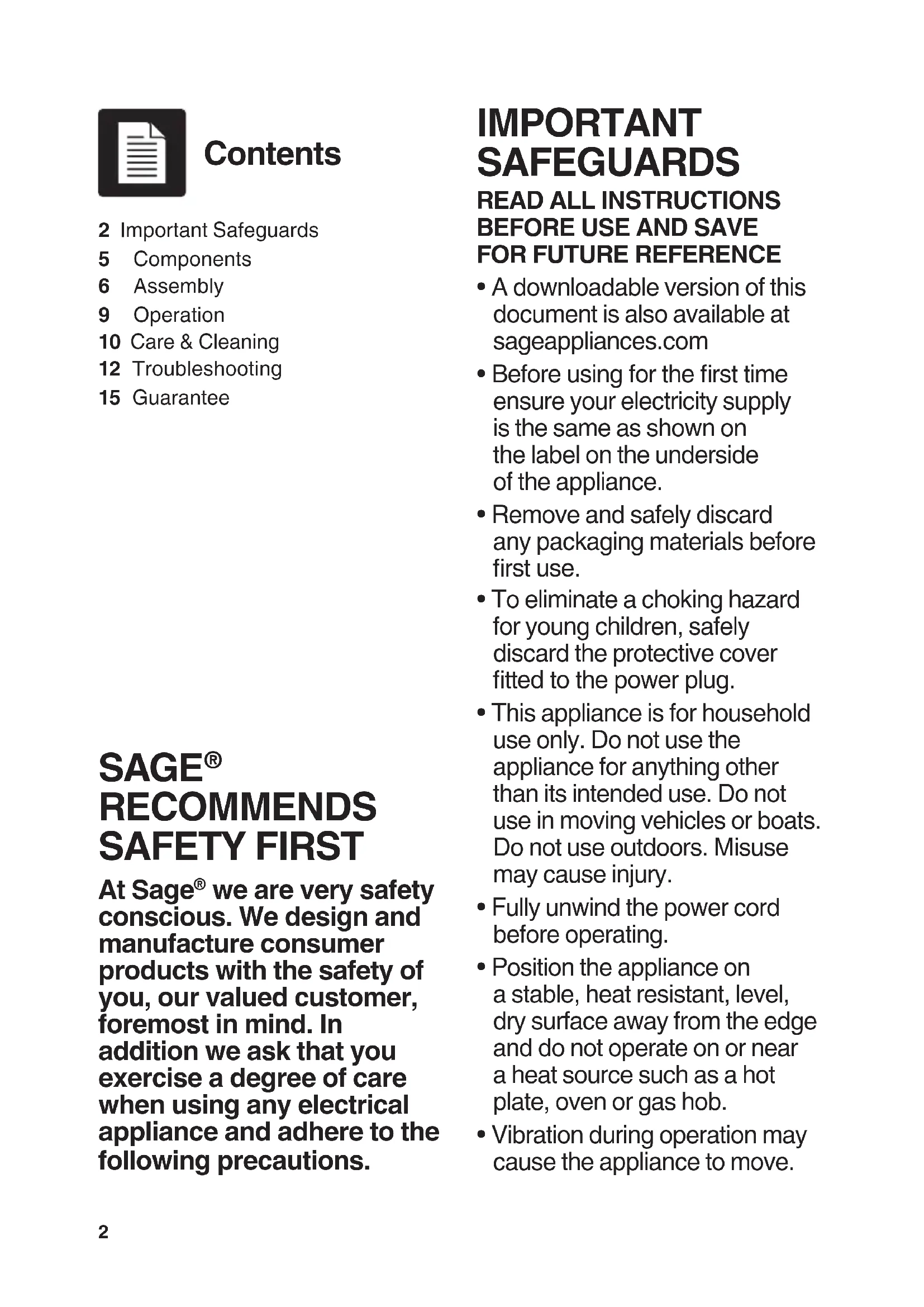

USER MANUAL The Big Squeeze SJS700 SAGE

we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions. IMPORTANT SAFEGUARDS

• A downloadable version of this document is also available at sageappliances.com

• Before using for the rst time ensure your electricity supply is the same as shown on the label on the underside of the appliance.

• Remove and safely discard any packaging materials before rst use.

• To eliminate a choking hazard for young children, safely discard the protective cover tted to the power plug.

• This appliance is for household use only. Do not use the appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors. Misuse may cause injury.

• Fully unwind the power cord before operating.

• Position the appliance on a stable, heat resistant, level, dry surface away from the edge and do not operate on or near a heat source such as a hot plate, oven or gas hob.

• Vibration during operation may cause the appliance to move. Contents 2 Important Safeguards5 Components6 Assembly9 Operation10 Care & Cleaning12 Troubleshooting15 Guarantee3

• Do not let the power cord hang over the edge of a bench or table, touch hot surfaces or become knotted.

• Always ensure the appliance is turned OFF, unplugged at the power outlet and has been allowed to cool before cleaning, attempting to move or storing.

• Always turn the appliance to the OFF position, switch o at the power outlet and unplug at the power outlet when the appliance is not in use.

• Do not use the appliance if the power cord, plug, or appliance becomes damaged in any way. If damaged or maintenance other than cleaning is required, please contact Sage Customer Service or go to sageappliances.com

• Any maintenance other than cleaning should be performed by an authorised Sage

• Children should not play with the appliance.

• Cleaning of the appliance should not be carried out by children unless they are 8 years or older and supervised.

• The appliance and its cord should be kept out of reach of children aged 8 years and younger.

• The installation of a residual current safety switch is recommended to provide additional safety when using all electrical appliances. Safety switches with a rated operating current not more than 30mA are recommended. Consult an electrician for professional advice.

• Always ensure the appliance is properly assembled before use. The appliance will not operate unless properly assembled.

• Do not use the appliance on a sink drain board.

• Keep hands, ngers, hair, clothing as well as spatulas and other utensils away from moving or rotating parts during operation.

• Do not use the appliance for anything other than food and/or beverage preparation.

• In order to avoid the possible hazard of the appliance starting by itself due to inadvertent resetting of the overload protection, do not attach an external switching device (such as a timer) or connect the appliance to a circuit that can regularly switch the appliance on and o.

• Carefully read all instructions before operation and save for future reference.

• The appliance can be used by persons with reduced physical or mental capabilities or a lack of experience and knowledge, only if they have been given4 supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• This appliance shall not be used by children.

• Do not leave the appliance unattended when in use.

• Do not push food into the feed chute with your ngers or other utensils. Always use the food pusher provided. Do not place hand or ngers into the food chute when it is attached to the appliance.

• Do not juice stone fruit unless seeds and/or stones have been removed.

• Do not operate the juice extractor without the pulp and juice container in place.

• Do not use the juice extractor if the juicing screw is damaged.

• Do not operate the machine longer than 20 seconds before inserting ingredients. The symbol shown indicates that this appliance should not be disposed of in normal household waste. It should be taken to a local authority waste collection centre designated for this purpose or to a dealer providing this service. For more information, please contact your local council oce. To protect against electric shock, do not immerse the power plug, cord or appliance in water or any liquid.

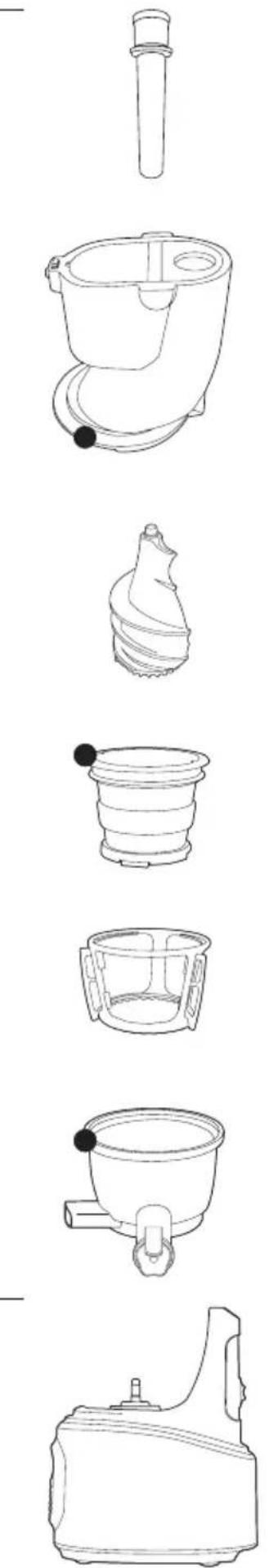

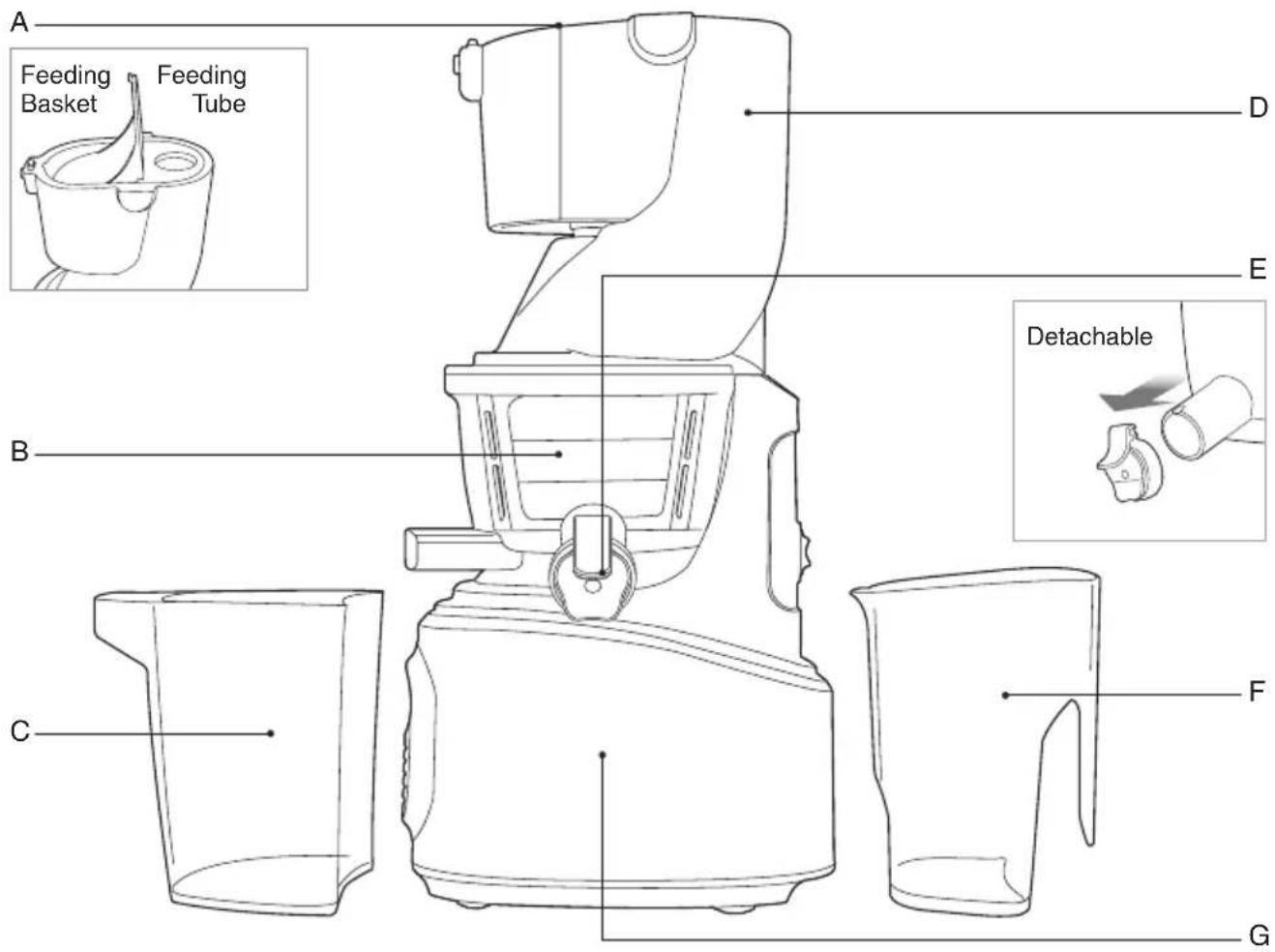

Align the dots on each part and assemble in the order shown. Once assembled, turn the drum lid clockwise to close. Assembly

Before using your Juicer for the rst time, remove any packaging material and promotional labels. Ensure the power is in the OFF position, the juicer is switched o at the power outlet and the power cord is unplugged. Wash bowl and juicing tools in warm soapy water with a soft cloth. Rinse and dry thoroughly. When rst using your appliance, you may notice an odour coming from the motor. This is normal and will dissipate with use.

TOP-SET AND BODY ASSEMBLY

Place the drum lid on the juicing bowl. Align the red dot on the drum lid with the ALIGN mark on the body and turn to the LOCK position.7

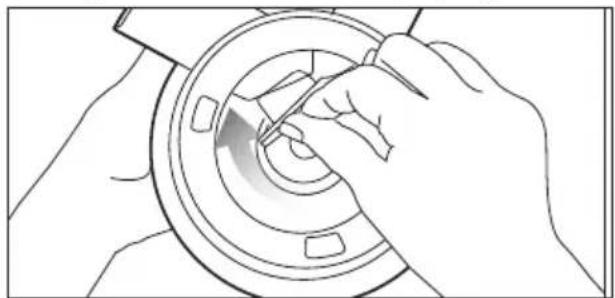

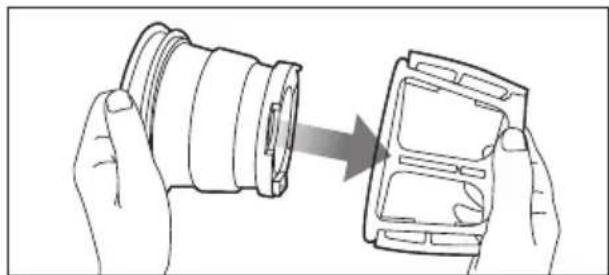

1. Firmly insert the compression silicone into

the slot below the pulp spout. The Juicer may leak if not assembled properly.

2. Assemble the strainer into the rotation

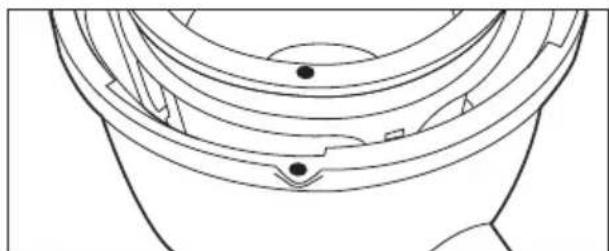

wiper then place this assembly in to the juicing bowl ensuring the red dot on the strainer is aligned with the red dot on the juicing bowl.

3. Place the juicing screw into the strainer. Turn

and press down on it until it clicks into place. The juicing screw needs to be locked in place in order to close the drum lid.

4. Place the drum lid on to the juicing bowl

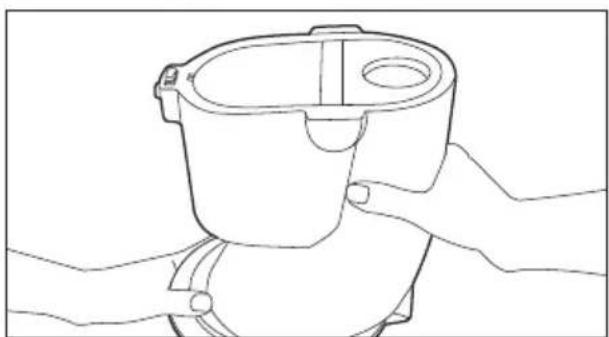

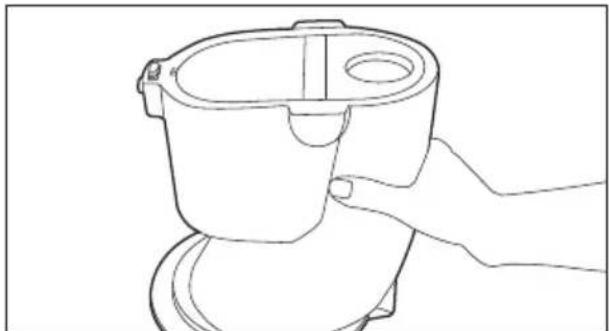

aligning the dot on the drum lid with the red dot on the juicing bowl. TIP For easy assembly hold the drum lid by grabbing the feeding tube and turn clockwise as shown in the illustration.

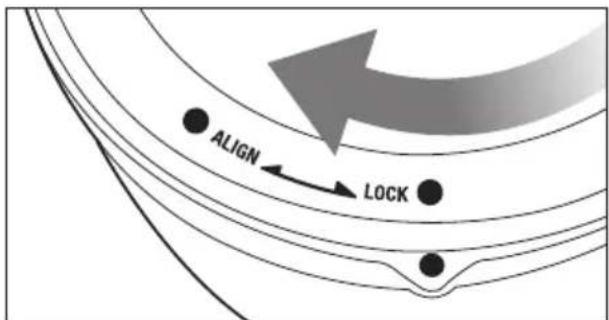

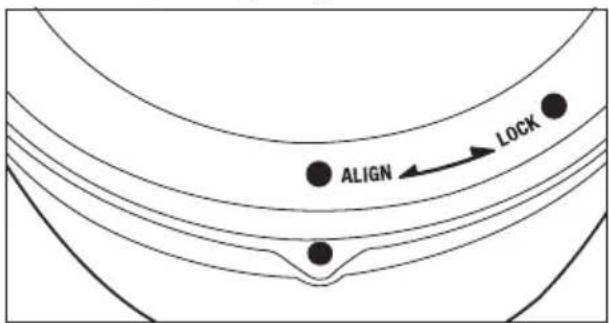

5. Align the red dot on the drum lid with the

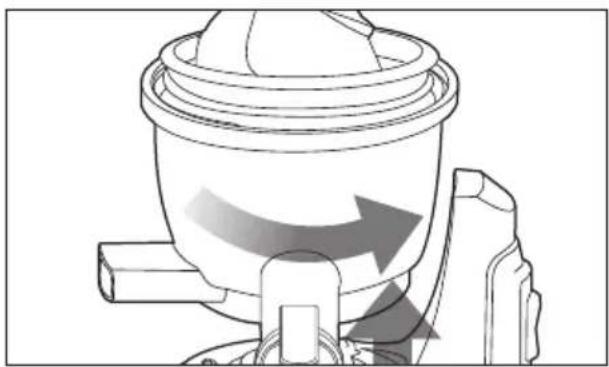

ALIGN mark on the body and turn to the CLOSE position.8

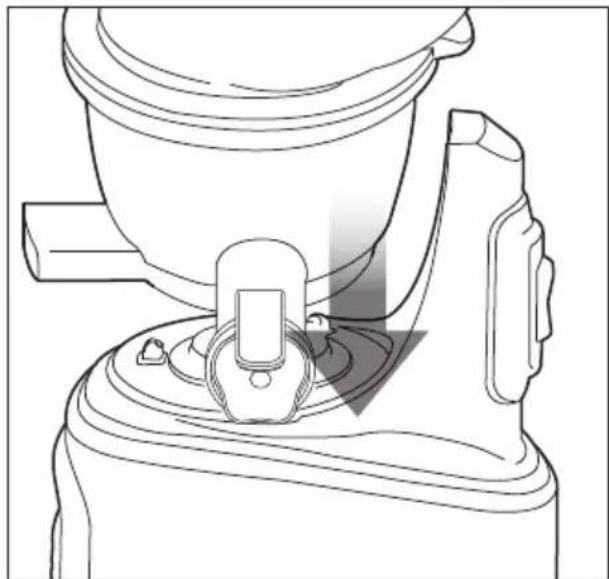

6. Align arrows on drum lid and motor body.

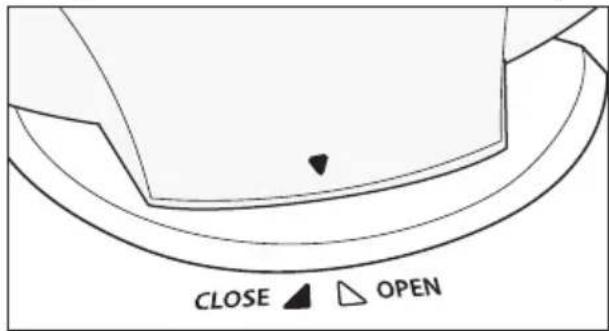

NOTE The juicer will not operate if the down arrow on the drum lid is not completely aligned with the CLOSE mark on the body.

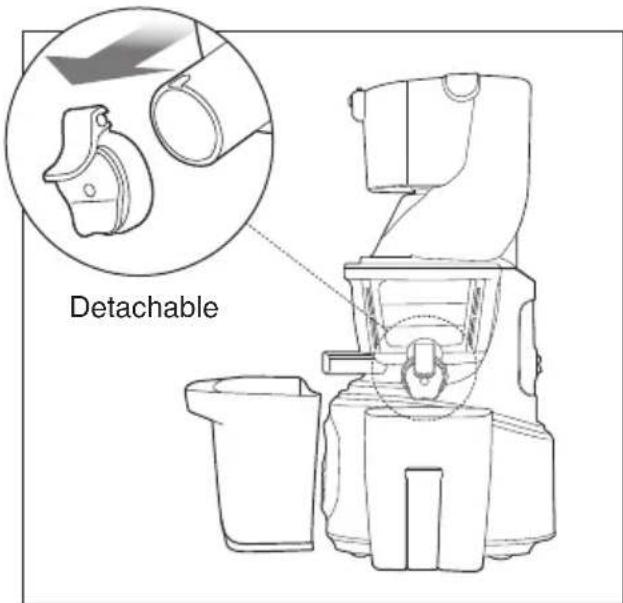

7. Place the pulp cup under the pulp spout and

place the juice cup under the juice spout as shown in the illustration. Detachable9

1. After preparing the ingredients, plug the

power cord into a wall outlet. Do not touch the power cord with wet hands. It may cause electrical shock, short-circuit, or re.

2. Press the FORWARD button to operate.

Forward: Pulls down and slowly masticates the ingredients. Reverse: Pushes the ingredients back up to dislodge them. The REVERSE button only works while holding down the switch.

3. Insert the prepared ingredients into the

feeding tube, one piece at a time. If large quantity of ingredients are put into the feeding tube, it can cause the juicer to stop Remove hard seeds or pits in fruits. When juicing frozen fruits, completely thaw before juicing.

HARD VEGETABLES & HIGH FIBRE

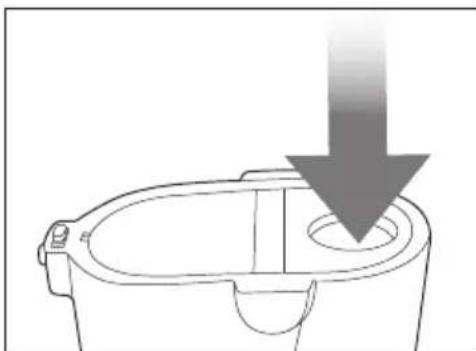

FOODS (E.G. CARROTS, BEETROOT, & SPINACH) Insert into the feeding tube. Tough and brous ingredients: Cut to 2cm wide and 5cm long. Fibrous leafy vegetables: (celery, kale, collard greens, etc.): Cut the stems into 5cm long and bundle up the leafy part as you insert them into the juicer.

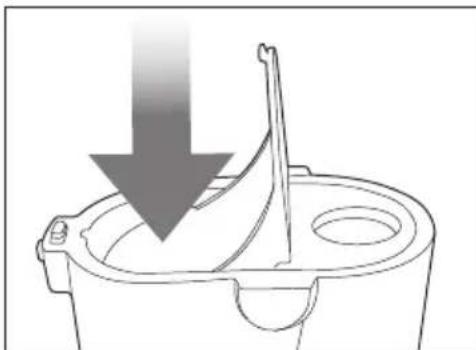

SOFT FRUITS & VEGETABLES

(E.G. APPLES, ORANGES & TOMATOES) Insert into the feeding basket. Soft ingredients: Cut ingredients into 1–4 pieces. Insert the prepared ingredients into the feeding basket and push down the ingredient with the basket lid to extract.10 Care & Cleaning

4. Remove the juicing screw, strainer and

rotation wiper unit from the juicing bowl. Clean with provided brush. NOTE Immediately clean the juicer after each use. If remaining residue in the juicer dries up, it can make disassembling and clean-up dicult. The excess build up can cause poor performance in future uses. For easier disassembly, place the top-set in the sink and run the water through from the top of the top-set. We do not recommend to wash any parts of the juicer in the dishwasher. Washing parts in the dishwasher can cause damage to them due to prolonged exposure to harsh detergents, hot water and pressure.

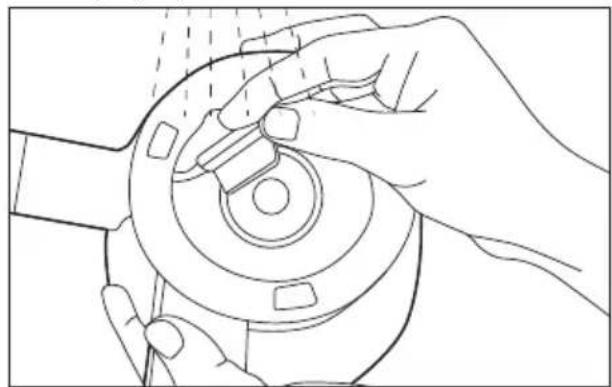

5. Place the juicing bowl under running water

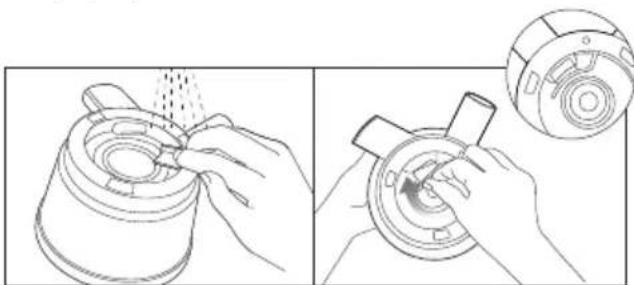

and unplug the compression silicone to clean the pulp spout. Extract all the remaining pulp in the juicing bowl before stopping the juicer. For easier clean up, operate the juicer for an additional 30 seconds after the juice is extracted. Then ll the juicing bowl with water and run the juicer before opening the drum lid. When the drum lid is stuck, press the REVERSE – OFF – FORWARD button in this order, switching back and forth 2 to 3 times to dislodge. Then place both hands on the drum lid and rmly press down while simultaneously turning the drum lid to open.

1. Switch OFF and unplug the power cord

from the wall outlet.

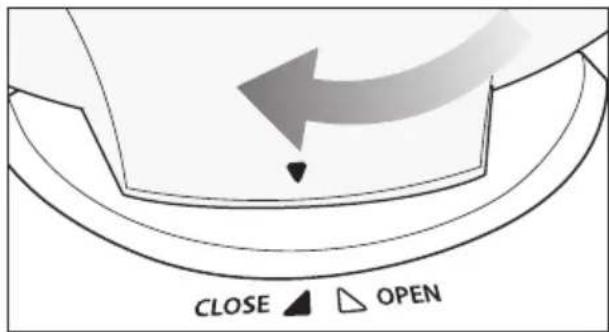

2. Turn the drum lid counter clockwise to open.

WARNING When moving the appliance, do not lift by grabbing the feeding tube. Always lift the appliance by grabbing the body or handle.

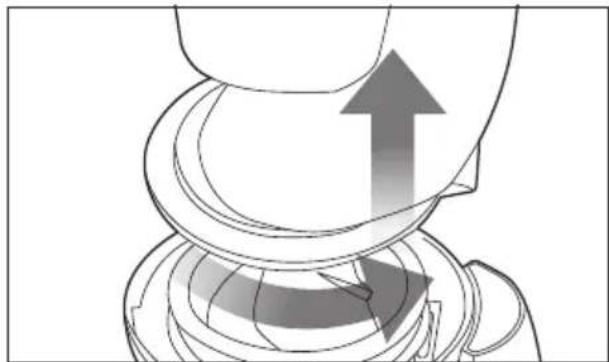

3. Turn the top-set counter clockwise and lift

6. Under running water, clean the outside of the

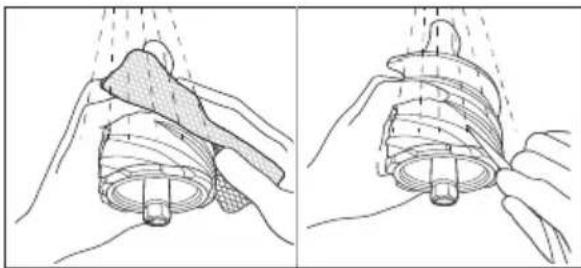

juicing screw with a dish scrub. Use the tip of the cleaning brush to push out any residue in the crevices on the bottom of the juicing screw. Thoroughly clean the juicing screw ensuring that the juicing screw is clean without any residue. Thoroughly dry the bottom of the juicing screw. After juicing ingredients with seeds, make sure to thoroughly clean the bottom crevice of the juicing screw. (If this area isn’t properly cleaned, it can cause the part to be damaged).

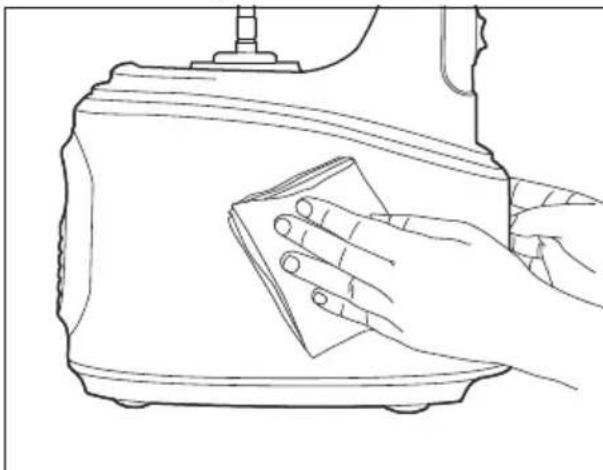

7. Clean the body with a soft damp towel and dry.

If the towel is dripping wet, make sure to squeeze out the excess liquid before using it on the juicer.

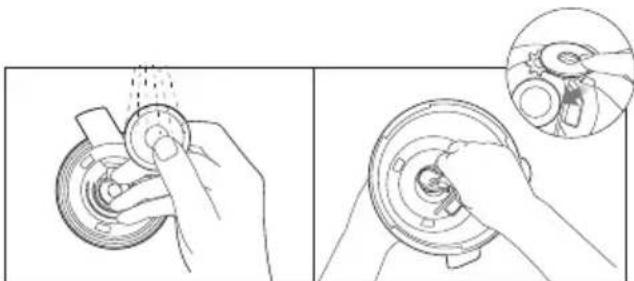

CLEANING SILICONE PARTS

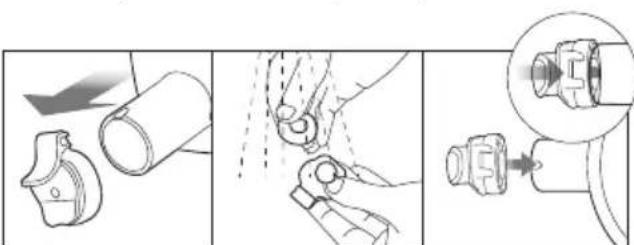

Clean the rotation wiper under running water. Thoroughly dry after cleaning. Before assembling the top-set, ensure that the compression silicone and silicone ring are rmly inserted. If the compression silicone and silicone ring are not rmly inserted, juice may leak from the bottom of the juicing bowl. COMPRESSION SILICONE Unplug to clean. After cleaning, rmly insert into the slot below the pulp spout. SILICONE RING Remove the silicone ring from the juicing bowl to clean. After cleaning, push in the silicone ring with the smaller surface facing down. SMART CAP Remove from the juice spout to clean. After cleaning, attach the smart cap to the smart cap silicone on the juice spout.12 Troubleshooting

PROBLEM EASY SOLUTION

There is no power to the juicer

• Check if the power cord is properly plugged in.

• Check if the drum lid and the juicing bowl are properly assembled.

• Check if the top-set and the body are properly assembled. NOTE: Juicer will not operate if parts are not assembled properly. Low juice yield

• Dierent ingredients hold dierent amounts of uid that will yield dierent amounts of juice.

• If the ingredients are not fresh, they may contain reduced amount of uid, which will yield less juice. Soak ingredients in cold water for about 30 minutes prior to juicing for the best result.

• Check if the compression silicone is rmly inserted.

• If the ingredient itself has low water content, it may help to soak it in water before juicing.

• If juicing ingredients with small seeds, after a few servings, it may reduce the juice yield. For best result, disassemble and wash the top set in between juicing.

• If there is seed residue on the bottom of the strainer, this can aect juicer performance and the overall juice yield. There is too much pulp in the juice

• To reduce the ne pulp, clean the top-set frequently and extract the pulp.

• Use a mesh strainer and put the juice through it to collect the unwanted pulp.

• If the strainer and the screw are damaged and aecting the juicer’s performance, it is recommended the parts be replaced.

• The lifetime of each part may vary depending on length and method of use and ingredients extracted. The drum lid will not close

• Make sure the juicing screw is pushed all the way in to the strainer in order for the drum lid to close properly.

• If the juicing screw is not properly in position, the drum lid may not close.13

Odd noise from the juicer

• Check if the parts are assembled correctly. Try reassembling the parts and listen for the odd noise.

• Do not start the juicer unless there are ingredients and/or liquid in it.

• Operating the juicer without ingredients can cause damage to the screw.

• If the juicer is operated without ingredients or liquid, the noise level can increase and also can lead to damage.

• The friction noise from the juicing screw and the strainer will disappear when ingredients are inserted into the juicer.

• If the noise occurs when ingredients are inserted into the juicer, check the size of the ingredients. Do not insert anything over 3cm in thickness.

• Depending on the type of ingredients, the dimensions can be smaller.

• The noise can occur if the juicer is operated on an uneven or slanted surface. Place the juicer on a horizontally at surface when operating. The extracted pulp is very moist

• During the very beginning of extraction, the pulp can be more moist.

• Depending on the ingredient’s condition, the extracted pulp can be aected; especially when the ingredient is not fresh, the juice can be extracted with the pulp. During operation, the juicing bowl shakes

• The juicing screw and the strainer are set up to crush and squeeze the ingredients. It is normal for the juicing screw and the strainer to vibrate.

• If the ingredient contains strong bre, the vibration from the top-set may be stronger. During juicing, the juicer stopped

• Check the power cord and make sure it is plugged in correctly.

• Check that all the parts are correctly assembled.

• If too many ingredients are inserted at one time, this can cause the juicer to stop.

• When the juicer stops because there are too many ingredients inserted in it, press the REVERSE – OFF – FORWARD button in this order, switching back and forth 2 to 3 times. The reverse setting will push the ingredients up and the forward setting will pull the ingredients down.

• After using more than 30 minutes, if the juicer stops due to the overload protection, let the juicer cool for 30 minutes to 1 hour before juicing again.

• If there are hard seeds within the ingredients, remove them before juicing. Hard seeds can damage the juicer. Layers of separation in the juice

• Depending on the density of the ingredients, the extracted juice may show layers of dierent juices. It is dierent from separation due to oxidation caused by juicing with a high-speed juicer.14

PROBLEM EASY SOLUTION

The drum lid is stuck

• After juicing, let the juicer operate for another 30 seconds to extract the remaining pulp.

• If there is too much pulp in the top-set, this can cause the drum lid to not open. In this situation, press the REVERSE – OFF – FORWARD button in the order, switching back and forth 2 to 3 times. Then place both hands on the drum lid and rmly press down while simultaneously turning the drum lid to open.

• Pour water down the feeding tube to rinse out the insides and then try opening the drum lid. Juice dripping down the body

• If the compression silicone on the bottom of the juicing bowl is not plugged in correctly, the juice may seep out on to the juicer body. Before assembling the parts, check and make sure the compression silicone is plugged in correctly. Is it possible to juice ingredients with tough bre?

• Ingredients like celery or ginger contain long bres that may wrap around the juicing screw and aect the juicer’s performance. When juicing brous ingredients, do not collect more than 500ml of juice. After collecting this quantity or less, clean the top-set completely before juicing again. Discolouration of the plastic parts

• After juicing, if the juicer is not cleaned right away, the remaining pulp inside the top-set can dry up which can make disassembling and cleaning hard. This can also aect the juicer’s performance and colour.

• Ingredients that are rich in carotenoids such as carrots and spinach may dye plastic parts. When the parts are dyed with carotenoids, rub vegetable oil in to the dyed areas and use mild detergent to clean.

• Vegetable oil should only be used during clean-up for parts that are discoloured. Do not use vegetable oil on the juicing screw or the strainer. If vegetable oil or oil from animal fat gets on the juicing screw or the strainer, this can aect the juicer’s performance and may result in damaged parts.

• The silicone pieces on the top-set can be detached to be thoroughly cleaned. Using for purposes other than juicing

• This juicer is designed to juice ingredients like fruits and vegetables.

• Do not use the juicer for extracting vegetable oil.

• Do not juice ingredients with high contents of vegetable/ animal oil.

• If vegetable/animal oil gets on the juicing screw or the strainer, this can aect the performance of the juicer and could result in damaged parts.15

GUARANTEE Sage Appliances guarantees this product for domestic use in specied territories for 2 years for all parts of the product and 5 years for the product’s motor from the date of purchase against defects caused by faulty workmanship and materials. During this guarantee period Sage Appliances will repair, replace, or refund any defective product (at the sole discretion of Sage Appliances). All legal warranty rights under applicable national legislation will be respected and will not be impaired by our guarantee. For full terms and conditions on the guarantee, as well as instructions on how to make a claim, please visit www.sageappliances.com. Guarantee16 Notethe Big Squeeze
