USER MANUAL GT115 BLACK & DECKER

Your Black & Decker hedge trimmer has been designed for trimming hedges, shrubs and brambles. This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

ENGLISH

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Battery tool use and care

a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional power tool safety warnings

Warning! Additional safety warnings for hedge trimmers

• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the tool can result in serious personal injury.

Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.

• Keep cable away from cutting area. During operation the cable can be hidden in shrubs and can be accidentally cut the handle.

This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the tool by a person responsible for their safety. Children should be supervised to ensure that they do not play with the tool.

The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual can present a risk of personal injury and/or damage to property.

Do not carry the tool with your hands on the front handle, switch or the trigger switch unless the battery has been removed.

If you have not used a hedge trimmer before, preferably seek practical instruction by an experienced user in addition to studying this manual.

Never touch the blades while the tool is running.

Never attempt to force the blades to come to a standstill.

Do not put the tool down until the blades have come to a complete standstill.

Regularly check the blades for damage and wear. Do not use the tool when the blades are damaged.

• Take care to avoid hard objects (e.g. metal wire, railings) when trimming. Should you accidentally hit any such object, immediately switch the tool off and check for any damage.

Should the tool start to vibrate abnormally, immediately switch it off and check for any damage.

If the tool stalls, immediately switch it off. Remove the battery before attempting to remove any obstructions.

After use, place the blade sheath supplied over the blades. Store the tool, making sure that the blade is not exposed.

Always ensure that all guards are fitted when using the tool. Never attempt to use an incomplete tool or a tool with unauthorised modifications.

Never allow children to use the tool.

Be aware of falling debris when cutting the higher slides of a hedge.

Always hold the tool with both hands and by the handles provided.

Vibration

The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another.

The declared vibration emission value may also be used in a preliminary assessment of exposure.

Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.

When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

Labels on tool

The following pictograms are shown on the tool:

Warning! To reduce the risk of injury, the user must read the instruction manual.

Always wear safety glasses and ear protection.

Wear gloves when operating this tool.

Immediately disconnect the cable from the mains if it is damaged or cut.

Do not expose the tool to rain or high humidity.

Electrical safety

is tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

• When using the tool outdoors, only use extension cables intended for outdoor use. A suitable rated Black & Decker extension cable of up to 30m can be used without loss of power.
  Electric safety can be further improved by using a high-sensitivity 30mA residual current device (RCD).

Features

This tool includes some or all of the following features.

1. Trigger switch
2. Front handle switch
3. Front handle
4. Guard
   5.Blade
5. Blade sheath
6. Cable restraint

This hedge trimmer has the following features for your benefit:

Ergonomically formed handles for comfortable cutting.
Machined blades for improved cutting.
Dual action blades for reduced vibration.

Assembly

Warning! Before assembly, make sure that the tool is switched off and unplugged and that the blade sheath is fitted over the blades.

Fitting the guard (fig. A)

Locate the guard (4) into the mounting bracket (8).
Push the guard into the bracket until it clicks into place.

Warning! Never use the tool without the guard.

Connecting the tool to the mains (fig. B)

Unless the tool is fitted with a mains cable, you will need to connect an extension cable to the power inlet.

Connect the female socket of a suitable extension cable to the power inlet of the tool.
Loop the cable through the cable restraint (7) as shown to prevent the extension cable from becoming detached during use.
Insert the mains plug into a mains outlet.

Warning! The extension cable must be suitable for outdoor use. When using a cable reel, always unwind the cable completely.

Use

Warning! Let the tool work at its own pace. Do not overload.

Carefully guide the cable in order to avoid accidentally cutting it. A good way to control the cable is by putting it over your shoulder.

ENGLISH

• For your safety, this tool is equipped with a double switching system. This system prevents starting the tool inadvertently and will only allow operation while holding the tool with both hands.

Switching on and off

Switching on

Take hold of the front handle (3) with one hand so that the front handle switch (2) is pushed into the body of the tool.
With the other hand, squeeze the trigger switch (1) to start the tool.

Switching off

Release the handle switch (2) or the trigger switch (1).

Warning! Never attempt to lock a switch in the on position.

Hints for optimum use

Start by trimming the top of the hedge. Slightly tilt the tool (up to 15^ relative to the line of cut) so that the blade tips point slightly towards the hedge (fig. C1). This will cause the blades to cut more effectively. Hold the tool at the desired angle and move it steadily along the line of cut. The double-sided blade allows you to cut in either direction.
In order to obtain a very straight cut, stretch a piece of string along the length of the hedge at the desired height. Use the string as a guideline, cutting just above it.
In order to obtain flat sides, cut upwards with the growth. Younger stems move outwards when the blade cuts downwards, causing shallow patches in the hedge (fig. C2).
Take care to avoid any foreign objects. Especially avoid hard objects such as metal wire and railings, as these could damage the blades.
Regularly oil the blades.

Guidelines for trimming (UK & Ireland)

Trim hedges and shrubs with seasonal leaves (new leaves every year) in June and October.
Trim evergreens in April and August.
Trim conifers and other fast growing shrubs every six weeks from May until October.

Guidelines for trimming (Australia & New Zealand)

Trim hedges and shrubs with seasonal leaves (new leaves every year) in December and March.
Trim evergreens in September and February.
Trim conifers and other fast growing shrubs every six weeks from October until March.

Maintenance

Your Black & Decker tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Warning! Before performing any maintenance, switch off and unplug the tool.

After use, carefully clean the blades. After cleaning, apply a film of light machine oil to prevent the blades from rusting.
Regularly clean the ventilation slots in your tool using a soft brush or dry cloth.
Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
Make sure all switches are free of debris before and after use.

Removing the guard (fig. A)

Warning! Remove the guard for servicing purposes only.

Always re-fit the guard after finishing servicing.

Insert small pins into the holes (9) at either side of the bracket (8) and pull the guard (4) forward.
Remove the pins and take the guard off the tool.

Mains plug replacement (U.K. & Ireland only)

If a new mains plug needs to be fitted:

Safely dispose of the old plug.
Connect the brown lead to the live terminal in the new plug.
Connect the blue lead to the neutral terminal.

Warning! No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good quality plugs.

Recommended fuse: 5 A.

Troubleshooting

If the tool does not operate correctly, check the following.

Fault Possible cause Action

Tool will Blown fuse. Replace fuse.

not start. Tripped RCD. Check RCD.

Mains lead Check mains

not connected. supply.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

parate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product. Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent The undersigned is responsible for compilation of the technical by contacting your local Black & Decker office at the address file and makes this declaration on behalf of Black & Decker. indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Technical data

GT90 GT100 GT105
Input voltage V	AC	230	230	230
Power input W 380 400 410
Blade strokes (no load) min	-1	1,900	1,900	1,900
Blade length cm 42 42	42
Blade gap	mm	16	16	16
Blade brake time	s	<1.0	<1.0	<1.0
Weight (excl. supply cord)	kg	2.2	2.2	2.2

GT110 GT115
Input voltage V	AC 230 230
Power input W 420 420
Blade strokes (no load) min	-1 1,900 1,900
Blade length cm 50 55
Blade gap	mm 16 16
Blade brake time	s < 1.0	< 1.0
Weight (excl. supply cord)	kg 2.3	2.4

EC declaration of conformity

GT90 TYPE 1-2/GT100 TYPE 1-2/GT105 TYPE 1-2/ GT110 TYPE 1-2/GT115 TYPE 1

Black & Decker declares that these products conform to:

98/37/EC, 2000/14/EC, EN 60745

Hedge trimmer 400 W, Annex V

Level of sound pressure according to EN 60745: Sound pressure (LPA) 83 dB(A), uncertainty (K) 3 dB(A) Acoustic power (LWA) 97 dB(A), uncertainty (K) 3 dB(A)

Vibration total values (triax vector sum) according to EN 60745: Vibration emission value (a_h) 1.9m / s^2 uncertainty K 1.5m / s^2

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG

United Kingdom

23-01-2009

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff. To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

ENGLISH

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG

Spennymoor, County Durham DL16 6JG

Regno Unito

23-01-2009

Garanzia

Spennymoor, County Durham DL16 6JG

Reino Unido

23-01-2009

Garantía

Director de Engenharia do Consumo

Spennymoor, County Durham DL16 6JG

Reino Unido

23-01-2009

Garantia

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG

Storbrittannien

23-01-2009

Reservdelar / reparationer

jordfeilbryter. jordfeilbryteren.

Ingen strøm. Kontroller

stromforsyningen.

Miljøvern

98/37/EF, 2000/14/EF, EN 60745

Hekksaks 400 W, Vedlegg V

Spennymoor, County Durham DL16 6JG

Storbritannia

23-01-2009

98/37/EF, 2000/14/EF, EN 60745

Haekkeklipper 400 W, Anneks V

Lydniveauet i henhold til EN 60745:

Lydtryk (L_PA) 83 dB(A), usikkerhed (K) 3 dB(A)

Lydintensitet (L_WA) 97 dB(A), usikkerhed (K) 3 dB(A)

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG

Storbritannien

23-01-2009

Reservedele / reparationer

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG

Iso-Britannia

23-01-2009

Spennymoor, County Durham DL16 6JG

Ayyia

23-01-2009

Eyyunon

H Black & Decker éivai oiyoupnyi tvn tiotnta twv
Tpoiovtwv tnc kai napexei onmuavtké yyyunon. H napouora
ypatttn eyyunon anotele i npootheo dikaiwpa oac kai dev
Znuiwei ta ouvtayatika oac diikawata. H eyyunon ioxuei
EVTOS TNIKpATEiagTwkpatWMeAiw Tc Eupwntaikns
Evwoang kai ts Eupwniaikns ZwVc EeUepwv Suvaalaywv.

Ee TepiTOWI TOU KATOIO TPOIOv TNS Black & Decker
TAPouoiAOE1 BAlaBn EgaitiaC ELaTTWmuATIKWv UAIKWV,
TIOIOTNTAC EpyoAic n EAAEIuNs OUmpwviac ME TIC
TPODiaypaFcEVTOS 24 mnuw vAtO TN V NpeOpunvia ayopac, N
Black & Decker Eyyuatai Tnv AVTKaTaOtaon Tuv
ELATTWmuATIKWv TMuATWv,TNV EITOKeUN TPOIOVTWv TOn Exouv
UTTOAEI EULOyN OOpA loyw XpOngs h Tnv AVTKaTaOtaon
Tuw TPOIOVTWv POKeIeVou VA EgaPaiOeI TIV EALxioTNI
EVOXAN OTous TEALATEs TNS, EKTOS AV:

To Tpoiov exi xpnoiouointhe ie epyaiako, EayEaiko TepiBaaov n av exEvoikiaotei
Exivie eopaaevn xpnoTou pioovtoc n av exi Tpaueanthei
To npoiov exei unootei 3aBn ano aa avtkeieva, aoouicn loyw atuxmuato

Exi yivei pooTnAe tiokeunc aTo Eouoiobotnueva Kevtpa eTIOKEuwv n aTo TPOoWNIKO Tou dev avkei oTo PPOoWNIKO tnc Black & Decker Ia va 1oxuoei n evyunon, PPETEi va UTOBale tne atOdeIgnyopac otov nwnanf no to Eouoiobotnuevo Kevtpo EIOKEuwv. Evnpwte iTe yia To nnoieotepo Kevtpo EIOKEuwv TNC TEPioxns OAC, EIOKoiuvwVvTac me ta Ypapeia Tng Black & Decker otn dieuohv on Tou avypapetai oTo Exyepioio. Etionc, ia va nnpopopnthe iTe yia Ta Eouoiobotnueva Kevtpa eTIOKEuwv TNC Black & Decker, tic AETTIOpeies c Kai touc apuodiouc twv utnpoeiwv Tou npexovtai meta nTv wAnon, mTopeite va avatpeEte oTo AiaiktuOn dieuohvOn: www.2helpU.com

Iapakaloue va eTIOKEFTE TNV IOTOeAia ma
www.blackanddecker.eu yia va kataxwpnoTe To veo aac
TPOiov Black & Decker kai yia va evnepwveote yia ta vea
TPOiovTA KAI TIC EIDIKc TPOoopoc. NpiooTepec
TAnpoopieC oxetik aE tn npkca Black & Decker kai tn
Oeipa TPOiovTuW pa 0a Bpeite OTN dEvuovn
www.blackanddecker.eu

E15540

www.2helpU.com

11-11-08

België/Belgique Black & Decker (Belgium) N.V. Tel. [phone]Nieuwlandlaan 7 Fax [phone]I.Z. Aarschot B1563200 Aarschot
Danmark Black & Decker Tel. [phone]Sluseholmen 2-4, 2450 København SV Fax [phone]Internet: www.blackanddecker.dk
Deutschland Black & Decker GmbH Tel. [phone] - 0Black & Decker Str. 40, D - 65510 Idstein Fax [phone]
Eλλάδα Black & Decker (Ελλάς) A.E. Tηλ. 210 8981616Στράβωνος 7 & Αεωφ. Bouλιαγμένης 159 Φας 210 8983285166 74 Γλυφάδα - Αθήναwww.blackanddecker.eu
EspanaParc de Negocis "Mas Blau"Edificio Muntadas, c/Bergadá, 1, Of. A608820 El Prat de Llobregat (Barcelona)	Black & Decker Ibérica, S.C.A. Tel. [phone]Fax [phone]
France5 allée des Hêtres Fax [phone]B.P. 3008469579 Limonest Cédex	Black & Decker (France) S.A.S.		Tel. [phone]
HelvetiaGewerbezone Seeblick3213 Kleinbosingen	ROFO AGFax 026-6749394		Tel. [phone]
ItaliaViale Elvezia 220052 Monza (MI)Numero verde 800-213935	Black & Decker Italia SpAFax 039-2387592/2387594		Tel. [phone]
NederlandJoulehof 12, 4622 RG Bergen op Zoom	Black & Decker BeneluxFax 0164 - 283100		Tel. 0164 - 283000
NorgePostboks 4814, Nydalen, 0422 OsloInternet: www.blackanddecker.no	Black & Decker (Norge) A/SFax 22 90 99 01		TIf. 22 90 99 00
ÖsterreichOberlaaerstraße 246, A1100 Wien	Black & Decker Vertriebsges.m.b.HFax 01 66116-14		Tel. [phone]
PortugalRua Egas Moniz 173S. João do Estoril2766-651 Estoril	Black & DeckerFax 214667580		Tel. [phone]
SuomiKägelhamnen 3, 02150 Esbo	Black & Decker OyKeilasatama 3, 02150 EspooFax [phone]		Puh. FaksiTel. 010 400 430
SverigeBox 94, 431 22 Mölndal	Black & Decker ABFax 031-68 60 80		Tel. [phone]
United Kingdom210 Bath RoadSlough, Berkshire SL1 3YD Helpline	Black & DeckerFax 01753 55115501753 574277		Tel. [phone]
Middle East & AfricaPB 5420, Dubai, United Arab Emirates	Black & Decker (Overseas) A.G.Fax [phone]		Tel. [phone]

90544032

T-01/09

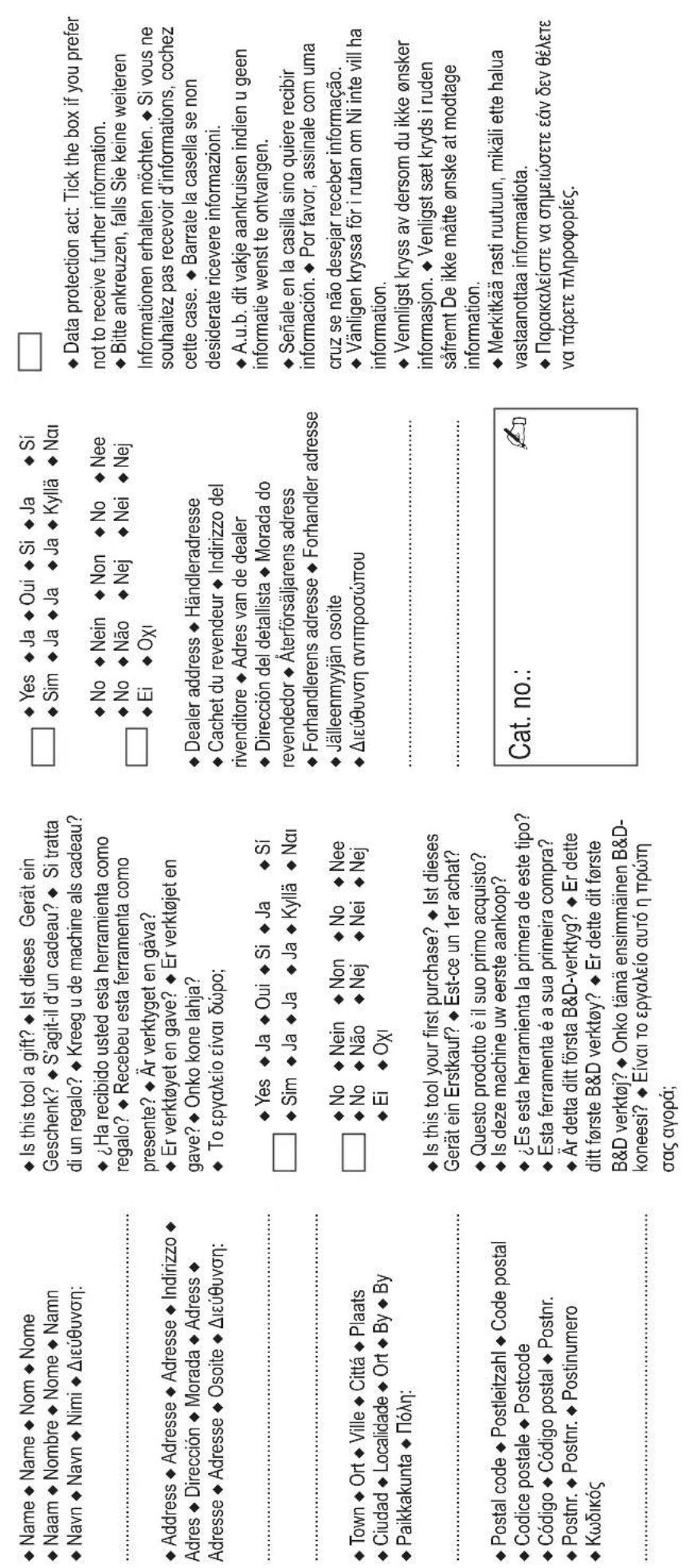

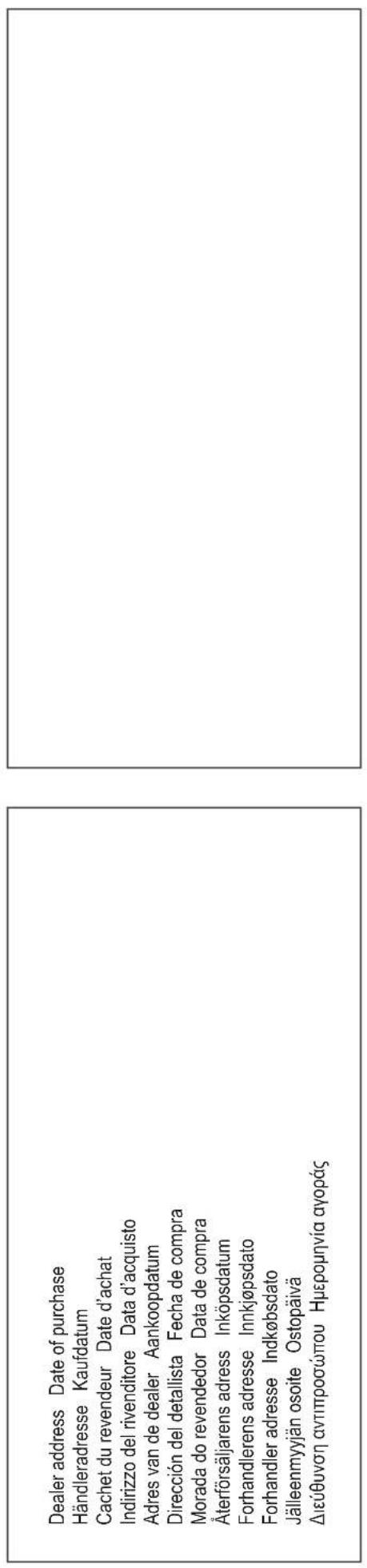

GUARANTEE CARD

Please complete this section immediately after the purchase of your

Deutsch
