Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie EXTOURA ^™ , you are using a high quality, fully certified stroller, approved to European safety standards EN 1888:2012. This product is suitable for use with children weighing under 15kg. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - Keep these instructions for future reference.

Visit us at joiebaby.com to download manuals and see more exciting Joie products!

For warranty information, please visit our website at joiebaby.com

Contents

Figures 1-8

WARNING 11

Stroller Assembly 12

Open Stroller 12

Assemble Storage Basket 12

Assemble Hood 12

Assemble Front Wheels 12

Secure Footrest 13

Assemble Rear Wheels 13

Assemble Tray 13

Stroller Operation 13

Adjust Recline 13

Adjust Calf Support 13

Use Tray 13

Use Buckle

Use Shoulder & Waist Harnesses 14

Use Hood 14

Use Handle 15

Use Front Swivel Lock 15

Use Brake 15

Adjust Storage Basket 15

Fold Stroller 15

Use Accessories 16

Care and Maintenance 16

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model.

Product Extoura Stroller

Suitable for Child weighing under 15kg (birth - 36 months)

Materials Plastics, metal, fabrics

Patent No. Patents pending

Made In China

Brand Name Jole

Website www.jolebaby.com

Manufacturer Joie Children's Products (UK) Limited

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1. Stroller Frame 8. Washer
   2 Hood 9 Pin
   3 Front Wheels 10 One-Hand-Fold
   4 Rear Wheels Handle
   5 Tray 11 Hood
   6 Rear Axle 12 Head Support
   Assembly 13 Tray 7. Box 14. Post Rad

1. Footrest 22. Secondary Lock
   16 Front Wheel 23 Handle
   17 Rear Wheel 24 Handle Button
   18 Buckle 25 Front Brake Lever
   19 Tray Release 26 Rear Brake Lever
   Button 27 Storage Basket
   20 Reversible Slider 21 Head Stretcher

Labeled diagram of a baby stroller with numbered parts for identification

23 24 27 26

Accessories (Non-included)

1 Head Support
2 Shoulder Pad
3. Footmull
4 Rain Cover

Diagram showing four labeled parts of a device or device with numbered annotations

WARNING

! WARNING Always use the restraint system.
! WARNING Ensure that all the locking devices are engaged before use.
! WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.
! WARNING Do not let your child play with this product.
! WARNING Check that the car seat attachment devices are correctly engaged before use.
! Adult assembly required.
! Use the stroller with a child weighing less than 15kg. It will cause damage to the stroller with an unfitted child.
! To prevent a hazardous, unstable condition, do not place more than 4.5 kg in the storage basket.
! WARNING! Never leave your child unattended. Always keep child in view while in stroller.
! Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or hood.
! A statement that accessories which are not approved by the manufacturer shall not be used. Please read the instruction manual carefully.
! Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
! Please read all the instructions in the manual before using the product. Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death.
! Safety belts and restraint systems must be used correctly.
! To avoid serious injury from falling or sliding out, always use seat belt.
! Make sure your child's body is clear from the moving parts when adjusting the stroller.
! Child may slip into leg openings and be strangled if the harness is not used.
! Never use stroller on stairs or escalators.
! Keep away from high temperature objects, liquids, and electronics.
! Never allow your child to stand on the stroller or sit in the stroller with head toward front of stroller.
! Never place the stroller on roads, slopes or dangerous areas.
! Do make sure all mechanisms are fixed before using the stroller.
! To avoid strangulation, DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
! Any load attached to the handle and /or on the back of the backerst and /or on the sides of the vehicle will affect the stability of the vehicle.
! DO NOT lift stroller while child is in stroller.
! DO NOT use storage basket as a child carrier.
! To prevent tipping, never let child climb the stroller. Always lift the child in and out of the stroller.
! To avoid finger entrapment, use care when folding and unfolding the stroller.
! Be sure the stroller is fully open or folded before allowing child near the stroller.

! To ensure your child's safety, please make sure all parts are assembled and fastened properly before using the stroller.
! To avoid strangulation, do make sure your child is clear from the hood.
! Always engage the brakes when parking the stroller.
! Discontinue using stroller if it is damaged or broken.
! Stroller to be used only at walking speed. This product is not intended for use while jogging.
! To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
! This product is not suitable for running or skating.
! DO NOT place food that is hot enough to burn child's skin on the tray.
! DO NOT place any item on the tray that might harm the child.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
! For child restraint used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot, or bed.
! The parking device shall be engaged when placing and removing children.

Stroller Assembly

Please read all the instructions in this manual before assembling and using this product.

Open Stroller

Press the handle adjustment buttons on left and right of the handle ② - 1 , Rotate handle upward until it is upright. ② - 2

Push secondary lock ③ - 1 and squeeze one-hand-fold handle. ③ - 2 Meanwhile, pull the stroller backward. Latches should click into place.

! Check that the stroller is completely open before continuing.

Assemble Storage Basket

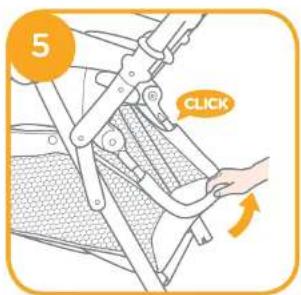

Push tube into the holes until you hear a "click".

Pull the tube up to raise the storage basket. 5

Assemble Hood

Push hood pivot into the hood mount to assemble hood. 6

Assemble Front Wheels

Assemble front wheels to front logs 7 - 1. Check that wheels are securely attached by pulling on wheel assemblies.

The front wheels can be disassembled by pressing the snap buttons.

Secure Footrest

Push the footrest down to secure it. 7 - 2

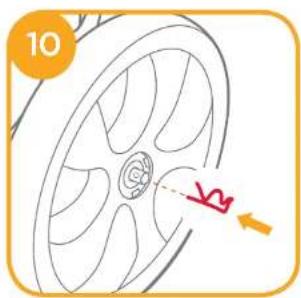

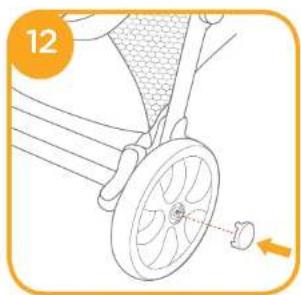

Assemble Rear Wheels

Assemble the rear wheels by following these steps.

1. Remove and discard the end cap on the rear axle before assembling the rear wheels. 8 - 1
2. Assemble the rear axle assembly to rear legs ⚙️. Check that the rear axle assembly is securely attached by pulling on the rear axle assembly.
3. Place the rear wheel and washer on one side of the rear axle.
4. To secure the wheel and the washer to the axle, push the straight side of the pin through the hole on the axle.

The assembled pin is shown as.

! The curve side on the pin must curve around the outside of the axle.
Make sure the washer is between the pin and the wheel.
5. Line up the tabs on the cap with the holes on the wheel, snap the cap onto the wheel to cover the washer and pin.

The completely assembled rear wheels are shown as.

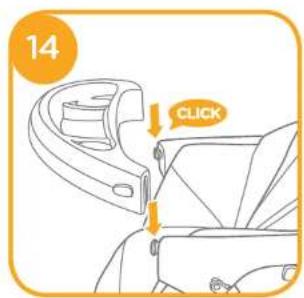

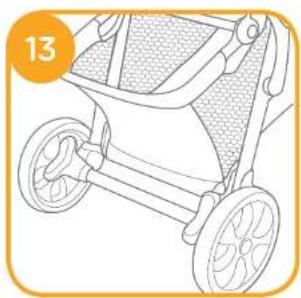

Assemble Tray

Align the tray end with matching component, and then push down to assemble the tray.

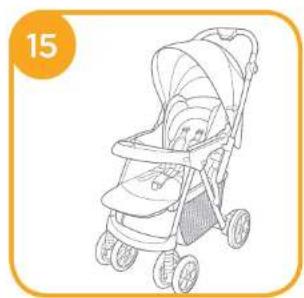

The completely assembled stroller is shown as.

Stroller Operation

Adjust Recline

There are 5 angles for the backrest.

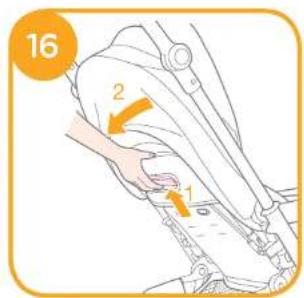

To recline the backrest, squeeze the recline handle on the back of the seat and 10 - 1 pull down on the backrest. 10 - 2

To raise the backrest, push up.

1. Make sure the recline is set properly for use.

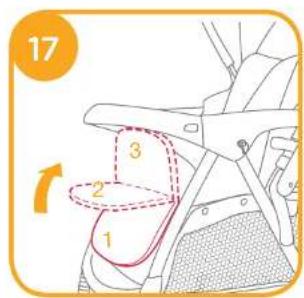

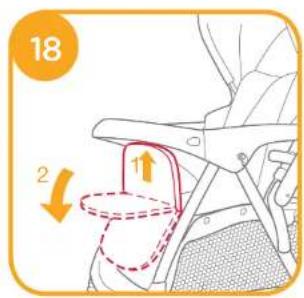

Adjust Calf Support

There are 3 recline angles, 1-3 for adjustment.

To raise calf support, push the calf support from lower position to higher position.

To lower calf support, pull the calf support outward 13 - 1, meanwhile recline the calf support from higher position to lower position. 13 - 2

Use Tray

The tray can be pulled up on both left and right sides,

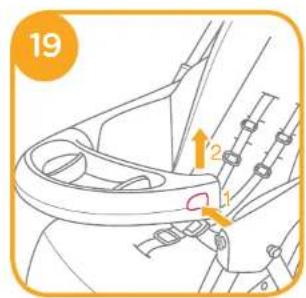

Press tray release button 19 - 1, and then pull up the tray. 19 - 2

Tip Tray can be open for easily placing and removing.

Use Buckle

Release Buckle

Press the center button to release the buckle.

Lock Buckle

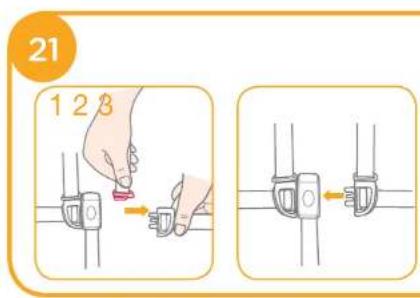

Match the waist belt buckle with the shoulder buckle - 1, and click into the center buckle. - 2

A "click" sound means the buckle is locked completely. 21 - 3

! To avoid serious injury from falling or sliding out, always secure your child with harness.
Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.
Do not cross the shoulder belts. This will cause pressure on child's neck.

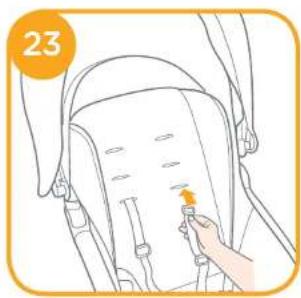

Use Shoulder & Waist Harnesses

In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.
-1 Shoulder harness anchor A -2 Shoulder harness anchor B
2 - 3 Slide adjuster

For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder harness anchor B and the lowest shoulder slots.

Use either shoulder harness anchor in the slots that are closest to child's shoulder height.

Use slide adjuster to change the harness length. 24 - 1

Press the button 24 - 2, while pulling the waist harness to proper length, 21 - 3

Use Hood

Use Hood Window

The hood window makes it more convenient to view child.

There is one window on the hood.

To open the window, flip the fabric flap forward.

Open Hood

To open the hood pull hood towards front and press stretchers down on both sides.

Fold Hood

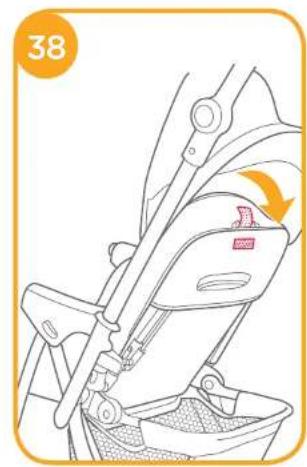

To fold the hood, pull up the stretchers on both sides ^23 - 1 and pull hood toward back.

Remove Hood

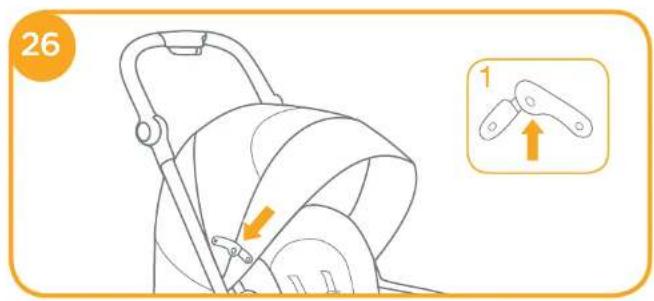

To remove hood, press the snap finger 2 - 1, and pull out hood pivot. 4 - 2

Use Handle

Adjust Handle

Handle can be adjusted to 7 positions.

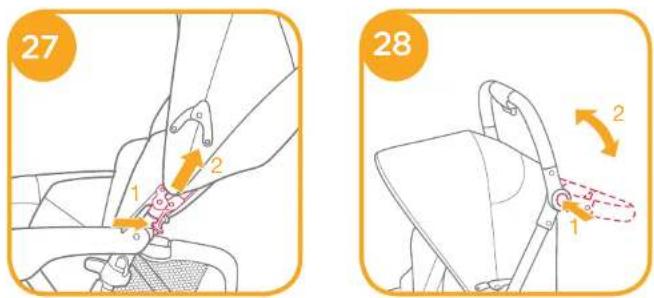

To adjust the handle, press the left and right handle adjustment buttons at the same time -1. and rotate the handle to a desirable position. -2

Switch Handle Direction

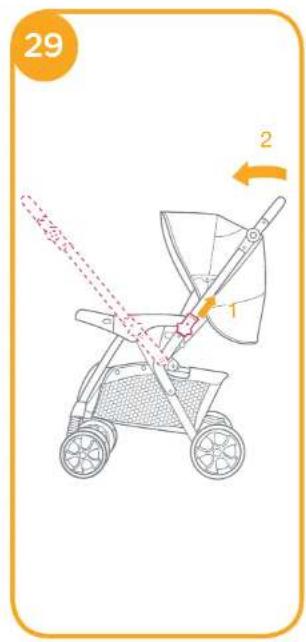

To change handle position, pull up the left and right reversible sliders 😊 - 1, and move the handle to the other side until it clicks into place. 😊 - 2

Make sure child's hands and legs are clear from the armrest when switching the handle.

Use Front Swivel Lock

Pull up the front swivel locks to maintain the moving direction.

Tip It is recommended to use swivel locks on uneven surfaces.

Use Brake

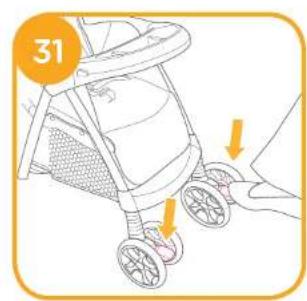

To lock front wheels, step on the brake levers 31. Lift the brake lever to release wheels.

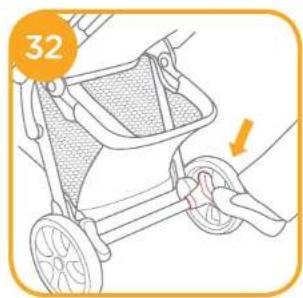

To lock rear wheels, step on the brake lever ⚙️. Lift the brake lever to release wheels,

Tip The brake must be engaged when placing and removing children.

Tip Always apply brake when stroller is not in use.

Tip To ensure brake is fully on, gently rock the stroller backwards and forwards before releasing the handle.

WARNING To prevent potential hazard, always make sure the parking device for all swiveling wheels are engaged and the swiveling wheels are locked when you use the handle in reversed position.

Adjust Storage Basket

The storage basket has 2 positions.

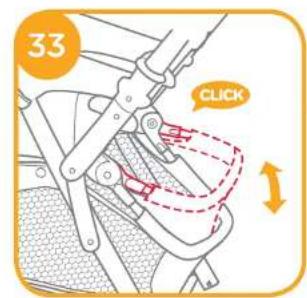

To adjust the storage basket, pull the tube up and down. A "click" sound means the storage basket is adjusted properly.

Tip It is easy to access the storage basket without affecting your sleeping baby.

Fold Stroller

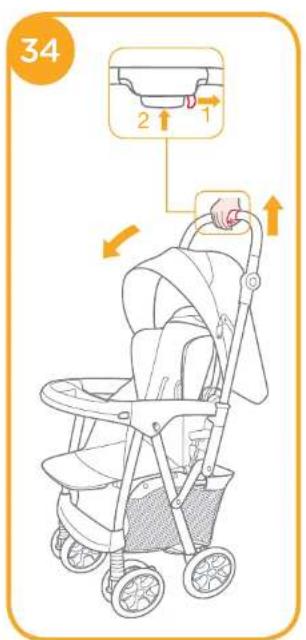

Before folding, pull up hood stretchers. 23 - 1

Push secondary lock ⚙ - 1 and squeeze one-hand-fold handle. ⚙ - 2 Push the stroller forward to fold.

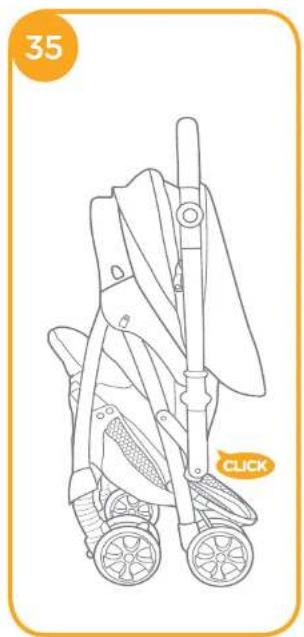

A "click" sound means the stroller is folded completely. 35

Use with Joie Child restraint

When using with Joie infant child restraint Gemm & Juva, please refer to the following instructions.

If you have any problems about using the child restraint, please refer to their own instruction manuals.
! Please don't fold stroller when attaching the child restraint.

Use Accessories

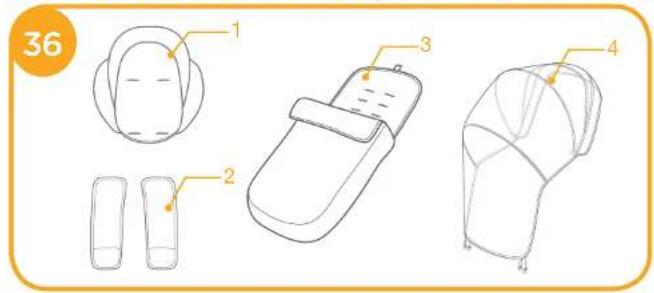

-1 Head Support

-3 Footmuff

3 - 2 Shoulder Pad

-4 Rain Cover

Accessories may be sold separately or may not be available depending on region.

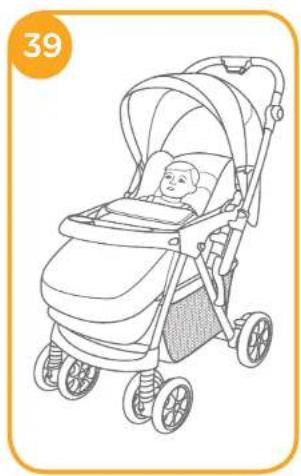

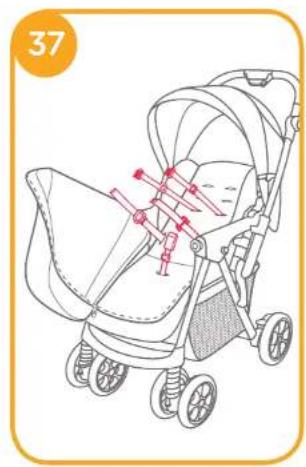

Use Footmuff

The soft footmuff can provide your child with a warm and comfortable environment.

Assemble the footmuff by following these steps.

1. Place the footmuff over the seat after unziping it, thread the shoulder harnesses, waist harnesses and crotch harness through respective slots.
2. Thread loop fastener on the top of the footmuff through the backrest, and then stick it to the hook fastener.
3. Place baby into the footmuff, lock the safety buckle, and then rezip the footmuff. The assembled footmuff is shown as
   For the using method for restraint system and tray, please refer to the relevant section in the instruction manual.

Rain Cover Instructions

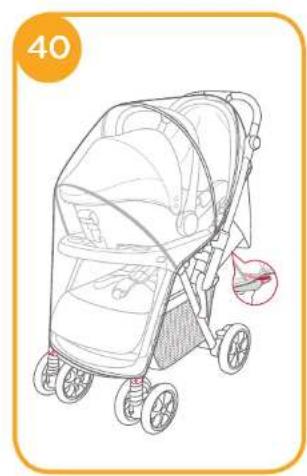

To assemble the rain cover, place it over the stroller, and then attach 2 pairs of elastic bands to the frame and 2 pairs of snaps on the rain cover.

Before using the rain cover, please make sure the backrest has been adjusted to the lowest position and the child restraint has been fastened.

! When using the rain cover, please always check its ventilation.
When not in use, please check that the rain cover has been cleaned and dried before folding.
If the rain cover is on the stroller, always remove rain cover to prevent ripping and tearing.
Do not place your child into the stroller assembled with rain cover during hot weather.
When using your stroller at the beach, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.

Care and Maintenance

Removable seat pad may be washed in cold water and drip-dried. No bleach.

! To clean stroller frame, use only household soap and warm water. No bleach or detergent.
From time to time, check your stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed.
! Excessive exposure to sun or heat could cause fading or warping of parts.
! If stroller becomes wet, open hood and allow to dry thoroughly before storing.
If wheels squeak, use a light oil (e.g., Silicon Spray, antitrust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly.
When using your stroller at the beach, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.

Bienvenu à Joie™

Page Web Fabricant Joie Children's Products (UK) Limited

Diagram showing four labeled views of a beach umbrella, with numbered annotations for each view.

MISES EN GARDE

Enclencher le repose-pied

Technical diagram of a stroller with numbered parts and x2 labels, likely for assembly or maintenance instructions.

Technical diagram showing four labeled views of a device with numbered parts, likely illustrating a mechanical or architectural design.

WARNUNGSHINWEISE

Pagina web www.jolebaby.com Fabricante Joie Children's Products (UK) Limited

Lista de piezas

Technical diagram of a stroller with numbered parts and labeled x2 components

Diagram showing four labeled parts of a device or scanner, with numbered annotations pointing to different components.

ADVERTENCIAS

Sitio WLB Fabricante Joie Children's Products (UK) Limited

Lista de peças

Diagram showing four labeled parts of a device or scanner, with numbered annotations pointing to different components.

AVISOS

No. brevetto Brevetti in atessa

Prodotto in China

Nome marca Jolie Site web www.ijiebabu.com

Fabbricante Jolie Children's Products (UK) Limited

Lista parti componenti

Technical diagram of a stroller with numbered parts and labeled components, including front and side views.

Diagram showing four labeled views of a soap dispenser with numbered parts for identification.

AVVERTENZE

Merkhaam Jole Website

Website www.joliebaby.com

Fabrikant, Joe Children's Products (OK) Limited

Technical diagram of a stroller with numbered parts and cross-sectional views, likely for assembly or maintenance instructions.

Diagram showing four labeled parts of a device with numbered annotations for identification.

AANWIJZINGEN
