USER MANUAL TKG PZP 1002 KTO KALORIK

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Front cover page (first page)

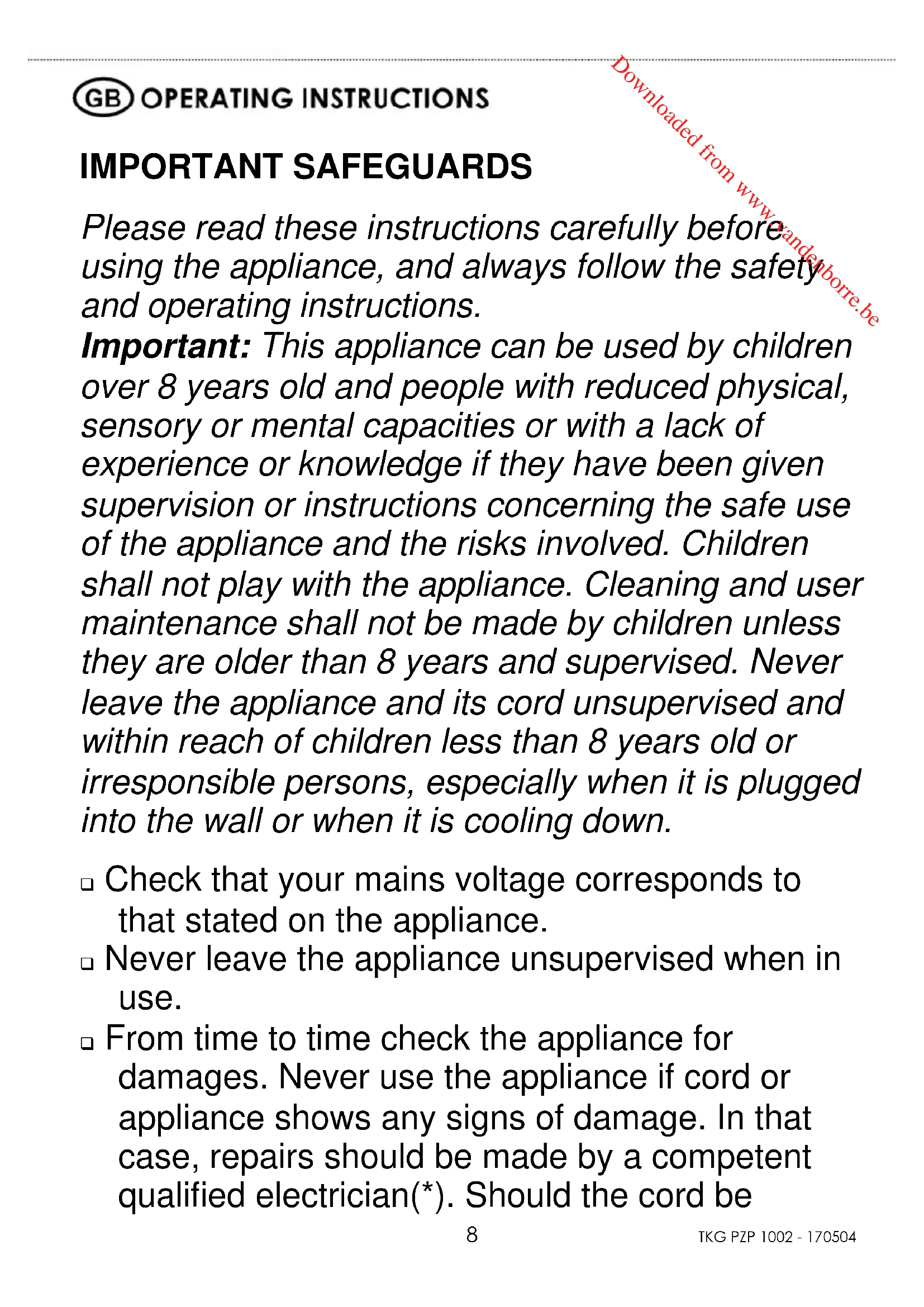

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions. Important: This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons, especially when it is plugged into the wall or when it is cooling down. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician(*). Should the cord be Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

damaged, it must be replaced by a competent qualified electrician(*) in order to avoid all danger. Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down. Do not clean the appliance like a casserole and never immerse it in liquids. Never use the appliance outside and always place it in a dry environment. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Stand the appliance on a table or flat surface. Make sure the cord never comes into contact with the hot parts of the appliance. Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces and make use of the handle. The appliance must be heated by its heating element only. Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc. when it is in use, as a fire might occur. Switch off and unplug the appliance when not in use. Only cook consumable food. Provide proper ventilation when using the appliance. Do not cover the appliance with anything. Be extremely cautious as oil and fat preparations might catch fire if overheated. Your appliance should never be operated via an external timer or a separated remote control system. Please note: Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means: CAUTION, this surface may get very hot during use. The symbol is always put on the surface with the highest temperature, however the other Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

metallic or non-metallic surfaces can also become very hot during use and it is therefore advisable to always handle them with care and if possible with the help of isothermal gloves or other thermal protection. In case of doubt concerning the temperature of a certain surface it is always preferable to protect oneself. (*) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

• Clean the grill (cf. "Cleaning and care"). It is recommended to heat up the appliance for about 10 minutes without any foodstuff in order to eliminate the grease that may have adhered during manufacture and the “new” smell.

• Ventilate the room during this period. OPERATION

• Close the appliance and plug into the electrical outlet.

• Select the cooking time using the timer knob. The pilot light will come on, indicating that the appliance is heating.

• Preheat the cooker to reach the ideal cooking temperature. When the appliance reaches the temperature, the pilot light will go out. The pilot light goes on and off while the appliance is working to indicate that the temperature is maintained.

• Attention: during operation, the baking plates heat up. Pay attention not to get burned.

USING THE APPLIANCE IN CLOSED MODE

• When the appliance has reached the temperature, open the appliance and lightly brush the bottom baking plate with butter, margarine or cooking oil. Since the appliance has a non-stick coated surface, the use of butter or oil is optional.

• Now put the foodstuffs in the cooker and close the appliance again.

• The baking times vary according to the nature of the foodstuffs and to your personal taste.

• When baking is finished, turn the button to the “0” position and disconnect the cooker. Leave it open so that the baking plates can cool down. Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

USING THE APPLIANCE IN TABLE GRILL MODE

• If you want to use the appliance as a table grill and have a double cooking surface, open it completely. To do so, you just have to lift the lid a little bit when it is in vertical position and then open it further until the 2 cooking surfaces are horizontal.

• When the appliance has reached the temperature, open the appliance completely and lightly brush the baking plates with butter, margarine or cooking oil. Since the appliance has a non-stick coated surface, the use of butter or oil is optional.

• Now put the foodstuffs onto the grill.

• The baking times vary according to the nature of the foodstuffs and to your personal taste.

• When baking is finished, turn the button to the “0” position and disconnect the cooker. Leave it open so that the baking plates can cool down. PRACTICAL HINTS

• Frozen food should always be thawed before it is baked.

• Never scratch the special non-stick coating since it would lose its non-adhesive properties. Use a wooden spatula or a heat-resistant plastic spatula.

• Before cleaning, put the timer in 0 position and make sure that the plug has been removed from the mains supply socket.

• Allow the appliance to cool down thoroughly.

• Wipe the outside only with a slightly moistened cloth ensuring that no moisture, oil or grease enters the cooling slots.

• Wipe the inside and the edges of the plate with a paper towel or a soft cloth.

• Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.

• Do not immerse in water or any other liquid.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2012/19/EU

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. ErP Declaration – Regulation 1275/2008/EC We, Team Kalorik SA/NV, hereby confirm that our product meets the requirements of regulation 1275/2008/EC. Our product does not dispose of a standby mode as this product switches off completely immediately after the operation is finished and as a consequence does not consume electricity!

The user manual is by simple request also available in electronic format from the after-sales service (see warranty card). Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

• N'immergez pas l'appareil dans l'eau ou tout autre liquide. Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

• Cand terminati de gatit, rotiti butonul pe pozitia “0” si deconectati aparatul. Lasati-l deschis pana cand placile se racesc. Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
