Product Type	Electric Fireplace Heater
Brand	Kalorik
Model	KA CH 4
Power Supply	Standard household mains voltage (refer to rating plate)
Heating Elements	3 heating elements for low, medium, and high heat
Heat Settings	Off, flame effect only, flame + low heat (1 element), flame + medium heat (2 elements), flame + high heat (3 elements)
Flame Effect	Adjustable intensity via flame adjusting dial; can be used without heat
Control Panel	Power/flame/heat switch, thermostatic control/economiser dial, flame adjusting dial
Thermostatic Control	Adjusts temperature and automatically shuts off heating when desired temperature is reached
Economiser Function	Operates in medium and high heat settings to optimize energy use
Installation Clearance	Minimum 1 meter from any wall, furniture, or combustible objects
Safety Features	Automatic thermal shut-off (thermostat), do not cover warning, child supervision advised
Mobility	Equipped with wheels for easy relocation
Cleaning	Wipe housing with damp cloth; vacuum air vents; unplug before cleaning
Bulb Replacement	Accessible after removing glass and log ember bed; replace with identical bulbs
Usage	Indoor use only; do not use near water (bath, shower, pool)
Environmental Compliance	Complies with WEEE Directive 2002/96/EC; do not dispose as unsorted waste

Frequently Asked Questions - KA CH 4 KALORIK

How do I operate the Kalorik KA CH 4 heater?

Use the power/flame/heat switch to select off, flame effect only, or flame with low/medium/high heat. The thermostatic control dial adjusts temperature, and the flame adjusting dial varies the flame intensity.

Can I use the flame effect without heating?

Yes, set the power switch to the flame effect only position (middle setting). The flame effect operates independently of the heating elements.

How do I replace the light bulbs in the fireplace?

Unplug the unit, remove the glass front by unscrewing the two screws on the control panel, lift the glass, then pull out the log ember bed. Unscrew the old bulbs anticlockwise and replace with identical bulbs, then reassemble in reverse order.

Why does the heater emit a smell when first used?

A slight, harmless odour may occur during initial use due to the heating of internal elements. This is normal and will not happen again.

What safety precautions should I take?

Keep a minimum 1 meter distance from walls and combustibles. Do not cover the heater. Unplug before cleaning or maintenance. Do not use near water or with wet hands. Supervise children.

How does the thermostatic control work?

Turn the dial clockwise to the highest setting. When the room reaches the desired temperature, turn it anticlockwise to lower or switch off the heating elements. The heater will automatically maintain the set temperature.

Can I use the heater in a bathroom?

No, do not operate near baths, showers, washbasins, swimming pools, or any water container. The controls must not be reachable when in contact with water.

How do I clean the appliance?

Wipe the housing with a slightly damp, lint-free cloth. Do not use abrasive cleaners. Vacuum the air outlet openings to remove dust. Always unplug before cleaning.

What should I do if the heater does not turn on?

Check that the power cord is plugged into a working outlet and that the mains voltage matches the rating plate. Ensure the power switch is not in the off position. If it still doesn't work, contact a qualified service.

Is the Kalorik KA CH 4 energy efficient?

The flame effect uses only two small lights and a low-power motor, making it energy-saving. The heater has an economiser function that operates on medium and high heat settings to optimize energy use.

USER MANUAL KA CH 4 KALORIK

Exterior view of a black rectangular appliance with glass doors and internal compartments (no visible text or symbols)

Fig. 1

Fig. 2

Black-framed electrical cabinet with ventilation grilles and a mounted fan (no visible text or symbols)

Fig. 3

Interior view of a server rack cabinet showing internal components and ventilation slots (no visible text or labels)

Fig. 4

GB OPERATING INSTRUCTIONS

IMPORTANT SAFEGUARDS

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.

Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the rating plate of the appliance.
☐ Do not leave the heater unattended during operation and keep children away.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service(*). Should the cord be damaged, it must be replaced by a competent qualified service (*)
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. When cleaning the appliance, refer to the instructions in the paragraph "Cleaning and maintenance" because the water penetration through the openings can be very dangerous for your appliance.
☐ Never use the appliance near hot surfaces.
Before cleaning, replacing a bulb or when you do not use the appliance, always unplug the appliance from the power supply. Do not attempt to remove the plug from the wall socket with wet hands.
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.
☐ Stand the appliance on a stable surface so that it cannot fall.
☐ Do not place the appliance under a power socket. The power socket must not be in the hot airflow of the appliance in order to avoid overheating.
☐ Always position the heater in such a way that inflammable materials (such as curtains) cannot be ignited. Ensure at all times that the unit is placed solidly on its base. Make sure that the air inlet and outlet openings are not blocked.
To avoid any risk of fire, do not cover the heater (ex. With clothes).
☐ The heater should only be operated at a minimum distance of 1 meter from any wall, piece of furniture or other object and combustibles.
☐ Warning: Do not operate the heater near baths, showers, washbasins, swimming pools or any other water container. It must be impossible to reach the commands of your appliance when you are in contact with water.
☐ The temperature of the housing and the grids may be very high when the appliance is in use. Avoid contact with the skin.
☐ Do not allow the power cord to touch any hot part of the appliance.
□ Never use the appliance near inflammable or explosive materials.
☐ Do not insert any objects through the grille or into the interior of the appliance.
☐ Do not use double adapters or other appliances to connect with heater.

4 KA CH 4-080529

(*) Competent qualified service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this service.

INSTALLATION

The heater should only be installed at a minimum distance of 1 meter from any wall, piece of furniture or other object and combustibles.

Thanks to its wheels, the appliance can be moved easily. However, in order to avoid danger, never move the appliance when it is operating. Always unplug it before moving it.

Always put the plug in an earthed power outlet.

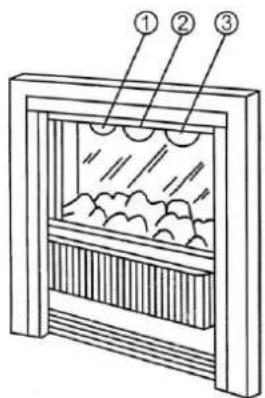

CONTROL PANEL

1. Thermostatic control / economiser switch
2. Fireplace effect regulation
3. Power/light/heat switch

OPERATION

• The fireplace can be used without the heater function, which means you can appreciate the marvellous fire effect throughout the year.
• As the effect is produced by two small lights and a very weak engine, it is energy saving. You can set the fire intensity depending on the room dimensions.
• Warm air comes into the room through the protecting grid below the small iron grid on the front bottom of the appliance.

The controls are located in the upper part of the frame of the fireplace as indicated above.

Power/flame/heater switch: controls the power of the entire unit. Use it to switch the appliance on or off and to switch on the flame effect and/or heating feature. This switch has the following positions:

OFF position

Fireplace effect

Fireplace effect and low heat (1 heating element)

Fireplace effect and medium heat (2 heating elements)

Fireplace effect and high heat (3 heating elements)

5 KA CH 4-080529

Note: When first used, the heater may release a slight, harmless odour. This odour is a normal occurrence caused by the initial heating of the internal heating elements and will not occur again.

Thermostatic control dial / economiser switch:

• This dial adjusts the heater temperature and automatically shuts the heater off once the desired temperature is achieved.
• When you chose middle heat or high heat (in low heat position energy saving does not operate), this sensible heat output controller will automatically open or close the heating element in order to keep selected heat.
• First turn the thermostat/economiser switch clockwise to the highest setting.
• When the room temperature reaches the requested level, turn the switch anticlockwise to lower the heat and switch off the heating elements.
• Note: In medium and high position the lower heating element will stay on to keep the necessary room temperature.

Flame adjusting dial:

• You can enjoy the fire effect even if the heater has been switched off, as long as the power switch is not in 0 position.
  • The fire adjusting dial enables you to set the fire and light intensity.
• When in the minimum position, the fire effect and the light have a weak intensity.
• To get a higher heat, turn the switch clockwise.

CLEANING AND MAINTENANCE

Warning: The unit must be unplugged from the power supply prior to any maintenance or cleaning in order to reduce the risk electric shock or fire.

A. Light bulb replacement procedure

Like all light bulbs, bulbs require periodic replacement. When the bulbs in your unit have burned out you will notice one or more of the following:

• The flame is dim or dark in certain areas
- The log set ember bed appears dim or dark in certain areas

Your unit must be opened in order to replace the light bulbs. To reduce the number of times you need to open the unit, replace all the lights bulbs at the same time if they are close to the end of their rated life.

Warnings:

• The light bulbs in your unit can become extremely hot. Allow at least 10 minutes between turning off the unit and removing the light bulbs to avoid the accidental burning of the skin.
  • Always make sure to replace the bulbs by a bulb with exactly the same features.

Replacing bulbs (see figures page 3)

Below the log ember bed there are two light bulbs. To replace them, proceed as follows:

• Unscrew the two screws situated at the left and right end of the metallic plate of the control panel (fig. 1).

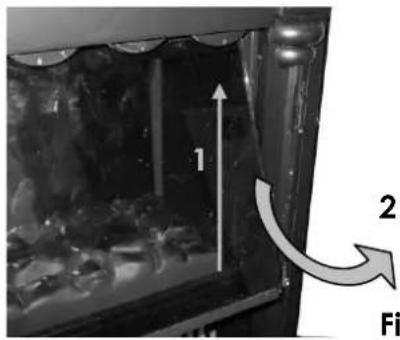

• Lightly press the middle part of the glass; lift the glass toward the front and up until it comes out of the lower slot (fig. 2, step 1) then move it away (fig 2, step 2).

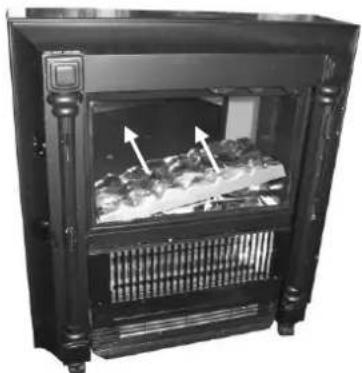

• When the glass is removed, remove the log ember bed by pulling at it (fig. 3).

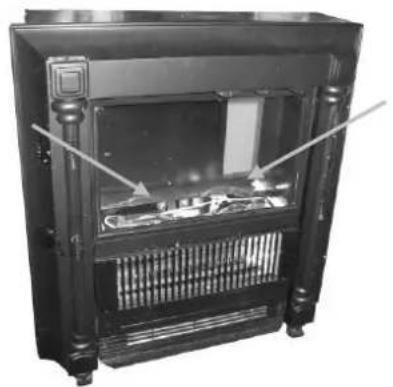

• You now have access to the bulbs (fig. 4). Unscrew them anticlockwise and replace them by identical bulbs.
  • Once this is done, reassemble the appliance by proceeding the other way around.

B. General cleaning instructions

• The housing may be wiped with a slightly damp, lint-fee cloth.; do not use any abrasive scouring pad or steel wool.
• Do not use detergents or cleaning products.
• If necessary, dust particles accumulated in the air outlet openings may be removed with a vacuum cleaner.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol — the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
