USER MANUAL BDL310S BLACK & DECKER
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON PLEASE CALL
1-800-54-HOW-TO (544-6986)
IF YOU SHOULD EXPERIENCE A PROBLEM
WITH YOUR BLACK & DECKER PRODUCT,
CALL 1-800-54-HOW-TO (544-6986)
BEFORE YOU CALL, HAVE THE FOLLOWING INFORMATION AVAILABLE, CATALOG No.,
TYPE No., AND DATE CODE. IN MOST CASES, A BLACK & DECKER REPRESENTATIVE CAN
RESOLVE THE PROBLEM OVER THE PHONE. IF YOU HAVE A SUGGESTION OR COMMENT,
GIVE US A CALL. YOUR FEEDBACK IS VITAL TO BLACK & DECKER.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
VEA EL ESPANOL EN LA CONTRAPORTADA.
INSTRUCTIVO DE OPERACION, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA.
WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
Safety Instructions
DANGER: Laser Radiation, avoid direct eye exposure, serious eye injury can result.
- Do not use optical tools such as a telescope or transit to view the laser beam.
- Position the laser so unintentional eye contact will be avoided.
- Do not operate the laser around children or allow children to operate the laser.
- Do not disassemble. Modifying the product in any way can increase the risk of laser radiation.
WARNING: Use of controls or adjustments or performance of procedures other than those specified in this manual may result in hazardous laser radiation exposure.
- Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Use only with the specifically designated batteries. Use of any other batteries may create a risk of fire.
- Store idle product out of reach of children and other untrained persons. Lasers are dangerous in the hands of untrained users.
- Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one laser, may create a risk of injury when used on another laser.
- Repairs and servicing MUST be performed by a qualified repair facility. Repairs performed by unqualified personnel could result in serious injury.
- Do not remove or deface warning labels. Removing labels increases the risk of exposure to radiation.
- For indoor use only.
This product is intended for use in a temperature range of 41^(5^) - 104^(40^)
CAUTION: Use caution when drilling, nailing or cutting into walls, floors and ceilings which may contain electrical wiring or pipes. Always turn off the power when working near electrical wires.
CAUTION: Use of controls or adjustments or performance of procedures
other than those specified in this manual may result in hazardous laser radiation exposure. The label on your tool may include the following symbols.
V .volts
mW milliwatts
nm... wavelength in nanometers
IIIa............Class IIIa Laser

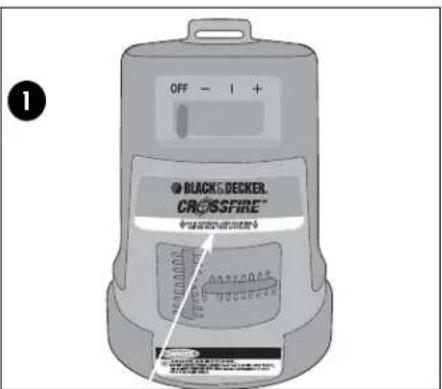

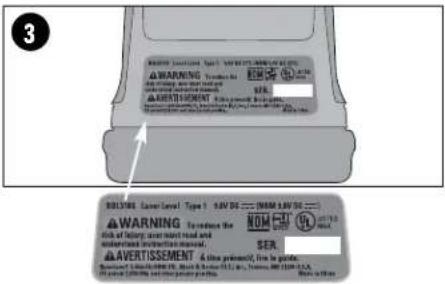

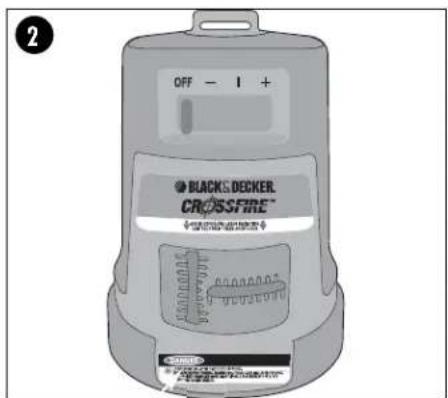

For your convenience and safety, the following labels are on your laser.
Installing the Battery
Ensure laser on/off switch is in the left "OFF" position. Remove the battery compartment cover by pressing the tab of the cover in towards the center of the laser and out as shown in figure 4. A rubber plug is located inside the compartment. The plug is used to protect the laser from transportation damage.

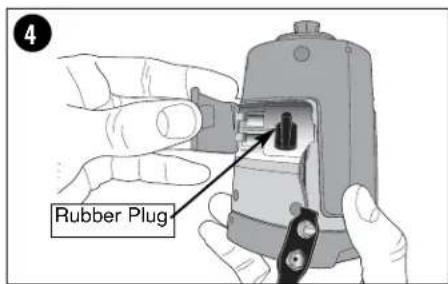

Remove the plug by rotating it 90^ and pulling it straight out.
Connect a fresh 9 volt alkaline battery making sure to match (+) and (-) terminals correctly. Replace the battery compartment cover.
Note: When transporting the laser or storing it for extended periods of time, remove the battery and replace the rubber plug. A WARNING: Choking hazard. Store rubber plug out of the reach of children.
WARNING: Batteries can explode, or leak, and can cause injury or fire. To reduce this risk:
- Carefully follow all instructions and warnings on the battery label and package.
Always insert battery correctly with regard to polarity (+ and -), marked on the battery and the equipment. - Do not short battery terminals.
- Do not charge batteries.
- Remove dead battery immediately and dispose of per local codes.
- Do not dispose of batteries in fire.
- Keep batteries out of reach of children.
- Remove battery if the device will not be used for several months.
Assembly / Set-up
Vertical Mounting
The wall / tabletop mounting bracket uses push pins or a screw hole to secure it to a vertical surface.
CAUTION: Pins are sharp and should be handled with care. NOTE: The pins are only for use when hanging the bracket on drywall, NOT other surfaces including plaster. For surfaces other than drywall, the key hole can be used with a standard screw or nail in a predrilled hole.

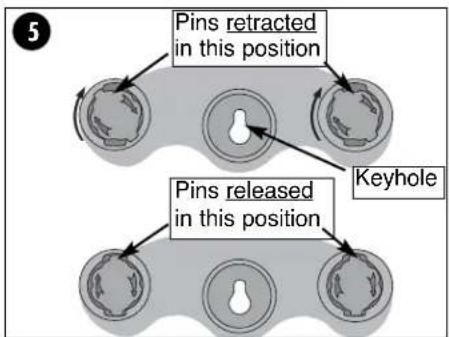

The pins stay retracted until you are ready to mount the bracket. To release the pins, twist the black knobs shown in figure 5 clockwise until they stop.

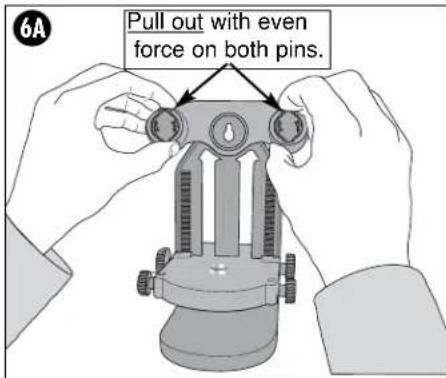

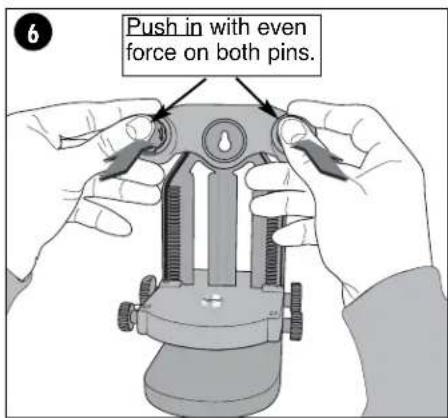

Position the bracket on a vertical surface. Hold the bracket as shown in figure 6, keeping your fingers on the front, and push in with even pressure on both knobs. Make sure it is seated firmly and that the unit is secure on the wall.
IMPORTANT: When attaching or removing the bracket, be sure to push in or pull out with even pressure on both push pins.
Laser Line Adjustment

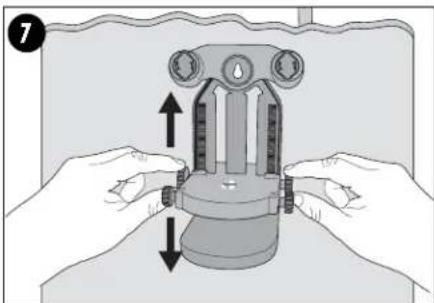

The horizontal or level laser line can be elevated as shown in figure 7 by turning either of the right or left adjustment knobs located at the rear of the moveable platform.

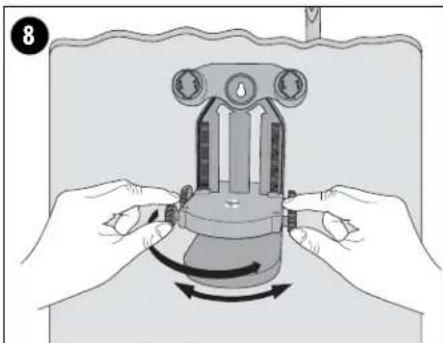

The vertical or plumb laser line can be rotated to the right or left by turning either of the knobs located at the front of the platform as shown in figure 8.
CAUTION: When making any laser line adjustments, be sure to look at the target laser line and not at the unit. Do not stare into the laser beam.
Hanging the Laser
The laser can also be hung from a joist or other secure structure by means of a hanging strap (not included).
CAUTION: Make sure laser is securely suspended by the strap. To hang, thread the strap through the slot in the top of the laser and fasten the hook as shown in figure 9. Adjust the laser so that it hangs relatively straight. The self-leveling function will then compensate for any minor error +/- 5^ .
Laser operation
Before attempting to use the laser, make sure the tool is positioned on a relatively smooth, flat and stable surface.
- Brightness of area may effect line visibility.
- When attaching to a mounting bracket or using the hanging strap, mount the laser securely.
- Be aware that extreme temperature changes can cause movement or shifting of building structures, equipment, etc. which can effect accuracy. Verify your set-up before each use as the laser may have moved.
This product is not recommended for outdoor use.
Turning the Laser On (Level Line)
Slide the on/off switch to the (-) position to operate the laser using a single horizontal laser beam as shown in figure 10.
(Plumb Line)
Slide the on/off switch to the (I) position to operate the laser using a single vertical laser beam as shown in figure 11.
(Crosshair Lines)
Slide the on/off switch to the (+) position to operate the laser using both the vertical and horizontal las shown in figure 12.
Touhghouing
| Problem | Possible Cause | Solution |
| · Laser does not project on wall or laser beam dim. | ·Weak battery. | ·Replace with fresh battery. |
| ·Laser lines are projected as a dashed lines. | ·The self leveling range of the unit is +/-5 degrees. If the unit is not set within 5 degrees of vertical, one of the laser lines will project on wall as a dashed line. | ·Be sure that the unit is as straight up and down as possible. |
| ·Laser lines are projected but one line is solid and one line is dashed. | ·The self leveling range of the unit is +/-5 degrees. If the unit is not set within 5 degrees of vertical, one of the laser lines will project on wall as a dashed line. | ·Be sure that the unit is as straight up and down as possible. |
| ·One laser line projected on wall is solid but not level. | ·The self leveling range of the unit is +/-5 degrees. If the unit is not set within 5 degrees of vertical, one of the laser lines will project on wall as a dashed line. Dashed line is not turned on. | ·Be sure that the unit is as straight up and down as possible. ·Turn the second laser line On to verify laser alignment. |
Out of Level Indicators
The laser is equipped with "out of level indicators" which break solid laser lines into dashed lines when unit is tilted out of auto-leveling range +/-5^ . Always use both lines to verify straightness of laser. Unit should be adjusted if any or both lines are broken or dashed. Figure 13 shows laser lines within auto-leveling range. Figures 14, 15 and 16 show laser lines out of auto-leveling range.
Storage
Always store the laser indoors with the switch in the "OFF" position. When storing it for extended periods of time, remove the battery and replace the rubber plug.
Maintenance
Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the tool: never immerse any part of the tool into a liquid.
IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service personnel, always using identical replacement parts.
Accessories
Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-54-HOW-TO (544-6986).
WARNING: The use of any accessory not recommended for use with this tool could be hazardous.
Service Information
All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black & Decker location nearest you. To find your local service location, refer to the yellow page directory under "Tools-Electric" or call: 1-800-544-6986 or visit www.blackanddecker.com
Full Two-Year Home Use Warranty
Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material or workmanship. The defective product will be replaced or repaired at no charge in either of two ways.
The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer's policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time set for exchanges.
The second option is to take or send the product (prepaid) to a Black & Decker
owned or authorized Service Center for repair or replacement at our option. Proof of purchase may be required. Black & Decker owned and authorized Service Centers are listed under "Tools-Electric" in the yellow pages of the phone directory and on our website www.blackanddecker.com.
This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest Black & Decker Service Center. This product is not intended for commercial use.
FREE WARNING LABEL
REPLACEMENT: If your warning labels become illegible or are missing, call
1-800-544-6986 for a free replacement.
Imported by
Black & Decker (U.S.) Inc.,
701E. Joppa Bd.
Towson, MD 21286 U.S.A.
See 'Tools-Electric'
Yellow Pages
for Service & Sales
LaserrutoenivleunrCrossfire
GUIDE D'UTILISATION
N^ de catalogue BDL310S
AVANT DE RETOURNER LE PRODUIT
POUR QUELQUE RAISON QUE CE SOIT,
COMPOSER LE
1 800 544-6986
Col. Industrial Bravo
GUADALAJARA, JAL
Av. La Paz #1779
(33) 3825 6978
Col. Americana Sector Juarez
MEXICO, D.F.
Local D, Col. Obrera
MERIDA,YUC
Calle 63 #459-A
(999) 928 5038
Col. Centro
MONTERREY, N.L.
Cat No. BDL310S Form # 587012-00 APR-04 Copyright © 2004 Black & Decker Printed in China
