THOMSON

Bluetooth Speaker

WS04

OPERATING INSTRUCTIONS

PLEASE READ OPERATING INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.

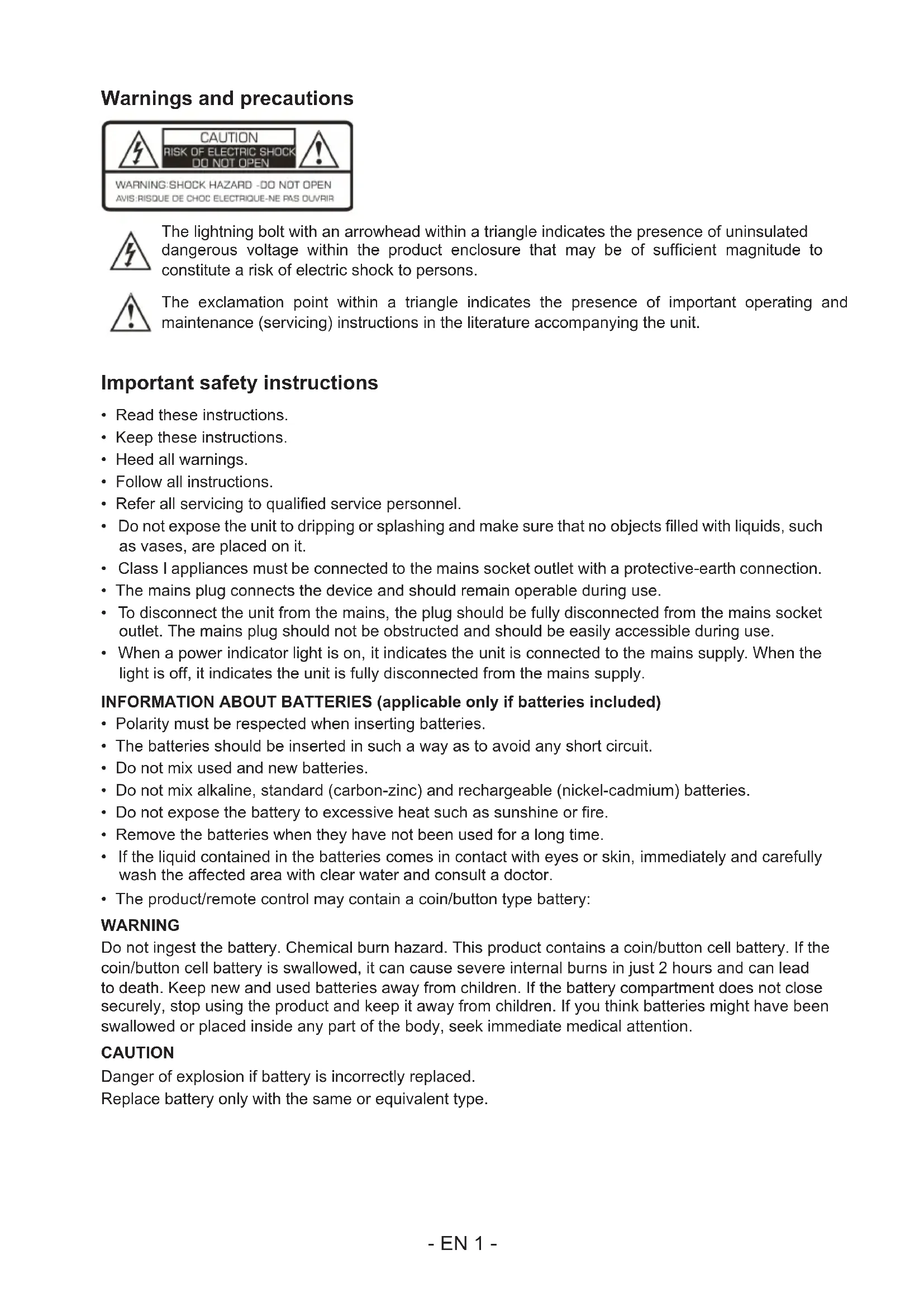

Warnings and precautions

The lightning bolt with an arrowhead within a triangle indicates the presence of uninsulated dangerous voltage within the product enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.

Important safety instructions

• Read these instructions.
• Keep these instructions.
  Heed all warnings.
• Follow all instructions.
  Refer all servicing to qualified service personnel.
• Do not expose the unit to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on it.
  Class I appliances must be connected to the mains socket outlet with a protective-earth connection.
• The mains plug connects the device and should remain operable during use.
• To disconnect the unit from the mains, the plug should be fully disconnected from the mains socket outlet. The mains plug should not be obstructed and should be easily accessible during use.
• When a power indicator light is on, it indicates the unit is connected to the mains supply. When the light is off, it indicates the unit is fully disconnected from the mains supply.

INFORMATION ABOUT BATTERIES (applicable only if batteries included)

• Polarity must be respected when inserting batteries.
• The batteries should be inserted in such a way as to avoid any short circuit.
• Do not mix used and new batteries.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable (nickel-cadmium) batteries.
• Do not expose the battery to excessive heat such as sunshine or fire.
• Remove the batteries when they have not been used for a long time.
• If the liquid contained in the batteries comes in contact with eyes or skin, immediately and carefully wash the affected area with clear water and consult a doctor.
  The product/remote control may contain a coin/bution type battery:

WARNING

Do not ingest the battery. Chemical burn hazard. This product contains a coin/burner cell battery. If the coin/burner cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace battery only with the same or equivalent type.

In the box

1 x WS04 Bluetooth speaker
1 x Micro USB charge cable
1 x User manual
1 x AUX cable

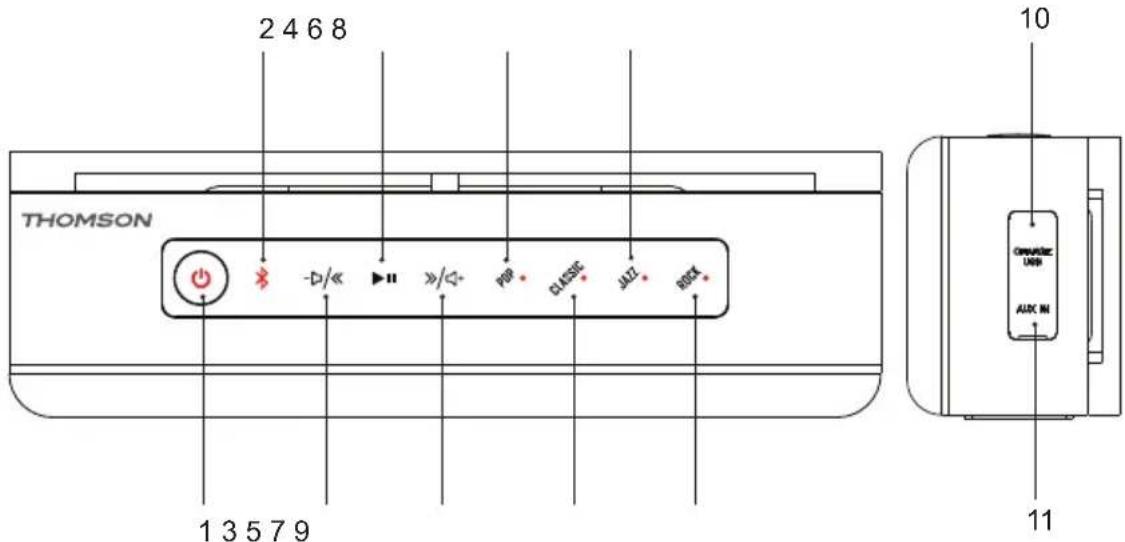

Product layout

1. Power
2. Bluetooth
3. Previous/volume
4. Play/Pause/Hands-free
5. Next/Volume+
6. Pop
7. Classic
8. Jazz
9. Rock
10. USB charge port
11. AUX-IN

Charging

1. Connect to a PC/Laptop/Mac or any 5V USB adaptor with the USB cable included.
2. The Red LED will turn ON when charging, and turn OFF when fully charged.
3. Unplug the USB cable when fully charged.

Note: The Red LED will flash and makes a sound when the battery power is low (<21%).

Pairing with Bluetooth enabled devices (Mobile phones/Tablets etc.)

1. Keep the speaker and device within 1 meter of each other.
2. Switch on the power button to turn on the speaker; the LED indicator will blink quickly in blue while the speaker enters search mode.
3. Start the Bluetooth function on your mobile device and look for "WS04" in the Bluetooth device list (depending on the Bluetooth version of your device you may have to enter pass code '0000').
4. After successfully connecting, the LED will change to solid blue.

Note:

• If the pairing was not successful, turn off the speaker and re-pair again.
  After successful pairing, paired devices will remember each other so there is no need to pair again unless pairing information is deleted.
• To pair with a new device, just follow steps 1-4 above after un-pairing the existing device.

Re-connecting to a paired device

If the speaker does not connect to the last used device automatically, then you will need to select it manually from the list of devices on your mobile device.

Manually disconnect existing Bluetooth pairing

Press Bluetooth button to disconnect with existing paired device, then pair with new device.

Hands-free phone calls, make sure mobile phone is paired with speaker

1. Press the "Hands-free" button to answer an incoming phone call.
2. Press again to end a call.
3. Use the volume buttons to change the volume of the call.

Volume +/- and Previous/Next

1. Control volume via the Bluetooth device itself.
2. Long press Volume + / - to go to Next or Previous track.
3. Short press Volume + / - to turn on/down volume.

Equalizer: Pop/Classic/Jazz/Rock

1. Press Pop to go to Pop performance.
2. Press Classic to go to Classic performance.
3. Press Jazz to go to Jazz performance.
4. Press Rock to go to Rock performance.

AUX-in port

You can connect any music device to the WS04 speaker via the AUX port using the cable included. The speaker will not use the Bluetooth function while connected via this cable.

Remarks:

Don't discard the electrical and electronic appliances in the regular waste disposal.

a) Take them to a collection point.
b) Some components in these appliances may be hazardous to health and the environment.

• If there is an incoming call while WS04 is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depends on your cell phone.)
• The Bluetooth® word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.
• THOMSON is a trademark of TECHNICOLOR SA or its affiliates used under license to Bigben Interactive.
• Hereby, Bigben Interactive SA, declares that the WS04 device complies with the essential requirements of the directive 1995/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

To download the full statement, please visit our website: http://www/bigben-interactive.co.uk/support and the section "declaration of conformity".

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2-FRETIN

CS 90414

59814 LESQUIN Cedex - France

www/bigben.eu

Made in China
