Product Type	Waterproof housing for Sony Handycam Vision camcorder
Brand	Sony
Model	MPK-DVF4
Compatible camcorders	DCR-TRV6E, TRV8E, TRV9E, TRV10E, TRV11E, TRV15E, TRV17E, TRV20E, TRV30E, TRV890E, TRV900E
Maximum operating depth	75 meters
Materials	Aluminum alloy, glass, plastic (ABS, PC)
Dimensions	Approx. 312 × 212 × 318 mm (W / H / D)
Weight (housing only)	Approx. 4.4 kg
LCD monitor power supply	Supplied NP-F330 (InfoLITHIUM) battery, about 6 hours continuous operation
Handle power supply	Supplied CR2 lithium battery
Microphone	Built-in monophonic condenser microphone
Underwater functions	Power on/off, start/stop recording, auto focus on/off, zoom, photo recording on tape
Supplied accessories	Mounting brackets B and D, spacer, pads, screw plates, screwdriver, wide-angle lens, color filter, lens hood, anti-reflection rings, grease, O-ring, straps, case, shoulder strap, NP-F330 battery, CR2 battery
Maintenance and cleaning	Rinse with fresh water after use in sea, dry with a soft cloth, check and grease the O-ring before each use
Safety	Do not open underwater, check for leaks before diving, LEAK indicator (yellow) in case of water ingress
Spare parts and repairability	O-ring (ref. 3-977-362-01) and grease (2-115-921-01) available at Sony service centers
Warranty	Warranty provided, Sony recommends "GENUINE VIDEO ACCESSORIES"

Frequently Asked Questions - MPKDVF4 SONY

Which Sony camcorders are compatible with the MPK-DVF4 underwater housing?

The housing is compatible with the following Sony Handycam Vision models: DCR-TRV6E, TRV8E, TRV9E, TRV10E, TRV11E, TRV15E, TRV17E, TRV20E, TRV30E, TRV890E and TRV900E. Check compatibility in the manual before use.

What is the maximum operating depth of the housing?

The waterproof housing allows recording up to 75 meters depth. Follow diving safety instructions.

How to install the camcorder in the housing?

1. Attach the appropriate mounting bracket to the camcorder. 2. Connect the audio/video cables, remote control, and microphone. 3. Insert the camcorder into the front housing until it clicks. 4. Close both housing parts by locking the 3 latches. 5. Attach the handle. Before diving, check water resistance at 1 meter depth.

Which batteries are needed?

The housing uses an NP-F330 battery (InfoLITHIUM) for the LCD monitor, supplied in the kit, and a CR2 lithium battery for the handle (remote control). The NP-F330 battery must be charged with an appropriate charger (sold separately) and offers about 6 hours of operation.

How to maintain the O-ring?

Before each use, check that the O-ring has no scratches, cracks or dust. Apply a light coat of grease from the supplied tube with your fingers. Replace it every 1 to 2 years (ref. 3-977-362-01). Remove any debris from the groove.

What to do in case of water leakage in the housing?

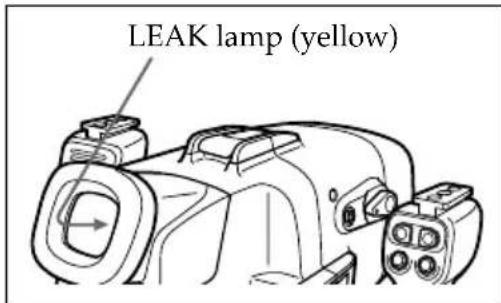

If the LEAK indicator (yellow) flashes, ascend to the surface respecting decompression stops, remove the housing and dry it. Open it and disconnect the remote control cable to turn off the indicator. If the camcorder is wet, take it immediately to a Sony dealer.

How to clean the housing after use in sea water?

Immerse the closed housing in fresh or running water for 30 to 60 minutes to dissolve salt. Then open, remove the camcorder and wipe the interior with a dry lint-free cloth. Do not drip water from your wetsuit onto the device.

Can the housing be used without the wide-angle lens?

Yes, but the wide-angle lens is recommended underwater because water magnifies objects by about 1/4. It allows capturing wider areas. Always attach the color filter to the wide-angle lens.

How to attach optional accessories like a video light?

The housing has mounts on top of both handles to attach underwater video lights, such as the Sony HVL-ML20 (optional). Secure them firmly before diving.

Where to find spare parts for the housing?

Spare parts such as the O-ring (ref. 3-977-362-01) and grease (2-115-921-01) are available at authorized Sony service centers. Check the website or contact Sony support.

USER MANUAL MPKDVF4 SONY

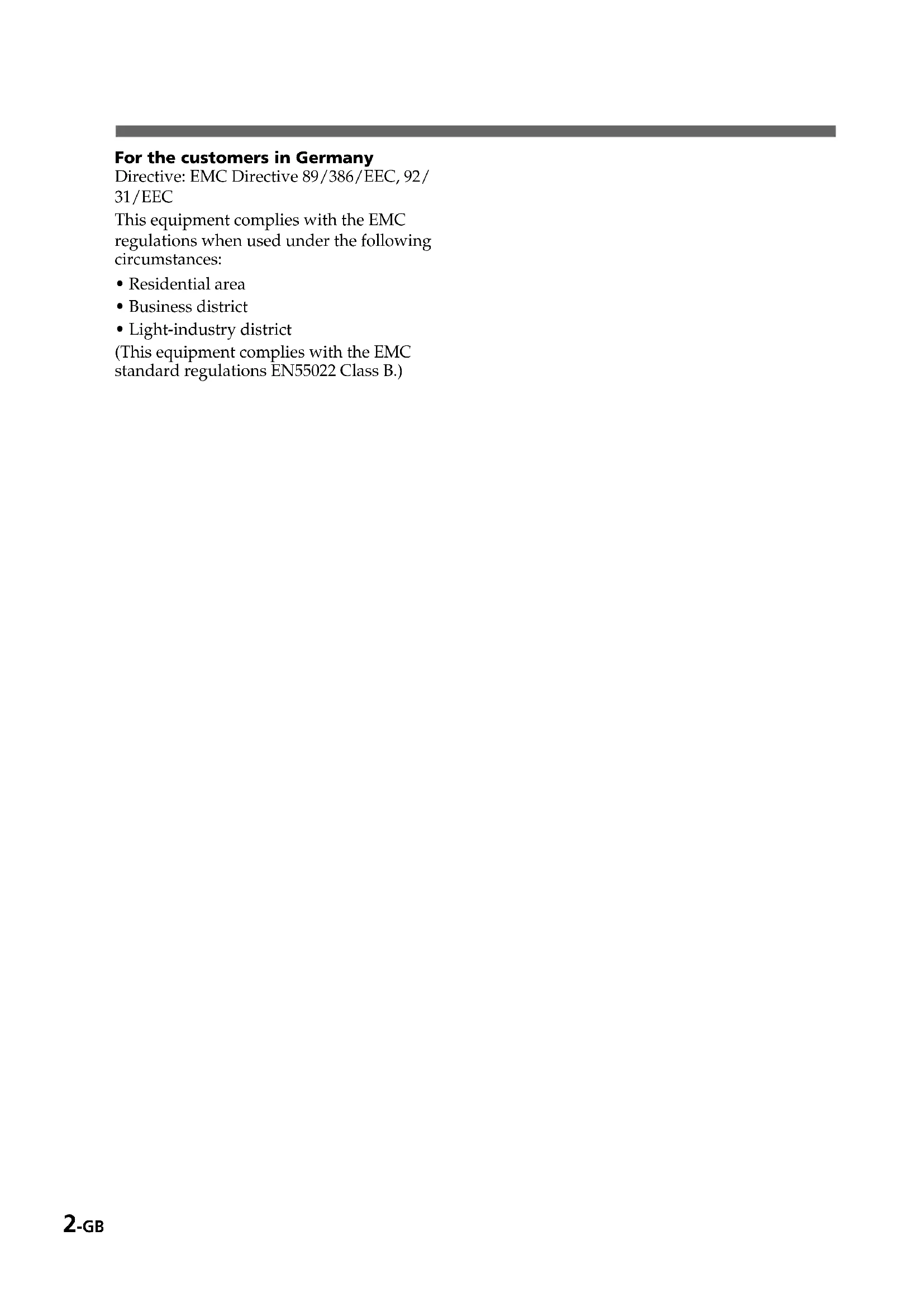

For the customers in Germany

Directive: EMC Directive 89/386/EEC, 92/31/EEC

This equipment complies with the EMC regulations when used under the following circumstances:

Residential area
Business district
Light-industry district

(This equipment complies with the EMC standard regulations EN55022 Class B.)

Table of contents

Features and Precautions 3

Supplied Accessories. 4

Preparations 5

Preparing your camcorder 5

Preparing the marine pack (installing the battery) 9

Installing the camcorder to the marine pack 11

Recording 13

Attaching the supplied accessories .. 14

Attaching the optional accessories ... 15

Underwater recording 16

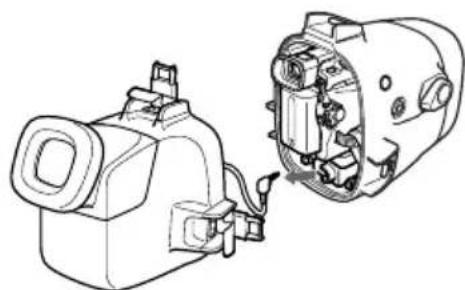

Removing the camcorder 18

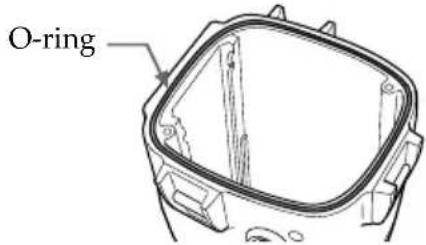

Note on the O-ring 20

Caution on handling 21

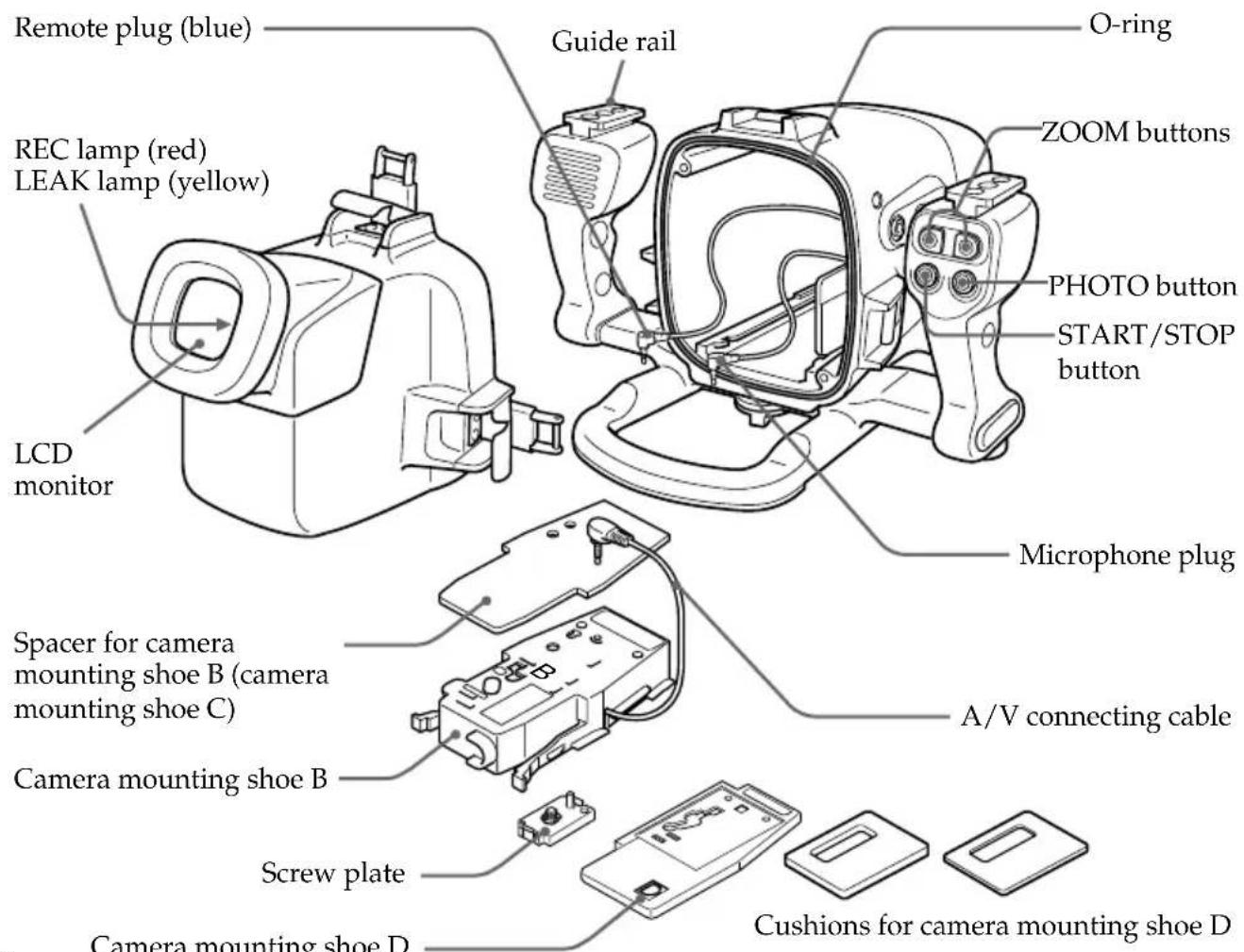

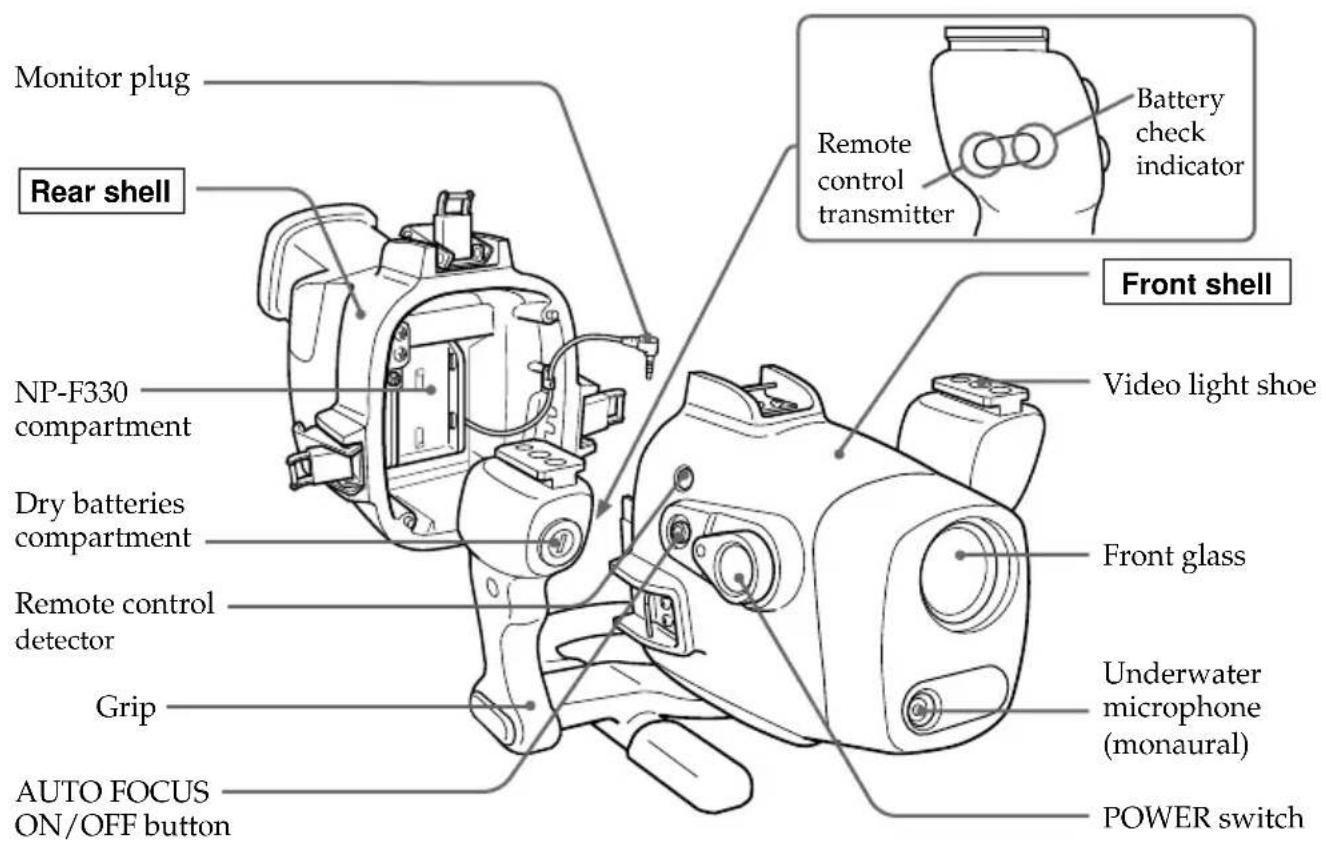

Identifying parts and controls 22

Specifications 23

Features and Precautions

• The MPK-DVF4 can be used with the Sony Handycam Vision™ camcorder DCR-TRV6E/TRV8E/TRV9E/TRV10E/TRV11E/TRV15E/TRV17E/TRV20E/TRV30E/TRV890E/TRV900E.
• Recording at depths of up to 75 meters (246 feet) is possible.

• The following operations can be performed underwater.

• Power on/off

• Auto focusing on/off
• Recording start/stop
  -Tape photo recording
• Electric zoom function
  LCD screen monitoring

Sony dose not accept liability for damage to the video camera recorder, battery, etc. in the marine pack, or for the loss of prerecorded material if a water leakage caused by incorrect operation occurs.

This mark indicates that this product is a genuine accessory for Sony video products. When purchasing Sony video products, Sony recommends that you purchase accessories with this "GENUINE VIDEO ACCESSORIES" mark.

Check that the following accessories are supplied with your marine pack.

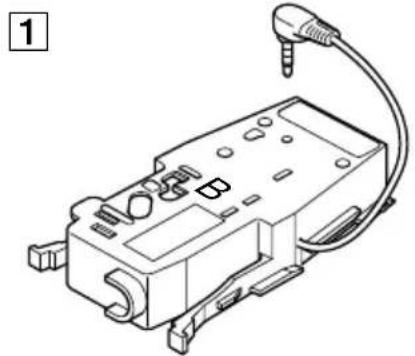

1 Camera mounting shoe B (1)
2 Spacer for camera mounting shoe B (Camera mounting shoe C) (1) for DCR-TRV8E/TRV10E

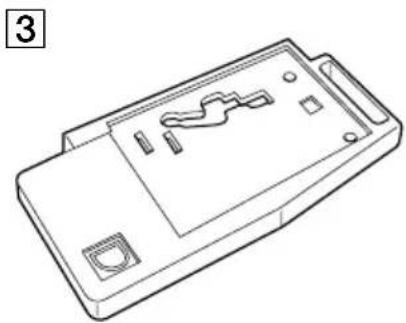

3 Camera mounting shoe D (1) for DCR-TRV6E/TRV11E/TRV15E/ TRV17E/TRV20E/TRV30E
4 Cushions for camera mounting shoe D (2) Thick: for DCR-TRV30E Thin: for DCR-TRV6E/TRV11E/ TRV15E/TRV17E/TRV20E
Screw plate for camera mounting shoe B and D (2)
6 Screw driver part (1) Attachment for the camera mounting shoe B

7 NP-F330 battery pack for the LCD monitor (1)
8 Lithium ion battery CR2 (1)
9 O-ring (1)
10 Underwater wide-conversion lens (VCL-MK2) (1)
Sunshade (1)
12 Reflex prevention ring (2) Large: 37mm (1) Small: 30mm (1)
13 Colour filter (VF-MK2) (1)
14 Grease (1)

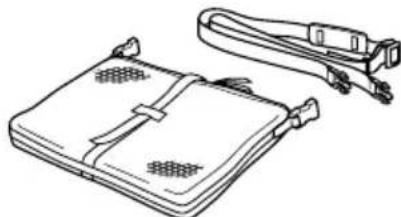

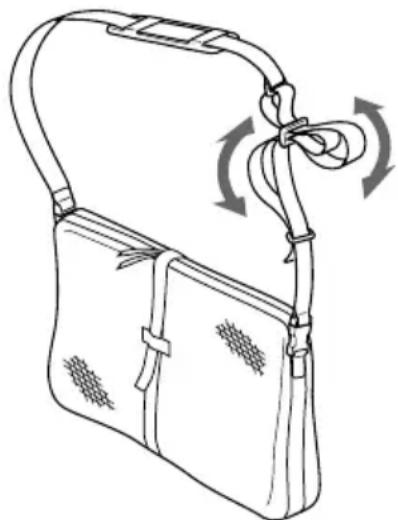

15 Carrying bag (1) Carrying belt (1)

• Battery cushion (1)

• Strap (3)

Preparing your camcorder

Before installing your camcorder in the marine pack, prepare the camcorder according to this chapter. The DCR-TRV30E is the model used for illustration purposes. Otherwise, the model name is indicated in the illustrations. Any differences in procedure are clearly indicated in the text, for example, "for DCR-TRV30E." The procedure may be different depending on your camcorder type. For details, please refer to the operating instructions supplied with your camcorder.

1 Remove the lens cap, shoulder strap, conversion lens, filter or lenshood from the camcorder.

2 Attach a charged battery pack.

3 Insert a cassette tape.

4 Attach the reflex prevention ring to the lens. for DCR-TRV9E/TRV20E/TRV30E: 37 mm (large) for DCR-TRV6E/TRV8E/TRV10E/TRV11E/TRV15E/ TRV17E: 30 mm (small) for DCR-TRV890E/TRV900E: not necessary Be sure not too tighten prevention ring.

5 Select the camera mounting shoe. The camera mounting shoe and the installing position of the screw plate differ on your camcorder. For details, refer to the table below.

Camera mounting shoe	Position of the screw plate	Camcorder
B	1	DCR-TRV9E
	2	DCR-TRV6E/TRV11E/TRV15E/TRV17E/TRV20E/TRV30E/TRV890E/TRV900E
	3	DCR-TRV8E/TRV10E
D	1	DCR-TRV20E/TRV30E
	2	DCR-TRV6E/TRV11E
	3	DCR-TRV15E/TRV17E

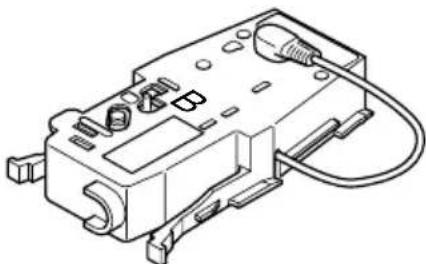

Installation position of the screw plate on the camera mounting shoe B

6 Attach the camera mounting shoe.

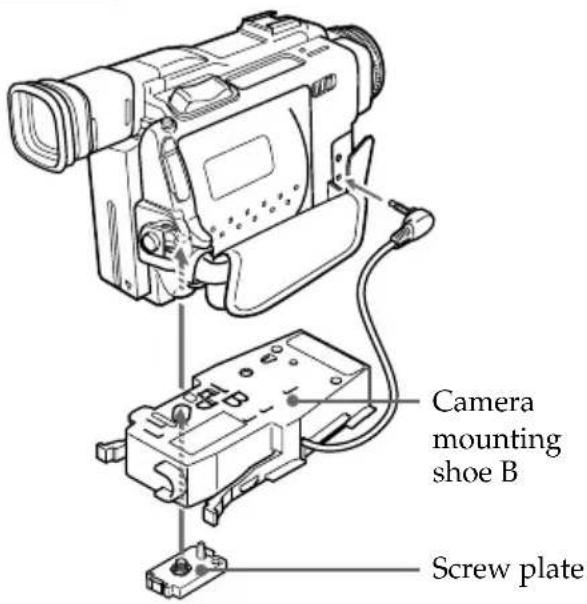

For DCR-TRV9E/TRV890E/TRV900E

Use camera mounting shoe B and the screw plate.

Check the installation position (1, 2, or 3) of the screw plate for your camcorder according to the table on page 5.
Attach the screw plate so that the catch on the reverse side of shoe B clicks into place.
3 Fasten the screw of the screw plate to the tripod screw hole of the camcorder and tighten firmly.
4 Connect the A/V cable of the shoe to the camcorder's AUDIO/VIDEO jack.

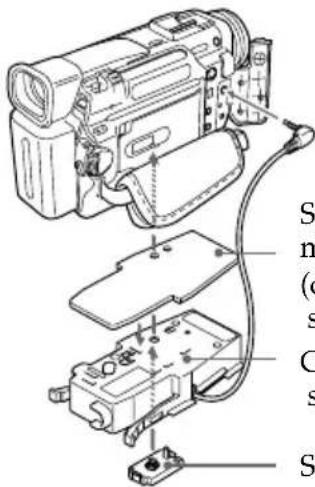

For DCR-TRV8E/TRV10E

Use camera mounting shoe B, spacer (camera mounting shoe C), and the screw plate.

Attach the spacer for camera mounting shoe B to shoe B.
2 Attach the screw plate to position 3 on shoe B so that the catch on the reverse side of the shoe clicks into place.
3 Fasten the screw of the screw plate to the tripod screw hole of the camcorder and tighten firmly.
4 Connect the A/V cable of the shoe to the camcorder's AUDIO/VIDEO jack.

Installation position of the screw plate on the camera mounting shoe B

Spacer for camera mounting shoe B (camera mounting shoe C)

Camera mounting shoe B

Screw plate

For DCR-TRV6E/TRV11E/TRV15E/TRV17E/TRV20E/TRV30E

Use camera mounting shoe B and D, cushions for camera mounting shoe D and the screw plate.

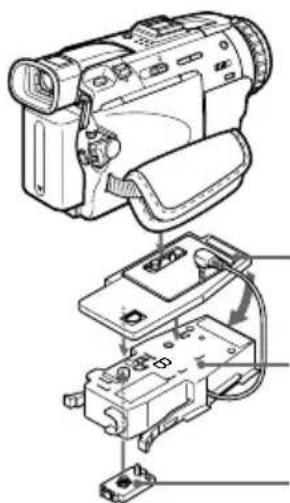

Before attaching the camcorder

Check the cushions for camera mounting shoe D and the installing position of the screw plate for your camcorder against the table below.

DCR Cushion	Screw plate
TRV6E/TRV11E Thin 2
TRV15E/TRV17E Thin 3
TRV20E Thin 1
TRV30E Thick 1

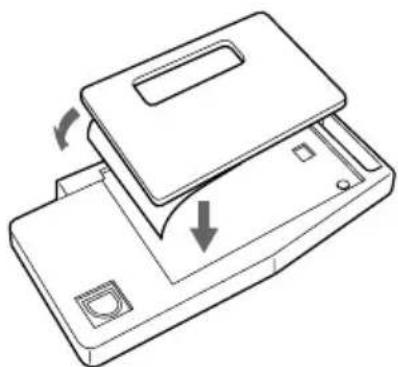

Remove the stick tape from the cushion for camera mounting shoe D. Then stick the cushion for camera mounting shoe D onto camera mounting shoe D as shown in the illustration.

1 Attach the screw plate to the position on shoe D so that the catch on the reverse side of the shoe D clicks into place. The installing position of the screw plate differs on your camcorder. For details, refer to the table above.

2 Fasten the screw of the screw plate on shoe D to the tripod screw hole of the camcorder and tighten firmly.

3 Attach the screw plate to the position 2 on shoe B.

4 Fasten the screw of the screw plate on the shoe B to the screw hole on the shoe D of the camcorder tightly.

5 Connect the A/V cable of the shoe to the camcorder's AUDIO/VIDEO jack.

Installation position of the screw plate of the camera mounting shoe D

Camera mounting shoe D

Camera mounting Shoe B

Screw plate

Now you are ready to install the camcorder to the marine pack.
Be sure to check that the camera mounting shoe is attached to the camcorder tightly before you install the camcorder to the marine pack.

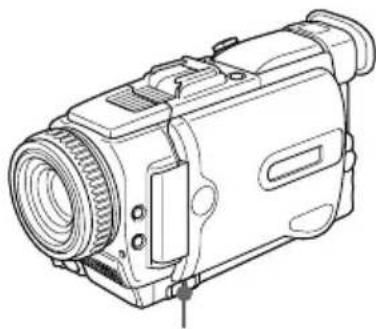

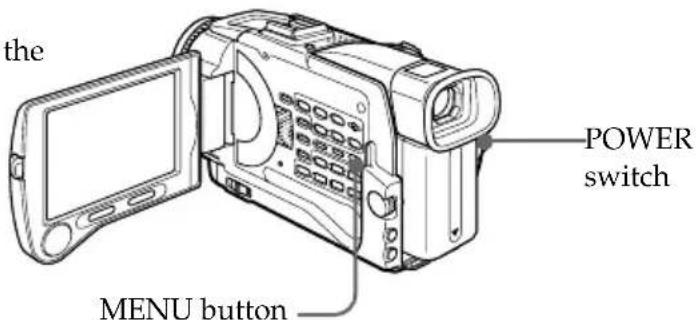

7 Prepare to record.

Set the POWER switch to CAMERA.
Set COMMANDER to ON in the menu settings.
3 Cancel the following functions: BACK LIGHT, NIGHTSHOT, PROGRAM AE, flash and Picture effect.
Set the FOCUS switch to AUTO.
Set DISPLAY to V-OUT/LCD in the menu settings and press the DISPLAY button on your camcorder before installing the marine pack.

FOCUS switch

• If your camcorder has REC LAMP in the menu settings, set it to OFF. By using this function, the light of the lamp is not reflected in the lens. For details, please refer to the operating instructions supplied with your camcorder.

Preparing the marine pack (installing the battery)

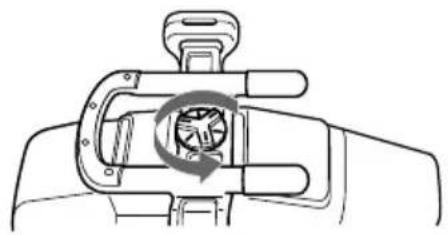

1 Remove the grip. Undo the screw on the bottom side of the marine pack.

2 Insert the lithium battery into the grip.

1 Remove the screw with the supplied screw driver.

2 Insert the supplied lithium battery (CR2,· 1) with the polarity positioned correctly as indicated on the grip.

3 Fasten the screw tightly.

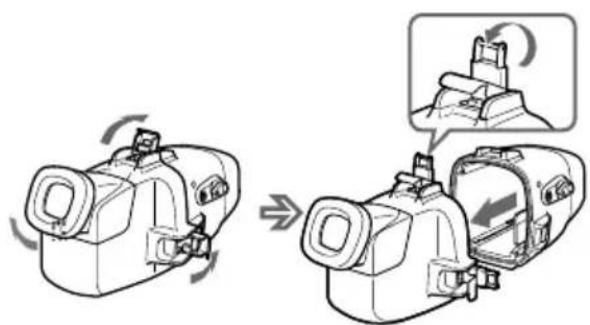

3 Unfasten the 3 latches and open the marine pack. If you lift the metal part in the direction of the finder when the latches are open, the latches will stop.

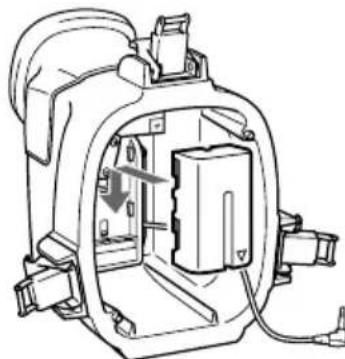

4 Attach the supplied battery pack NP-F330 for the LCD monitor to the rear shell. Be sure to charge the battery pack fully before attaching.

Note

Firmly insert the supplied battery cushion as shown to prevent the battery pack from coming loose if it is dropped or otherwise subjected to impact.

About the supplied battery pack NP-F330

What is an "InfoLITHIUM" battery pack?

The "InfoLITHIUM" is a lithium ion battery pack which can exchange data with compatible electronic equipment about its battery consumption. Sony recommends that you use the "InfoLITHIUM" battery pack with electronic equipment having the

InfoLITHIUM mark.

• The indication may not be accurate depending on the conditions and environment in which the equipment is used. "InfoLITHIUM" is a trademark of Sony Corporation.

• To charge the supplied NP-F330 battery pack, prepare AC adapter/charger that can charge "InfoLITHIUM" L series (optional).

• You can use also the "InfoLITHIUM" L series and F550 AC adapter/charger (optional).

• The recording time of a fully charged NP-F330 battery pack is approximately 6 hours (continuous recording). The actual recording time may be less, depending on conditions of use.

InfoLITHIUM

The "InfoLITHIUM" battery pack is recyclable. When the battery is exhausted and can no longer be recharged, cover the metal parts of the battery with an isolator such as scotch tape and take it to a battery recycling shop.

About the LCD monitor

• Install the camcorder to the marine pack and set the POWER switch to ON to make images appear on the LCD screen.

• The remaining battery time indicator displayed on the LCD monitor refers to remaining time of the camcorder battery time, not the remaining time of the LCD monitor battery.

• The LCD monitor of the marine pack does not correspond with the "InfoLITHIUM" battery pack.

Installing the camcorder to the marine pack

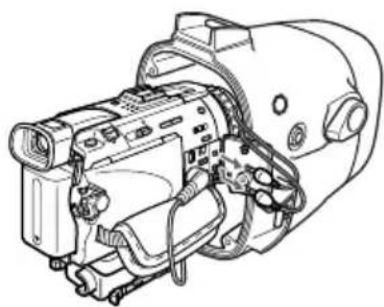

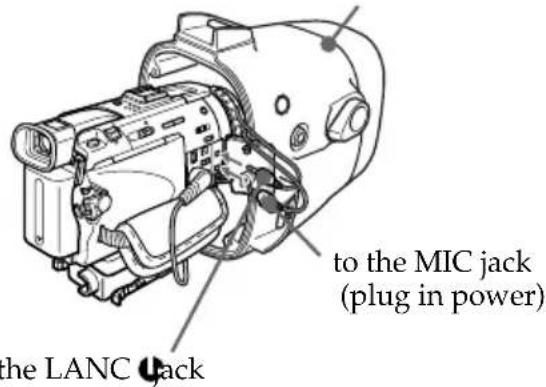

1 Install the camcorder to the marine pack.

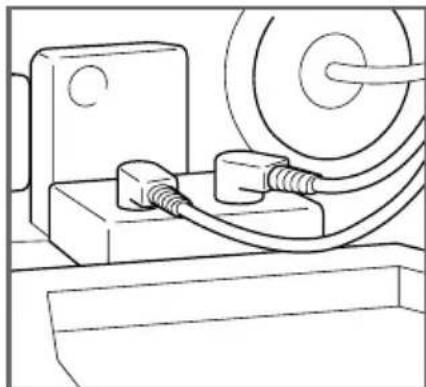

Connect the remote plug and the microphone plug.

Connect the microphone plug to the MIC jack (plug in power).
Connect the remote plug to the LANCack.

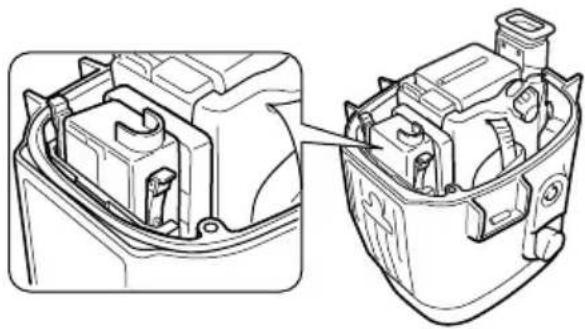

2 Insert the camcorder until the mounting shoe clicks into place.

3 Connect the monitor cord to the jack of camera mounting shoe B.

The cords are placed in the plug holders of the marine pack at the factory. Pull the plugs out of the holders when in use.

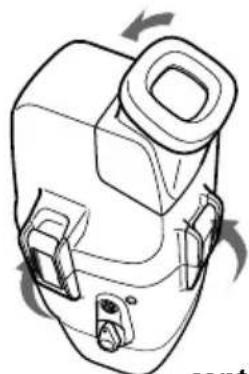

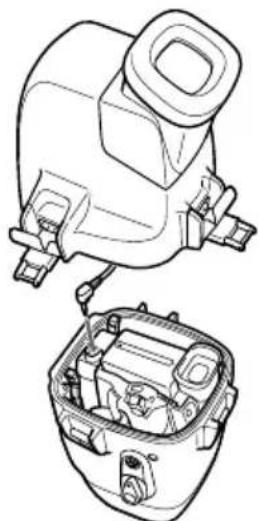

4 Attach the front shell to the rear shell. Hold both shells firmly and fasten the 3 latches securely.

Take care not to pinch the remote, microphone, and monitor cords. If this happens water may leak in.

For details on handling the O-ring, see page 20.

Preparation (continued)

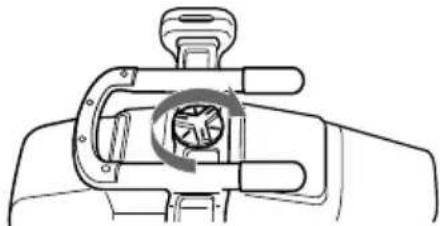

5 Attach the grip.

Fasten the screw tightly.

Now you have finished the preparations. Be sure to check that the equipment operates correctly and that there is no water leakage before you dive (see page 16).

Now you are ready for underwater recording. When you dive with the camcorder, dive slowly, paying attention to the surrounding environment. Be careful not to strike the marine pack against Rocks or Reef, etc.

GB

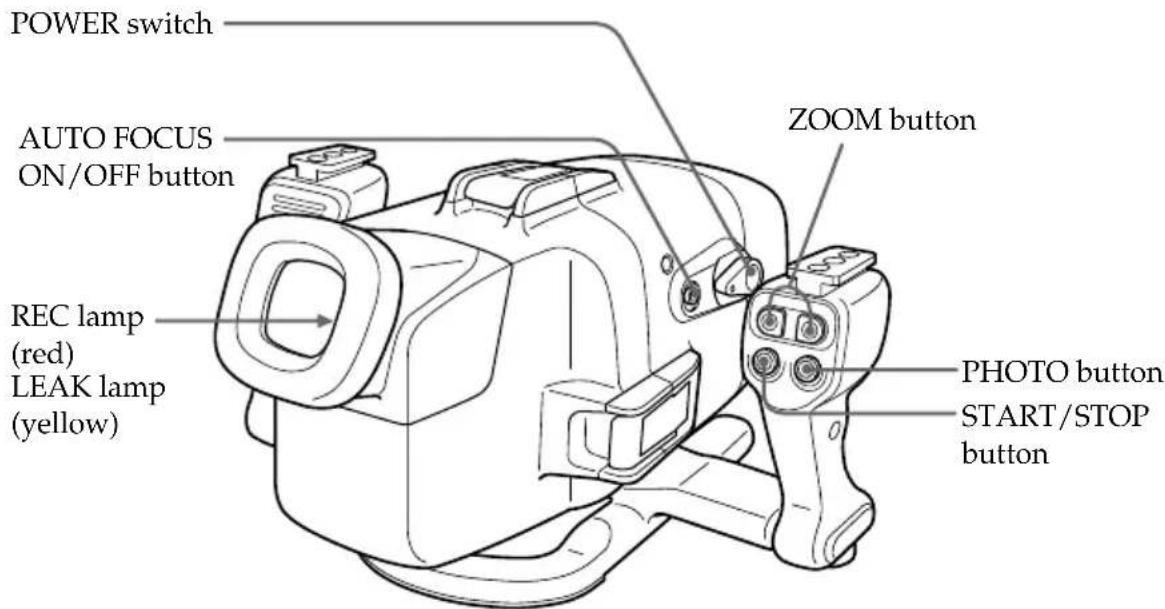

1 Set the POWER switch to ON. The camcorder turns on and a picture appears on the LCD monitor.
2 Press START/STOP button to start recording. The REC lamp (red) lights up during recording. To stop recording, press START/STOP button again.

To zoom

Press ZOOM button.
Press T for telephoto (subject appears closer) and W for wide-angle (subject appears further away). You cannot change the zooming speed of the camcorder.

Recording a still image on a tape (Tape photo recording)

You can record a still image on a tape by pressing PHOTO button. Note that pressing PHOTO button lightly does not allow you to check the recorded image. For more details, refer to the operating instructions supplied with your camcorder.

To keep a subject in focus

Press AUTO FOCUS ON/OFF button to set it to OFF. You can still keep the subject in focus even if fish swim between the camcorder and the subject. Press AUTO FOCUS ON/OFF button again to set the camcorder to auto focus mode.

Note

Do not cover the control emitter or detector with your finger as the remote control signal for operations is transmitted from the grip to the marine pack.

Attaching the supplied accessories

Attaching the supplied wide-conversion lens

As objects appear 1/4 closer and therefore larger, the wide-conversion lens is recommended when you want to take pictures of wide areas. Note however, that objects will appear smaller.

Note

This supplied wide-conversion lens is to be used only underwater.

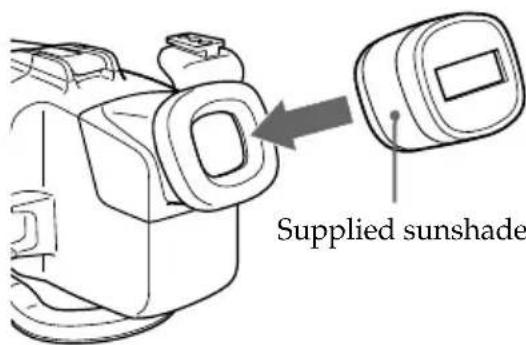

Using the supplied sunshade

The supplied sunshade reduces glare from the LCD monitor.

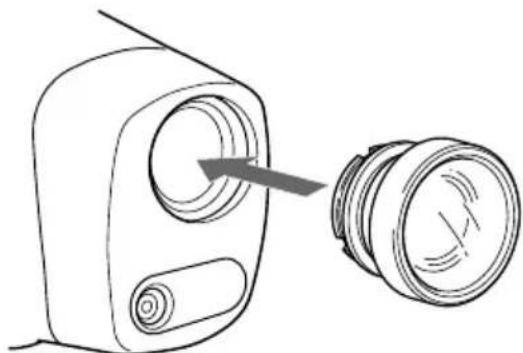

Attach the wide-conversion lens until it fits firmly.

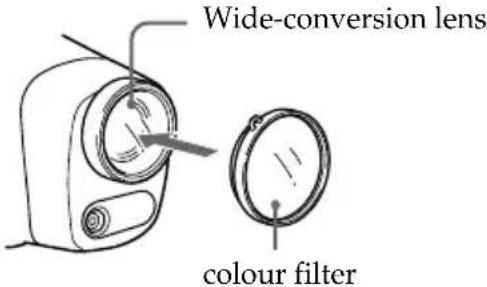

Attaching the supplied colour filter

When using the supplied colour filter, attach it on top of the wide-conversion lens.

Water absorbs light, especially red light, so that objects in deep water are seen bluish. The colour of objects is affected by the clarity of the water. To record in natural colour, use the supplied colour filter.

You can attach and remove the wide-conversion lens, sunshade, and colour filter underwater.

If the image on the LCD screen is not clear because of air between these accessories and the marine pack, reattach them underwater.

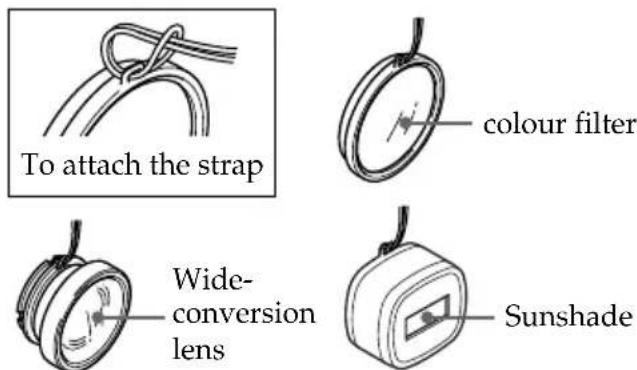

Attaching the supplied strap

Attach the strap as the shown. Attach the supplied straps to prevent loss of these accessories when removing them both on land and underwater. Attach the straps to the grip of the marine pack.

Attaching the optional accessories

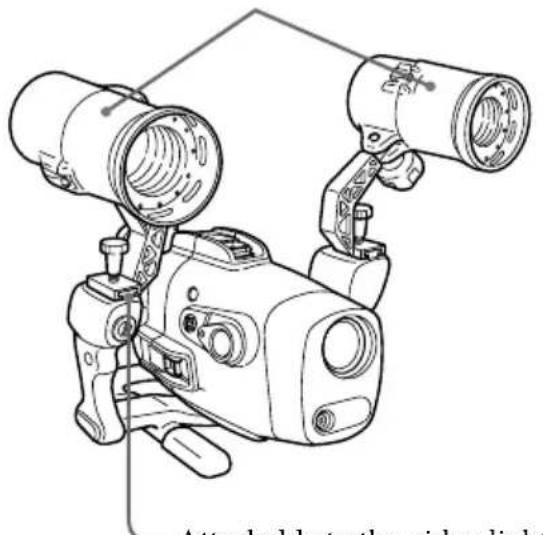

Underwater video light

In deep water or under rocks where direct sunlight does not reach, recording with underwater video lights is recommended.

You can attach these video lights to the video light shoes on the upper part of both grips.

Underwater video lights such as the Sony HVL-ML20 (optional)

Attachable to the video light shoes on both sides

Before diving

Check that the equipment operates correctly and that there is no water leakage at a depth of about one meter (3 feet) before you dive deeper.

Take care not to expose the equipment to salty air. Do not drop water on the equipment.

Do not open the marine pack underwater or on the beach. Preparations such as installing and checking the equipment should be done in a place with low humidity and no salty air.

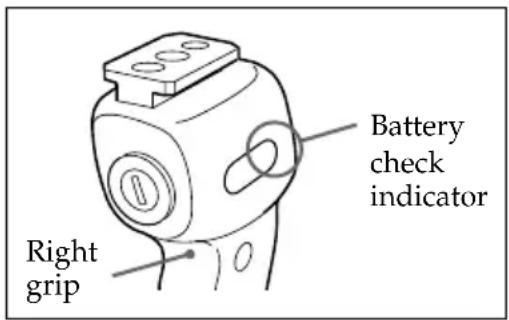

Check the following points again before you dive.

• Be sure to fully charge both the battery pack of the marine pack and the camcorder.
• We recommend you use battery packs with a large capacity and prepare a spare battery.
  □ Be sure that a video tape has enough left.
  Check that there are no scratches or cracks on the O-ring.
  Make sure there is no dust, sand, or hair between the front shell and the rear shell.

• Be sure that the lithium battery has enough power.

• If the remaining battery capacity is enough, when you press the ZOOM, PHOTO, or START/ STOP button, the Flash lamp lights up. Check this indicator as a criterion. If the flash lamp does not light, exchange for a new one. We suggest that you prepare spare ones.

Conditions of underwater recording

Recording underwater is different from recording on land because it is affected by the clarity, depth of the water, and the light conditions. The following are hints for good recording underwater.

Best time for recording

The best recording time is from 10:00 a.m. to 2:00 p.m. When the sun is at its highest, optimum results can be obtained.

To record is in dark places as the sun does not reach or at night, use a powerful underwater video light.

Subject size underwater

Since the refractive index underwater is higher than that in air, objects appear 1/4 closer, and therefore larger. This phenomenon affects the lens on the camcorder as well as human the eye. Using the supplied wide-conversion lens is recommended.

Operate the camera with slow and stable motions

When recording, keep your body stable.

An unstable shot will be magnified on the TV screen.

Move the camcorder as slowly as possible. Since most of the objects underwater move, you can record a good shot without moving the camcorder too much.

Note on recording underwater

Be sure to follow the safety rules for diving, such as diving period and depth.

Water leakage

The marine pack is designed to be waterproof, however if water happens to leak in, the LEAK lamp (yellow) flashes.

In such a case, remove the marine pack from the water as soon as possible, keeping it horizontal. Be sure to surface following the safety rules for diving.

Dry the marine pack with a soft cloth and then open it.

To switch off the lamp, disconnect the remote control cable.

Check the cause of the leak.

If the camcorder is wet, take it to the nearest Sony dealer immediately.

We recommend you purchase property damage insurance for underwater materials in case of emergency.

After using

• After recording in the sea, submerge the marine pack in tap water or fresh water for about 30-60 minutes before undoing the latches to completely remove any salt from the marine pack unit, filter, and wide-conversion lens.

• When your camcorder is to be used near the sea for a long time, we recommend that it be checked periodically by a Sony dealer.

Before opening the marine pack, rinse it with fresh water and dry with a soft cloth. When you open the marine pack, make sure you are dry. And take care that no water drips from your wet suit.

1 Remove the grip.

2 Unfasten 3 latches and open the marine pack.

Disconnect the monitor cord from the camera mounting shoe B.

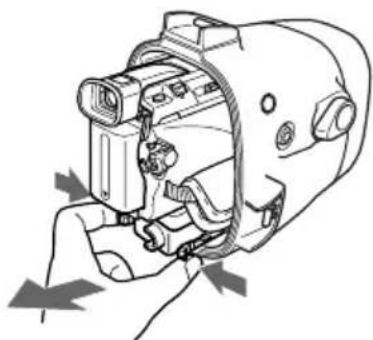

3 Take the camcorder out of the front shell.

Hold the camera mounting shoe by the knobs and extract the camcorder.

When you open the marine pack, do not pull the monitor plug cord by force.

4 Disconnect the remote plug and the microphone plug.

5 Disconnect the A/V connecting cable of camera mounting shoe B from the AUDIO/VIDEO jack.

6 Remove the camera mounting shoe with the screw driver. Undo the screw of the screw plate and remove the camera mounting shoe from the camcorder.
7 Remove the battery pack for the LCD monitor.

After using the marine pack

• Insert the A/V connecting cable plug to the plug holder of the camera mounting shoe B.

• Insert the remote and microphone plugs to the plug holder inside of the front shell.

The O-ring assures the waterproof function of the marine pack. To maintain waterproof integrity, use it correctly.

Incorrect handling may cause water to leak in.

Check the O-ring

Before using the marine pack each time, check that there are no scratches or cracks on the O-ring and prevent dust from collection on it as it could allow water to leak in.

• Remove the O-ring from the groove with your finger. Do not use a metal tool or a tool with a sharp point.

• Put the O-ring in the groove evenly. Never twist it.

• Check that there are no cracks or dust on the O-ring, then coat it slightly with the supplied grease using your finger. This will prevent wear.

• While applying the grease, recheck for cracks or dust. Never use cloth or paper to apply grease because the fibers may cling.

If you run out of grease (2-115-921-01) you can purchase it from your nearest Sony Service Center.

Remove any dust, sand, or hair from the O-ring

Make sure there is no dust, sand, or hair on the O-ring, in the groove, or on the surface of the marine pack where the O-ring touches. If there is, clean it completely, or the O-ring and the surface of the marine pack may be damaged and water may leak in.

Do not pinch the O-ring with the marine pack

When joining the front and rear shells, take care not to pinch the O-ring between the front and rear shells. If this happens, not only will the O-ring be damaged, but water may leak in.

Useful life of the O-ring

Depending upon the maintenance and the length of use, we recommend changing the O-ring every one or two years.

The O-ring (3-977-362-01) can be replaced at your nearest Sony Service Center.

When you store the O-ring

Store a reserve O-ring in its package in a cool dry place. Do not store in very hot, cold, or humid place. Be careful not to crimp it or to place any heavy weight on it.

After using

The metal parts will rust and the movement of the operation switches will be impaired if you leave salt water on the marine pack. If sea water enters through scratches in the coating, the salt can corrode the metal parts of the marine pack unit and cause the coating to peel off. After recording in the sea, submerge the marine pack in tap water or fresh water for about 30 minutes before undoing the buckles to completely remove any salt from the marine pack unit, filter, and wide-conversion lens.

After washing, wipe any water from the inside of the marine pack and the loaded video camcorder with a soft dry cloth.

• Always follow the above precautions when you use the marine pack.

When you open the marine pack or exchange the battery pack of the grip, take care that no water drips from your wet suit or hair.

Do not leave the marine pack under direct sunlight for a long period of time, otherwise the temperature in the marine pack may rise and the equipment inside may be damaged. If you cannot avoid leaving the marine pack under direct sunlight, be sure to cover the marine pack with a towel or other protection.

When you store the marine pack

Coat the O-ring slightly with the supplied grease, and put it in the groove correctly. Join the front and rear shells then put it in a cool and dry place without fastening the buckles.

Avoid storing the marine pack in a very hot, cold, or humid place, or together with naphthalene or camphor, as these conditions might damage the unit.

On transportation

When transporting the marine pack, be sure to remove your camcorder from it. Otherwise this might damage the unit.

Note

When you use the supplied carrying bag, attach the supplied carrying belt and adjust the length of the belt.

Avoid rough handling or a shock. We recommend covering the marine pack with a towel or other protection.

Identifying parts and controls

Material

Aluminum alloy, glass, plastic (ABS, PC)

Waterproofing

O-ring, 3 latches

Usable depth

Up to 75m (246 feet)

Underwater microphone

Condenser microphone (monaural)

Controllable function

Power on/off, recording start/stop, auto focus on/off, power zooming, tape photo recording

Dimensions

Approx. 312· 212· 318mm (w / h / d)

(123/8·83/8·125/8 in.)

Mass

Approx. 4.4kg (9 lb 11 oz) (the unit only)

Supplied accessories

Camera mounting shoe B, D (1 each)

Spacer for camera mounting shoe B (Camera mounting shoe C) (1)

Cushions for camera mounting shoe D (2)

Screw plate (2)

Screw driver part (1)

Wide-conversion lens (1)

Colour filter (1)

NP-F330 battery pack for the monitor (1)

Lithium battery CR2 (1)

Grease (1)

O-ring (1)

Sunshade (1)

Reflex prevention ring (2)

Strap (3)

Battery cushion (1)

Carrying bag (1)

Carrying belt (1)

Operating instructions (1)

Warranty (1)

Recommended accessory

Underwater video light HVL-ML20

Design and specifications are subject to change without notice.

Table des matières
