USER MANUAL MPKDVF3 SONY

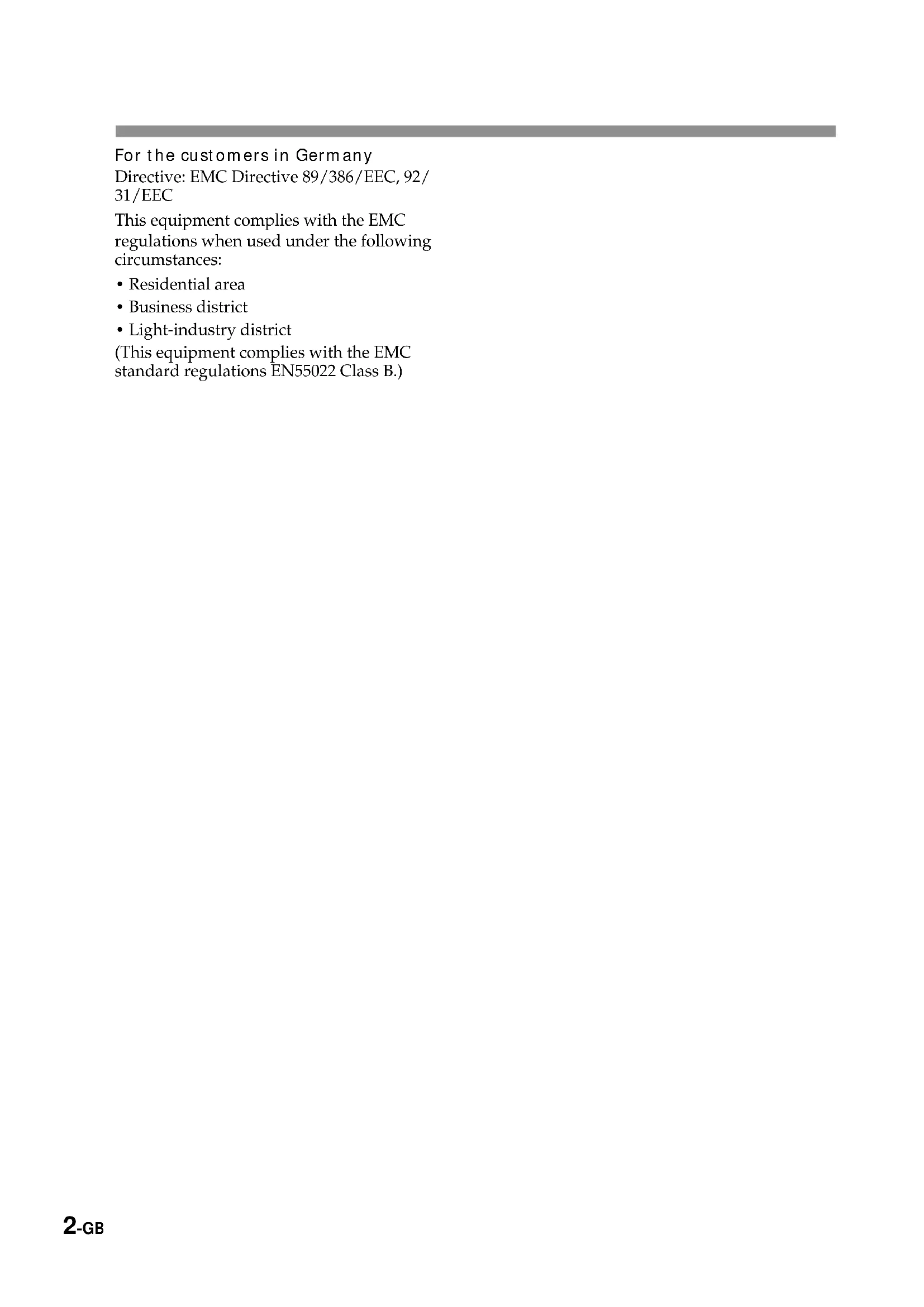

DE2-GB For the customers in Germany Directive: EMC Directive 89/386/EEC, 92/ 31/EEC This equipment complies with the EMC regulations when used under the following circumstances:

• Light-industry district (This equipment complies with the EMC standard regulations EN55022 Class B.)3-GB

Features and Precautions

• The MPK-DVF3 can be used with the Sony Handycam Vision

• Recording at depths of up to 75 meters (246 feet) is possible.

• The following operations can be performed underwater. – Power on/off – Auto focusing on/off – Recording start/stop – Tape photo recording (DCR-TRV6E/TRV8E/TRV9E/TRV10E/TRV11E/TRV20E/ TRV890E/TRV900E only) – Electric zoom function – LCD screen monitoring This mark indicates that this product is a genuine accessory for Sony video products. When purchasing Sony video products, Sony recommends that you purchase accessories with this “GENUINE VIDEO ACCESSORIES” mark. Sony dose not accept liability for damage to the video camera recorder, battery, etc. in the marine pack, or for the loss of prerecorded material if a water leakage caused by incorrect operation occurs. Table of contents Features and Precautions ........................... 3 Supplied Accessories................................... 4 Preparations ................................................. 5 Preparing your camcorder................... 5 Preparing the marine pack (installing the battery) ............................................. 9 Installing the camcorder to the marine pack ....................................................... 11 Recording .................................................... 13 Attaching the supplied accessories .. 14 Attaching the optional accessories ... 15 Underwater recording .............................. 16 Water leakage ...................................... 17 Removing the camcorder ......................... 18 Note on the O-ring .................................... 20 Caution on handling ................................. 21 Identifying parts and controls ................. 22 Specifications .............................................. 234-GB Supplied Accessories Check that the following accessories are supplied with your marine pack. 1 Camera mounting shoe A (1) for DCR-TRV7E 2 Camera mounting shoe B (1) for DCR-TRV6E/TRV8E/TRV9E/ TRV10E/TRV11E/TRV20E/TRV890E/ TRV900E 3 Spacer for camera mounting shoe B (camera mounting shoe C) (1) for DCR-TRV8E/TRV10E 4 Camera mounting shoe D (1) for DCR-TRV6E/TRV11E/TRV20E 5 Screw plate for camera mounting shoe B and D (2) 6 Screw driver part (1) Attachment for the camera mounting shoe B 7 NP-F330 battery pack for the LCD monitor (1) 8 Lithium ion battery CR2 (1) 9 O-ring (1) 0 Underwater wide-conversion lens (VCL-MK2) (1) qa Sunshade (1) qs Reflex prevention ring (2) Large: ø 37 mm (1) Small: ø 30 mm (1) qd Colour filter (VF-MK2) (1) qf Grease (1) qg Carrying bag (1) Carrying belt (1) Battery cushion (1) Strap (3)

Installation positionof the screw plateon the cameramounting shoe B Preparing your camcorder Before installing your camcorder in the marine pack, prepare the camcorder accordingto this chapter. The DCR-TRV20E is the model used for illustration purposes.Otherwise, the model name is indicated in the illustrations. Any differences in procedure are clearly indicated in the text, for example, “DCR-TRV20E only.” The procedure may be different depending on your camcorder type.For details, please refer to the operating instructions supplied with your camcorder. 1 Remove the lens cap, shoulder strap, conversion lens, filter or lenshood from the camcorder. 2 Attach a charged battery pack. 3 Insert a cassette tape. 4 Attach the reflex prevention ring to the lens. for DCR-TRV7E/TRV9E/TRV20E : ø 37 mm (large)for DCR-TRV6E/TRV8E/TRV10E/TRV11E : ø 30 mm (small)for DCR-TRV890E/TRV900E : not necessaryBe sure not too tighten prevention ring. 5 Select the camera mounting shoe. The camera mounting shoe and the installing position of the screw plate differ onyour camcorder. For details, refer to the table below.Cameramounting shoe

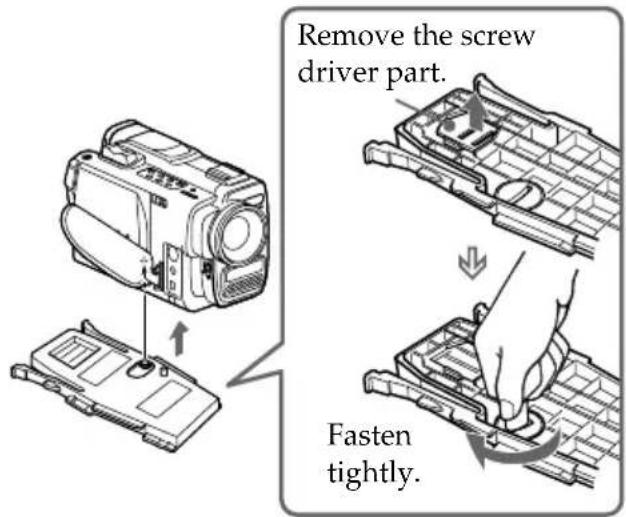

CamcorderDCR-TRV7EDCR-TRV9EDCR-TRV6E/TRV11E/TRV20E/TRV890E/TRV900EDCR-TRV8E/TRV10EDCR-TRV20EDCR-TRV6E/TRV11E Note For DCR-TRV7E, use the camera mounting shoe A only. Do not use cameramounting shoe B, D, and the screw plate.continued6-GB Preparation (continued) 6 Attach the camera mounting shoe. For DCR-TRV7E Use camera mounting shoe A. Fasten the screw of shoe A to the tripod screw hole of the camcorder and tighten firmly. Remove the screw driver part. Fasten tightly. For DCR-TRV9E/TRV890E/TRV900E Use camera mounting shoe B and the screw plate. 1 Check the installation position (1, 2, or 3) of the screw plate for your camcorder according to the table on page 5. 2 Attach the screw plate so that the catch on the reverse side of shoe B clicks into place. 3 Fasten the screw of the screw plate to the tripod screw hole of the camcorder and tighten firmly. 4 Connect the A/V cable of the shoe to the camcorder’s AUDIO/VIDEO jack. Screw plate Camera mounting shoe B B7-GB

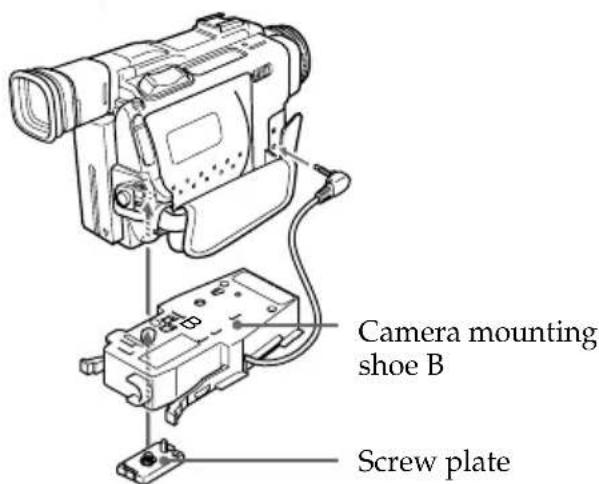

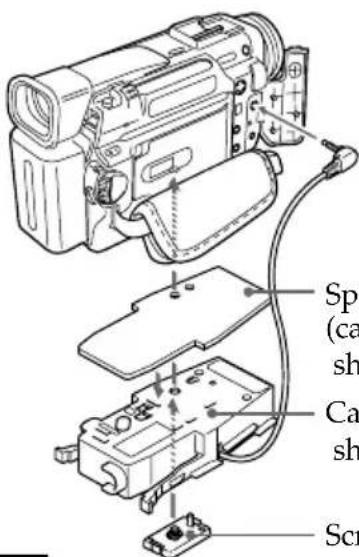

Camera mounting shoe B Screw plate For DCR-TRV8E/TRV10E Use camera mounting shoe B, spacer (camera mounting shoe C), and the screw plate. 1 Attach the spacer to shoe B. 2 Attach the screw plate to position 3 on shoe B so that the catch on the reverse side of the shoe clicks into place. 3 Fasten the screw of the screw plate to the tripod screw hole of the camcorder and tighten firmly. 4 Connect the A/V cable of the shoe to the camcorder’s AUDIO/VIDEO jack. Spacer (camera mounting shoe C)

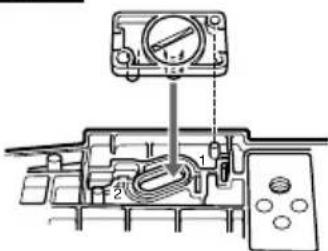

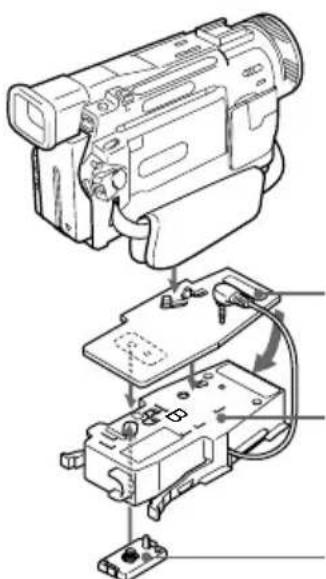

Installation position of the screw plate on the camera mounting shoe B For DCR-TRV6E/TRV11E/TRV20E Use camera mounting shoe B, and D, and the screw plate. 1 Attach the screw plate to the position 1 on shoe D so that the catch on the reverse side of the shoe D clicks into place. 2 Fasten the screw of the screw plate on shoe D to the tripod screw hole of the camcorder and tighten firmly. 3 Attach the screw plate to the position 2 on shoe B. 4 Fasten the screw of the screw plate on the shoe B to the screw hole on the shoe D of the camcorder tightly. 5 Connect the A/V cable of the shoe to the camcorder’s AUDIO/VIDEO jack. Installation position of the screw plate of the camera mounting shoe D Camera mounting shoe D Camera mounting shoe B Now you are ready to install the camcorder to the marine pack. Be sure to check that the camera mounting shoe is attached to the camcorder tightly before you install the camcorder to the marine pack. Screw plate

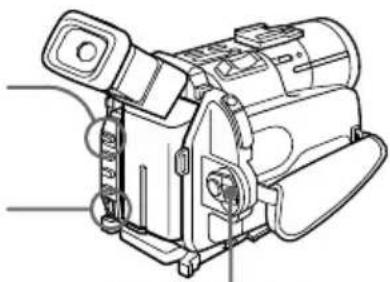

continued8-GB Preparation (continued) 7 Prepare to record. Before installing the marine pack to the camcorder, prepare the camcorder for recording. For DCR-TRV7E 1 Set the POWER switch to CAMERA. 2 Set the COMMANDER to ON in the menu system. 3 Cancel the following functions: BACK LIGHT, Night Shot, PROGRAM AE, and Picture Effect. 4 Slide the AUTO LOCK switch up to AUTO. 5 Select V-OUT/LCD in the DISPLAY menu and press the DISPLAY button on your camcorder before installing it to the marine pack. AUTO LOCK switch MENU button POWER switch FOCUS switch POWER switch

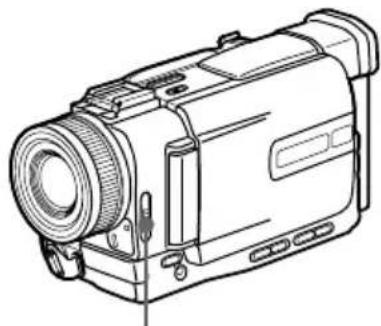

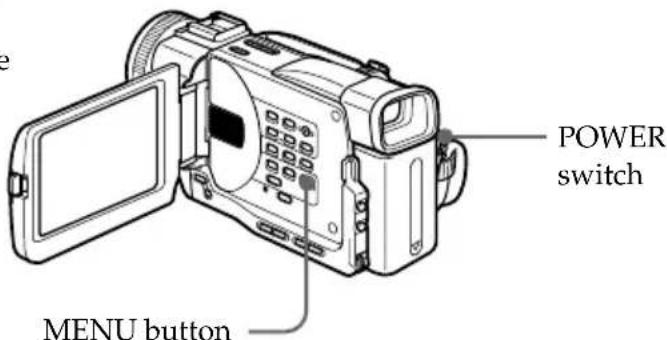

• If your camcorder has REC lamp switch, set the REC lamp to OFF. By using this function, the light of the lamp is not reflected in the lens. For details, please refer to the operating instructions supplied with your camcorder. MENU button For DCR-TRV6E/TRV8E/TRV9E/TRV10E/TRV11E/TRV20E/

1 Set the POWER switch to CAMERA. 2 Set the COMMANDER to ON in the menu system. 3 Cancel the following functions: BACK LIGHT, Night Shot, PROGRAM AE, and Picture Effect. 4 Set the FOCUS switch to AUTO. 5 Select V-OUT/LCD in the DISPLAY menu and press the DISPLAY button on your camcorder before installing the marine pack.9-GB

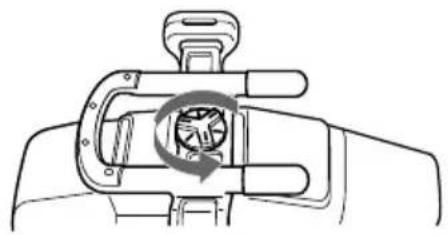

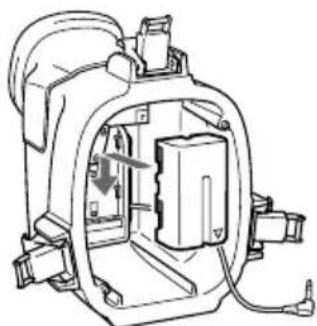

1 Remove the grip. Undo the screw on the bottom side of the marine pack. 2 Insert the lithium battery into the grip. 1 Remove the screw with the supplied screw driver. 2 Insert the supplied lithium battery (CR2, x 1) with the polarity positioned correctly as indicated on the grip. 3 Fasten the screw tightly. 3 Unfasten the 3 latches and open the marine pack. If you lift the metal part in the direction of the finder when the latches are open, the latches will stop. Preparing the marine pack (installing the battery) continued10-GB 4 Attach the supplied battery pack NP-F330 for the LCD monitor to the rear shell. Be sure to charge the battery pack fully before attaching. Note Firmly insert the supplied battery cushion as shown to prevent the battery pack from coming loose if it is dropped or otherwise subjected to impact. About the supplied battery pack NP-F330 What is an “InfoLITHIUM” battery pack? The “InfoLITHIUM” is a lithium ion battery pack which can exchange data with compatible electronic equipment about its battery consumption. Sony recommends that you use the “InfoLITHIUM” battery pack with electronic equipment having the mark.

• The indication may not be accurate depending on the conditions and environment in which the equipment is used. “InfoLITHIUM” is a trademark of Sony Corporation.

• To charge the supplied NP-F330 battery pack, prepare AC adapter/charger that can charge infolithium L type (not supplied).

• You can use also the infolithium L type and NP-F530/F550 AC adapter/charger (not supplied).

• The recording time of a fully charged NP-F330 battery pack is approximately 6 hours (continuous recording). The actual recording time may be less, depending on conditions of use. The “InfoLITHIUM” battery pack is recyclable. When the battery is exhausted and can no longer be recharged, cover the metal parts of the battery with an isolator such as scotch tape and take it to a battery recycling shop. About the LCD monitor

• Images do not appear on the LCD screen unless it is fully connected to your camcorder.

• The remaining time displayed on the LCD screen refers to remaining time of the camcorder battery time, not the remaining time of the LCD monitor battery.

• The LCD monitor of the marine pack does not correspond with the “InfoLITHIUM” battery pack. Preparation (continued)11-GB

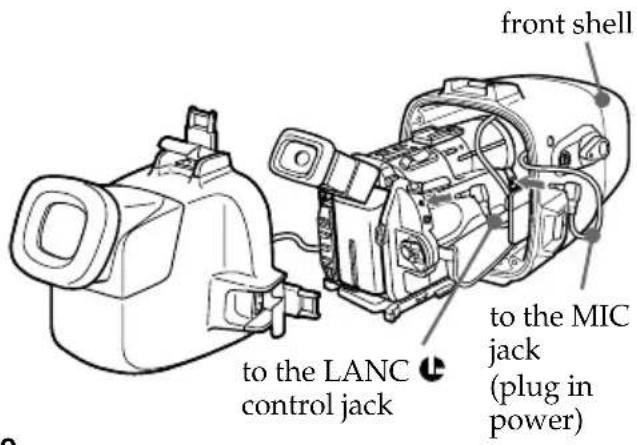

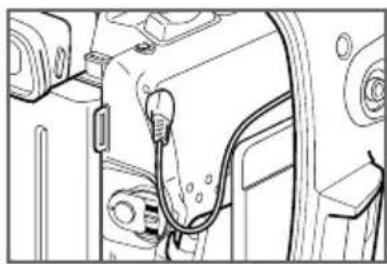

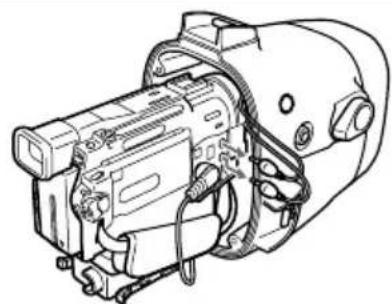

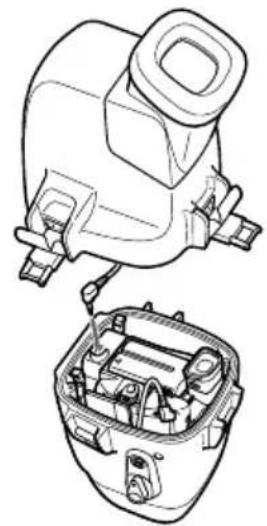

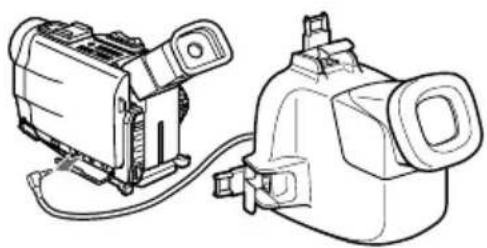

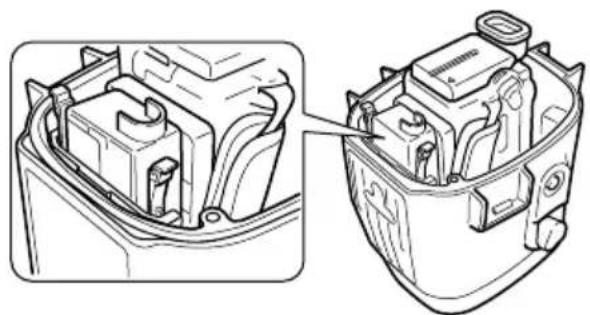

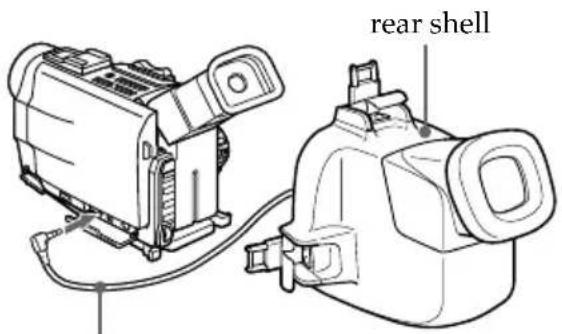

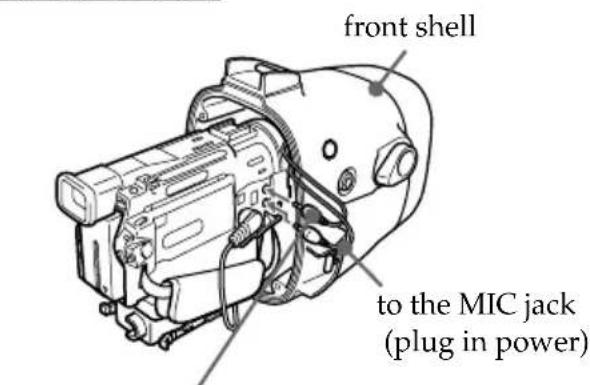

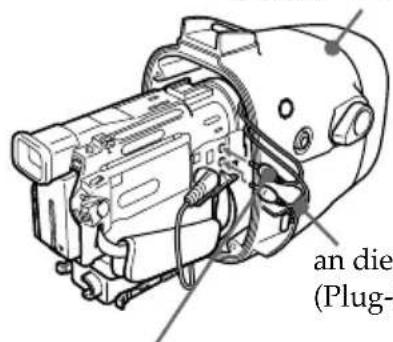

Installing the camcorder to the marine pack Slide through, then pulloutward.monitor cord hookrear shellto the MIC jack (plug inpower) Note To prevent the cords from twisting or slacking,make sure that these plugs are inserted in thedirection indicated in the illustration.to the LANC control jackfront shell 1 Install the camcorder to the marine pack. For DCR-TRV7E Connect the monitor plug.1 Remove the monitor cord hook.2 Connect the monitor plug to theAUDIO/VIDEO jack of thecamcorder.Connect the remote plug and themicrophone plug.3 Connect the microphone plug tothe MIC jack (plug in power).4 Connect the remote plug to theLANC control jack. For DCR-TRV9E/TRV10E/TRV20E/TRV900E Connect the remote plug and themicrophone plug.1 Connect the microphone plug tothe MIC jack (plug in power).2 Connect the remote plug to theLANC control jack.front shellto the MIC jack (plug in power)to the LANC control jackto the AUDIO/VIDEO jack continued12-GB 2 Insert the camcorder until the mounting shoe clicks into place. 3 For DCR-TRV6E/TRV8E/

Connect the monitor cord to the jack of camera mounting shoe B. The cords are placed in the plug holders of the marine pack at the factory. Pull the plugs out of the holders when in use. 4 Attach the front shell to the rear shell. Hold both shells firmly and fasten the 3 latches securely. Take care not to pinch the remote, microphone, and monitor cords. If this happens water may leak in. For details on handling the O-ring, see page 20. 5 Attach the grip. Fasten the screw tightly. Now you have finished the preparations. Be sure to check that the equipment operates correctly and that there is no water leakage before you dive (see page 16). Preparation (continued)13-GB

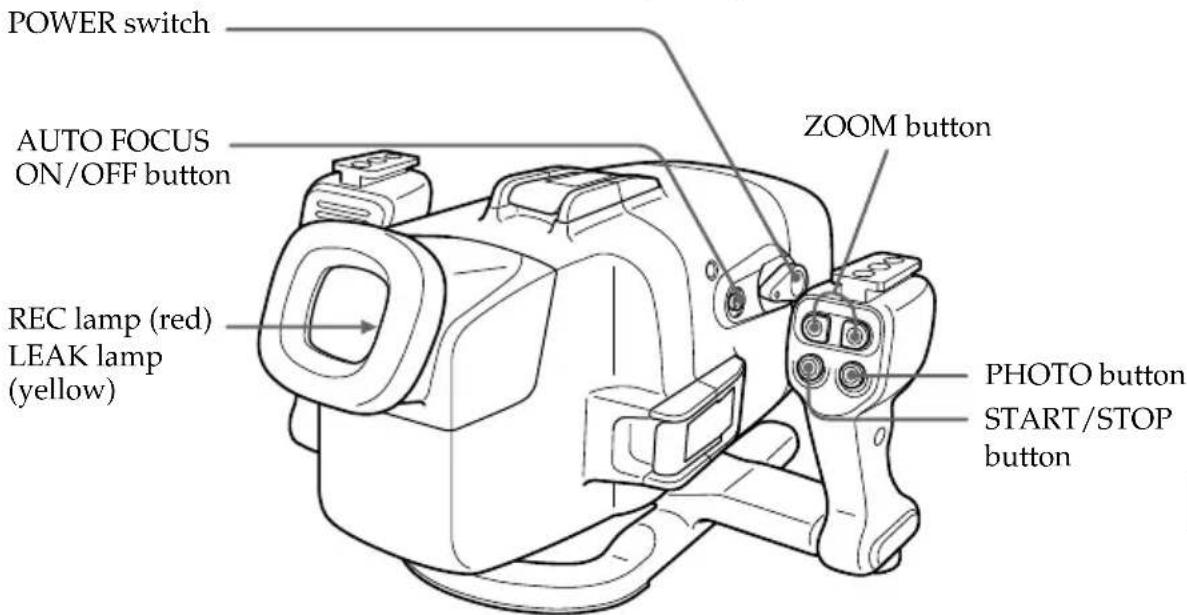

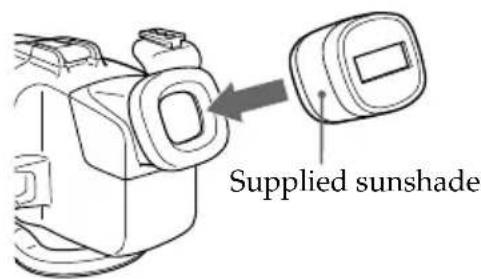

Recording 1 Set the POWER switch to ON. The camcorder turns on and a picture appears on the LCD monitor. 2 Press the START/STOP button to start recording. The REC lamp (red) lights up during recording.To stop recording, press the START/STOP button again.START/STOPbuttonREC lamp (red)LEAK lamp(yellow)ZOOM buttonPHOTO buttonAUTO FOCUSON/OFF buttonPOWER switchNow you are ready for underwater recording.When you dive with the camcorder, dive slowly, paying attention to the surroundingenvironment. Be careful not to strike the marine pack against Rocks or Reef, etc.continued To zoom Press the ZOOM button.Press T for telephoto (subject appears closer) and W for wide-angle (subject appearsfurther away). You cannot change the zooming speed of the camcorder. Recording a still image on a tape (Tape photo recording) (DCR-TRV6E/TRV8E/TRV9E/TRV10E/TRV11E/TRV20E/TRV890E/ TRV900E only) To record a still image, press the PHOTO button. The still image appearing on the LCDscreen is recorded. Note that pressing the PHOTO button lightly does not allow you tocheck the recorded image. The memory photo function does not work on the DCR-TRV10E/TRV11E/TRV20E/TRV900E models. For more details, refer to the operationinstructions supplied with your camcorder. To keep a subject in focus Press the AUTO FOCUS ON/OFF button to set it to OFF. You can still keep the subjectin focus even if fish swim between the camcorder and the subject. Press the AUTOFOCUS ON/OFF button again to set the camcorder to auto focus mode. Note Do not cover the control emitter or detector with your finger as the remote controlsignal for operations is transmitted from the grip to the marine pack.14-GB Recording (continued) Attaching the supplied wide-conversion lens As objects appear 1/4 closer and therefore larger, the wide-conversion lens is recommended when you want to take pictures of wide areas. Note however, that objects will appear smaller. Note This supplied wide-conversion lens is to be used only underwater. Using the supplied sunshade The supplied sunshade reduces glare from the LCD monitor. Attaching the supplied colour filter When using the supplied colour filter, attach it on top of the wide-conversion lens. Water absorbs light, especially red light, so that objects in deep water are seen bluish. The colour of objects is affected by the clarity of the water. To record in natural colour, use the supplied colour filter. You can attach and remove the wide-conversion lens, sunshade, and colour filter underwater. If the image on the LCD screen is not clear because of air between these accessories and the marine pack, reattach them underwater. Attaching the supplied strap Attach the strap as the shown. Attach the supplied straps to prevent loss of these accessories when removing them both on land and underwater. Supplied sunshade Sunshade Attaching the supplied accessories Wide-conversion lens colour filter To attach the strap colour filter Wide- conversion lens Attach the wide-conversion lens until it fits firmly.15-GB

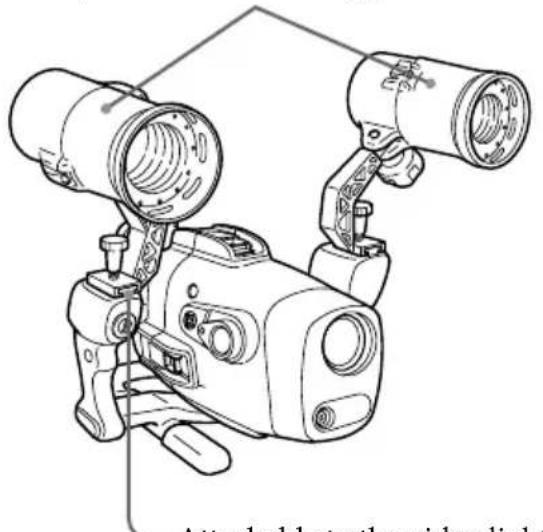

Underwater video light In deep water or under rocks where direct sunlight does not reach, recording with underwater video lights is recommended. You can attach these video lights to the video light shoes on the upper part of both grips. Underwater video lights such as the Sony HVL-ML20 (not supplied) Attaching the optional accessories Attachable to the video light shoes on both sides16-GB Underwater recording Before diving Check that the equipment operates correctly and that there is no water leakage at a depth of about one meter (3 feet) before you dive deeper. Take care not to expose the equipment to salty air. Do not drop water on the equipment. Do not open the marine pack underwater or on the beach. Preparations such as installing and checking the equipment should be done in a place with low humidity and no salty air. Check the following points again before you dive. s Be sure to fully charge both the battery pack of the marine pack and the camcorder.

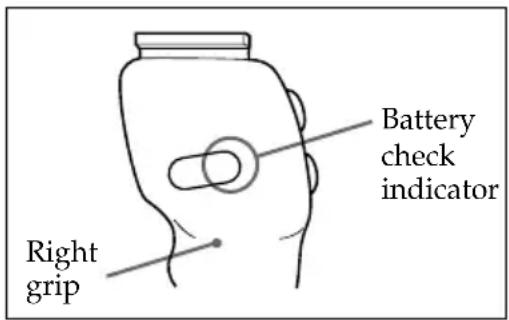

• We recommend you use battery packs with a large capacity and prepare a spare battery. s Be sure that a video tape has enough left. s Check that there are no scratches or cracks on the O-ring. s Make sure there is no dust, sand, or hair between the front shell and the rear shell. s Be sure that the lithium battery has enough power.

• The Flash lamp lights up if the remaining battery capacity is enough. Check this indicator as a criterion. If the flash lamp does not light, exchange for a new one. We suggest that you prepare spare ones. Conditions of underwater recording Recording underwater is different from recording on land because it is affected by the clarity, depth of the water, and the light conditions. The following are hints for good recording underwater. Best time for recording The best recording time is from 10:00 a.m. to 2:00 p.m. When the sun is at its highest, optimum results can be obtained. To record is in dark places as the sun does not reach or at night, use a powerful underwater video light. Right grip Battery check indicator17-GB

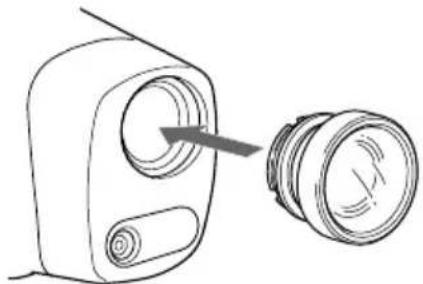

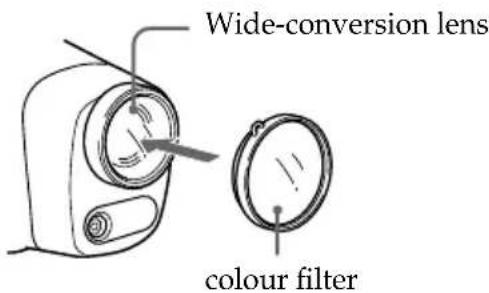

Subject size underwater Since the refractive index underwater is higher than that in air, objects appear 1/4 closer, and therefore larger. This phenomenon affects the lens on the camcorder as well as human the eye. Using the supplied wide-conversion lens is recommended. Operate the camera with slow and stable motions When recording, keep your body stable. An unstable shot will be magnified on the TV screen. Move the camcorder as slowly as possible. Since most of the objects underwater move, you can record a good shot without moving the camcorder too much. Note on recording underwater Be sure to follow the safety rules for diving, such as diving period and depth. Water leakage The marine pack is designed to be waterproof, however if water happens to leak in ,the LEAK lamp (yellow) flashes. In such a case, remove the marine pack from the water as soon as possible, keeping it horizontal. Be sure to surface following the safety rules for diving. Dry the marine pack with a soft cloth and then open it. To switch off the lamp, disconnect the remote control cable. Check the cause of the leak. If the camcorder is wet, take it to the nearest Sony dealer immediately. We recommend you purchase property damage insurance for underwater materials in case of emergency. After using

• After recording in the sea, submerge the marine pack in tap water or fresh water for about 30-60 minutes before undoing the latches to completely remove any salt from the marine pack unit, filter, and wide-conversion lens.

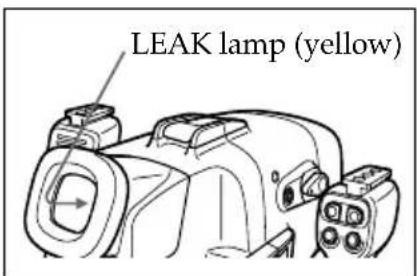

• When your camcorder is to be used near the sea for a long time, we recommend that it be checked periodically by a Sony dealer. LEAK lamp (yellow)18-GB Before opening the marine pack, rinse it with fresh water and dry with a soft cloth.When you open the marine pack, make sure you are dry. And take care that no waterdrips from your wet suit. 1 Remove the grip. 2 For DCR-TRV6E/TRV8E/

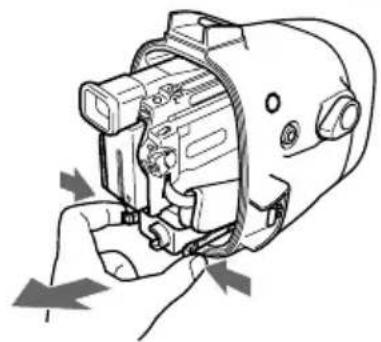

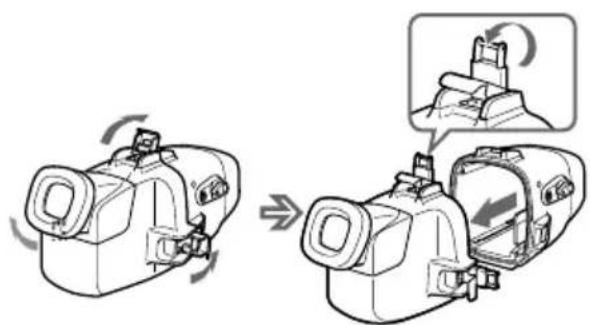

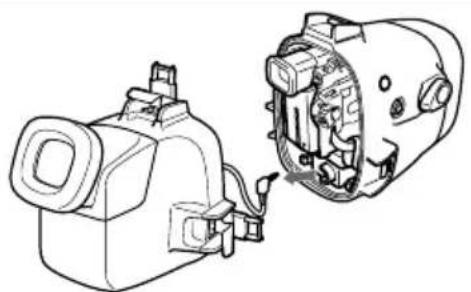

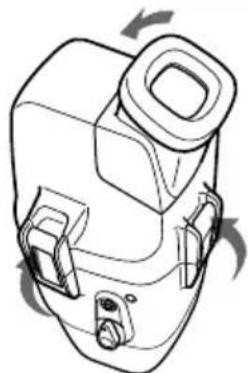

Unfasten 3 latches and open themarine pack.Disconnect the monitor cord fromthe camera mounting shoe B. 3 Take the camcorder out of the front shell. Hold the camera mounting shoe bythe knobs and extract thecamcorder.When you open the marine pack,do not pull the monitor plug cordby force. 4 Disconnect the remote plug and the microphone plug. 5 For DCR-TRV6E/TRV8E/

Disconnect the A/V connectingcable of camera mounting shoe Bfrom the AUDIO/VIDEO jack. For DCR-TRV7E Disconnect the monitor plug fromthe AUDIO/VIDEO jack. Removing the camcorder19-GB

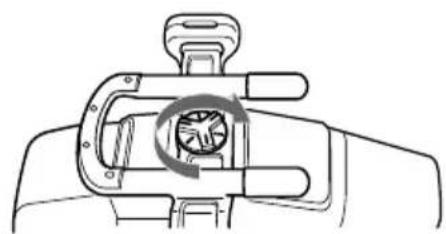

6 Remove the camera mounting shoe with the screw driver. Undo the screw of the screw plate and remove the camera mounting shoe from thecamcorder. 7 Remove the battery pack for the LCD monitor. After using the marine pack

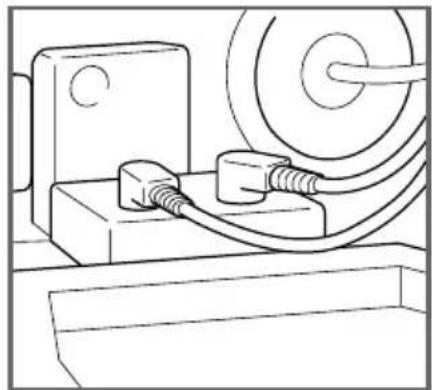

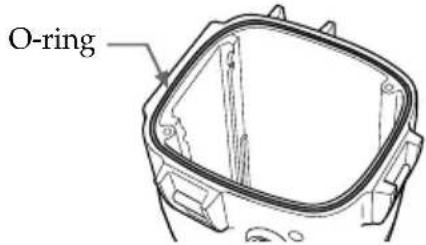

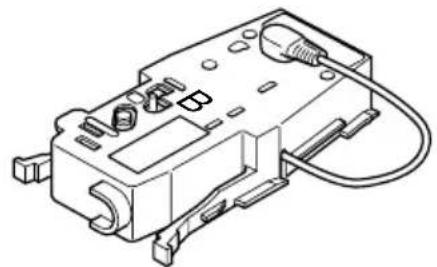

• Insert the A/V connecting cable plugto the plug holder of the cameramounting shoe B.• Insert the remote and microphoneplugs to the plug holder inside of thefront shell. B20-GB The O-ring assures the waterproof function of the marine pack. To maintain waterproof integrity, use it correctly. Incorrect handling may cause water to leak in. Check the O-ring Before using the marine pack each time, check that there are no scratches or cracks on the O-ring and prevent dust from collection on it as it could allow water to leak in.

• Remove the O-ring from the groove with your finger. Do not use a metal tool or a tool with a sharp point.

• Put the O-ring in the groove evenly. Never twist it.

• Check that there are no cracks or dust on the O-ring, then coat it slightly with the supplied grease using your finger. This will prevent wear.

• While applying the grease, recheck for cracks or dust. Never use cloth or paper to apply grease because the fibers may cling. If you run out of silicone grease (2-115-921-01) you can purchase it from your nearest Sony Service Center. Remove any dust, sand, or hair from the O-ring Make sure there is no dust, sand, or hair on the O-ring, in the groove, or on the surface of the marine pack where the O-ring touches. If there is, clean it completely, or the O- ring and the surface of the marine pack may be damaged and water may leak in. Do not pinch the O-ring with the marine pack When joining the front and rear shells, take care not to pinch the O-ring between the front and rear shells. If this happens, not only will the O-ring be damaged, but water may leak in. Useful life of the O-ring Depending upon the maintenance and the length of use, we recommend changing the O-ring every one or two years. The O-ring (3-977-362-01) can be replaced at your nearest Sony Service Center. When you store the O-ring Store a reserve O-ring in its package in a cool dry place. Do not store in very hot, cold, or humid place. Be careful not to crimp it or to place any heavy weight on it. Note on the O-ring O-ring21-GB

After using The metal parts will rust and the movement of the operation switches will be impaired if you leave salt water on the marine pack. If sea water enters through scratches in the coating, the salt can corrode the metal parts of the marine pack unit and cause the coating to peel off. After recording in the sea, submerge the marine pack in tap water or fresh water for about 30 minutes before undoing the buckles to completely remove any salt from the marine pack unit, filter, and wide-conversion lens. After washing, wipe any water from the inside of the marine pack and the loaded video camcorder with a soft dry cloth.

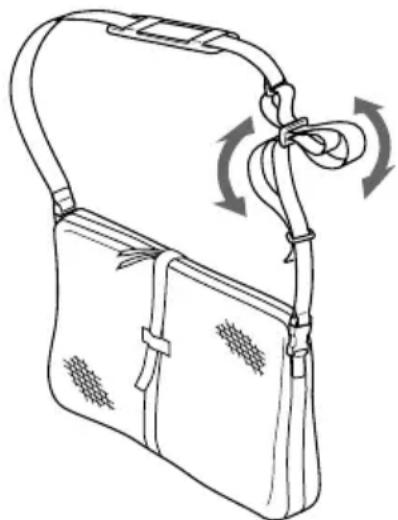

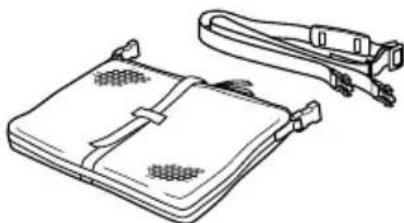

• Always follow the above precautions when you use the marine pack. When you open the marine pack or exchange the battery pack of the grip, take care that no water drips from your wet suit or hair. Do not leave the marine pack under direct sunlight for a long period of time, otherwise the temperature in the marine pack may rise and the equipment inside may be damaged. If you cannot avoid leaving the marine pack under direct sunlight, be sure to cover the marine pack with a towel or other protection. When you store the marine pack Coat the O-ring slightly with the supplied grease, and put it in the groove correctly. Join the front and rear shells then put it in a cool and dry place without fastening the buckles. Avoid storing the marine pack in a very hot, cold, or humid place, or together with naphthalene or camphor, as these conditions might damage the unit. On transportation When transporting the marine pack, be sure to remove your camcorder from it. Otherwise this might damage the unit. Note When you use the supplied carrying bag, attach the supplied carrying belt and adjust the length of the belt. Avoid rough handling or a shock. We recommend covering the marine pack with a towel or other protection. Caution on handling22-GB

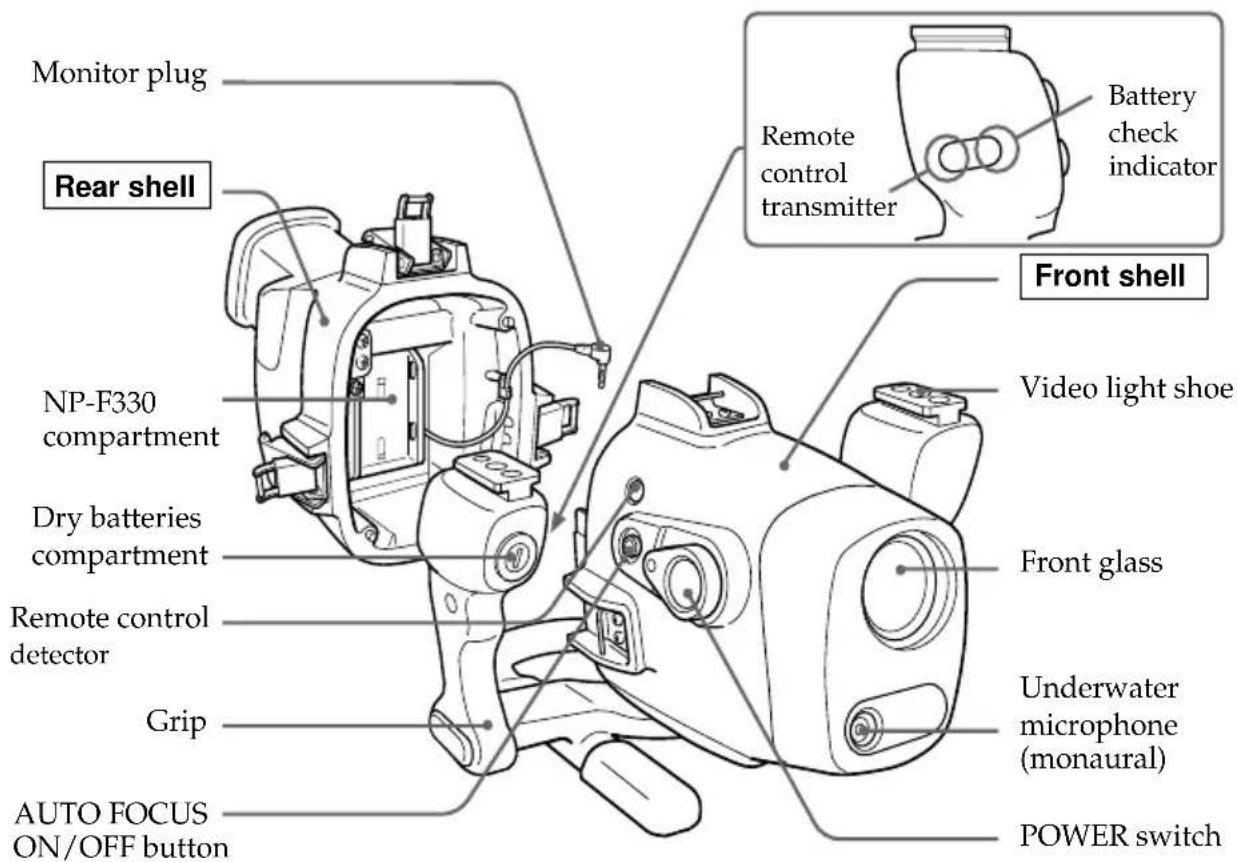

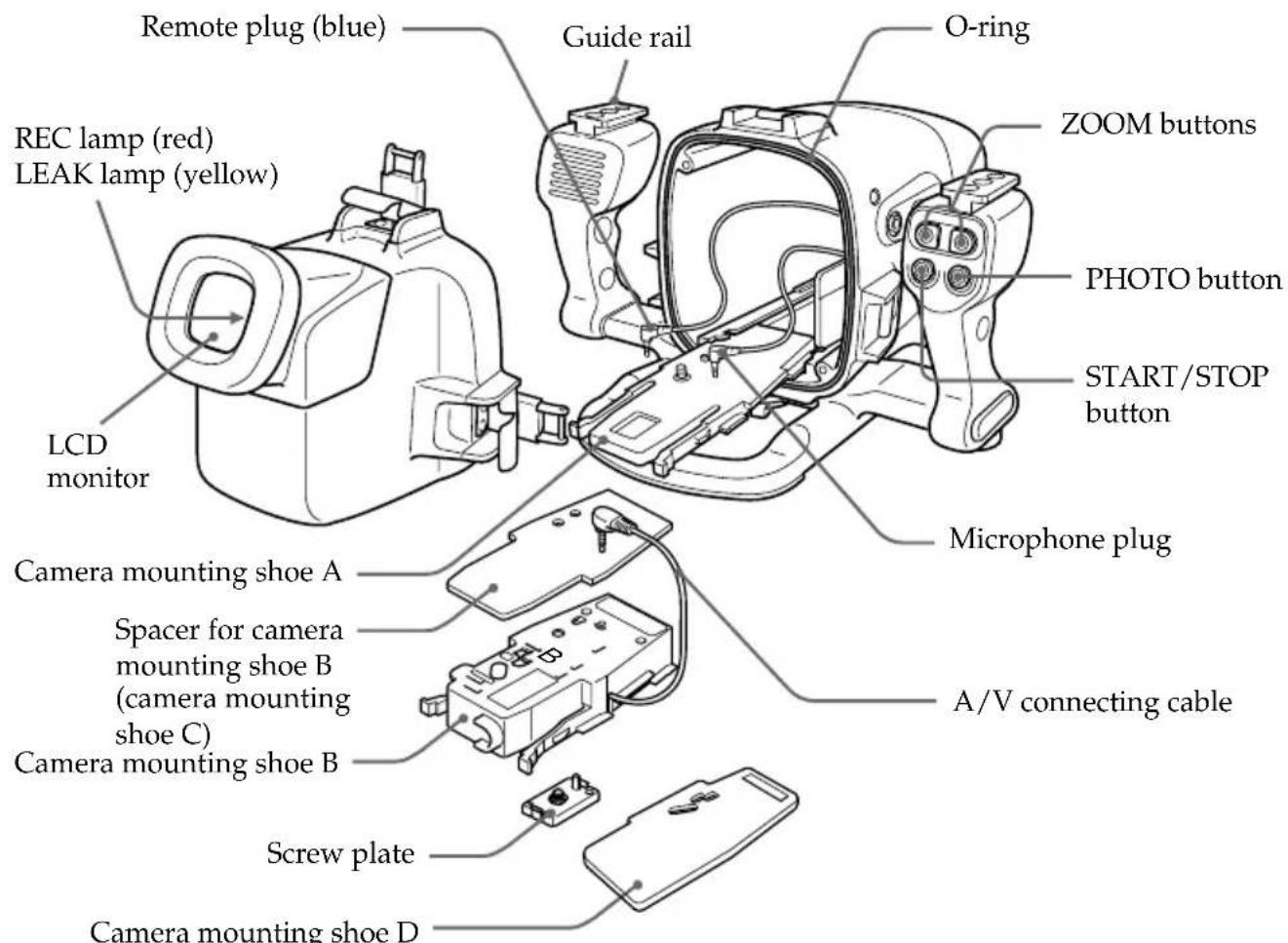

Identifying parts and controls Front shell Front glass Video light shoe ZOOM buttons START/STOP button POWER switch Underwater microphone (monaural) O-ring Dry batteries compartment Remote control transmitter REC lamp (red) LEAK lamp (yellow) Rear shell Grip AUTO FOCUS ON/OFF button NP-F330 compartment Remote control detector Monitor plug PHOTO button Camera mounting shoe B A/V connecting cable Spacer for camera mounting shoe B (camera mounting shoe C) Battery check indicator Camera mounting shoe D Screw plate LCD monitor Guide rail Camera mounting shoe A Microphone plug Remote plug (blue)23-GB

Specifications Material Aluminum alloy, glass, plastic (ABS, PC) Waterproofing O-ring, 3 latches Usable depth Up to 75 meters (246 feet) Underwater microphone Condenser microphone (monaural) Controllable function Power on/off, recording start/stop, auto focus on/off, power zooming, tape photo recording (DCR-TRV6E/TRV8E/TRV9E/TRV10E/TRV11E/TRV20E/TRV890E/ TRV900E only) Dimensions Approx. 312 x 212 x 318 mm (w/h/d) (12 3/8 x 8 3/8 x 12 5/8 in.) Mass Approx. 4.4 kg (9 lb 11 oz) (the unit only) Supplied accessories Camera mounting shoe A, B, D (1 each) Spacer for camera mounting shoe B (Camera mounting shoe C) (1) Screw plate (2) Screw driver part (1) Wide-conversion lens (1) Colour filter (1) NP-F330 battery pack for the monitor (1) Lithium battery CR2 (1) Grease (1) O-ring (1) Sunshade (1) Reflex prevention ring (2) Strap (3) Battery cushion (1) Carrying bag (1) Carrying belt (1) Operating instructions (1) Warranty (1) Recommended accessory Underwater video light HVL-ML20 Design and specifications are subject to change without notice.3-FR
